Murata Electronics North America 934 Frequency Hopping RF Modem User Manual 11 0449 Exhibit Cover

Murata Electronics North America Frequency Hopping RF Modem 11 0449 Exhibit Cover

Manual

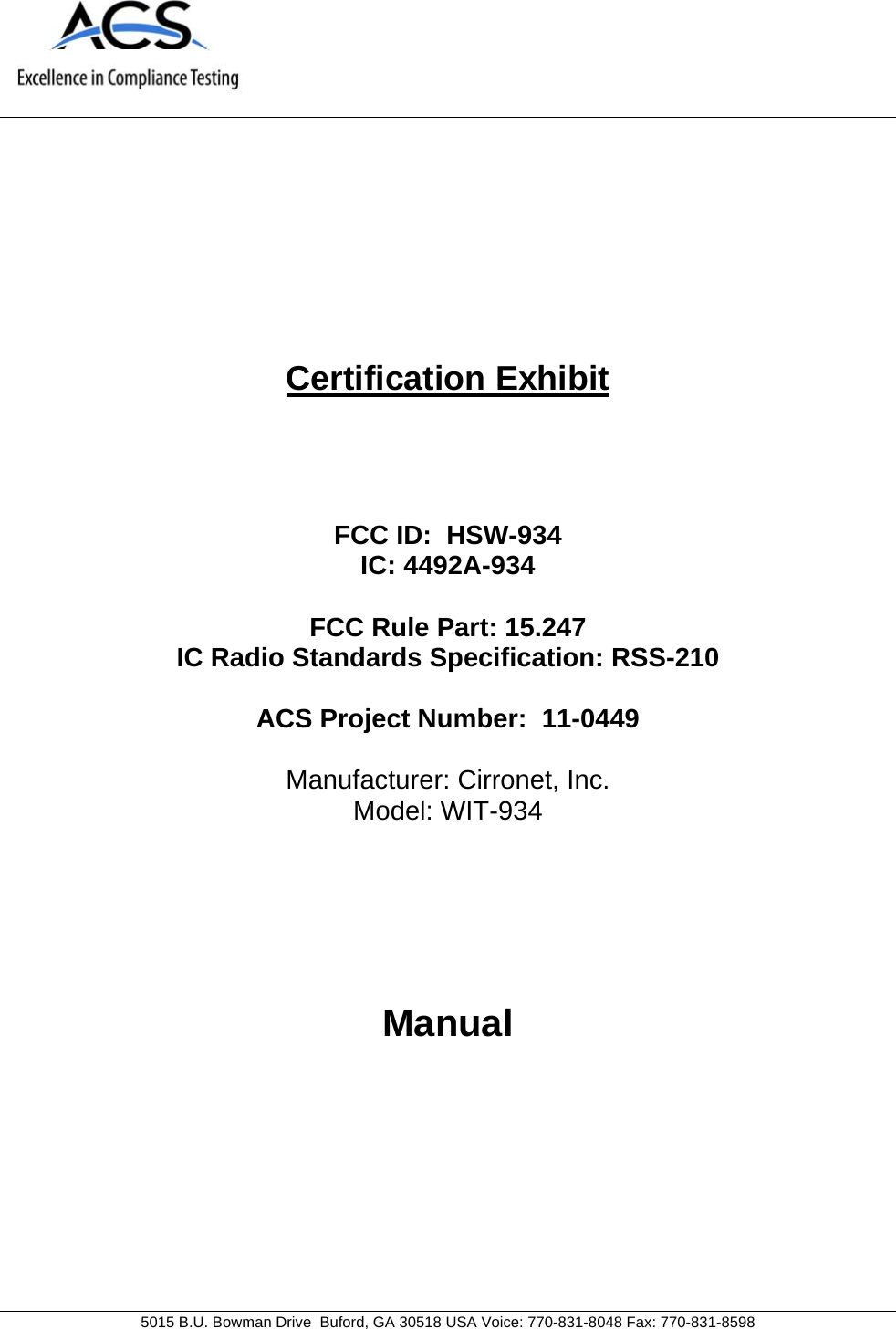

    5015 B.U. Bowman Drive  Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598   Certification Exhibit     FCC ID:  HSW-934 IC: 4492A-934  FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210  ACS Project Number:  11-0449   Manufacturer: Cirronet, Inc. Model: WIT-934     Manual

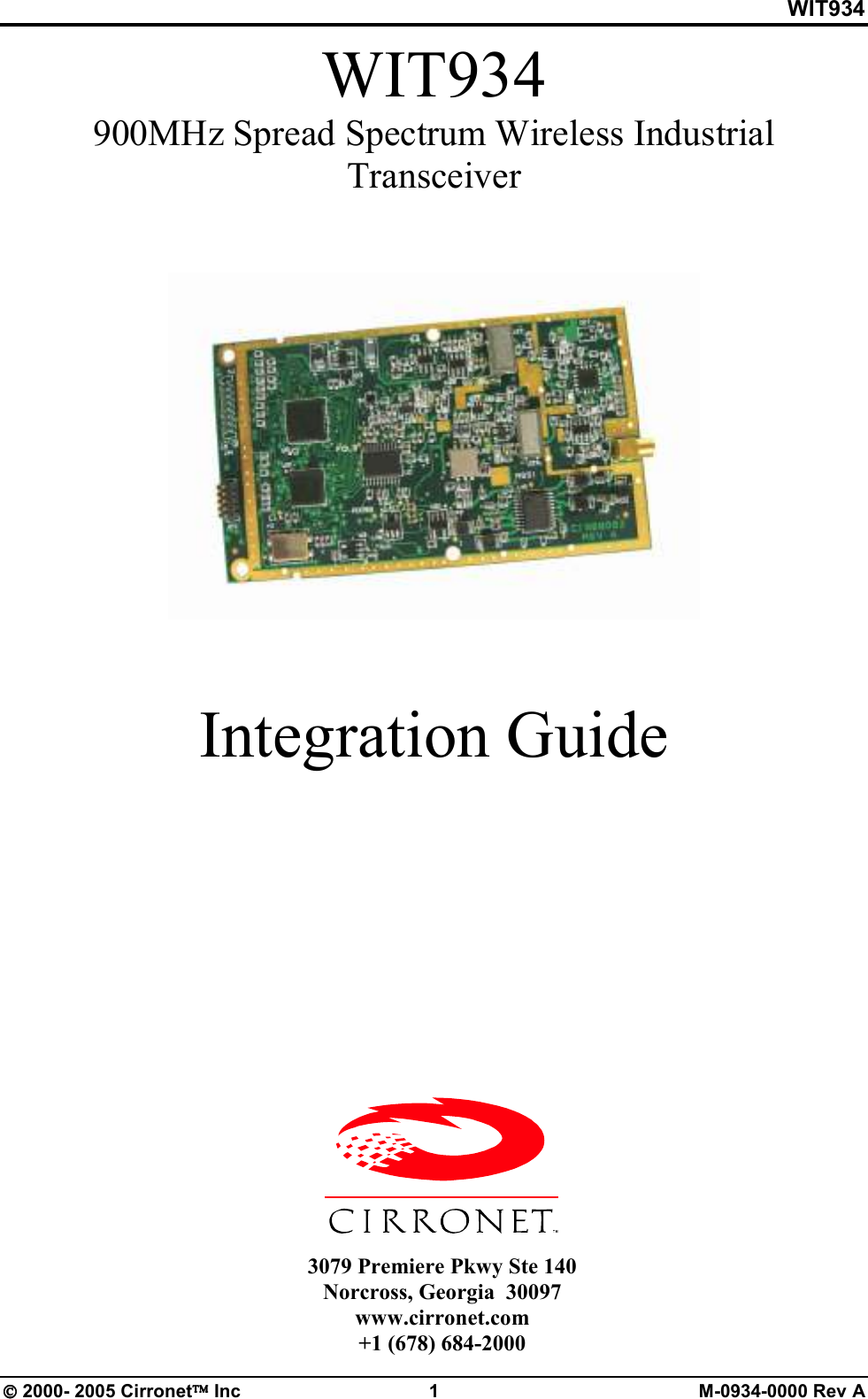

WIT934  2000- 2005 Cirronet Inc  1  M-0934-0000 Rev A WIT934 900MHz Spread Spectrum Wireless Industrial Transceiver    Integration Guide        3079 Premiere Pkwy Ste 140 Norcross, Georgia  30097 www.cirronet.com +1 (678) 684-2000

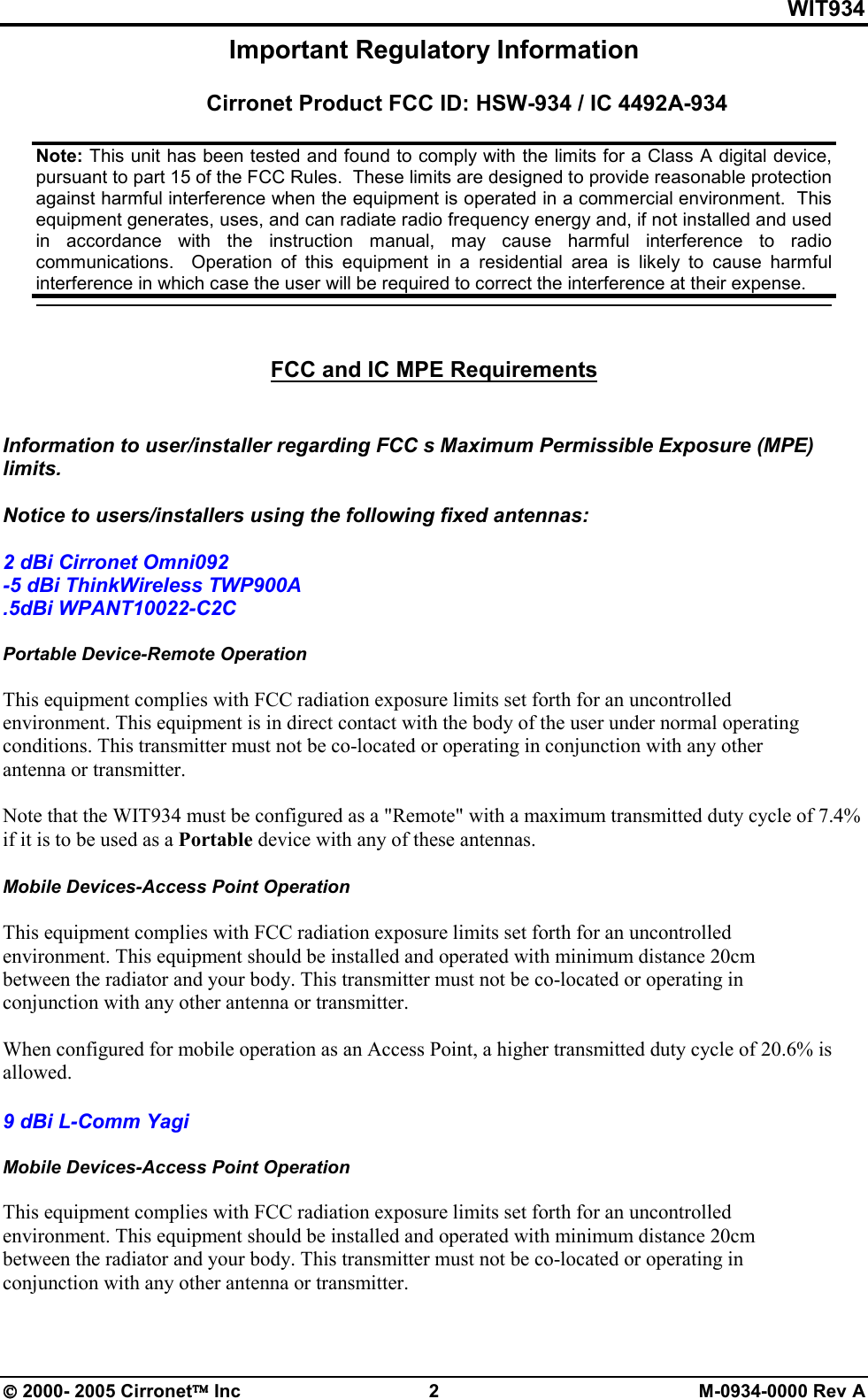

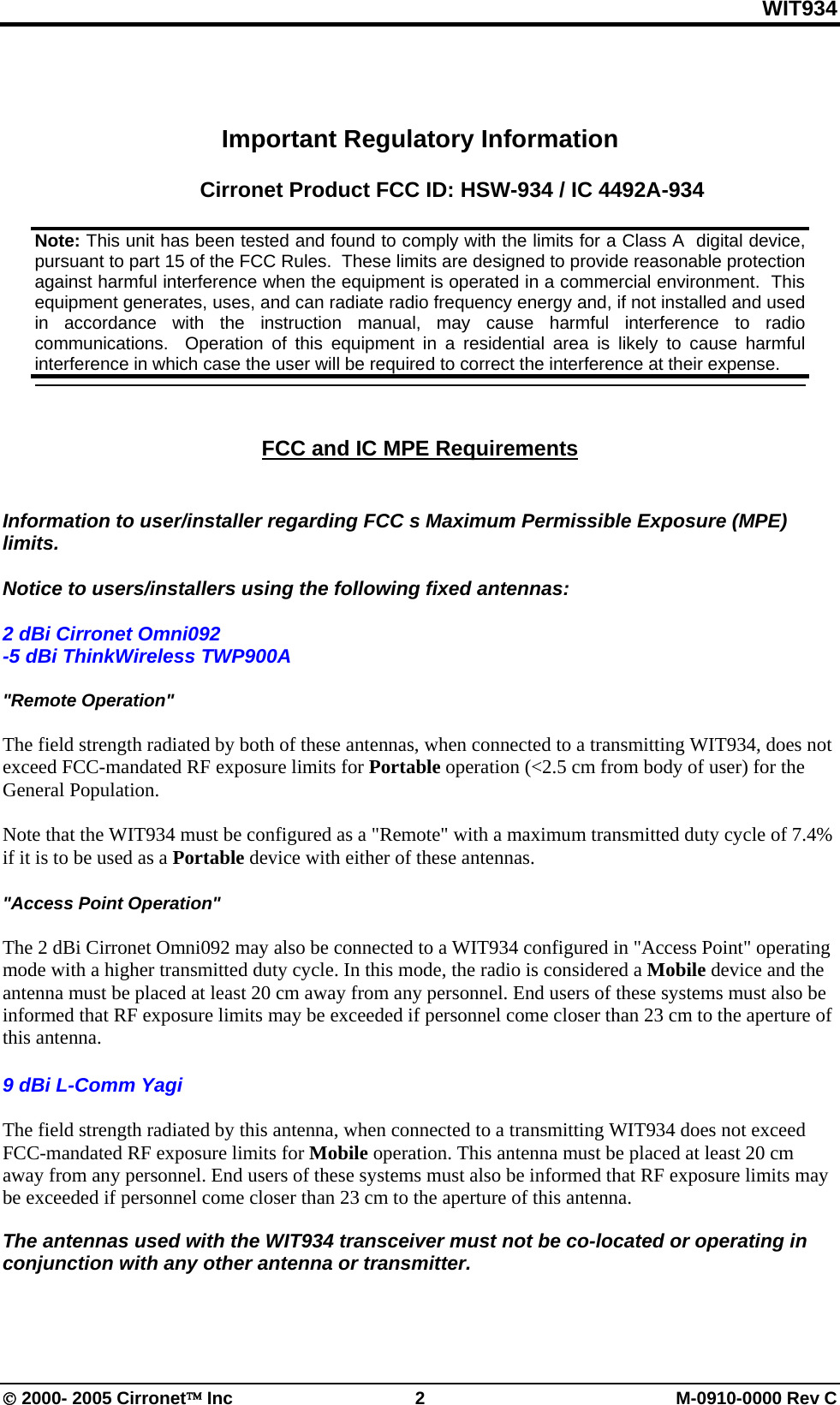

WIT934  2000- 2005 Cirronet Inc  2  M-0934-0000 Rev A Important Regulatory Information  Cirronet Product FCC ID: HSW-934 / IC 4492A-934     FCC and IC MPE Requirements    Information to user/installer regarding FCC s Maximum Permissible Exposure (MPE) limits.   Notice to users/installers using the following fixed antennas:   2 dBi Cirronet Omni092 -5 dBi ThinkWireless TWP900A .5dBi WPANT10022-C2C  Portable Device-Remote Operation  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment is in direct contact with the body of the user under normal operating conditions. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Note that the WIT934 must be configured as a "Remote" with a maximum transmitted duty cycle of 7.4% if it is to be used as a Portable device with any of these antennas.   Mobile Devices-Access Point Operation  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  When configured for mobile operation as an Access Point, a higher transmitted duty cycle of 20.6% is allowed.   9 dBi L-Comm Yagi  Mobile Devices-Access Point Operation  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Note: This unit has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.  This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in  accordance  with  the  instruction  manual,  may  cause  harmful  interference  to  radio communications.    Operation  of  this  equipment  in  a residential  area  is  likely  to  cause  harmful interference in which case the user will be required to correct the interference at their expense.

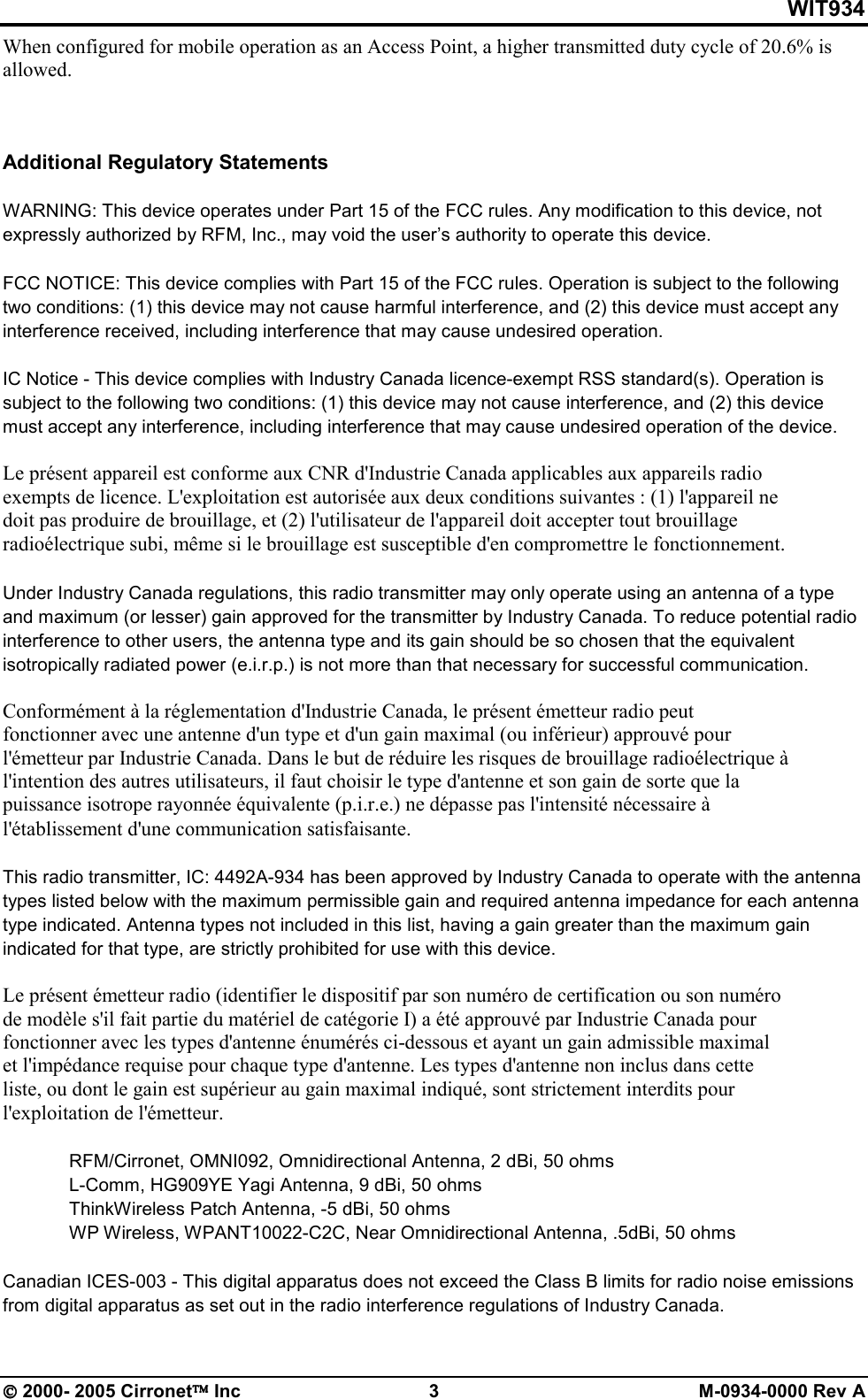

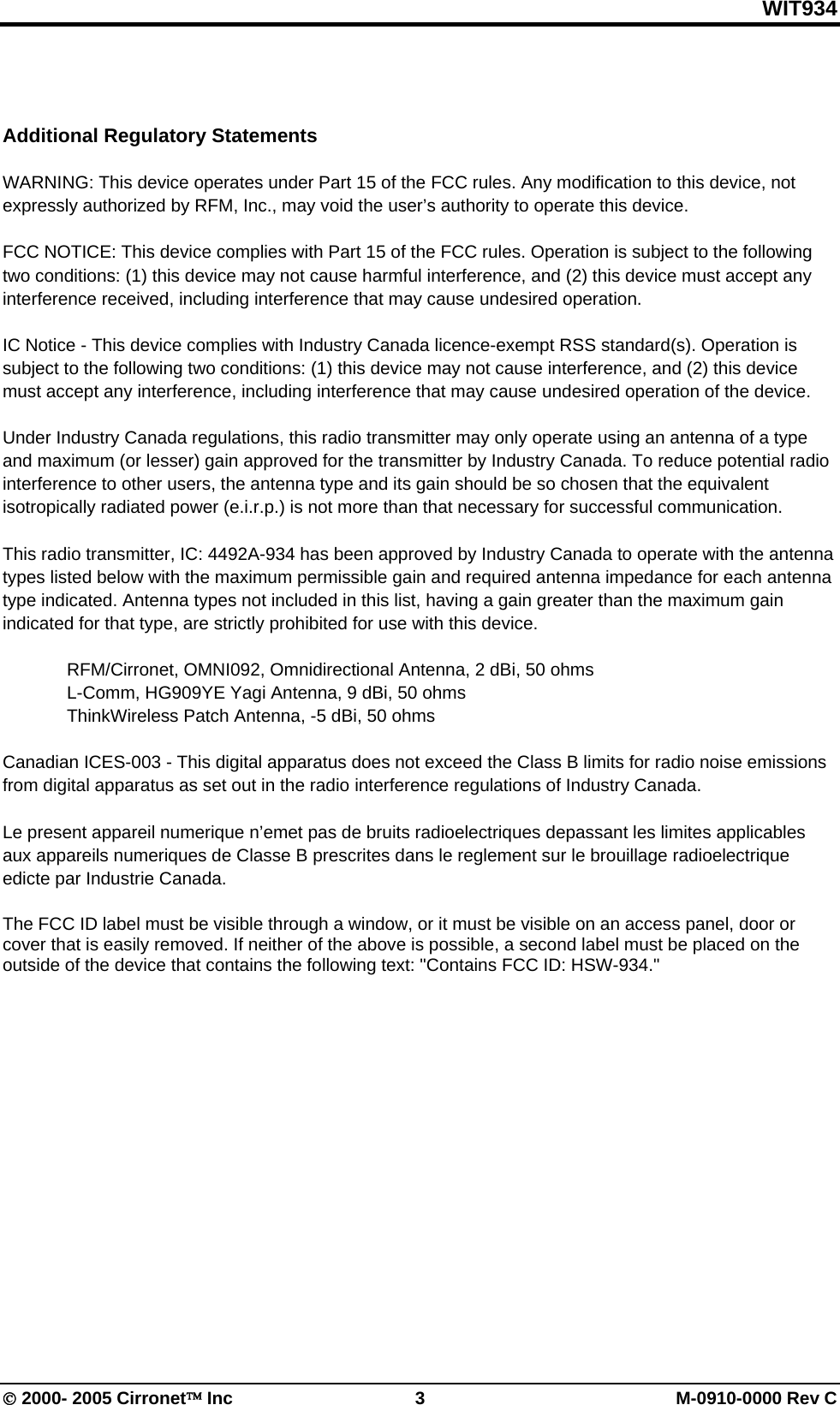

WIT934  2000- 2005 Cirronet Inc  3  M-0934-0000 Rev A When configured for mobile operation as an Access Point, a higher transmitted duty cycle of 20.6% is allowed.     Additional Regulatory Statements  WARNING: This device operates under Part 15 of the FCC rules. Any modification to this device, not expressly authorized by RFM, Inc., may void the user’s authority to operate this device.  FCC NOTICE: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  IC Notice - This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.  Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.  This radio transmitter, IC: 4492A-934 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.  Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.     RFM/Cirronet, OMNI092, Omnidirectional Antenna, 2 dBi, 50 ohms L-Comm, HG909YE Yagi Antenna, 9 dBi, 50 ohms ThinkWireless Patch Antenna, -5 dBi, 50 ohms WP Wireless, WPANT10022-C2C, Near Omnidirectional Antenna, .5dBi, 50 ohms  Canadian ICES-003 - This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

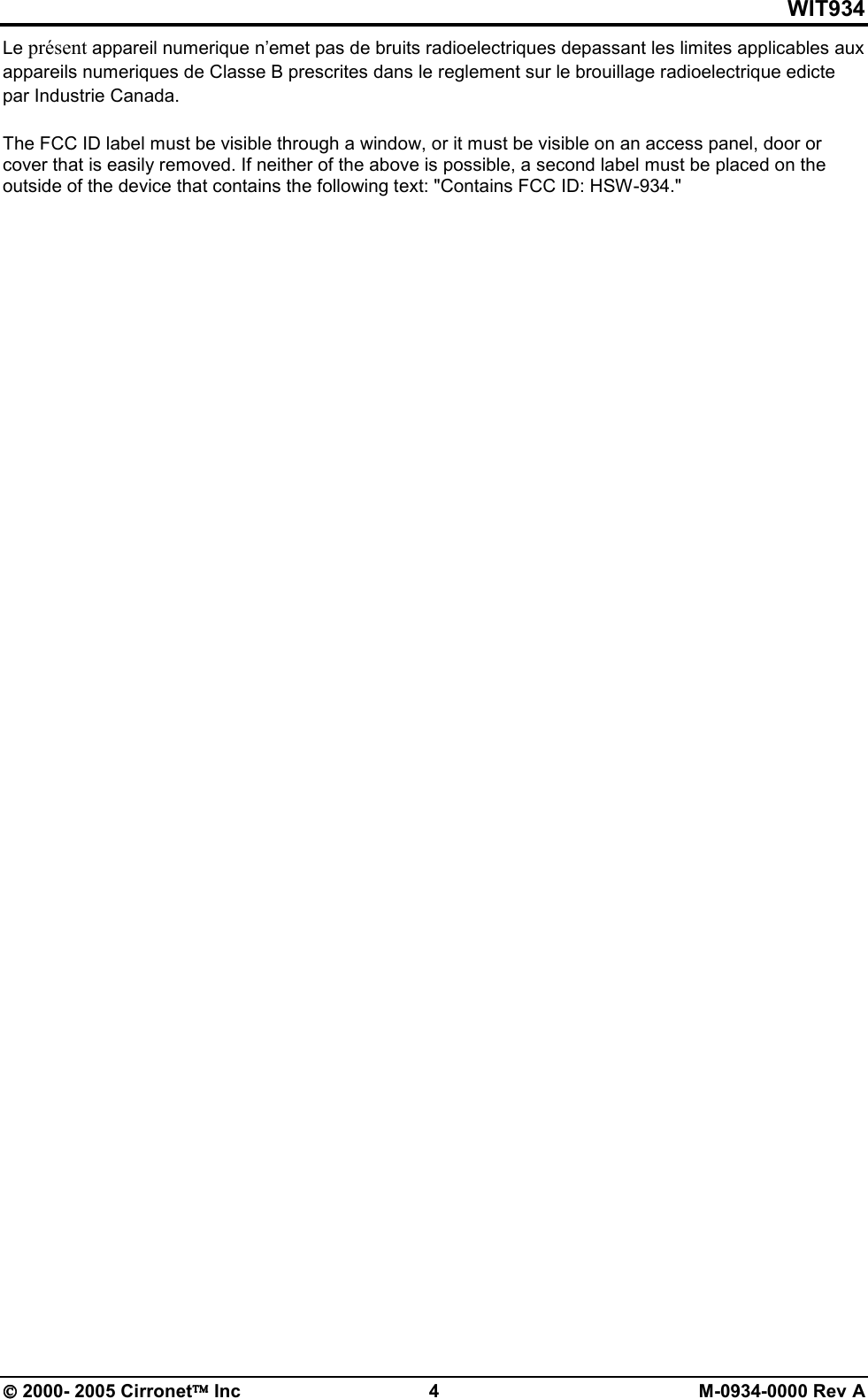

WIT934  2000- 2005 Cirronet Inc  4  M-0934-0000 Rev A Le présent appareil numerique n’emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de Classe B prescrites dans le reglement sur le brouillage radioelectrique edicte par Industrie Canada.  The FCC ID label must be visible through a window, or it must be visible on an access panel, door or cover that is easily removed. If neither of the above is possible, a second label must be placed on the outside of the device that contains the following text: "Contains FCC ID: HSW-934."

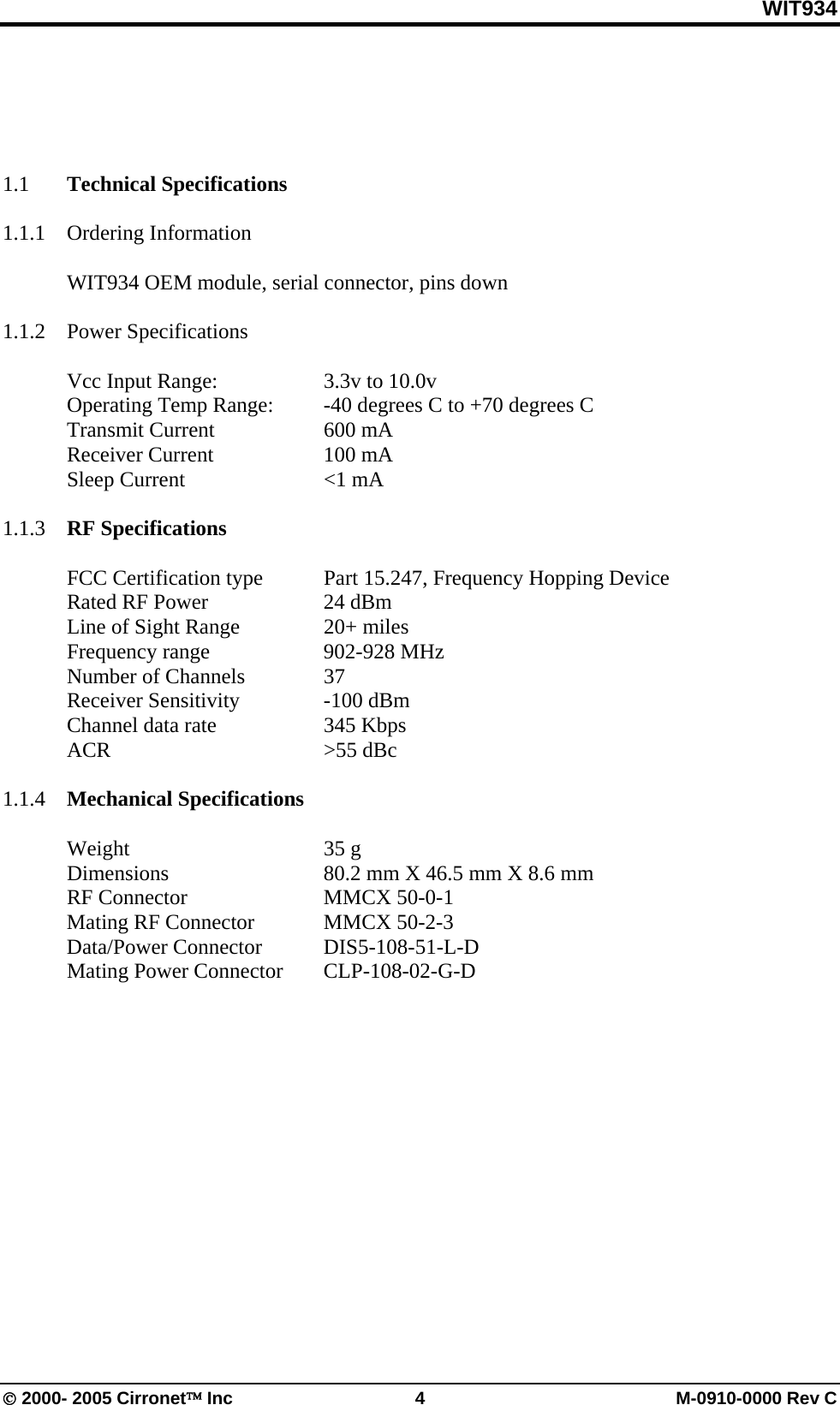

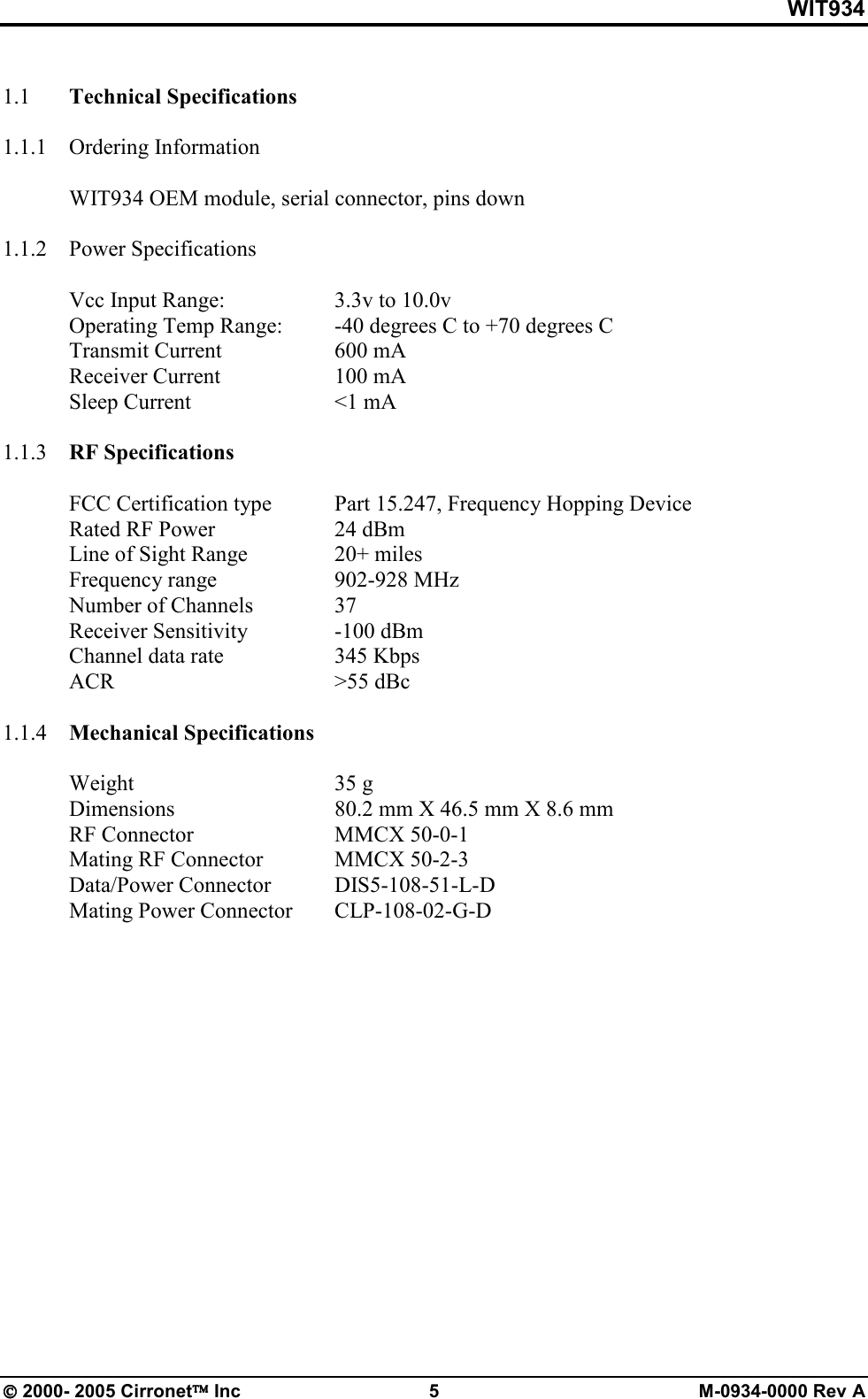

WIT934  2000- 2005 Cirronet Inc  5  M-0934-0000 Rev A   1.1  Technical Specifications  1.1.1  Ordering Information        WIT934 OEM module, serial connector, pins down  1.1.2  Power Specifications    Vcc Input Range:     3.3v to 10.0v   Operating Temp Range:  -40 degrees C to +70 degrees C   Transmit Current    600 mA   Receiver Current    100 mA   Sleep Current      <1 mA  1.1.3   RF Specifications    FCC Certification type  Part 15.247, Frequency Hopping Device   Rated RF Power    24 dBm   Line of Sight Range    20+ miles   Frequency range    902-928 MHz   Number of Channels    37   Receiver Sensitivity    -100 dBm   Channel data rate    345 Kbps   ACR        >55 dBc  1.1.4  Mechanical Specifications    Weight       35 g   Dimensions      80.2 mm X 46.5 mm X 8.6 mm   RF Connector      MMCX 50-0-1   Mating RF Connector   MMCX 50-2-3   Data/Power Connector  DIS5-108-51-L-D   Mating Power Connector  CLP-108-02-G-D
