NANJING PANDA ELECTRONICS ANUFACTURING LCDTV32-D LCD Monitor/TV User Manual

NANJING PANDA ELECTRONICS ANUFACTURING CO., LTD. LCD Monitor/TV

User Manual

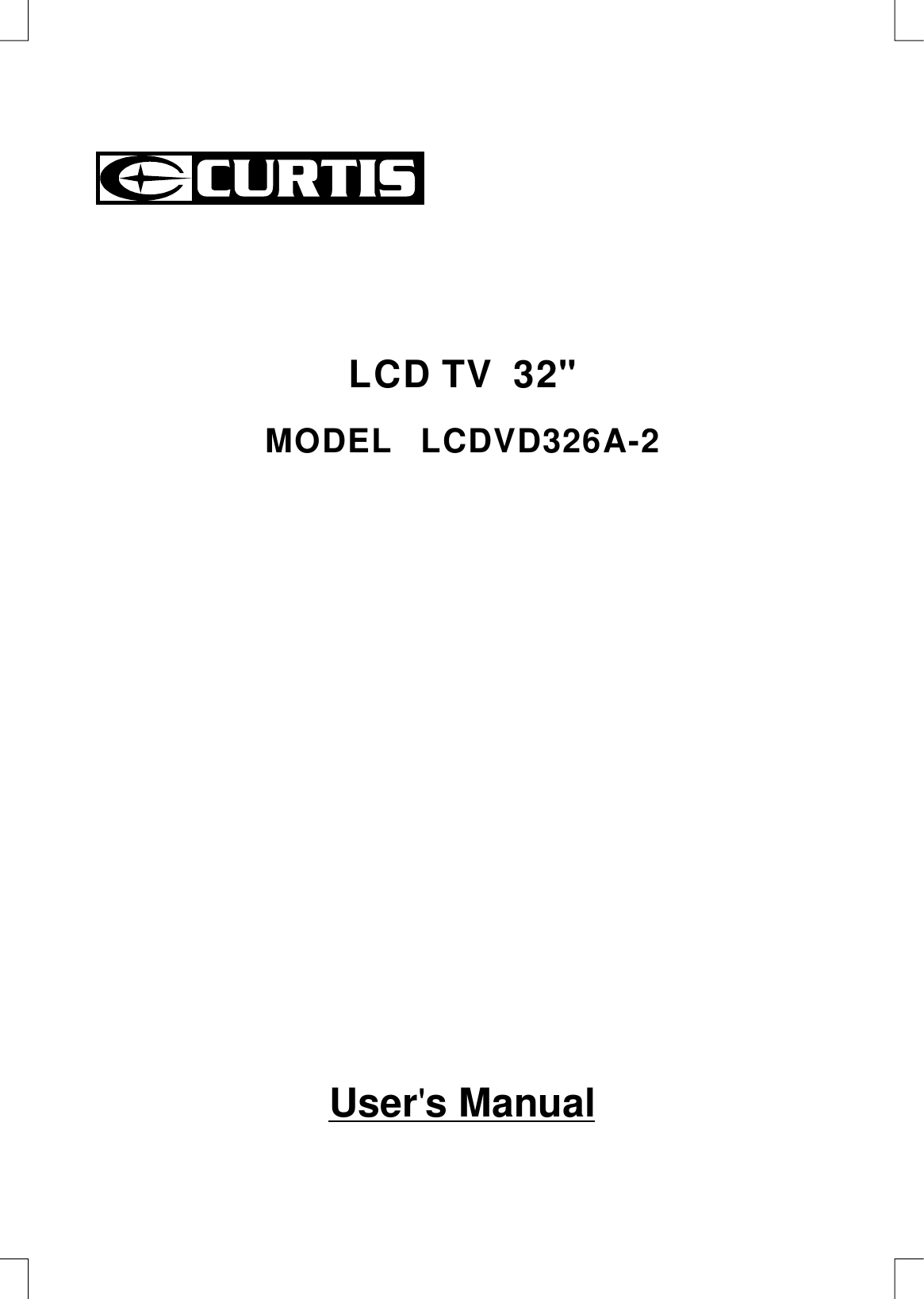

MODEL LCDVD326A-2 LCD TV 32"Users Manual'

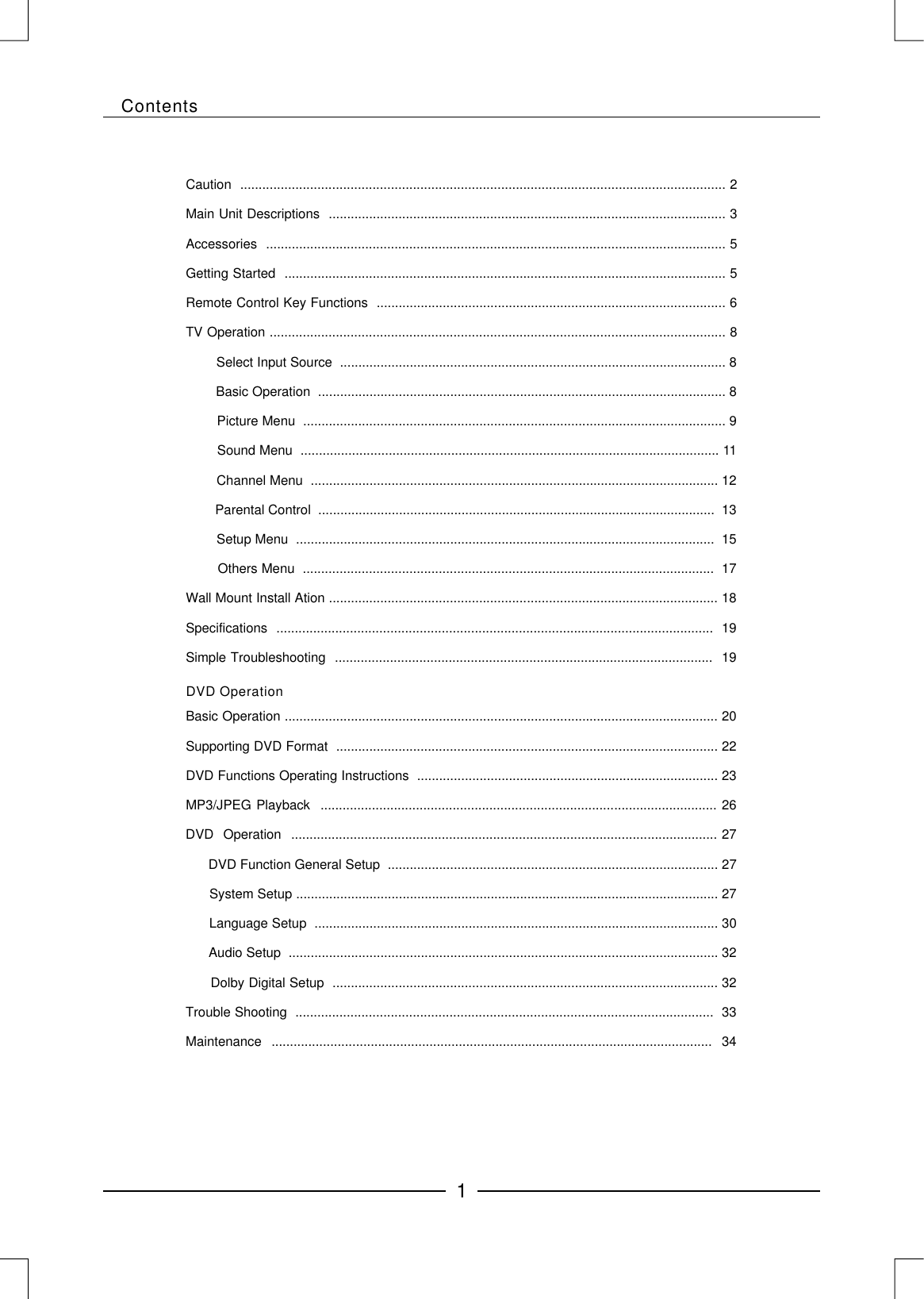

DVD OperationContents1Caution .................................................................................................................................... 2Main Unit Descriptions ............................................................................................................ 3Accessories ............................................................................................................................. 5Getting Started ........................................................................................................................ 5Remote Control Key Functions ............................................................................................... 6TV Operation ............................................................................................................................ 8 Select Input Source ......................................................................................................... 8 Basic Operation ............................................................................................................... 8 Picture Menu ................................................................................................................... 9 Sound Menu .................................................................................................................. 11 Channel Menu ............................................................................................................... 12 Parental Control ............................................................................................................ 13 Setup Menu .................................................................................................................. 15 Others Menu ................................................................................................................ 17Wall Mount Install Ation .......................................................................................................... 18Specifications ....................................................................................................................... 19Simple Troubleshooting ....................................................................................................... 19Basic Operation ...................................................................................................................... 20Supporting DVD Format ........................................................................................................ 22DVD Functions Operating Instructions .................................................................................. 23MP3/JPEG Playback ............................................................................................................ 26 .................................................................................................................... 27 DVD Function General Setup .......................................................................................... 27 System Setup ................................................................................................................... 27 Language Setup .............................................................................................................. 30 Audio Setup ..................................................................................................................... 32 Dolby Digital Setup ......................................................................................................... 32Trouble Shooting .................................................................................................................. 33Maintenance ........................................................................................................................ 34DVD Operation

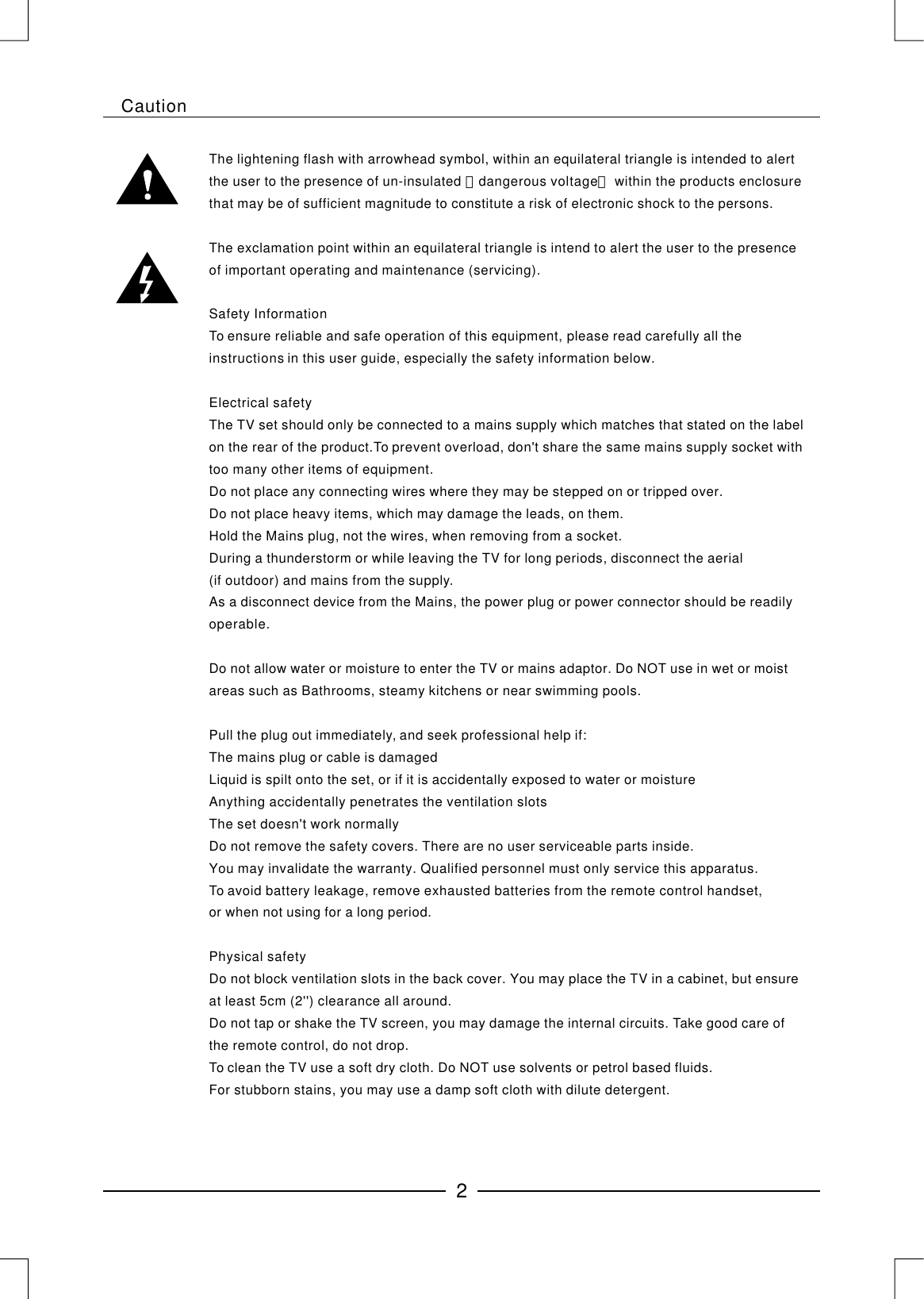

The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electronic shock to the persons.The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing).Safety InformationTo ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.Electrical safetyThe TV set should only be connected to a mains supply which matches that stated on the label on the rear of the product.To prevent overload, don't share the same mains supply socket with too many other items of equipment.Do not place any connecting wires where they may be stepped on or tripped over.Do not place heavy items, which may damage the leads, on them.Hold the Mains plug, not the wires, when removing from a socket.During a thunderstorm or while leaving the TV for long periods, disconnect the aerial (if outdoor) and mains from the supply.As a disconnect device from the Mains, the power plug or power connector should be readily operable.Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools.Pull the plug out immediately, and seek professional help if:The mains plug or cable is damagedLiquid is spilt onto the set, or if it is accidentally exposed to water or moistureAnything accidentally penetrates the ventilation slotsThe set doesn't work normallyDo not remove the safety covers. There are no user serviceable parts inside. You may invalidate the warranty. Qualified personnel must only service this apparatus. To avoid battery leakage, remove exhausted batteries from the remote control handset, or when not using for a long period.Physical safetyDo not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2'') clearance all around.Do not tap or shake the TV screen, you may damage the internal circuits. Take good care of the remote control, do not drop.To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For stubborn stains, you may use a damp soft cloth with dilute detergent.＂＂2Caution

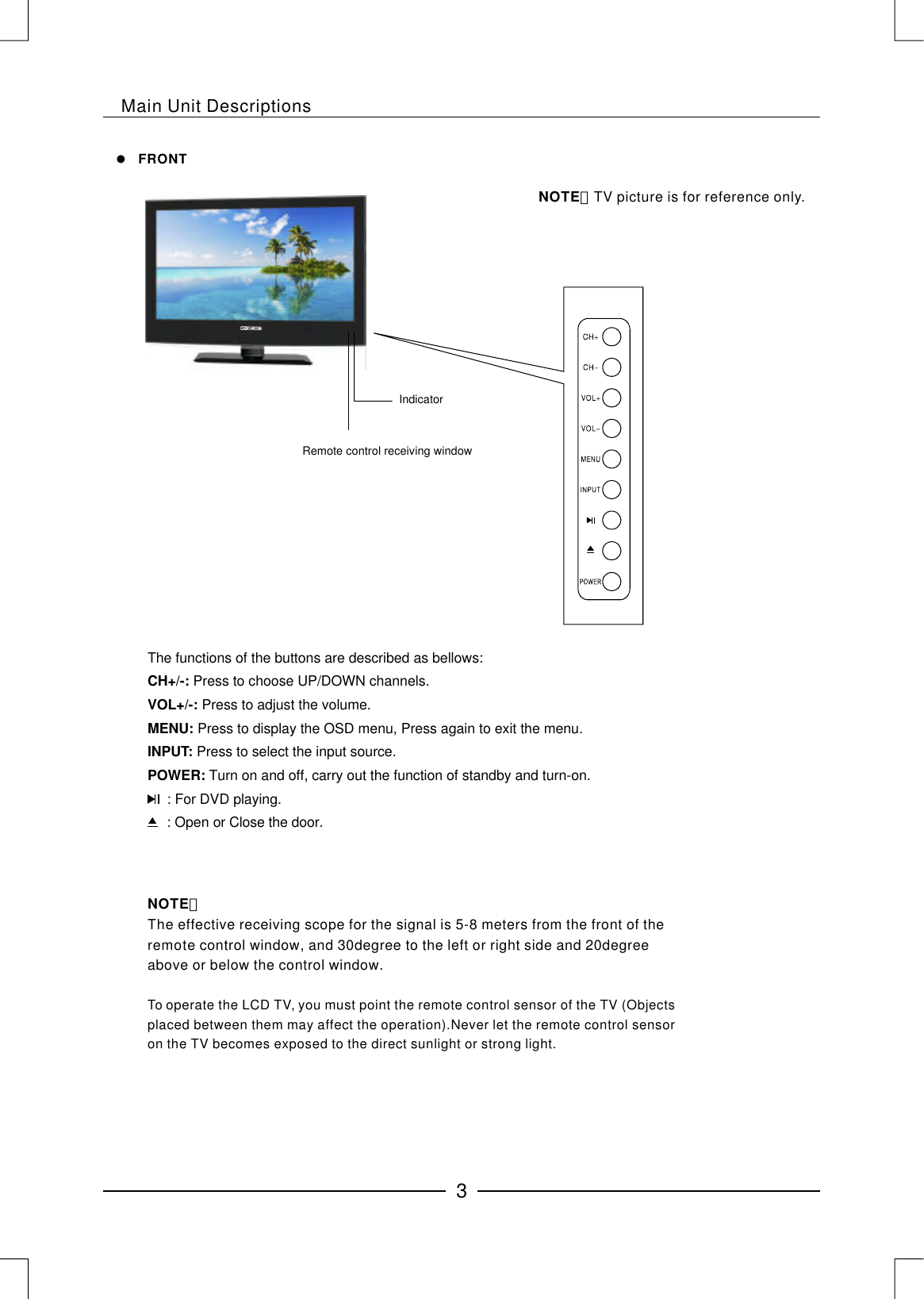

Main Unit DescriptionsNOTE：The effective receiving scope for the signal is 5-8 meters from the front of the remote control window, and 30degree to the left or right side and 20degree above or below the control window.To operate the LCD TV, you must point the remote control sensor of the TV (Objects placed between them may affect the operation).Never let the remote control sensor on the TV becomes exposed to the direct sunlight or strong light.The functions of the buttons are described as bellows: Press to choose UP/DOWN channels.Press to adjust the volume.Press to display the OSD menu, Press again to exit the menu.Press to select the input source. Turn on and off, carry out the function of standby and turn-on. : : Open CH+/-:VOL+/-: MENU: INPUT: POWER:For DVD playing.or Close the door.NOTE：TV picture is for reference only.FRONTIndicatorRemote control receiving window3
INPUT AND OUTPUT TERMINALCOMPONENT & AUDIO IN 1RLP/CRRP/CBBYCOMPONENT & AUDIO IN 2RLP/CRRP/CBBYIN IN INHDMI1 HDMI2 HDMI3OUTCOAXIALINPCINPC AUDIOOUTEARPHONEINUSB INRFINVIDEO33RLAUDIO OUT75 ohm Antenna Socket.Video signal receivable. (AUDIO from YCC/YPP1)BRBRYCC/YPPcomponent signal receivable.BRBR HDMI Input.PC analog RGB signal receivable.USB Input. (Only for service)Coaxial signal (digital audio) output.AUDIO output Terminal.Earphone output Terminal.556789678 93112244110-240V 50/60HzMain Unit Descriptions4Connect antenna or video facility1. Use 75 coaxial cable plug or 300-75 impedance converter to plug in antenna input terminal on the side of the cabinet.2. Connect the video facility to the audio, video in jack on the left side of the cabinet.ΩΩ 75 Ω Coaxial cable VHF antenna Mixer UHF antenna Input terminal of antenna Coaxial antenna plug to RF IN

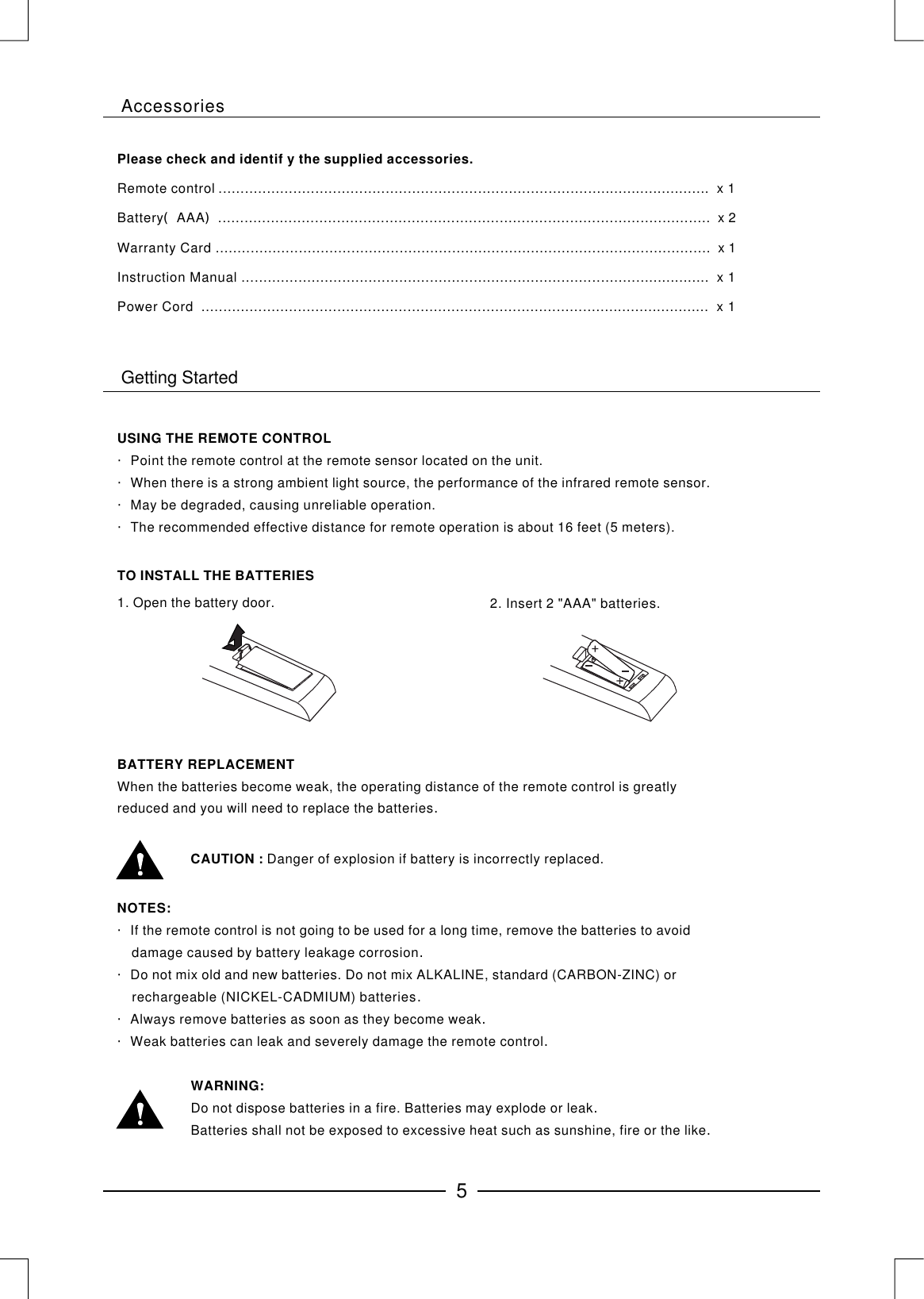

1. Open the battery door.BATTERY REPLACEMENTWhen the batteries become weak, the operating distance of the remote control is greatlyreduced and you will need to replace the batteries　．CAUTION : Danger of explosion if battery is incorrectly replaced.NOTES:If the remote control is not going to be used for a long time, remove the batteries to avoid damage caused by battery leakage corrosionDo not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteriesAlways remove batteries as soon as they become weakWeak batteries can leak and severely damage the remote control・　．・．・．・．WARNING:Do not dispose batteries in a fire. Batteries may explode or leakBatteries shall not be exposed to excessive heat such as sunshine, fire or the like．．2. Insert 2 "AAA" batteries.USING THE REMOTE CONTROL・・・・Point the remote control at the remote sensor located on the unit.When there is a strong ambient light source, the performance of the infrared remote sensor.ay be degraded, causing unreliable operation.The recommended effective distance for remote operation is about 16 feet (5 meters).MGetting Started5AccessoriesPlease check and identif y the supplied accessories.Remote control ................................................................................................................ x 1BatteryAAA................................................................................................................ x 2Warranty Card ................................................................................................................. x 1Instruction Manual ........................................................................................................... x 1Power Cord .................................................................................................................... x 1 ()TO INSTALL THE BATTERIES

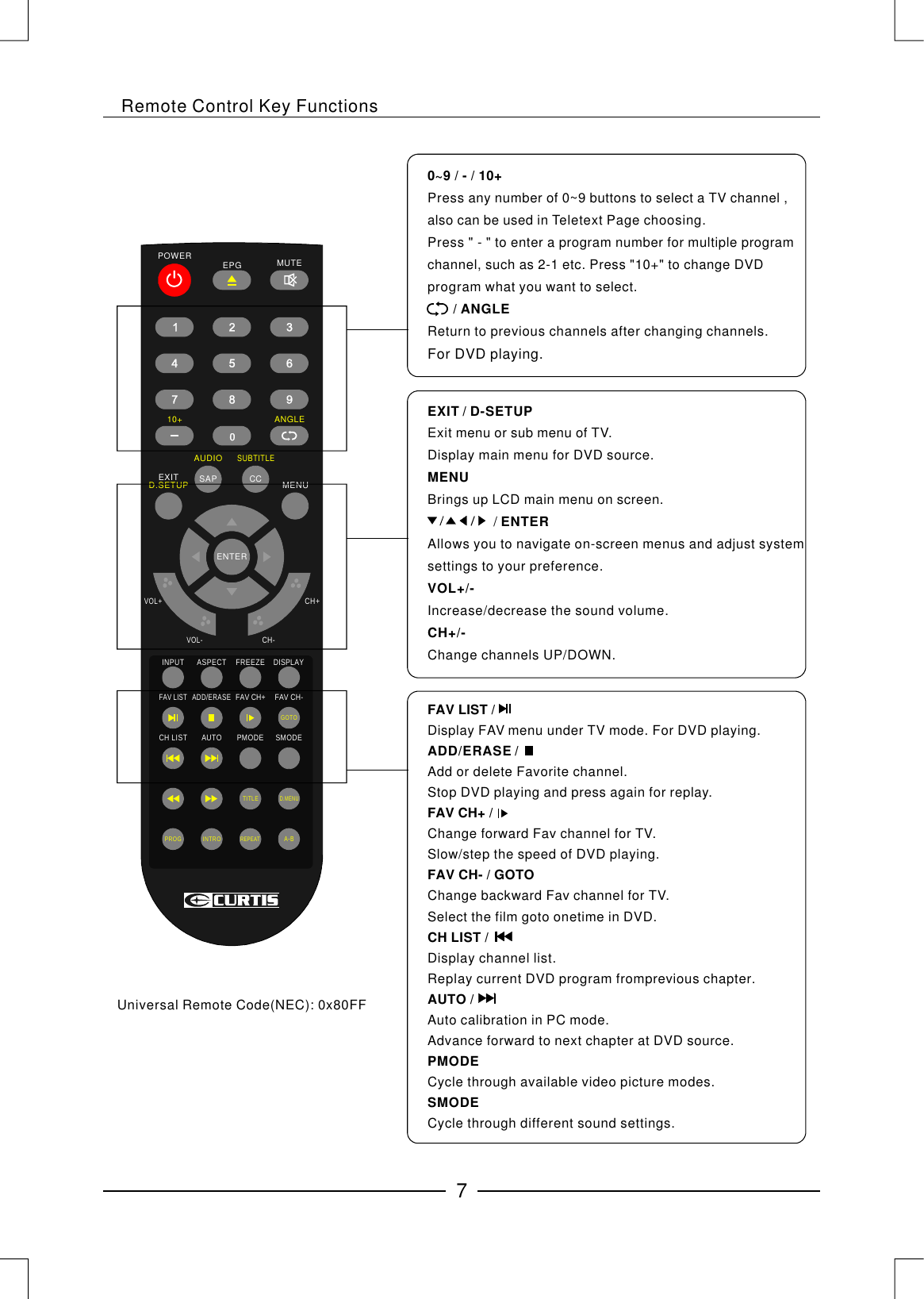

ENTEREPG MUTE10+ ANGLECH+VOL+VOL-CH-POWEREXITD.SETUP MENUAUDIOSAP CCSUBTITLEINPUTFAV LISTASPECTADD/ERASEFREEZEFAV CH+DISPLAYCH LIST AUTO PMODETITLEGOTOPROG INTROREPEAT A-BD.MENUSMODEFAV CH-SAP / AUDIOCC / SUBTITLEShow the list of audio languages available for current channel under TV mode, such as left, right, mono and stereo. Display for DVD's.Turn on/off CC.Display program's dialogue content at the bottom of screen for DVD.Play a DVD program in fast rewind mode.Play a DVD program in fast forwadmode.Display DVD title.Display DVD main menu under DVD mode.Select DVD program playback.Intro/scan/9 picture display.Repeat playback.To AB playback.TITLED.MENUPROGINTROREPEATA-BINPUTASPECTFREEZEDISPLAYSelect signal sources for TV.Select ASPECT of screen,eg:Full(16:9), Normal(4:3), WaterGlass, Cinema.Make pictures static.Display info of the currently channel. Remote Control Key FunctionsPOWEREPGMUTETurn on/off TV.Display Electronic Program Guide menu .Press this button makes input source under silent mode,press again can resume accompanying sound.6
ENTEREPG MUTE10+ ANGLECH+VOL+VOL-CH-POWEREXITD.SETUP MENUAUDIOSAP CCSUBTITLEINPUTFAV LISTASPECTADD/ERASEFREEZEFAV CH+DISPLAYCH LIST AUTO PMODETITLEGOTOPROG INTROREPEAT A-BD.MENUSMODEFAV CH-0~9 / - / 10+/ ANGLEPress any number of 0~9 buttons to select a TV channel , also can be used in Teletext Page choosing.Press " - " to enter a program number for multiple programchannel, such as 2-1 etc. Press "10+" to change DVD program what you want to select. Return to previous channels after changing channels.For DVD playing. Exit menu or sub menu of TV.Brings up LCD main menu on screen. / Allows you to navigate on-screen menus and adjust systemsettings to your preference.Increase/decrease the sound volume.Change channels UP/DOWN.EXIT / MENUENTERVOL+/-CH+/-D-SETUPDisplay main menu for DVD source.Universal Remote Code(NEC): 0x80FFRemote Control Key Functions7FAV LIST / ADD/ERASE / FAV CH+ /FAV CH- / GOTOCH LIST / AUTO / PMODESMODEDisplay FAV menu under TV mode. For DVD playing.Add or delete Favorite channel.Stop DVD playing and press again for replay.Change forward Fav channel for TV.Slow/step the speed of DVD playing.Change backward Fav channel for TV.Select the film goto onetime in DVD.Display channel list.Replay current DVD program fromprevious chapter.Auto calibration in PC mode.Advance forward to next chapter at DVD source.Cycle through available video picture modes.Cycle through different sound settings.

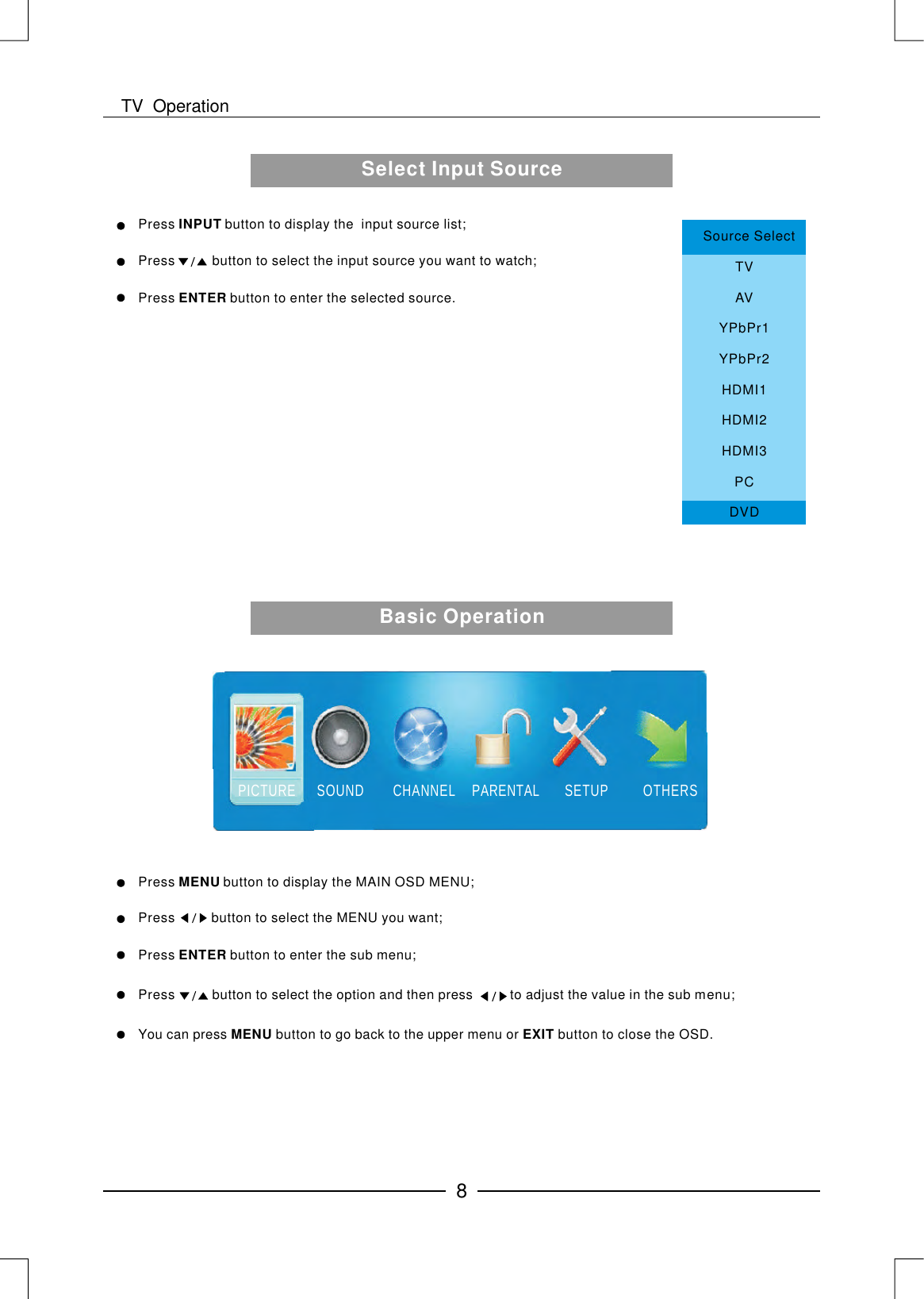

Press button to display the input source list;INPUTPress button to select the input source you want to watch;Press button to enter the selected source.ENTERPress button to display the MAIN OSD MENU;MENUPressbutton to select the MENU you want; Press button to enter the sub menu;ENTERPress button to select the option and then press to adjust the value in the sub menu;You can press button to go back to the upper menu or button to close the OSD.MENU EXIT Select Input SourcePICTURE SOUND CHANNEL PARENTAL SETUP OTHERSBasic OperationTV Operation8Source SelectTVAVYPbPr1YPbPr2HDMI1HDMI2HDMI3PCDVD
PICTUREPicture SettingsScreen SettingsPC SettingsColor TemperatureAdvanced Picture SettingsNormal:Return :Select Menu :Go to Next MenuMENU ENTERPICTURE SETTINGSPicture ModeBrightnessContrastColor TintSharpnessMovie:Return :Select Menu :Change SettingMENUSCREEN SETTINGSScreen SizeAuto WideNormal:Return :Select Menu :Change SettingMENUADVANCED PICTURE SETTINGSDynamic ContrastFilm ModeNoise ReductionMPEG Noise Reduction OffOffOffOff:Return :Select Menu :Change SettingMENU ENTERPicture SettingsPicture ModePress button to enter the sub menu.ENTERAvailable picture mode: Movie, User, Dynamic, Standard.Only in the User mode, the detail options as following can be adjusted.( will only show when the color system is NTSC.)Brightness, Contrast, Color, Tint, SharpnessTintColor TemperatureAvailable color temperature: Cool, Normal, Warm.Advanced Picture SettingsPress button to enter the sub menu.ENTERDynamic ContrastFilm Modeit can adjust the contrast corresponding to the input signal in order to improve the picture quality displayed.(Available Mode: Off,Low,Medium,High)It handles 3:2 pull down and 2:2 pull down. (Available Film Mode: On/Off)Screen SettingsPress button to enter the sub menu.ENTERScreen SizeAuto WideENTERAvailable Screen Size: WaterGlass,Cinema,Full, Normal.Press button to adjust. It can set the picture to fit the screen automatically. When the Auto Wide is selected, the symbol will show as following:Auto WideTV / AV / YPbPr / HDMI / DVD source.Picture Menu9TV Operation
PICTUREPicture SettingsScreen SettingsPC SettingsColor TemperatureAdvanced Picture SettingsNormal:Return :Select Menu :Go to Next MenuMENU ENTERPC SETTINGSAuto Adjust Horizontal PositionVertical PositionClockPhaseResetExecuteExecute:Return :Select Menu :Press To ExecuteMENU ENTERPC source.Picture Settings menu and description are the same as that for TV source.Screen SettingsPress button to enter the sub menu.ENTERScreen SizeAuto WideAvailable Screen Size: Full,Dot By Dot.Auto Wide item is invalid in PC source.PC SettingAuto AdjustENTERHorizontal PositionVertical PositionClockPhaseResetENTERPress button to start auto adjusting.Press button to reset the options above.Adjust the H-Position.Adjust the V-Position.Adjust the sampling frequency. Adjust the sampling phase.Press button to enter the sub menu.ENTERColor TemperatureAvailable color temperature: Cool, Normal, Warm.Available Noise Reduction: Low, Medium, Off,High.It can improve the quality of the pictures by reducing the block noise.(Available MPEG Noise Reduction: Low, Medium, Off,High)Noise ReductionMPEG Noise Reduction10TV Operation

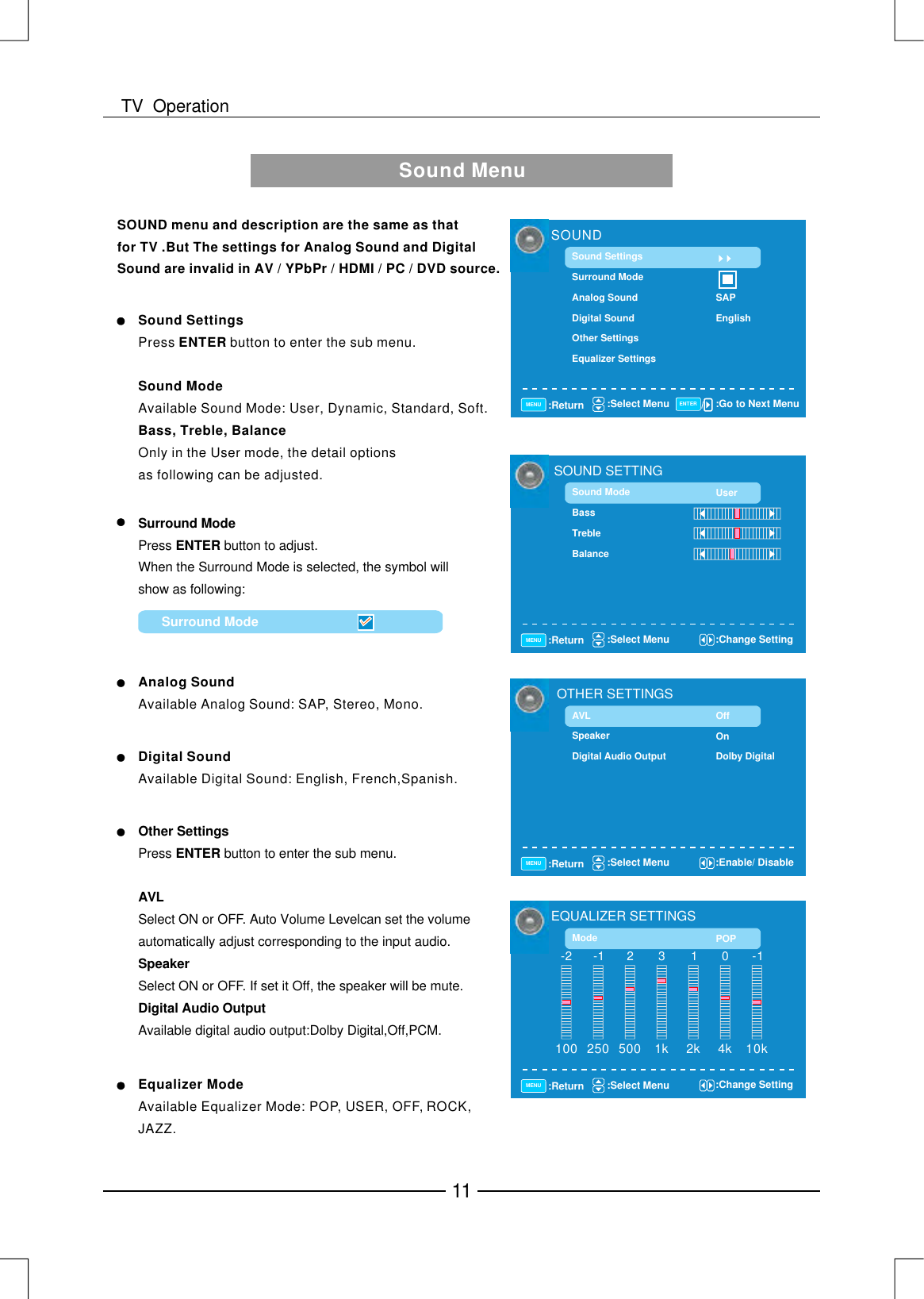

SOUND SETTINGSound ModeBassTrebleBalance User:Return :Select Menu :Change SettingMENUOTHER SETTINGSAVLSpeakerDigital Audio OutputOffOnDolby Digital:Return :Select Menu :Enable/ DisableMENUSurround ModeSurround ModeWhen the Surround Mode is selected, the symbol will show as following:Press button to adjust.ENTERSound SettingsSound ModeAvailable Sound Mode: User, Dynamic, Standard, Soft.Only in the User mode, the detail optionsas following can be adjusted.Press button to enter the sub menu.ENTERBass, Treble, Balance Other SettingsAVLSpeakerDigital Audio OutputSelect ON or OFF. Auto Volume Levelcan set the volume automatically adjust corresponding to the input audio.Select ON or OFF. If set it Off, the speaker will be mute.Available digital audio output:Dolby Digital,Off,PCM.Press button to enter the sub menu.ENTERDigital SoundAvailable Digital Sound: English, French,Spanish.Analog SoundAvailable Analog Sound: SAP, Stereo, Mono.Equalizer ModeAvailable Equalizer Mode: POP, USER, OFF, ROCK,JAZZ.EQUALIZER SETTINGSMode100 250 500 1k 2k 4k 10kPOP:Return :Select Menu :Change SettingMENU-2 -1 2 3 1 0 -1Sound MenuSOUND menu and description are the same as that for TV .But The settings for Analog Sound and Digital Sound are invalid in AV / YPbPr / HDMI / PC / DVD source.SOUNDSound SettingsSurround ModeAnalog SoundDigital SoundOther SettingsEqualizer SettingsEnglishSAP:Return :Select Menu :Go to Next MenuMENU ENTER11TV Operation

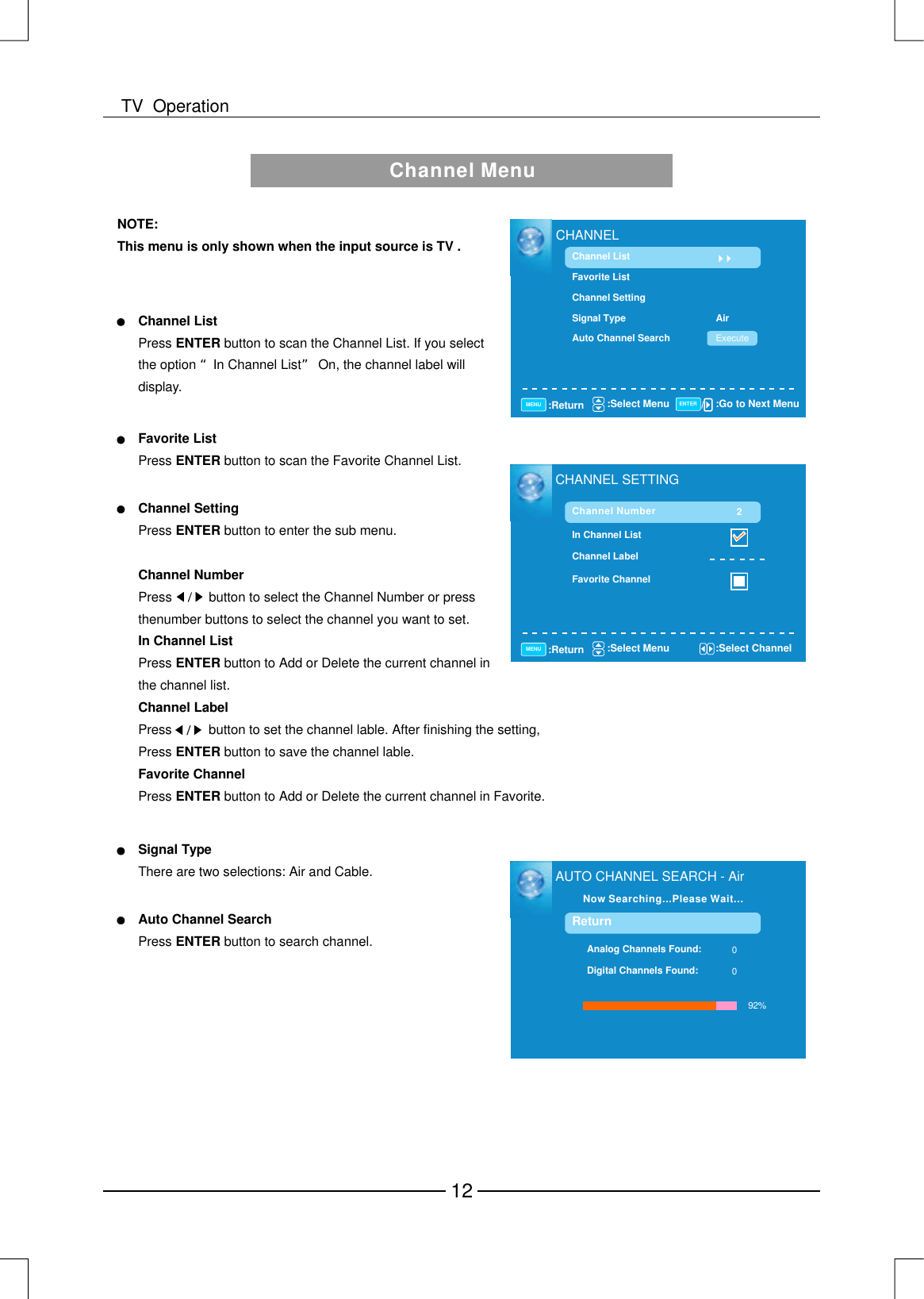

Channel MenuCHANNELChannel ListFavorite ListChannel SettingSignal TypeAuto Channel SearchAir:Return :Select Menu :Go to Next MenuMENU ENTERExecuteCHANNEL SETTINGChannel NumberIn Channel ListChannel LabelFavorite Channel2:Return :Select Menu :Select ChannelMENUAUTO CHANNEL SEARCH - AirNow Searching...Please Wait...ReturnAnalog Channels Found:Digital Channels Found:92%00Auto Channel SearchENTERPress button to search channel.Signal TypeThere are two selections: Air and Cable.Channel ListENTERPress button to scan the Channel List. If you select the option In Channel List On, the channel label will display.“”Favorite ListENTERPress button to scan the Favorite Channel List.Channel SettingChannel NumberPPress button to enter the sub menu. ENTERressbutton to select the Channel Number or press thenumber buttons to select the channel you want to set.Press button to Add or Delete the current channel in the channel list.Pressbutton to set the channel lable. After finishing the setting,Press button to save the channel lable.Press button to Add or Delete the current channel in Favorite.In Channel ListENTERChannel LabelENTERFavorite ChannelENTERNOTE: This menu is only shown when the input source is TV .12TV Operation

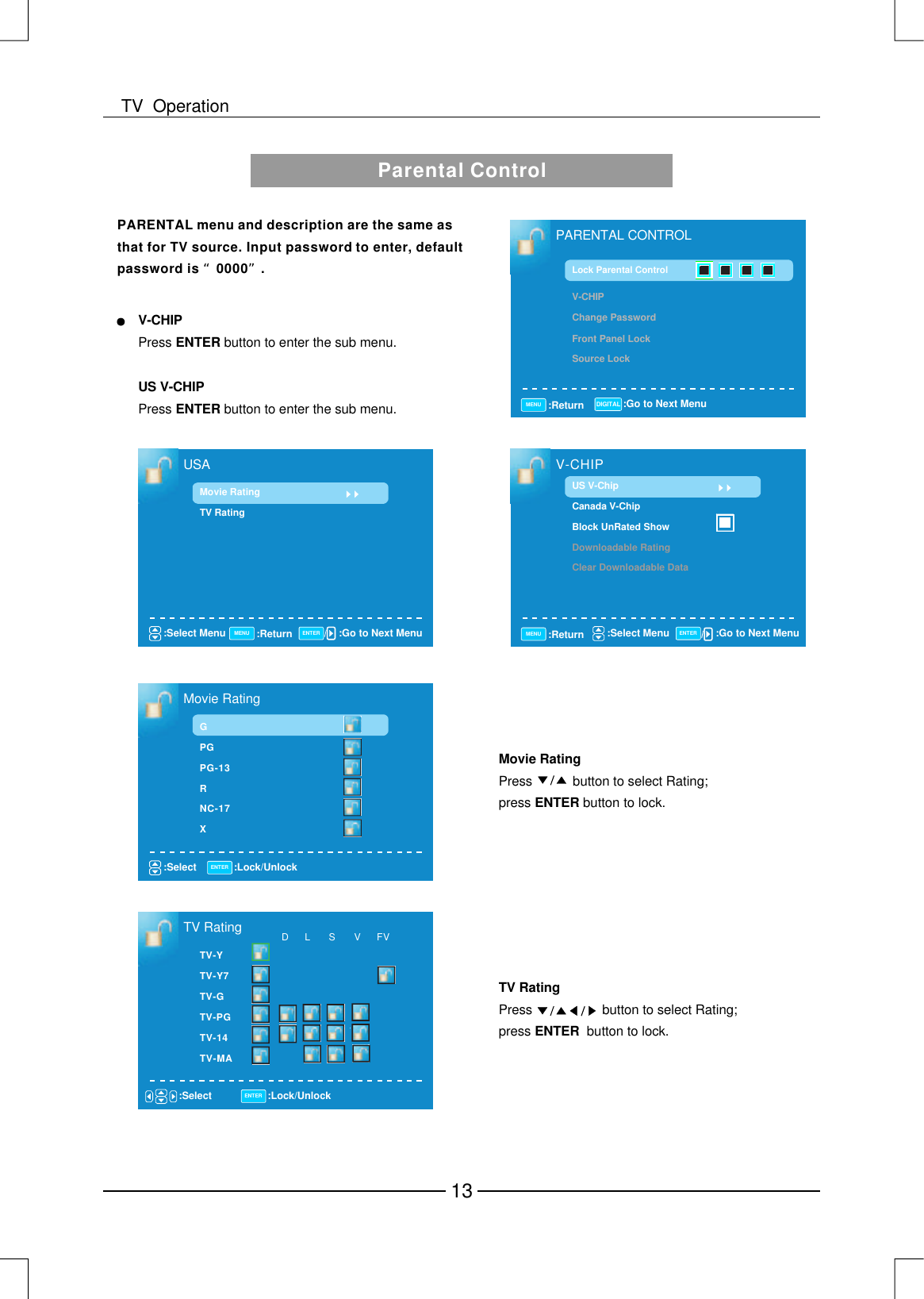

Parental ControlPARENTAL CONTROLLock Parental ControlV-CHIPChange PasswordFront Panel LockSource Lock:Return :Go to Next MenuMENU DIGITALV-CHIPUS V-CHIPPress button to enter the sub menu.Press button to enter the sub menu.ENTERENTERMovie RatingPressbutton to select Rating; press button to lock.ENTER TV RatingENTER Press button to select Rating; press button to lock. PARENTAL menu and description are the same as that for TV source. Input password to enter, default password is 0000.“”V-CHIPUS V-ChipCanada V-ChipBlock UnRated ShowDownloadable RatingClear Downloadable Data:Return :Select Menu :Go to Next MenuMENU ENTERUSATV Rating:Select MenuMovie Rating:Go to Next Menu:ReturnMENU ENTERMovie Rating:Select GPGPG-13RNC-17X:Lock/UnlockENTERTV Rating:Select TV-YTV-Y7TV-GTV-PGTV-14TV-MA:Lock/UnlockENTERD L S V FV13TV Operation

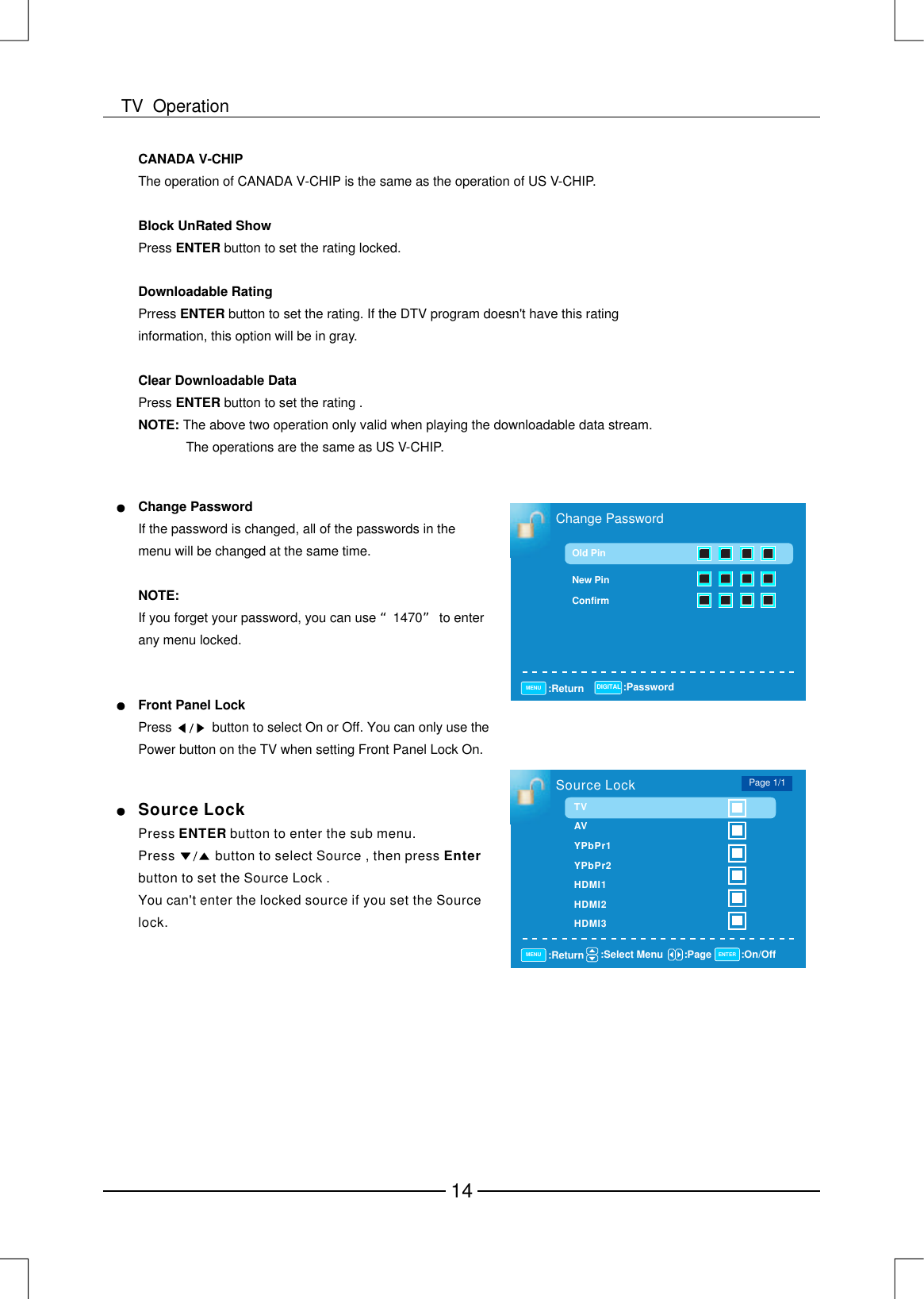

Change PasswordOld PinNew PinConfirm:Return :PasswordMENU DIGITALChange PasswordNOTE:If the password is changed, all of the passwords in the menu will be changed at the same time. If you forget your password, you can use 1470 to enter any menu locked.“”Front Panel LockPressbutton to select On or Off. You can only use the Power button on the TV when setting Front Panel Lock On. Source LockPressbutton to select Source , then press button to set the Source Lock .You can' enter the locked source if you set the Source lock.EnterPress button to enter the sub menu. ENTERtSource Lock:Return :Select Menu :On/Off:PageMENU ENTERPage 1/1TVAVYPbPr1YPbPr2HDMI1HDMI2HDMI3The operation of CANADA V-CHIP is the same as the operation of US V-CHIP.Press button to set the rating locked.Prress button to set the rating. If the DTV program doesnt have this rating information, this option will be in gray.Press button to set the rating .The above two operation only valid when playing the downloadable data stream. The operations are the same as US V-CHIP.CANADA V-CHIPBlock UnRated ShowENTERDownloadable RatingENTERClear Downloadable DataENTERNOTE: '14TV Operation
Setup MenuSETUP menu and description are the same as that for TV source. But the setting for Closed Caption is invalid in HDMI / PC / DVD source .Closed CaptionCaption DisplayAnalog Caption TypeDigital Caption TypeDigital CC PresetDigital CC StyleSelect ON or OFF.Available type: TEXT1,TEXT2,TEXT3,TEXT4,CC1,CC2,CC3,CC4.Available type:Service1~6.Select Default or Custom.This menu is only shown when the Digital CC Preset is selected Custom. Press button to enter the sub menu.Press button to enter the sub menu.ENTERENTERSETUPClosed CaptionMenu LanguageSleep TimerClockEnglishOff:Return :Select Menu :Go to Next MenuMENU ENTERCLOSED CAPTIONCaption DisplayAnalog Caption TypeDigital Caption TypeDigital CC PresetDigital CC StyleTEXT3Service1DefaultOff:Return :Select Menu :On/OffMENUCC SizeCC Font CC OpacityText ColorCC Background OpacityCC Background ColorAvailable Size: Small,Standard,Large,Default.Available type:Style0~7.Default .Available Opacity:Flashing,Default,Solid,Translucent,Transparent.Available Color: Blue,Yellow,Red,Black,White,Green,Magenta,Cyan,Default.Available Opacity:Flashing,Default,Solid,Translucent,Transparent.Available Color: Blue,Yellow,Red,Black,White,Green,Magenta,Cyan,Default.DIGITAL CC STYLECC Size CC Font Style4CC Opacity SolidText Color YellowCC Background Opacity TransparentCC Background Color GreenSmall:Return :Select Menu :Change SettingMENUCLOSE CAPTION15TV Operation

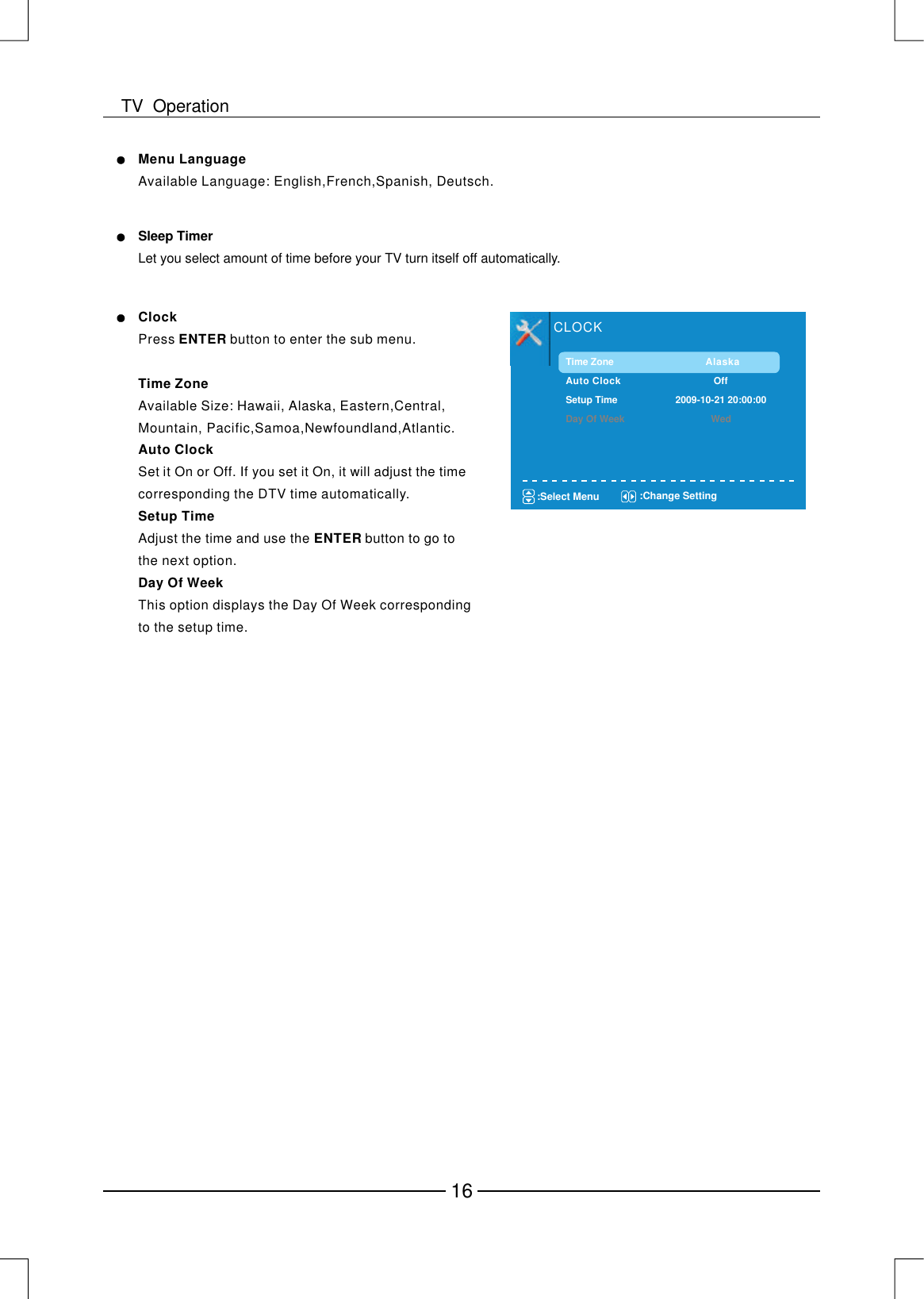

CLOCKTime ZoneAuto Clock OffSetup Time 2009-10-21 20:00:00Day Of Week WedAlaska:Select Menu :Change SettingClockTime ZoneAuto ClockSetup TimeENTERDay Of WeekAvailable Size: Hawaii, Alaska, Eastern,Central, Mountain, Pacific,Samoa,Newfoundland,Atlantic.Set it On or Off. If you set it On, it will adjust the time corresponding the DTV time automatically.Adjust the time and use the button to go to the next option.This option displays the Day Of Week corresponding to the setup time.Press button to enter the sub menu.ENTERMenu LanguageAvailable Language: English,French,Spanish, Deutsch.Sleep TimerLet you select amount of time before your TV turn itself off automatically.16TV Operation

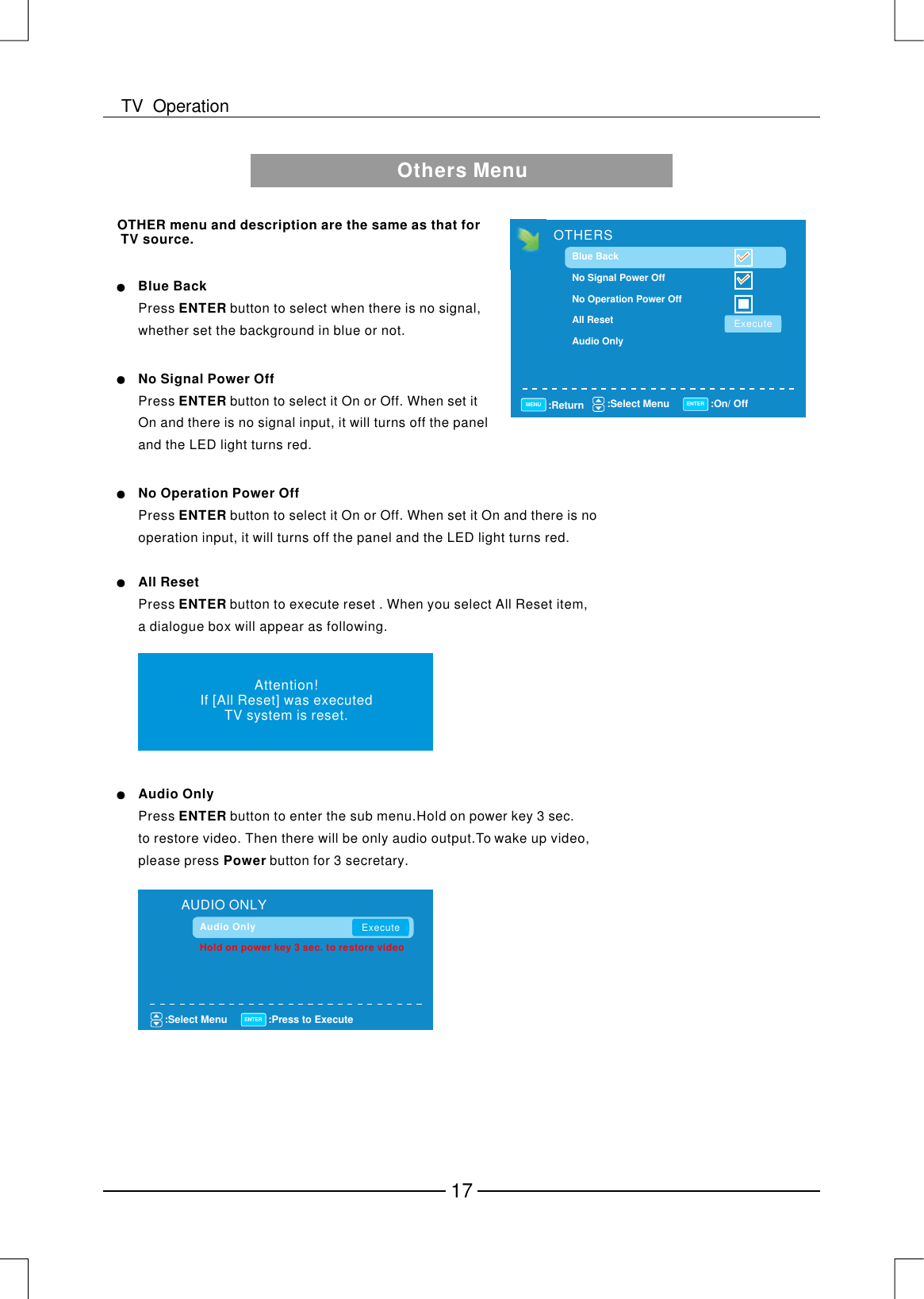

Others MenuOTHERSBlue BackNo Signal Power OffNo Operation Power OffAll ResetAudio Only:Return :Select MenuMENUExecute:On/ OffENTERAttention!If [All Reset] was executedTV system is reset.Blue BackENTERPress button to select when there is no signal, whether set the background in blue or not.No Signal Power OffENTERPress button to select it On or Off. When set it On and there is no signal input, it will turns off the panel and the LED light turns red.No Operation Power OffENTERPress button to select it On or Off. When set it On and there is no operation input, it will turns off the panel and the LED light turns red.All ResetENTERPress button to execute reset . When you select All Reset item, a dialogue box will appear as following.Audio OnlyPowerHold on power key 3 sec. to restore video. Then there will be only audio output.To wake up video,please press button for 3 secretary.Press button to enter the sub menu.ENTEROTHER menu and description are the same as that for TV source.:Select Menu :Press to ExecuteENTERHold on power key 3 sec. to restore videoExecuteAUDIO ONLYAudio Only17TV Operation

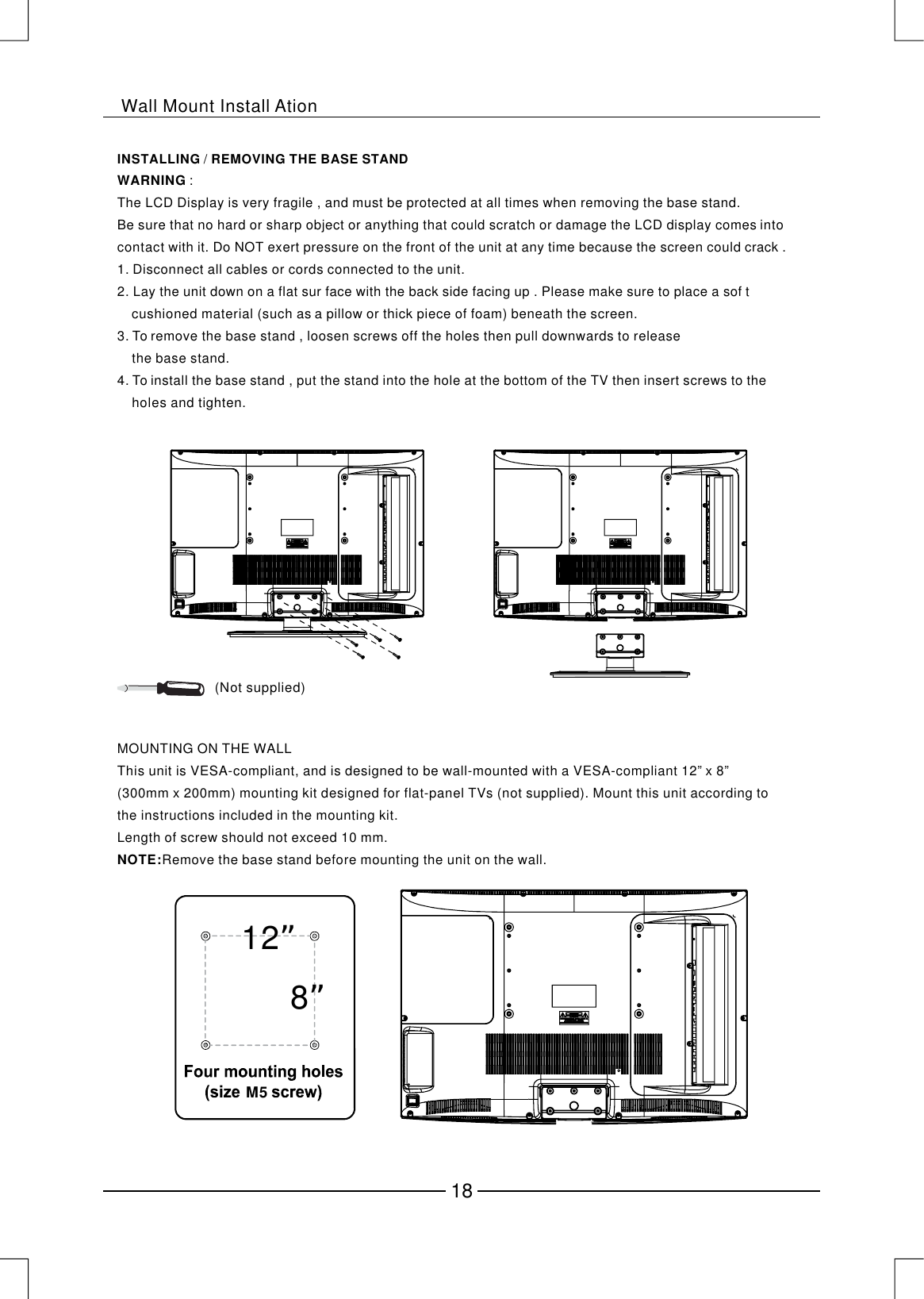

12”8”M5INSTALLING REMOVING THE BASE STAND/ WARNING : The LCD Display is very fragile , and must be protected at all times when removing the base stand.Be sure that no hard or sharp object or anything that could scratch or damage the LCD display comes intocontact with it. Do NOT exert pressure on the front of the unit at any time because the screen could crack .Disconnect all cables or cords connected to the unit.2. Lay the unit down on a flat sur face with the back side facing up . Please make sure to place a sof t cushioned material (such as a pillow or thick piece of foam) beneath the screen.3. To remove the base stand , loosen screws off the holes then pull downwards to release the base stand.4. To install the base stand , put the stand into the hole at the bottom of the TV then insert screws to the holes and tighten.1. (Not supplied)MOUNTING ON THE WALLThis unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 12” x 8”(300mm x 200mm) mounting kit designed for flat-panel TVs (not supplied). Mount this unit according to the instructions included in the mounting kit.Length of screw should not exceed 10 mm.Remove the base stand before mounting the unit on the wall.NOTE:Wall Mount Install Ation18

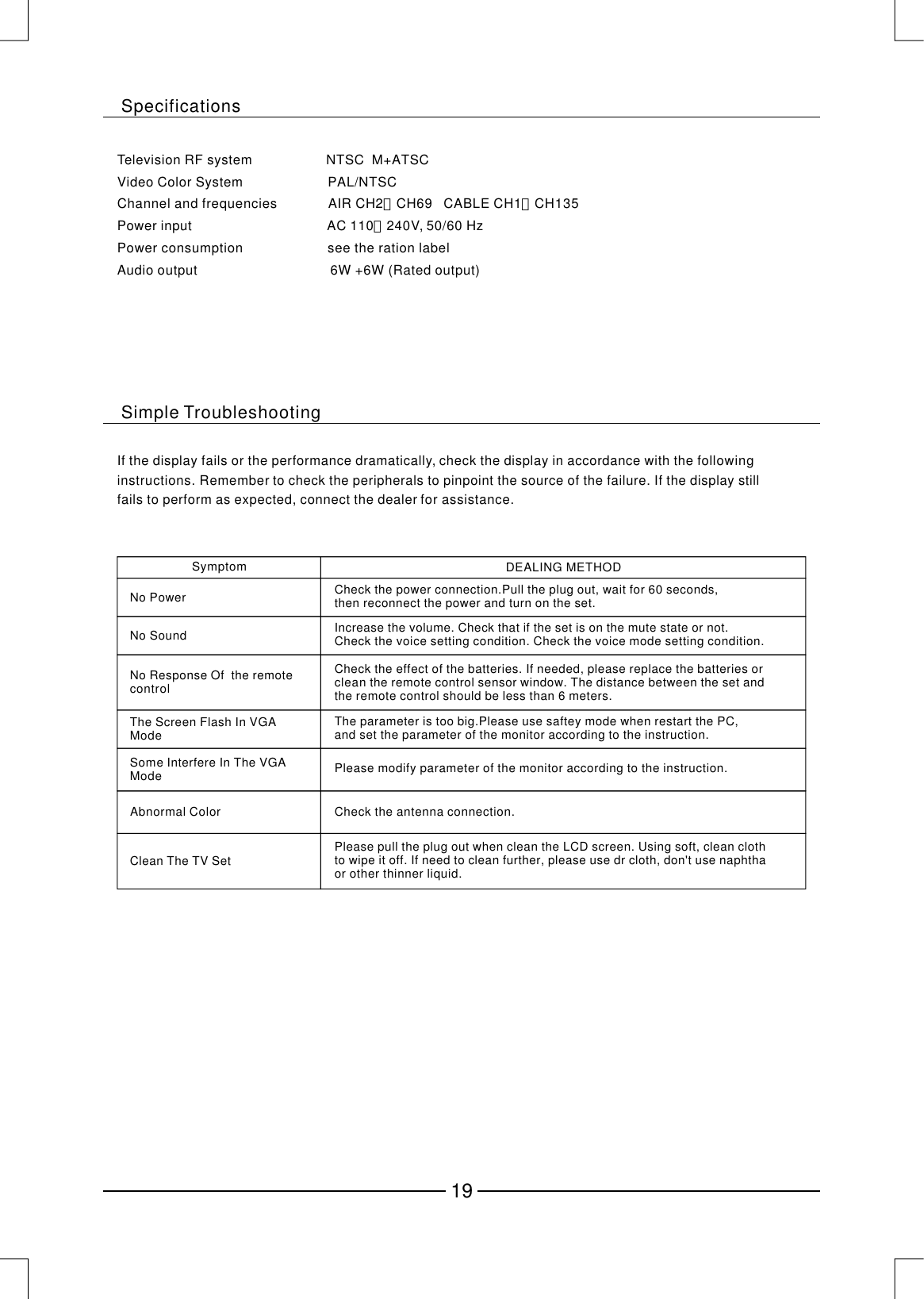

Television RF system NTSC M+ATSCVideo Color System PAL/NTSCChannel and frequencies CH135Power input AC 110240V, 50/60 HzPower consumption see the ration labelAudio output 6W +6W (Rated output)－－－AIR CH2CH69 CABLE CH1If the display fails or the performance dramatically, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the display still fails to perform as expected, connect the dealer for assistance.No PowerNo SoundNo Response Of the remote controlThe Screen Flash In VGA ModeSymptomCheck the power connection.Pull the plug out, wait for 60 seconds, then reconnect the power and turn on the set.Increase the volume. Check that if the set is on the mute state or not. Check the voice setting condition. Check the voice mode setting condition.Check the effect of the batteries. If needed, please replace the batteries or clean the remote control sensor window. The distance between the set and the remote control should be less than 6 meters.The parameter is too big.Please use saftey mode when restart the PC, and set the parameter of the monitor according to the instruction.DEALING METHODPlease modify parameter of the monitor according to the instruction.Check the antenna connection.Please pull the plug out when clean the LCD screen. Using soft, clean cloth to wipe it off. If need to clean further, please use dr cloth, don't use naphtha or other thinner liquid.Clean The TV SetSome Interfere In The VGA ModeAbnormal ColorSpecificationsSimple Troubleshooting19

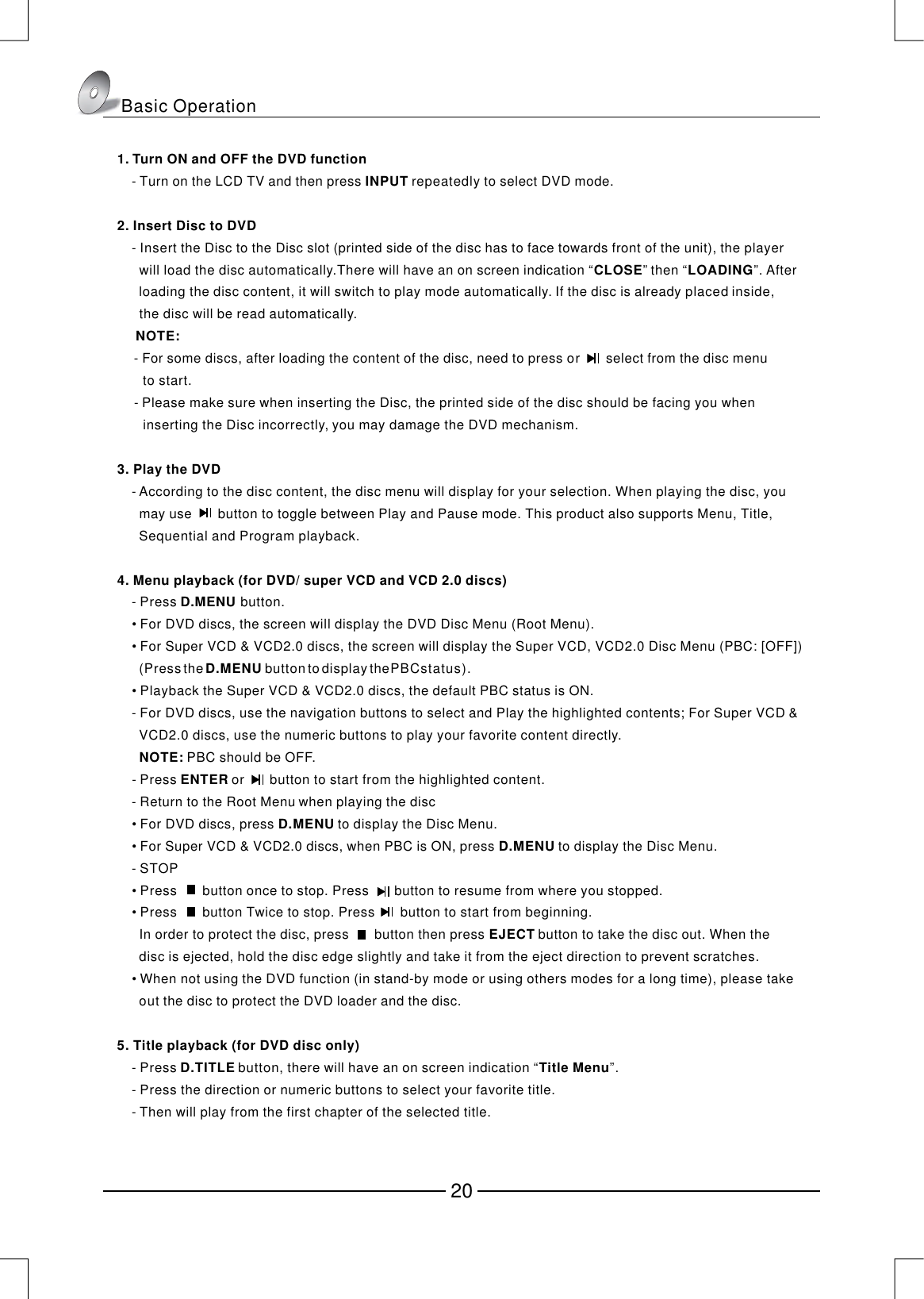

1. Turn ON and OFF the DVD functionINPUT2. Insert Disc to DVDCLOSELOADINGNOTE:3. Play the DVD4. Menu playback (for DVD/ super VCD and VCD 2.0 discs)D.MENU NOTE:ENTERD.MENUD.MENUEJECT5. Title playback (for DVD disc only)D.TITLETitle MenuTurn on the LCD TV and then press repeatedly to select DVD mode.Insert the Disc to the Disc slot (printed side of the disc has to face towards front of the unit), the player will load the disc automatically.There will have an on screen indication “” then “”. After loading the disc content, it will switch to play mode automatically. If the disc is already placed inside, the disc will be read automatically. For some discs, after loading the content of the disc, need to press or select from the disc menu to start.Please make sure when inserting the Disc, the printed side of the disc should be facing you when inserting the Disc incorrectly, you may damage the DVD mechanism.According to the disc content, the disc menu will display for your selection. When playing the disc, you may use button to toggle between Play and Pause mode. This product also supports Menu, Title, Sequential and Program playback.Press button.For DVD discs, the screen will display the DVD Disc Menu (Root Menu).For Super VCD & VCD2.0 discs, the screen will display the Super VCD, VCD2.0 Disc Menu (PBC: [OFF]) Playback the Super VCD & VCD2.0 discs, the default PBC status is ON.For DVD discs, use the navigation buttons to select and Play the highlighted contents; For Super VCD & VCD2.0 discs, use the numeric buttons to play your favorite content directly. PBC should be OFF.Press orbutton to start from the highlighted content.Return to the Root Menu when playing the discFor DVD discs, press to display the Disc Menu.For Super VCD & VCD2.0 discs, when PBC is ON, press to display the Disc Menu.STOPPressbutton once to stop. Pressbutton to resume from where you stopped.Pressbutton Twice to stop. Pressbutton to start from beginning. In order to protect the disc, pressbutton then press button to take the disc out. When thedisc is ejected, hold the disc edge slightly and take it from the eject direction to prevent scratches.When not using the DVD function (in stand-by mode or using others modes for a long time), please takeout the disc to protect the DVD loader and the disc.Press button, there will have an on screen indication “”.Press the direction or numeric buttons to select your favorite title.Then will play from the first chapter of the selected title. - - - - - - • • (Pressthe buttontodisplaythePBCstatus). • - - - • • - • • • - - - 　　　　 D.MENUBasic Operation20

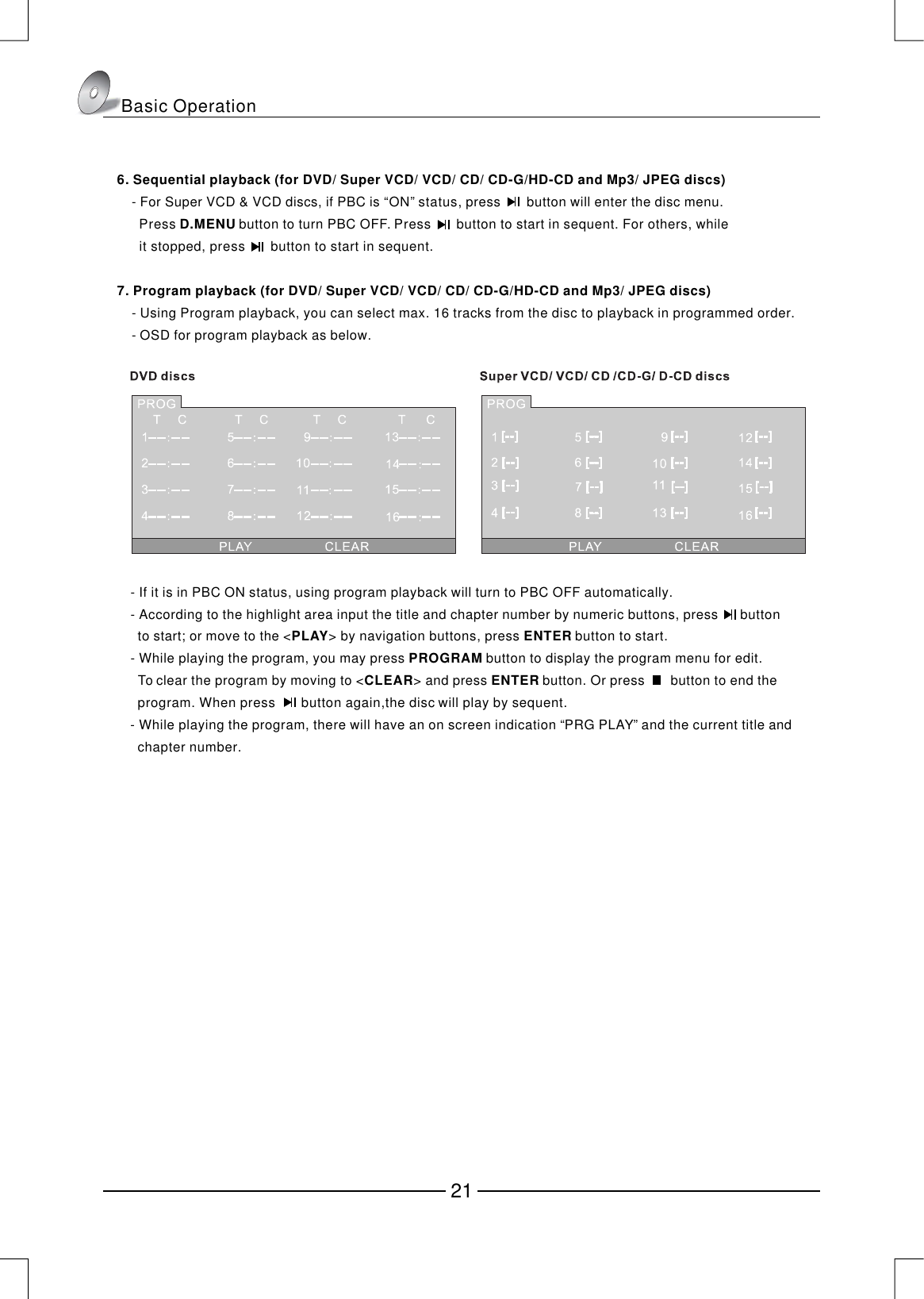

For Super VCD & VCD discs, if PBC is “ON” status, press button will enter the disc menu. Press button to turn PBC OFF. Pressbutton to start in sequent. For others, while pressbutton to start in sequent.Using Program playback, you can select max. 16 tracks from the disc to playback in programmed order.OSD for program playback as below. 6. Sequential playback (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs)D.MENU7. Program playback (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs) - it stopped, - - Basic Operation- If it is in PBC ON status, using program playback will turn to PBC OFF automatically.- According to the highlight area input the title and chapter number by numeric buttons, press button to start; or move to the <> by navigation buttons, press button to start.- While playing the program, you may press button to display the program menu for edit. To clear the program by moving to <> and press button. Or press button to end the program. When press button again,the disc will play by sequent.- While playing the program, there will have an on screen indication “PRG PLAY” and the current title and chapter number.PLAYENTERPROGRAMCLEARENTER21

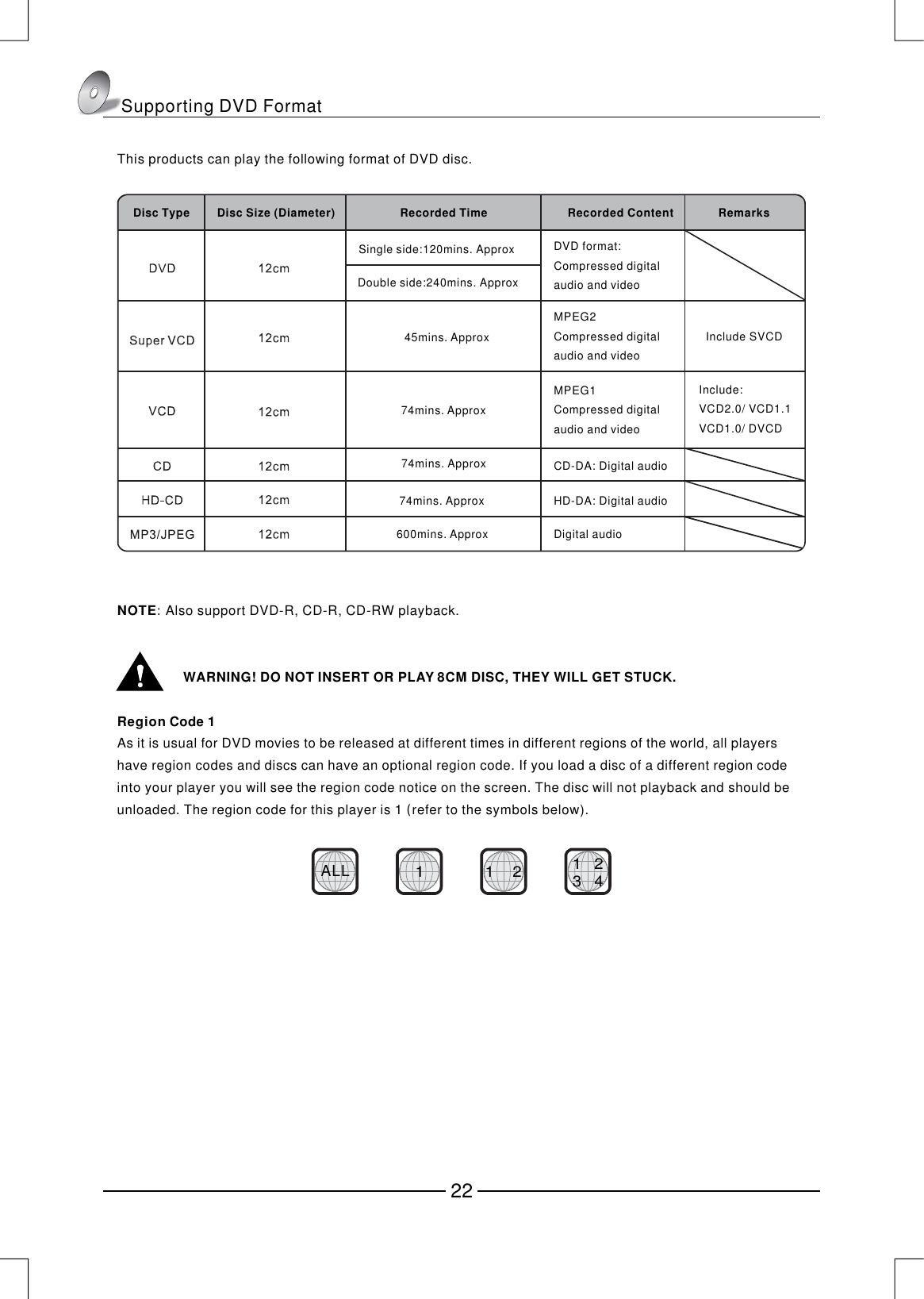

This products can play the following format of DVD disc.Disc Type Disc Size (Diameter) Recorded Time Recorded Content RemarksSingle side:120mins. ApproxDouble side:240mins. Approx45mins. Approx74mins. Approx74mins. Approx74mins. Approx600mins. ApproxDVD format:Compressed digitalaudio and videoMPEG2Compressed digitalaudio and videoMPEG1Compressed digitalaudio and videoCD-DA: Digital audioHD-DA: Digital audioDigital audioInclude SVCDInclude:VCD2.0/ VCD1.1VCD1.0/ DVCDNOTEWARNING! DO NOT INSERT OR PLAY 8CM DISC, THEY WILL GET STUCK.Region Code 1: (Also support DVD-R, CD-R, CD-RW playback. As it is usual for DVD movies to be released at different times in different regions of the world, all players have region codes and discs can have an optional region code. If you load a disc of a different region code into your player you will see the region code notice on the screen. The disc will not playback and should be unloaded. The region code for this player is 1 refer to the symbols below).1 2 24113ALLSupporting DVD Format22

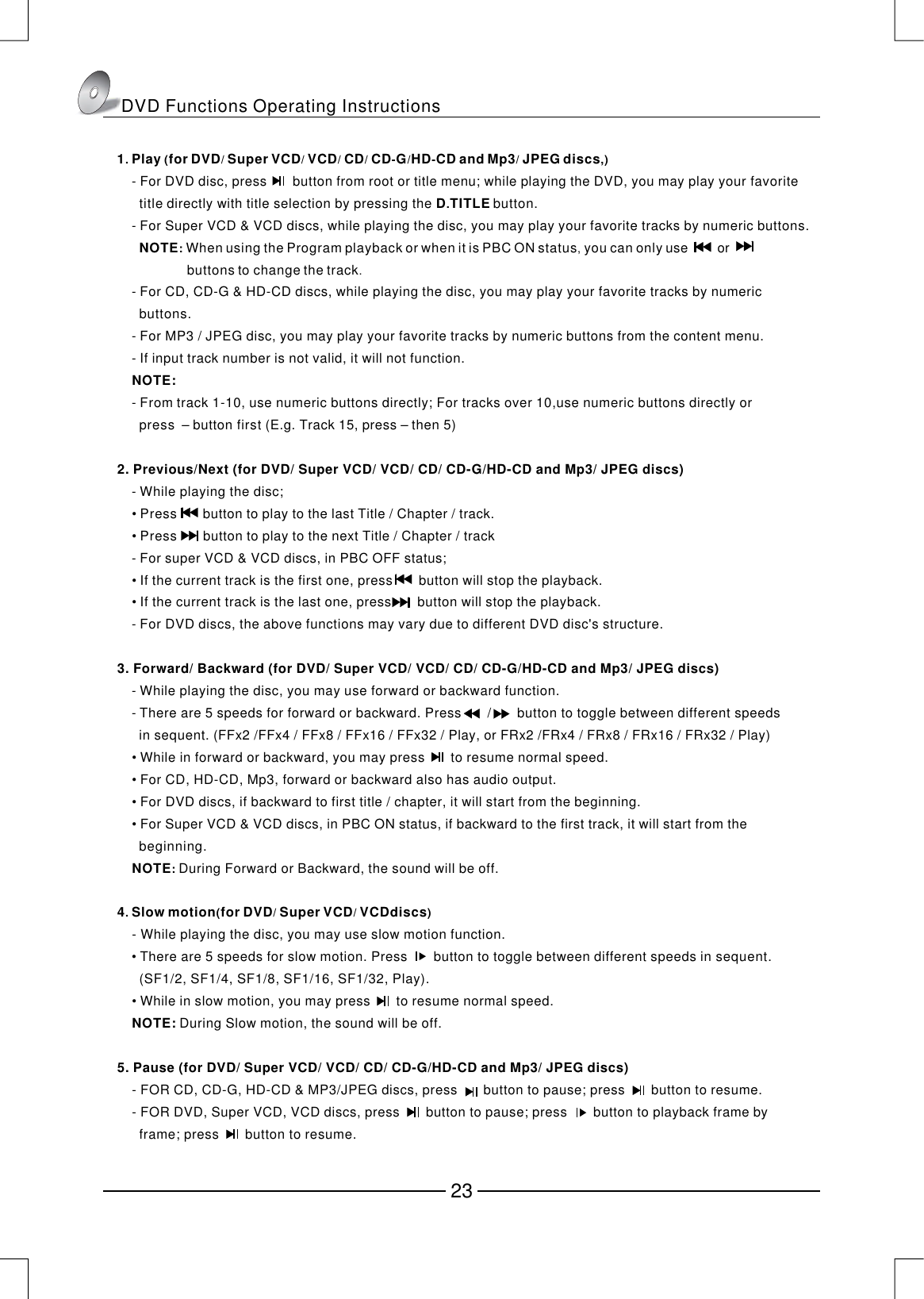

For DVD disc, press button from root or title menu; while playing the DVD, you may play your favorite title directly title selection by pressing the button.For Super VCD & VCD discs, while playing the disc, you may play your favorite tracks by numeric buttons. WhenusingtheProgramplaybackorwhenitisPBCONstatusyoucanonlyuse or changethetrackFor CD, CD-G & HD-CD discs, while playing the disc, you may play your favorite tracks by numeric buttons.For MP3 / JPEG disc, you may play your favorite tracks by numeric buttons from the content menu.If input track number is not valid, it will not function. From track 1-10, use numeric buttons directly; For tracks over 10,use numeric buttons directly or press – first (E.g. Track 15, press then 5)While playing the disc;Press button to play to the last Title / Chapter / track.Press button to play to the next Title / Chapter / trackFor super VCD & VCD discs, in PBC OFF status;If the current track is the first one, press button will stop the playback.If the current track is the last one, press button will stop the playback.For DVD discs, the above functions may vary due to different DVD disc's structure.While playing the disc, you may use forward or backward function.There are 5 speeds for forward or backward. Press / button to toggle between different speeds in sequent. 1PlayforDVDSuperVCDVCDCDCDGHDCDandMp3JPEGdiscsDTITLENOTENOTE:2. Previous/Next (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs)3. Forward/ Backward (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs). ( / / / / -/- / ,).: , . - with - buttonsto - - - - button – - • • - • • - - - (FFx2 /FFx4 / FFx8 / FFx16 / FFx32 / Play, or FRx2 /FRx4 / FRx8 / FRx16 / FRx32 / Play) • While in forward or backward, you may press to resume normal speed. • For CD, HD-CD, Mp3, forward or backward also has audio output. • For DVD discs, if backward to first title / chapter, it will start from the beginning. • For Super VCD & VCD discs, in PBC ON status, if backward to the first track, it will start from the beginning. During Forward or Backward, the sound will be off. - While playing the disc, you may use slow motion function. • There are 5 speeds for slow motion. Press button to toggle between different speeds in sequent. (SF1/2, SF1/4, SF1/8, SF1/16, SF1/32, Play). • While in slow motion, you may press to resume normal speed. During Slow motion, the sound will be off. - FOR CD, CD-G, HD-CD & MP3/JPEG discs, press button to pause; press button to resume. - FOR DVD, Super VCD, VCD discs, press button to pause; press button to playback frame by frame; press button to resume. NOTE4SlowmotionforDVDSuperVCDVCDdiscsNOTE:5. Pause (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs):. ( / / )DVD Functions Operating Instructions23

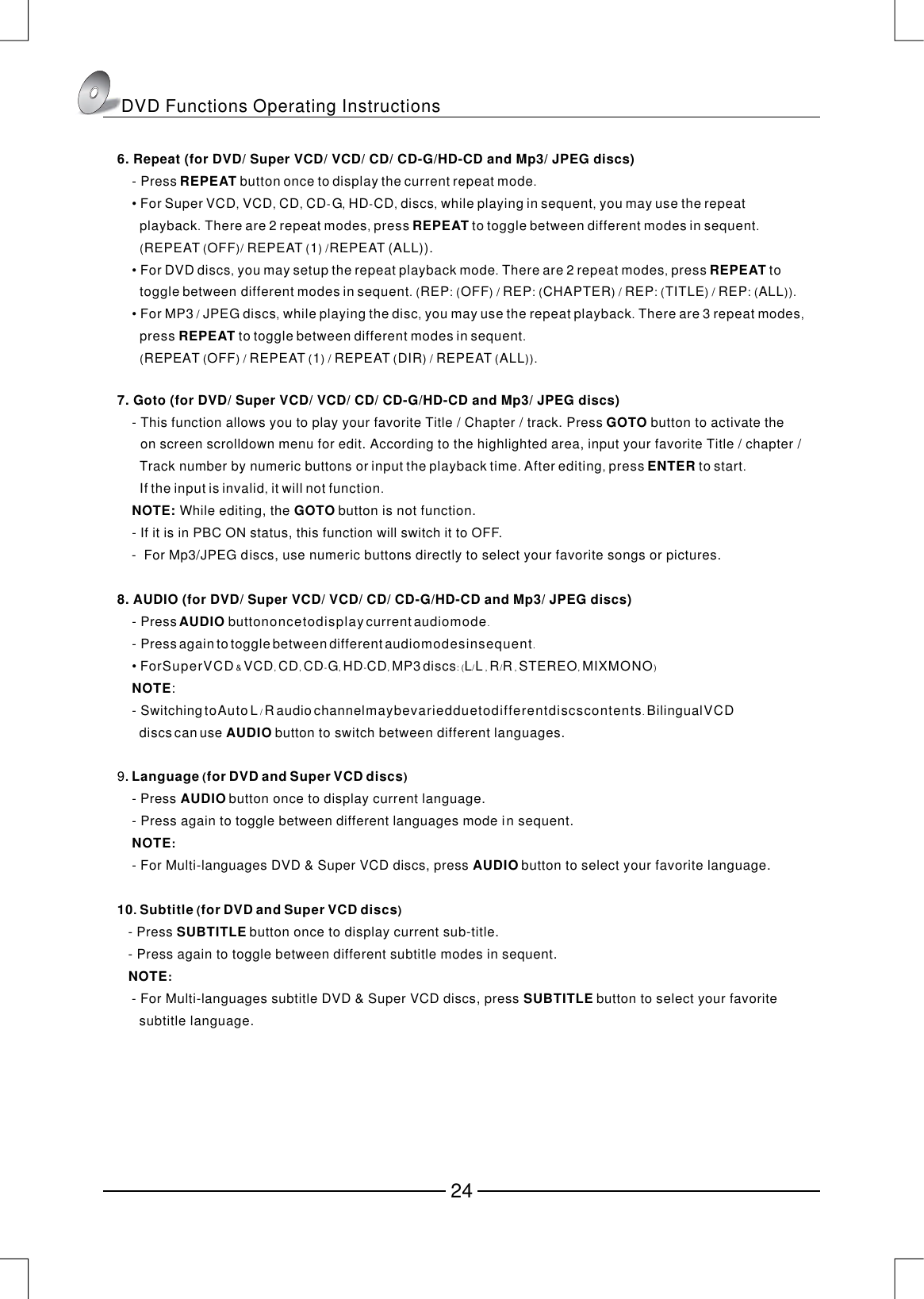

6. Repeat (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs)REPEATREPEATREPEATREPEAT7. Goto (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs) GOTOENTERNOTE: GOTO8. AUDIO (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs)AUDIONOTEAUDIOLanguageforDVDandSuperVCDdiscsAUDIONOTEAUDIO10SubtitleforDVDandSuperVCDdiscsSUBTITLENOTESUBTITLE - Press buttononcetodisplaythecurrentrepeatmode • ForSuperVCDVCDCDCDGHDCDdiscswhileplayinginsequentyoumayusetherepeatplaybackThereare2repeatmodespresstotogglebetweendifferentmodesinsequentREPEATOFFREPEAT1REPEAT (ALL)). • ForDVDdiscsyoumaysetuptherepeatplaybackmodeThereare2repeatmodespresstotogglebetween differentmodesinsequentREPOFFREPCHAPTERREPTITLEREPALL • ForMP3JPEGdiscswhileplayingthediscyoumayusetherepeatplaybackThereare3repeatmodespress totogglebetweendifferentmodesinsequentREPEATOFFREPEAT1REPEATDIRREPEATALL - This function allows you to play your favorite Title / Chapter / track. Press button to activate the on screen scrolldown menu for edit. According to the highlighted area, input your favorite Title / chapter / Track number by numeric buttons orinputtheplaybacktimeAftereditingpress tostartIftheinputisinvaliditwillnotfunction While editing, the button is not function. - If it is in PBC ON status, this function will switch it to OFF. - For Mp3/JPEG discs, use numeric buttons directly to select your favorite songs or pictures. - Press buttononcetodisplaycurrentaudiomode - Pressagaintotogglebetweendifferentaudiomodesinsequent • ForSuperVCDVCDCDCDGHDCDMP3discsLLRRSTEREOMIXMONO : - SwitchingtoAutoLRaudiochannelmaybevariedduetodifferentdiscscontentsBilingualVCDdiscscanuse button to switch between different languages.9 - Press button once to display current language. - Press again to toggle between different languages mode in sequent. - For Multi-languages DVD & Super VCD discs, press button to select your favorite language. - Press button once to display current sub-title. - Press again to toggle between different subtitle modes in sequent. - For Multi-languages subtitle DVD & Super VCD discs, press button to select your favorite subtitle language. . , , , -, -, , , . , . ( ()/ () / , . , . (: () / : () / : () / : ()). / , , . , . ( () / () / () / ()). . , . , . . . & , , -, -, : (/ , / , , ) / . . ( ):. ( ):DVD Functions Operating Instructions24
- Press button once to display current playback angle. - Press again to toggle between different playback angle codes in sequent. (E.g. Angle -/- (Current/Full) or OFF) - Only for DVD with multi-angle, press button to select your favorite playback angle. Selectable playback angle depends on the availability of the DVD contents. - In normal Playback, fast forward or fast reverse, press A-B button at where you want to start the repeat portion. There will have an on screen indication “REPEAT A “. - In normal Playback, fast forward or fast reverse, press A-B button again at where you want to stop the repeat portion.There will have an on screen indication “REPEAT A B“. - The repeat function started to playback the portion from A to B automatically. - Press A-B button again to cancel. There will have an on screen indication “A B CANCEL”. • For Super VCD, VCD & CD discs, repeat A-B is only function within the same track. When playing the others, repeat A-B will cancel automatically. • For Super DVD discs, repeat A-B is only function within the same Title /Chapter. When playing the others, repeat A-B will cancel automatically. - Press - VOL / VOL + buttons to adjust the output volume. Playback DVD discs in original code, is not adjustable. - Intro/Scan/9 picture displays.11AngleforDVDdiscANGLENOTEANGLE13. Volume (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs)NOTE14. INTRO (for Super VCD/ VCD/ CD/ CD-G/ HD-CD). ( ): 12. A- B (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs): DVD Functions Operating Instructions25
After loading the MP3 / JPEG disc, it will start to scan for the stored MP3 /JPEG folders. Then will firstly display the Mp3 contents automatically. Screen as follow:Display currentMP3 playbackfunctionDisplay the selected file’s content.Highlight file forcurrent playback.Display currentJPEG playbackfunctionScroll bar to viewnext page.- - - - - - - Using the navigation buttons to check you favorite folder and playback the first file or move to the your favorite file.Press ? ? buttons to move the highlight to folders, documents or mode selection.Press numeric buttons to select the contents directly. For number over 10,use numeric buttons directly press - / -- button first(E.g. Track 15, press - / -- then 5)When playback MP3 files, there is no picture display, only audio output.Playing the JPEG discs, press button to select slide effects. There are 10 slide modes, press button to toggle between different modes in sequent. (Start from top, Start from bottom, Start from left, Start from right, Start from upper left corner, Start from four corners, etc)When play or pause with picture playback, you may use navigation butoons to flip / rotate the picture. button to flip horizontally. button to flip vertically. ? button to rotate left 90°. ? button to rotate right 90°.When play or pause with picture playback, Press / button to select next / previous page or press numeric buttons to view the corresponding pictures.NOTE:PROGRAMPROGRAM or ▲　▼　MP3/JPEG Playback26

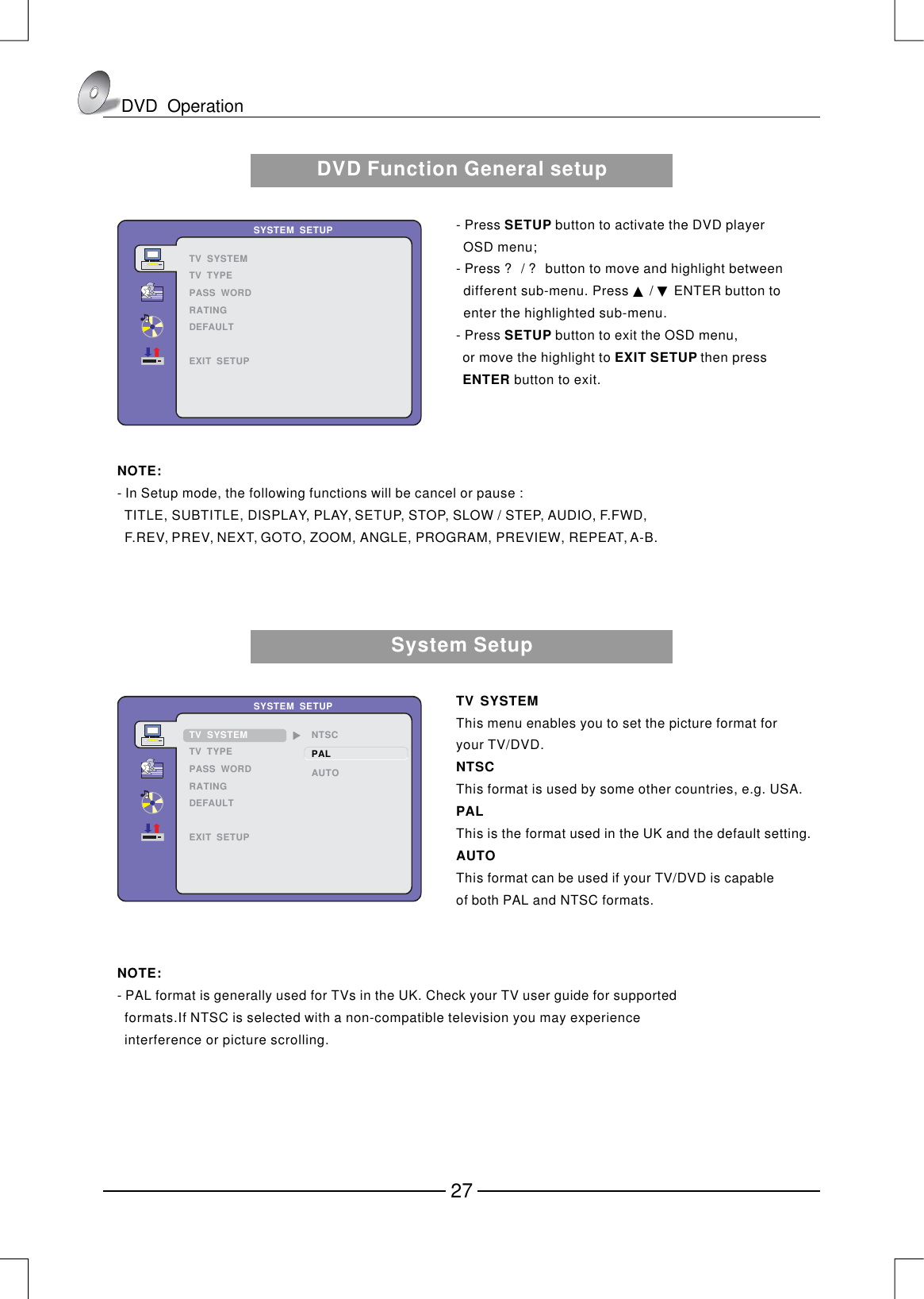

DVD Function General setup- Press button to activate the DVD player OSD menu;- Press ? / ? button to move and highlight between different sub-menu. Press / ENTER button to enter the highlighted sub-menu.- Press button to exit the OSD menu, or move the highlight to then press button to exit.SETUPSETUPEXIT SETUPENTER ▲▼　　TV SYSTEMTV TYPEPASS WORDRATINGDEFAULTEXIT SETUPSYSTEM SETUPDVD Operation27System SetupNOTE: In Setup mode, the following functions will be cancel or pause : TITLE, SUBTITLE, DISPLAY, PLAY, SETUP, STOP, SLOW / STEP, AUDIO, F.FWD, NEXT, GOTO, ZOOM, ANGLE, PROGRAM, PREVIEW, REPEAT, A-B.- F.REV, PREV, TVSYSTEMNTSCPALAUTO　This menu enables you to set the picture format for your TV/DVD.This format is used by some other countries, e.g. USA. This is the format used in the UK and the default setting.This format can be used if your TV/DVD is capable of both PAL and NTSC formats.NOTE: PAL format is generally used for TVs in the UK. Check your TV user guide for supported formats.If NTSC is selected with a non-compatible television you may experience interference or picture scrolling.- NTSCAUTOPALSYSTEM SETUPTV SYSTEMTV TYPEPASS WORDRATINGDEFAULTEXIT SETUP

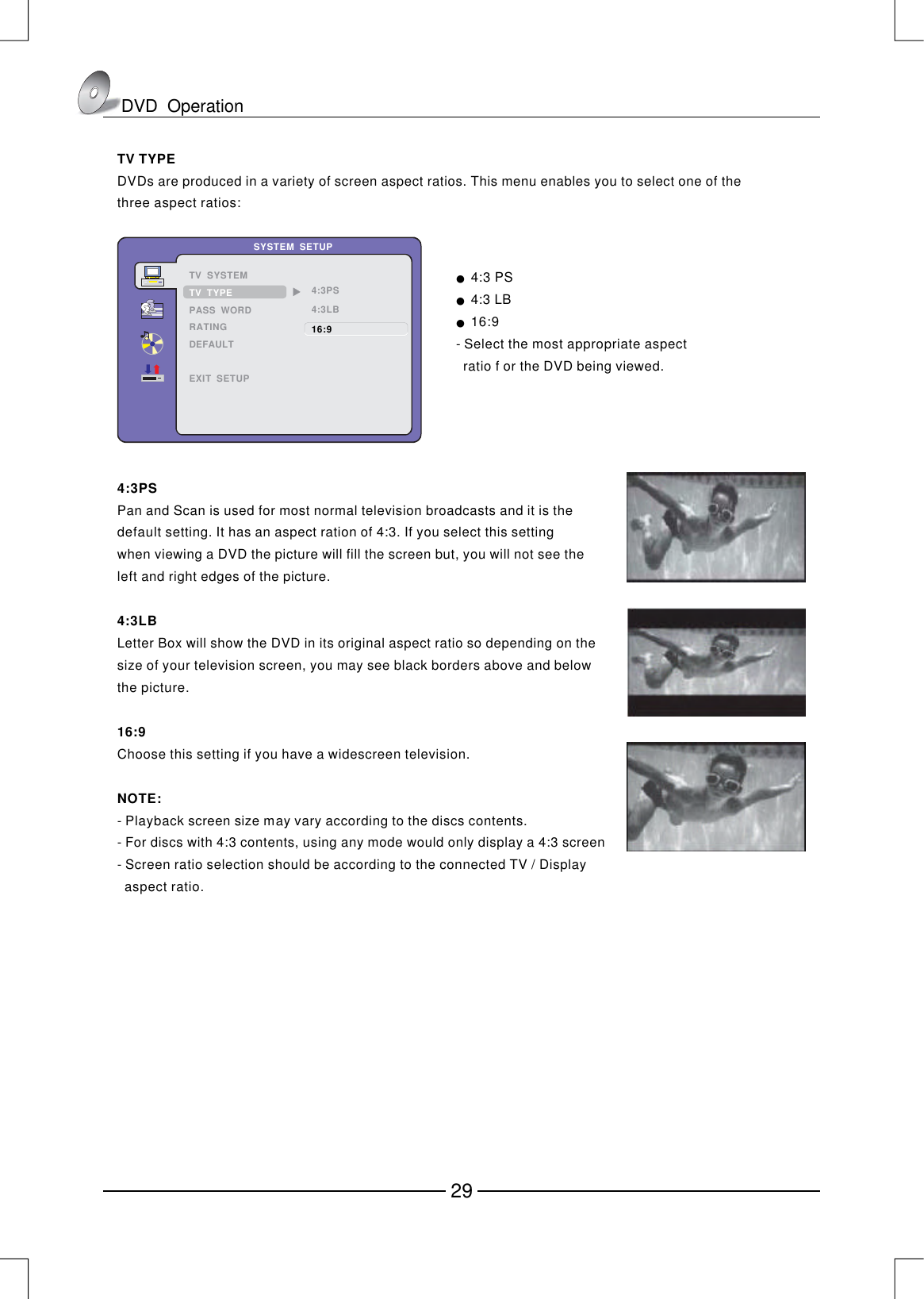

TV TYPEDVDs are produced in a variety of screen aspect ratios. This menu enables you to select one of the three aspect ratios:●　4:3 PS4:3 LB16:9Select the most appropriate aspect ratio f or the DVD being viewed.●　●　- 4:3PS4:3LB16:9NOTE:Pan and Scan is used for most normal television broadcasts and it is thedefault setting. It has an aspect ration of 4:3. If you select this settingwhen viewing a DVD the picture will fill the screen but, you will not see theleft and right edges of the picture.Letter Box will show the DVD in its original aspect ratio so depending on thesize of your television screen, you may see black borders above and belowthe picture.Choose this setting if you have a widescreen television.Playback screen size may vary according to the discs contents.For discs with 4:3 contents, using any mode would only display a 4:3 screenScreen ratio selection should be according to the connected TV / Display aspect ratio.- - - 4:3PS4:3LB16:9SYSTEM SETUPTV SYSTEMPASS WORDRATINGDEFAULTEXIT SETUPTV TYPEDVD Operation29

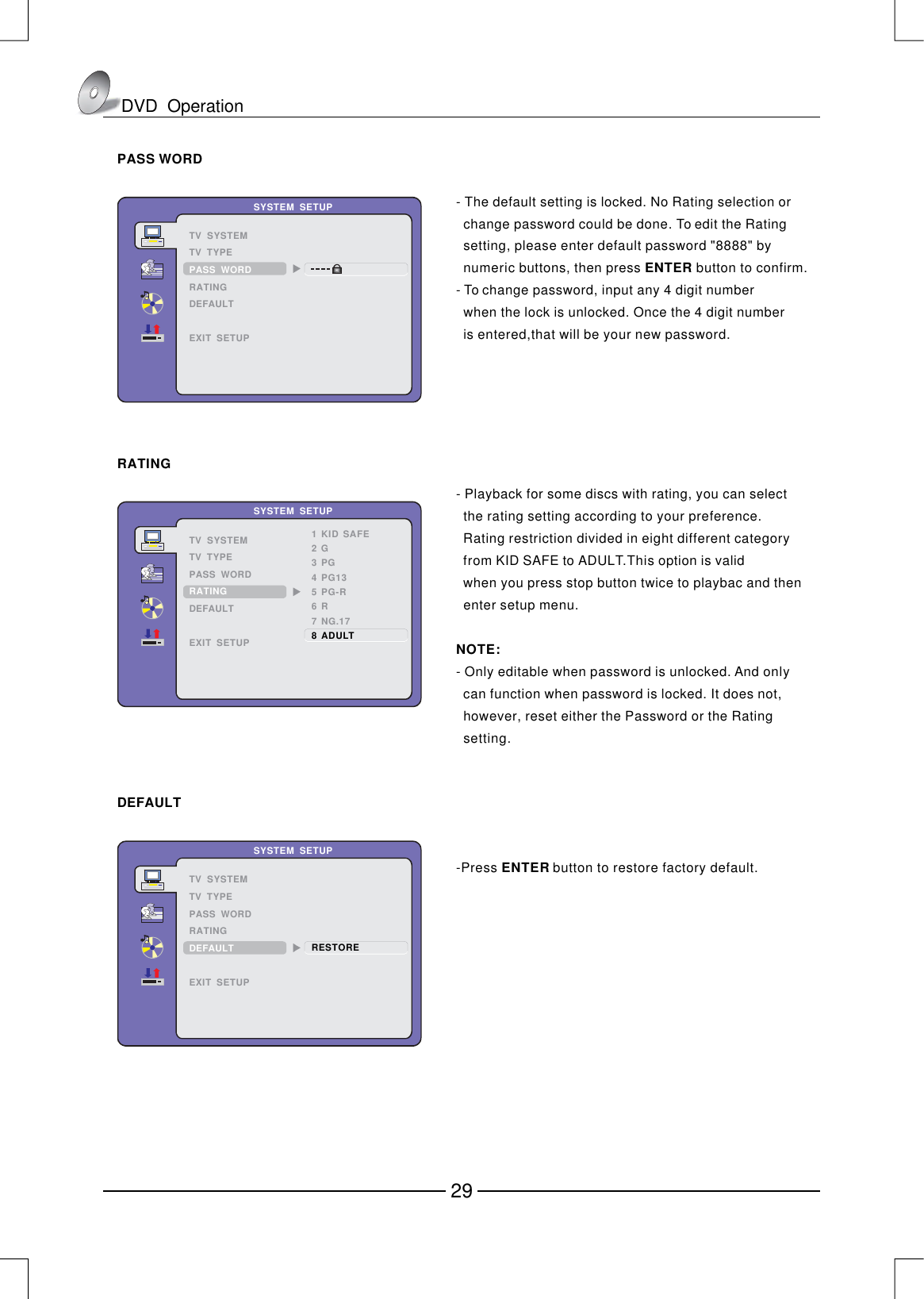

RATINGPASS WORD SYSTEM SETUPTV SYSTEMTV TYPERATINGDEFAULTEXIT SETUPPASS WORD- The default setting is locked. No Rating selection or change password could be done. To edit the Rating setting, please enter default password "8888" by numeric buttons, then press button to confirm. - ENTER To change password, input any 4 digit number when the lock is unlocked. Once the 4 digit number is entered,that will be your new password.1KIDSAFE2G3PG4PG135PG-R6R7NG.17　　　　　　　　8ADULT　SYSTEM SETUPTV SYSTEMTV TYPEPASS WORDDEFAULTEXIT SETUPRATINGRESTORESYSTEM SETUPTV SYSTEMTV TYPEPASS WORDRATINGEXIT SETUPDEFAULTDEFAULTPress button to restore factory default.ENTER -DVD Operation29- Playback for some discs with rating, you can select the rating setting according to your preference. Rating restriction divided in eight different category from KID SAFE to ADULT.This option is valid when you press stop button twice to playbac and then enter setup menu.- Only editable when password is unlocked. And only can function when password is locked. It does not, however, reset either the Password or the Rating setting.NOTE:
OSD LANGUAGESUBTITLE LANGMENU LANGEXIT SETUPAUDIO LANG ENGLISHSPANISHGERMANFRENCHLANGUAGE SETUPUse navigation buttons to select the AUDIO LANG setup icon, press button to confirm. There are 4 languages you selection, press & buttons to toggle between different languagesPress button to confirm.Audio Language- for (ENGLISH / SPANISH / GERMAN / FRENCH ).- ENTERENTER　 ▲▼Language SetupPress button to enter the DVD OSD menu.SETUPOSD LANGUAGEAUDIO LANGSUBTITLE LANGMENU LANGEXIT SETUPENGLISHSPANISHGERMANFRENCHLANGUAGE SETUPUse navigation buttons to select the OSD LANGUAGE setup icon, press button to confirm. There are 4 languages for your selection, press buttons to toggle between different languages (ENGLISH / GERMAN / FRENCH ).Press button to confirm.OSD Language- / SPANISH- ENTERENTER▲▼　＆　　NOTE: - If the selected language is not included in your DVD disc content, it will select the default language of the disc automatically. The default language setting is English.NOTE: - If the selected language is not included in your DVD disc content, it will select the default language of the disc automatically. The default language setting is English.- Only valid when you press stop button twice to playback and then enter setup menu.DVD Operation30

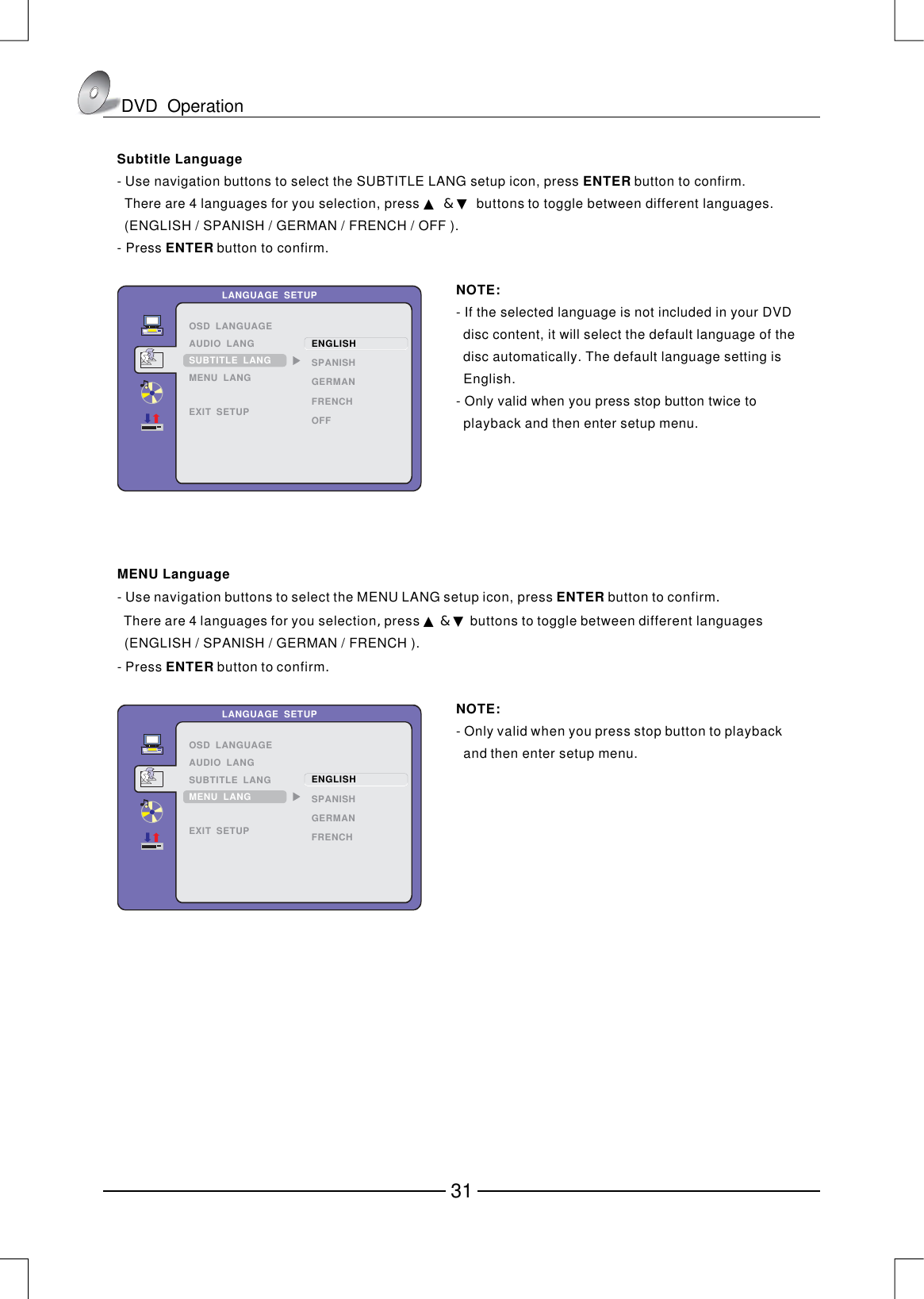

ENGLISHSPANISHGERMANFRENCHOFFOSD LANGUAGEAUDIO LANGMENU LANGEXIT SETUPSUBTITLE LANGLANGUAGE SETUPENGLISHSPANISHGERMANFRENCHOSD LANGUAGEAUDIO LANGSUBTITLE LANGEXIT SETUPMENU LANGLANGUAGE SETUPSubtitle LanguageENTERUse navigation buttons to select the SUBTITLE LANG setup icon, press button to confirm. There are 4 for you selection, press buttons to toggle between different languages.- languages (ENGLISH / SPANISH / GERMAN / FRENCH / OFF ).- Press button to confirm.▲▼　＆　　ENTERNOTE: - If the selected language is not included in your DVD disc content, it will select the default language of the disc automatically. The default language setting is English.- Only valid when you press stop button twice to playback and then enter setup menu.NOTE: - Onlyvalidwhenyoupressstopbuttontoplayback andthen enter setup menu. MENU Language- (ENGLISH / SPANISH / GERMAN / FRENCH ).- UsenavigationbuttonstoselecttheMENULANGsetupicon, pressbuttontoconfirmThereare4languagesforyou selectionpressbuttonstotogglebetweendifferent languagesPress buttontoconfirm . , & .ENTERENTER　 ▲▼ DVD Operation31
Digital SetupDynamic Range- When switch the compress mode to “Audio output”, adjust the compress ratio for different effect. When selected FULL, the peak signal value is smallest. When selected OFF, the peak signal value is biggest.Dual Mono- You can select four different audio output, STEREO, MONO L, MONO R, MIX MONO. The audio out description of these Selections is shown in the table below.DYNAMIC RANGEDUAL MONOEXIT SETUPDIGITALSETUP　DIGITALSETUP　STEREOMONO LMONO RMIX MONODYNAMIC RANGEEXIT SETUPDUAL MONOAudio SetupTon- Use buttons to adjust the Tone setting.▲▼　＆　　EXIT SETUPTONEAUDIOSETUP　MODEL-MONO+R-MONO L-MONO+R-MONOR-MONO R-MONOL-MONO L-MONOSTEREO-L STEREO-LLEFT SPEAKER RIGHT SPEAKERSTEREOL-MONOR-MONOMIX-MONODVD Operation32

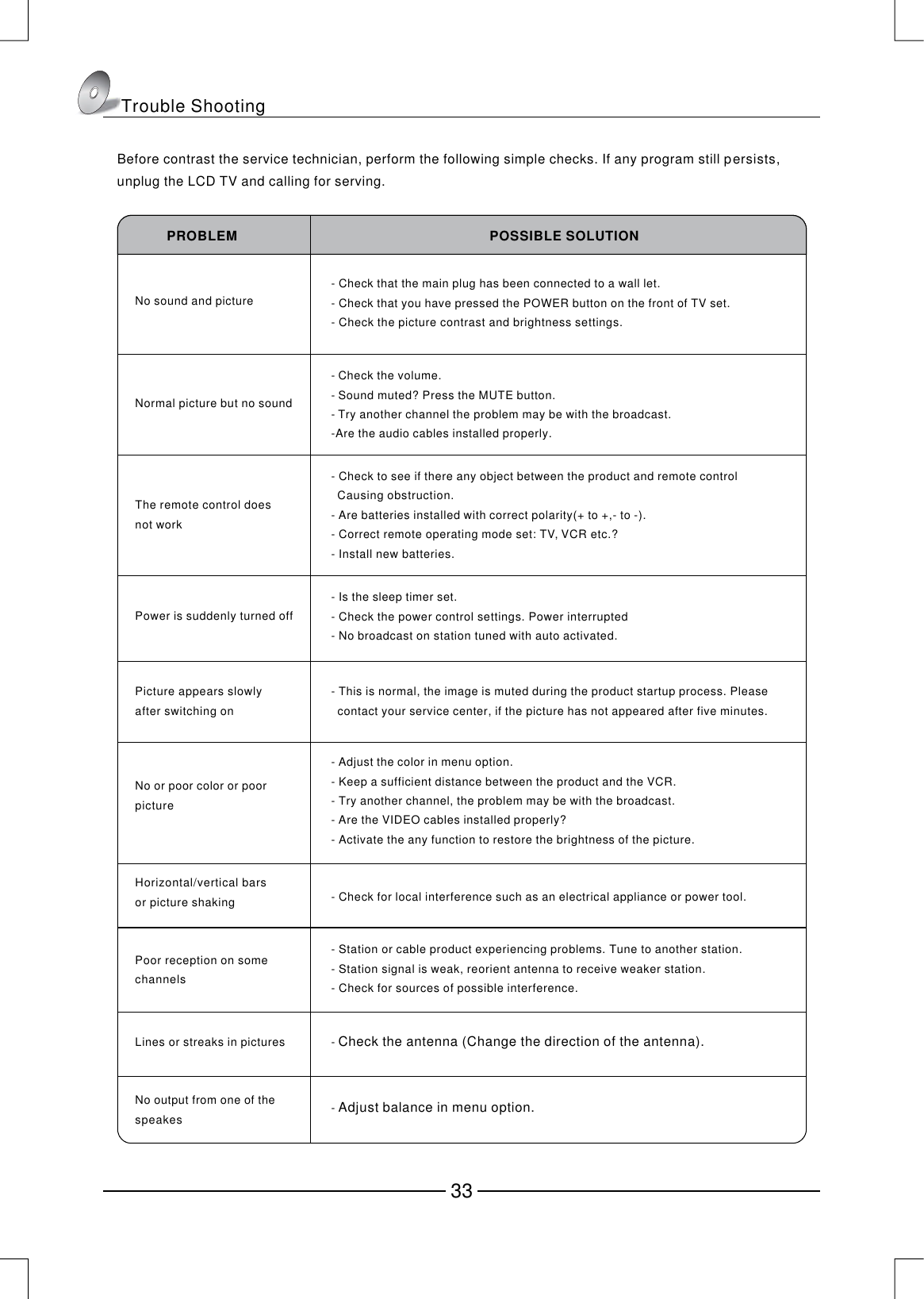

Before contrast the service technician, perform the following simple checks. If any program still persists, unplug the LCD TV and calling for serving.No sound and picture- Check that the main plug has been connected to a wall let.- Check that you have pressed the POWER button on the front of TV set.- Check the picture contrast and brightness settings.- Check to see if there any object between the product and remote control Causing obstruction.- Are batteries installed with correct polarity(+ to +,- to -).- Correct remote operating mode set: TV, VCR etc.?- Install new batteries.- Is the sleep timer set.- Check the power control settings. Power interrupted- No broadcast on station tuned with auto activated.- This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.- Adjust the color in menu option.- Keep a sufficient distance between the product and the VCR.- Try another channel, the problem may be with the broadcast.- Are the VIDEO cables installed properly?- Activate the any function to restore the brightness of the picture.- Check for local interference such as an electrical appliance or power tool.- Station or cable product experiencing problems. Tune to another station.- Station signal is weak, reorient antenna to receive weaker station.- Check for sources of possible interference.- Check the antenna (Change the direction of the antenna).- Adjust balance in menu option.Normal picture but no soundThe remote control doesnot workPower is suddenly turned offPicture appears slowlyafter switching onNo or poor color or poorpictureHorizontal/vertical barsor picture shakingPoor reception on somechannelsLines or streaks in picturesNo output from one of the speakes- - - -Are the audio cables installed properly.Check the volume.Sound muted? Press the MUTE button.Try another channel the problem may be with the broadcast.PROBLEM POSSIBLE SOLUTIONTrouble Shooting33
NOTE: There is a problem in VGA mode.(Only VGA mode applied)Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.Cleaning the screenCleaning the cabinetExtended Absence1. Here’ s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then used it to wipe the screen.2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.If you expect to leave your TV dormant for a long time(such as a vacation), it’s a good idea tounplug power cord to protect against possible damage from lightning or power surges.the If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug power cord to protect against possible damage from lightning or power surges.the Screen color is unstableor single color.Vertical bar or stripe onback ground&HorizontalNoise&Incorrect position.The signal is out of range.- Work the auto configure or adjust clock, phase, or H/V position.- Adjust resolution, horizontal frequency, or vertical frequency.- Check it whether the signal cable is connected or loose.- Check the input source.- - Check the signal cable.Reinstall the PC video card.PROBLEM POSSIBLE SOLUTIONMaintenanceTrouble Shooting34

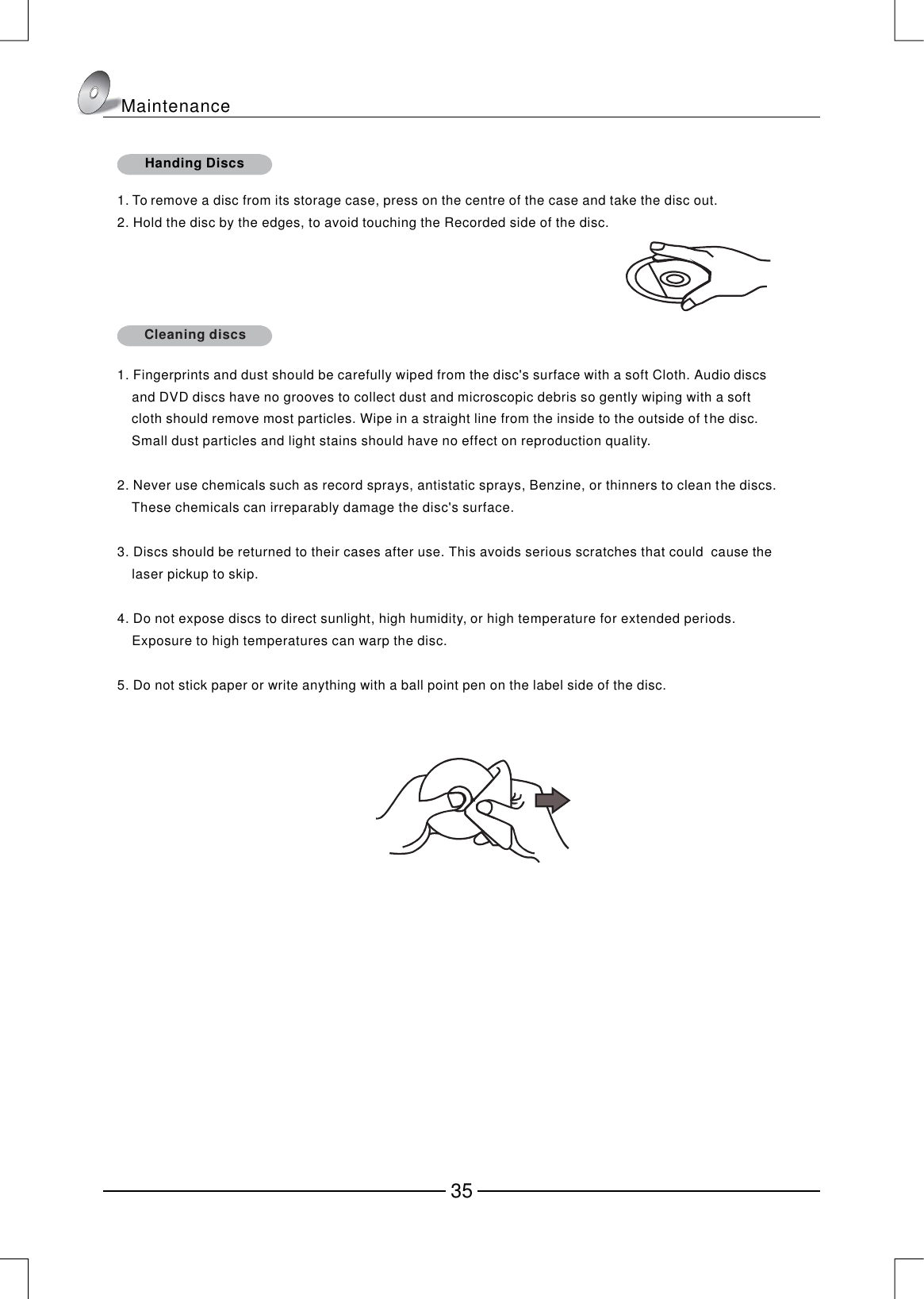

Handing Discs1. To remove a disc from its storage case, press on the centre of the case and take the disc out.2. Hold the disc by the edges, to avoid touching the Recorded side of the disc.Cleaning discs1. Fingerprints and dust should be carefully wiped from the disc's surface with a soft Cloth. Audio discs and DVD discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc. Small dust particles and light stains should have no effect on reproduction quality.2. Never use chemicals such as record sprays, antistatic sprays, Benzine, or thinners to clean the discs. These chemicals can irreparably damage the disc's surface.3. Discs should be returned to their cases after use. This avoids serious scratches that could cause the laser pickup to skip.4. Do not expose discs to direct sunlight, high humidity, or high temperature for extended periods. Exposure to high temperatures can warp the disc.5. Do not stick paper or write anything with a ball point pen on the label side of the disc.Maintenance35

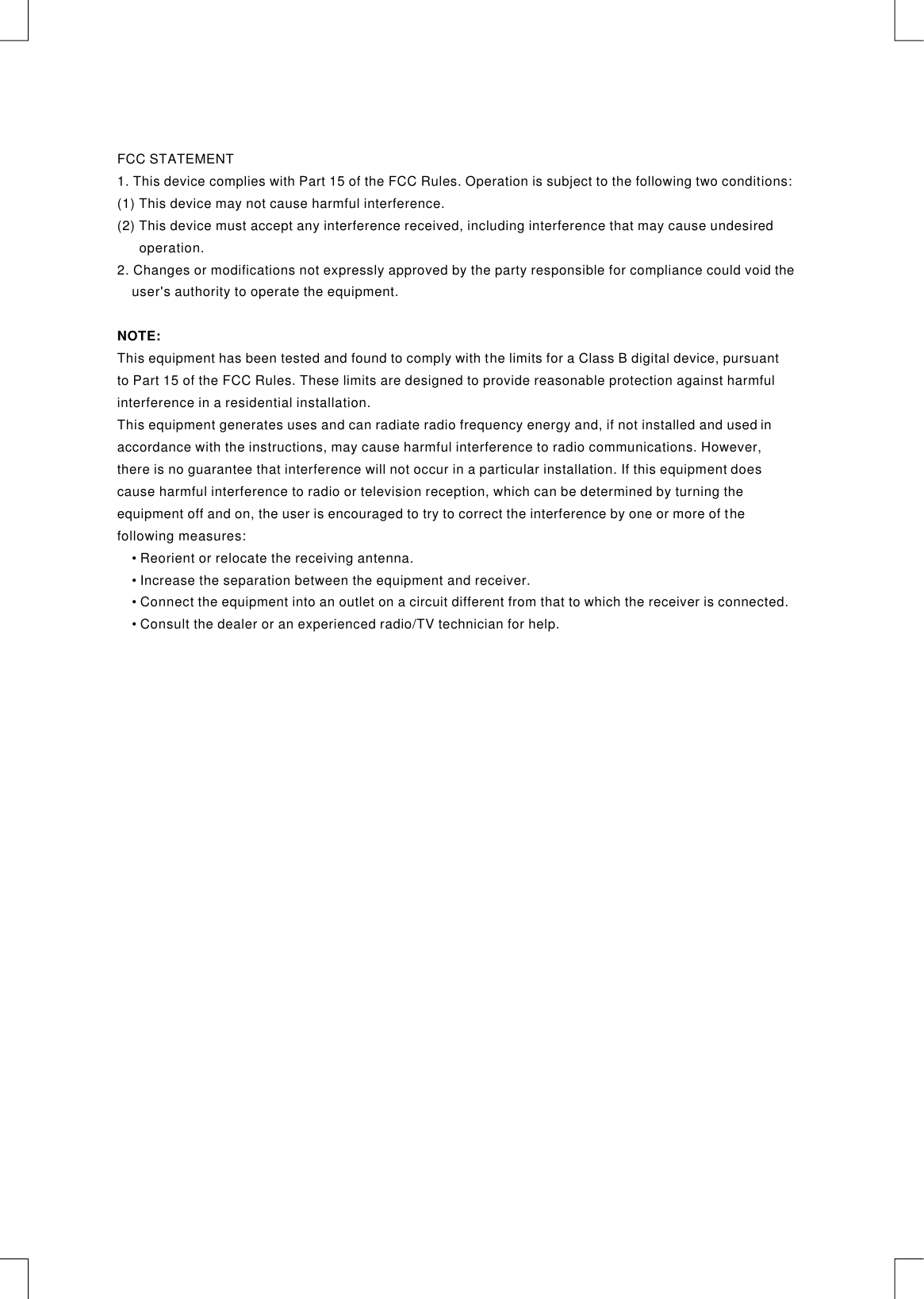

FCC STATEMENT1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.NOTE: • • • •
