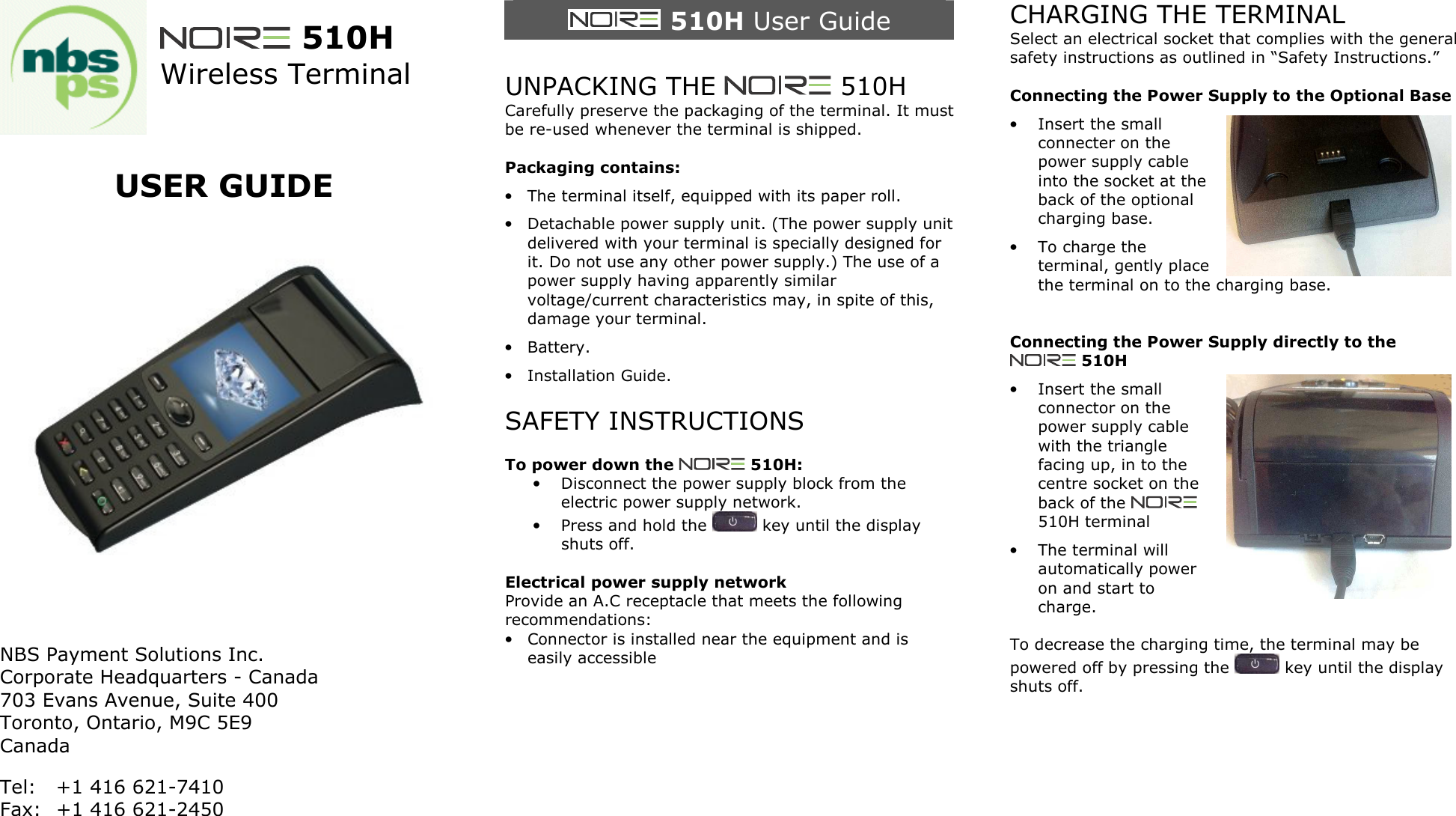

510H Wireless Terminal USER GUIDE NBS Payment Solutions Inc. Corporate Headquarters - Canada 703 Evans Avenue, Suite 400 Toronto, Ontario, M9C 5E9 Canada Tel: +1 416 621-7410 Fax: +1 416 621-2450 510H User Guide UNPACKING THE 510H Carefully preserve the packaging of the terminal. It must be re-used whenever the terminal is shipped. Packaging contains: • The terminal itself, equipped with its paper roll. • Detachable power supply unit. (The power supply unit delivered with your terminal is specially designed for it. Do not use any other power supply.) The use of a power supply having apparently similar voltage/current characteristics may, in spite of this, damage your terminal. • Battery. • Installation Guide. SAFETY INSTRUCTIONS To power down the 510H: • Disconnect the power supply block from the electric power supply network. • Press and hold the key until the display shuts off. Electrical power supply network Provide an A.C receptacle that meets the following recommendations: • Connector is installed near the equipment and is easily accessible CHARGING THE TERMINAL Select an electrical socket that complies with the general safety instructions as outlined in “Safety Instructions.” Connecting the Power Supply to the Optional Base • Insert the small connecter on the power supply cable into the socket at the back of the optional charging base. • To charge the terminal, gently place the terminal on to the charging base. Connecting the Power Supply directly to the 510H • Insert the small connector on the power supply cable with the triangle facing up, in to the centre socket on the back of the 510H terminal • The terminal will automatically power on and start to charge. To decrease the charging time, the terminal may be powered off by pressing the key until the display shuts off.

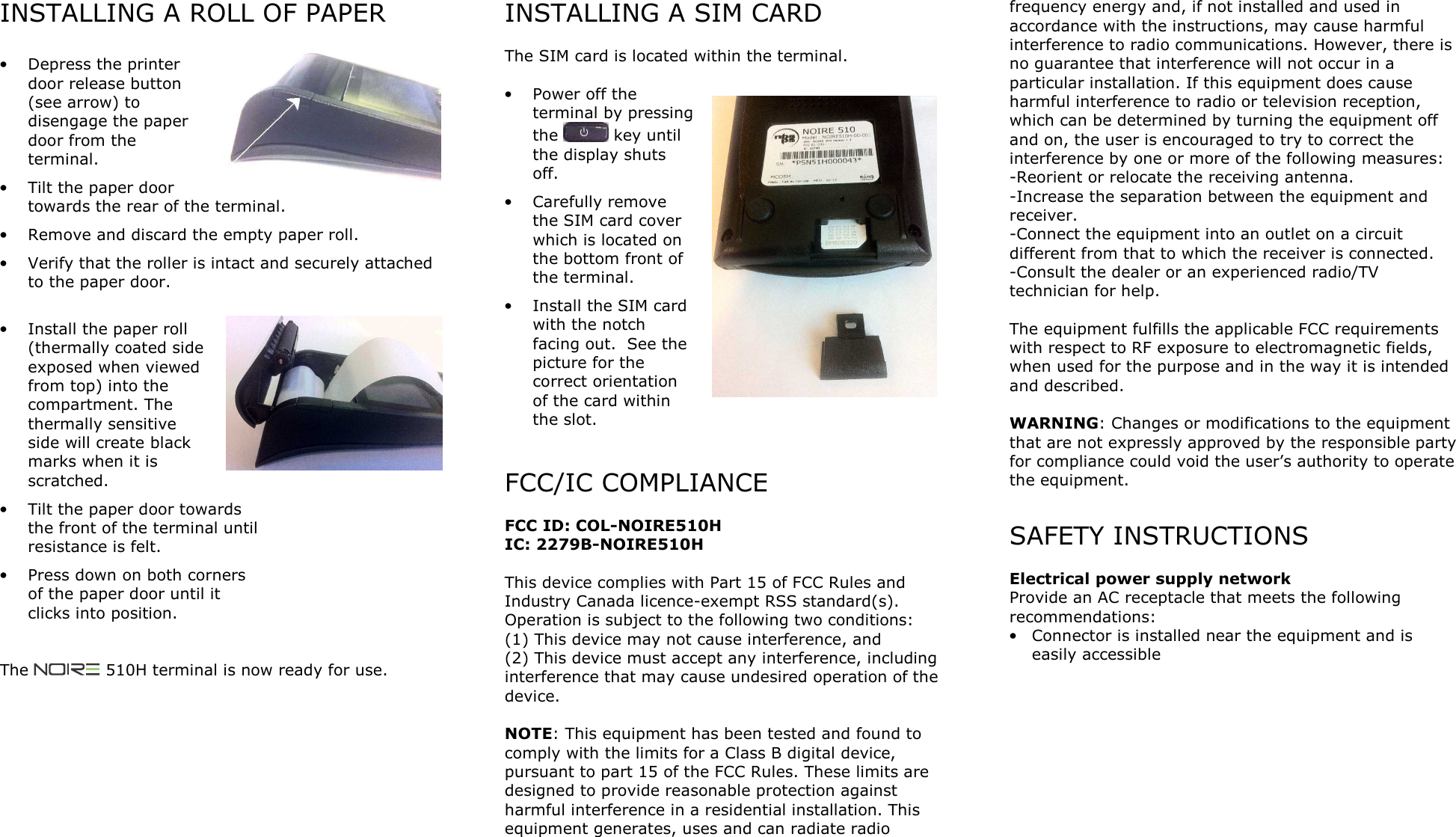

INSTALLING A ROLL OF PAPER • Depress the printer door release button (see arrow) to disengage the paper door from the terminal. • Tilt the paper door towards the rear of the terminal. • Remove and discard the empty paper roll. • Verify that the roller is intact and securely attached to the paper door. • Install the paper roll (thermally coated side exposed when viewed from top) into the compartment. The thermally sensitive side will create black marks when it is scratched. • Tilt the paper door towards the front of the terminal until resistance is felt. • Press down on both corners of the paper door until it clicks into position. The 510H terminal is now ready for use. INSTALLING A SIM CARD The SIM card is located within the terminal. • Power off the terminal by pressing the key until the display shuts off. • Carefully remove the SIM card cover which is located on the bottom front of the terminal. • Install the SIM card with the notch facing out. See the picture for the correct orientation of the card within the slot. FCC/IC COMPLIANCE FCC ID: COL-NOIRE510H IC: 2279B-NOIRE510H This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The equipment fulfills the applicable FCC requirements with respect to RF exposure to electromagnetic fields, when used for the purpose and in the way it is intended and described. WARNING: Changes or modifications to the equipment that are not expressly approved by the responsible party for compliance could void the user’s authority to operate the equipment. SAFETY INSTRUCTIONS Electrical power supply network Provide an AC receptacle that meets the following recommendations: • Connector is installed near the equipment and is easily accessible
