Color TFT-LCD Monitor User’s ManualNLM18S / NLM19SNLM18S / NLM19S

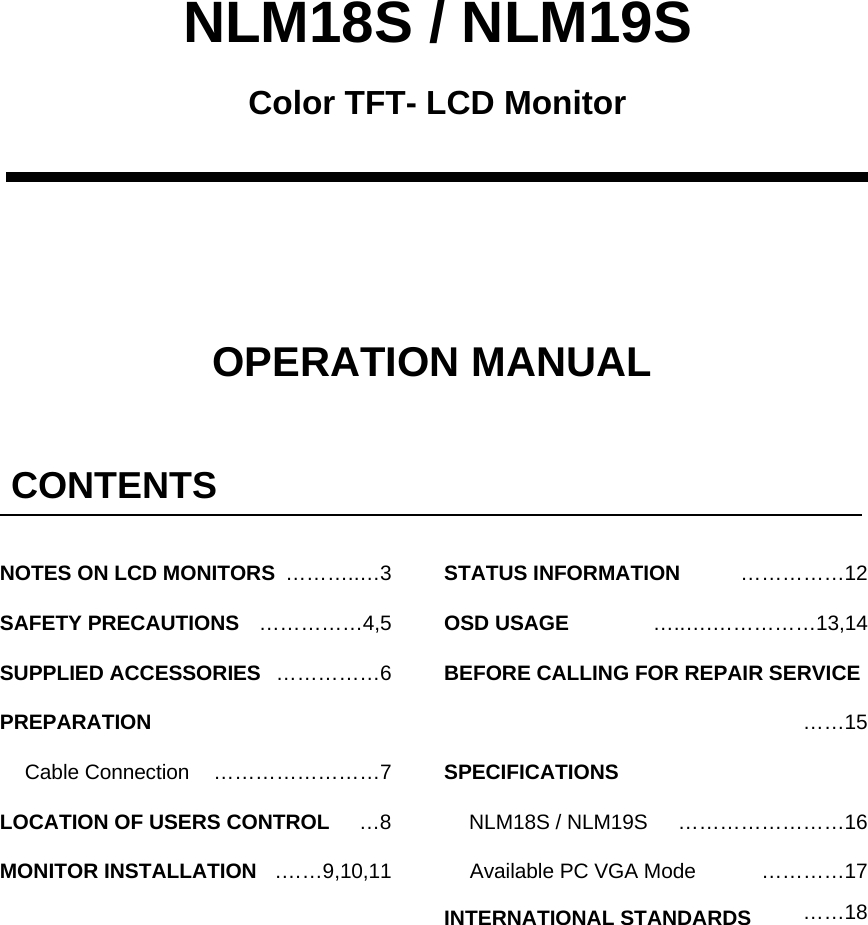

NLM18S / NLM19SOPERATION MANUALColor TFT- LCD MonitorCONTENTS……………4,5……………6…8.……9,10,11……………12SAFETY PRECAUTIONSSUPPLIED ACCESSORIESPREPARATIONLOCATION OF USERS CONTROLMONITOR INSTALLATIONSTATUS INFORMATION……………………7Cable ConnectionOSD USAGE……15……………………16BEFORE CALLING FOR REPAIR SERVICENLM18S / NLM19SAvailable PC VGA ModeSPECIFICATIONS…..….……………13,14…………17INTERNATIONAL STANDARDS ……18………..…3NOTES ON LCD MONITORS

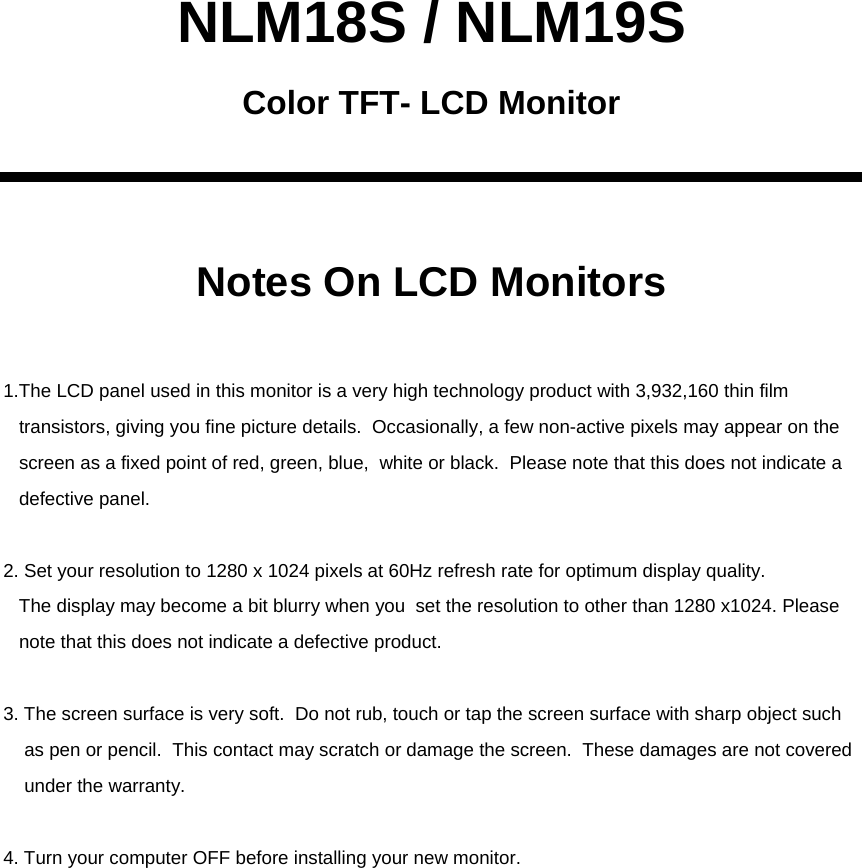

NLM18S / NLM19SNotes On LCD MonitorsColor TFT- LCD Monitor1.The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate adefective panel.2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality.The display may become a bit blurry when you set the resolution to other than 1280 x1024. Please note that this does not indicate a defective product.3. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such as pen or pencil. This contact may scratch or damage the screen. These damages are not coveredunder the warranty.4. Turn your computer OFF before installing your new monitor.

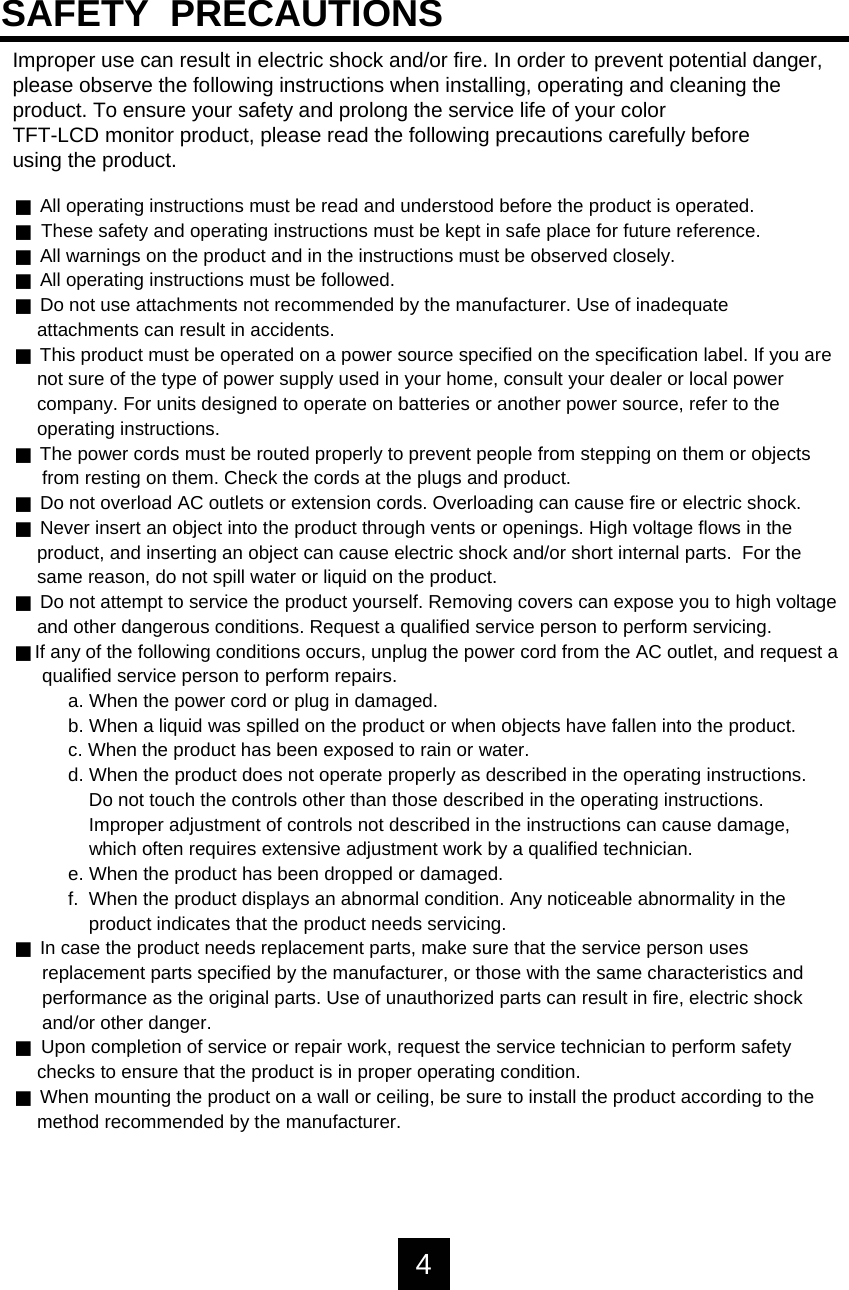

Improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your colorTFT-LCD monitor product, please read the following precautions carefully beforeusing the product.JAll operating instructions must be read and understood before the product is operated.JThese safety and operating instructions must be kept in safe place for future reference.JAll warnings on the product and in the instructions must be observed closely.JAll operating instructions must be followed.JDo not use attachments not recommended by the manufacturer. Use of inadequateattachments can result in accidents.JThis product must be operated on a power source specified on the specification label. If you arenot sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to theoperating instructions.JThe power cords must be routed properly to prevent people from stepping on them or objectsfrom resting on them. Check the cords at the plugs and product.JDo not overload AC outlets or extension cords. Overloading can cause fire or electric shock.JNever insert an object into the product through vents or openings. High voltage flows in theproduct, and inserting an object can cause electric shock and/or short internal parts. For thesame reason, do not spill water or liquid on the product.JDo not attempt to service the product yourself. Removing covers can expose you to high voltageand other dangerous conditions. Request a qualified service person to perform servicing.JIf any of the following conditions occurs, unplug the power cord from the AC outlet, and request aqualified service person to perform repairs.a. When the power cord or plug in damaged.b. When a liquid was spilled on the product or when objects have fallen into the product.c. When the product has been exposed to rain or water.d. When the product does not operate properly as described in the operating instructions.Do not touch the controls other than those described in the operating instructions.Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged.f. When the product displays an abnormal condition. Any noticeable abnormality in theproduct indicates that the product needs servicing.JIn case the product needs replacement parts, make sure that the service person usesreplacement parts specified by the manufacturer, or those with the same characteristics andperformance as the original parts. Use of unauthorized parts can result in fire, electric shockand/or other danger.JUpon completion of service or repair work, request the service technician to perform safetychecks to ensure that the product is in proper operating condition.JWhen mounting the product on a wall or ceiling, be sure to install the product according to themethod recommended by the manufacturer.SAFETY PRECAUTIONS4

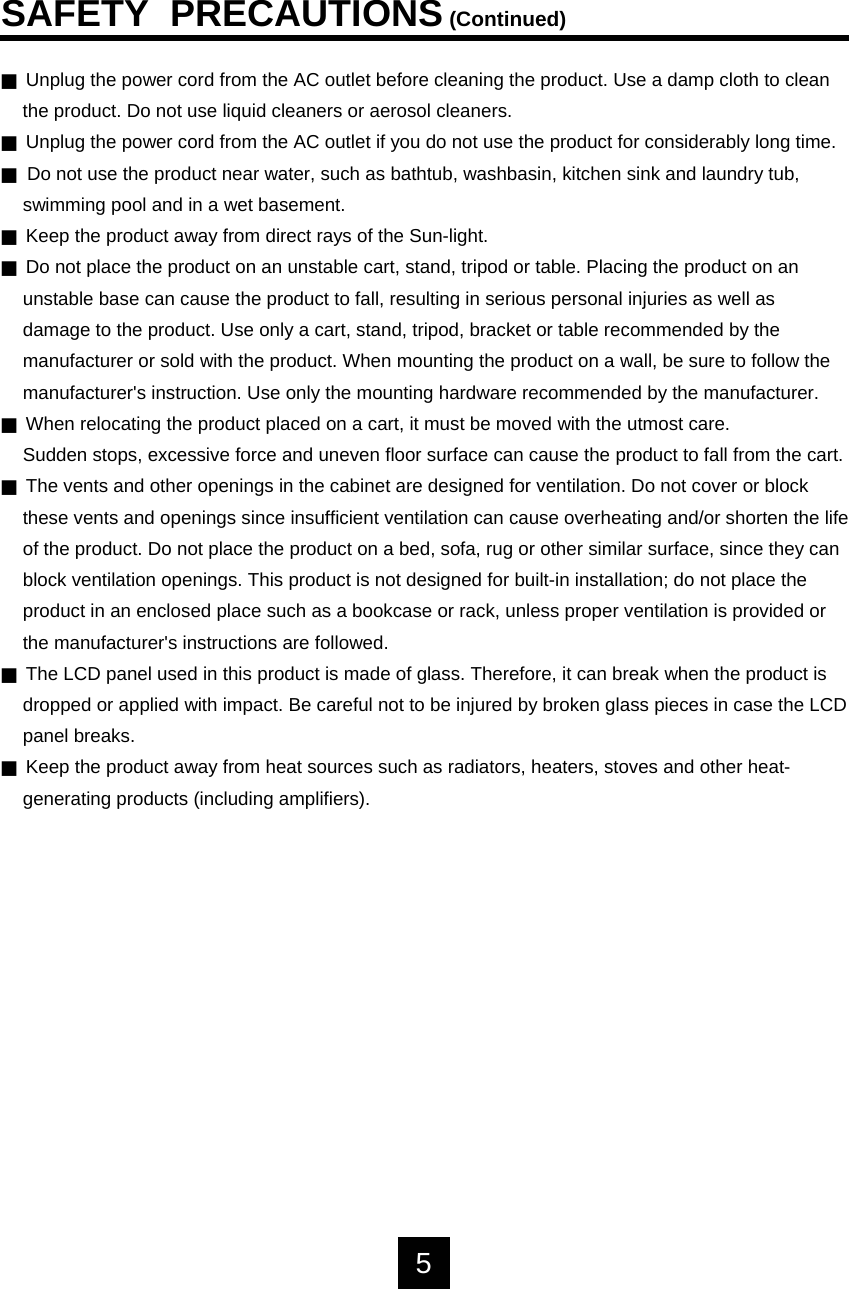

JUnplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to cleanthe product. Do not use liquid cleaners or aerosol cleaners.JUnplug the power cord from the AC outlet if you do not use the product for considerably long time.JDo not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.JKeep the product away from direct rays of the Sun-light.JDo not place the product on an unstable cart, stand, tripod or table. Placing the product on anunstable base can cause the product to fall, resulting in serious personal injuries as well asdamage to the product. Use only a cart, stand, tripod, bracket or table recommended by themanufacturer or sold with the product. When mounting the product on a wall, be sure to follow themanufacturer's instruction. Use only the mounting hardware recommended by the manufacturer.JWhen relocating the product placed on a cart, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.JThe vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the lifeof the product. Do not place the product on a bed, sofa, rug or other similar surface, since they canblock ventilation openings. This product is not designed for built-in installation; do not place theproduct in an enclosed place such as a bookcase or rack, unless proper ventilation is provided orthe manufacturer's instructions are followed.JThe LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCDpanel breaks.JKeep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).SAFETY PRECAUTIONS(Continued)5

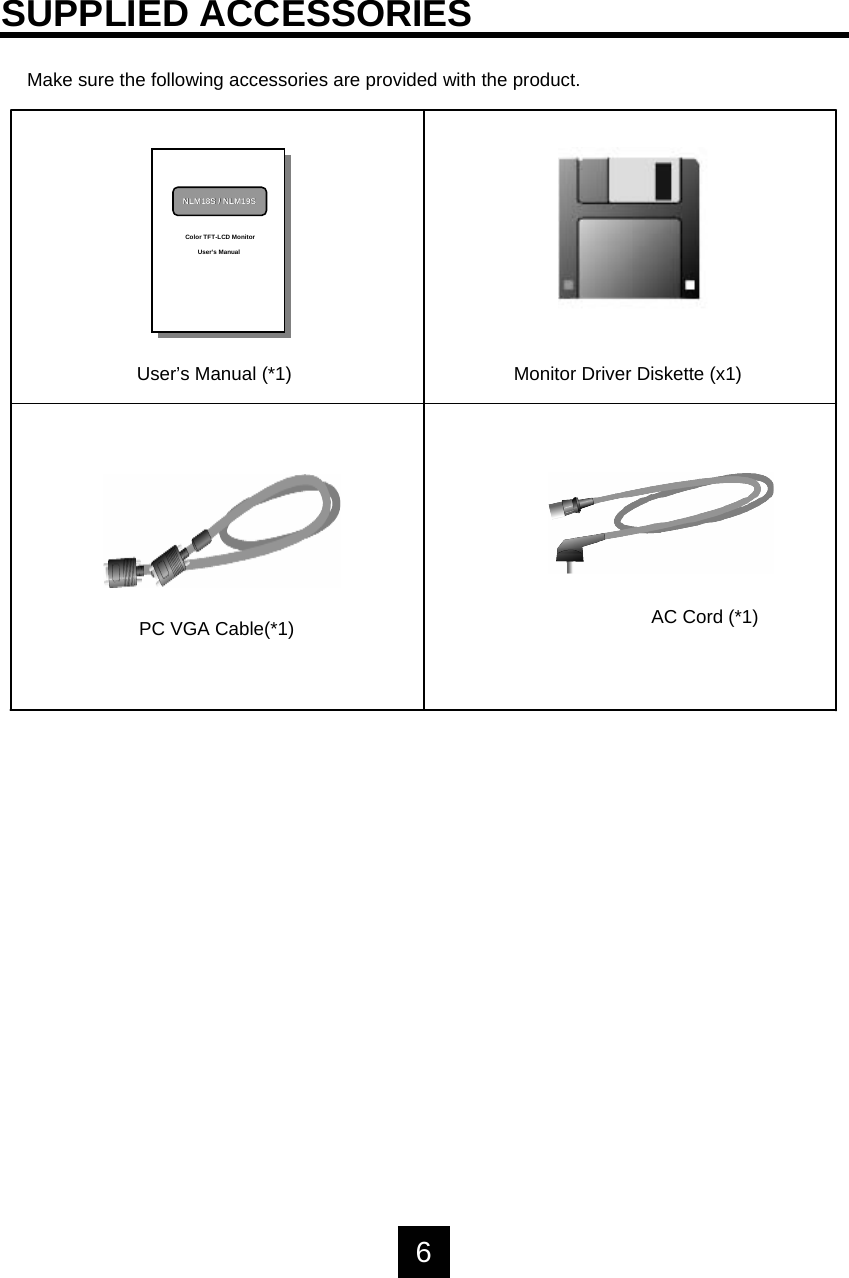

Make sure the following accessories are provided with the product. User’s Manual (*1)AC Cord (*1)PC VGA Cable(*1)6Monitor Driver Diskette (x1)SUPPLIED ACCESSORIESNLM18S / NLM19SNLM18S / NLM19SColor TFT-LCD MonitorUser’s Manual

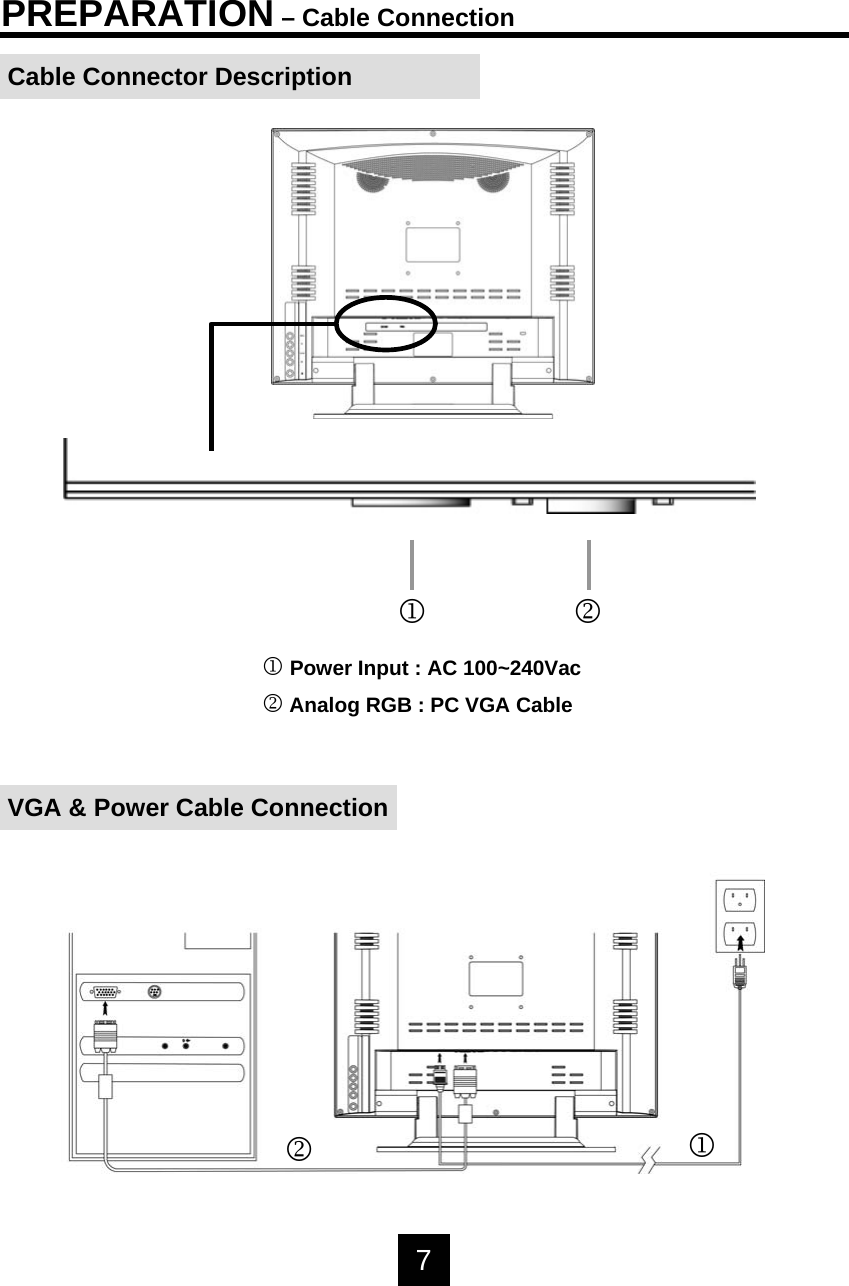

1Power Input : AC 100~240Vac2Analog RGB : PC VGA CableVGA & Power Cable Connection7Cable Connector DescriptionPREPARATION – Cable Connection1212

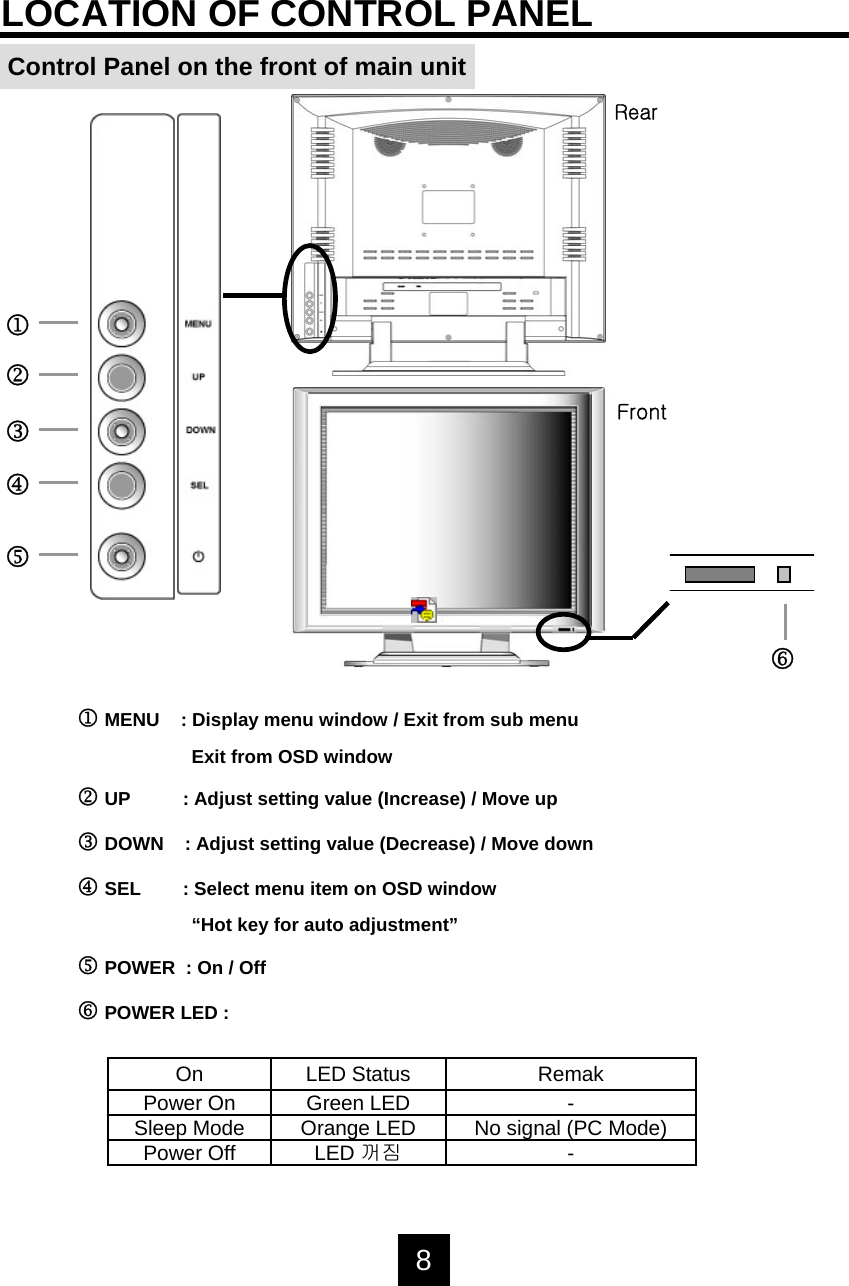

Control Panel on the front of main unit8LOCATION OF CONTROL PANEL1MENU : Display menu window / Exit from sub menu Exit from OSD window2UP : Adjust setting value (Increase) / Move up3DOWN : Adjust setting value (Decrease) / Move down4SEL : Select menu item on OSD window“Hot key for auto adjustment”5POWER : On / Off6POWER LED :RearFrontLED 꺼짐Orange LEDGreen LEDLED Status-No signal (PC Mode)-RemakSleep ModePower OnOnPower Off123456

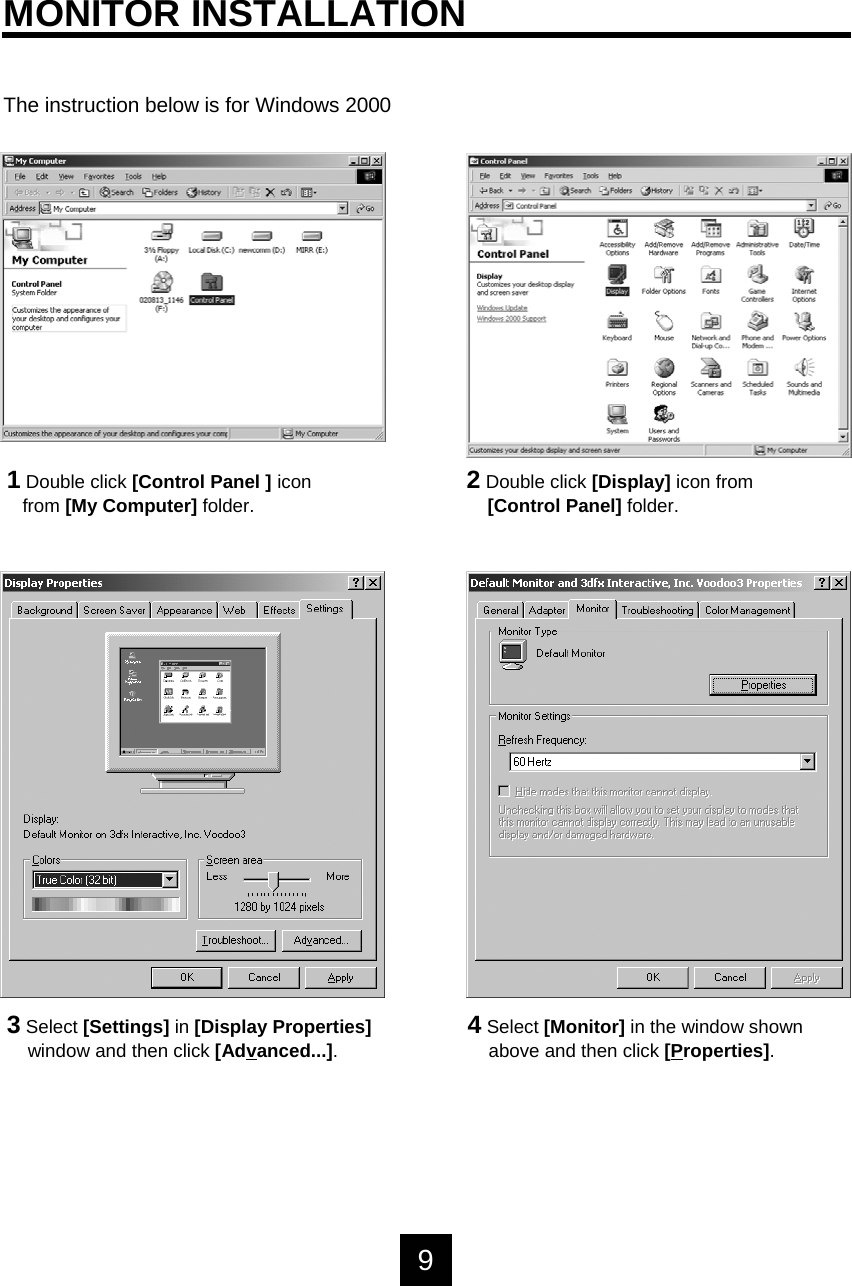

3Select [Settings] in [Display Properties]window and then click [Advanced...].4Select [Monitor] in the window shownabove and then click [Properties].1Double click [Control Panel ] iconfrom [My Computer] folder. 2Double click [Display] icon from[Control Panel] folder.MONITOR INSTALLATION9The instruction below is for Windows 2000

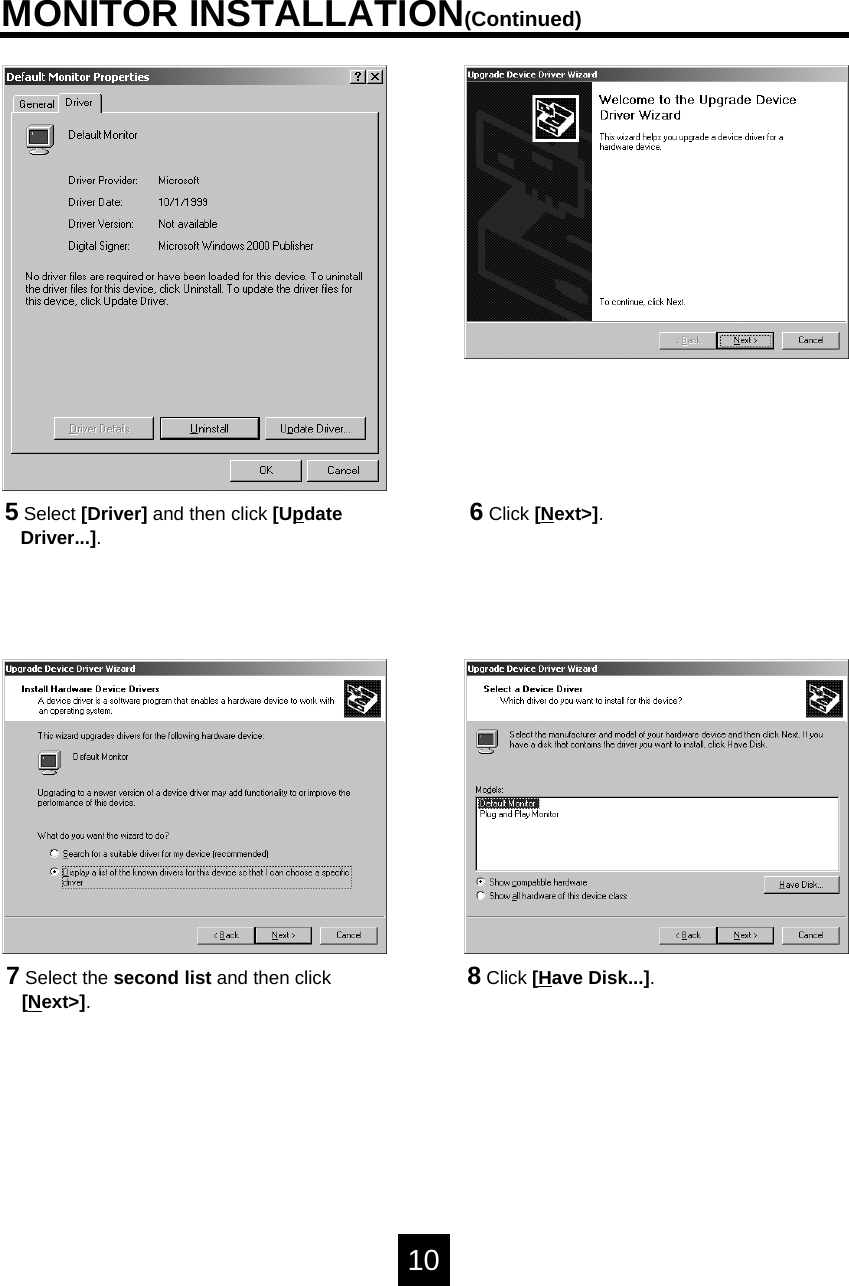

5Select [Driver] and then click [UpdateDriver...].6Click [Next>].8Click [Have Disk...].MONITOR INSTALLATION(Continued)107Select the second list and then click[Next>].

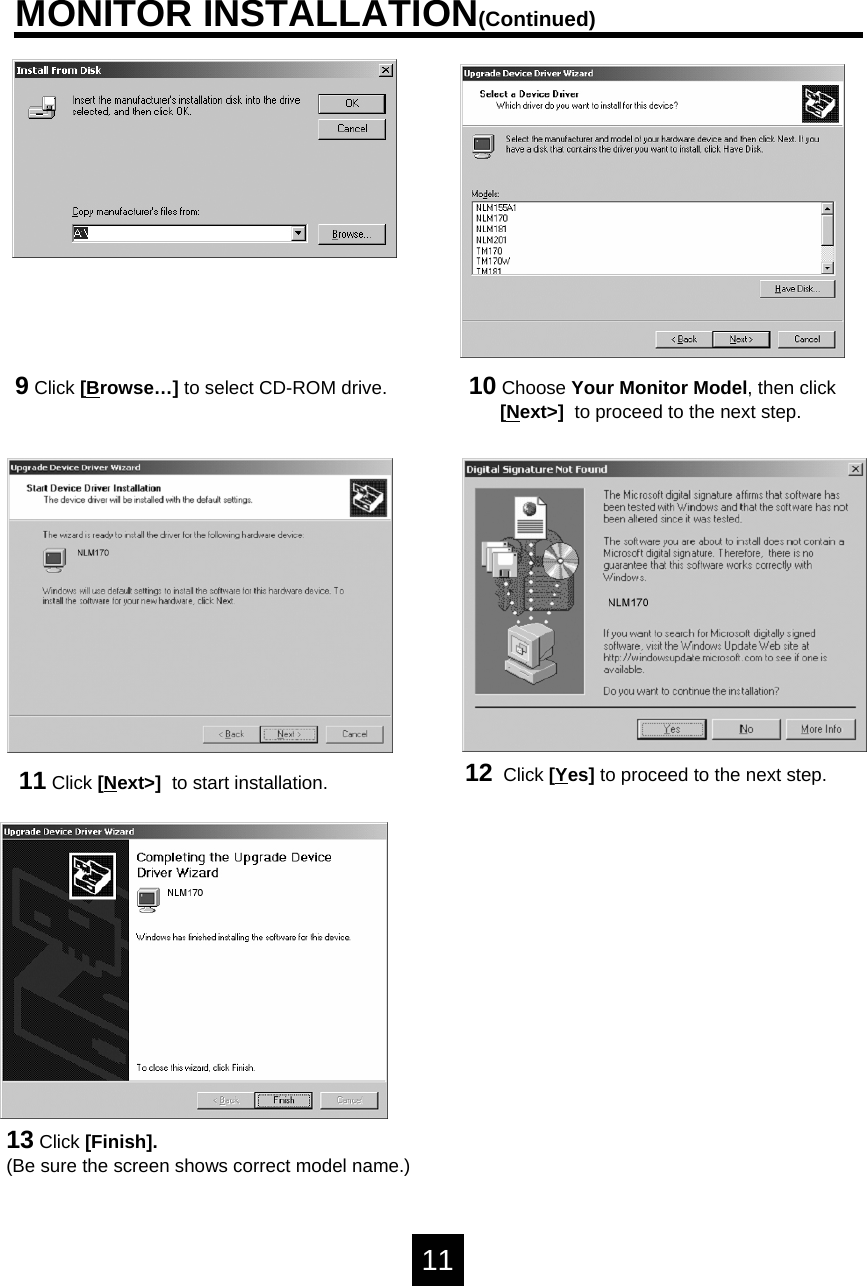

10 Choose Your Monitor Model, then click[Next>] to proceed to the next step.MONITOR INSTALLATION(Continued)11 Click [Next>] to start installation.13 Click [Finish].(Be sure the screen shows correct model name.)1112 Click [Yes] to proceed to the next step.9Click [Browse…] to select CD-ROM drive.

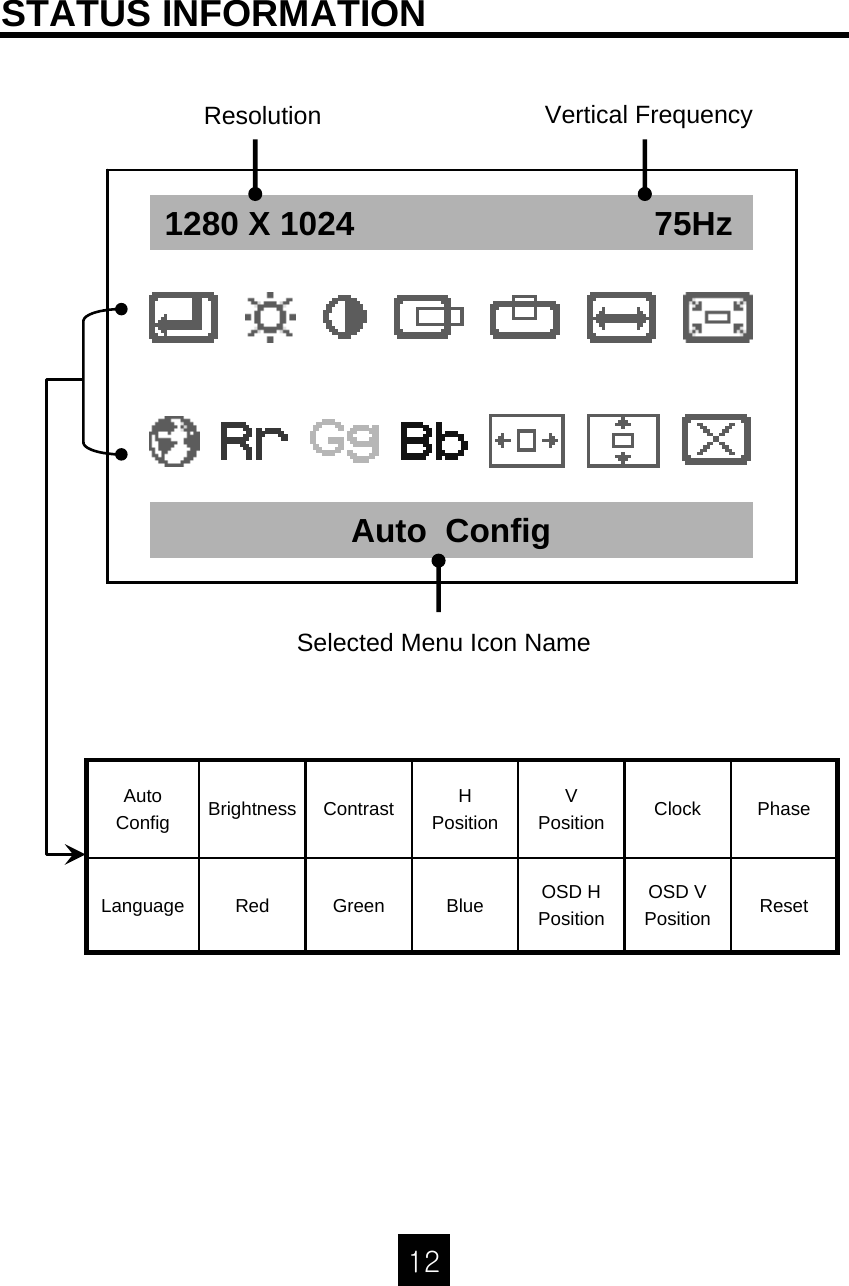

12STATUS INFORMATIONResolutionSelected Menu Icon Name1280 X 1024 75HzAuto ConfigResetOSD VPositionOSD HPosition BlueGreenRedLanguagePhaseClockVPositionH PositionContrastBrightnessAuto ConfigVertical Frequency

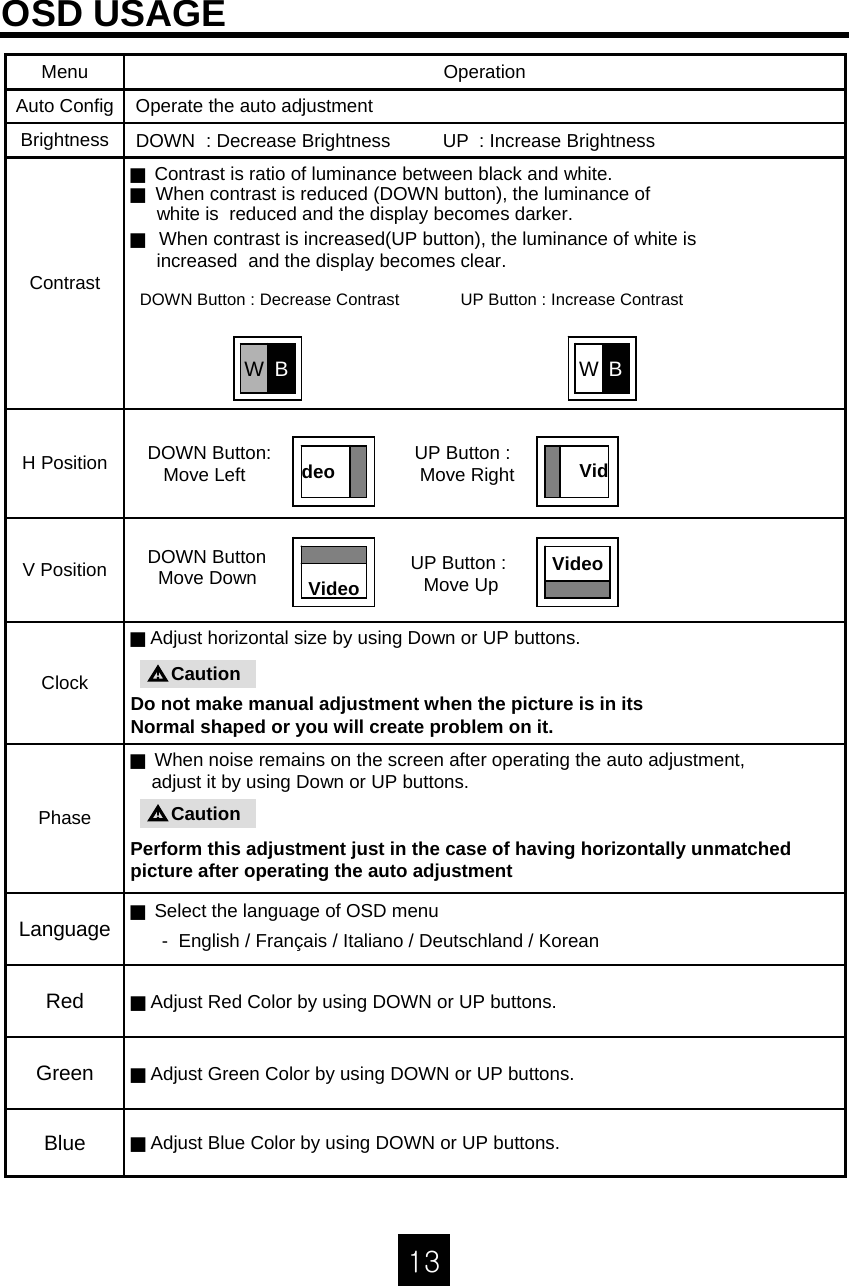

13OSD USAGEJAdjust Green Color by using DOWN or UP buttons.GreenJAdjust Red Color by using DOWN or UP buttons.RedJSelect the language of OSD menu- English / Français / Italiano / Deutschland / KoreanLanguageJWhen noise remains on the screen after operating the auto adjustment,adjust it by using Down or UP buttons.Perform this adjustment just in the case of having horizontally unmatched picture after operating the auto adjustmentPhaseJAdjust horizontal size by using Down or UP buttons.Do not make manual adjustment when the picture is in itsNormal shaped or you will create problem on it. ClockV PositionH PositionOperate the auto adjustmentAuto ConfigJContrast is ratio of luminance between black and white.JWhen contrast is reduced (DOWN button), the luminance ofwhite is reduced and the display becomes darker.JWhen contrast is increased(UP button), the luminance of white is increased and the display becomes clear.DOWN Button : Decrease Contrast UP Button : Increase ContrastContrastJAdjust Blue Color by using DOWN or UP buttons.BlueDOWN : Decrease Brightness UP : Increase BrightnessBrightnessOperationMenuCaution!Caution!deoVideo VideoDOWN Button:Move Left UP Button : Move RightDOWN ButtonMove Down UP Button : Move UpVidBWW B

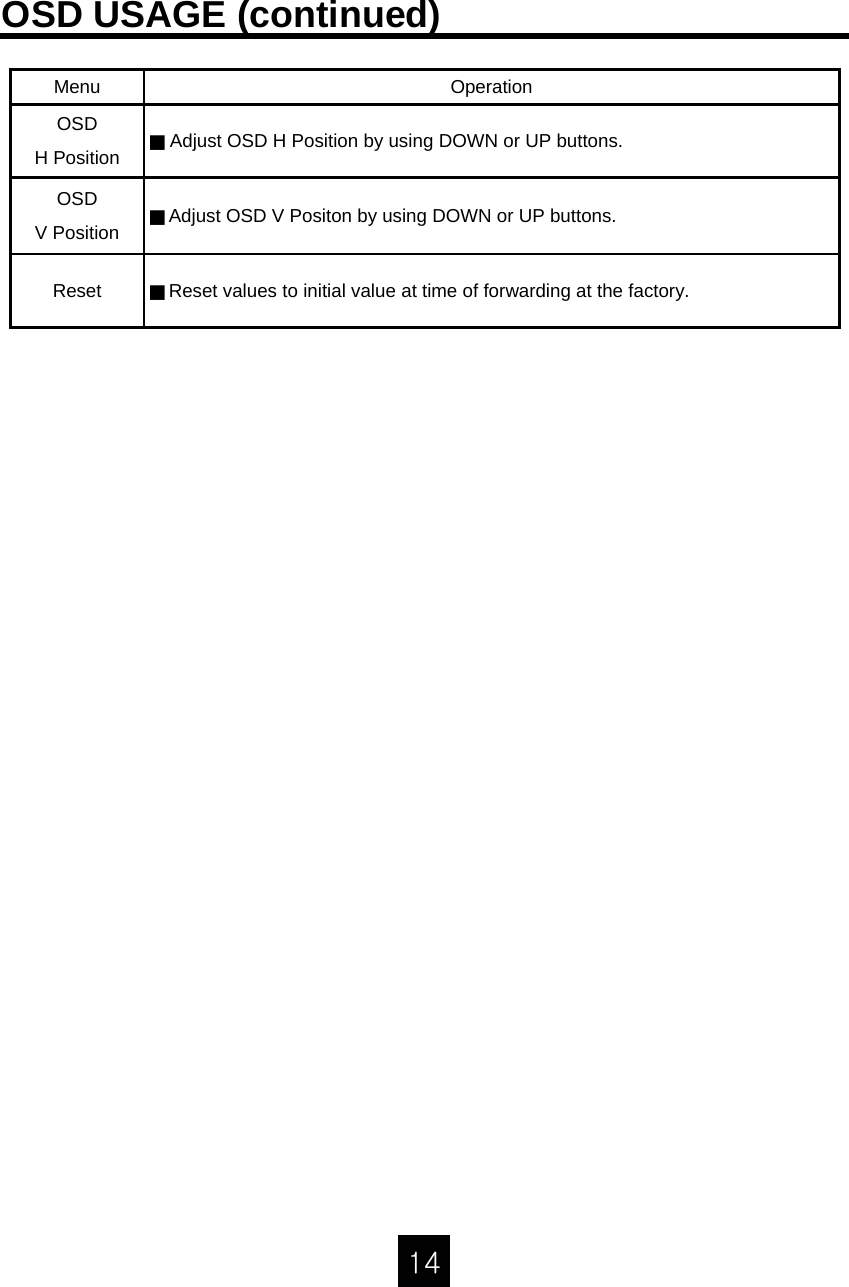

14OSD USAGE (continued)JAdjust OSD H Position by using DOWN or UP buttons.OSDH PositionJAdjust OSD V Positon by using DOWN or UP buttons.OSDV PositionJReset values to initial value at time of forwarding at the factory.ResetOperationMenu

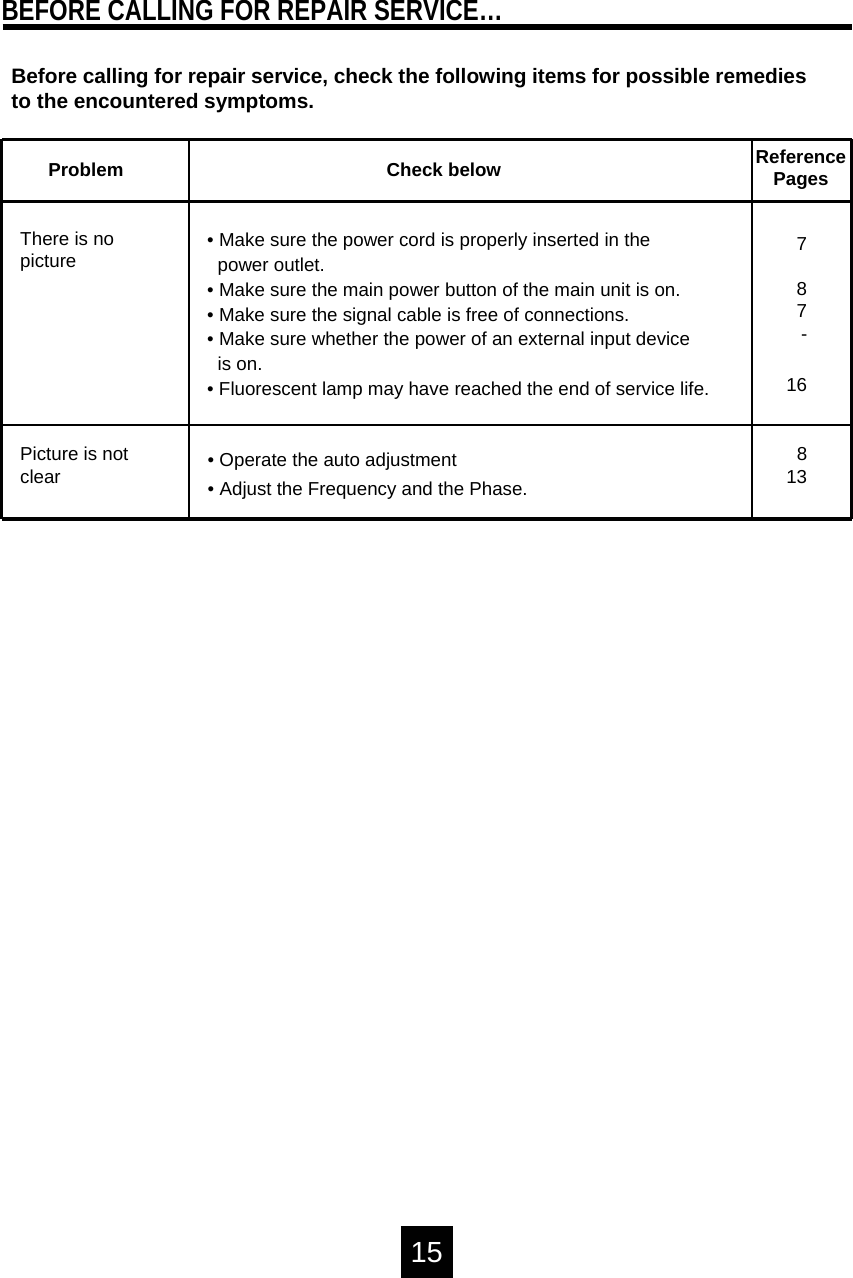

Before calling for repair service, check the following items for possible remedies to the encountered symptoms.Problem Check belowThere is nopicture • Make sure the power cord is properly inserted in thepower outlet.• Make sure the main power button of the main unit is on.• Make sure the signal cable is free of connections.• Make sure whether the power of an external input device is on.• Fluorescent lamp may have reached the end of service life.ReferencePages787-16Picture is notclear • Operate the auto adjustment• Adjust the Frequency and the Phase.81315BEFORE CALLING FOR REPAIR SERVICE…

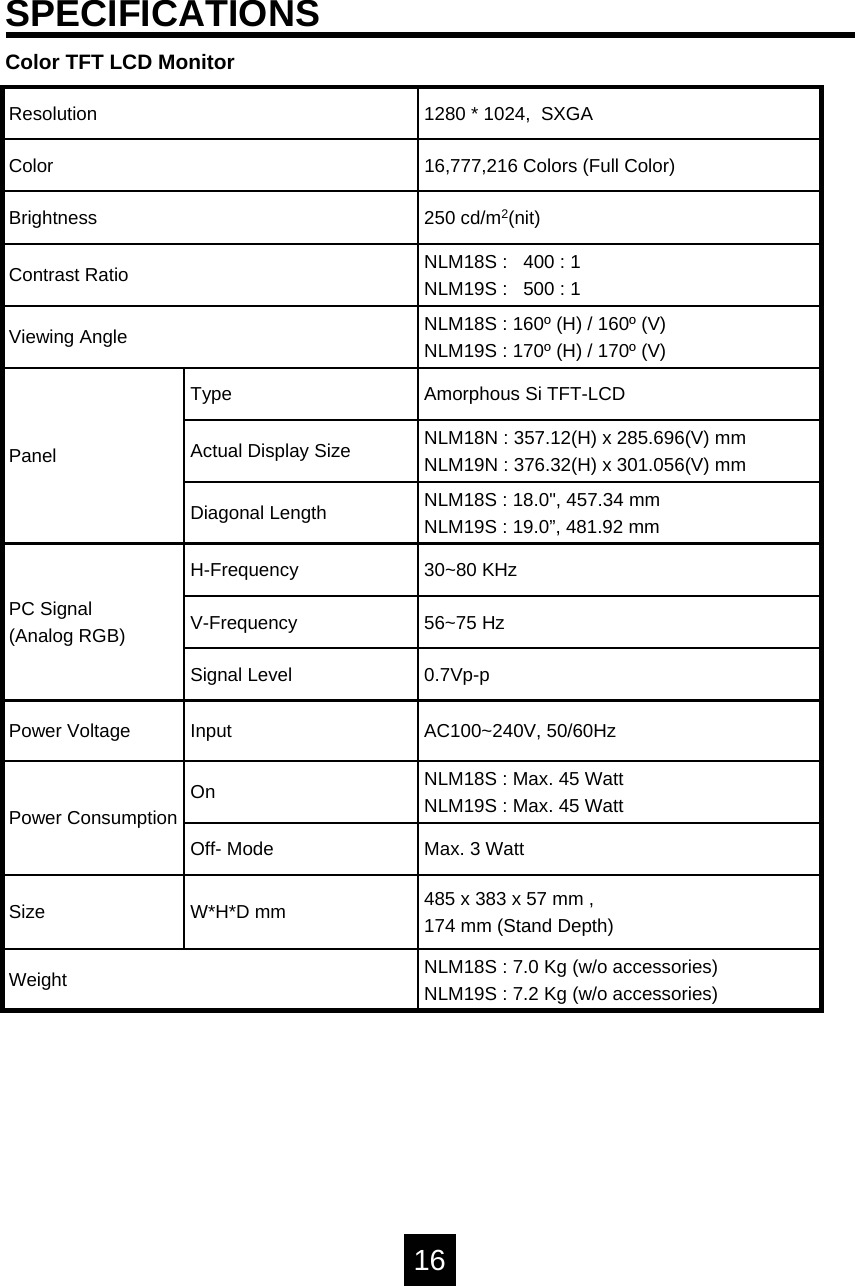

16InputNLM18S : 7.0 Kg (w/o accessories)NLM19S : 7.2 Kg (w/o accessories)Weight30~80 KHzH-FrequencyPC Signal(Analog RGB) 56~75 HzV-Frequency0.7Vp-pSignal Level1280 * 1024, SXGAResolution485 x 383 x 57 mm ,174 mm (Stand Depth)W*H*D mmSizeMax. 3 WattOff- ModeNLM18S : Max. 45 WattNLM19S : Max. 45 WattOnPower ConsumptionAC100~240V, 50/60HzPower VoltageNLM18S : 18.0", 457.34 mmNLM19S : 19.0”, 481.92 mmDiagonal LengthNLM18N : 357.12(H) x 285.696(V) mmNLM19N : 376.32(H) x 301.056(V) mmActual Display SizeAmorphous Si TFT-LCDTypePanelNLM18S : 160º (H) / 160º (V)NLM19S : 170º (H) / 170º (V)Viewing AngleNLM18S : 400 : 1NLM19S : 500 : 1 Contrast Ratio250 cd/m2(nit)Brightness16,777,216 Colors (Full Color)ColorSPECIFICATIONSColor TFT LCD Monitor

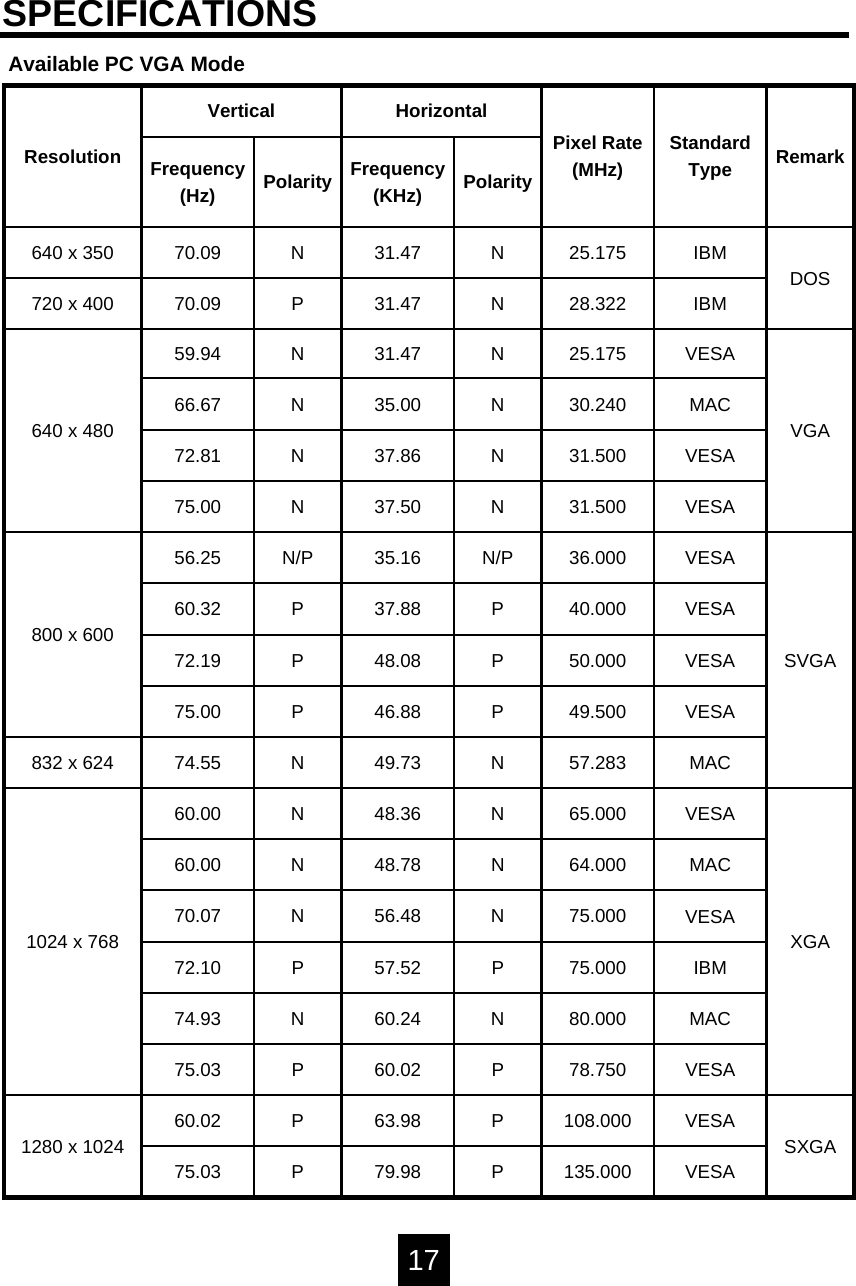

SPECIFICATIONS17VESA78.750P60.02P75.03IBM75.000P57.52P72.10MAC64.000N48.78N60.00PolarityFrequency(KHz)PolarityFrequency(Hz)SXGAXGASVGAVGADOSRemarkVESAVESAMACVESAVESAMACVESAVESAVESAVESAVESAVESAMACVESAIBMIBMStandardType25.175N31.47N70.09640 x 35028.322N31.47P70.09720 x 40025.175N31.47N59.94640 x 48030.240N35.00N66.6731.500N37.86N72.8131.500N37.50N75.0036.000N/P35.16N/P56.25800 x 60040.000P37.88P60.3250.000P48.08P72.1949.500P46.88P75.0057.283N49.73N74.55832 x 62465.000N48.36N60.001024 x 76875.000N56.48N70.0780.000N60.24N74.93108.000P63.98P60.021280 x 1024135.000P79.98P75.03HorizontalPixel Rate(MHz)VerticalResolutionAvailable PC VGA Mode

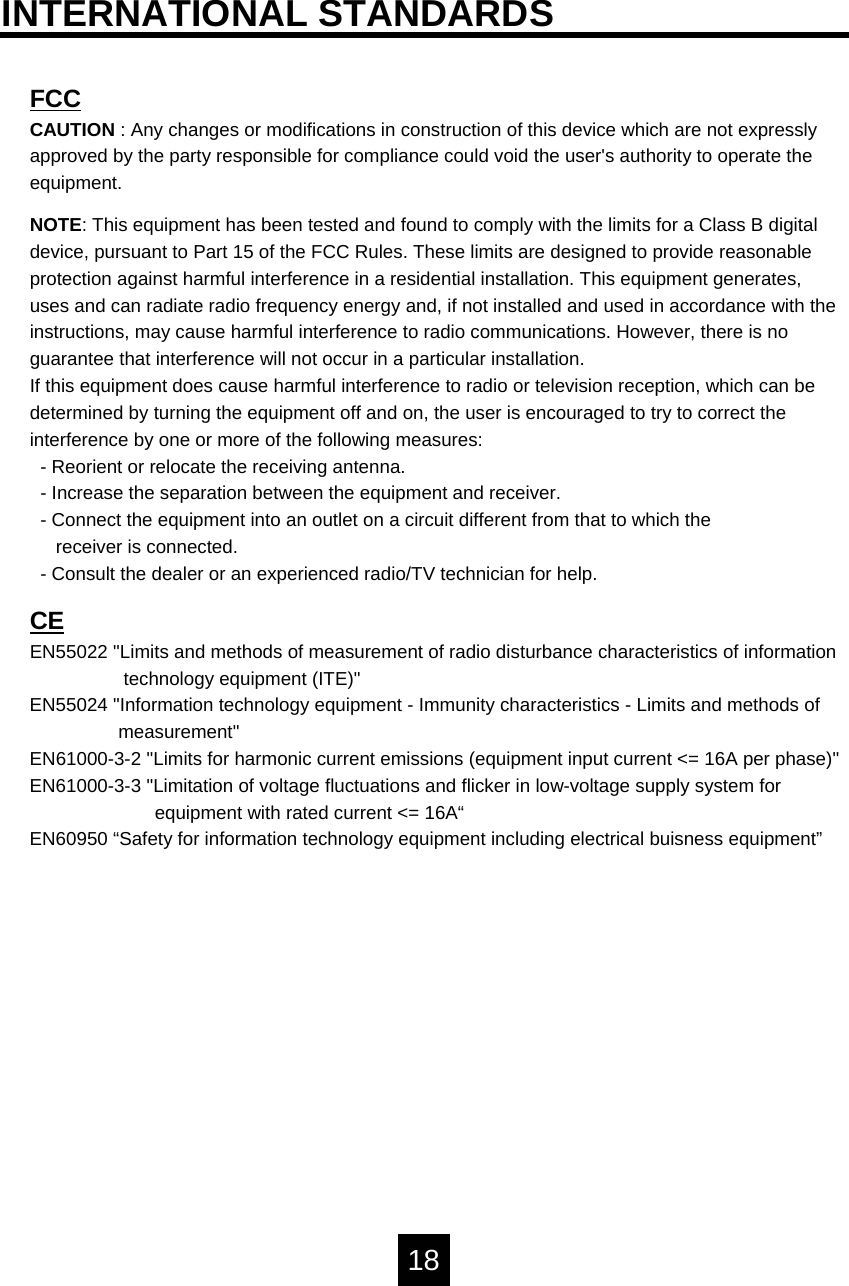

FCCCAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.- Consult the dealer or an experienced radio/TV technician for help.CEEN55022 "Limits and methods of measurement of radio disturbance characteristics of informationtechnology equipment (ITE)"EN55024 "Information technology equipment - Immunity characteristics - Limits and methods ofmeasurement"EN61000-3-2 "Limits for harmonic current emissions (equipment input current <= 16A per phase)"EN61000-3-3 "Limitation of voltage fluctuations and flicker in low-voltage supply system forequipment with rated current <= 16A“EN60950 “Safety for information technology equipment including electrical buisness equipment”18INTERNATIONAL STANDARDS
