NCW NCW19T LCD MONITER User Manual USERS MANUAL

NCW CO., LTD. LCD MONITER USERS MANUAL

USERS MANUAL

TM18U TM18U HTM19UHTM19UHTM20UHTM20UColor TFT-LCD Monitor User’s Manual

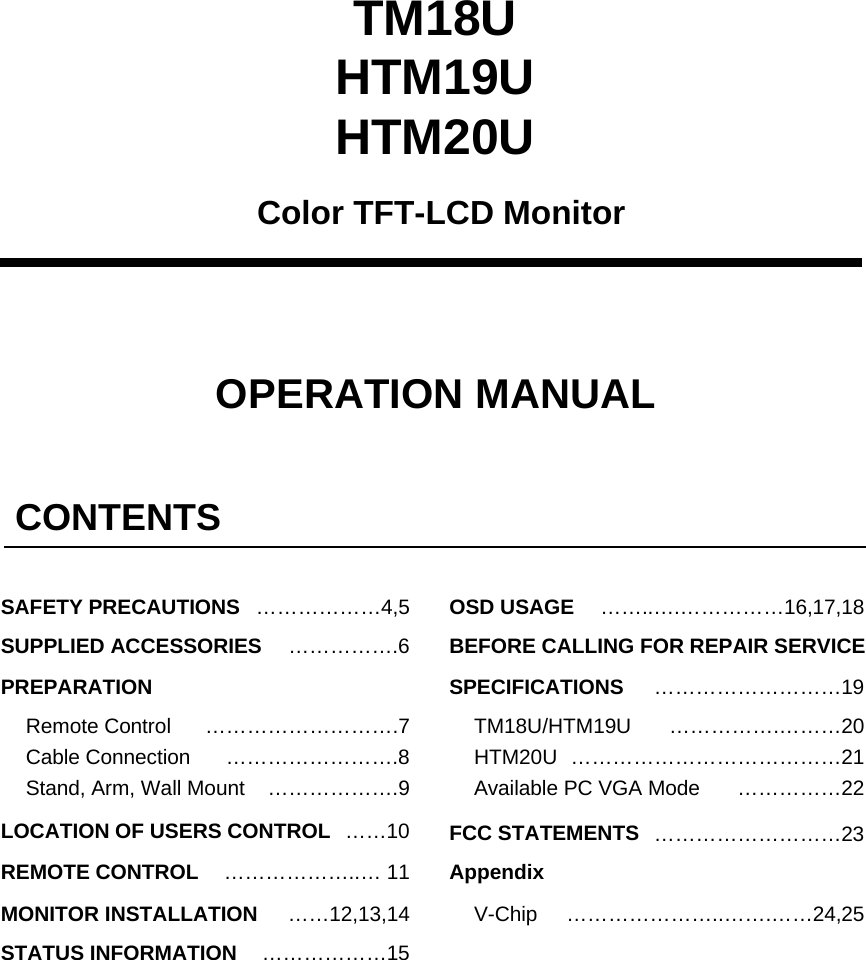

TM18UHTM19UHTM20UColor TFT-LCD MonitorOPERATION MANUALCONTENTS………………4,5……………………….7……10………………..… 11……12,13,14………………15SAFETY PRECAUTIONSSUPPLIED ACCESSORIESPREPARATIONRemote ControlLOCATION OF USERS CONTROLREMOTE CONTROLMONITOR INSTALLATIONSTATUS INFORMATIONCable ConnectionStand, Arm, Wall MountOSD USAGE………………………19…………….………20BEFORE CALLING FOR REPAIR SERVICETM18U/HTM19UHTM20USPECIFICATIONS……..….……………16,17,18…………………………………21FCC STATEMENTS…………………..…….……24,25V-ChipAvailable PC VGA ModeAppendix…………….6…………………….8……………….9 ……………22………………………23

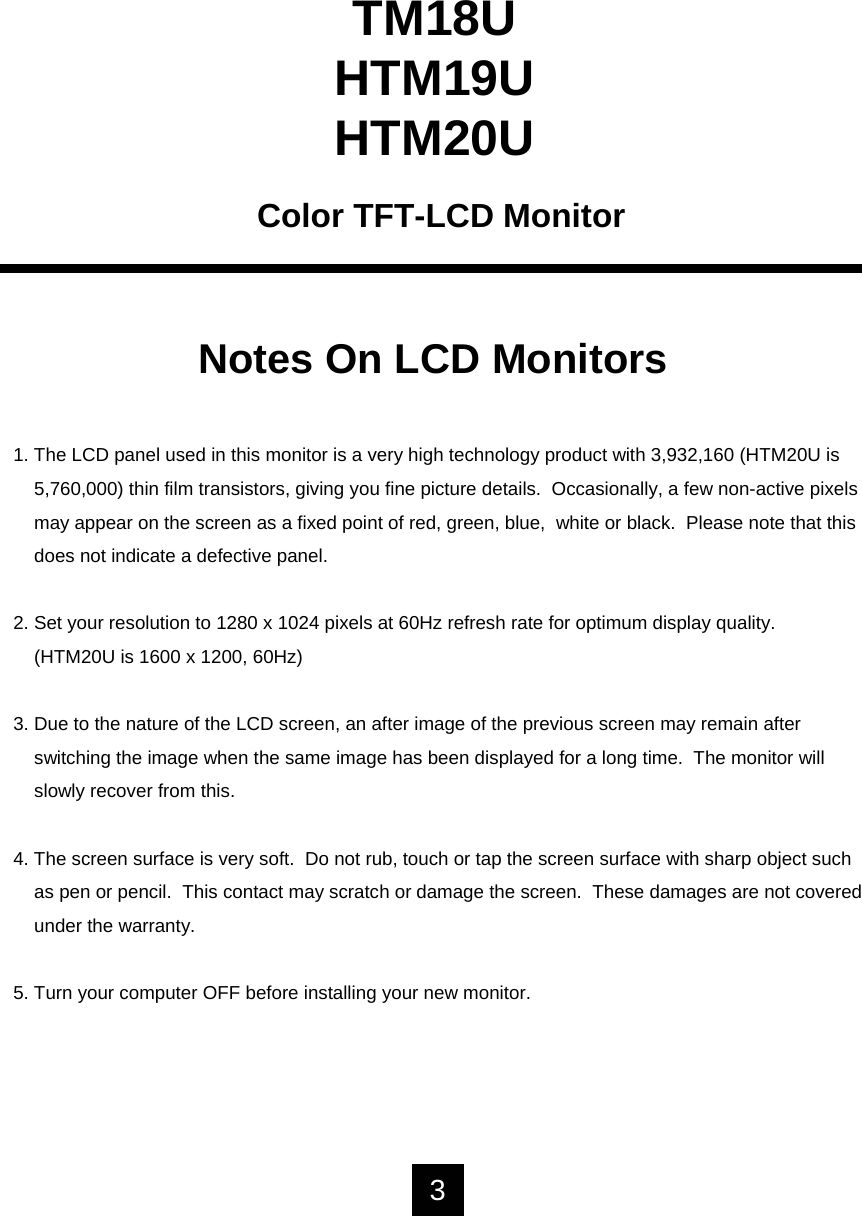

TM18UHTM19UHTM20UColor TFT-LCD MonitorNotes On LCD Monitors1. The LCD panel used in this monitor is a very high technology product with 3,932,160 (HTM20U is 5,760,000) thin film transistors, giving you fine picture details. Occasionally, a few non-active pixelsmay appear on the screen as a fixed point of red, green, blue, white or black. Please note that thisdoes not indicate a defective panel.2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality.(HTM20U is 1600 x 1200, 60Hz)3. Due to the nature of the LCD screen, an after image of the previous screen may remain after switching the image when the same image has been displayed for a long time. The monitor will slowly recover from this.4. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such as pen or pencil. This contact may scratch or damage the screen. These damages are not coveredunder the warranty.5. Turn your computer OFF before installing your new monitor.3

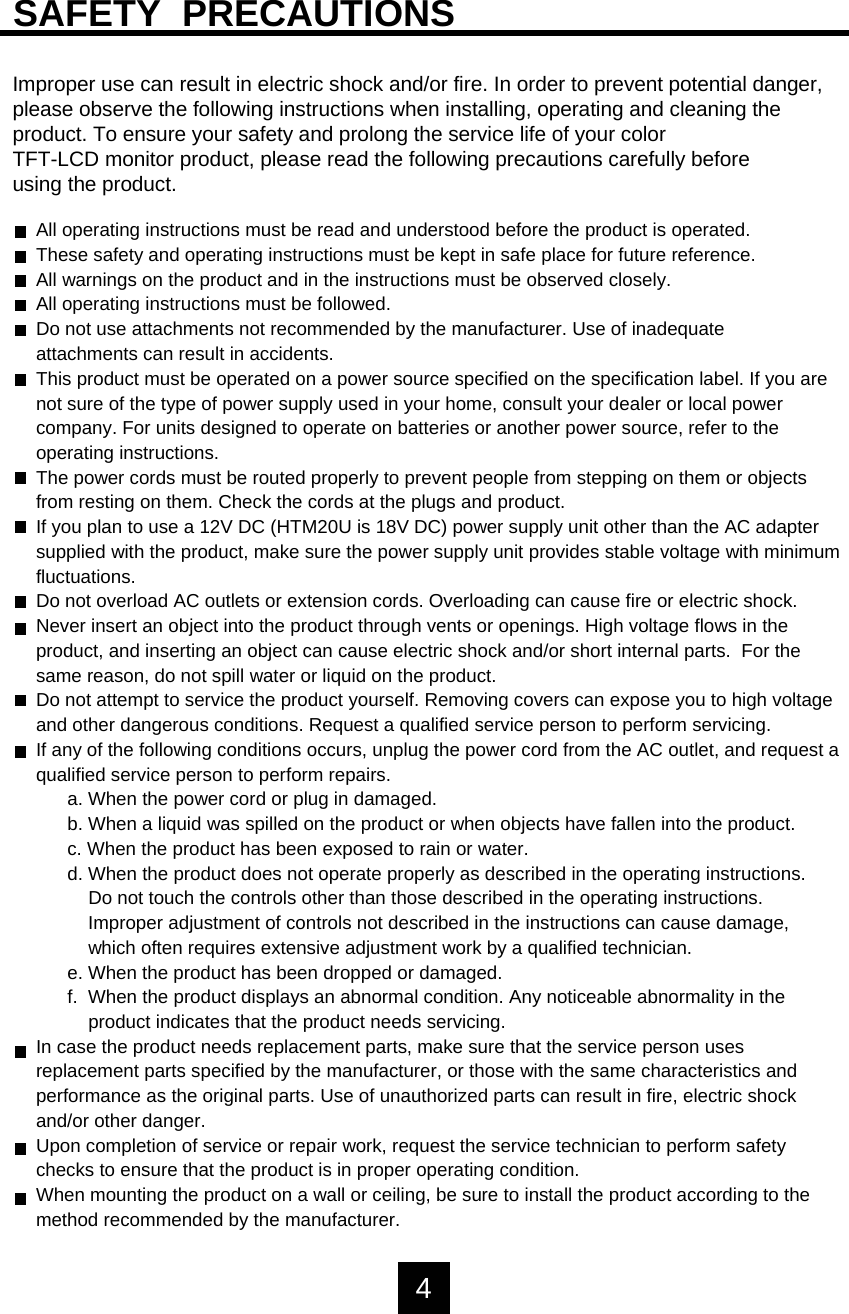

SAFETY PRECAUTIONSImproper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your colorTFT-LCD monitor product, please read the following precautions carefully beforeusing the product.All operating instructions must be read and understood before the product is operated.These safety and operating instructions must be kept in safe place for future reference.All warnings on the product and in the instructions must be observed closely.All operating instructions must be followed.Do not use attachments not recommended by the manufacturer. Use of inadequateattachments can result in accidents.This product must be operated on a power source specified on the specification label. If you arenot sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to theoperating instructions.The power cords must be routed properly to prevent people from stepping on them or objectsfrom resting on them. Check the cords at the plugs and product.If you plan to use a 12V DC (HTM20U is 18V DC) power supply unit other than the AC adaptersupplied with the product, make sure the power supply unit provides stable voltage with minimumfluctuations.Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.Never insert an object into the product through vents or openings. High voltage flows in theproduct, and inserting an object can cause electric shock and/or short internal parts. For thesame reason, do not spill water or liquid on the product.Do not attempt to service the product yourself. Removing covers can expose you to high voltageand other dangerous conditions. Request a qualified service person to perform servicing.If any of the following conditions occurs, unplug the power cord from the AC outlet, and request aqualified service person to perform repairs.a. When the power cord or plug in damaged.b. When a liquid was spilled on the product or when objects have fallen into the product.c. When the product has been exposed to rain or water.d. When the product does not operate properly as described in the operating instructions.Do not touch the controls other than those described in the operating instructions.Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged.f. When the product displays an abnormal condition. Any noticeable abnormality in theproduct indicates that the product needs servicing.In case the product needs replacement parts, make sure that the service person usesreplacement parts specified by the manufacturer, or those with the same characteristics andperformance as the original parts. Use of unauthorized parts can result in fire, electric shockand/or other danger.Upon completion of service or repair work, request the service technician to perform safetychecks to ensure that the product is in proper operating condition.When mounting the product on a wall or ceiling, be sure to install the product according to themethod recommended by the manufacturer.4

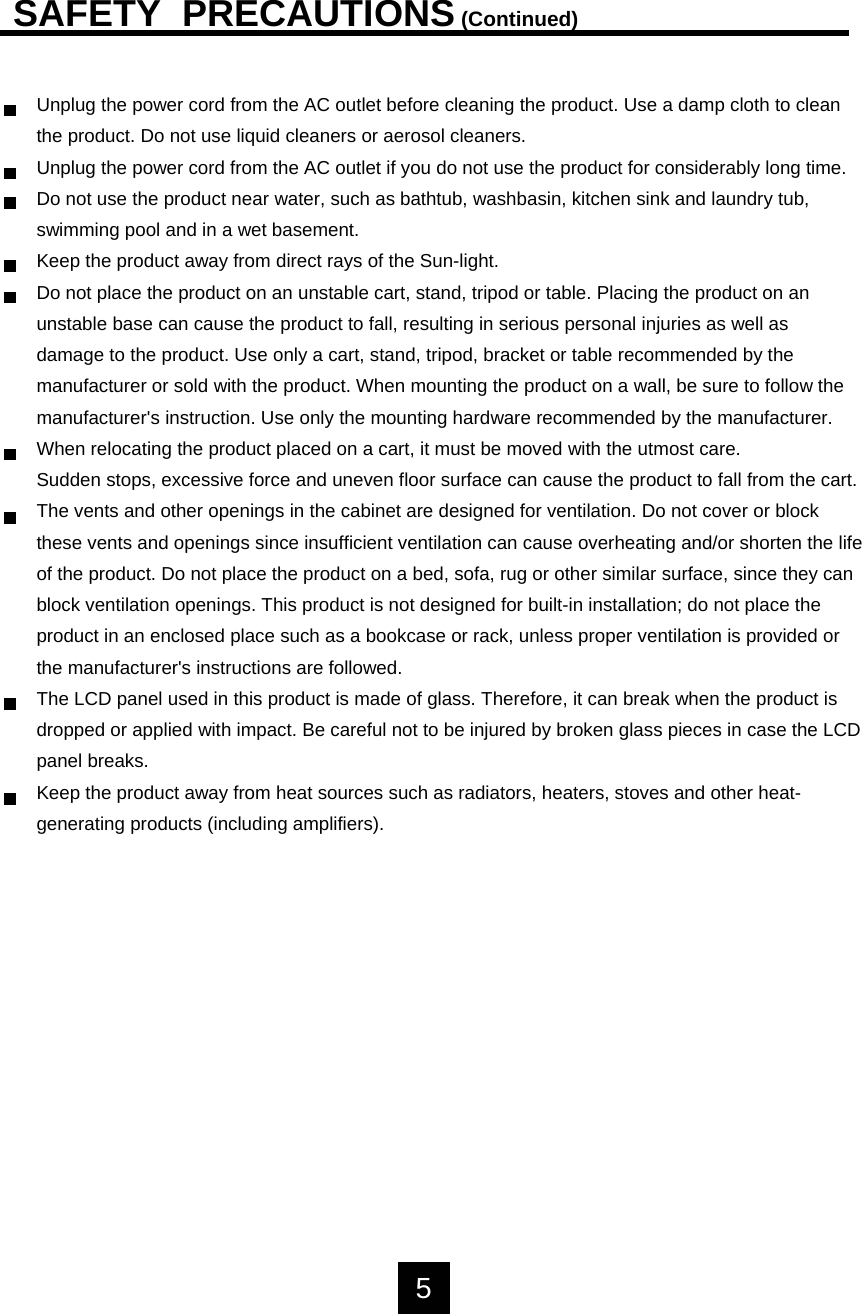

SAFETY PRECAUTIONS(Continued)Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to cleanthe product. Do not use liquid cleaners or aerosol cleaners.Unplug the power cord from the AC outlet if you do not use the product for considerably long time.Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.Keep the product away from direct rays of the Sun-light.Do not place the product on an unstable cart, stand, tripod or table. Placing the product on anunstable base can cause the product to fall, resulting in serious personal injuries as well asdamage to the product. Use only a cart, stand, tripod, bracket or table recommended by themanufacturer or sold with the product. When mounting the product on a wall, be sure to follow themanufacturer's instruction. Use only the mounting hardware recommended by the manufacturer.When relocating the product placed on a cart, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the lifeof the product. Do not place the product on a bed, sofa, rug or other similar surface, since they canblock ventilation openings. This product is not designed for built-in installation; do not place theproduct in an enclosed place such as a bookcase or rack, unless proper ventilation is provided orthe manufacturer's instructions are followed.The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCDpanel breaks.Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).5

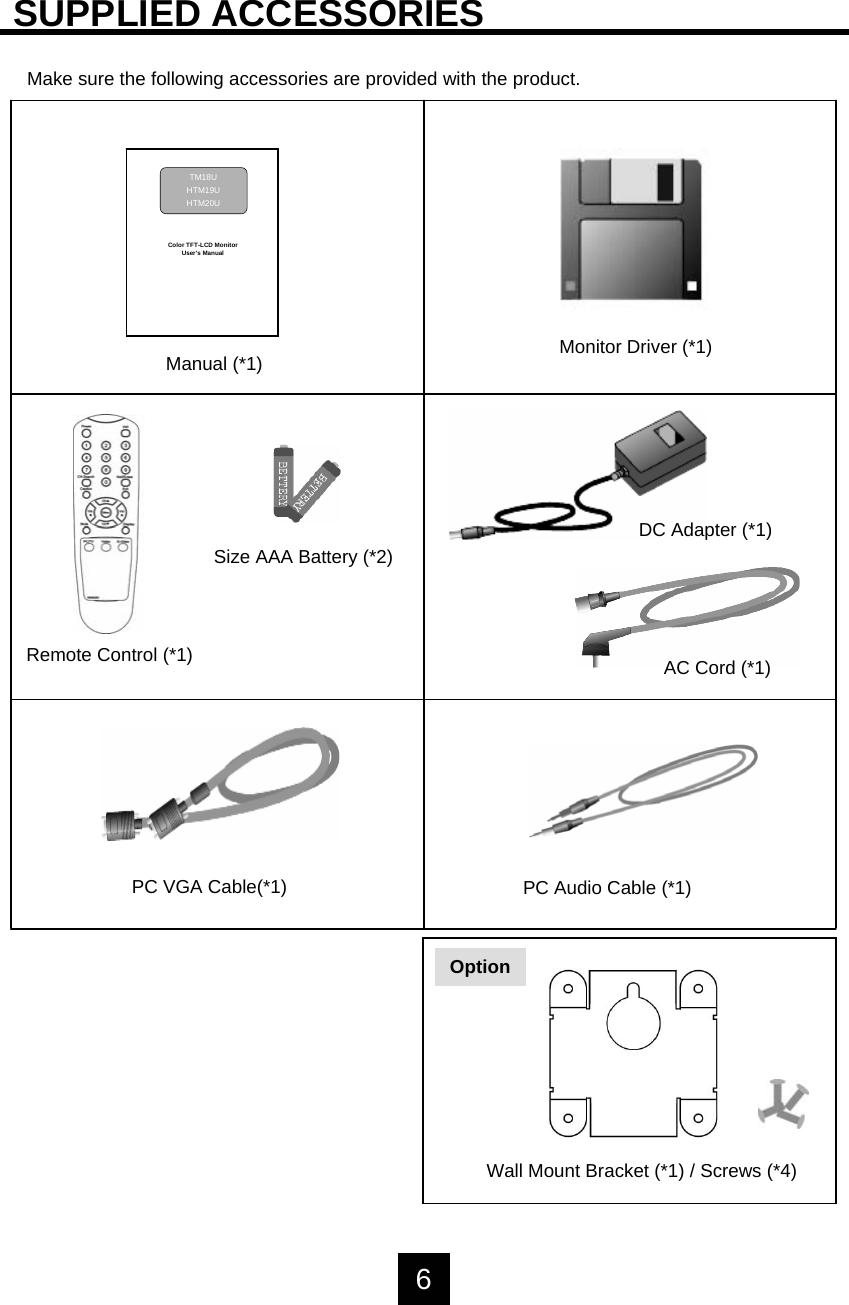

SUPPLIED ACCESSORIESMake sure the following accessories are provided with the product. Monitor Driver (*1)Manual (*1)DC Adapter (*1)AC Cord (*1)Size AAA Battery (*2)Remote Control (*1)PC VGA Cable(*1) PC Audio Cable (*1)OptionWall Mount Bracket (*1) / Screws (*4)Color TFT-LCD MonitorUser’s ManualTM18UHTM19UHTM20U6

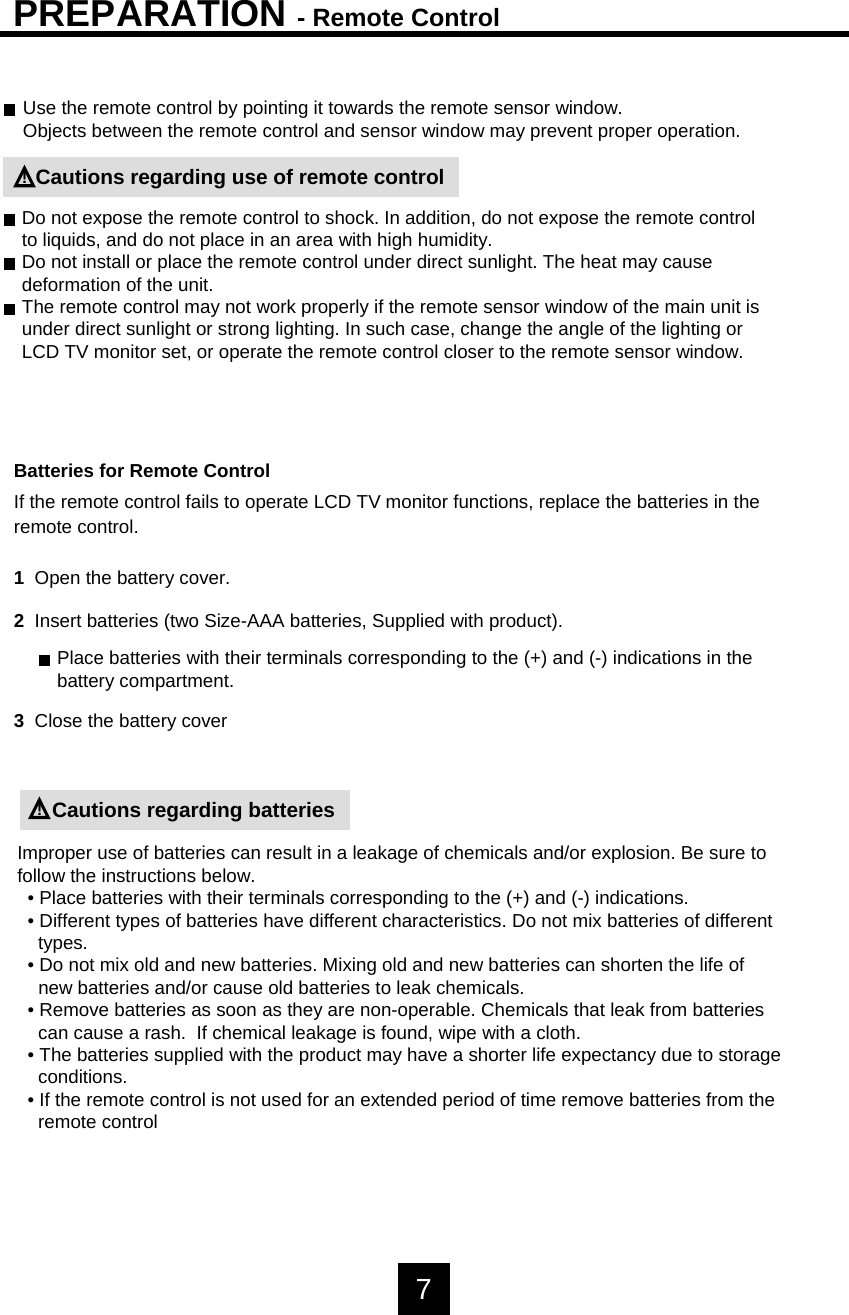

PREPARATION - Remote ControlUse the remote control by pointing it towards the remote sensor window.Objects between the remote control and sensor window may prevent proper operation.Cautions regarding use of remote controlDo not expose the remote control to shock. In addition, do not expose the remote controlto liquids, and do not place in an area with high humidity.Do not install or place the remote control under direct sunlight. The heat may causedeformation of the unit.The remote control may not work properly if the remote sensor window of the main unit isunder direct sunlight or strong lighting. In such case, change the angle of the lighting orLCD TV monitor set, or operate the remote control closer to the remote sensor window.!Batteries for Remote ControlIf the remote control fails to operate LCD TV monitor functions, replace the batteries in theremote control.1 Open the battery cover.2 Insert batteries (two Size-AAA batteries, Supplied with product).3Close the battery coverPlace batteries with their terminals corresponding to the (+) and (-) indications in thebattery compartment.Cautions regarding batteries!Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure tofollow the instructions below.• Place batteries with their terminals corresponding to the (+) and (-) indications.• Different types of batteries have different characteristics. Do not mix batteries of differenttypes.• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals.• Remove batteries as soon as they are non-operable. Chemicals that leak from batteriescan cause a rash. If chemical leakage is found, wipe with a cloth.• The batteries supplied with the product may have a shorter life expectancy due to storageconditions.• If the remote control is not used for an extended period of time remove batteries from theremote control7

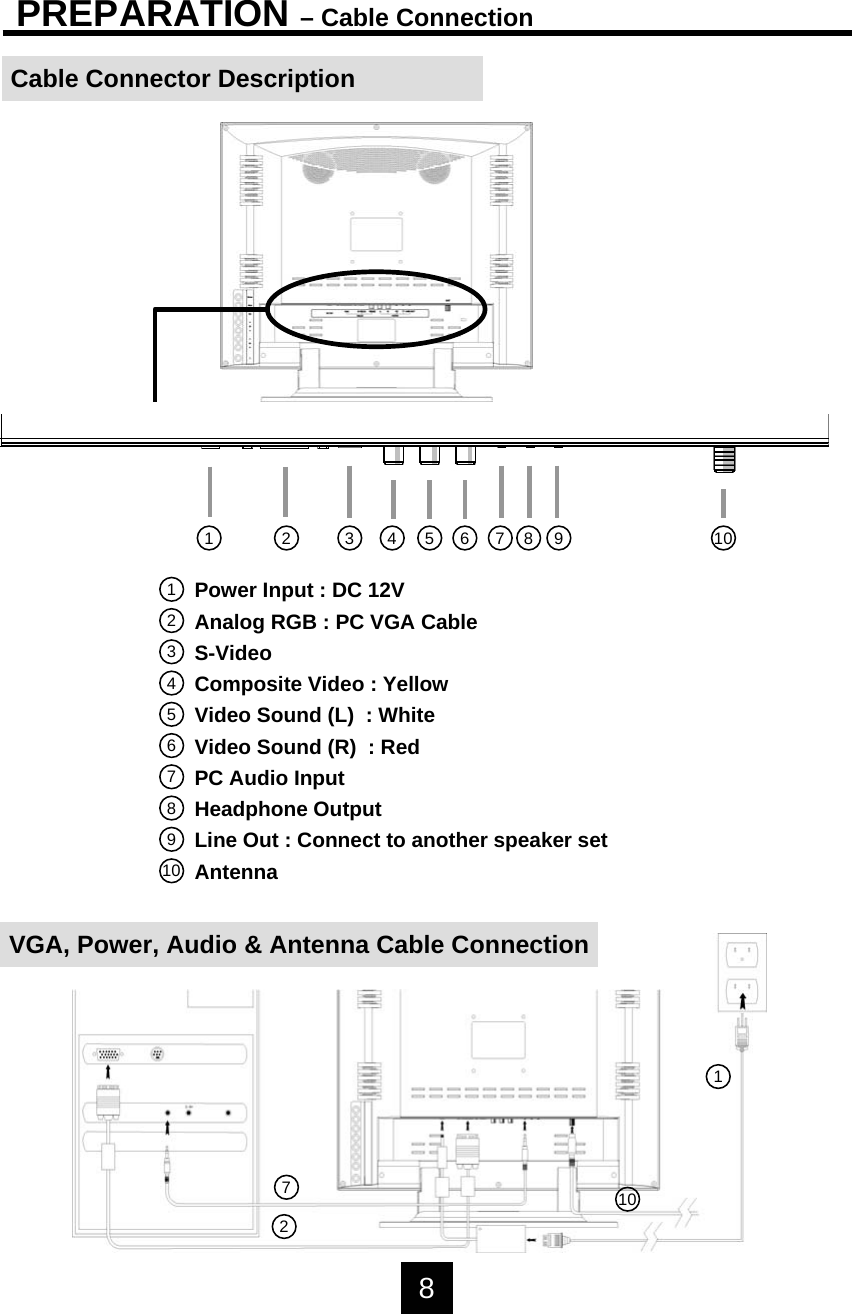

PREPARATION – Cable ConnectionCable Connector Description1 2 3 4 5 6 7 8 9 1012345678910Power Input : DC 12VAnalog RGB : PC VGA CableS-VideoComposite Video : YellowVideo Sound (L) : WhiteVideo Sound (R) : RedPC Audio InputHeadphone OutputLine Out : Connect to another speaker setAntennaVGA, Power, Audio & Antenna Cable Connection811072

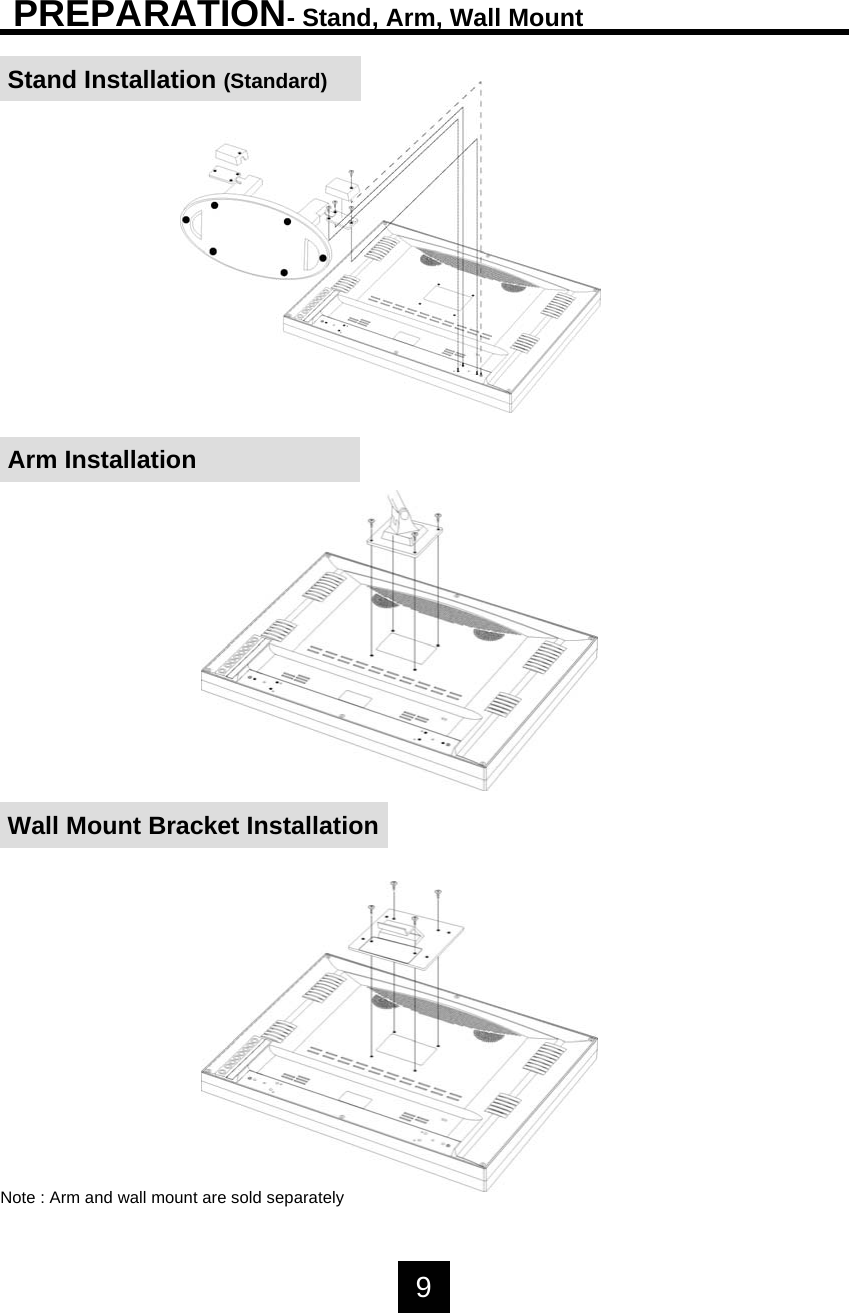

PREPARATION- Stand, Arm, Wall MountStand Installation (Standard)Arm InstallationWall Mount Bracket InstallationNote : Arm and wall mount are sold separately9

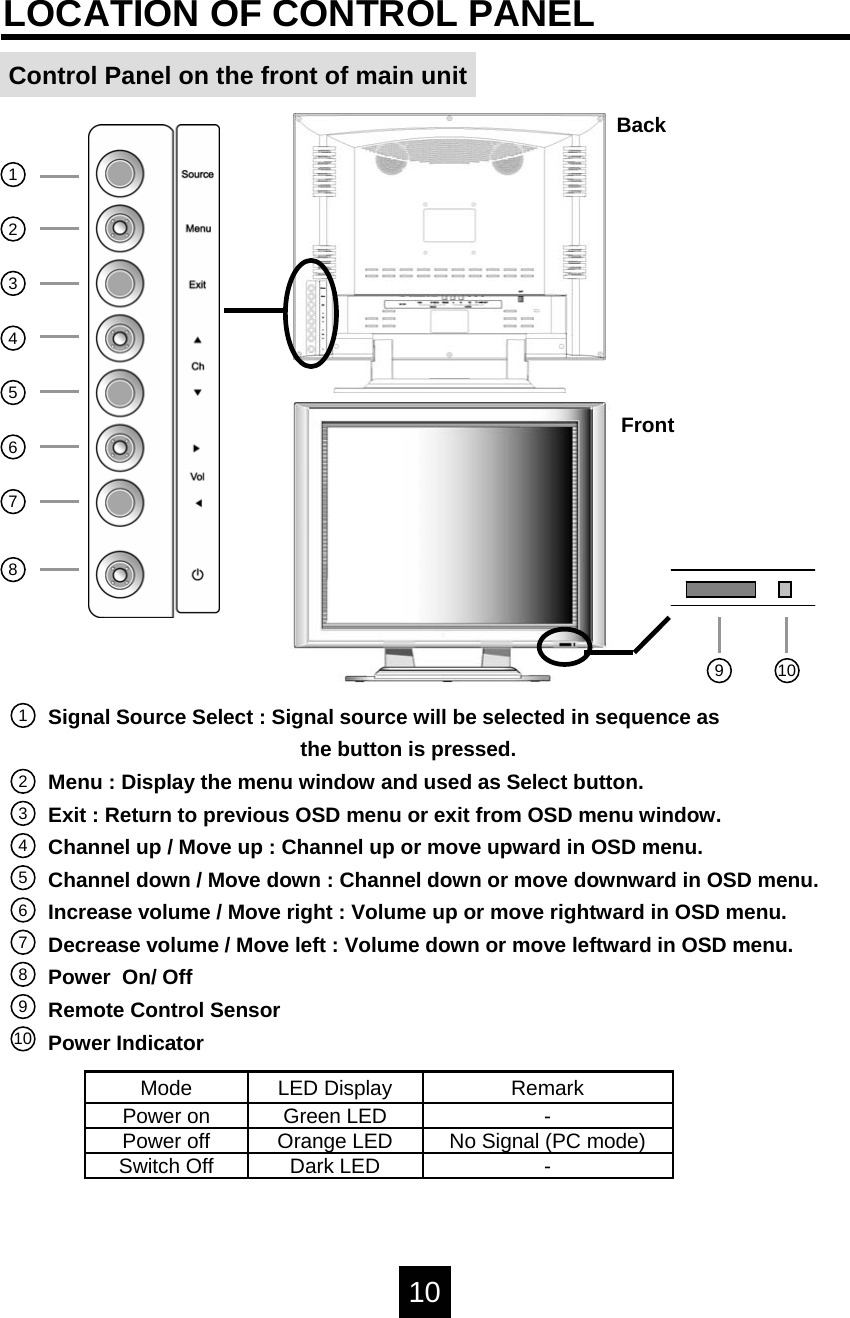

LOCATION OF CONTROL PANELControl Panel on the front of main unitBackFront12345678910Signal Source Select : Signal source will be selected in sequence as the button is pressed.Menu : Display the menu window and used as Select button.Exit : Return to previous OSD menu or exit from OSD menu window.Channel up / Move up : Channel up or move upward in OSD menu.Channel down / Move down : Channel down or move downward in OSD menu.Increase volume / Move right : Volume up or move rightward in OSD menu.Decrease volume / Move left : Volume down or move leftward in OSD menu.Power On/ Off Remote Control SensorPower Indicator12345678910Mode LED Display RemarkPower on Green LEDOrange LEDDark LEDPower off -No Signal (PC mode)-Switch Off10

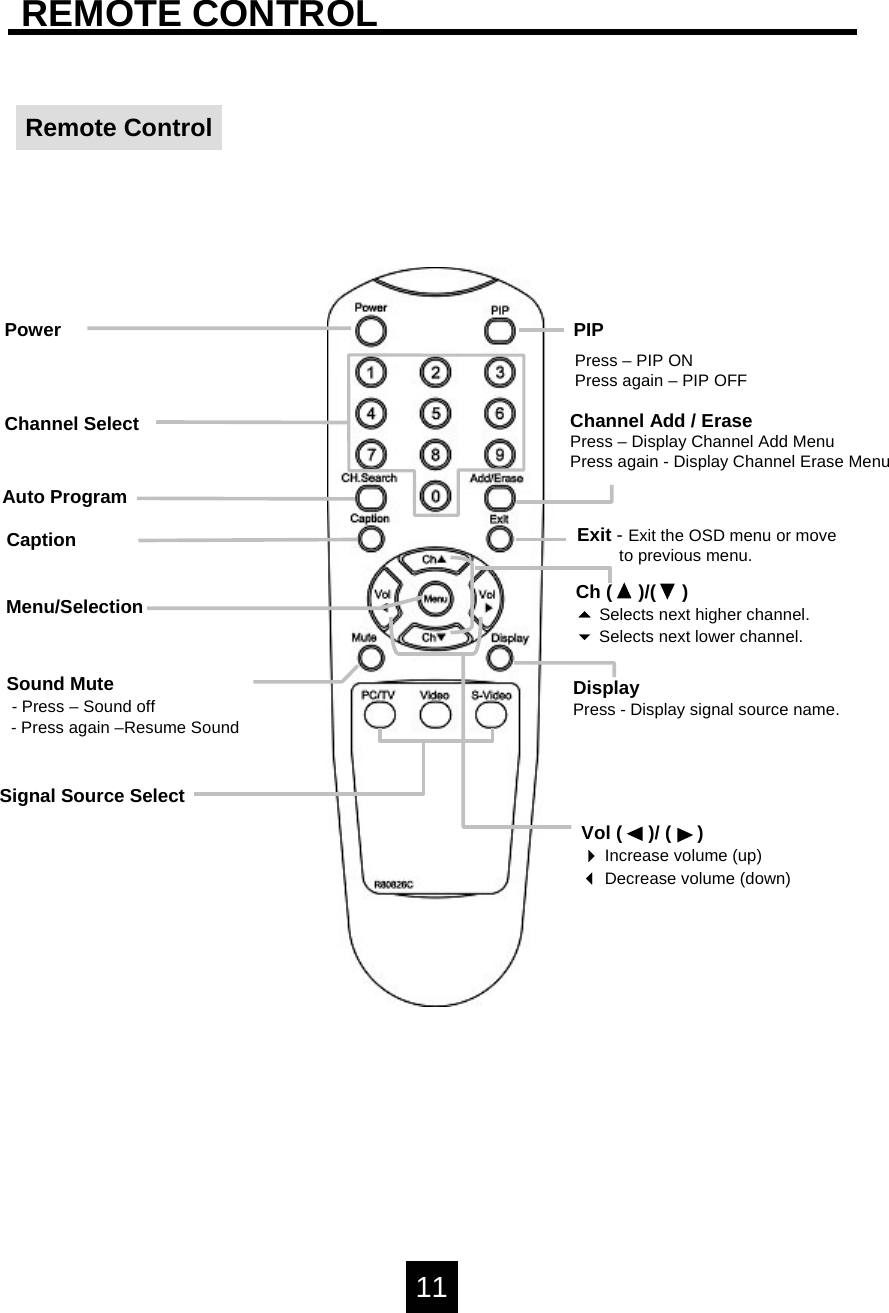

REMOTE CONTROLRemote ControlPowerChannel SelectAuto ProgramCaptionSound Mute - Press – Sound off- Press again –Resume SoundSignal Source SelectMenu/SelectionDisplayPress - Display signal source name.Exit -Exit the OSD menu or moveto previous menu.Ch ( )/( )Selects next higher channel.Selects next lower channel.Vol ( )/ ( )Increase volume (up)Decrease volume (down)Channel Add / ErasePress – Display Channel Add MenuPress again - Display Channel Erase MenuPIPPress – PIP ONPress again – PIP OFF11

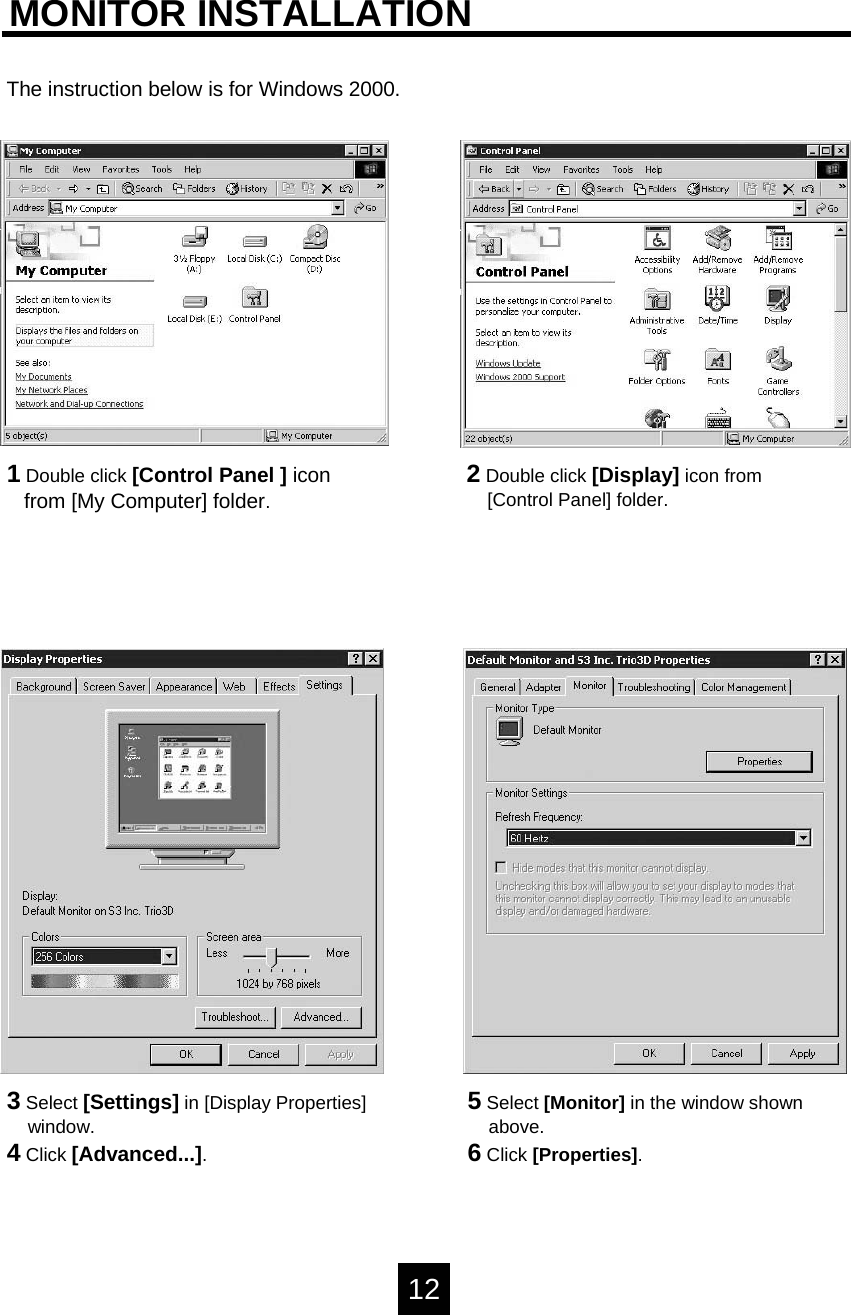

MONITOR INSTALLATIONThe instruction below is for Windows 2000.1Double click [Control Panel ] iconfrom [My Computer] folder.2Double click [Display] icon from[Control Panel] folder.3Select [Settings] in [Display Properties]window.4Click [Advanced...].5Select [Monitor] in the window shownabove.6Click [Properties].12

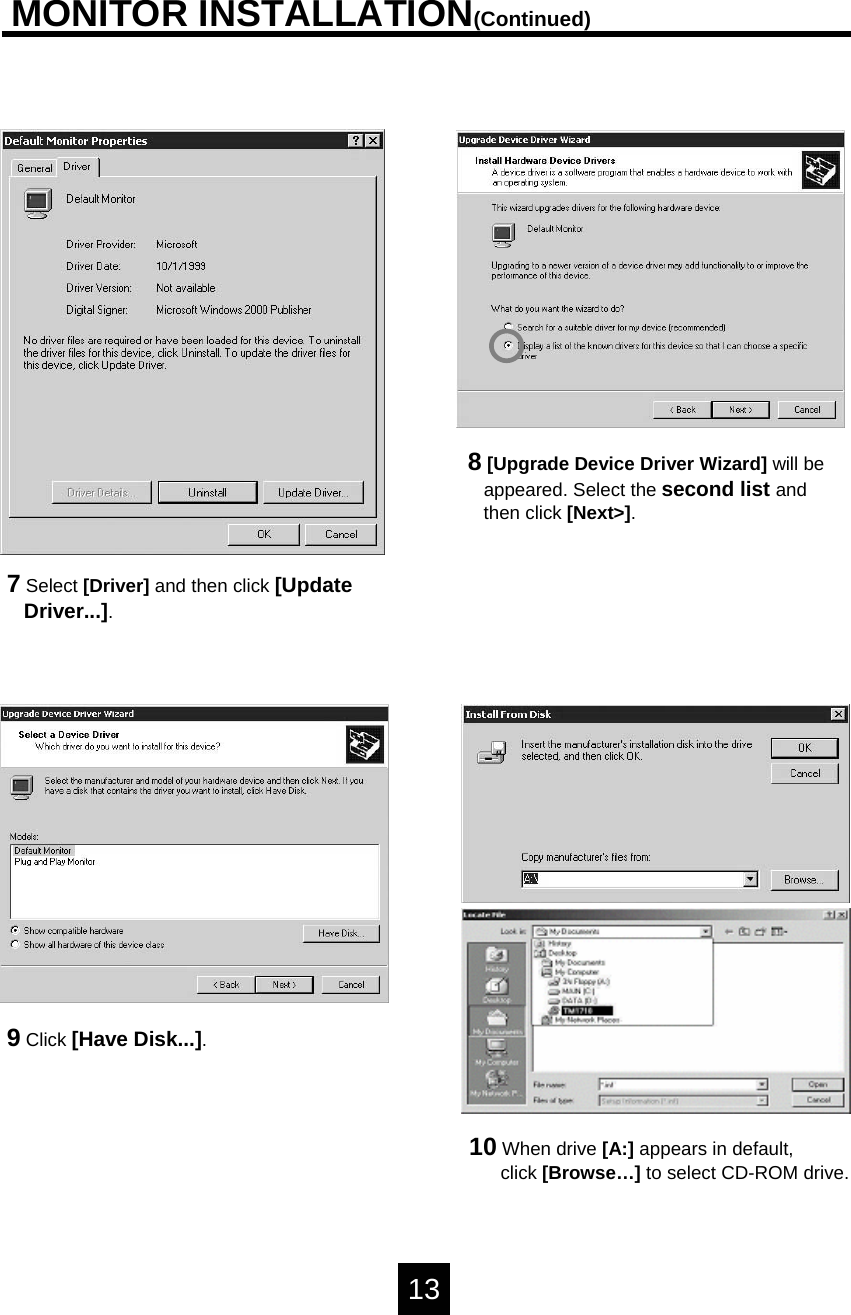

MONITOR INSTALLATION(Continued)8[Upgrade Device Driver Wizard] will be appeared. Select the second list andthen click [Next>].7Select [Driver] and then click [UpdateDriver...].9Click [Have Disk...].10 When drive [A:] appears in default,click [Browse…] to select CD-ROM drive. 13

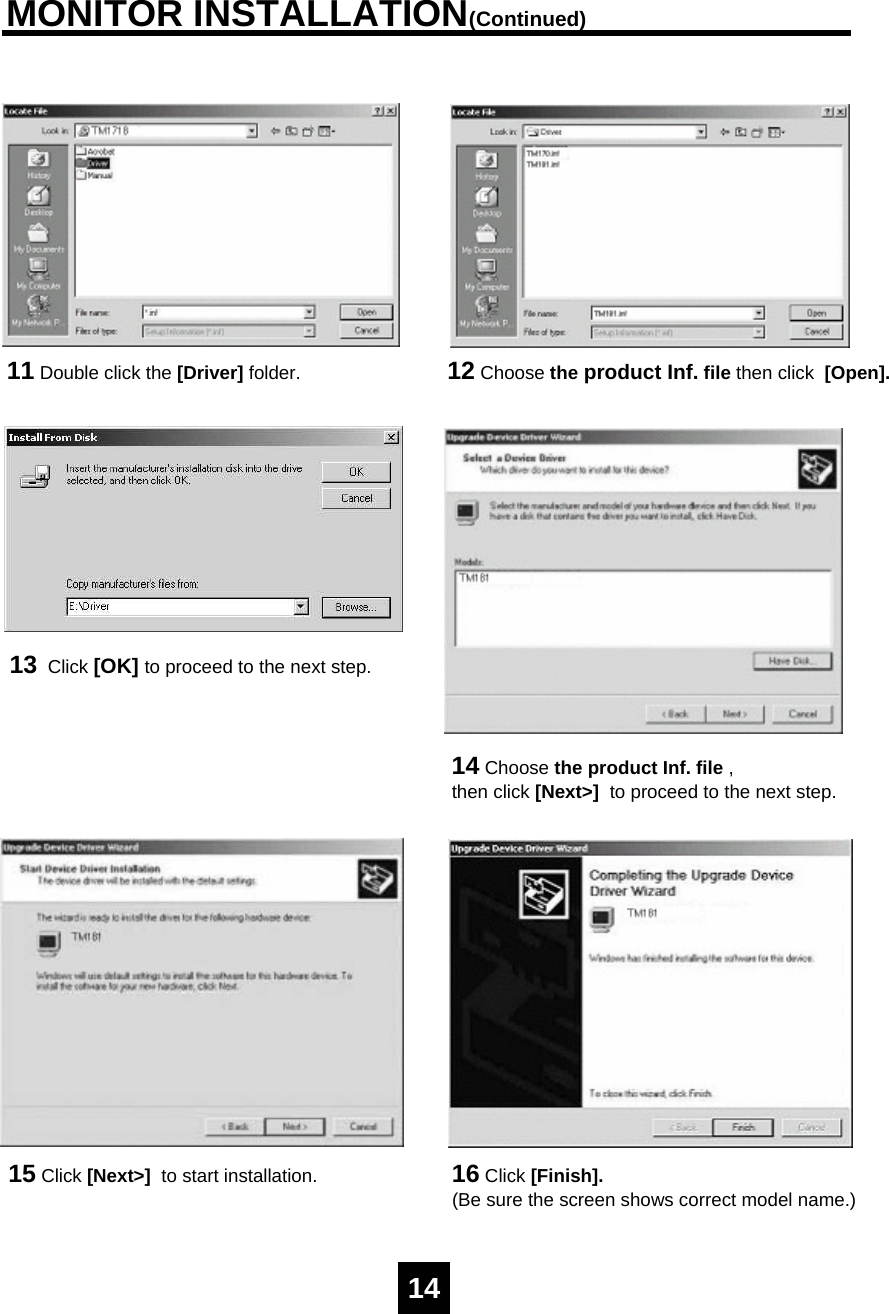

MONITOR INSTALLATION(Continued)11 Double click the [Driver] folder. 12 Choose the product Inf. file then click [Open].13 Click [OK] to proceed to the next step.14 Choose the product Inf. file , then click [Next>] to proceed to the next step.15 Click [Next>] to start installation. 16 Click [Finish].(Be sure the screen shows correct model name.)14

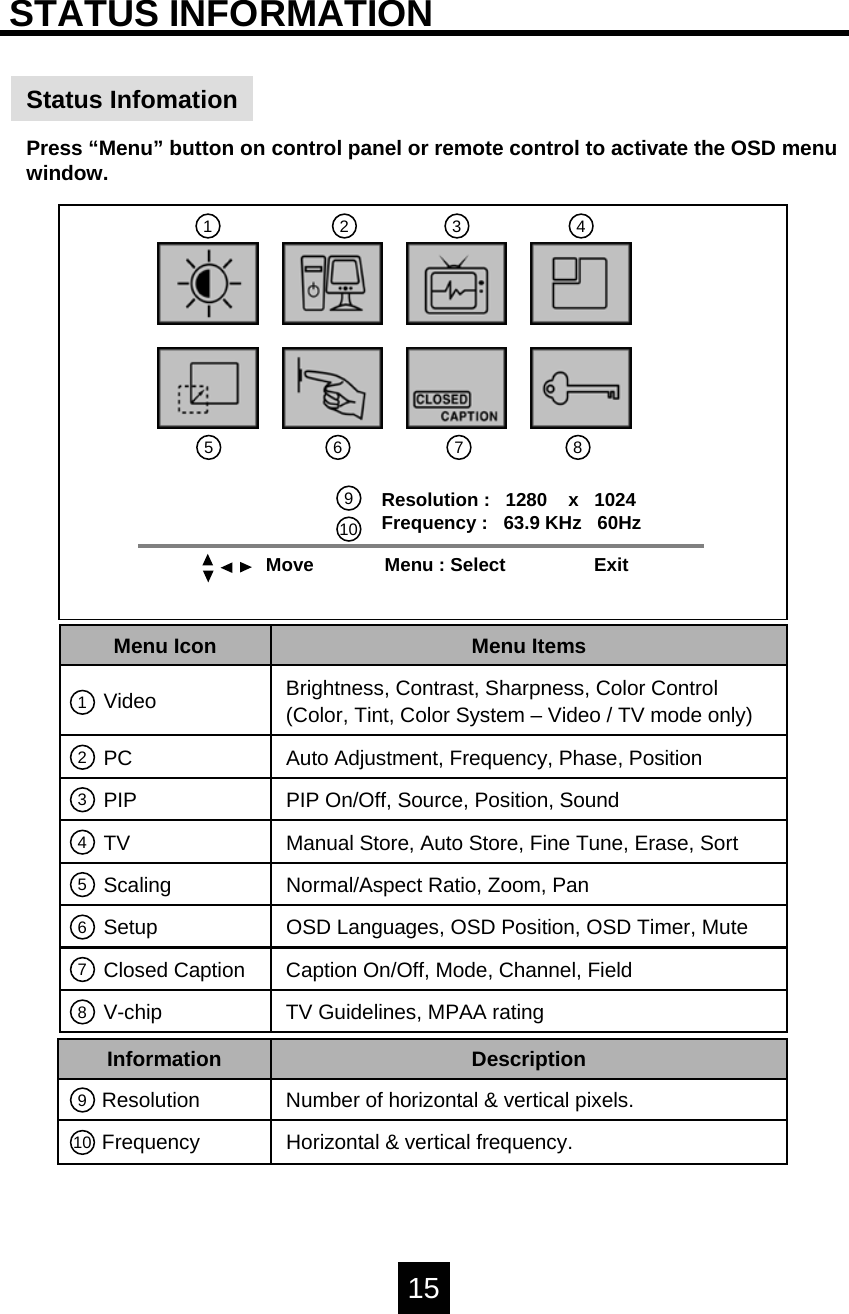

STATUS INFORMATIONStatus InfomationResolution : 1280 x 1024Frequency : 63.9 KHz 60HzMove Menu : Select ExitPress “Menu” button on control panel or remote control to activate the OSD menu window. Information DescriptionResolution Number of horizontal & vertical pixels.Frequency Horizontal & vertical frequency.Menu Icon Menu ItemsVideo Brightness, Contrast, Sharpness, Color Control(Color, Tint, Color System – Video / TV mode only)PC Auto Adjustment, Frequency, Phase, PositionPIP PIP On/Off, Source, Position, SoundClosed Caption Caption On/Off, Mode, Channel, FieldTV Manual Store, Auto Store, Fine Tune, Erase, SortScaling Normal/Aspect Ratio, Zoom, PanSetup OSD Languages, OSD Position, OSD Timer, MuteV-chip TV Guidelines, MPAA rating1 2 3 45 6 7 89101234567891015

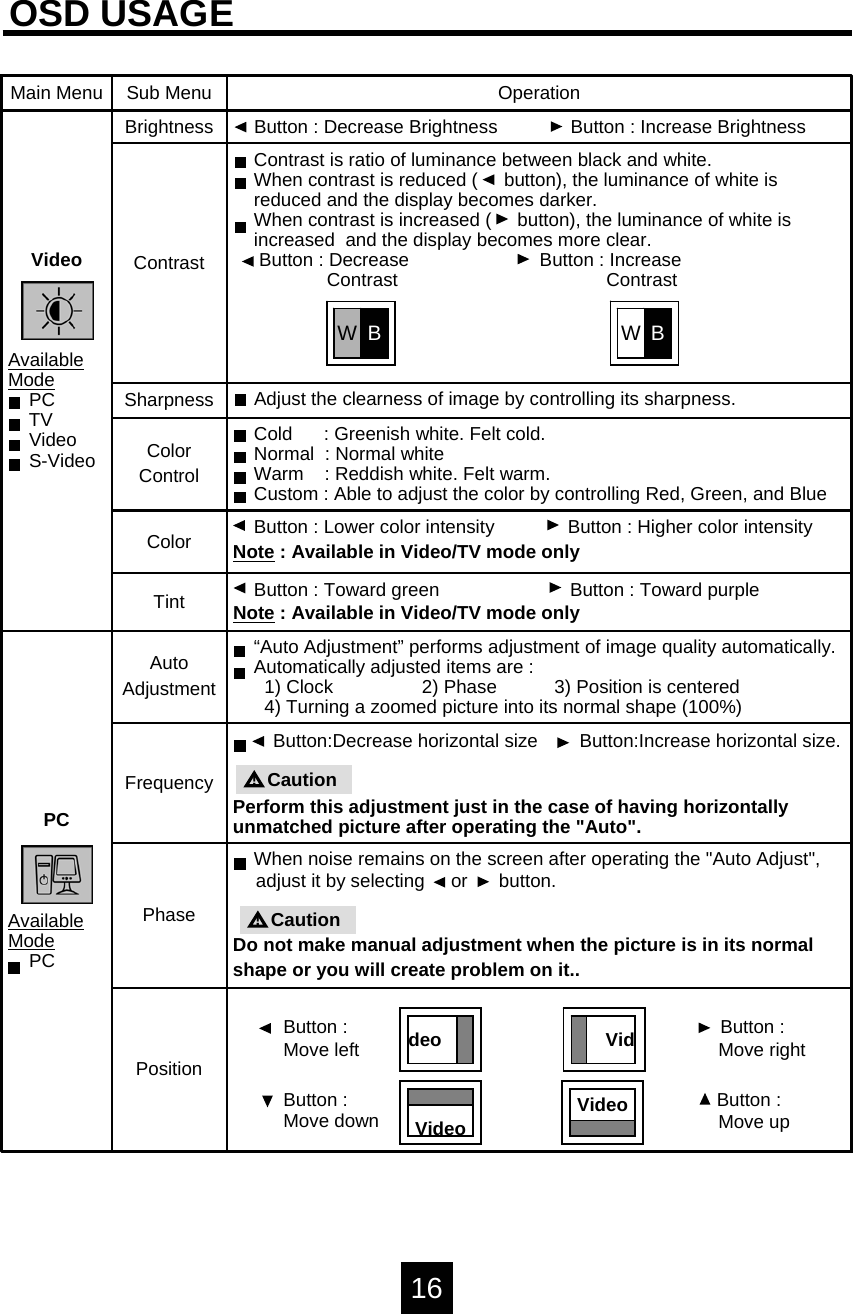

OSD USAGEMain Menu Sub Menu OperationBrightness Button : Decrease Brightness Button : Increase BrightnessContrastContrast is ratio of luminance between black and white.When contrast is reduced ( button), the luminance of white is reduced and the display becomes darker.When contrast is increased ( button), the luminance of white is increased and the display becomes more clear.Button : Decrease Button : IncreaseContrast ContrastAutoAdjustment“Auto Adjustment” performs adjustment of image quality automatically.Automatically adjusted items are :1) Clock 2) Phase 3) Position is centered4) Turning a zoomed picture into its normal shape (100%)FrequencyButton:Decrease horizontal size Button:Increase horizontal size.Perform this adjustment just in the case of having horizontally unmatched picture after operating the "Auto".PhaseWhen noise remains on the screen after operating the "Auto Adjust",adjust it by selecting or button.Do not make manual adjustment when the picture is in its normal shape or you will create problem on it..PCAvailableModePCPositionSharpness Adjust the clearness of image by controlling its sharpness.ColorControlCold : Greenish white. Felt cold.Normal : Normal whiteWarm : Reddish white. Felt warm.Custom : Able to adjust the color by controlling Red, Green, and BlueColor Button : Lower color intensity Button : Higher color intensityNote : Available in Video/TV mode onlyTint Button : Toward green Button : Toward purpleNote : Available in Video/TV mode onlyVideoAvailableModePCTVVideoS-VideodeoVideo VideoCaution!Button :Move left Button : Move right Button : Move down Button : Move up Caution!VidWBWB16

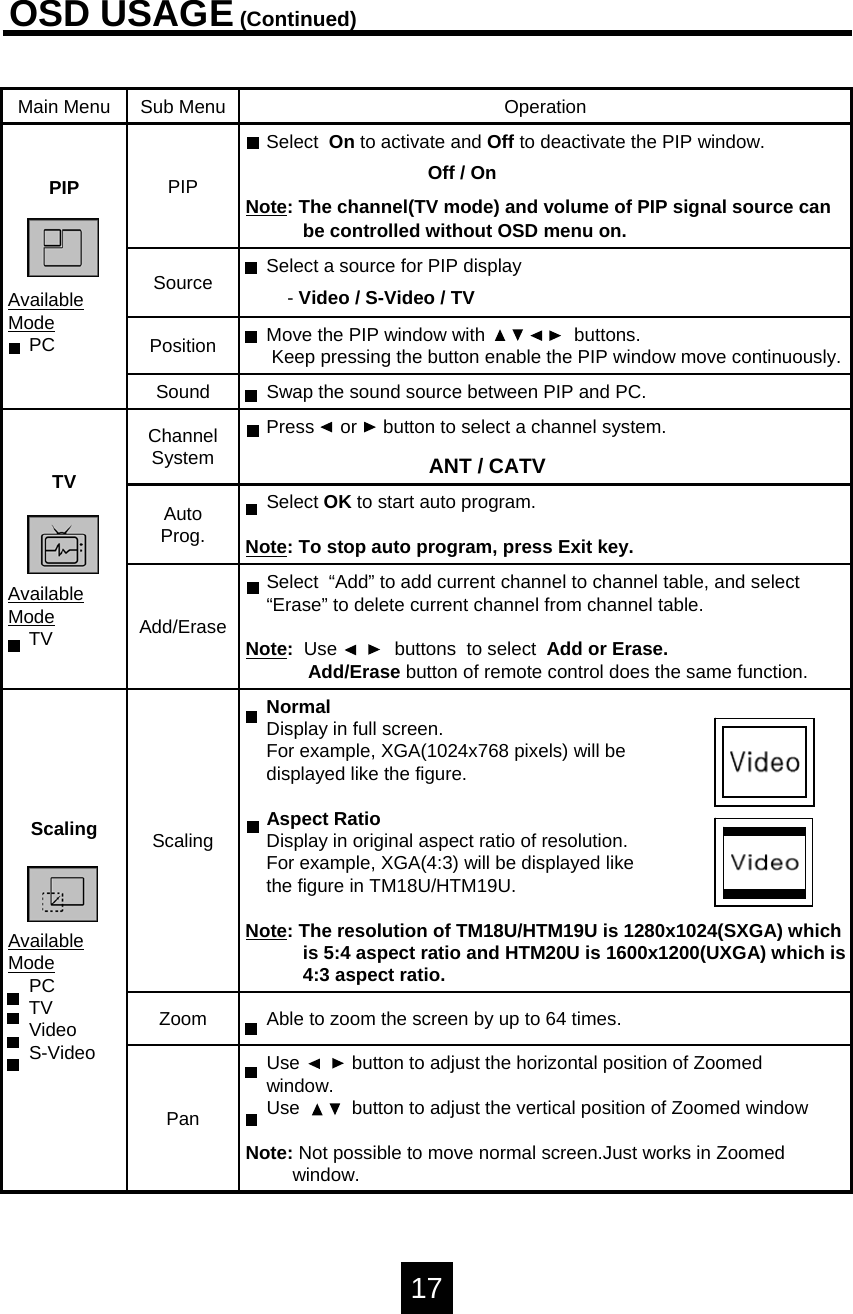

OSD USAGE(Continued)Main Menu Sub Menu OperationPIPSelect On to activate and Off to deactivate the PIP window.Off / OnNote: The channel(TV mode) and volume of PIP signal source canbe controlled without OSD menu on. Source Select a source for PIP display-Video / S-Video / TVPosition Move the PIP window with buttons.Keep pressing the button enable the PIP window move continuously. Sound Swap the sound source between PIP and PC.ChannelSystemPress or button to select a channel system.ANT / CATVScalingNormalDisplay in full screen. For example, XGA(1024x768 pixels) will bedisplayed like the figure.Aspect RatioDisplay in original aspect ratio of resolution. For example, XGA(4:3) will be displayed like the figure in TM18U/HTM19U.Note: The resolution of TM18U/HTM19U is 1280x1024(SXGA) whichis 5:4 aspect ratio and HTM20U is 1600x1200(UXGA) which is4:3 aspect ratio.Zoom Able to zoom the screen by up to 64 times.ScalingAvailableModePCTVVideoS-VideoPanUse button to adjust the horizontal position of Zoomedwindow. Use button to adjust the vertical position of Zoomed windowNote: Not possible to move normal screen.Just works in Zoomed window.AutoProg.Select OK to start auto program.Note: To stop auto program, press Exit key. TVAvailableModeTV Add/EraseSelect “Add” to add current channel to channel table, and select“Erase” to delete current channel from channel table.Note: Use buttons to select Add or Erase. Add/Erase button of remote control does the same function. PIPAvailableModePC17

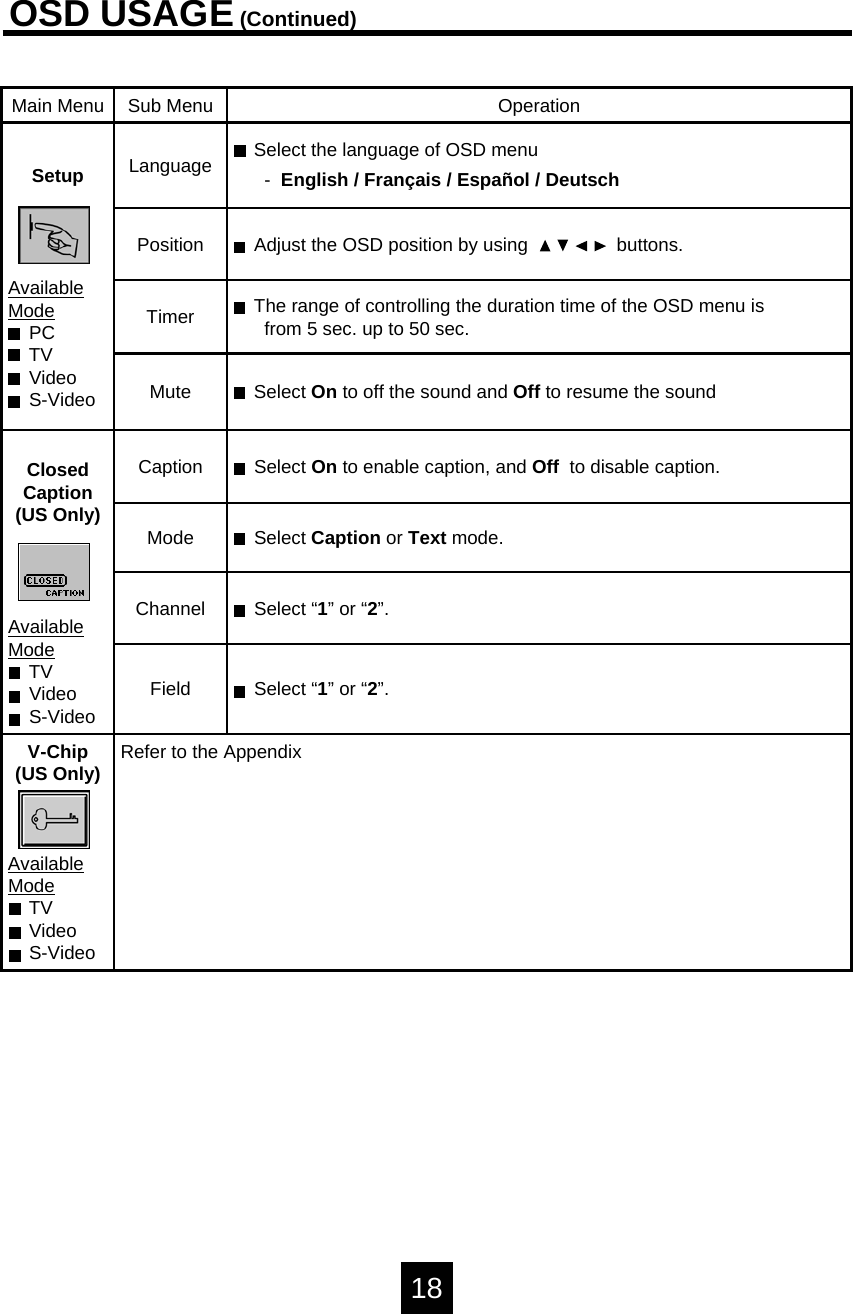

OSD USAGE(Continued)Main Menu Sub Menu OperationLanguage Select the language of OSD menu-English / Français / Español / DeutschTimer The range of controlling the duration time of the OSD menu is from 5 sec. up to 50 sec.Mode Select Caption or Text mode.Channel Select “1”or “2”. Field Select “1”or “2”. V-Chip(US Only)AvailableModeTVVideoS-VideoRefer to the AppendixPosition Adjust the OSD position by using buttons.SetupAvailableModePCTVVideoS-Video Mute Select On to off the sound and Off to resume the soundCaption Select On to enable caption, and Off to disable caption.ClosedCaption(US Only)AvailableModeTVVideoS-Video18

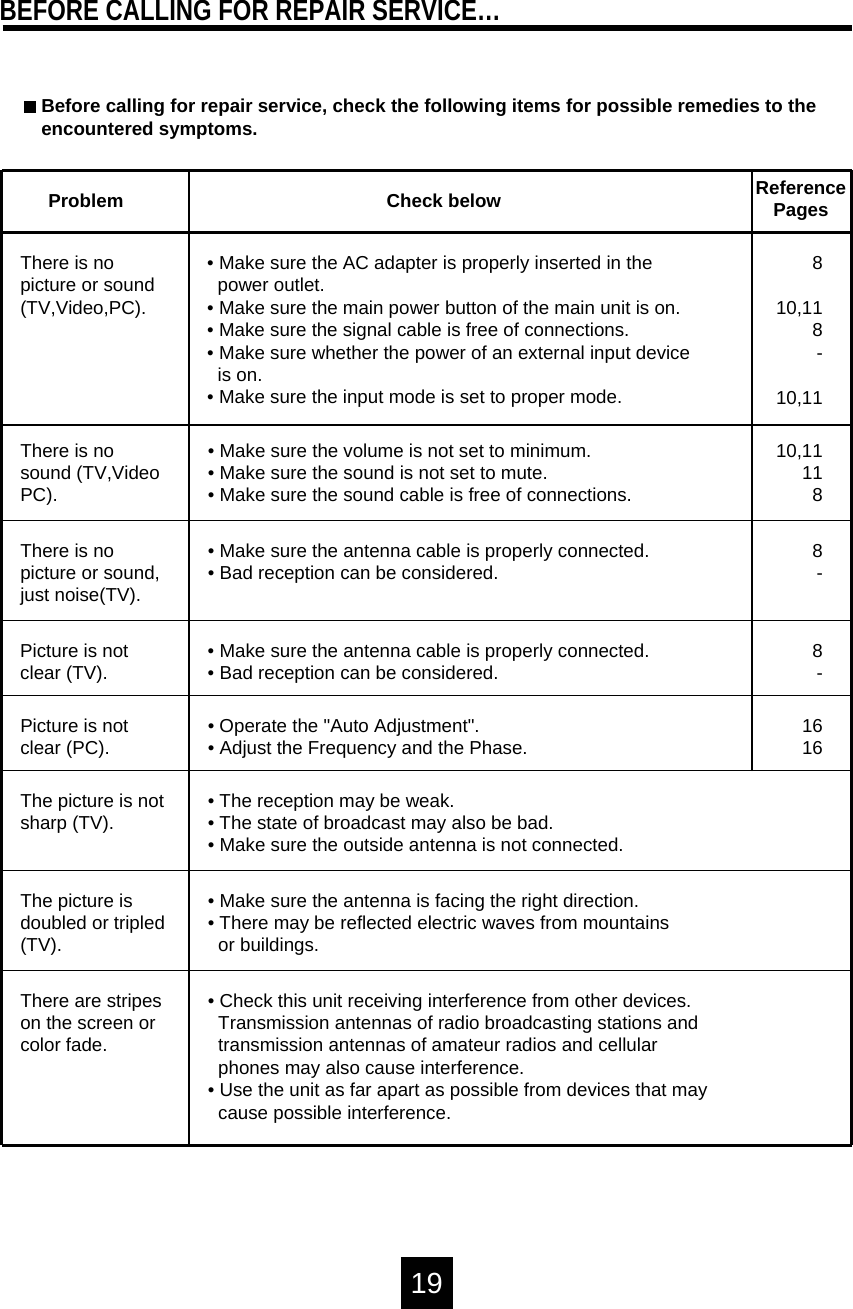

BEFORE CALLING FOR REPAIR SERVICE…Before calling for repair service, check the following items for possible remedies to theencountered symptoms.ReferencePagesProblem Check below• Make sure the AC adapter is properly inserted in thepower outlet.• Make sure the main power button of the main unit is on.• Make sure the signal cable is free of connections.• Make sure whether the power of an external input device is on.• Make sure the input mode is set to proper mode.There is nopicture or sound(TV,Video,PC).810,118-10,11• Make sure the volume is not set to minimum.• Make sure the sound is not set to mute.• Make sure the sound cable is free of connections.There is nosound (TV,VideoPC).• Make sure the antenna cable is properly connected.• Bad reception can be considered.There is nopicture or sound,just noise(TV).Picture is notclear (TV). • Make sure the antenna cable is properly connected.• Bad reception can be considered.Picture is notclear (PC). • Operate the "Auto Adjustment".• Adjust the Frequency and the Phase.The picture is notsharp (TV). • The reception may be weak.• The state of broadcast may also be bad.• Make sure the outside antenna is not connected.• Make sure the antenna is facing the right direction.• There may be reflected electric waves from mountainsor buildings.The picture isdoubled or tripled(TV).• Check this unit receiving interference from other devices.Transmission antennas of radio broadcasting stations andtransmission antennas of amateur radios and cellularphones may also cause interference.• Use the unit as far apart as possible from devices that may cause possible interference.There are stripeson the screen orcolor fade.10,111188-8-161619

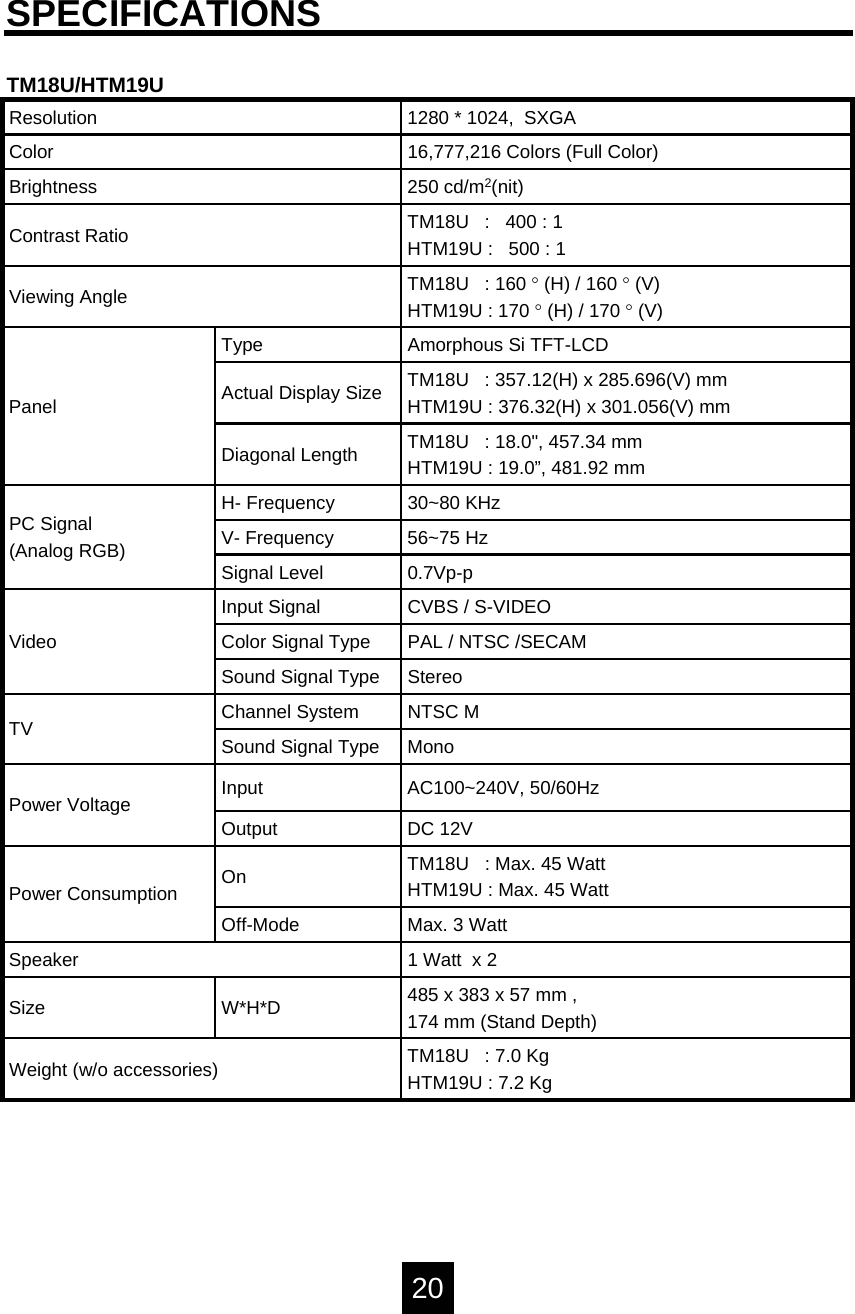

SPECIFICATIONSTM18U/HTM19UResolution 1280 * 1024, SXGAH- Frequency 30~80 KHzColor Signal Type PAL / NTSC /SECAMInputOutput DC 12VVideoSound Signal Type StereoWeight (w/o accessories) TM18U : 7.0 KgHTM19U : 7.2 KgV- Frequency 56~75 HzPC Signal(Analog RGB) Signal Level 0.7Vp-pColor 16,777,216 Colors (Full Color)Brightness 250 cd/m2(nit)Contrast Ratio TM18U : 400 : 1HTM19U : 500 : 1 Viewing Angle TM18U : 160 °(H) / 160 °(V)HTM19U : 170 °(H) / 170 °(V)Type Amorphous Si TFT-LCDActual Display Size TM18U : 357.12(H) x 285.696(V) mmHTM19U : 376.32(H) x 301.056(V) mmDiagonal Length TM18U : 18.0", 457.34 mmHTM19U : 19.0”, 481.92 mmInput Signal CVBS / S-VIDEOChannel System NTSC MSound Signal Type MonoAC100~240V, 50/60HzPower VoltageOn TM18U : Max. 45 WattHTM19U : Max. 45 WattOff-Mode Max. 3 WattSpeaker 1 Watt x 2Size W*H*D 485 x 383 x 57 mm ,174 mm (Stand Depth)Power ConsumptionTV Panel20

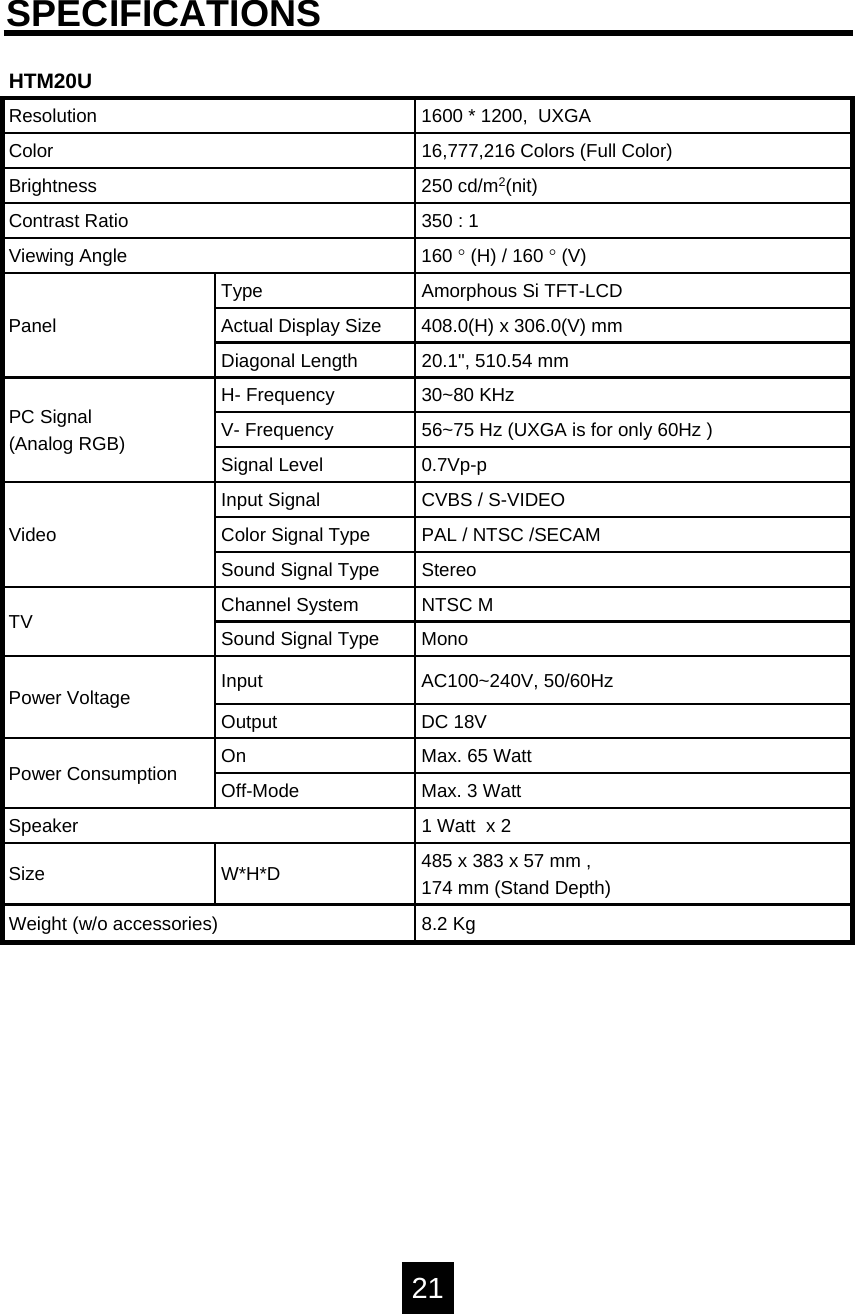

SPECIFICATIONSResolution 1600 * 1200, UXGAH- Frequency 30~80 KHzColor Signal Type PAL / NTSC /SECAMInputOutput DC 18VVideoSound Signal Type StereoWeight (w/o accessories) 8.2 KgV- Frequency 56~75 Hz (UXGA is for only 60Hz ) PC Signal(Analog RGB) Signal Level 0.7Vp-pColor 16,777,216 Colors (Full Color)Brightness 250 cd/m2(nit)Contrast Ratio 350 : 1Viewing Angle 160 °(H) / 160 °(V)Type Amorphous Si TFT-LCDActual Display Size 408.0(H) x 306.0(V) mmDiagonal Length 20.1", 510.54 mmInput Signal CVBS / S-VIDEOChannel System NTSC MSound Signal Type MonoAC100~240V, 50/60HzPower VoltageOn Max. 65 WattOff-Mode Max. 3 WattSpeaker 1 Watt x 2Size W*H*D 485 x 383 x 57 mm ,174 mm (Stand Depth)Power ConsumptionTV PanelHTM20U21

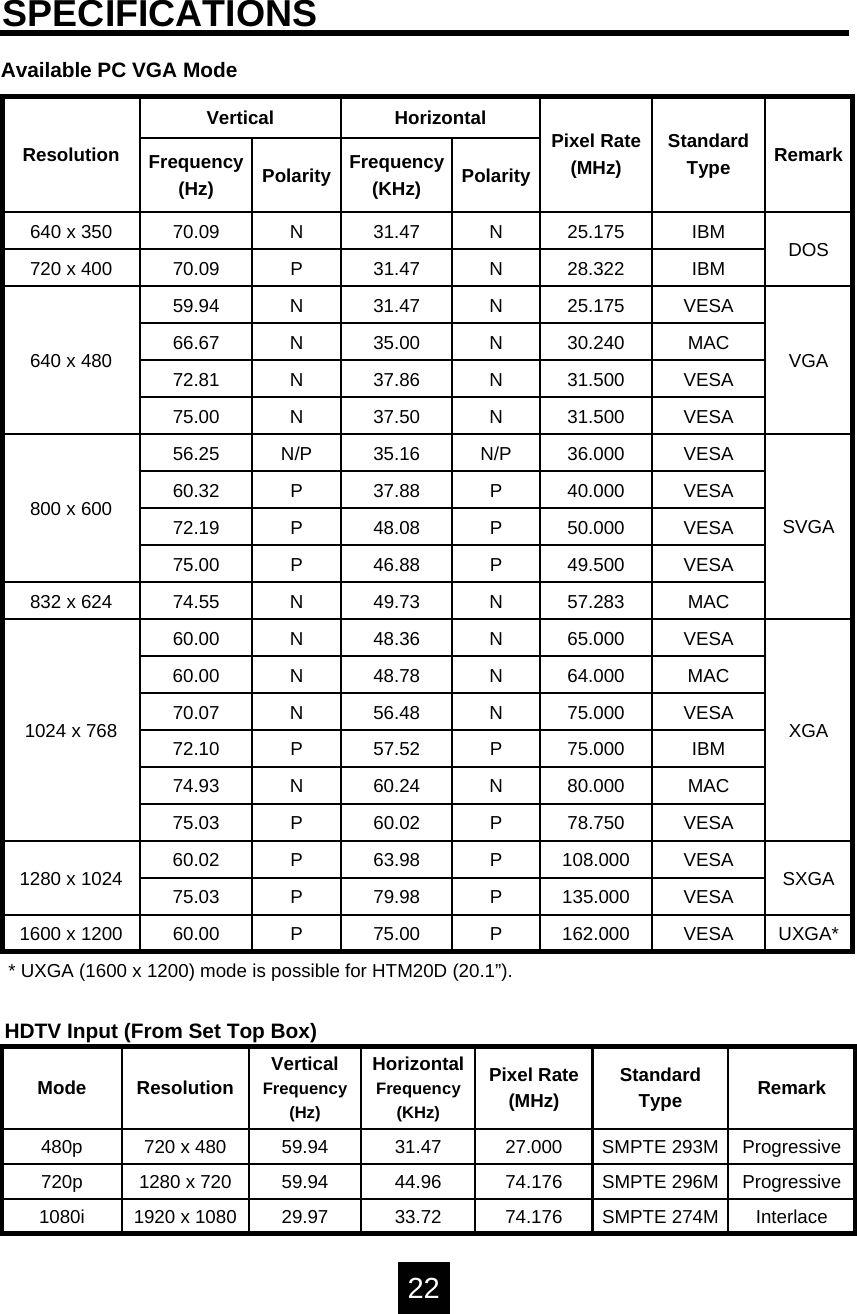

SPECIFICATIONSAvailable PC VGA ModeHDTV Input (From Set Top Box)Mode Resolution VerticalFrequency(Hz)HorizontalFrequency(KHz)Pixel Rate(MHz)StandardType Remark480p 720 x 4801280 x 7201920 x 108059.94 31.47 27.000 SMPTE 293MProgressiveProgressiveInterlaceSMPTE 296MSMPTE 274M720p 59.94 44.96 74.1761080i 29.97 33.72 74.176Vertical HorizontalFrequency(Hz) Polarity Frequency(KHz) Polarity60.00 N 48.78 N 64.000 MAC72.10 P 57.52 P 75.000 IBM75.03 P 60.02 P 78.750 VESA60.02 P 63.98 P 108.000 VESA75.03 P 79.98 P 135.000 VESA1600 x 1200 UXGA*SXGA1280 x 1024StandardType RemarkIBMIBM DOSVGASVGAXGAVESAMACVESAVESAVESAVESAVESAVESAMACVESAVESAMACVESA640 x 350 70.09 N 31.47 N 25.175720 x 400 70.09 P 31.47 N 28.32259.94 N 31.47 N 25.17566.67 N 35.00 N 30.240640 x 480 72.81 N 37.86 N 31.50075.00 N 37.50 N 31.50056.25 N/P 35.16 N/P 36.00060.32 P 37.88 P 40.000800 x 600 72.19 P 48.08 P 50.00075.00 P 46.88 P 49.500832 x 624 74.55 N 49.73 N 57.28360.00 N 48.36 N 65.00070.07 N 56.48 N 75.0001024 x 76874.93 N 60.24 N 80.00060.00 P 75.00 P 162.000Pixel Rate(MHz)Resolution* UXGA (1600 x 1200) mode is possible for HTM20D (20.1”).22

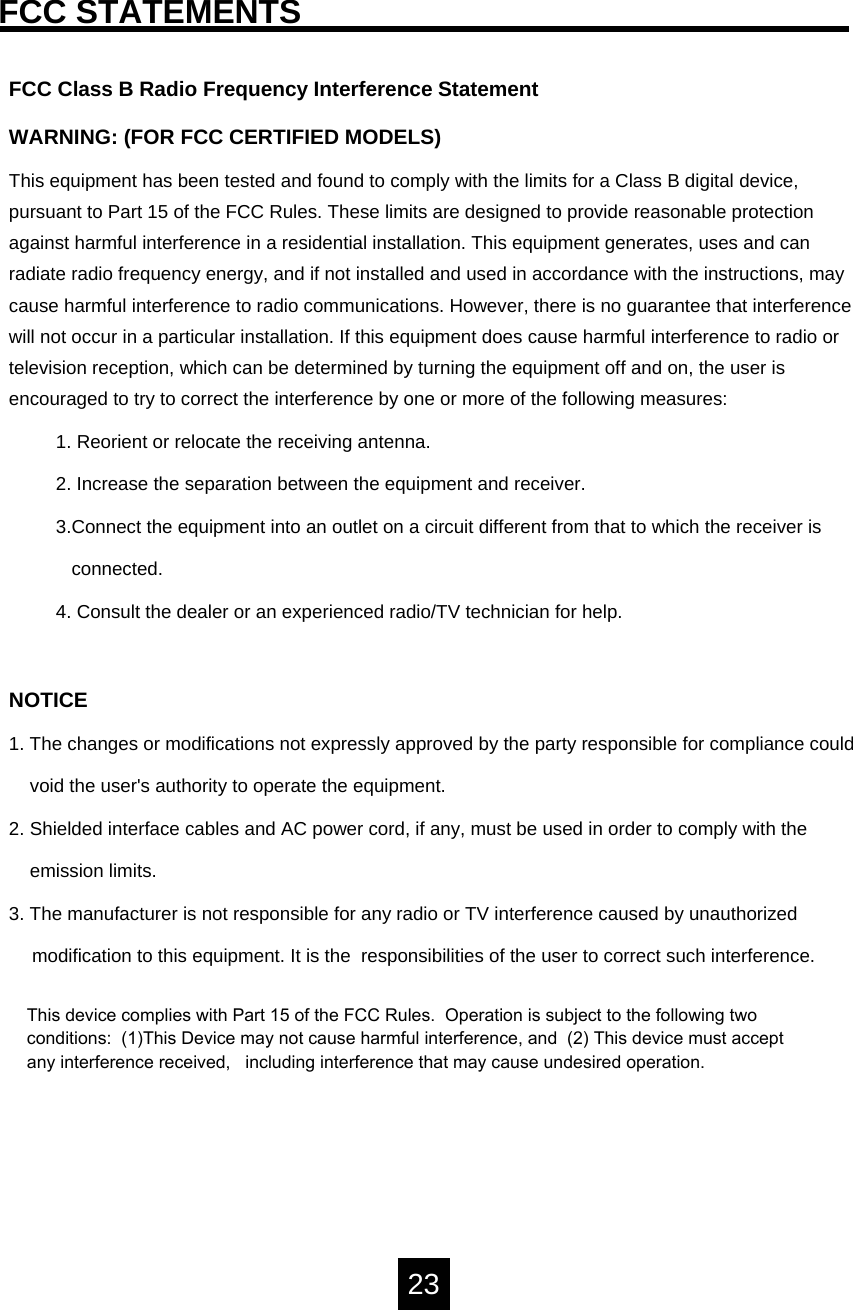

FCC STATEMENTSFCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3.Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.4. Consult the dealer or an experienced radio/TV technician for help.NOTICE1. The changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.3. The manufacturer is not responsible for any radio or TV interference caused by unauthorizedmodification to this equipment. It is the responsibilities of the user to correct such interference. 23This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This Device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

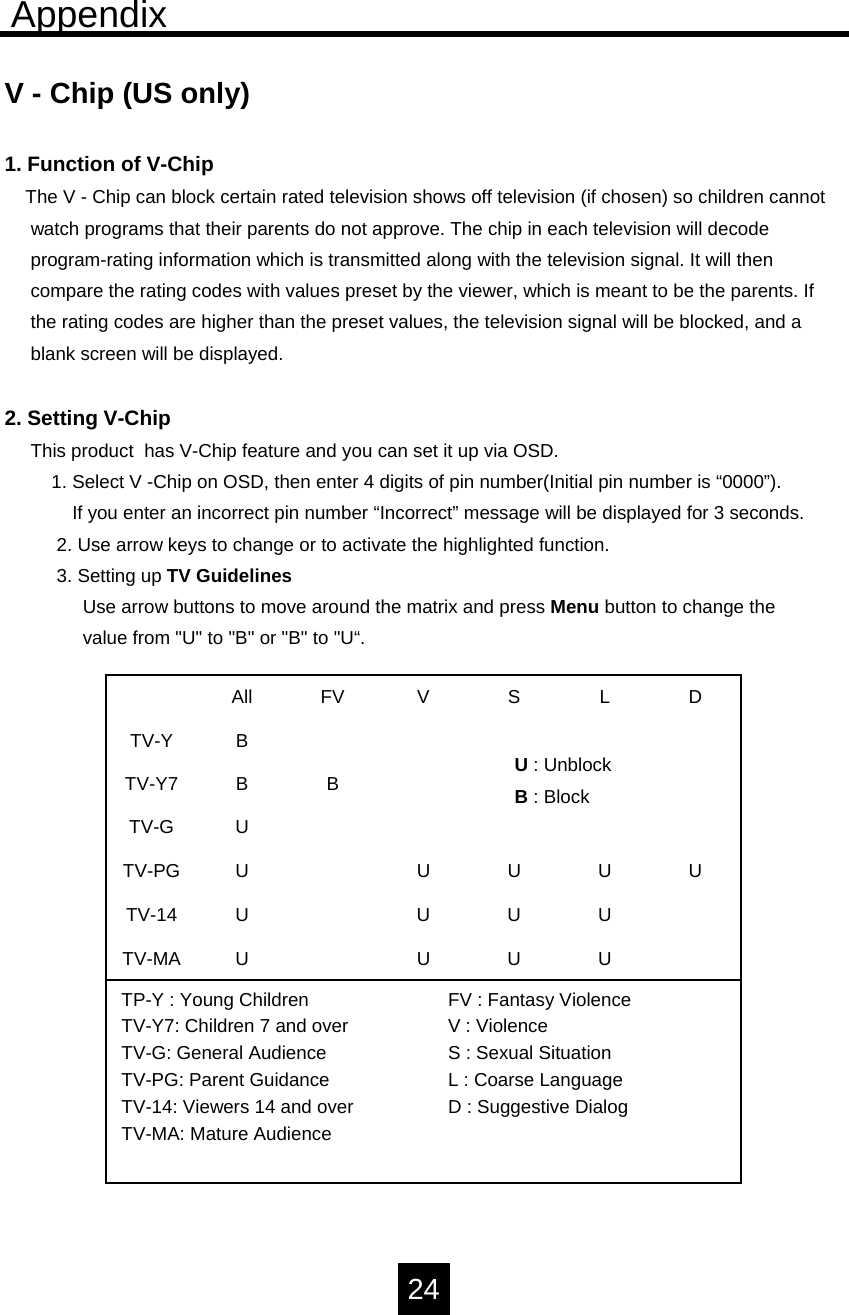

AppendixV - Chip (US only)1. Function of V-ChipThe V - Chip can block certain rated television shows off television (if chosen) so children cannot watch programs that their parents do not approve. The chip in each television will decodeprogram-rating information which is transmitted along with the television signal. It will thencompare the rating codes with values preset by the viewer, which is meant to be the parents. Ifthe rating codes are higher than the preset values, the television signal will be blocked, and ablank screen will be displayed.2. Setting V-ChipThis product has V-Chip feature and you can set it up via OSD.1. Select V -Chip on OSD, then enter 4 digits of pin number(Initial pin number is “0000”).If you enter an incorrect pin number “Incorrect” message will be displayed for 3 seconds.2. Use arrow keys to change or to activate the highlighted function.3. Setting up TV GuidelinesUse arrow buttons to move around the matrix and press Menu button to change thevalue from "U" to "B" or "B" to "U“. All FV V S L DTV-Y7 B BTV-G UTV-PGU UUUUTV-14 U U U UTV-MA U U U UTP-Y : Young ChildrenTV-Y7: Children 7 and overTV-G: General AudienceTV-PG: Parent GuidanceTV-14: Viewers 14 and overTV-MA: Mature AudienceFV : Fantasy ViolenceV : ViolenceS : Sexual SituationL : Coarse LanguageD : Suggestive DialogBTV-Y U : UnblockB : Block24

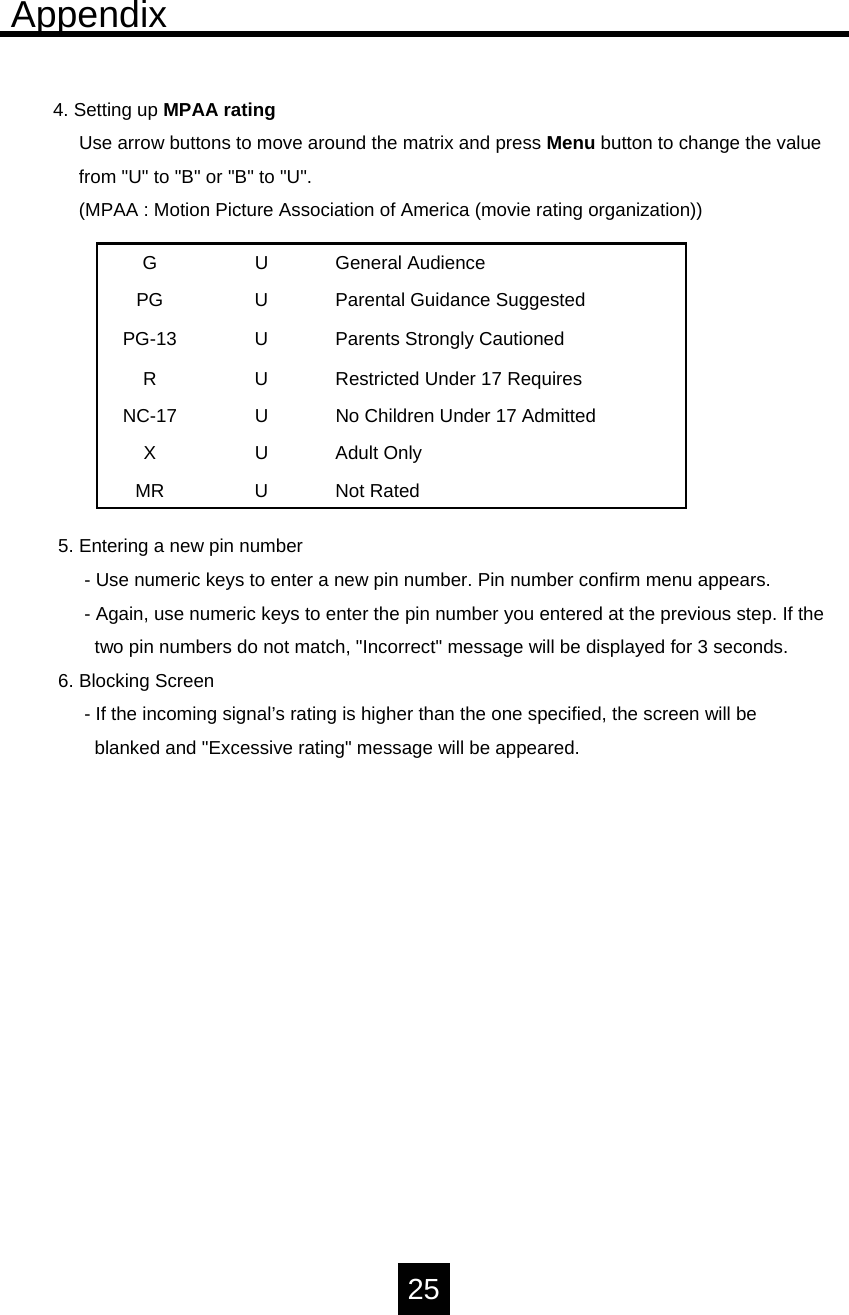

Appendix4. Setting up MPAA ratingUse arrow buttons to move around the matrix and press Menu button to change the valuefrom "U" to "B" or "B" to "U".(MPAA : Motion Picture Association of America (movie rating organization))5. Entering a new pin number- Use numeric keys to enter a new pin number. Pin number confirm menu appears. - Again, use numeric keys to enter the pin number you entered at the previous step. If thetwo pin numbers do not match, "Incorrect" message will be displayed for 3 seconds.6. Blocking Screen- If the incoming signal’s rating is higher than the one specified, the screen will be blanked and "Excessive rating" message will be appeared.G U General AudiencePG U Parental Guidance SuggestedPG-13 U Parents Strongly CautionedR U Restricted Under 17 RequiresNC-17 U No Children Under 17 AdmittedX U Adult OnlyMR U Not Rated25
