NIE TECH ZW1505 5 Outlet Power Strip With USB Charger User Manual Evalogik ZW1505 Manual 180628

NIE Technology Co., Ltd 5 Outlet Power Strip With USB Charger Evalogik ZW1505 Manual 180628

User_Manual

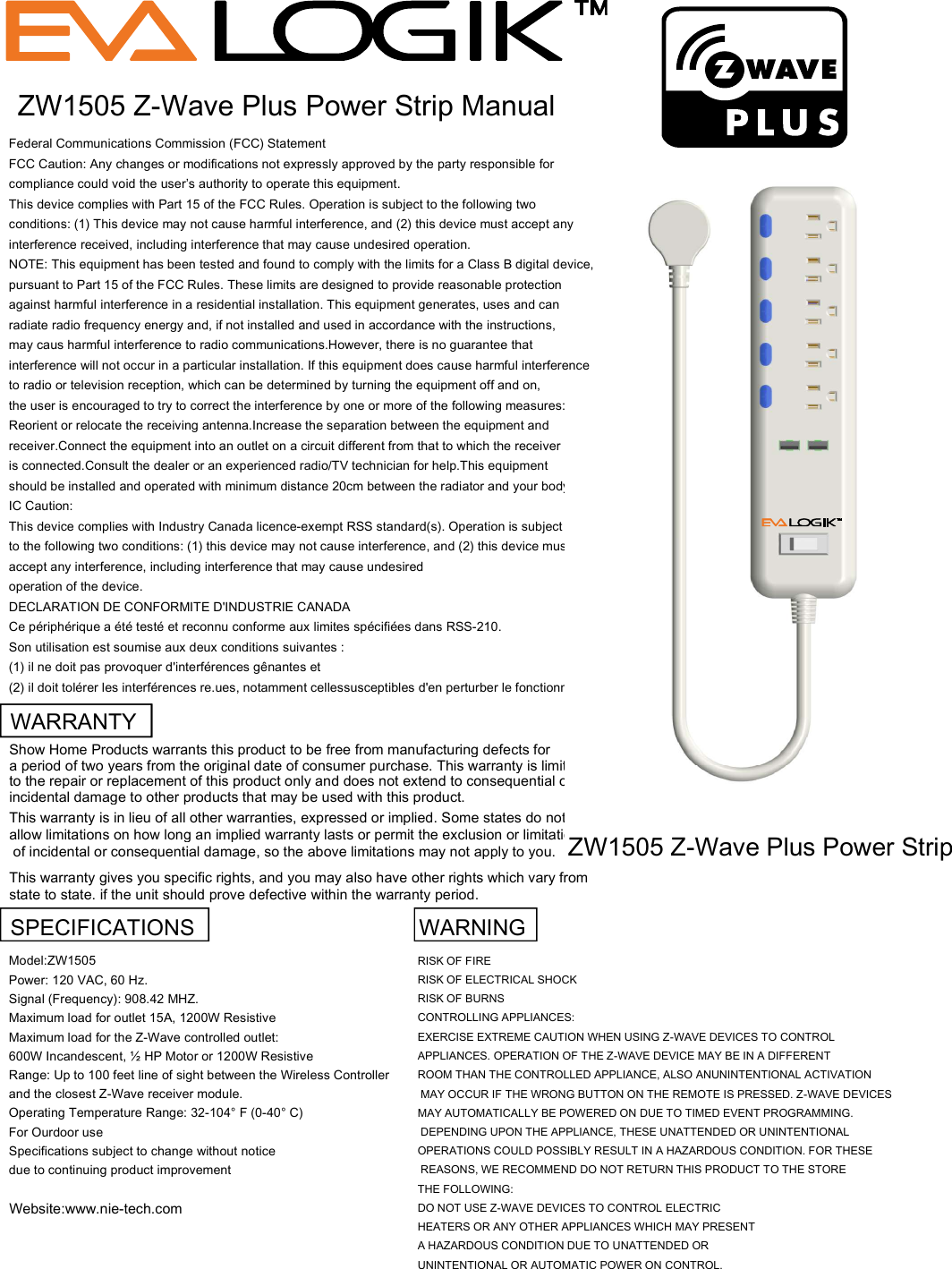

Federal Communications Commission (FCC) StatementFCC Caution: Any changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may caus harmful interference to radio communications.However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment andreceiver.Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.Consult the dealer or an experienced radio/TV technician for help.This equipmentshould be installed and operated with minimum distance 20cm between the radiator and your body.IC Caution:This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subjectto the following two conditions: (1) this device may not cause interference, and (2) this device mustaccept any interference, including interference that may cause undesiredoperation of the device.DECLARATION DE CONFORMITE D'INDUSTRIE CANADACe périphérique a été testé et reconnu conforme aux limites spécifiées dans RSS-210.Son utilisation est soumise aux deux conditions suivantes :(1) il ne doit pas provoquer d'interférences gênantes et(2) il doit tolérer les interférences re.ues, notamment cellessusceptibles d'en perturber le fonctionnement.ZW1505 Z-Wave Plus Power Strip ManualWARRANTYShow Home Products warrants this product to be free from manufacturing defects for a period of two years from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential orincidental damage to other products that may be used with this product. This warranty is in lieu of all other warranties, expressed or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damage, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which vary from state to state. if the unit should prove defective within the warranty period.SPECIFICATIONS   WARNINGModel:ZW1505RISK OF FIREPower: 120 VAC, 60 Hz.RISK OF ELECTRICAL SHOCKSignal (Frequency): 908.42 MHZ.RISK OF BURNSMaximum load for outlet 15A, 1200W ResistiveCONTROLLING APPLIANCES:Maximum load for the Z-Wave controlled outlet:EXERCISE EXTREME CAUTION WHEN USING Z-WAVE DEVICES TO CONTROL 600W Incandescent, ½ HP Motor or 1200W ResistiveAPPLIANCES. OPERATION OF THE Z-WAVE DEVICE MAY BE IN A DIFFERENTRange: Up to 100 feet line of sight between the Wireless ControllerROOM THAN THE CONTROLLED APPLIANCE, ALSO ANUNINTENTIONAL ACTIVATIONand the closest Z-Wave receiver module. MAY OCCUR IF THE WRONG BUTTON ON THE REMOTE IS PRESSED. Z-WAVE DEVICESOperating Temperature Range: 32-104° F (0-40° C)MAY AUTOMATICALLY BE POWERED ON DUE TO TIMED EVENT PROGRAMMING. For Ourdoor use  DEPENDING UPON THE APPLIANCE, THESE UNATTENDED OR UNINTENTIONAL Specifications subject to change without noticeOPERATIONS COULD POSSIBLY RESULT IN A HAZARDOUS CONDITION. FOR THESEdue to continuing product improvement REASONS, WE RECOMMEND DO NOT RETURN THIS PRODUCT TO THE STORE THE FOLLOWING:Website:www.nie-tech.comDO NOT USE Z-WAVE DEVICES TO CONTROL ELECTRIC HEATERS OR ANY OTHER APPLIANCES WHICH MAY PRESENT A HAZARDOUS CONDITION DUE TO UNATTENDED OR UNINTENTIONAL OR AUTOMATIC POWER ON CONTROL.ZW1505 Z-Wave Plus Power Strip

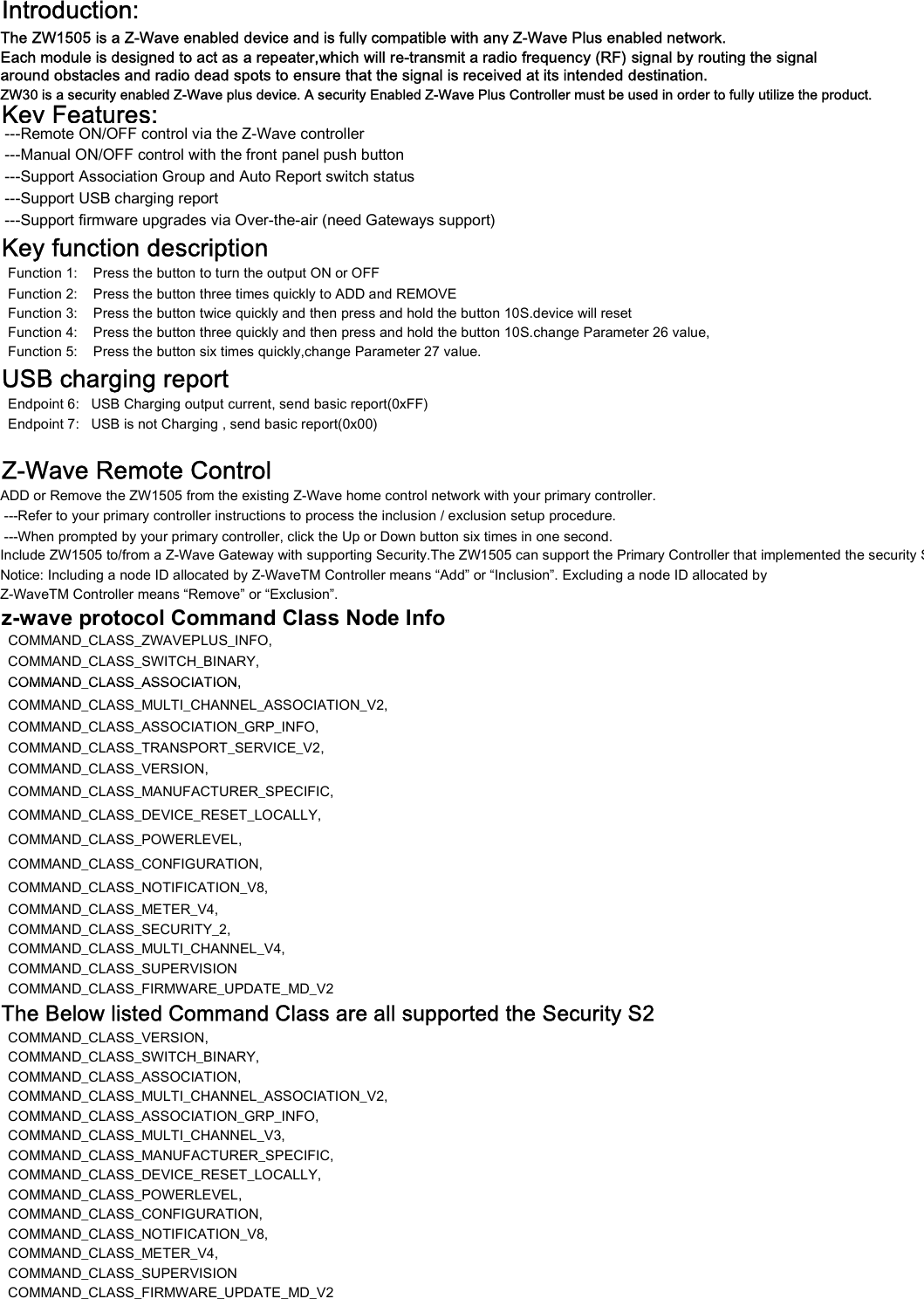

Introduction:The ZW1505 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network.around obstacles and radio dead spots to ensure that the signal is received at its intended destination.ZW30 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product.Key Features: ---Remote ON/OFF control via the Z-Wave controller ---Manual ON/OFF control with the front panel push button ---Support Association Group and Auto Report switch status ---Support USB charging report ---Support firmware upgrades via Over-the-air (need Gateways support)Key function description  Function 1:    Press the button to turn the output ON or OFF  Function 2:    Press the button three times quickly to ADD and REMOVE  Function 3:    Press the button twice quickly and then press and hold the button 10S.device will reset  Function 4:    Press the button three quickly and then press and hold the button 10S.change Parameter 26 value,  Function 5:    Press the button six times quickly,change Parameter 27 value.USB charging report  Endpoint 6:   USB Charging output current, send basic report(0xFF)  Endpoint 7:   USB is not Charging , send basic report(0x00)Z-Wave Remote ControlADD or Remove the ZW1505 from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.Include ZW1505 to/from a Z-Wave Gateway with supporting Security.The ZW1505 can support the Primary Controller that implemented the security S2.Notice: Including a node ID allocated by Z-WaveTM Controller means “Add” or “Inclusion”. Excluding a node ID allocated by Z-WaveTM Controller means “Remove” or “Exclusion”.z-wave protocol Command Class Node Info      COMMAND_CLASS_ZWAVEPLUS_INFO,COMMAND_CLASS_SWITCH_BINARY,COMMAND_CLASS_ASSOCIATION,Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal ---When prompted by your primary controller, click the Up or Down button six times in one second.COMMAND_CLASS_ASSOCIATION,COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2,COMMAND_CLASS_ASSOCIATION_GRP_INFO,COMMAND_CLASS_TRANSPORT_SERVICE_V2,COMMAND_CLASS_VERSION,COMMAND_CLASS_MANUFACTURER_SPECIFIC,COMMAND_CLASS_DEVICE_RESET_LOCALLY,COMMAND_CLASS_POWERLEVEL,COMMAND_CLASS_CONFIGURATION,COMMAND_CLASS_NOTIFICATION_V8,COMMAND_CLASS_METER_V4,COMMAND_CLASS_SECURITY_2,COMMAND_CLASS_MULTI_CHANNEL_V4,COMMAND_CLASS_SUPERVISIONCOMMAND_CLASS_FIRMWARE_UPDATE_MD_V2The Below listed Command Class are all supported the Security S2  COMMAND_CLASS_VERSION,COMMAND_CLASS_SWITCH_BINARY,COMMAND_CLASS_ASSOCIATION,COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2,COMMAND_CLASS_ASSOCIATION_GRP_INFO,COMMAND_CLASS_MULTI_CHANNEL_V3,COMMAND_CLASS_MANUFACTURER_SPECIFIC,COMMAND_CLASS_DEVICE_RESET_LOCALLY,COMMAND_CLASS_POWERLEVEL,COMMAND_CLASS_CONFIGURATION,COMMAND_CLASS_NOTIFICATION_V8,COMMAND_CLASS_METER_V4,COMMAND_CLASS_SUPERVISIONCOMMAND_CLASS_FIRMWARE_UPDATE_MD_V2

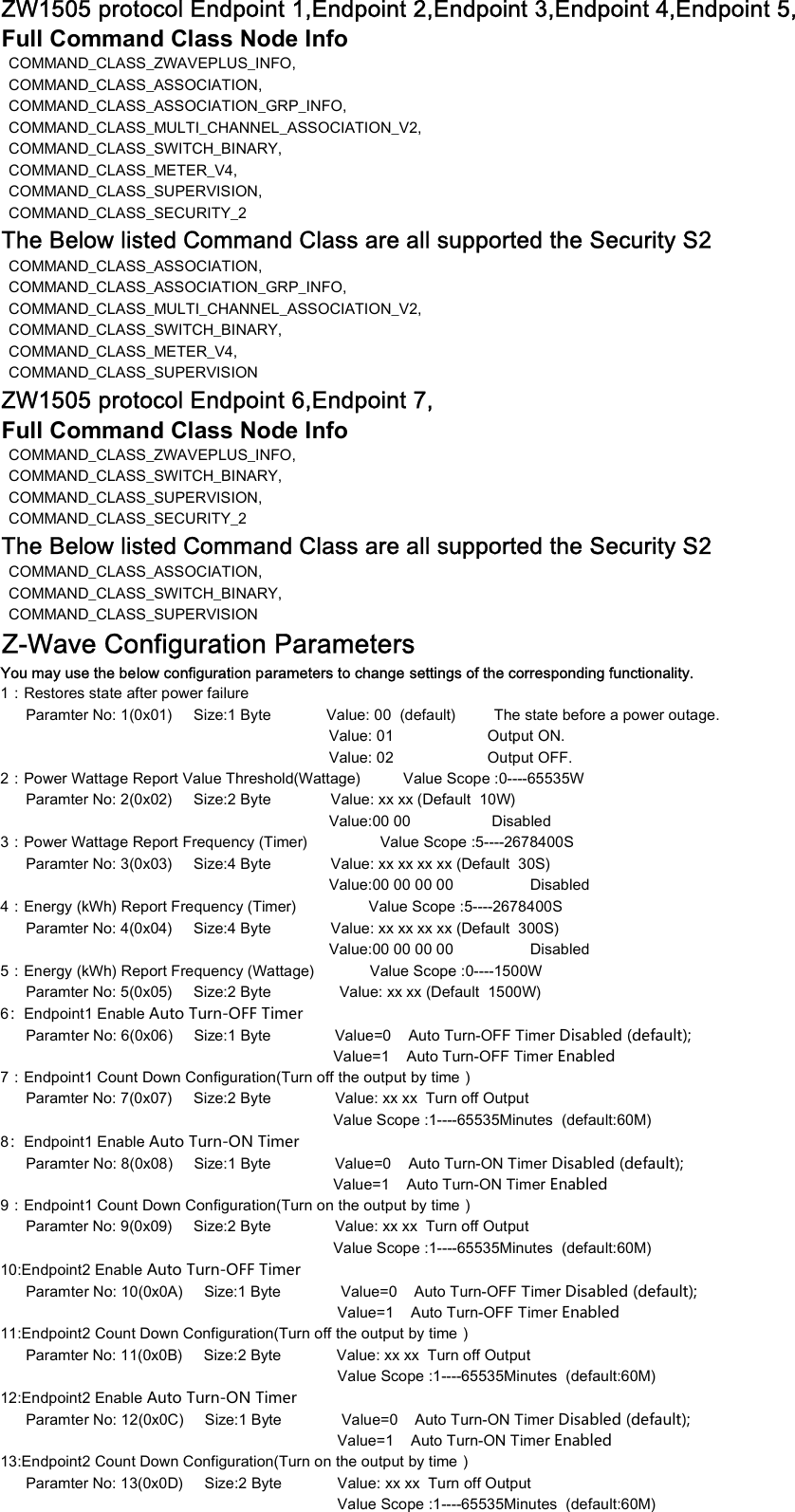

ZW1505 protocol Endpoint 1,Endpoint 2,Endpoint 3,Endpoint 4,Endpoint 5,Full Command Class Node Info   COMMAND_CLASS_ZWAVEPLUS_INFO,COMMAND_CLASS_ASSOCIATION,COMMAND_CLASS_ASSOCIATION_GRP_INFO,COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2,  COMMAND_CLASS_SWITCH_BINARY,COMMAND_CLASS_METER_V4,COMMAND_CLASS_SUPERVISION,COMMAND_CLASS_SECURITY_2The Below listed Command Class are all supported the Security S2  COMMAND_CLASS_ASSOCIATION,COMMAND_CLASS_ASSOCIATION_GRP_INFO,COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2,  COMMAND_CLASS_SWITCH_BINARY,COMMAND_CLASS_METER_V4,COMMAND_CLASS_SUPERVISIONZW1505 protocol Endpoint 6,Endpoint 7,Full Command Class Node Info   COMMAND_CLASS_ZWAVEPLUS_INFO,  COMMAND_CLASS_SWITCH_BINARY,COMMAND_CLASS_SUPERVISION,COMMAND_CLASS_SECURITY_2The Below listed Command Class are all supported the Security S2  COMMAND_CLASS_ASSOCIATION,  COMMAND_CLASS_SWITCH_BINARY,COMMAND_CLASS_SUPERVISIONZ-Wave Configuration Parameters1:Restores state after power failure      Paramter No: 1(0x01)     Size:1 Byte             Value: 00  (default)         The state before a power outage.                                                                                           Value: 01                      Output ON.You may use the below configuration parameters to change settings of the corresponding functionality.                                                                             Value: 01                      Output ON.                                                                             Value: 02                      Output OFF.2:Power Wattage Report Value Threshold(Wattage)          Value Scope :0----65535W        Paramter No: 2(0x02)     Size:2 Byte              Value: xx xx (Default  10W)                                                                                  Value:00 00                   Disabled    3:Power Wattage Report Frequency (Timer)                 Value Scope :5----2678400S        Paramter No: 3(0x03)     Size:4 Byte              Value: xx xx xx xx (Default  30S)                                                                                  Value:00 00 00 00                  Disabled    4:Energy (kWh) Report Frequency (Timer)                 Value Scope :5----2678400S        Paramter No: 4(0x04)     Size:4 Byte              Value: xx xx xx xx (Default  300S)                                                                                  Value:00 00 00 00                  Disabled    5:Energy (kWh) Report Frequency (Wattage)             Value Scope :0----1500W       Paramter No: 5(0x05)     Size:2 Byte                Value: xx xx (Default  1500W)     6:Endpoint1 Enable Auto Turn-OFF Timer      Paramter No: 6(0x06)     Size:1 Byte               Value=0    Auto Turn-OFF Timer Disabled (default);                                                                               Value=1    Auto Turn-OFF Timer Enabled7:Endpoint1 Count Down Configuration(Turn off the output by time)      Paramter No: 7(0x07)     Size:2 Byte               Value: xx xx  Turn off Output                                                                              Value Scope :1----65535Minutes  (default:60M)8:Endpoint1 Enable Auto Turn-ON Timer      Paramter No: 8(0x08)     Size:1 Byte               Value=0    Auto Turn-ON Timer Disabled (default);                                                                               Value=1    Auto Turn-ON Timer Enabled9:Endpoint1 Count Down Configuration(Turn on the output by time)      Paramter No: 9(0x09)     Size:2 Byte               Value: xx xx  Turn off Output                                                                              Value Scope :1----65535Minutes  (default:60M)10:Endpoint2 Enable Auto Turn-OFF Timer      Paramter No: 10(0x0A)     Size:1 Byte              Value=0    Auto Turn-OFF Timer Disabled (default);                                                                                Value=1    Auto Turn-OFF Timer Enabled11:Endpoint2 Count Down Configuration(Turn off the output by time)      Paramter No: 11(0x0B)     Size:2 Byte             Value: xx xx  Turn off Output                                                                               Value Scope :1----65535Minutes  (default:60M)12:Endpoint2 Enable Auto Turn-ON Timer      Paramter No: 12(0x0C)     Size:1 Byte              Value=0    Auto Turn-ON Timer Disabled (default);                                                                                Value=1    Auto Turn-ON Timer Enabled13:Endpoint2 Count Down Configuration(Turn on the output by time)      Paramter No: 13(0x0D)     Size:2 Byte             Value: xx xx  Turn off Output                                                                               Value Scope :1----65535Minutes  (default:60M)                                                                               Value Scope :1----65535Minutes  (default:60M)

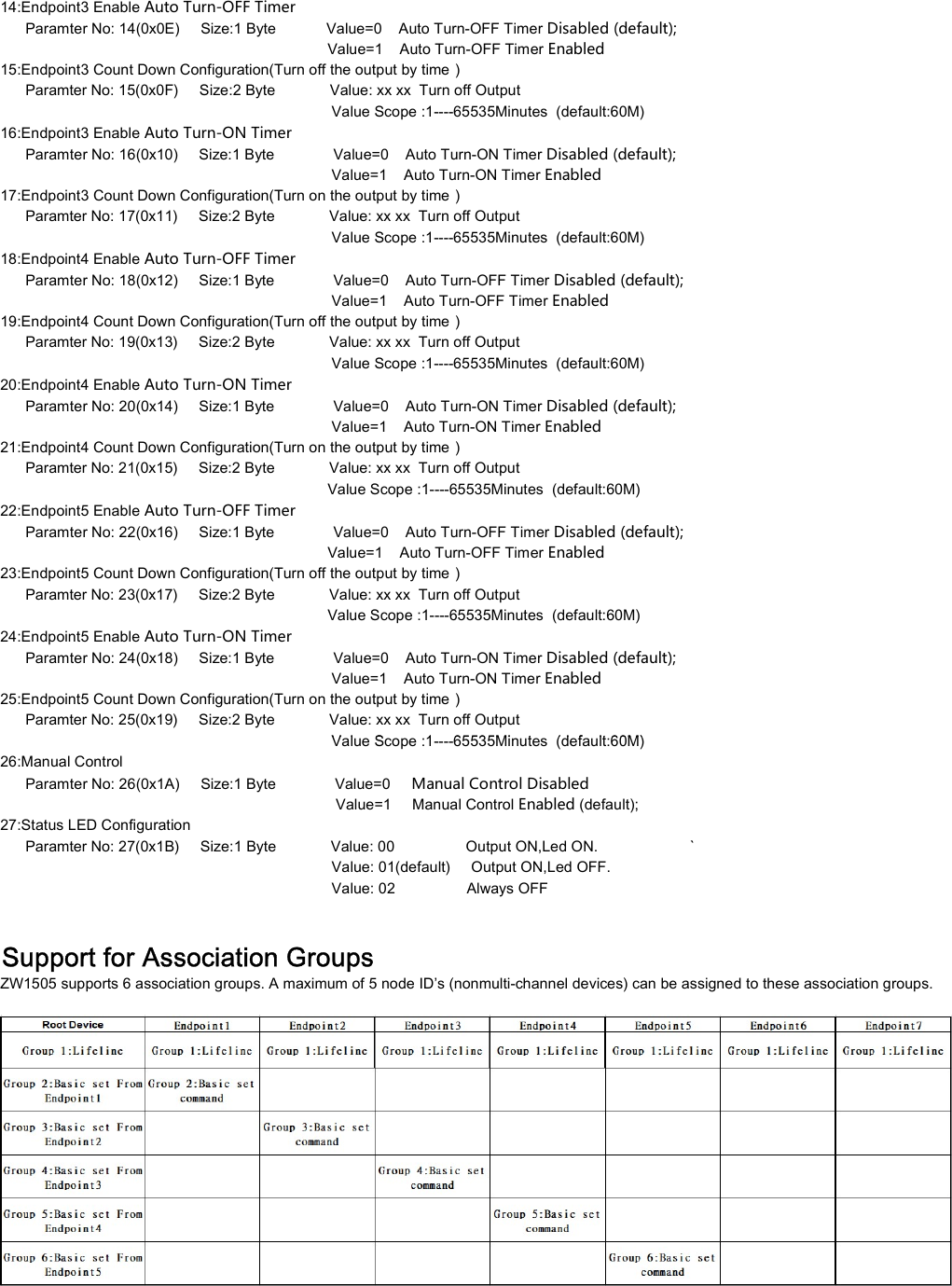

14:Endpoint3 Enable Auto Turn-OFF Timer      Paramter No: 14(0x0E)     Size:1 Byte            Value=0    Auto Turn-OFF Timer Disabled (default);                                                                               Value=1    Auto Turn-OFF Timer Enabled15:Endpoint3 Count Down Configuration(Turn off the output by time)      Paramter No: 15(0x0F)     Size:2 Byte             Value: xx xx  Turn off Output                                                                               Value Scope :1----65535Minutes  (default:60M)16:Endpoint3 Enable Auto Turn-ON Timer      Paramter No: 16(0x10)     Size:1 Byte              Value=0    Auto Turn-ON Timer Disabled (default);                                                                                Value=1    Auto Turn-ON Timer Enabled17:Endpoint3 Count Down Configuration(Turn on the output by time)      Paramter No: 17(0x11)     Size:2 Byte             Value: xx xx  Turn off Output                                                                               Value Scope :1----65535Minutes  (default:60M)18:Endpoint4 Enable Auto Turn-OFF Timer      Paramter No: 18(0x12)     Size:1 Byte              Value=0    Auto Turn-OFF Timer Disabled (default);                                                                                Value=1    Auto Turn-OFF Timer Enabled19:Endpoint4 Count Down Configuration(Turn off the output by time)      Paramter No: 19(0x13)     Size:2 Byte             Value: xx xx  Turn off Output                                                                               Value Scope :1----65535Minutes  (default:60M)20:Endpoint4 Enable Auto Turn-ON Timer      Paramter No: 20(0x14)     Size:1 Byte              Value=0    Auto Turn-ON Timer Disabled (default);                                                                                Value=1    Auto Turn-ON Timer Enabled21:Endpoint4 Count Down Configuration(Turn on the output by time)      Paramter No: 21(0x15)     Size:2 Byte             Value: xx xx  Turn off Output                                                                              Value Scope :1----65535Minutes  (default:60M)22:Endpoint5 Enable Auto Turn-OFF Timer      Paramter No: 22(0x16)     Size:1 Byte              Value=0    Auto Turn-OFF Timer Disabled (default);                                                                               Value=1    Auto Turn-OFF Timer Enabled23:Endpoint5 Count Down Configuration(Turn off the output by time)      Paramter No: 23(0x17)     Size:2 Byte             Value: xx xx  Turn off Output                                                                              Value Scope :1----65535Minutes  (default:60M)24:Endpoint5 Enable Auto Turn-ON Timer      Paramter No: 24(0x18)     Size:1 Byte              Value=0    Auto Turn-ON Timer Disabled (default);                                                                                Value=1    Auto Turn-ON Timer Enabled25:Endpoint5 Count Down Configuration(Turn on the output by time)      Paramter No: 25(0x19)     Size:2 Byte             Value: xx xx  Turn off Output                                                                               Value Scope :1----65535Minutes  (default:60M)                                                                               Value Scope :1----65535Minutes  (default:60M)26:Manual Control      Paramter No: 26(0x1A)     Size:1 Byte              Value=0     Manual Control Disabled                                                                                Value=1     Manual Control Enabled (default); 27:Status LED Configuration      Paramter No: 27(0x1B)     Size:1 Byte             Value: 00                 Output ON,Led ON.`                                                                               Value: 01(default)     Output ON,Led OFF.                                                                               Value: 02                 Always OFFSupport for Association GroupsZW1505 supports 6 association groups. A maximum of 5 node ID’s (nonmulti-channel devices) can be assigned to these association groups.

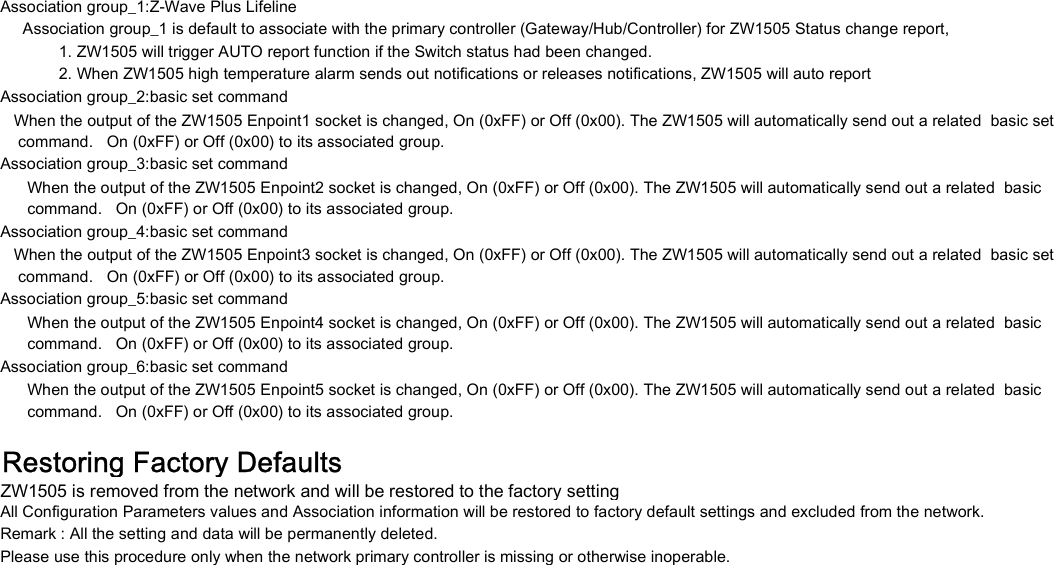

Association group_1:Z-Wave Plus Lifeline     Association group_1 is default to associate with the primary controller (Gateway/Hub/Controller) for ZW1505 Status change report,              1. ZW1505 will trigger AUTO report function if the Switch status had been changed.             2. When ZW1505 high temperature alarm sends out notifications or releases notifications, ZW1505 will auto reportAssociation group_2:basic set command    command.   On (0xFF) or Off (0x00) to its associated group.Association group_3:basic set command      command.   On (0xFF) or Off (0x00) to its associated group.Association group_4:basic set command    command.   On (0xFF) or Off (0x00) to its associated group.Association group_5:basic set command      command.   On (0xFF) or Off (0x00) to its associated group.Association group_6:basic set command      command.   On (0xFF) or Off (0x00) to its associated group.Restoring Factory DefaultsZW1505 is removed from the network and will be restored to the factory settingAll Configuration Parameters values and Association information will be restored to factory default settings and excluded from the network.Remark : All the setting and data will be permanently deleted.Please use this procedure only when the network primary controller is missing or otherwise inoperable.      When the output of the ZW1505 Enpoint4 socket is changed, On (0xFF) or Off (0x00). The ZW1505 will automatically send out a related  basic      When the output of the ZW1505 Enpoint5 socket is changed, On (0xFF) or Off (0x00). The ZW1505 will automatically send out a related  basic   When the output of the ZW1505 Enpoint1 socket is changed, On (0xFF) or Off (0x00). The ZW1505 will automatically send out a related  basic set      When the output of the ZW1505 Enpoint2 socket is changed, On (0xFF) or Off (0x00). The ZW1505 will automatically send out a related  basic   When the output of the ZW1505 Enpoint3 socket is changed, On (0xFF) or Off (0x00). The ZW1505 will automatically send out a related  basic set
