NINGBO CSTAR IMP and EXP 7123-04 Mobile Odyssey Duke Waterproof Bluetooth Speaker User Manual 7123 04

NINGBO CSTAR IMP&EXP; CO., LTD Mobile Odyssey Duke Waterproof Bluetooth Speaker 7123 04

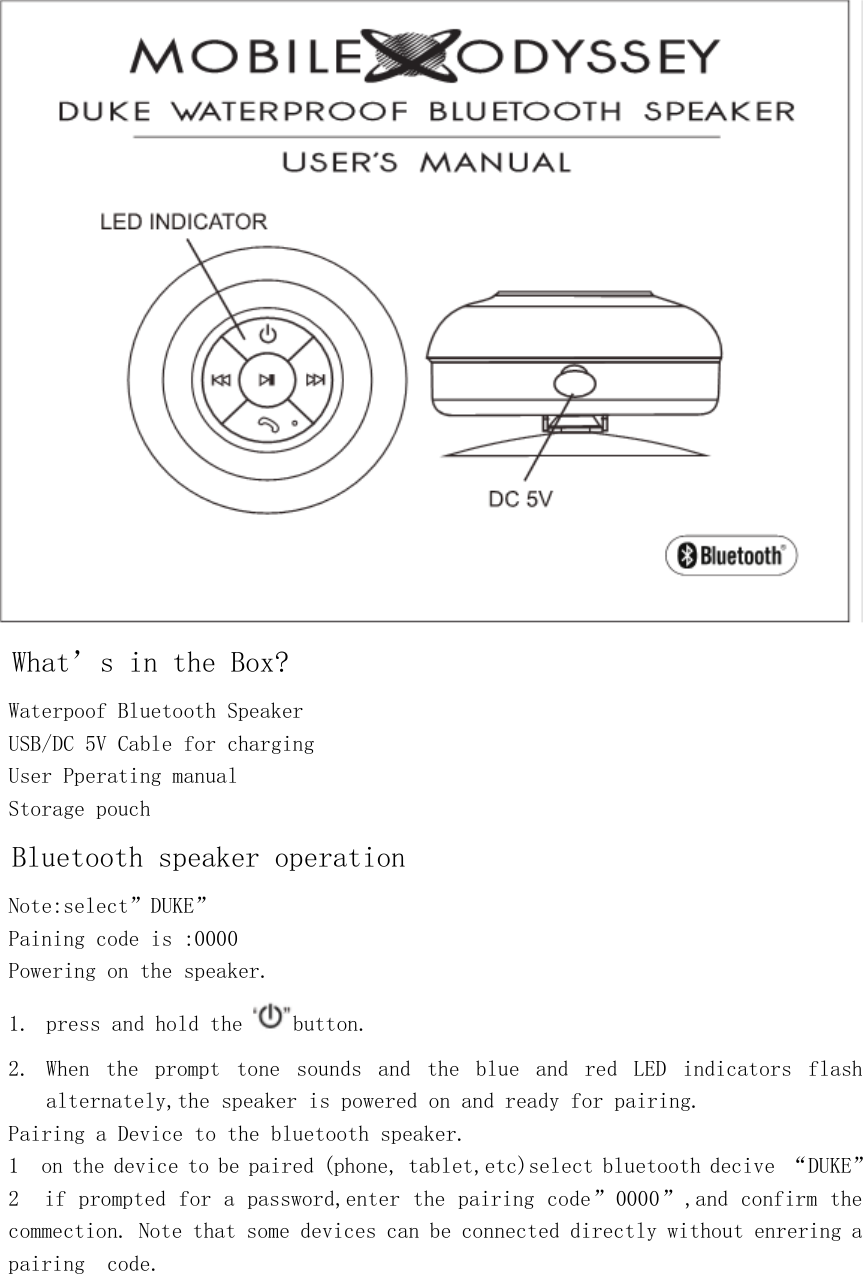

Users Manual

What’s in the Box? Waterpoof Bluetooth Speaker USB/DC 5V Cable for charging User Pperating manual Storage pouch Bluetooth speaker operation Note:select”DUKE” Paining code is :0000 Powering on the speaker. 1. press and hold the button. 2. When the prompt tone sounds and the blue and red LED indicators flash alternately,the speaker is powered on and ready for pairing. Pairing a Device to the bluetooth speaker. 1 on the device to be paired (phone, tablet,etc)select bluetooth decive “DUKE” 2 if prompted for a password,enter the pairing code”0000”,and confirm the commection. Note that some devices can be connected directly without enrering a pairing code.
To increase or dectease volume, press and hold the “+/”buttons. To skip or go back in tracks, press and release the “+/”buttons. To play or pause, press,the button. To answer a call when connected to a mobile phone,press the button. Press again to hang up the call or double click to retum the most recent outgoing call. Bluetooth reconnection 1.when the device and bluetooth speaker are separated beyond the effective range .the bluetooth communication will be disconnected. 2. Retum the device to the effective range to reconnect with the bluetooth speaker, To power off the speaker, press and hold the button. Charging the Battery Plug the provided USB charging cable into the DC 5V port and connect to an active commputer USB port, USB AC adapter,USB car charger or portable charger, While charging the LED indicator tums red. Once charged, LED turns off. Typical charging time :2-3 ours. Specifications Transmitting Frequency: 2.4HzCharging Time: Approx.3 hoursBluetooth version: 3.0 + EDR Bluetooth effective range: Up to 30 ftBattery” 3.7V400MAH LithiumPlaying time: Up to 6 hoursCharging voltage: DC5V/100-120mAUnit Weight: Approx.0.1kgSafety Information: Aviodsources of intense heat or flame. Do ot ert metal objects into iten.(Short circuit risk) Do not attenpt to repair the device, Rater, contact a serivice professional.

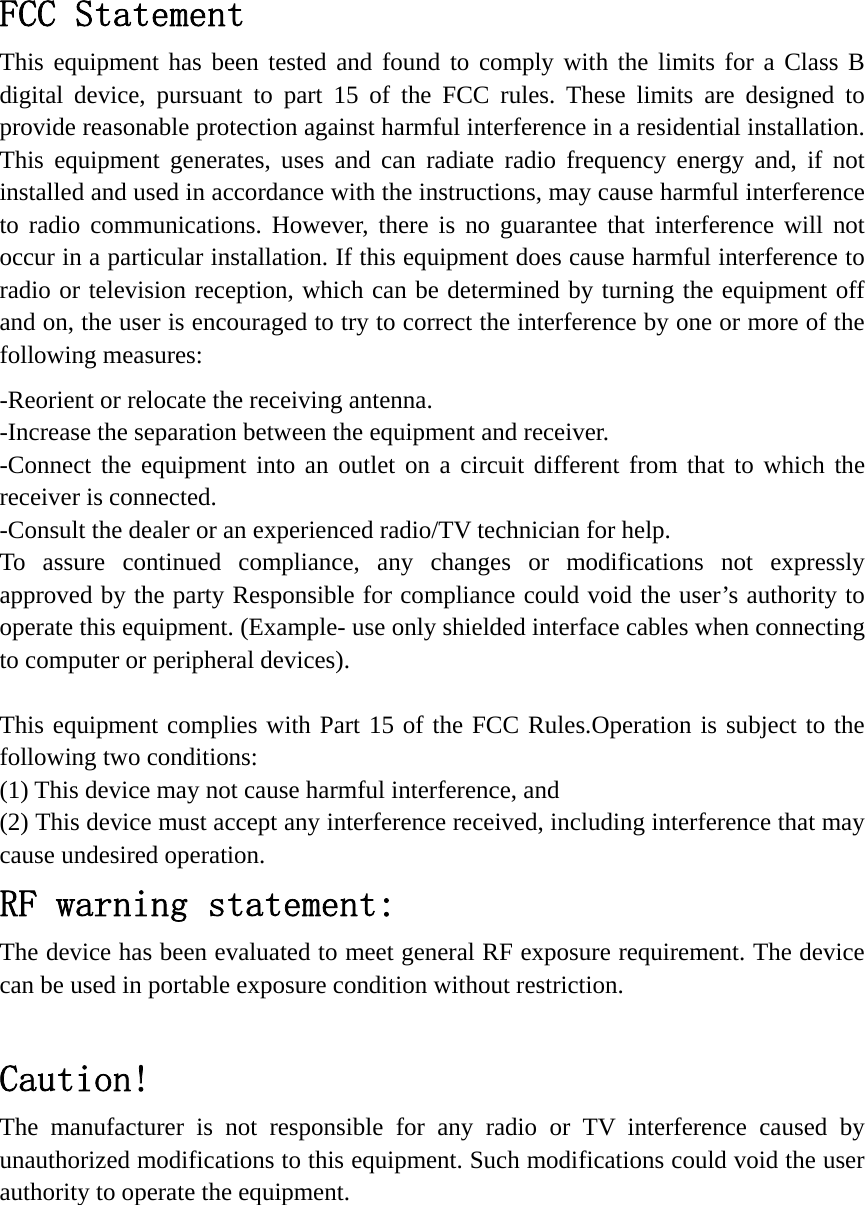

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
