NPG Display Branch NL1503 LCD Monitor User Manual 00Cover all p65

NPG Display Ltd Taiwan Branch LCD Monitor 00Cover all p65

users manual

MultiSync User’s ManualBedienerhandbuchManual del usuarioManuel UtilisateurManuale utente00Cover_all.p65 2/26/02, 10:05 AM1
00Cover_all.p65 2/26/02, 10:05 AM2

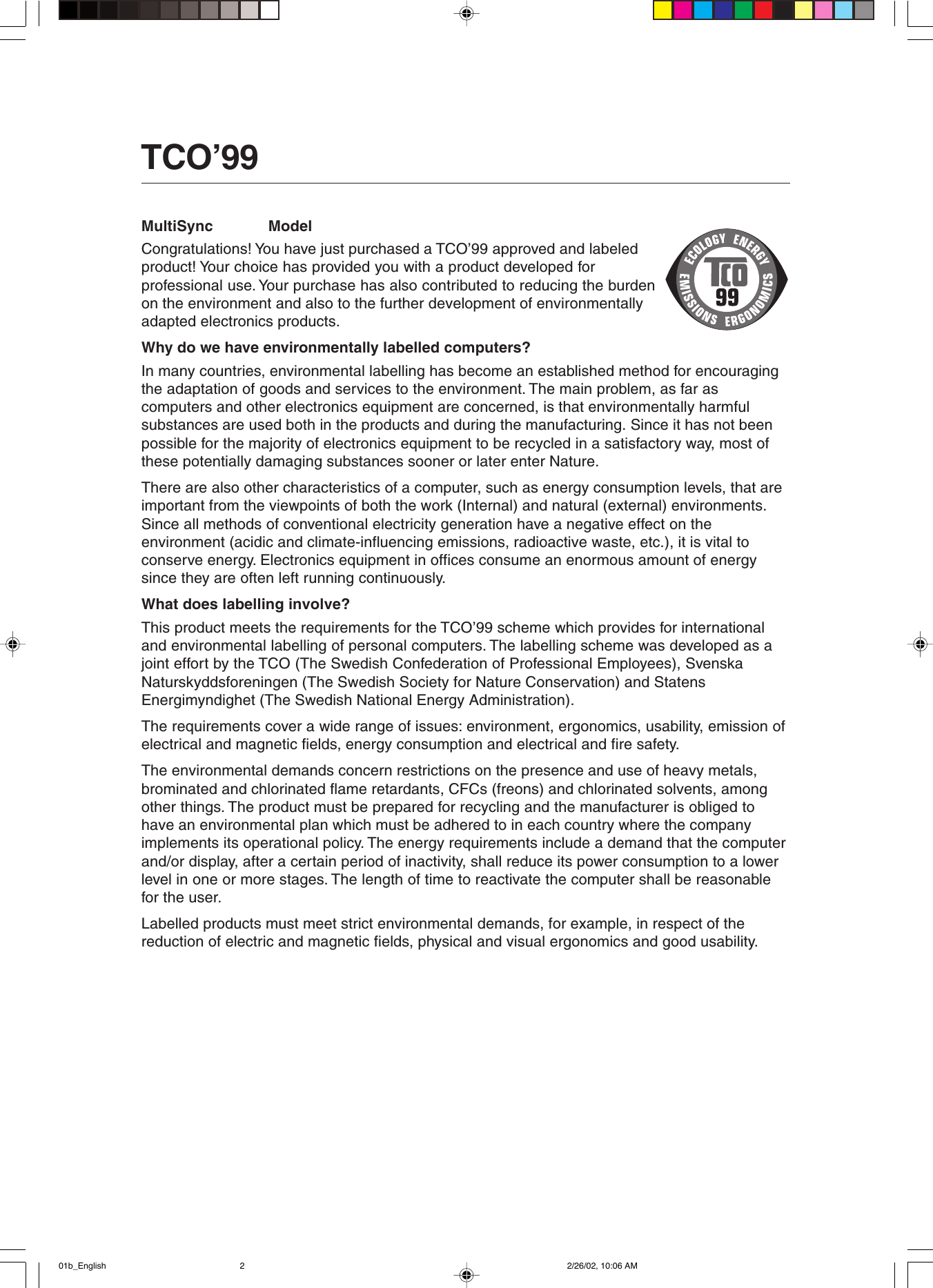

TCO’99 l English TCO'99 document.MultiSync             ModelCongratulations! You have just purchased a TCO’99 approved and labeledproduct! Your choice has provided you with a product developed forprofessional use. Your purchase has also contributed to reducing the burdenon the environment and also to the further development of environmentallyadapted electronics products.Why do we have environmentally labelled computers?In many countries, environmental labelling has become an established method for encouragingthe adaptation of goods and services to the environment. The main problem, as far ascomputers and other electronics equipment are concerned, is that environmentally harmfulsubstances are used both in the products and during the manufacturing. Since it has not beenpossible for the majority of electronics equipment to be recycled in a satisfactory way, most ofthese potentially damaging substances sooner or later enter Nature.There are also other characteristics of a computer, such as energy consumption levels, that areimportant from the viewpoints of both the work (Internal) and natural (external) environments.Since all methods of conventional electricity generation have a negative effect on theenvironment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital toconserve energy. Electronics equipment in offices consume an enormous amount of energysince they are often left running continuously.What does labelling involve?This product meets the requirements for the TCO’99 scheme which provides for internationaland environmental labelling of personal computers. The labelling scheme was developed as ajoint effort by the TCO (The Swedish Confederation of Professional Employees), SvenskaNaturskyddsforeningen (The Swedish Society for Nature Conservation) and StatensEnergimyndighet (The Swedish National Energy Administration).The requirements cover a wide range of issues: environment, ergonomics, usability, emission ofelectrical and magnetic fields, energy consumption and electrical and fire safety.The environmental demands concern restrictions on the presence and use of heavy metals,brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, amongother things. The product must be prepared for recycling and the manufacturer is obliged tohave an environmental plan which must be adhered to in each country where the companyimplements its operational policy. The energy requirements include a demand that the computerand/or display, after a certain period of inactivity, shall reduce its power consumption to a lowerlevel in one or more stages. The length of time to reactivate the computer shall be reasonablefor the user.Labelled products must meet strict environmental demands, for example, in respect of thereduction of electric and magnetic fields, physical and visual ergonomics and good usability.01b_English 2/26/02, 10:06 AM2
Environmental RequirementsFlame retardantsFlame retardants are present in printed circuit boards, cables, wires, casings and housings. Inturn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing canconsist of flame retardant substances. Most flame retardants contain bromine or chloride andthese are related to another group of environmental toxins, PCBs, which are suspected to giverise to severe health effects, including reproductive damage in fisheating birds and mammals,due to the bioaccumulative* processes. Flame retardants have been found in human blood andresearchers fear that disturbances in foetus development may occur.TCO’99 demand requires that plastic components weighing more than 25 grams must notcontain flame retardants with organically bound chlorine and bromine. Flame retardants areallowed in the printed circuit boards since no substitutes are available.Lead**Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages thenervous system and in higher doses, causes lead poisoning.TCO’99 requirement permits the inclusion of lead since no replacement has yet beendeveloped.Cadmium**Cadmium is present in rechargeable batteries and in the colourgenerating layers of certaincomputer displays. Cadmium damages the nervous system and is toxic in high doses.TCO’99 requirement states that batteries, the colourgenerating layers of display screens and theelectrical or electronics components must not contain any cadmium.Mercury**Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervoussystem and is toxic in high doses.TCO’99 requirement states that batteries may not contain any Mercury. It also demands that nomercury is present in any of the electrical or electronics components associated with the displayunit.CFCs (freons)CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozoneand thereby damage the ozone layer in the stratosphere, causing increased reception on Earthof ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during themanufacturing and assembly of the product or its packaging.*Bio-accumulative is defined as substances which accumulate within living organisms.** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.To obtain complete information on the environmental criteria document, order from:TCO Development UnitSE-114 94 StockholmSWEDENFAX Number: +46 8 782 92 07E-mail (Internet): development@tco.seYou may also obtain current information on TCO’99 approved and labelled products by visitingtheir website at:http://www.tco-info.com/01b_English 2/26/02, 10:06 AM3

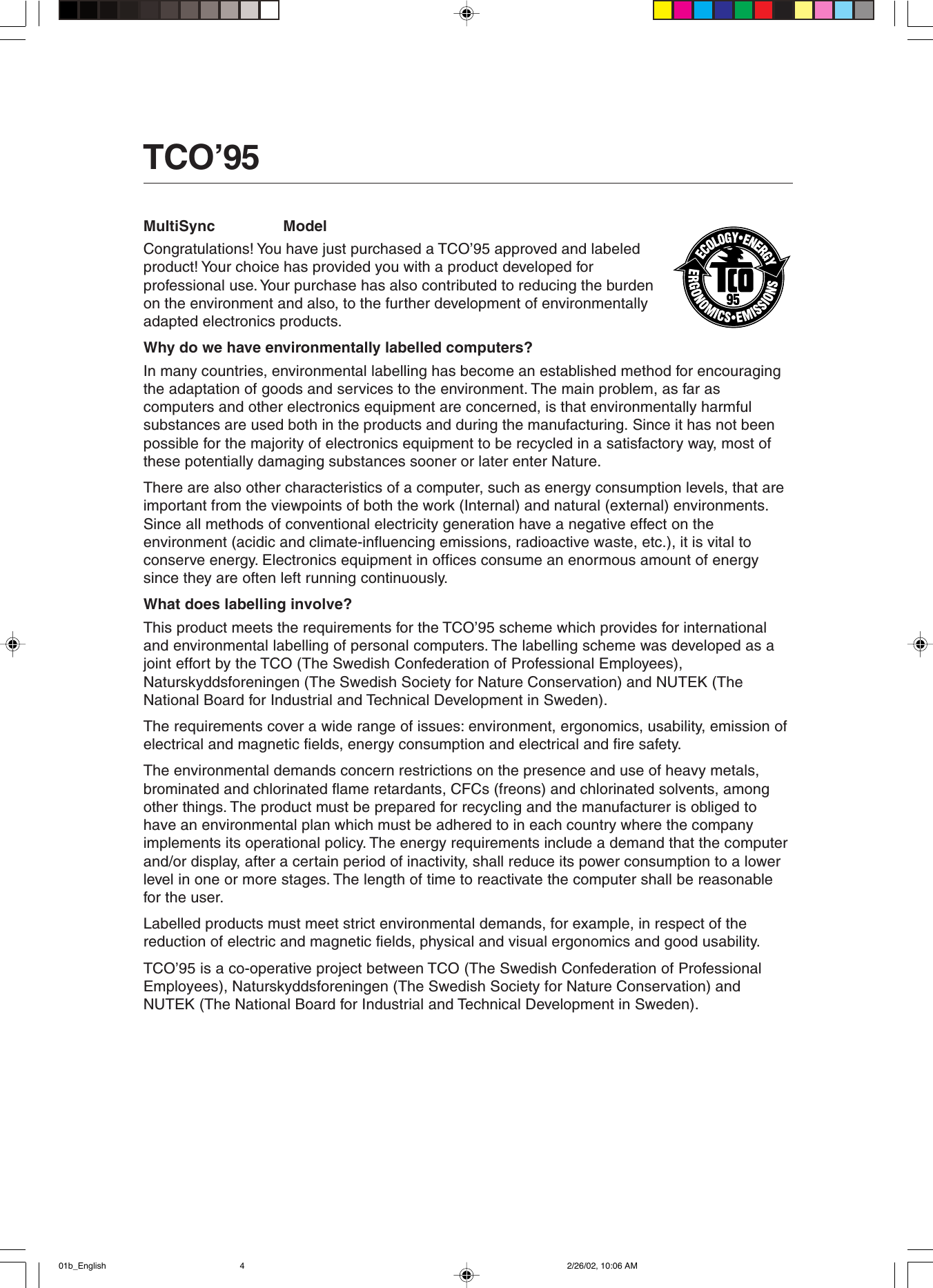

TCO’95MultiSync                ModelCongratulations! You have just purchased a TCO’95 approved and labeledproduct! Your choice has provided you with a product developed forprofessional use. Your purchase has also contributed to reducing the burdenon the environment and also, to the further development of environmentallyadapted electronics products.Why do we have environmentally labelled computers?In many countries, environmental labelling has become an established method for encouragingthe adaptation of goods and services to the environment. The main problem, as far ascomputers and other electronics equipment are concerned, is that environmentally harmfulsubstances are used both in the products and during the manufacturing. Since it has not beenpossible for the majority of electronics equipment to be recycled in a satisfactory way, most ofthese potentially damaging substances sooner or later enter Nature.There are also other characteristics of a computer, such as energy consumption levels, that areimportant from the viewpoints of both the work (Internal) and natural (external) environments.Since all methods of conventional electricity generation have a negative effect on theenvironment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital toconserve energy. Electronics equipment in offices consume an enormous amount of energysince they are often left running continuously.What does labelling involve?This product meets the requirements for the TCO’95 scheme which provides for internationaland environmental labelling of personal computers. The labelling scheme was developed as ajoint effort by the TCO (The Swedish Confederation of Professional Employees),Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (TheNational Board for Industrial and Technical Development in Sweden).The requirements cover a wide range of issues: environment, ergonomics, usability, emission ofelectrical and magnetic fields, energy consumption and electrical and fire safety.The environmental demands concern restrictions on the presence and use of heavy metals,brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, amongother things. The product must be prepared for recycling and the manufacturer is obliged tohave an environmental plan which must be adhered to in each country where the companyimplements its operational policy. The energy requirements include a demand that the computerand/or display, after a certain period of inactivity, shall reduce its power consumption to a lowerlevel in one or more stages. The length of time to reactivate the computer shall be reasonablefor the user.Labelled products must meet strict environmental demands, for example, in respect of thereduction of electric and magnetic fields, physical and visual ergonomics and good usability.TCO’95 is a co-operative project between TCO (The Swedish Confederation of ProfessionalEmployees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) andNUTEK (The National Board for Industrial and Technical Development in Sweden).01b_English 2/26/02, 10:06 AM4
Environmental RequirementsBrominated flame retardantsBrominated flame retardants are present in printed circuit boards, cables, wires, casings andhousings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computercasing can consist of flame retardant substances. These are related to another group ofenvironmental toxins, PCBs, which are suspected to give rise to similar harm, includingreproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes.Flame retardants have been found in human blood and researchers fear that disturbances infoetus development may occur.TCO’95 demand requires that plastic components weighing more than 25 grams must notcontain organically bound chlorine and bromine.Lead**Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages thenervous system and in higher doses, causes lead poisoning.TCO’95 requirement permits the inclusion of lead since no replacement has yet beendeveloped.Cadmium**Cadmium is present in rechargeable batteries and in the colourgenerating layers of certaincomputer displays. Cadmium damages the nervous system and is toxic in high doses.TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million)of cadmium. The colourgenerating layers of display screens must not contain any cadmium.Mercury**Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercurydamages the nervous system and is toxic in high doses.TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million)of mercury. It also demands that no mercury is present in any of the electrical or electronicscomponents concerned with the display unit, except the back-light system.CFCs (freons)CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturingof expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layerin the stratosphere, causing increased reception on Earth of ultraviolet light with consequentincreased risks of skin cancer (malignant melanoma).The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during themanufacturing of the product or its packaging.*Bio-accumulative is defined as substances which accumulate within living organisms.** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.To obtain complete information on the environmental criteria document, order from:TCO Development UnitSE-114 94 StockholmSWEDENFAX Number: +46 8 782 92 07E-mail (Internet): development@tco.seYou may also obtain current information on TCO’95 approved and labelled products by visiting their website at:http://www.tco-info.com/01b_English 2/26/02, 10:06 AM5

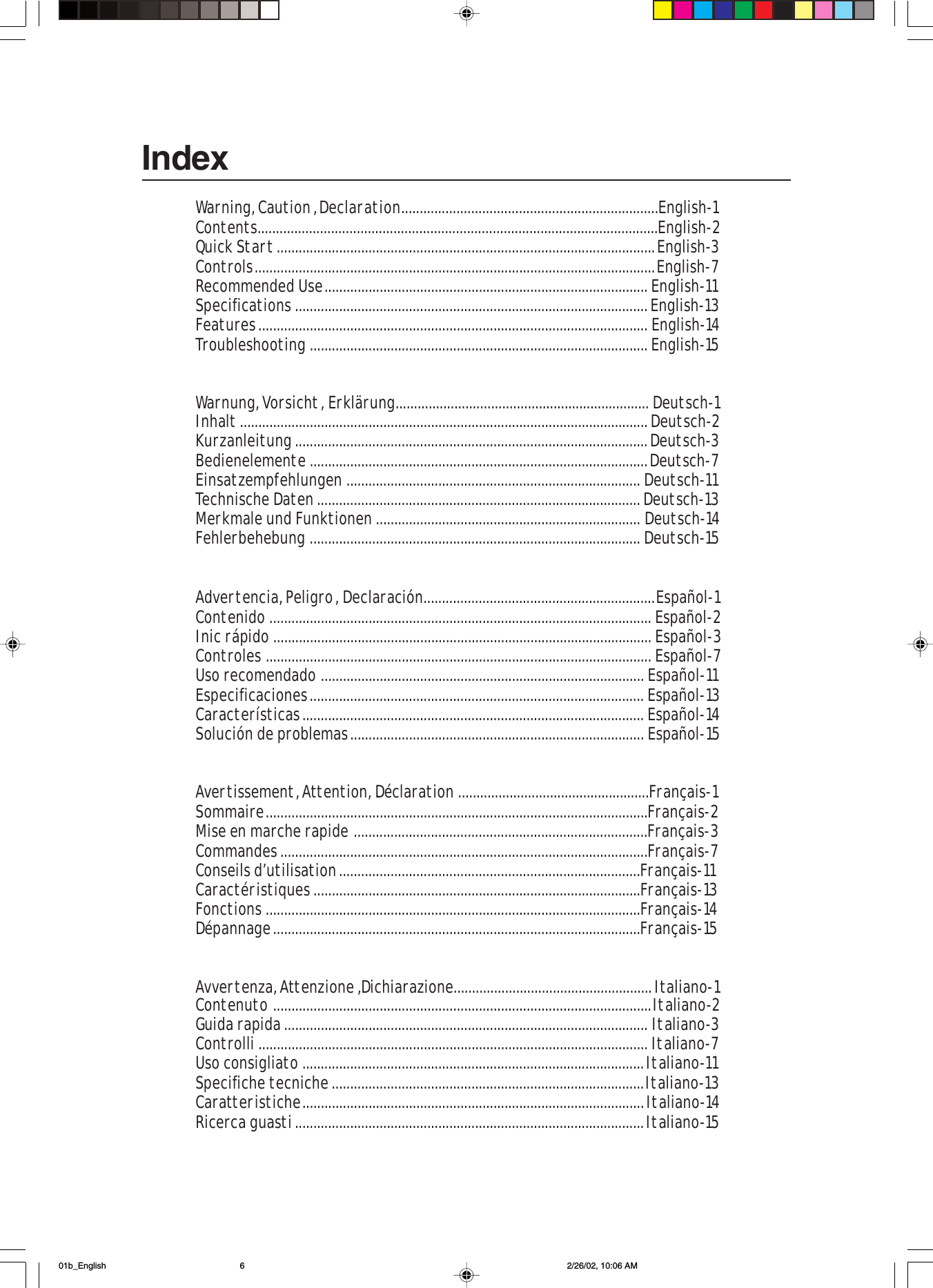

Warning, Caution,Declaration......................................................................English-1Contents.............................................................................................................English-2Quick Start.......................................................................................................English-3Controls.............................................................................................................English-7Recommended Use........................................................................................English-11Specifications................................................................................................English-13Features.......................................................................................................... English-14Troubleshooting ............................................................................................ English-15Warnung, Vorsicht, Erklärung..................................................................... Deutsch-1Inhalt...............................................................................................................Deutsch-2Kurzanleitung................................................................................................Deutsch-3Bedienelemente ............................................................................................Deutsch-7Einsatzempfehlungen ................................................................................ Deutsch-11Technische Daten........................................................................................Deutsch-13Merkmale und Funktionen ........................................................................ Deutsch-14Fehlerbehebung .......................................................................................... Deutsch-15Advertencia, Peligro, Declaración...............................................................Español-1Contenido ........................................................................................................ Español-2Inic rápido ....................................................................................................... Español-3Controles ......................................................................................................... Español-7Uso recomendado ........................................................................................ Español-11Especificaciones........................................................................................... Español-13Características............................................................................................. Español-14Solución de problemas................................................................................ Español-15Avertissement, Attention, Déclaration ....................................................Français-1 .Sommaire........................................................................................................Français-2Mise en marche rapide ................................................................................Français-3Commandes....................................................................................................Français-7Conseils d,utilisation..................................................................................Français-11Caractéristiques.........................................................................................Français-13Fonctions ......................................................................................................Français-14Dépannage....................................................................................................Français-15Avvertenza, Attenzione,Dichiarazione......................................................Italiano-1Contenuto .......................................................................................................Italiano-2Guida rapida................................................................................................... Italiano-3Controlli.......................................................................................................... Italiano-7Uso consigliato .............................................................................................Italiano-11Specifiche tecniche.....................................................................................Italiano-13Caratteristiche.............................................................................................Italiano-14Ricerca guasti...............................................................................................Italiano-15Index01b_English 2/26/02, 10:06 AM6
EnglishDeutschEspañolFrançaisItaliano01b_English 2/26/02, 10:06 AM7

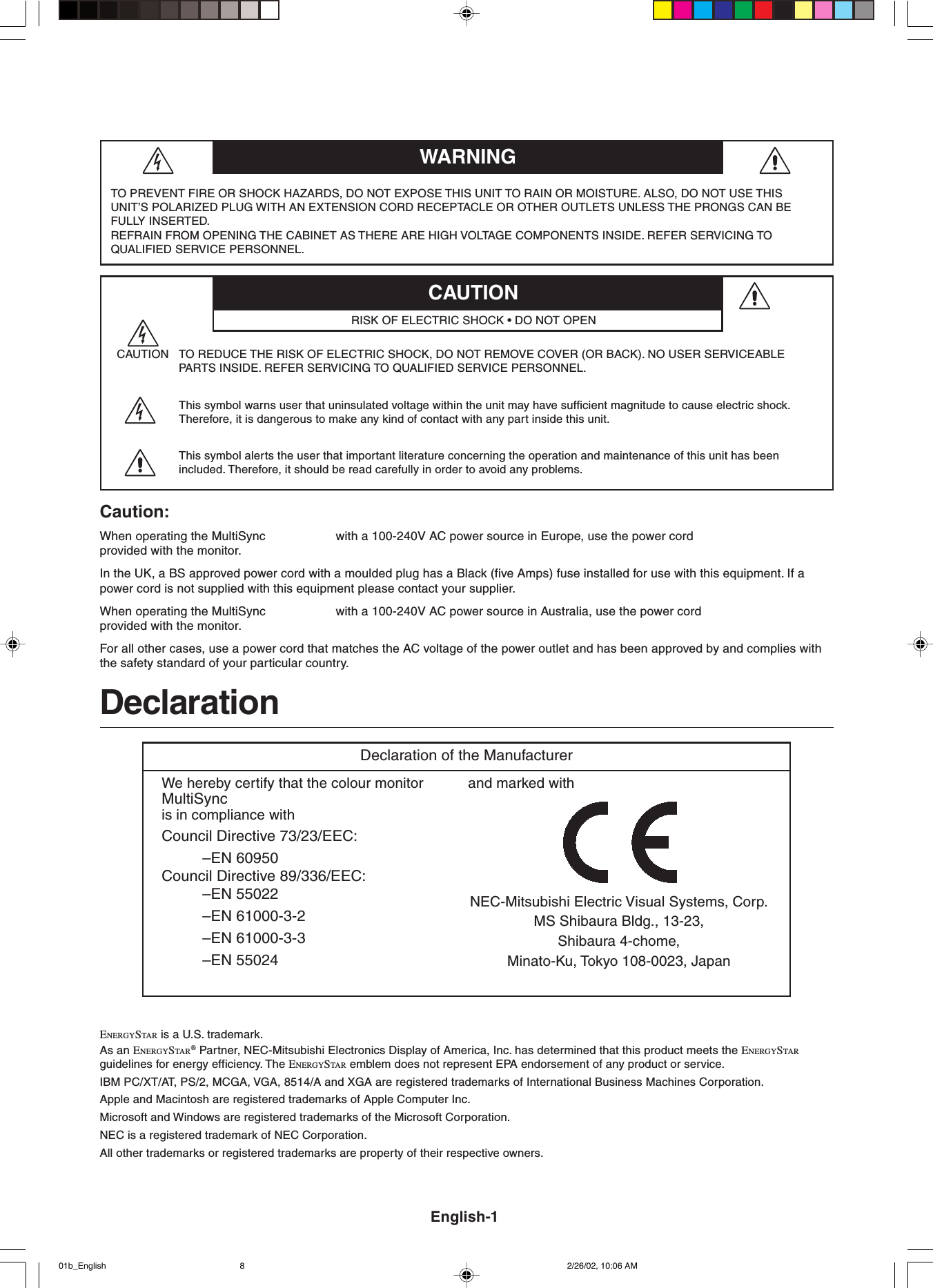

DeclarationDeclaration of the ManufacturerTO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THISUNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BEFULLY INSERTED.REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TOQUALIFIED SERVICE PERSONNEL.CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock.Therefore, it is dangerous to make any kind of contact with any part inside this unit.This symbol alerts the user that important literature concerning the operation and maintenance of this unit has beenincluded. Therefore, it should be read carefully in order to avoid any problems.CAUTIONWARNINGRISK OF ELECTRIC SHOCK • DO NOT OPENCaution:When operating the MultiSync                    with a 100-240V AC power source in Europe, use the power cordprovided with the monitor.In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If apower cord is not supplied with this equipment please contact your supplier.When operating the MultiSync                    with a 100-240V AC power source in Australia, use the power cordprovided with the monitor.For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies withthe safety standard of your particular country.ENERGYSTA R  is a U.S. trademark.As an ENERGYSTAR ® Partner, NEC-Mitsubishi Electronics Display of America, Inc. has determined that this product meets the ENERGYSTA Rguidelines for energy efficiency. The ENERGYSTA R  emblem does not represent EPA endorsement of any product or service.IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of International Business Machines Corporation.Apple and Macintosh are registered trademarks of Apple Computer Inc.Microsoft and Windows are registered trademarks of the Microsoft Corporation.NEC is a registered trademark of NEC Corporation.All other trademarks or registered trademarks are property of their respective owners.English-1We hereby certify that the colour monitorMultiSync is in compliance withCouncil Directive 73/23/EEC:–EN 60950Council Directive 89/336/EEC:–EN 55022–EN 61000-3-2–EN 61000-3-3–EN 55024and marked withNEC-Mitsubishi Electric Visual Systems, Corp.MS Shibaura Bldg., 13-23,Shibaura 4-chome,Minato-Ku, Tokyo 108-0023, Japan01b_English 2/26/02, 10:06 AM8

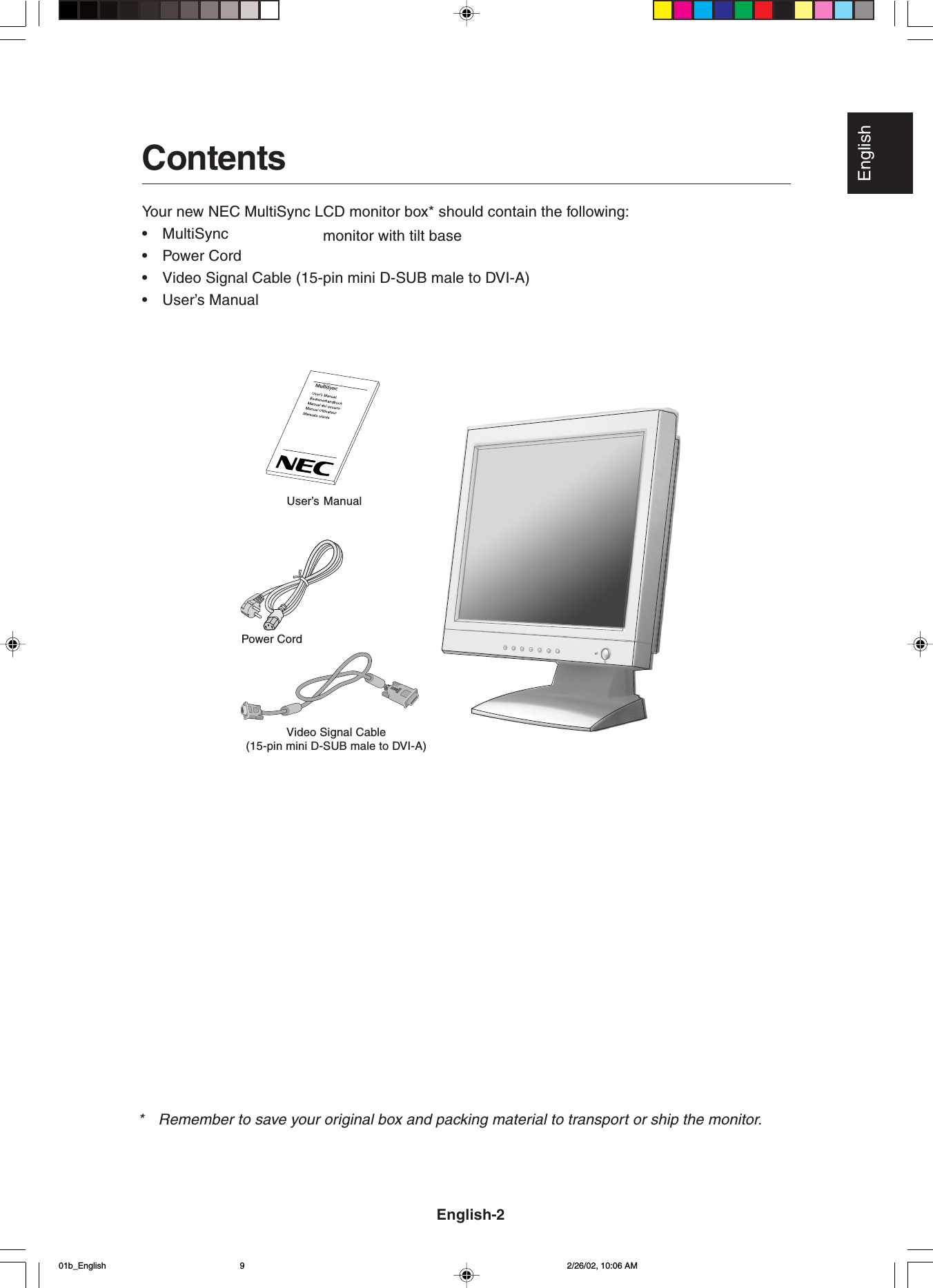

English  ContentsYour new NEC MultiSync LCD monitor box* should contain the following:•MultiSync   monitor with tilt base•Power Cord•Video Signal Cable (15-pin mini D-SUB male to DVI-A)•User’s ManualUser’s ManualVideo Signal Cable(15-pin mini D-SUB male to DVI-A)English-2*Remember to save your original box and packing material to transport or ship the monitor.Power Cord01b_English 2/26/02, 10:06 AM9

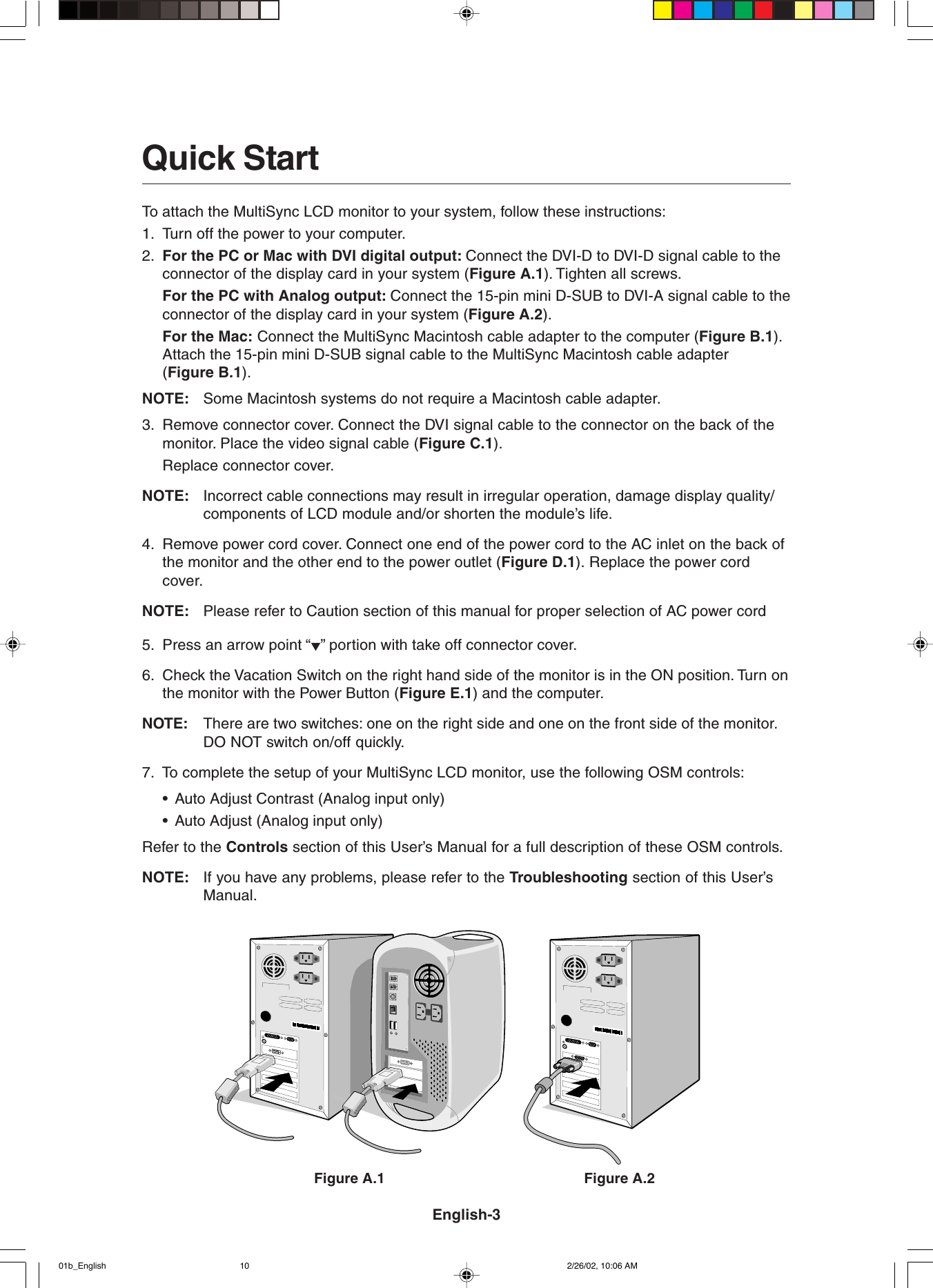

Quick StartTo attach the MultiSync LCD monitor to your system, follow these instructions:1. Turn off the power to your computer.2. For the PC or Mac with DVI digital output: Connect the DVI-D to DVI-D signal cable to theconnector of the display card in your system (Figure A.1). Tighten all screws.For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to theconnector of the display card in your system (Figure A.2).For the Mac: Connect the MultiSync Macintosh cable adapter to the computer (Figure B.1).Attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter(Figure B.1).NOTE: Some Macintosh systems do not require a Macintosh cable adapter.3. Remove connector cover. Connect the DVI signal cable to the connector on the back of themonitor. Place the video signal cable (Figure C.1).Replace connector cover.NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module and/or shorten the module’s life.4. Remove power cord cover. Connect one end of the power cord to the AC inlet on the back ofthe monitor and the other end to the power outlet (Figure D.1). Replace the power cordcover.NOTE: Please refer to Caution section of this manual for proper selection of AC power cord5.  Press an arrow point “ ” portion with take off connector cover.6. Check the Vacation Switch on the right hand side of the monitor is in the ON position. Turn onthe monitor with the Power Button (Figure E.1) and the computer.NOTE: There are two switches: one on the right side and one on the front side of the monitor.DO NOT switch on/off quickly.7.  To complete the setup of your MultiSync LCD monitor, use the following OSM controls:•Auto Adjust Contrast (Analog input only)•Auto Adjust (Analog input only)Refer to the Controls section of this User’s Manual for a full description of these OSM controls.NOTE: If you have any problems, please refer to the Troubleshooting section of this User’sManual.Figure A.1 Figure A.2English-301b_English 2/26/02, 10:06 AM10

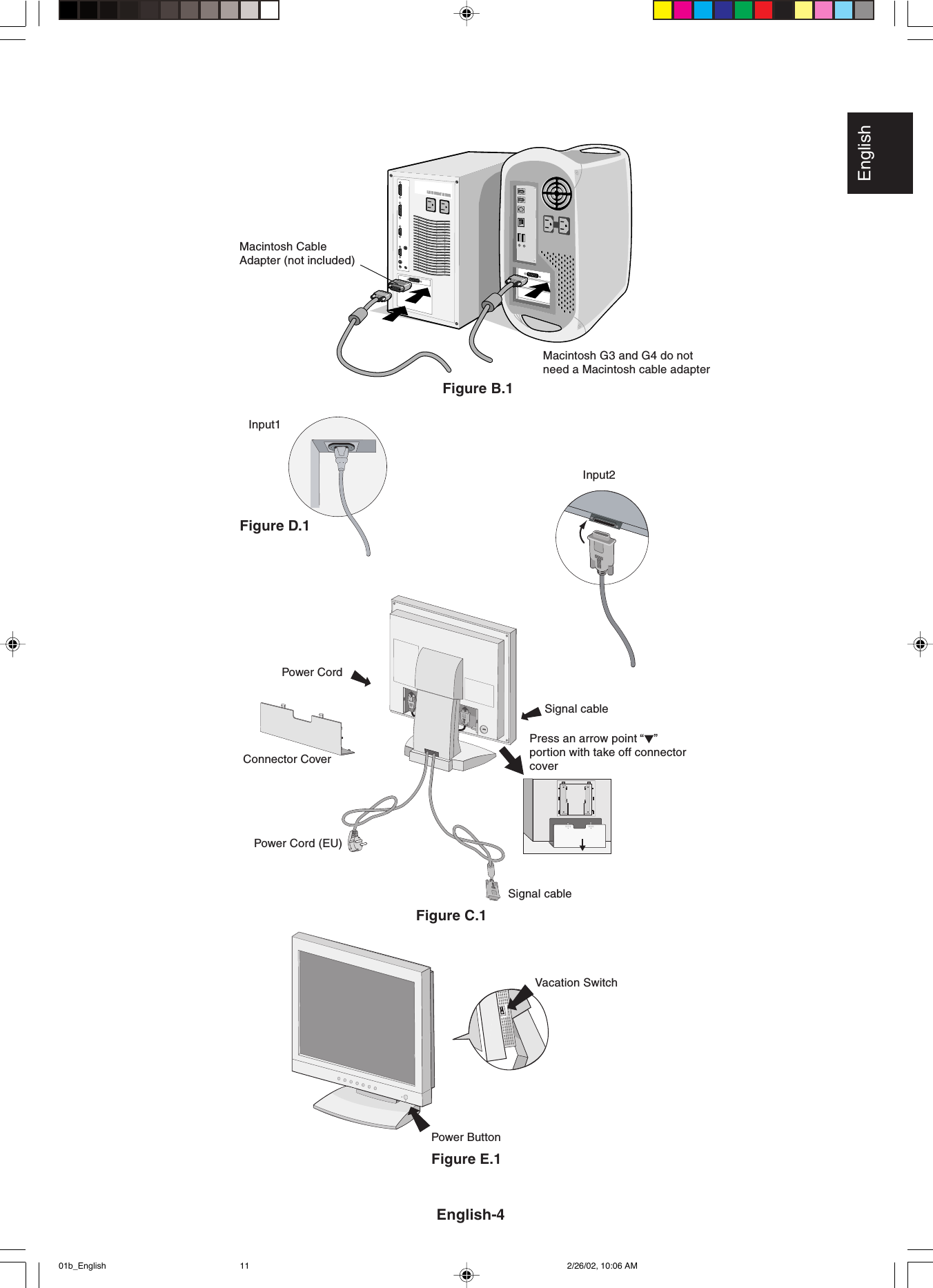

EnglishFigure B.1Macintosh CableAdapter (not included)Macintosh G3 and G4 do notneed a Macintosh cable adapterFigure E.1Input1Input2Vacation SwitchPower ButtonPower CordPower Cord (EU)Figure D.1Figure C.1Signal cableSignal cableConnector CoverPress an arrow point “   ”portion with take off connectorcoverEnglish-401b_English 2/26/02, 10:06 AM11

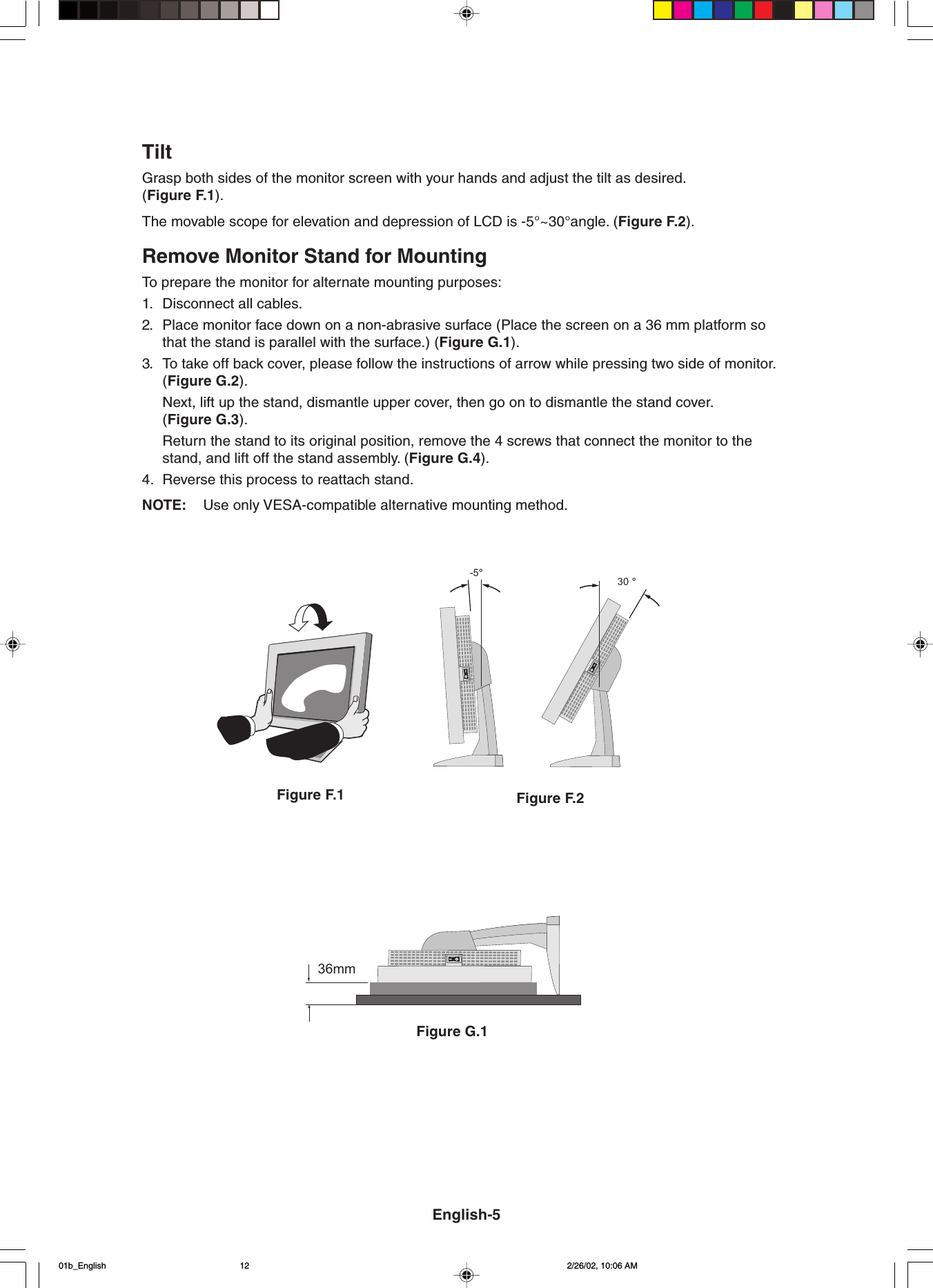

Figure G.136mmFigure F.1 Figure F.2TiltGrasp both sides of the monitor screen with your hands and adjust the tilt as desired.(Figure F.1).The movable scope for elevation and depression of LCD is -5°~30°angle. (Figure F.2).Remove Monitor Stand for MountingTo prepare the monitor for alternate mounting purposes:1. Disconnect all cables.2. Place monitor face down on a non-abrasive surface (Place the screen on a 36 mm platform sothat the stand is parallel with the surface.) (Figure G.1).3. To take off back cover, please follow the instructions of arrow while pressing two side of monitor.(Figure G.2).Next, lift up the stand, dismantle upper cover, then go on to dismantle the stand cover.(Figure G.3).Return the stand to its original position, remove the 4 screws that connect the monitor to thestand, and lift off the stand assembly. (Figure G.4).4. Reverse this process to reattach stand.NOTE: Use only VESA-compatible alternative mounting method.-5°30 °English-501b_English 2/26/02, 10:06 AM12

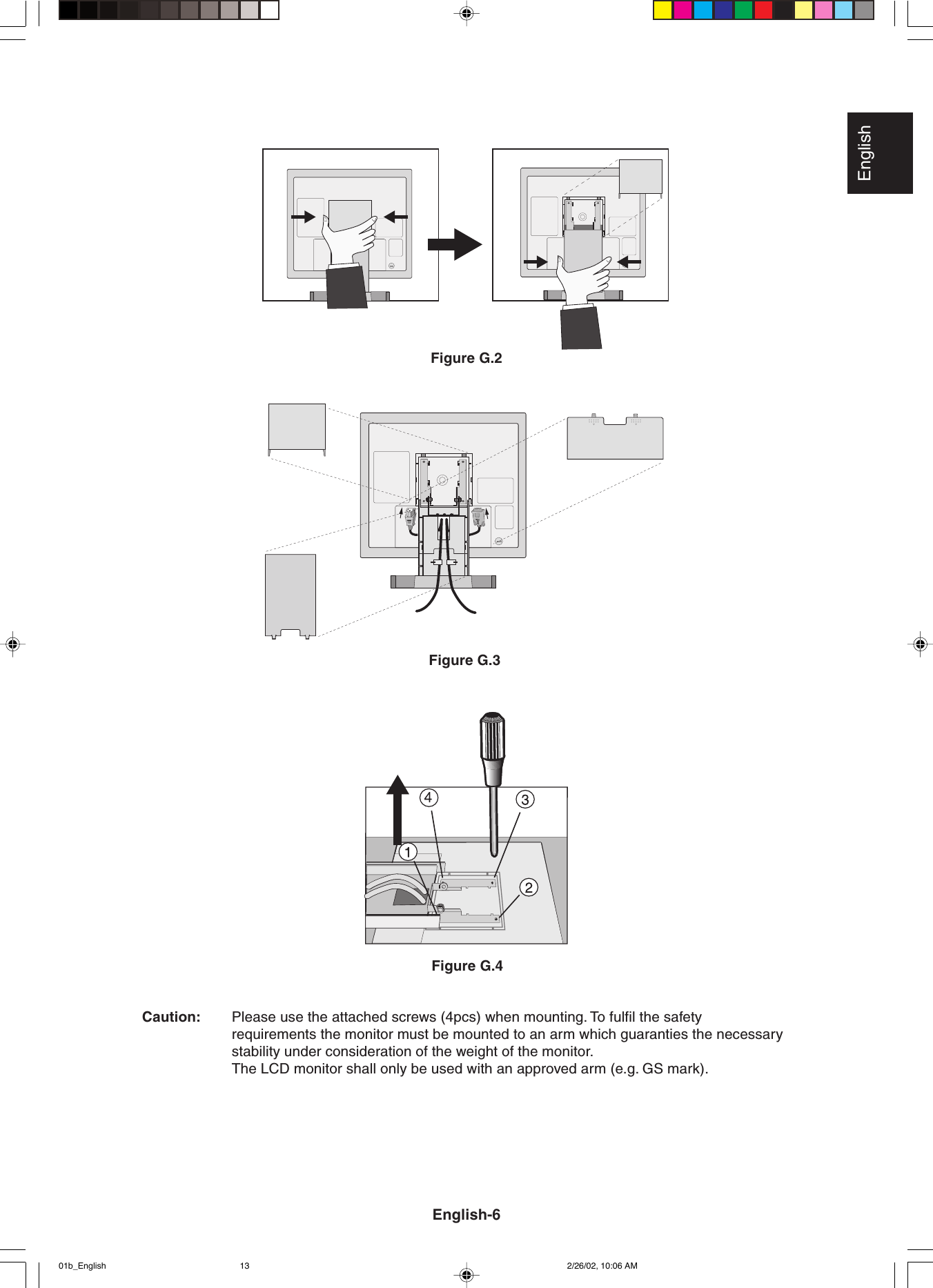

EnglishFigure G.2Figure G.3Caution: Please use the attached screws (4pcs) when mounting. To fulfil the safetyrequirements the monitor must be mounted to an arm which guaranties the necessarystability under consideration of the weight of the monitor.The LCD monitor shall only be used with an approved arm (e.g. GS mark).Figure G.4English-601b_English 2/26/02, 10:06 AM13

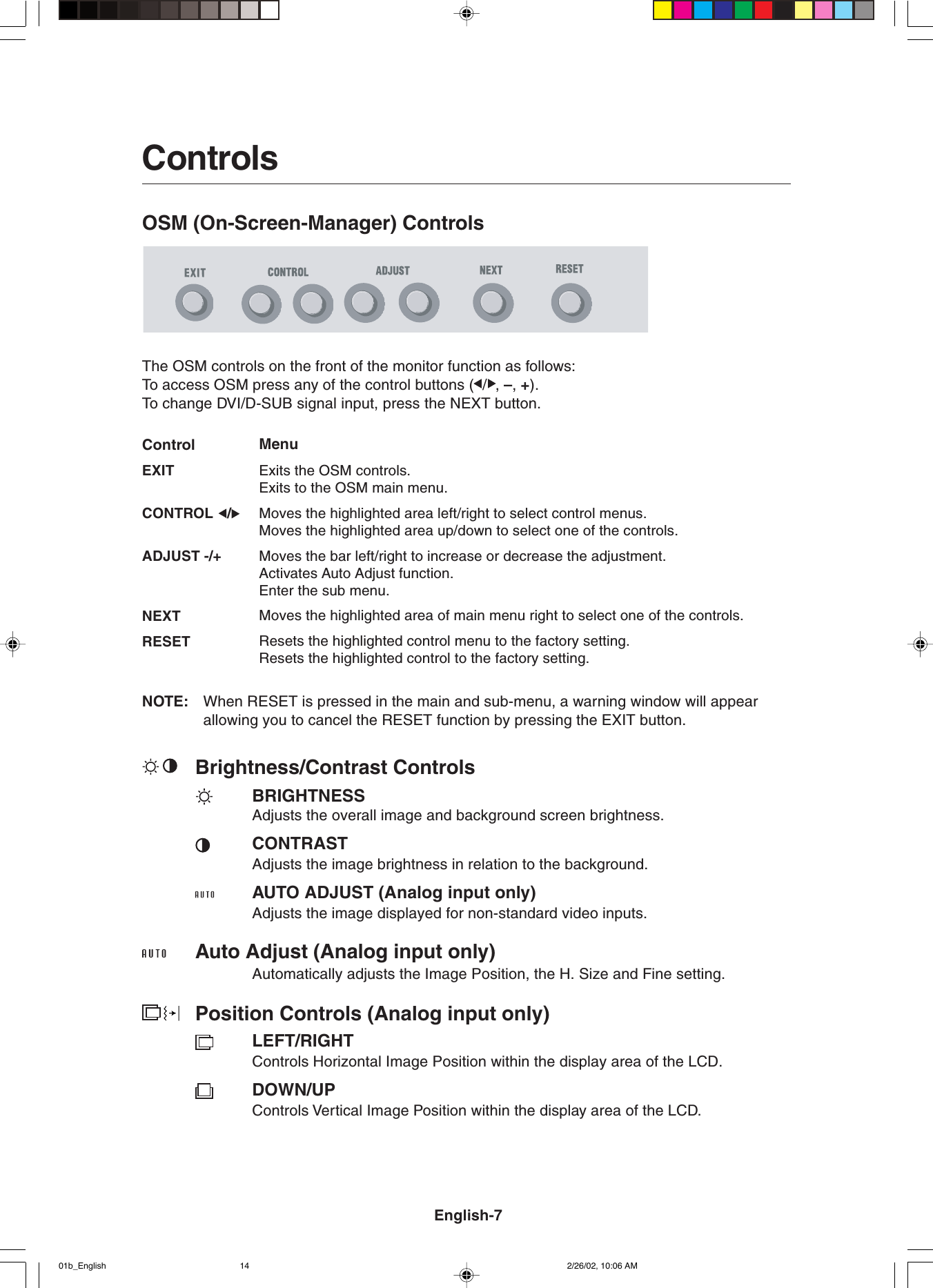

ControlsOSM (On-Screen-Manager) ControlsThe OSM controls on the front of the monitor function as follows:To access OSM press any of the control buttons (  /  , –, +).To change DVI/D-SUB signal input, press the NEXT button.NOTE: When RESET is pressed in the main and sub-menu, a warning window will appearallowing you to cancel the RESET function by pressing the EXIT button.Brightness/Contrast ControlsBRIGHTNESSAdjusts the overall image and background screen brightness.CONTRASTAdjusts the image brightness in relation to the background.AUTO ADJUST (Analog input only)Adjusts the image displayed for non-standard video inputs.Auto Adjust (Analog input only)Automatically adjusts the Image Position, the H. Size and Fine setting.Position Controls (Analog input only)LEFT/RIGHTControls Horizontal Image Position within the display area of the LCD.DOWN/UPControls Vertical Image Position within the display area of the LCD.English-7MenuExits the OSM controls.Exits to the OSM main menu.Moves the highlighted area left/right to select control menus.Moves the highlighted area up/down to select one of the controls.Moves the bar left/right to increase or decrease the adjustment.Activates Auto Adjust function.Enter the sub menu.Moves the highlighted area of main menu right to select one of the controls.Resets the highlighted control menu to the factory setting.Resets the highlighted control to the factory setting.ControlEXITCONTROL  /ADJUST -/+NEXTRESET01b_English 2/26/02, 10:06 AM14

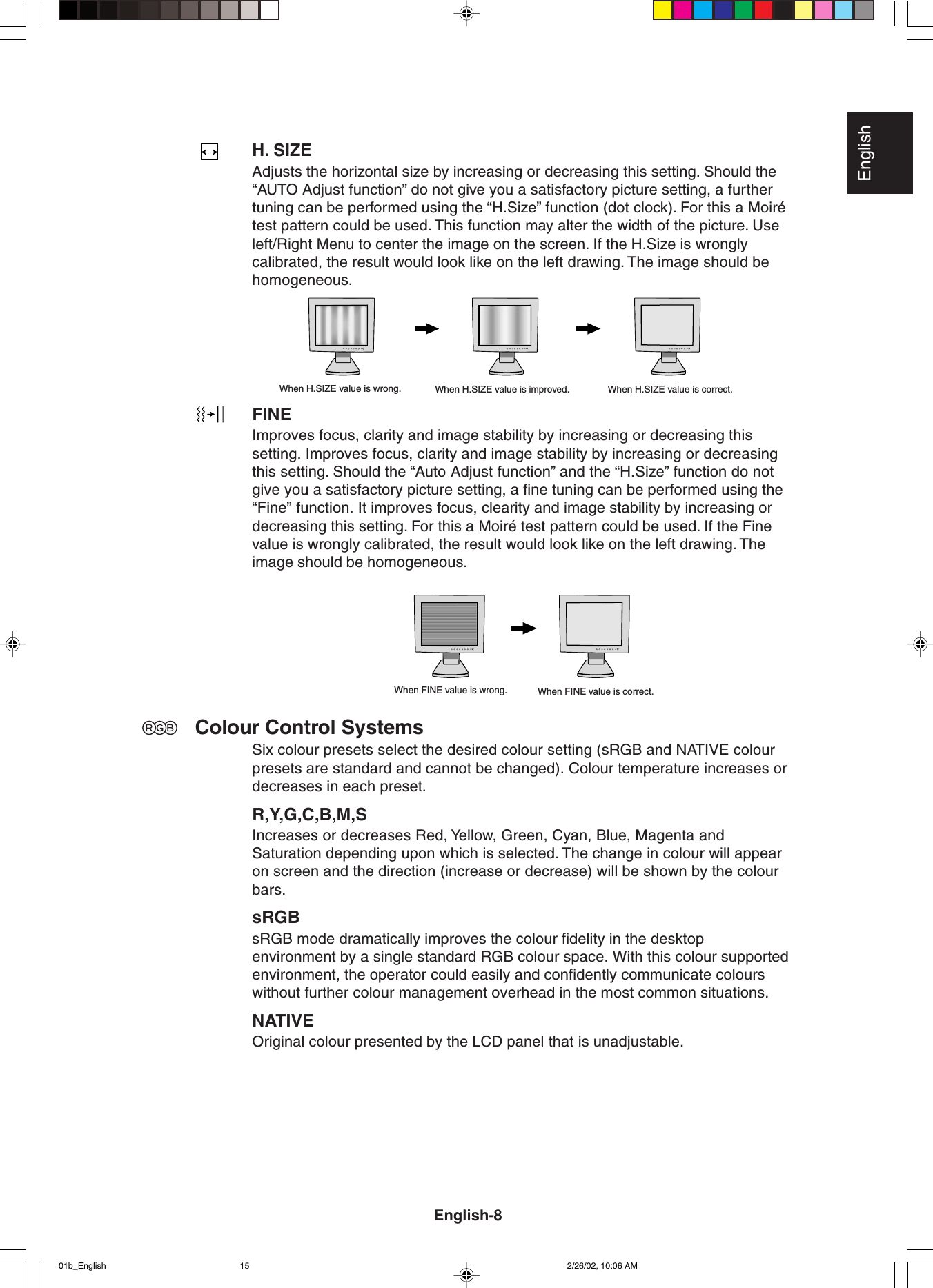

EnglishH. SIZEAdjusts the horizontal size by increasing or decreasing this setting. Should the“AUTO Adjust function” do not give you a satisfactory picture setting, a furthertuning can be performed using the “H.Size” function (dot clock). For this a Moirétest pattern could be used. This function may alter the width of the picture. Useleft/Right Menu to center the image on the screen. If the H.Size is wronglycalibrated, the result would look like on the left drawing. The image should behomogeneous.FINEImproves focus, clarity and image stability by increasing or decreasing thissetting. Improves focus, clarity and image stability by increasing or decreasingthis setting. Should the “Auto Adjust function” and the “H.Size” function do notgive you a satisfactory picture setting, a fine tuning can be performed using the“Fine” function. It improves focus, clearity and image stability by increasing ordecreasing this setting. For this a Moiré test pattern could be used. If the Finevalue is wrongly calibrated, the result would look like on the left drawing. Theimage should be homogeneous.Colour Control SystemsSix colour presets select the desired colour setting (sRGB and NATIVE colourpresets are standard and cannot be changed). Colour temperature increases ordecreases in each preset.R,Y,G,C,B,M,SIncreases or decreases Red, Yellow, Green, Cyan, Blue, Magenta andSaturation depending upon which is selected. The change in colour will appearon screen and the direction (increase or decrease) will be shown by the colourbars.sRGBsRGB mode dramatically improves the colour fidelity in the desktopenvironment by a single standard RGB colour space. With this colour supportedenvironment, the operator could easily and confidently communicate colourswithout further colour management overhead in the most common situations.NATIVEOriginal colour presented by the LCD panel that is unadjustable.When FINE value is wrong. When FINE value is correct.When H.SIZE value is wrong. When H.SIZE value is improved. When H.SIZE value is correct.English-801b_English 2/26/02, 10:06 AM15

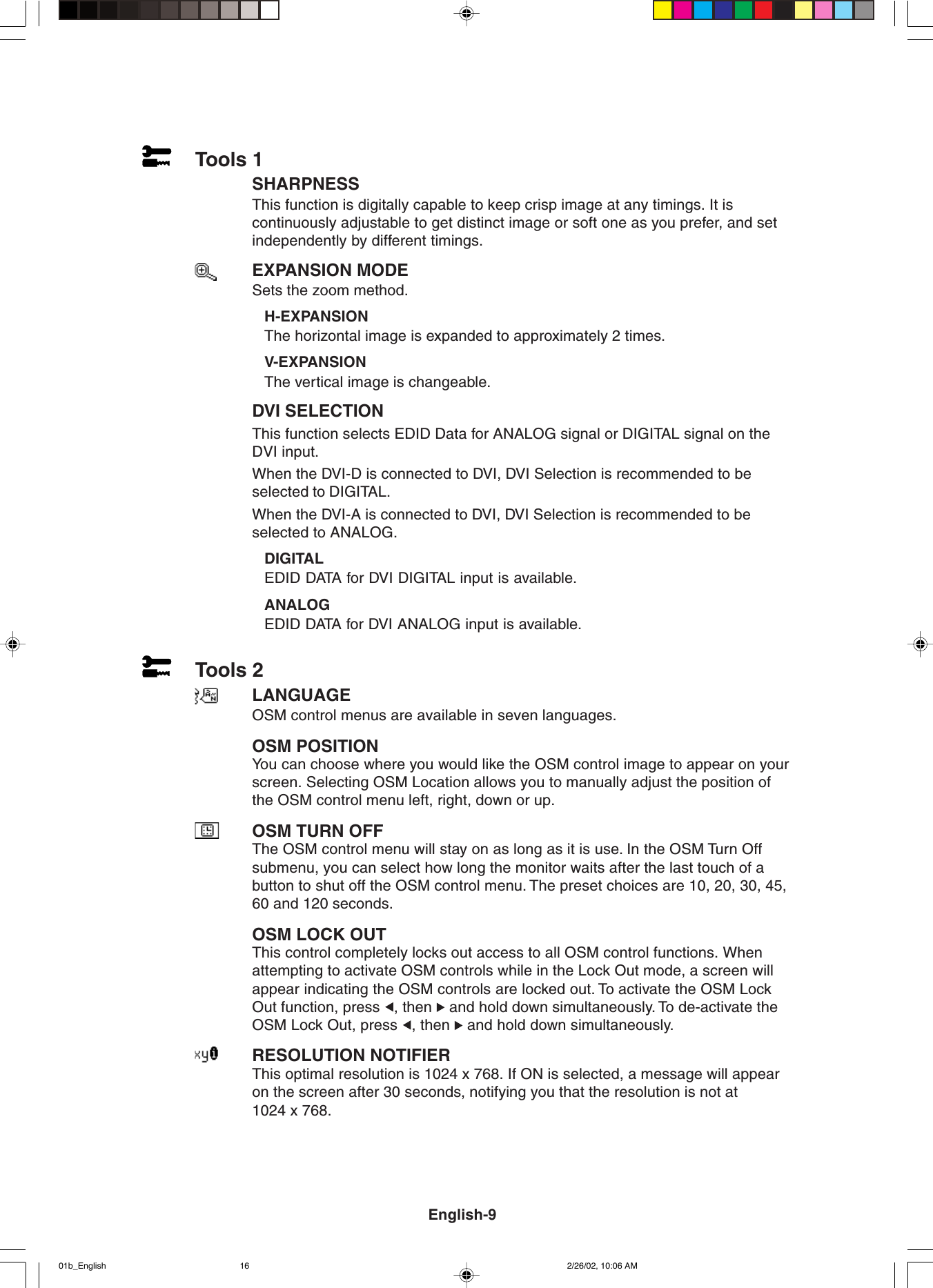

Tools 1SHARPNESSThis function is digitally capable to keep crisp image at any timings. It iscontinuously adjustable to get distinct image or soft one as you prefer, and setindependently by different timings.EXPANSION MODESets the zoom method.H-EXPANSIONThe horizontal image is expanded to approximately 2 times.V-EXPANSIONThe vertical image is changeable.DVI SELECTIONThis function selects EDID Data for ANALOG signal or DIGITAL signal on theDVI input.When the DVI-D is connected to DVI, DVI Selection is recommended to beselected to DIGITAL.When the DVI-A is connected to DVI, DVI Selection is recommended to beselected to ANALOG.DIGITALEDID DATA for DVI DIGITAL input is available.ANALOGEDID DATA for DVI ANALOG input is available.Tools 2LANGUAGEOSM control menus are available in seven languages.OSM POSITIONYou can choose where you would like the OSM control image to appear on yourscreen. Selecting OSM Location allows you to manually adjust the position ofthe OSM control menu left, right, down or up.OSM TURN OFFThe OSM control menu will stay on as long as it is use. In the OSM Turn Offsubmenu, you can select how long the monitor waits after the last touch of abutton to shut off the OSM control menu. The preset choices are 10, 20, 30, 45,60 and 120 seconds.OSM LOCK OUTThis control completely locks out access to all OSM control functions. Whenattempting to activate OSM controls while in the Lock Out mode, a screen willappear indicating the OSM controls are locked out. To activate the OSM LockOut function, press  , then   and hold down simultaneously. To de-activate theOSM Lock Out, press  , then   and hold down simultaneously.RESOLUTION NOTIFIERThis optimal resolution is 1024 x 768. If ON is selected, a message will appearon the screen after 30 seconds, notifying you that the resolution is not at1024 x 768.English-901b_English 2/26/02, 10:06 AM16

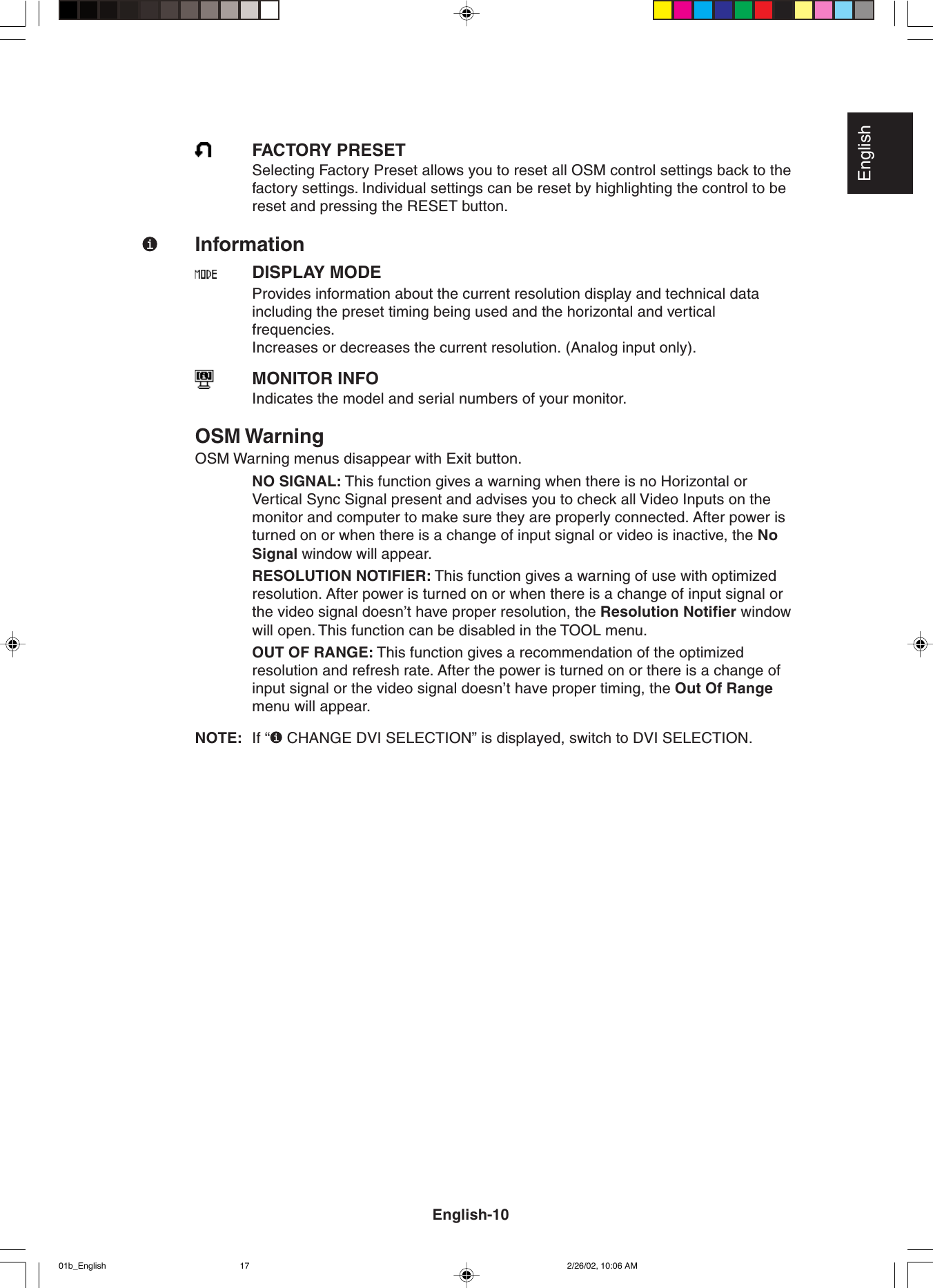

EnglishFACTORY PRESETSelecting Factory Preset allows you to reset all OSM control settings back to thefactory settings. Individual settings can be reset by highlighting the control to bereset and pressing the RESET button.InformationDISPLAY MODEProvides information about the current resolution display and technical dataincluding the preset timing being used and the horizontal and verticalfrequencies.Increases or decreases the current resolution. (Analog input only).MONITOR INFOIndicates the model and serial numbers of your monitor.OSM WarningOSM Warning menus disappear with Exit button.NO SIGNAL: This function gives a warning when there is no Horizontal orVertical Sync Signal present and advises you to check all Video Inputs on themonitor and computer to make sure they are properly connected. After power isturned on or when there is a change of input signal or video is inactive, the NoSignal window will appear.RESOLUTION NOTIFIER: This function gives a warning of use with optimizedresolution. After power is turned on or when there is a change of input signal orthe video signal doesn’t have proper resolution, the Resolution Notifier windowwill open. This function can be disabled in the TOOL menu.OUT OF RANGE: This function gives a recommendation of the optimizedresolution and refresh rate. After the power is turned on or there is a change ofinput signal or the video signal doesn’t have proper timing, the Out Of Rangemenu will appear.NOTE: If “  CHANGE DVI SELECTION” is displayed, switch to DVI SELECTION.English-1001b_English 2/26/02, 10:06 AM17

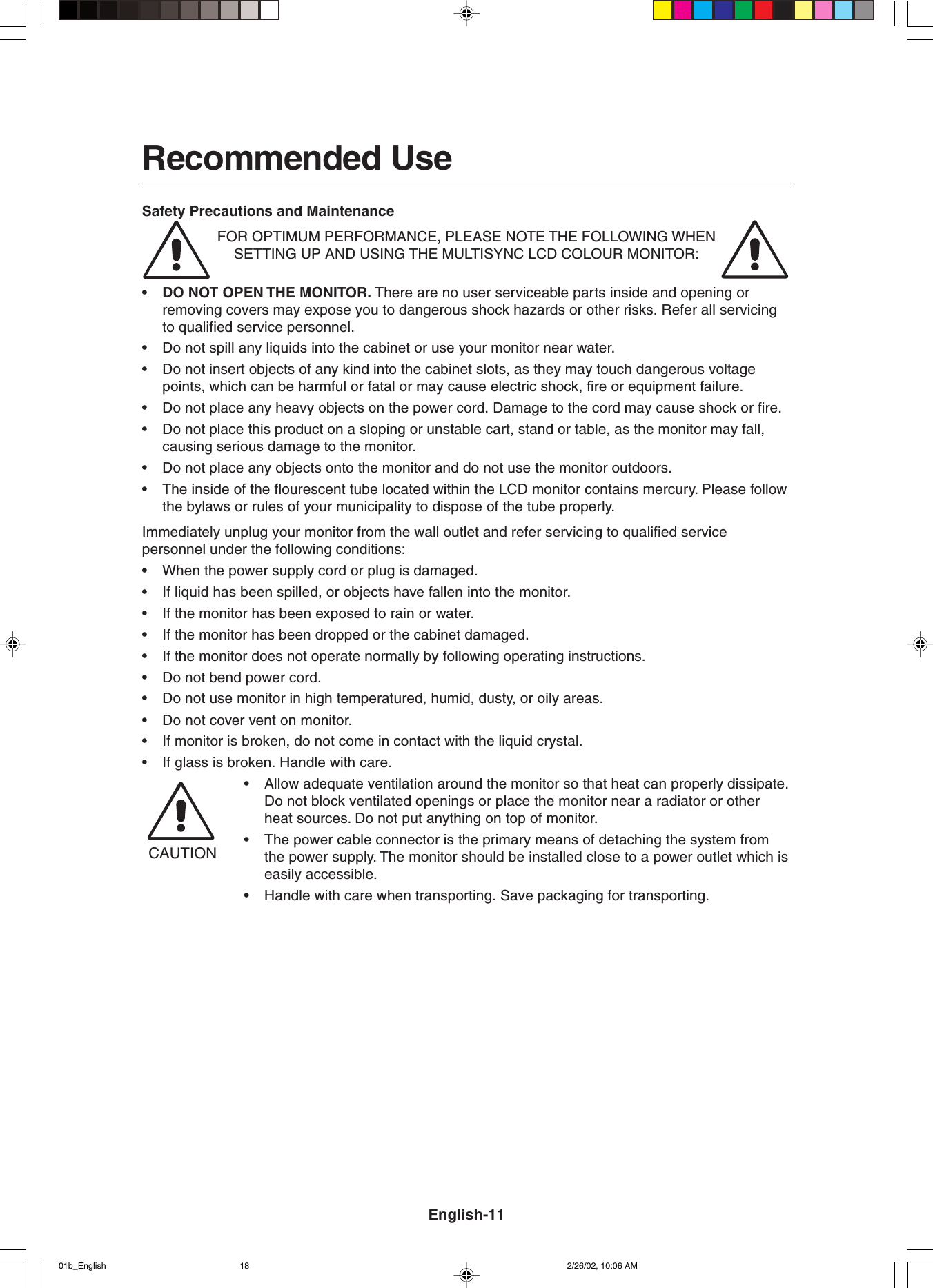

Recommended UseSafety Precautions and MaintenanceFOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHENSETTING UP AND USING THE MULTISYNC LCD COLOUR MONITOR:•DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening orremoving covers may expose you to dangerous shock hazards or other risks. Refer all servicingto qualified service personnel.•Do not spill any liquids into the cabinet or use your monitor near water.•Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltagepoints, which can be harmful or fatal or may cause electric shock, fire or equipment failure.•Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.•Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,causing serious damage to the monitor.•Do not place any objects onto the monitor and do not use the monitor outdoors.•The inside of the flourescent tube located within the LCD monitor contains mercury. Please followthe bylaws or rules of your municipality to dispose of the tube properly.Immediately unplug your monitor from the wall outlet and refer servicing to qualified servicepersonnel under the following conditions:•When the power supply cord or plug is damaged.•If liquid has been spilled, or objects have fallen into the monitor.•If the monitor has been exposed to rain or water.•If the monitor has been dropped or the cabinet damaged.•If the monitor does not operate normally by following operating instructions.•Do not bend power cord.•Do not use monitor in high temperatured, humid, dusty, or oily areas.•Do not cover vent on monitor.•If monitor is broken, do not come in contact with the liquid crystal.•If glass is broken. Handle with care.•Allow adequate ventilation around the monitor so that heat can properly dissipate.Do not block ventilated openings or place the monitor near a radiator or otherheat sources. Do not put anything on top of monitor.•The power cable connector is the primary means of detaching the system fromthe power supply. The monitor should be installed close to a power outlet which iseasily accessible.•Handle with care when transporting. Save packaging for transporting.CAUTIONEnglish-1101b_English 2/26/02, 10:06 AM18

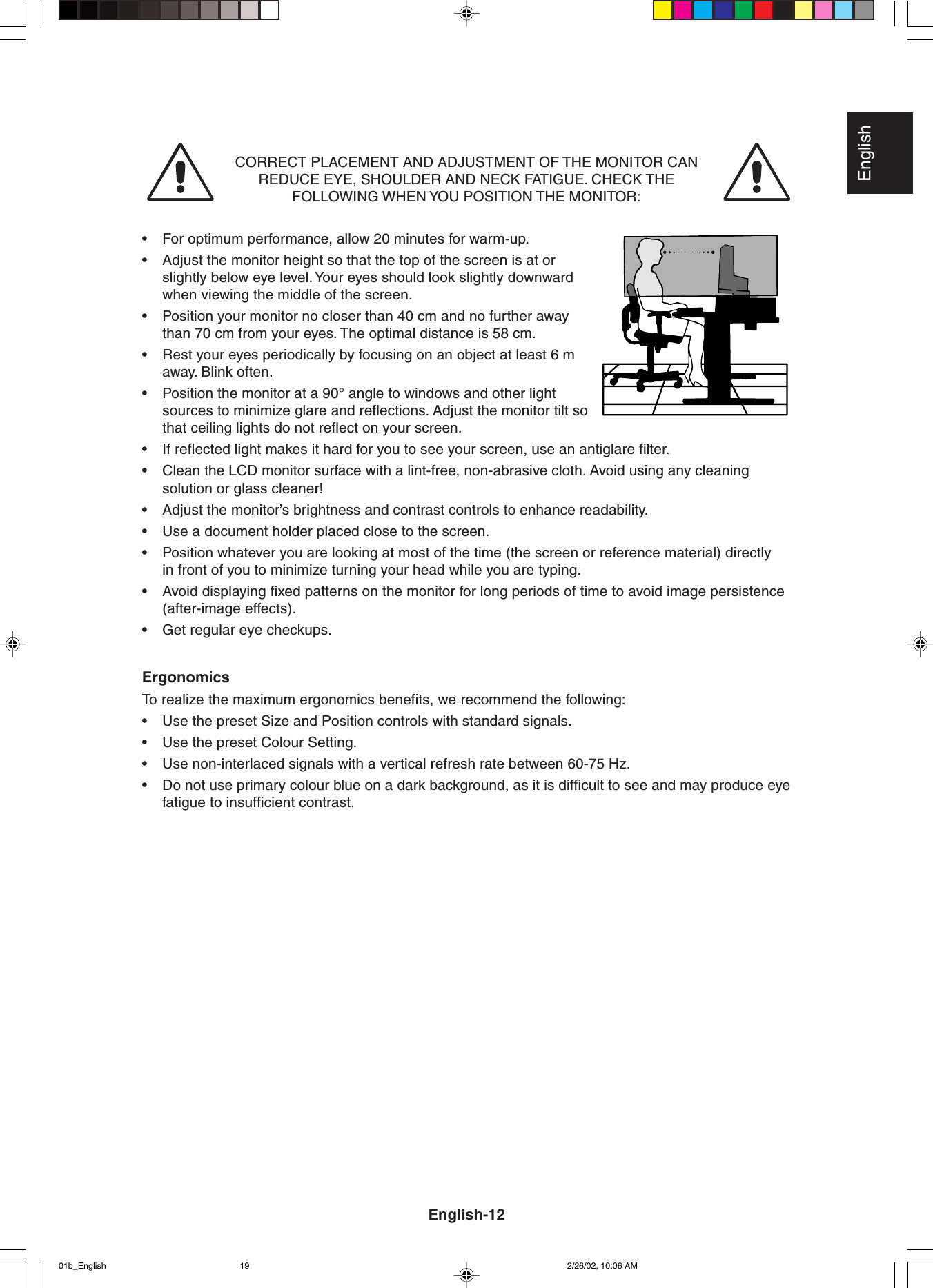

EnglishCORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CANREDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THEFOLLOWING WHEN YOU POSITION THE MONITOR:•For optimum performance, allow 20 minutes for warm-up.•Adjust the monitor height so that the top of the screen is at orslightly below eye level. Your eyes should look slightly downwardwhen viewing the middle of the screen.•Position your monitor no closer than 40 cm and no further awaythan 70 cm from your eyes. The optimal distance is 58 cm.•Rest your eyes periodically by focusing on an object at least 6 maway. Blink often.•Position the monitor at a 90° angle to windows and other lightsources to minimize glare and reflections. Adjust the monitor tilt sothat ceiling lights do not reflect on your screen.•If reflected light makes it hard for you to see your screen, use an antiglare filter.•Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaningsolution or glass cleaner!•Adjust the monitor’s brightness and contrast controls to enhance readability.•Use a document holder placed close to the screen.•Position whatever you are looking at most of the time (the screen or reference material) directlyin front of you to minimize turning your head while you are typing.•Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence(after-image effects).•Get regular eye checkups.ErgonomicsTo  realize the maximum ergonomics benefits, we recommend the following:•Use the preset Size and Position controls with standard signals.•Use the preset Colour Setting.•Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.•Do not use primary colour blue on a dark background, as it is difficult to see and may produce eyefatigue to insufficient contrast.English-1201b_English 2/26/02, 10:06 AM19

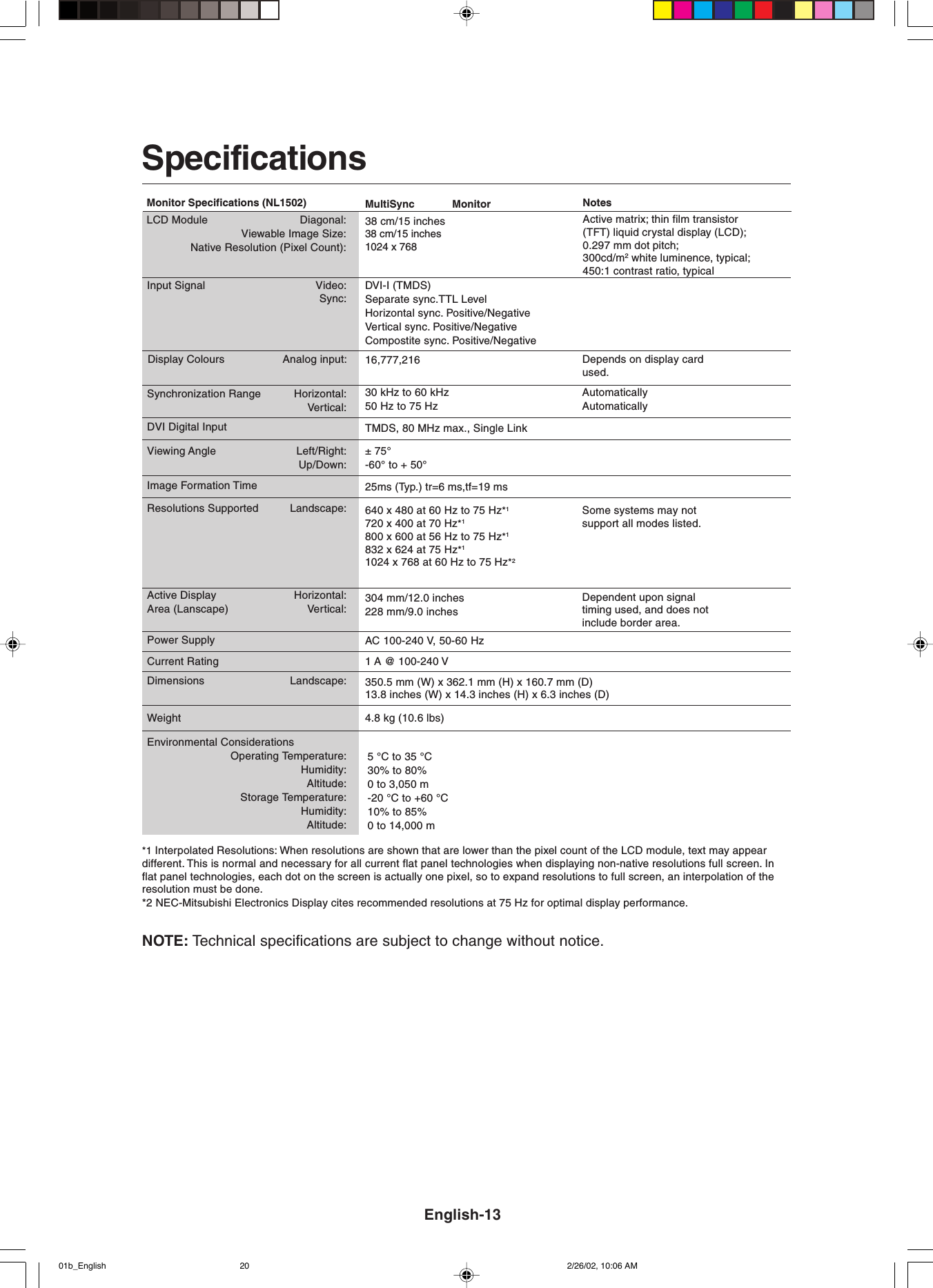

16,777,21630 kHz to 60 kHz50 Hz to 75 Hz640 x 480 at 60 Hz to 75 Hz*1720 x 400 at 70 Hz*1800 x 600 at 56 Hz to 75 Hz*1832 x 624 at 75 Hz*11024 x 768 at 60 Hz to 75 Hz*2304 mm/12.0 inches228 mm/9.0 inchesAC 100-240 V, 50-60 Hz1 A @ 100-240 VMonitor Specifications (NL1502)LCD Module Diagonal:Viewable Image Size:Native Resolution (Pixel Count):Display Colours Analog input:Synchronization Range Horizontal:Vertical:Resolutions Supported Landscape:Active Display Horizontal:Area (Lanscape) Vertical:Power SupplyInput Signal Video:Sync:Current RatingMultiSync             Monitor  38 cm/15 inches38 cm/15 inches1024 x 768DVI-I (TMDS)Separate sync.TTL LevelHorizontal sync. Positive/NegativeVertical sync. Positive/NegativeCompostite sync. Positive/NegativeNotesActive matrix; thin film transistor(TFT) liquid crystal display (LCD);0.297 mm dot pitch;300cd/m2 white luminence, typical;450:1 contrast ratio, typicalDepends on display cardused.AutomaticallyAutomaticallySome systems may notsupport all modes listed.Dependent upon signaltiming used, and does notinclude border area.SpecificationsViewing Angle Left/Right:Up/Down:± 75°-60° to + 50°DVI Digital Input TMDS, 80 MHz max., Single Link350.5 mm (W) x 362.1 mm (H) x 160.7 mm (D)13.8 inches (W) x 14.3 inches (H) x 6.3 inches (D)Dimensions Landscape:Image Formation Time 25ms (Typ.) tr=6 ms,tf=19 ms5 °C to 35 °C30% to 80%0 to 3,050 m-20 °C to +60 °C10% to 85%0 to 14,000 mWeightEnvironmental ConsiderationsOperating Temperature:Humidity:Altitude:Storage Temperature:Humidity:Altitude:4.8 kg (10.6 lbs)*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appeardifferent. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. Inflat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of theresolution must be done.*2 NEC-Mitsubishi Electronics Display cites recommended resolutions at 75 Hz for optimal display performance.NOTE: Technical specifications are subject to change without notice.English-1301b_English 2/26/02, 10:06 AM20

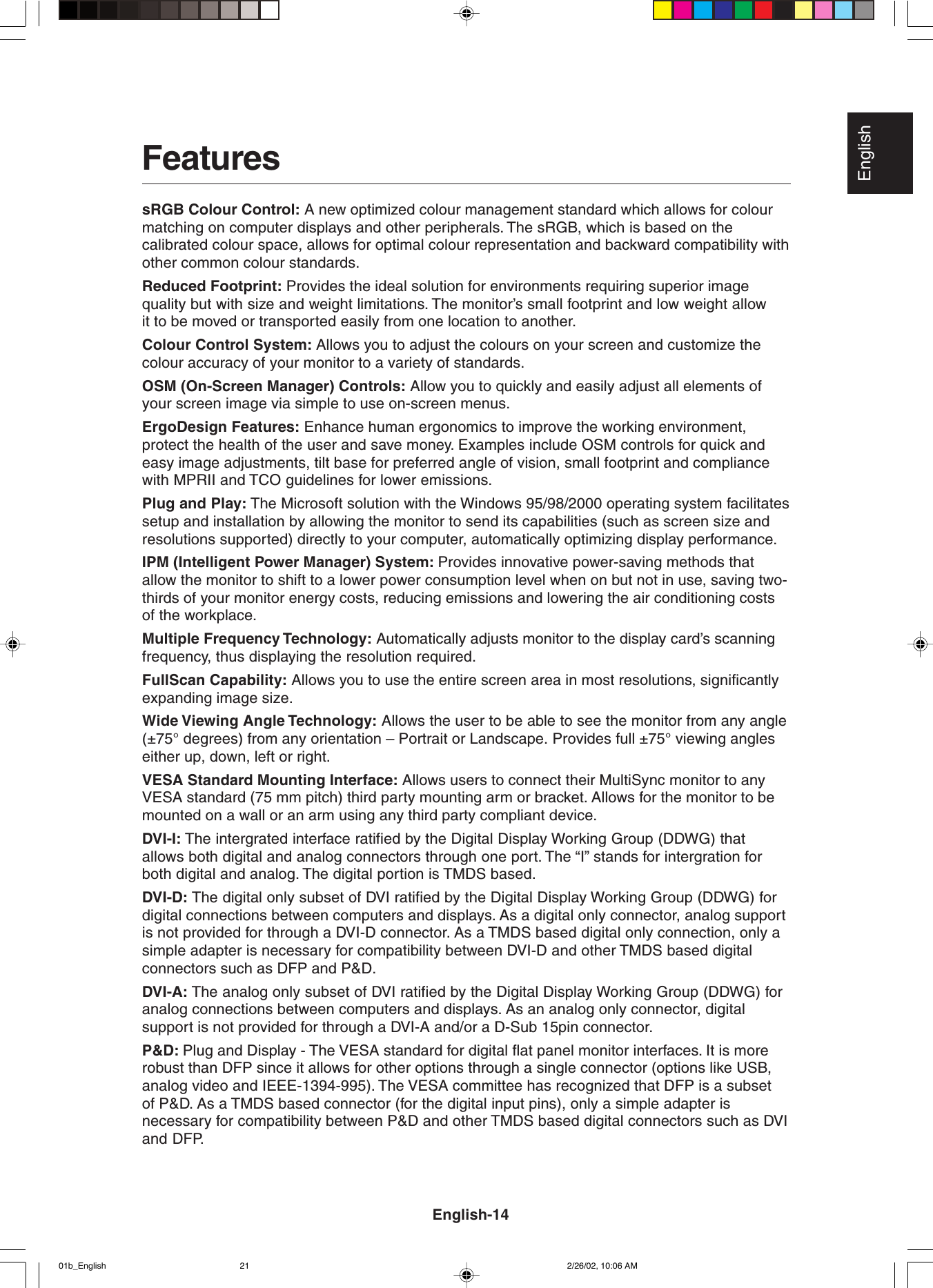

EnglishFeaturessRGB Colour Control: A new optimized colour management standard which allows for colourmatching on computer displays and other peripherals. The sRGB, which is based on thecalibrated colour space, allows for optimal colour representation and backward compatibility withother common colour standards.Reduced Footprint: Provides the ideal solution for environments requiring superior imagequality but with size and weight limitations. The monitor’s small footprint and low weight allowit to be moved or transported easily from one location to another.Colour Control System: Allows you to adjust the colours on your screen and customize thecolour accuracy of your monitor to a variety of standards.OSM (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements ofyour screen image via simple to use on-screen menus.ErgoDesign Features: Enhance human ergonomics to improve the working environment,protect the health of the user and save money. Examples include OSM controls for quick andeasy image adjustments, tilt base for preferred angle of vision, small footprint and compliancewith MPRII and TCO guidelines for lower emissions.Plug and Play: The Microsoft solution with the Windows 95/98/2000 operating system facilitatessetup and installation by allowing the monitor to send its capabilities (such as screen size andresolutions supported) directly to your computer, automatically optimizing display performance.IPM (Intelligent Power Manager) System: Provides innovative power-saving methods thatallow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costsof the workplace.Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanningfrequency, thus displaying the resolution required.FullScan Capability: Allows you to use the entire screen area in most resolutions, significantlyexpanding image size.Wide Viewing Angle Technology: Allows the user to be able to see the monitor from any angle(±75° degrees) from any orientation – Portrait or Landscape. Provides full ±75° viewing angleseither up, down, left or right.VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to anyVESA standard (75 mm pitch) third party mounting arm or bracket. Allows for the monitor to bemounted on a wall or an arm using any third party compliant device.DVI-I: The intergrated interface ratified by the Digital Display Working Group (DDWG) thatallows both digital and analog connectors through one port. The “I” stands for intergration forboth digital and analog. The digital portion is TMDS based.DVI-D: The digital only subset of DVI ratified by the Digital Display Working Group (DDWG) fordigital connections between computers and displays. As a digital only connector, analog supportis not provided for through a DVI-D connector. As a TMDS based digital only connection, only asimple adapter is necessary for compatibility between DVI-D and other TMDS based digitalconnectors such as DFP and P&D.DVI-A: The analog only subset of DVI ratified by the Digital Display Working Group (DDWG) foranalog connections between computers and displays. As an analog only connector, digitalsupport is not provided for through a DVI-A and/or a D-Sub 15pin connector.P&D: Plug and Display - The VESA standard for digital flat panel monitor interfaces. It is morerobust than DFP since it allows for other options through a single connector (options like USB,analog video and IEEE-1394-995). The VESA committee has recognized that DFP is a subsetof P&D. As a TMDS based connector (for the digital input pins), only a simple adapter isnecessary for compatibility between P&D and other TMDS based digital connectors such as DVIand DFP.English-1401b_English 2/26/02, 10:06 AM21

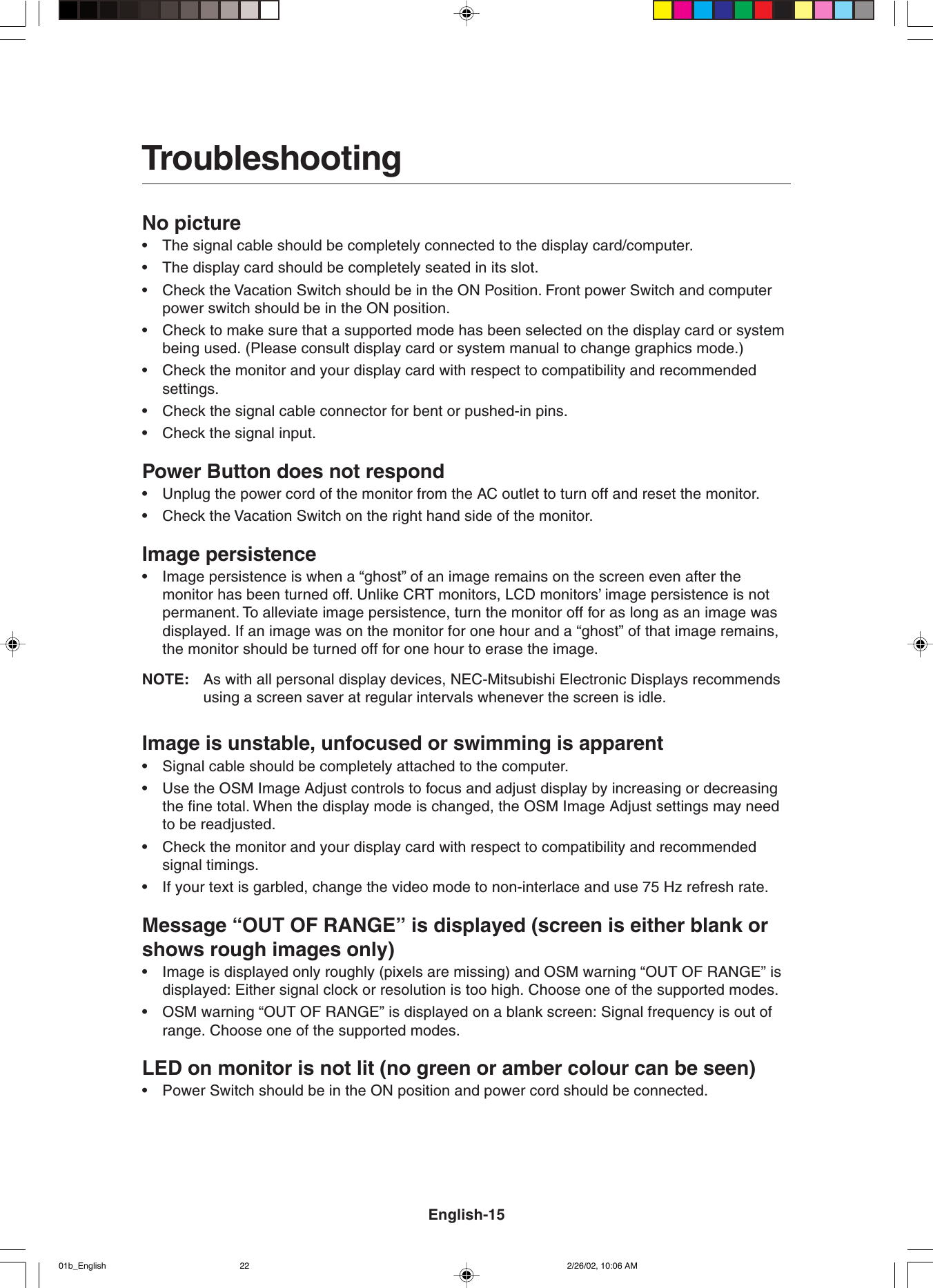

TroubleshootingNo picture•The signal cable should be completely connected to the display card/computer.•The display card should be completely seated in its slot.•Check the Vacation Switch should be in the ON Position. Front power Switch and computerpower switch should be in the ON position.•Check to make sure that a supported mode has been selected on the display card or systembeing used. (Please consult display card or system manual to change graphics mode.)•Check the monitor and your display card with respect to compatibility and recommendedsettings.•Check the signal cable connector for bent or pushed-in pins.•Check the signal input.Power Button does not respond•Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.•Check the Vacation Switch on the right hand side of the monitor.Image persistence•Image persistence is when a “ghost” of an image remains on the screen even after themonitor has been turned off. Unlike CRT monitors, LCD monitors’ image persistence is notpermanent. To alleviate image persistence, turn the monitor off for as long as an image wasdisplayed. If an image was on the monitor for one hour and a “ghost” of that image remains,the monitor should be turned off for one hour to erase the image.NOTE: As with all personal display devices, NEC-Mitsubishi Electronic Displays recommendsusing a screen saver at regular intervals whenever the screen is idle.Image is unstable, unfocused or swimming is apparent•Signal cable should be completely attached to the computer.•Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasingthe fine total. When the display mode is changed, the OSM Image Adjust settings may needto be readjusted.•Check the monitor and your display card with respect to compatibility and recommendedsignal timings.• If your text is garbled, change the video mode to non-interlace and use 75 Hz refresh rate.Message “OUT OF RANGE” is displayed (screen is either blank orshows rough images only)•Image is displayed only roughly (pixels are missing) and OSM warning “OUT OF RANGE” isdisplayed: Either signal clock or resolution is too high. Choose one of the supported modes.•OSM warning “OUT OF RANGE” is displayed on a blank screen: Signal frequency is out ofrange. Choose one of the supported modes.LED on monitor is not lit (no green or amber colour can be seen)•Power Switch should be in the ON position and power cord should be connected.English-1501b_English 2/26/02, 10:06 AM22

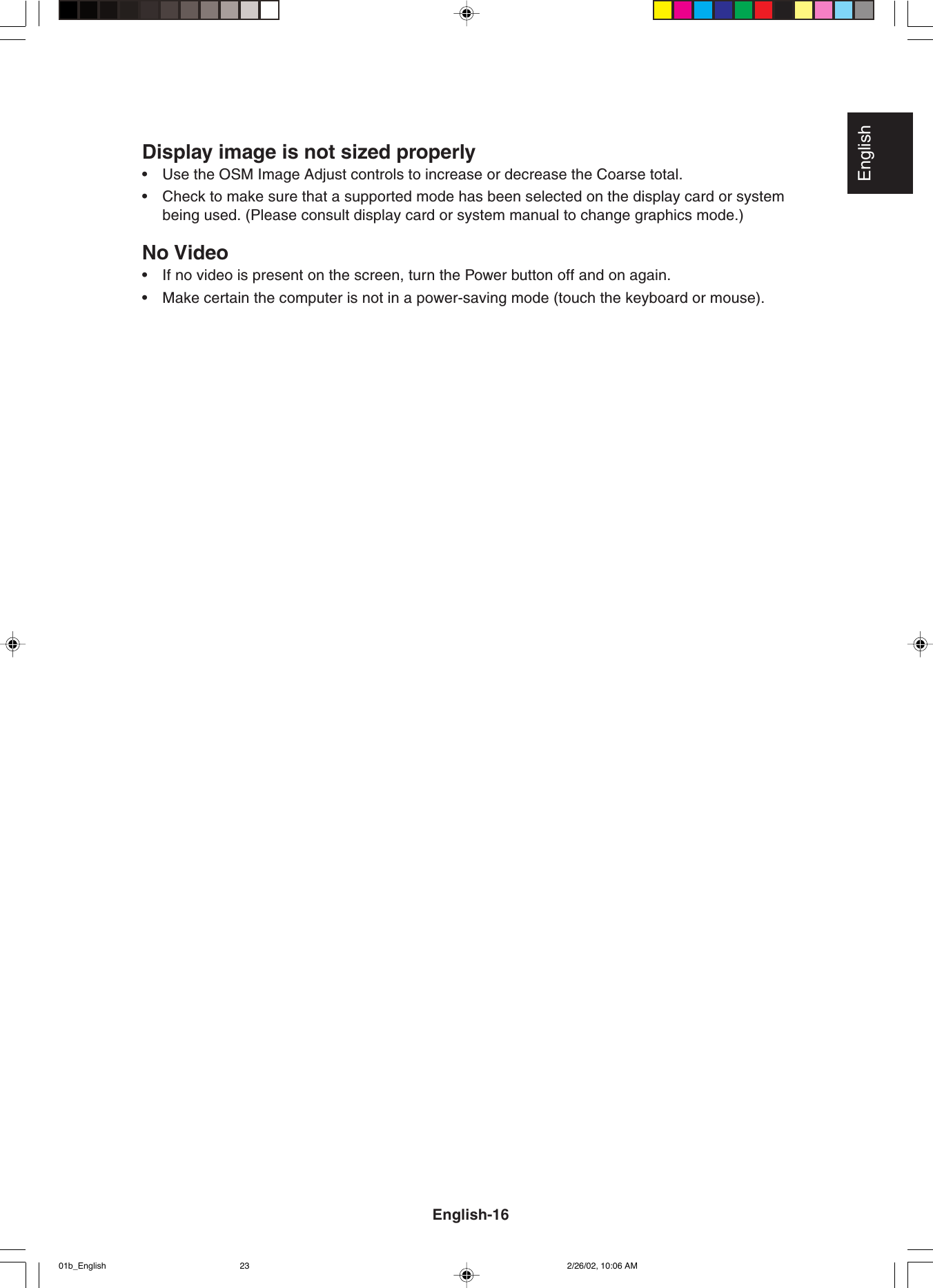

EnglishDisplay image is not sized properly•Use the OSM Image Adjust controls to increase or decrease the Coarse total.•Check to make sure that a supported mode has been selected on the display card or systembeing used. (Please consult display card or system manual to change graphics mode.)No Video•If no video is present on the screen, turn the Power button off and on again.•Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).English-1601b_English 2/26/02, 10:06 AM23
