Ness SMC315 Remote controlled alarm system/radio dialer User Manual Medi Call

Ness Security Products Pty Ltd. Remote controlled alarm system/radio dialer Medi Call

Users Manual

MEDI-CALL UNIT USER MANUAL

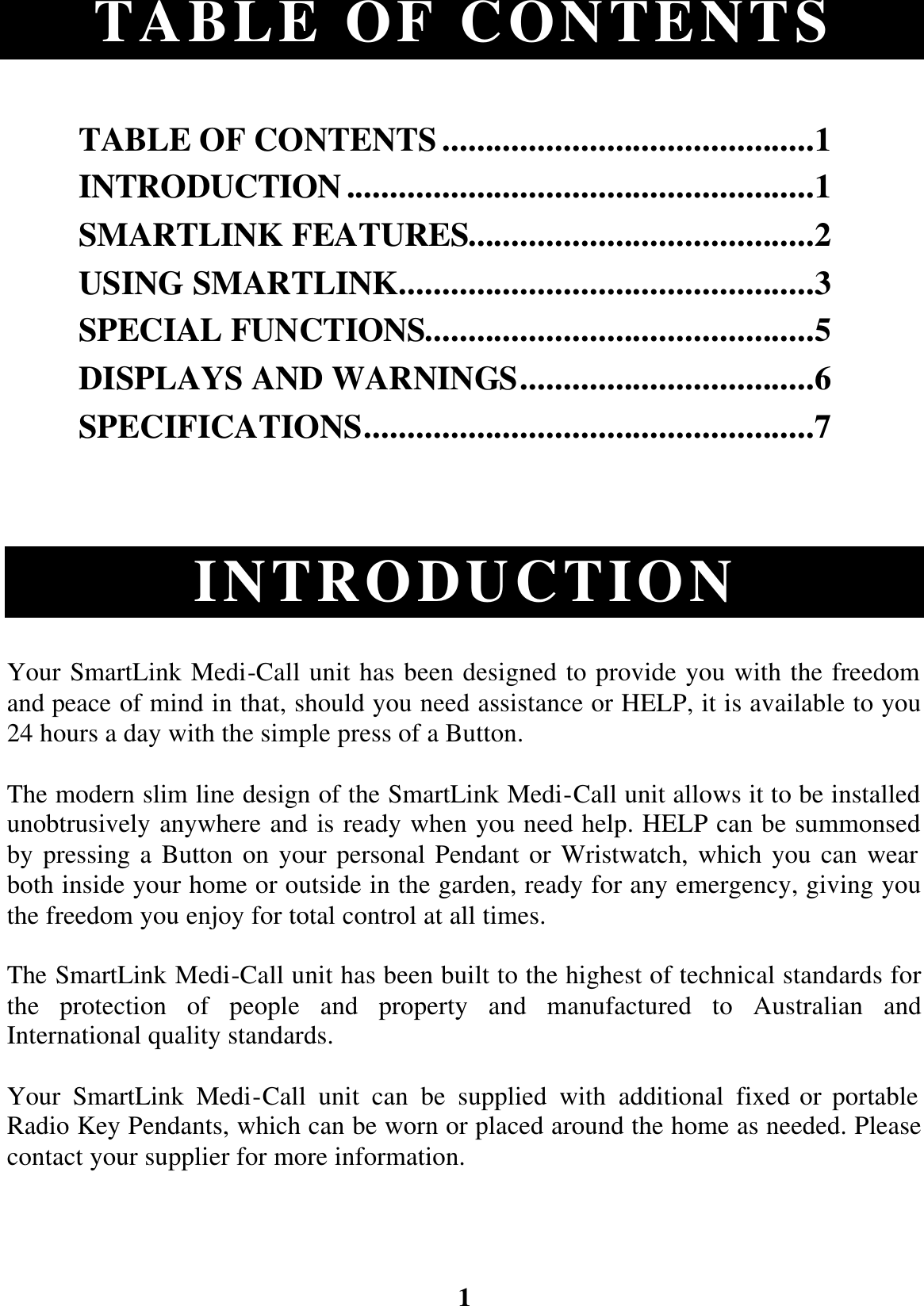

1 TABLE OF CONTENTS TABLE OF CONTENTS...........................................1 INTRODUCTION......................................................1 SMARTLINK FEATURES........................................2 USING SMARTLINK................................................3 SPECIAL FUNCTIONS.............................................5 DISPLAYS AND WARNINGS..................................6 SPECIFICATIONS....................................................7 INTRODUCTION Your SmartLink Medi-Call unit has been designed to provide you with the freedom and peace of mind in that, should you need assistance or HELP, it is available to you 24 hours a day with the simple press of a Button. The modern slim line design of the SmartLink Medi-Call unit allows it to be installed unobtrusively anywhere and is ready when you need help. HELP can be summonsed by pressing a Button on your personal Pendant or Wristwatch, which you can wear both inside your home or outside in the garden, ready for any emergency, giving you the freedom you enjoy for total control at all times. The SmartLink Medi-Call unit has been built to the highest of technical standards for the protection of people and property and manufactured to Australian and International quality standards. Your SmartLink Medi-Call unit can be supplied with additional fixed or portable Radio Key Pendants, which can be worn or placed around the home as needed. Please contact your supplier for more information.

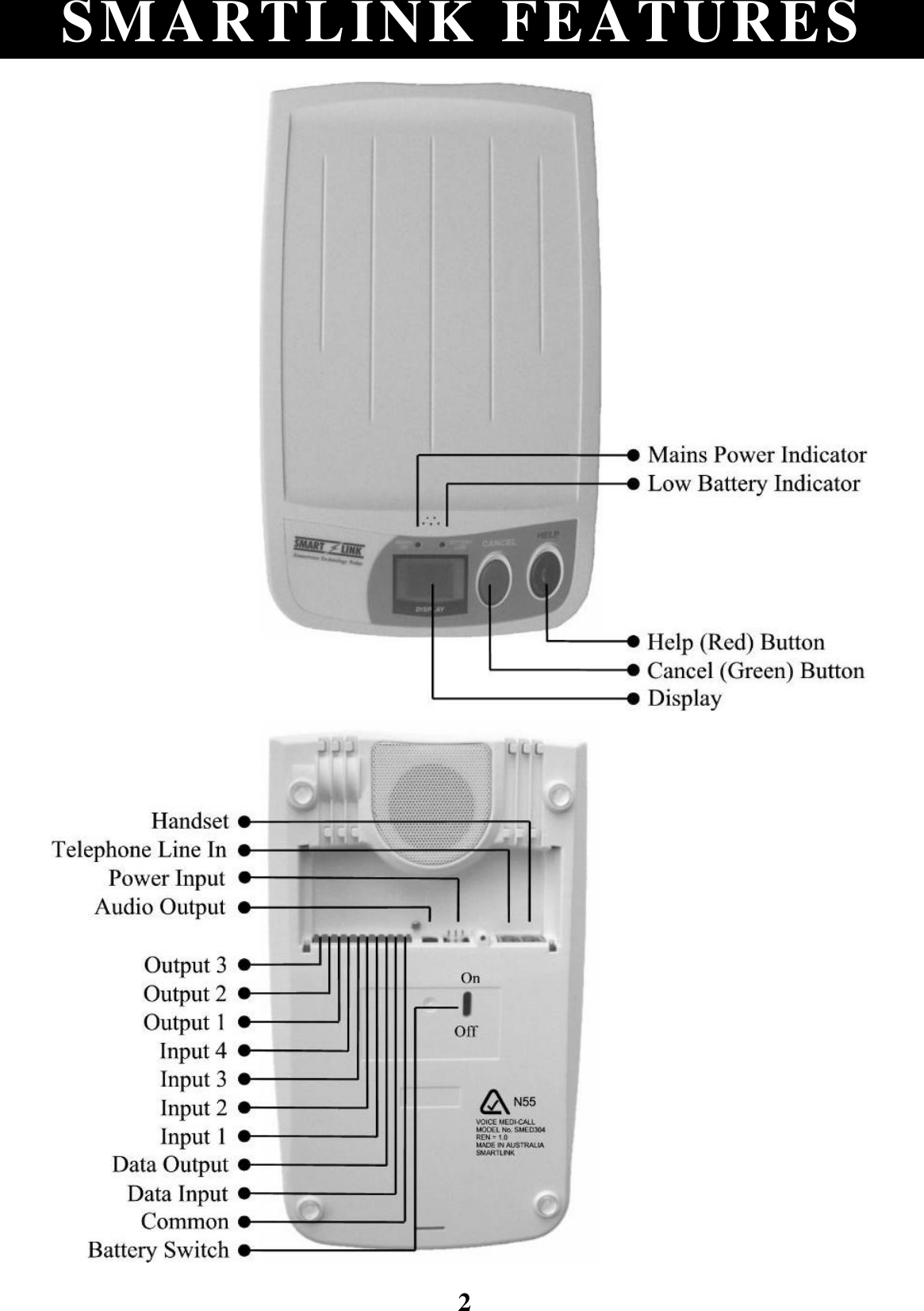

2SMARTLINK FEATURES

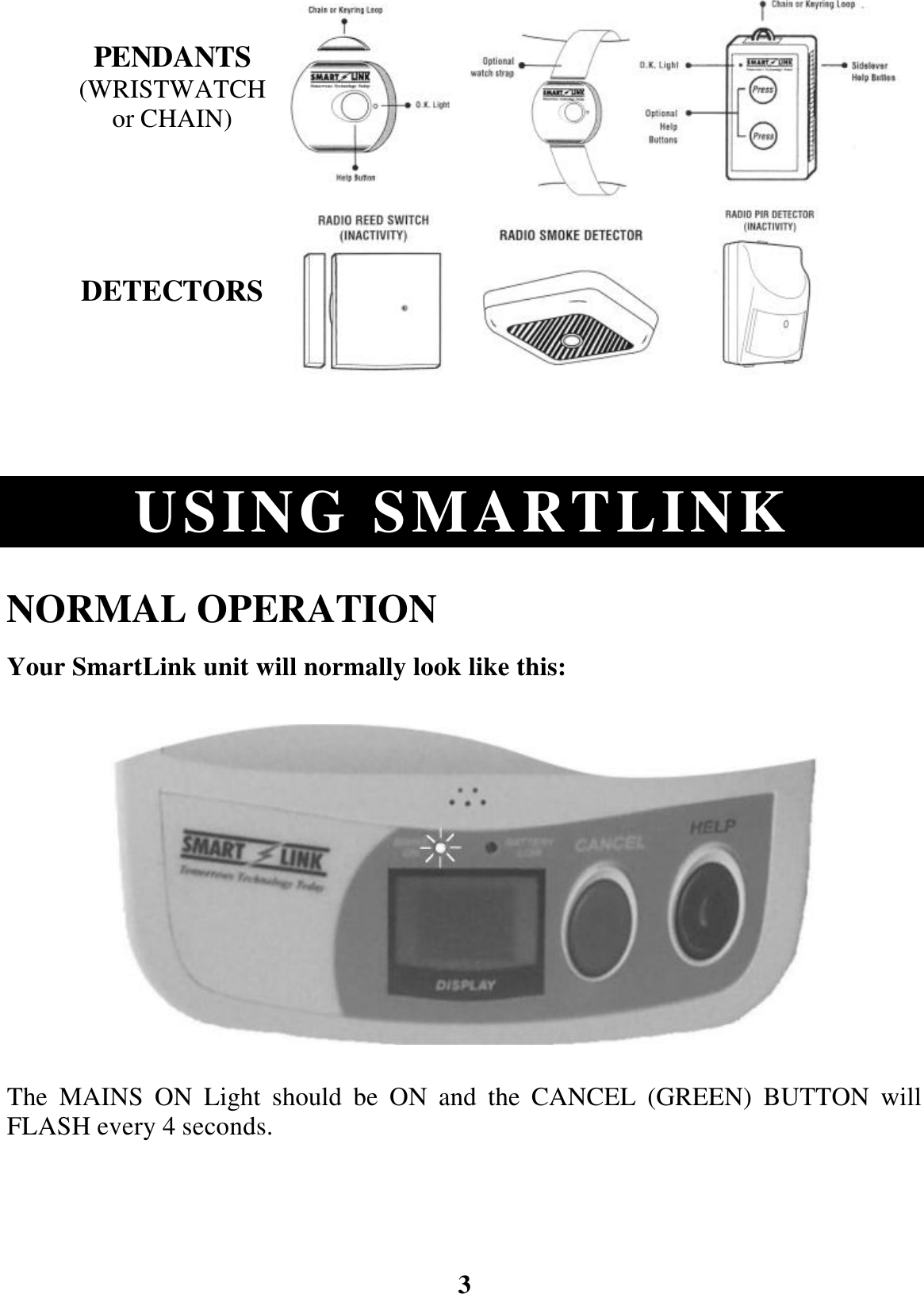

3 PENDANTS (WRISTWATCH or CHAIN) DETECTORS USING SMARTLINK NORMAL OPERATION Your SmartLink unit will normally look like this: The MAINS ON Light should be ON and the CANCEL (GREEN) BUTTON will FLASH every 4 seconds.

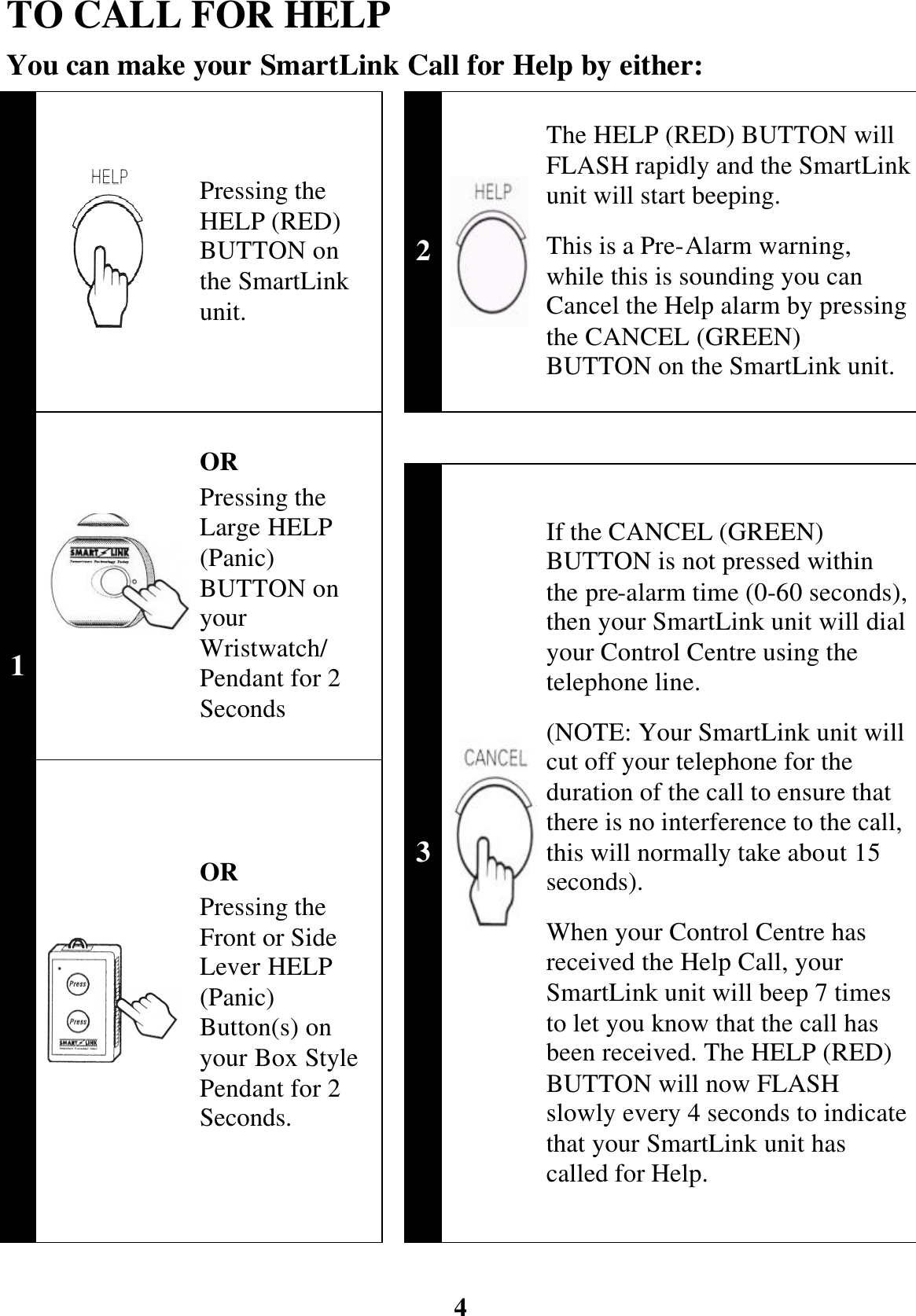

4TO CALL FOR HELP You can make your SmartLink Call for Help by either: Pressing the HELP (RED) BUTTON on the SmartLink unit. 2 The HELP (RED) BUTTON will FLASH rapidly and the SmartLink unit will start beeping. This is a Pre-Alarm warning, while this is sounding you can Cancel the Help alarm by pressing the CANCEL (GREEN) BUTTON on the SmartLink unit. OR Pressing the Large HELP (Panic) BUTTON on your Wristwatch/ Pendant for 2 Seconds 1 OR Pressing the Front or Side Lever HELP (Panic) Button(s) on your Box Style Pendant for 2 Seconds. 3 If the CANCEL (GREEN) BUTTON is not pressed within the pre-alarm time (0-60 seconds), then your SmartLink unit will dial your Control Centre using the telephone line. (NOTE: Your SmartLink unit will cut off your telephone for the duration of the call to ensure that there is no interference to the call, this will normally take about 15 seconds). When your Control Centre has received the Help Call, your SmartLink unit will beep 7 times to let you know that the call has been received. The HELP (RED) BUTTON will now FLASH slowly every 4 seconds to indicate that your SmartLink unit has called for Help.

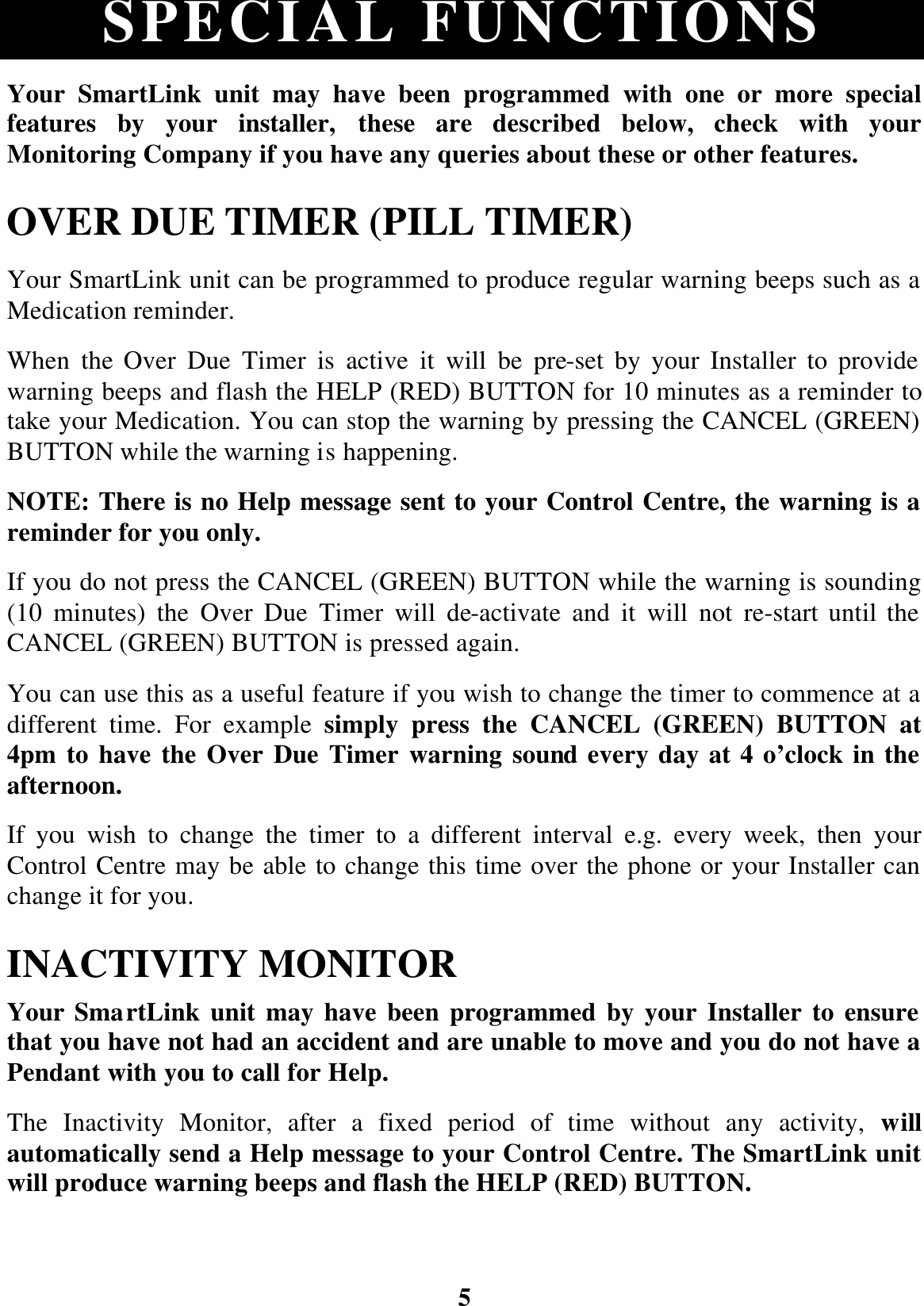

5 SPECIAL FUNCTIONS Your SmartLink unit may have been programmed with one or more special features by your installer, these are described below, check with your Monitoring Company if you have any queries about these or other features. OVER DUE TIMER (PILL TIMER) Your SmartLink unit can be programmed to produce regular warning beeps such as a Medication reminder. When the Over Due Timer is active it will be pre-set by your Installer to provide warning beeps and flash the HELP (RED) BUTTON for 10 minutes as a reminder to take your Medication. You can stop the warning by pressing the CANCEL (GREEN) BUTTON while the warning is happening. NOTE: There is no Help message sent to your Control Centre, the warning is a reminder for you only. If you do not press the CANCEL (GREEN) BUTTON while the warning is sounding (10 minutes) the Over Due Timer will de-activate and it will not re-start until the CANCEL (GREEN) BUTTON is pressed again. You can use this as a useful feature if you wish to change the timer to commence at a different time. For example simply press the CANCEL (GREEN) BUTTON at 4pm to have the Over Due Timer warning sound every day at 4 o’clock in the afternoon. If you wish to change the timer to a different interval e.g. every week, then your Control Centre may be able to change this time over the phone or your Installer can change it for you. INACTIVITY MONITOR Your SmartLink unit may have been programmed by your Installer to ensure that you have not had an accident and are unable to move and you do not have a Pendant with you to call for Help. The Inactivity Monitor, after a fixed period of time without any activity, will automatically send a Help message to your Control Centre. The SmartLink unit will produce warning beeps and flash the HELP (RED) BUTTON.

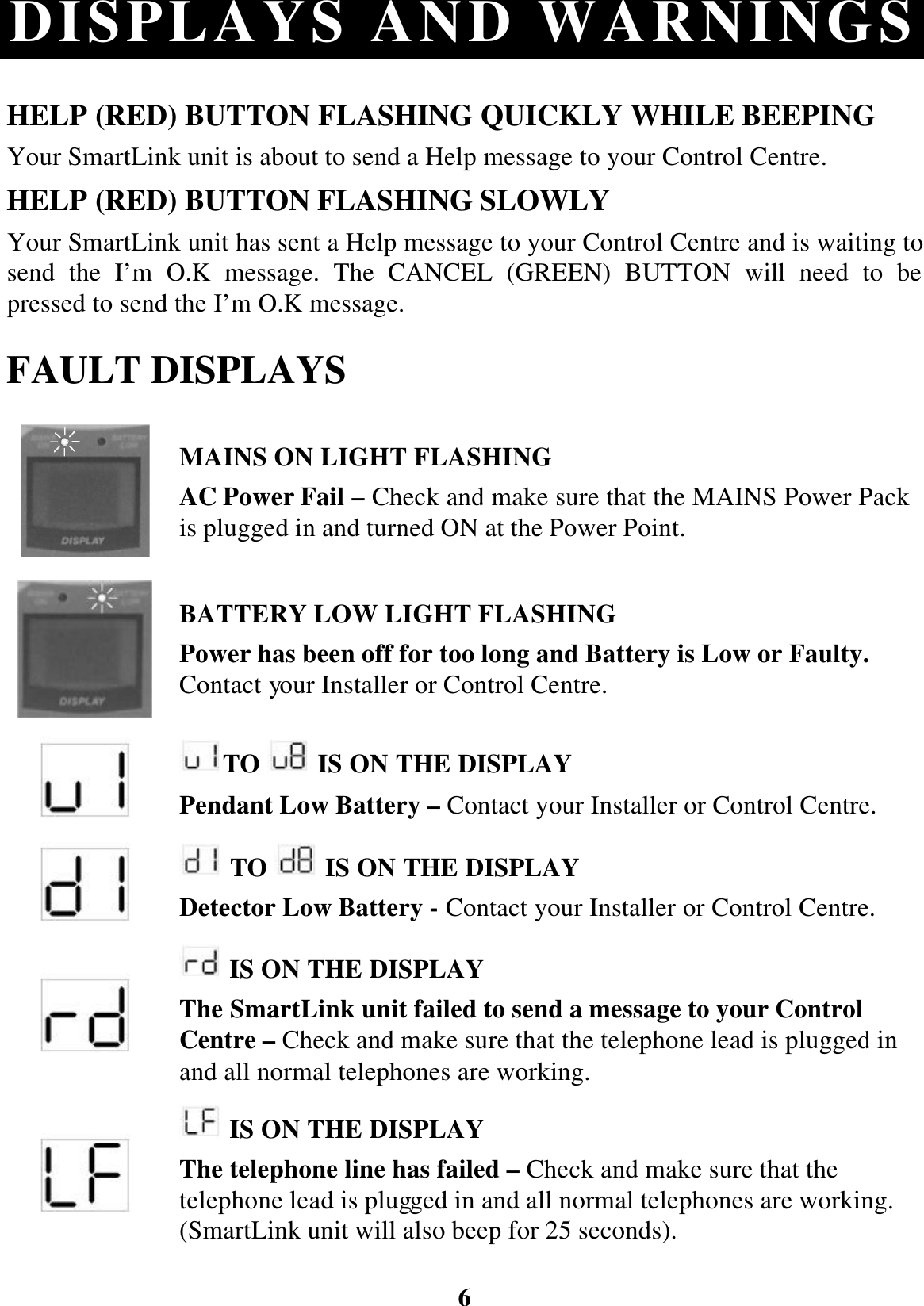

6 DISPLAYS AND WARNINGS HELP (RED) BUTTON FLASHING QUICKLY WHILE BEEPING Your SmartLink unit is about to send a Help message to your Control Centre. HELP (RED) BUTTON FLASHING SLOWLY Your SmartLink unit has sent a Help message to your Control Centre and is waiting to send the I’m O.K message. The CANCEL (GREEN) BUTTON will need to be pressed to send the I’m O.K message. FAULT DISPLAYS MAINS ON LIGHT FLASHING AC Power Fail – Check and make sure that the MAINS Power Pack is plugged in and turned ON at the Power Point. BATTERY LOW LIGHT FLASHING Power has been off for too long and Battery is Low or Faulty. Contact your Installer or Control Centre. TO IS ON THE DISPLAY Pendant Low Battery – Contact your Installer or Control Centre. TO IS ON THE DISPLAY Detector Low Battery - Contact your Installer or Control Centre. IS ON THE DISPLAY The SmartLink unit failed to send a message to your Control Centre – Check and make sure that the telephone lead is plugged in and all normal telephones are working. IS ON THE DISPLAY The telephone line has failed – Check and make sure that the telephone lead is plugged in and all normal telephones are working. (SmartLink unit will also beep for 25 seconds).

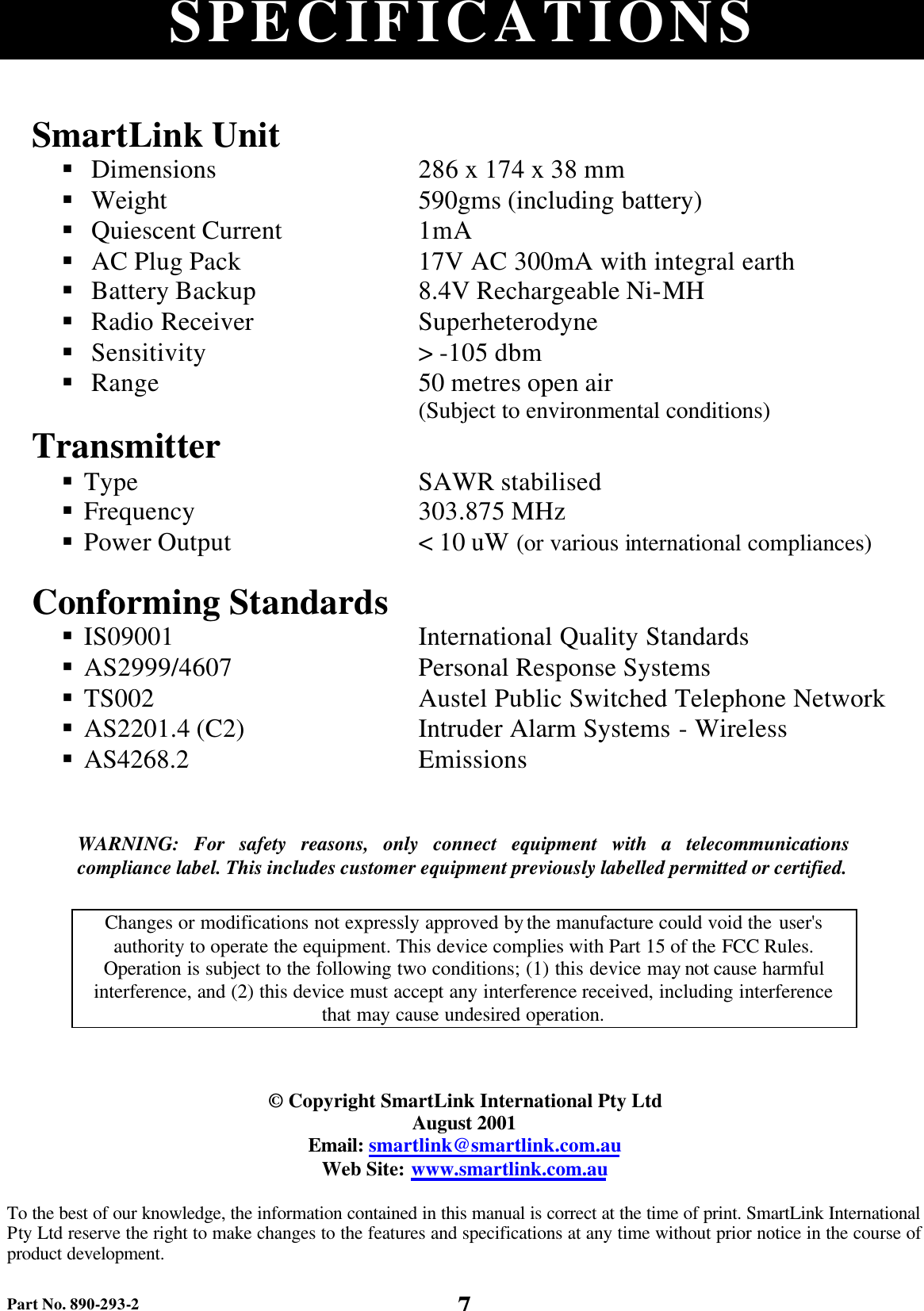

Part No. 890-293-2 7 SPECIFICATIONS WARNING: For safety reasons, only connect equipment with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified. Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright SmartLink International Pty Ltd August 2001 Email: smartlink@smartlink.com.au Web Site: www.smartlink.com.au To the best of our knowledge, the information contained in this manual is correct at the time of print. SmartLink International Pty Ltd reserve the right to make changes to the features and specifications at any time without prior notice in the course of product development. SmartLink Unit § Dimensions § Weight § Quiescent Current § AC Plug Pack § Battery Backup § Radio Receiver § Sensitivity § Range 286 x 174 x 38 mm 590gms (including battery) 1mA 17V AC 300mA with integral earth 8.4V Rechargeable Ni-MH Superheterodyne > -105 dbm 50 metres open air (Subject to environmental conditions) Transmitter § Type § Frequency § Power Output SAWR stabilised 303.875 MHz < 10 uW (or various international compliances) Conforming Standards § IS09001 § AS2999/4607 § TS002 § AS2201.4 (C2) § AS4268.2 International Quality Standards Personal Response Systems Austel Public Switched Telephone Network Intruder Alarm Systems - Wireless Emissions
