User Manual

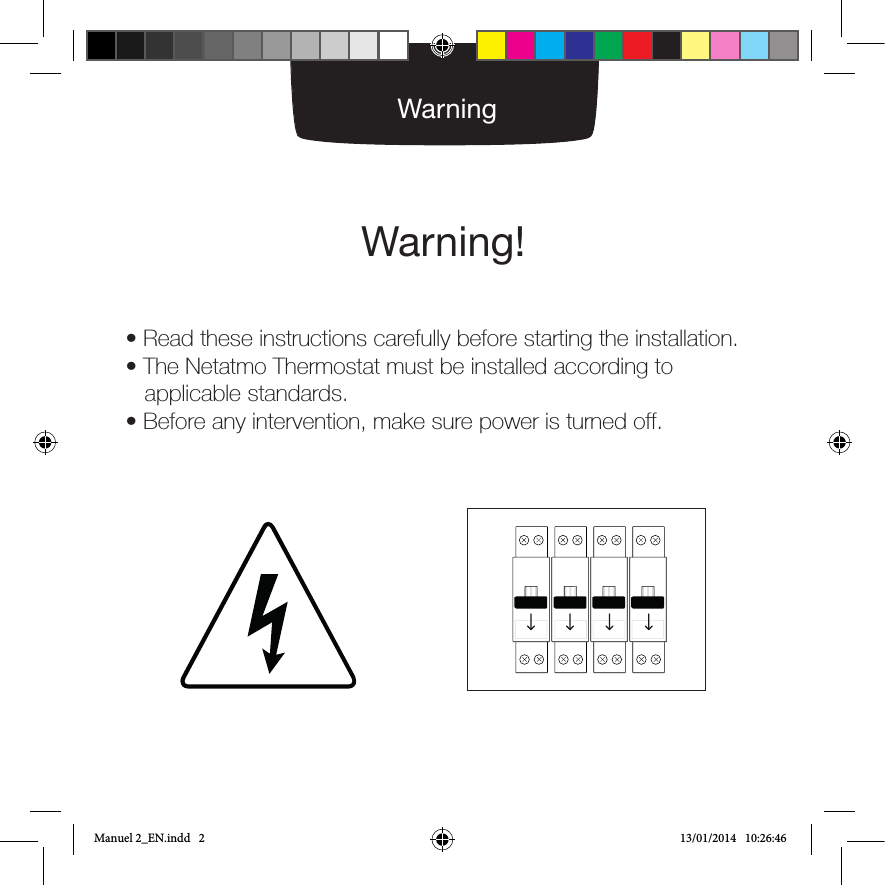

• Read these instructions carefully before starting the installation.• The Netatmo Thermostat must be installed according to applicable standards.• Before any intervention, make sure power is turned off.WarningWarning!Manuel 2_EN.indd 2 13/01/2014 10:26:46
In the boxColor Adhesives (Trim plate)*3 AAA batteries4 screw anchors4 screws(Mains adapter)*1 USB cableThermostat Relay Boiler adapterMobile stand* not used in this setupMounting PlateTape CoverManuel 2_EN.indd 3 13/01/2014 10:26:47

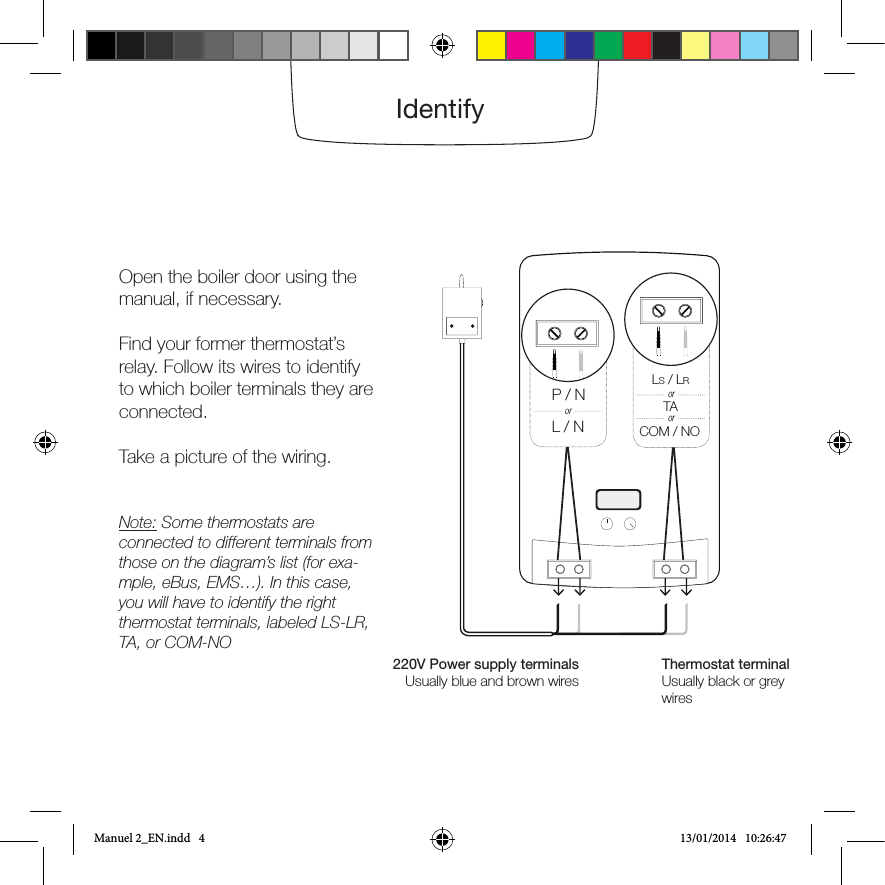

IdentifyOpen the boiler door using the manual, if necessary.Find your former thermostat’s relay. Follow its wires to identify to which boiler terminals they are connected. Take a picture of the wiring.Note: Some thermostats are connected to different terminals from those on the diagram’s list (for exa-mple, eBus, EMS…). In this case, you will have to identify the right thermostat terminals, labeled LS-LR, TA, or COM-NO220V Power supply terminalsUsually blue and brown wiresThermostat terminalUsually black or grey wiresP / NL / NorLS / LRTACOM / NOororManuel 2_EN.indd 4 13/01/2014 10:26:47

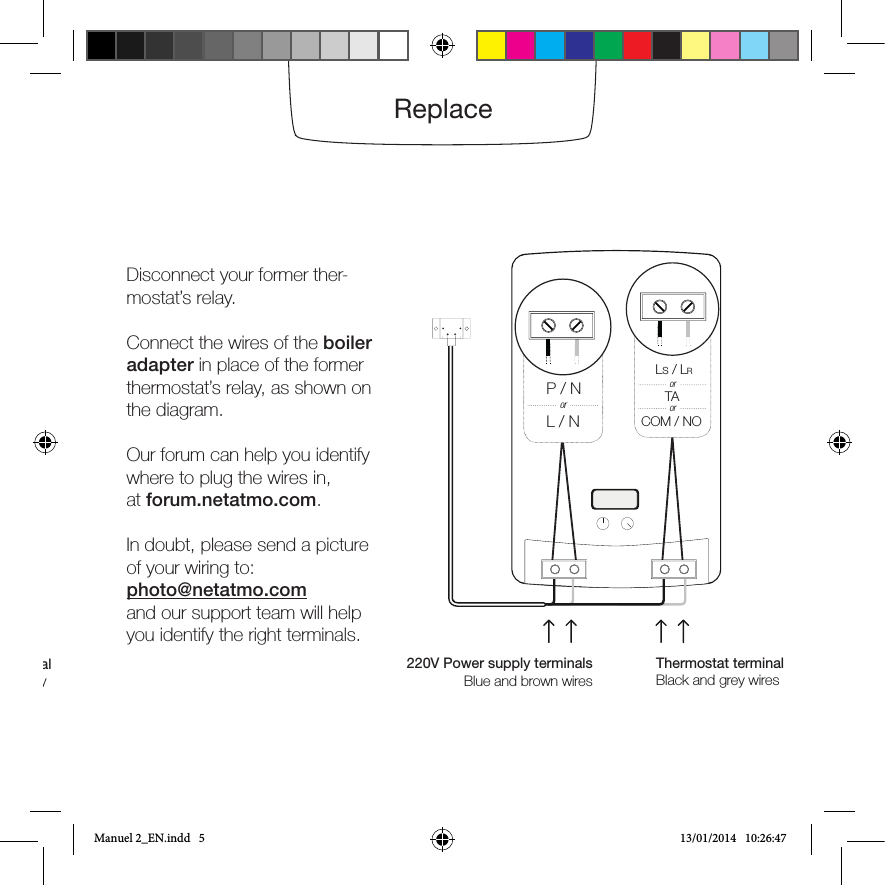

ReplaceDisconnect your former ther-mostat’s relay.Connect the wires of the boiler adapter in place of the former thermostat’s relay, as shown on the diagram.Our forum can help you identify where to plug the wires in,at forum.netatmo.com.In doubt, please send a picture of your wiring to:photo@netatmo.comand our support team will help you identify the right terminals.Thermostat terminalUsually black or grey wires220V Power supply terminalsBlue and brown wires Thermostat terminalBlack and grey wiresP / NL / NorLs / LRTACOM / NOororManuel 2_EN.indd 5 13/01/2014 10:26:47

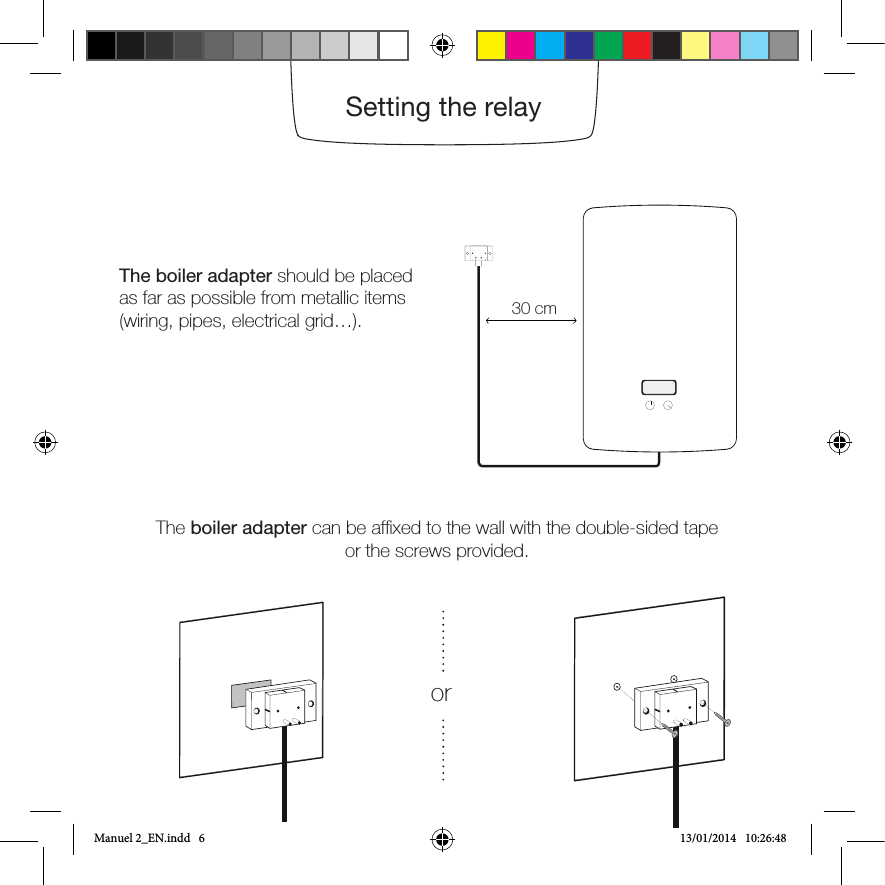

The boiler adapter should be placed as far as possible from metallic items (wiring, pipes, electrical grid…).The boiler adapter can be afxed to the wall with the double-sided tapeor the screws provided.Note: If the relay does not blink after turning the power back on, it is not power supplied. Please check how the blue and brown wires are wired. Do not forget to switch off the power supply before any intervention.30 cmSetting the relayorManuel 2_EN.indd 6 13/01/2014 10:26:48

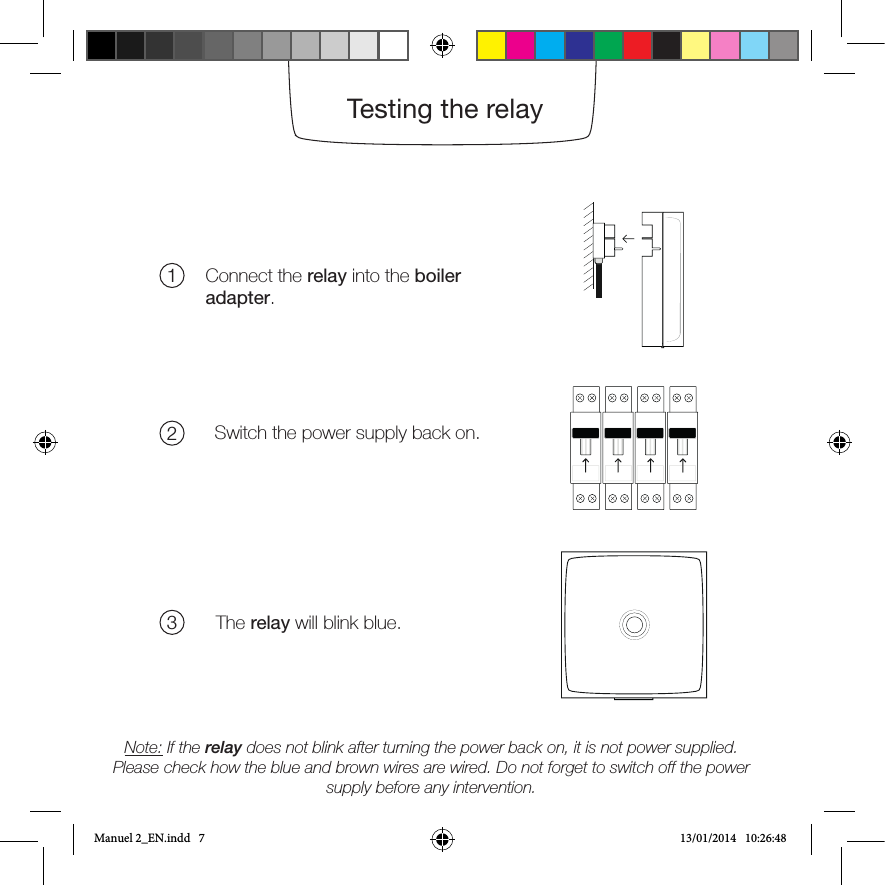

The boiler adapter can be afxed to the wall with the double-sided tapeor the screws provided.Connect the relay into the boiler adapter.Switch the power supply back on.The relay will blink blue.Note: If the relay does not blink after turning the power back on, it is not power supplied. Please check how the blue and brown wires are wired. Do not forget to switch off the power supply before any intervention.123Testing the relayManuel 2_EN.indd 7 13/01/2014 10:26:48

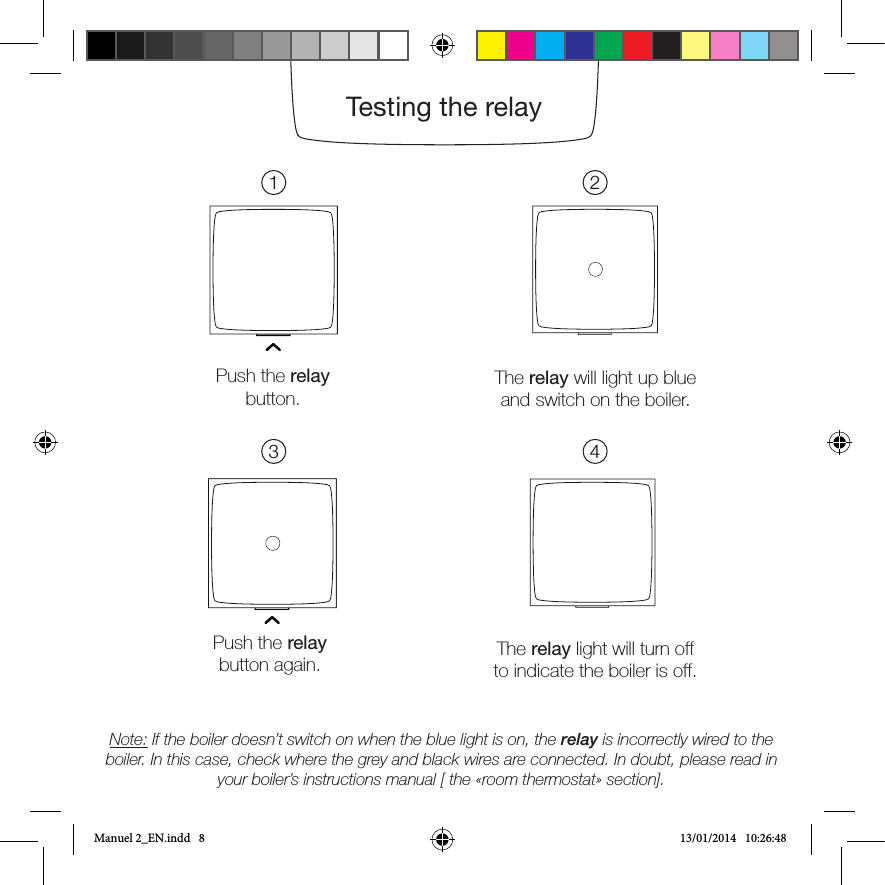

Push the relay button.The relay will light up blue and switch on the boiler.Push the relaybutton again. The relay light will turn off to indicate the boiler is off.Note: If the boiler doesn’t switch on when the blue light is on, the relay is incorrectly wired to the boiler. In this case, check where the grey and black wires are connected. In doubt, please read in your boiler’s instructions manual [ the «room thermostat» section].1324Testing the relayManuel 2_EN.indd 8 13/01/2014 10:26:48

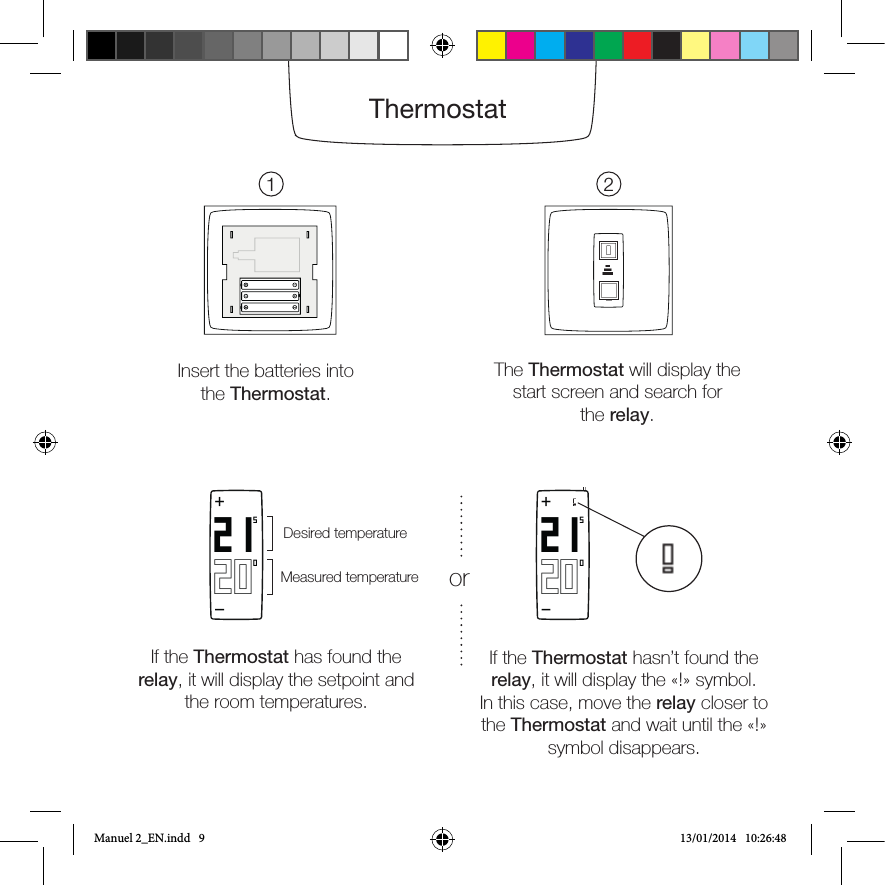

Note: If the boiler doesn’t switch on when the blue light is on, the relay is incorrectly wired to the boiler. In this case, check where the grey and black wires are connected. In doubt, please read in your boiler’s instructions manual [ the «room thermostat» section].Insert the batteries into the Thermostat.The Thermostat will display the start screen and search forthe relay.1 2ThermostatIf the Thermostat has found the relay, it will display the setpoint and the room temperatures. If the Thermostat hasn’t found the relay, it will display the «!» symbol. In this case, move the relay closer to the Thermostat and wait until the «!» symbol disappears.202150+Measured temperatureDesired temperatureor 202150+Manuel 2_EN.indd 9 13/01/2014 10:26:48

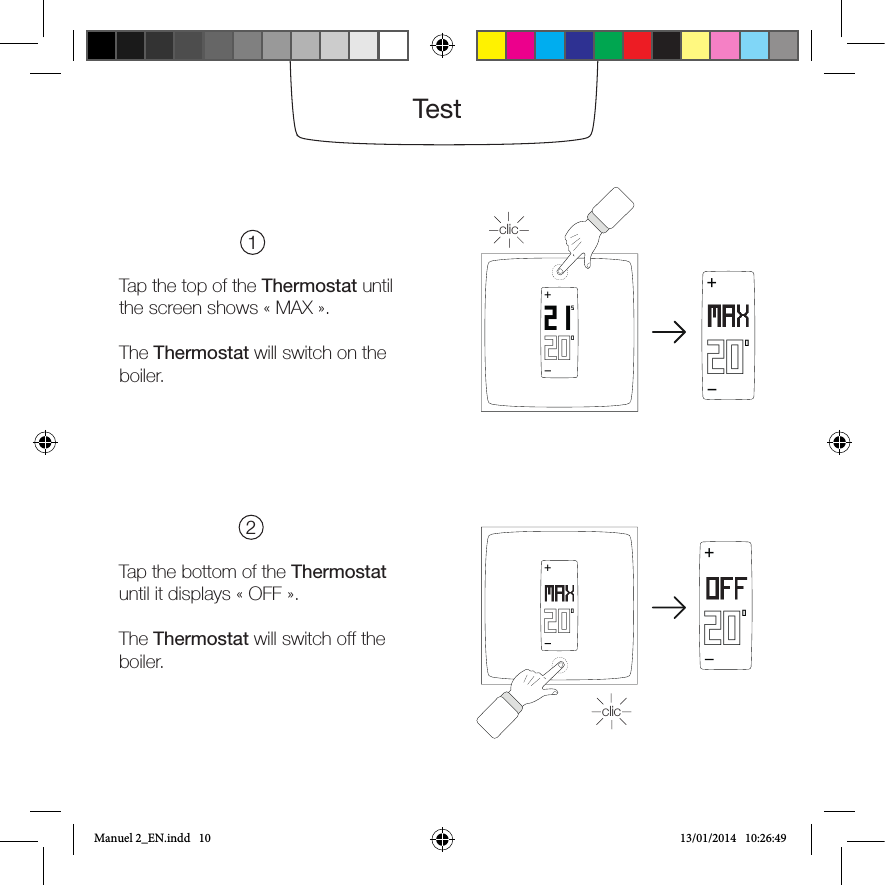

Test202150+200+Tap the top of the Thermostat until the screen shows «MAX».The Thermostat will switch on the boiler. Tap the bottom of the Thermostat until it displays «OFF».The Thermostat will switch off the boiler.12200+200+clicclicManuel 2_EN.indd 10 13/01/2014 10:26:49

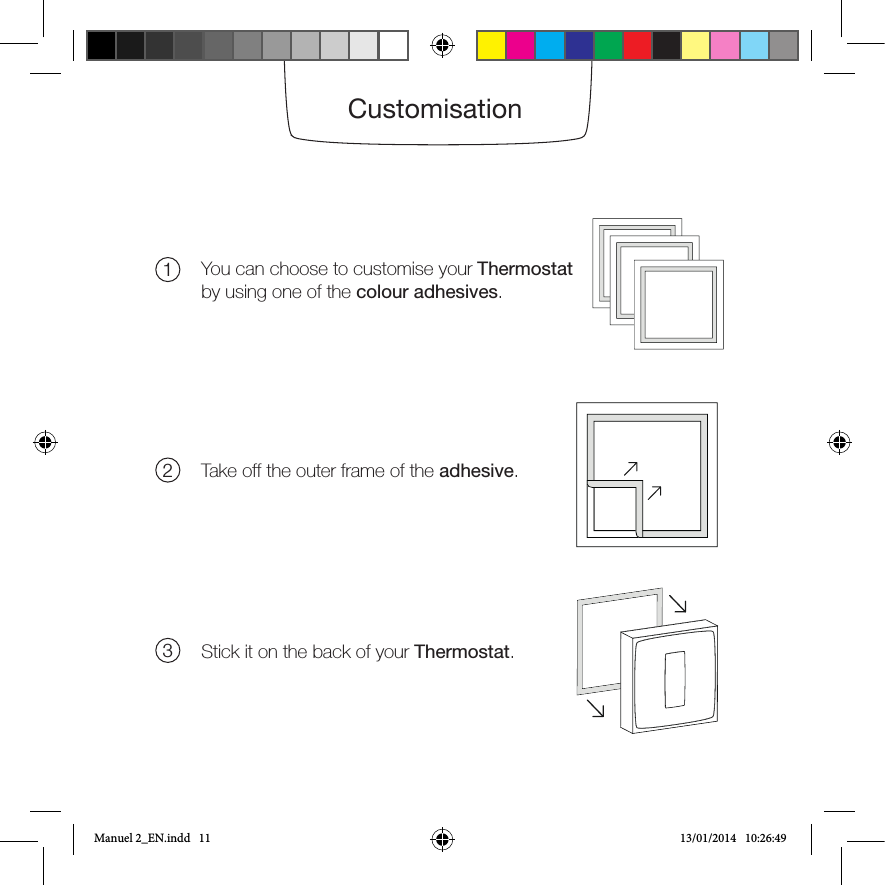

CustomisationYou can choose to customise your Thermostat by using one of the colour adhesives. Take off the outer frame of the adhesive.Stick it on the back of your Thermostat.123Manuel 2_EN.indd 11 13/01/2014 10:26:49

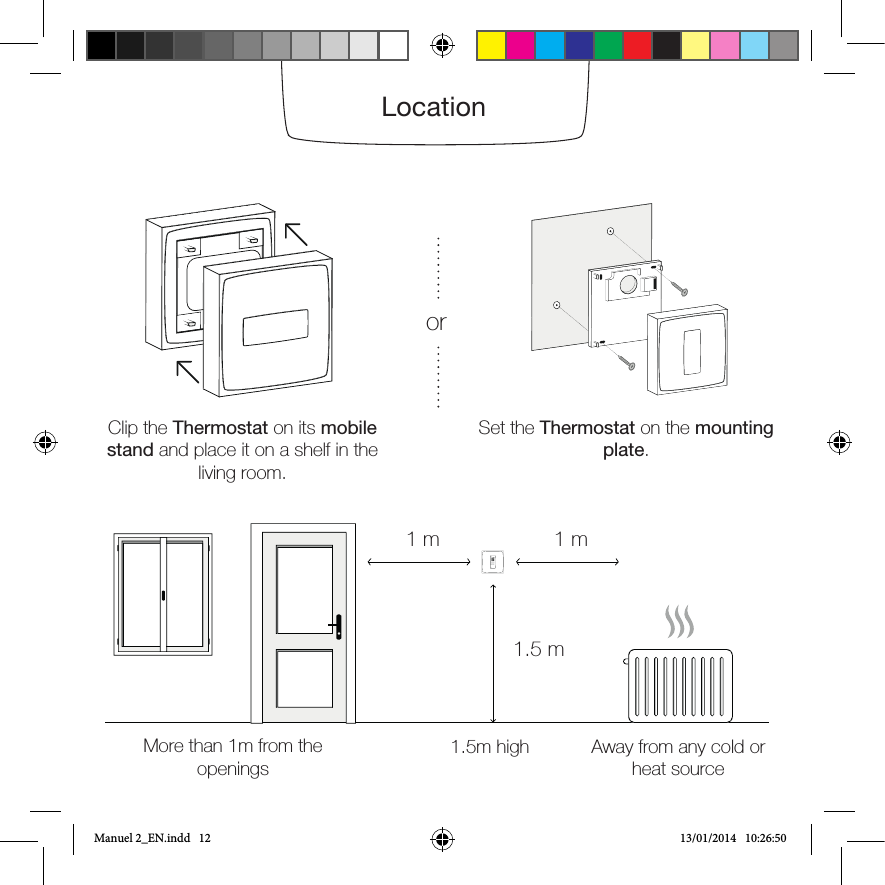

Clip the Thermostat on its mobile stand and place it on a shelf in the living room.More than 1m from the openingsAway from any cold or heat source1.5m highSet the Thermostat on the mounting plate.1 m 1 m1.5 mLocation22185+orManuel 2_EN.indd 12 13/01/2014 10:26:50

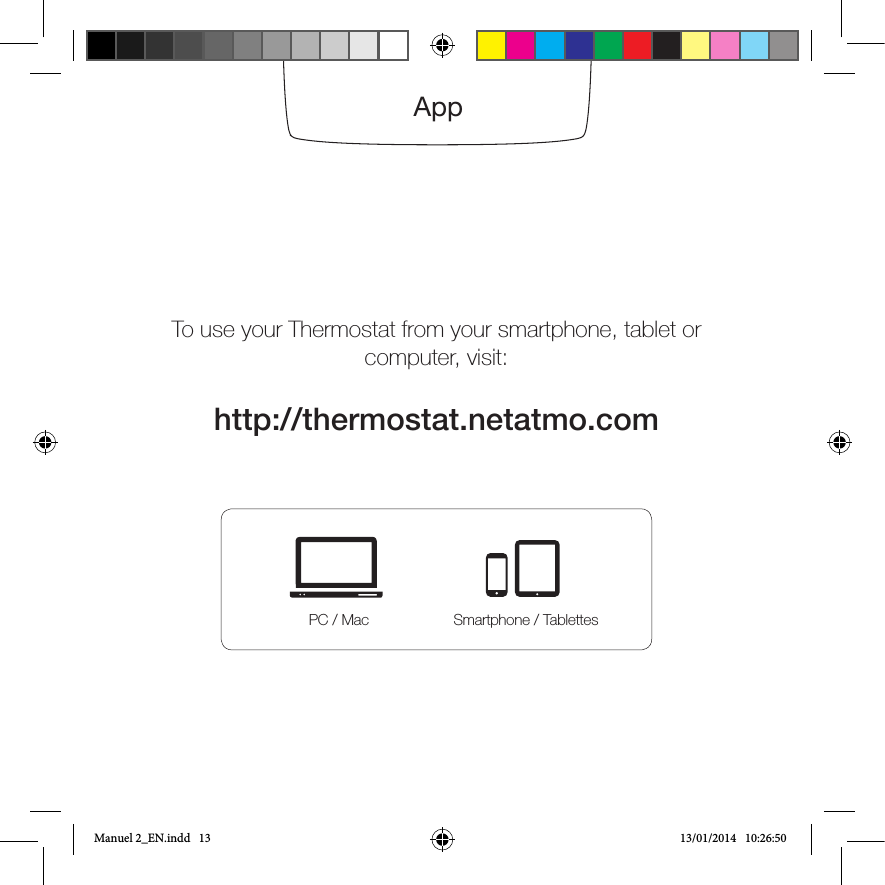

Away from any cold or heat sourceTo use your Thermostat from your smartphone, tablet orcomputer, visit:http://thermostat.netatmo.comAppPC / Mac Smartphone / TablettesManuel 2_EN.indd 13 13/01/2014 10:26:50

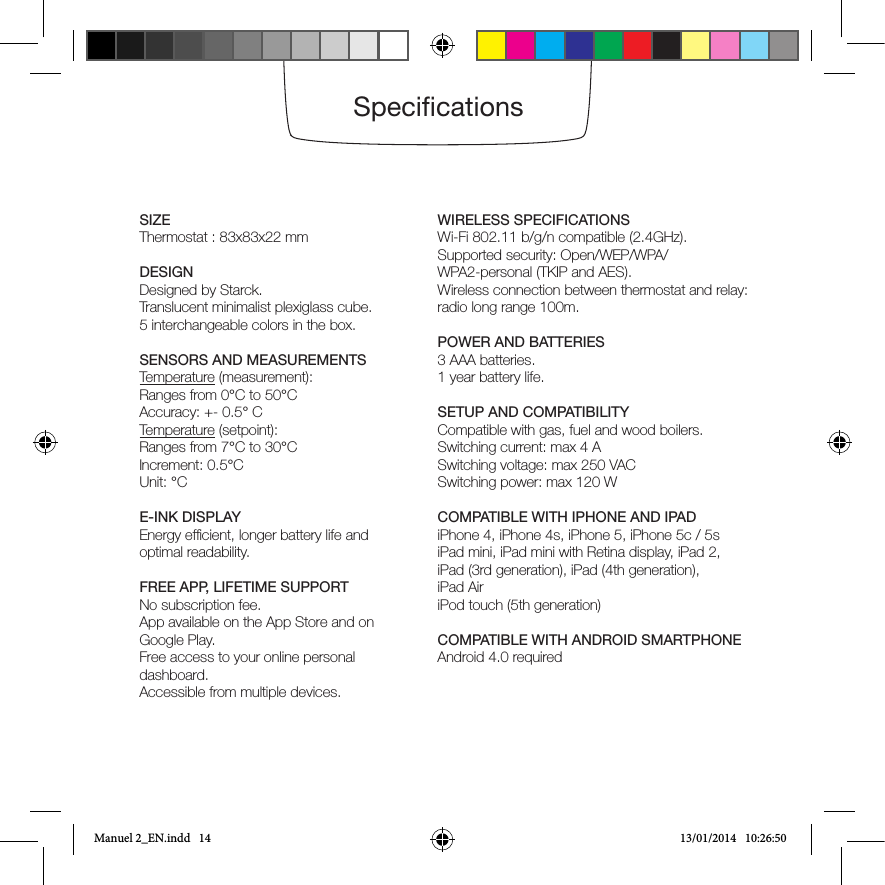

SpecicationsSIZEThermostat : 83x83x22 mmDESIGNDesigned by Starck.Translucent minimalist plexiglass cube.5 interchangeable colors in the box. SENSORS AND MEASUREMENTSTemperature (measurement): Ranges from 0°C to 50°CAccuracy: +- 0.5° CTemperature (setpoint): Ranges from 7°C to 30°CIncrement: 0.5°CUnit: °CE-INK DISPLAYEnergy efcient, longer battery life and optimal readability. FREE APP, LIFETIME SUPPORTNo subscription fee. App available on the App Store and on Google Play. Free access to your online personal dashboard.Accessible from multiple devices.WIRELESS SPECIFICATIONSWi-Fi 802.11 b/g/n compatible (2.4GHz).Supported security: Open/WEP/WPA/WPA2-personal (TKIP and AES). Wireless connection between thermostat and relay: radio long range 100m.POWER AND BATTERIES3 AAA batteries.1 year battery life.SETUP AND COMPATIBILITYCompatible with gas, fuel and wood boilers. Switching current: max 4 ASwitching voltage: max 250 VACSwitching power: max 120 W COMPATIBLE WITH IPHONE AND IPADiPhone 4, iPhone 4s, iPhone 5, iPhone 5c / 5siPad mini, iPad mini with Retina display, iPad 2, iPad (3rd generation), iPad (4th generation),iPad AiriPod touch (5th generation)COMPATIBLE WITH ANDROID SMARTPHONEAndroid 4.0 requiredManuel 2_EN.indd 14 13/01/2014 10:26:50
Manuel 2_EN.indd 15 13/01/2014 10:26:50

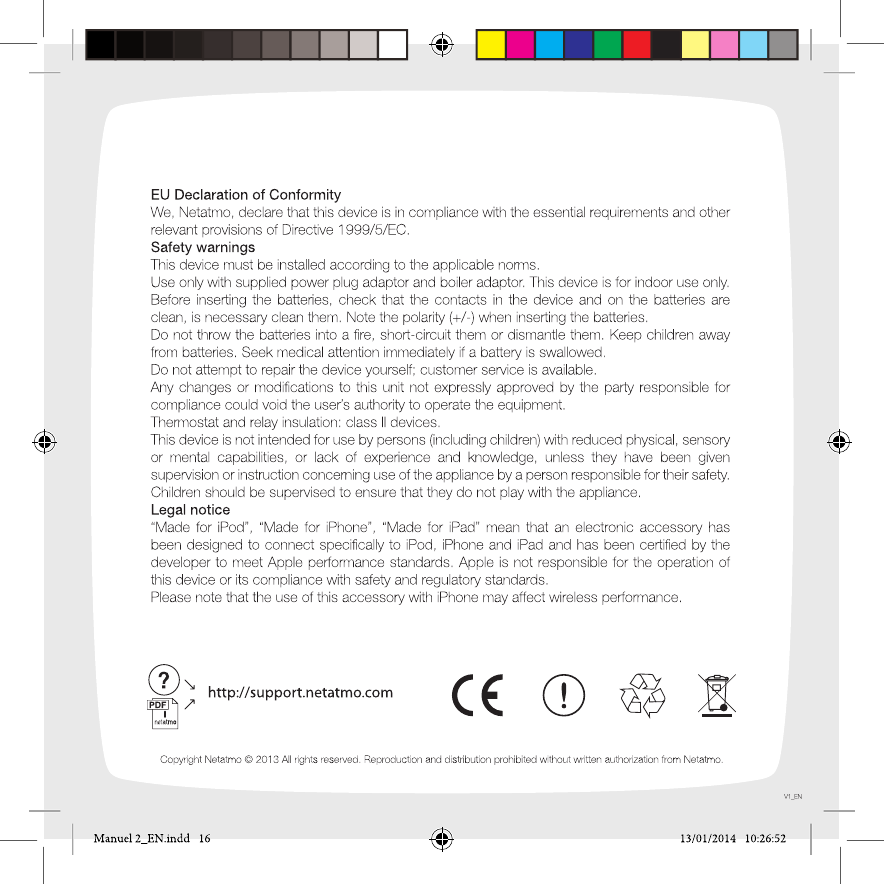

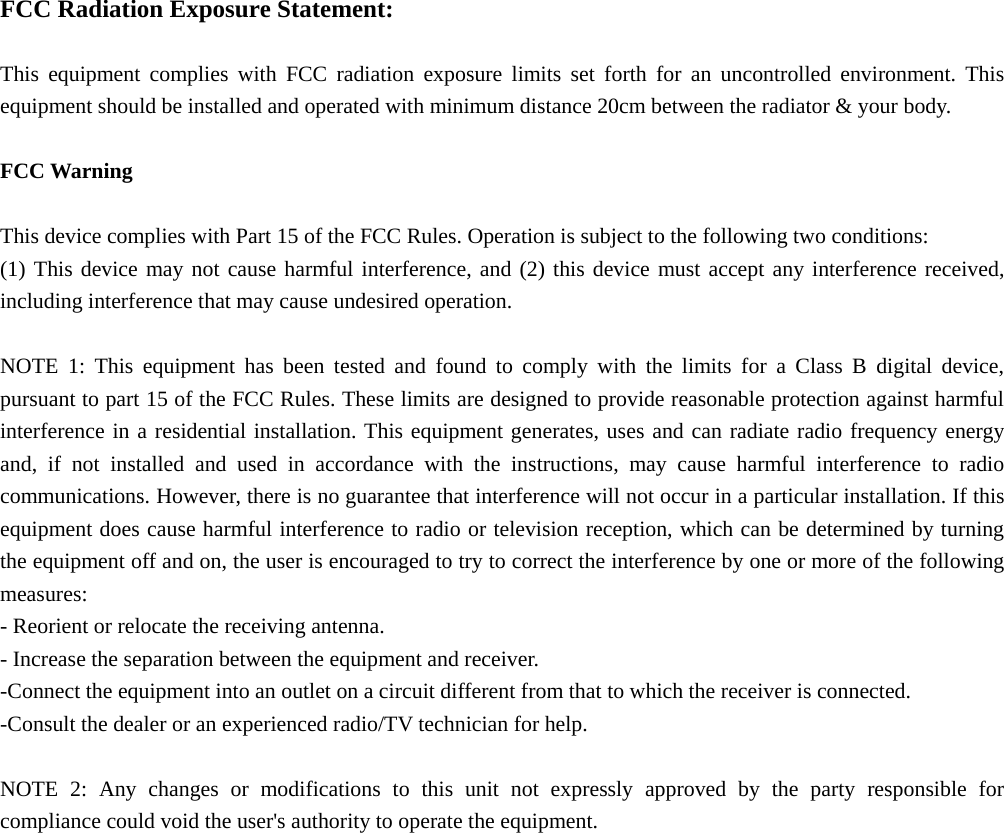

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
