New Force communication Technology NFC-2411 2.45GHz Active Reader User Manual Instruction of NFC 2411

Shenzhen New Force communication Technology Co.,Ltd 2.45GHz Active Reader Instruction of NFC 2411

User Manual

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 1 Instruction of NFC-2411 NFC-2411 is one of 2.4GHz RFID series that we independently developed. With contactless, free from environment impact, long reading distance, excellent anti-collision etc., NFC-2411 reader is applied to various field. Currently, NFC-2411 has widely applied to logistics and warehouse intelligent management, transportation intelligent management, school management, luggage parcel management, docks container management ant personnel positioning system, wireless meter reading system, wireless remote control, voice transmission, data transmission and wireless dish ordering system etc. 1. Overview NFC-2411 is 2.4GHz RFID reader/data transmission module with integrity structure and full-function. It includes RF Module、central control unit, input/output ports, Ethernet module, serial communication interface, non-volatile memory modules and working status indication module etc. NFC-2411 support NFC company protocol. To meet the requirement about protocol and function expanding, and protect user’s investment, the reader can be upgraded with our upgrade software conveniently. NFC-2411 can be used as the devices as below, l RFID reader (NFC-2411E and NFC-2411R): As a RFID reader, it can be used to identify rfid tag. In addition, NFC-2411R has received signal strength indicator (RSSI). l Data transmission module (NFC-2411M): As a data transmission module, it can be used to wireless data transmission, which is widely applied to wireless meter reading system, wireless remote control, voice and data transmission, wireless dish ordering system etc. Figure 1 NFC-2411 reader face 2. Product feature l Small in size and easy to install; l Excellent anti-collision performance, up to 500 tags read simultaneously; l Communication interface: There are 6 kinds of conventional communication interface, such as RS-232, RS-485, Wiegand26/34/42/50, USB, CAN and Ethernet.

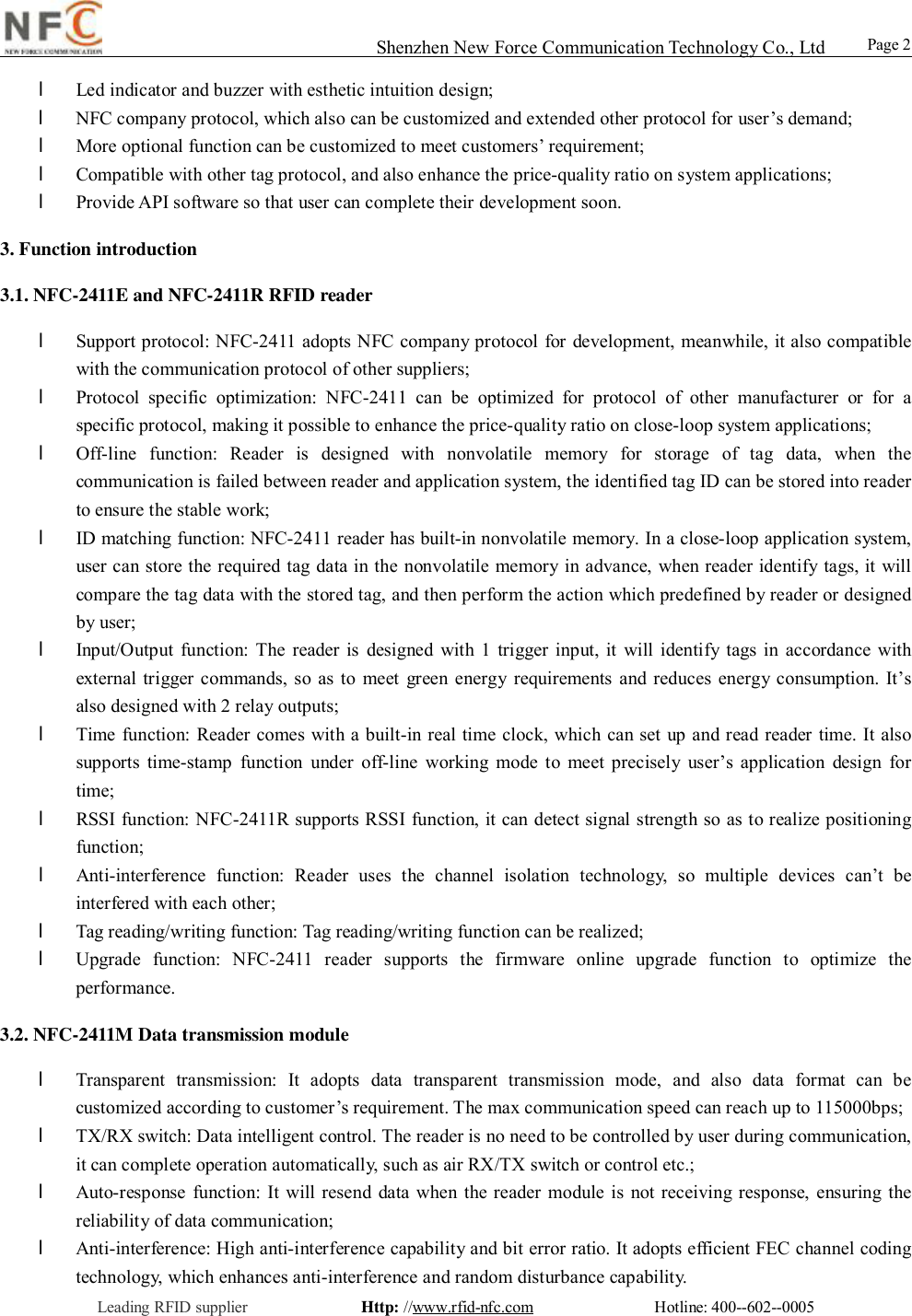

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 2 l Led indicator and buzzer with esthetic intuition design; l NFC company protocol, which also can be customized and extended other protocol for user’s demand; l More optional function can be customized to meet customers’ requirement; l Compatible with other tag protocol, and also enhance the price-quality ratio on system applications; l Provide API software so that user can complete their development soon. 3. Function introduction 3.1. NFC-2411E and NFC-2411R RFID reader l Support protocol: NFC-2411 adopts NFC company protocol for development, meanwhile, it also compatible with the communication protocol of other suppliers; l Protocol specific optimization: NFC-2411 can be optimized for protocol of other manufacturer or for a specific protocol, making it possible to enhance the price-quality ratio on close-loop system applications; l Off-line function: Reader is designed with nonvolatile memory for storage of tag data, when the communication is failed between reader and application system, the identified tag ID can be stored into reader to ensure the stable work; l ID matching function: NFC-2411 reader has built-in nonvolatile memory. In a close-loop application system, user can store the required tag data in the nonvolatile memory in advance, when reader identify tags, it will compare the tag data with the stored tag, and then perform the action which predefined by reader or designed by user; l Input/Output function: The reader is designed with 1 trigger input, it will identify tags in accordance with external trigger commands, so as to meet green energy requirements and reduces energy consumption. It’s also designed with 2 relay outputs; l Time function: Reader comes with a built-in real time clock, which can set up and read reader time. It also supports time-stamp function under off-line working mode to meet precisely user’s application design for time; l RSSI function: NFC-2411R supports RSSI function, it can detect signal strength so as to realize positioning function; l Anti-interference function: Reader uses the channel isolation technology, so multiple devices can’t be interfered with each other; l Tag reading/writing function: Tag reading/writing function can be realized; l Upgrade function: NFC-2411 reader supports the firmware online upgrade function to optimize the performance. 3.2. NFC-2411M Data transmission module l Transparent transmission: It adopts data transparent transmission mode, and also data format can be customized according to customer’s requirement. The max communication speed can reach up to 115000bps; l TX/RX switch: Data intelligent control. The reader is no need to be controlled by user during communication, it can complete operation automatically, such as air RX/TX switch or control etc.; l Auto-response function: It will resend data when the reader module is not receiving response, ensuring the reliability of data communication; l Anti-interference: High anti-interference capability and bit error ratio. It adopts efficient FEC channel coding technology, which enhances anti-interference and random disturbance capability.

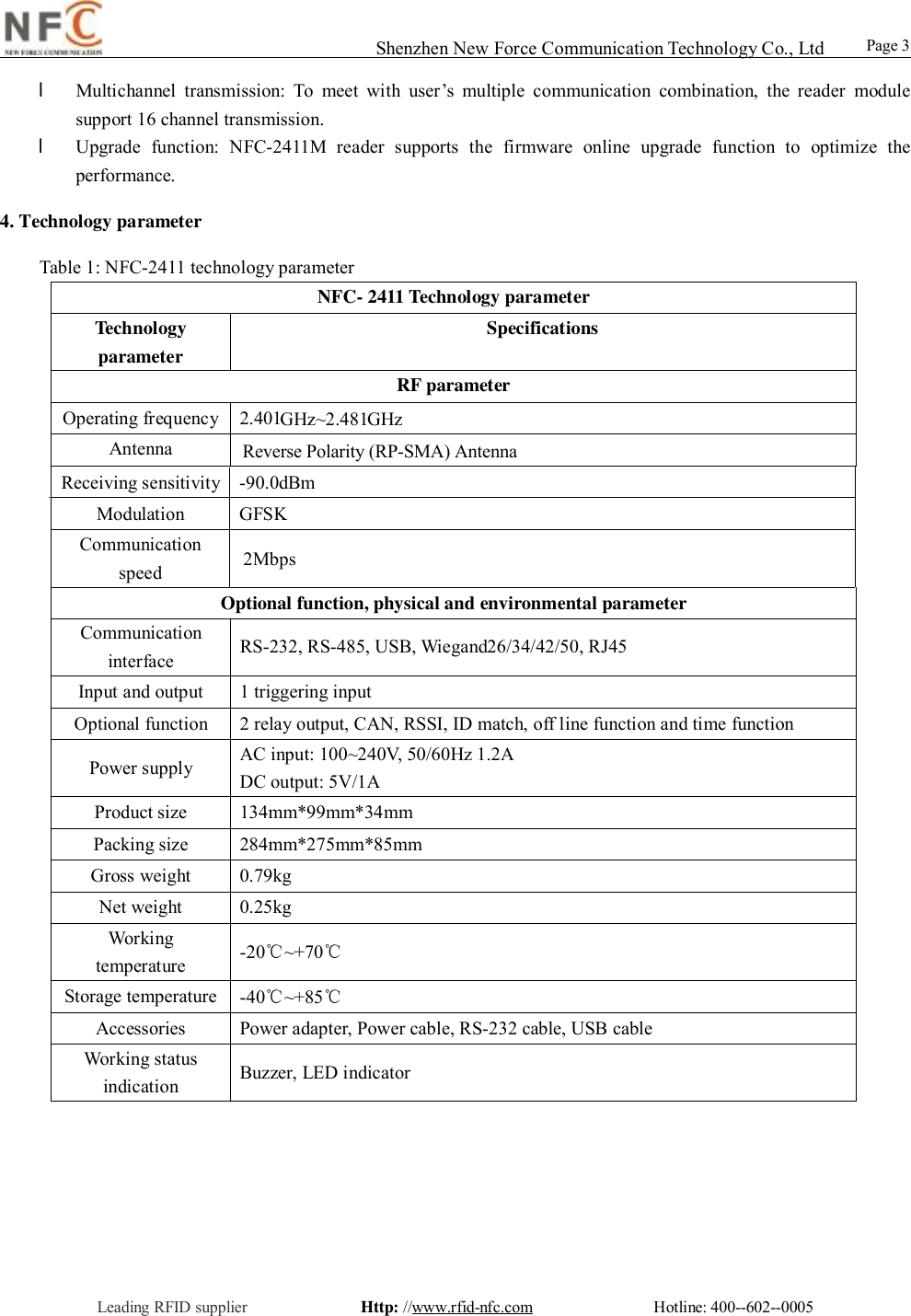

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 3 l Multichannel transmission: To meet with user’s multiple communication combination, the reader module support 16 channel transmission. l Upgrade function: NFC-2411M reader supports the firmware online upgrade function to optimize the performance. 4. Technology parameter Table 1: NFC-2411 technology parameter NFC- 2411 Technology parameter Technology parameter Specifications RF parameter Operating frequency 2.401GHz~2.481GHz Antenna Reverse Polarity (RP-SMA) Antenna Receiving sensitivity -90.0dBm Modulation GFSK Communication speed 2Mbps Optional function, physical and environmental parameter Communication interface RS-232, RS-485, USB, Wiegand26/34/42/50, RJ45 Input and output 1 triggering input Optional function 2 relay output, CAN, RSSI, ID match, off line function and time function Power supply AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A Product size 134mm*99mm*34mm Packing size 284mm*275mm*85mm Gross weight 0.79kg Net weight 0.25kg Working temperature -20℃~+70℃ Storage temperature -40℃~+85℃ Accessories Power adapter, Power cable, RS-232 cable, USB cable Working status indication Buzzer, LED indicator

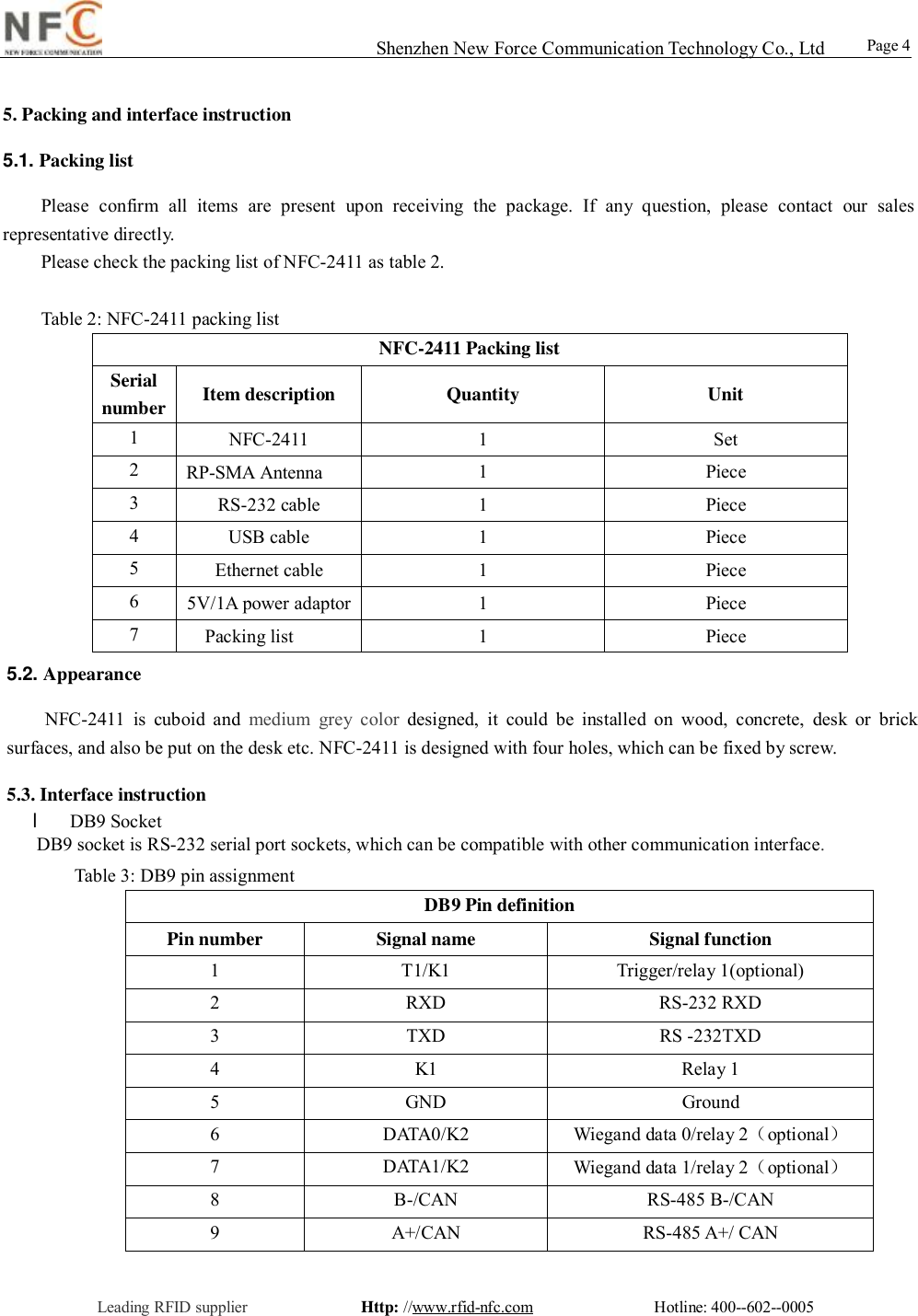

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 4 5. Packing and interface instruction 5.1. Packing list Please confirm all items are present upon receiving the package. If any question, please contact our sales representative directly. Please check the packing list of NFC-2411 as table 2. Table 2: NFC-2411 packing list NFC-2411 Packing list Serial number Item description Quantity Unit 1 NFC-2411 1 Set 2 1 Piece 3 RS-232 cable 1 Piece 4 USB cable 1 Piece 5 Ethernet cable 1 Piece 6 5V/1A power adaptor 1 Piece 7 Packing list 1 Piece 5.2. Appearance NFC-2411 is cuboid and medium grey color designed, it could be installed on wood, concrete, desk or brick surfaces, and also be put on the desk etc. NFC-2411 is designed with four holes, which can be fixed by screw. 5.3. Interface instruction l DB9 Socket RP-SMA Antenna DB9 socket is RS-232 serial port sockets, which can be compatible with other communication interface. Table 3: DB9 pin assignment DB9 Pin definition Pin number Signal name Signal function 1 T1/K1 Trigger/relay 1(optional) 2 RXD RS-232 RXD 3 TXD RS -232TXD 4 K1 Relay 1 5 GND Ground 6 DATA0/K2 Wiegand data 0/relay 2（optional） 7 DATA1/K2 Wiegand data 1/relay 2（optional） 8 B-/CAN RS-485 B-/CAN 9 A+/CAN RS-485 A+/ CAN

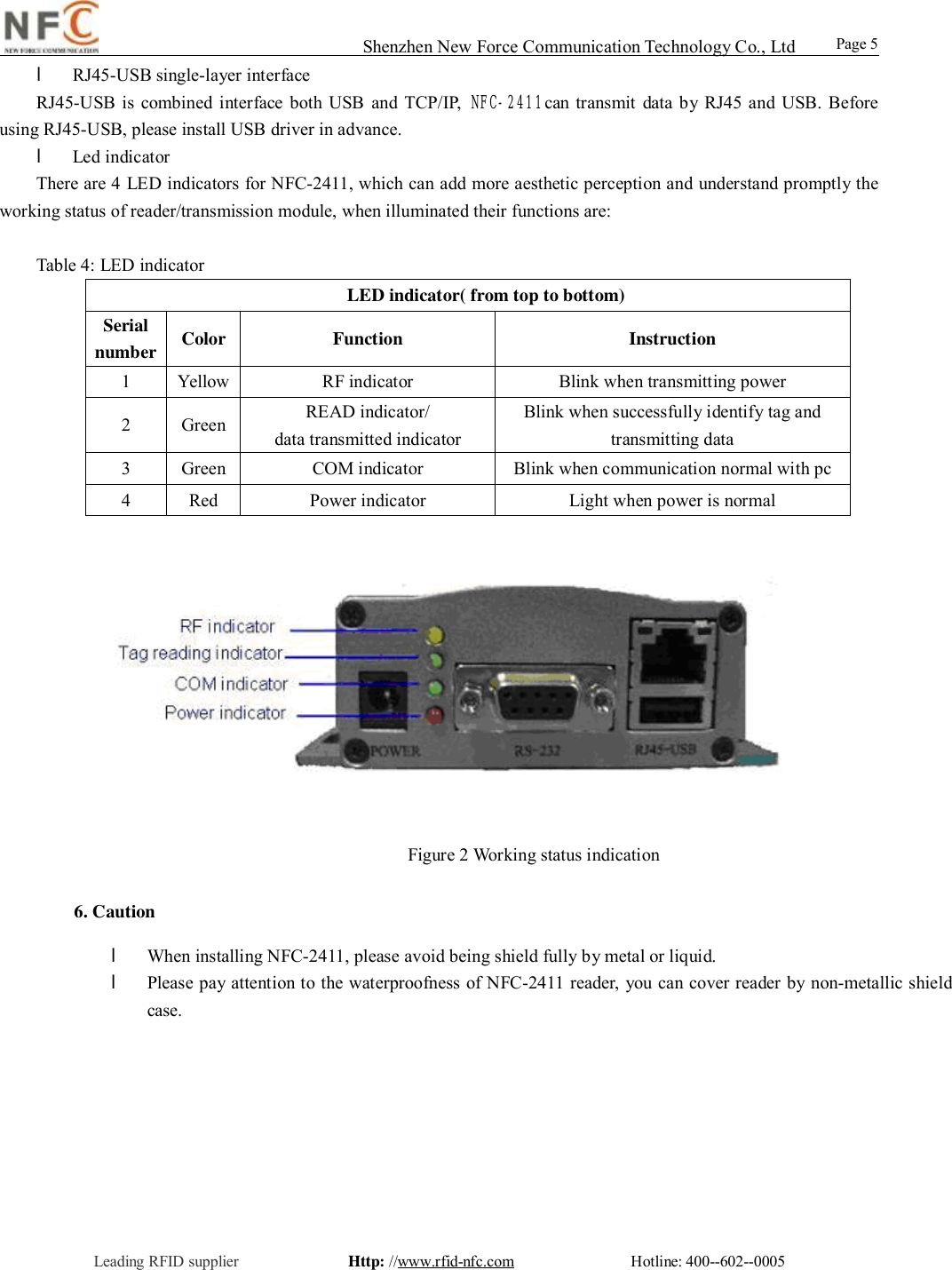

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 5 l RJ45-USB single-layer interface RJ45-USB is combined interface both USB and TCP/IP, NFC-2411can transmit data by RJ45 and USB. Before using RJ45-USB, please install USB driver in advance. l Led indicator There are 4 LED indicators for NFC-2411, which can add more aesthetic perception and understand promptly the working status of reader/transmission module, when illuminated their functions are: Table 4: LED indicator LED indicator( from top to bottom) Serial number Color Function Instruction 1 Yellow RF indicator Blink when transmitting power 2 Green READ indicator/ data transmitted indicator Blink when successfully identify tag and transmitting data 3 Green COM indicator Blink when communication normal with pc 4 Red Power indicator Light when power is normal Figure 2 Working status indication 6. Caution l When installing NFC-2411, please avoid being shield fully by metal or liquid. l Please pay attention to the waterproofness of NFC-2411 reader, you can cover reader by non-metallic shield case.

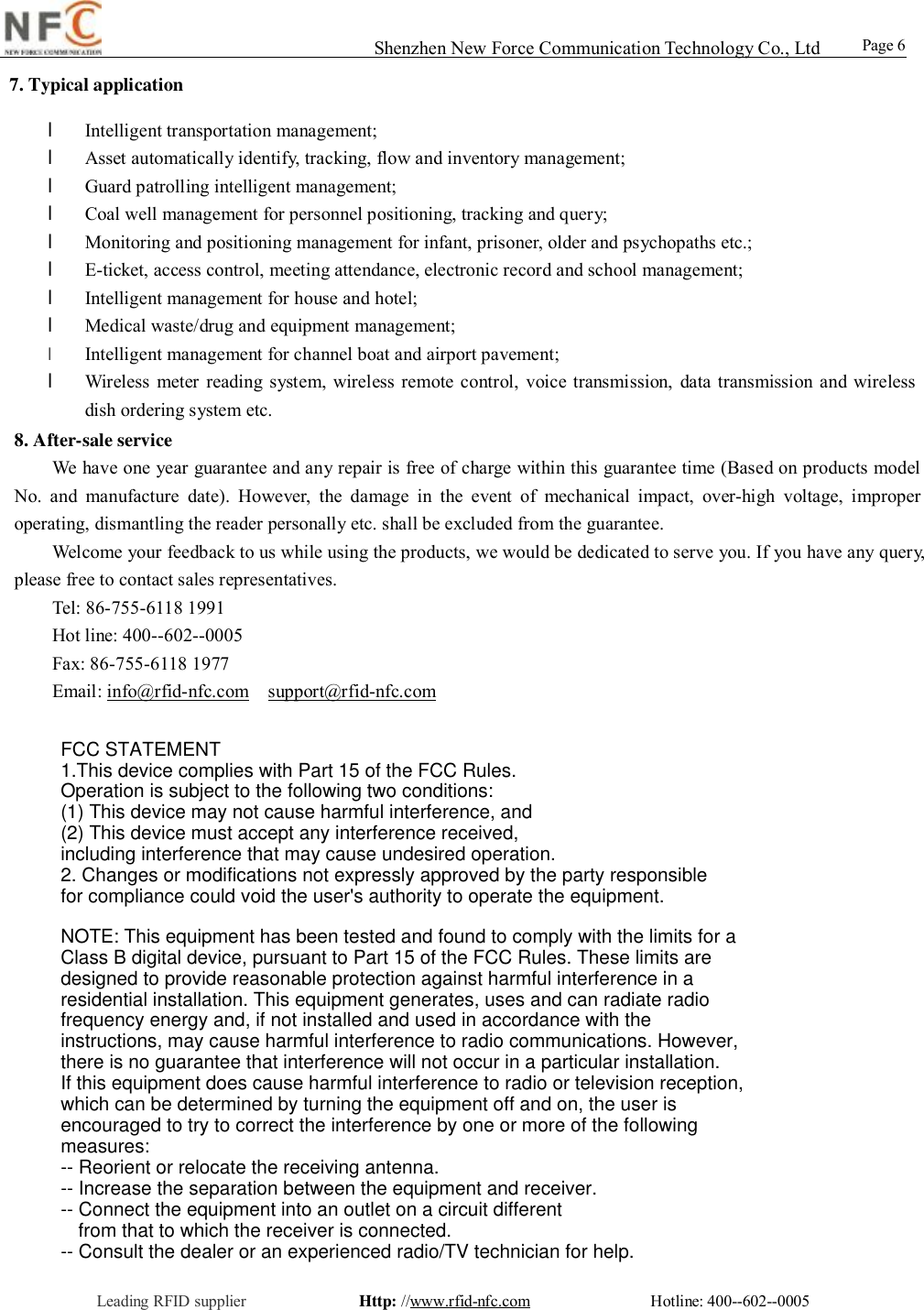

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 6 7. Typical application l Intelligent transportation management; l Asset automatically identify, tracking, flow and inventory management; l Guard patrolling intelligent management; l Coal well management for personnel positioning, tracking and query; l Monitoring and positioning management for infant, prisoner, older and psychopaths etc.; l E-ticket, access control, meeting attendance, electronic record and school management; l Intelligent management for house and hotel; l Medical waste/drug and equipment management; l Intelligent management for channel boat and airport pavement; l Wireless meter reading system, wireless remote control, voice transmission, data transmission and wireless dish ordering system etc. 8. After-sale service We have one year guarantee and any repair is free of charge within this guarantee time (Based on products model No. and manufacture date). However, the damage in the event of mechanical impact, over-high voltage, improper operating, dismantling the reader personally etc. shall be excluded from the guarantee. Welcome your feedback to us while using the products, we would be dedicated to serve you. If you have any query, please free to contact sales representatives. Tel: 86-755-6118 1991 Hot line: 400--602--0005 Fax: 86-755-6118 1977 Email: info@rfid-nfc.com support@rfid-nfc.com FCC STATEMENT1.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.
