New Force communication Technology NFC-2432 2.45GHz Active Tag User Manual Instruction of NFC 2432

Shenzhen New Force communication Technology Co.,Ltd 2.45GHz Active Tag Instruction of NFC 2432

User Manual

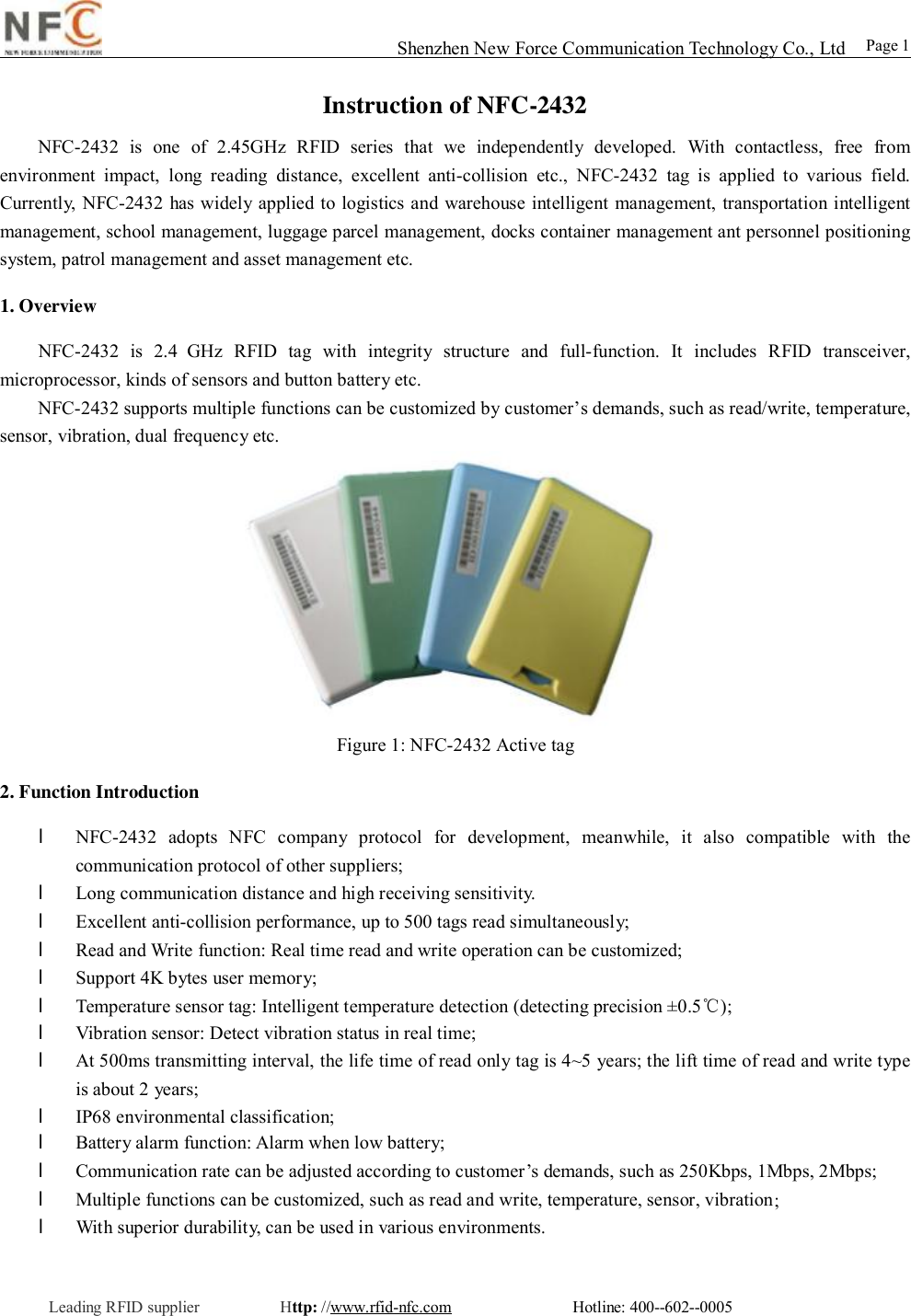

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 1 Instruction of NFC-2432 NFC-2432 is one of 2.45GHz RFID series that we independently developed. With contactless, free from environment impact, long reading distance, excellent anti-collision etc., NFC-2432 tag is applied to various field. Currently, NFC-2432 has widely applied to logistics and warehouse intelligent management, transportation intelligent management, school management, luggage parcel management, docks container management ant personnel positioning system, patrol management and asset management etc. 1. Overview NFC-2432 is 2.4GHz RFID tag with integrity structure and full-function. It includes RFID transceiver, microprocessor, kinds of sensors and button battery etc. NFC-2432 supports multiple functions can be customized by customer’s demands, such as read/write, temperature, sensor, vibration, dual frequency etc. Figure 1: NFC-2432 Active tag 2. Function Introduction l NFC-2432 adopts NFC company protocol for development, meanwhile, it also compatible with the communication protocol of other suppliers; l Long communication distance and high receiving sensitivity. l Excellent anti-collision performance, up to 500 tags read simultaneously; l Read and Write function: Real time read and write operation can be customized; l Support 4K bytes user memory; l Temperature sensor tag: Intelligent temperature detection (detecting precision ±0.5℃); l Vibration sensor: Detect vibration status in real time; l At 500ms transmitting interval, the life time of read only tag is 4~5 years; the lift time of read and write type is about 2 years; l IP68 environmental classification; l Battery alarm function: Alarm when low battery; l Communication rate can be adjusted according to customer’s demands, such as 250Kbps, 1Mbps, 2Mbps; l Multiple functions can be customized, such as read and write, temperature, sensor, vibration; l With superior durability, can be used in various environments.

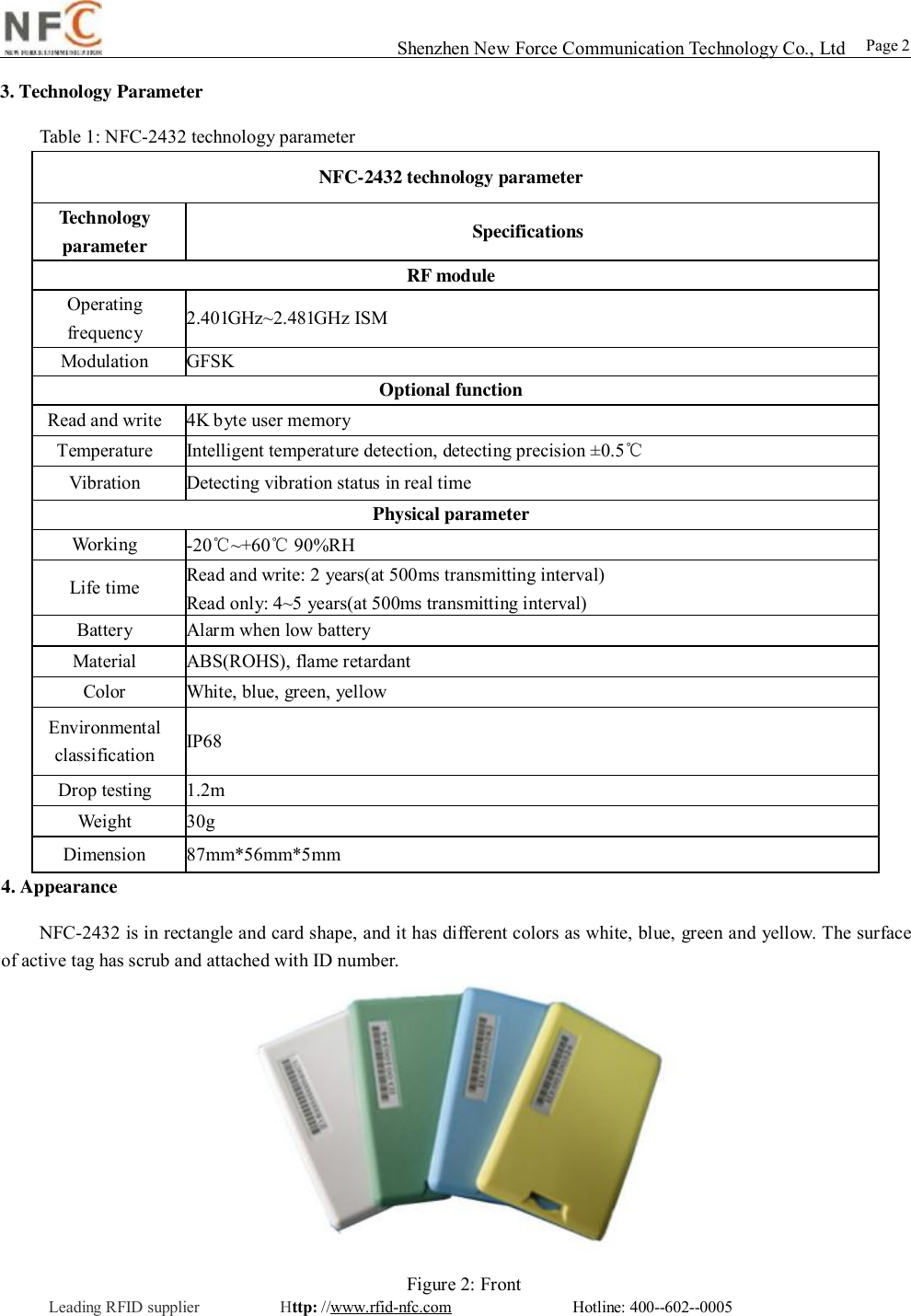

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 2 3. Technology Parameter Table 1: NFC-2432 technology parameter NFC-2432 technology parameter Technology parameter Specifications RF module Operating frequency 2.401GHz~2.481GHz ISM Modulation GFSK Optional function Read and write 4K byte user memory Temperature Intelligent temperature detection, detecting precision ±0.5℃ Vibration Detecting vibration status in real time Physical parameter Working -20℃~+60℃ 90%RH Life time Read and write: 2 years(at 500ms transmitting interval) Read only: 4~5 years(at 500ms transmitting interval) Battery Alarm when low battery Material ABS(ROHS), flame retardant Color White, blue, green, yellow Environmental classification IP68 Drop testing 1.2m Weight 30g Dimension 87mm*56mm*5mm 4. Appearance NFC-2432 is in rectangle and card shape, and it has different colors as white, blue, green and yellow. The surface of active tag has scrub and attached with ID number. Figure 2: Front

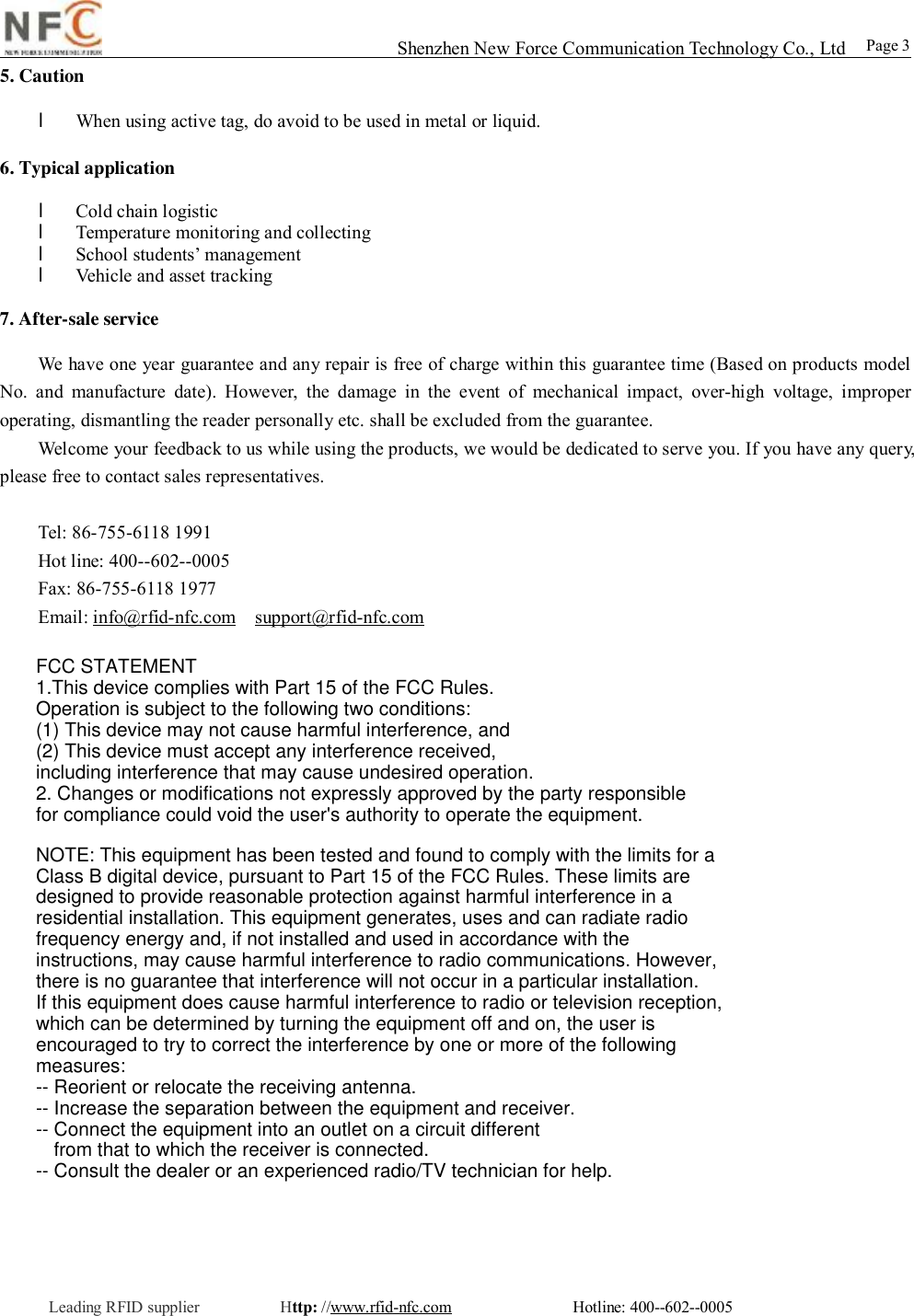

Shenzhen New Force Communication Technology Co., Ltd Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005 Page 3 5. Caution l When using active tag, do avoid to be used in metal or liquid. 6. Typical application l Cold chain logistic l Temperature monitoring and collecting l School students’ management l Vehicle and asset tracking 7. After-sale service We have one year guarantee and any repair is free of charge within this guarantee time (Based on products model No. and manufacture date). However, the damage in the event of mechanical impact, over-high voltage, improper operating, dismantling the reader personally etc. shall be excluded from the guarantee. Welcome your feedback to us while using the products, we would be dedicated to serve you. If you have any query, please free to contact sales representatives. Tel: 86-755-6118 1991 Hot line: 400--602--0005 Fax: 86-755-6118 1977 Email: info@rfid-nfc.com support@rfid-nfc.com FCC STATEMENT1.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.
