NewLift Technologies 11010201 FM TX iV User Manual users manual

NewLift Technologies LTD. FM TX iV users manual

users manual

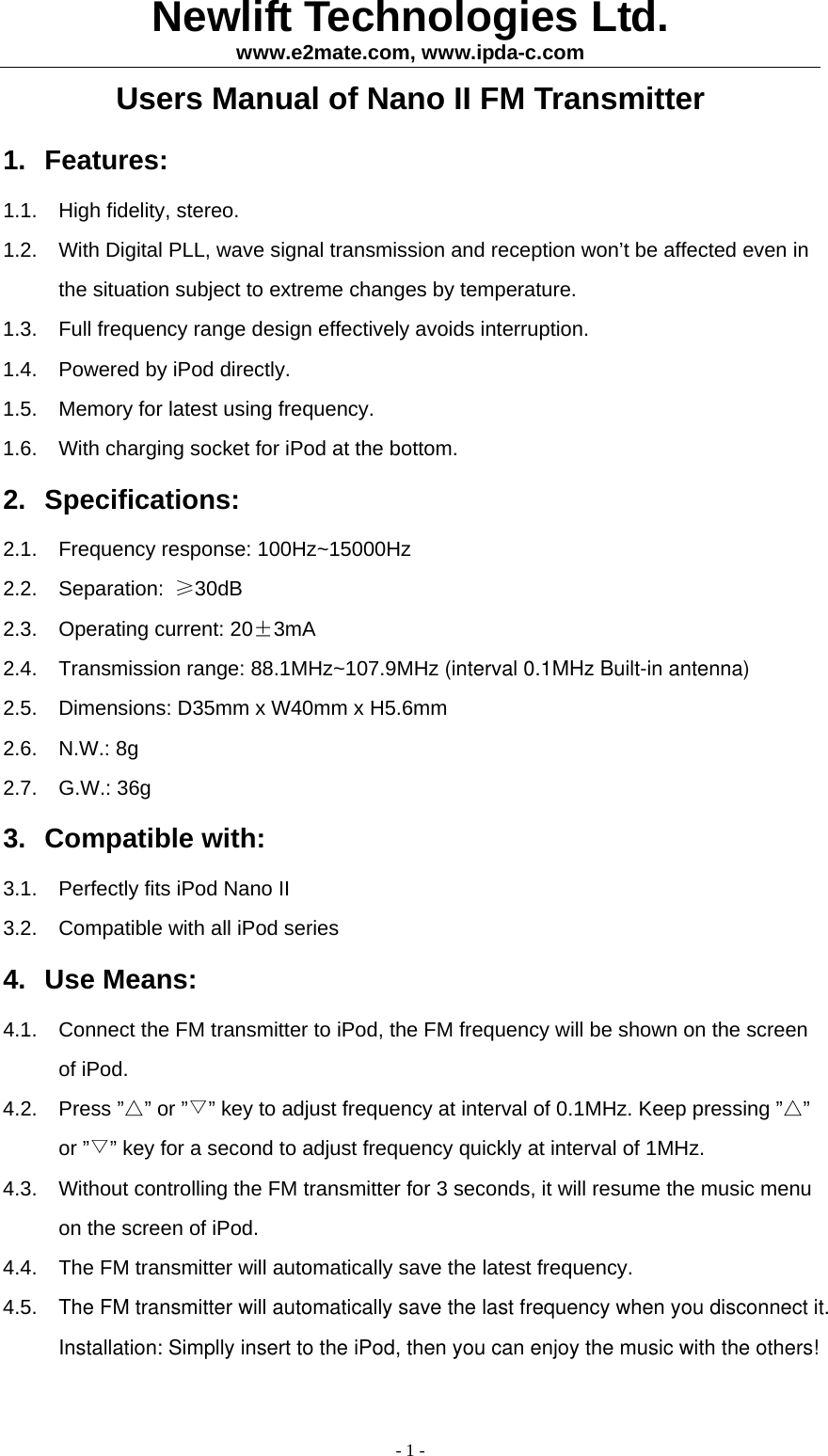

Newlift Technologies Ltd. www.e2mate.com, www.ipda-c.com - 1 - Users Manual of Nano II FM Transmitter 1. Features: 1.1. High fidelity, stereo. 1.2. With Digital PLL, wave signal transmission and reception won’t be affected even in the situation subject to extreme changes by temperature. 1.3. Full frequency range design effectively avoids interruption. 1.4. Powered by iPod directly. 1.5. Memory for latest using frequency. 1.6. With charging socket for iPod at the bottom. 2. Specifications: 2.1. Frequency response: 100Hz~15000Hz 2.2. Separation: ≥30dB 2.3. Operating current: 20±3mA 2.4. Transmission range: 88.1MHz~107.9MHz (interval 0.1MHz Built-in antenna) 2.5. Dimensions: D35mm x W40mm x H5.6mm 2.6. N.W.: 8g 2.7. G.W.: 36g 3. Compatible with: 3.1. Perfectly fits iPod Nano II 3.2. Compatible with all iPod series 4. Use Means: 4.1. Connect the FM transmitter to iPod, the FM frequency will be shown on the screen of iPod. 4.2. Press ”△” or ”▽” key to adjust frequency at interval of 0.1MHz. Keep pressing ”△” or ”▽” key for a second to adjust frequency quickly at interval of 1MHz. 4.3. Without controlling the FM transmitter for 3 seconds, it will resume the music menu on the screen of iPod. 4.4. The FM transmitter will automatically save the latest frequency. 4.5. The FM transmitter will automatically save the last frequency when you disconnect it.Installation: Simplly insert to the iPod, then you can enjoy the music with the others!

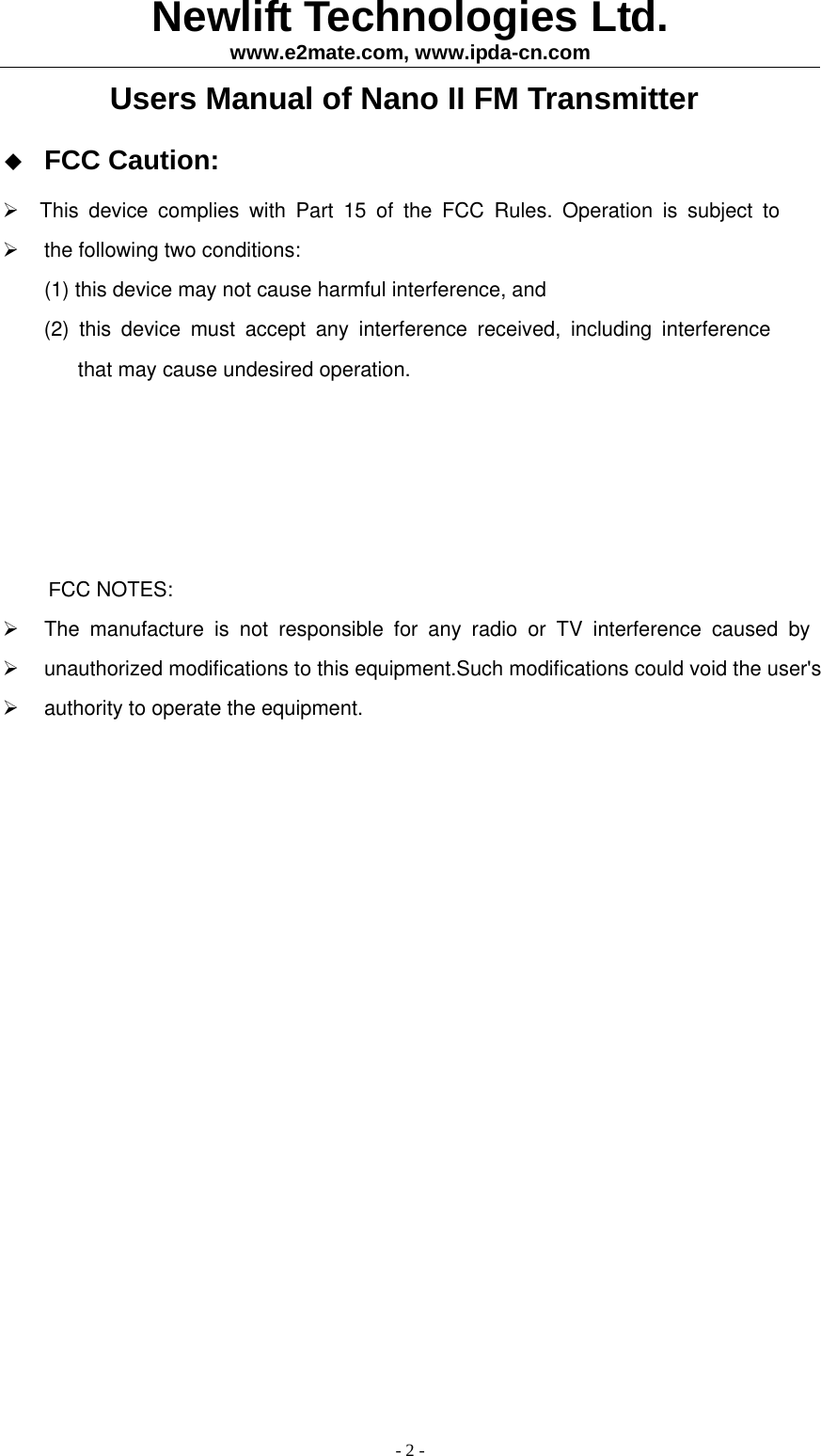

Newlift Technologies Ltd. www.e2mate.com, www.ipda-cn.com - 2 - Users Manual of Nano II FM Transmitter  FCC Caution:  This device complies with Part 15 of the FCC Rules. Operation is subject to  the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTES: The manufacture is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.Such modifications could void the user's  authority to operate the equipment.
