Nextlink.to A/S INVISIO Q7 Bluetooth headset/earpiece Users manual

Users manual

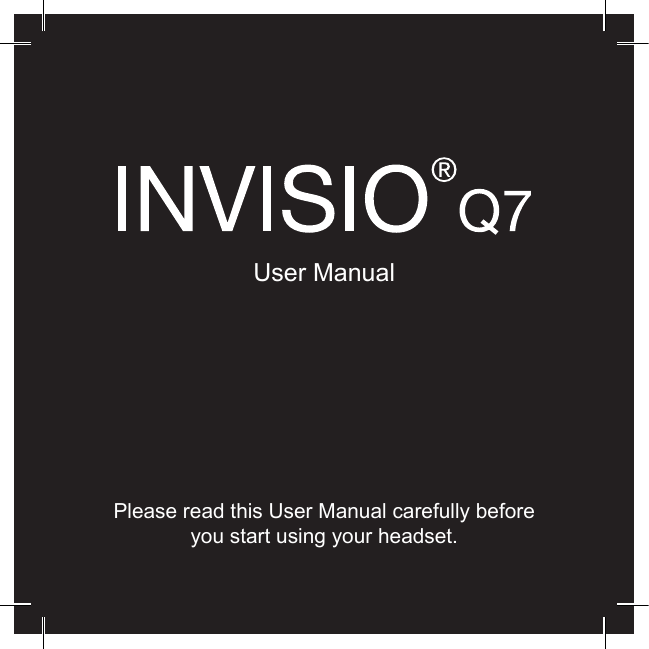

1Please read this User Manual carefully beforeyou start using your headset.User Manual

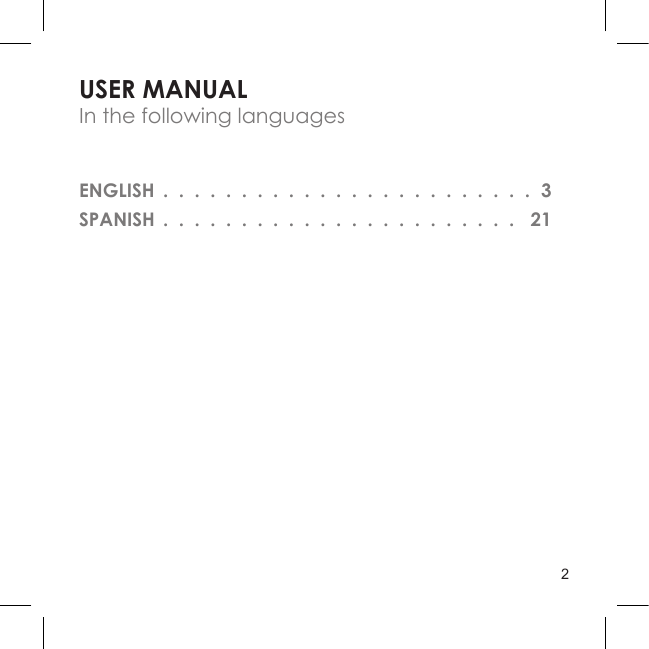

2USER MANUALIn the following languagesENGLISH  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  3SPANISH  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   21

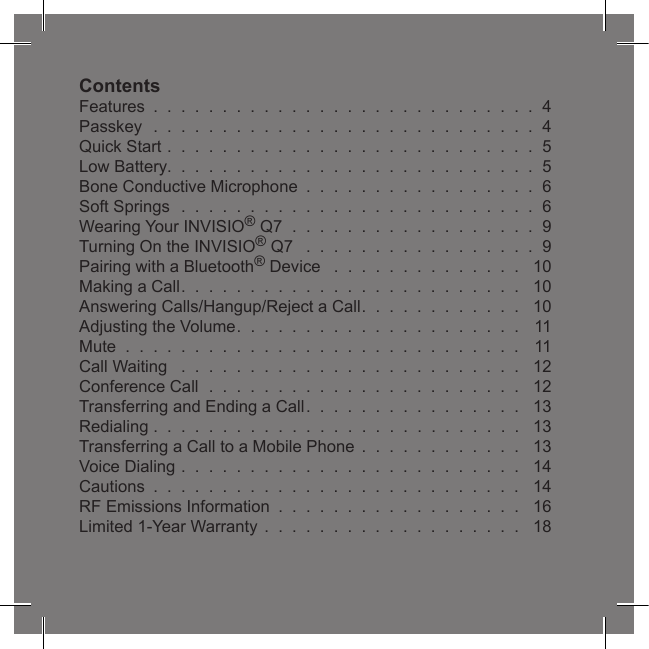

3ContentsFeatures  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  4Passkey  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  4Quick Start .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  5Low Battery.  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  5Bone Conductive Microphone  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  6Soft Springs  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  6Wearing Your INVISIO® Q7  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  9Turning On the INVISIO® Q7   .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  9Pairing with a Bluetooth® Device   .  .  .  .  .  .  .  .  .  .  .  .  .  .   10Making a Call.  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   10Answering Calls/Hangup/Reject a Call.  .  .  .  .  .  .  .  .  .  .  .   10Adjusting the Volume.  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   11Mute  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   11Call Waiting   .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   12Conference Call  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   12Transferring and Ending a Call.  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   13Redialing .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   13Transferring a Call to a Mobile Phone  .  .  .  .  .  .  .  .  .  .  .  .   13Voice Dialing .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   14Cautions  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   14RF Emissions Information  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   16Limited 1-Year Warranty  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   18

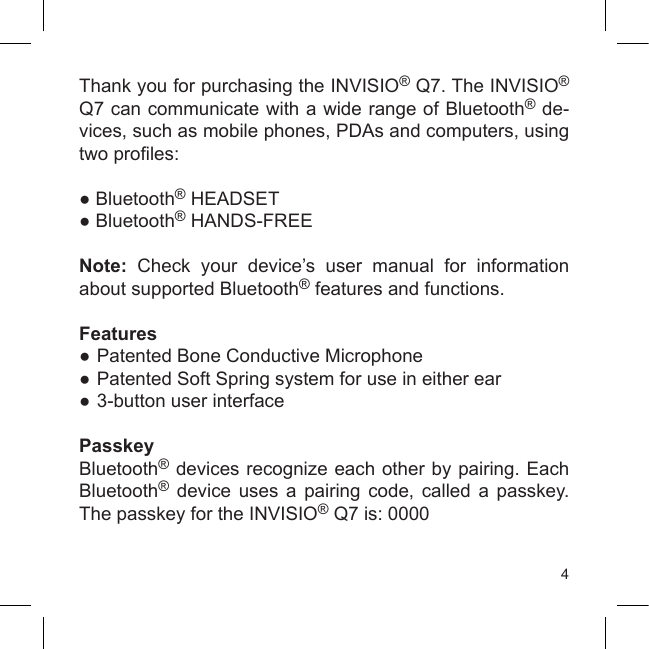

4Thank you for purchasing the INVISIO® Q7. The INVISIO® Q7 can communicate with a wide range of Bluetooth® de-vices, such as mobile phones, PDAs and computers, using two proles:● Bluetooth® HEADSET● Bluetooth® HANDS-FREENote:  Check  your  device’s  user  manual  for  information about supported Bluetooth® features and functions.Features●  Patented Bone Conductive Microphone●  Patented Soft Spring system for use in either ear●  3-button user interfacePasskeyBluetooth® devices recognize each other by pairing. Each Bluetooth®  device  uses  a  pairing  code,  called  a  passkey. The passkey for the INVISIO® Q7 is: 0000

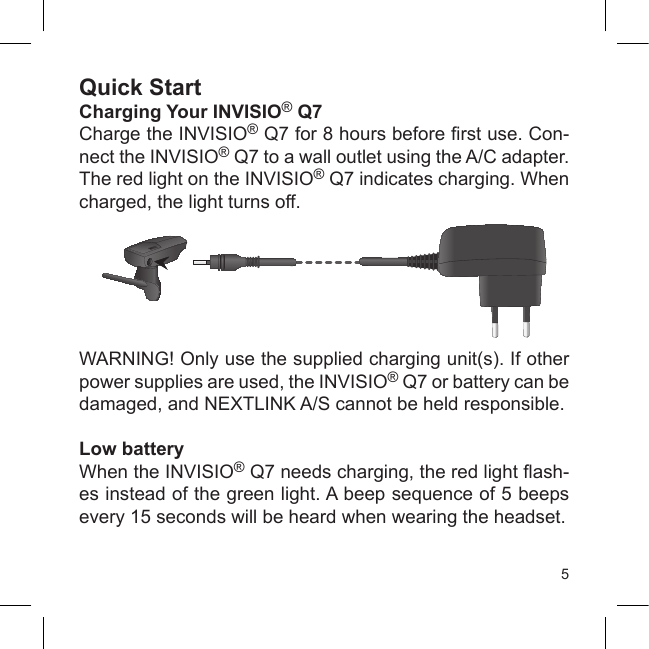

5Quick StartCharging Your INVISIO® Q7Charge the INVISIO® Q7 for 8 hours before rst use. Con-nect the INVISIO® Q7 to a wall outlet using the A/C adapter. The red light on the INVISIO® Q7 indicates charging. When charged, the light turns off.WARNING! Only use the supplied charging unit(s). If other power supplies are used, the INVISIO® Q7 or battery can be damaged, and NEXTLINK A/S cannot be held responsible.Low batteryWhen the INVISIO® Q7 needs charging, the red light ash-es instead of the green light. A beep sequence of 5 beeps every 15 seconds will be heard when wearing the headset.

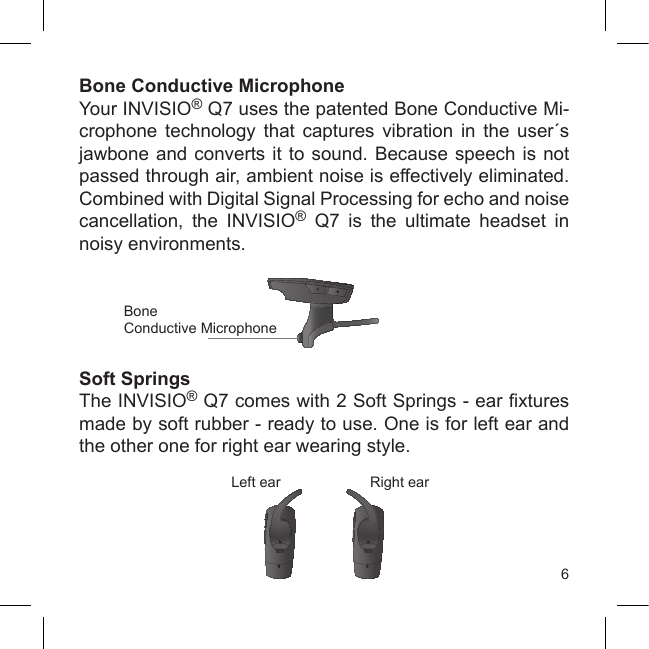

6Bone Conductive MicrophoneYour INVISIO® Q7 uses the patented Bone Conductive Mi-crophone  technology  that  captures  vibration  in  the  user´s jawbone and converts it to sound. Because speech is  not passed through air, ambient noise is effectively eliminated. Combined with Digital Signal Processing for echo and noise cancellation,  the  INVISIO®  Q7  is  the  ultimate  headset  in noisy environments.Soft SpringsThe INVISIO® Q7 comes with 2 Soft Springs - ear xtures made by soft rubber - ready to use. One is for left ear and the other one for right ear wearing style. Left ear Right earBone Conductive Microphone

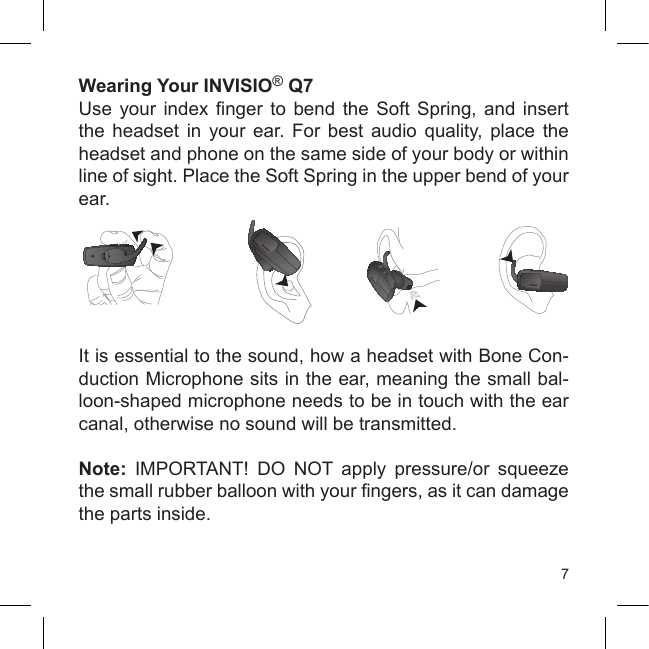

7Wearing Your INVISIO® Q7 Use  your  index  nger  to  bend  the  Soft  Spring,  and  insert the  headset  in  your  ear.  For  best  audio quality,  place  the headset and phone on the same side of your body or within line of sight. Place the Soft Spring in the upper bend of your ear.It is essential to the sound, how a headset with Bone Con-duction Microphone sits in the ear, meaning the small bal-loon-shaped microphone needs to be in touch with the ear canal, otherwise no sound will be transmitted.Note:  IMPORTANT!  DO  NOT  apply  pressure/or  squeeze the small rubber balloon with your ngers, as it can damage the parts inside.

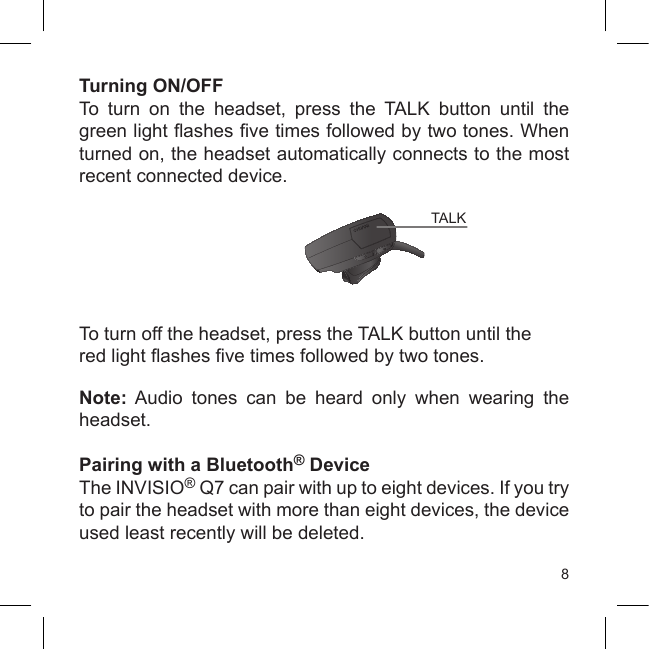

8Turning ON/OFFTo  turn  on  the  headset,  press  the  TALK  button  until  the green light ashes ve times followed by two tones. When turned on, the headset automatically connects to the most recent connected device.To turn off the headset, press the TALK button until thered light ashes ve times followed by two tones.Note:  Audio  tones  can  be  heard  only  when  wearing  the headset.Pairing with a Bluetooth® DeviceThe INVISIO® Q7 can pair with up to eight devices. If you try to pair the headset with more than eight devices, the device used least recently will be deleted.TALK

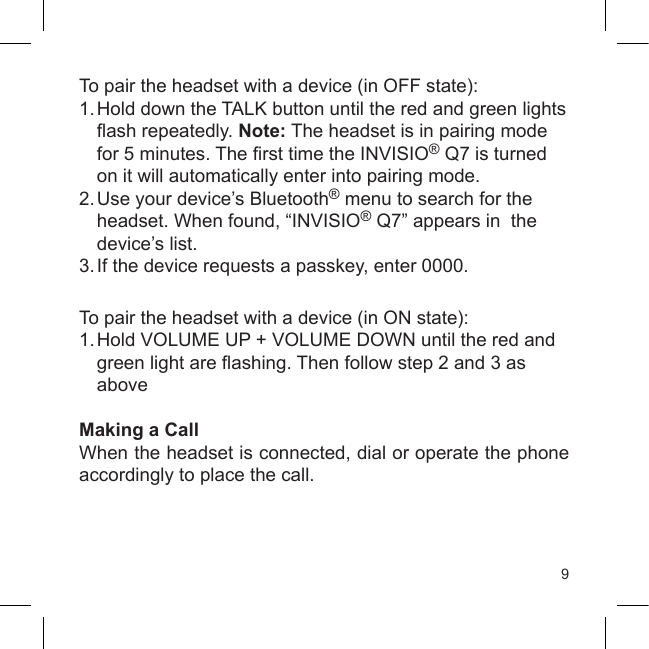

9To pair the headset with a device (in OFF state):1.  Hold down the TALK button until the red and green lights  ash repeatedly. Note: The headset is in pairing mode   for 5 minutes. The rst time the INVISIO® Q7 is turned   on it will automatically enter into pairing mode.2. Use your device’s Bluetooth® menu to search for the    headset. When found, “INVISIO® Q7” appears in  the   device’s list.3. If the device requests a passkey, enter 0000.To pair the headset with a device (in ON state):1.  Hold VOLUME UP + VOLUME DOWN until the red and   green light are ashing. Then follow step 2 and 3 as   aboveMaking a CallWhen the headset is connected, dial or operate the phone accordingly to place the call.

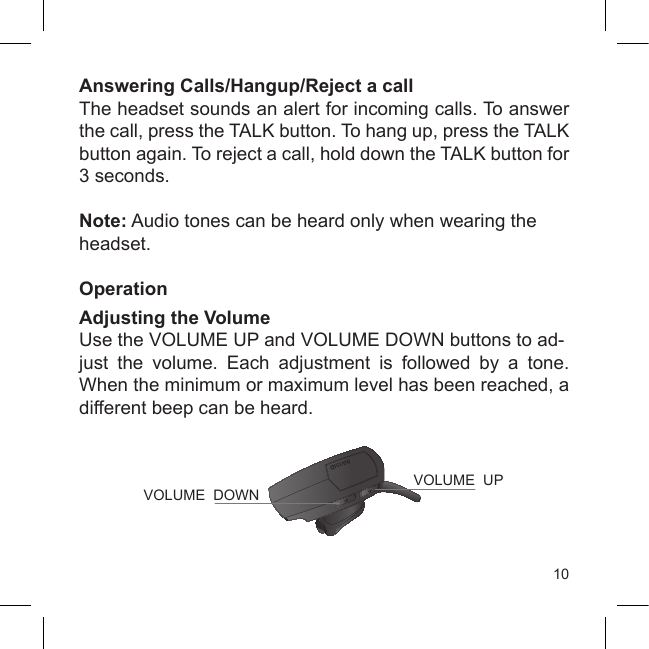

10Answering Calls/Hangup/Reject a callThe headset sounds an alert for incoming calls. To answer the call, press the TALK button. To hang up, press the TALK button again. To reject a call, hold down the TALK button for 3 seconds.Note: Audio tones can be heard only when wearing the headset.OperationAdjusting the VolumeUse the VOLUME UP and VOLUME DOWN buttons to ad-just  the  volume.  Each  adjustment  is  followed  by  a  tone. When the minimum or maximum level has been reached, a different beep can be heard.VOLUME  UPVOLUME  DOWN

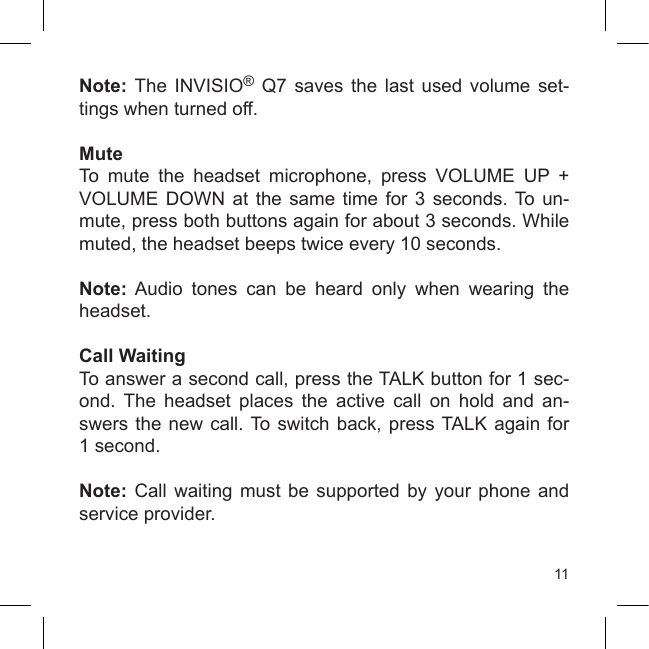

11Note:  The  INVISIO®  Q7  saves  the  last  used  volume  set-tings when turned off.MuteTo  mute  the  headset  microphone,  press  VOLUME  UP  + VOLUME  DOWN  at  the  same  time  for  3  seconds. To  un-mute, press both buttons again for about 3 seconds. While muted, the headset beeps twice every 10 seconds.Note:  Audio  tones  can  be  heard  only  when  wearing  the headset.Call WaitingTo answer a second call, press the TALK button for 1 sec-ond.  The  headset  places  the  active  call  on  hold  and  an-swers the new  call. To switch back, press TALK  again  for 1 second.Note:  Call  waiting  must  be  supported  by  your  phone  and service provider.

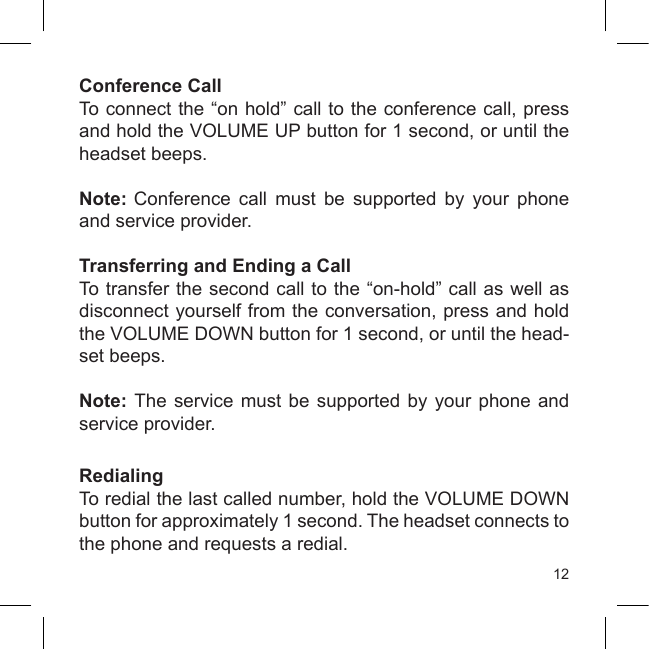

12Conference CallTo connect the “on hold” call to the conference call, press and hold the VOLUME UP button for 1 second, or until the headset beeps.Note: Conference  call  must  be  supported  by  your  phone and service provider.Transferring and Ending a CallTo transfer the second call to the “on-hold” call as well as disconnect yourself from the conversation, press and hold the VOLUME DOWN button for 1 second, or until the head-set beeps.Note: The  service must  be supported  by your  phone and service provider.RedialingTo redial the last called number, hold the VOLUME DOWN button for approximately 1 second. The headset connects to the phone and requests a redial.

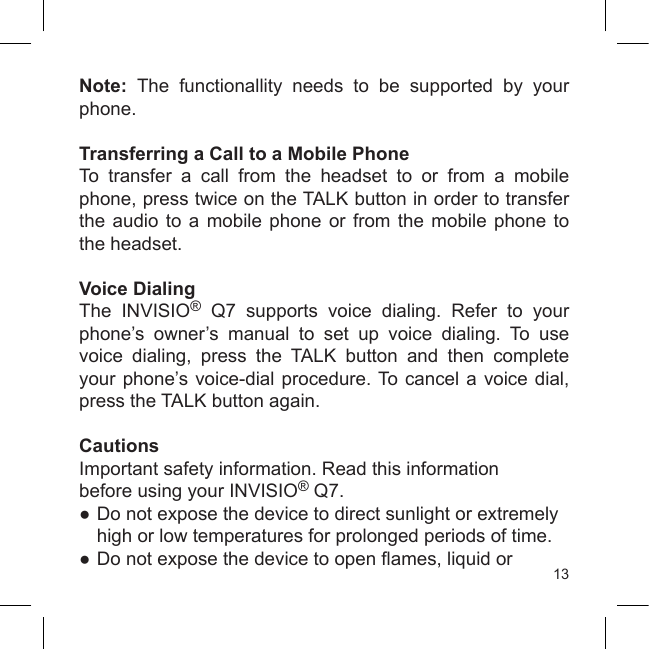

13Note:  The  functionallity  needs  to  be  supported  by  your phone.Transferring a Call to a Mobile PhoneTo  transfer  a  call  from  the  headset  to  or  from  a  mobile phone, press twice on the TALK button in order to transfer the audio  to  a  mobile  phone  or  from  the  mobile  phone  to the headset.Voice DialingThe  INVISIO®  Q7  supports  voice  dialing.  Refer  to  your phone’s  owner’s  manual  to  set  up  voice  dialing.  To  use voice  dialing,  press  the  TALK  button  and  then  complete your phone’s voice-dial procedure. To cancel a voice dial, press the TALK button again.CautionsImportant safety information. Read this informationbefore using your INVISIO® Q7.● Do not expose the device to direct sunlight or extremely    high or low temperatures for prolonged periods of time.●  Do not expose the device to open ames, liquid or

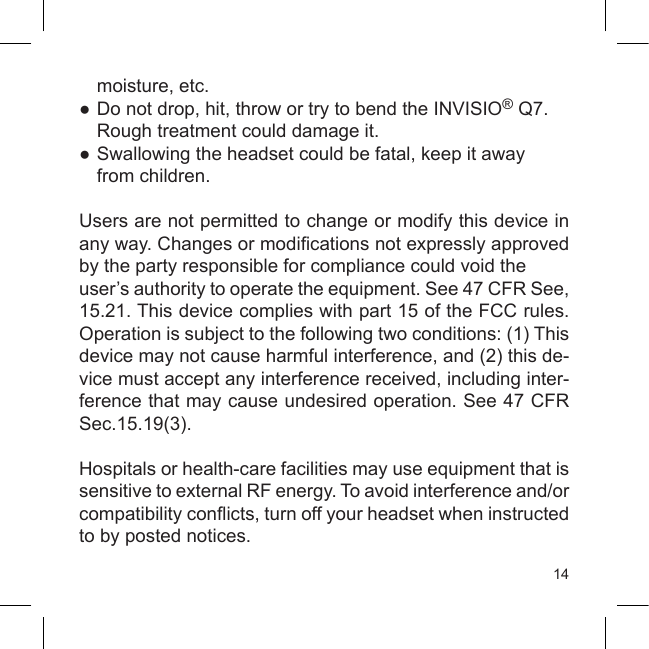

14  moisture, etc.●  Do not drop, hit, throw or try to bend the INVISIO® Q7.   Rough treatment could damage it.●  Swallowing the headset could be fatal, keep it away  from children.Users are not permitted to change or modify this device in any way. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR See, 15.21. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this de-vice must accept any interference received, including inter-ference that may cause undesired operation. See 47 CFR Sec.15.19(3).Hospitals or health-care facilities may use equipment that is sensitive to external RF energy. To avoid interference and/or compatibility conicts, turn off your headset when instructed to by posted notices.

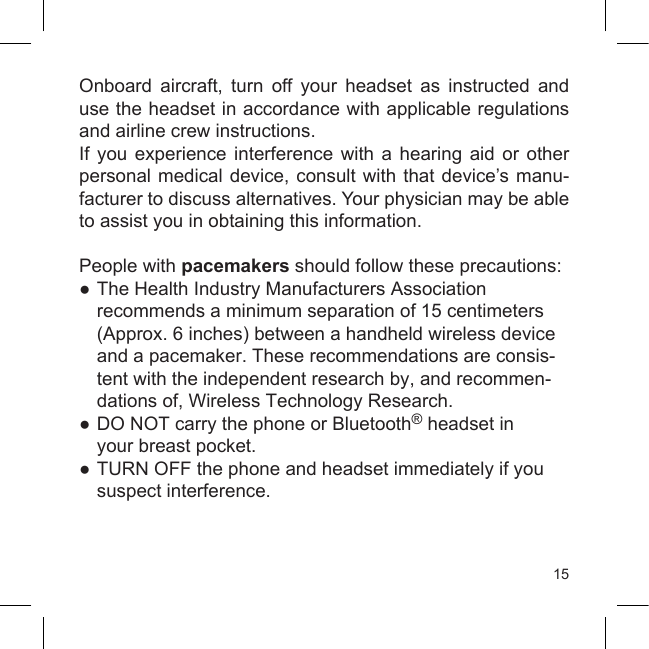

15Onboard  aircraft,  turn  off  your  headset  as  instructed  and use the headset in accordance with applicable regulations and airline crew instructions.If  you  experience  interference  with  a  hearing  aid  or  other personal medical device, consult with that device’s manu-facturer to discuss alternatives. Your physician may be able to assist you in obtaining this information.People with pacemakers should follow these precautions:● The Health Industry Manufacturers Association  recommends a minimum separation of 15 centimeters    (Approx. 6 inches) between a handheld wireless device   and a pacemaker. These recommendations are consis-  tent with the independent research by, and recommen-   dations of, Wireless Technology Research.●  DO NOT carry the phone or Bluetooth® headset in  your breast pocket.●  TURN OFF the phone and headset immediately if you  suspect interference.

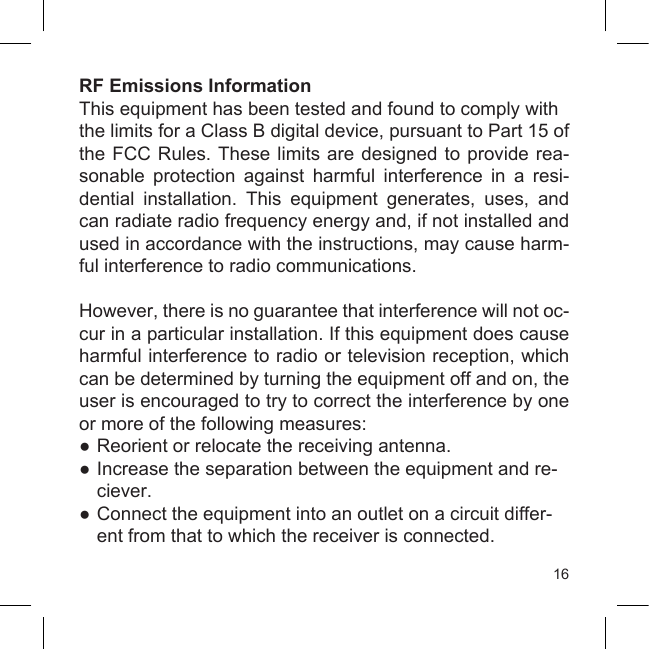

16RF Emissions InformationThis equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed  to  provide  rea-sonable  protection  against  harmful  interference  in  a  resi-dential  installation.  This  equipment  generates,  uses,  and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harm-ful interference to radio communications.However, there is no guarantee that interference will not oc-cur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:● Reorient or relocate the receiving antenna.● Increase the separation between the equipment and re-  ciever.● Connect the equipment into an outlet on a circuit differ-  ent from that to which the receiver is connected.

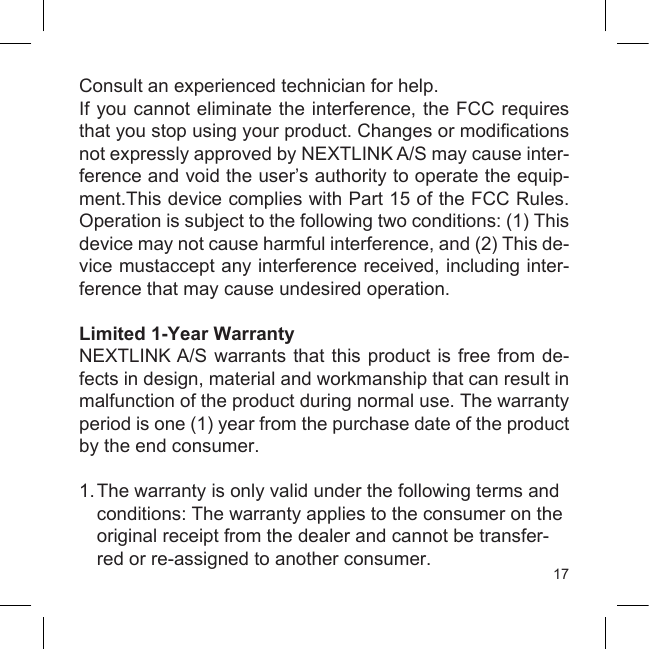

17Consult an experienced technician for help.If you cannot eliminate the  interference, the FCC requires that you stop using your product. Changes or modications not expressly approved by NEXTLINK A/S may cause inter-ference and void the user’s authority to operate the equip-ment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This de-vice mustaccept any interference received, including inter-ference that may cause undesired operation. Limited 1-Year WarrantyNEXTLINK A/S warrants that this product is free from de-fects in design, material and workmanship that can result in malfunction of the product during normal use. The warranty period is one (1) year from the purchase date of the product by the end consumer.1. The warranty is only valid under the following terms and  conditions: The warranty applies to the consumer on the  original receipt from the dealer and cannot be transfer-  red or re-assigned to another consumer.

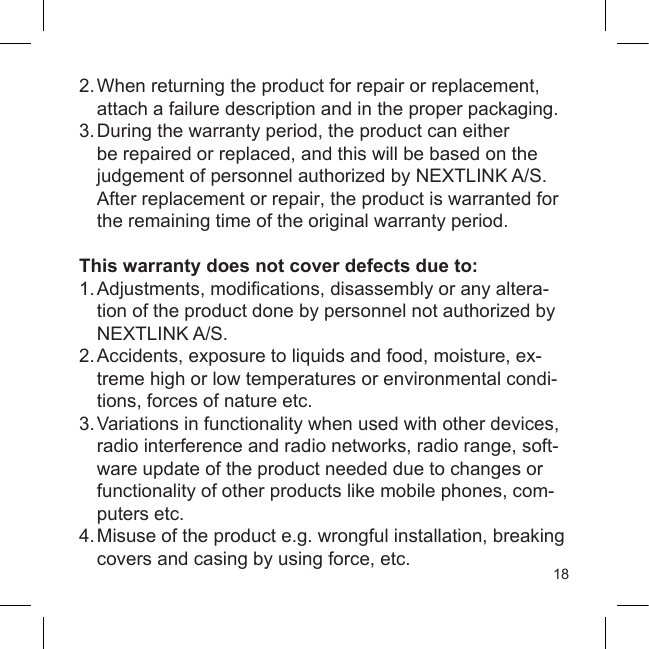

182. When returning the product for repair or replacement,  attach a failure description and in the proper packaging.3. During the warranty period, the product can either  be repaired or replaced, and this will be based on the  judgement of personnel authorized by NEXTLINK A/S.  After replacement or repair, the product is warranted for  the remaining time of the original warranty period.This warranty does not cover defects due to:1. Adjustments, modications, disassembly or any altera-   tion of the product done by personnel not authorized by  NEXTLINK A/S.2. Accidents, exposure to liquids and food, moisture, ex-  treme high or low temperatures or environmental condi-   tions, forces of nature etc.3. Variations in functionality when used with other devices,  radio interference and radio networks, radio range,  soft-  ware update of the product needed due to changes or   functionality of other products like mobile phones, com-  puters etc.4. Misuse of the product e.g. wrongful installation, breaking  covers and casing by using force, etc.

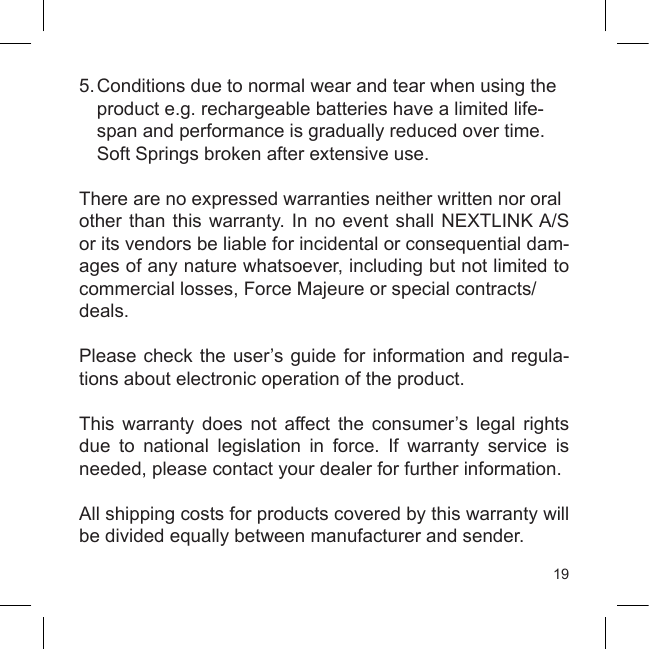

195. Conditions due to normal wear and tear when using the  product e.g. rechargeable batteries have a limited life-  span and performance is gradually reduced over time.     Soft Springs broken after extensive use.There are no expressed warranties neither written nor oralother than this warranty.  In  no event shall NEXTLINK A/S or its vendors be liable for incidental or consequential dam-ages of any nature whatsoever, including but not limited to commercial losses, Force Majeure or special contracts/deals.Please check the user’s guide for information and regula-tions about electronic operation of the product. This  warranty  does  not  affect  the  consumer’s  legal  rights due  to  national  legislation  in  force.  If  warranty  service  is needed, please contact your dealer for further information. All shipping costs for products covered by this warranty will be divided equally between manufacturer and sender.

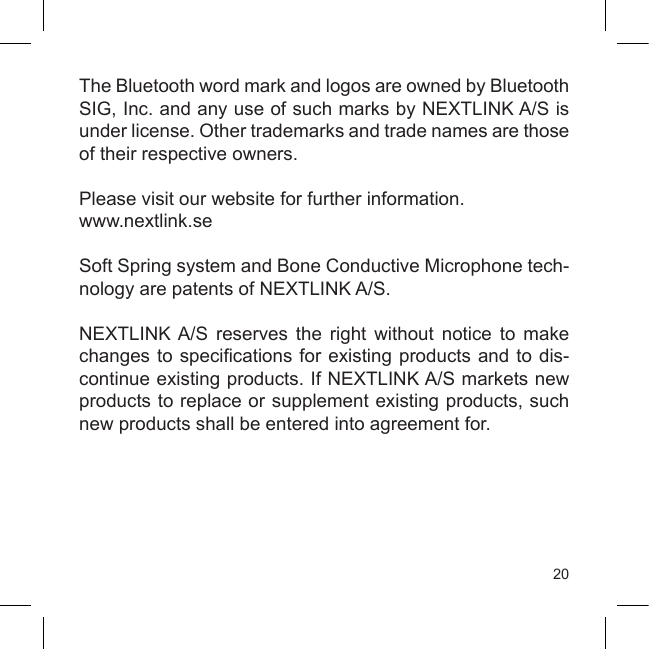

20The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by NEXTLINK A/S is under license. Other trademarks and trade names are those of their respective owners. Please visit our website for further information. www.nextlink.seSoft Spring system and Bone Conductive Microphone tech-nology are patents of NEXTLINK A/S.NEXTLINK A/S  reserves  the  right  without  notice  to  make changes to specications for existing products and to dis-continue existing products. If NEXTLINK A/S markets new products to replace or supplement existing products, such new products shall be entered into agreement for.

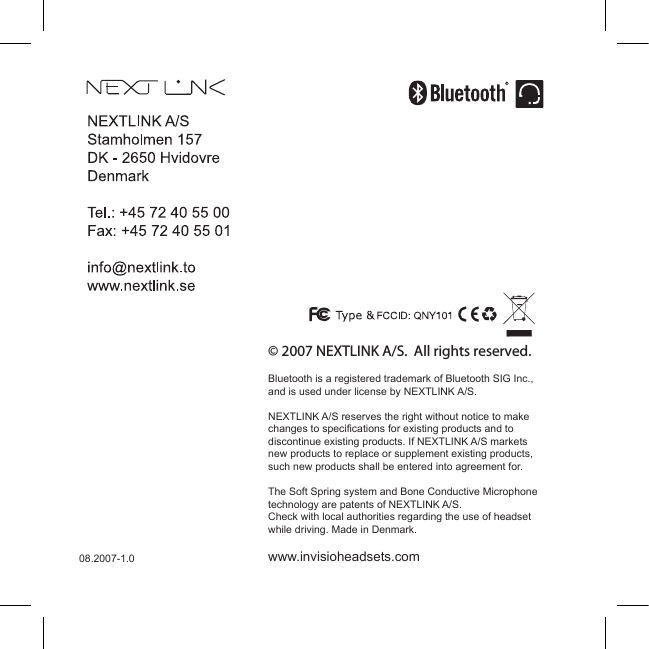

21© 2007 NEXTLINK A/S.  All rights reserved.Bluetooth is a registered trademark of Bluetooth SIG Inc., and is used under license by NEXTLINK A/S.NEXTLINK A/S reserves the right without notice to make changes to specifications for existing products and to discontinue existing products. If NEXTLINK A/S markets new products to replace or supplement existing products, such new products shall be entered into agreement for.The Soft Spring system and Bone Conductive Microphone technology are patents of NEXTLINK A/S. Check with local authorities regarding the use of headset while driving. Made in Denmark.www.invisioheadsets.com08.2007-1.0
