Ningbo Lumiaudio Electronic Technology MAB MINI BLUTOOTH AMPLIFIER User Manual MAB 1 manual

Ningbo Lumiaudio Electronic Technology LTD MINI BLUTOOTH AMPLIFIER MAB 1 manual

User Manual

MAB-1MINI BLUETOOTH AMPLIFIER

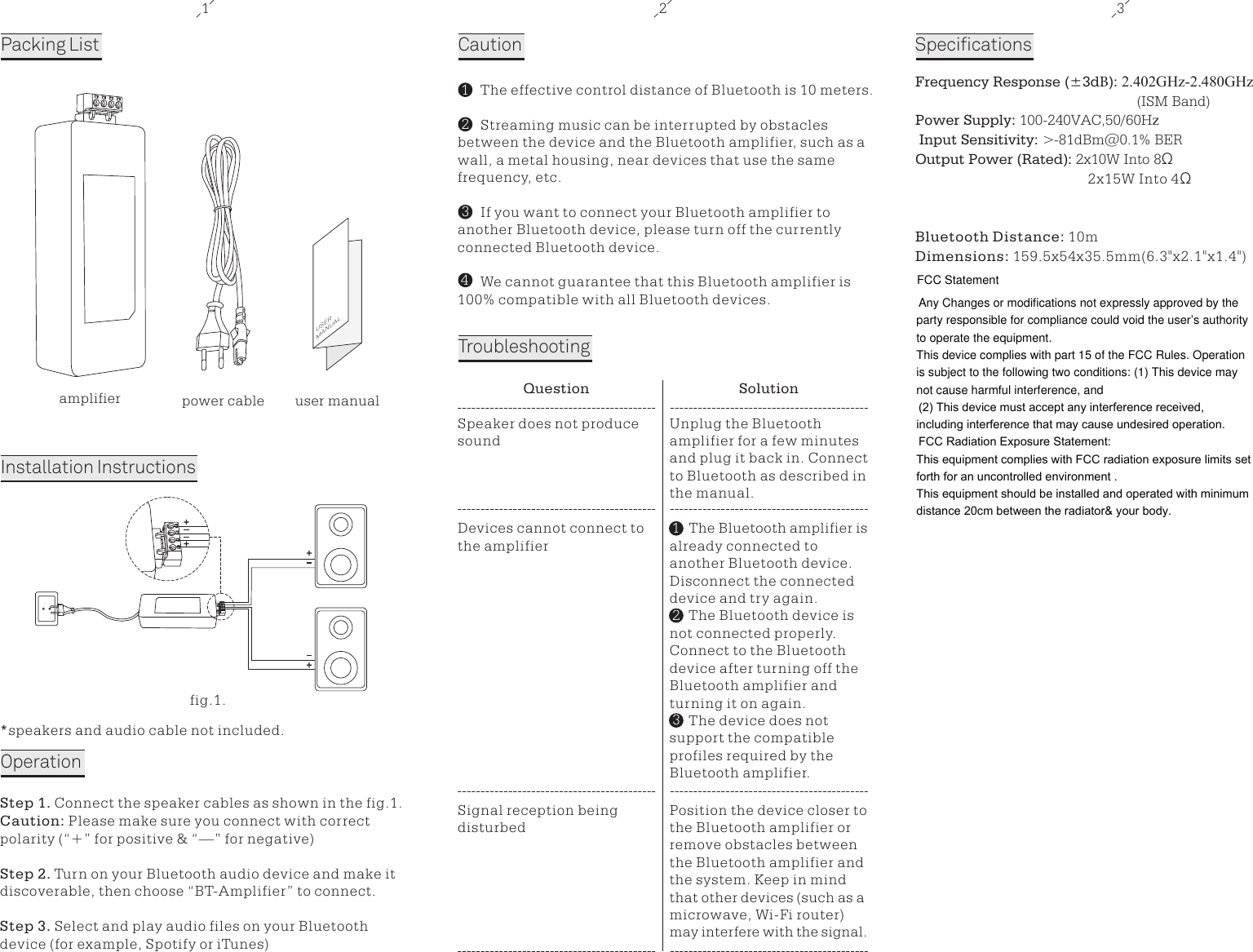

1 2 3Packing ListUSERMANUALamplifier user manualInstallation InstructionsCautionTroubleshootingpower cable*speakers and audio cable not included.OperationStep 1. Connect the speaker cables as shown in the fig.1. Caution: Please make sure you connect with correct polarity (“+” for positive & “—” for negative)Step 2. Turn on your Bluetooth audio device and make it discoverable, then choose “BT-Amplifier” to connect.Step 3. Select and play audio files on your Bluetooth device (for example, Spotify or iTunes) The effective control distance of Bluetooth is 10 meters. Streaming music can be interrupted by obstacles between the device and the Bluetooth amplifier, such as a wall, a metal housing, near devices that use the same frequency, etc. If you want to connect your Bluetooth amplifier to another Bluetooth device, please turn off the currently connected Bluetooth device. We cannot guarantee that this Bluetooth amplifier is 100% compatible with all Bluetooth devices.1324Question SolutionSpeaker does not produce soundUnplug the Bluetooth amplifier for a few minutes and plug it back in. Connect to Bluetooth as described in the manual.Devices cannot connect to the amplifier The Bluetooth amplifier is already connected to another Bluetooth device. Disconnect the connected device and try again. The Bluetooth device is not connected properly. Connect to the Bluetooth device after turning off the Bluetooth amplifier and turning it on again. The device does not support the compatible profiles required by the Bluetooth amplifier.Signal reception being disturbedPosition the device closer to the Bluetooth amplifier or remove obstacles between the Bluetooth amplifier and the system. Keep in mind that other devices (such as a microwave, Wi-Fi router) may interfere with the signal.Frequency Response (±3dB): 2.402GHz-2.480GHz(ISM Band) Power Supply: 100-240VAC,50/60Hz Input Sensitivity: > -81dBm@0.1% BER Output Power (Rated): 2x10W Into 8Ω 2x15W Into 4ΩBluetooth Distance: 10mDimensions: 159.5x54x35.5mm(6.3"x2.1"x1.4")Specifications132fig.1.FCC StatementAny Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
