Ningbo Pdlux Electronic Technology PD-V5 Microwave Sensor User Manual SIR13 installation instructions2

Ningbo Pdlux Electronic Technology CO.,LTD. Microwave Sensor SIR13 installation instructions2

User Manual

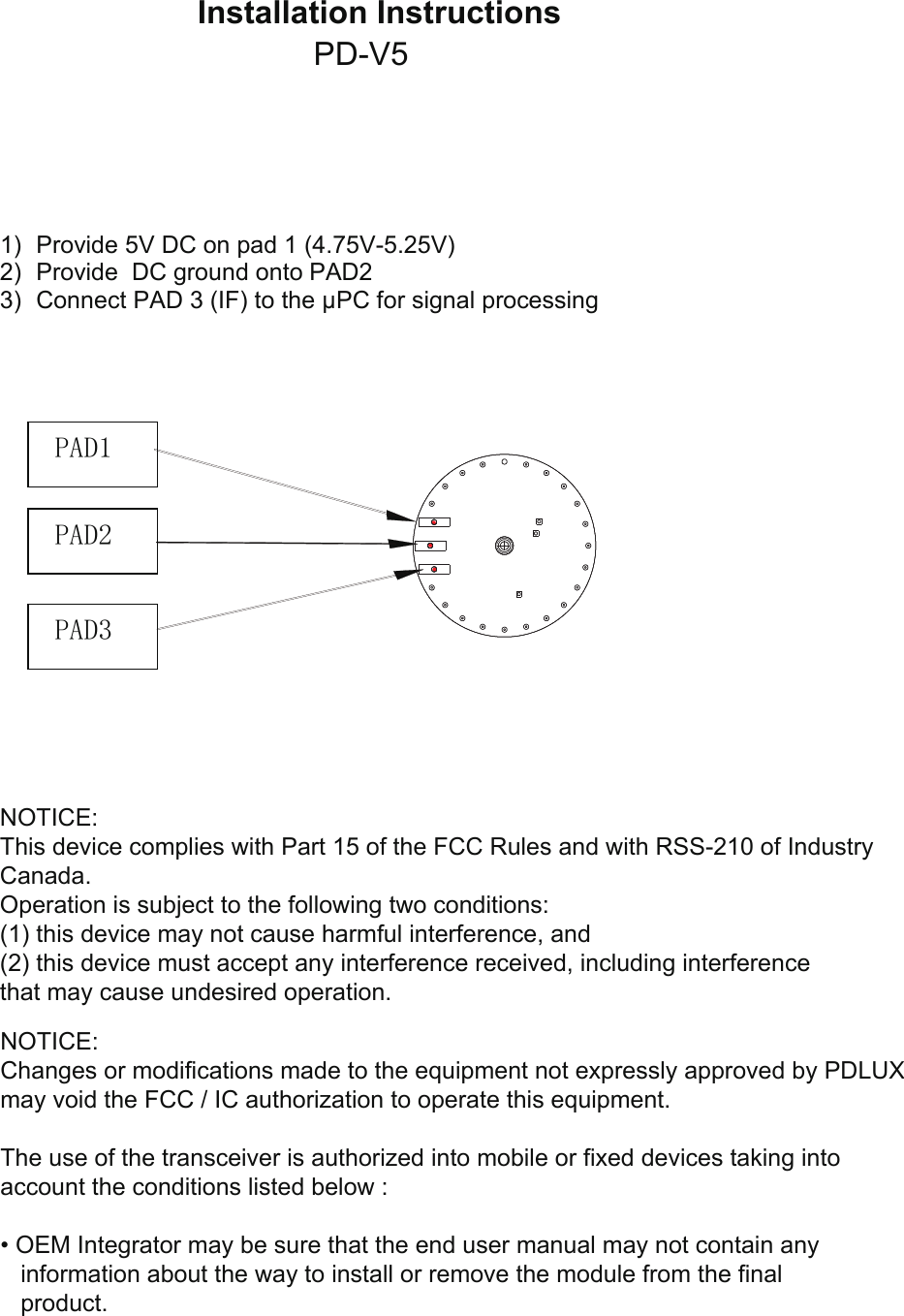

Installation Instructions 1) Provide 5V DC on pad 1 (4.75V-5.25V)2) Provide  DC ground onto PAD23) Connect PAD 3 (IF) to the µPC for signal processingPAD1 PAD3 PAD2 NOTICE:This device complies with Part 15 of the FCC Rules and with RSS-210 of IndustryCanada.Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interferencethat may cause undesired operation.NOTICE:Changes or modifications made to the equipment not expressly approved by PDLUX may void the FCC / IC authorization to operate this equipment.The use of the transceiver is authorized into mobile or fixed devices taking intoaccount the conditions listed below :• OEM Integrator may be sure that the end user manual may not contain anyinformation about the way to install or remove the module from the finalproduct.PD-V5

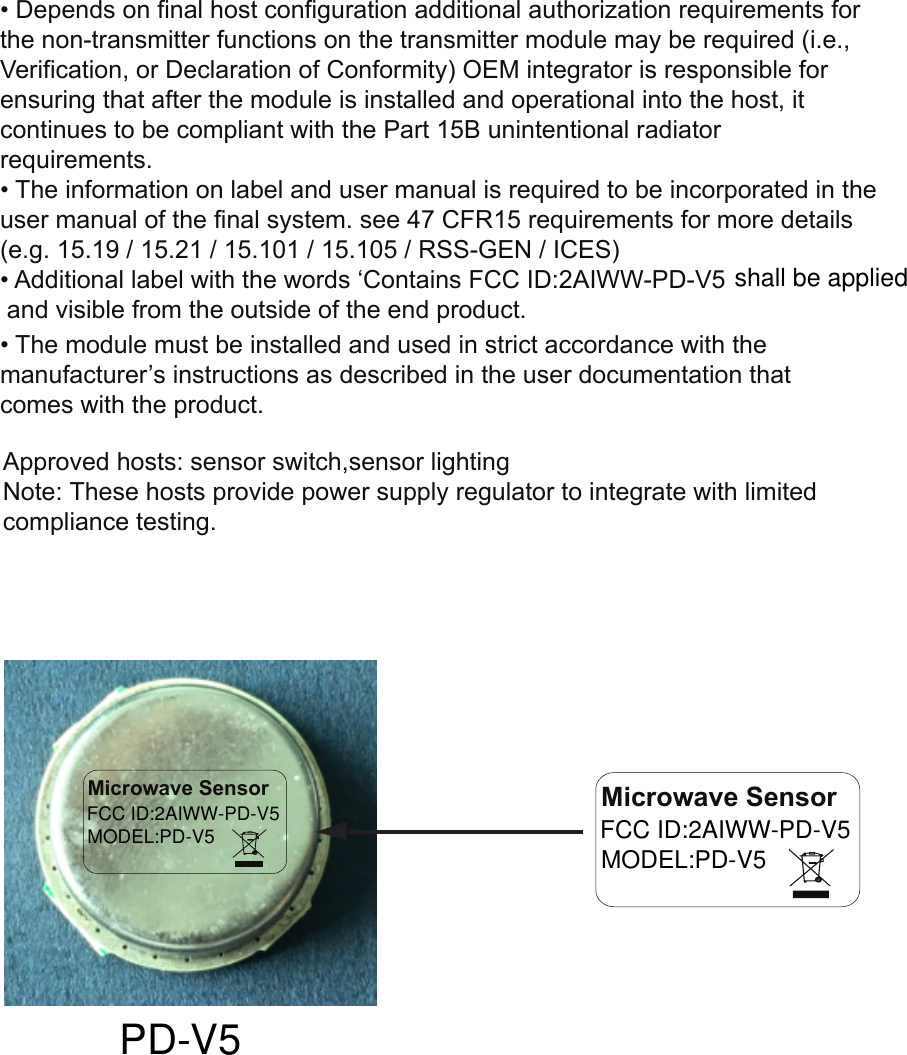

• Depends on final host configuration additional authorization requirements forthe non-transmitter functions on the transmitter module may be required (i.e.,Verification, or Declaration of Conformity) OEM integrator is responsible forensuring that after the module is installed and operational into the host, itcontinues to be compliant with the Part 15B unintentional radiatorrequirements.• The information on label and user manual is required to be incorporated in theuser manual of the final system. see 47 CFR15 requirements for more details(e.g. 15.19 / 15.21 / 15.101 / 15.105 / RSS-GEN / ICES)• Additional label with the words ‘Contains FCC ID:2AIWW-PD-V5 and visible from the outside of the end product.• The module must be installed and used in strict accordance with themanufacturer’s instructions as described in the user documentation thatcomes with the product.shall be appliedMicrowave SensorFCC ID:2AIWW-PD-V5MODEL:PD-V5PD-V5Microwave SensorFCC ID:2AIWW-PD-V5MODEL:PD-V5Approved hosts: sensor switch,sensor lightingNote: These hosts provide power supply regulator to integrate with limited compliance testing.
