OBELAB NIRSIT NIRSIT User Manual

OBELAB, Inc. NIRSIT

User Manual

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  1NIRSIT Operator’s Manual Date: April 07, 2016 Version: 1.0 OBELAB Inc. Hyojae Bldg, 11F, 708-37, Yeoksam-dong,  Gangnam-gu, Seoul, Korea Tel: +82-2-6407-3889 Fax: +82-2-6407-3891 Copyright  2015 All rights reserved.  [CE/FCC Mark]
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  2Table of Contents NOTICE ............................................................................................................................. 3SAFETY ............................................................................................................................ 31 Product features ....................................................................................................... 52 Product Overview ..................................................................................................... 72.1 External and Operational components ..................................................................................... 72.2 Application Software ............................................................................................................... 103Using the system .................................................................................................... 133.1 Operating NIRSIT ................................................................................................................... 133.2 Operating Application Software .............................................................................................. 153.3 NIRSIT Application Software Menu Usage ............................................................................ 163.3.1 NIRSIT APP user menu tree ....................................................................................... 163.3.2 Application Menu details ............................................................................................. 183.4 Operation Scenario ................................................................................................................. 394Product Specifications ........................................................................................... 415Maintenance ............................................................................................................ 425.1 Storage Conditions ................................................................................................................. 425.2 External Conditions ................................................................................................................ 425.3 Caution while Operation ......................................................................................................... 426Warranty and Repair .............................................................................................. 426.1 Customer’s Rights .................................................................................................................. 426.2 Warranty ................................................................................................................................. 426.3 Service for Fee ....................................................................................................................... 436.4 Quality Assurance Certificate ................................................................................................. 45
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  3NOTICE This manual is a copyrighted material explaining the system of OBELAB, Inc. (hereinafter “OBELAB”). Use of any information in this material without prior approval of OBELAB is strictly prohibited. The contents in this manual are subject to amendment by OBELAB without prior notice.  SAFETY Important! Before use, read this operator’s manual carefully and all accessory directions for use, precautionary information and specifications. This section contains important safety information related to general use of NIRSIT. Please follow the instructions. Warnings are identified by the WARNING symbol shown below. Warnings alert you to potential serious outcomes (death, injury, or adverse events) to the user. Failure to heed the warnings may result in potential serious outcomes.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  4FCC ( Federal Communications Commission) This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are residential installation.  This equipment generates uses and can radiate radio frequency energy and, if not install and use in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception , which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet in a circuit differentfrom that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technical for help.WARNING: this equipment may generate or use radio frequency energy. Changes or modifications or this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.  This device complies with Par 15 of the FCC’s Rules. Operation is subject to the following two Conditions:  1. This device may not cause harmful interference, and2. This device must accept interference received, interference received, includinginterference that may cause undesirable operation.
 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    5 1  Product features NIRSIT is a brain imaging system utilizing the functional near-infrared spectroscopy and measures the changes in the hemoglobin level in the blood at the prefrontal cortex region.   Functional Near Infrared Spectroscopy; fNIRS NIRSIT uses two light waves in the ~700nm and ~800nm range. The device emits light from the lasers pass through the cerebral cortex and measures the changes in the hemoglobin level in the blood. The light is less than 5mW in power, so the use of the device is harmless to the user. It is intended for use by researchers to monitor in real-time the functionality of the brain during cognitive activities.  NIRSIT composition Opening NIRSIT product package   Open the outer box and take out NIRSIT device and the accessories.   Fill out the warranty card and send it to OBELAB.   Register on OBELAB website www.obelab.com the serial number on NIRSIT device    Read the Operator’s Manual   User would need adequate training before operating NIRSIT device    <Storage and Carry-on box for NIRSIT>
 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    6       <NIRSIT device, strap holder, OTG connector, USB cable, silicon pad/sensor skin>         Figure 1. NIRSIT system components  No.  Components  Quantity1  NIRSIT device  1 2  Strap holder  1 3  Sensor skin  1 4  USB cable  1 5  USB OTG Connector  1 6  Storage and Carry-on box for NIRSIT  1    Notes  Please note that the user will be unable to receive warranty service/repair through OBELAB or its distributor in the event of any of the following: 1  Making unauthorized changes to NIRSIT device 2  Using unauthorized accessories 3  Not following instructions in the Operator’s Manual when operating NIRSIT device 4  Removal or switch of serial number on NIRSIT device 5  Storage or use of NIRSIT device, silicon pad/sensor skin, or battery in an environment outside of the recommended conditions  All repair requests during the warranty period must be made by the purchaser of NIRSIT system. Proof of purchase of NIRSIT system is required in order to receive repair service within the warranty period. NIRSIT system must be used for the intended purpose only in accordance with the instructions in the Operator’s Manual. Please send all inquiries to contact@obelab.com.

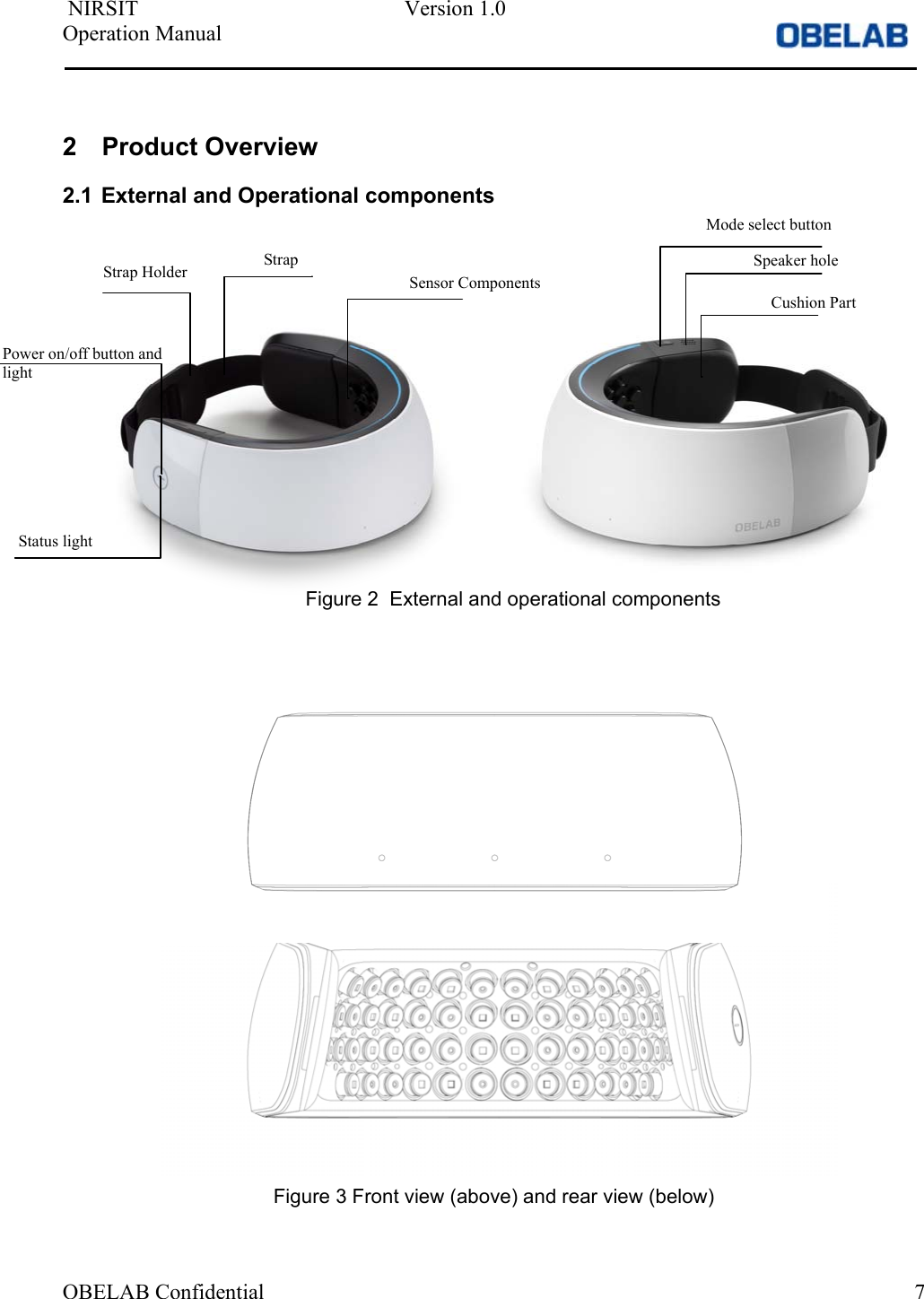

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  72  Product Overview 2.1 External and Operational components  Figure 2  External and operational components Figure 3 Front view (above) and rear view (below) Power on/off button and light Sensor ComponentsStrap Holder  Strap Mode select button Speaker hole Cushion Part Status light

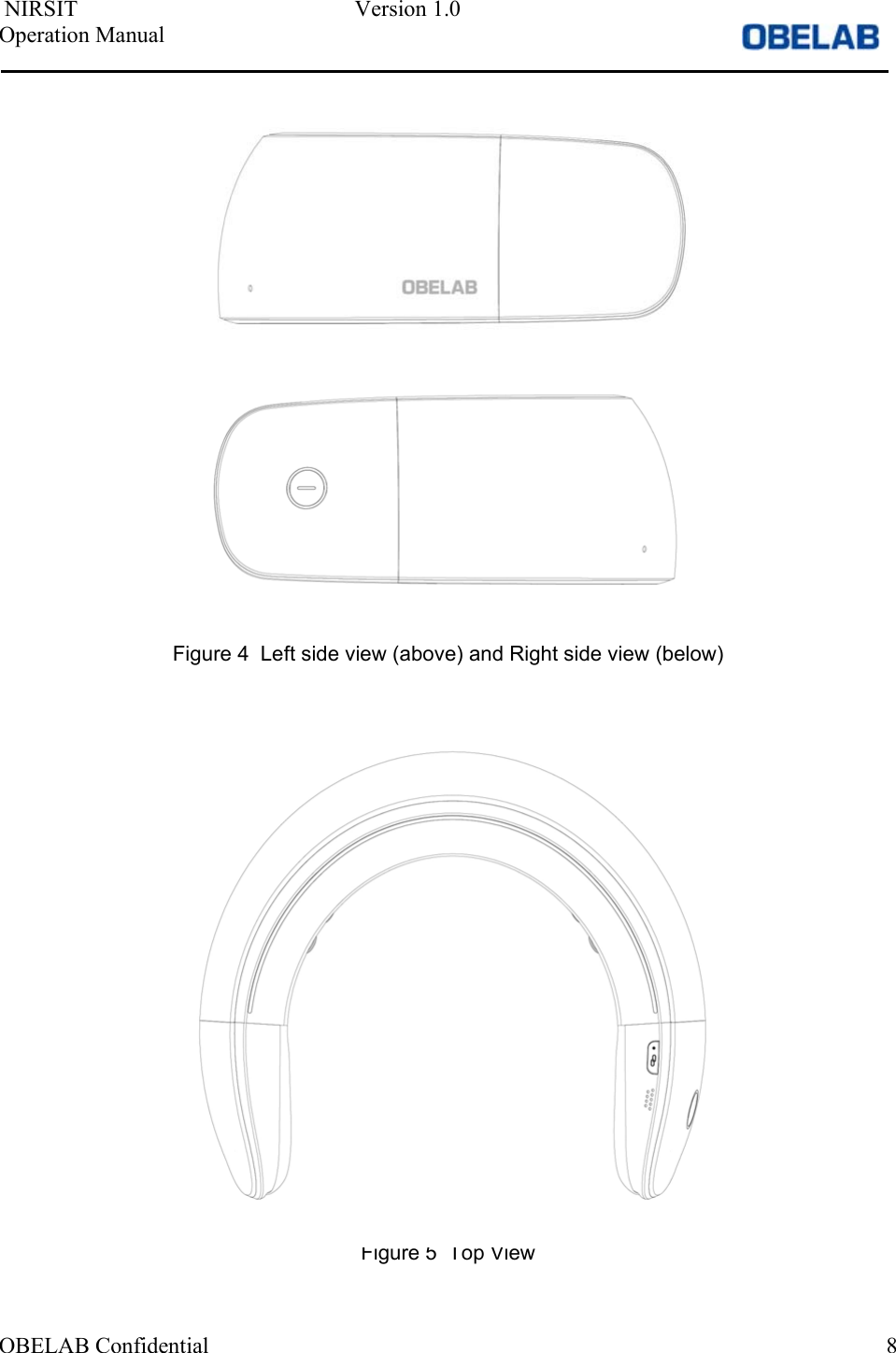

 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    8                       Figure 4  Left side view (above) and Right side view (below)                         Figure 5  Top View

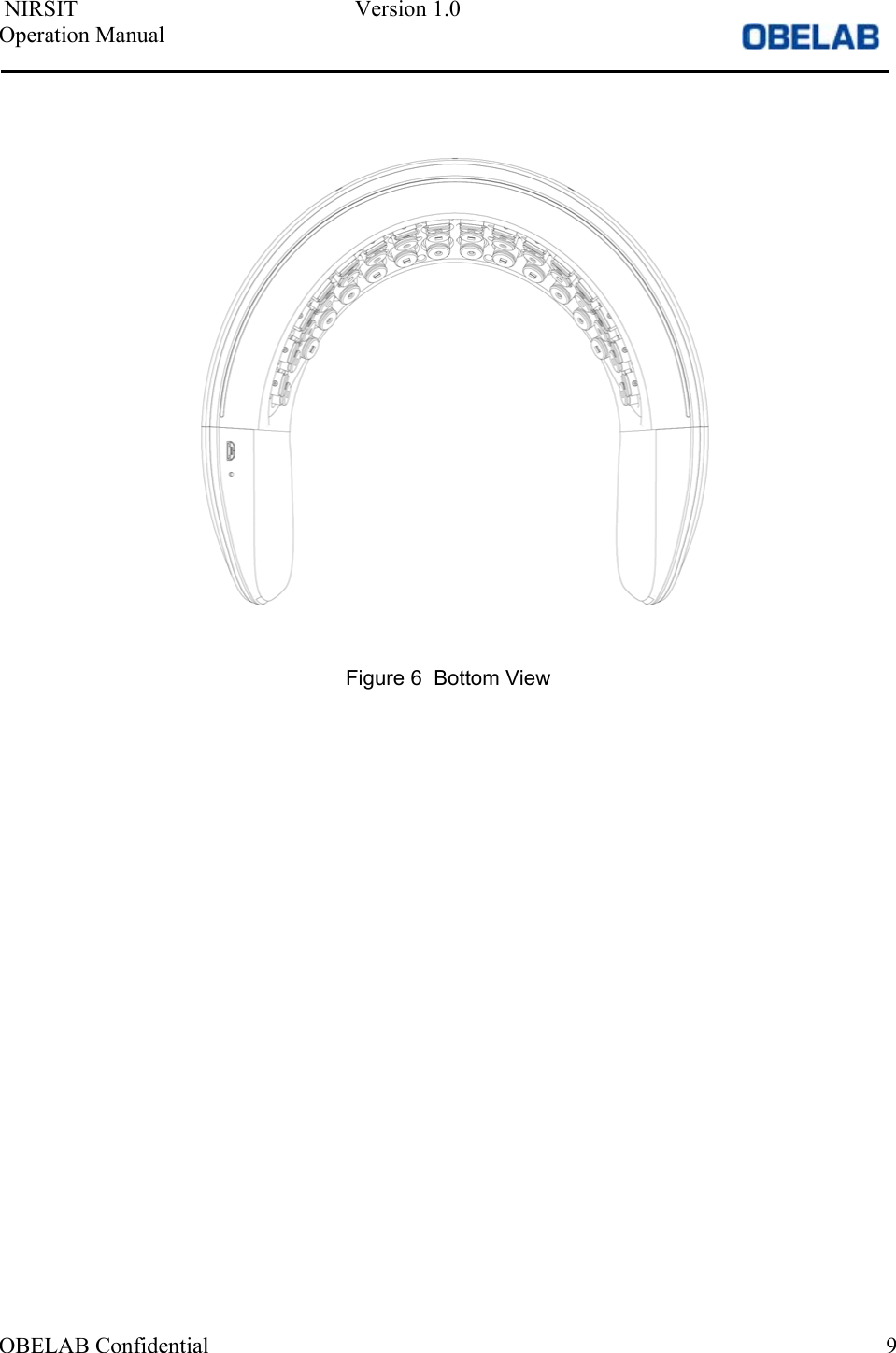

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  9Figure 6  Bottom View
 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    102.2 Application Software NIRSIT Software operates under iOS/Android environment on Tablet and is wirelessly connected to NIRSIT device via WLAN communication. Depending on the use settings, the user can connect NIRSIT device on one Tablet or two Tablets utilizing both Task App and Monitoring App. Option to use two Tablets allows the monitoring personnel (either a researcher or a clinician) to monitor the status on one Tablet when the user is engaged in performing any Task within the Task Mode on another Tablet.      Figure 7 Using one Tablet for Task App and Monitoring App purposes      Figure 8  Using two Tablets separately for Task App and Monitoring App, respectively   There are two types of App within NIRSIT Software: Monitoring Mode App and Task Mode App, as shown below

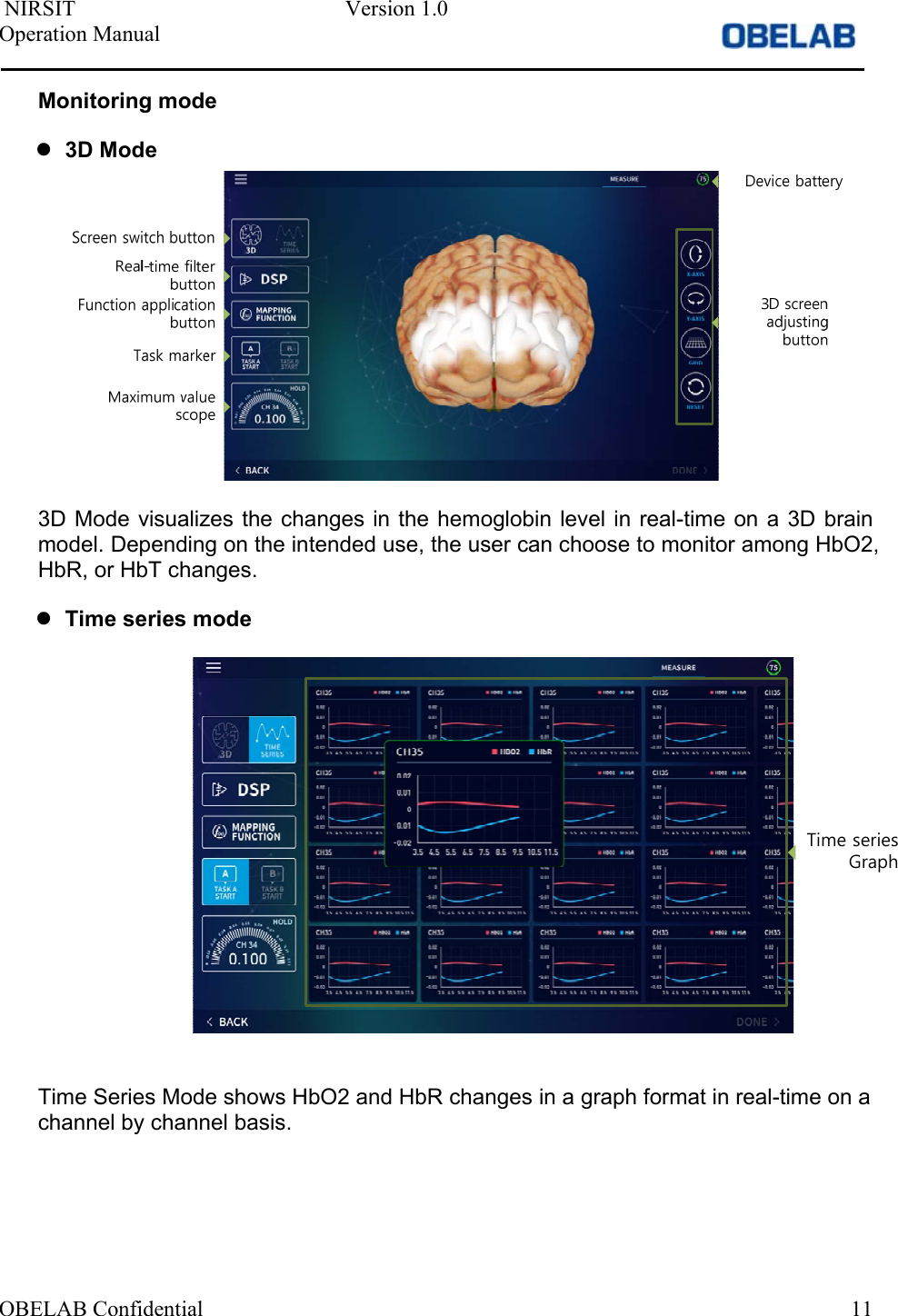

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  11Monitoring mode 3D Mode3D Mode visualizes the changes in the hemoglobin level in real-time on a 3D brain model. Depending on the intended use, the user can choose to monitor among HbO2, HbR, or HbT changes.   Time series modeTime series GraphTime Series Mode shows HbO2 and HbR changes in a graph format in real-time on a channel by channel basis.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  12Task mode Task Mode can be classified into (i) Behavioral Task, showing hemodynamic changes during physical movements and (ii) Cognitive Task, showing hemodynamic changes during cognitive activities.  ` Once the user chooses a task from the Task Mode, the Tablet displays both the Task screen as well as the Monitoring mini-screen. Monitoring function can be de-activated depending on the choice by the user.  NIRSIT Software App can be downloaded from Google Play store or Apple store.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  133  Using the system 3.1 Operating NIRSIT  Installing silicon pad/sensor skin ①Peel a package and take out the silicon pad/sensor skin.②Align the holes on the silicon pad/sensor skin and the sensor modules on the innerpart of NIRSIT device.③Lightly press the silicon pad/sensor skin holes against each sensor on NIRSITdevice so that the silicon pad/sensor skin attaches to NIRSIT device.Charging while power button is ON ①Press power button for 3 seconds.②Once the power button status light turns green and the power on sound is heard,the user can hook up micro USB charger to NIRSIT device and charge it.③The user can see the charging status by checking the status light as shown below:Charging while power button is OFF  ①The user can hook up USB charger to NIRSIT device, and the LED in the middleof the power button blinks while being charged and LED stays turned on once thecharging is complete, as shown below:

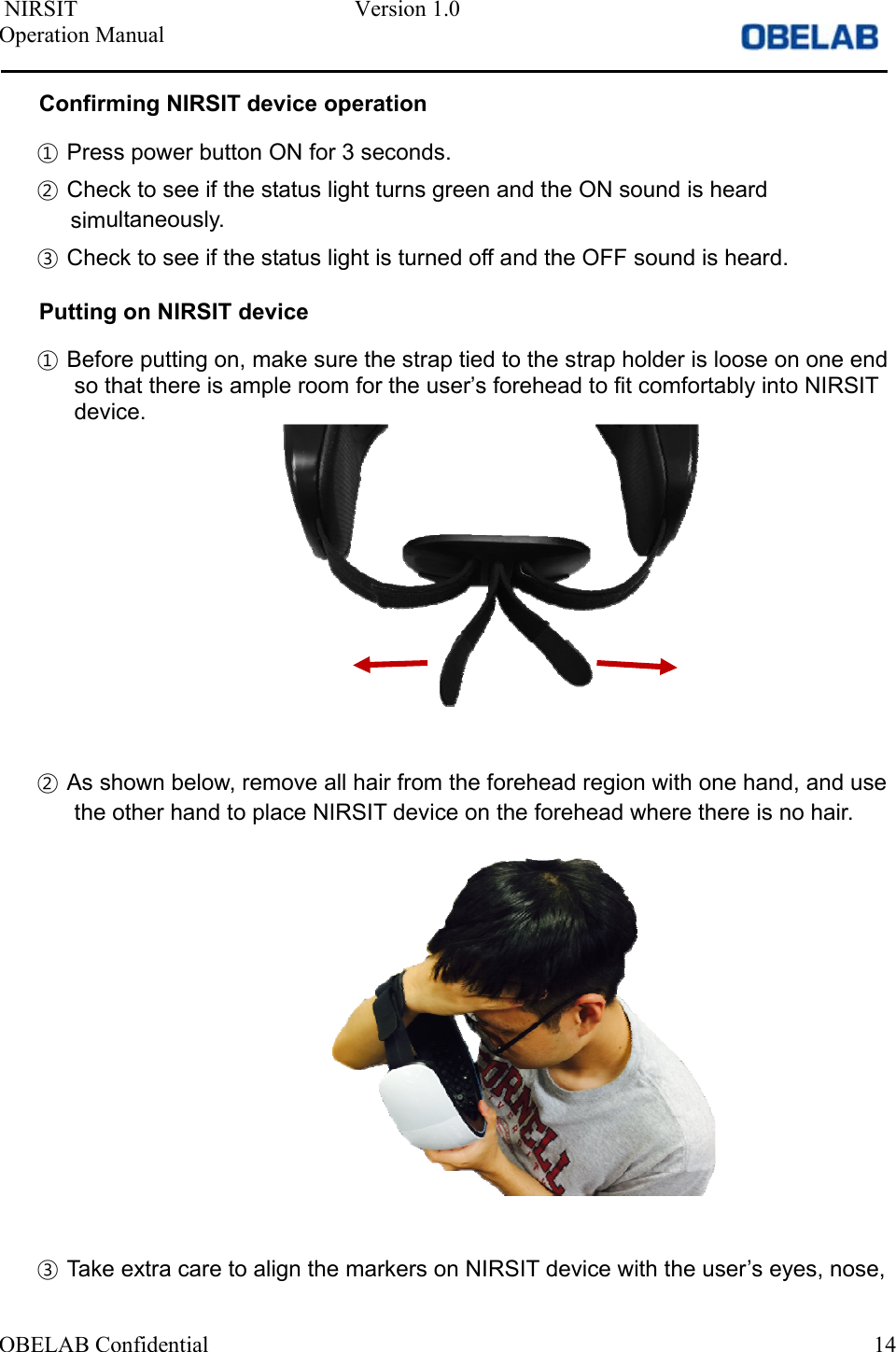

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  14Confirming NIRSIT device operation ①Press power button ON for 3 seconds.②Check to see if the status light turns green and the ON sound is heardsimultaneously.③Check to see if the status light is turned off and the OFF sound is heard.Putting on NIRSIT device ①Before putting on, make sure the strap tied to the strap holder is loose on one endso that there is ample room for the user’s forehead to fit comfortably into NIRSITdevice.②As shown below, remove all hair from the forehead region with one hand, and usethe other hand to place NIRSIT device on the forehead where there is no hair.③Take extra care to align the markers on NIRSIT device with the user’s eyes, nose,
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  15and the eyebrows, so that NIRSIT device is placed adequately on the forehead. ④The user can now pull the strap and secure the strap on the Velcro to ensureNIRSIT device adequately contacts the forehead of the user.Using NIRSIT device ①Turn on NIRSIT device by pressing the Power Button ON for 3 seconds.②Turn on NIRSIT Software on the Tablet.3.2 Operating Application Software Connection with NIRSIT device ①When using IOS Tablet, NIRSIT device connects to NIRSIT Application under theWIFI setting. Password: obelab1234.②Touch NIRSIT Application icon on Tablet screen and activate the Application.③If a new user, click on New Account and register with the user’s existing emailaddress. If an existing user, simply input email and password to log in.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  163.3 NIRSIT Application Software Menu Usage  3.3.1  NIRSIT APP user menu tree

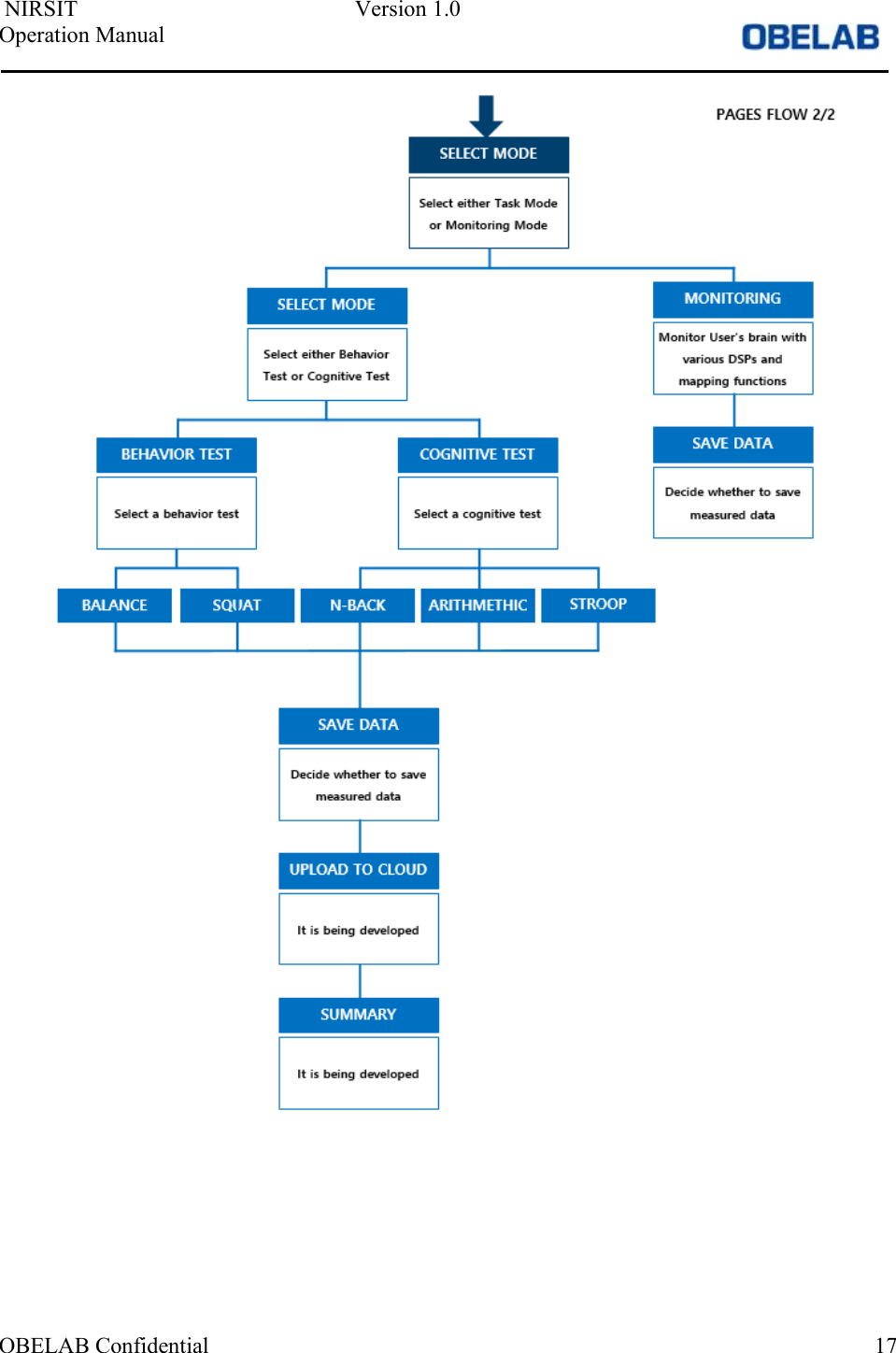

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  17
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  183.3.2  Application Menu details Initial Steps①When activated, NIRSIT APP shows Log In page after the introduction  page. Onthe Log In page, the following menu appears.ADMIN LOG IN: Menu for existing User with NIRSIT accountNew Account: Menu for new User to create new NIRSIT accountTry Out: Menu for trying out Task Test without NIRSIT account②When  there  is  no  existing  account,  choose  New  Account  menu  and  move  on  toSign Up page.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  19③To  register  new  User  Account,  input  user’s  email  address  and  password  in  theSign Up page.④After confirming all information on newly created User Account, click DONE buttonand enter Log In page as shown below.⑤Enter password in the Log In page and click DONE button to move onto SELECTDEVICE page. On the screen, there will appear a list of NIRSIT devices availablefor connection. NIRSIT device will be shown as NIRSIT (ssid) + MAC_ID. SelectNIRSIT device you want to connect to NIRSIT APP and click CONNECT button tomove onto SELECT USER page.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  20⑥On SELECT USER page, there are buttons with function defined as shown below:Guest: This menu allows use of NIRSIT device without User registrationNew: This menu allows User to register as new User by answeringQUESTIONNAIRE. The User will then appear on the SELECT USER list.Registered User: This menu show the list of Users added on through NEWmenu.⑦QUESTIONNAIRE page allows new User to register.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  21Measurement preparations ①Select either Guest or Registered User from the SELECT USER page and moveonto PHOTOGRAMMETRY page. PHOTOGRAMMETRY page allows the user toadjust  the  measurements  to  match  the  exact  location  where  NIRSIT  device  isactually placed  (on the user’s forehead). PHOTOGRAMMETRY page shows thephrases: Take a Front Picture, Take a Right Picture, ᇞZ, ᇞY, and ᇞQ. By clicking“Take a Front Picture” button, the User can take picture of the front view, and thevalue  of  ᇞZ  will  be  recorded  automatically.  By  clicking  “Take  a  Right  Picture”button, the User can take picture of the right side view, and the value of ᇞY, andᇞQ will be recorded automatically.②On the “Take a Front Picture” page, three upper circles, two lower circles willappear and in the middle, a cross sign will appear to show NAS (Nasion) location.Adjust the Tablet camera to match the two lower circles with the user’s eyes, thecross sign with the middle of the forehead (nasion), and three upper circles withthe markers on NIRSIT device. Click on “Take picture” button and the User cancheck the picture taken.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  22③The User can take picture of the Side view by clicking “Take a Right Picture”button. Place a cross sign (NAS) to match the Nasion location and the RPA crossto match the pre-auricular point as shown in the picture below. The two markerson the right side of NIRSIT device will be detected and a new cross sign willappear on the screen, indicating the center. Placing the new cross sign at the farright corner of the screen will ensure the measurement is taken of the User fromthe very center of NIRSIT device. After such adjustment, take a picture and thePHOTOGRAMMETRY measurement is complete.

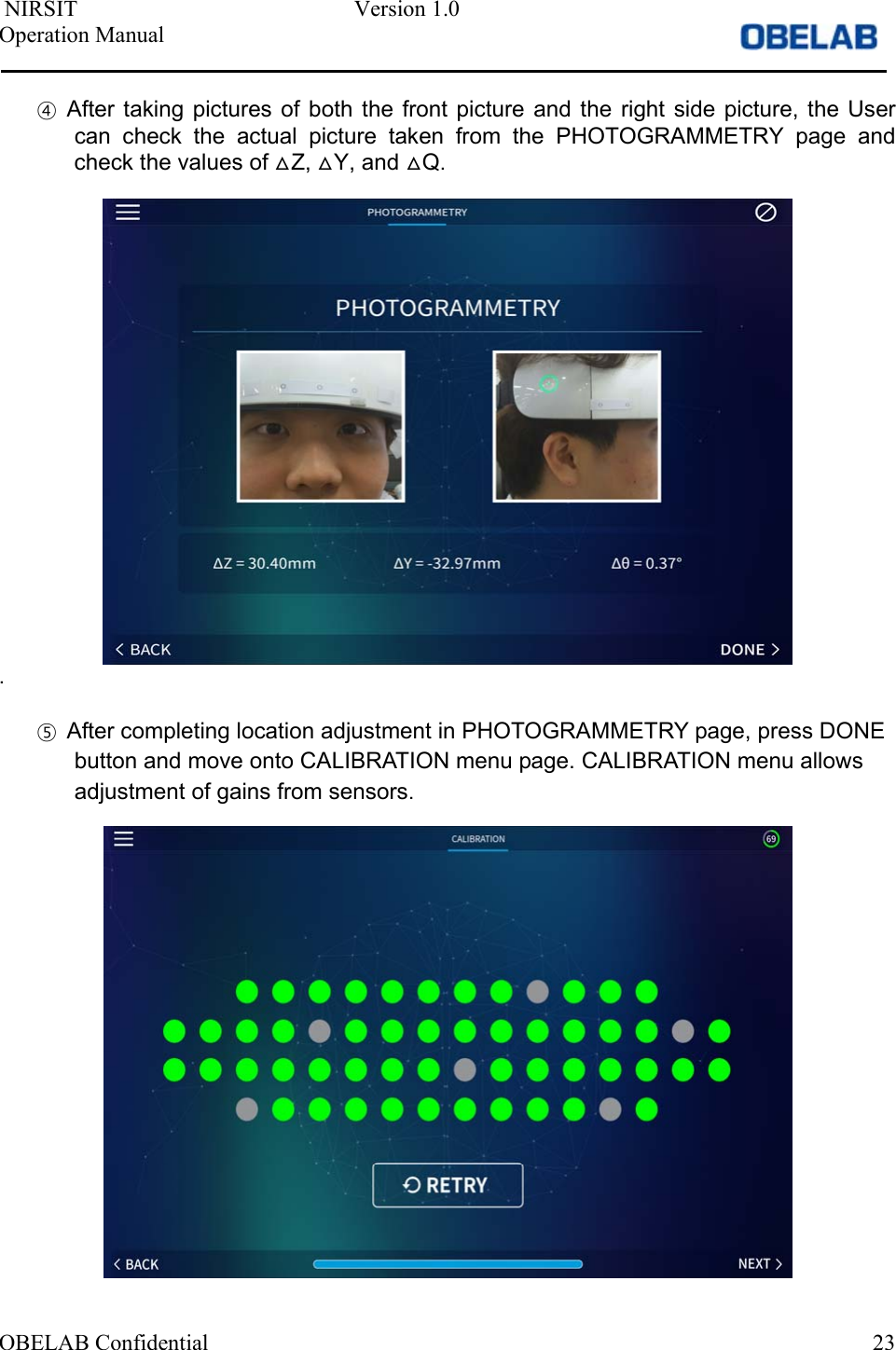

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  23④After taking  pictures  of  both  the  front  picture  and  the  right side  picture,  the Usercan  check  the  actual  picture  taken  from  the  PHOTOGRAMMETRY  page  andcheck the values of ᇞZ, ᇞY, and ᇞQ.. ⑤After completing location adjustment in PHOTOGRAMMETRY page, press DONEbutton and move onto CALIBRATION menu page. CALIBRATION menu allowsadjustment of gains from sensors.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  24Measurement Mode SelectionOnce gain calibration is complete, click on NEXT button and move onto SELECTMODE page. There are two types of SELECT MODE.TASK MODE: This menu allows the User to monitor functionality of the brainwhile the User performs tasks implemented within the NIRSIT APP.MONITORING MODE: This menu allows the User to monitor functionality of thebrain while the User performs any tasks designed by the User.Task Mode①Click TASK button from the SELECT MODE page. There are two types of TASKMODE:BEHAVIORAL TASK: The User can monitor brain activation from performanceof simple behavioral tasks.COGNITIVE TASK: The User can monitor brain activation from performance ofsimple cognitive tasks.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  25②Click BEHAVIORAL TASK button from the SELECT TASK page and move ontoBEHAVIORAL TASK menu. BEHAVIORAL TASK menu is composed of thefollowing:BALANCE TASKSQUAT TASKTASK AOnce a task is chosen, the User can perform the chosen task by following the instructions played on the screen. During performance, the User can monitor the brain activation.

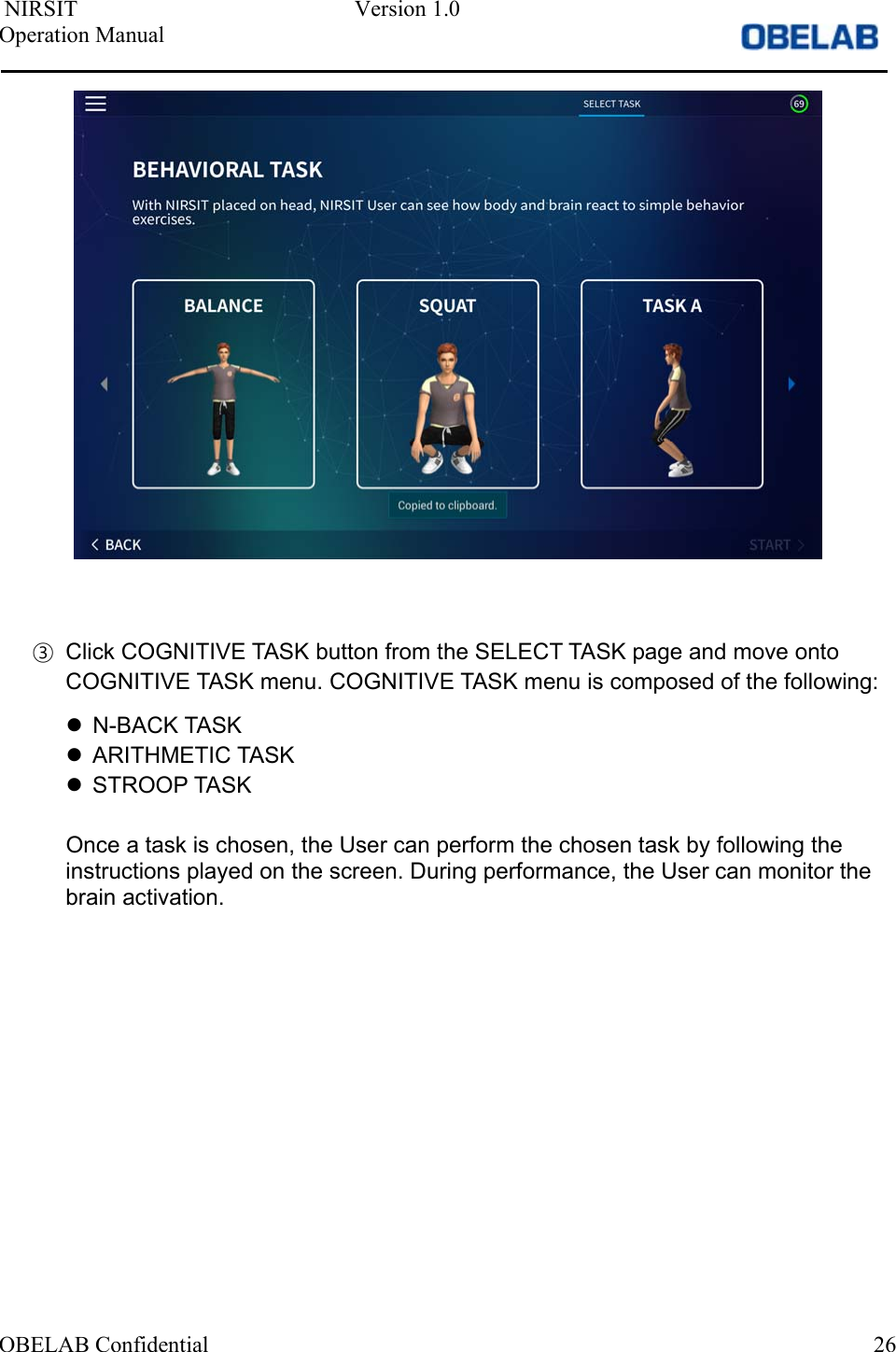

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  26③Click COGNITIVE TASK button from the SELECT TASK page and move ontoCOGNITIVE TASK menu. COGNITIVE TASK menu is composed of the following:N-BACK TASKARITHMETIC TASKSTROOP TASKOnce a task is chosen, the User can perform the chosen task by following the instructions played on the screen. During performance, the User can monitor the brain activation.

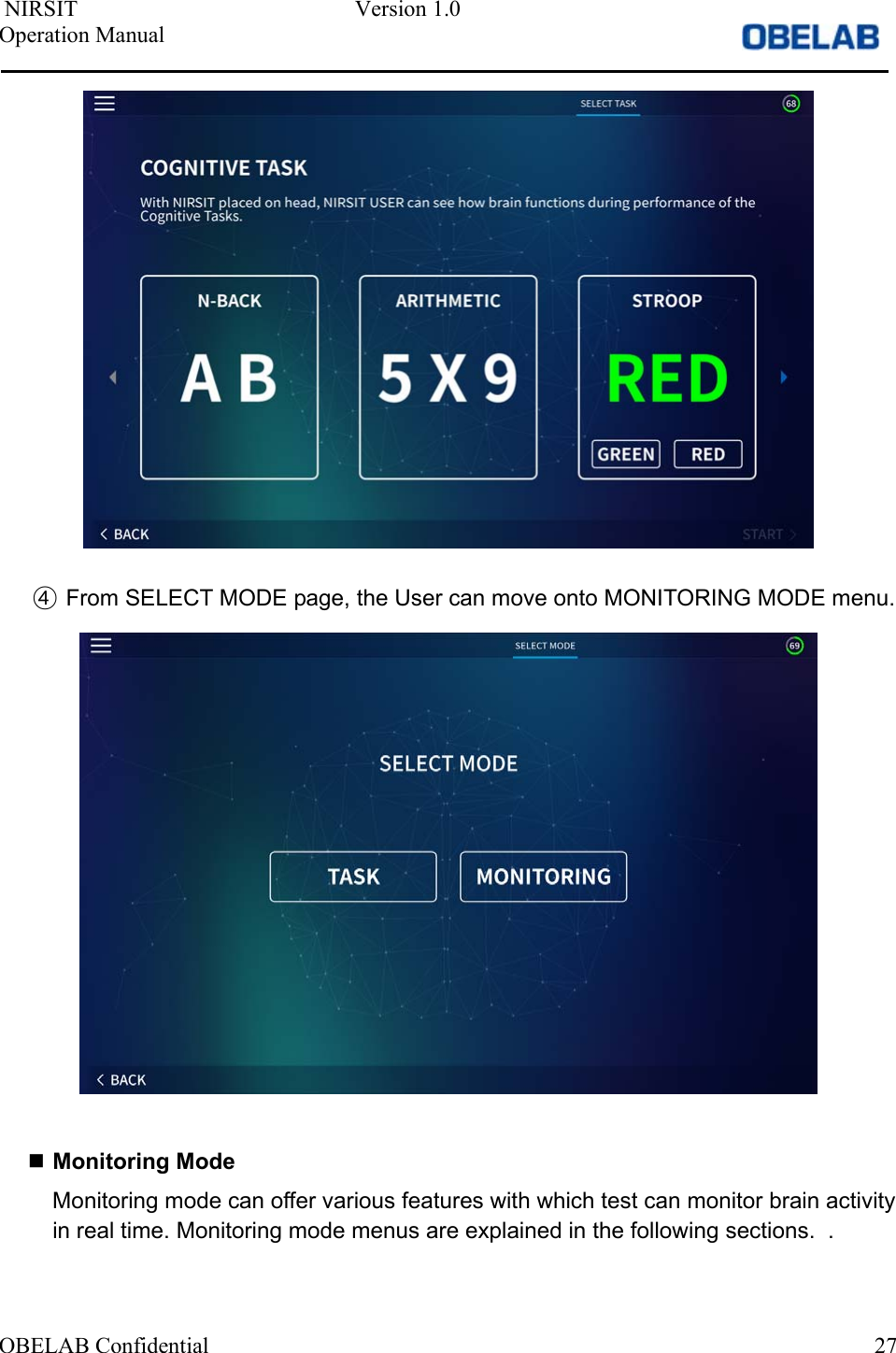

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  27④From SELECT MODE page, the User can move onto MONITORING MODE menu.Monitoring ModeMonitoring mode can offer various features with which test can monitor brain activityin real time. Monitoring mode menus are explained in the following sections.  .
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  28①Below are descriptions of the left side menu buttons.3D: 3D Brain Image displayTIME SERIES: HbO2 and HbR graph display on time axisDSP: Displayed separatelyMAPPING FUNCTION: Displayed separatelyTASK START: During measurement, the User can mark the start of a task up totwo tasks (Task A, Task B) for recording purposesPeak Motor: Indicates which channel shows highest HbO2 and the level ofHbO2②Below are descriptions of the Right side menu buttons.X-AXIS: By clicking X-AXIS button, the User can spin the 3D Brain Image at theX axisY-AXIS: By clicking Y-AXIS button, the User can spin the 3D Brain Image at theY axisGRID: GRID button shows the 3D grid coordinates of the brain region beingmonitoredRESET: Resets the 3D Brain ImageBASELINE: Resets the baseline of hemoglobin level (Initial value of MBLL) to acurrent level③Color Indication for Brain Activity is explained below.White: Baseline indicating brain activity immediately after gain calibrationWhite  Yellow  Red: Incremental increase of HbO2 levelWhite  Sky Blue  Dark blue: Incremental decrease of HbO2 level
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  29④Clicking DSP button will show the following DSP menu:LPF: Initiating low frequency filter to suppress high frequency noise.MBLL: Showing changes in HbO2 and HbR levels by solving Modified BeerLambert Law.Surface Contamination: Eliminating artifact from scalp.Motion Calibration: Calibration process by creating motion data for one minute.Motion  calibration  process  involves  sitting  up  straight  with  head  upright  for  30 seconds, tilting head for 30 seconds, and then maintaining tilting position for 30 seconds. Motion Compensation: Compensating motion artifact. Before MotionCompensation, Motion Calibration must be executed before MotionCompensationN/A Channel Rejection: Eliminating channels that are not performingmeasurement properlyHeart Beat: Eliminating noise from heart beatBaseline Removal: Eliminating gradual change in the Baseline.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  30⑤Clicking MAPPING FUNCTION button will show the following MAPPINGFUNCTION menu:Bilinear Interpolation: Color mapping of channels on 3D mapping display byinterpolationSimultaneous DOT: Color mapping in pixel unit utilizing simultaneous DOT(Diffuse Optical Tomography)Iterative DOT: Color mapping in pixel unit utilizing iterative DOT (Diffuse OpticalTomography)HbO2 from DISPLAY DATA: Color mapping showing HbO2 level changesHbR from DISPLAY DATA: Color mapping showing HbR level changesHbT from DISPLAY DATA: Color mapping showing the HbO2 + HbR levelchangesActivation Mode: Color mapping only the increased levelAverage Mode: Color mapping of average value of left side vs. right sideLinear Mapping: Color mapping of RGB value and data value in linear mappingformatCompensation Mapping: Color mapping of RGB and data value throughcompression function

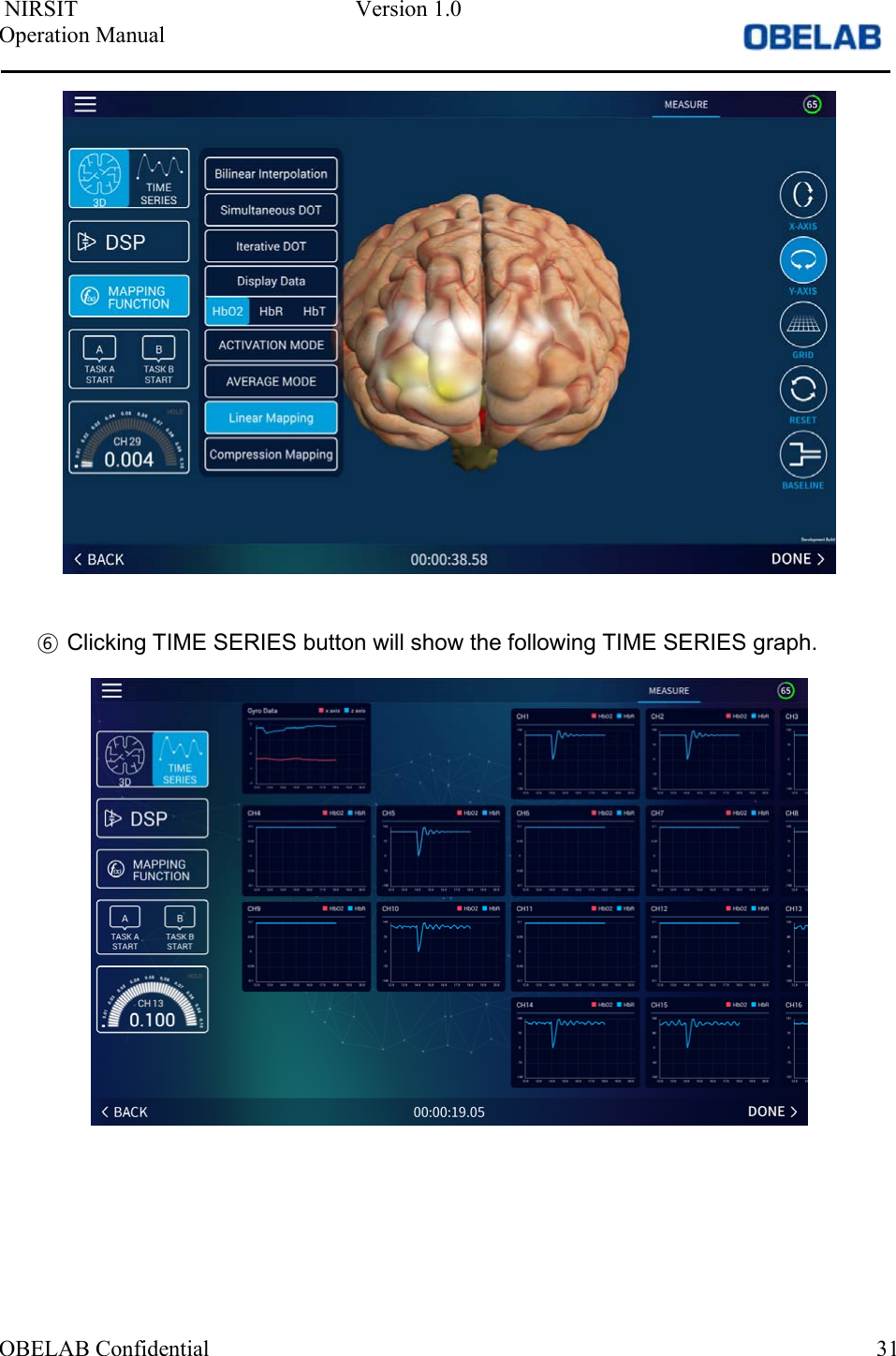

 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    31   ⑥ Clicking TIME SERIES button will show the following TIME SERIES graph.

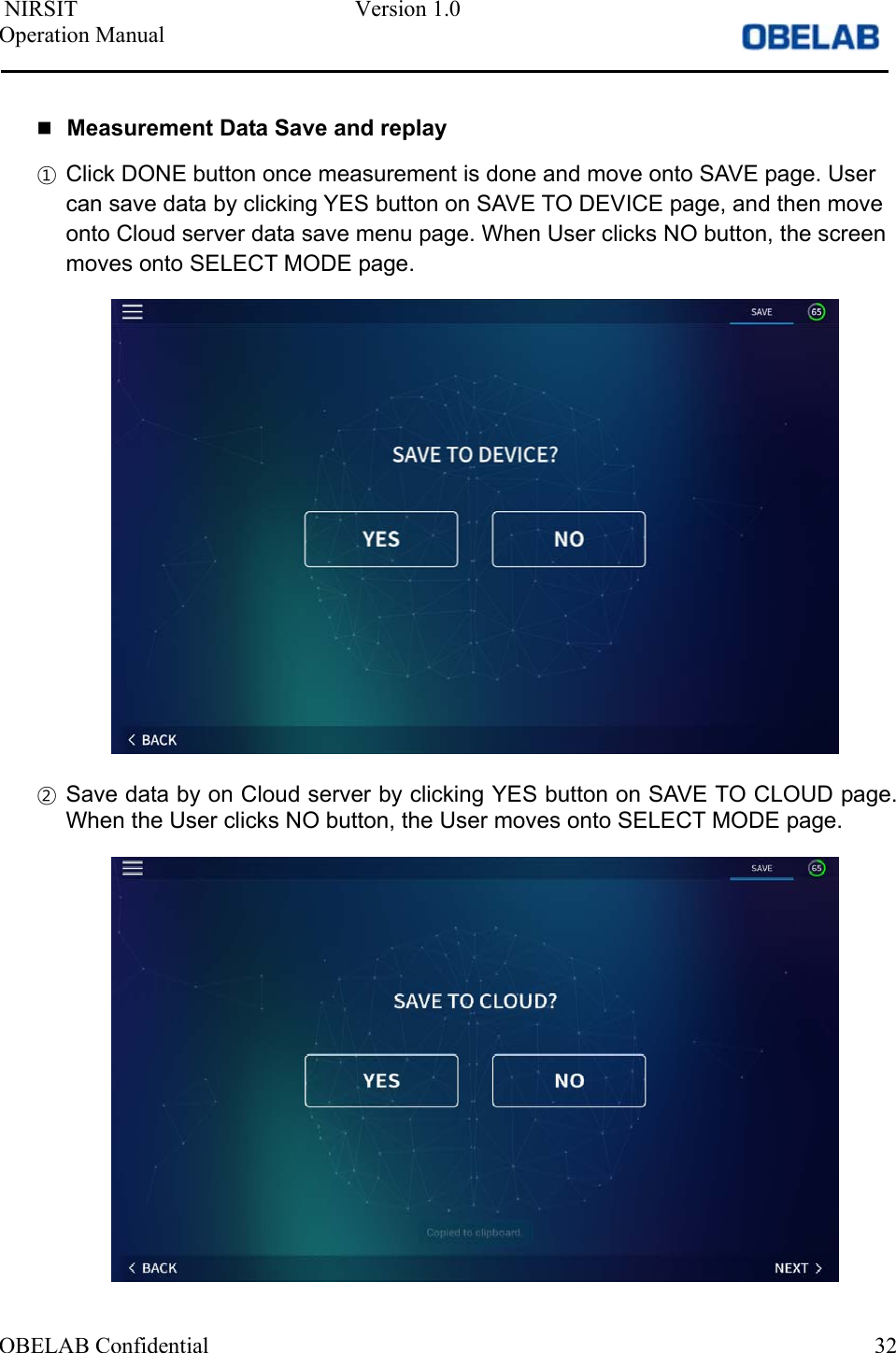

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  32Measurement Data Save and replay①Click DONE button once measurement is done and move onto SAVE page. Usercan save data by clicking YES button on SAVE TO DEVICE page, and then moveonto Cloud server data save menu page. When User clicks NO button, the screenmoves onto SELECT MODE page.②Save data by on Cloud server by clicking YES button on SAVE TO CLOUD page.When the User clicks NO button, the User moves onto SELECT MODE page.

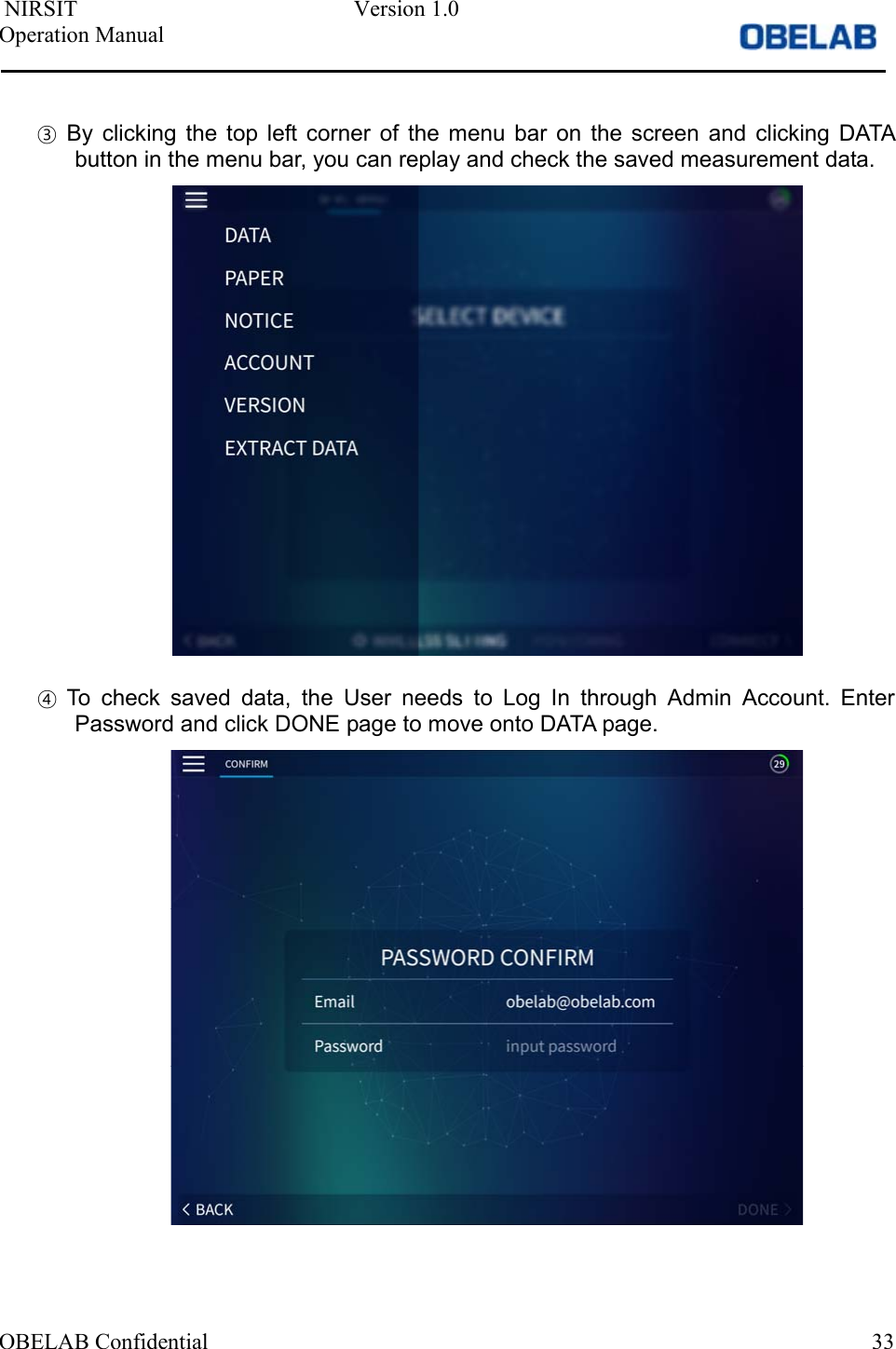

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  33③By  clicking  the  top  left  corner  of  the  menu  bar  on  the  screen  and  clicking  DATAbutton in the menu bar, you can replay and check the saved measurement data.④To  check  saved  data,  the  User  needs  to  Log  In  through  Admin  Account.  EnterPassword and click DONE page to move onto DATA page.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  34⑤Saved data are listed under the User name and the data saving date. The Usercan replay the saved data by clicking the User name and data saving date.Additional Information - Paper, Notice, Account, and Version①By clicking PAPER button on the top left corner of the menu bar on the screen, theUser can find a list of research papers and journals on the PAPER page.

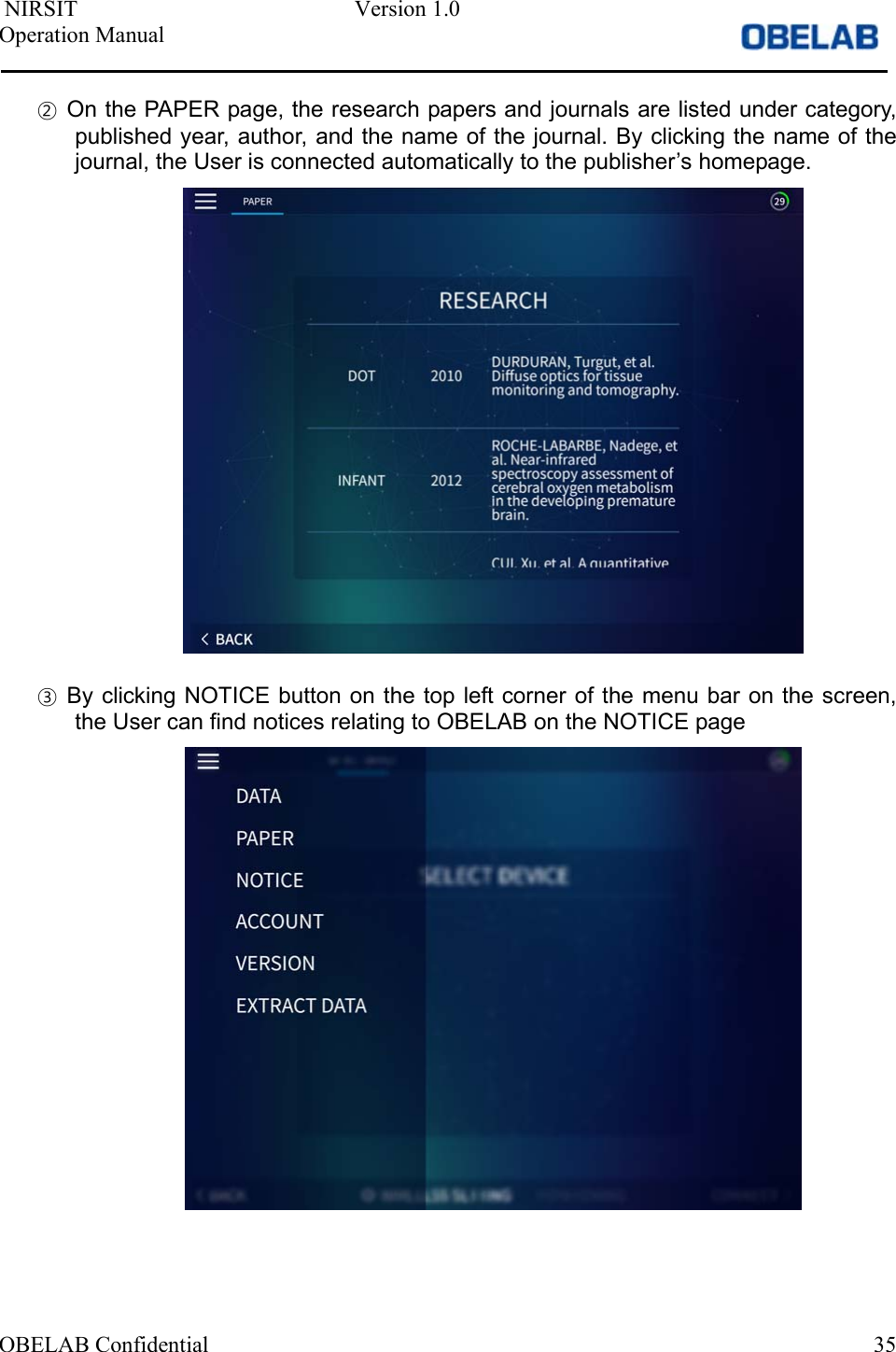

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  35②On the PAPER page, the research papers and journals are listed under category,published year, author, and the name of the journal. By clicking the name of thejournal, the User is connected automatically to the publisher’s homepage.③By clicking NOTICE button on the top left corner of the menu bar on the screen,the User can find notices relating to OBELAB on the NOTICE page
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  36④On  the  NOTICE  page,  the  User  can  check  all  the  latest  news  on  OBELAB.  Byclicking the name of the news, the User can check more detailed information.⑤By clicking ACCOUNT button on the top left corner of the menu bar on the screen,the  User  can  change  Password  from  the  ADMIN  ACCOUNT  on  the  ACCOUNTpage.

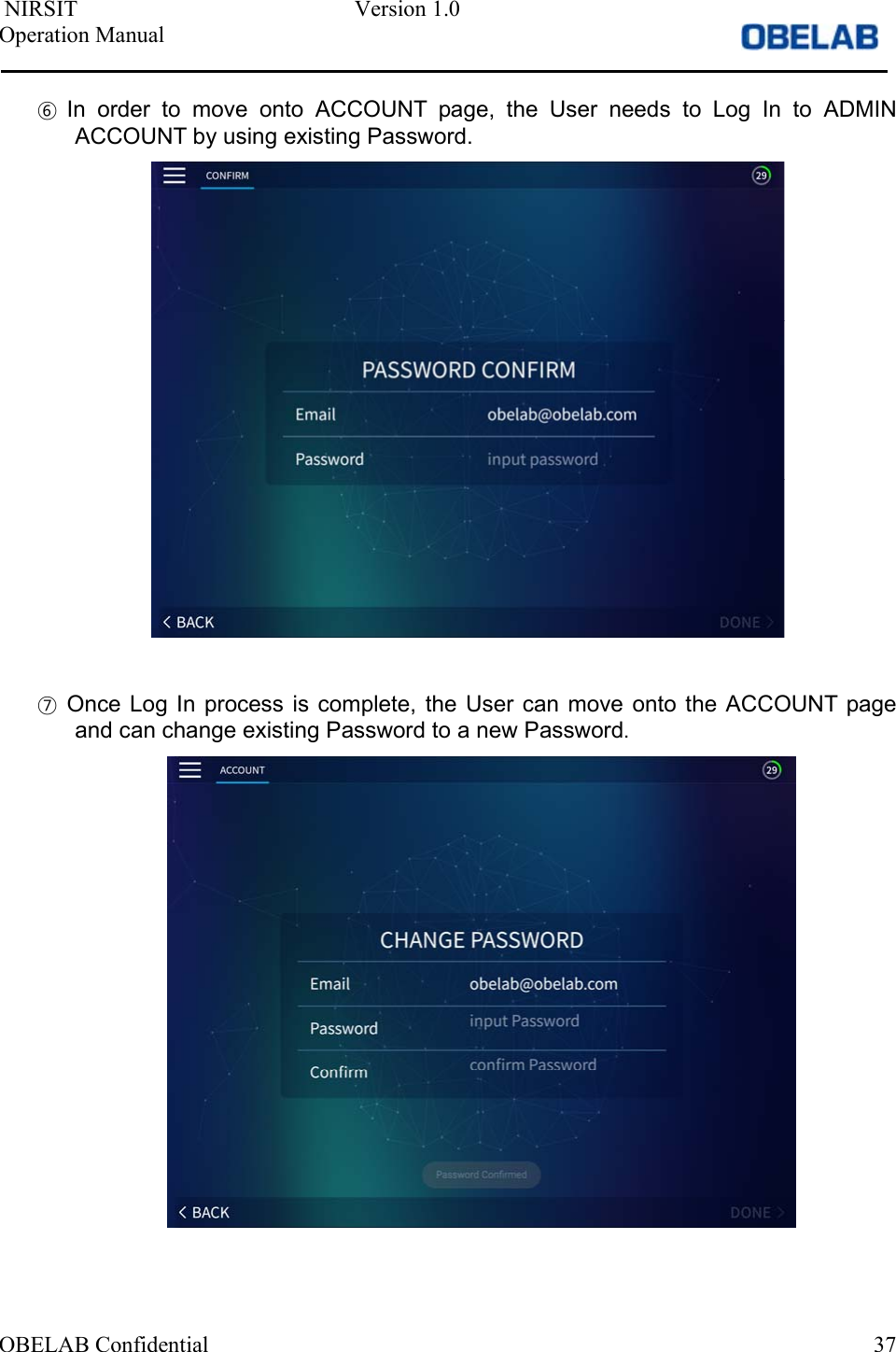

 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  37⑥In  order  to  move  onto  ACCOUNT  page,  the  User  needs  to  Log  In  to ADMINACCOUNT by using existing Password.⑦Once Log In  process is  complete,  the  User can  move  onto  the ACCOUNT pageand can change existing Password to a new Password.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  38⑧By clicking VERSION button on the top left corner of the menu bar on the screen,the  User  can  check  the  versions  of  NIRSIT  APP  (NIRSIT-EYE  and  NIRSIT-FIRMWARE) on the VERSION page⑨On  the  VERSION  page,  the  User  can  check  latest  version  and  the  currentlyinstalled  version  of  NIRSIT  APP  (NIRSIT-EYE  and  NIRSIT-FIRMWARE).  Toupdate the APP to the most current version, the User can click Update button forthe latest version download.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  393.4 Operation Scenario Operation Mode Picture Monitoring mode  Task mode Monitoring +TaskmodeTable 1: Operation Scenario
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  40Operation Scenario can be classified into three (3) types. Monitoring Mode This is a commonly utilized Mode that allows the User to monitor the User’s brain activations in real time. One NIRSIT device can be connected to the Tablet. The User can perform any type of task he/she wishes, and the User can record the data from performance of the task by marking the start of a task by a triggering method.    Task Mode Task Mode allows the User to utilize either Cognitive Task or Behavioral Task implemented within the NIRSIT APP. At the same time, the User can monitor the brain activation on a monitoring mini-screen during performance of the chosen Cognitive Task or Behavioral Task. One NIRSIT device can be connected to the Tablet. Each Task is composed of a single protocol and the measurement data from NIRSIT device are triggered according to the protocol of each Task and are marked on the measurement data. Monitoring Mode + Task Mode Monitoring Mode + Task Mode allows the User to connect one NIRSIT device to two Tablets. Task Mode Tablet can be used by the User who is performing the Task in the Task Mode, and Monitoring Mode Tablet can be used by another User who is monitoring the brain activations of the User performing the Task simultaneously.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  414  Product Specifications Model: NIRSITInput Voltage (via USB port): 5VMaximum Current (via USB port): 2.1ABatteryType: Lithium ion polymer batteryUsage Time: Up to 8 hours (when fully charged)Voltage: 3.7 VCapacity: 3000mAhPhysical SpecificationsSize: 215 x 195 x 75 (mm)Weight (including battery): 550gSourceSource Type: Dual wavelength VCSEL laserNumber of Sources: 24Laser Output: 3mWWavelength: 780nm, 850nmOperation Mode: CWDetectorDetector Type: Active detection sensorNumber of Detectors: 32Number of channels: Up to 204 channelsMeasurementSource-Detector distance: 1.5cm, 2.12cm, 3cm, 3.35cmSystem Scan Rate: Up to 16.276HzOperation Mode: CWData Storage and CommunicationBuilt-in memory in Tablet or PC storageWireless communication between Tablet and NIRSIT device through WLAN, and Serial communication between USB and PC.This equipment should be installed and operated with minimum  1cm between the radiator and your body.
 NIRSIT  Version 1.0 Operation Manual OBELAB Confidential  425  Maintenance 5.1 Storage Conditions ① Keep NIRSIT device where there is little dust and humidity.② When not in use, store NIRSIT device in a case enclosed in the package box.③ Do not apply excessive shake or impact and maintain stability.④ Keep away from chemicals or explosive gas products.⑤ Keep away from direct sunlight.⑥ Make sure all the essential goods and accessories in the package box are withoutdamage and within shelf life.⑦ Make sure NIRSIT device is without external crack or damage. In case anydamage is found, please contact OBELAB immediately.5.2 External Conditions While OperatingTemperature (0~35 Celsius)Humidity (20~80%)While StoredTemperature (-10~40 Celsius)Humidity (20~80%)5.3 Caution while Operation NIRSIT device is made flexible to fit average adult head size. However, if bent too extensively with excessive force, NIRSIT device may be damaged. 6  Warranty and Repair 6.1 Customer’s Rights The Customer has the right to receive free repair service during one year from the date of purchase of NIRSIT system, provided that in the event the damage to NIRSIT system is due to Customer’s fault or other causes as specified in 6.2 below, please note that the repair service will be provided for a fee. 6.2 Warranty If the NIRSIT system Customer purchased is a non-conforming product or is damaged during normal usage conditions, OBELAB will provide repair services free of charge for one year from the date of purchase.
 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    43Customer will receive quality assurance as referenced in the Warranty Card.  Please fill out the date of purchase to ensure receipt of one year warranty period which is triggered by the date of purchase.    Please contact local dealer of OBELAB regarding any questions on warranty period.   Warranty will not be provided in the following cases:     In the event NIRSIT system is not installed, repaired, or placed by OBELAB personnel or any other authorized personnel trained by OBELAB.   In the event NIRSIT system is damaged due to the use of any other devices in connection with NIRSIT system   In the event NIRSIT system is damaged due to the User’s mishandling   In the event NIRSIT system is damaged due to repairs and maintenance being performed utilizing equipment(s) authorized by OBELAB   In the event NIRSIT system is damaged due to random alteration or use of unauthorized accessories by the Customer    In the event NIRSIT system is damaged due to natural disaster, such as accident, earthquake, flood, etc.   In the event NIRSIT system is damaged after the one year warranty period, as referred to in this Manual   In the event NIRSIT system is damaged due to the Customer’s failure to comply with the appropriate maintenance procedures as recommended  The warranty applies to NIRSIT hardware only. It does not apply to the following:   Damage to the measurement results due to the accessories or movement   In case of problem while using NIRSIT system, please contact local dealer of OBELAB 6.3 Service for Fee In case of requesting for service as specified below, the service will be provided for a fee even during the one year warranty period.    In the event NIRSIT system is not installed, repaired, or placed by OBELAB personnel or any other authorized personnel trained by OBELAB.   In the event NIRSIT system is damaged due to the use of any other devices in connection with NIRSIT system   In the event NIRSIT system is damaged due to the Customer’s mishandling   In the event NIRSIT system is damaged due to repairs and maintenance being performed utilizing equipment(s) authorized by OBELAB   In the event NIRSIT system is damaged due to random alteration or use of unauthorized accessories by the Customer

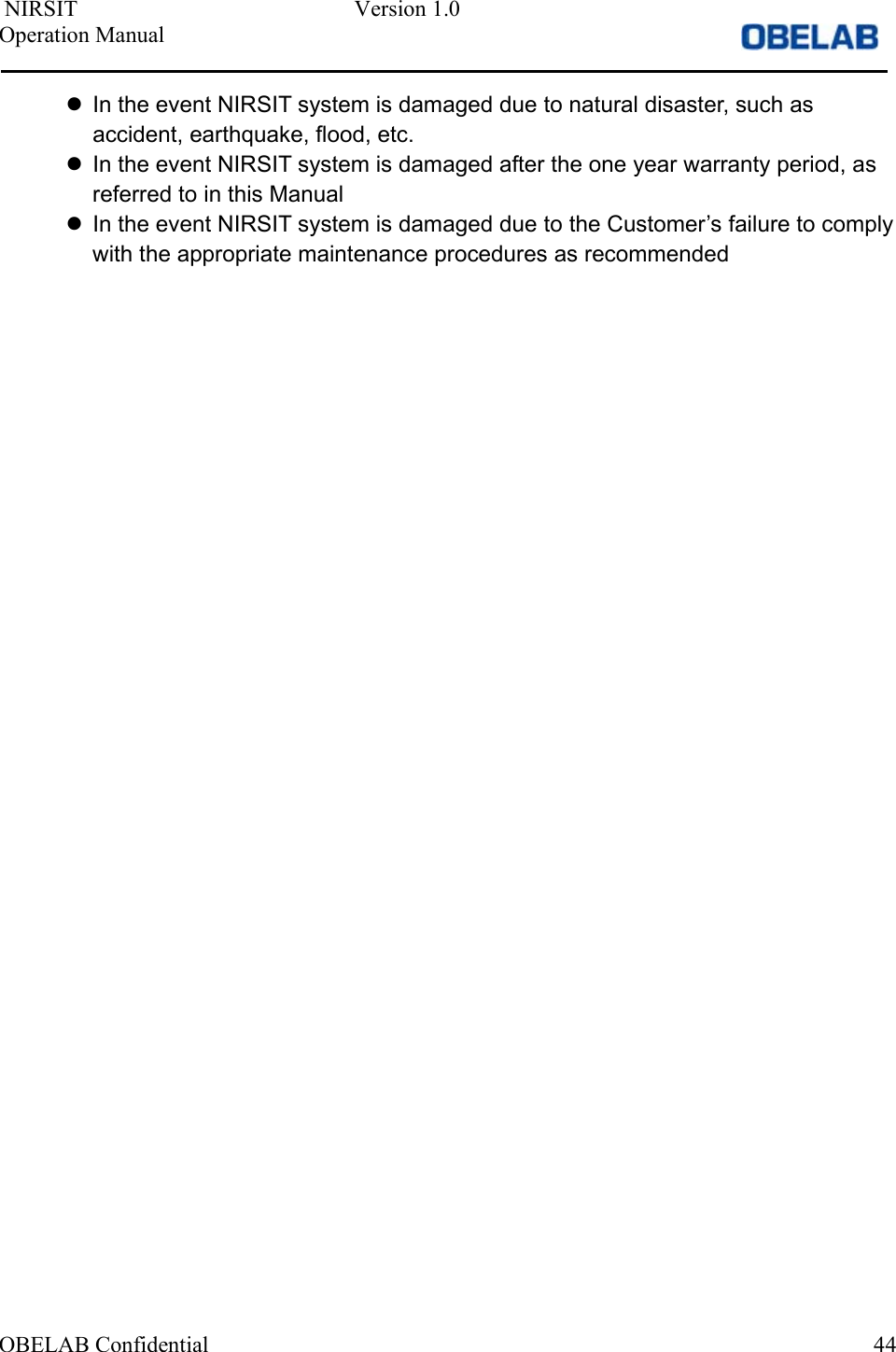

 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    44  In the event NIRSIT system is damaged due to natural disaster, such as accident, earthquake, flood, etc.   In the event NIRSIT system is damaged after the one year warranty period, as referred to in this Manual   In the event NIRSIT system is damaged due to the Customer’s failure to comply with the appropriate maintenance procedures as recommended
 NIRSIT  Version 1.0 Operation Manual                OBELAB Confidential    45 6.4 Quality Assurance Certificate  OBELAB provides quality assurance on the following items: Manufacture Number   Warranty Period  One year from the date of purchase Place of Purchase  Name of Office    TEL   Customer Information  Name   Address   TEL  TEL   CELL   -  Upon purchase of OBELAB product, please fill out the form and send the scanned document to contact@obelab.com via email as attachment. -  In case the certificate is not received by OBELAB, OBELAB will not be responsible for any disadvantages in terms of service provisions or others. Warranty Rules 1. Warranty period -  Damages to the product arising from the normal use of the product will be repaired at OBELAB service center free of charge for one year from the date of purchase. 2. Exceptions to Warranty provision -  In the event the product is not installed, repaired, or placed by OBELAB personnel or any other authorized personnel trained by OBELAB. -  In the event the product is damaged due to the use of any other devices in connection with NIRSIT system -  In the event the product is damaged due to the Customer’s mishandling -  In the event the product is damaged due to repairs and maintenance being performed utilizing equipment(s) authorized by OBELAB -  In the event the product is damaged due to random alteration or use of unauthorized accessories by the Customer -  In the event the product is damaged due to natural disaster, such as accident, earthquake, flood, etc. -  In the event the product is damaged after the one year warranty period, as referred to in this Manual -  In the event the product is damaged due to the Customer’s failure to comply with the appropriate maintenance procedures as recommended 3. Service after Warranty Period -  Damages to the product arising after the Warranty period will be serviced for a fee. -  All other matters not referenced in this Warranty Rules will be handled in accordance with the consumer injury compensation rule in Consumer Protection Act. -  Please contact OBELAB customer services in case of product failure or questions. 4. Precautions -  Please read the product Operator’s Manual carefully before actual use of the product. This Quality Assurance Certificate is effective only within Korea. This Quality Assurance Certificate will not be re-issued. Please be sure to fill out this Certificate and send the scanned document to contact@obelab.com. Please contact the local dealer or OBELAB customer service if any questions.
