OKAYO Electronics DLR-9 Digital receiver User Manual DLR 9x

OKAYO Electronics Co., Ltd. Digital receiver Users Manual DLR 9x

User Manual

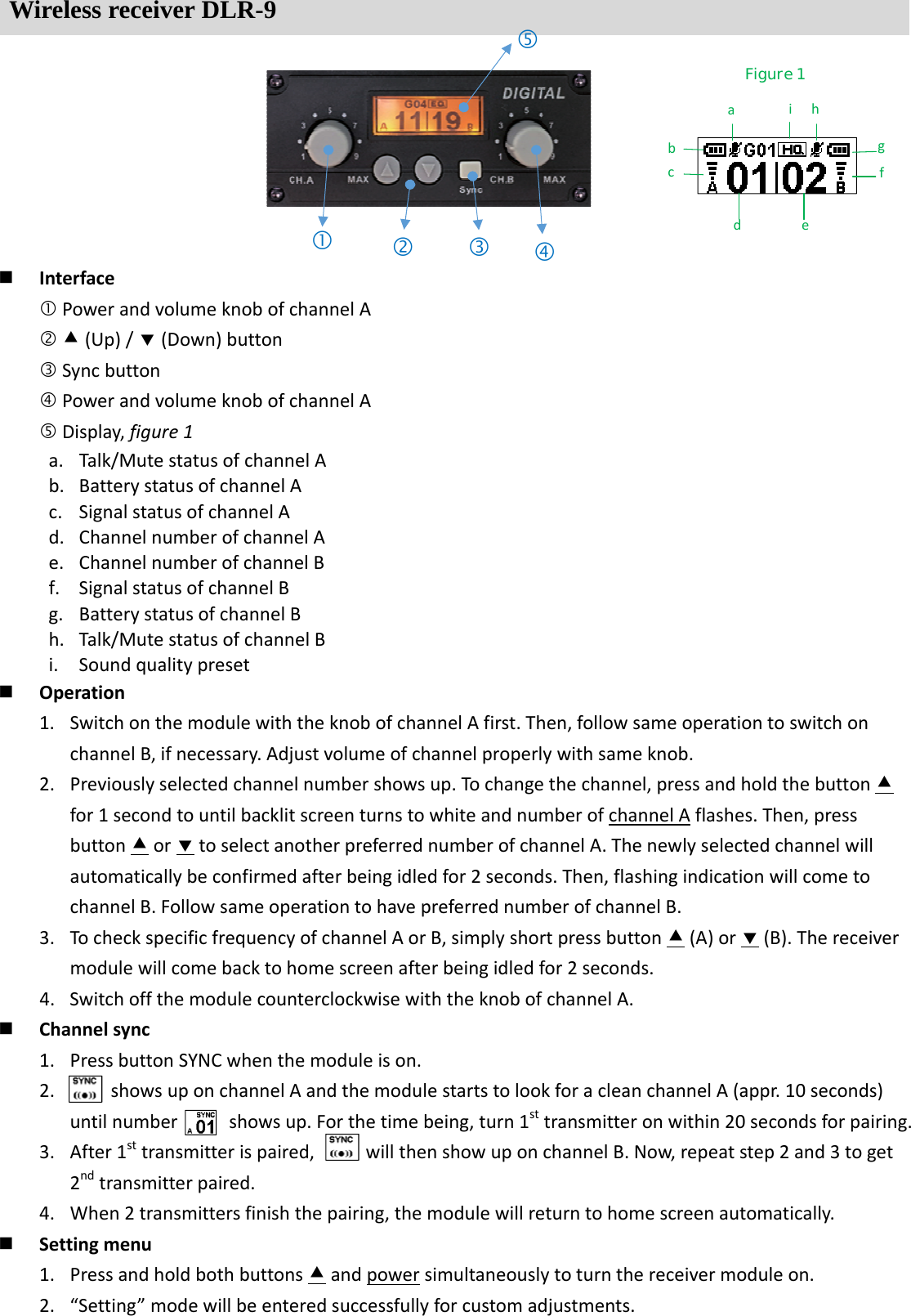

Wireless receiver DLR-9  InterfacePowerandvolumeknobofchannelA(Up)/(Down)buttonSyncbuttonPowerandvolumeknobofchannelADisplay,figure1a. Talk/MutestatusofchannelAb. BatterystatusofchannelAc. SignalstatusofchannelAd. ChannelnumberofchannelAe. ChannelnumberofchannelBf. SignalstatusofchannelBg. BatterystatusofchannelBh. Talk/MutestatusofchannelBi. Soundqualitypreset Operation1. SwitchonthemodulewiththeknobofchannelAfirst.Then,followsameoperationtoswitchonchannelB,ifnecessary.Adjustvolumeofchannelproperlywithsameknob.2. Previouslyselectedchannelnumbershowsup.Tochangethechannel,pressandholdthebuttonfor1secondtountilbacklitscreenturnstowhiteandnumberofchannelAflashes.Then,pressbuttonortoselectanotherpreferrednumberofchannelA.Thenewlyselectedchannelwillautomaticallybeconfirmedafterbeingidledfor2seconds.Then,flashingindicationwillcometochannelB.FollowsameoperationtohavepreferrednumberofchannelB.3. TocheckspecificfrequencyofchannelAorB,simplyshortpressbutton(A)or(B).Thereceivermodulewillcomebacktohomescreenafterbeingidledfor2seconds.4. SwitchoffthemodulecounterclockwisewiththeknobofchannelA. Channelsync1. PressbuttonSYNCwhenthemoduleison.2. showsuponchannelAandthemodulestartstolookforacleanchannelA(appr.10seconds)untilnumbershowsup.Forthetimebeing,turn1sttransmitteronwithin20secondsforpairing.3. After1sttransmitterispaired,willthenshowuponchannelB.Now,repeatstep2and3toget2ndtransmitterpaired.4. When2transmittersfinishthepairing,themodulewillreturntohomescreenautomatically. Settingmenu1. Pressandholdbothbuttonsandpowersimultaneouslytoturnthereceivermoduleon.2. “Setting”modewillbeenteredsuccessfullyforcustomadjustments.Figure 1 abcdefghi

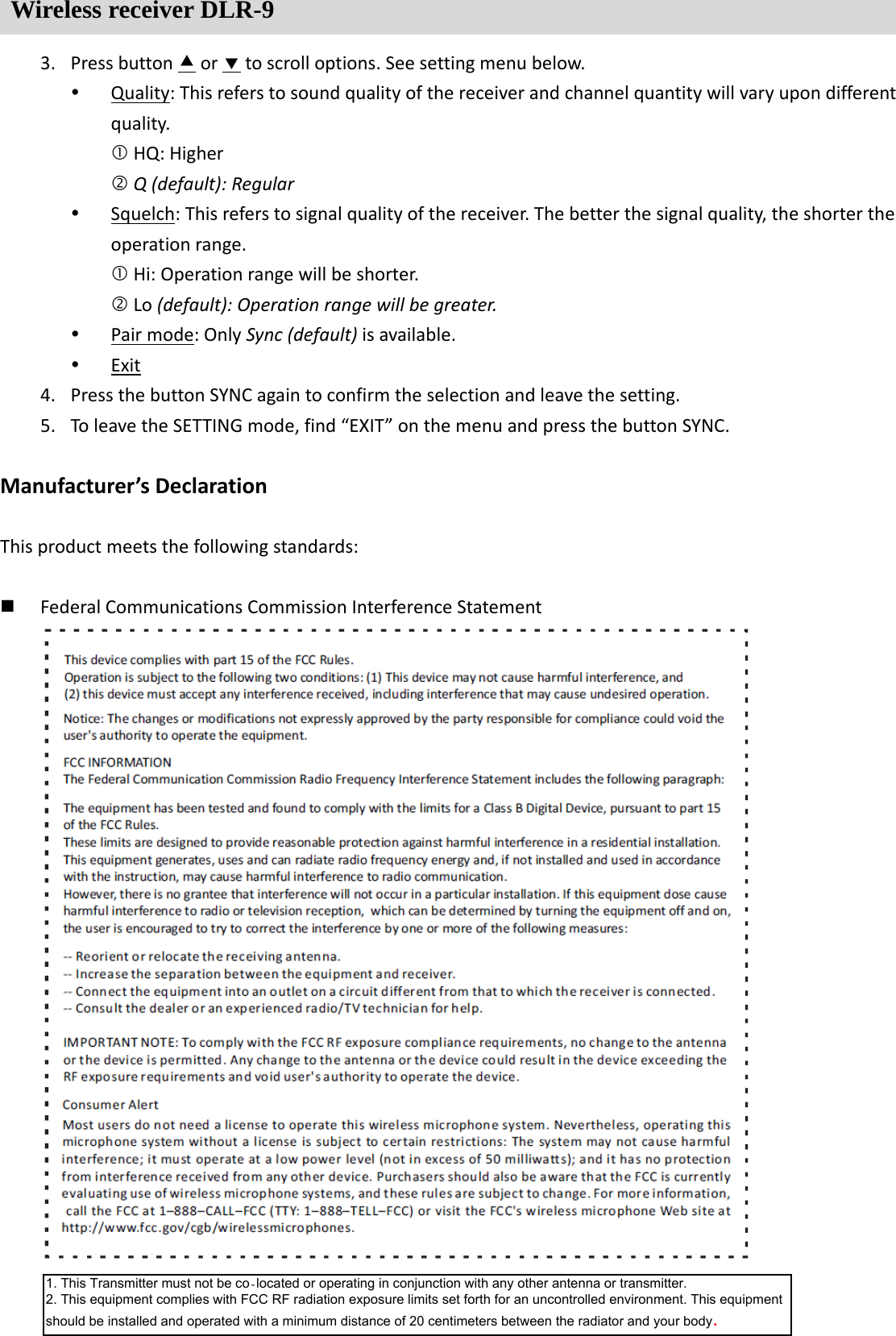

Wireless receiver DLR-9 3. Pressbuttonortoscrolloptions.Seesettingmenubelow. Quality:Thisreferstosoundqualityofthereceiverandchannelquantitywillvaryupondifferentquality.HQ:HigherQ(default):Regular Squelch:Thisreferstosignalqualityofthereceiver.Thebetterthesignalquality,theshortertheoperationrange.Hi:Operationrangewillbeshorter.Lo(default):Operationrangewillbegreater. Pairmode:OnlySync(default)isavailable. Exit4. PressthebuttonSYNCagaintoconfirmtheselectionandleavethesetting.5. ToleavetheSETTINGmode,find“EXIT”onthemenuandpressthebuttonSYNC.Manufacturer’sDeclarationThisproductmeetsthefollowingstandards: FederalCommunicationsCommissionInterferenceStatement1. This Transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

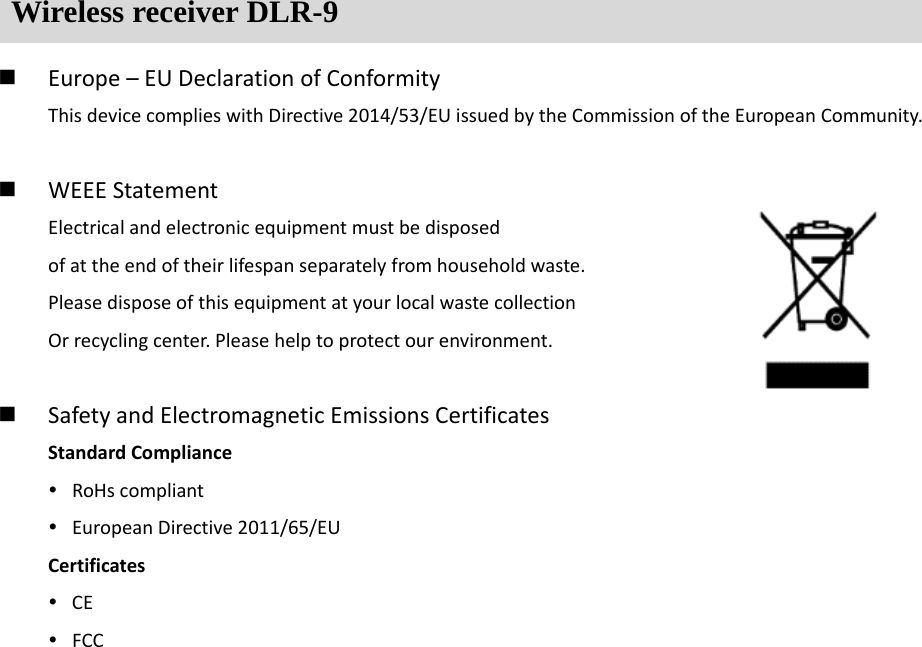

Wireless receiver DLR-9  Europe–EUDeclarationofConformityThisdevicecomplieswithDirective2014/53/EUissuedbytheCommissionoftheEuropeanCommunity. WEEEStatementElectricalandelectronicequipmentmustbedisposedofattheendoftheirlifespanseparatelyfromhouseholdwaste.PleasedisposeofthisequipmentatyourlocalwastecollectionOrrecyclingcenter.Pleasehelptoprotectourenvironment. SafetyandElectromagneticEmissionsCertificatesStandardCompliance RoHscompliant EuropeanDirective2011/65/EUCertificates CE FCC
