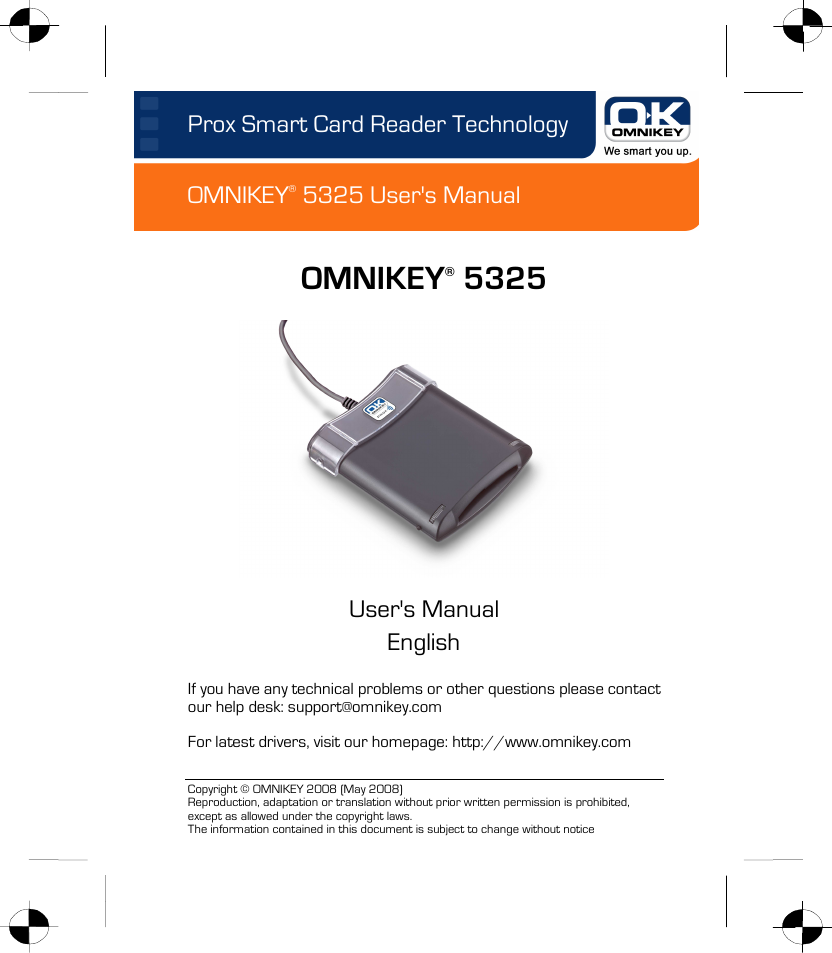

Prox Smart Card Reader Technology OMNIKEY® 5325 User's Manual Copyright © OMNIKEY 2008 (May 2008) Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws. The information contained in this document is subject to change without notice OMNIKEY® 5325 User's Manual English If you have any technical problems or other questions please contact our help desk: support@omnikey.com For latest drivers, visit our homepage: http://www.omnikey.com

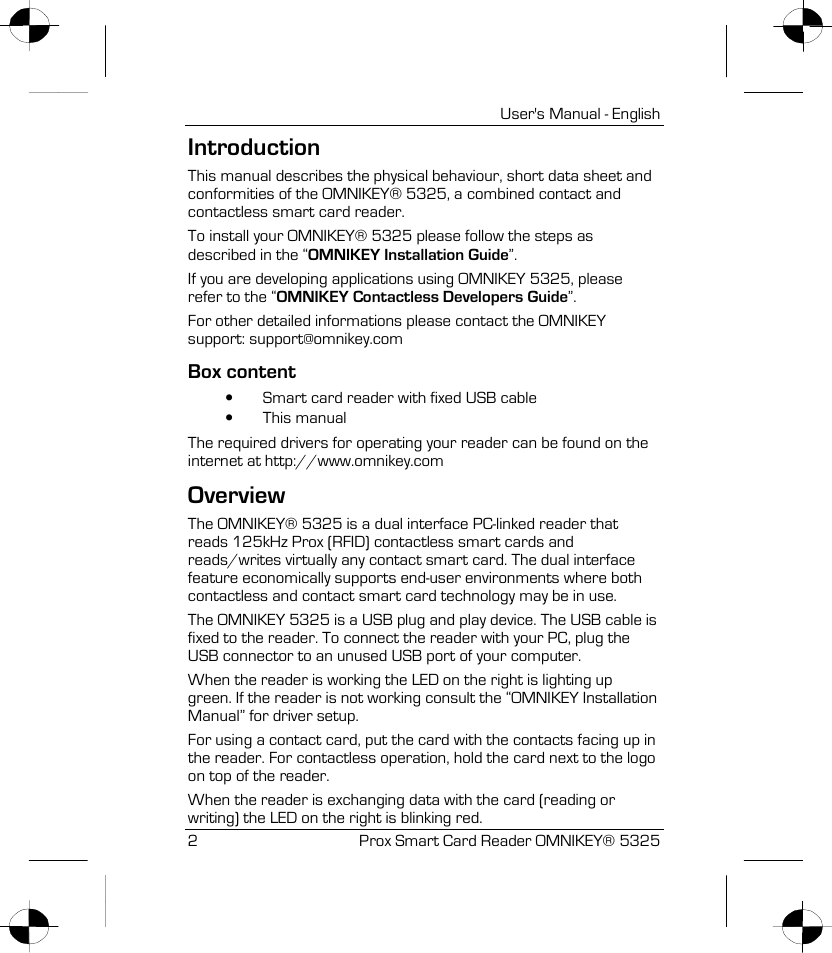

User's Manual - English 2 Prox Smart Card Reader OMNIKEY® 5325 Introduction This manual describes the physical behaviour, short data sheet and conformities of the OMNIKEY® 5325, a combined contact and contactless smart card reader. To install your OMNIKEY® 5325 please follow the steps as described in the “OMNIKEY Installation Guide”. If you are developing applications using OMNIKEY 5325, please refer to the “OMNIKEY Contactless Developers Guide”. For other detailed informations please contact the OMNIKEY support: support@omnikey.com Box content • Smart card reader with fixed USB cable • This manual The required drivers for operating your reader can be found on the internet at http://www.omnikey.com Overview The OMNIKEY® 5325 is a dual interface PC-linked reader that reads 125kHz Prox (RFID) contactless smart cards and reads/writes virtually any contact smart card. The dual interface feature economically supports end-user environments where both contactless and contact smart card technology may be in use. The OMNIKEY 5325 is a USB plug and play device. The USB cable is fixed to the reader. To connect the reader with your PC, plug the USB connector to an unused USB port of your computer. When the reader is working the LED on the right is lighting up green. If the reader is not working consult the “OMNIKEY Installation Manual” for driver setup. For using a contact card, put the card with the contacts facing up in the reader. For contactless operation, hold the card next to the logo on top of the reader. When the reader is exchanging data with the card (reading or writing) the LED on the right is blinking red.

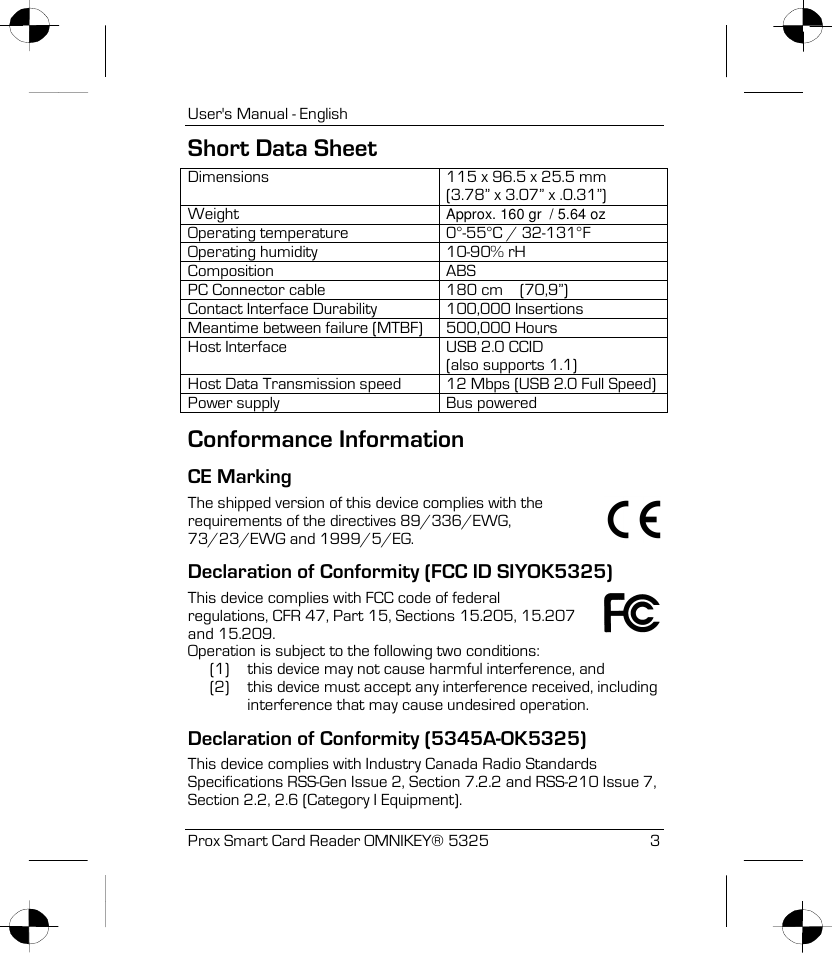

User's Manual - English Prox Smart Card Reader OMNIKEY® 5325 3 Short Data Sheet Dimensions 115 x 96.5 x 25.5 mm (3.78” x 3.07” x .0.31”) Weight Approx. 160 gr / 5.64 oz Operating temperature 0°-55°C / 32-131°F Operating humidity 10-90% rH Composition ABS PC Connector cable 180 cm (70,9”) Contact Interface Durability 100,000 Insertions Meantime between failure (MTBF) 500,000 Hours Host Interface USB 2.0 CCID (also supports 1.1) Host Data Transmission speed 12 Mbps (USB 2.0 Full Speed) Power supply Bus powered Conformance Information CE Marking The shipped version of this device complies with the requirements of the directives 89/336/EWG, 73/23/EWG and 1999/5/EG. Declaration of Conformity (FCC ID SIYOK5325) This device complies with FCC code of federal regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity (5345A-OK5325) This device complies with Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Section 2.2, 2.6 (Category I Equipment).

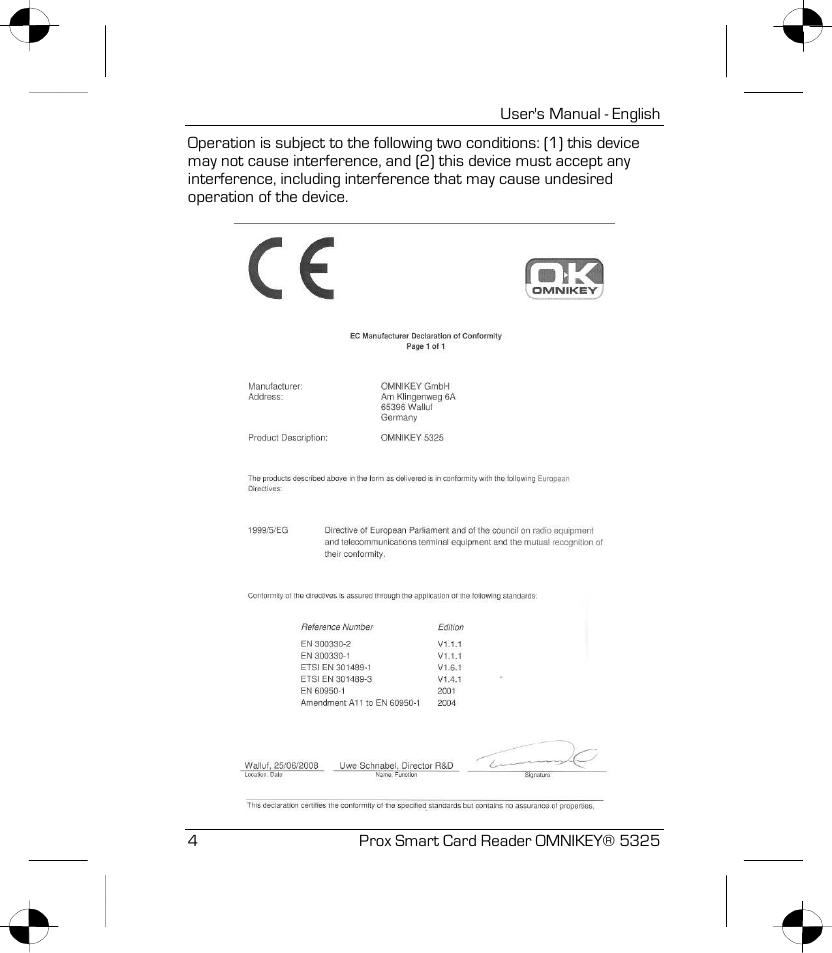

User's Manual - English 4 Prox Smart Card Reader OMNIKEY® 5325 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

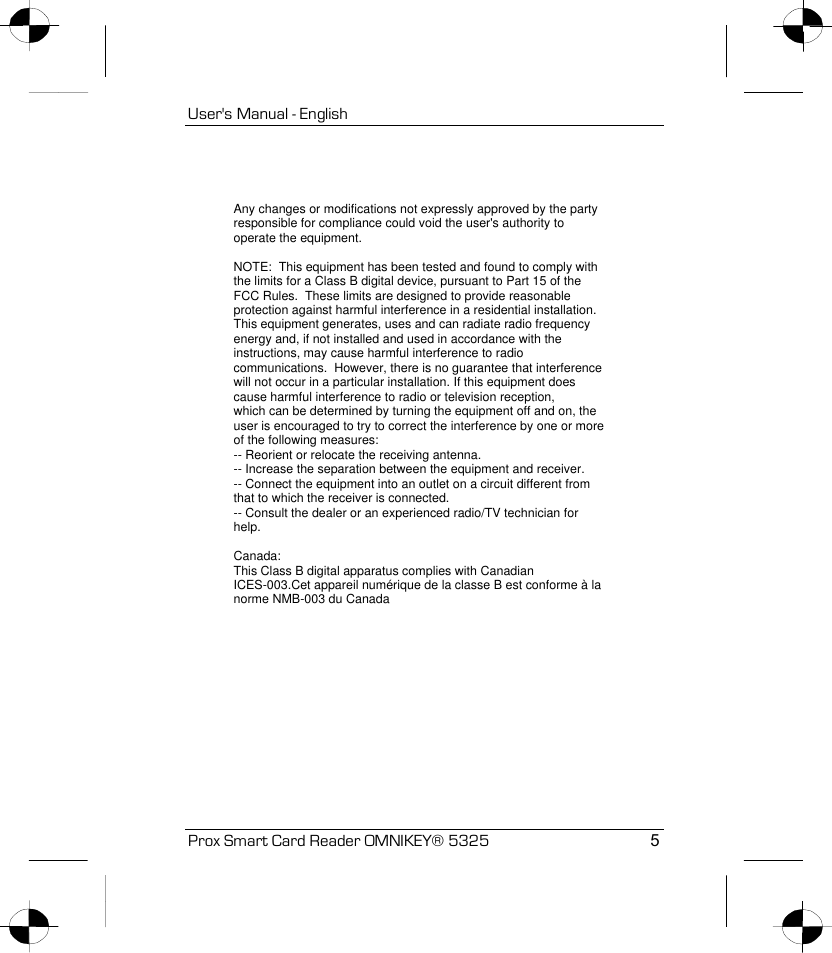

User's Manual - English Prox Smart Card Reader OMNIKEY® 5325 5 Any changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority tooperate the equipment.NOTE: This equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to Part 15 of theFCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or moreof the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician forhelp. Canada:This Class B digital apparatus complies with CanadianICES-003.Cet appareil numérique de la classe B est conforme à lanorme NMB-003 du Canada
