OMNIKEY OK6310 USB RFID READER User Manual

OMNIKEY GmbH USB RFID READER

User Manual

© 2008 OMNIKEY GmbH. All rights reserved. Installation Guide Technical problems or questions: support@omnikey.com Latest drivers and manuals: http://www.hidglobal.com/omnikey OMNIKEY® 6310

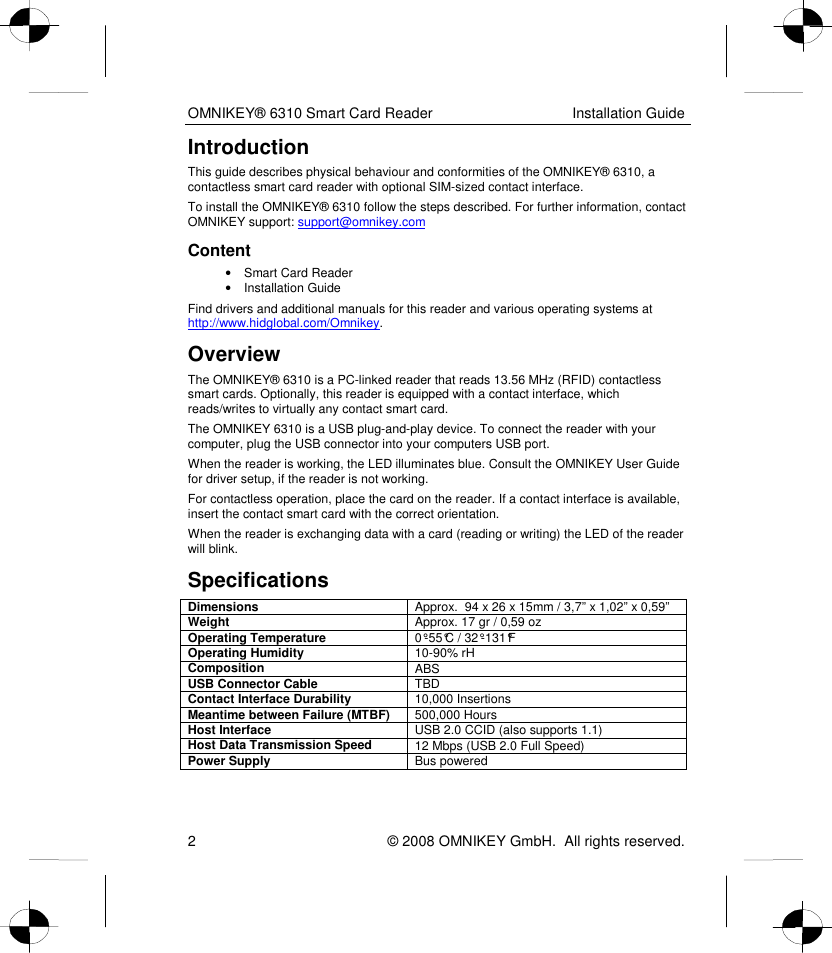

OMNIKEY® 6310 Smart Card Reader Installation Guide 2 © 2008 OMNIKEY GmbH. All rights reserved. Introduction This guide describes physical behaviour and conformities of the OMNIKEY® 6310, a contactless smart card reader with optional SIM-sized contact interface. To install the OMNIKEY® 6310 follow the steps described. For further information, contact OMNIKEY support: support@omnikey.com Content • Smart Card Reader • Installation Guide Find drivers and additional manuals for this reader and various operating systems at http://www.hidglobal.com/Omnikey. Overview The OMNIKEY® 6310 is a PC-linked reader that reads 13.56 MHz (RFID) contactless smart cards. Optionally, this reader is equipped with a contact interface, which reads/writes to virtually any contact smart card. The OMNIKEY 6310 is a USB plug-and-play device. To connect the reader with your computer, plug the USB connector into your computers USB port. When the reader is working, the LED illuminates blue. Consult the OMNIKEY User Guide for driver setup, if the reader is not working. For contactless operation, place the card on the reader. If a contact interface is available, insert the contact smart card with the correct orientation. When the reader is exchanging data with a card (reading or writing) the LED of the reader will blink. Specifications Dimensions Approx. 94 x 26 x 15mm / 3,7” x 1,02” x 0,59” Weight Approx. 17 gr / 0,59 oz Operating Temperature 0°-55°C / 32°-131°F Operating Humidity 10-90% rH Composition ABS USB Connector Cable TBD Contact Interface Durability 10,000 Insertions Meantime between Failure (MTBF) 500,000 Hours Host Interface USB 2.0 CCID (also supports 1.1) Host Data Transmission Speed 12 Mbps (USB 2.0 Full Speed) Power Supply Bus powered

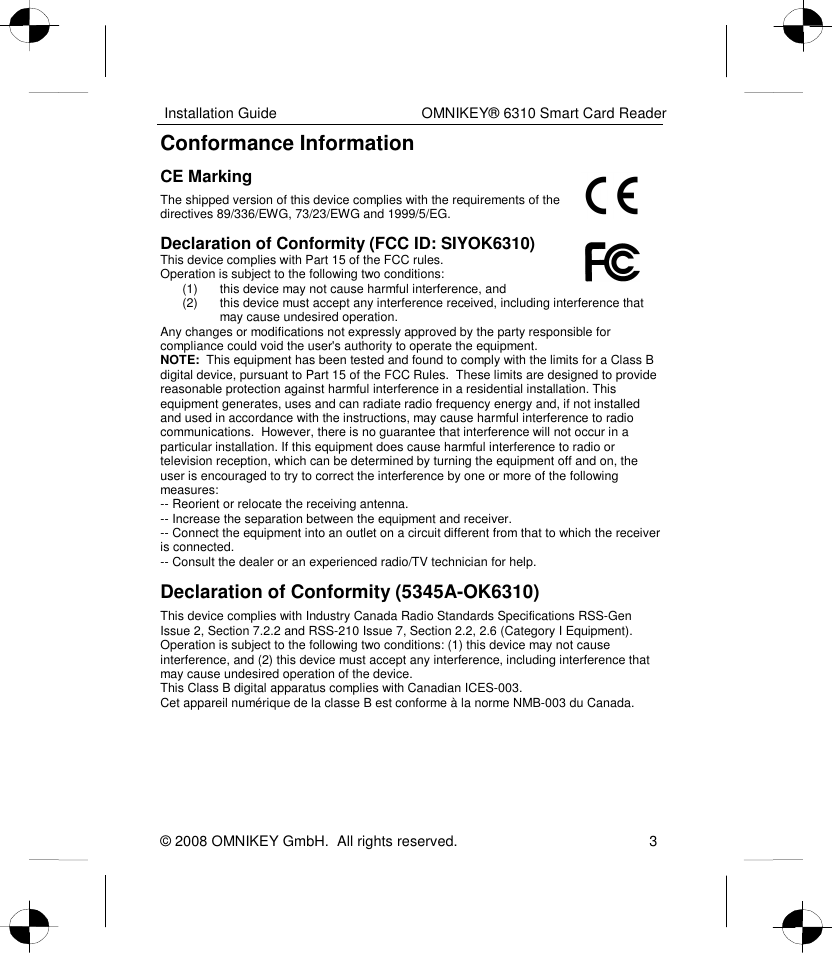

Installation Guide OMNIKEY® 6310 Smart Card Reader © 2008 OMNIKEY GmbH. All rights reserved. 3 Conformance Information CE Marking The shipped version of this device complies with the requirements of the directives 89/336/EWG, 73/23/EWG and 1999/5/EG. Declaration of Conformity (FCC ID: SIYOK6310) This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Declaration of Conformity (5345A-OK6310) This device complies with Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Section 2.2, 2.6 (Category I Equipment). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

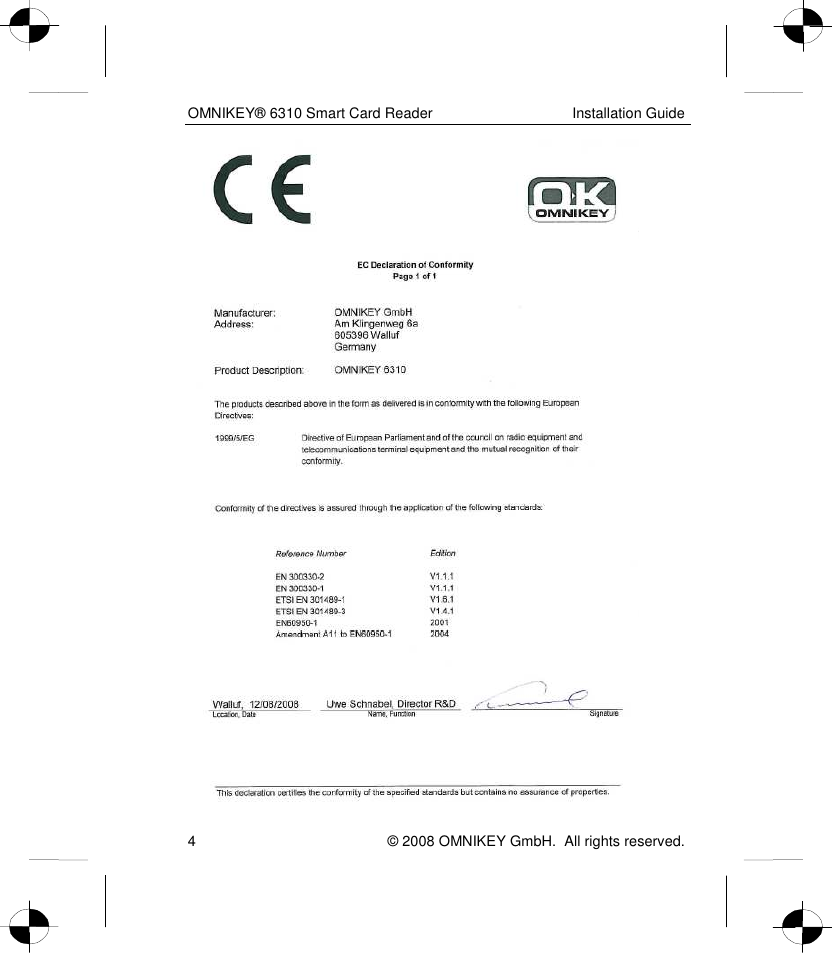

OMNIKEY® 6310 Smart Card Reader Installation Guide 4 © 2008 OMNIKEY GmbH. All rights reserved.
