ONYX Healthcare lnc 1521DTT-C1 Medical Station User Manual ONYX 1521 manual 1016

ONYX Healthcare lnc. Medical Station ONYX 1521 manual 1016

User manual

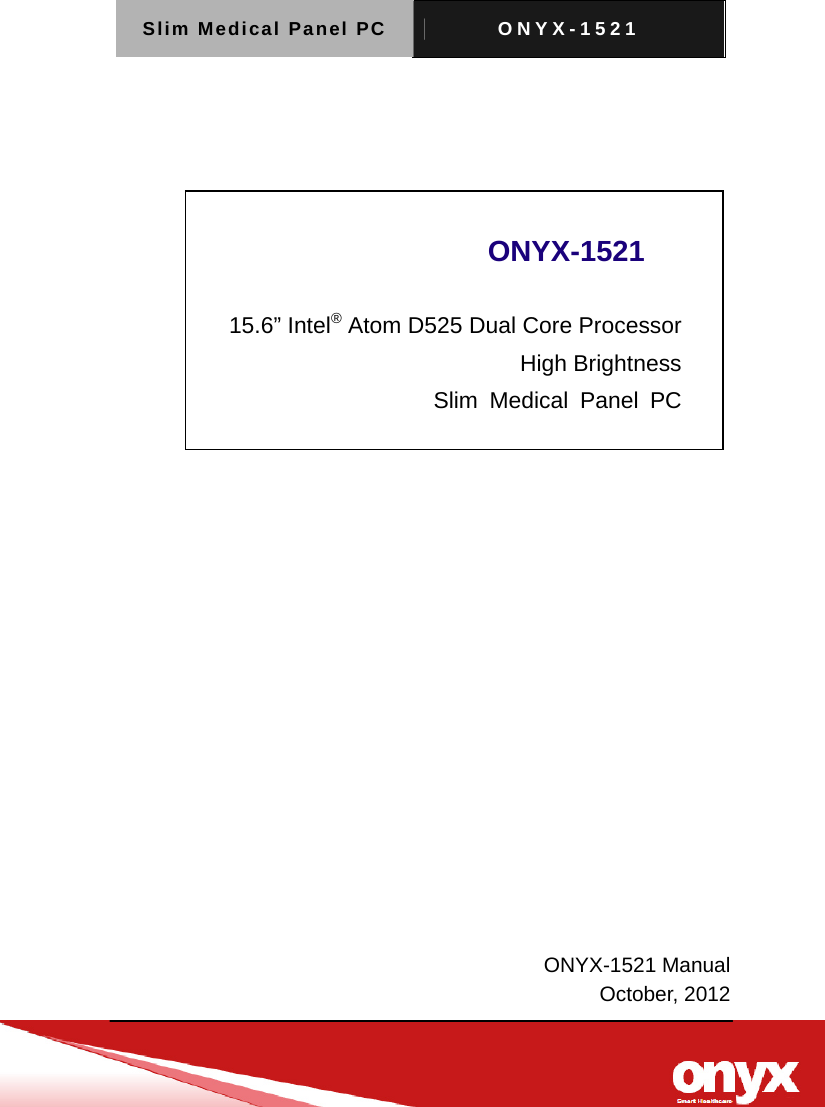

Slim Medical Panel PC ONYX-1521 ONYX-1521 15.6” Intel® Atom D525 Dual Core Processor High Brightness Slim Medical Panel PC ONYX-1521 Manual October, 2012

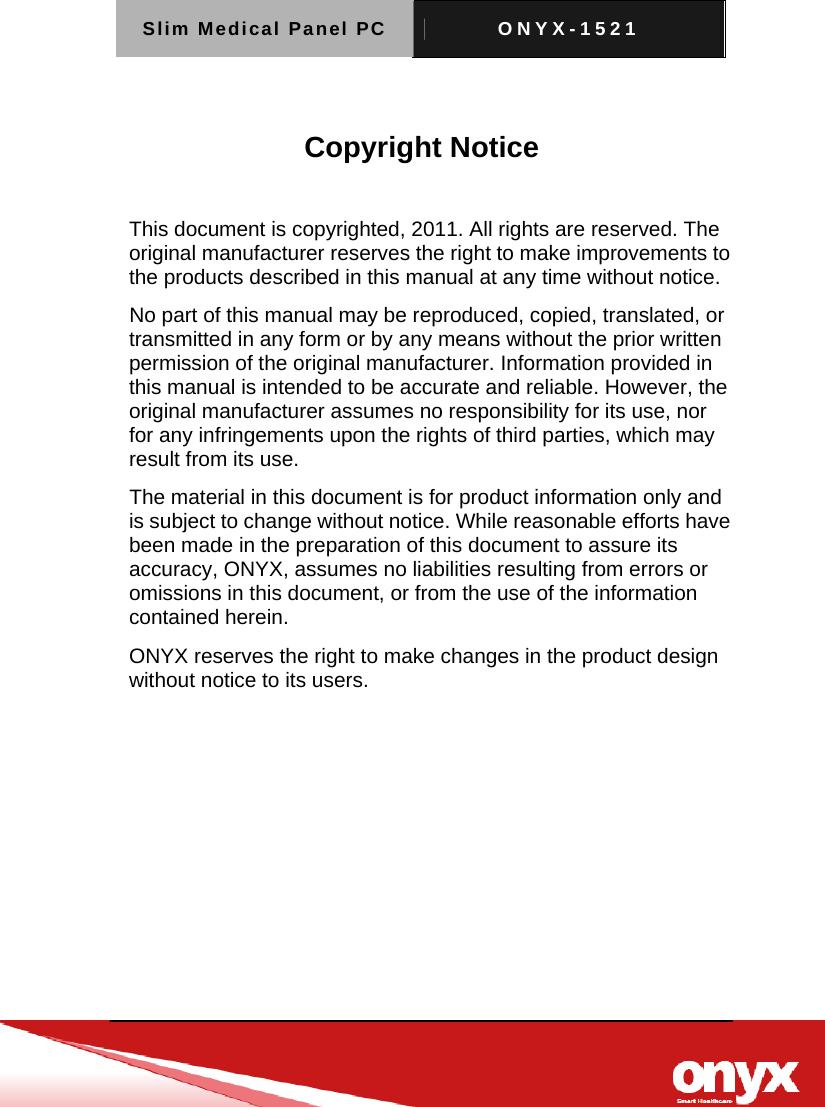

Slim Medical Panel PC ONYX-1521 Copyright Notice This document is copyrighted, 2011. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer. Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from its use. The material in this document is for product information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, ONYX, assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. ONYX reserves the right to make changes in the product design without notice to its users.

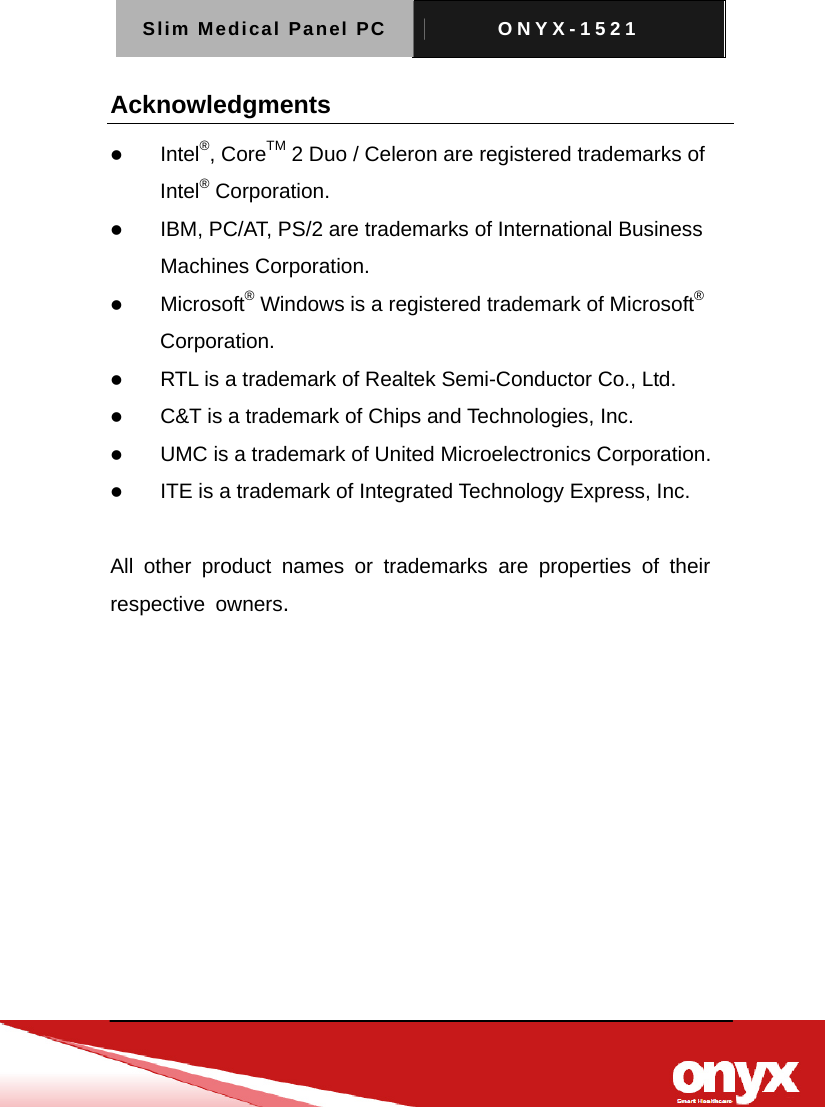

Slim Medical Panel PC ONYX-1521 Acknowledgments z Intel®, CoreTM 2 Duo / Celeron are registered trademarks of Intel® Corporation. z IBM, PC/AT, PS/2 are trademarks of International Business Machines Corporation. z Microsoft® Windows is a registered trademark of Microsoft® Corporation. z RTL is a trademark of Realtek Semi-Conductor Co., Ltd. z C&T is a trademark of Chips and Technologies, Inc. z UMC is a trademark of United Microelectronics Corporation. z ITE is a trademark of Integrated Technology Express, Inc. All other product names or trademarks are properties of their respective owners.
Slim Medical Panel PC ONYX-1521 Packing List Before you begin installing your Slim Medical Panel PC, please make sure that the following items have been shipped:  ONYX-1521 Slim Medical Panel PC  VESA Screws (M4 x 0.7 x 12mm)  Utility CD-ROM which contains Drivers and Utilities If any of these items are missing or damaged, you should contact your distributor or sales representative immediately. Headquarters Onyx Healthcare Inc. 2F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) TEL: +886-2-8919-2188 FAX: +886-2-8919-1699 E-mail: sales@onyx-healthcare.com http://www.onyx-healthcare.com Worldwide Offices:

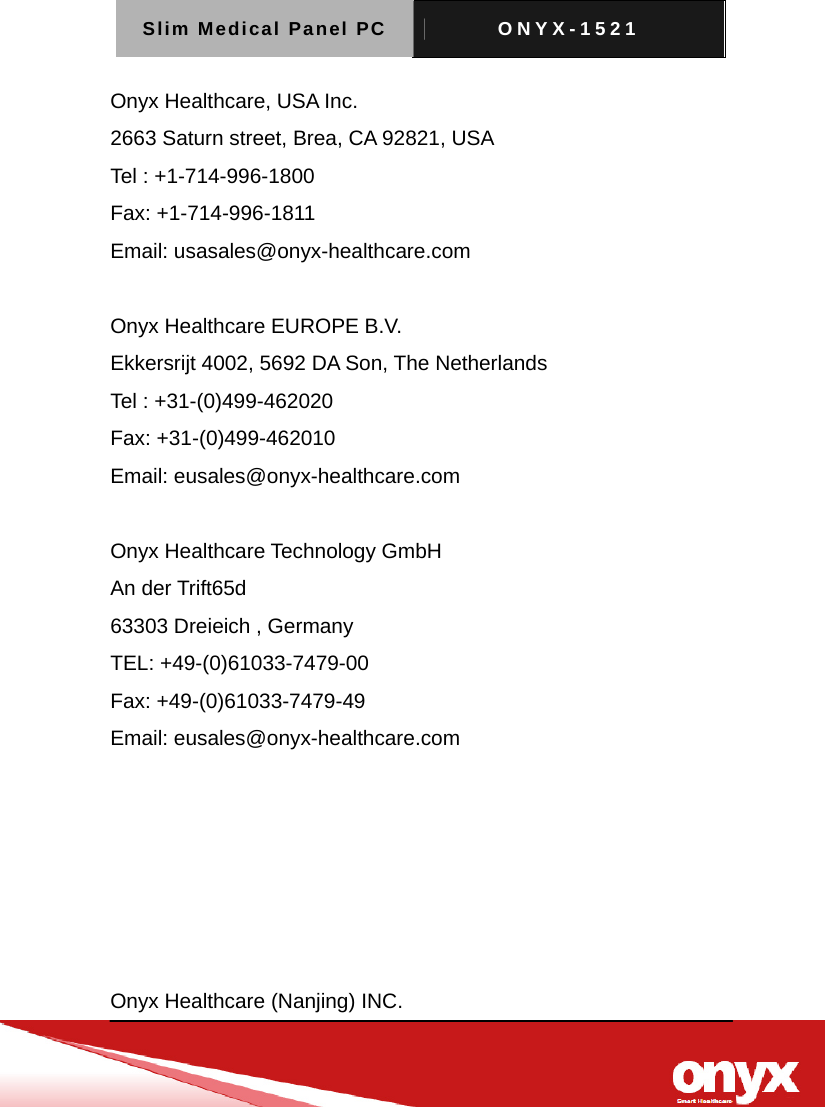

Slim Medical Panel PC ONYX-1521 Onyx Healthcare, USA Inc. 2663 Saturn street, Brea, CA 92821, USA Tel : +1-714-996-1800 Fax: +1-714-996-1811 Email: usasales@onyx-healthcare.com Onyx Healthcare EUROPE B.V. Ekkersrijt 4002, 5692 DA Son, The Netherlands Tel : +31-(0)499-462020 Fax: +31-(0)499-462010 Email: eusales@onyx-healthcare.com Onyx Healthcare Technology GmbH An der Trift65d 63303 Dreieich , Germany TEL: +49-(0)61033-7479-00 Fax: +49-(0)61033-7479-49 Email: eusales@onyx-healthcare.com Onyx Healthcare (Nanjing) INC.

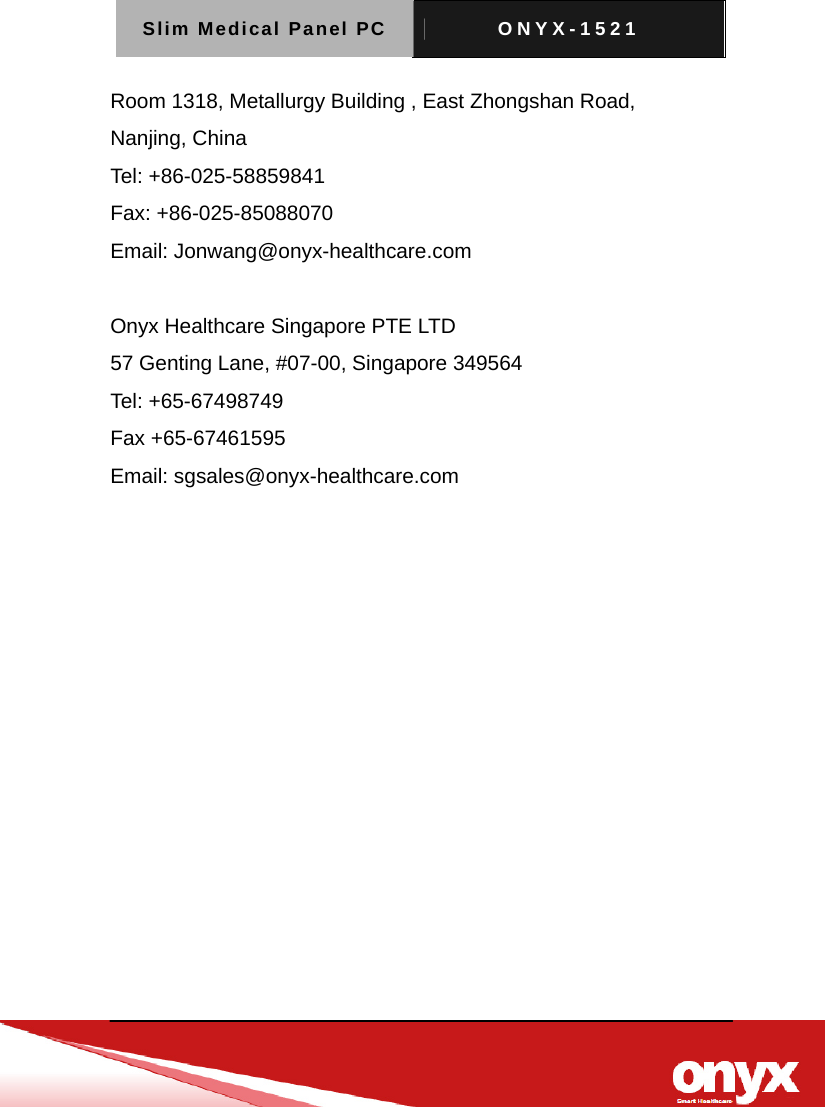

Slim Medical Panel PC ONYX-1521 Room 1318, Metallurgy Building , East Zhongshan Road, Nanjing, China Tel: +86-025-58859841 Fax: +86-025-85088070 Email: Jonwang@onyx-healthcare.com Onyx Healthcare Singapore PTE LTD 57 Genting Lane, #07-00, Singapore 349564 Tel: +65-67498749 Fax +65-67461595 Email: sgsales@onyx-healthcare.com
Slim Medical Panel PC ONYX-1521 Safety & Warranty 1. Read these safety instructions carefully. 2. Keep this user's manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. 4. For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible. 5. Keep this equipment away from humidity. 6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. 7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. 8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. 9. Position the power cord so that people cannot step on it. Do not place anything over the power cord. 10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over-voltage. 12. Never pour any liquid into an opening. This could cause fire or electrical shock. 13. Never open the equipment. For safety reasons, only qualified

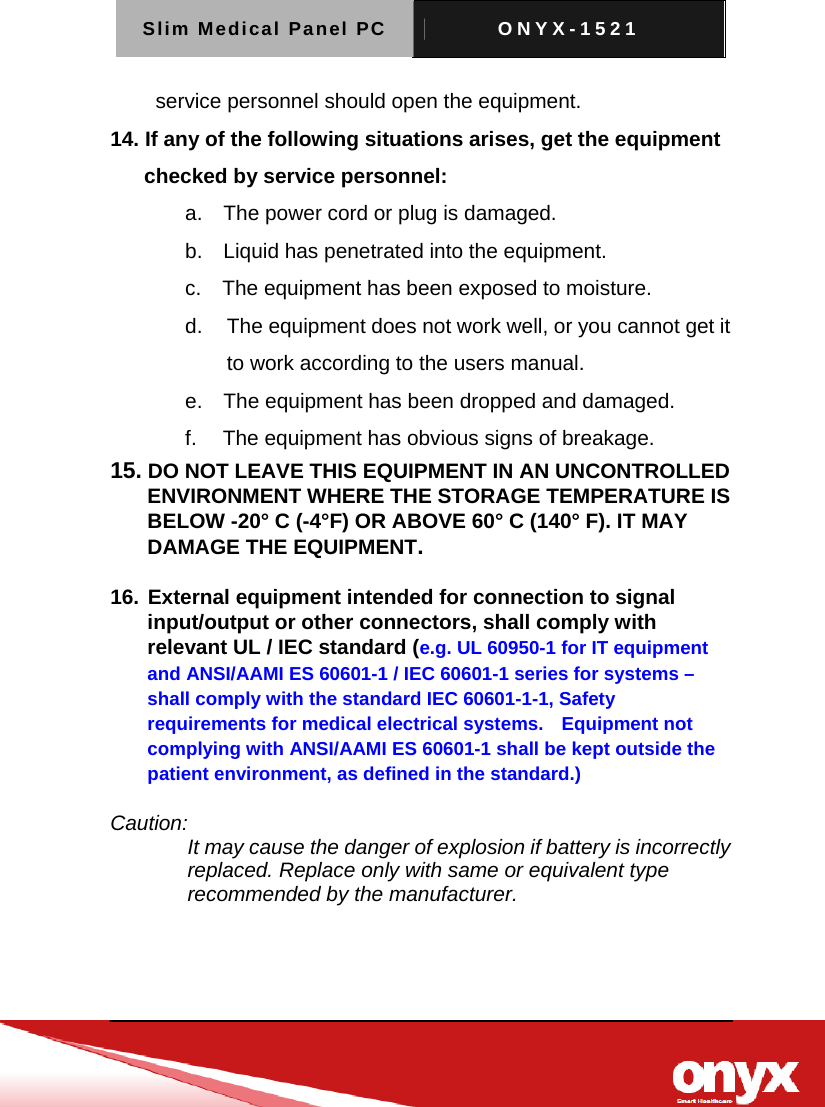

Slim Medical Panel PC ONYX-1521 service personnel should open the equipment. 14. If any of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work according to the users manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage. 15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY DAMAGE THE EQUIPMENT. 16. External equipment intended for connection to signal input/output or other connectors, shall comply with relevant UL / IEC standard (e.g. UL 60950-1 for IT equipment and ANSI/AAMI ES 60601-1 / IEC 60601-1 series for systems – shall comply with the standard IEC 60601-1-1, Safety requirements for medical electrical systems. Equipment not complying with ANSI/AAMI ES 60601-1 shall be kept outside the patient environment, as defined in the standard.) Caution: It may cause the danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer.

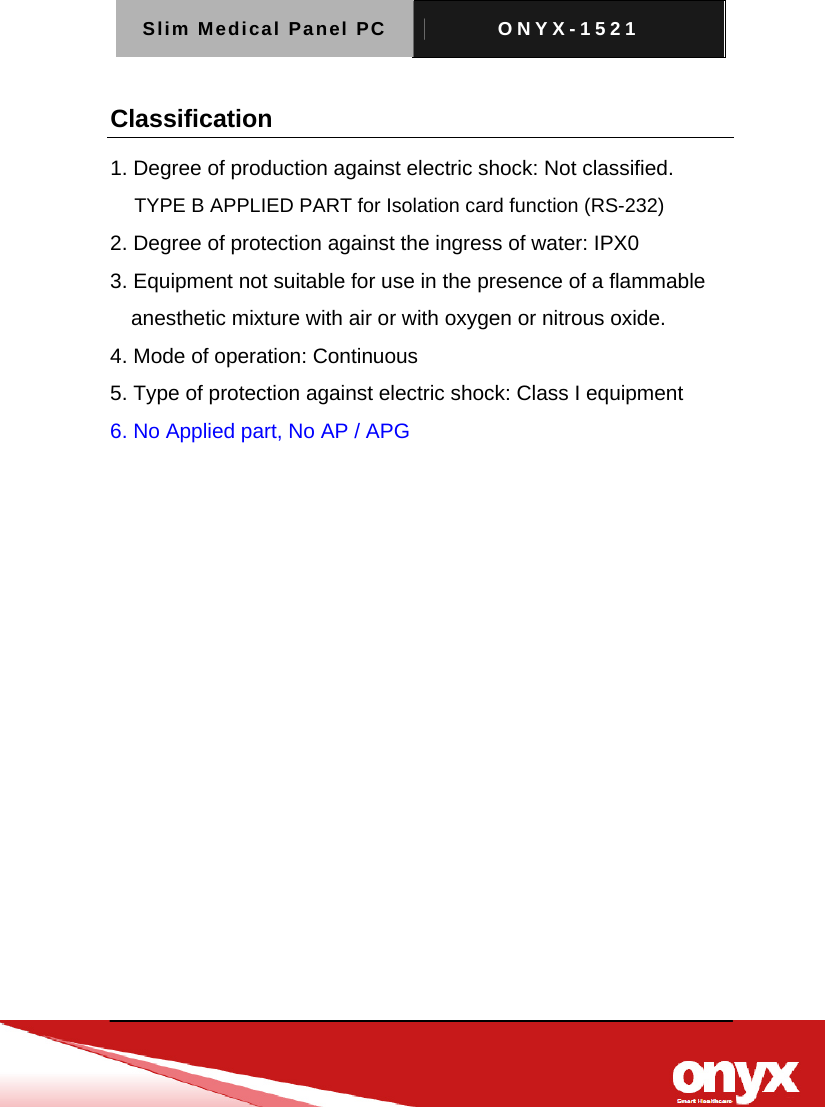

Slim Medical Panel PC ONYX-1521 Classification 1. Degree of production against electric shock: Not classified. TYPE B APPLIED PART for Isolation card function (RS-232) 2. Degree of protection against the ingress of water: IPX0 3. Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. 4. Mode of operation: Continuous 5. Type of protection against electric shock: Class I equipment 6. No Applied part, No AP / APG

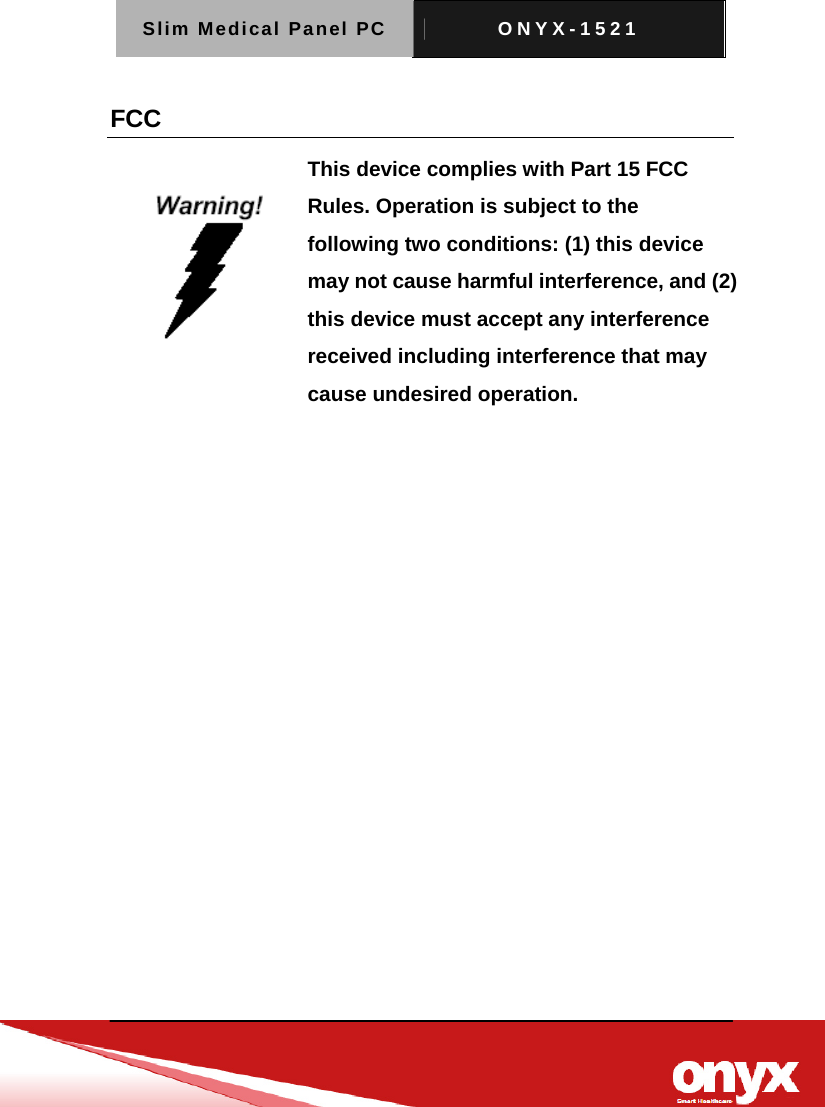

Slim Medical Panel PC ONYX-1521 FCC This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.

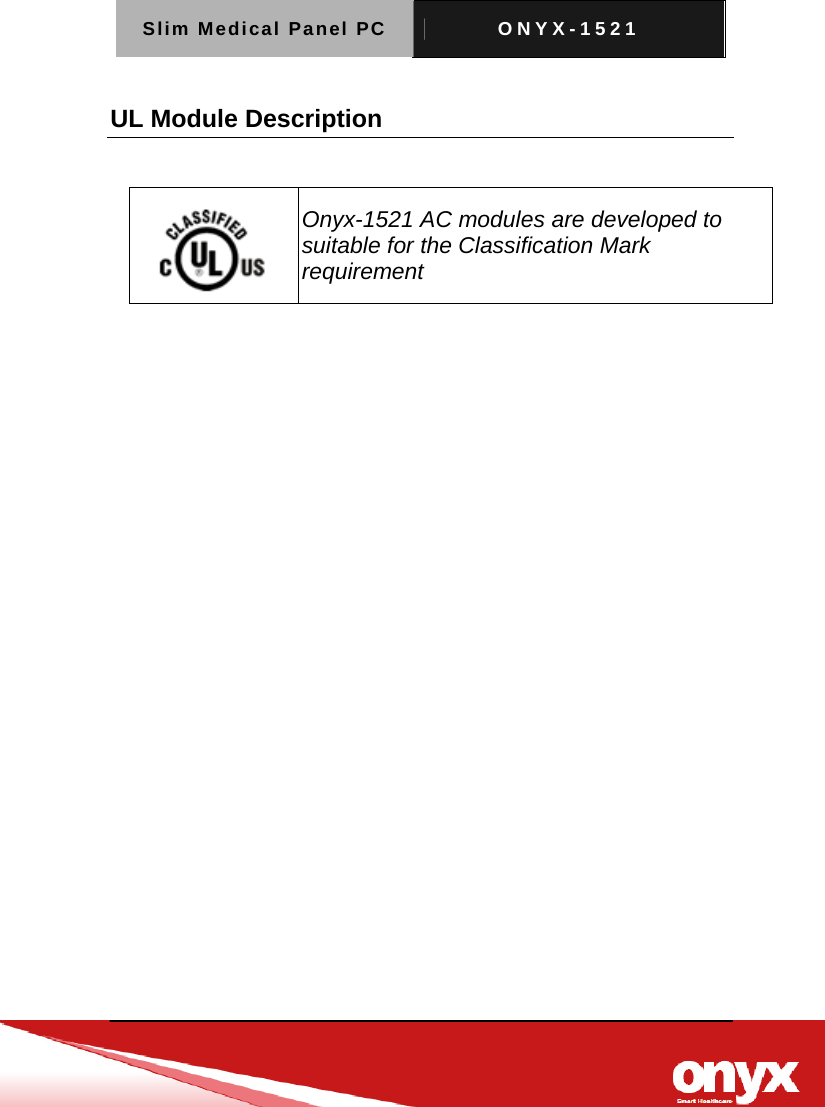

Slim Medical Panel PC ONYX-1521 UL Module Description Onyx-1521 AC modules are developed to suitable for the Classification Mark requirement
Slim Medical Panel PC ONYX-1521 Safety Symbol Description The following safety symbols are the further explanations for your reference. Medical equipment with respect to electric shock, fire and mechanical hazards only in accordance with ANSI/AAMI ES 60601-1: 2005 AND CAN/CSA-C22.2 No. 60601-1:08 Attention, consult ACCOMPANYING DOCUMENTS. Stand-by (Green light) Ground wire Protective Ground wire. Medical equipment with respect to electric shock, fire and mechanical hazards only in accordance with UL 60601-1, and CAN/CSA C22.2 NO. 601.1

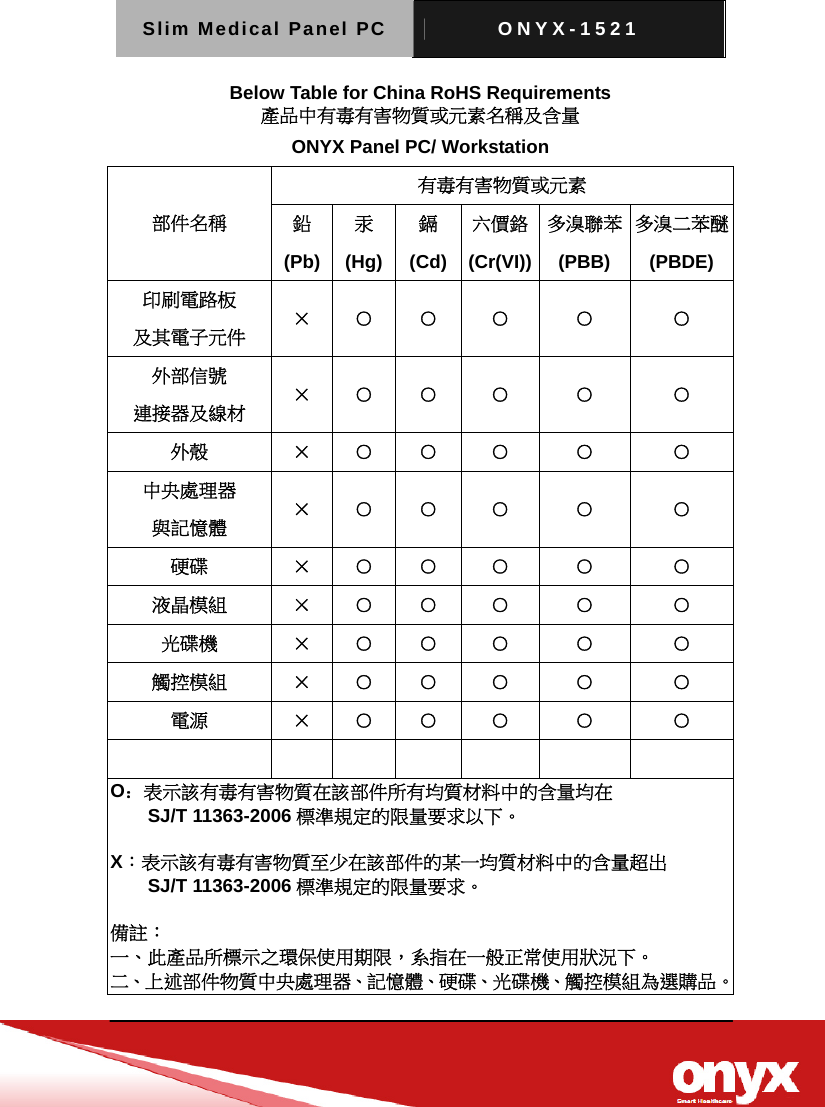

Slim Medical Panel PC ONYX-1521 Below Table for China RoHS Requirements 產品中有毒有害物質或元素名稱及含量 ONYX Panel PC/ Workstation 部件名稱 有毒有害物質或元素 鉛 (Pb)汞 (Hg)鎘 (Cd)六價鉻(Cr(VI))多溴聯苯(PBB) 多溴二苯醚(PBDE) 印刷電路板 及其電子元件 × ○ ○ ○ ○ ○ 外部信號 連接器及線材 × ○ ○ ○ ○ ○ 外殼 × ○ ○ ○ ○ ○ 中央處理器 與記憶體 × ○ ○ ○ ○ ○ 硬碟 × ○ ○ ○ ○ ○ 液晶模組 × ○ ○ ○ ○ ○ 光碟機 × ○ ○ ○ ○ ○ 觸控模組 × ○ ○ ○ ○ ○ 電源 × ○ ○ ○ ○ ○ O：表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定的限量要求以下。 X：表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標準規定的限量要求。 備註： 一、此產品所標示之環保使用期限，系指在一般正常使用狀況下。 二、上述部件物質中央處理器、記憶體、硬碟、光碟機、觸控模組為選購品。

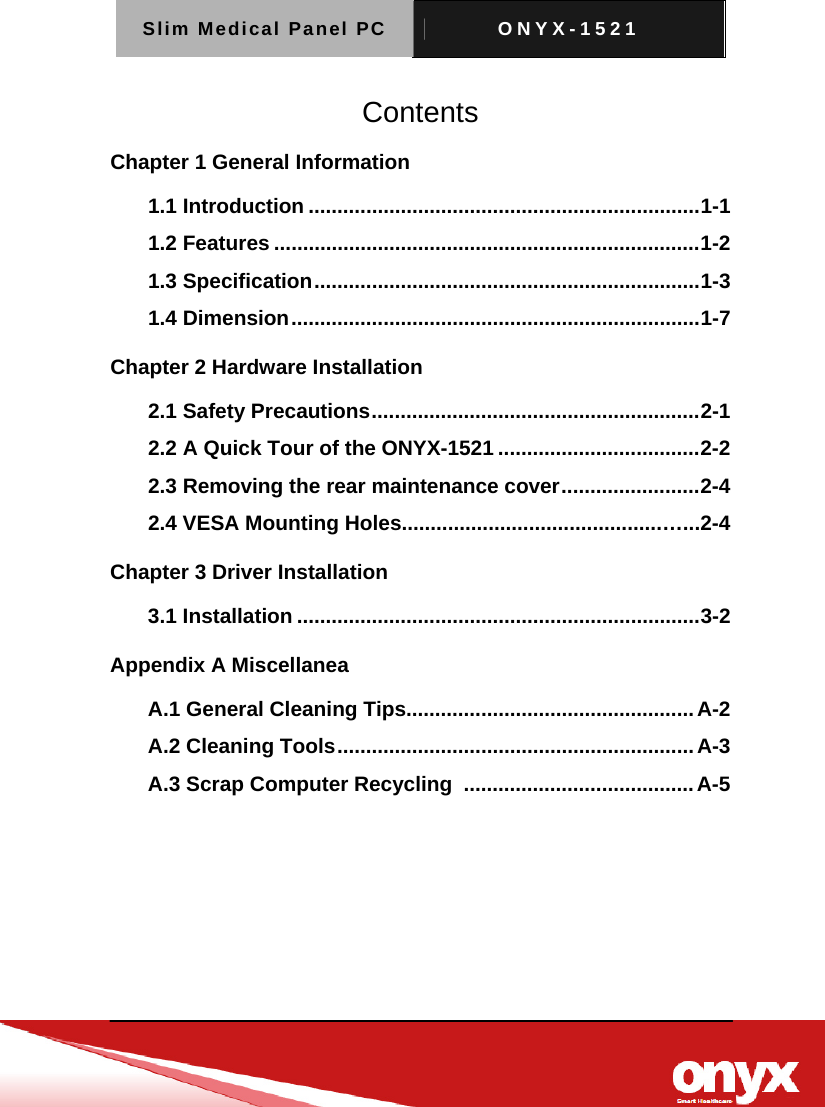

Slim Medical Panel PC ONYX-1521 Contents Chapter 1 General Information 1.1 Introduction .................................................................... 1-1 1.2 Features .......................................................................... 1-2 1.3 Specification ................................................................... 1-3 1.4 Dimension ....................................................................... 1-7 Chapter 2 Hardware Installation 2.1 Safety Precautions ......................................................... 2-1 2.2 A Quick Tour of the ONYX-1521 ................................... 2-2 2.3 Removing the rear maintenance cover ........................ 2-4 2.4 VESA Mounting Holes.............................................…...2-4 Chapter 3 Driver Installation 3.1 Installation ...................................................................... 3-2 Appendix A Miscellanea A.1 General Cleaning Tips.................................................. A-2 A.2 Cleaning Tools .............................................................. A-3 A.3 Scrap Computer Recycling ........................................ A-5

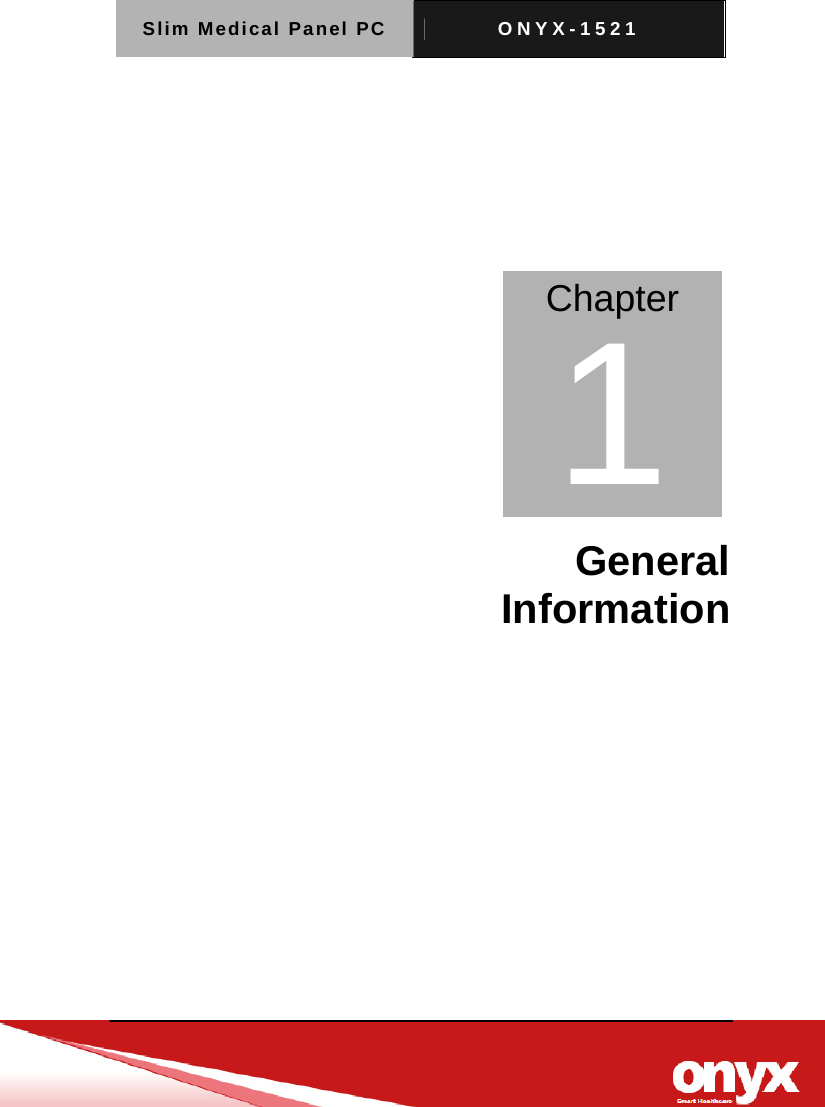

Slim Medical Panel PC ONYX-1521 General Information Chapter 1

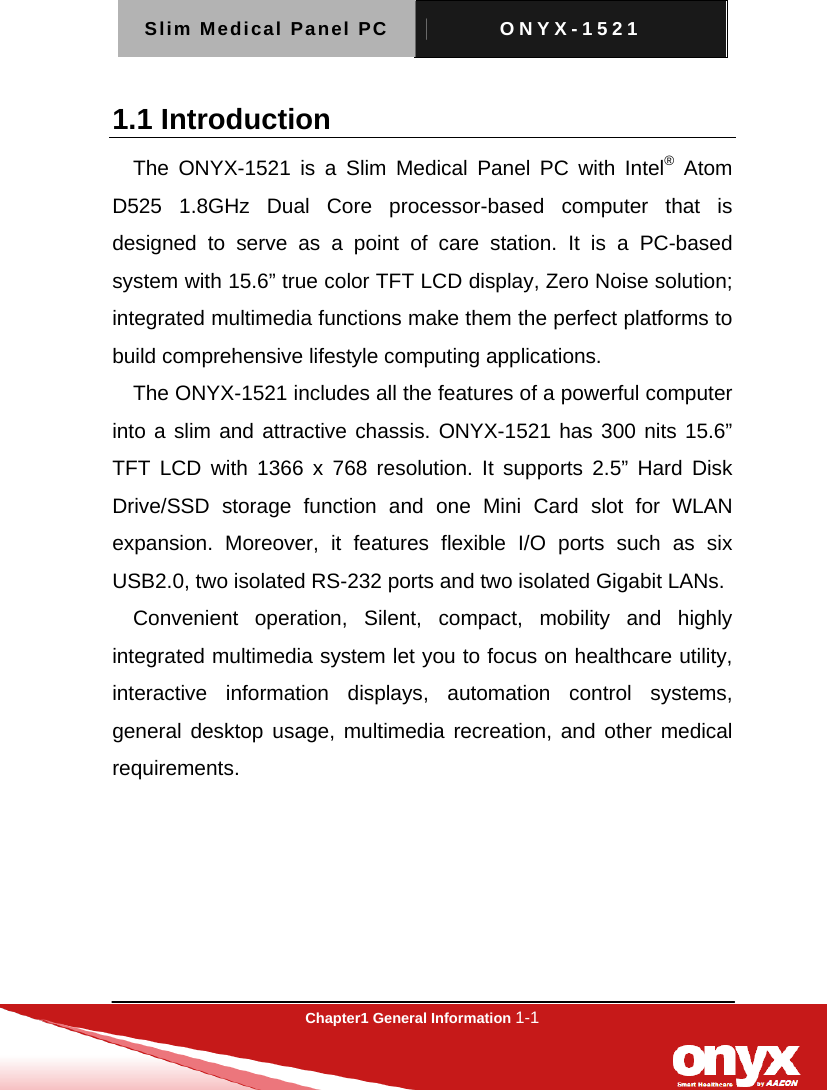

Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-1 1.1 Introduction The ONYX-1521 is a Slim Medical Panel PC with Intel® Atom D525 1.8GHz Dual Core processor-based computer that is designed to serve as a point of care station. It is a PC-based system with 15.6” true color TFT LCD display, Zero Noise solution; integrated multimedia functions make them the perfect platforms to build comprehensive lifestyle computing applications. The ONYX-1521 includes all the features of a powerful computer into a slim and attractive chassis. ONYX-1521 has 300 nits 15.6” TFT LCD with 1366 x 768 resolution. It supports 2.5” Hard Disk Drive/SSD storage function and one Mini Card slot for WLAN expansion. Moreover, it features flexible I/O ports such as six USB2.0, two isolated RS-232 ports and two isolated Gigabit LANs. Convenient operation, Silent, compact, mobility and highly integrated multimedia system let you to focus on healthcare utility, interactive information displays, automation control systems, general desktop usage, multimedia recreation, and other medical requirements.
Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-2 1.2 Features z 15.6” 1366x768 TFT LCD Display z Easy To Use, Compact, Simple Design z Fanless, Zero Noise z 500 : 1 Contrast Wide View Angle z 300 nits High Brightness z Intel® Atom™ D525 1.8GHz Processor z 5-wire Resistive Touch Screen z 802.11 b/g/n Wireless LAN (Optional) z Weight: 4.3Kg

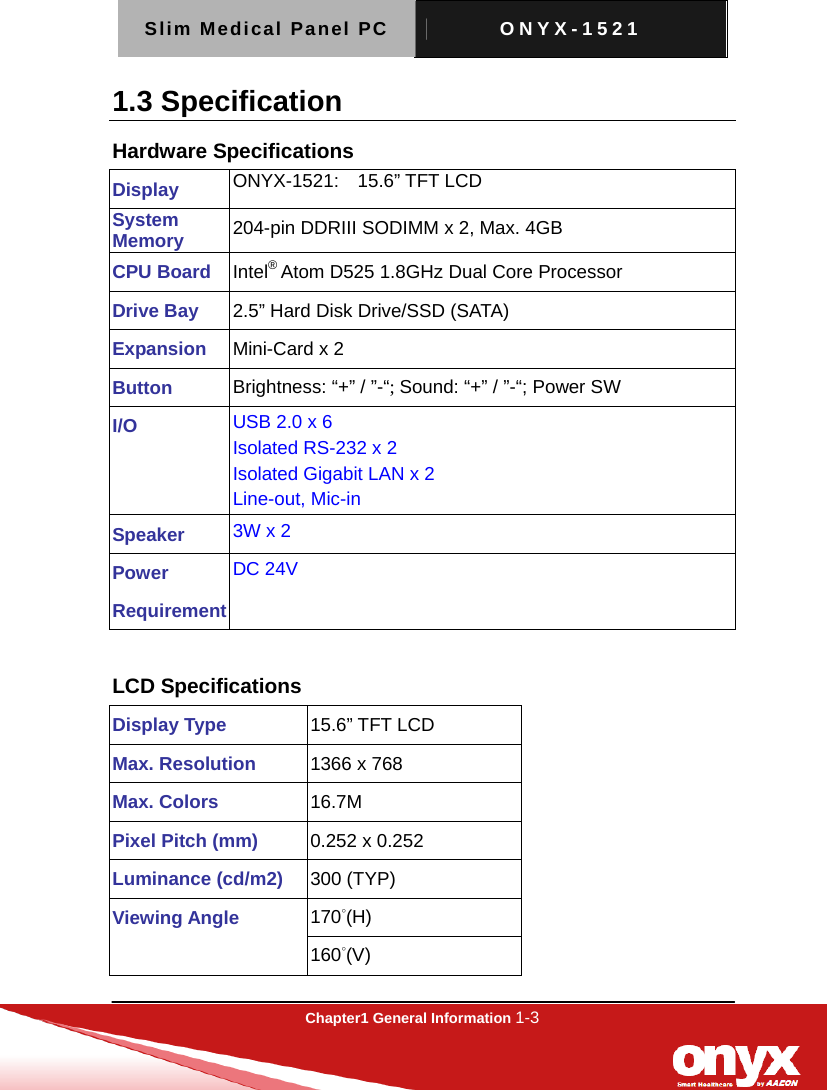

Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-3 1.3 Specification Hardware Specifications Display ONYX-1521: 15.6” TFT LCD System Memory 204-pin DDRIII SODIMM x 2, Max. 4GB CPU Board Intel® Atom D525 1.8GHz Dual Core Processor Drive Bay 2.5” Hard Disk Drive/SSD (SATA) Expansion Mini-Card x 2 Button Brightness: “+” / ”-“; Sound: “+” / ”-“; Power SW I/O USB 2.0 x 6 Isolated RS-232 x 2 Isolated Gigabit LAN x 2 Line-out, Mic-in Speaker 3W x 2 Power Requirement DC 24V LCD Specifications Display Type 15.6” TFT LCD Max. Resolution 1366 x 768 Max. Colors 16.7M Pixel Pitch (mm) 0.252 x 0.252 Luminance (cd/m2) 300 (TYP) Viewing Angle 170°(H) 160°(V)

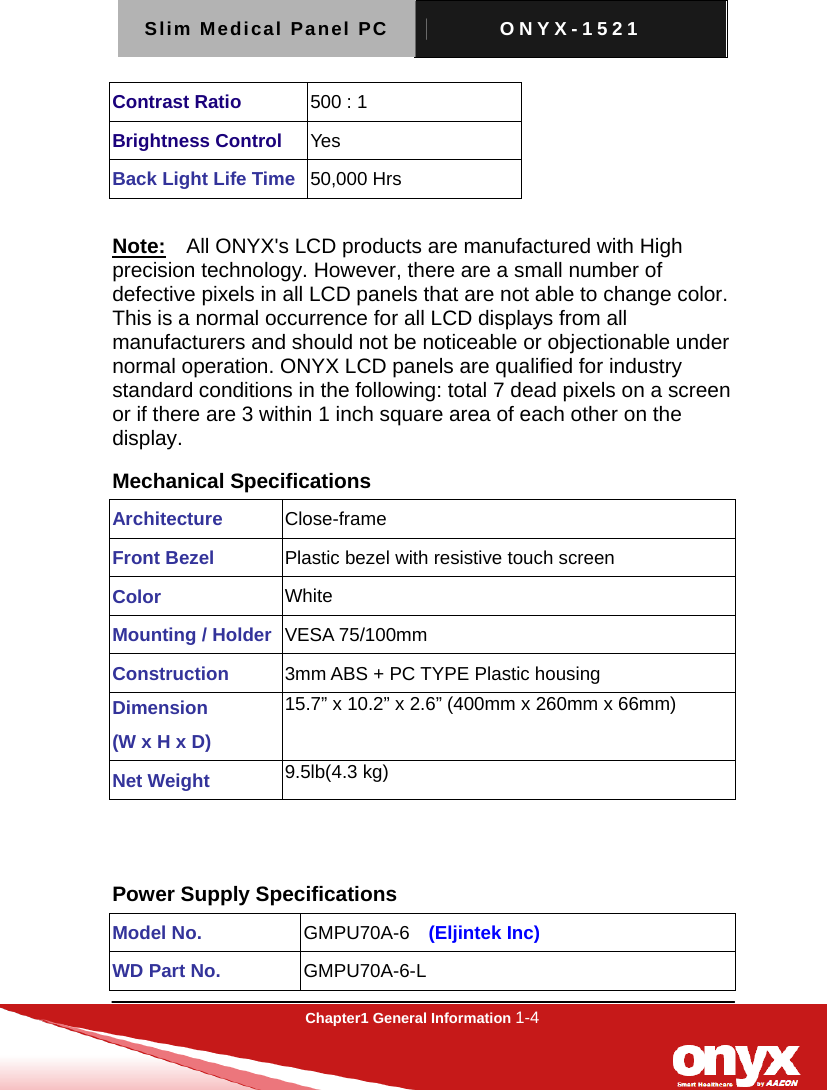

Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-4 Contrast Ratio 500 : 1 Brightness Control Yes Back Light Life Time 50,000 Hrs Note: All ONYX's LCD products are manufactured with High precision technology. However, there are a small number of defective pixels in all LCD panels that are not able to change color. This is a normal occurrence for all LCD displays from all manufacturers and should not be noticeable or objectionable under normal operation. ONYX LCD panels are qualified for industry standard conditions in the following: total 7 dead pixels on a screen or if there are 3 within 1 inch square area of each other on the display. Mechanical Specifications Architecture Close-frame Front Bezel Plastic bezel with resistive touch screen Color White Mounting / Holder VESA 75/100mm Construction 3mm ABS + PC TYPE Plastic housing Dimension (W x H x D) 15.7” x 10.2” x 2.6” (400mm x 260mm x 66mm) Net Weight 9.5lb(4.3 kg) Power Supply Specifications Model No. GMPU70A-6 (Eljintek Inc) WD Part No. GMPU70A-6-L

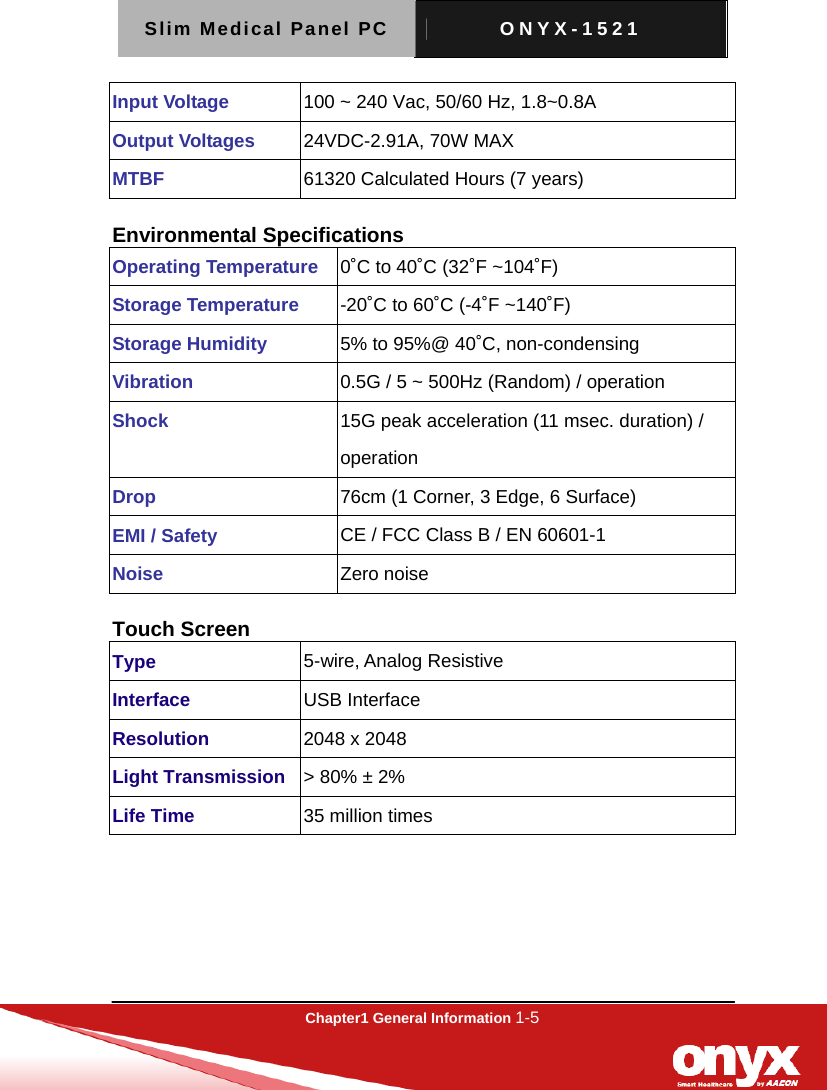

Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-5 Input Voltage 100 ~ 240 Vac, 50/60 Hz, 1.8~0.8A Output Voltages 24VDC-2.91A, 70W MAX MTBF 61320 Calculated Hours (7 years) Environmental Specifications Operating Temperature 0˚C to 40˚C (32˚F ~104˚F) Storage Temperature -20˚C to 60˚C (-4˚F ~140˚F) Storage Humidity 5% to 95%@ 40˚C, non-condensing Vibration 0.5G / 5 ~ 500Hz (Random) / operation Shock 15G peak acceleration (11 msec. duration) / operation Drop 76cm (1 Corner, 3 Edge, 6 Surface) EMI / Safety CE / FCC Class B / EN 60601-1 Noise Zero noise Touch Screen Type 5-wire, Analog Resistive Interface USB Interface Resolution 2048 x 2048 Light Transmission > 80% ± 2% Life Time 35 million times

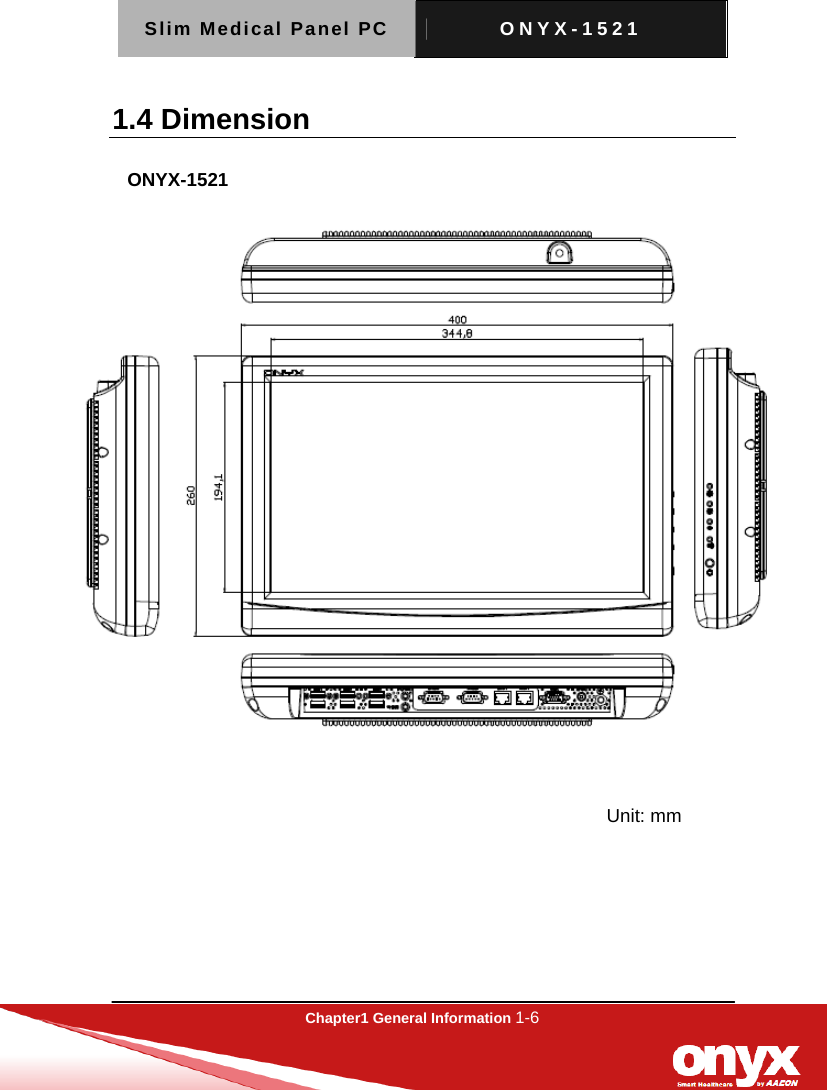

Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-6 1.4 Dimension ONYX-1521 Unit: mm

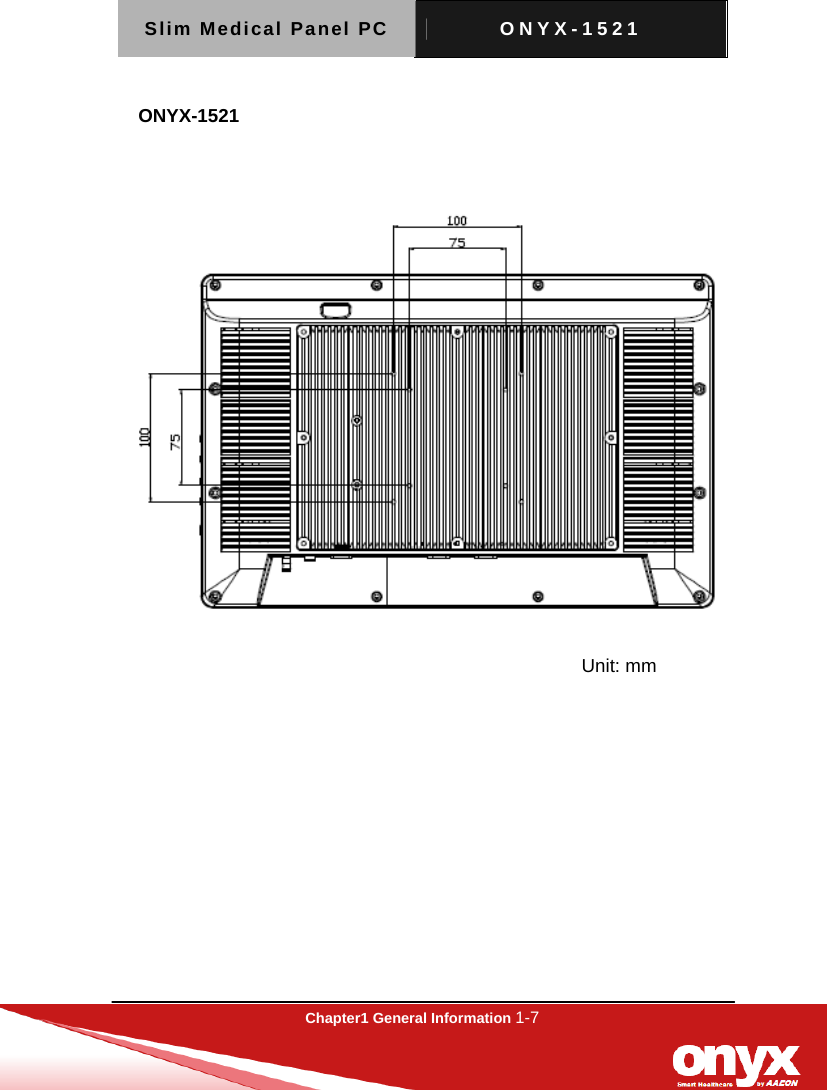

Slim Medical Panel PC ONYX-1521 Chapter1 General Information 1-7 ONYX-1521 Unit: mm

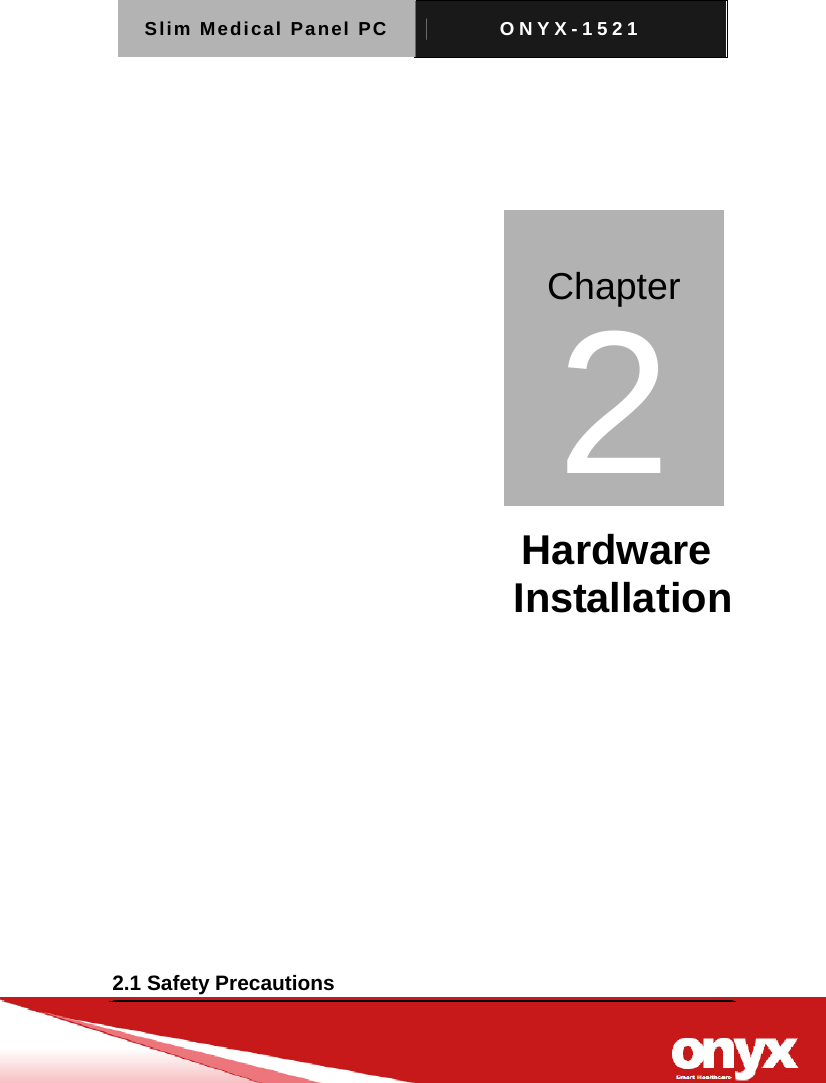

Slim Medical Panel PC ONYX-1521 Hardware Installation 2.1 Safety Precautions Chapter 2

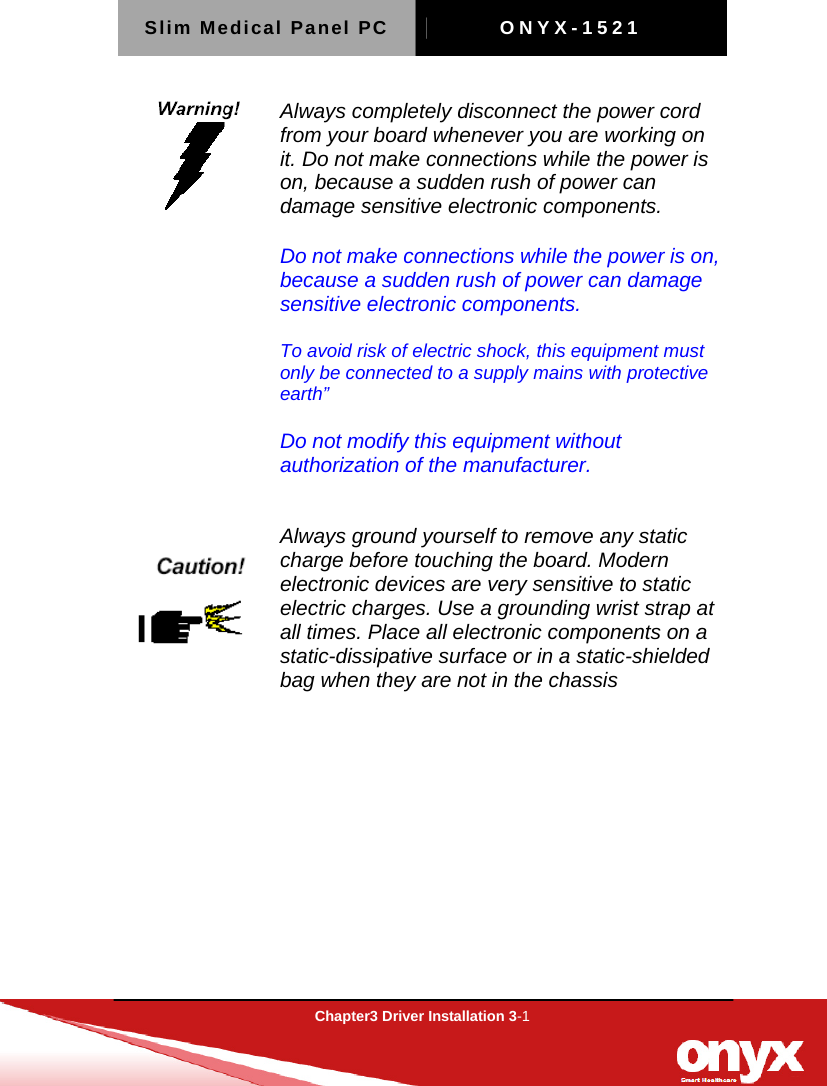

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-1 Always completely disconnect the power cord from your board whenever you are working on it. Do not make connections while the power is on, because a sudden rush of power can damage sensitive electronic components. Do not make connections while the power is on, because a sudden rush of power can damage sensitive electronic components. To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth” Do not modify this equipment without authorization of the manufacturer. Always ground yourself to remove any static charge before touching the board. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag when they are not in the chassis

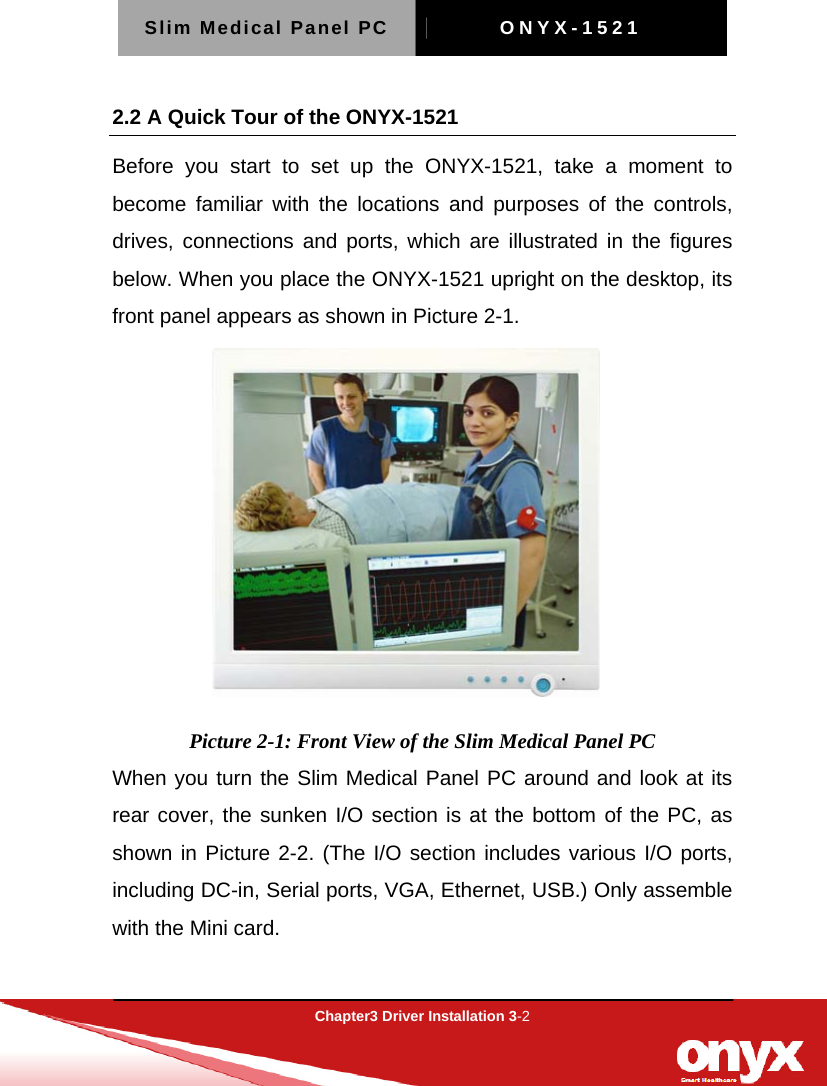

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-2 2.2 A Quick Tour of the ONYX-1521 Before you start to set up the ONYX-1521, take a moment to become familiar with the locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below. When you place the ONYX-1521 upright on the desktop, its front panel appears as shown in Picture 2-1. Picture 2-1: Front View of the Slim Medical Panel PC When you turn the Slim Medical Panel PC around and look at its rear cover, the sunken I/O section is at the bottom of the PC, as shown in Picture 2-2. (The I/O section includes various I/O ports, including DC-in, Serial ports, VGA, Ethernet, USB.) Only assemble with the Mini card.

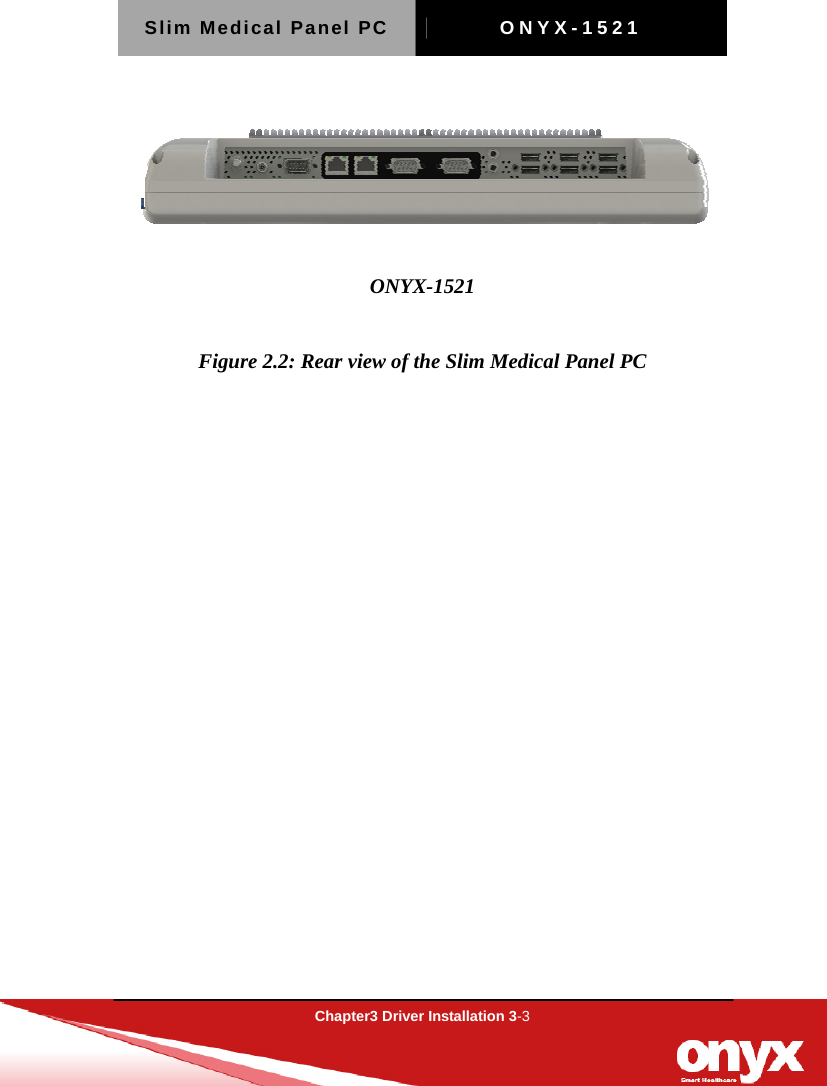

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-3 ONYX-1521 Figure 2.2: Rear view of the Slim Medical Panel PC

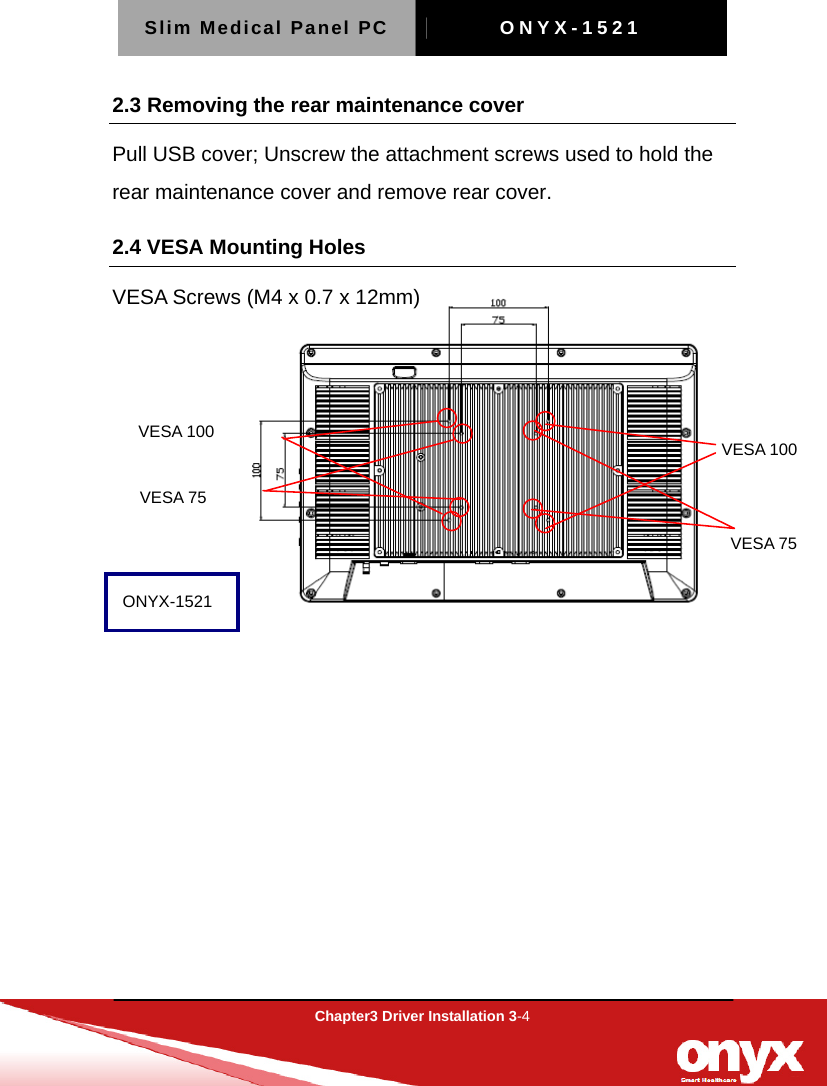

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-4 VESA 100 VESA 100 VESA 75 VESA 75 2.3 Removing the rear maintenance cover Pull USB cover; Unscrew the attachment screws used to hold the rear maintenance cover and remove rear cover. 2.4 VESA Mounting Holes VESA Screws (M4 x 0.7 x 12mm) ONYX-1521

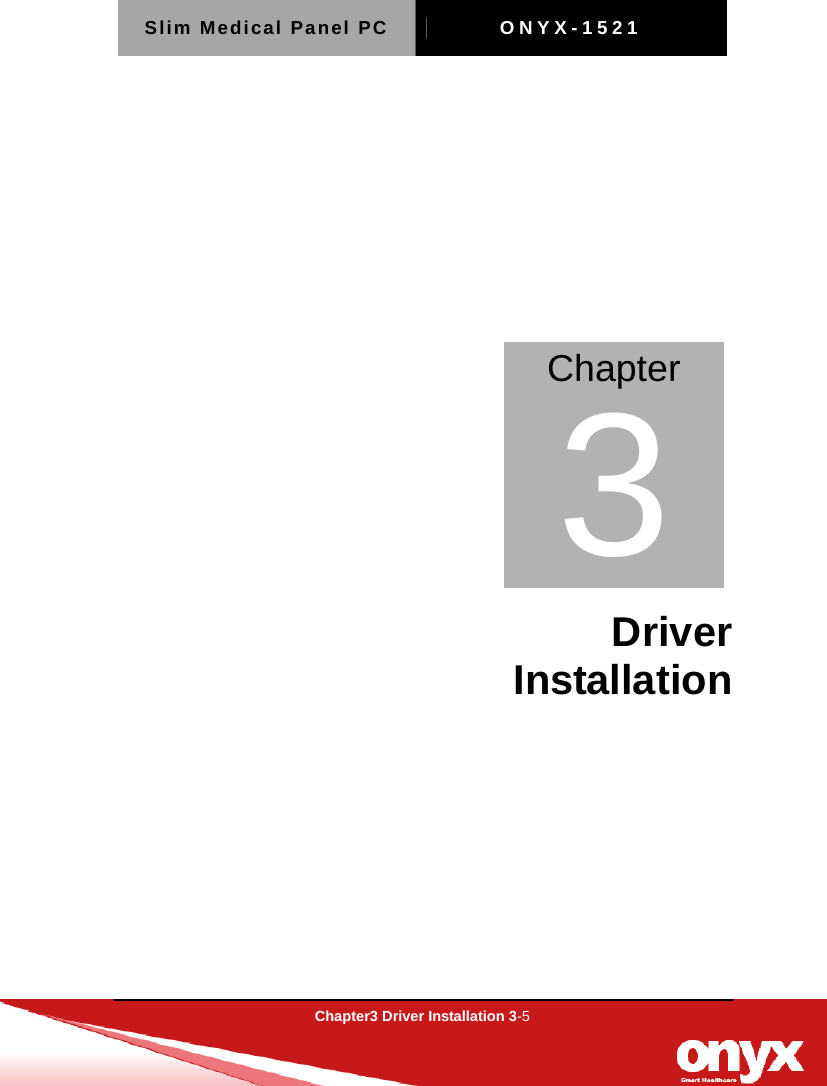

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-5 Driver Installation Chapter 3

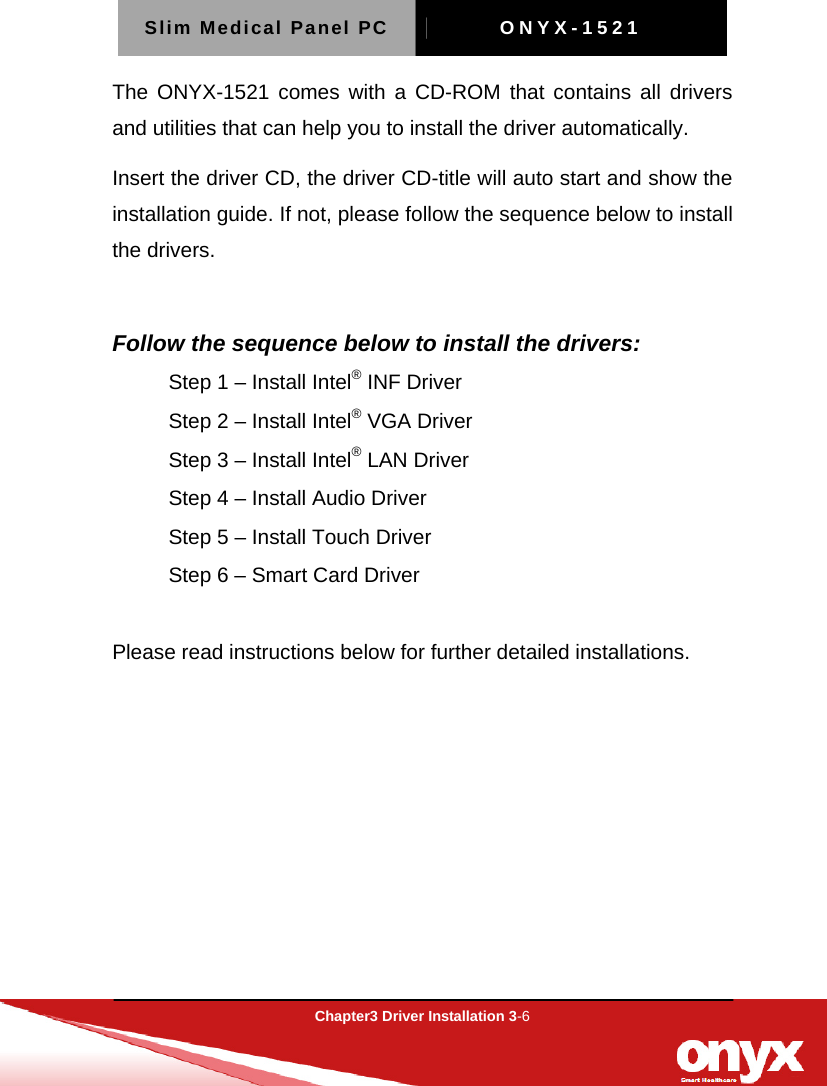

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-6 The ONYX-1521 comes with a CD-ROM that contains all drivers and utilities that can help you to install the driver automatically. Insert the driver CD, the driver CD-title will auto start and show the installation guide. If not, please follow the sequence below to install the drivers. Follow the sequence below to install the drivers: Step 1 – Install Intel® INF Driver Step 2 – Install Intel® VGA Driver Step 3 – Install Intel® LAN Driver Step 4 – Install Audio Driver Step 5 – Install Touch Driver Step 6 – Smart Card Driver Please read instructions below for further detailed installations.

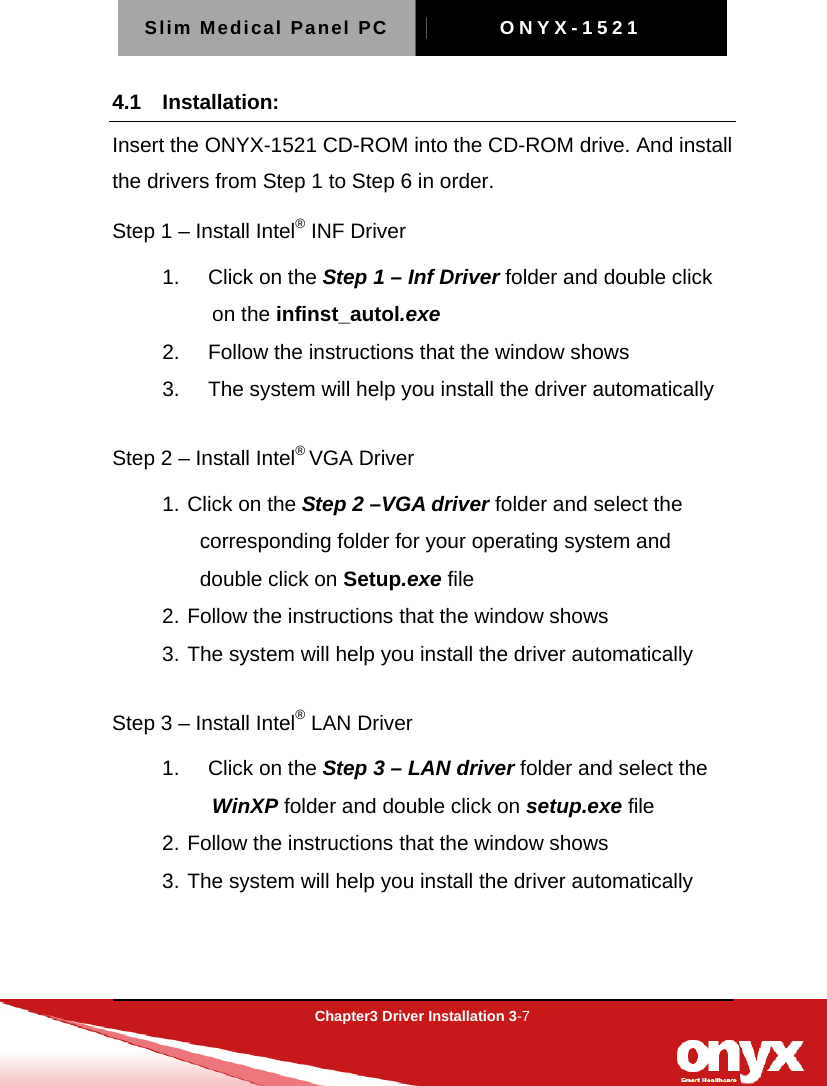

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-7 4.1 Installation: Insert the ONYX-1521 CD-ROM into the CD-ROM drive. And install the drivers from Step 1 to Step 6 in order. Step 1 – Install Intel® INF Driver 1. Click on the Step 1 – Inf Driver folder and double click on the infinst_autol.exe 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically Step 2 – Install Intel® VGA Driver 1. Click on the Step 2 –VGA driver folder and select the corresponding folder for your operating system and double click on Setup.exe file 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically Step 3 – Install Intel® LAN Driver 1. Click on the Step 3 – LAN driver folder and select the WinXP folder and double click on setup.exe file 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically

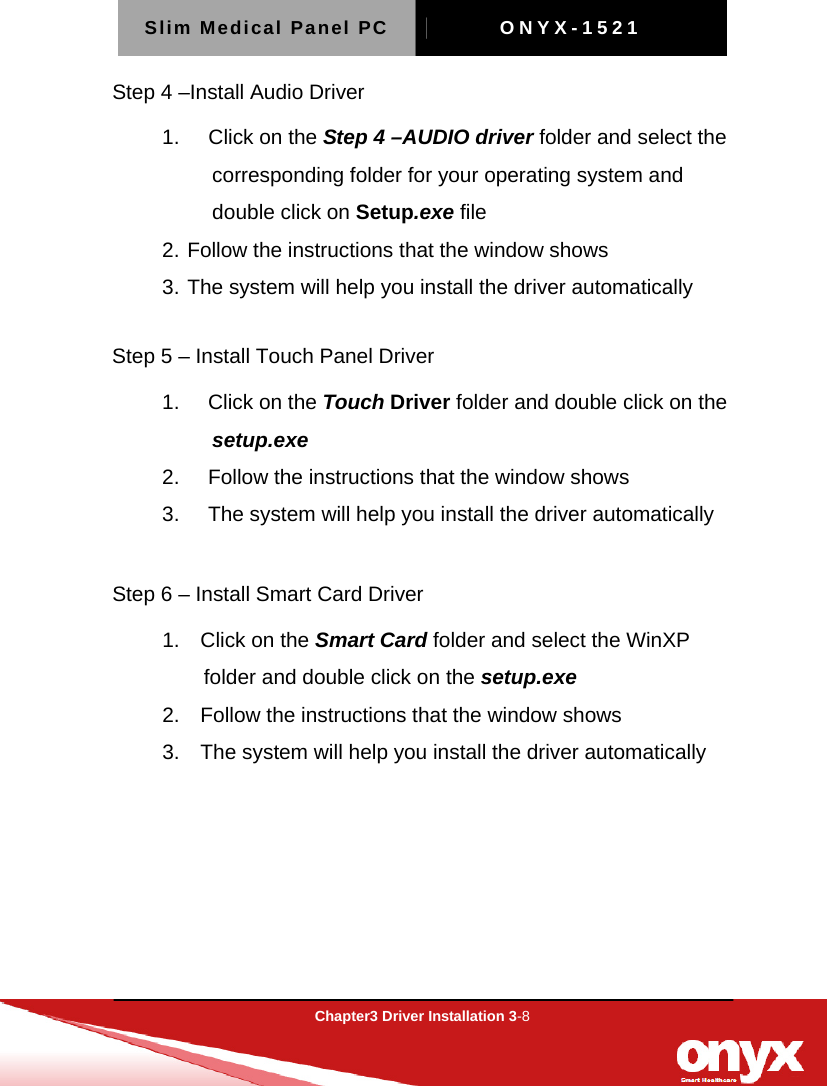

Slim Medical Panel PC ONYX-1521 Chapter3 Driver Installation 3-8 Step 4 –Install Audio Driver 1. Click on the Step 4 –AUDIO driver folder and select the corresponding folder for your operating system and double click on Setup.exe file 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically Step 5 – Install Touch Panel Driver 1. Click on the Touch Driver folder and double click on the setup.exe 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically Step 6 – Install Smart Card Driver 1. Click on the Smart Card folder and select the WinXP folder and double click on the setup.exe 2. Follow the instructions that the window shows 3. The system will help you install the driver automatically
Slim Medical Panel PC ONYX-1521 Appendix B Miscellanea B-0 Miscellanea Appendix A

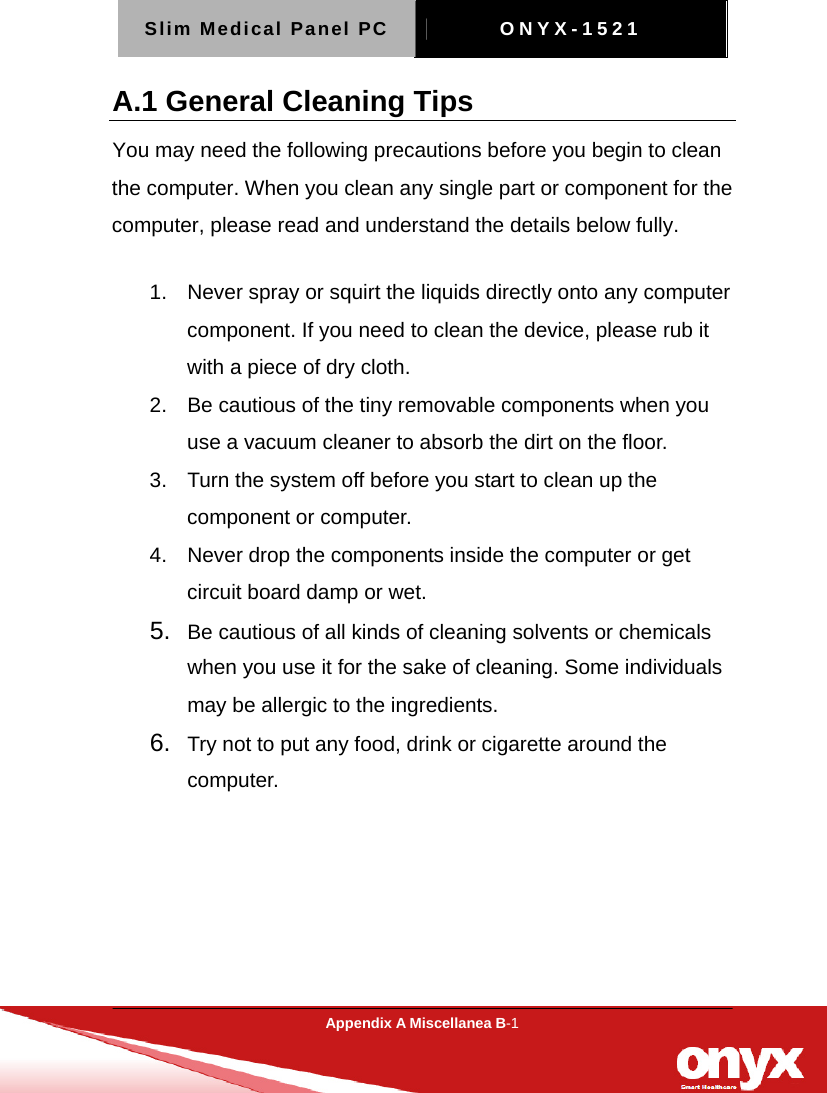

Slim Medical Panel PC ONYX-1521 Appendix A Miscellanea B-1 A.1 General Cleaning Tips You may need the following precautions before you begin to clean the computer. When you clean any single part or component for the computer, please read and understand the details below fully. 1. Never spray or squirt the liquids directly onto any computer component. If you need to clean the device, please rub it with a piece of dry cloth. 2. Be cautious of the tiny removable components when you use a vacuum cleaner to absorb the dirt on the floor. 3. Turn the system off before you start to clean up the component or computer. 4. Never drop the components inside the computer or get circuit board damp or wet. 5. Be cautious of all kinds of cleaning solvents or chemicals when you use it for the sake of cleaning. Some individuals may be allergic to the ingredients. 6. Try not to put any food, drink or cigarette around the computer.

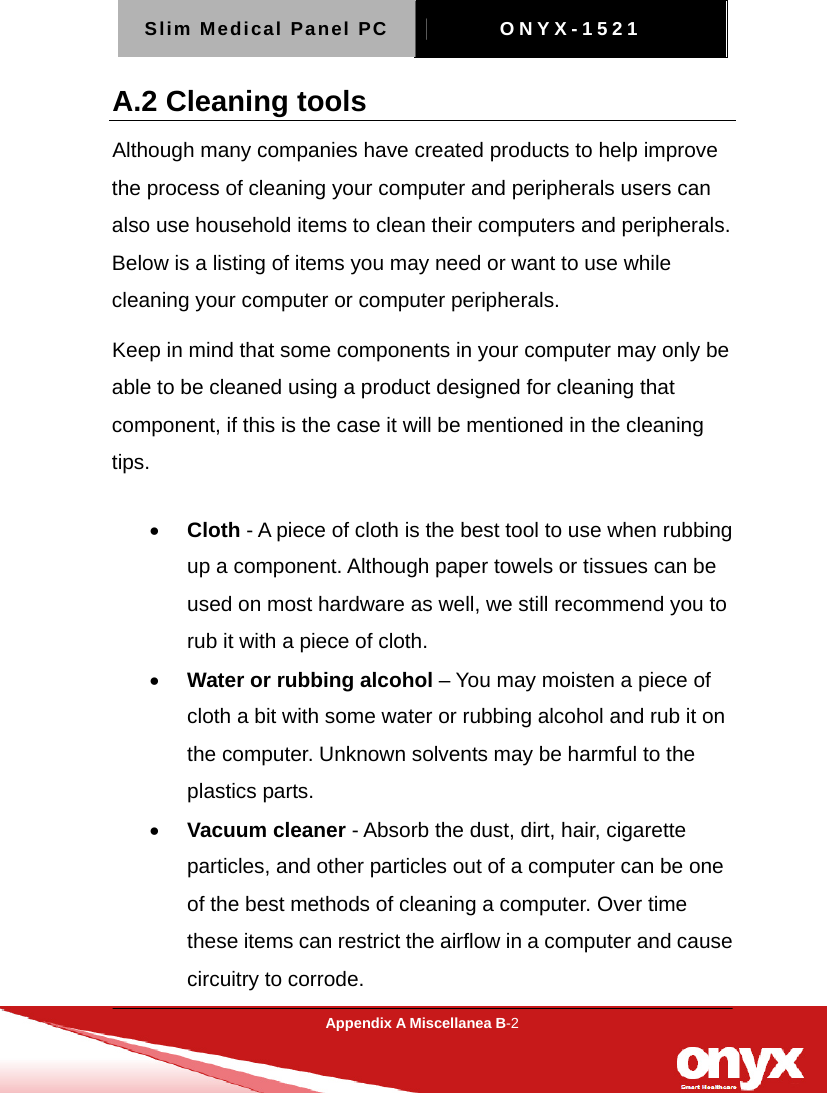

Slim Medical Panel PC ONYX-1521 Appendix A Miscellanea B-2 A.2 Cleaning tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals. Keep in mind that some components in your computer may only be able to be cleaned using a product designed for cleaning that component, if this is the case it will be mentioned in the cleaning tips. • Cloth - A piece of cloth is the best tool to use when rubbing up a component. Although paper towels or tissues can be used on most hardware as well, we still recommend you to rub it with a piece of cloth. • Water or rubbing alcohol – You may moisten a piece of cloth a bit with some water or rubbing alcohol and rub it on the computer. Unknown solvents may be harmful to the plastics parts. • Vacuum cleaner - Absorb the dust, dirt, hair, cigarette particles, and other particles out of a computer can be one of the best methods of cleaning a computer. Over time these items can restrict the airflow in a computer and cause circuitry to corrode.

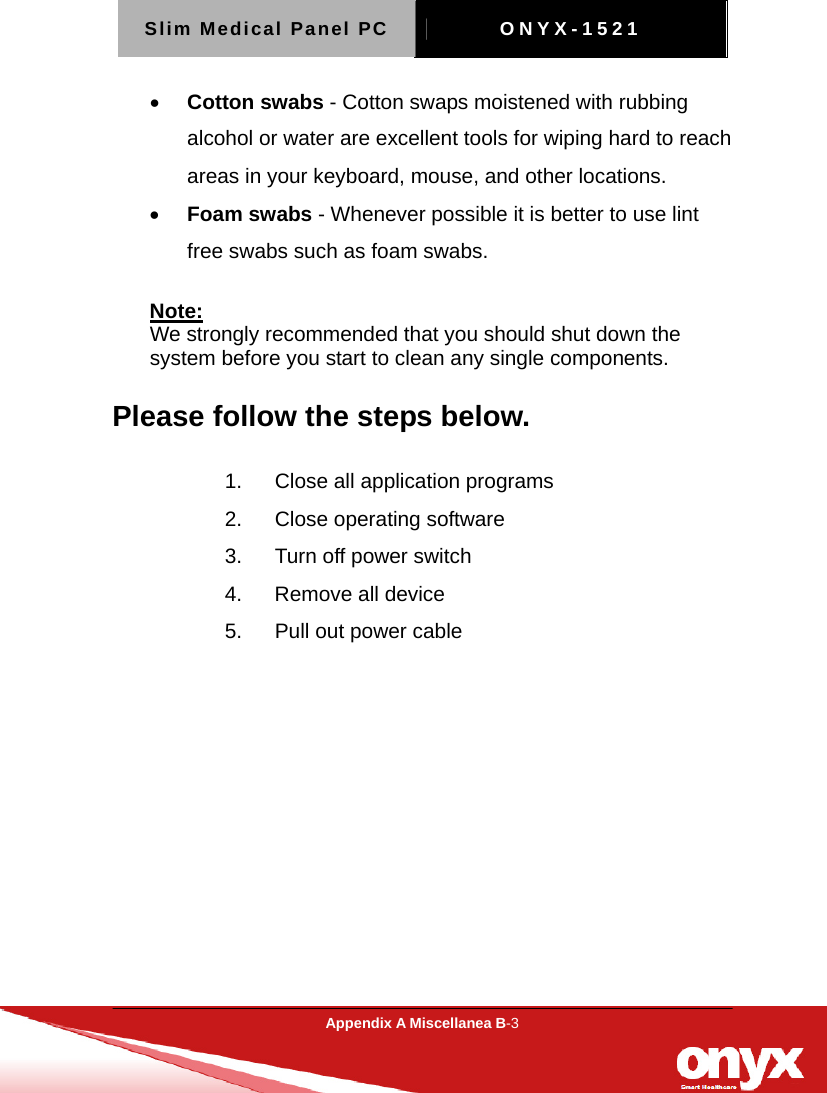

Slim Medical Panel PC ONYX-1521 Appendix A Miscellanea B-3 • Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard to reach areas in your keyboard, mouse, and other locations. • Foam swabs - Whenever possible it is better to use lint free swabs such as foam swabs. Note: We strongly recommended that you should shut down the system before you start to clean any single components. Please follow the steps below. 1. Close all application programs 2. Close operating software 3. Turn off power switch 4. Remove all device 5. Pull out power cable

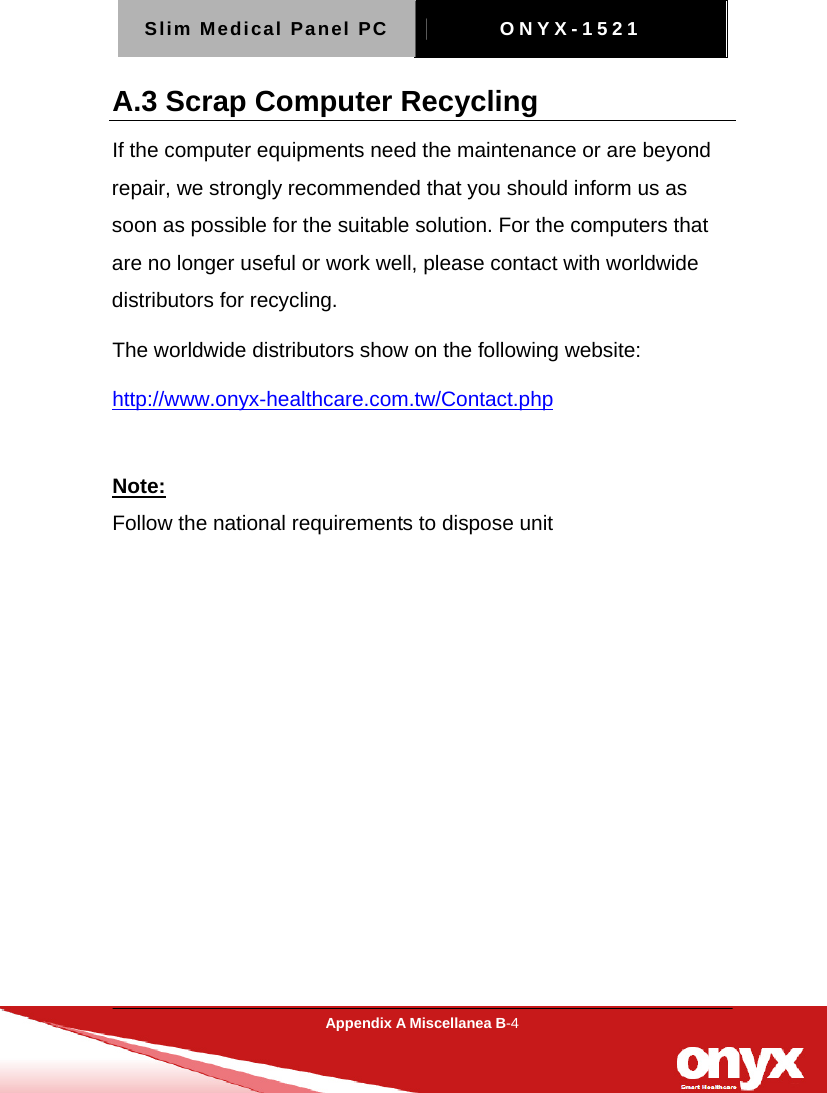

Slim Medical Panel PC ONYX-1521 Appendix A Miscellanea B-4 A.3 Scrap Computer Recycling If the computer equipments need the maintenance or are beyond repair, we strongly recommended that you should inform us as soon as possible for the suitable solution. For the computers that are no longer useful or work well, please contact with worldwide distributors for recycling. The worldwide distributors show on the following website: http://www.onyx-healthcare.com.tw/Contact.php Note: Follow the national requirements to dispose unit

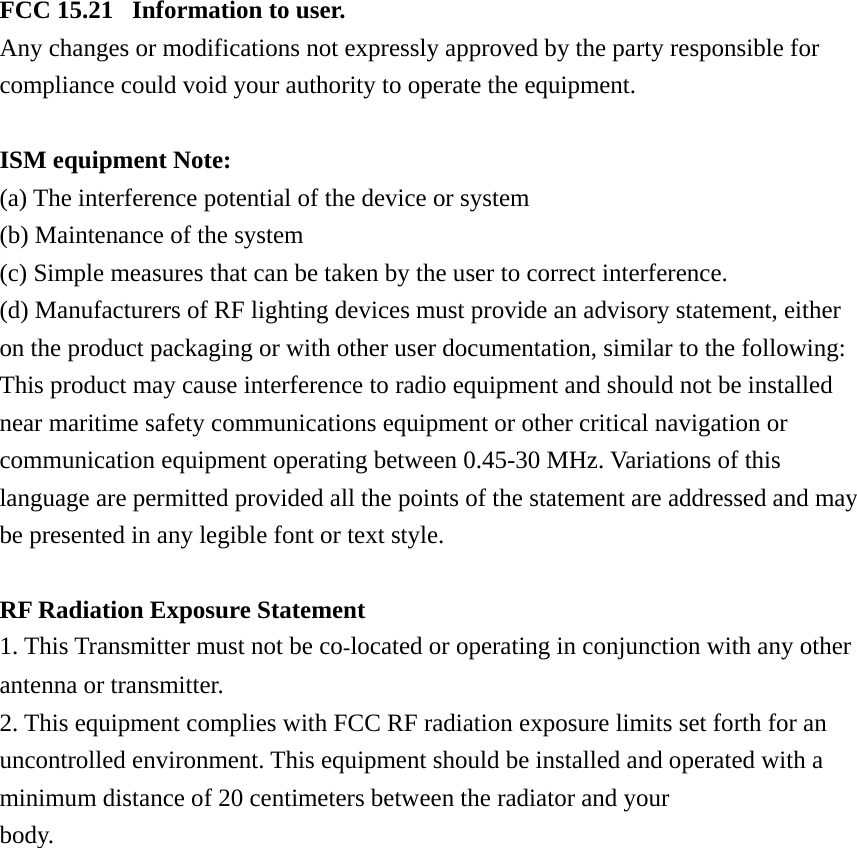

FCC 15.21 Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. ISM equipment Note: (a) The interference potential of the device or system (b) Maintenance of the system (c) Simple measures that can be taken by the user to correct interference. (d) Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style. RF Radiation Exposure Statement 1. This Transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
