Handheld Bluetooth 2D Imager Scanner OPI-3301i This manual provides specifications for the OPI-3301i handheld Bluetooth 2D imager scanner. Specifications Manual

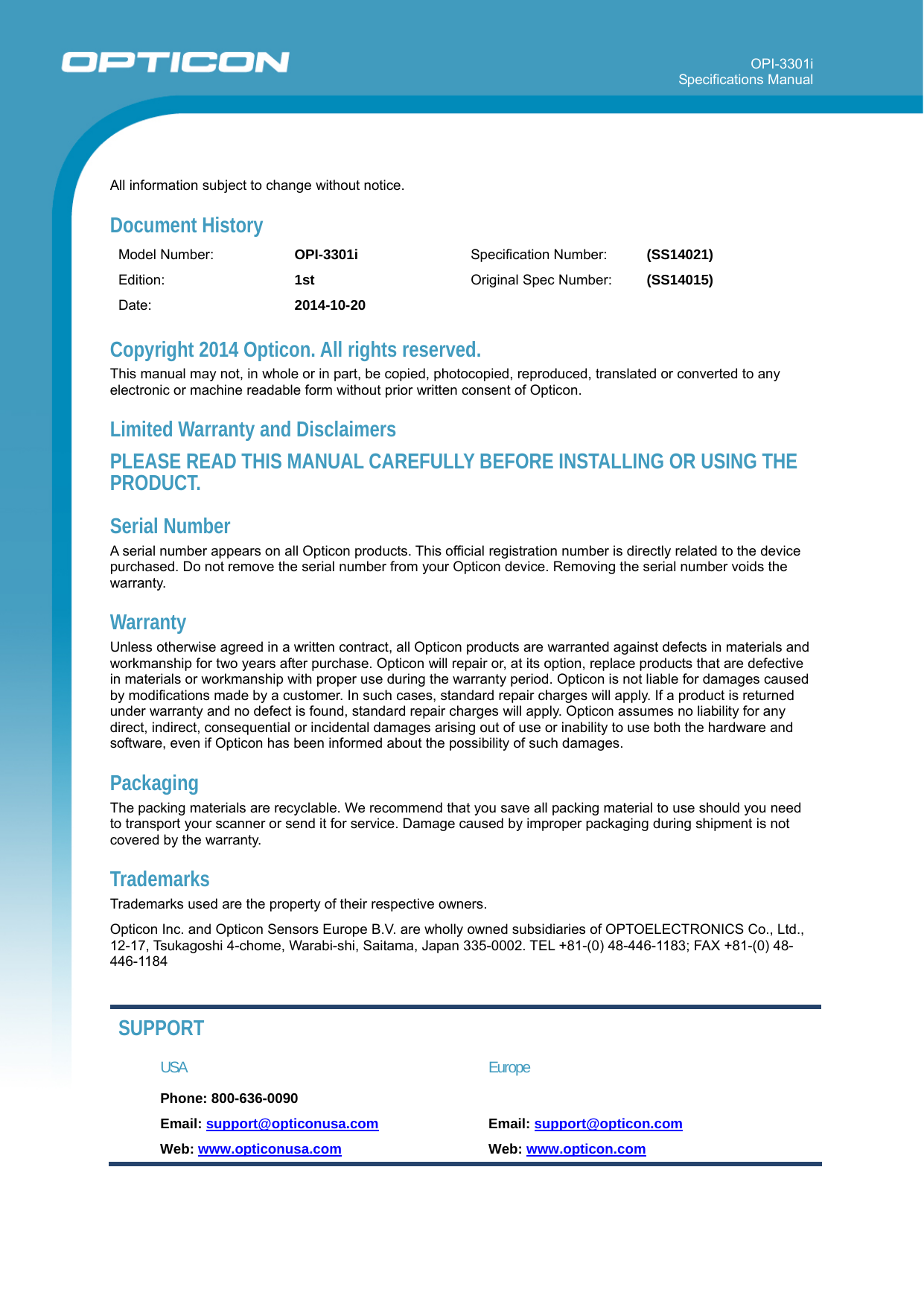

OPI-3301i Specifications Manual All information subject to change without notice. Document History Model Number: OPI-3301i Specification Number: (SS14021) Edition: 1st Original Spec Number: (SS14015) Date: 2014-10-20 Copyright 2014 Opticon. All rights reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without prior written consent of Opticon. Limited Warranty and Disclaimers PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty. Warranty Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. Packaging The packing materials are recyclable. We recommend that you save all packing material to use should you need to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered by the warranty. Trademarks Trademarks used are the property of their respective owners. Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184 SUPPORT USA Europe Phone: 800-636-0090 Email: support@opticonusa.com Email: support@opticon.com Web: www.opticonusa.com Web: www.opticon.com

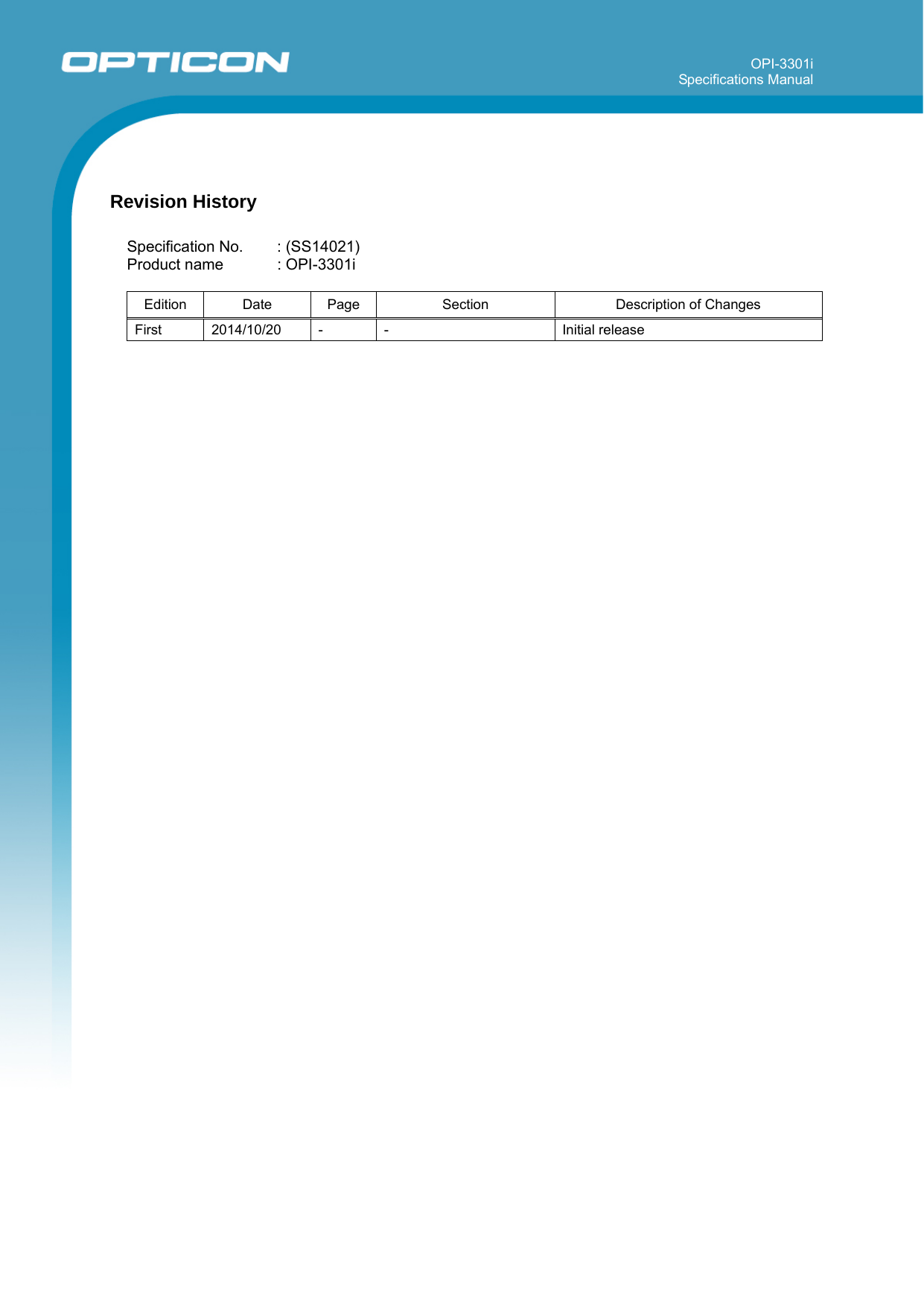

OPI-3301i Specifications Manual Revision History Specification No. : (SS14021) Product name : OPI-3301i Edition Date Page Section Description of Changes First 2014/10/20 - - Initial release

OPI-3301i Specifications Manual Contents 1. Abstract..............................................................................................................................1 2. Overview............................................................................................................................................ 1 3. Basic Specifications......................................................................................................................... 2 4. Detailed View .................................................................................................................................... 5 5. Electrical Specifications .................................................................................................................. 6 5.1. Current Consumption................................................................................................................ 6 5.2. Operating Time and Charging Time ......................................................................................... 6 6. Interface Specifications ................................................................................................................... 6 6.1. Bluetooth ................................................................................................................................... 6 7. Optical Specifications...................................................................................................................... 7 7.1. Basic Optical Specifications...................................................................................................... 7 7.2. Aiming Pattern .......................................................................................................................... 8 7.3. Imaging Range.......................................................................................................................... 8 8. Technical Specifications.................................................................................................................. 9 8.1. Bar Code Test Sample............................................................................................................ 10 8.2. Scan Area and Depth of Field................................................................................................. 11 8.3. Printed Contrast Signal (PCS) ................................................................................................ 12 8.4. Minimum Resolution ............................................................................................................... 12 8.5. Wide Bar Code........................................................................................................................ 12 8.6. Pitch, Skew and Tilt ................................................................................................................ 13 8.7. Curvature ................................................................................................................................ 13 8.8. Auto Trigger ............................................................................................................................ 14 8.8.1. Stand Detection............................................................................................................. 14 8.8.2. Auto Trigger Operation.................................................................................................. 14 8.8.3. Motion Tolerance........................................................................................................... 15 9. Environmental Specifications....................................................................................................... 16 9.1. Temperature............................................................................................................................ 16 9.2. Humidity .................................................................................................................................. 16 9.3. Ambient Light Immunity .......................................................................................................... 16 9.4. Dust and Drip Proof ................................................................................................................ 16 9.5. Vibration Strength (without packing).......................................................................................16 9.6. Vibration Strength (in individual packing) ............................................................................... 17 9.7. Drop Impact Strength (without packaging) ............................................................................. 17 9.8. Drop Impact Strength (in individual packaging) ...................................................................... 17 9.9. Electrostatic Discharge (ESD) Immunity................................................................................. 17 10. Regulatory Compliance ............................................................................................................... 18 10.1. LED Safety............................................................................................................................ 18

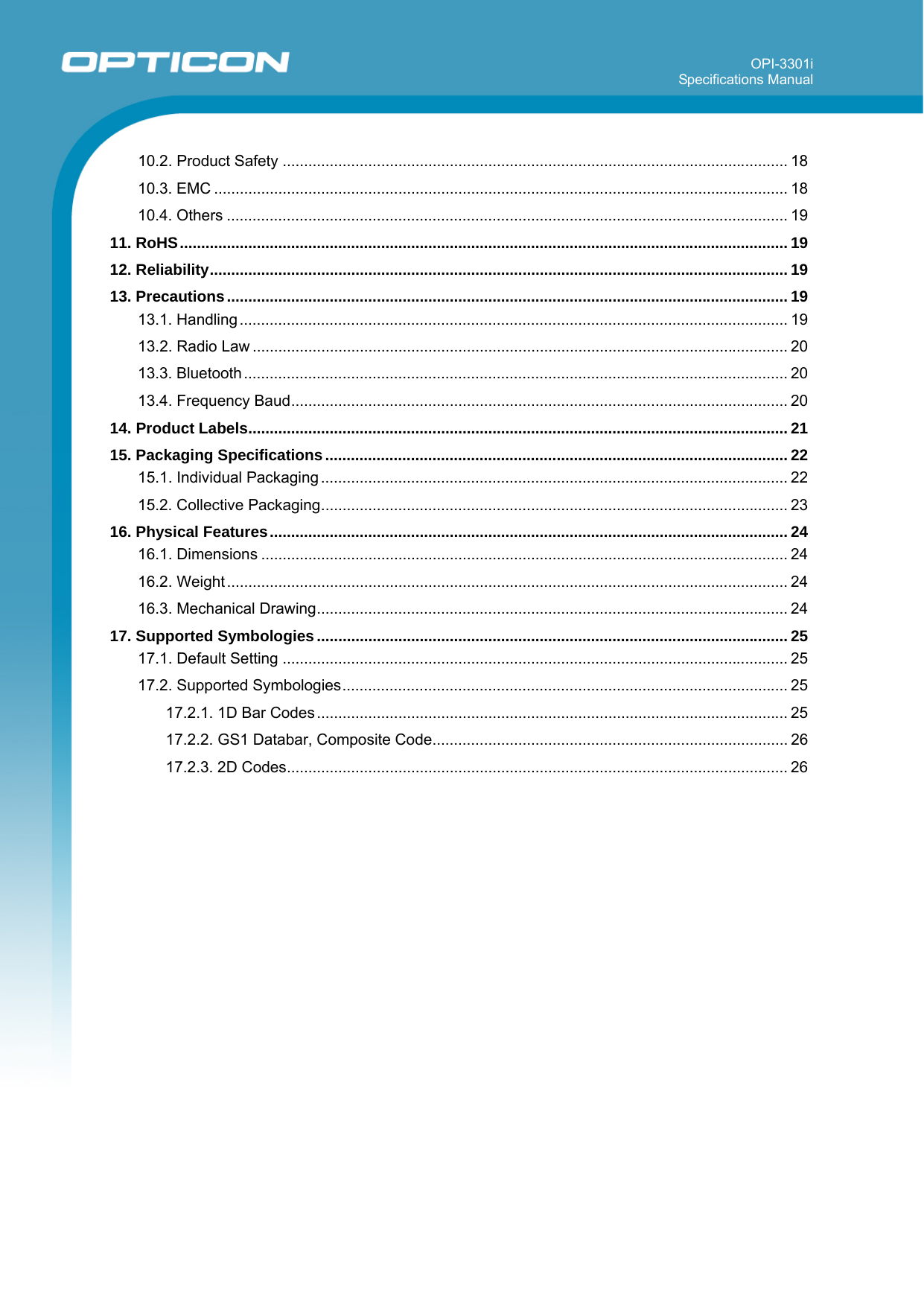

OPI-3301i Specifications Manual 10.2. Product Safety ...................................................................................................................... 18 10.3. EMC ...................................................................................................................................... 18 10.4. Others ................................................................................................................................... 19 11. RoHS.............................................................................................................................................. 19 12. Reliability....................................................................................................................................... 19 13. Precautions................................................................................................................................... 19 13.1. Handling................................................................................................................................ 19 13.2. Radio Law ............................................................................................................................. 20 13.3. Bluetooth............................................................................................................................... 20 13.4. Frequency Baud.................................................................................................................... 20 14. Product Labels.............................................................................................................................. 21 15. Packaging Specifications............................................................................................................ 22 15.1. Individual Packaging ............................................................................................................. 22 15.2. Collective Packaging............................................................................................................. 23 16. Physical Features......................................................................................................................... 24 16.1. Dimensions ........................................................................................................................... 24 16.2. Weight ................................................................................................................................... 24 16.3. Mechanical Drawing.............................................................................................................. 24 17. Supported Symbologies.............................................................................................................. 25 17.1. Default Setting ...................................................................................................................... 25 17.2. Supported Symbologies........................................................................................................ 25 17.2.1. 1D Bar Codes .............................................................................................................. 25 17.2.2. GS1 Databar, Composite Code................................................................................... 26 17.2.3. 2D Codes..................................................................................................................... 26

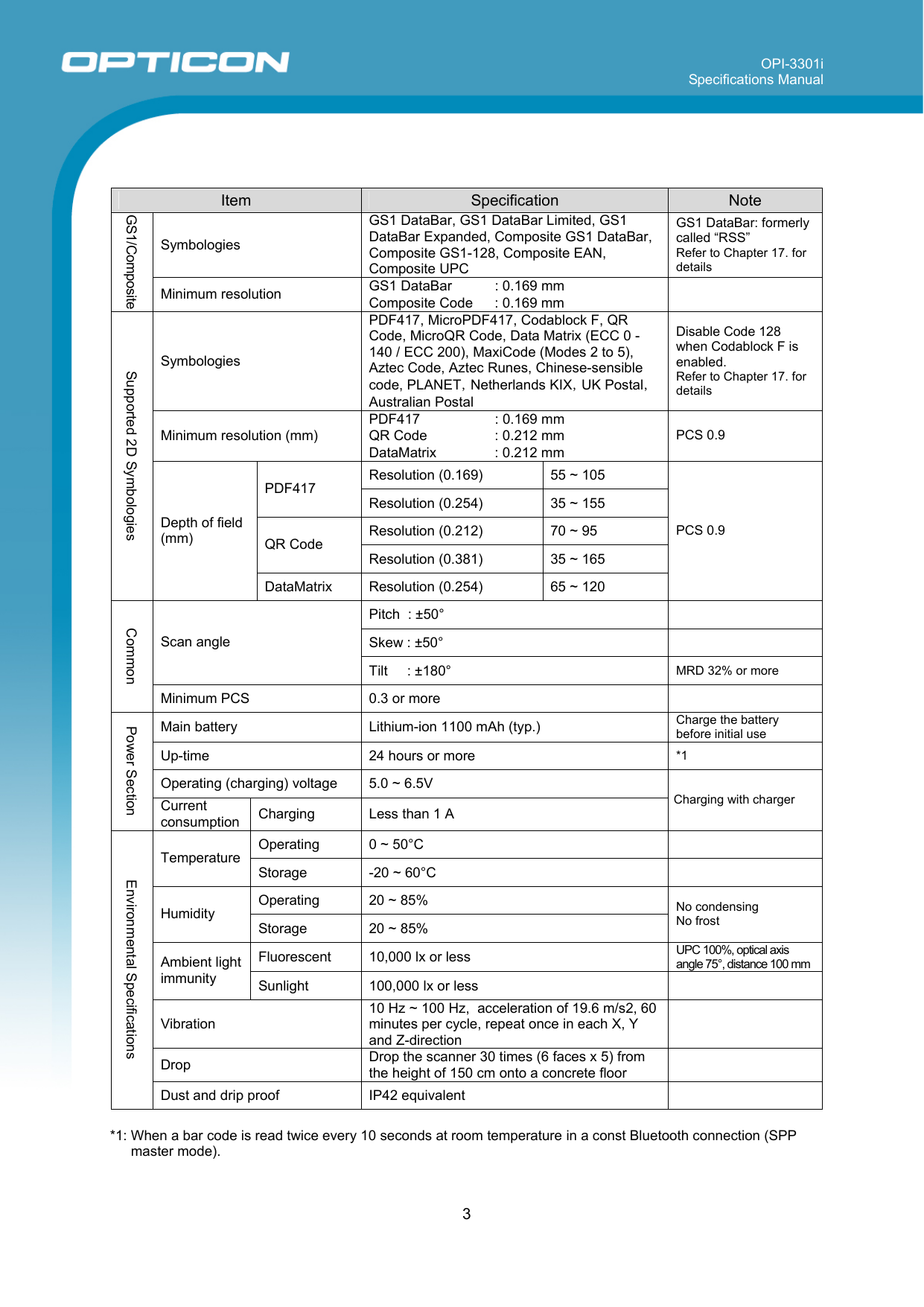

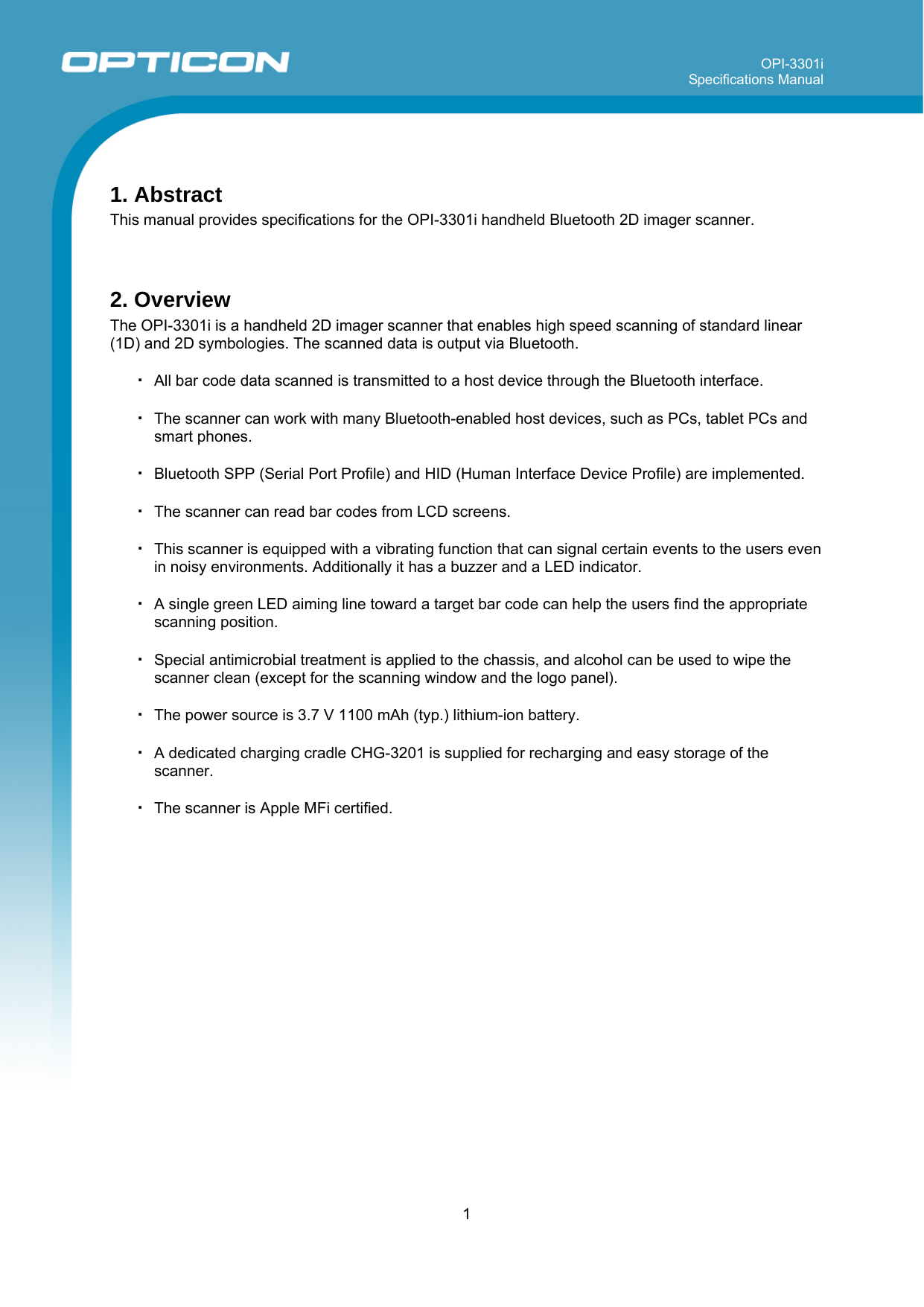

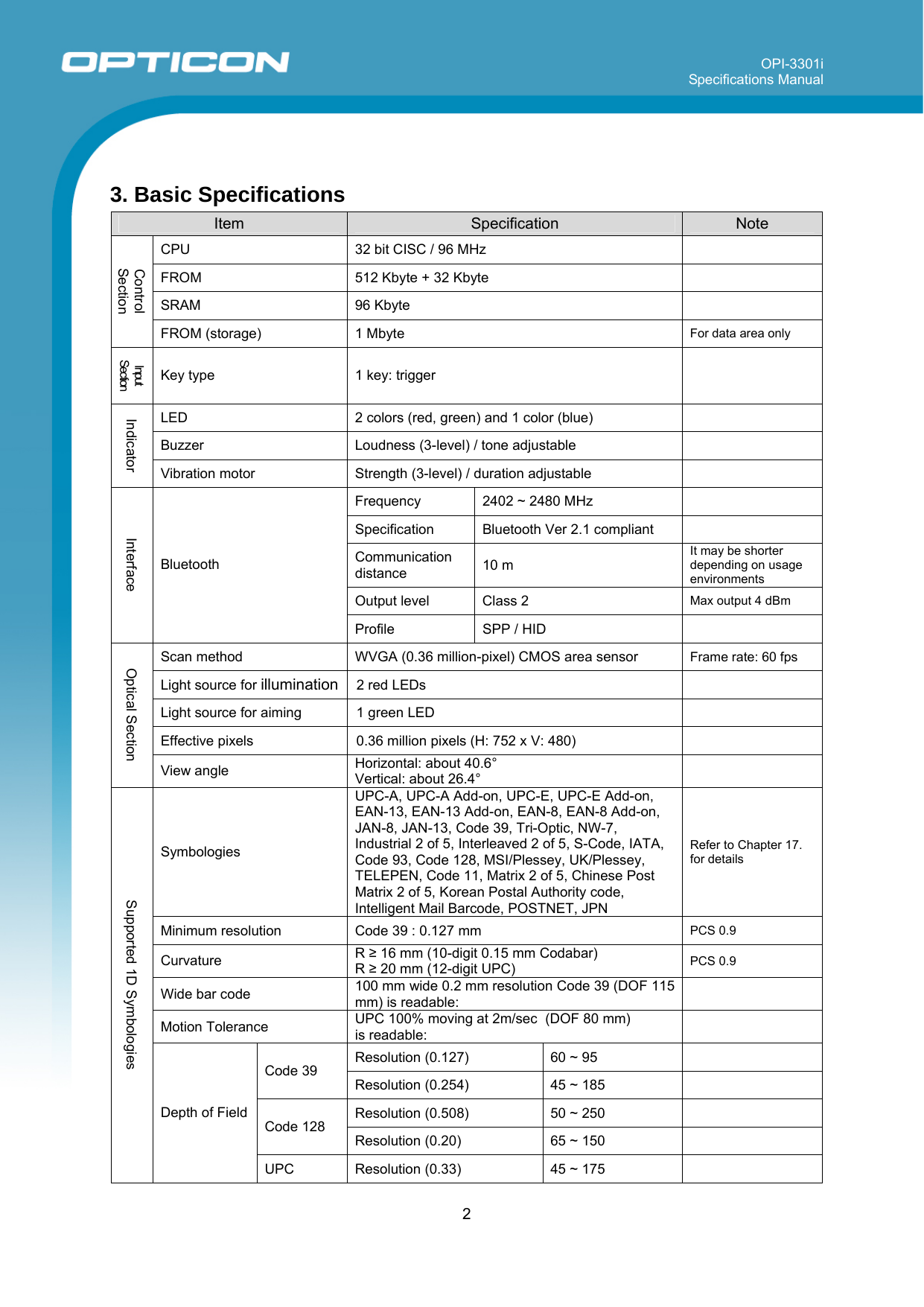

OPI-3301i Specifications Manual 3 Item Specification Note Symbologies GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1 DataBar, Composite GS1-128, Composite EAN, Composite UPC GS1 DataBar: formerly called “RSS” Refer to Chapter 17. for details GS1 DataBar : 0.169 mm GS1/Composite Minimum resolution Composite Code : 0.169 mm Symbologies PDF417, MicroPDF417, Codablock F, QR Code, MicroQR Code, Data Matrix (ECC 0 - 140 / ECC 200), MaxiCode (Modes 2 to 5), Aztec Code, Aztec Runes, Chinese-sensible code, PLANET，Netherlands KIX，UK Postal，Australian Postal Disable Code 128 when Codablock F is enabled. Refer to Chapter 17. for details PDF417 : 0.169 mm QR Code : 0.212 mm Minimum resolution (mm) DataMatrix : 0.212 mm PCS 0.9 Resolution (0.169) 55 ~ 105 PDF417 Resolution (0.254) 35 ~ 155 Resolution (0.212) 70 ~ 95 QR Code Resolution (0.381) 35 ~ 165 Supported 2D Symbologies Depth of field (mm) DataMatrix Resolution (0.254) 65 ~ 120 PCS 0.9 Pitch : ±50° Skew : ±50° Scan angle Tilt : ±180° MRD 32% or more Common Minimum PCS 0.3 or more Main battery Lithium-ion 1100 mAh (typ.) Charge the battery before initial use Up-time 24 hours or more *1 Operating (charging) voltage 5.0 ~ 6.5V Power Section Current consumption Charging Less than 1 A Charging with charger Operating 0 ~ 50°C Temperature Storage -20 ~ 60°C Operating 20 ~ 85% Humidity Storage 20 ~ 85% No condensing No frost Fluorescent 10,000 lx or less UPC 100%, optical axis angle 75°, distance 100 mm Ambient light immunity Sunlight 100,000 lx or less Vibration 10 Hz ~ 100 Hz, acceleration of 19.6 m/s2, 60 minutes per cycle, repeat once in each X, Y and Z-direction Drop Drop the scanner 30 times (6 faces x 5) from the height of 150 cm onto a concrete floor Environmental Specifications Dust and drip proof IP42 equivalent *1: When a bar code is read twice every 10 seconds at room temperature in a const Bluetooth connection (SPP master mode).

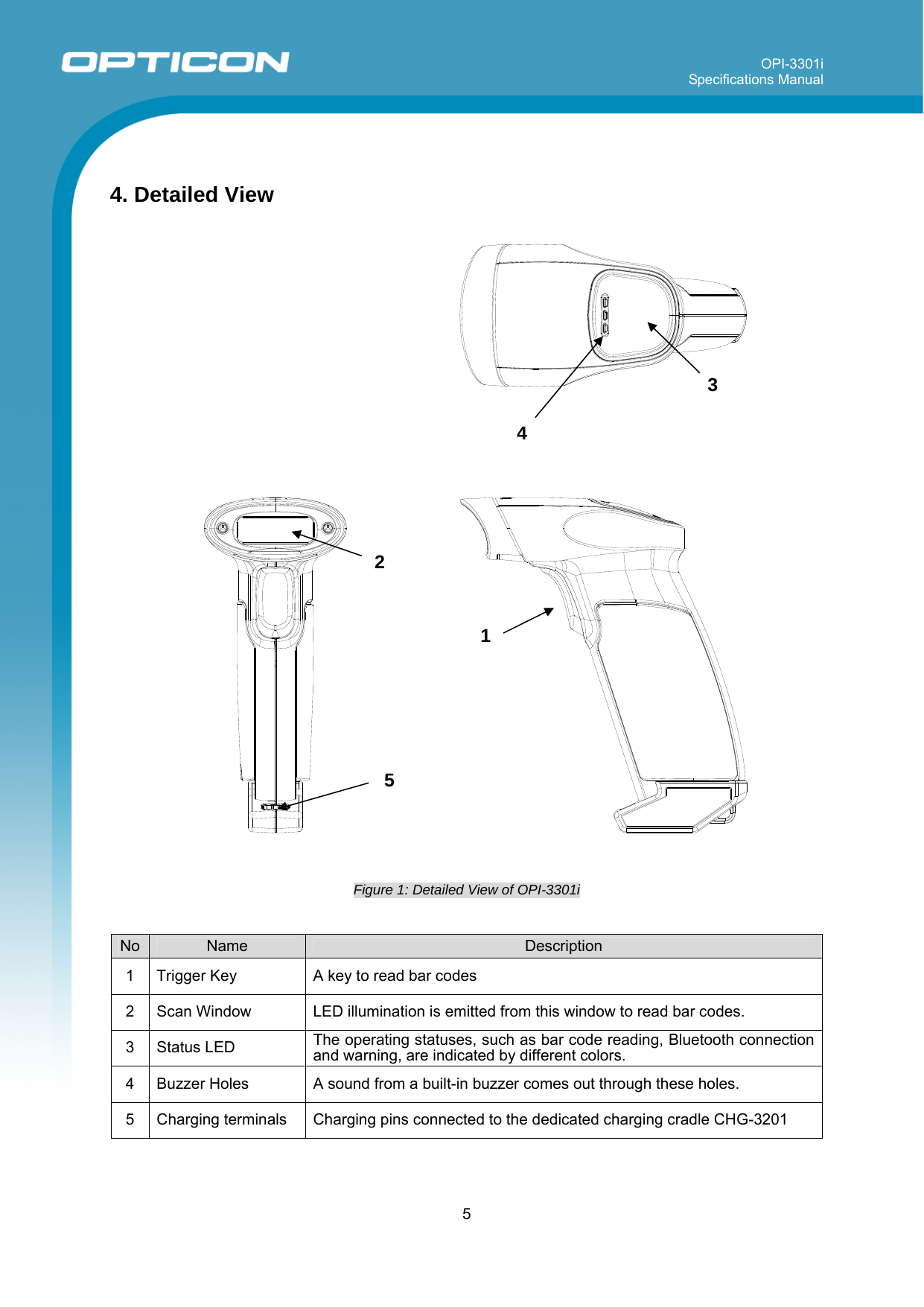

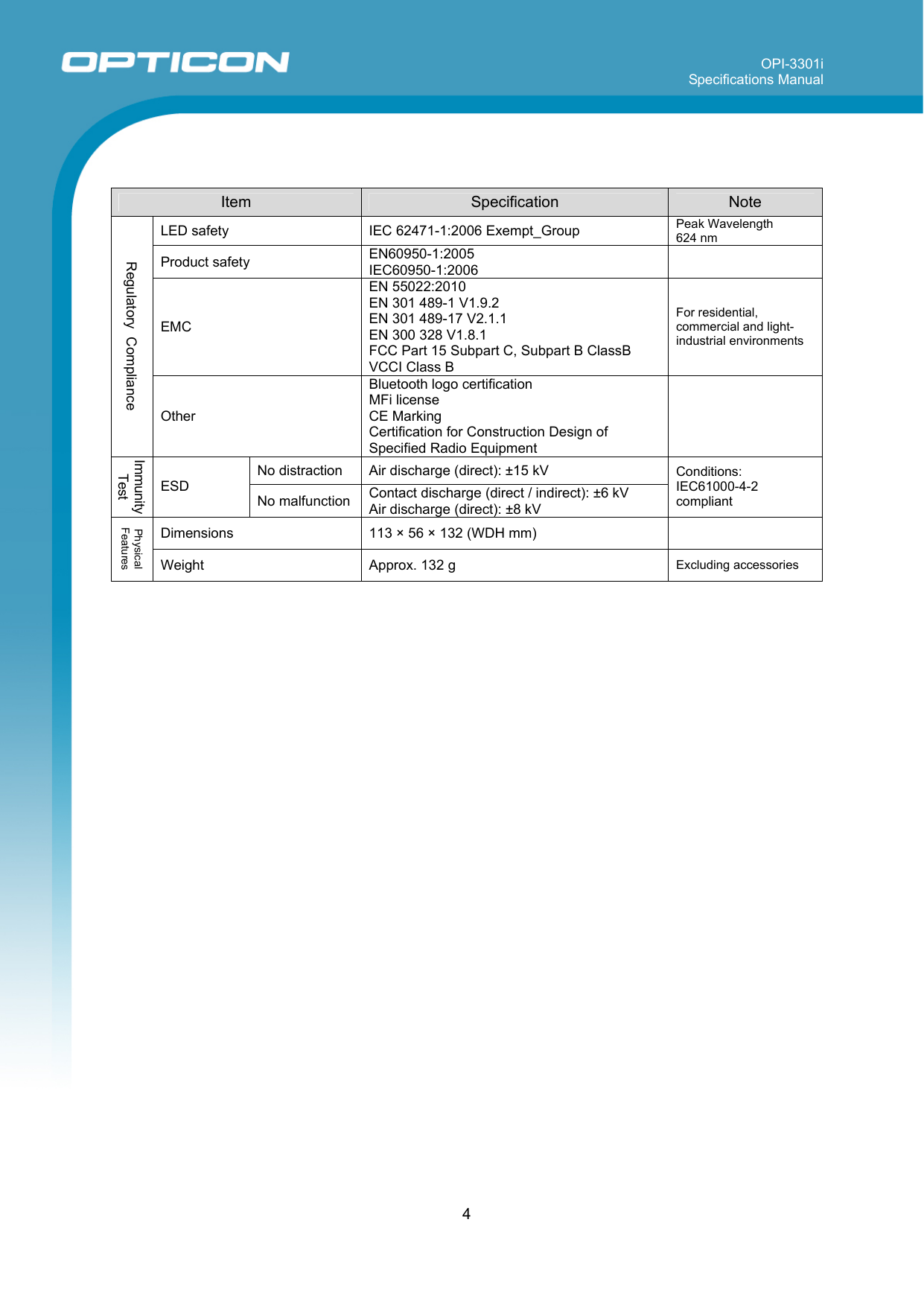

OPI-3301i Specifications Manual 5 4. Detailed View Figure 1: Detailed View of OPI-3301i No Name Description 1 Trigger Key A key to read bar codes 2 Scan Window LED illumination is emitted from this window to read bar codes. 3 Status LED The operating statuses, such as bar code reading, Bluetooth connection and warning, are indicated by different colors. 4 Buzzer Holes A sound from a built-in buzzer comes out through these holes. 5 Charging terminals Charging pins connected to the dedicated charging cradle CHG-3201 13 5 42

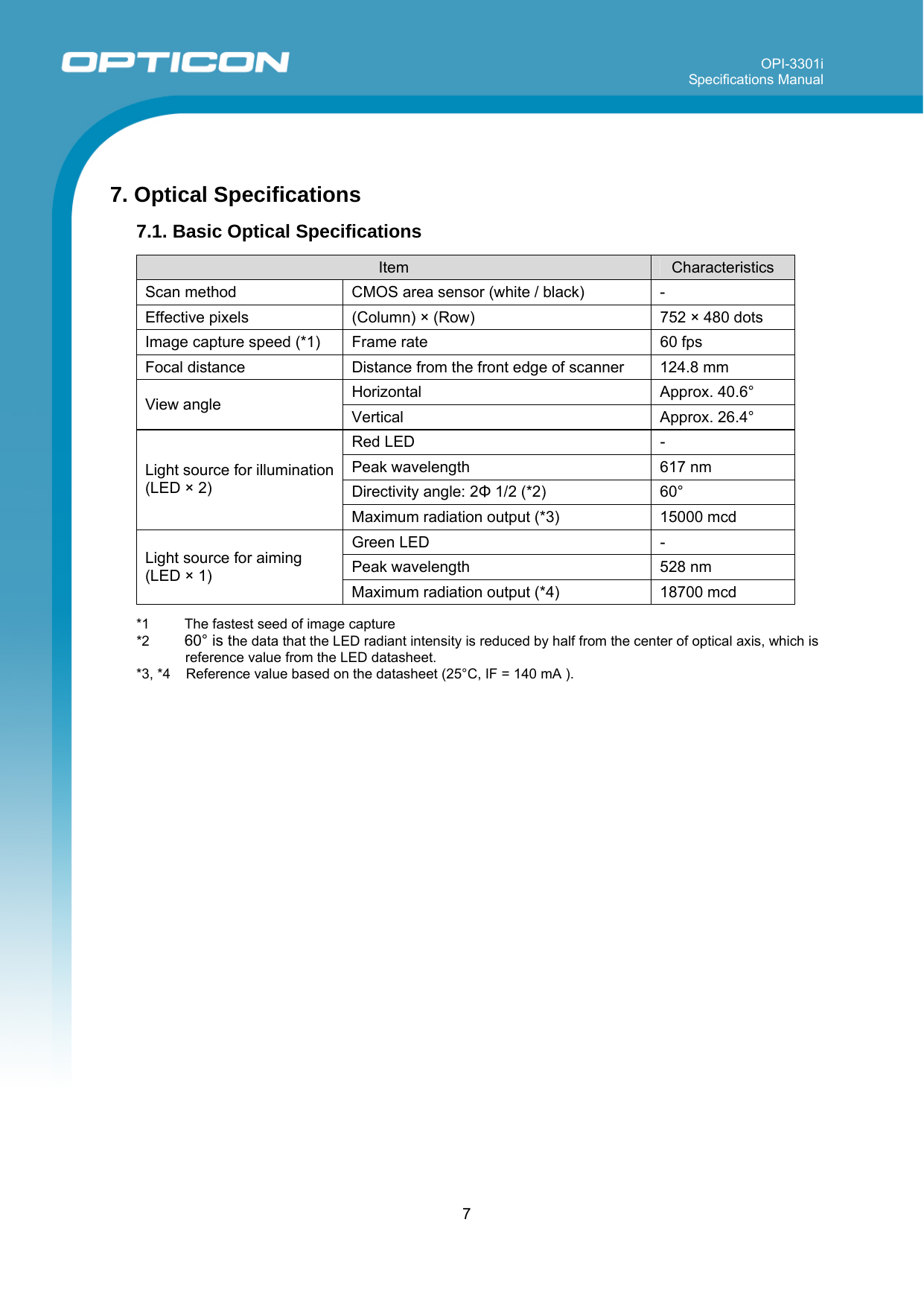

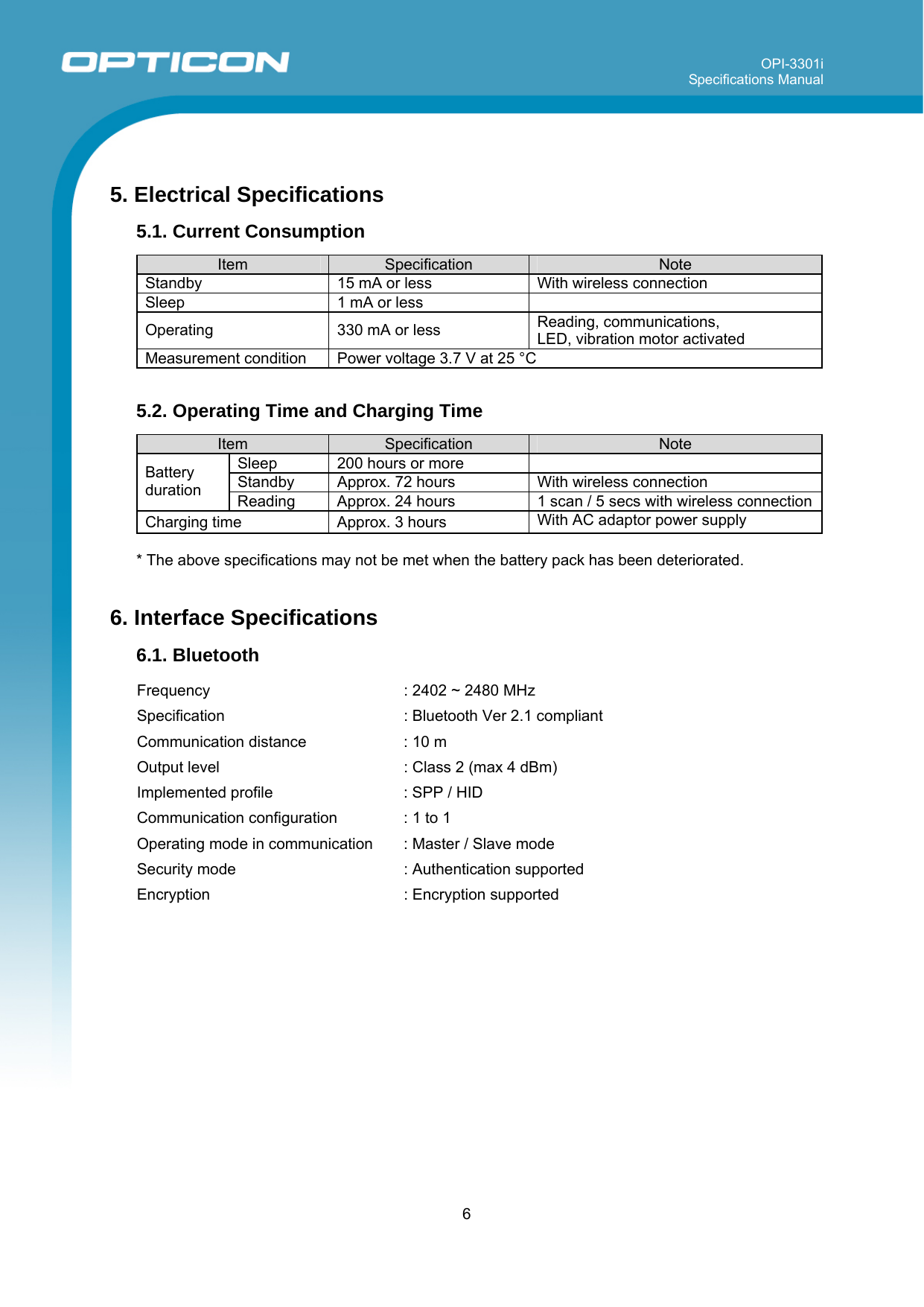

OPI-3301i Specifications Manual 7 7. Optical Specifications 7.1. Basic Optical Specifications Item Characteristics Scan method CMOS area sensor (white / black) - Effective pixels (Column) × (Row) 752 × 480 dots Image capture speed (*1) Frame rate 60 fps Focal distance Distance from the front edge of scanner 124.8 mm Horizontal Approx. 40.6° View angle Vertical Approx. 26.4° Red LED - Peak wavelength 617 nm Directivity angle: 2Φ 1/2 (*2) 60° Light source for illumination (LED × 2) Maximum radiation output (*3) 15000 mcd Green LED - Peak wavelength 528 nm Light source for aiming (LED × 1) Maximum radiation output (*4) 18700 mcd *1 The fastest seed of image capture *2 60° is the data that the LED radiant intensity is reduced by half from the center of optical axis, which is reference value from the LED datasheet. *3, *4 Reference value based on the datasheet (25°C, IF = 140 mA ).

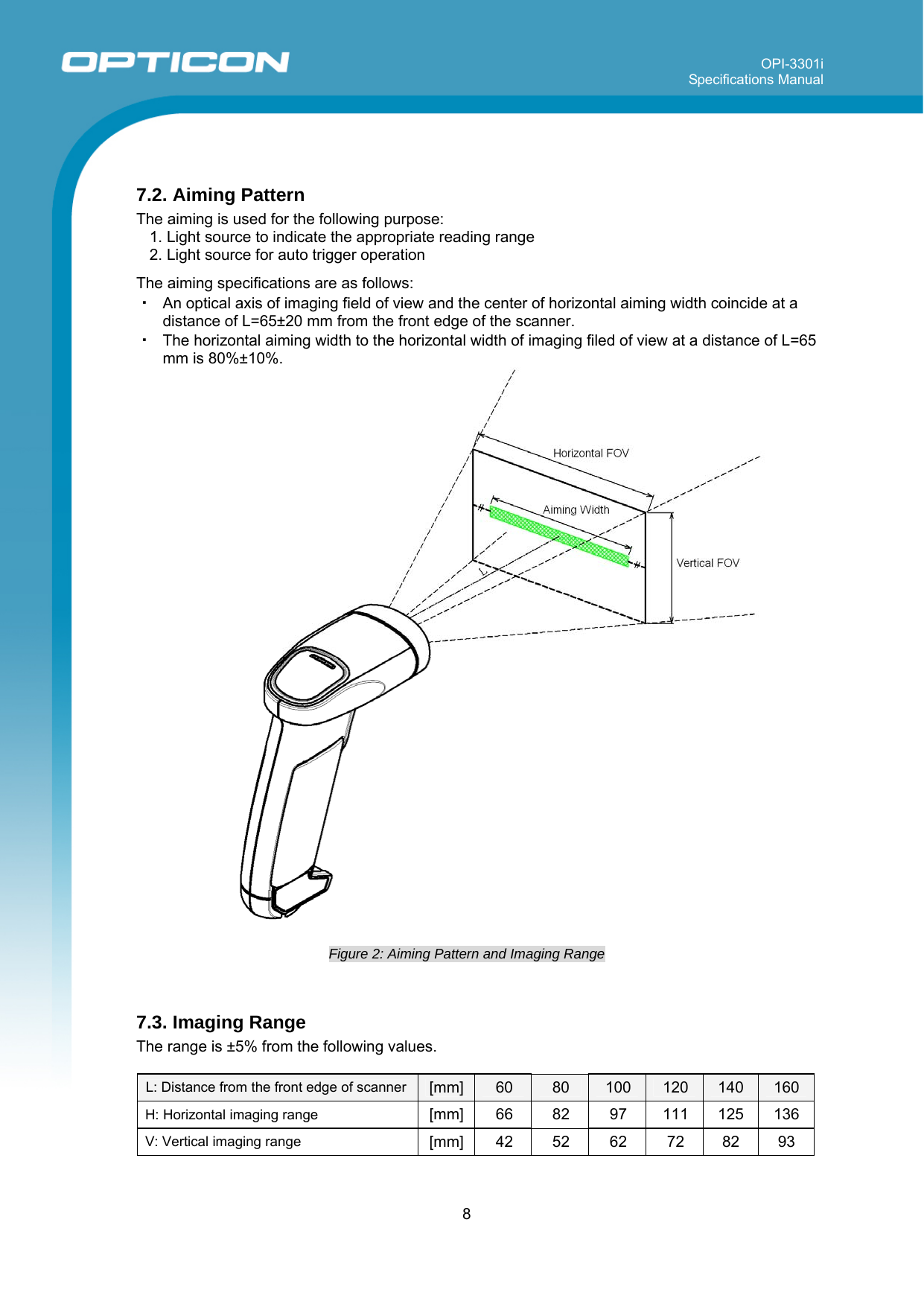

OPI-3301i Specifications Manual 8 7.2. Aiming Pattern The aiming is used for the following purpose: 1. Light source to indicate the appropriate reading range 2. Light source for auto trigger operation The aiming specifications are as follows: ・ An optical axis of imaging field of view and the center of horizontal aiming width coincide at a distance of L=65±20 mm from the front edge of the scanner. ・ The horizontal aiming width to the horizontal width of imaging filed of view at a distance of L=65 mm is 80%±10%. Figure 2: Aiming Pattern and Imaging Range 7.3. Imaging Range The range is ±5% from the following values. L: Distance from the front edge of scanner [mm] 60 80 100 120 140 160 H: Horizontal imaging range [mm] 66 82 97 111 125 136 V: Vertical imaging range [mm] 42 52 62 72 82 93

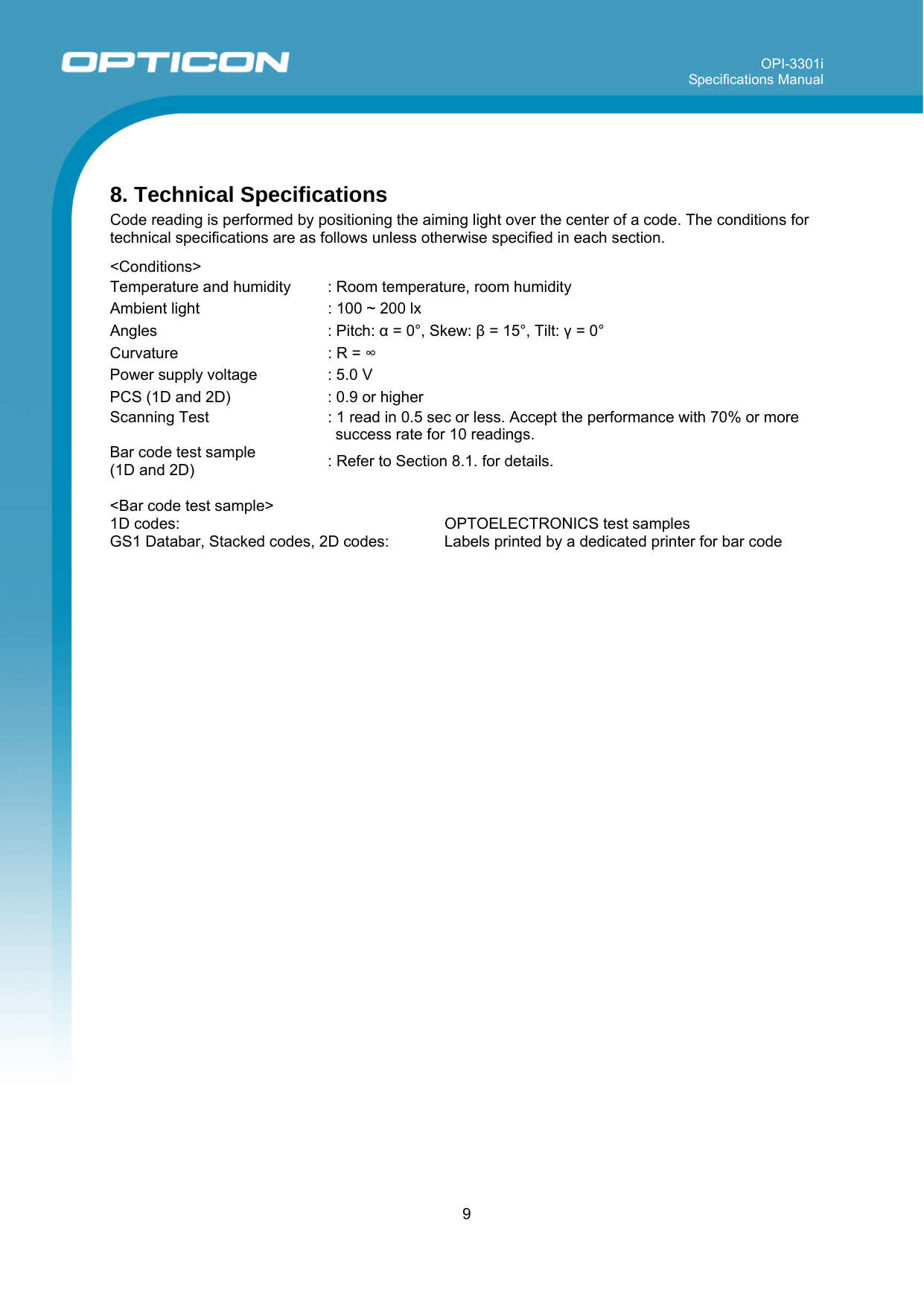

OPI-3301i Specifications Manual 9 8. Technical Specifications Code reading is performed by positioning the aiming light over the center of a code. The conditions for technical specifications are as follows unless otherwise specified in each section. <Conditions> Temperature and humidity : Room temperature, room humidity Ambient light : 100 ~ 200 lx Angles : Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0° Curvature : R = ∞ Power supply voltage : 5.0 V PCS (1D and 2D) : 0.9 or higher Scanning Test : 1 read in 0.5 sec or less. Accept the performance with 70% or more success rate for 10 readings. Bar code test sample (1D and 2D) : Refer to Section 8.1. for details. <Bar code test sample> 1D codes: OPTOELECTRONICS test samples GS1 Databar, Stacked codes, 2D codes: Labels printed by a dedicated printer for bar code

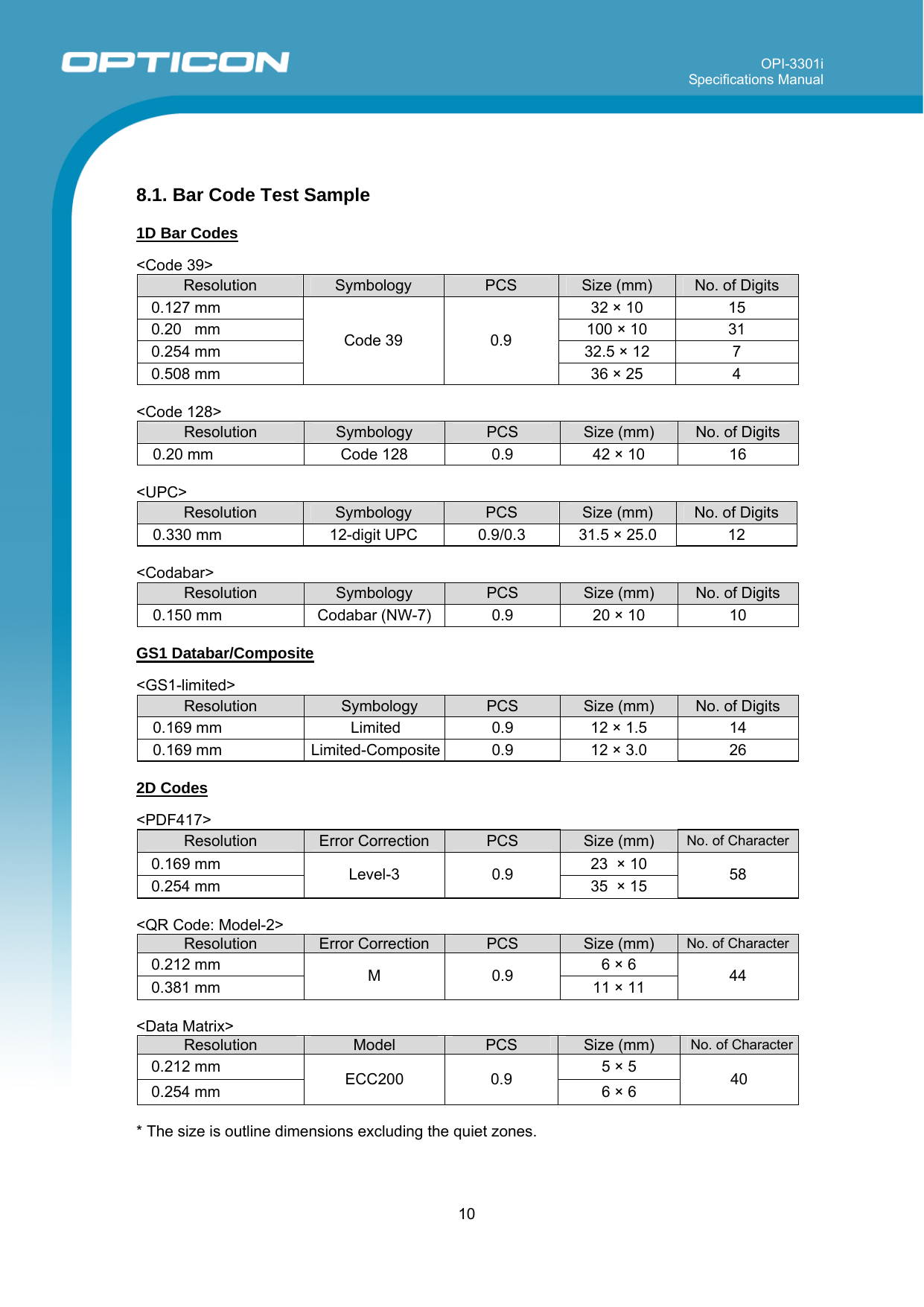

OPI-3301i Specifications Manual 10 8.1. Bar Code Test Sample 1D Bar Codes <Code 39> Resolution Symbology PCS Size (mm) No. of Digits 0.127 mm 32 × 10 15 0.20 mm 100 × 10 31 0.254 mm 32.5 × 12 7 0.508 mm Code 39 0.9 36 × 25 4 <Code 128> Resolution Symbology PCS Size (mm) No. of Digits 0.20 mm Code 128 0.9 42 × 10 16 <UPC> Resolution Symbology PCS Size (mm) No. of Digits 0.330 mm 12-digit UPC 0.9/0.3 31.5 × 25.0 12 <Codabar> Resolution Symbology PCS Size (mm) No. of Digits 0.150 mm Codabar (NW-7) 0.9 20 × 10 10 GS1 Databar/Composite <GS1-limited> Resolution Symbology PCS Size (mm) No. of Digits 0.169 mm Limited 0.9 12 × 1.5 14 0.169 mm Limited-Composite 0.9 12 × 3.0 26 2D Codes <PDF417> Resolution Error Correction PCS Size (mm) No. of Character0.169 mm 23 × 10 0.254 mm Level-3 0.9 35 × 15 58 <QR Code: Model-2> Resolution Error Correction PCS Size (mm) No. of Character0.212 mm 6 × 6 0.381 mm M 0.9 11 × 11 44 <Data Matrix> Resolution Model PCS Size (mm) No. of Character0.212 mm 5 × 5 0.254 mm ECC200 0.9 6 × 6 40 * The size is outline dimensions excluding the quiet zones.

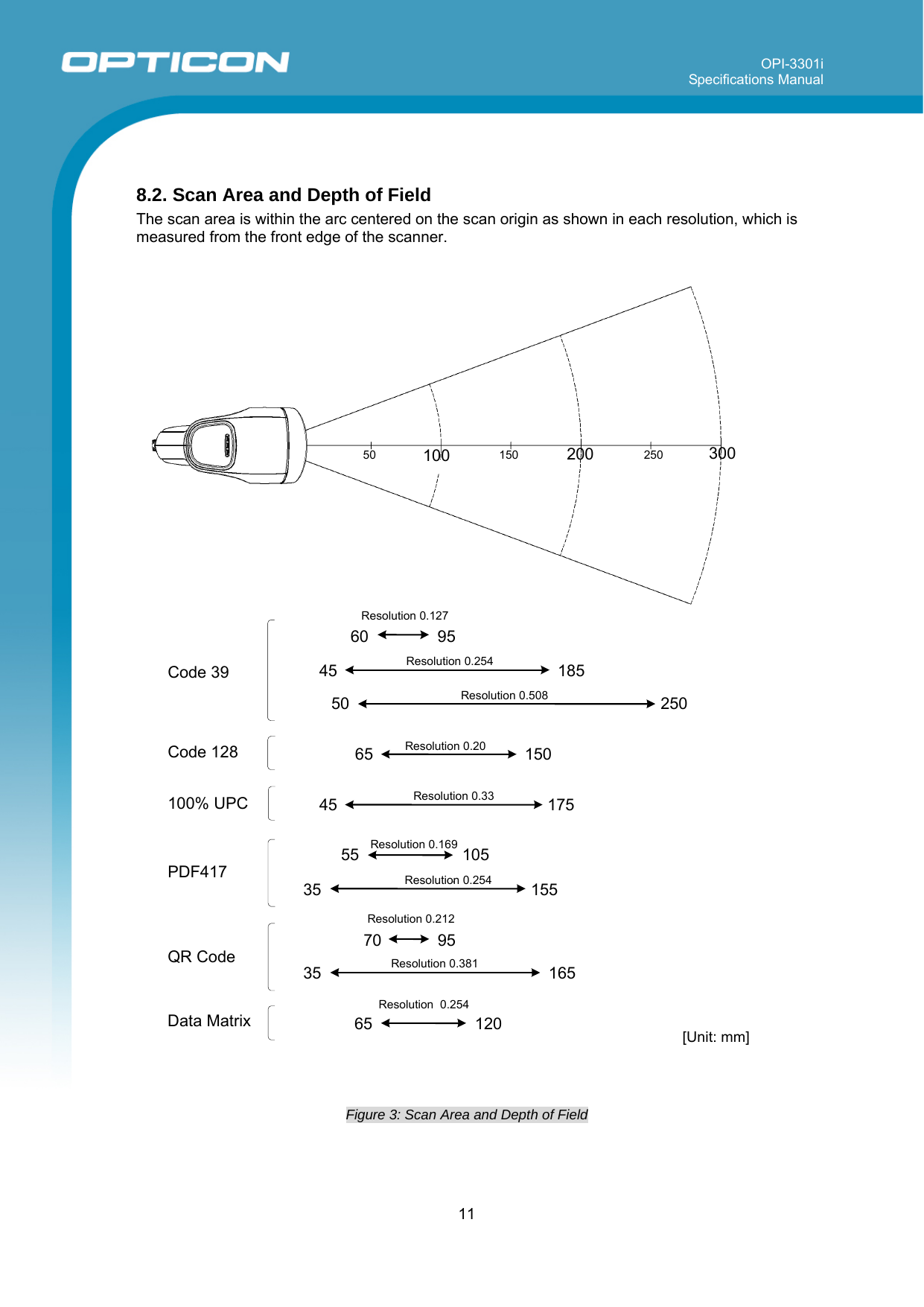

OPI-3301i Specifications Manual 11 8.2. Scan Area and Depth of Field The scan area is within the arc centered on the scan origin as shown in each resolution, which is measured from the front edge of the scanner. Figure 3: Scan Area and Depth of Field 65 120 Data Matrix 250 65 175 10555 15535 70 9535 165 Code 128 100% UPC PDF417 QR Code Resolution 0.508Resolution 0.20Resolution 0.33Resolution 0.169Resolution 0.254.Resolution 0.212Resolution 0.381Resolution 0.25445 50 50 100 150 200 250Resolution 0.12760 9545 185[Unit: mm] Resolution 0.254Code 39 300 150

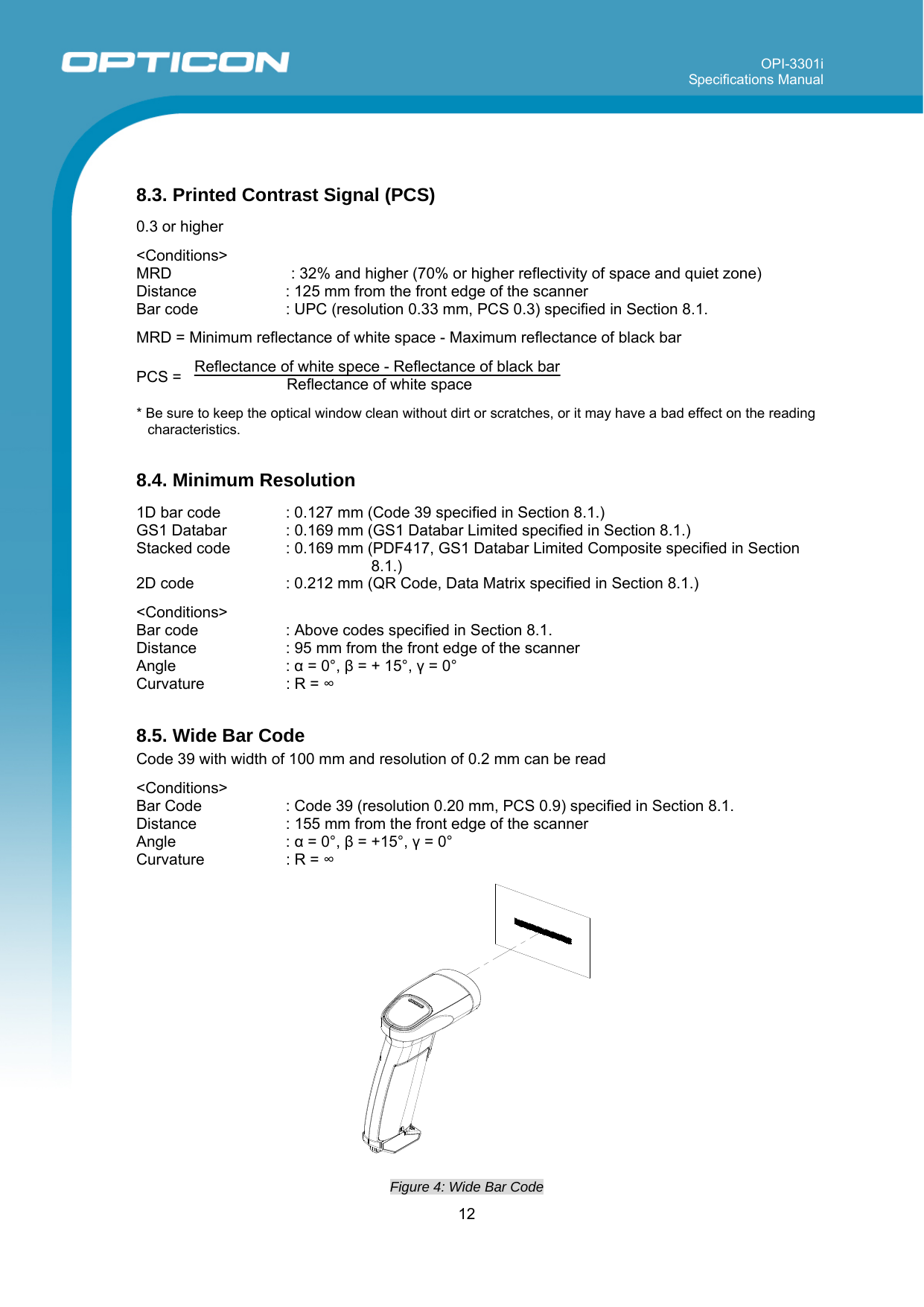

OPI-3301i Specifications Manual 12 8.3. Printed Contrast Signal (PCS) 0.3 or higher <Conditions> MRD : 32% and higher (70% or higher reflectivity of space and quiet zone) Distance : 125 mm from the front edge of the scanner Bar code : UPC (resolution 0.33 mm, PCS 0.3) specified in Section 8.1. MRD = Minimum reflectance of white space - Maximum reflectance of black bar PCS = Reflectance of white spece - Reflectance of black bar Reflectance of white space * Be sure to keep the optical window clean without dirt or scratches, or it may have a bad effect on the reading characteristics. 8.4. Minimum Resolution 1D bar code : 0.127 mm (Code 39 specified in Section 8.1.) GS1 Databar : 0.169 mm (GS1 Databar Limited specified in Section 8.1.) Stacked code : 0.169 mm (PDF417, GS1 Databar Limited Composite specified in Section 8.1.) 2D code : 0.212 mm (QR Code, Data Matrix specified in Section 8.1.) <Conditions> Bar code : Above codes specified in Section 8.1. Distance : 95 mm from the front edge of the scanner Angle : α = 0°, β = + 15°, γ = 0° Curvature : R = ∞ 8.5. Wide Bar Code Code 39 with width of 100 mm and resolution of 0.2 mm can be read <Conditions> Bar Code : Code 39 (resolution 0.20 mm, PCS 0.9) specified in Section 8.1. Distance : 155 mm from the front edge of the scanner Angle : α = 0°, β = +15°, γ = 0° Curvature : R = ∞ Figure 4: Wide Bar Code

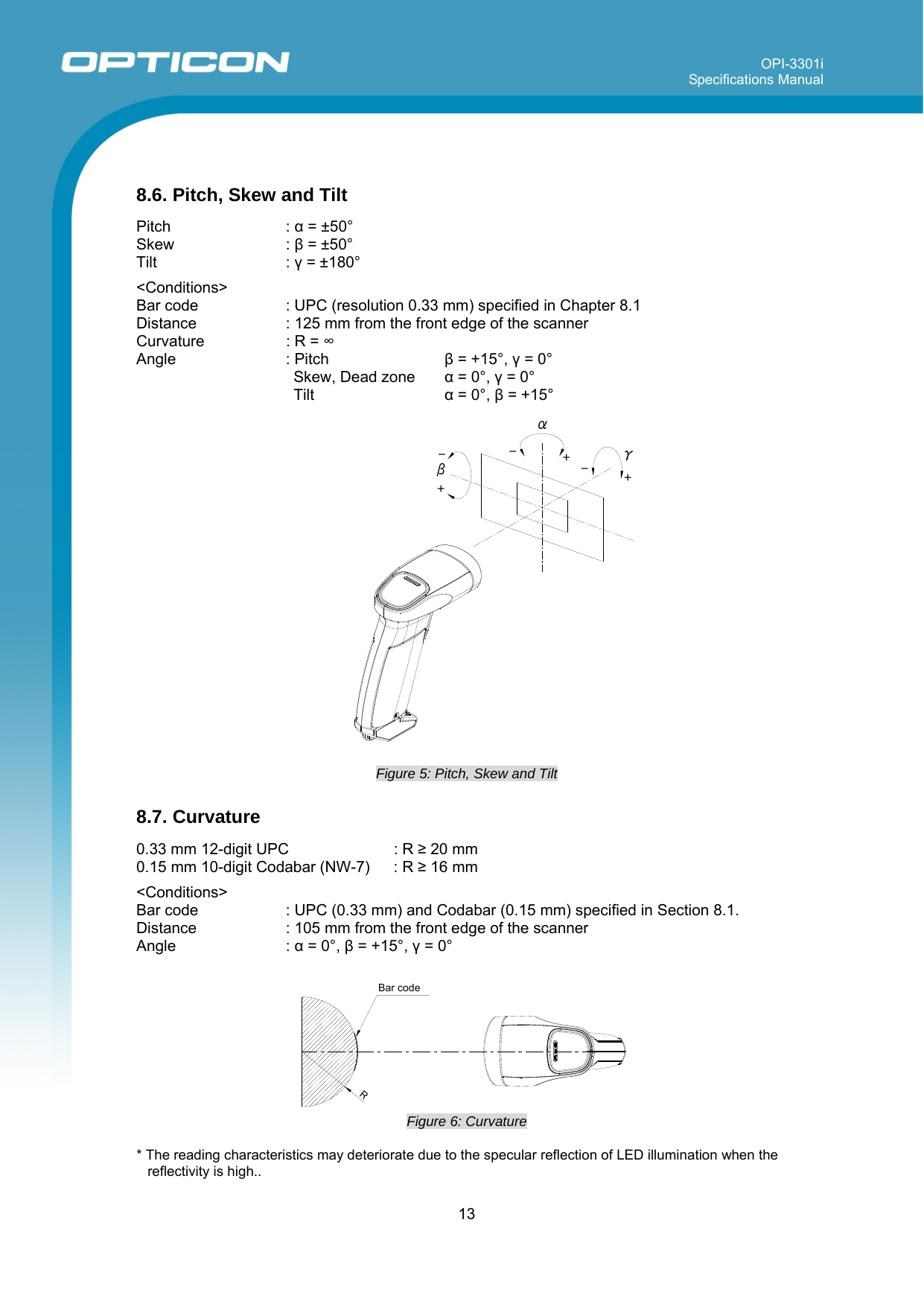

OPI-3301i Specifications Manual 13 8.6. Pitch, Skew and Tilt Pitch : α = ±50° Skew : β = ±50° Tilt : γ = ±180° <Conditions> Bar code : UPC (resolution 0.33 mm) specified in Chapter 8.1 Distance : 125 mm from the front edge of the scanner Curvature : R = ∞ Angle : Pitch β = +15°, γ = 0° Skew, Dead zone α = 0°, γ = 0° Tilt α = 0°, β = +15° αβγ+++--- Figure 5: Pitch, Skew and Tilt 8.7. Curvature 0.33 mm 12-digit UPC : R ≥ 20 mm 0.15 mm 10-digit Codabar (NW-7) : R ≥ 16 mm <Conditions> Bar code : UPC (0.33 mm) and Codabar (0.15 mm) specified in Section 8.1. Distance : 105 mm from the front edge of the scanner Angle : α = 0°, β = +15°, γ = 0° RBar code Figure 6: Curvature * The reading characteristics may deteriorate due to the specular reflection of LED illumination when the reflectivity is high..

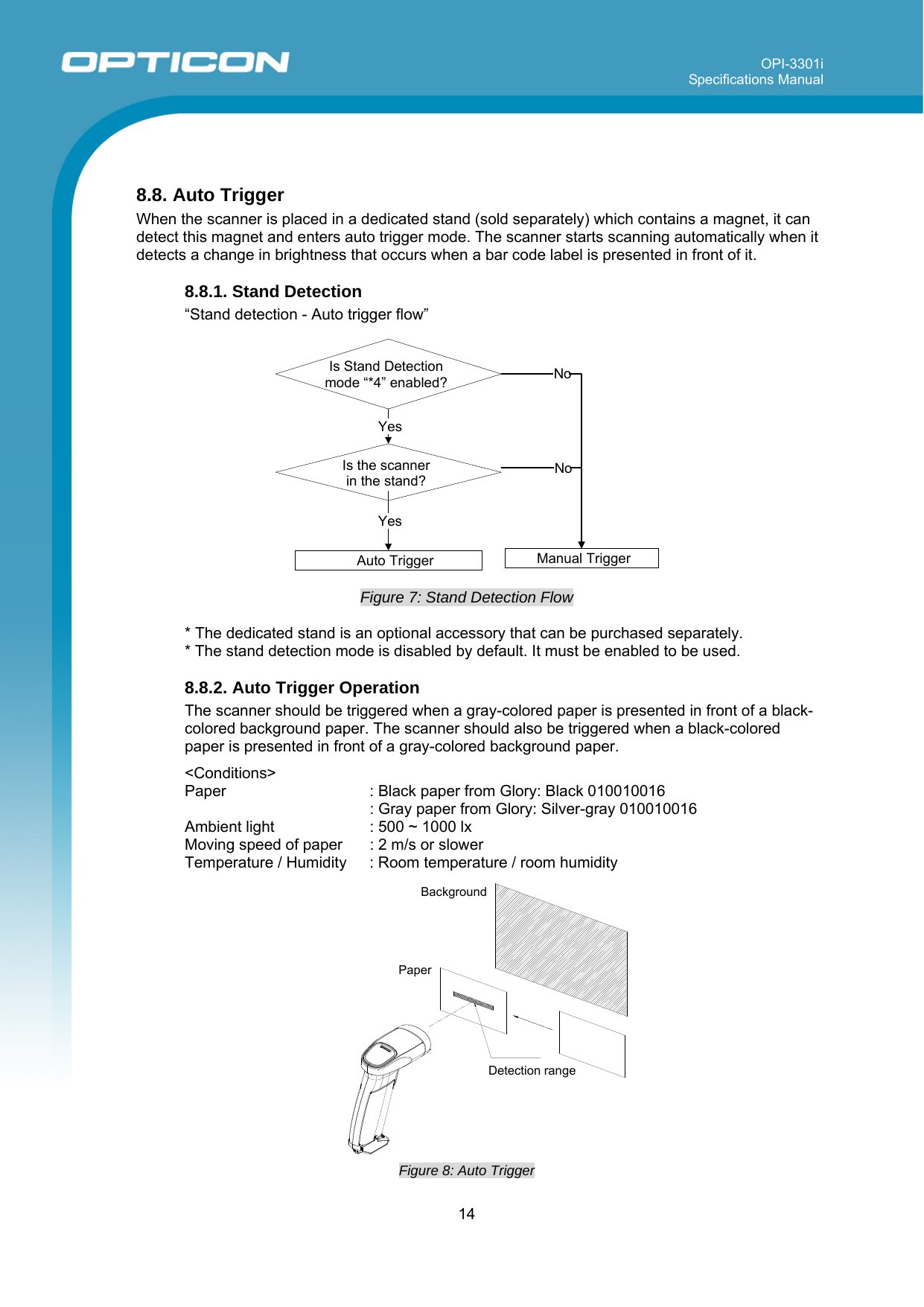

OPI-3301i Specifications Manual 14 8.8. Auto Trigger When the scanner is placed in a dedicated stand (sold separately) which contains a magnet, it can detect this magnet and enters auto trigger mode. The scanner starts scanning automatically when it detects a change in brightness that occurs when a bar code label is presented in front of it. 8.8.1. Stand Detection “Stand detection - Auto trigger flow” Figure 7: Stand Detection Flow * The dedicated stand is an optional accessory that can be purchased separately. * The stand detection mode is disabled by default. It must be enabled to be used. 8.8.2. Auto Trigger Operation The scanner should be triggered when a gray-colored paper is presented in front of a black-colored background paper. The scanner should also be triggered when a black-colored paper is presented in front of a gray-colored background paper. <Conditions> Paper : Black paper from Glory: Black 010010016 : Gray paper from Glory: Silver-gray 010010016 Ambient light : 500 ~ 1000 lx Moving speed of paper : 2 m/s or slower Temperature / Humidity : Room temperature / room humidity Figure 8: Auto Trigger Is Stand Detection mode “*4” enabled?Auto TriggerYes YesNoManual TriggerNoIs the scanner in the stand? PaperBackground Detection range

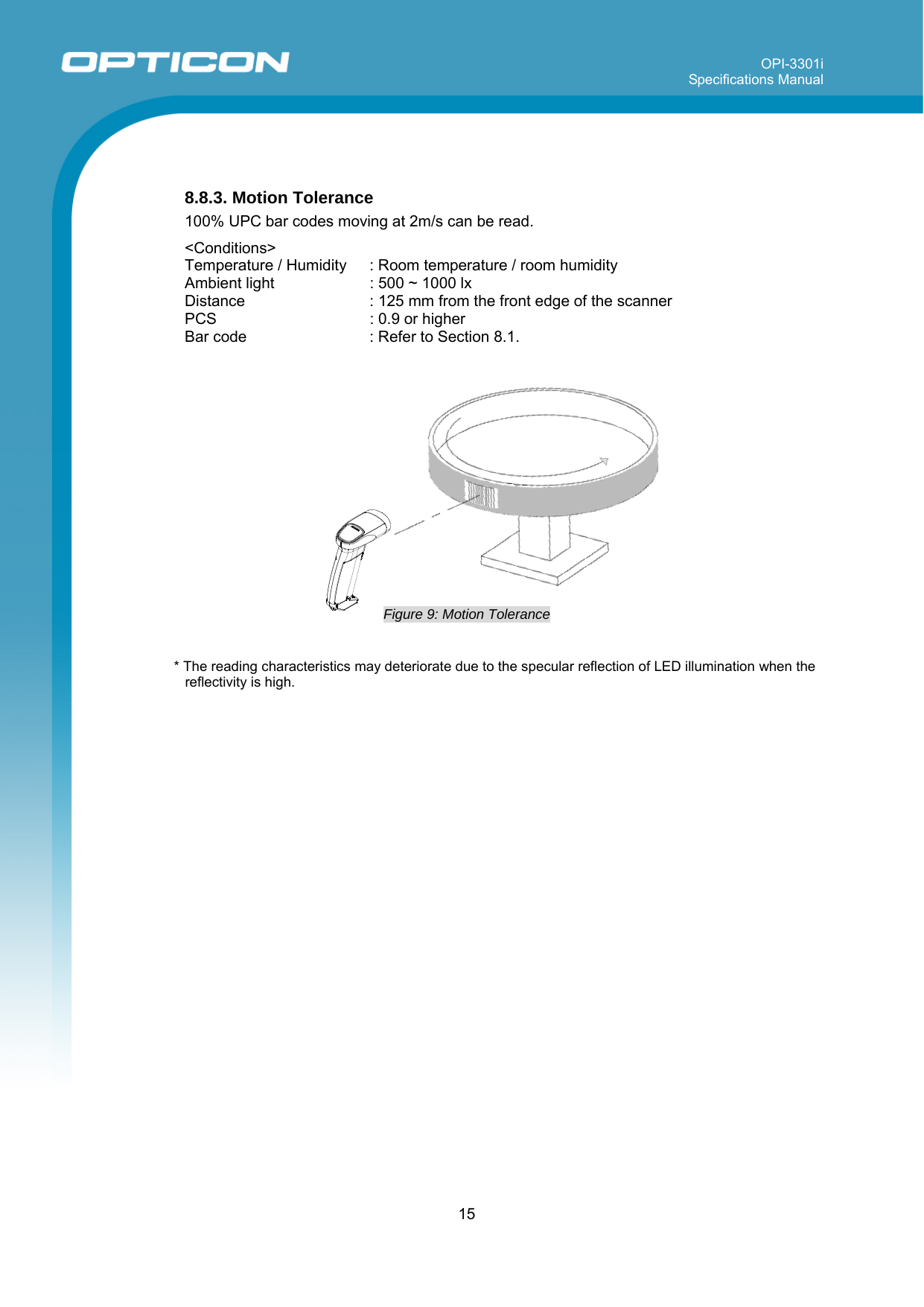

OPI-3301i Specifications Manual 15 8.8.3. Motion Tolerance 100% UPC bar codes moving at 2m/s can be read. <Conditions> Temperature / Humidity : Room temperature / room humidity Ambient light : 500 ~ 1000 lx Distance : 125 mm from the front edge of the scanner PCS : 0.9 or higher Bar code : Refer to Section 8.1. Figure 9: Motion Tolerance * The reading characteristics may deteriorate due to the specular reflection of LED illumination when the reflectivity is high.

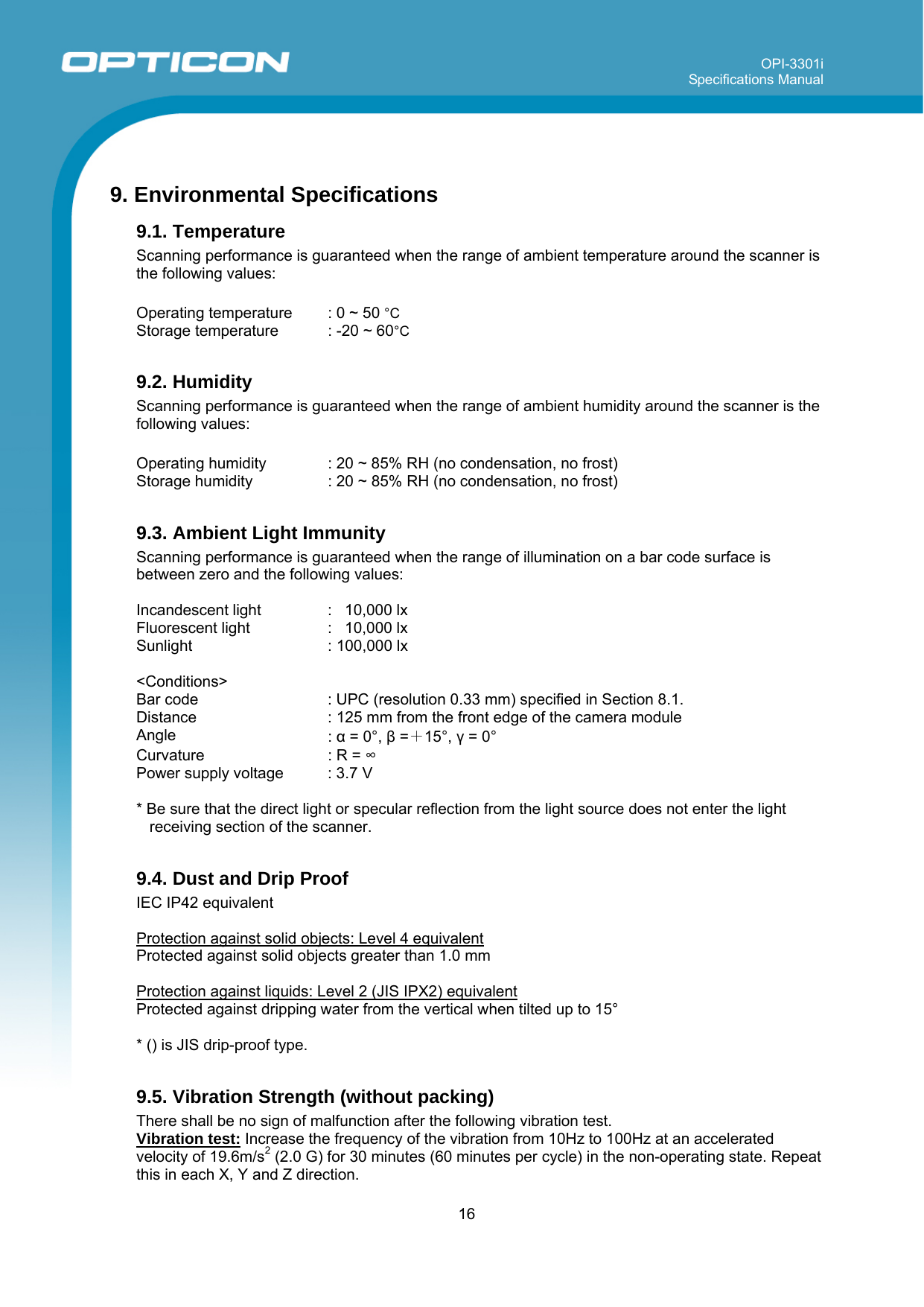

OPI-3301i Specifications Manual 16 9. Environmental Specifications 9.1. Temperature Scanning performance is guaranteed when the range of ambient temperature around the scanner is the following values: Operating temperature : 0 ~ 50 °C Storage temperature : -20 ~ 60°C 9.2. Humidity Scanning performance is guaranteed when the range of ambient humidity around the scanner is the following values: Operating humidity : 20 ~ 85% RH (no condensation, no frost) Storage humidity : 20 ~ 85% RH (no condensation, no frost) 9.3. Ambient Light Immunity Scanning performance is guaranteed when the range of illumination on a bar code surface is between zero and the following values: Incandescent light : 10,000 lx Fluorescent light : 10,000 lx Sunlight : 100,000 lx <Conditions> Bar code : UPC (resolution 0.33 mm) specified in Section 8.1. Distance : 125 mm from the front edge of the camera module Angle : α = 0°, β =＋15°, γ = 0° Curvature : R = ∞ Power supply voltage : 3.7 V * Be sure that the direct light or specular reflection from the light source does not enter the light receiving section of the scanner. 9.4. Dust and Drip Proof IEC IP42 equivalent Protection against solid objects: Level 4 equivalent Protected against solid objects greater than 1.0 mm Protection against liquids: Level 2 (JIS IPX2) equivalent Protected against dripping water from the vertical when tilted up to 15° * () is JIS drip-proof type. 9.5. Vibration Strength (without packing) There shall be no sign of malfunction after the following vibration test. Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in the non-operating state. Repeat this in each X, Y and Z direction.

OPI-3301i Specifications Manual 17 9.6. Vibration Strength (in individual packing) There shall be no sign of malfunction after the following vibration test. Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state. Repeat this in each X, Y and Z direction. 9.7. Drop Impact Strength (without packaging) There shall be no sign of malfunction after the following drop test. Drop test: Drop the scanner 30 times in total (5 times at each 6 face) from a height of 150 cm onto a concrete floor as shown below. 150cm Figure 10: Drop Test 9.8. Drop Impact Strength (in individual packaging) There shall be no sign of malfunction after the following drop test. Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and 6 faces, from a height of 150 cm onto a concrete floor. 9.9. Electrostatic Discharge (ESD) Immunity Contact discharge : ±6 kV max (direct or indirect discharge, no malfunction) Aerial discharge : ±8 kV max (no malfunction) ±15 kV max (no distraction) Measurement environment : Testing method compliant with IEC-61000-4-2. Discharge resistance : 330 Ω Charging capacitor : 150 pF Concret150 cm

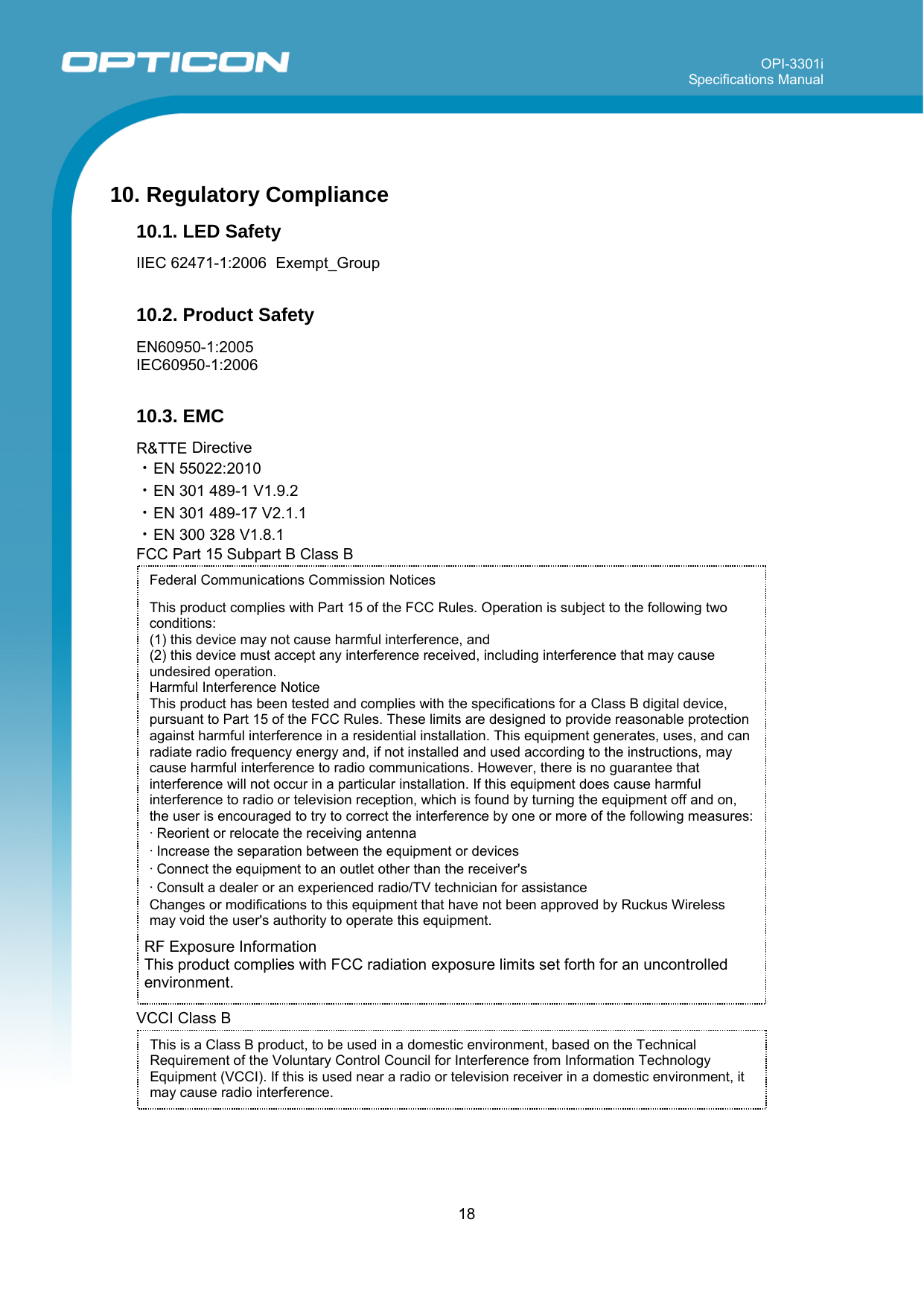

OPI-3301i Specifications Manual 18 Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Harmful Interference Notice This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment. 10. Regulatory Compliance 10.1. LED Safety IIEC 62471-1:2006 Exempt_Group 10.2. Product Safety EN60950-1:2005 IEC60950-1:2006 10.3. EMC R&TTE Directive ・EN 55022:2010 ・EN 301 489-1 V1.9.2 ・EN 301 489-17 V2.1.1 ・EN 300 328 V1.8.1 FCC Part 15 Subpart B Class B RF Exposure Information This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. VCCI Class B This is a Class B product, to be used in a domestic environment, based on the Technical Requirement of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference.

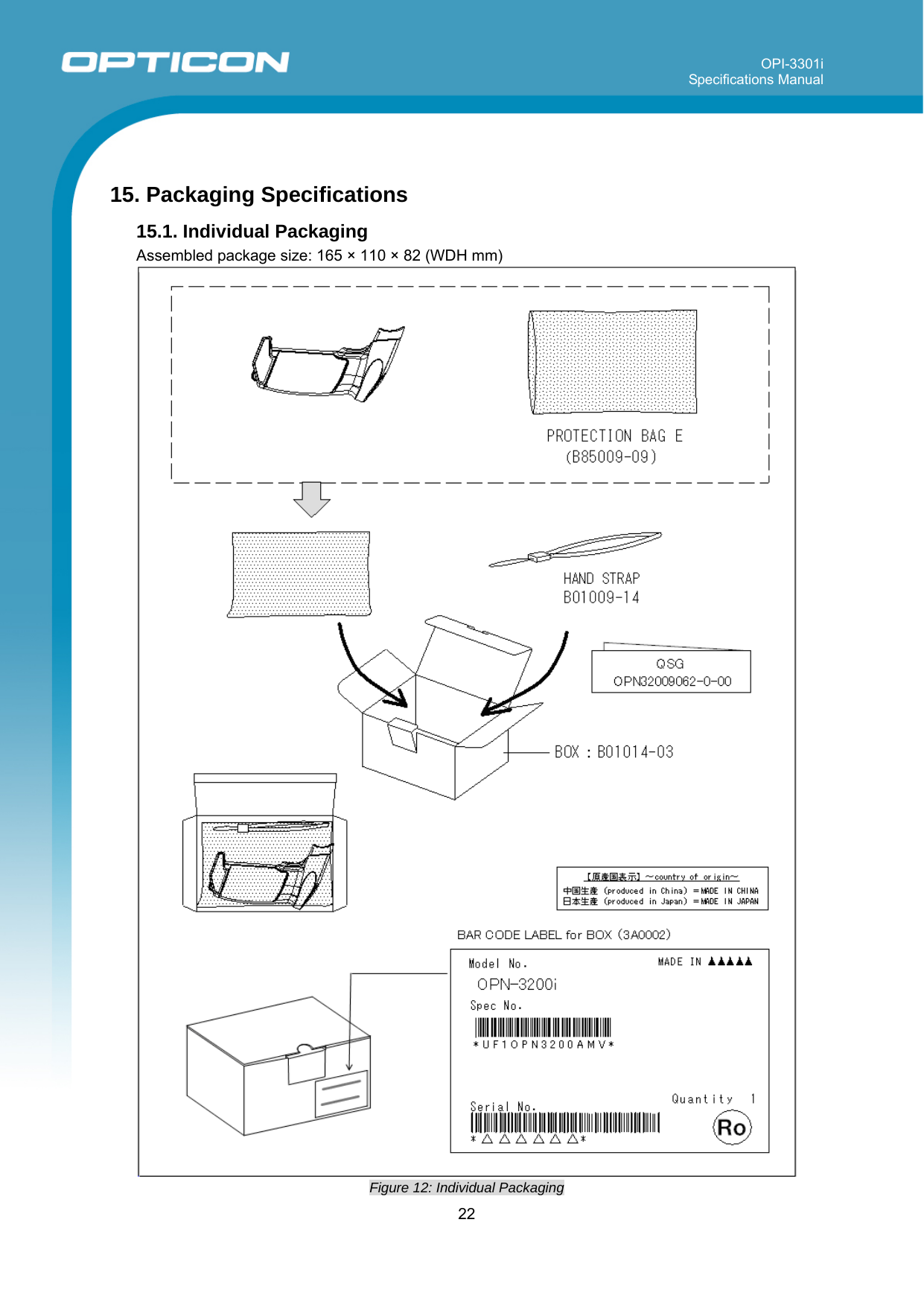

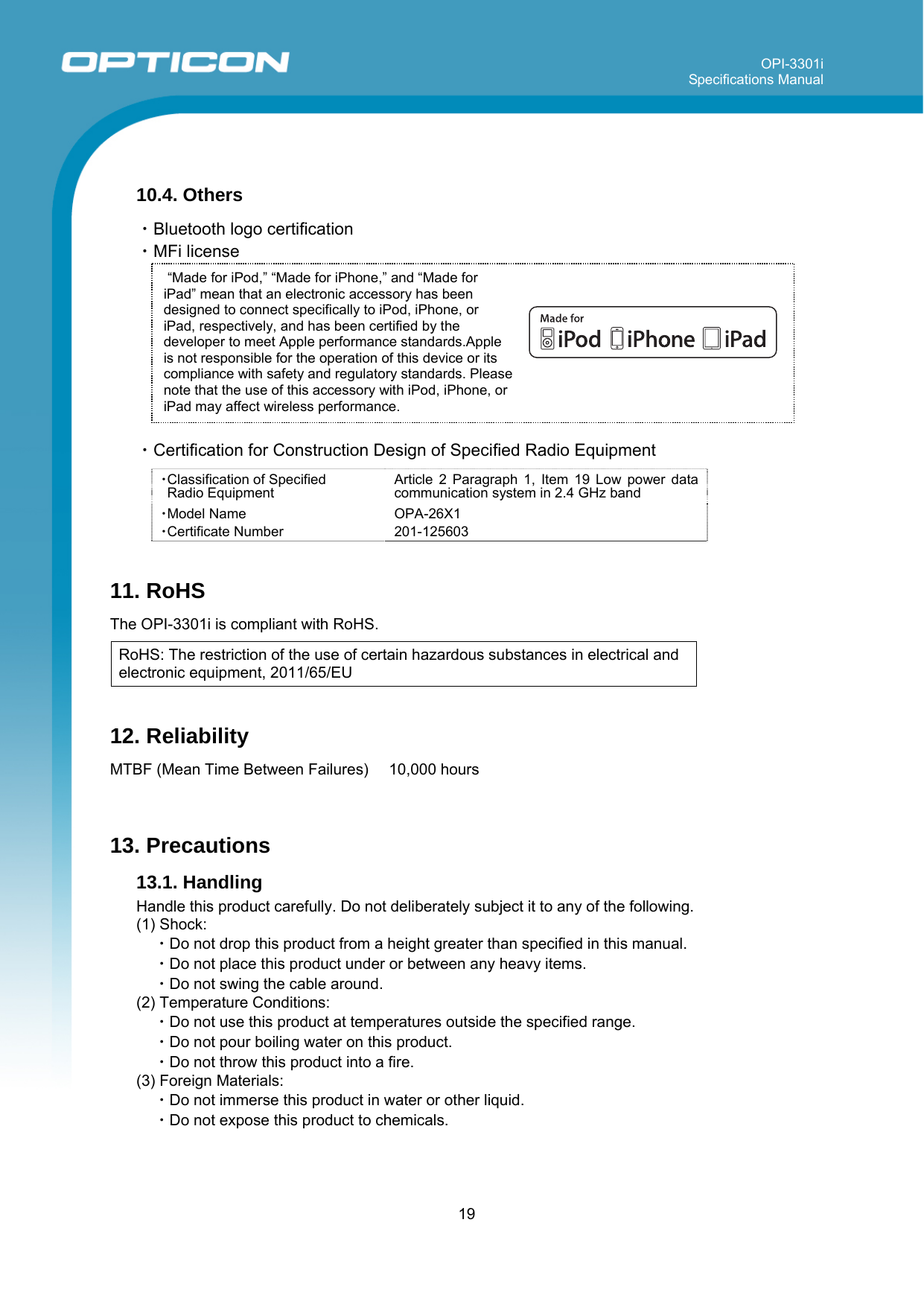

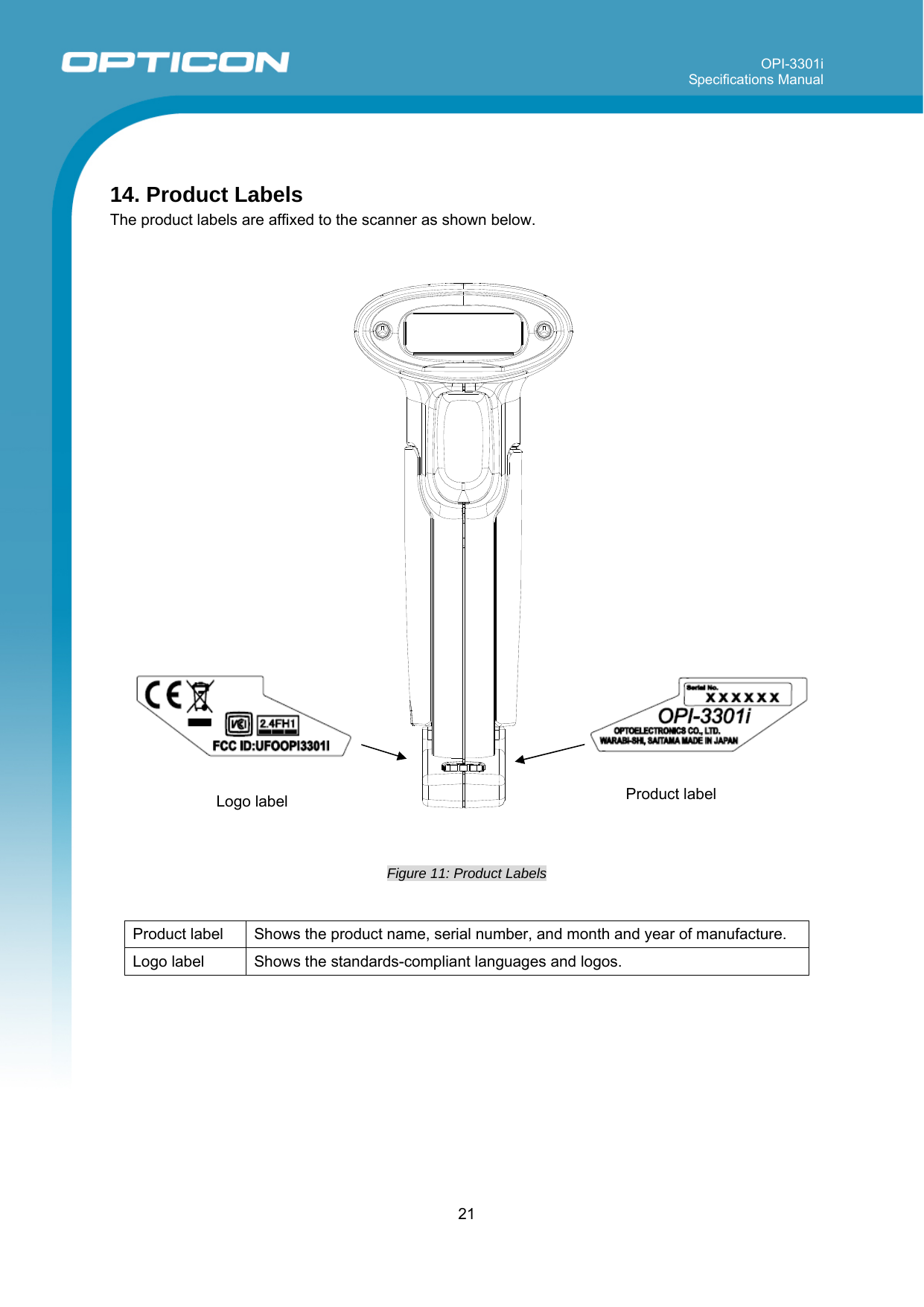

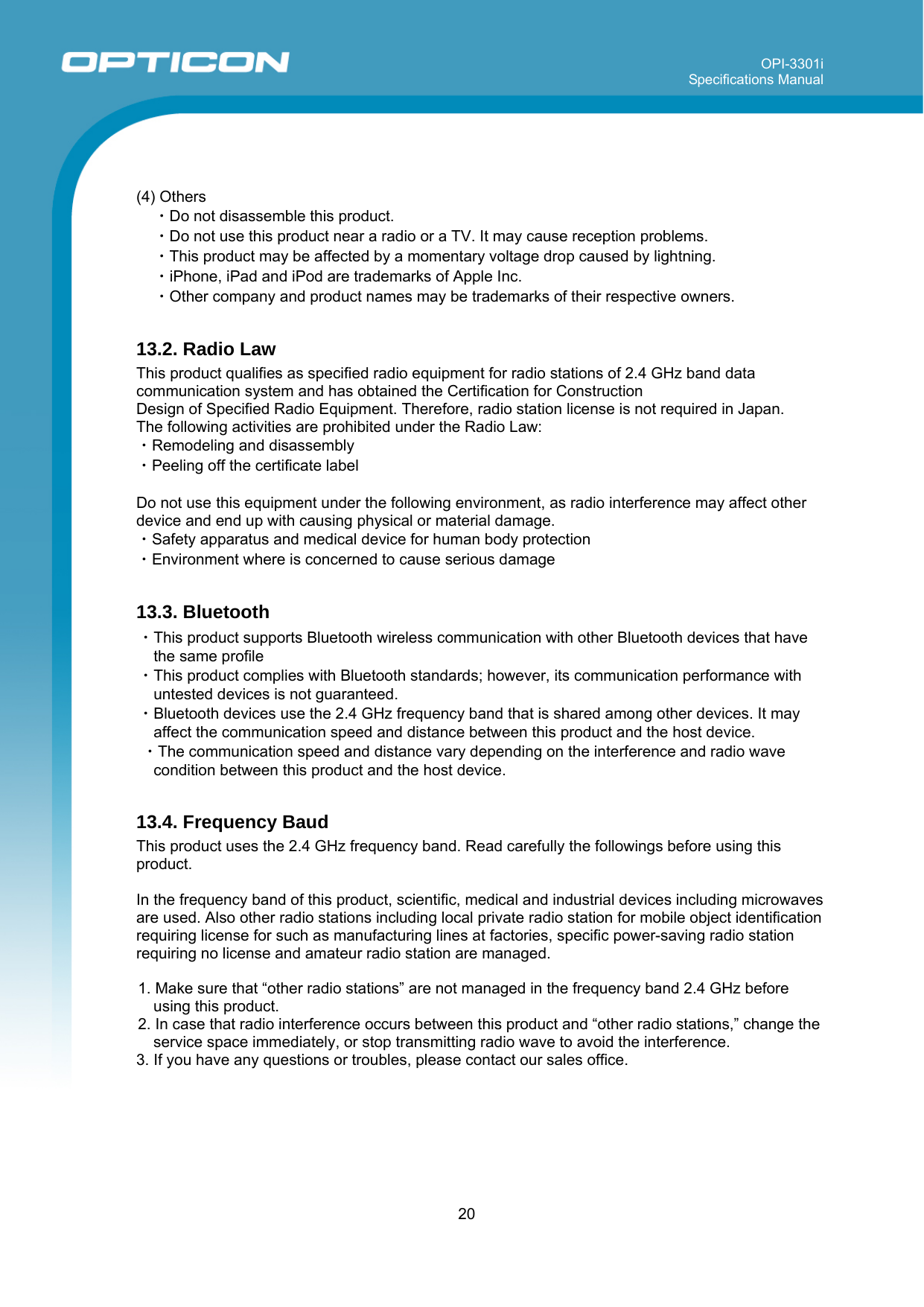

OPI-3301i Specifications Manual 22 15. Packaging Specifications 15.1. Individual Packaging Assembled package size: 165 × 110 × 82 (WDH mm) Figure 12: Individual Packaging

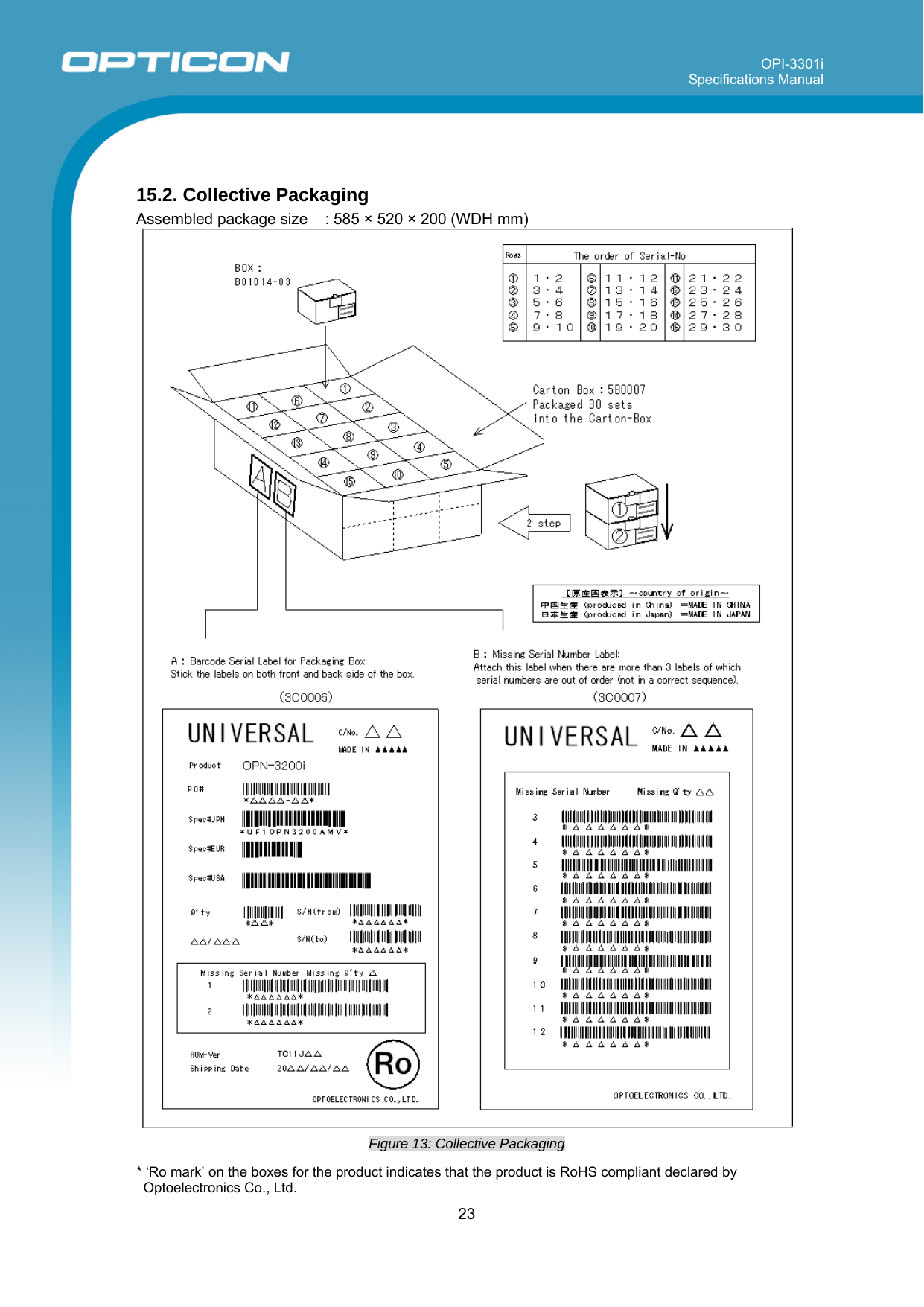

OPI-3301i Specifications Manual 23 15.2. Collective Packaging Assembled package size : 585 × 520 × 200 (WDH mm) Figure 13: Collective Packaging * ‘Ro mark’ on the boxes for the product indicates that the product is RoHS compliant declared by Optoelectronics Co., Ltd.

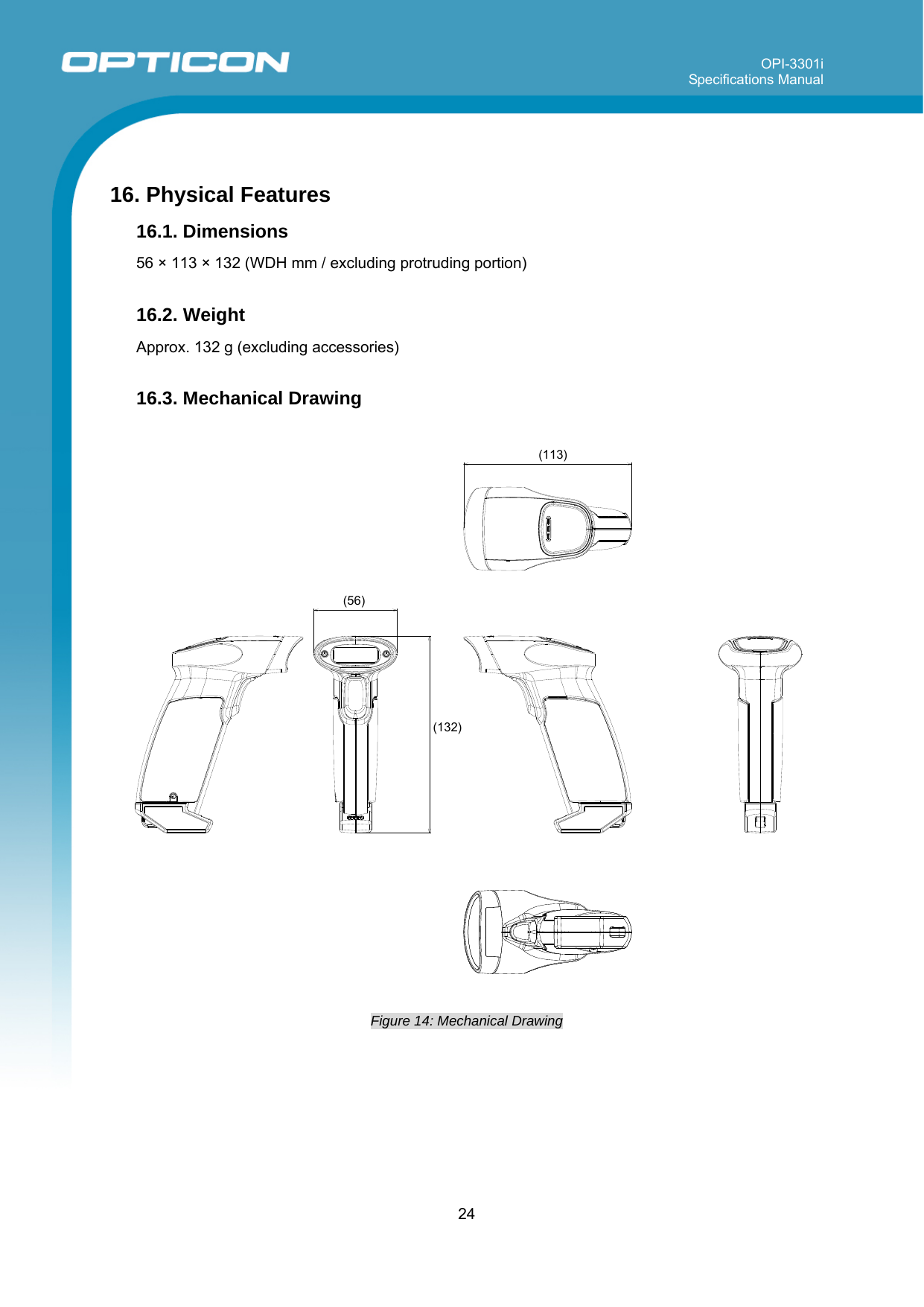

OPI-3301i Specifications Manual 24 16. Physical Features 16.1. Dimensions 56 × 113 × 132 (WDH mm / excluding protruding portion) 16.2. Weight Approx. 132 g (excluding accessories) 16.3. Mechanical Drawing Figure 14: Mechanical Drawing (113)(56) (132)

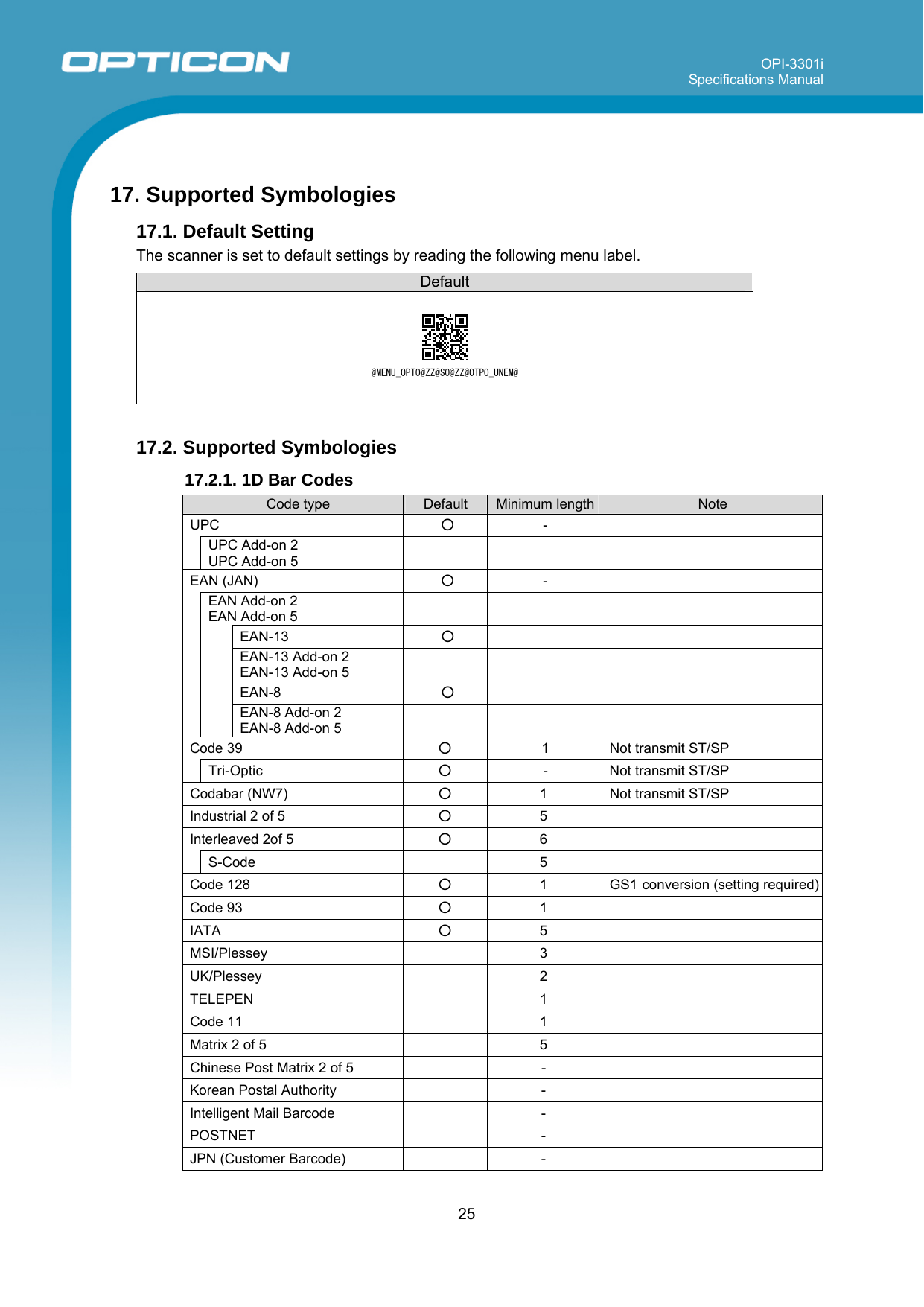

OPI-3301i Specifications Manual 25 17. Supported Symbologies 17.1. Default Setting The scanner is set to default settings by reading the following menu label. Default 17.2. Supported Symbologies 17.2.1. 1D Bar Codes Code type Default Minimum length Note UPC ○ - UPC Add-on 2 UPC Add-on 5 EAN (JAN) ○ - EAN Add-on 2 EAN Add-on 5 EAN-13 ○ EAN-13 Add-on 2 EAN-13 Add-on 5 EAN-8 ○ EAN-8 Add-on 2 EAN-8 Add-on 5 Code 39 ○ 1 Not transmit ST/SP Tri-Optic ○ - Not transmit ST/SP Codabar (NW7) ○ 1 Not transmit ST/SP Industrial 2 of 5 ○ 5 Interleaved 2of 5 ○ 6 S-Code 5 Code 128 ○ 1 GS1 conversion (setting required)Code 93 ○ 1 IATA ○ 5 MSI/Plessey 3 UK/Plessey 2 TELEPEN 1 Code 11 1 Matrix 2 of 5 5 Chinese Post Matrix 2 of 5 - Korean Postal Authority - Intelligent Mail Barcode - POSTNET - JPN (Customer Barcode) - @MENU_OPTO@ZZ@SO@ZZ@OTPO_UNEM@

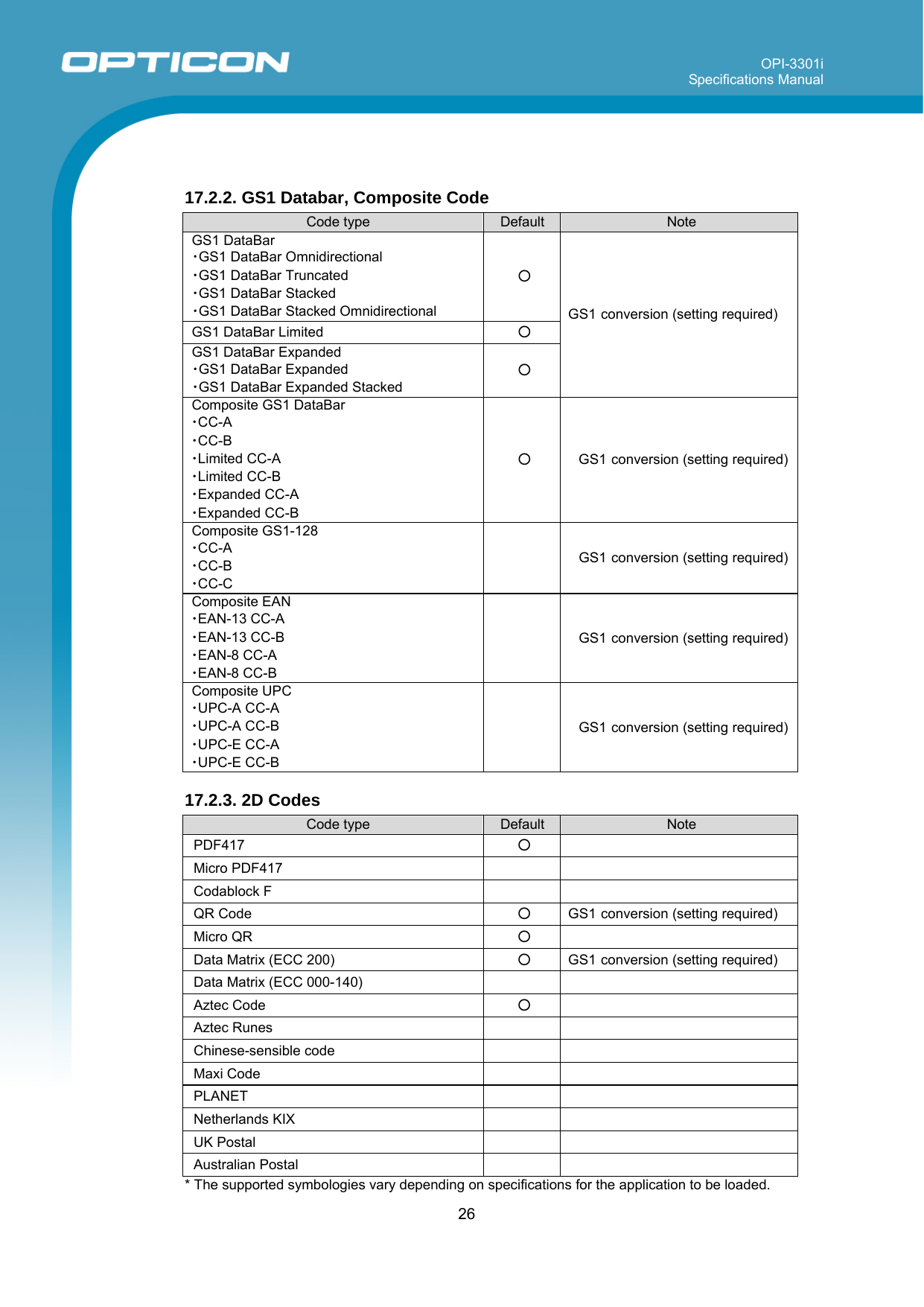

OPI-3301i Specifications Manual 26 17.2.2. GS1 Databar, Composite Code Code type Default Note GS1 DataBar ・GS1 DataBar Omnidirectional ・GS1 DataBar Truncated ・GS1 DataBar Stacked ・GS1 DataBar Stacked Omnidirectional ○ GS1 DataBar Limited ○ GS1 DataBar Expanded ・GS1 DataBar Expanded ・GS1 DataBar Expanded Stacked ○ GS1 conversion (setting required) Composite GS1 DataBar ・CC-A ・CC-B ・Limited CC-A ・Limited CC-B ・Expanded CC-A ・Expanded CC-B ○ GS1 conversion (setting required)Composite GS1-128 ・CC-A ・CC-B ・CC-C GS1 conversion (setting required)Composite EAN ・EAN-13 CC-A ・EAN-13 CC-B ・EAN-8 CC-A ・EAN-8 CC-B GS1 conversion (setting required)Composite UPC ・UPC-A CC-A ・UPC-A CC-B ・UPC-E CC-A ・UPC-E CC-B GS1 conversion (setting required) 17.2.3. 2D Codes Code type Default Note PDF417 ○ Micro PDF417 Codablock F QR Code ○ GS1 conversion (setting required) Micro QR ○ Data Matrix (ECC 200) ○ GS1 conversion (setting required) Data Matrix (ECC 000-140) Aztec Code ○ Aztec Runes Chinese-sensible code Maxi Code PLANET Netherlands KIX UK Postal Australian Postal * The supported symbologies vary depending on specifications for the application to be loaded.
