ID SensorV680-HAM91V680-HAM81V680 SeriesID Sensor User’s ManualAntennaV680-HS51V680-HS52V680-HS63V680-HS65ID TagsV680-D1KP52MTV680-D1KP66T/-D1KP66MTV680-D1KP66T-SPV680-D2KF52MV680-D2KF67/-D2KF67MV680-D8KF68/-D32KF68RFID SystemCat.No.:Z279-E1-01

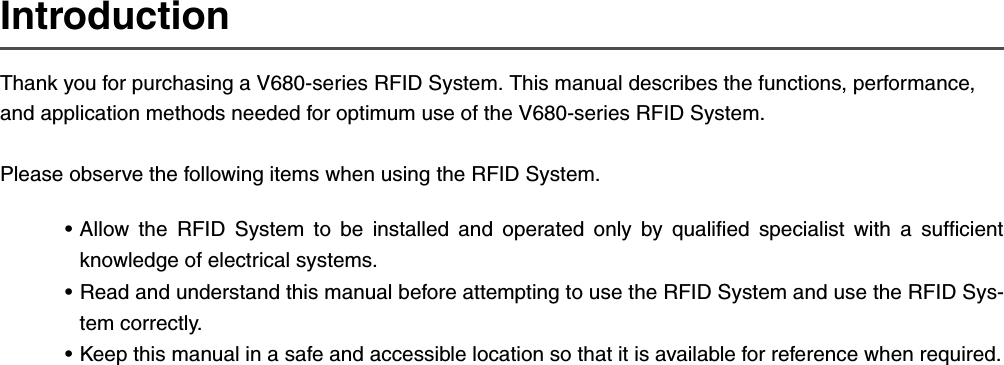

IntroductionThank you for purchasing a V680-series RFID System. This manual describes the functions, performance, and application methods needed for optimum use of the V680-series RFID System.Please observe the following items when using the RFID System.• Allow the RFID System to be installed and operated only by qualified specialist with a sufficientknowledge of electrical systems.• Read and understand this manual before attempting to use the RFID System and use the RFID Sys-tem correctly.• Keep this manual in a safe and accessible location so that it is available for reference when required.

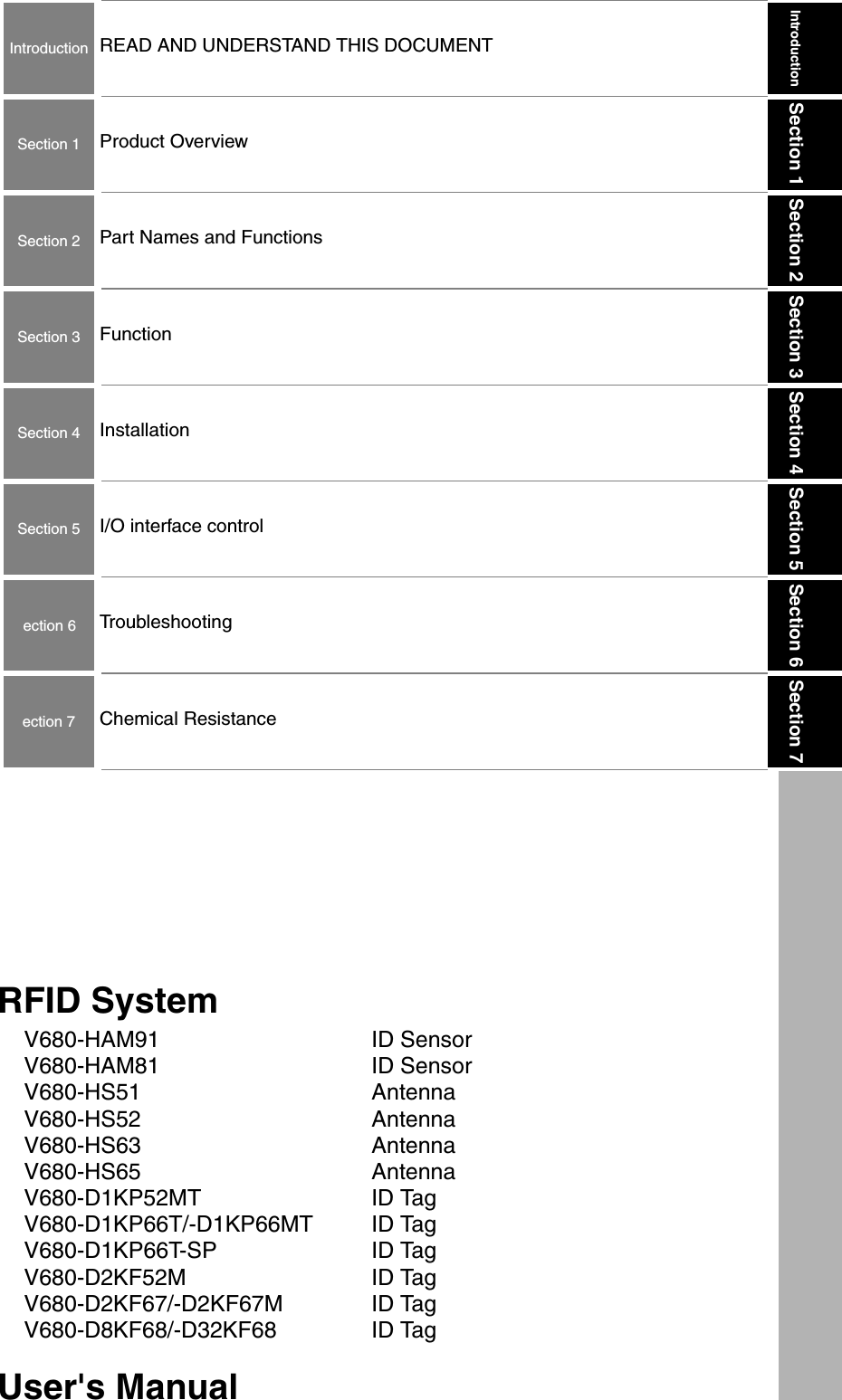

Introduction Section 1 Section 2 Section 3 Section 4 Section 5 Section 6 Section 7IntroductionSection 1Section 2Section 3Section 4Section 5ection 6ection 7READ AND UNDERSTAND THIS DOCUMENTProduct OverviewPart Names and FunctionsFunctionInstallationI/O interface controlTroubleshootingChemical ResistanceRFID SystemV680-HAM91 ID SensorV680-HAM81 ID SensorV680-HS51 AntennaV680-HS52 AntennaV680-HS63 AntennaV680-HS65 AntennaV680-D1KP52MT ID TagV680-D1KP66T/-D1KP66MT ID TagV680-D1KP66T-SP ID TagV680-D2KF52M ID TagV680-D2KF67/-D2KF67M ID TagV680-D8KF68/-D32KF68 ID TagUser's Manual

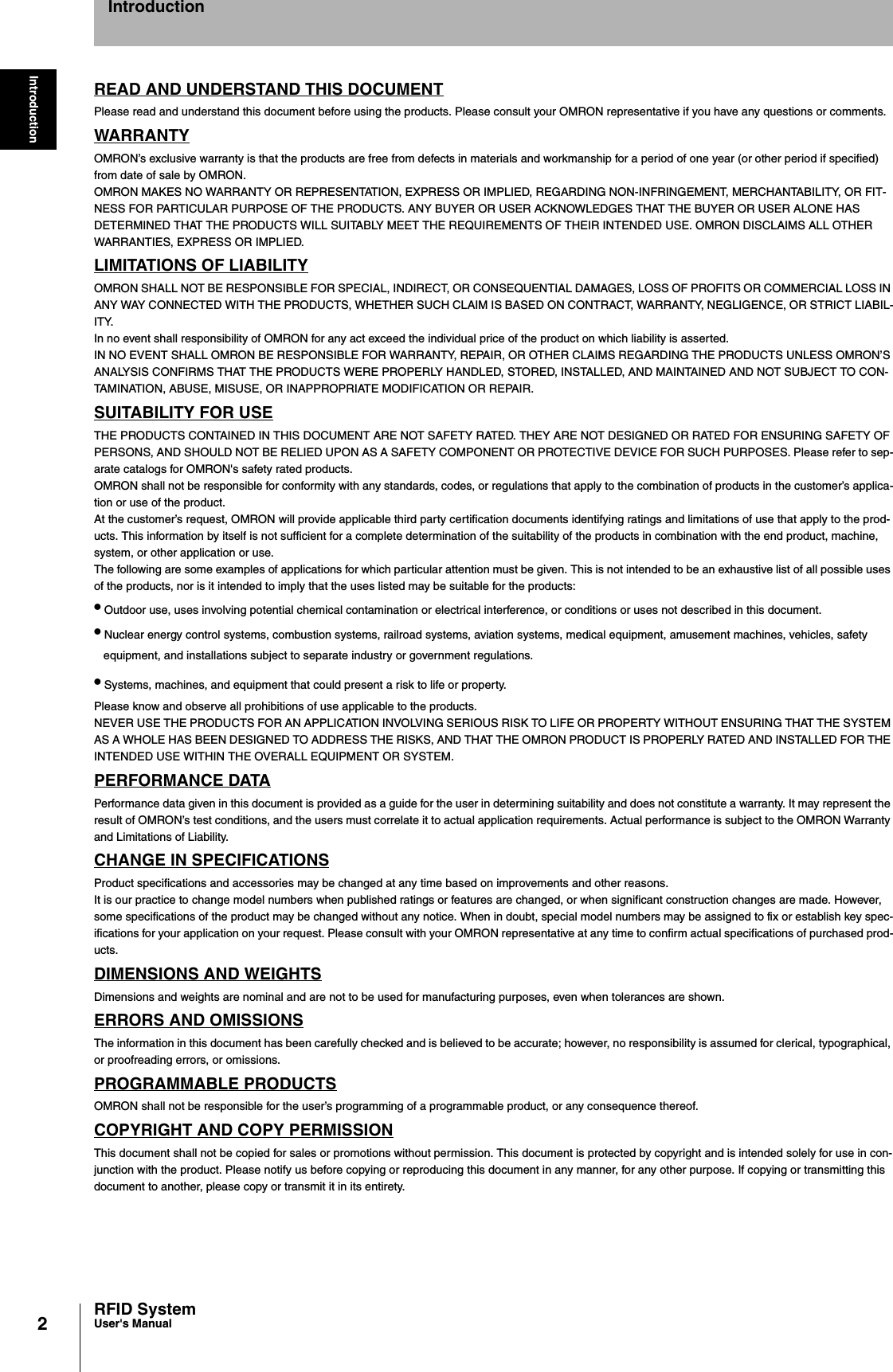

2IntroductionRFID SystemUser's ManualIntroductionREAD AND UNDERSTAND THIS DOCUMENTPlease read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments.WARRANTYOMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified)from date of sale by OMRON.OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FIT-NESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.LIMITATIONS OF LIABILITYOMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABIL-ITY.In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CON-TAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.SUITABILITY FOR USETHE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES. Please refer to sep-arate catalogs for OMRON's safety rated products.OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s applica-tion or use of the product.At the customer’s request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the prod-ucts. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this document.• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations.• Systems, machines, and equipment that could present a risk to life or property.Please know and observe all prohibitions of use applicable to the products.NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.PERFORMANCE DATAPerformance data given in this document is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.CHANGE IN SPECIFICATIONSProduct specifications and accessories may be changed at any time based on improvements and other reasons.It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the product may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key spec-ifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased prod-ucts.DIMENSIONS AND WEIGHTSDimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.ERRORS AND OMISSIONSThe information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.PROGRAMMABLE PRODUCTSOMRON shall not be responsible for the user’s programming of a programmable product, or any consequence thereof.COPYRIGHT AND COPY PERMISSIONThis document shall not be copied for sales or promotions without permission. This document is protected by copyright and is intended solely for use in con-junction with the product. Please notify us before copying or reproducing this document in any manner, for any other purpose. If copying or transmitting this document to another, please copy or transmit it in its entirety.

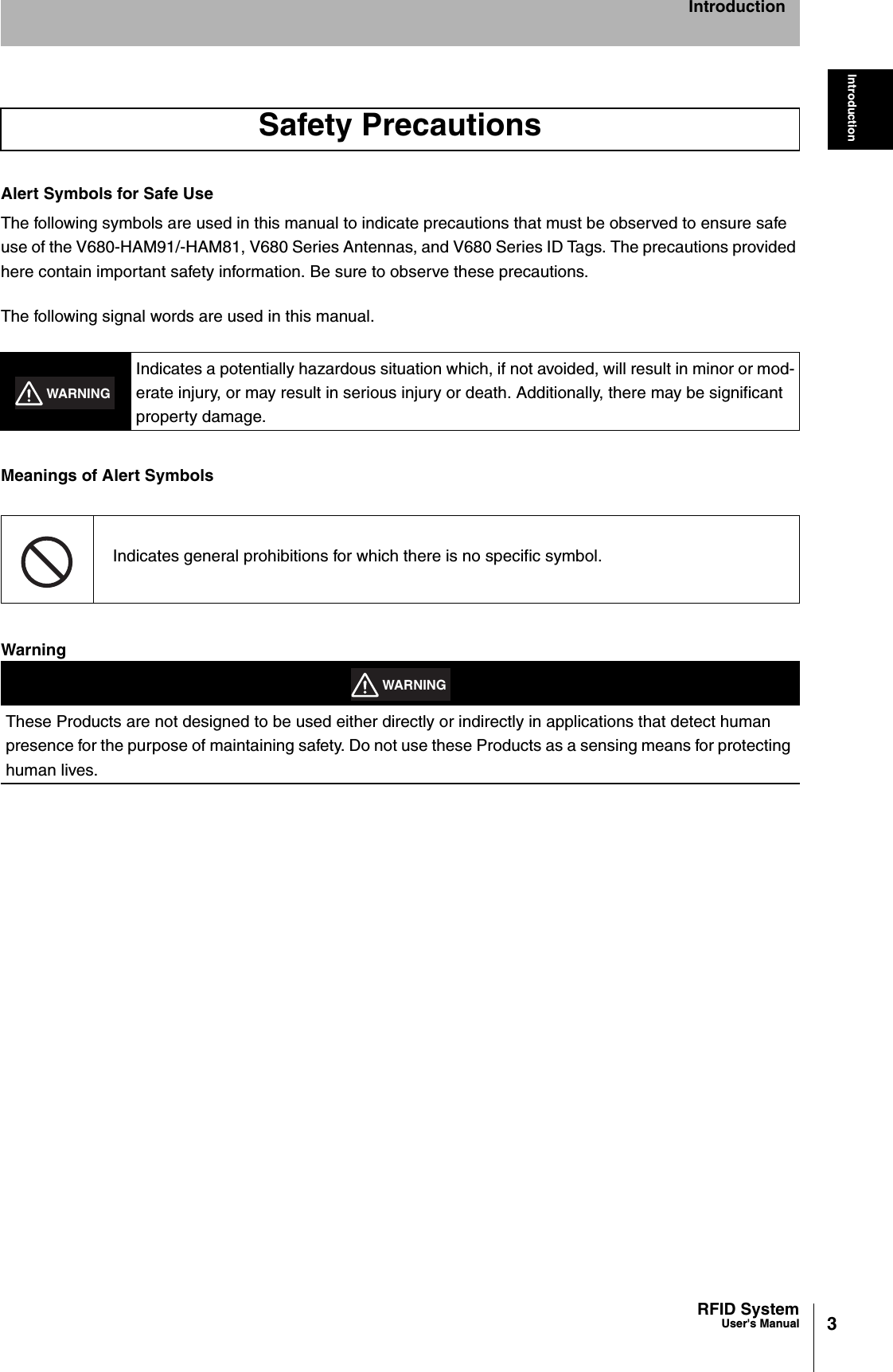

3RFID SystemUser's ManualIntroductionIntroductionAlert Symbols for Safe UseThe following symbols are used in this manual to indicate precautions that must be observed to ensure safe use of the V680-HAM91/-HAM81, V680 Series Antennas, and V680 Series ID Tags. The precautions provided here contain important safety information. Be sure to observe these precautions.The following signal words are used in this manual.Meanings of Alert SymbolsWarningSafety PrecautionsIndicates a potentially hazardous situation which, if not avoided, will result in minor or mod-erate injury, or may result in serious injury or death. Additionally, there may be significant property damage.Indicates general prohibitions for which there is no specific symbol.These Products are not designed to be used either directly or indirectly in applications that detect human presence for the purpose of maintaining safety. Do not use these Products as a sensing means for protecting human lives.WARNINGWARNING

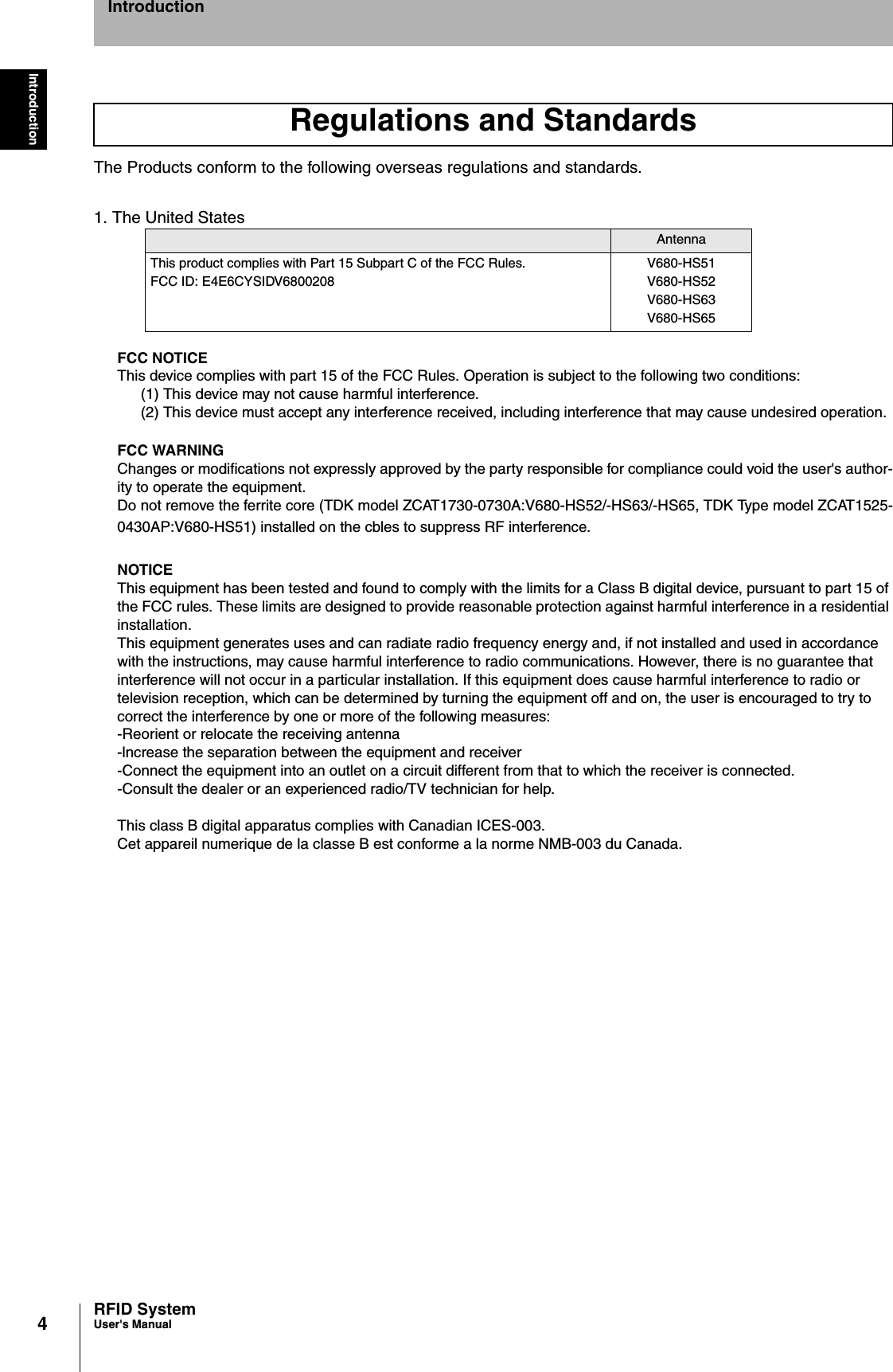

4IntroductionRFID SystemUser's ManualIntroductionThe Products conform to the following overseas regulations and standards.1. The United StatesFCC NOTICEThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.FCC WARNINGChanges or modifications not expressly approved by the party responsible for compliance could void the user's author-ity to operate the equipment.Do not remove the ferrite core (TDK model ZCAT1730-0730A:V680-HS52/-HS63/-HS65, TDK Type model ZCAT1525-0430AP:V680-HS51) installed on the cbles to suppress RF interference.NOTICEThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna-lncrease the separation between the equipment and receiver-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This class B digital apparatus complies with Canadian ICES-003.Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.Regulations and StandardsAntennaThis product complies with Part 15 Subpart C of the FCC Rules.FCC ID: E4E6CYSIDV6800208V680-HS51V680-HS52V680-HS63V680-HS65

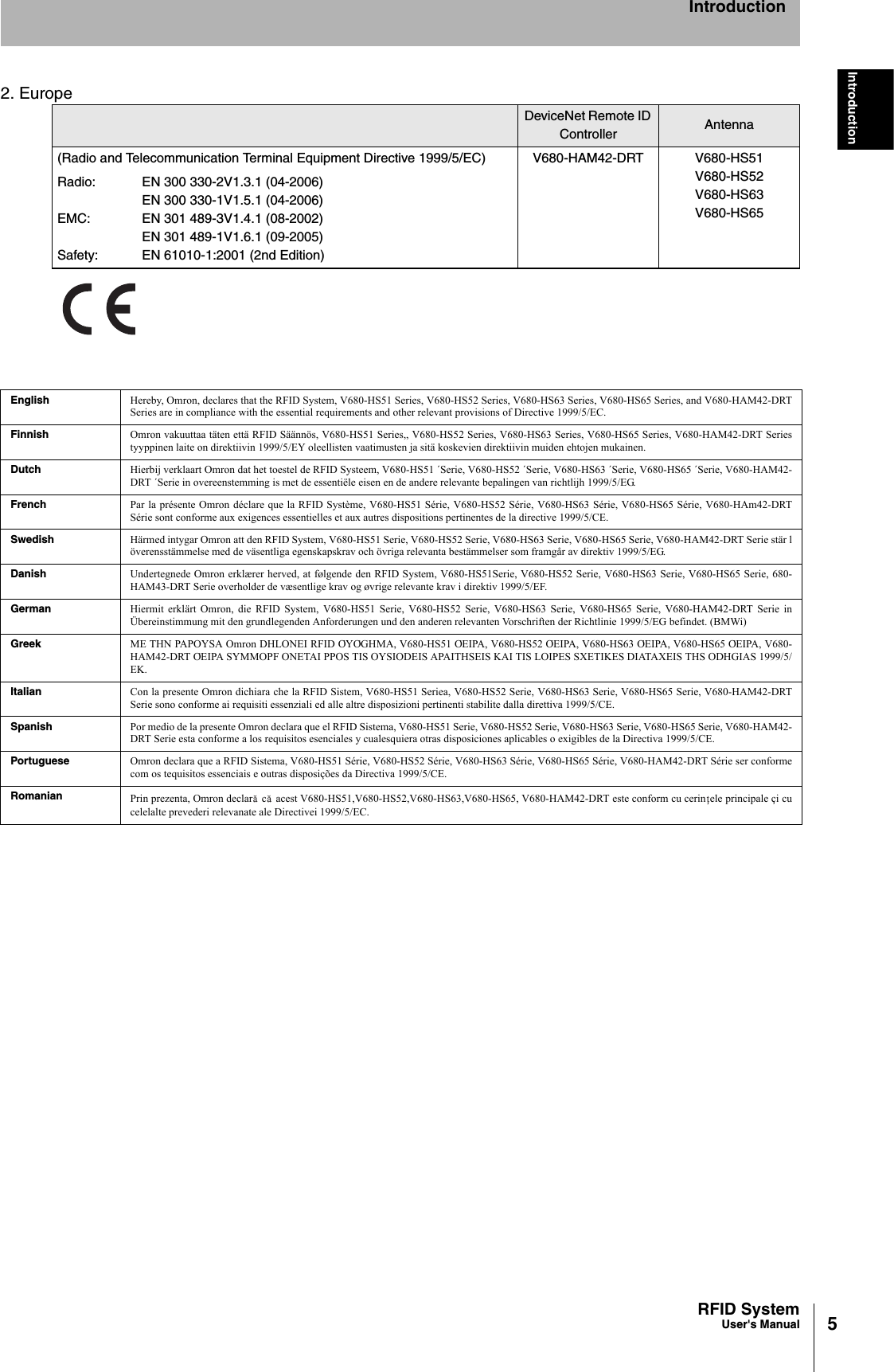

5RFID SystemUser's ManualIntroductionIntroduction2. EuropeDeviceNet Remote ID Controller Antenna(Radio and Telecommunication Terminal Equipment Directive 1999/5/EC) V680-HAM42-DRT V680-HS51V680-HS52V680-HS63V680-HS65Radio:EMC:Safety:EN 300 330-2V1.3.1 (04-2006)EN 300 330-1V1.5.1 (04-2006)EN 301 489-3V1.4.1 (08-2002)EN 301 489-1V1.6.1 (09-2005)EN 61010-1:2001 (2nd Edition)English Hereby, Omron, declares that the RFID System, V680-HS51 Series, V680-HS52 Series, V680-HS63 Series, V680-HS65 Series, and V680-HAM42-DRTSeries are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Finnish Omron vakuuttaa täten että RFID Säännös, V680-HS51 Series,, V680-HS52 Series, V680-HS63 Series, V680-HS65 Series, V680-HAM42-DRT Seriestyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Dutch Hierbij verklaart Omron dat het toestel de RFID Systeem, V680-HS51 ´Serie, V680-HS52 ´Serie, V680-HS63 ´Serie, V680-HS65 ´Serie, V680-HAM42-DRT ´Serie in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijh 1999/5/EG.French Par la présente Omron déclare que la RFID Système, V680-HS51 Série, V680-HS52 Série, V680-HS63 Série, V680-HS65 Série, V680-HAm42-DRTSérie sont conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Swedish Härmed intygar Omron att den RFID System, V680-HS51 Serie, V680-HS52 Serie, V680-HS63 Serie, V680-HS65 Serie, V680-HAM42-DRT Serie stär löverensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Danish Undertegnede Omron erklærer herved, at følgende den RFID System, V680-HS51Serie, V680-HS52 Serie, V680-HS63 Serie, V680-HS65 Serie, 680-HAM43-DRT Serie overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.German Hiermit erklärt Omron, die RFID System, V680-HS51 Serie, V680-HS52 Serie, V680-HS63 Serie, V680-HS65 Serie, V680-HAM42-DRT Serie inÜbereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. (BMWi)Greek ME THN PAPOYSA Omron DHLONEI RFID O’YO’GHMA, V680-HS51 O’EIPA, V680-HS52 O’EIPA, V680-HS63 O’EIPA, V680-HS65 O’EIPA, V680-HAM42-DRT O’EIPA SYMMOPF ONETAI PPOS TIS OYSIODEIS APAITHSEIS KAI TIS LOIPES SXETIKES DIATAXEIS THS ODHGIAS 1999/5/EK.Italian Con la presente Omron dichiara che la RFID Sistem, V680-HS51 Seriea, V680-HS52 Serie, V680-HS63 Serie, V680-HS65 Serie, V680-HAM42-DRTSerie sono conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.Spanish Por medio de la presente Omron declara que el RFID Sistema, V680-HS51 Serie, V680-HS52 Serie, V680-HS63 Serie, V680-HS65 Serie, V680-HAM42-DRT Serie esta conforme a los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.Portuguese Omron declara que a RFID Sistema, V680-HS51 Série, V680-HS52 Série, V680-HS63 Série, V680-HS65 Série, V680-HAM42-DRT Série ser conformecom os tequisitos essenciais e outras disposições da Directiva 1999/5/CE.Romanian Prin prezenta, Omron declar c acest V680-HS51,V680-HS52,V680-HS63,V680-HS65, V680-HAM42-DRT este conform cu cerin ele principale çi cucelelalte prevederi relevanate ale Directivei 1999/5/EC.

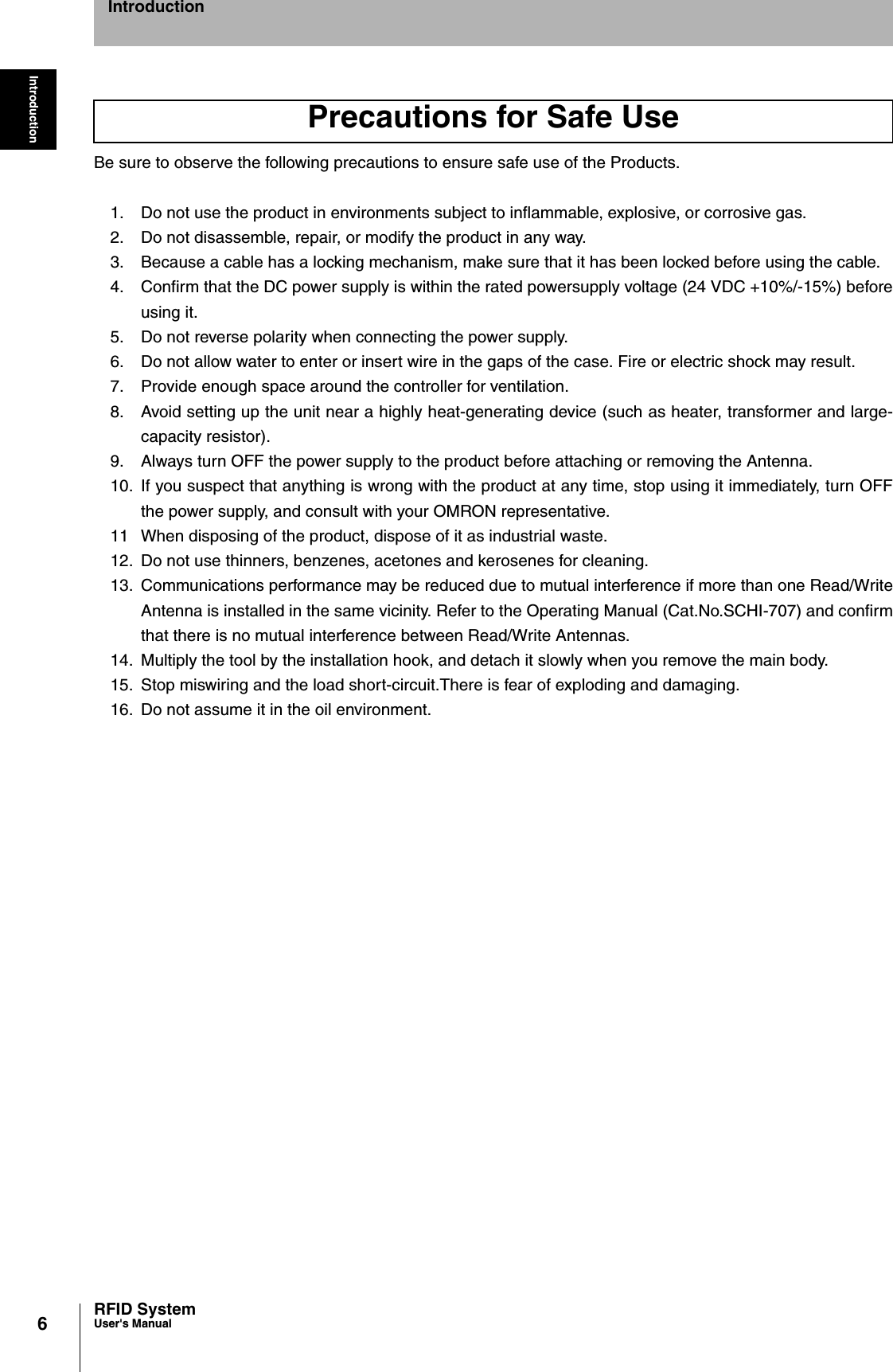

6IntroductionRFID SystemUser's ManualIntroductionBe sure to observe the following precautions to ensure safe use of the Products.1. Do not use the product in environments subject to inflammable, explosive, or corrosive gas.2. Do not disassemble, repair, or modify the product in any way.3. Because a cable has a locking mechanism, make sure that it has been locked before using the cable.4. Confirm that the DC power supply is within the rated powersupply voltage (24 VDC +10%/-15%) beforeusing it.5. Do not reverse polarity when connecting the power supply.6. Do not allow water to enter or insert wire in the gaps of the case. Fire or electric shock may result.7. Provide enough space around the controller for ventilation.8. Avoid setting up the unit near a highly heat-generating device (such as heater, transformer and large-capacity resistor).9. Always turn OFF the power supply to the product before attaching or removing the Antenna.10. If you suspect that anything is wrong with the product at any time, stop using it immediately, turn OFFthe power supply, and consult with your OMRON representative.11 When disposing of the product, dispose of it as industrial waste.12. Do not use thinners, benzenes, acetones and kerosenes for cleaning.13. Communications performance may be reduced due to mutual interference if more than one Read/WriteAntenna is installed in the same vicinity. Refer to the Operating Manual (Cat.No.SCHI-707) and confirmthat there is no mutual interference between Read/Write Antennas.14. Multiply the tool by the installation hook, and detach it slowly when you remove the main body.15. Stop miswiring and the load short-circuit.There is fear of exploding and damaging.16. Do not assume it in the oil environment.Precautions for Safe Use

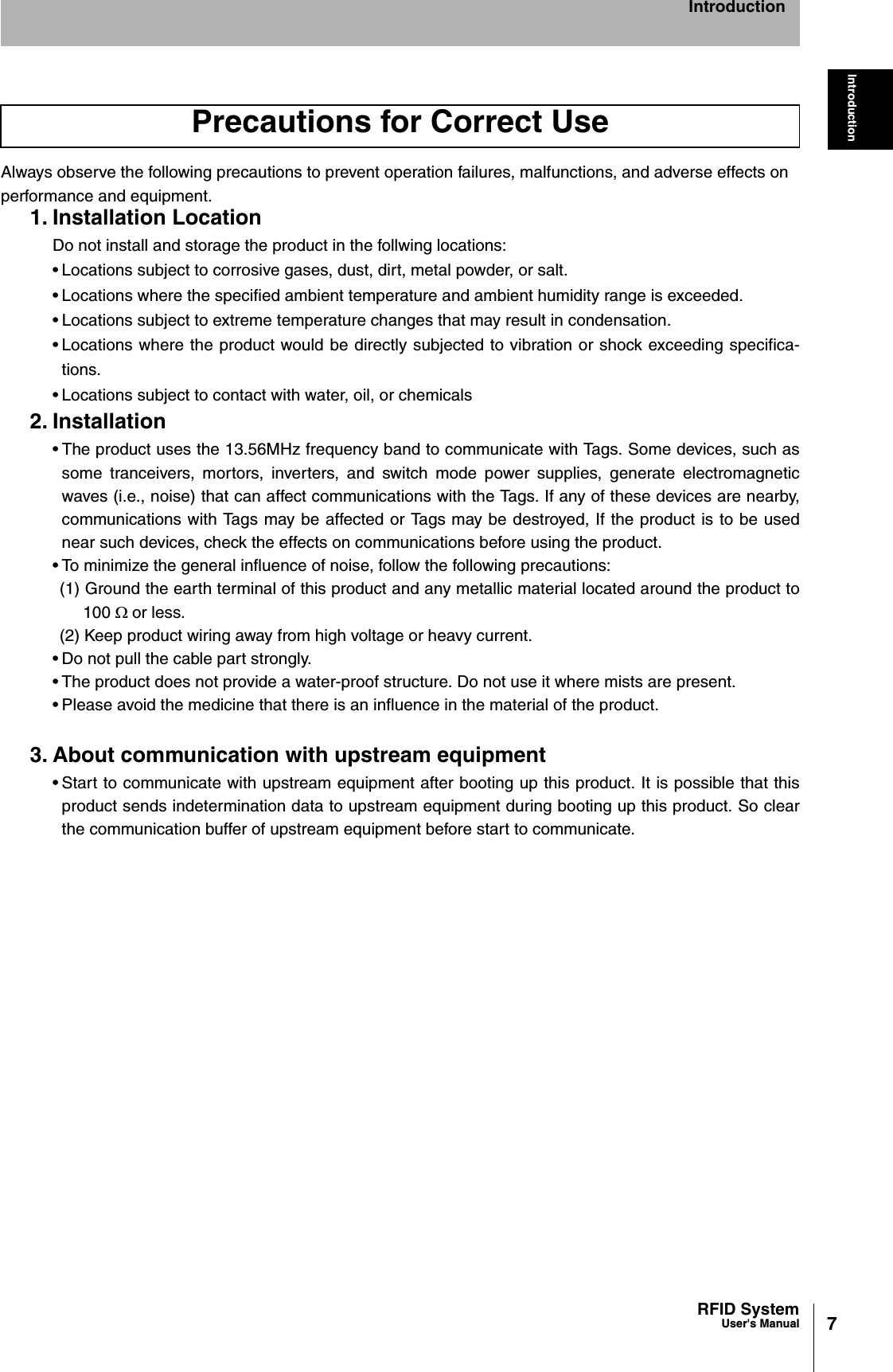

7RFID SystemUser's ManualIntroductionIntroductionAlways observe the following precautions to prevent operation failures, malfunctions, and adverse effects on performance and equipment.1. Installation LocationDo not install and storage the product in the follwing locations:• Locations subject to corrosive gases, dust, dirt, metal powder, or salt. • Locations where the specified ambient temperature and ambient humidity range is exceeded.• Locations subject to extreme temperature changes that may result in condensation.• Locations where the product would be directly subjected to vibration or shock exceeding specifica-tions.• Locations subject to contact with water, oil, or chemicals2. Installation• The product uses the 13.56MHz frequency band to communicate with Tags. Some devices, such assome tranceivers, mortors, inverters, and switch mode power supplies, generate electromagneticwaves (i.e., noise) that can affect communications with the Tags. If any of these devices are nearby,communications with Tags may be affected or Tags may be destroyed, If the product is to be usednear such devices, check the effects on communications before using the product.• To minimize the general influence of noise, follow the following precautions:(1) Ground the earth terminal of this product and any metallic material located around the product to100 :or less.(2) Keep product wiring away from high voltage or heavy current.• Do not pull the cable part strongly.• The product does not provide a water-proof structure. Do not use it where mists are present.• Please avoid the medicine that there is an influence in the material of the product.3. About communication with upstream equipment• Start to communicate with upstream equipment after booting up this product. It is possible that thisproduct sends indetermination data to upstream equipment during booting up this product. So clearthe communication buffer of upstream equipment before start to communicate.Precautions for Correct Use

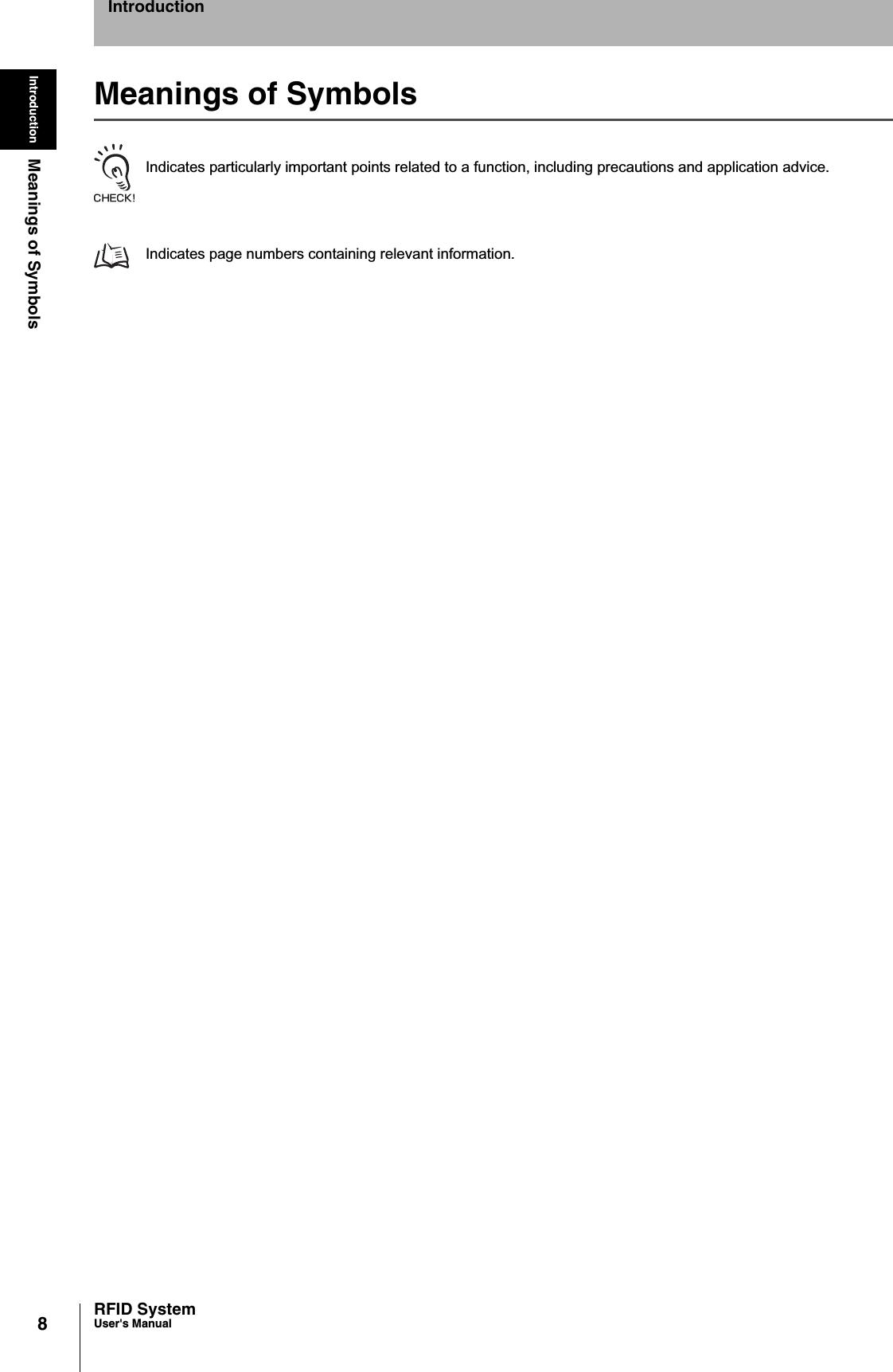

8Introduction Meanings of SymbolsRFID SystemUser's ManualIntroductionMeanings of SymbolsIndicates particularly important points related to a function, including precautions and application advice.Indicates page numbers containing relevant information.

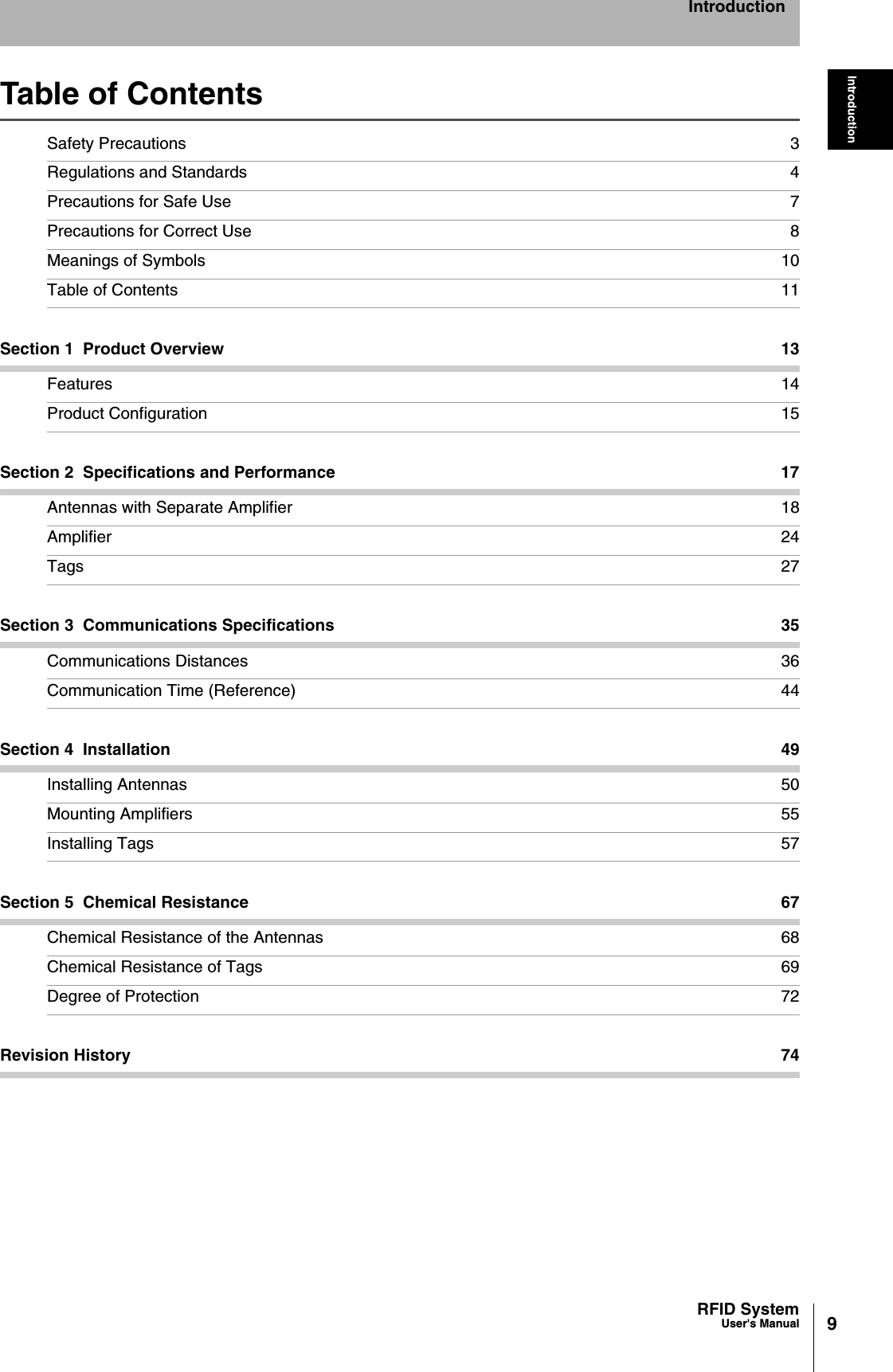

9RFID SystemUser's ManualIntroductionIntroductionTable of ContentsSafety Precautions 3Regulations and Standards 4Precautions for Safe Use 7Precautions for Correct Use 8Meanings of Symbols 10Table of Contents 11Section 1 Product Overview 13Features 14Product Configuration 15Section 2 Specifications and Performance 17Antennas with Separate Amplifier 18Amplifier 24Tags 27Section 3 Communications Specifications 35Communications Distances 36Communication Time (Reference) 44Section 4 Installation 49Installing Antennas 50Mounting Amplifiers 55Installing Tags 57Section 5 Chemical Resistance 67Chemical Resistance of the Antennas 68Chemical Resistance of Tags 69Degree of Protection 72Revision History 74
10 RFID SystemUser's ManualIntroductionIntroductionMEMO

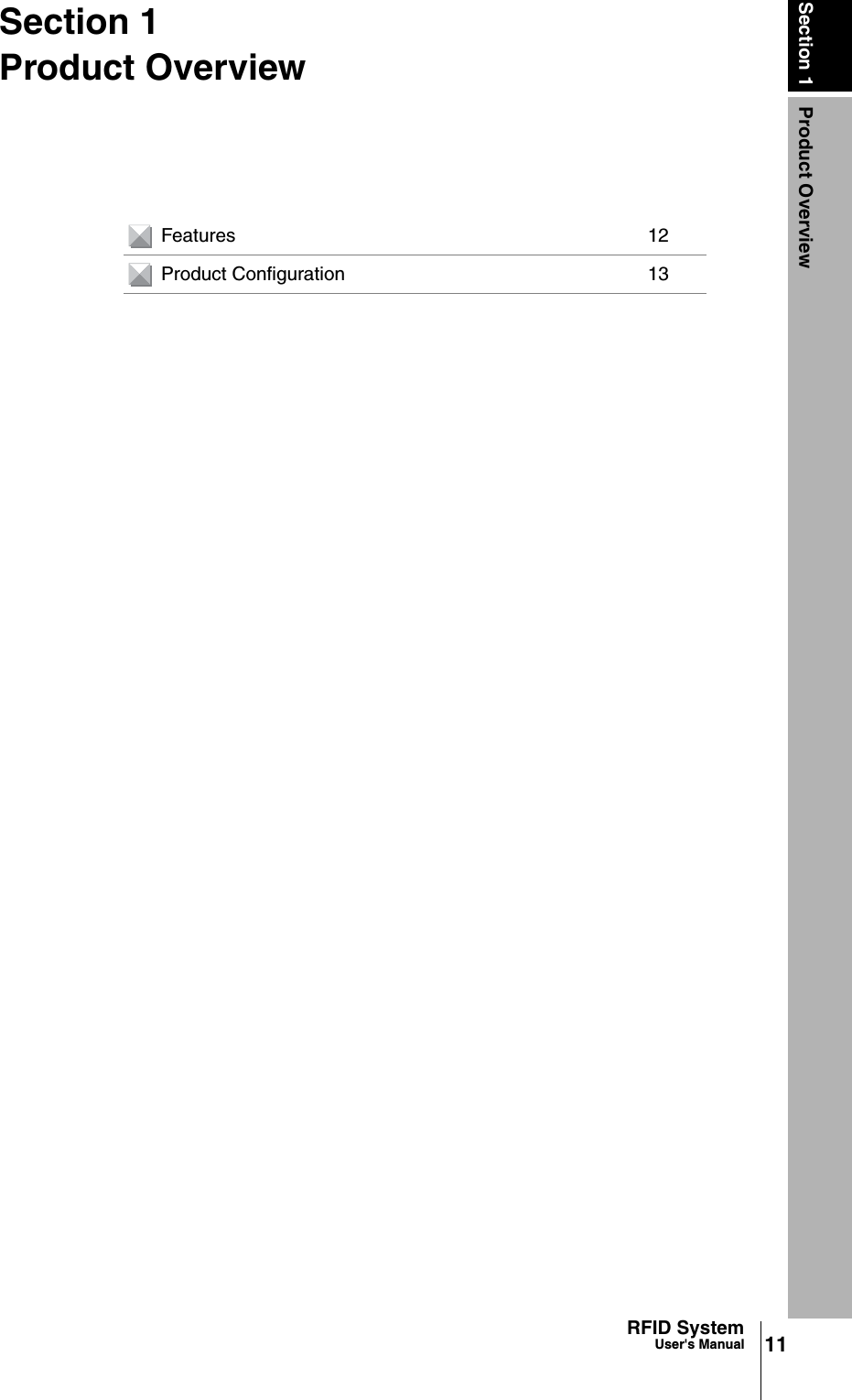

Section 1 Product Overview11RFID SystemUser's ManualSection 1Product OverviewFeatures 12 Product Configuration 13

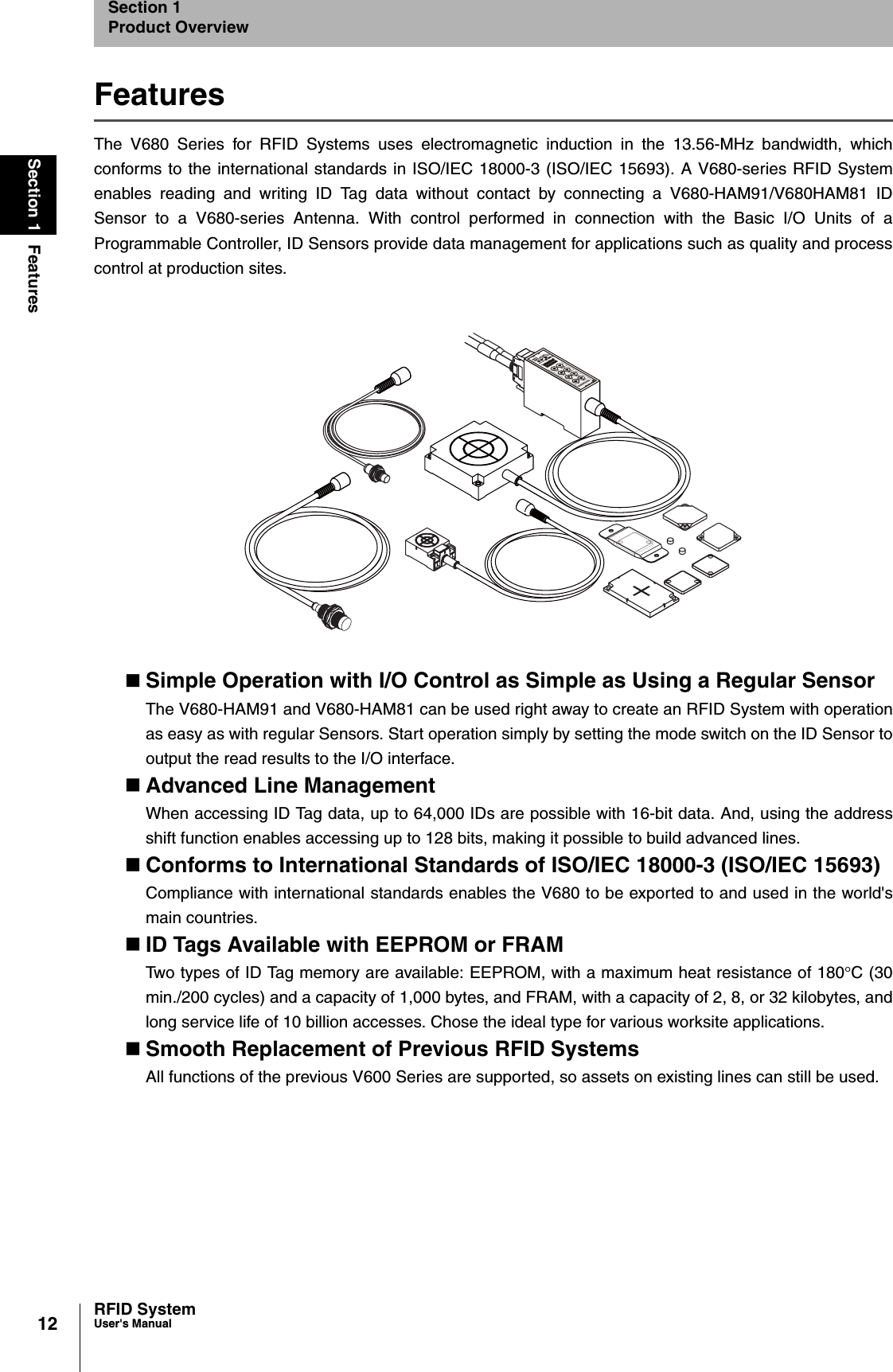

12Section 1 FeaturesRFID SystemUser's ManualSection 1Product OverviewFeaturesThe V680 Series for RFID Systems uses electromagnetic induction in the 13.56-MHz bandwidth, whichconforms to the international standards in ISO/IEC 18000-3 (ISO/IEC 15693). A V680-series RFID Systemenables reading and writing ID Tag data without contact by connecting a V680-HAM91/V680HAM81 IDSensor to a V680-series Antenna. With control performed in connection with the Basic I/O Units of aProgrammable Controller, ID Sensors provide data management for applications such as quality and processcontrol at production sites.Simple Operation with I/O Control as Simple as Using a Regular SensorThe V680-HAM91 and V680-HAM81 can be used right away to create an RFID System with operationas easy as with regular Sensors. Start operation simply by setting the mode switch on the ID Sensor tooutput the read results to the I/O interface.Advanced Line ManagementWhen accessing ID Tag data, up to 64,000 IDs are possible with 16-bit data. And, using the addressshift function enables accessing up to 128 bits, making it possible to build advanced lines.Conforms to International Standards of ISO/IEC 18000-3 (ISO/IEC 15693)Compliance with international standards enables the V680 to be exported to and used in the world'smain countries.ID Tags Available with EEPROM or FRAMTwo types of ID Tag memory are available: EEPROM, with a maximum heat resistance of 180qC (30min./200 cycles) and a capacity of 1,000 bytes, and FRAM, with a capacity of 2, 8, or 32 kilobytes, andlong service life of 10 billion accesses. Chose the ideal type for various worksite applications.Smooth Replacement of Previous RFID SystemsAll functions of the previous V600 Series are supported, so assets on existing lines can still be used.

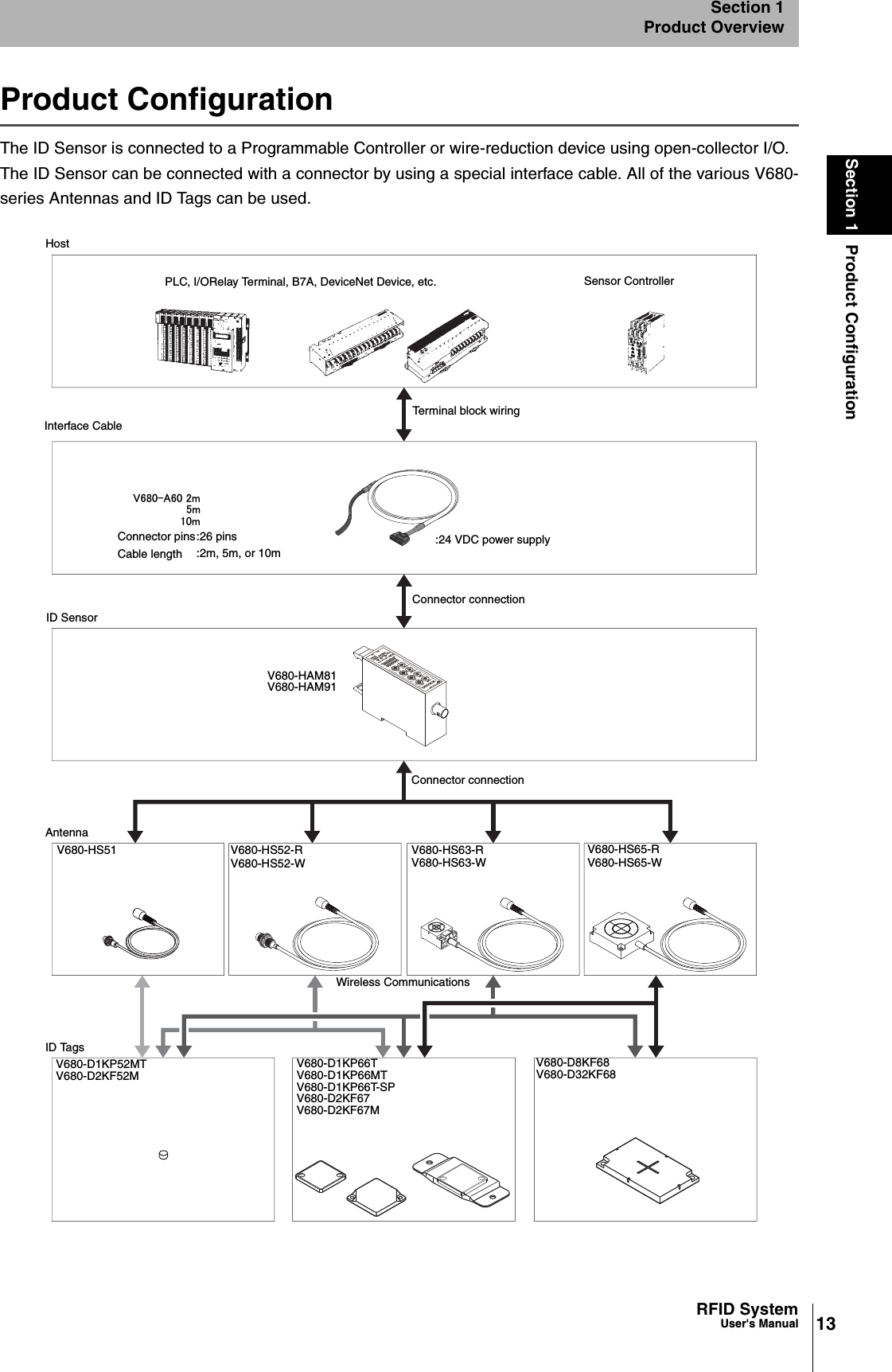

13RFID SystemUser's ManualSection 1 Product ConfigurationSection 1Product OverviewProduct ConfigurationThe ID Sensor is connected to a Programmable Controller or wire-reduction device using open-collector I/O.The ID Sensor can be connected with a connector by using a special interface cable. All of the various V680-series Antennas and ID Tags can be used.㪭㪍㪏㪇㪄㪘㪍㪇㩷㪉㫄㪌㫄㪈㪇㫄HostInterface CableTerminal block wiringConnector connectionID SensorAntennaV680-HS52-RV680-HS52-WV680-HS63-RV680-HS63-WV680-HS65-RV680-HS65-WConnector connectionV680-D1KP52MTV680-D2KF52MV680-D1KP66TV680-D1KP66MTV680-D1KP66T-SPV680-D2KF67V680-D2KF67MWireless CommunicationsV680-D8KF68V680-D32KF68ID TagsPLC, I/ORelay Terminal, B7A, DeviceNet Device, etc.V680-HS51:24 VDC power supplyV680-HAM81V680-HAM91Connector pinsCable length:26 pins:2m, 5m, or 10mSensor Controller

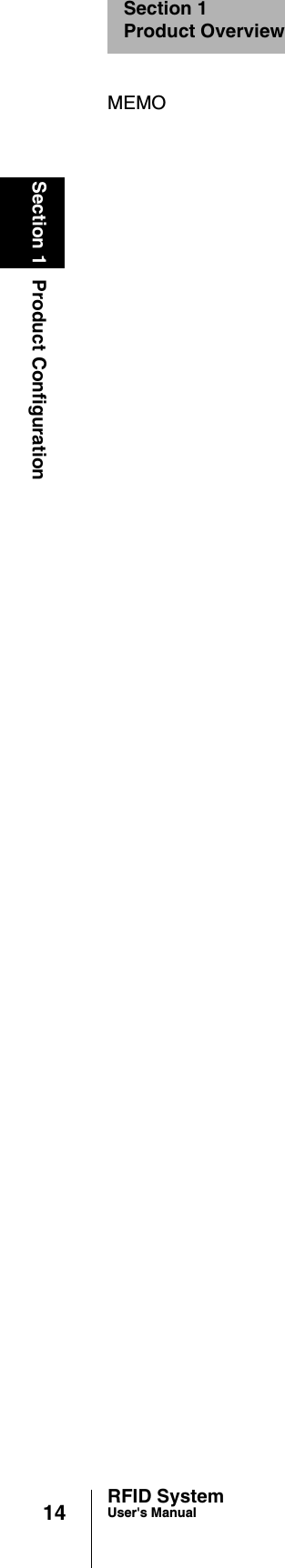

14Section 1 Product ConfigurationRFID SystemUser's ManualSection 1Product OverviewMEMO

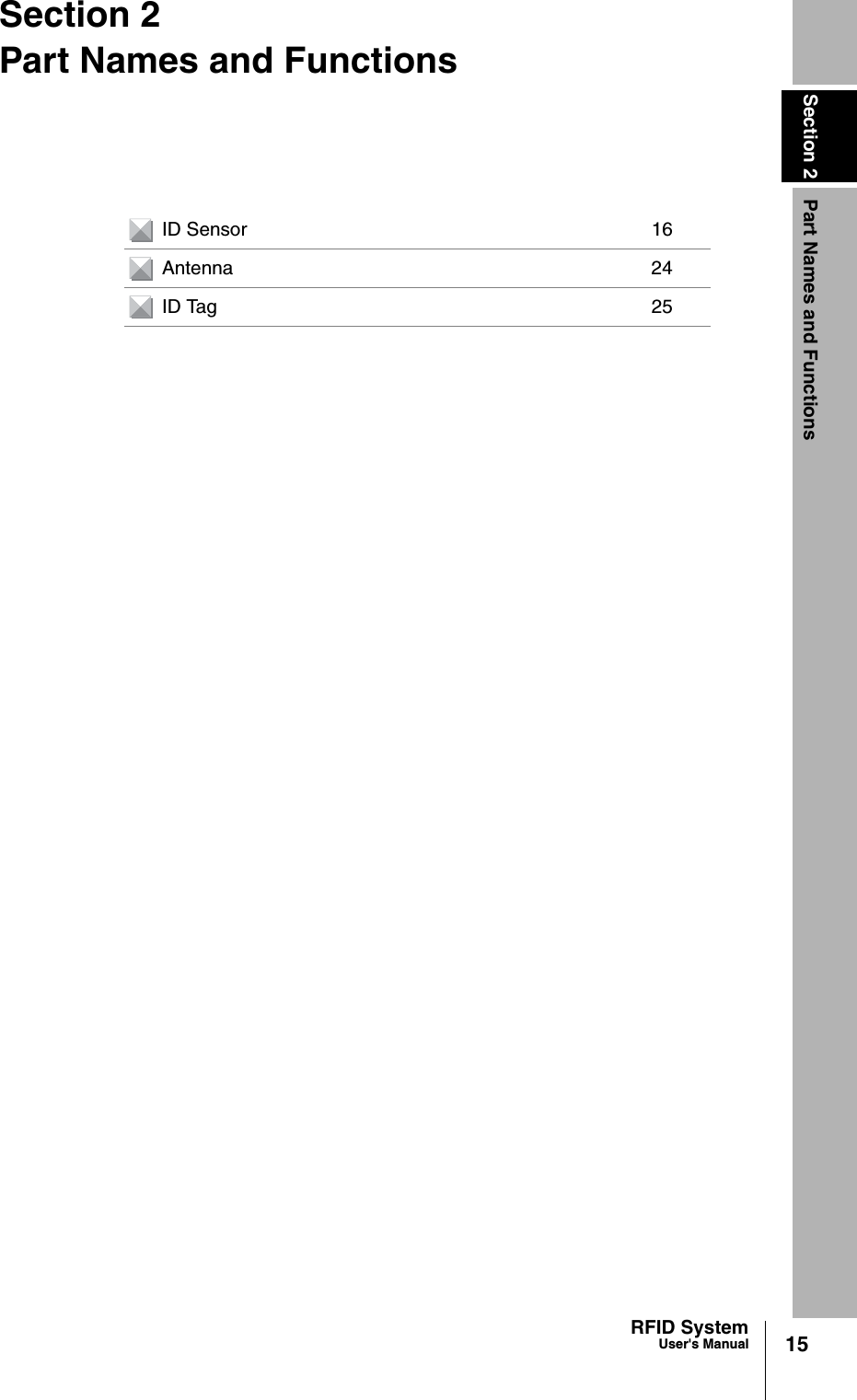

Section 2 Part Names and Functions15RFID SystemUser's ManualSection 2Part Names and FunctionsID Sensor 16Antenna 24ID Tag 25

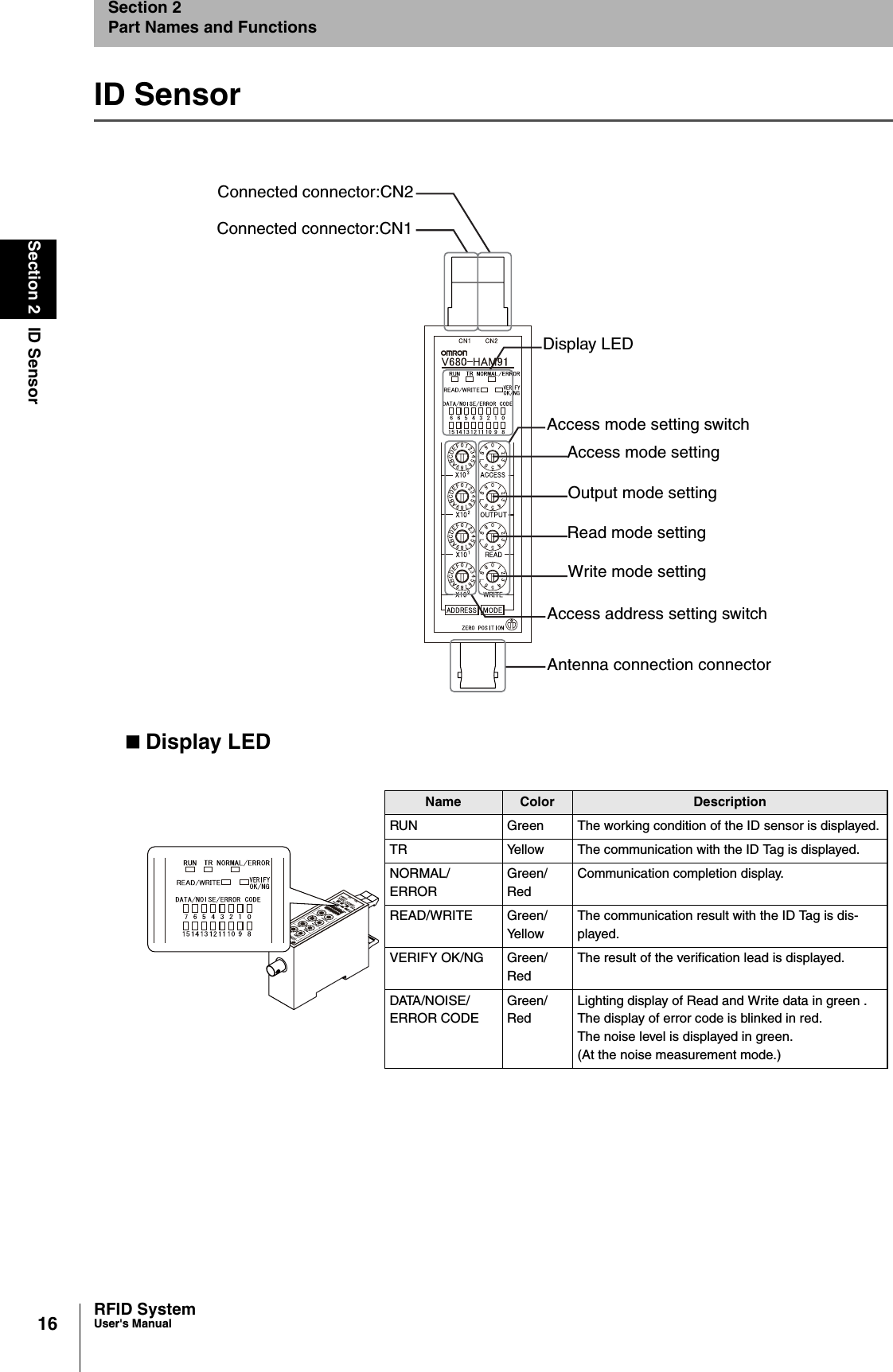

16Section 2 ID SensorRFID SystemUser's ManualSection 2Part Names and FunctionsID SensorDisplay LEDConnected connector:CN2Connected connector:CN1Display LEDAccess mode setting switchAccess mode settingOutput mode settingRead mode settingWrite mode settingAccess address setting switchAntenna connection connectorName Color DescriptionRUN Green The working condition of the ID sensor is displayed.TR Yellow The communication with the ID Tag is displayed.NORMAL/ERRORGreen/RedCommunication completion display.READ/WRITE Green/Ye l l o wThe communication result with the ID Tag is dis-played.VERIFY OK/NG Green/RedThe result of the verification lead is displayed.DATA/NOISE/ERROR CODEGreen/RedLighting display of Read and Write data in green .The display of error code is blinked in red.The noise level is displayed in green.(At the noise measurement mode.)

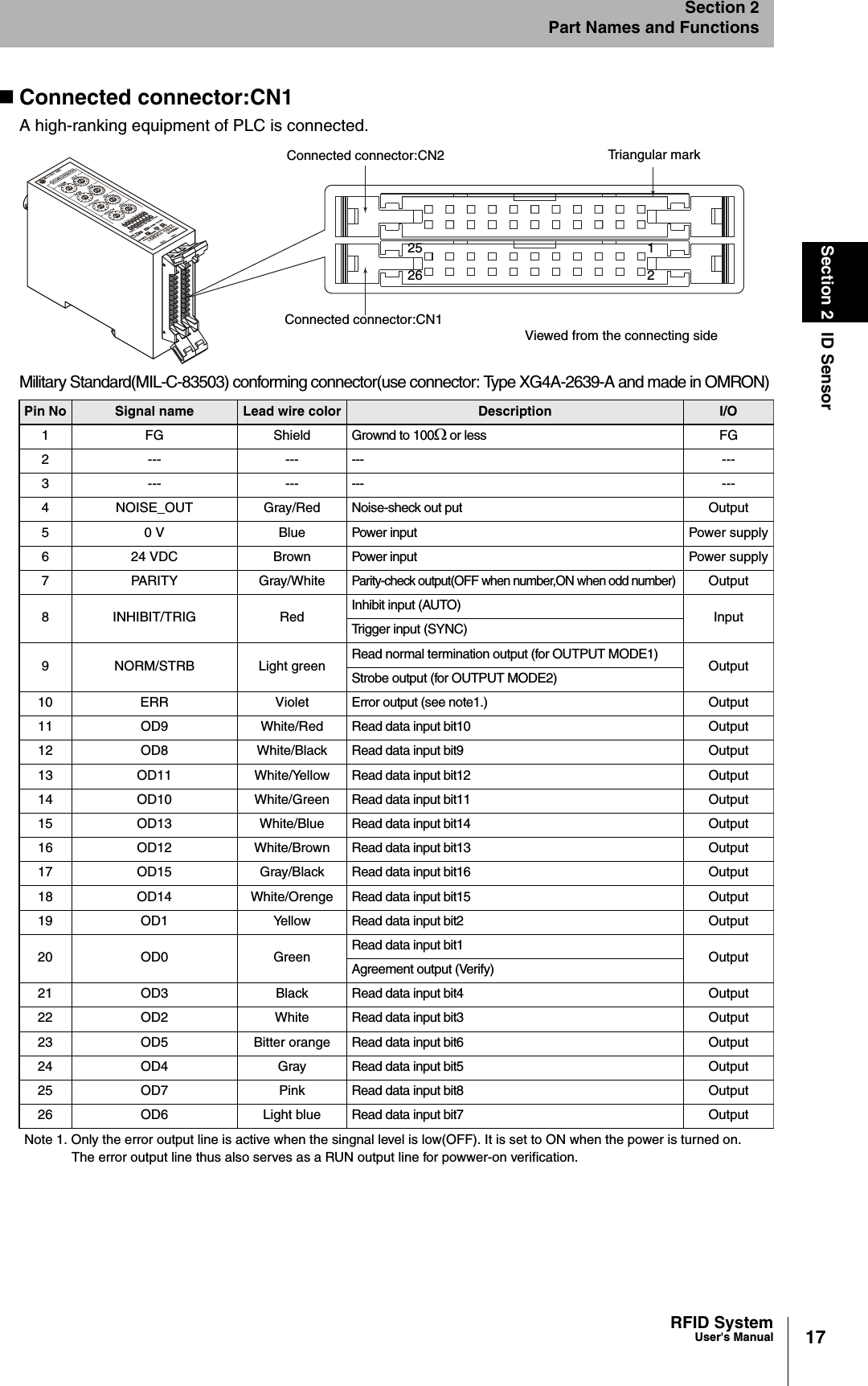

17RFID SystemUser's ManualSection 2 ID SensorSection 2Part Names and FunctionsConnected connector:CN1A high-ranking equipment of PLC is connected.Military Standard(MIL-C-83503) conforming connector(use connector: Type XG4A-2639-A and made in OMRON)Connected connector:CN2Connected connector:CN1Viewed from the connecting sideTriangular mark262521Pin No Signal name Lead wire color Description I/O1 FG Shield Grownd to 100: or less FG2 --- --- --- ---3 --- --- --- ---4 NOISE_OUT Gray/Red Noise-sheck out put Output5 0 V Blue Power input Power supply6 24 VDC Brown Power input Power supply7 PARITY Gray/WhiteParity-check output(OFF when number,ON when odd number)Output8 INHIBIT/TRIG Red Inhibit input (AUTO) InputTrigger input (SYNC)9 NORM/STRB Light green Read normal termination output (for OUTPUT MODE1) OutputStrobe output (for OUTPUT MODE2)10 ERR Violet Error output (see note1.) Output11 OD9 White/Red Read data input bit10 Output12 OD8 White/Black Read data input bit9 Output13 OD11 White/Yellow Read data input bit12 Output14 OD10 White/Green Read data input bit11 Output15 OD13 White/Blue Read data input bit14 Output16 OD12 White/Brown Read data input bit13 Output17 OD15 Gray/Black Read data input bit16 Output18 OD14 White/Orenge Read data input bit15 Output19 OD1 Yellow Read data input bit2 Output20 OD0 Green Read data input bit1 OutputAgreement output (Verify)21 OD3 Black Read data input bit4 Output22 OD2 White Read data input bit3 Output23 OD5 Bitter orange Read data input bit6 Output24 OD4 Gray Read data input bit5 Output25 OD7 Pink Read data input bit8 Output26 OD6 Light blue Read data input bit7 OutputNote 1. Only the error output line is active when the singnal level is low(OFF). It is set to ON when the power is turned on.The error output line thus also serves as a RUN output line for powwer-on verification.

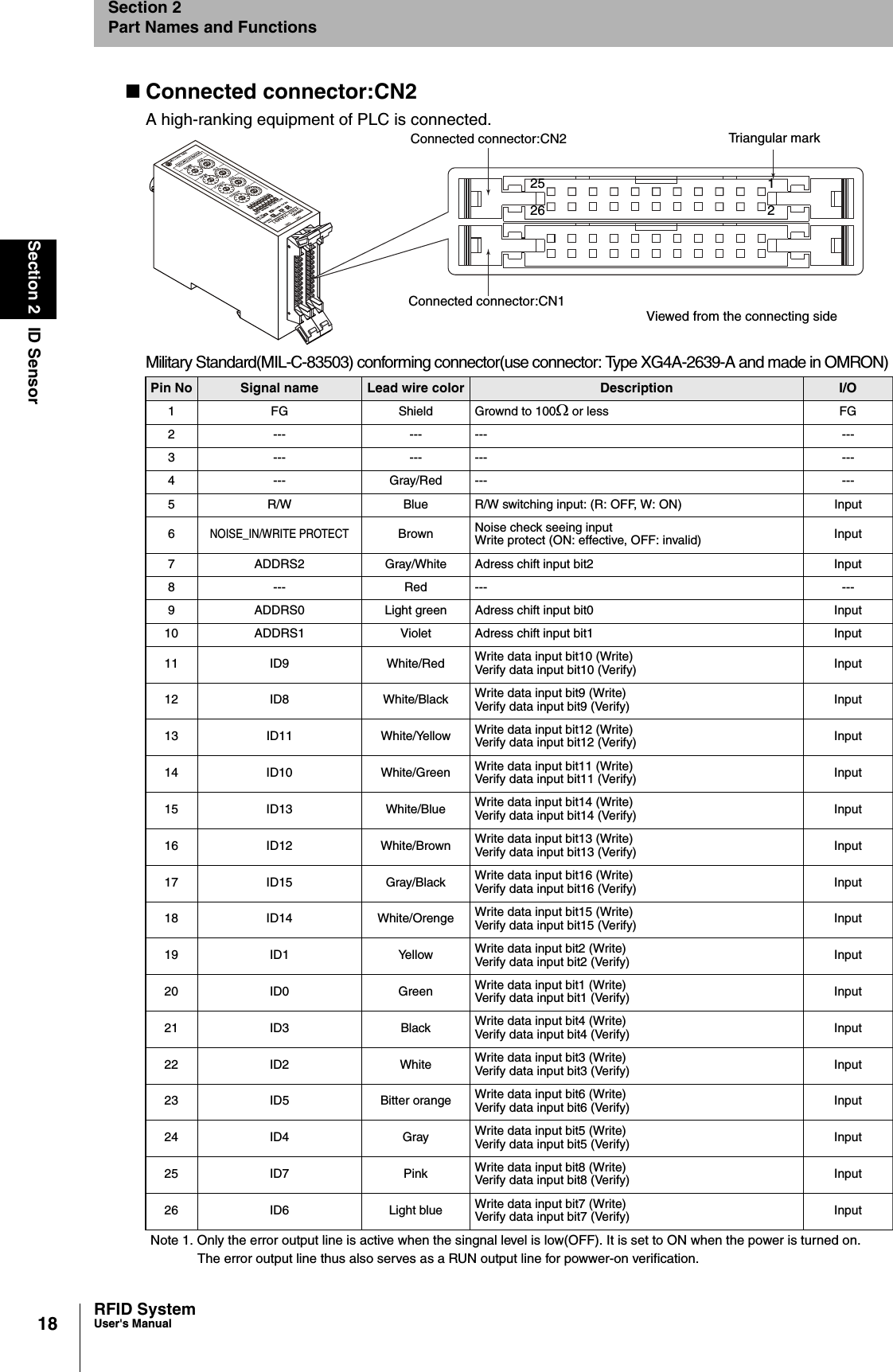

18Section 2 ID SensorRFID SystemUser's ManualSection 2Part Names and FunctionsConnected connector:CN2A high-ranking equipment of PLC is connected.Military Standard(MIL-C-83503) conforming connector(use connector: Type XG4A-2639-A and made in OMRON)Connected connector:CN2Connected connector:CN1Viewed from the connecting sideTriangular mark262521Pin No Signal name Lead wire color Description I/O1 FG Shield Grownd to 100: or less FG2 --- --- --- ---3 --- --- --- ---4 --- Gray/Red --- ---5 R/W Blue R/W switching input: (R: OFF, W: ON) Input6NOISE_IN/WRITE PROTECTBrown Noise check seeing inputWrite protect (ON: effective, OFF: invalid) Input7 ADDRS2 Gray/White Adress chift input bit2 Input8 --- Red --- ---9 ADDRS0 Light green Adress chift input bit0 Input10 ADDRS1 Violet Adress chift input bit1 Input11 ID9 White/Red Write data input bit10 (Write)Verify data input bit10 (Verify) Input12 ID8 White/Black Write data input bit9 (Write)Verify data input bit9 (Verify) Input13 ID11 White/Yellow Write data input bit12 (Write)Verify data input bit12 (Verify) Input14 ID10 White/Green Write data input bit11 (Write)Verify data input bit11 (Verify) Input15 ID13 White/Blue Write data input bit14 (Write)Verify data input bit14 (Verify) Input16 ID12 White/Brown Write data input bit13 (Write)Verify data input bit13 (Verify) Input17 ID15 Gray/Black Write data input bit16 (Write)Verify data input bit16 (Verify) Input18 ID14 White/Orenge Write data input bit15 (Write)Verify data input bit15 (Verify) Input19 ID1 Yellow Write data input bit2 (Write)Verify data input bit2 (Verify) Input20 ID0 Green Write data input bit1 (Write)Verify data input bit1 (Verify) Input21 ID3 Black Write data input bit4 (Write)Verify data input bit4 (Verify) Input22 ID2 White Write data input bit3 (Write)Verify data input bit3 (Verify) Input23 ID5 Bitter orange Write data input bit6 (Write)Verify data input bit6 (Verify) Input24 ID4 Gray Write data input bit5 (Write)Verify data input bit5 (Verify) Input25 ID7 Pink Write data input bit8 (Write)Verify data input bit8 (Verify) Input26 ID6 Light blue Write data input bit7 (Write)Verify data input bit7 (Verify) InputNote 1. Only the error output line is active when the singnal level is low(OFF). It is set to ON when the power is turned on.The error output line thus also serves as a RUN output line for powwer-on verification.

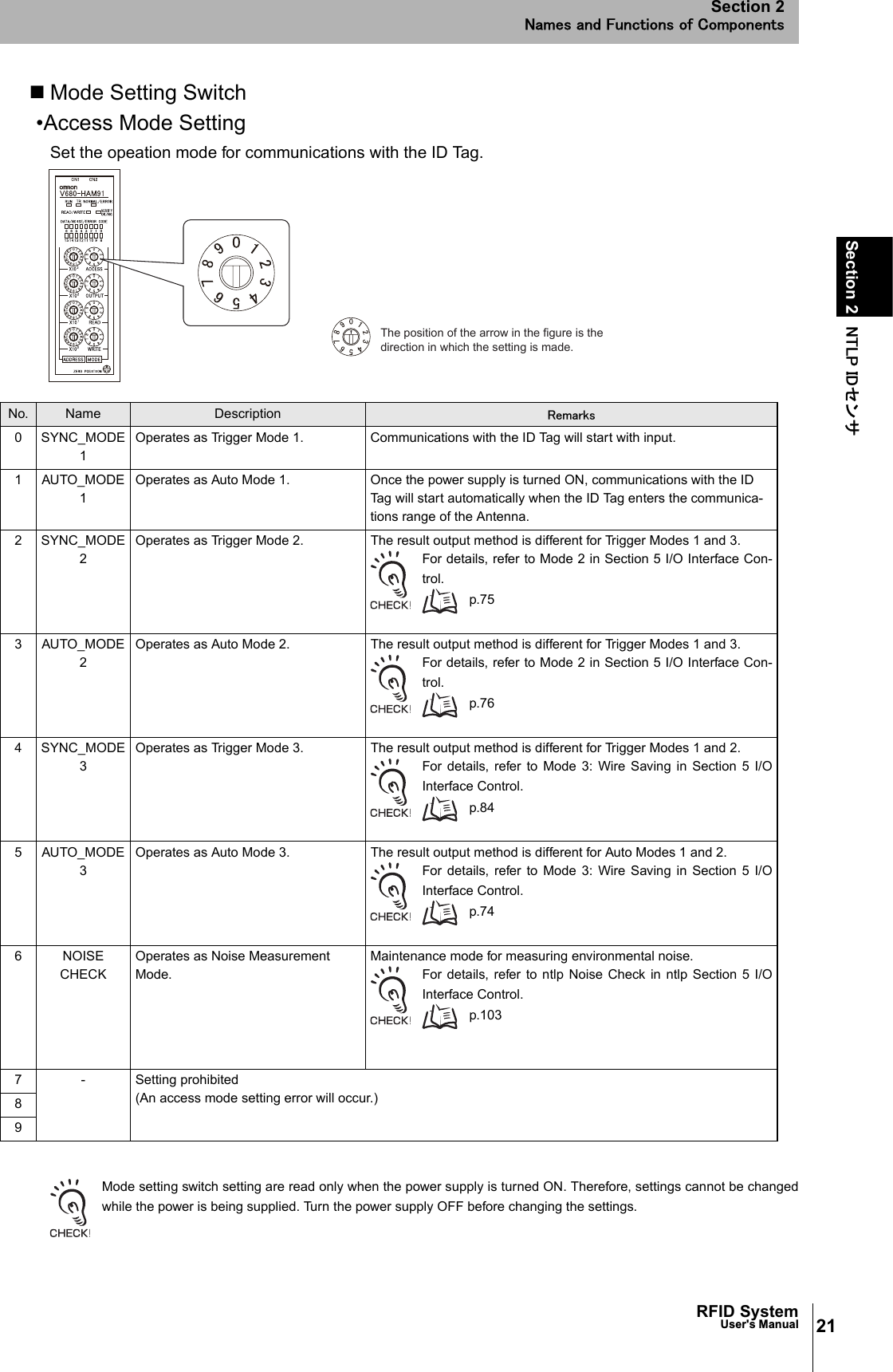

21RFID SystemUser's ManualSection 2 㪥㪫㪣㪧㩷㪠㪛䉶 䊮䉰Section 2㪥㪸㫄㪼㫊㩷㪸㫅㪻㩷㪝㫌㫅㪺㫋㫀㫆㫅㫊㩷㫆㪽㩷㪚㫆㫄㫇㫆㫅㪼㫅㫋㫊Mode Setting Switch•Access Mode SettingSet the opeation mode for communications with the ID Tag.Mode setting switch setting are read only when the power supply is turned ON. Therefore, settings cannot be changedwhile the power is being supplied. Turn the power supply OFF before changing the settings.The position of the arrow in the figure is the direction in which the setting is made.No. Name Description 㪩㪼㫄㪸㫉㫂㫊0 SYNC_MODE1Operates as Trigger Mode 1. Communications with the ID Tag will start with input.1AUTO_MODE1Operates as Auto Mode 1. Once the power supply is turned ON, communications with the ID Tag will start automatically when the ID Tag enters the communica-tions range of the Antenna.2 SYNC_MODE2Operates as Trigger Mode 2. The result output method is different for Trigger Modes 1 and 3.For details, refer to Mode 2 in Section 5 I/O Interface Con-trol.p.753AUTO_MODE2Operates as Auto Mode 2. The result output method is different for Trigger Modes 1 and 3.For details, refer to Mode 2 in Section 5 I/O Interface Con-trol.p.764 SYNC_MODE3Operates as Trigger Mode 3. The result output method is different for Trigger Modes 1 and 2.For details, refer to Mode 3: Wire Saving in Section 5 I/OInterface Control.p.845AUTO_MODE3Operates as Auto Mode 3. The result output method is different for Auto Modes 1 and 2.For details, refer to Mode 3: Wire Saving in Section 5 I/OInterface Control.p.746 NOISE CHECKOperates as Noise Measurement Mode.Maintenance mode for measuring environmental noise.For details, refer to ntlp Noise Check in ntlp Section 5 I/OInterface Control.p.1037 - Setting prohibited(An access mode setting error will occur.)89

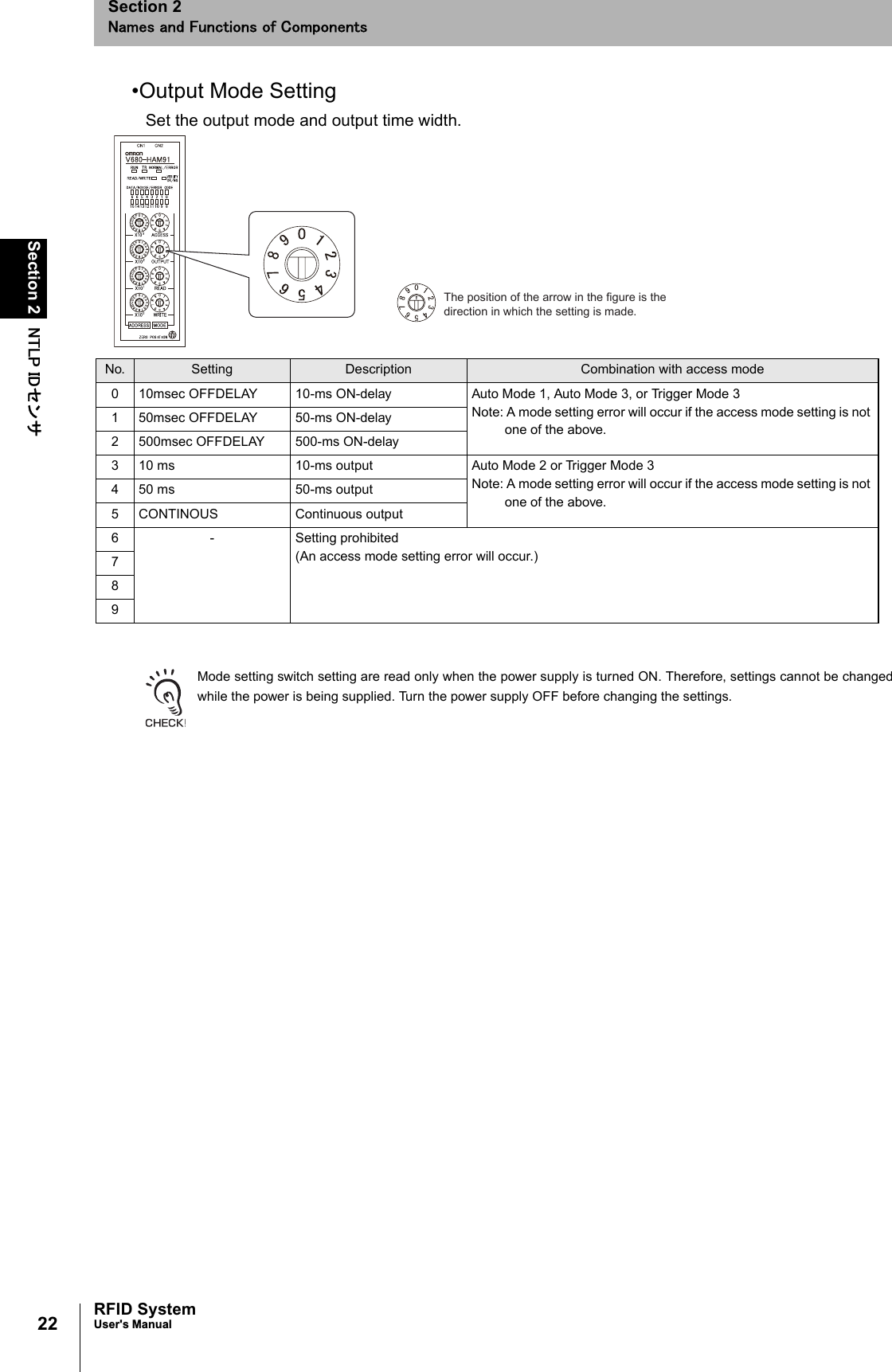

22Section 2 㪥㪫㪣㪧㩷㪠㪛䉶 䊮䉰RFID SystemUser's ManualSection 2㪥㪸㫄㪼㫊㩷㪸㫅㪻㩷㪝㫌㫅㪺㫋㫀㫆㫅㫊㩷㫆㪽㩷㪚㫆㫄㫇㫆㫅㪼㫅㫋㫊•Output Mode SettingSet the output mode and output time width.Mode setting switch setting are read only when the power supply is turned ON. Therefore, settings cannot be changedwhile the power is being supplied. Turn the power supply OFF before changing the settings.The position of the arrow in the figure is the direction in which the setting is made.No. Setting Description Combination with access mode0 10msec OFFDELAY 10-ms ON-delay Auto Mode 1, Auto Mode 3, or Trigger Mode 3Note: A mode setting error will occur if the access mode setting is not one of the above.1 50msec OFFDELAY 50-ms ON-delay2 500msec OFFDELAY 500-ms ON-delay3 10 ms 10-ms output Auto Mode 2 or Trigger Mode 3Note: A mode setting error will occur if the access mode setting is not one of the above.4 50 ms 50-ms output5 CONTINOUS Continuous output6 - Setting prohibited(An access mode setting error will occur.)789

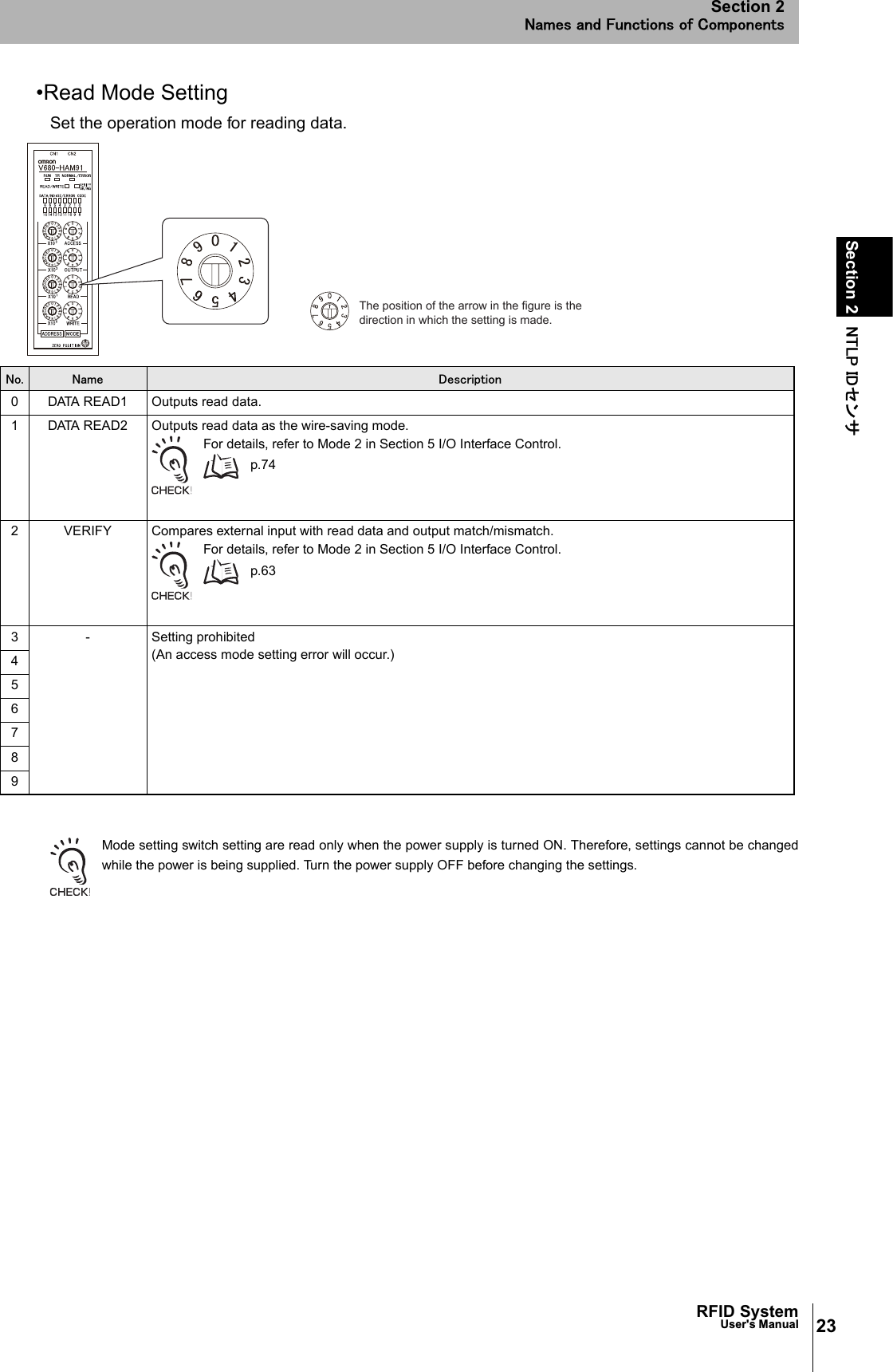

23RFID SystemUser's ManualSection 2 㪥㪫㪣㪧㩷㪠㪛䉶 䊮䉰Section 2㪥㪸㫄㪼㫊㩷㪸㫅㪻㩷㪝㫌㫅㪺㫋㫀㫆㫅㫊㩷㫆㪽㩷㪚㫆㫄㫇㫆㫅㪼㫅㫋㫊•Read Mode SettingSet the operation mode for reading data.Mode setting switch setting are read only when the power supply is turned ON. Therefore, settings cannot be changedwhile the power is being supplied. Turn the power supply OFF before changing the settings.The position of the arrow in the figure is the direction in which the setting is made.㪥㫆㪅 㪥㪸㫄㪼 㪛㪼㫊㪺㫉㫀㫇㫋㫀㫆㫅0 DATA READ1 Outputs read data.1 DATA READ2 Outputs read data as the wire-saving mode.For details, refer to Mode 2 in Section 5 I/O Interface Control.p.742 VERIFY Compares external input with read data and output match/mismatch.For details, refer to Mode 2 in Section 5 I/O Interface Control.p.633 - Setting prohibited(An access mode setting error will occur.)456789

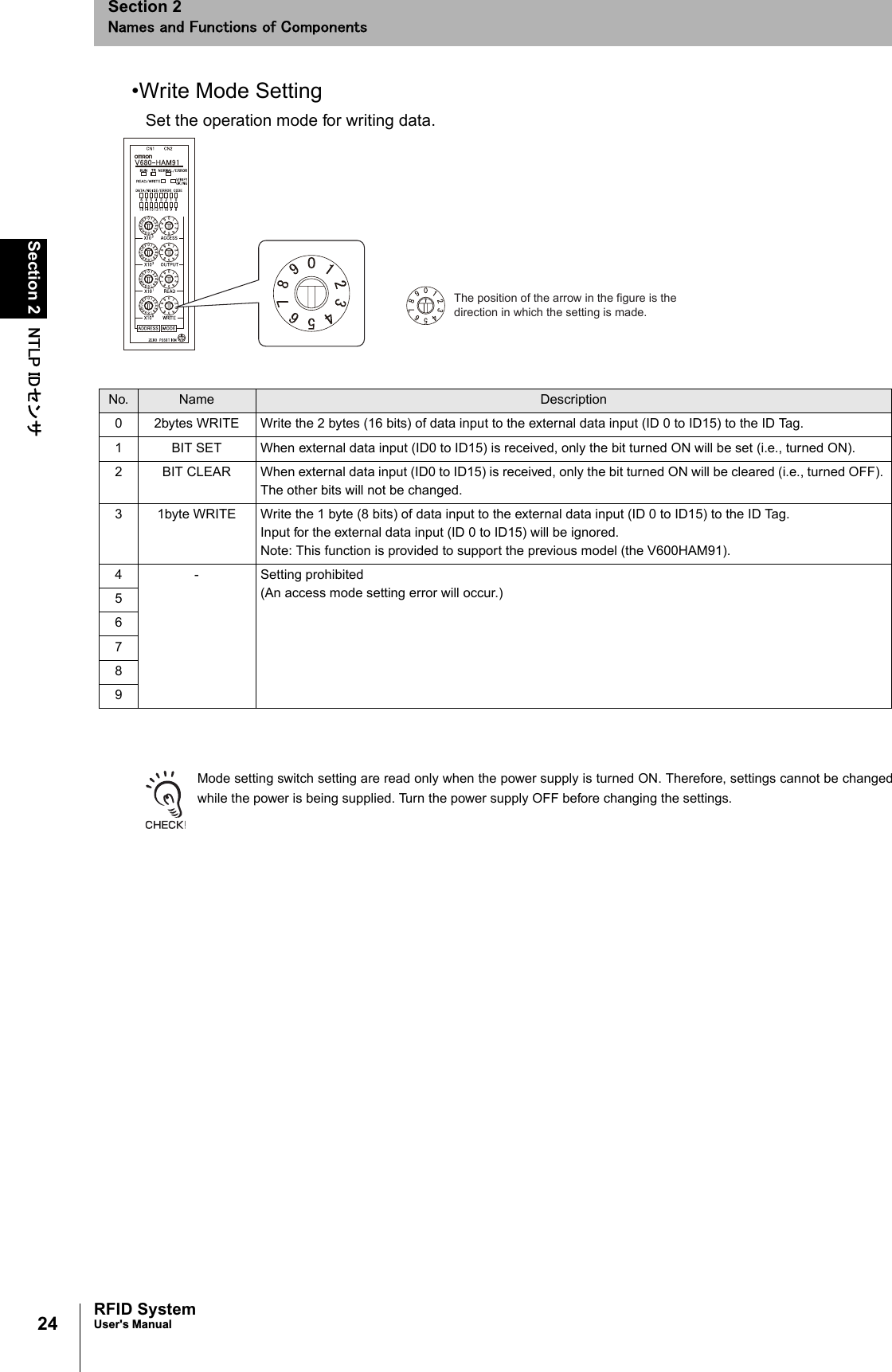

24Section 2 㪥㪫㪣㪧㩷㪠㪛䉶 䊮䉰RFID SystemUser's ManualSection 2㪥㪸㫄㪼㫊㩷㪸㫅㪻㩷㪝㫌㫅㪺㫋㫀㫆㫅㫊㩷㫆㪽㩷㪚㫆㫄㫇㫆㫅㪼㫅㫋㫊•Write Mode SettingSet the operation mode for writing data.Mode setting switch setting are read only when the power supply is turned ON. Therefore, settings cannot be changedwhile the power is being supplied. Turn the power supply OFF before changing the settings.The position of the arrow in the figure is the direction in which the setting is made.No. Name Description0 2bytes WRITE Write the 2 bytes (16 bits) of data input to the external data input (ID 0 to ID15) to the ID Tag.1 BIT SET When external data input (ID0 to ID15) is received, only the bit turned ON will be set (i.e., turned ON). 2 BIT CLEAR When external data input (ID0 to ID15) is received, only the bit turned ON will be cleared (i.e., turned OFF). The other bits will not be changed. 3 1byte WRITE Write the 1 byte (8 bits) of data input to the external data input (ID 0 to ID15) to the ID Tag.Input for the external data input (ID 0 to ID15) will be ignored.Note: This function is provided to support the previous model (the V600HAM91).4 - Setting prohibited(An access mode setting error will occur.)56789

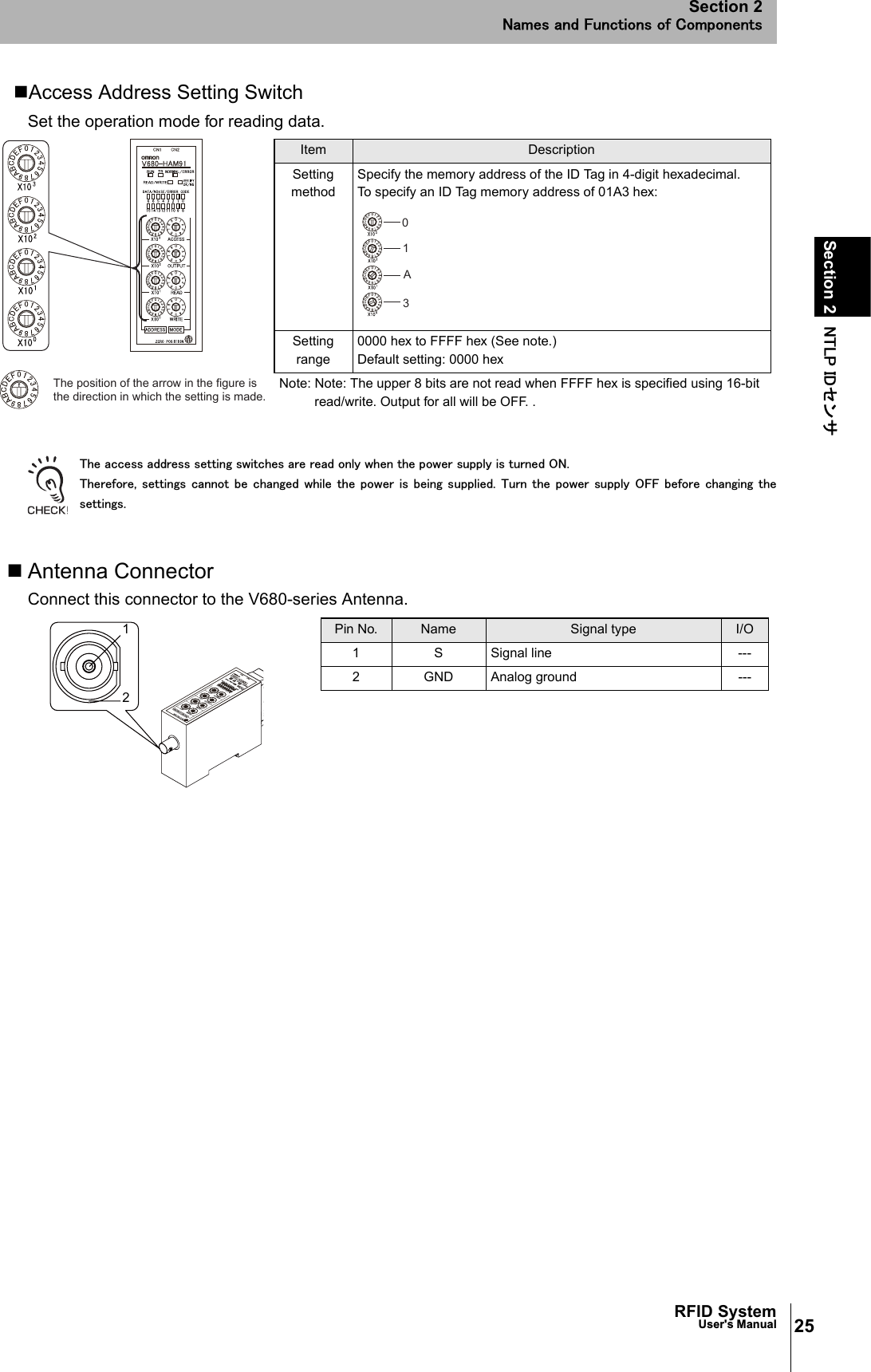

25RFID SystemUser's ManualSection 2 㪥㪫㪣㪧㩷㪠㪛䉶 䊮䉰Section 2㪥㪸㫄㪼㫊㩷㪸㫅㪻㩷㪝㫌㫅㪺㫋㫀㫆㫅㫊㩷㫆㪽㩷㪚㫆㫄㫇㫆㫅㪼㫅㫋㫊Access Address Setting SwitchSet the operation mode for reading data.㪫㪿㪼㩷㪸㪺㪺㪼㫊㫊㩷㪸㪻㪻㫉㪼㫊㫊㩷㫊㪼㫋㫋㫀㫅㪾㩷㫊㫎㫀㫋㪺㪿㪼㫊㩷㪸㫉㪼㩷㫉㪼㪸㪻㩷㫆㫅㫃㫐㩷㫎㪿㪼㫅㩷㫋㪿㪼㩷㫇㫆㫎㪼㫉㩷㫊㫌㫇㫇㫃㫐㩷㫀㫊㩷㫋㫌㫉㫅㪼㪻㩷㪦㪥㪅㩷㪫㪿㪼㫉㪼㪽㫆㫉㪼㪃㩷㫊㪼㫋㫋㫀㫅㪾㫊㩷㪺㪸㫅㫅㫆㫋㩷㪹㪼㩷㪺㪿㪸㫅㪾㪼㪻㩷 㫎㪿㫀㫃㪼㩷㫋㪿㪼㩷㫇㫆㫎㪼㫉㩷 㫀㫊㩷㪹㪼㫀㫅㪾㩷㫊㫌㫇㫇㫃㫀㪼㪻㪅㩷㪫㫌㫉㫅㩷 㫋㪿㪼㩷 㫇㫆㫎㪼㫉㩷 㫊㫌㫇㫇㫃㫐㩷㪦㪝㪝㩷 㪹㪼㪽㫆㫉㪼㩷 㪺㪿㪸㫅㪾㫀㫅㪾㩷 㫋㪿㪼㫊㪼㫋㫋㫀㫅㪾㫊㪅Antenna ConnectorConnect this connector to the V680-series Antenna.The position of the arrow in the figure is the direction in which the setting is made.Item DescriptionSetting methodSpecify the memory address of the ID Tag in 4-digit hexadecimal. To specify an ID Tag memory address of 01A3 hex:Setting range0000 hex to FFFF hex (See note.)Default setting: 0000 hexNote: Note: The upper 8 bits are not read when FFFF hex is specified using 16-bit read/write. Output for all will be OFF. .01A321Pin No. Name Signal type I/O1 S Signal line ---2 GND Analog ground ---

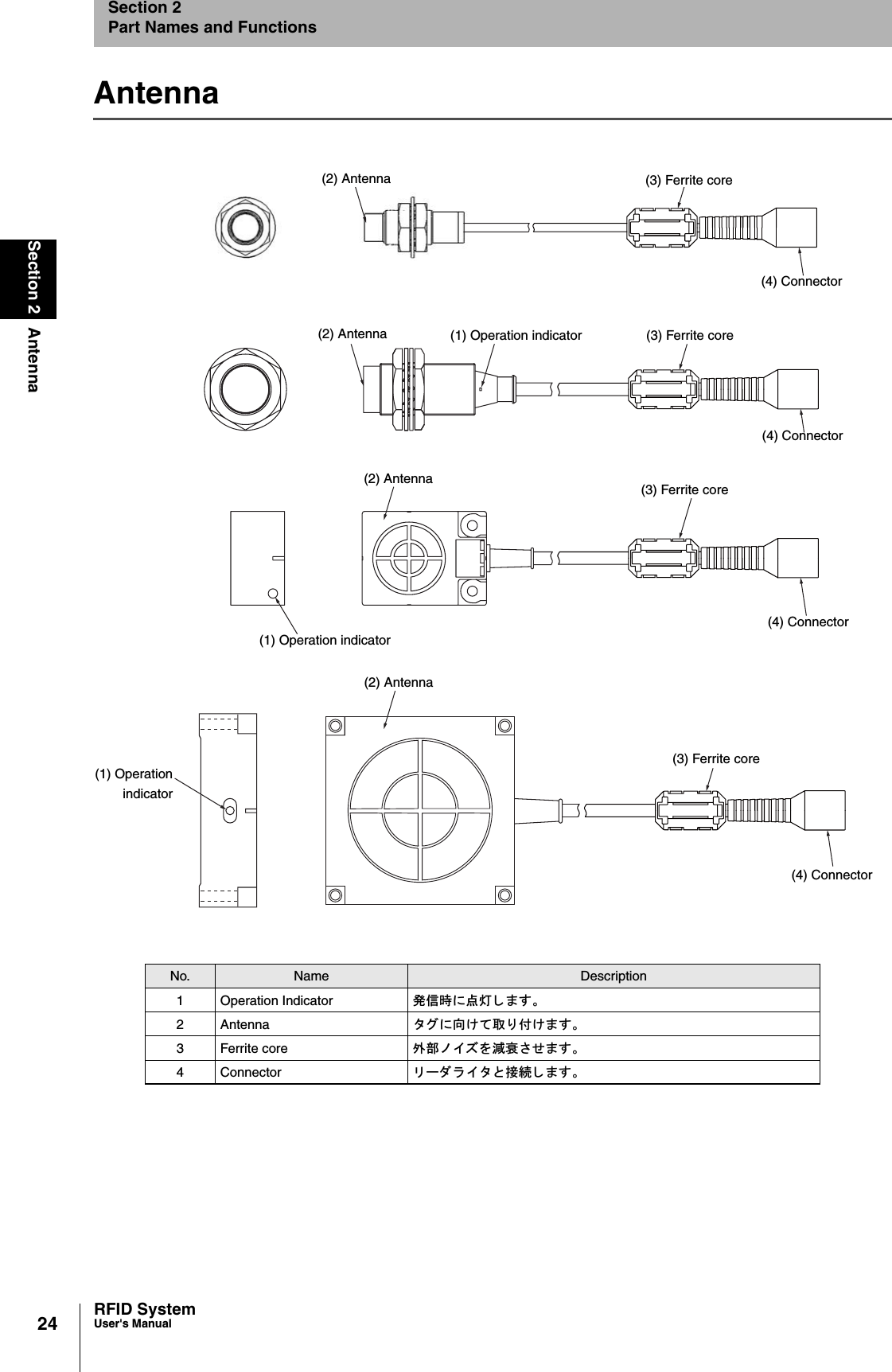

24Section 2 AntennaRFID SystemUser's ManualSection 2Part Names and FunctionsAntennaNo. Name Description1 Operation Indicator ⊒ାᤨ䈮ὐἮ 䈚 䉁䈜䇯2 Antenna 䉺䉫䈮ะ䈔䈩ข䉍ઃ䈔䉁䈜䇯3 Ferrite core ᄖㇱ 䊉 䉟䉵䉕ᷫ⴮ 䈘䈞䉁䈜䇯4 Connector 䊥䊷䉻䊤䉟䉺䈫ធ⛯䈚䉁䈜䇯(1) Operation indicator(1) Operationindicator(1) Operation indicator(3) Ferrite core(4) Connector(3) Ferrite core(4) Connector(3) Ferrite core(4) Connector(3) Ferrite core(4) Connector(2) Antenna(2) Antenna(2) Antenna(2) Antenna

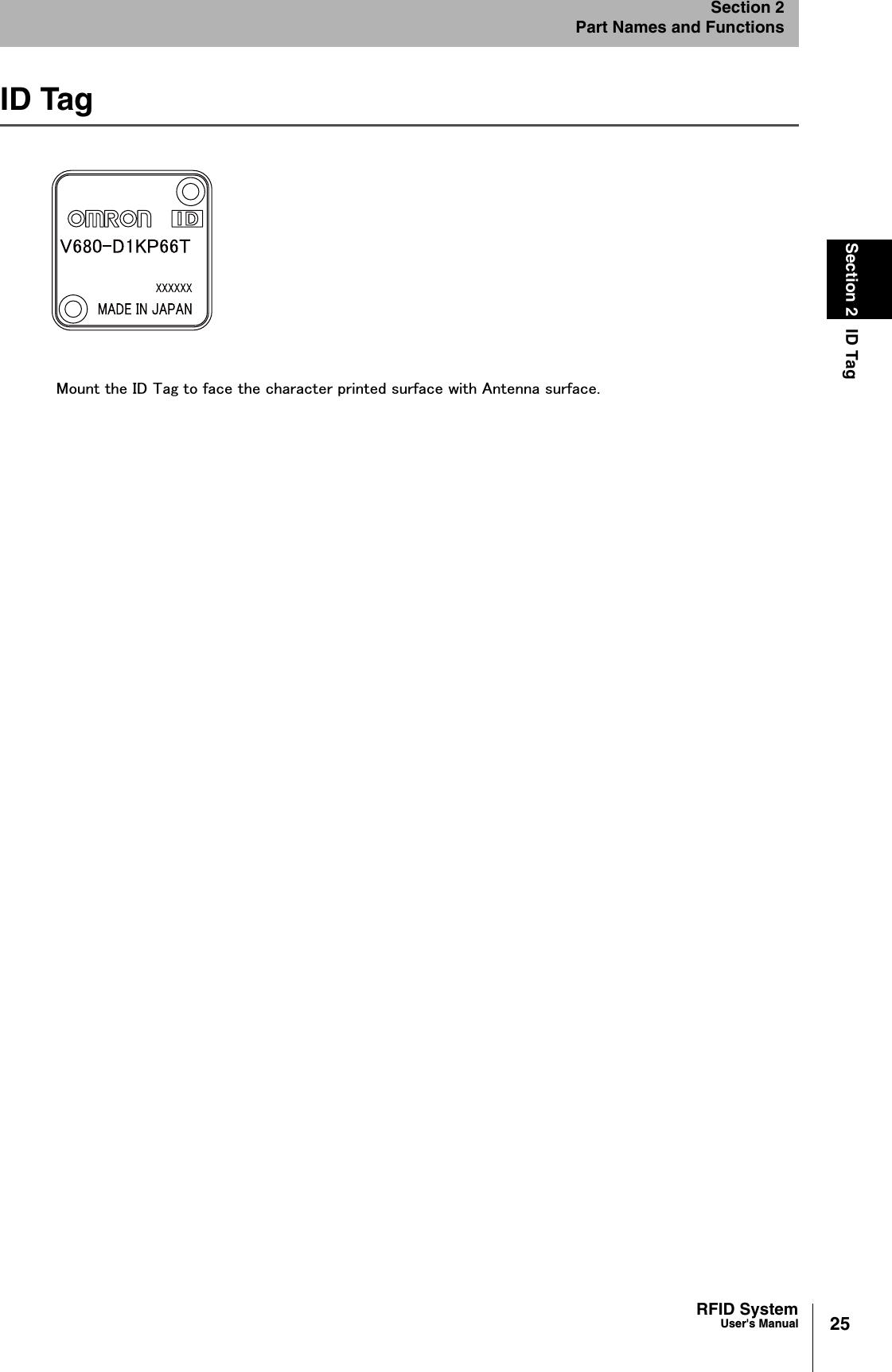

25RFID SystemUser's ManualSection 2 ID TagSection 2Part Names and FunctionsID Tag㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㪤㫆㫌㫅㫋㩷㫋㪿㪼㩷㪠㪛㩷㪫㪸㪾㩷㫋㫆㩷㪽㪸㪺㪼㩷㫋㪿㪼㩷㪺㪿㪸㫉㪸㪺㫋㪼㫉㩷㫇㫉㫀㫅㫋㪼㪻㩷㫊㫌㫉㪽㪸㪺㪼㩷㫎㫀㫋㪿㩷㪘㫅㫋㪼㫅㫅㪸㩷㫊㫌㫉㪽㪸㪺㪼㪅
26Section 2 ID TagRFID SystemUser's ManualSection 2Part Names and FunctionsMEMO

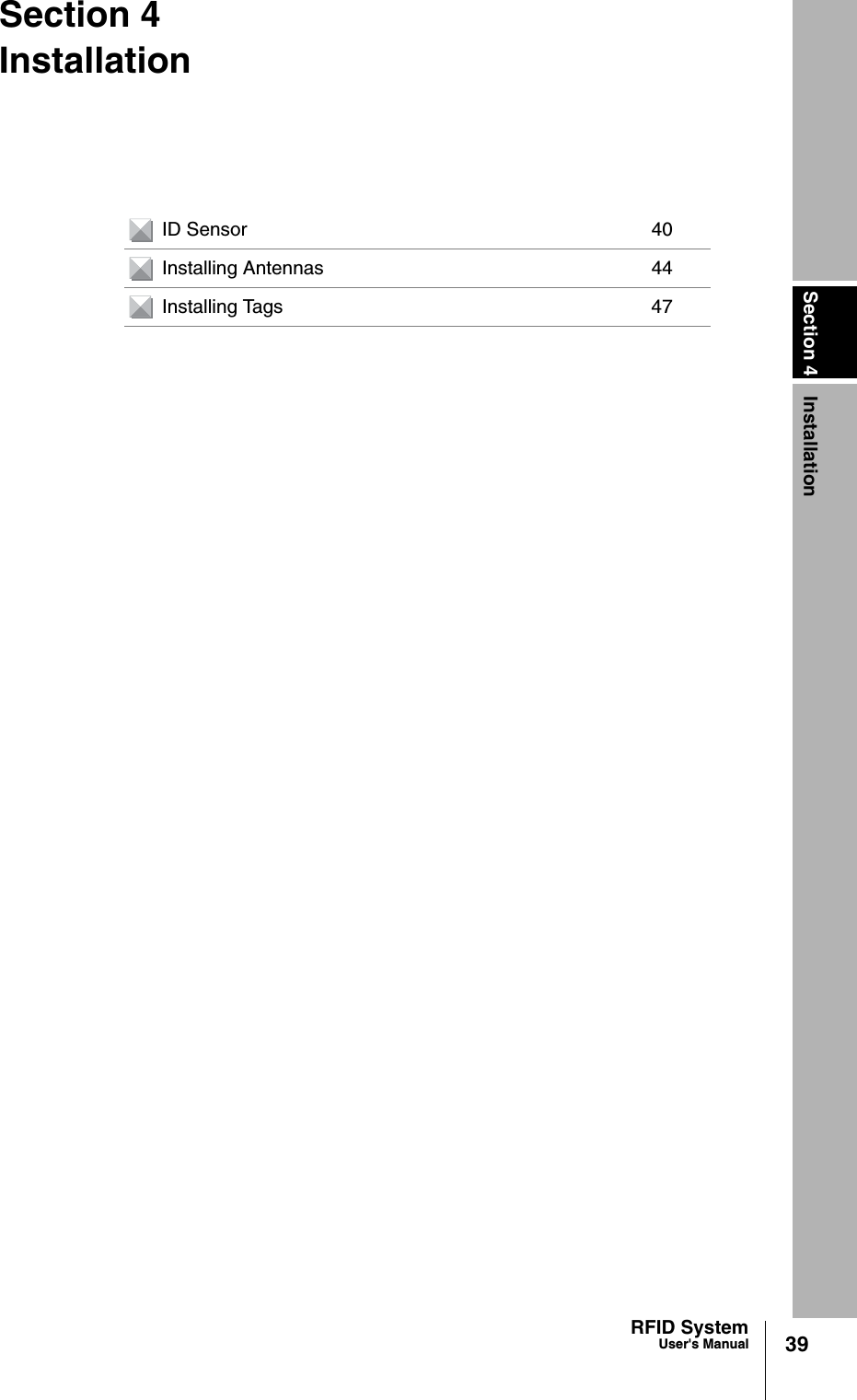

Section 4 Installation39RFID SystemUser's ManualSection 4InstallationID Sensor 40Installing Antennas 44Installing Tags 47

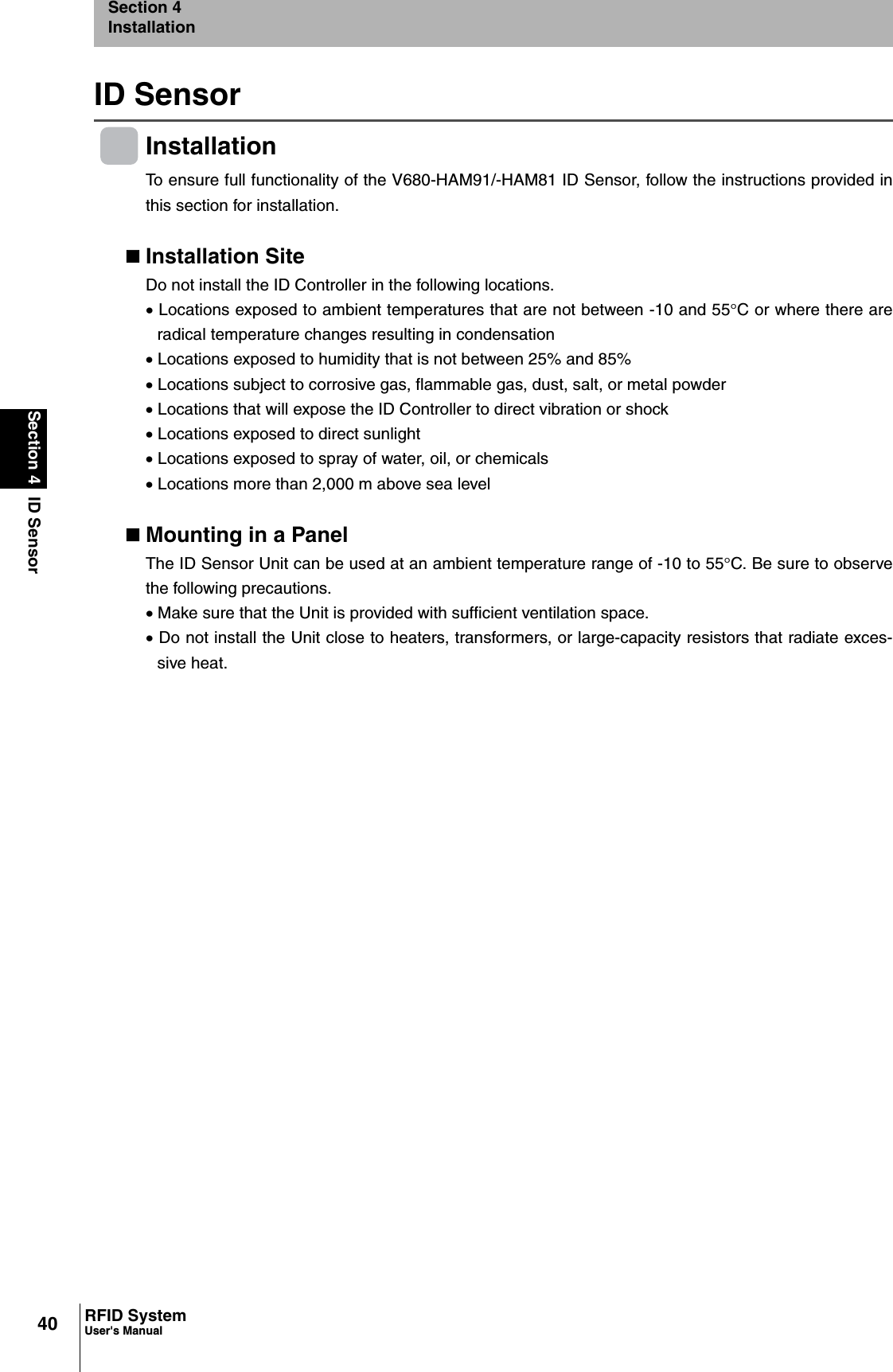

40Section 4 ID SensorRFID SystemUser's ManualSection 4InstallationID SensorInstallationTo ensure full functionality of the V680-HAM91/-HAM81 ID Sensor, follow the instructions provided inthis section for installation.Installation SiteDo not install the ID Controller in the following locations.x Locations exposed to ambient temperatures that are not between -10 and 55qC or where there areradical temperature changes resulting in condensationx Locations exposed to humidity that is not between 25% and 85%x Locations subject to corrosive gas, flammable gas, dust, salt, or metal powderx Locations that will expose the ID Controller to direct vibration or shockx Locations exposed to direct sunlightx Locations exposed to spray of water, oil, or chemicalsx Locations more than 2,000 m above sea levelMounting in a PanelThe ID Sensor Unit can be used at an ambient temperature range of -10 to 55qC. Be sure to observethe following precautions.x Make sure that the Unit is provided with sufficient ventilation space.x Do not install the Unit close to heaters, transformers, or large-capacity resistors that radiate exces-sive heat.

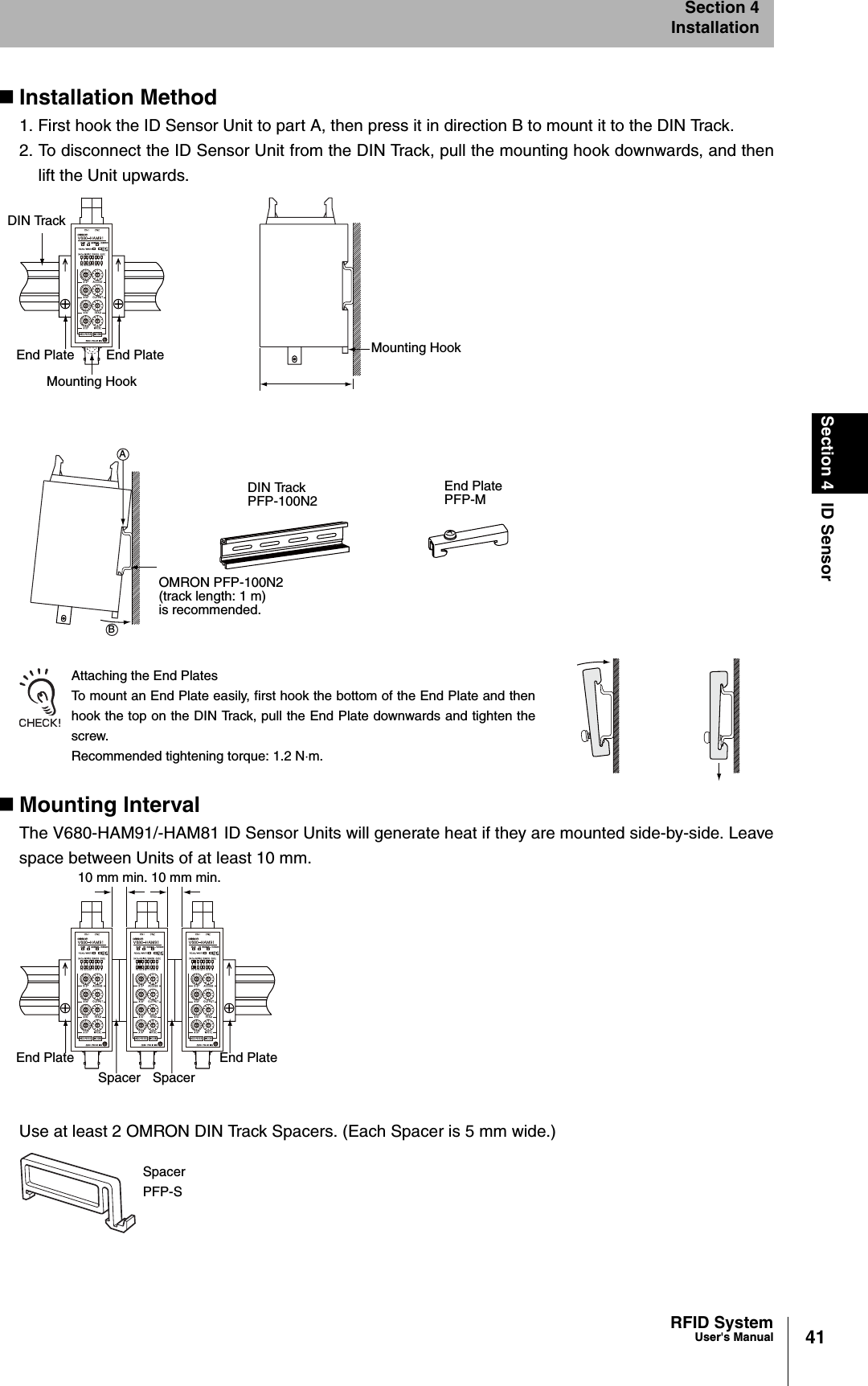

41RFID SystemUser's ManualSection 4 ID SensorSection 4InstallationInstallation Method1. First hook the ID Sensor Unit to part A, then press it in direction B to mount it to the DIN Track.2. To disconnect the ID Sensor Unit from the DIN Track, pull the mounting hook downwards, and thenlift the Unit upwards.Attaching the End PlatesTo mount an End Plate easily, first hook the bottom of the End Plate and thenhook the top on the DIN Track, pull the End Plate downwards and tighten thescrew.Recommended tightening torque: 1.2 Nm.Mounting lntervalThe V680-HAM91/-HAM81 ID Sensor Units will generate heat if they are mounted side-by-side. Leavespace between Units of at least 10 mm.Use at least 2 OMRON DIN Track Spacers. (Each Spacer is 5 mm wide.)DIN TrackEnd Plate End PlateMounting HookMounting HookDIN TrackPFP-100N2End PlatePFP-MOMRON PFP-100N2(track length: 1 m)is recommended.BA10 mm min. 10 mm min.End PlateSpacer SpacerEnd PlateSpacerPFP-S

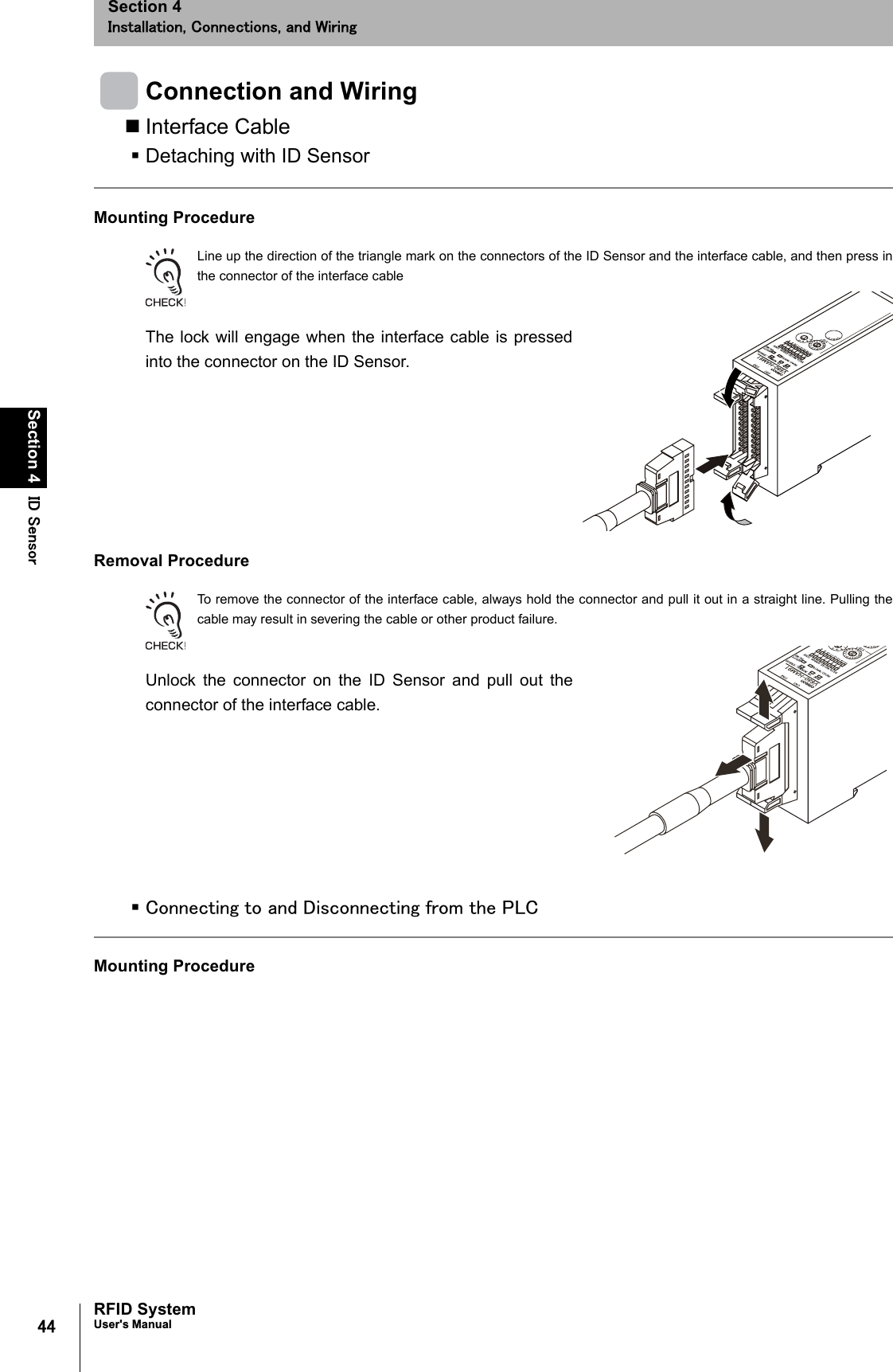

㪋㪋Section 4 㪠㪛㩷㪪㪼㫅㫊㫆㫉RFID SystemUser's ManualSection 4㪠㫅㫊㫋㪸㫃㫃㪸㫋㫀㫆㫅㪃㩷㪚㫆㫅㫅㪼㪺㫋㫀㫆㫅㫊㪃㩷㪸㫅㪻㩷㪮㫀㫉㫀㫅㪾Connection and WiringInterface CableDetaching with ID SensorMounting ProcedureLine up the direction of the triangle mark on the connectors of the ID Sensor and the interface cable, and then press inthe connector of the interface cableThe lock will engage when the interface cable is pressedinto the connector on the ID Sensor.Removal ProcedureTo remove the connector of the interface cable, always hold the connector and pull it out in a straight line. Pulling thecable may result in severing the cable or other product failure.Unlock the connector on the ID Sensor and pull out theconnector of the interface cable.㪚㫆㫅㫅㪼㪺㫋㫀㫅㪾㩷㫋㫆㩷㪸㫅㪻㩷㪛㫀㫊㪺㫆㫅㫅㪼㪺㫋㫀㫅㪾㩷㪽㫉㫆㫄㩷㫋㪿㪼㩷㪧㪣㪚Mounting Procedure

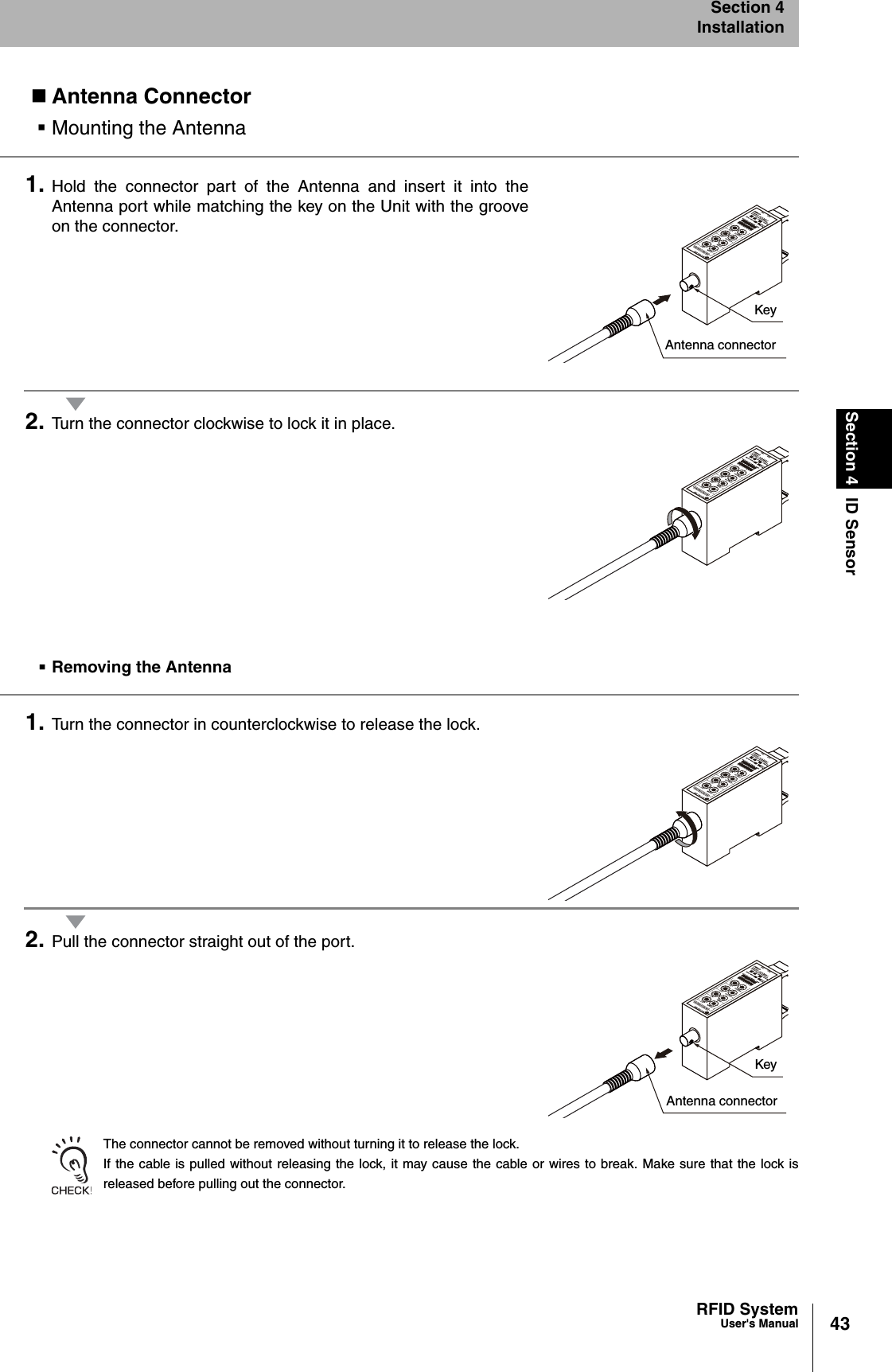

43RFID SystemUser's ManualSection 4 ID SensorSection 4InstallationAntenna ConnectorMounting the Antenna1. Hold the connector part of the Antenna and insert it into theAntenna port while matching the key on the Unit with the grooveon the connector.2. Turn the connector clockwise to lock it in place.Removing the Antenna1. Turn the connector in counterclockwise to release the lock.2. Pull the connector straight out of the port.The connector cannot be removed without turning it to release the lock.If the cable is pulled without releasing the lock, it may cause the cable or wires to break. Make sure that the lock isreleased before pulling out the connector.KeyAntenna connectorKeyAntenna connector

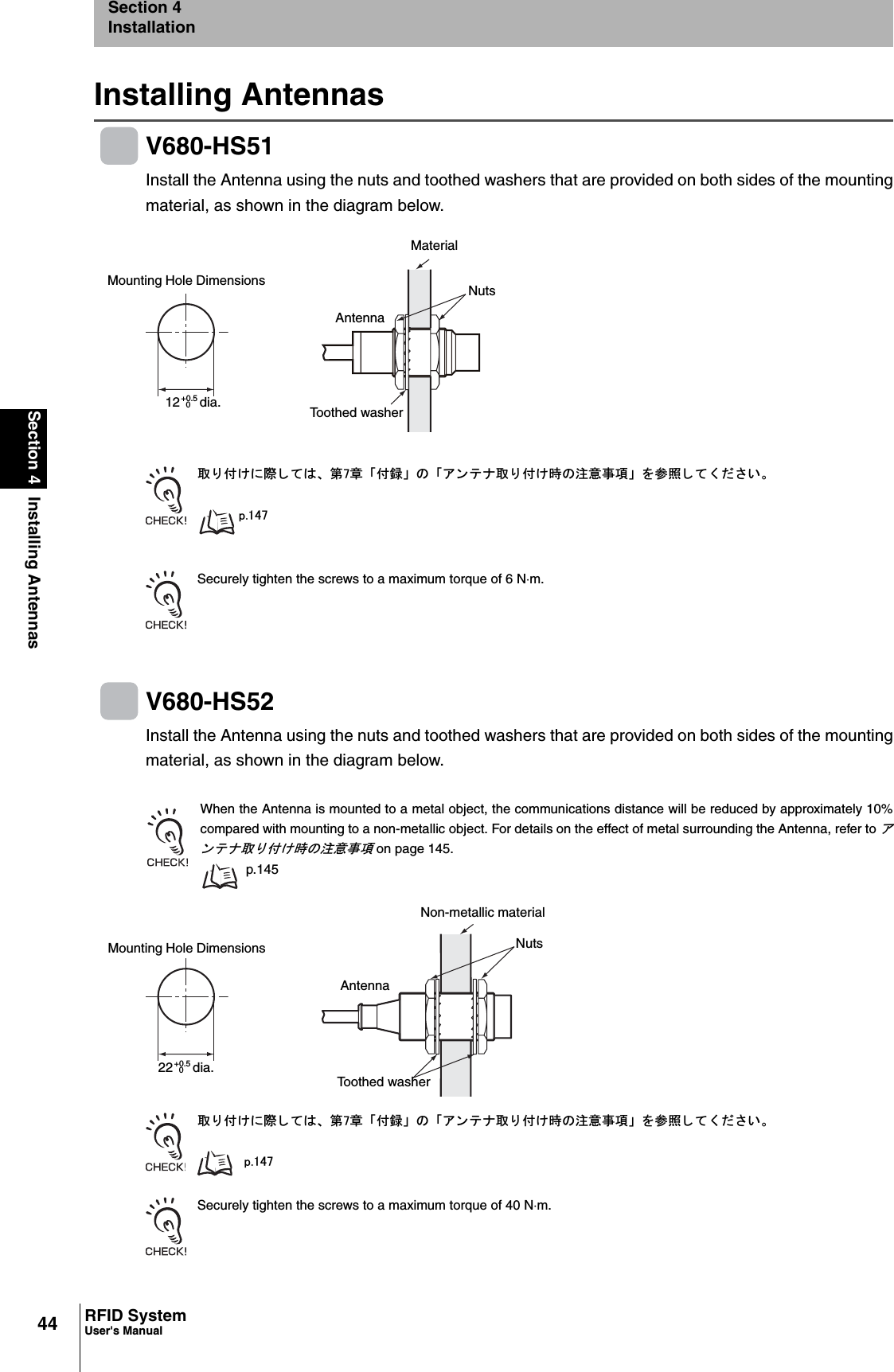

44Section 4 Installing AntennasRFID SystemUser's ManualSection 4InstallationInstalling AntennasV680-HS51Install the Antenna using the nuts and toothed washers that are provided on both sides of the mountingmaterial, as shown in the diagram below.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎Securely tighten the screws to a maximum torque of 6 Nm.V680-HS52Install the Antenna using the nuts and toothed washers that are provided on both sides of the mountingmaterial, as shown in the diagram below.When the Antenna is mounted to a metal object, the communications distance will be reduced by approximately 10%compared with mounting to a non-metallic object. For details on the effect of metal surrounding the Antenna, refer to 䉝䊮 䊁䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄 on page 145.p.145ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎Securely tighten the screws to a maximum torque of 40 Nm.Mounting Hole Dimensions+0.5 dia.12 0MaterialNutsAntennaToothed washerMounting Hole Dimensions+0.5 dia.22 0Non-metallic materialNutsAntennaToothed washer

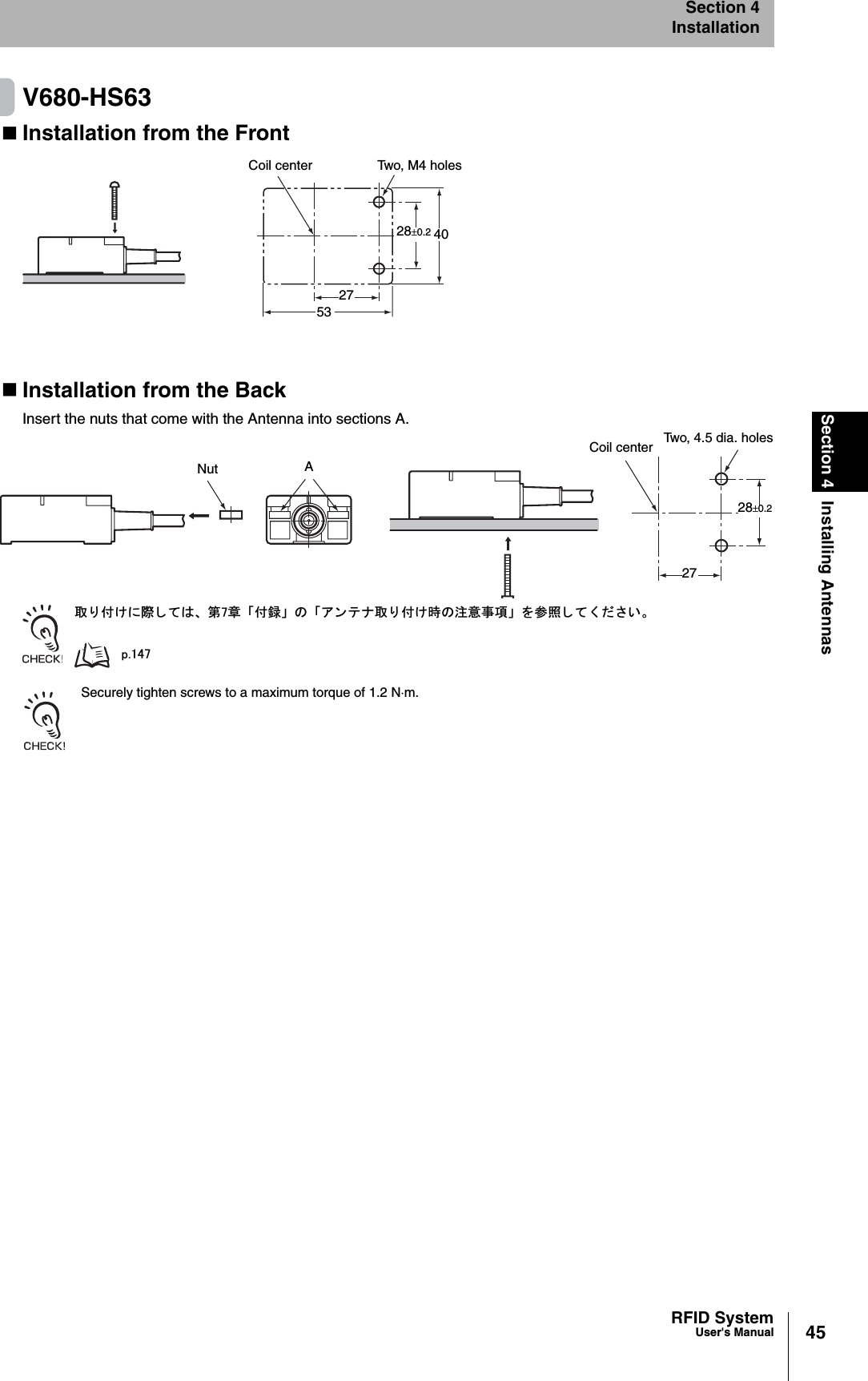

45RFID SystemUser's ManualSection 4 Installing AntennasSection 4InstallationV680-HS63Installation from the FrontInstallation from the BackInsert the nuts that come with the Antenna into sections A.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎 Securely tighten screws to a maximum torque of 1.2 Nm.Coil center Two, M4 holes53274028r0.2Nut ACoil center Two, 4.5 dia. holes2728r0.2

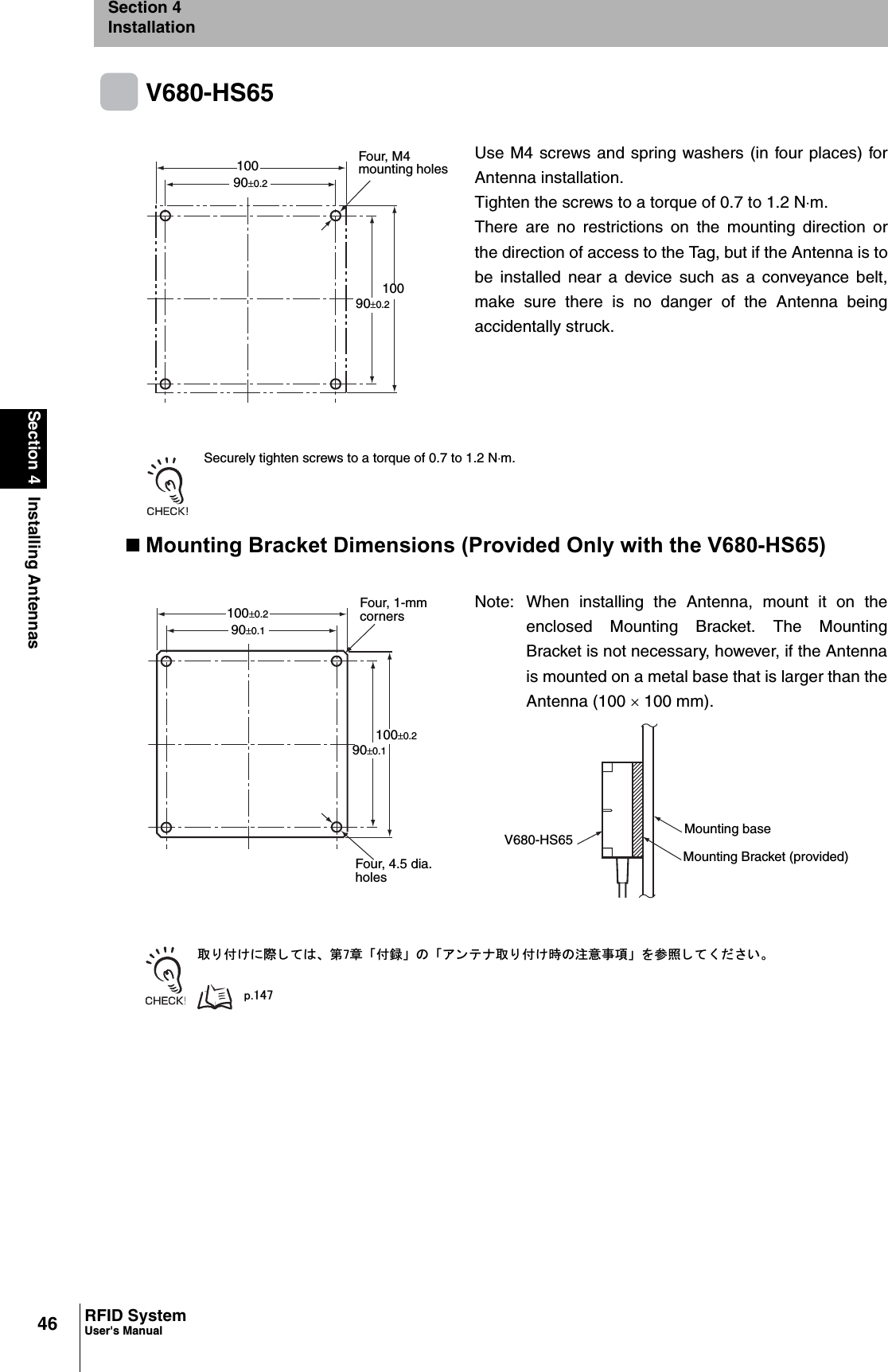

46Section 4 Installing AntennasRFID SystemUser's ManualSection 4InstallationV680-HS65 Securely tighten screws to a torque of 0.7 to 1.2 Nm.Mounting Bracket Dimensions (Provided Only with the V680-HS65)ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎Use M4 screws and spring washers (in four places) forAntenna installation.Tighten the screws to a torque of 0.7 to 1.2 Nm.There are no restrictions on the mounting direction orthe direction of access to the Tag, but if the Antenna is tobe installed near a device such as a conveyance belt,make sure there is no danger of the Antenna beingaccidentally struck.Note: When installing the Antenna, mount it on theenclosed Mounting Bracket. The MountingBracket is not necessary, however, if the Antennais mounted on a metal base that is larger than theAntenna (100 u 100 mm). 10090r0.210090r0.2Four, M4 mounting holes100r0.2 Four, 1-mmcorners90r0.1100r0.290r0.1Four, 4.5 dia.holesV680-HS65 Mounting baseMounting Bracket (provided)

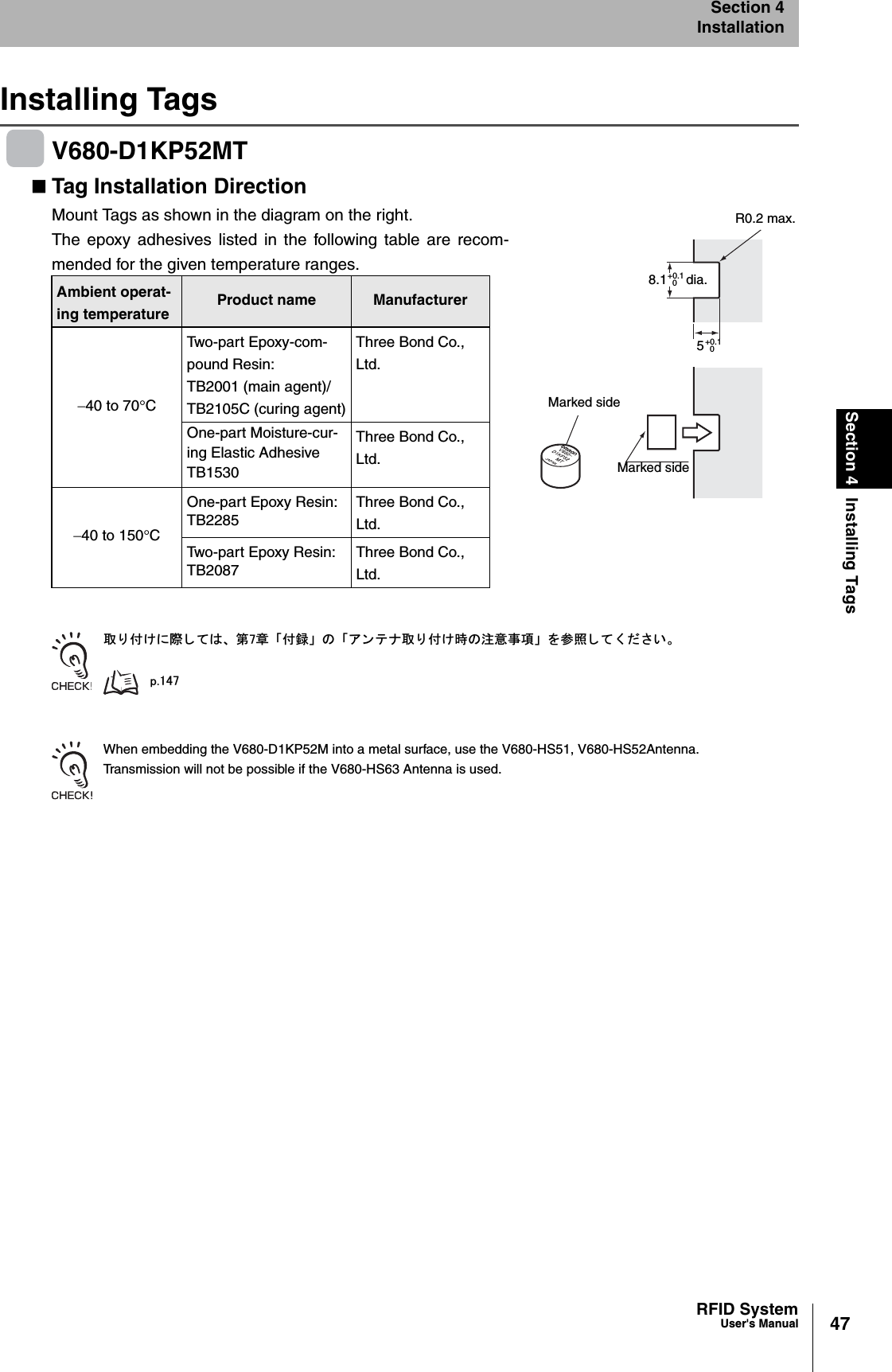

47RFID SystemUser's ManualSection 4 Installing TagsSection 4InstallationInstalling TagsV680-D1KP52MTTag Installation DirectionMount Tags as shown in the diagram on the right. The epoxy adhesives listed in the following table are recom-mended for the given temperature ranges.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎When embedding the V680-D1KP52M into a metal surface, use the V680-HS51, V680-HS52Antenna.Transmission will not be possible if the V680-HS63 Antenna is used.Ambient operat-ing temperatureProduct name Manufacturer40 to 70qCTwo-part Epoxy-com-pound Resin:TB2001 (main agent)/TB2105C (curing agent)Three Bond Co., Ltd.One-part Moisture-cur-ing Elastic Adhesive TB1530Three Bond Co., Ltd.40 to 150qCOne-part Epoxy Resin:TB2285Three Bond Co., Ltd.Two-part Epoxy Resin:TB2087Three Bond Co., Ltd.Marked side+0.1 dia.8.1 0+0.150Marked sideR0.2 max.

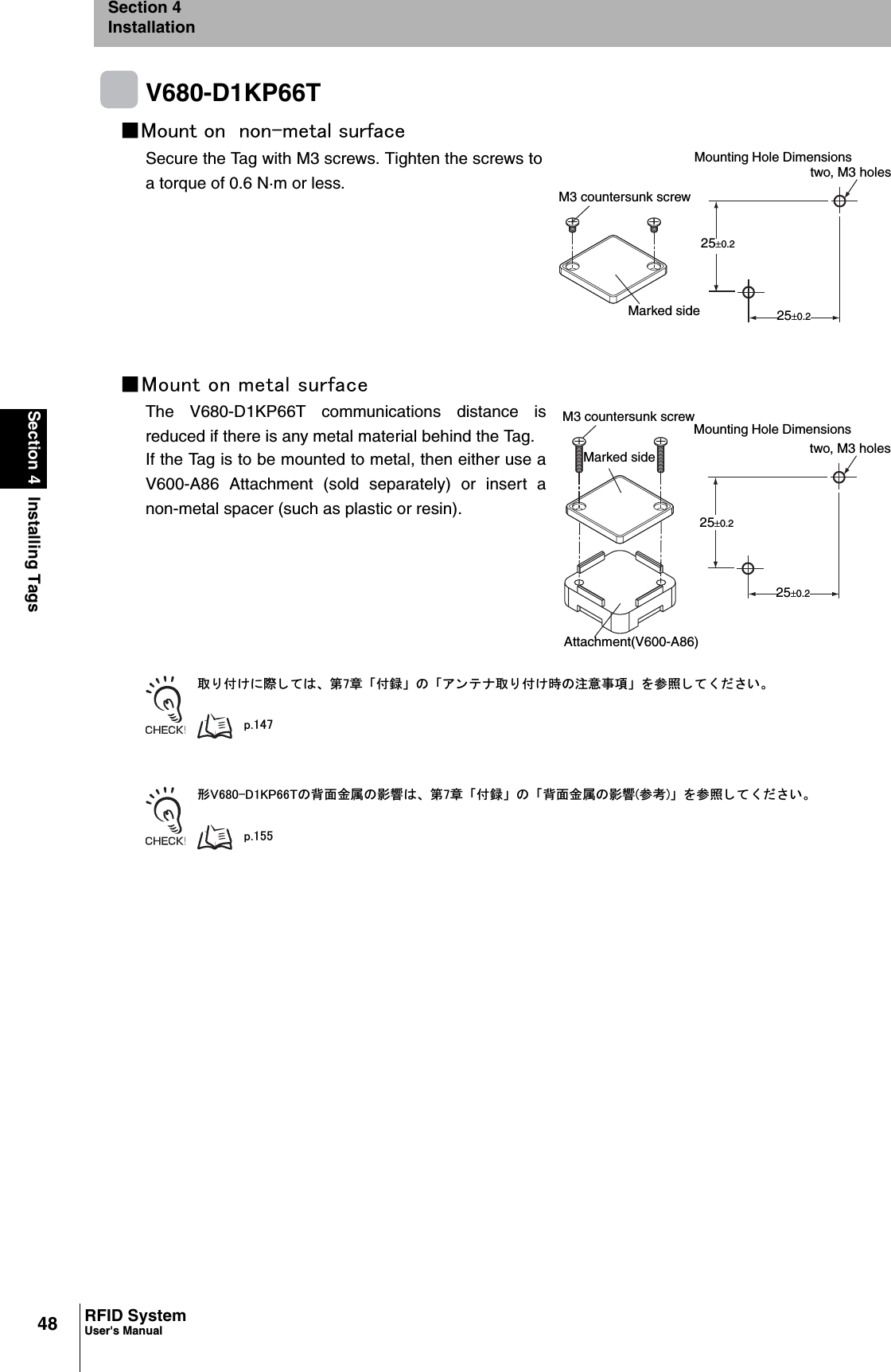

48Section 4 Installing TagsRFID SystemUser's ManualSection 4InstallationV680-D1KP66T䂓㪤㫆㫌㫅㫋㩷㫆㫅㩷㩷㫅㫆㫅㪄㫄㪼㫋㪸㫃㩷㫊㫌㫉㪽㪸㪺㪼Secure the Tag with M3 screws. Tighten the screws toa torque of 0.6 N·m or less.䂓㪤㫆㫌㫅㫋㩷㫆㫅㩷㫄㪼㫋㪸㫃㩷㫊㫌㫉㪽㪸㪺㪼The V680-D1KP66T communications distance isreduced if there is any metal material behind the Tag.If the Tag is to be mounted to metal, then either use aV600-A86 Attachment (sold separately) or insert anon-metal spacer (such as plastic or resin).ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎ᒻ㪭㪍㪏㪇㪄㪛㪈㪢㪧㪍㪍㪫䈱⢛㕙㊄ዻ䈱ᓇ㗀䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸⢛㕙㊄ዻ䈱ᓇ㗀㩿ෳ⠨㪀䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪌㪌M3 countersunk screw25r0.2Marked sidetwo, M3 holesMounting Hole Dimensions25r0.2M3 countersunk screwMarked side25r0.2Mounting Hole Dimensions25r0.2two, M3 holesAttachment(V600-A86)

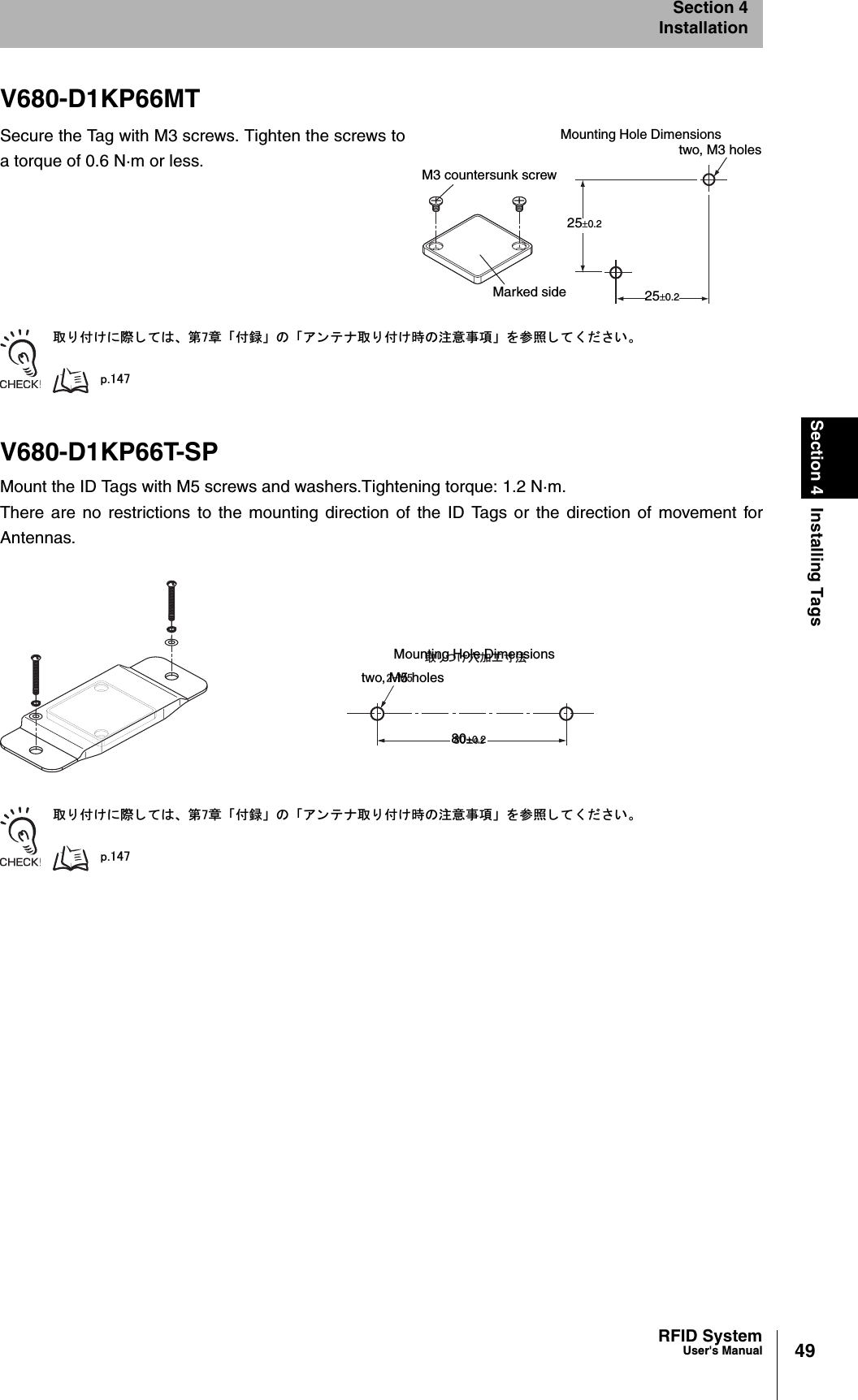

49RFID SystemUser's ManualSection 4 Installing TagsSection 4InstallationV680-D1KP66MTSecure the Tag with M3 screws. Tighten the screws toa torque of 0.6 N·m or less.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎V680-D1KP66T-SPMount the ID Tags with M5 screws and washers.Tightening torque: 1.2 N·m.There are no restrictions to the mounting direction of the ID Tags or the direction of movement forAntennas.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎M3 countersunk screw25r0.2Marked sidetwo, M3 holesMounting Hole Dimensions25r0.2ข䉍䈧䈔ⓣടᎿኸᴺ㩷㪉㪄㪤㪌㪏㪇㫧㪇㪅㪉Mounting Hole Dimensionstwo, M5 holes80r0.2

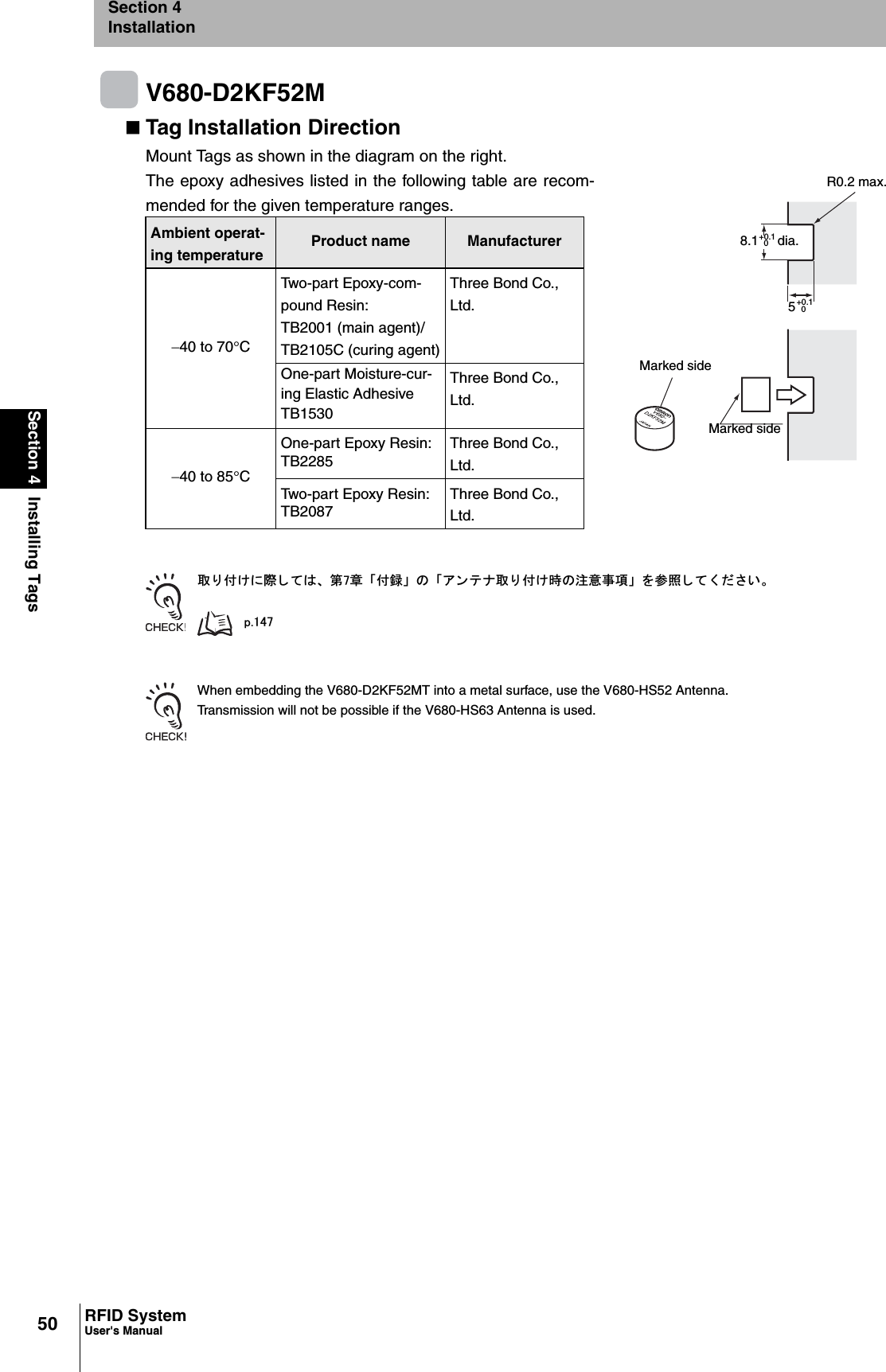

50Section 4 Installing TagsRFID SystemUser's ManualSection 4InstallationV680-D2KF52MTag Installation DirectionMount Tags as shown in the diagram on the right. The epoxy adhesives listed in the following table are recom-mended for the given temperature ranges.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎When embedding the V680-D2KF52MT into a metal surface, use the V680-HS52 Antenna.Transmission will not be possible if the V680-HS63 Antenna is used.Ambient operat-ing temperatureProduct name Manufacturer40 to 70qCTwo-part Epoxy-com-pound Resin:TB2001 (main agent)/TB2105C (curing agent)Three Bond Co., Ltd.One-part Moisture-cur-ing Elastic Adhesive TB1530Three Bond Co., Ltd.40 to 85qCOne-part Epoxy Resin:TB2285Three Bond Co., Ltd.Two-part Epoxy Resin:TB2087Three Bond Co., Ltd.Marked side+0.1 dia.8.1 0+0.150Marked sideR0.2 max.

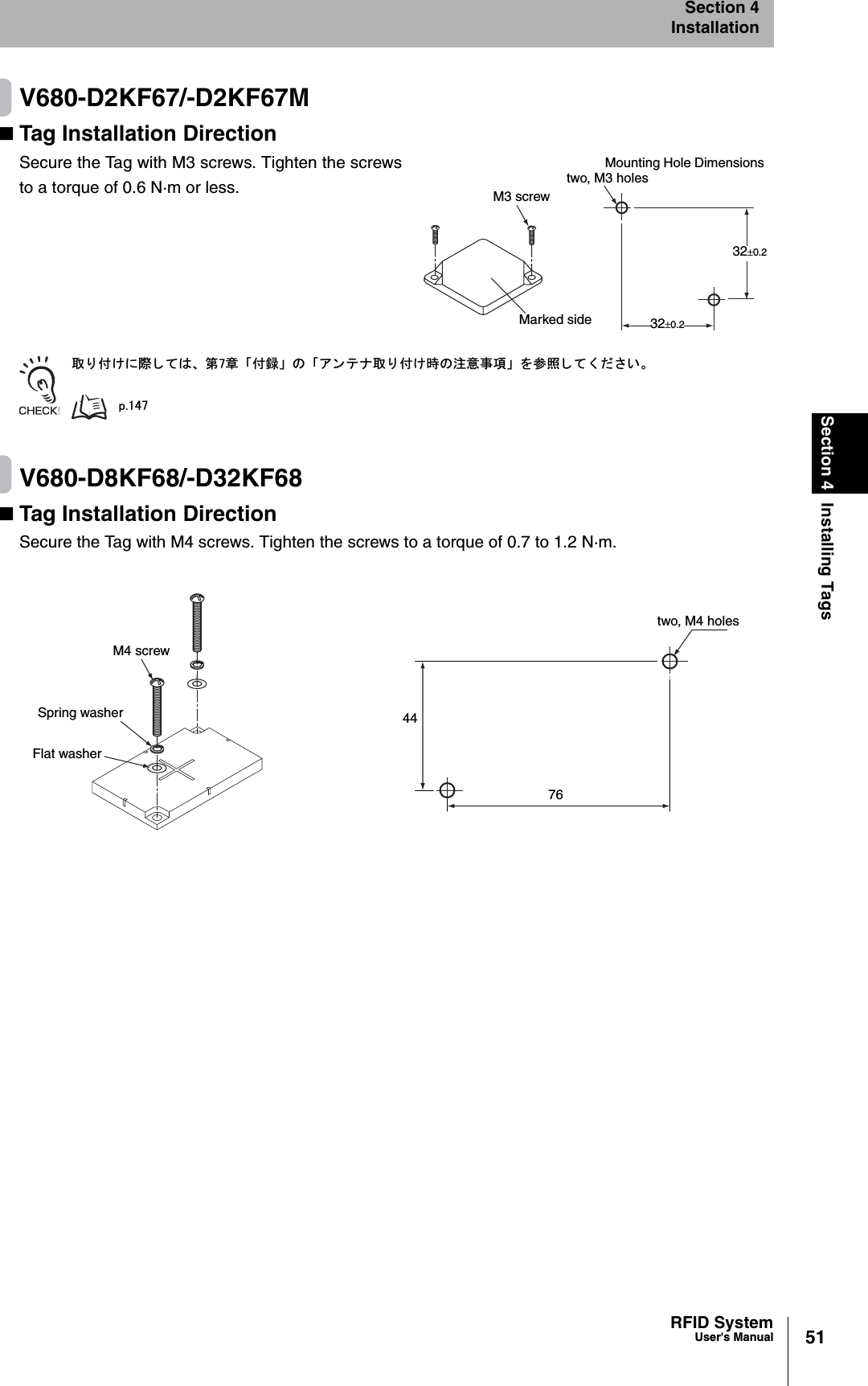

51RFID SystemUser's ManualSection 4 Installing TagsSection 4InstallationV680-D2KF67/-D2KF67MTag Installation DirectionSecure the Tag with M3 screws. Tighten the screwsto a torque of 0.6 N·m or less.ข 䉍 ઃ䈔䈮㓙 䈚 䈩䈲䇮 ╙㪎┨ 䇸ઃ㍳䇹 䈱 䇸䉝 䊮 䊁 䊅ข 䉍 ઃ䈔ᤨ䈱ᵈᗧ੐㗄䇹 䉕ෳᾖ 䈚 䈩 䈒 䈣 䈘 䈇䇯㫇㪅㪈㪋㪎V680-D8KF68/-D32KF68Tag Installation DirectionSecure the Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m.32r0.2M3 screwMarked side32r0.2two, M3 holesMounting Hole DimensionsM4 screwtwo, M4 holes4476Spring washerFlat washer

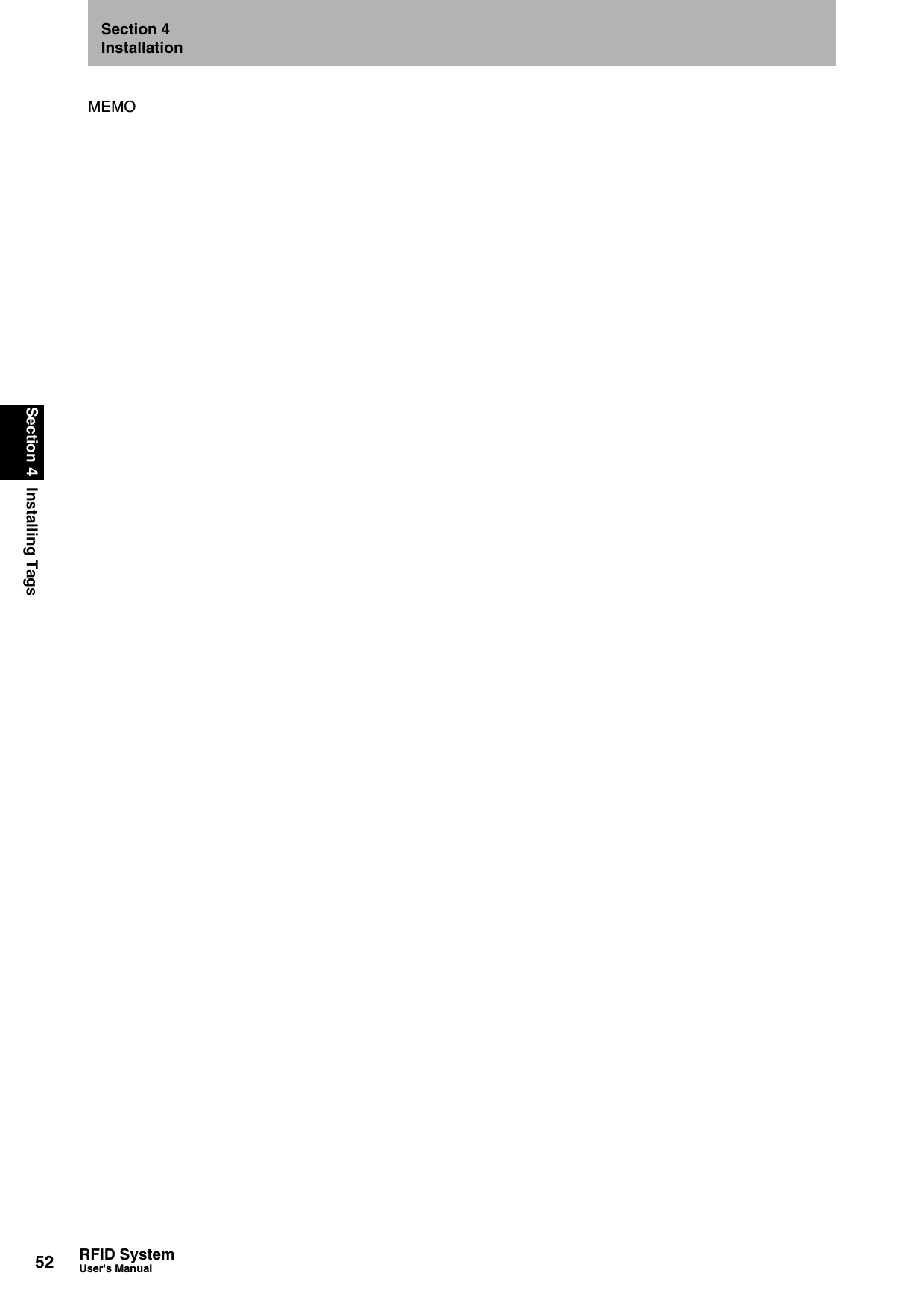

52Section 4 Installing TagsRFID SystemUser's ManualSection 4InstallationMEMO
