Omron V680S64 Radio Frequency Identification System (RFID System) User Manual V680S HMD64 ETN

Omron Corporation Radio Frequency Identification System (RFID System) V680S HMD64 ETN

05_User Manual

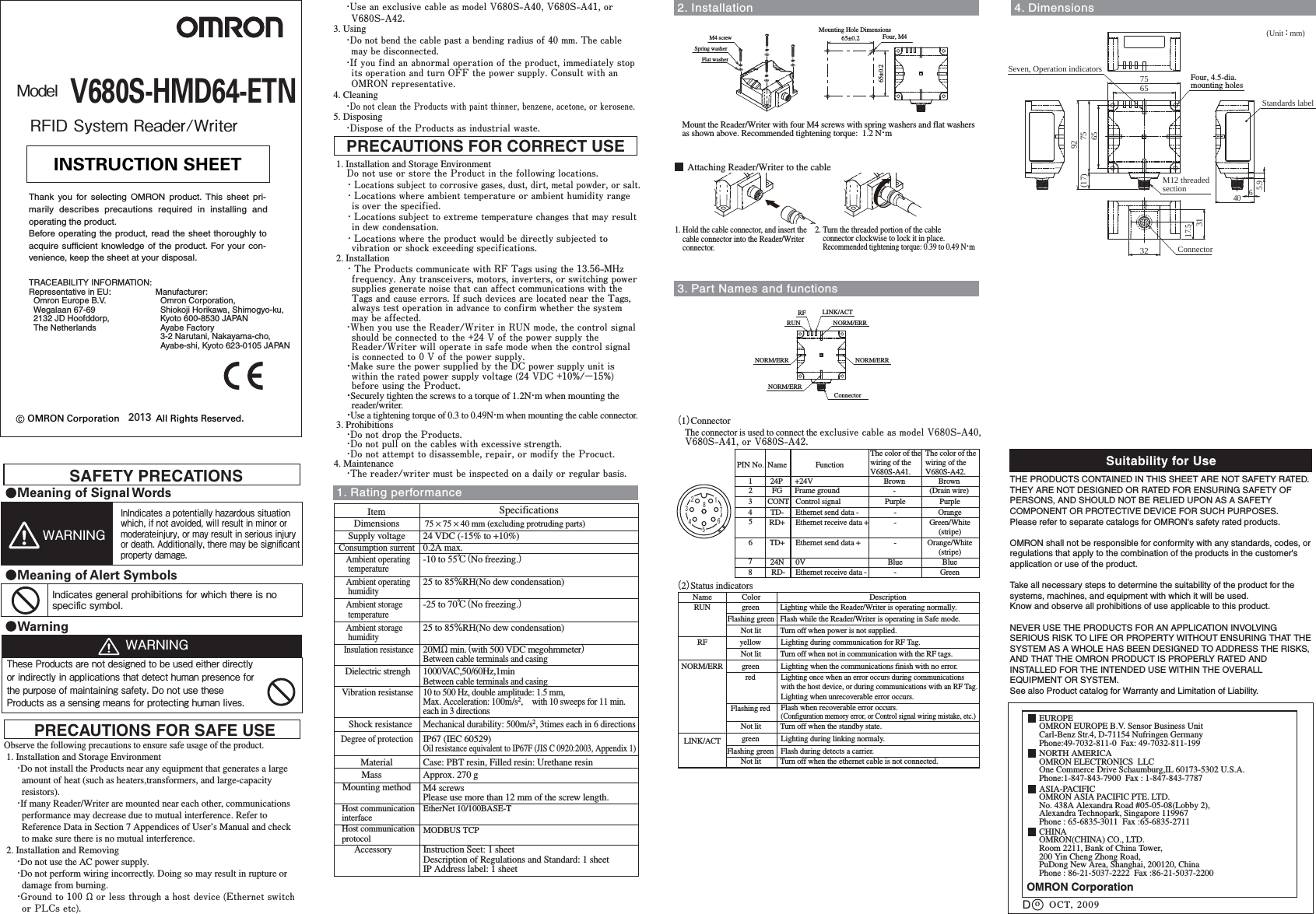

ModelV680S-HMD64-ETN2013RFID System Reader/WriterObserve the following precautions to ensure safe usage of the product. 1. Installation and Storage Environment・Do not install the Products near any equipment that generates a large amount of heat (such as heaters,transformers, and large-capacity resistors).・If many Reader/Writer are mounted near each other, communications performance may decrease due to mutual interference. Refer to Reference Data in Section 7 Appendices of User’s Manual and check to make sure there is no mutual interference. 2. Installation and Removing・Do not use the AC power supply. ・Do not perform wiring incorrectly. Doing so may result in rupture or damage from burning.・Ground to 100 Ω or less through a host device (Ethernet switch or PLCs etc).PRECAUTIONS FOR SAFE USE 1. Installation and Storage EnvironmentDo not use or store the Product in the following locations.・Locations subject to corrosive gases, dust, dirt, metal powder, or salt.・Locations where ambient temperature or ambient humidity range is over the specified.・Locations subject to extreme temperature changes that may result in dew condensation.・Locations where the product would be directly subjected to vibration or shock exceeding specifications. 2. Installation・The Products communicate with RF Tags using the 13.56-MHz frequency. Any transceivers, motors, inverters, or switching power supplies generate noise that can affect communications with the Tags and cause errors. If such devices are located near the Tags, always test operation in advance to confirm whether the system may be affected.・When you use the Reader/Writer in RUN mode, the control signal should be connected to the +24 V of the power supply the Reader/Writer will operate in safe mode when the control signal is connected to 0 V of the power supply.・Make sure the power supplied by the DC power supply unit is within the rated power supply voltage (24 VDC +10%/−15%) before using the Product.・Securely tighten the screws to a torque of 1.2N・m when mounting the reader/writer.・Use a tightening torque of 0.3 to 0.49N・m when mounting the cable connector. 3. Prohibitions・Do not drop the Products.・Do not pull on the cables with excessive strength.・Do not attempt to disassemble, repair, or modify the Procuct.4. Maintenance・The reader/writer must be inspected on a daily or regular basis.PRECAUTIONS FOR CORRECT USE© OMRON Corporation All Rights Reserved.INSTRUCTION SHEETThank you for selecting OMRON product. This sheet pri-marily describes precautions required in installing andoperating the product.Before operating the product, read the sheet thoroughly toacquire sufficient knowledge of the product. For your con-venience, keep the sheet at your disposal.OMRON CorporationSuitability for UseEUROPEOMRON EUROPE B.V. Sensor Business UnitCarl-Benz Str.4, D-71154 Nufringen GermanyPhone:49-7032-811-0 Fax: 49-7032-811-199NORTH AMERICAOMRON ELECTRONICS LLCOne Commerce Drive Schaumburg,IL 60173-5302 U.S.A.Phone:1-847-843-7900 Fax : 1-847-843-7787ASIA-PACIFICOMRON ASIA PACIFIC PTE. LTD.No. 438A Alexandra Road #05-05-08(Lobby 2),Alexandra Technopark, Singapore 119967 Phone : 65-6835-3011 Fax :65-6835-2711oTHE PRODUCTS CONTAINED IN THIS SHEET ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES.Please refer to separate catalogs for OMRON's safety rated products.OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of the products in the customer's application or use of the product. Take all necessary steps to determine the suitability of the product for the systems, machines, and equipment with which it will be used.Know and observe all prohibitions of use applicable to this product.NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.See also Product catalog for Warranty and Limitation of Liability.CHINAOMRON(CHINA) CO., LTD. Room 2211, Bank of China Tower,200 Yin Cheng Zhong Road, PuDong New Area, Shanghai, 200120, ChinaPhone : 86-21-5037-2222 Fax :86-21-5037-2200OCT, 2009DManufacturer: Omron Corporation, Shiokoji Horikawa, Shimogyo-ku, Kyoto 600-8530 JAPAN Ayabe Factory 3-2 Narutani, Nakayama-cho, Ayabe-shi, Kyoto 623-0105 JAPANTRACEABILITY INFORMATION:Representative in EU: Omron Europe B.V. Wegalaan 67-69 2132 JD Hoofddorp, The NetherlandsItem SpecificationsSupply voltage 24 VDC (-15% to +10%)Consumption surrent0.2A max.Ambient operating temperatureInsulation resistance20MΩ min.（with 500 VDC megohmmeter）Between cable terminals and casingDielectric strengh 1000VAC,50/60Hz,1minBetween cable terminals and casingVibration resistanse10 to 500 Hz, double amplitude: 1.5 mm, Max. Acceleration: 100m/s2,　with 10 sweeps for 11 min. each in 3 directionsShock resistanceMechanical durability: 500m/s2, 3times each in 6 directionsDimensionsDegree of protectionIP67 (IEC 60529)Oil resistance equivalent to IP67F (JIS C 0920:2003, Appendix 1)Material Case: PBT resin, Filled resin: Urethane resinMass Approx. 270 gMounting method M4 screwsPlease use more than 12 mm of the screw length.Ambient operating humidity25 to 85％RH(No dew condensation)Host communication interfaceEtherNet 10/100BASE-T1. Rating performanceAmbient storage temperature-25 to 70℃（No freezing.）Ambient storage humidity25 to 85％RH(No dew condensation)Host communication protocolMODBUS TCPAccessory75 × 75 × 40 mm (excluding protruding parts)-10 to 55℃（No freezing.）Instruction Seet: 1 sheetDescription of Regulations and Standard: 1 sheetIP Address label: 1 sheet(Unit ： mm)4. Dimensions3. Part Names and functions2. InstallationConnectorNORM/ERRLINK/ACTRUNRFNORM/ERR NORM/ERRNORM/ERRAttaching Reader/Writer to the cable1. Hold the cable connector, and insert the cable connector into the Reader/Writer connector.2. Turn the threaded portion of the cable connector clockwise to lock it in place. Recommended tightening torque: 0.39 to 0.49 N・mSAFETY PRECATIONSMeaning of Signal WordsWarningWARNINGThese Products are not designed to be used either directly or indirectly in applications that detect human presence for the purpose of maintaining safety. Do not use these Products as a sensing means for protecting human lives.InIndicates a potentially hazardous situation which, if not avoided, will result in minor or moderateinjury, or may result in serious injury or death. Additionally, there may be significantproperty damage.WARNINGMeaning of Alert SymbolsIndicates general prohibitions for which there is no specific symbol.・Use an exclusive cable as model V680S-A40, V680S-A41, or V680S-A42.3. Using・Do not bend the cable past a bending radius of 40 mm. The cable may be disconnected.・If you find an abnormal operation of the product, immediately stop its operation and turn OFF the power supply. Consult with an OMRON representative.4. Cleaning・Do not clean the Products with paint thinner, benzene, acetone, or kerosene.5. Disposing・Dispose of the Products as industrial waste. Mount the Reader/Writer with four M4 screws with spring washers and flat washers as shown above. Recommended tightening torque: 1.2 N・mM4 screwSpring washerFlat washer65±0.265±0.2 Four, M4Mounting Hole Dimensions6575(17) 926575323117.55.9640ConnectorM12 threaded sectionSeven, Operation indicators Four, 4.5-dia.mounting holesStandards label（2）Status indicatorsRUNRFFlashing greengreenyellowColorNamegreenFlash while the Reader/Writer is operating in Safe mode.Lighting while the Reader/Writer is operating normally.Lighting during communication for RF Tag.DescriptionLighting when the communications finish with no error.redLighting once when an error occurs during communications with the host device, or during communications with an RF Tag.Lighting when unrecoverable error occurs.Flashing red Flash when recoverable error occurs.(Configuration memory error, or Control signal wiring mistake, etc.)LINK/ACT green Lighting during linking normaly.NORM/ERRFlashing green Flash during detects a carrier.（1）ConnectorThe connector is used to connect the exclusive cable as model V680S-A40, V680S-A41, or V680S-A42.1234567812345FGTD-CONT24PRD+NamePIN No.678TD+RD-24NFrame groundEthernet send data -Control signal+24VEthernet receive data +FunctionEthernet send data +Ethernet receive data -0V(Drain wire)OrangePurpleBrownGreen/White(stripe)Orange/White(stripe)GreenBlue--PurpleBrown-The color of the wiring of the V680S-A41.--BlueThe color of the wiring of the V680S-A42.Not lit Turn off when power is not supplied.Not lit Turn off when not in communication with the RF tags.Not lit Turn off when the standby state.Not lit Turn off when the ethernet cable is not connected.

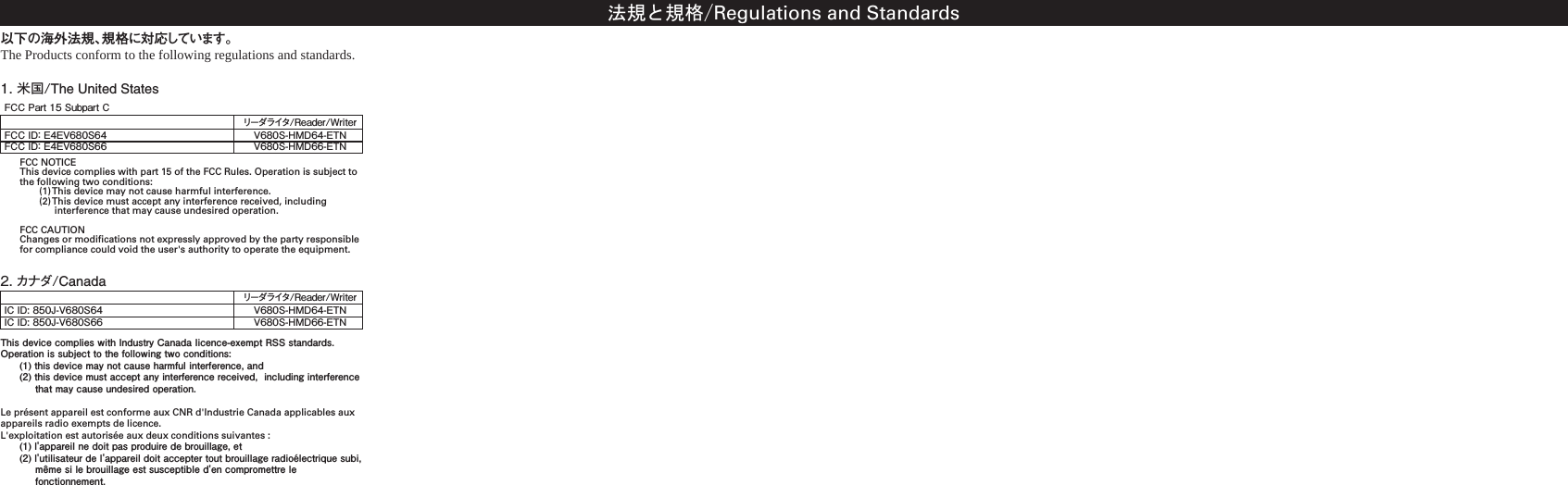

法規と規格/Regulations and Standards以下の海外法規、規格に対応しています。The Products conform to the following regulations and standards.2. カナダ/CanadaThis device complies with Industry Canada Iicence-exempt RSS standards. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.FCC NOTICEThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.FCC CAUTIONChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.1. 米国/The United StatesFCC ID： E4EV680S64FCC ID： E4EV680S66リーダライタ/Reader/WriterV680S-HMD64-ETNV680S-HMD66-ETNFCC Part 15 Subpart CIC ID: 850J-V680S64IC ID: 850J-V680S66リーダライタ/Reader/WriterV680S-HMD64-ETNV680S-HMD66-ETN
