P2 Mobile Technologies X20 MeshRanger X20 Dual 5GHz 802.11ac User Manual 2AD6M X20 01 22

P2 Mobile Technologies Limited MeshRanger X20 Dual 5GHz 802.11ac 2AD6M X20 01 22

2AD6M-X20_User Manual_01.22

 P2 MOBILE TECHNOLOGIES LIMITED   X20 QUICK START GUIDE

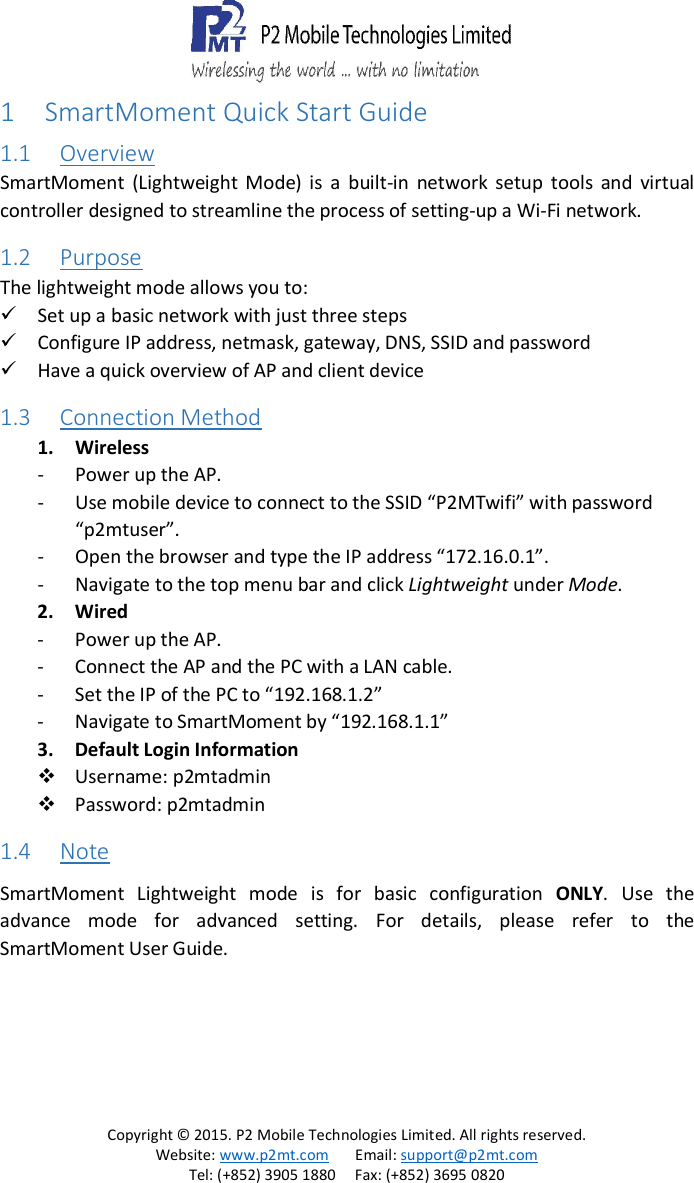

  Copyright © 2015. P2 Mobile Technologies Limited. All rights reserved. Website: www.p2mt.com       Email: support@p2mt.com Tel: (+852) 3905 1880     Fax: (+852) 3695 0820 1 SmartMoment Quick Start Guide 1.1 Overview SmartMoment  (Lightweight  Mode)  is  a  built-in  network  setup  tools  and  virtual controller designed to streamline the process of setting-up a Wi-Fi network.  1.2 Purpose The lightweight mode allows you to:  Set up a basic network with just three steps  Configure IP address, netmask, gateway, DNS, SSID and password  Have a quick overview of AP and client device 1.3 Connection Method 1. Wireless - Power up the AP. - Use mobile device to connect to the SSID “P2MTwifi” with password “p2mtuser”. - Open the browser and type the IP address “172.16.0.1”. - Navigate to the top menu bar and click Lightweight under Mode.  2. Wired - Power up the AP. - Connect the AP and the PC with a LAN cable. - Set the IP of the PC to “192.168.1.2” - Navigate to SmartMoment by “192.168.1.1” 3. Default Login Information  Username: p2mtadmin  Password: p2mtadmin 1.4 Note SmartMoment  Lightweight  mode  is  for  basic  configuration  ONLY.  Use  the advance  mode  for  advanced  setting.  For  details,  please  refer  to  the SmartMoment User Guide.

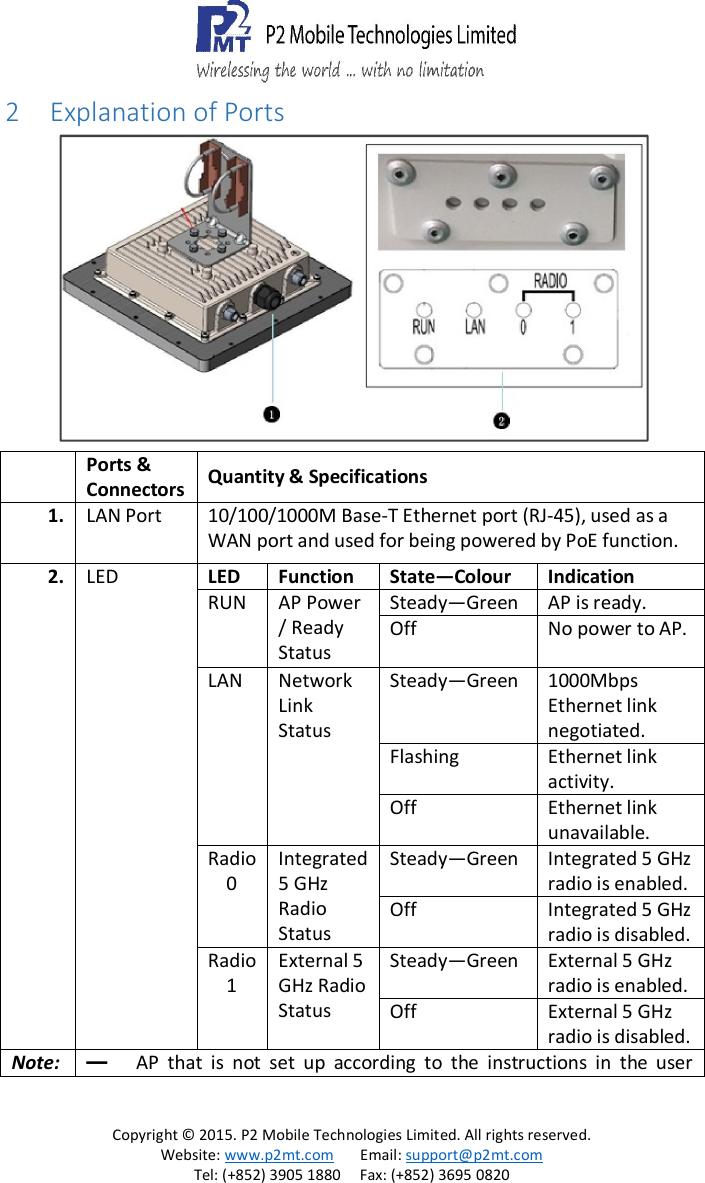

  Copyright © 2015. P2 Mobile Technologies Limited. All rights reserved. Website: www.p2mt.com       Email: support@p2mt.com Tel: (+852) 3905 1880     Fax: (+852) 3695 0820 2 Explanation of Ports   Ports & Connectors Quantity & Specifications 1. LAN Port  10/100/1000M Base-T Ethernet port (RJ-45), used as a WAN port and used for being powered by PoE function. 2. LED LED Function State—Colour  Indication RUN  AP Power / Ready Status Steady—Green  AP is ready. Off  No power to AP. LAN  Network Link Status Steady—Green  1000Mbps Ethernet link negotiated. Flashing   Ethernet link activity. Off  Ethernet link unavailable. Radio 0 Integrated 5 GHz Radio Status Steady—Green  Integrated 5 GHz radio is enabled. Off  Integrated 5 GHz radio is disabled. Radio 1 External 5 GHz Radio Status Steady—Green  External 5 GHz radio is enabled. Off  External 5 GHz radio is disabled. Note: ━ AP  that  is  not  set  up  according  to  the  instructions  in  the  user

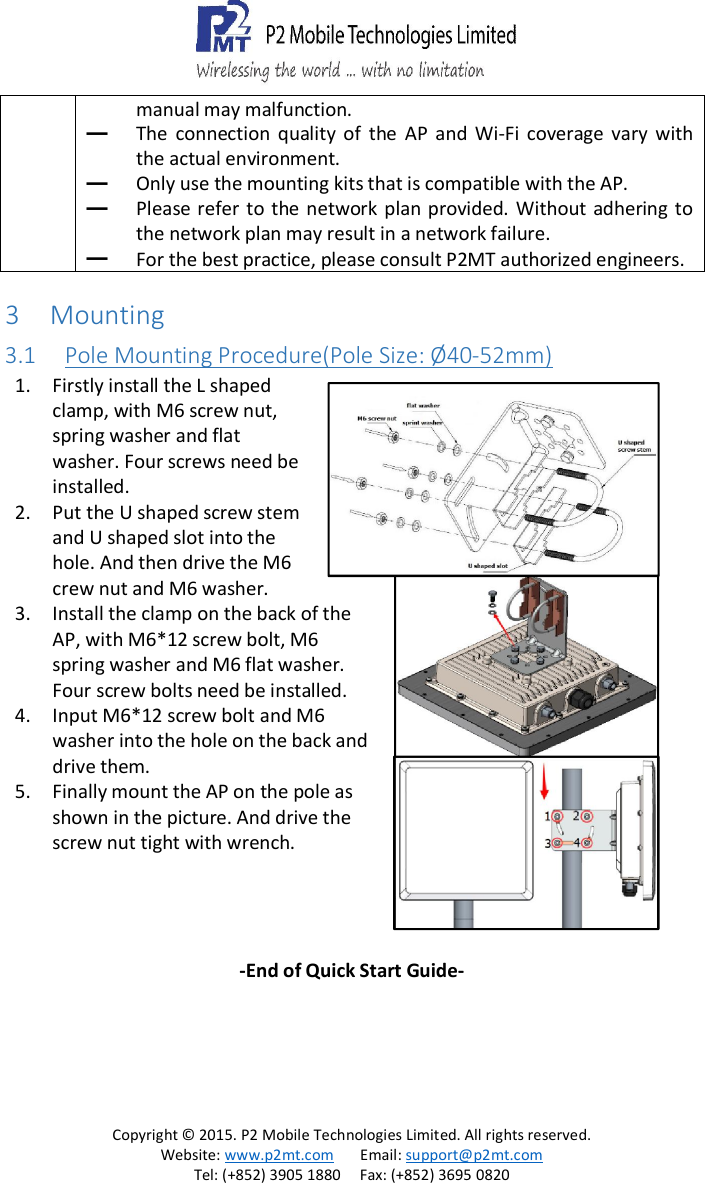

  Copyright © 2015. P2 Mobile Technologies Limited. All rights reserved. Website: www.p2mt.com       Email: support@p2mt.com Tel: (+852) 3905 1880     Fax: (+852) 3695 0820 manual may malfunction. ━ The  connection  quality  of  the  AP  and  Wi-Fi  coverage  vary  with the actual environment. ━ Only use the mounting kits that is compatible with the AP. ━ Please refer  to  the  network  plan provided.  Without  adhering  to the network plan may result in a network failure. ━ For the best practice, please consult P2MT authorized engineers. 3 Mounting 3.1 Pole Mounting Procedure(Pole Size: Ø40-52mm) 1. Firstly install the L shaped clamp, with M6 screw nut, spring washer and flat washer. Four screws need be installed. 2. Put the U shaped screw stem and U shaped slot into the hole. And then drive the M6 crew nut and M6 washer. 3. Install the clamp on the back of the AP, with M6*12 screw bolt, M6 spring washer and M6 flat washer. Four screw bolts need be installed. 4. Input M6*12 screw bolt and M6 washer into the hole on the back and drive them. 5. Finally mount the AP on the pole as shown in the picture. And drive the screw nut tight with wrench.  -End of Quick Start Guide-

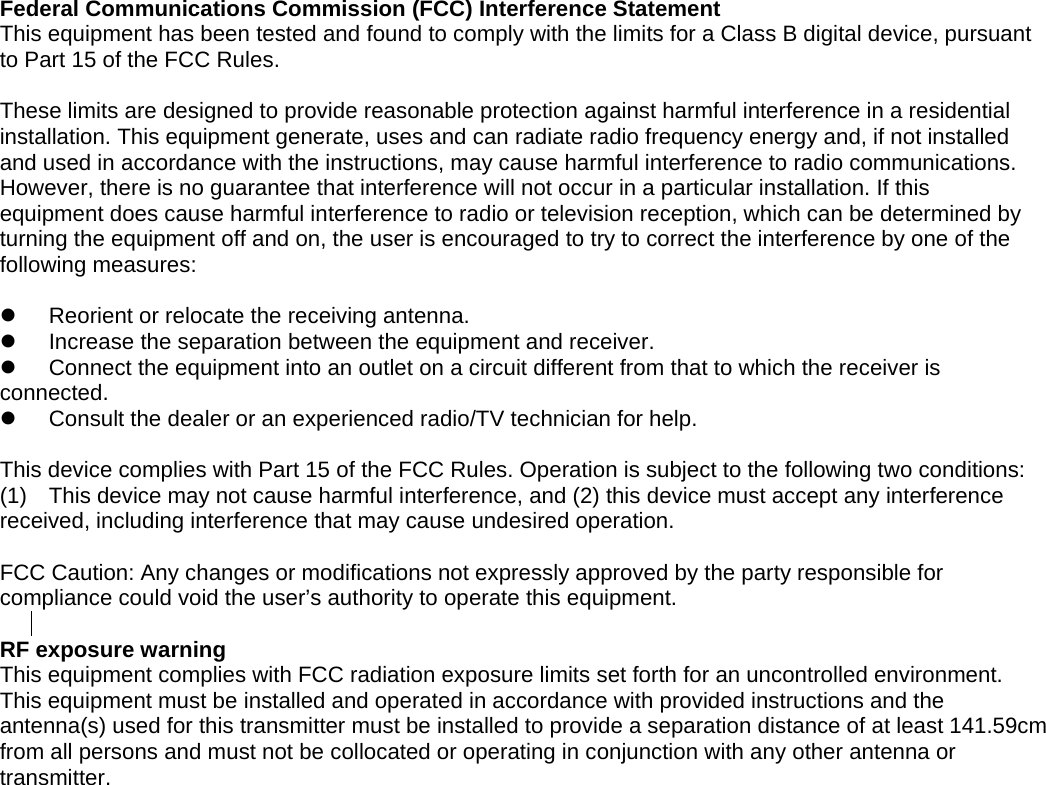

to provide a separation distance of at least 141.59cm  Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:    Reorient or relocate the receiving antenna.   Increase the separation between the equipment and receiver.   Connect the equipment into an outlet on a circuit different from that to which the receiver is     connected.   Consult the dealer or an experienced radio/TV technician for help.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)  This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.  RF exposure warning   This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.   This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. 
