PAPAGO GOSAFEWIFI Driving Recorder User Manual zqcs3

PAPAGO INC. Driving Recorder zqcs3

UserMan

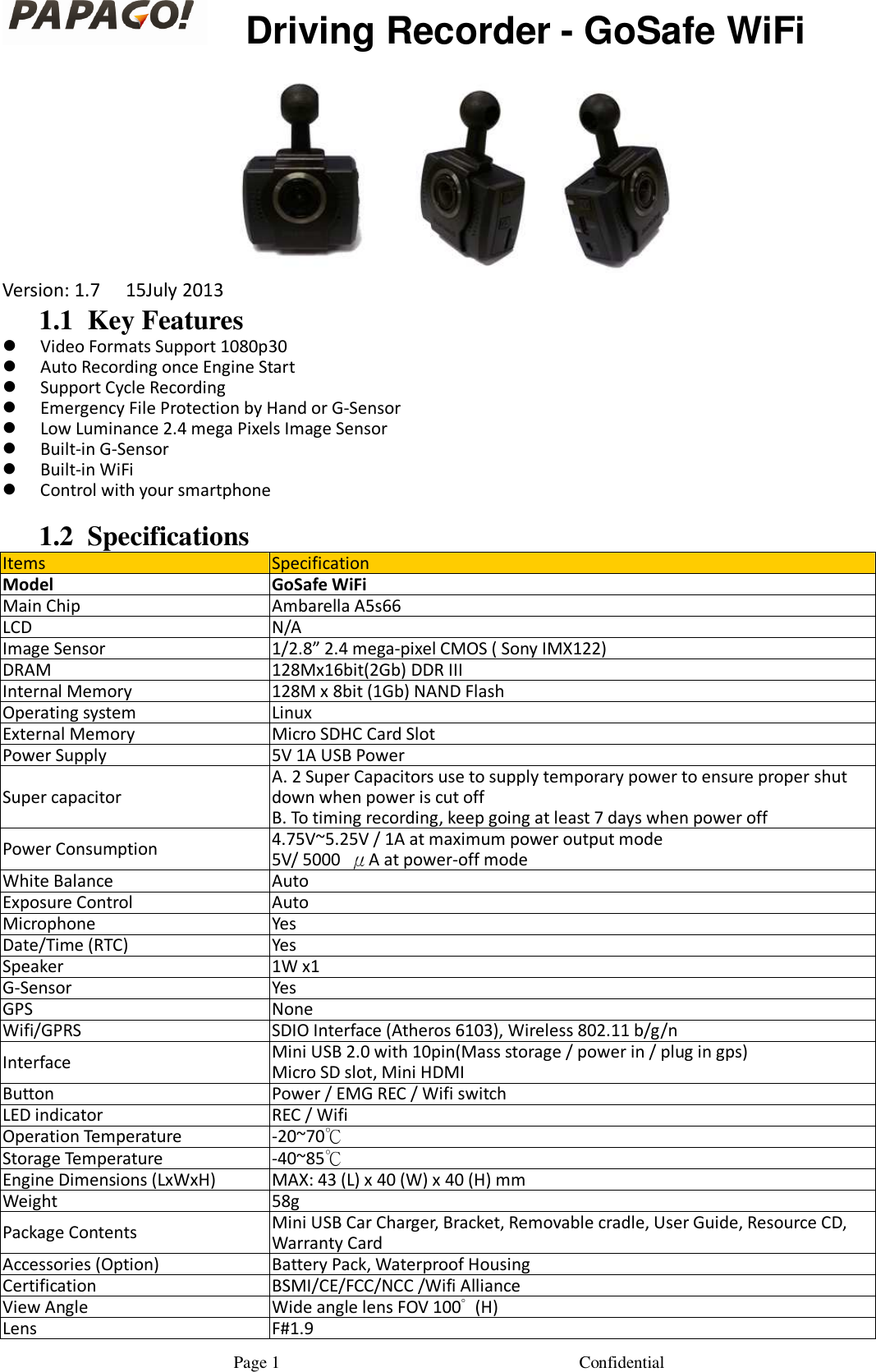

Page 1 Confidential Driving Recorder - GoSafe WiFi Version: 1.7 15July 2013 1.1 Key Features  Video Formats Support 1080p30  Auto Recording once Engine Start  Support Cycle Recording  Emergency File Protection by Hand or G-Sensor  Low Luminance 2.4 mega Pixels Image Sensor  Built-in G-Sensor  Built-in WiFi  Control with your smartphone 1.2 Specifications Items Specification Model GoSafe WiFi Main Chip Ambarella A5s66 LCD N/A Image Sensor 1/2.8” 2.4 mega-pixel CMOS ( Sony IMX122) DRAM 128Mx16bit(2Gb) DDR III Internal Memory 128M x 8bit (1Gb) NAND Flash Operating system Linux External Memory Micro SDHC Card Slot Power Supply 5V 1A USB Power Super capacitor A. 2 Super Capacitors use to supply temporary power to ensure proper shut down when power is cut off B. To timing recording, keep going at least 7 days when power off Power Consumption 4.75V~5.25V / 1A at maximum power output mode 5V/ 5000 μA at power-off mode White Balance Auto Exposure Control Auto Microphone Yes Date/Time (RTC) Yes Speaker 1W x1 G-Sensor Yes GPS None Wifi/GPRS SDIO Interface (Atheros 6103), Wireless 802.11 b/g/n Interface Mini USB 2.0 with 10pin(Mass storage / power in / plug in gps) Micro SD slot, Mini HDMI Button Power / EMG REC / Wifi switch LED indicator REC / Wifi Operation Temperature -20~70℃ Storage Temperature -40~85℃ Engine Dimensions (LxWxH) MAX: 43 (L) x 40 (W) x 40 (H) mm Weight 58g Package Contents Mini USB Car Charger, Bracket, Removable cradle, User Guide, Resource CD, Warranty Card Accessories (Option) Battery Pack, Waterproof Housing Certification BSMI/CE/FCC/NCC /Wifi Alliance View Angle Wide angle lens FOV 100° (H) Lens F#1.9

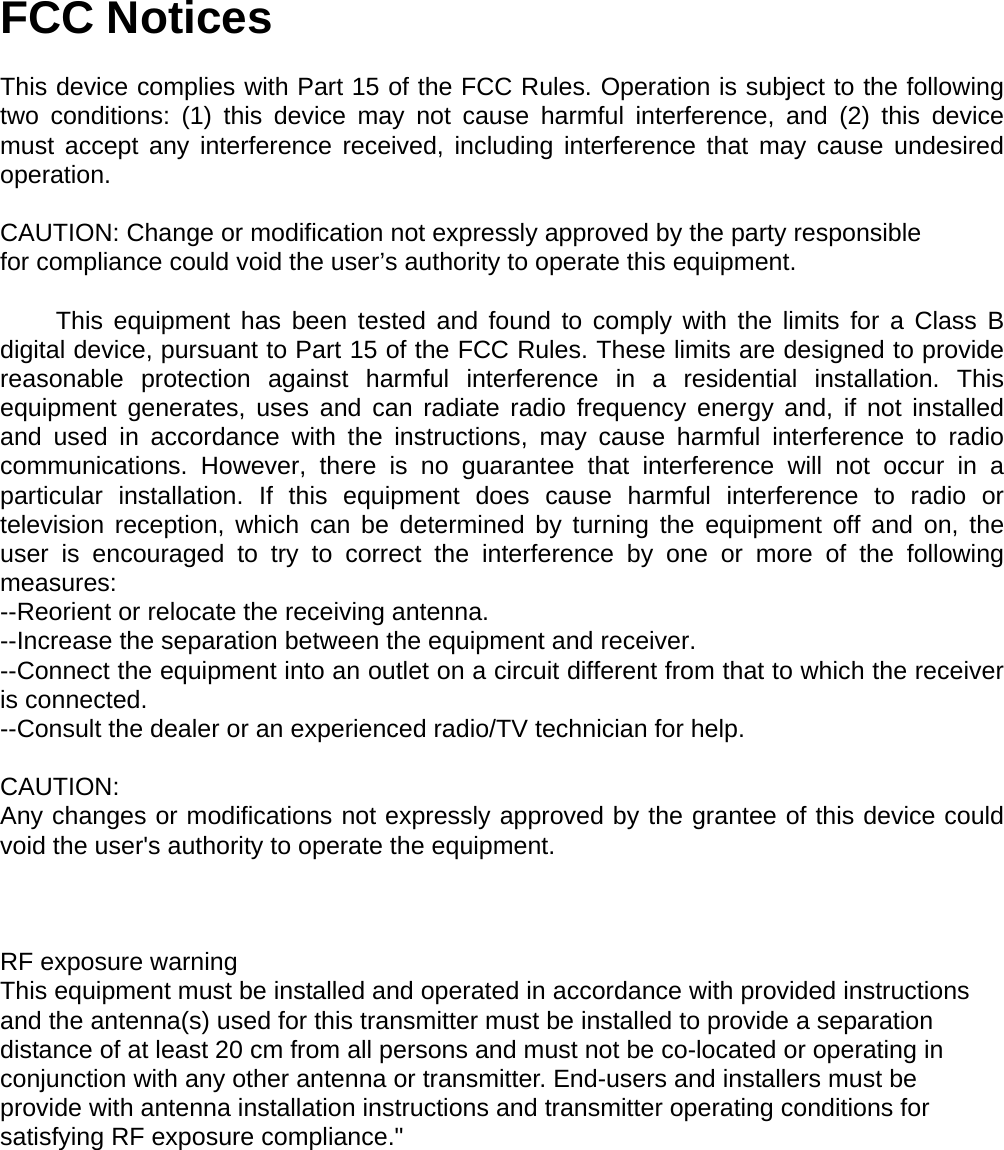

FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance."
