PHAETON PH-01 LED light Bluetooth speaker User Manual

PHAETON MANUFACTURING LLC. LED light Bluetooth speaker Users Manual

Users Manual

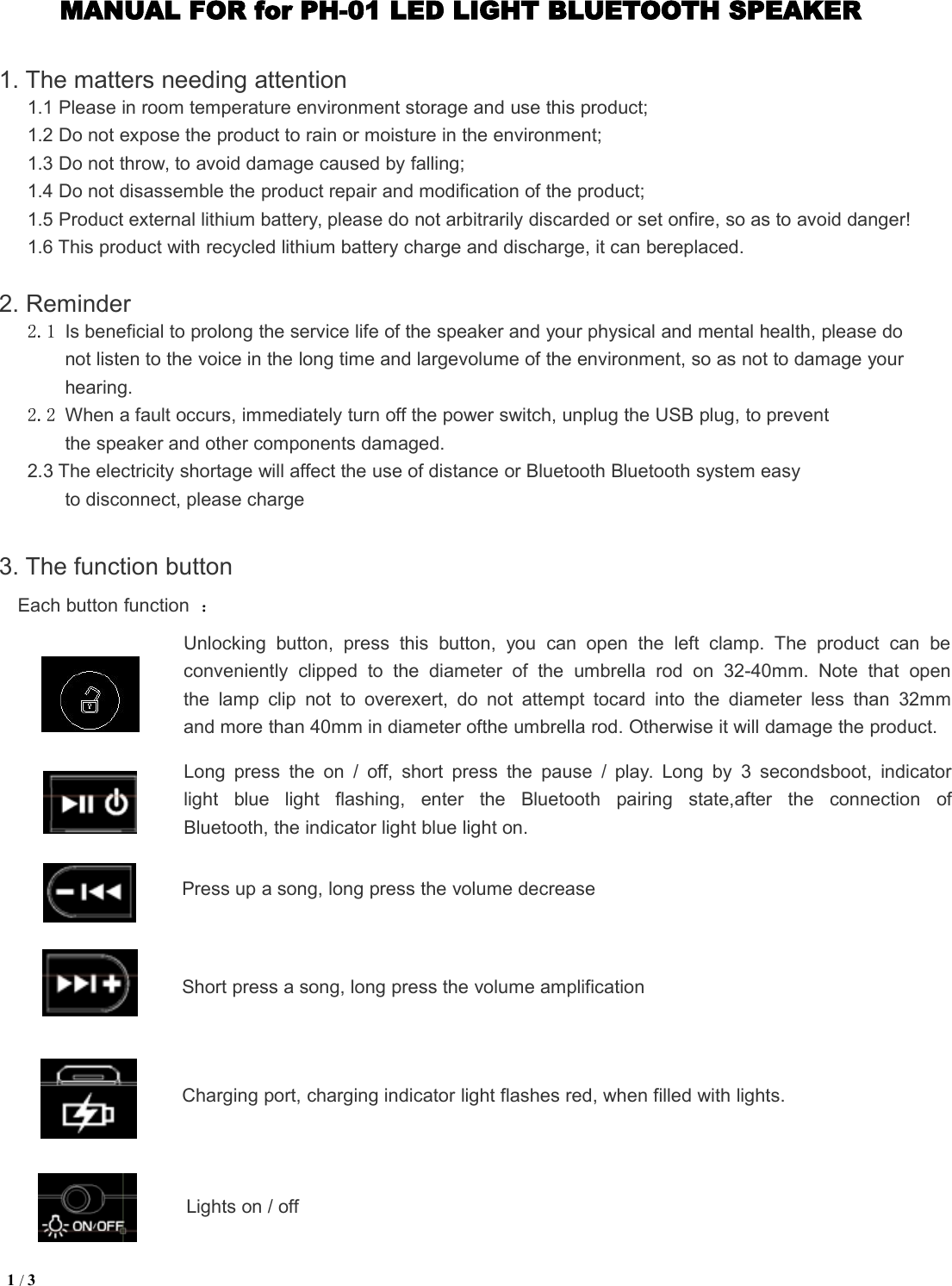

1/3MANUAL FOR for PH-01 LED LIGHT BLUETOOTH SPEAKER1. The matters needing attention1.1 Please in room temperature environment storage and use this product;1.2 Do not expose the product to rain or moisture in the environment;1.3 Do not throw, to avoid damage caused by falling;1.4 Do not disassemble the product repair and modification of the product;1.5 Product external lithium battery, please do not arbitrarily discarded or set onfire, so as to avoid danger!1.6 This product with recycled lithium battery charge and discharge, it can bereplaced.2. Reminder2.1 Is beneficial to prolong the service life of the speaker and your physical and mental health, please donot listen to the voice in the long time and largevolume of the environment, so as not to damage yourhearing.2.2 When a fault occurs, immediately turn off the power switch, unplug the USB plug, to preventthe speaker and other components damaged.2.3 The electricity shortage will affect the use of distance or Bluetooth Bluetooth system easyto disconnect, please charge3. The function buttonEach button function ：Unlocking button, press this button, you can open the left clamp. The product can beconveniently clipped to the diameter of the umbrella rod on 32-40mm. Note that openthe lamp clip not to overexert, do not attempt tocard into the diameter less than 32mmand more than 40mm in diameter ofthe umbrella rod. Otherwise it will damage the product.Long press the on / off, short press the pause / play. Long by 3 secondsboot, indicatorlight blue light flashing, enter the Bluetooth pairing state,after the connection ofBluetooth, the indicator light blue light on.Press up a song, long press the volume decreaseShort press a song, long press the volume amplificationCharging port, charging indicator light flashes red, when filled with lights.Lights on / off

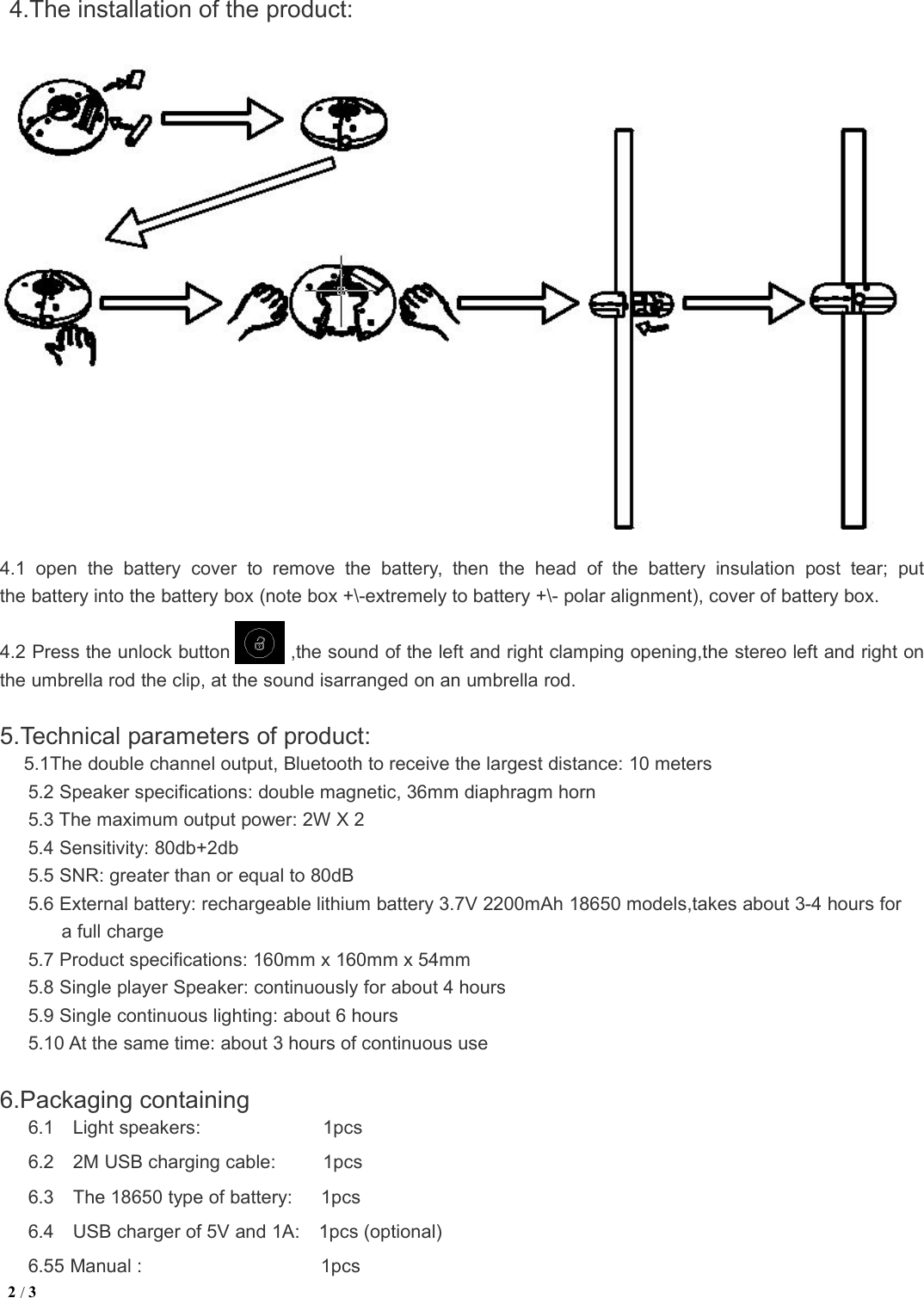

2/34.The installation of the product:4.1 open the battery cover to remove the battery, then the head of the battery insulation post tear; putthe battery into the battery box (note box +\-extremely to battery +\- polar alignment), cover of battery box.4.2 Press the unlock button ,the sound of the left and right clamping opening,the stereo left and right onthe umbrella rod the clip, at the sound isarranged on an umbrella rod.5.Technical parameters of product:5.1The double channel output, Bluetooth to receive the largest distance: 10 meters5.2 Speaker specifications: double magnetic, 36mm diaphragm horn5.3 The maximum output power: 2W X 25.4 Sensitivity: 80db+2db5.5 SNR: greater than or equal to 80dB5.6 External battery: rechargeable lithium battery 3.7V 2200mAh 18650 models,takes about 3-4 hours fora full charge5.7 Product specifications: 160mm x 160mm x 54mm5.8 Single player Speaker: continuously for about 4 hours5.9 Single continuous lighting: about 6 hours5.10 At the same time: about 3 hours of continuous use6.Packaging containing6.1 Light speakers: 1pcs6.2 2M USB charging cable: 1pcs6.3 The 18650 type of battery: 1pcs6.4 USB charger of 5V and 1A: 1pcs (optional)6.55 Manual : 1pcs

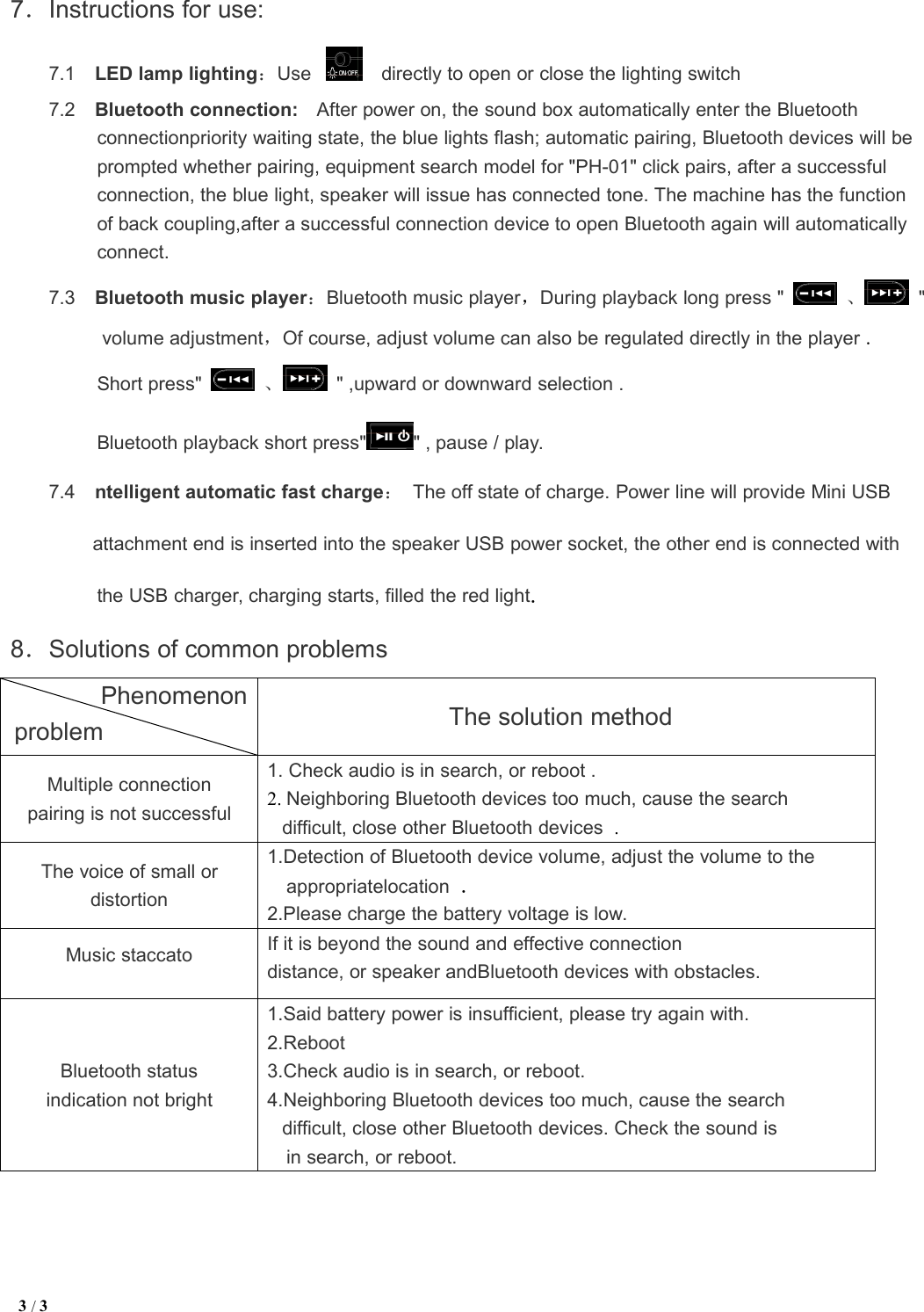

3/37．Instructions for use:7.1 LED lamp lighting：Use directly to open or close the lighting switch7.2 Bluetooth connection: After power on, the sound box automatically enter the Bluetoothconnectionpriority waiting state, the blue lights flash; automatic pairing, Bluetooth devices will beprompted whether pairing, equipment search model for "PH-01" click pairs, after a successfulconnection, the blue light, speaker will issue has connected tone. The machine has the functionof back coupling,after a successful connection device to open Bluetooth again will automaticallyconnect.7.3 Bluetooth music player：Bluetooth music player，During playback long press " 、"volume adjustment，Of course, adjust volume can also be regulated directly in the player .Short press" 、" ,upward or downward selection .Bluetooth playback short press" " , pause / play.7.4 ntelligent automatic fast charge：The off state of charge. Power line will provide Mini USBattachment end is inserted into the speaker USB power socket, the other end is connected withthe USB charger, charging starts, filled the red light.8．Solutions of common problemsThe solution methodMultiple connectionpairing is not successful1. Check audio is in search, or reboot .2. Neighboring Bluetooth devices too much, cause the searchdifficult, close other Bluetooth devices .The voice of small ordistortion1.Detection of Bluetooth device volume, adjust the volume to theappropriatelocation .2.Please charge the battery voltage is low.Music staccatoIf it is beyond the sound and effective connectiondistance, or speaker andBluetooth devices with obstacles.Bluetooth statusindication not bright1.Said battery power is insufficient, please try again with.2.Reboot3.Check audio is in search, or reboot.4.Neighboring Bluetooth devices too much, cause the searchdifficult, close other Bluetooth devices. Check the sound isin search, or reboot.Phenomenonproblem

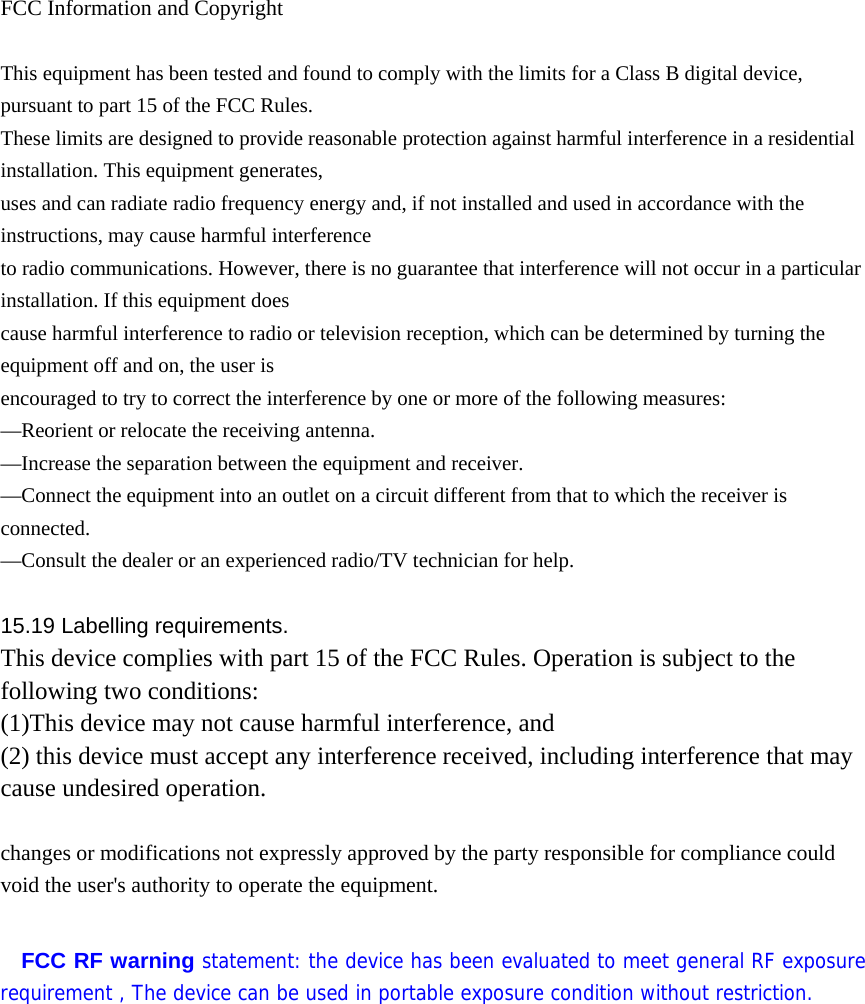

FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction.
