17-18Appendix17

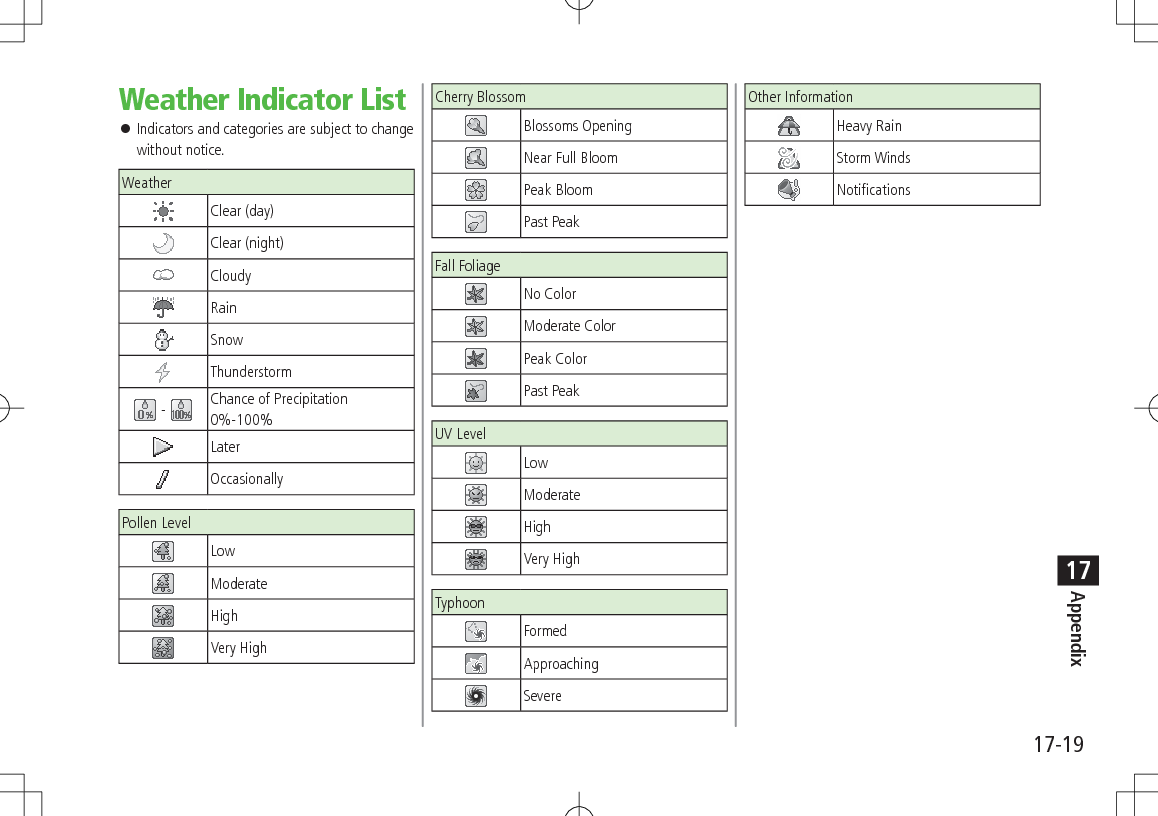

17-19Appendix17Weather Indicator List ⿟Indicators and categories are subject to change without notice.Weather Clear (day) Clear (night) Cloudy Rain Snow Thunderstorm - Chance of Precipitation 0%-100% Later Occasionally Pollen Level Low Moderate High Very High Cherry Blossom Blossoms Opening Near Full Bloom Peak Bloom Past Peak Fall Foliage No Color Moderate Color Peak Color Past Peak UV Level Low Moderate High Very High Typhoon Formed Approaching Severe Other InformationHeavy Rain Storm Winds Notifications

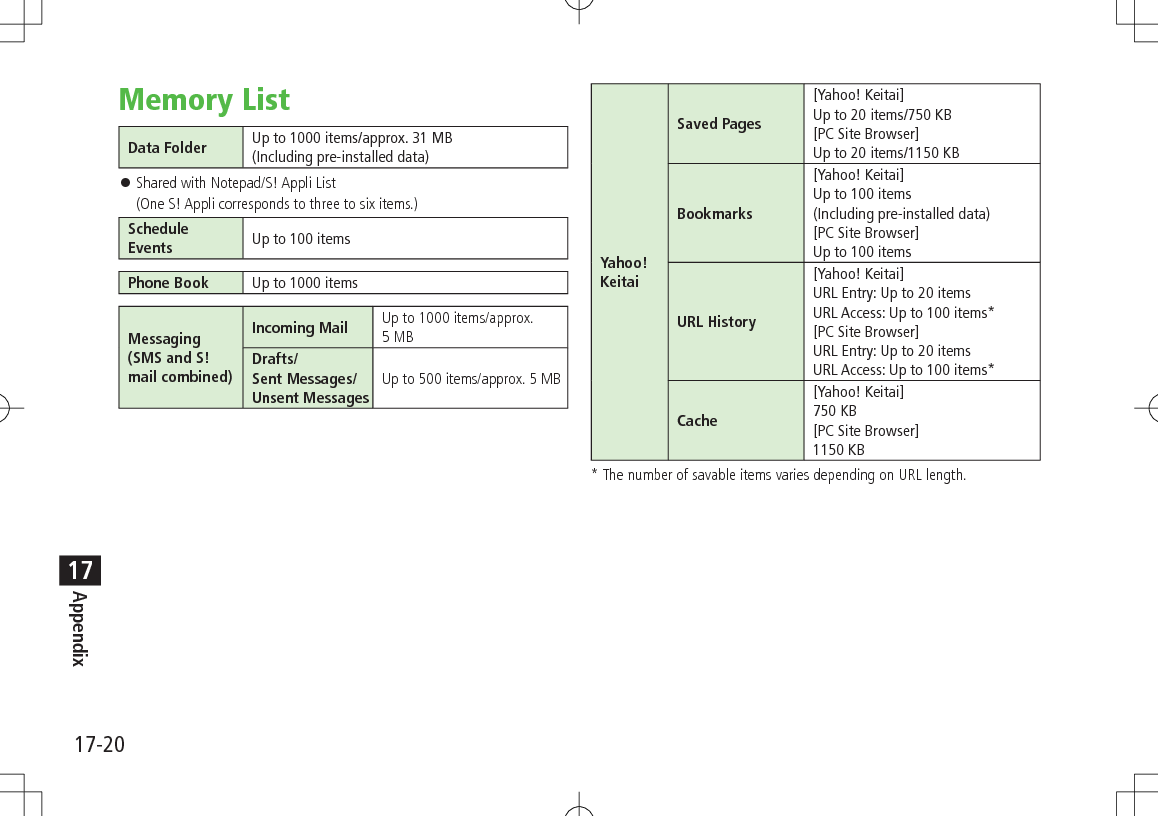

17-20Appendix17Memory ListData Folder Up to 1000 items/approx. 31 MB(Including pre-installed data) ⿟Shared with Notepad/S! Appli List (One S! Appli corresponds to three to six items.)Schedule Events Up to 100 itemsPhone Book Up to 1000 itemsMessaging (SMS and S! mail combined)Incoming Mail Up to 1000 items/approx. 5 MBDrafts/ Sent Messages/ Unsent MessagesUp to 500 items/approx. 5 MBYahoo!KeitaiSaved Pages[Yahoo! Keitai]Up to 20 items/750 KB[PC Site Browser]Up to 20 items/1150 KBBookmarks[Yahoo! Keitai]Up to 100 items(Including pre-installed data)[PC Site Browser]Up to 100 itemsURL History[Yahoo! Keitai]URL Entry: Up to 20 itemsURL Access: Up to 100 items*[PC Site Browser]URL Entry: Up to 20 itemsURL Access: Up to 100 items*Cache[Yahoo! Keitai]750 KB[PC Site Browser]1150 KB* The number of savable items varies depending on URL length.

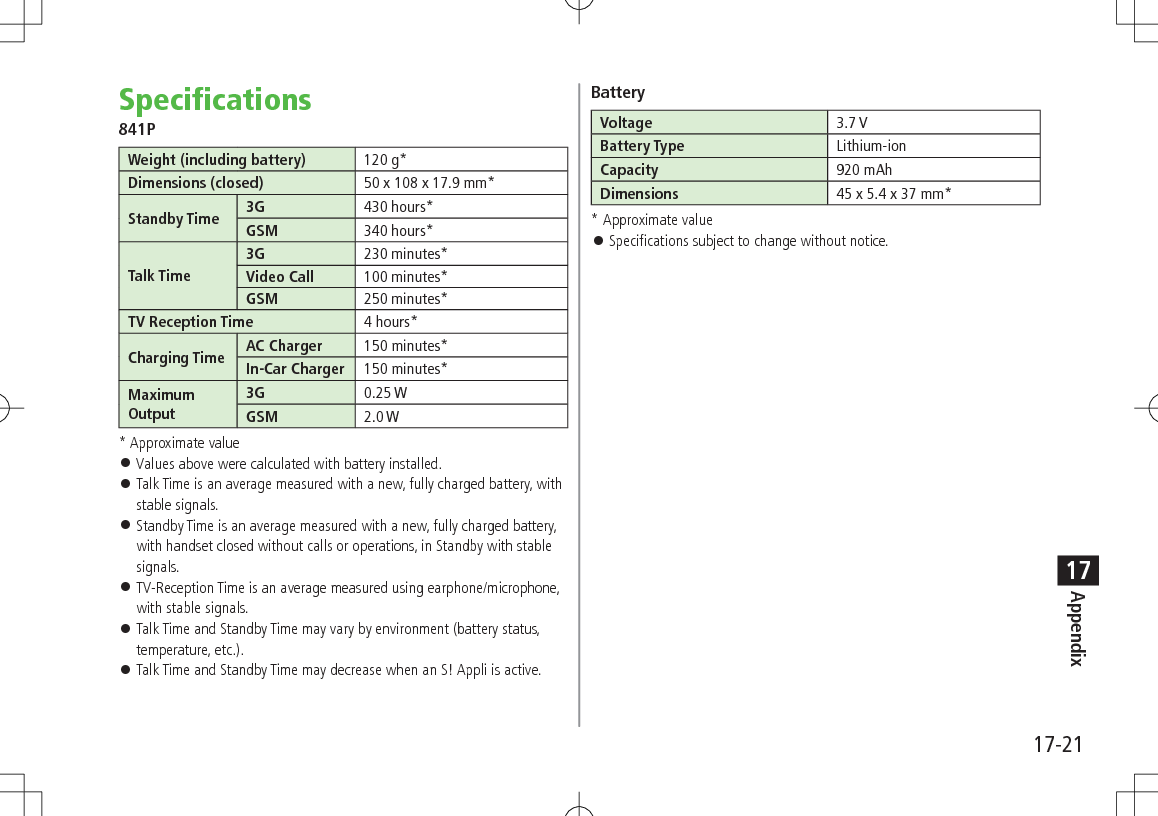

17-21Appendix17Specifications841PWeight (including battery) 120 g*Dimensions (closed) 50 x 108 x 17.9 mm*Standby Time 3G 430 hours*GSM 340 hours*Talk Time3G 230 minutes*Video Call 100 minutes*GSM 250 minutes*TV Reception Time 4 hours*Charging Time AC Charger 150 minutes*In-Car Charger 150 minutes*MaximumOutput3G 0.25 WGSM 2.0 W* Approximate value ⿟Values above were calculated with battery installed. ⿟Talk Time is an average measured with a new, fully charged battery, with stable signals. ⿟Standby Time is an average measured with a new, fully charged battery, with handset closed without calls or operations, in Standby with stable signals. ⿟TV-Reception Time is an average measured using earphone/microphone, with stable signals. ⿟Talk Time and Standby Time may vary by environment (battery status, temperature, etc.). ⿟Talk Time and Standby Time may decrease when an S! Appli is active.BatteryVoltage 3.7 VBattery Type Lithium-ionCapacity 920 mAhDimensions 45 x 5.4 x 37 mm** Approximate value ⿟Specifications subject to change without notice.

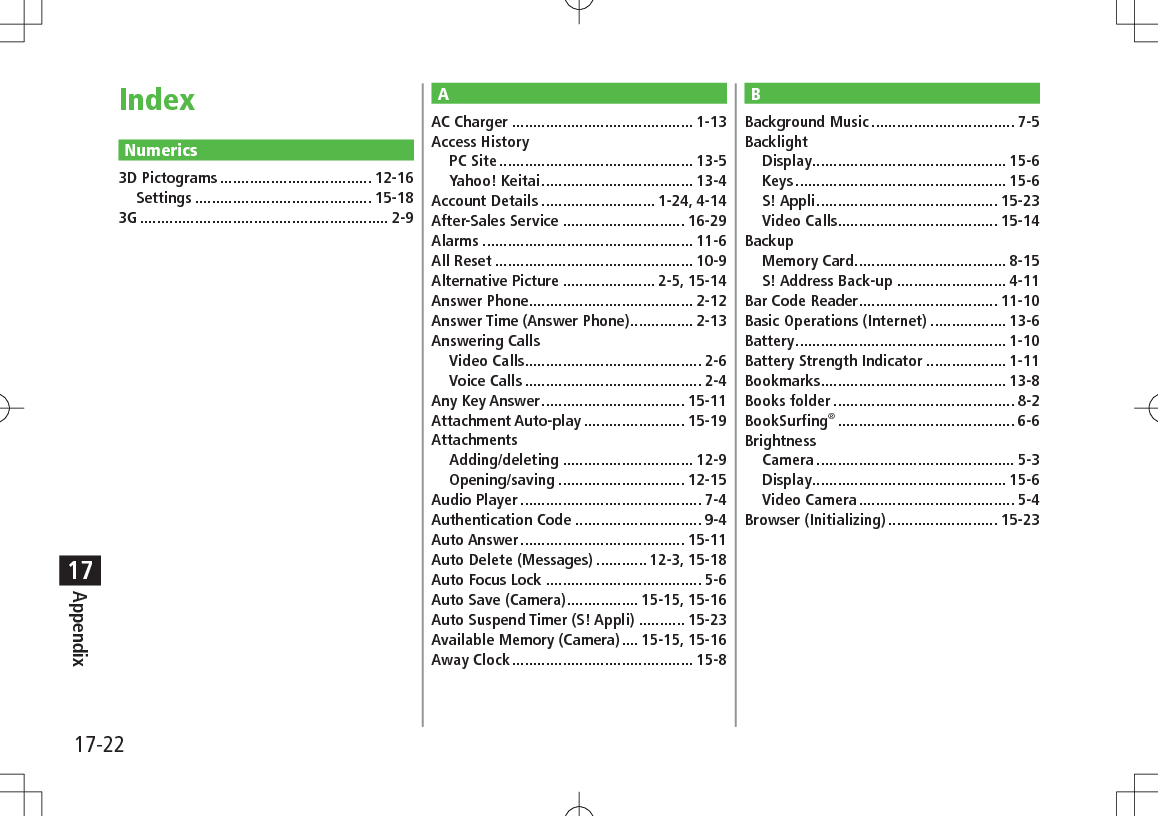

17-22Appendix17Numerics3D Pictograms .................................... 12-16Settings .......................................... 15-183G ........................................................... 2-9BBackground Music .................................. 7-5BacklightDisplay .............................................. 15-6Keys .................................................. 15-6S! Appli ........................................... 15-23Video Calls...................................... 15-14BackupMemory Card .................................... 8-15S! Address Back-up .......................... 4-11Bar Code Reader ................................. 11-10Basic Operations (Internet) .................. 13-6Battery .................................................. 1-10Battery Strength Indicator ................... 1-11Bookmarks ............................................ 13-8Books folder ........................................... 8-2BookSurfing® .......................................... 6-6BrightnessCamera ............................................... 5-3Display .............................................. 15-6Video Camera ..................................... 5-4Browser (Initializing) .......................... 15-23AAC Charger ........................................... 1-13Access HistoryPC Site .............................................. 13-5Yahoo! Keitai .................................... 13-4Account Details ........................... 1-24, 4-14After-Sales Service ............................. 16-29Alarms .................................................. 11-6All Reset ............................................... 10-9Alternative Picture ...................... 2-5, 15-14Answer Phone....................................... 2-12Answer Time (Answer Phone) ............... 2-13Answering CallsVideo Calls.......................................... 2-6Voice Calls .......................................... 2-4Any Key Answer .................................. 15-11Attachment Auto-play ........................ 15-19AttachmentsAdding/deleting ............................... 12-9Opening/saving .............................. 12-15Audio Player ........................................... 7-4Authentication Code .............................. 9-4Auto Answer ....................................... 15-11Auto Delete (Messages) ............ 12-3, 15-18Auto Focus Lock ..................................... 5-6Auto Save (Camera) ................. 15-15, 15-16Auto Suspend Timer (S! Appli) ........... 15-23Available Memory (Camera) .... 15-15, 15-16Away Clock ........................................... 15-8Index

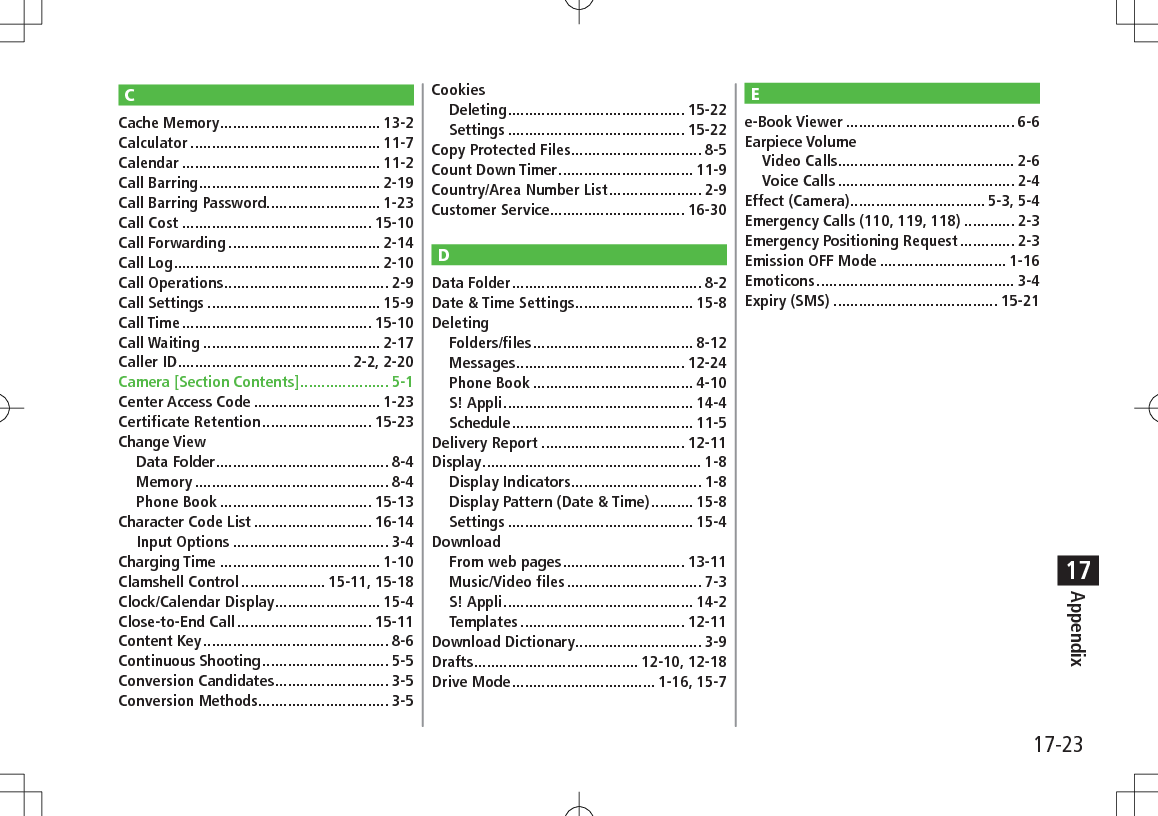

17-23Appendix17CCache Memory ...................................... 13-2Calculator ............................................. 11-7Calendar ............................................... 11-2Call Barring ........................................... 2-19Call Barring Password........................... 1-23Call Cost ............................................. 15-10Call Forwarding .................................... 2-14Call Log ................................................. 2-10Call Operations ....................................... 2-9Call Settings ......................................... 15-9Call Time ............................................. 15-10Call Waiting .......................................... 2-17Caller ID ......................................... 2-2, 2-20Camera [Section Contents] ..................... 5-1Center Access Code .............................. 1-23Certificate Retention .......................... 15-23Change ViewData Folder ......................................... 8-4Memory .............................................. 8-4Phone Book .................................... 15-13Character Code List ............................ 16-14Input Options ..................................... 3-4Charging Time ...................................... 1-10Clamshell Control .................... 15-11, 15-18Clock/Calendar Display ......................... 15-4Close-to-End Call ................................ 15-11Content Key ............................................ 8-6Continuous Shooting .............................. 5-5Conversion Candidates ........................... 3-5Conversion Methods............................... 3-5CookiesDeleting .......................................... 15-22Settings .......................................... 15-22Copy Protected Files ............................... 8-5Count Down Timer ................................ 11-9Country/Area Number List ...................... 2-9Customer Service................................ 16-30DData Folder ............................................. 8-2Date & Time Settings ............................ 15-8DeletingFolders/files ...................................... 8-12Messages ........................................ 12-24Phone Book ...................................... 4-10S! Appli ............................................. 14-4Schedule ........................................... 11-5Delivery Report .................................. 12-11Display .................................................... 1-8Display Indicators ............................... 1-8Display Pattern (Date & Time) .......... 15-8Settings ............................................ 15-4DownloadFrom web pages ............................. 13-11Music/Video files ................................ 7-3S! Appli ............................................. 14-2Templates ....................................... 12-11Download Dictionary .............................. 3-9Drafts ....................................... 12-10, 12-18Drive Mode .................................. 1-16, 15-7Ee-Book Viewer ........................................ 6-6Earpiece VolumeVideo Calls.......................................... 2-6Voice Calls .......................................... 2-4Effect (Camera) ................................ 5-3, 5-4Emergency Calls (110, 119, 118) ............ 2-3Emergency Positioning Request ............. 2-3Emission OFF Mode .............................. 1-16Emoticons ............................................... 3-4Expiry (SMS) ....................................... 15-21

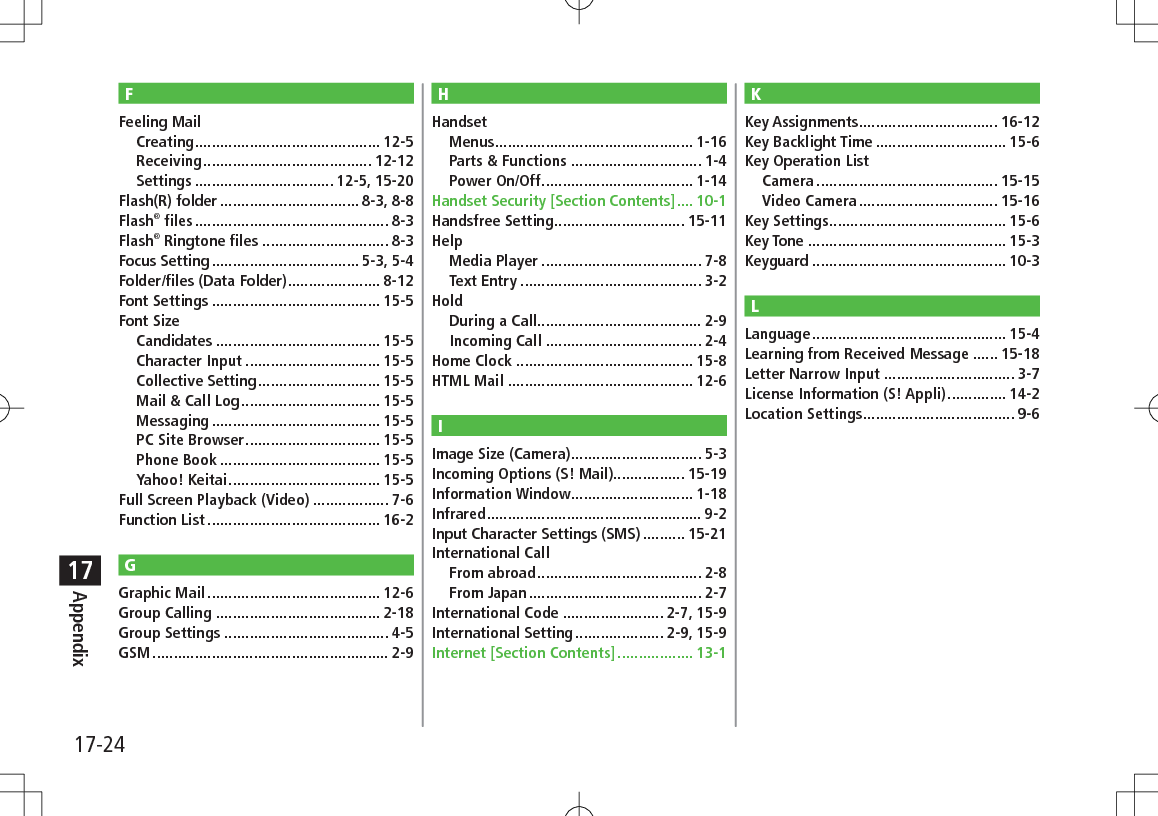

17-24Appendix17FFeeling MailCreating ............................................ 12-5Receiving ........................................ 12-12Settings ................................. 12-5, 15-20Flash(R) folder ................................. 8-3, 8-8Flash® files .............................................. 8-3Flash® Ringtone files .............................. 8-3Focus Setting ................................... 5-3, 5-4Folder/files (Data Folder) ...................... 8-12Font Settings ........................................ 15-5Font SizeCandidates ....................................... 15-5Character Input ................................ 15-5Collective Setting ............................. 15-5Mail & Call Log ................................. 15-5Messaging ........................................ 15-5PC Site Browser ................................ 15-5Phone Book ...................................... 15-5Yahoo! Keitai .................................... 15-5Full Screen Playback (Video) .................. 7-6Function List ......................................... 16-2GGraphic Mail ......................................... 12-6Group Calling ....................................... 2-18Group Settings ....................................... 4-5GSM ........................................................ 2-9HHandsetMenus ............................................... 1-16Parts & Functions ............................... 1-4Power On/Off .................................... 1-14Handset Security [Section Contents] .... 10-1Handsfree Setting ............................... 15-11HelpMedia Player ...................................... 7-8Text Entry ........................................... 3-2HoldDuring a Call....................................... 2-9Incoming Call ..................................... 2-4Home Clock .......................................... 15-8HTML Mail ............................................ 12-6IImage Size (Camera) ............................... 5-3Incoming Options (S! Mail)................. 15-19Information Window ............................. 1-18Infrared ................................................... 9-2Input Character Settings (SMS) .......... 15-21International CallFrom abroad ....................................... 2-8From Japan ......................................... 2-7International Code ........................ 2-7, 15-9International Setting ..................... 2-9, 15-9Internet [Section Contents] .................. 13-1KKey Assignments ................................. 16-12Key Backlight Time ............................... 15-6Key Operation ListCamera ........................................... 15-15Video Camera ................................. 15-16Key Settings .......................................... 15-6Key Tone ............................................... 15-3Keyguard .............................................. 10-3LLanguage .............................................. 15-4Learning from Received Message ...... 15-18Letter Narrow Input ............................... 3-7License Information (S! Appli) .............. 14-2Location Settings .................................... 9-6

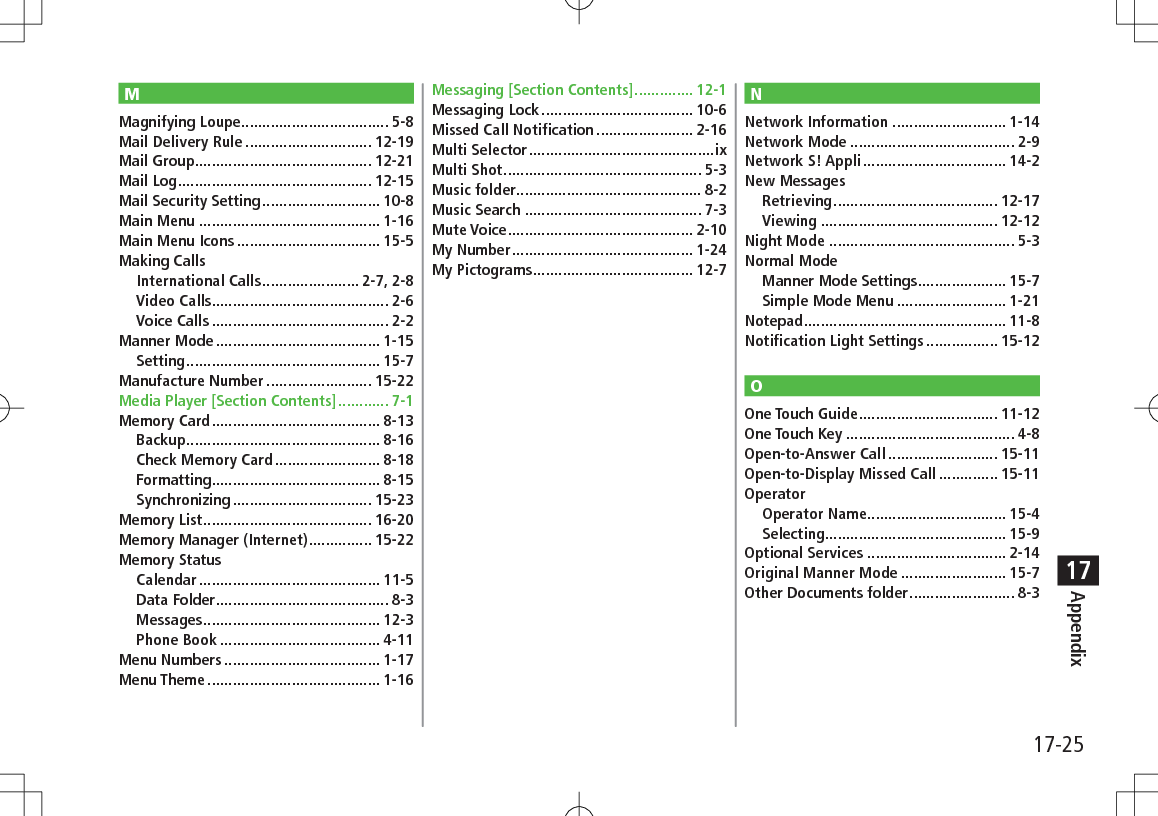

17-25Appendix17MMagnifying Loupe................................... 5-8Mail Delivery Rule .............................. 12-19Mail Group .......................................... 12-21Mail Log .............................................. 12-15Mail Security Setting ............................ 10-8Main Menu ........................................... 1-16Main Menu Icons .................................. 15-5Making CallsInternational Calls ....................... 2-7, 2-8Video Calls.......................................... 2-6Voice Calls .......................................... 2-2Manner Mode ....................................... 1-15Setting .............................................. 15-7Manufacture Number ......................... 15-22Media Player [Section Contents] ............ 7-1Memory Card ........................................ 8-13Backup .............................................. 8-16Check Memory Card ......................... 8-18Formatting ........................................ 8-15Synchronizing ................................. 15-23Memory List ........................................ 16-20Memory Manager (Internet) ............... 15-22Memory StatusCalendar ........................................... 11-5Data Folder ......................................... 8-3Messages .......................................... 12-3Phone Book ...................................... 4-11Menu Numbers ..................................... 1-17Menu Theme ......................................... 1-16Messaging [Section Contents] .............. 12-1Messaging Lock .................................... 10-6Missed Call Notification ....................... 2-16Multi Selector ............................................ixMulti Shot ............................................... 5-3Music folder............................................ 8-2Music Search .......................................... 7-3Mute Voice ............................................ 2-10My Number ........................................... 1-24My Pictograms ...................................... 12-7NNetwork Information ........................... 1-14Network Mode ....................................... 2-9Network S! Appli .................................. 14-2New MessagesRetrieving ....................................... 12-17Viewing .......................................... 12-12Night Mode ............................................ 5-3Normal ModeManner Mode Settings ..................... 15-7Simple Mode Menu .......................... 1-21Notepad ................................................ 11-8Notification Light Settings ................. 15-12OOne Touch Guide ................................. 11-12One Touch Key ........................................ 4-8Open-to-Answer Call .......................... 15-11Open-to-Display Missed Call .............. 15-11OperatorOperator Name................................. 15-4Selecting........................................... 15-9Optional Services ................................. 2-14Original Manner Mode ......................... 15-7Other Documents folder ......................... 8-3

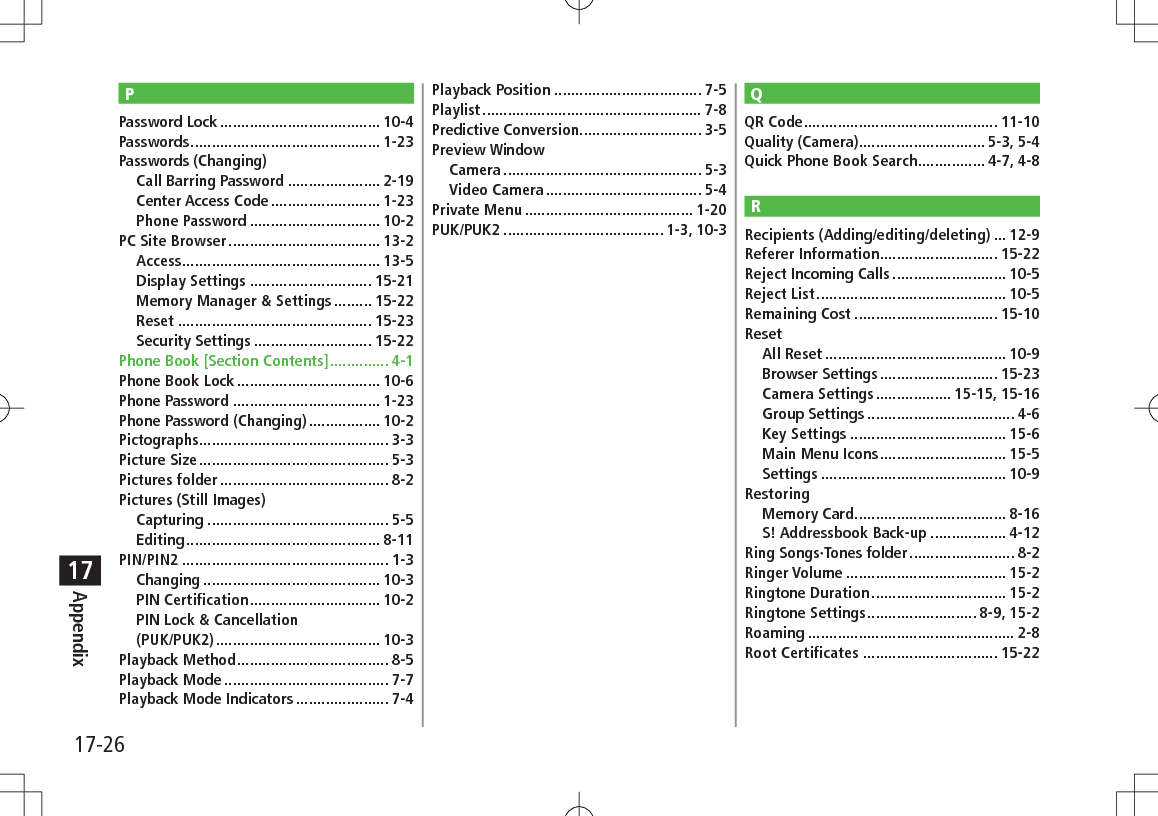

17-26Appendix17PPassword Lock ...................................... 10-4Passwords ............................................. 1-23Passwords (Changing)Call Barring Password ...................... 2-19Center Access Code .......................... 1-23Phone Password ............................... 10-2PC Site Browser .................................... 13-2Access ............................................... 13-5Display Settings ............................. 15-21Memory Manager & Settings ......... 15-22Reset .............................................. 15-23Security Settings ............................ 15-22Phone Book [Section Contents] .............. 4-1Phone Book Lock .................................. 10-6Phone Password ................................... 1-23Phone Password (Changing) ................. 10-2Pictographs ............................................. 3-3Picture Size ............................................. 5-3Pictures folder ........................................ 8-2Pictures (Still Images)Capturing ........................................... 5-5Editing .............................................. 8-11PIN/PIN2 ................................................. 1-3Changing .......................................... 10-3PIN Certification ............................... 10-2PIN Lock & Cancellation (PUK/PUK2) ....................................... 10-3Playback Method .................................... 8-5Playback Mode ....................................... 7-7Playback Mode Indicators ...................... 7-4Playback Position ................................... 7-5Playlist .................................................... 7-8Predictive Conversion ............................. 3-5Preview WindowCamera ............................................... 5-3Video Camera ..................................... 5-4Private Menu ........................................ 1-20PUK/PUK2 ...................................... 1-3, 10-3QQR Code .............................................. 11-10Quality (Camera).............................. 5-3, 5-4Quick Phone Book Search ................ 4-7, 4-8RRecipients (Adding/editing/deleting) ... 12-9Referer Information ............................ 15-22Reject Incoming Calls ........................... 10-5Reject List ............................................. 10-5Remaining Cost .................................. 15-10ResetAll Reset ........................................... 10-9Browser Settings ............................ 15-23Camera Settings .................. 15-15, 15-16Group Settings ................................... 4-6Key Settings ..................................... 15-6Main Menu Icons .............................. 15-5Settings ............................................ 10-9RestoringMemory Card .................................... 8-16S! Addressbook Back-up .................. 4-12Ring Songs·Tones folder ......................... 8-2Ringer Volume ...................................... 15-2Ringtone Duration ................................ 15-2Ringtone Settings .......................... 8-9, 15-2Roaming ................................................. 2-8Root Certificates ................................ 15-22

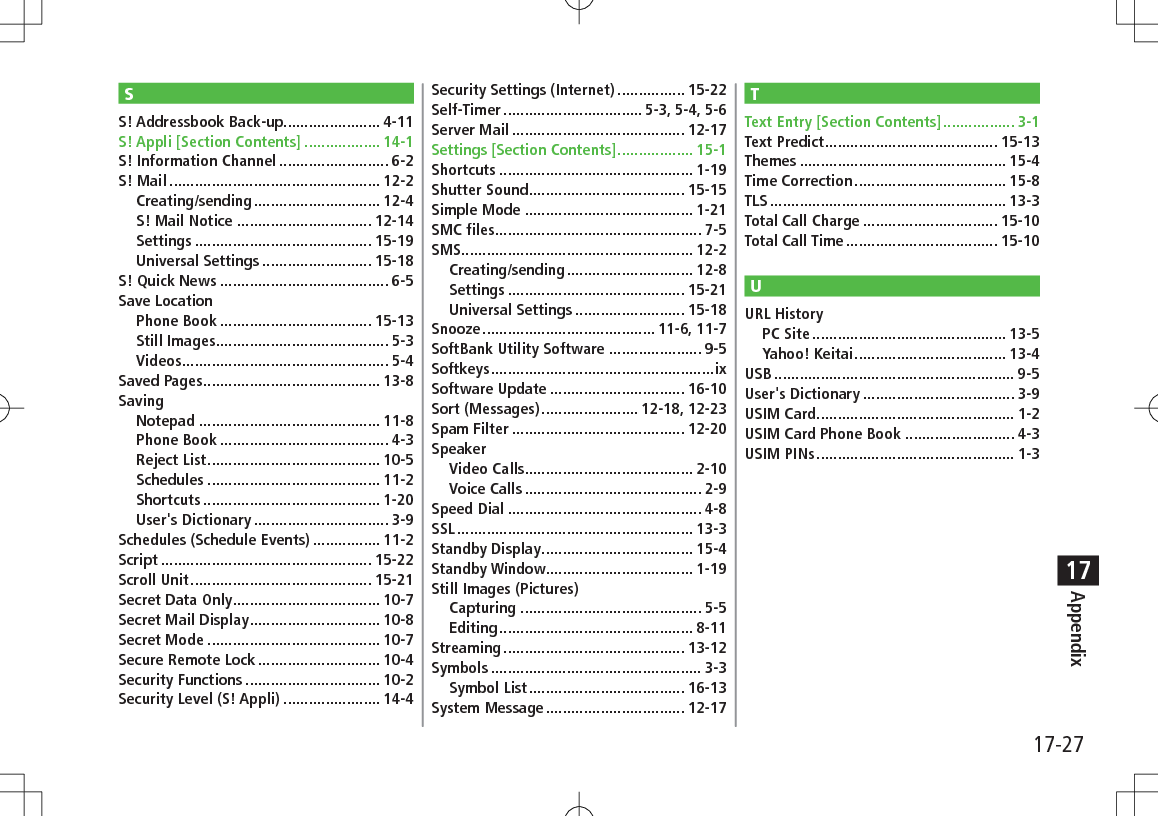

17-27Appendix17SS! Addressbook Back-up....................... 4-11S! Appli [Section Contents] .................. 14-1S! Information Channel .......................... 6-2S! Mail .................................................. 12-2Creating/sending .............................. 12-4S! Mail Notice ................................ 12-14Settings .......................................... 15-19Universal Settings .......................... 15-18S! Quick News ........................................ 6-5Save LocationPhone Book .................................... 15-13Still Images......................................... 5-3Videos ................................................. 5-4Saved Pages .......................................... 13-8SavingNotepad ........................................... 11-8Phone Book ........................................ 4-3Reject List ......................................... 10-5Schedules ......................................... 11-2Shortcuts .......................................... 1-20User's Dictionary ................................ 3-9Schedules (Schedule Events) ................ 11-2Script .................................................. 15-22Scroll Unit ........................................... 15-21Secret Data Only ................................... 10-7Secret Mail Display ............................... 10-8Secret Mode ......................................... 10-7Secure Remote Lock ............................. 10-4Security Functions ................................ 10-2Security Level (S! Appli) ....................... 14-4Security Settings (Internet) ................ 15-22Self-Timer ................................. 5-3, 5-4, 5-6Server Mail ......................................... 12-17Settings [Section Contents] .................. 15-1Shortcuts .............................................. 1-19Shutter Sound ..................................... 15-15Simple Mode ........................................ 1-21SMC files ................................................. 7-5SMS ....................................................... 12-2Creating/sending .............................. 12-8Settings .......................................... 15-21Universal Settings .......................... 15-18Snooze ......................................... 11-6, 11-7SoftBank Utility Software ...................... 9-5Softkeys .....................................................ixSoftware Update ................................ 16-10Sort (Messages) ....................... 12-18, 12-23Spam Filter ......................................... 12-20SpeakerVideo Calls........................................ 2-10Voice Calls .......................................... 2-9Speed Dial .............................................. 4-8SSL ........................................................ 13-3Standby Display .................................... 15-4Standby Window................................... 1-19Still Images (Pictures)Capturing ........................................... 5-5Editing .............................................. 8-11Streaming ........................................... 13-12Symbols .................................................. 3-3Symbol List ..................................... 16-13System Message ................................. 12-17TText Entry [Section Contents] ................. 3-1Text Predict ......................................... 15-13Themes ................................................. 15-4Time Correction .................................... 15-8TLS ........................................................ 13-3Total Call Charge ................................ 15-10Total Call Time .................................... 15-10UURL HistoryPC Site .............................................. 13-5Yahoo! Keitai .................................... 13-4USB ......................................................... 9-5User's Dictionary .................................... 3-9USIM Card ............................................... 1-2USIM Card Phone Book .......................... 4-3USIM PINs ............................................... 1-3

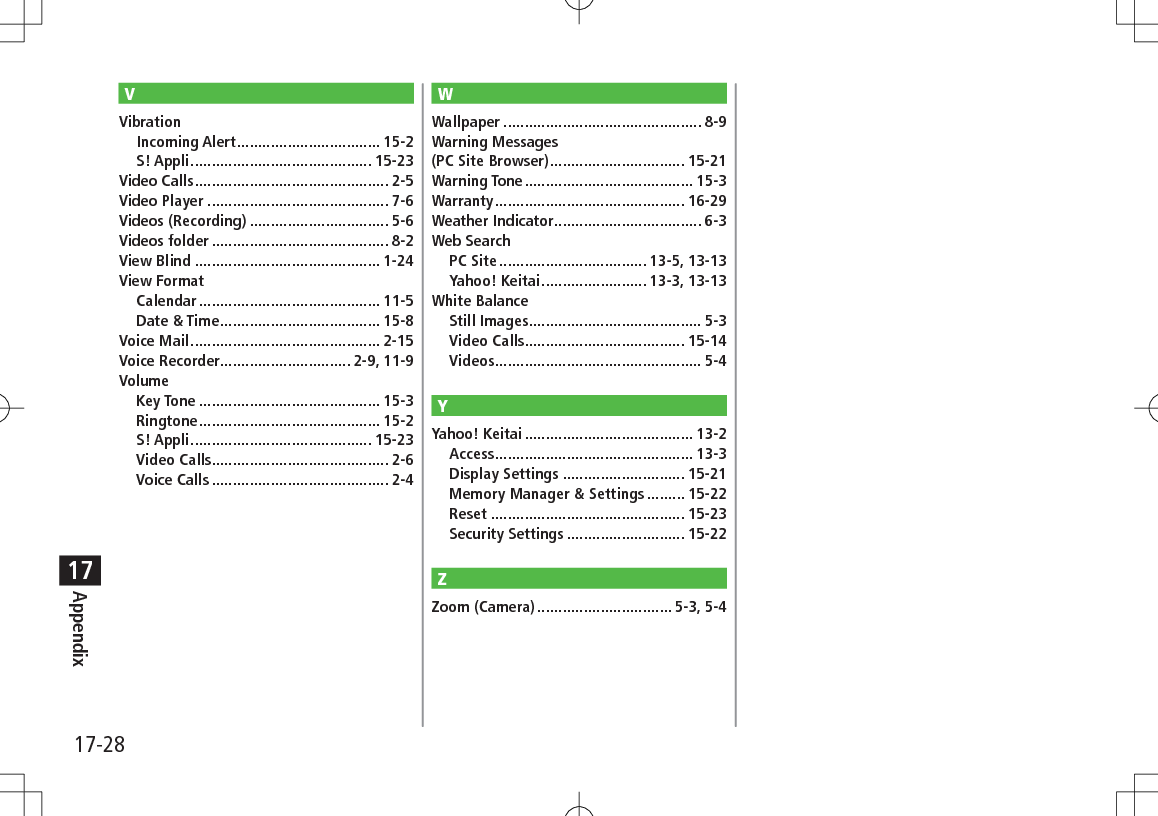

17-28Appendix17VVibrationIncoming Alert .................................. 15-2S! Appli ........................................... 15-23Video Calls .............................................. 2-5Video Player ........................................... 7-6Videos (Recording) ................................. 5-6Videos folder .......................................... 8-2View Blind ............................................ 1-24View FormatCalendar ........................................... 11-5Date & Time ...................................... 15-8Voice Mail ............................................. 2-15Voice Recorder............................... 2-9, 11-9VolumeKey Tone ........................................... 15-3Ringtone ........................................... 15-2S! Appli ........................................... 15-23Video Calls.......................................... 2-6Voice Calls .......................................... 2-4WWallpaper ............................................... 8-9Warning Messages (PC Site Browser) ................................ 15-21Warning Tone ........................................ 15-3Warranty ............................................. 16-29Weather Indicator ................................... 6-3Web SearchPC Site ................................... 13-5, 13-13Yahoo! Keitai ......................... 13-3, 13-13White BalanceStill Images......................................... 5-3Video Calls...................................... 15-14Videos ................................................. 5-4YYahoo! Keitai ........................................ 13-2Access ............................................... 13-3Display Settings ............................. 15-21Memory Manager & Settings ......... 15-22Reset .............................................. 15-23Security Settings ............................ 15-22ZZoom (Camera) ................................ 5-3, 5-4

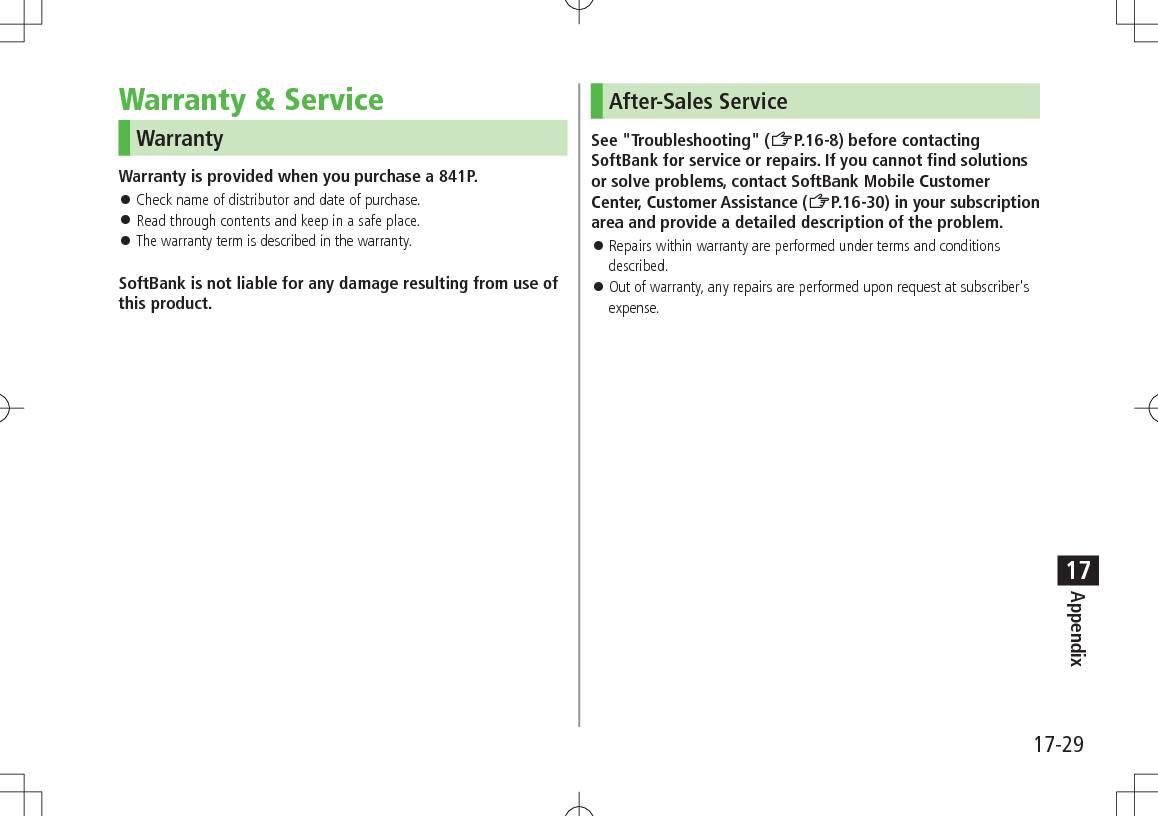

17-29Appendix17Warranty & ServiceWarrantyWarranty is provided when you purchase a 841P. ⿟Check name of distributor and date of purchase. ⿟Read through contents and keep in a safe place. ⿟The warranty term is described in the warranty.SoftBank is not liable for any damage resulting from use of this product.After-Sales ServiceSee "Troubleshooting" (ZP.16-8) before contacting SoftBank for service or repairs. If you cannot find solutions or solve problems, contact SoftBank Mobile Customer Center, Customer Assistance (ZP.16-30) in your subscription area and provide a detailed description of the problem. ⿟Repairs within warranty are performed under terms and conditions described. ⿟Out of warranty, any repairs are performed upon request at subscriber's expense.

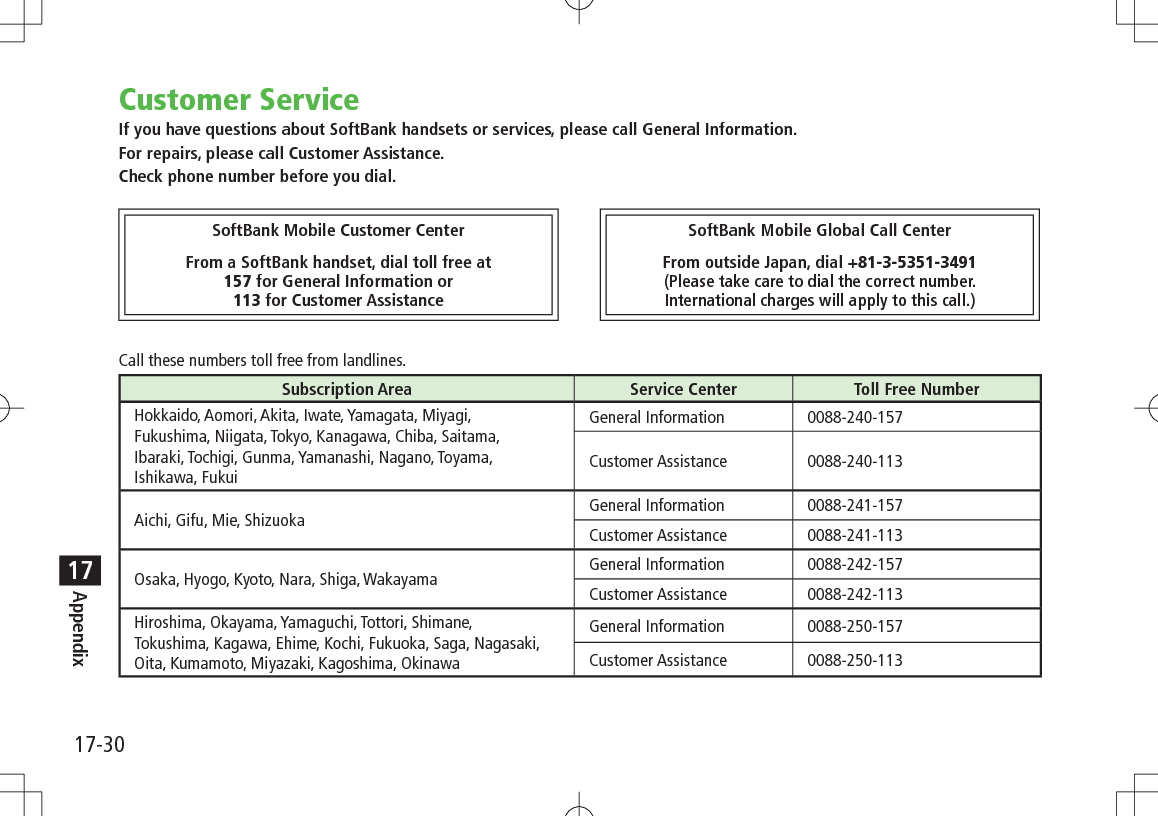

17-30Appendix17Customer ServiceIf you have questions about SoftBank handsets or services, please call General Information.For repairs, please call Customer Assistance.Check phone number before you dial.Call these numbers toll free from landlines.Subscription Area Service Center Toll Free NumberHokkaido, Aomori, Akita, Iwate, Yamagata, Miyagi,Fukushima, Niigata, Tokyo, Kanagawa, Chiba, Saitama,Ibaraki, Tochigi, Gunma, Yamanashi, Nagano, Toyama,Ishikawa, FukuiGeneral Information 0088-240-157Customer Assistance 0088-240-113Aichi, Gifu, Mie, Shizuoka General Information 0088-241-157Customer Assistance 0088-241-113Osaka, Hyogo, Kyoto, Nara, Shiga, Wakayama General Information 0088-242-157Customer Assistance 0088-242-113Hiroshima, Okayama, Yamaguchi, Tottori, Shimane,Tokushima, Kagawa, Ehime, Kochi, Fukuoka, Saga, Nagasaki,Oita, Kumamoto, Miyazaki, Kagoshima, OkinawaGeneral Information 0088-250-157Customer Assistance 0088-250-113SoftBank Mobile Customer CenterFrom a SoftBank handset, dial toll free at157 for General Information or113 for Customer AssistanceSoftBank Mobile Global Call CenterFrom outside Japan, dial +81-3-5351-3491(Please take care to dial the correct number. International charges will apply to this call.)

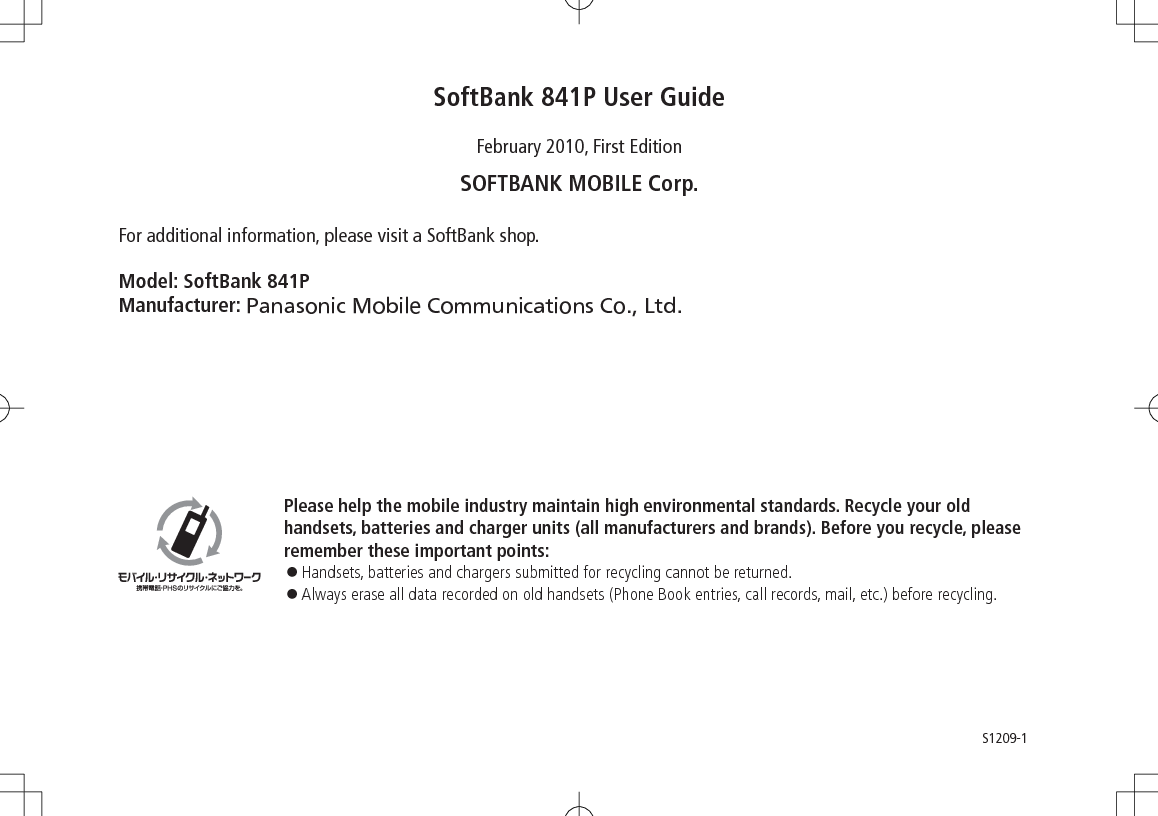

Please help the mobile industry maintain high environmental standards. Recycle your oldhandsets, batteries and charger units (all manufacturers and brands). Before you recycle, please remember these important points:◦.Handsets, batteries and chargers submitted for recycling cannot be returned.◦..Always erase all data recorded on old handsets (Phone Book entries, call records, mail, etc.) before recycling.SoftBank 841P User GuideFebruary 2010, First EditionSOFTBANK MOBILE Corp.For additional information, please visit a SoftBank shop.Model: SoftBank 841PManufacturer: Panasonic Mobile Communications Co., Ltd.S1209-1
