Panasonic EFC-SPLC-02M 10.7MHz Communication Unit User Manual Microsoft PowerPoint 20170721 M

Panasonic Corporation 10.7MHz Communication Unit Microsoft PowerPoint 20170721 M

User manual

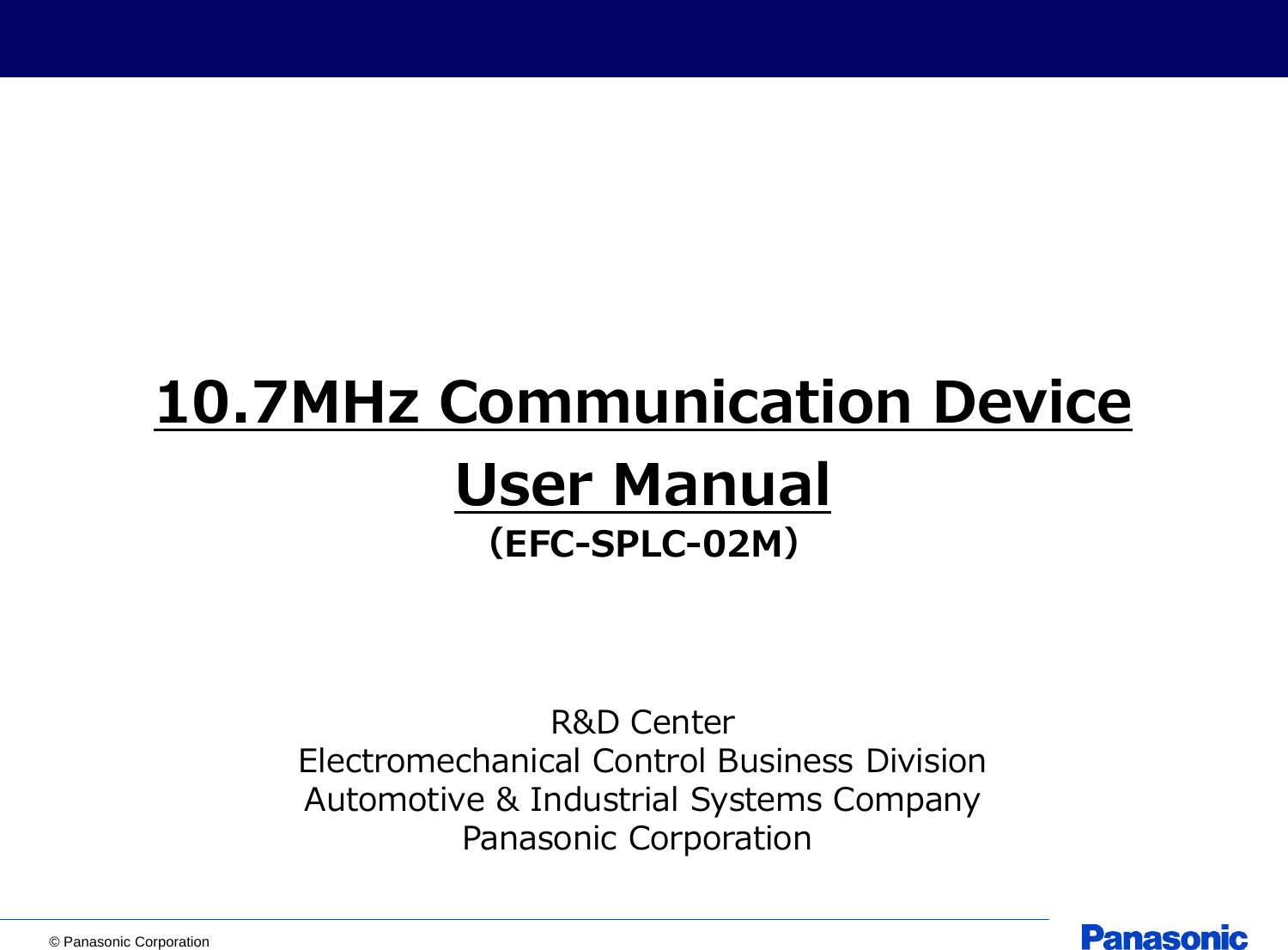

© Panasonic Corporation [0]10.7MHz Communication DeviceUser ManualR&D CenterElectromechanical Control Business DivisionAutomotive & Industrial Systems CompanyPanasonic Corporation （EFC-SPLC-02M）

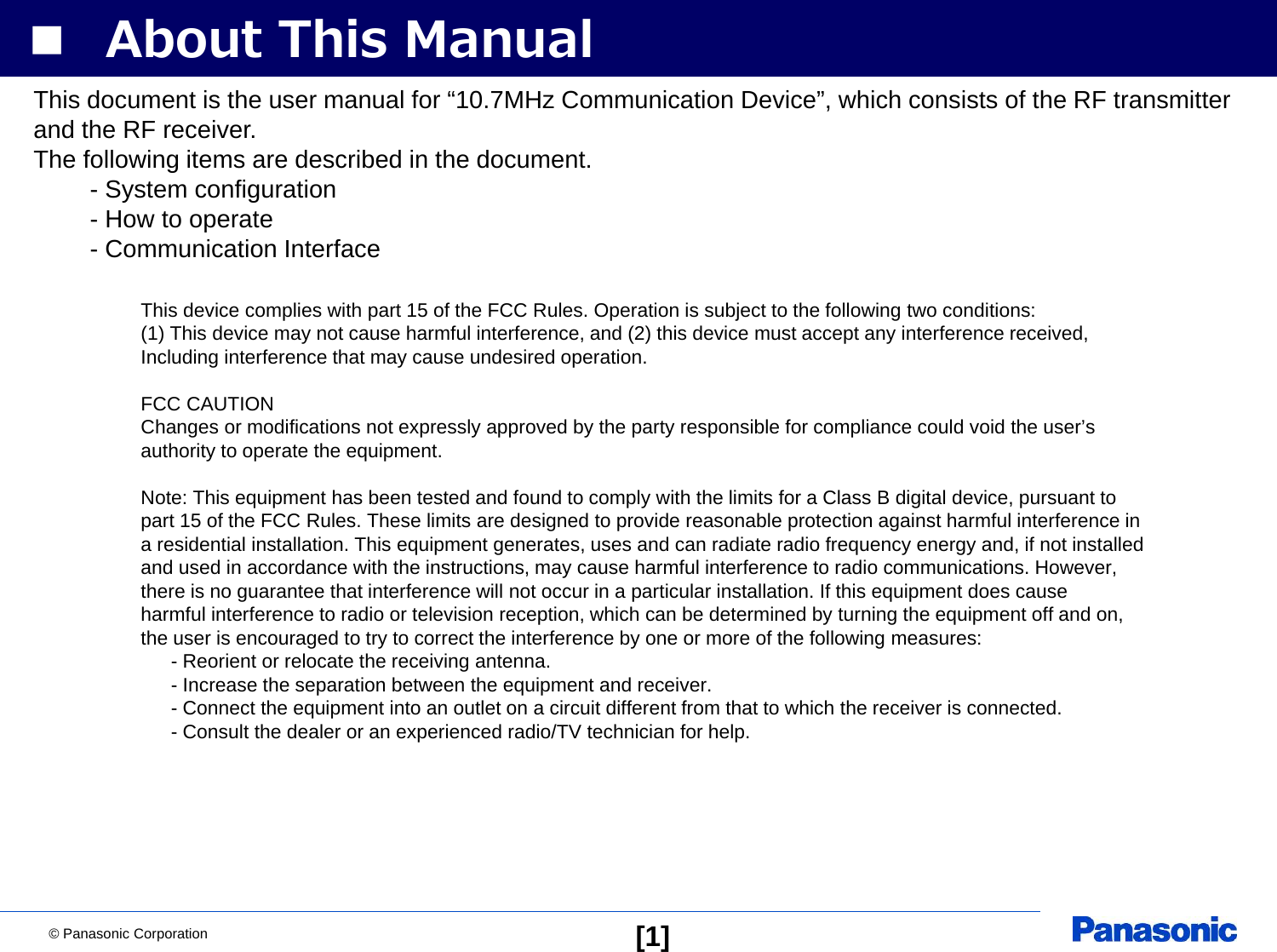

© Panasonic Corporation [1]■ About This ManualThis document is the user manual for “10.7MHz Communication Device”, which consists of the RF transmitterand the RF receiver.The following items are described in the document.- System configuration- How to operate- Communication InterfaceThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation.FCC CAUTIONChanges or modifications not expressly approved by the party responsible for compliance could void the user’sauthority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant topart 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.

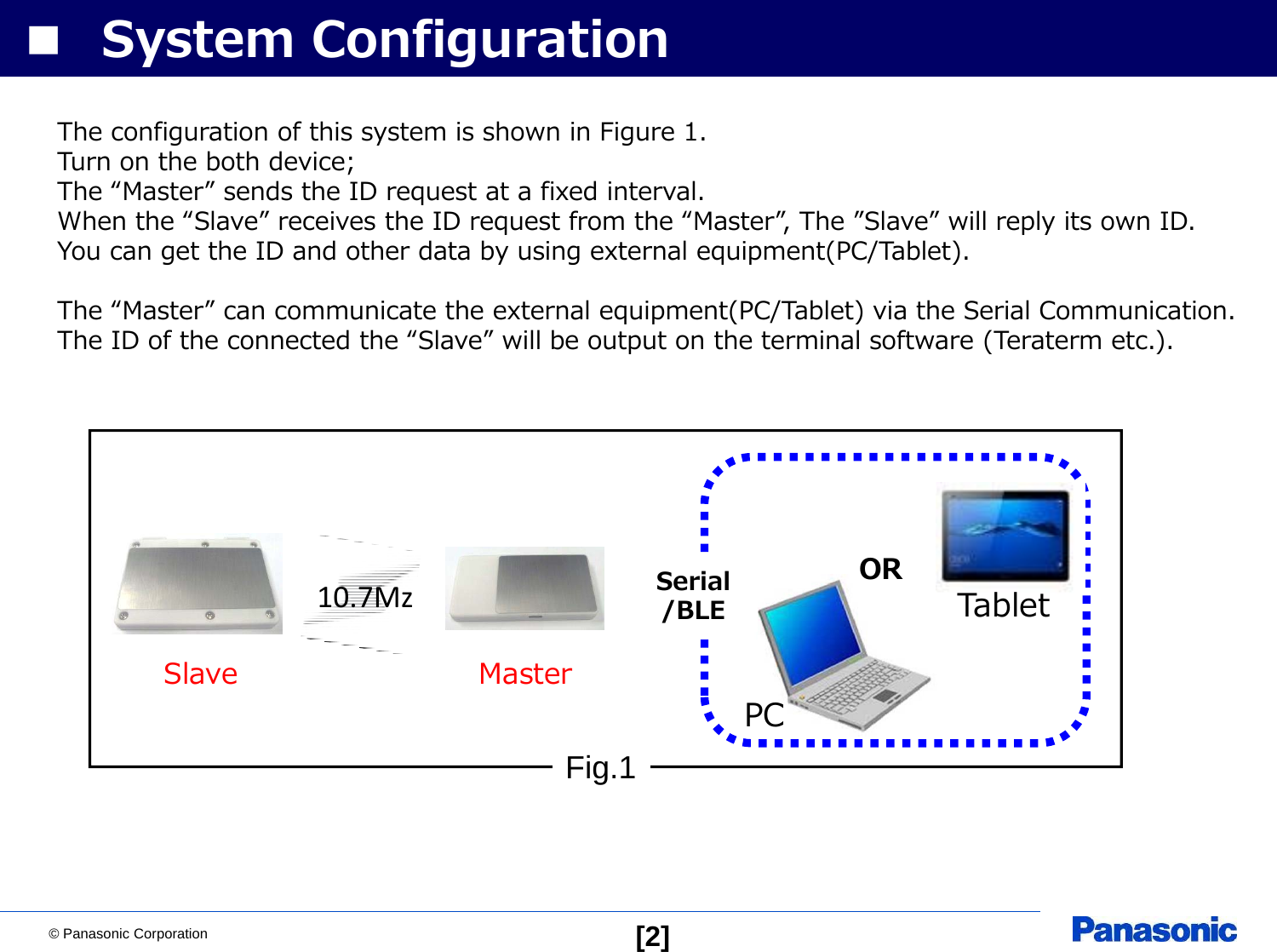

© Panasonic Corporation [2]■ System ConfigurationFig.110.7MzSlaveSerial/BLEPCORMasterTabletThe configuration of this system is shown in Figure 1.Turn on the both device;The “Master” sends the ID request at a fixed interval.When the “Slave” receives the ID request from the “Master”, The ”Slave” will reply its own ID.You can get the ID and other data by using external equipment(PC/Tablet).The “Master” can communicate the external equipment(PC/Tablet) via the Serial Communication.The ID of the connected the “Slave” will be output on the terminal software (Teraterm etc.).

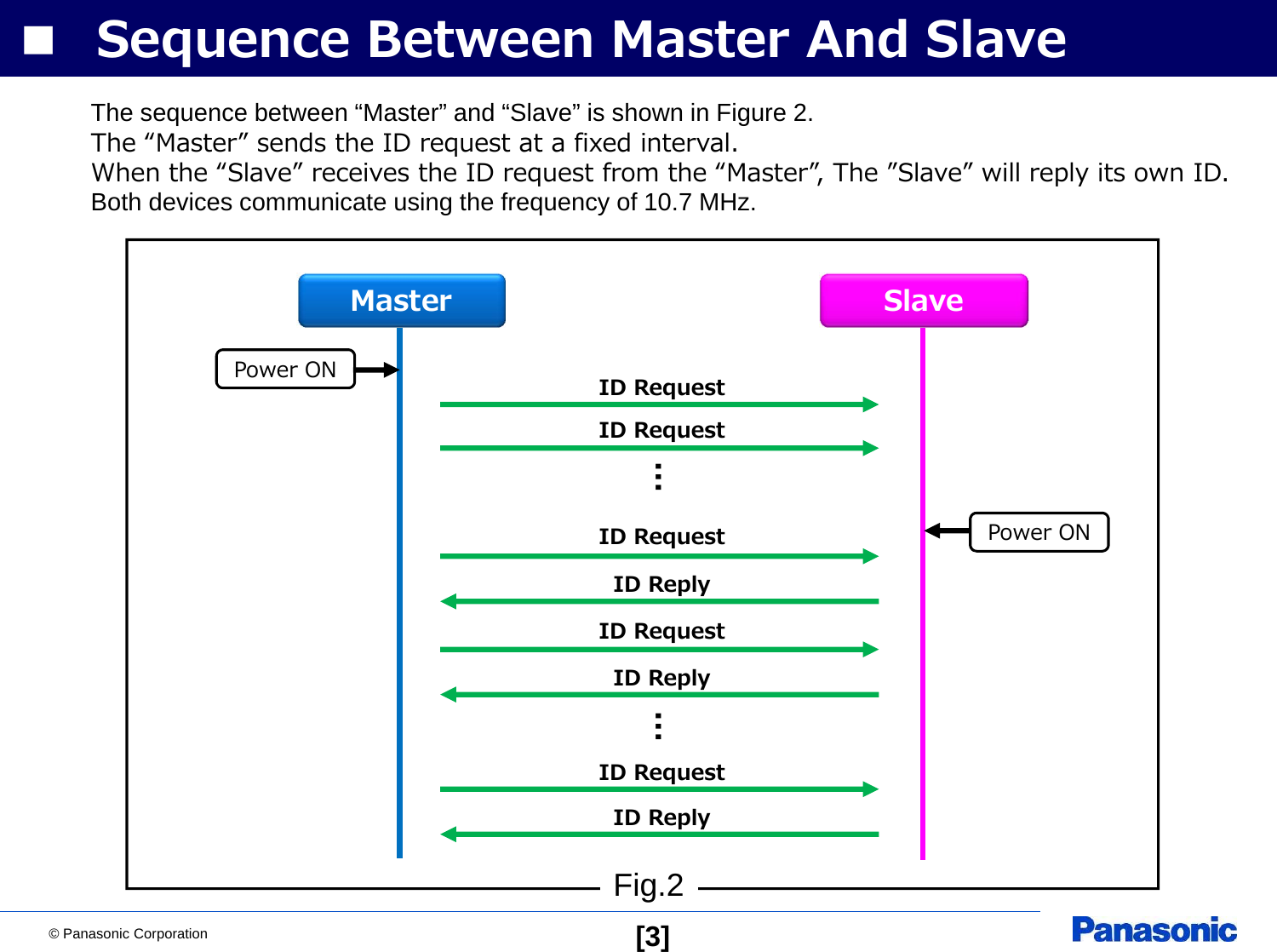

© Panasonic Corporation [3]■ Sequence Between Master And SlaveFig.2Master SlavePower ON ID RequestID Reply…ID ReplyID Reply…Power ONID RequestID RequestID RequestID RequestThe sequence between “Master” and “Slave” is shown in Figure 2.The “Master” sends the ID request at a fixed interval.When the “Slave” receives the ID request from the “Master”, The ”Slave” will reply its own ID.Both devices communicate using the frequency of 10.7 MHz.

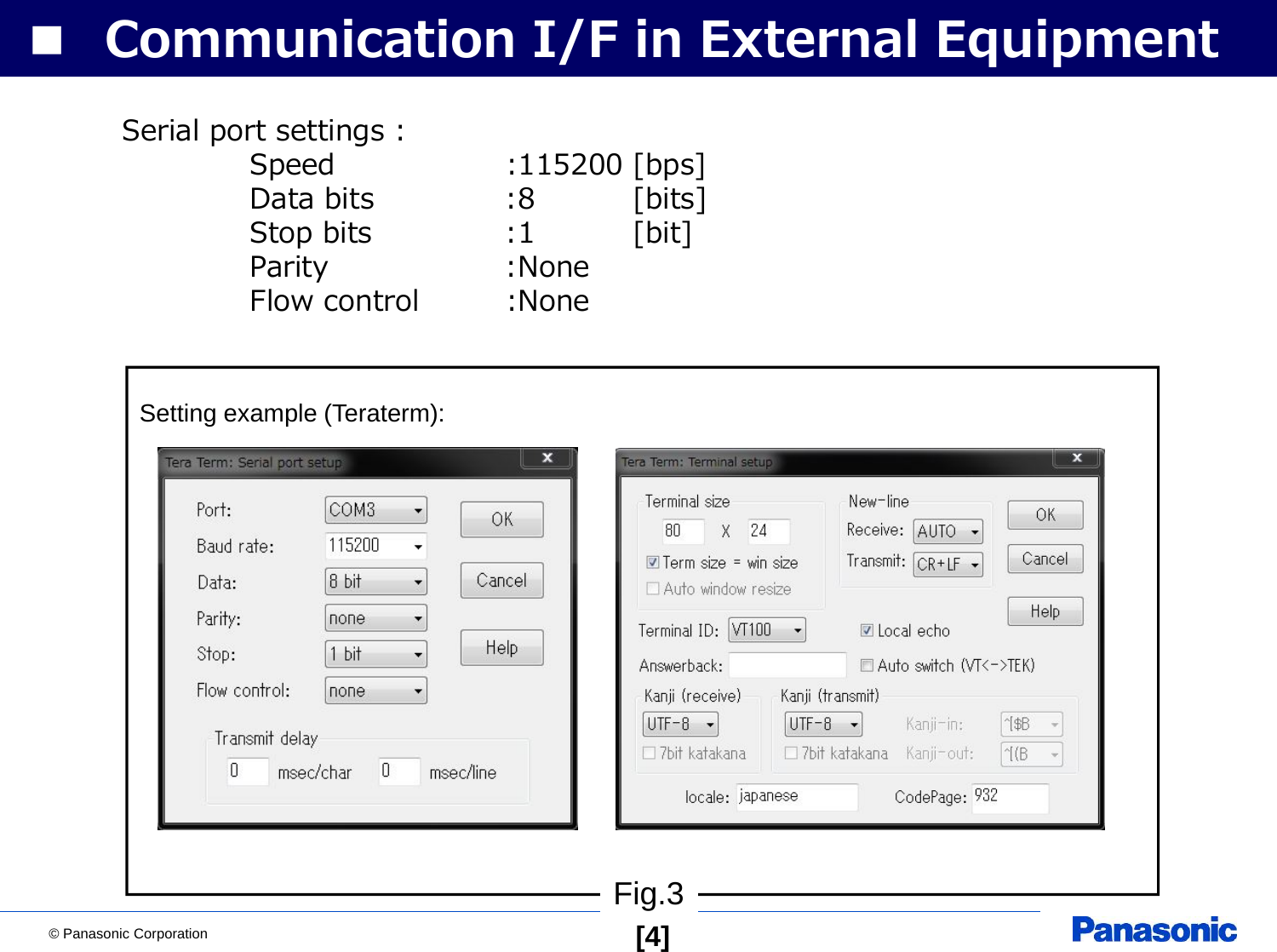

© Panasonic Corporation [4]■ Communication I/F in External EquipmentFig.3Serial port settings :Speed :115200 [bps]Data bits :8 [bits]Stop bits :1 [bit]Parity :NoneFlow control :NoneSetting example (Teraterm):

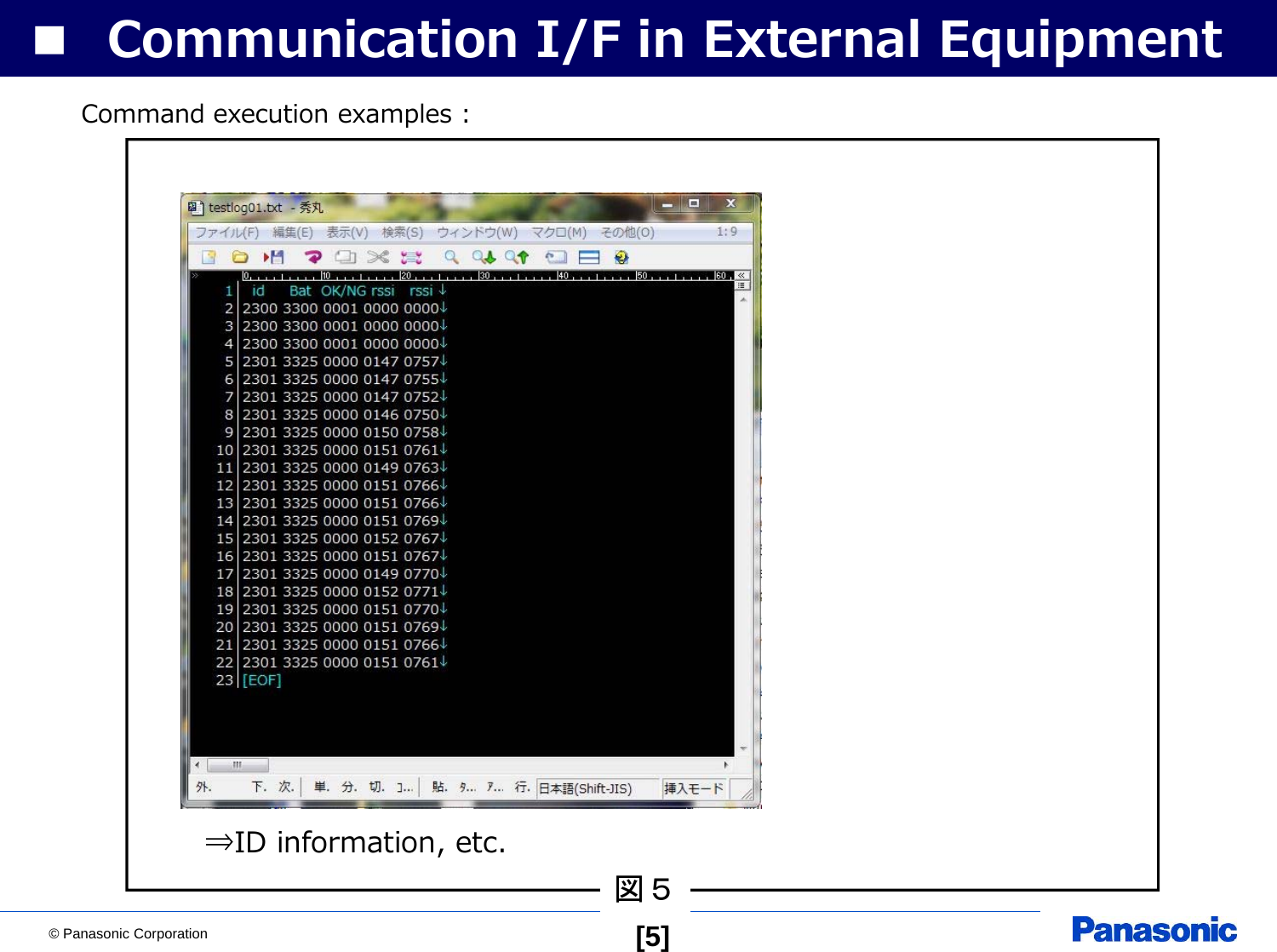

© Panasonic Corporation [5]■ Communication I/F in External Equipment図５⇒ID information, etc.Command execution examples :

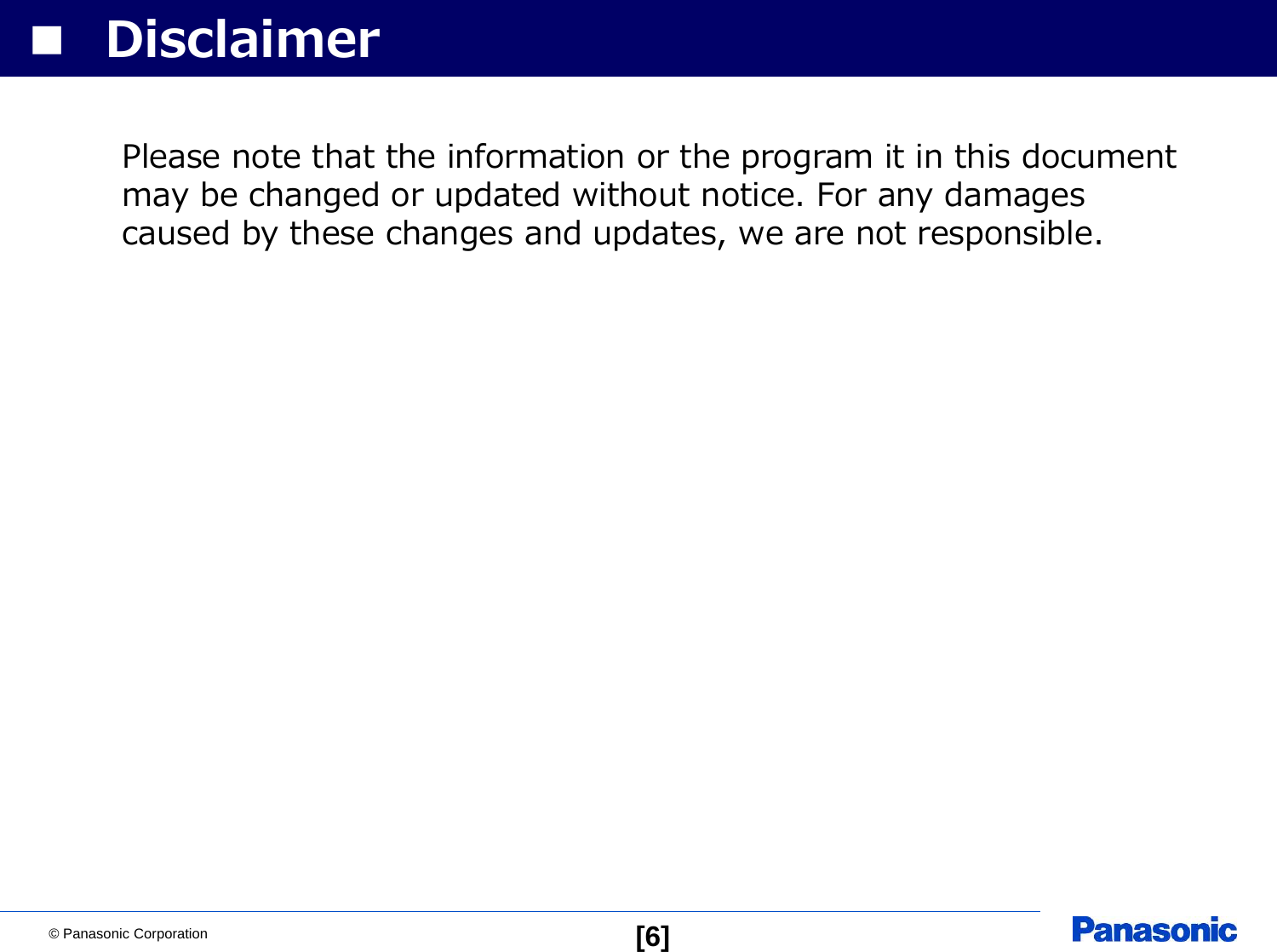

© Panasonic Corporation [6]■DisclaimerPlease note that the information or the program it in this document may be changed or updated without notice. For any damages caused by these changes and updates, we are not responsible.
