Pantech Co C610 Cellular/ PCS GSM/ EDGE/ WCDMA Phone with Bluetooth User Manual 080526 Lena ATT EN FCC

Pantech Co Ltd Cellular/ PCS GSM/ EDGE/ WCDMA Phone with Bluetooth 080526 Lena ATT EN FCC

Contents

Users Manual

1 LENA USER MANUAL
Thank you for choosing the Pantech Lena, our latest 3G mobile phone. The Pantech Lena has many features designed to enhance your mobile experience. From its sleek, stylish design, we know you will enjoy the entire Lena experience. This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech Lena has to offer.
Specifications Design Clamshell phone with internal and external display Displays l 260k colors TFT LCD with 2.0” internal display l 65k colors CSTN LCD with 1.0” external display l 7 lines for text in basic mode with 16-point font l Two soft keys and four-way scroll and selection OK keys Melodies MP3, MIDI, iMelody, MMF, WAV, SMAF, AAC+ Camera Integrated 1.3M CMOS Camera l Resolution up to 1280 x 1024 (330,000 pixels) l Mpeg4 Video recording/playing up to 15f/s(QCIF size) l Self-timer function (5 seconds or 10 seconds) l Photo album and video album Dimensions & Weight l Weight: 92g (with standard battery) l Dimensions: 93.2 mm x 46 mm x 18.35 mm Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard Lithium-Ion (Li-ion) Up to 920 mAh Up to 250 hours Up to 3 hours Operating Frequency • GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported. • Automatic band switching.

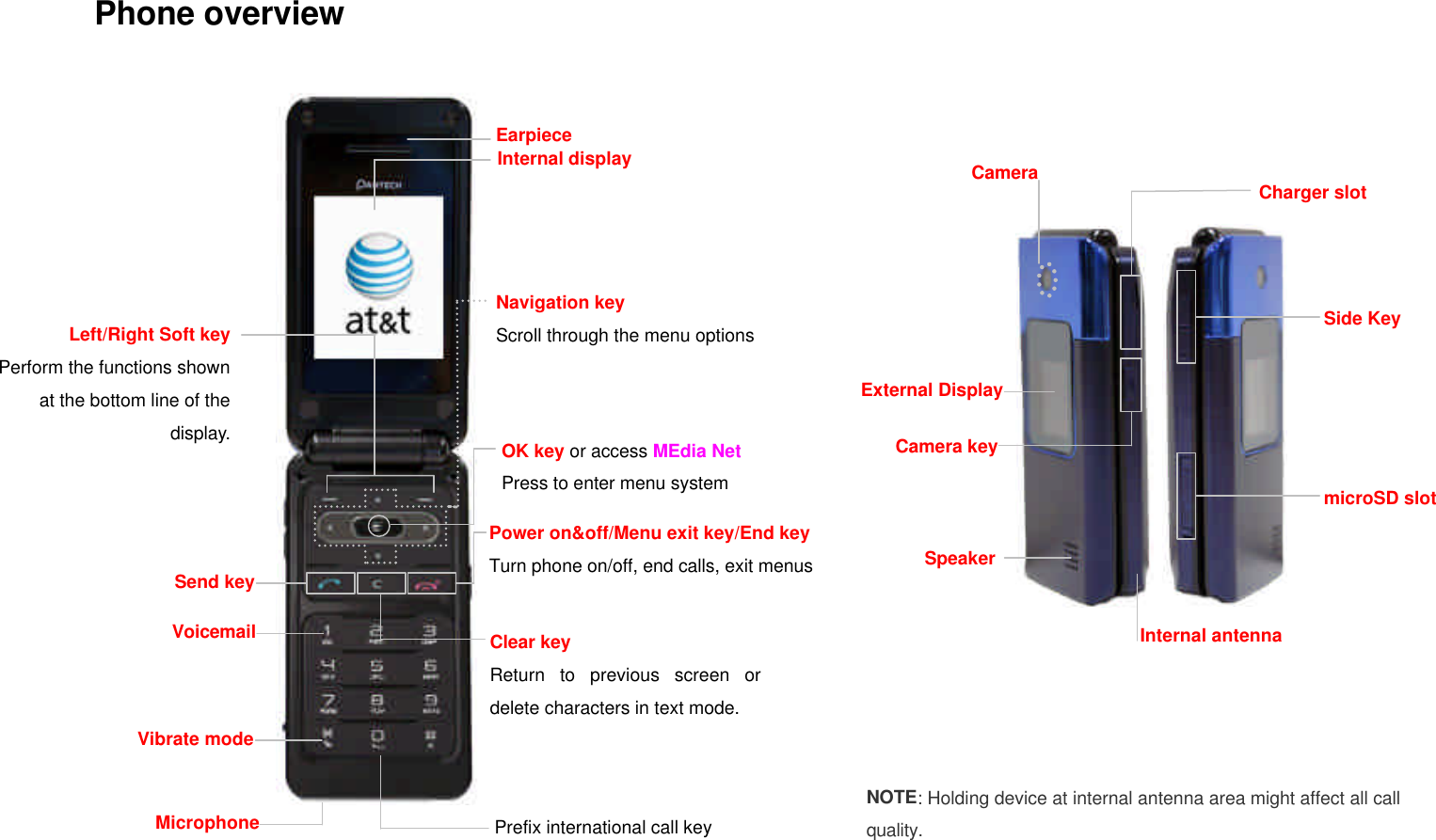

Phone overviewEarpiece Internal display Power on&off/Menu exit key/End key Turn phone on/off, end calls, exit menus Send key Clear key Return to previous screen or delete characters in text mode. Vibrate mode Microphone Prefix international call key Navigation key Scroll through the menu options Left/Right Soft keyPerform the functions shown at the bottom line of the display. OK key or access MEdia Net Press to enter menu system Voicemail External Display Camera Speaker Side Key Camera key microSD slot Charger slot NOTE: Holding device at internal antenna area might affect all call quality. Internal antenna

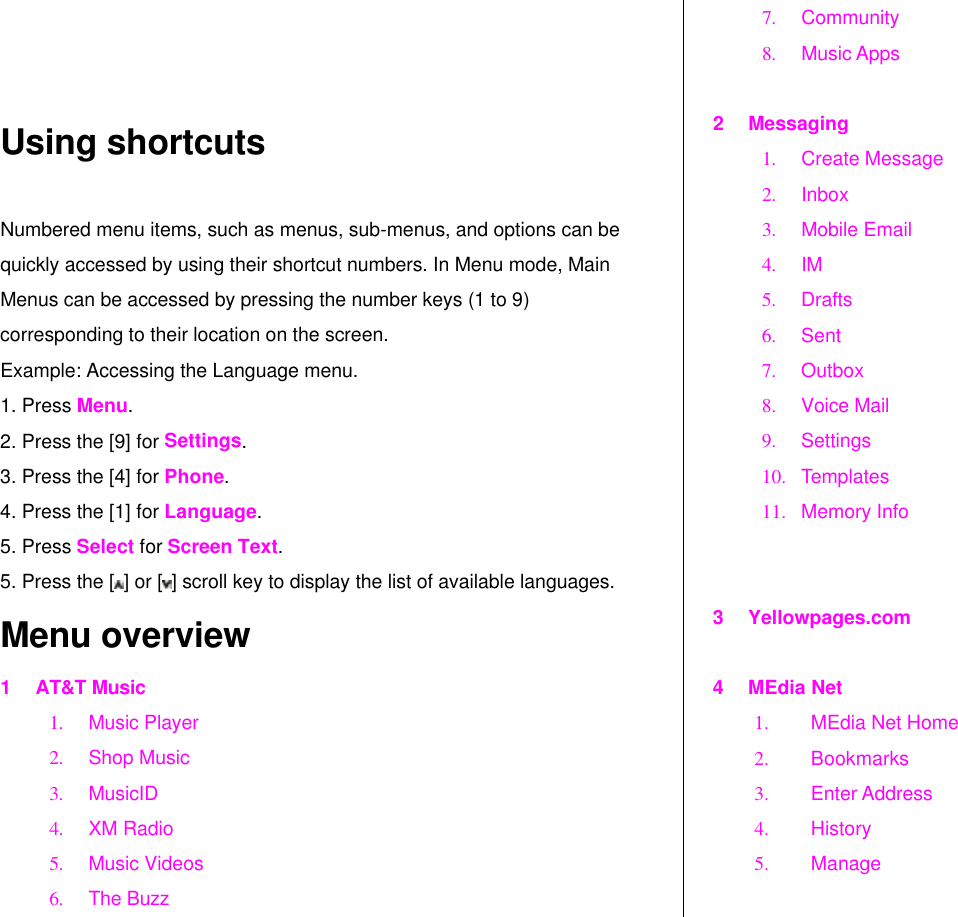

Using shortcuts Numbered menu items, such as menus, sub-menus, and options can be quickly accessed by using their shortcut numbers. In Menu mode, Main Menus can be accessed by pressing the number keys (1 to 9) corresponding to their location on the screen. Example: Accessing the Language menu. 1. Press Menu. 2. Press the [9] for Settings. 3. Press the [4] for Phone. 4. Press the [1] for Language. 5. Press Select for Screen Text. 5. Press the [ ] or [ ] scroll key to display the list of available languages. Menu overview 1 AT&T Music 1. Music Player 2. Shop Music 3. MusicID 4. XM Radio 5. Music Videos 6. The Buzz 7. Community 8. Music Apps 2 Messaging 1. Create Message 2. Inbox 3. Mobile Email 4. IM 5. Drafts 6. Sent 7. Outbox 8. Voice Mail 9. Settings 10. Templates 11. Memory Info 3 Yellowpages.com 4 MEdia Net 1. MEdia Net Home 2. Bookmarks 3. Enter Address 4. History 5. Manage
5 AT&T Mall 1. Shop Tones 2. Shop Games 3. Shop Graphics 4. Shop Multimedia 5. Shop Applications 6. Shop Videos 7. MEdia Net Home 6 Cellular Video 7 My Stuff 1. Graphics 2. Video 3. Audio 4. Other Files 5. Games & Apps 6. Tools & Utilities 7. Memory Info 8 Address Book 1. Contacts 2. Add Contact 3. Speed Dial 4. Groups 5. My Business Card 6. Memory in Use 7. My Phone Number 8. Memory Info 9. Service Numbers* 10. FDN List* 9 Settings 1. Profiles 2. Display 3. Call 4. Phone 5. Network Connections 6. Network* 7. Connectivity 8. Security* 9. Software 10. Reset 11. TTY * SIM dependent ** Network dependent

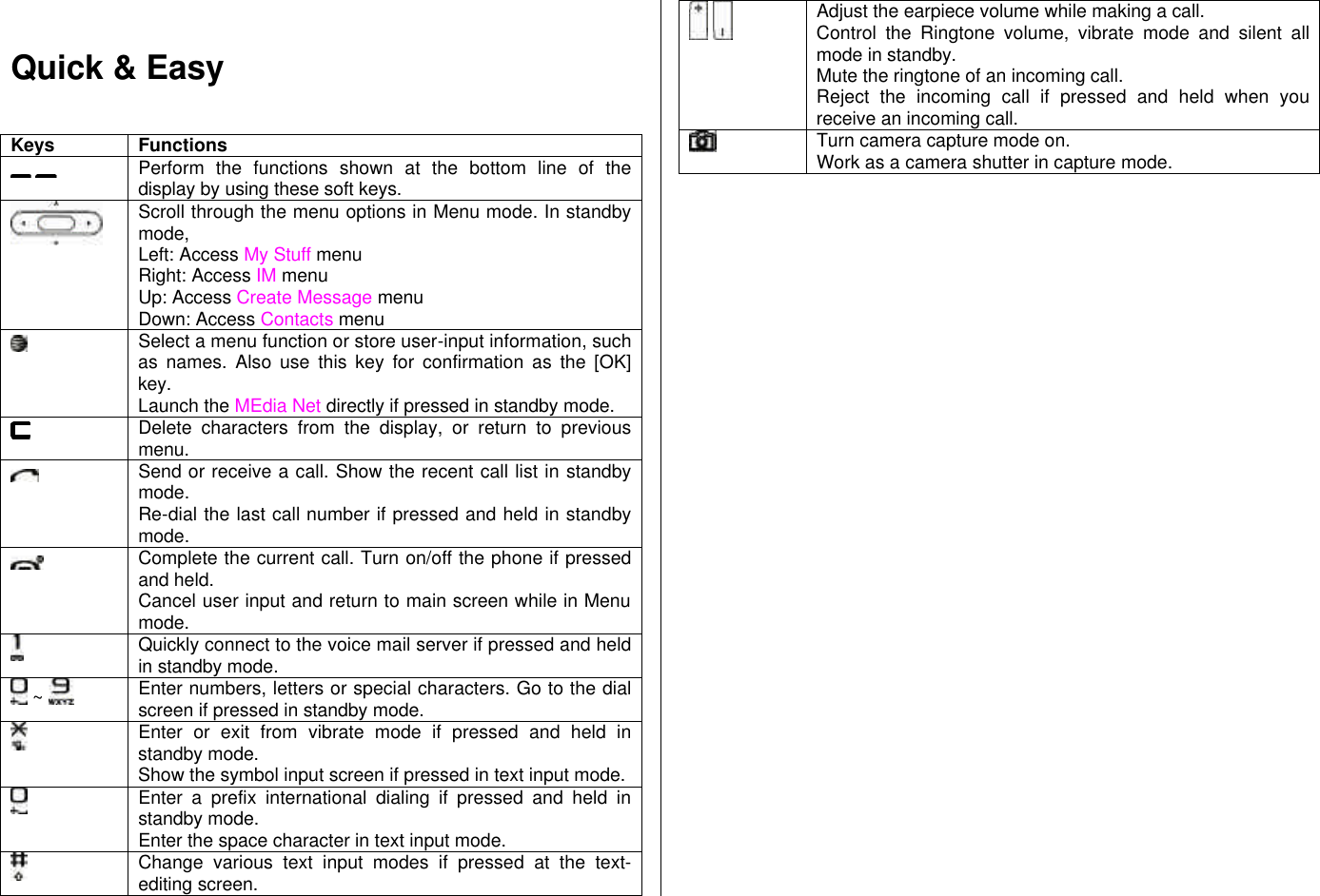

Quick & Easy Keys Functions Perform the functions shown at the bottom line of the display by using these soft keys. Scroll through the menu options in Menu mode. In standby mode, Left: Access My Stuff menu Right: Access IM menu Up: Access Create Message menu Down: Access Contacts menu Select a menu function or store user-input information, such as names. Also use this key for confirmation as the [OK] key. Launch the MEdia Net directly if pressed in standby mode. Delete characters from the display, or return to previous menu. Send or receive a call. Show the recent call list in standby mode. Re-dial the last call number if pressed and held in standby mode. Complete the current call. Turn on/off the phone if pressed and held. Cancel user input and return to main screen while in Menu mode. Quickly connect to the voice mail server if pressed and held in standby mode. ~ Enter numbers, letters or special characters. Go to the dial screen if pressed in standby mode. Enter or exit from vibrate mode if pressed and held in standby mode. Show the symbol input screen if pressed in text input mode. Enter a prefix international dialing if pressed and held in standby mode. Enter the space character in text input mode. Change various text input modes if pressed at the text-editing screen. Adjust the earpiece volume while making a call. Control the Ringtone volume, vibrate mode and silent all mode in standby. Mute the ringtone of an incoming call. Reject the incoming call if pressed and held when you receive an incoming call. Turn camera capture mode on. Work as a camera shutter in capture mode.
Contents Specifications......................................................... 3 Phone overview...................................................... 4 Using shortcuts ...................................................... 5 Menu overview........................................................ 5 Quick & Easy .......................................................... 7 1. Getting Started.................................................. 10 SIM card and battery................................................................................11 Turn phone on/off .....................................................................................12 Keypad lock..............................................................................................12 Essential display indications.....................................................................12 Memory card ............................................................................................13 Assigning the menu..................................................................................13 Updating software ....................................................................................14 2. Calls and address book ................................... 15 Making, receiving and ending a call .........................................................16 Using video share.....................................................................................17 Options during a call.................................................................................18 Call Settings .............................................................................................19 Checking all calls......................................................................................20 Speed dialing............................................................................................21 Using address book..................................................................................21 Caller identification ...................................................................................22 Using your headset...................................................................................22 Service numbers and fixed dialing............................................................23 3. Messaging......................................................... 24 Entering text .............................................................................................25 Messaging ................................................................................................26 Receiving messages ................................................................................26 Creating and sending text messages .......................................................27 Creating multimedia messages ................................................................27 Message templates ..................................................................................29 Message settings......................................................................................29 Voice message setting..............................................................................30 Email.........................................................................................................30 Using instant messenger..........................................................................30 4. Multimedia......................................................... 31 Camera.....................................................................................................32
Photo album .............................................................................................34 Video album .............................................................................................35 Audio album .............................................................................................35 Music Player.............................................................................................36 Music player settings................................................................................38 Media player.............................................................................................39 Other files.................................................................................................40 Managing memory....................................................................................40 Playing games..........................................................................................40 5. Useful Features ................................................ 42 Alarm........................................................................................................43 Calendar...................................................................................................43 Notepad and voice memo ........................................................................43 Calculator, converter and stop watch .......................................................44 Business card...........................................................................................45 Memory information..................................................................................45 6. Connectivity...................................................... 46 Bluetooth ..................................................................................................47 Using the browser ....................................................................................48 Profile settings..........................................................................................48 7. Settings ............................................................. 50 Language..................................................................................................51 Time and date...........................................................................................51 Ringtones .................................................................................................51 Decorating the display..............................................................................51 Locks........................................................................................................52 To enable fixed dialing..............................................................................52 Reset ........................................................................................................52 TTY...........................................................................................................52 8. Appendix........................................................... 54 Alert message...........................................................................................55 Troubleshooting checklist .........................................................................55 Safety information.....................................................................................56 Safety precautions....................................................................................57 About the battery usage...........................................................................57 FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices..................................................................................................................58 FCC Regulatory Compliance....................................................................60 Warranty...................................................................................................61

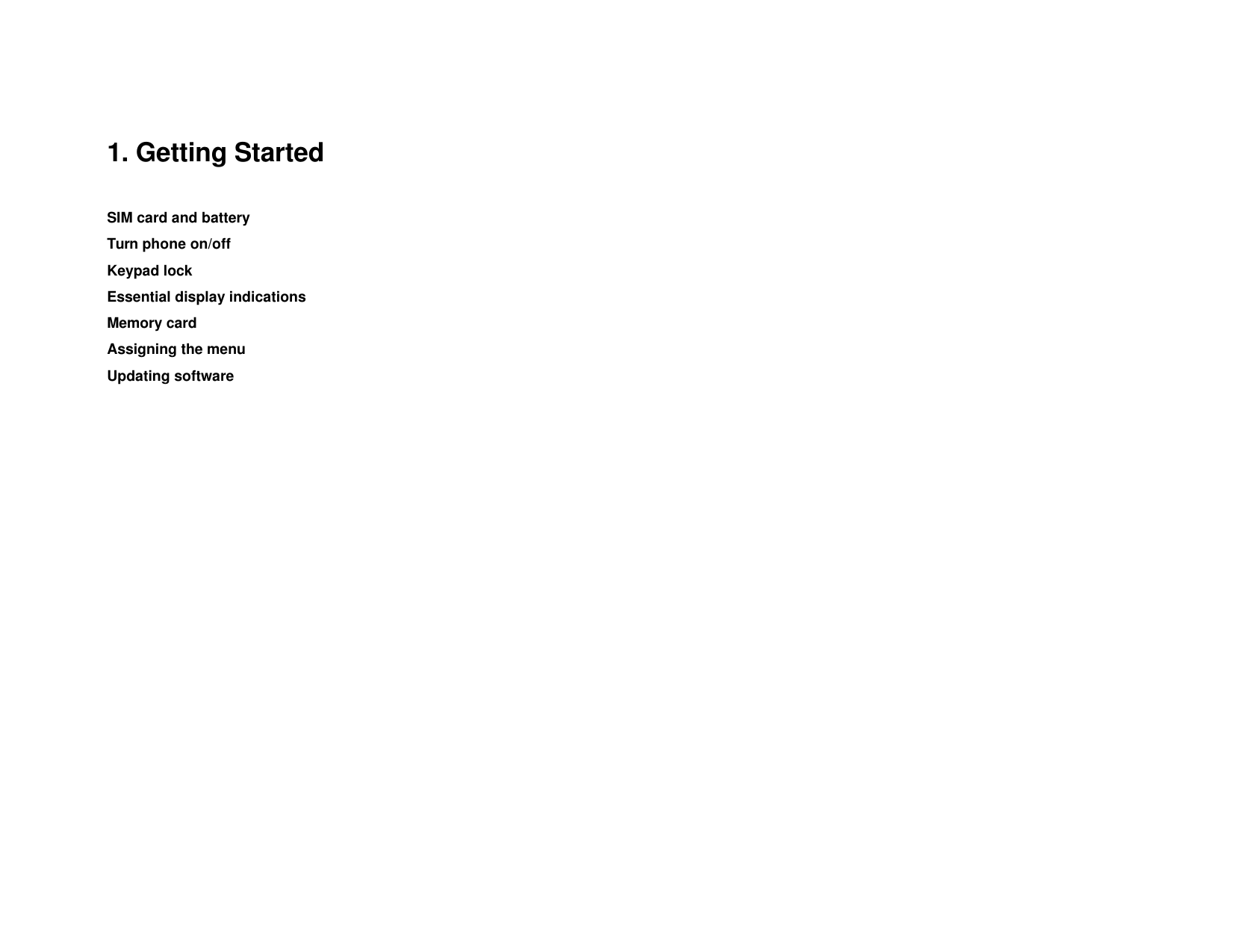

1. Getting Started SIM card and battery Turn phone on/off Keypad lock Essential display indications Memory card Assigning the menu Updating software

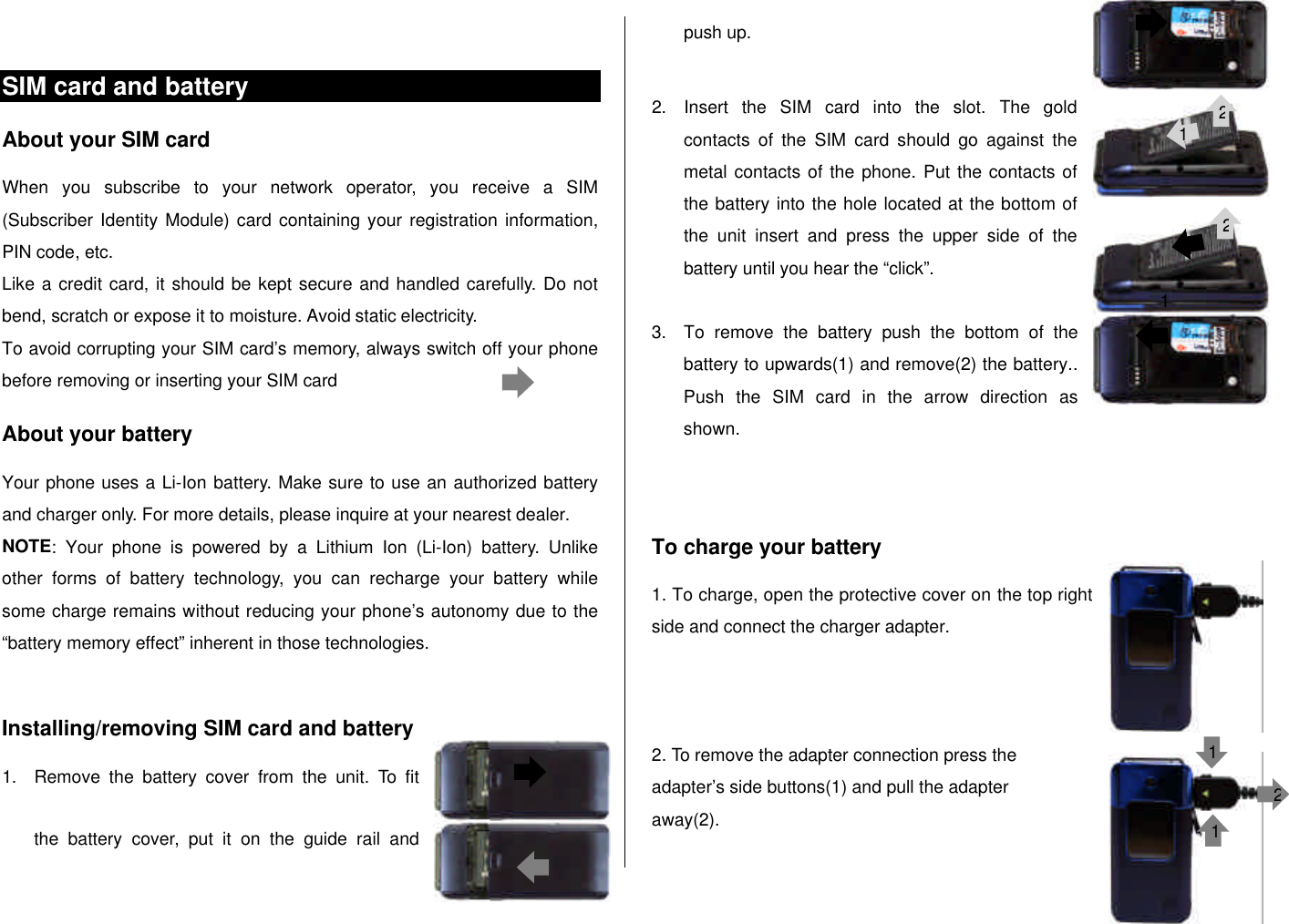

SIM card and battery About your SIM card When you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc. Like a credit card, it should be kept secure and handled carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity. To avoid corrupting your SIM card’s memory, always switch off your phone before removing or inserting your SIM card About your battery Your phone uses a Li-Ion battery. Make sure to use an authorized battery and charger only. For more details, please inquire at your nearest dealer. NOTE: Your phone is powered by a Lithium Ion (Li-Ion) battery. Unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies. Installing/removing SIM card and battery 1. Remove the battery cover from the unit. To fit the battery cover, put it on the guide rail and push up. 2. Insert the SIM card into the slot. The gold contacts of the SIM card should go against the metal contacts of the phone. Put the contacts of the battery into the hole located at the bottom of the unit insert and press the upper side of the battery until you hear the “click”. 3. To remove the battery push the bottom of the battery to upwards(1) and remove(2) the battery.. Push the SIM card in the arrow direction as shown. To charge your battery 1. To charge, open the protective cover on the top right side and connect the charger adapter. 2. To remove the adapter connection press the adapter’s side buttons(1) and pull the adapter away(2). 1 1221112
Turn phone on/off To turn on 1. Press and hold [ ]. To turn off 1. Press and hold [ ]. Keypad lock Locking the keypad 1. Press and hold [ ] to lock. Unlocking the keypad 1. Press Unlock > [ ] within 3 seconds to unlock. Essential display indications Signal strength. The greater the number of bars, the stronger the signal. When network is in searching mode is displayed. A call is being made. When you are in no service area is displayed Call forwarding* is active Data* folder Incoming calls set to ring only (Normal) Incoming calls set to Vibration & Ring Incoming calls set to Vibrate Only Incoming calls set to Silent Flight Mode is active Received one or more text messages Received one or more multimedia messages Received one or more WAP push messages Received one or more other messages Received one or more voice messages A message is being sent A message is being received An alarm is set Bluetooth is active Earphone is connected TTY is active A GPRS signal is available. It is displayed when there is an active GPRS session An EDGE signal is available. It is displayed when there is an active EDGE session A 3G signal is available. It is displayed when there is an active 3G session WAP is connected. When the security is set is displayed. Battery strength. When the battery charge is low, is displayed and blink Available, Away, Invisible Status of AIM Online, Away, Busy, Offline Status of MSN Available, Busy, Invisible Status of YAHOO You have received one or more IM messages * Network dependent
Memory card You can use microSD card as a memory card. It gives you more space to save pictures, videos, music and etc. Inserting and removing the memory card 1. Open the memory card slot. 2. Insert the card. The [ ] icon will be display. 3. Press the card to remove. Using memory card You can save, move and delete the files between your phone and external memory card. You can also move and copy the files to computer from your phone. Resetting the card 1. Press Menu > Settings > Reset. 2. Enter the password > External Memory Reset. NOTE: The default password is ‘1234’. To copy the file to the card 1. Select the file > Options > Copy to External Memory. 2. To copy the file back to phone, press Options > Copy to Phone. To move the file to the card 1. Select the file > Options > Move to External Memory. 2. To move the file back to phone, press Options > Move to Phone. To delete the file from the card 1. Select the file from the card > Options > Delete. To move the file from the card to the computer 1. Connect the data cable with mobile and the computer. 2. Press Menu > Settings > Connectivity. 3. Press Select USB Mode. 4. Select Mass Storage or Ask on Connection. 5. Follow the instruction on your computer screen. NOTE: When you want to add music to play list in your device select Music Player. When you select Ask on Connection, it will ask you to select Music Player or Mass Storage every time you connect your device with your computer. Assigning the menu You can set the most commonly used menu in Options in standby mode.
1. Press Options in standby mode > select Unassigned. 2. Press Options > Edit. 3. Select the menu and sub menu. NOTE: User can change Options menu except AT&T Navigator and Music Player. Updating software You can update your software without visiting your nearest dealer. To update the software 1. Press Menu > Settings > Software > Software Update. 2. Press Check for Update > Yes to check whether you need to update the software or not. NOTE: After downloading the software the device will ask you weather update the software now or later. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select the time in the Options for 30 min, 1 hour or 4 hours. After selecting the updating time, you will get back to standby mode. If you go to Software Update while you are in postponing, press Continue Update. To view the version of software 1. Press Menu > Settings > Software. 2. Press Phone Information and scroll down to Software Version.
2. Calls and address book Making, receiving and ending a call Using video share Options during a call Call settings Checking all calls Speed dialing Using address book Caller identification Using your headset Service numbers and fixed dialing
Making, receiving and ending a call Making a call 1. Enter the area code and phone number. 2. Press [ ] key. Answering a call 1. Press [ ]. Ending a call 1. Press [ ]. Once the call is complete, a call summary is displayed. Rejecting a call 1. Press [ ] or Ignore. Making a call using call list Your phone logs up to 20 dialed, received and missed call numbers. 1. Press [ ] to display the Recent Calls list. 2. Select All Calls, Missed Calls, Received Calls, or Dialed Calls pressing the [ / ]. 3. Select a number. 4. Press [ ] to dial the selected number. NOTE: To redial the last number in the Recent Calls list, press and hold [ ]. Making a call during a call 1. Enter the phone number or look it up in Address Book. 2. Press [ ] to dial the second call. The first call is automatically put on hold. Switching between two calls 1. Press Swap. Making an international call 1. Press and hold [ ] key for the international prefix until the ‘+’ character appears. 2. Type the country code, area code, and phone number. 3. Press [ ]. Making an emergency call You can make emergency calls even if your phone does not have a SIM card. 1. Press Emergency Number, or press SOS if your phone does not have a SIM card. 2. Press [ ]. Replying to a missed call**
1. Press View to display the list of missed calls. 2. Select a number to call by pressing the [ /] l key. 3. Press [ ]. Answering a second call** 1. Press [ ]. The first call is automatically put on hold. 2. Press [ ] to end the second call. The call on hold is automatically reconnected. Using video share You can share live or recorded video while on the call. You can send or receive video. <Call mode> <Video Share Mode> Making video share call 1. Enter the area code and phone number > [ ]. 2. Press Options > Video Share. 3. Select Live or Recorded. Turning off the speakerphone 1. Press OK or press Options > Speakerphone off during video share mode. 2. Press Options > Mute to mute the sound. Stopping video share 1. Press Stop to end. 2. To end a call press [ ]. Increasing or decreasing the brightness 1. Press Options > Brightness. 2. Adjust the brightness by pressing [ / ]. Zoom in and out 1. Press Options > Zoom. It ranges from x1 to x3.
Stopping the recording 1. Press Options > Stop Recording. For details on setting for automatic recording, see page 19. Ending video share 1. Press Stop to end the video share. 2. It will ask you weather you will stop video share > Yes to stop. NOTE: Even you end video share the call will not be ended. Press [] to end the call. The recorded video will be saved in My Stuff > Video. Receiving video share 1. After receiving video share, it will ask you weather to accept or reject the video share > Yes to accept and No for reject. 2. Press Options > Landscape to landscape the screen. Options during a call Microphone off and on Switching your phone’s microphone off 1. Press Options > Mute [ ]. Switching your phone’s microphone back on 1. Press Options > Unmute. Talking on speaker 1. Press Speaker Phone [ ]. Putting a call on hold and return** Putting a call on hold 1. Press Options > Hold or press [ ]. Returning to a held call 1. Press Options > Unhold or press [ ] again. Multi-party calls** You can talk with more than one person or conference call. Making a multi-party call 1. Call the first participant. 2. Call the second participant. The first call is automatically put on hold. 3. Press Options > Join. Having a private conversation with one participant 1. Press Options > Split. 2. Press OK. 3. Select the participant and press OK. All of the multi-party call participants can now hear each other.
Removing one participant from a multi-party call 1. Press Options > Disconnect. 2. Select the participant and press OK. The call ends with that participant, but you can continue to talk with other participants. Searching a number in address book during a call 1. Press [ ] or press Menu > Address Book > Contacts. 2. Select a number > [ ]. Searching for a name or group in address book Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input. Finding a name manually in address book 1. Press the [ / ] key. Viewing the details of highlighted entry in address book 1. Press OK. For details on address book, see page 21. Reading a message during a call 1. Press Options > View Message. 2. Press Inbox > select a message Writing a message during a call 1. Press Option > Create Message. 2. Press Create New Message. For details on creating a text message, see page 27. Call Settings Setting auto redial 1. Press Menu > Settings > Call > Auto Redial. 2. Select On or Off. Answering with any key press 1. Press Menu > Settings > Call > Any Key Answer. 2. Select Answer with Any Key. NOTE: you can answer with any key except [] and Reject. Settings for video share Turning on/ off the alert 1. Press Menu > Settings > Call > Video Share. 2. Press Alert. 3. Select On or Off > Select.
Setting for automatic recording 1. Press Menu > Settings > Call > Video Share. 2. Press Auto Record. 3. Select On or Off > Select. Setting for profile 1. Press Menu > Settings > Call > Video Share. 2. Press Profile 3. Select AT&T IMS or Media Net > Select. Setting recording location 1. Press Menu > Settings > Call > Video Share. 2. Press Recording Location. 3. Select Phone or External Memory > Select. Checking all calls You can view information about all Recent Calls. For more options for all, missed, received and dialed calls press Options. You can also view the all Recent Calls simply by pressing [ ]. Viewing missed calls 1. Press Options in standby mode > Recent Calls > Missed Calls. Viewing received calls 1. Press Options in standby mode > Recent Calls > Received Calls. Viewing dialed calls 1. Press Options in standby mode > Recent Calls > Dialed Calls. Deleting call logs 1. Press Options in standby mode > Recent Calls > Delete Call Logs. 2. Select All Calls > Yes. NOTE: If no logs exist, the message “No call exist” appears. Viewing call time 1. Press Options in standby mode > Recent Calls > Call Time. 2. Press [ / ] to view Last Call, Received Calls, Dialed Calls, and Total Calls. Resetting all call time 1. Press Options in standby mode > Recent Calls > Call Time. 2. Press Reset > Yes. 3. Enter password > OK.
NOTE: The default password is ‘1234’ . Viewing data transmitted information 1. Press Options in standby mode > Recent Calls > Packet Counter. - Current Info: You can view transmitted data in the current session, in Kbytes. Sent, Received and Total information is also available. - Last Info: You can view Sent, Received, Total and Duration transmitted in previous sessions, in Kbytes. - Total Info: You can view all Sent, Received, and Total transmitted data in Kbytes. - Clear Logs: The default password is ‘1234’. Speed dialing You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9. [ ] : Voice mail [ ] : Prefix for international call Setting speed dial 1. Press Menu > Address Book > Speed Dial. 2. Select an empty entry and press Add. 3. Select a person and press OK or Select. Changing speed dialing person 1. Select a number > OK or Options > Change. 2. Select a person > OK or Select. Removing from speed dial 1. Select a number > Options > Delete. Using address book You can save names, phone numbers, and information on the SIM or phone. Entries can depend on the capacity of the SIM card. Viewing contact list 1. Press [ ] or press Menu > Address Book > Contacts. Searching for a phone number 1. Press [ ] or press Menu > Address Book > Contacts. 2. Input the first letter or two of the person's name and scroll with [ / ]. 3. Press OK to view detail information. 4. To update information press Options > Edit.

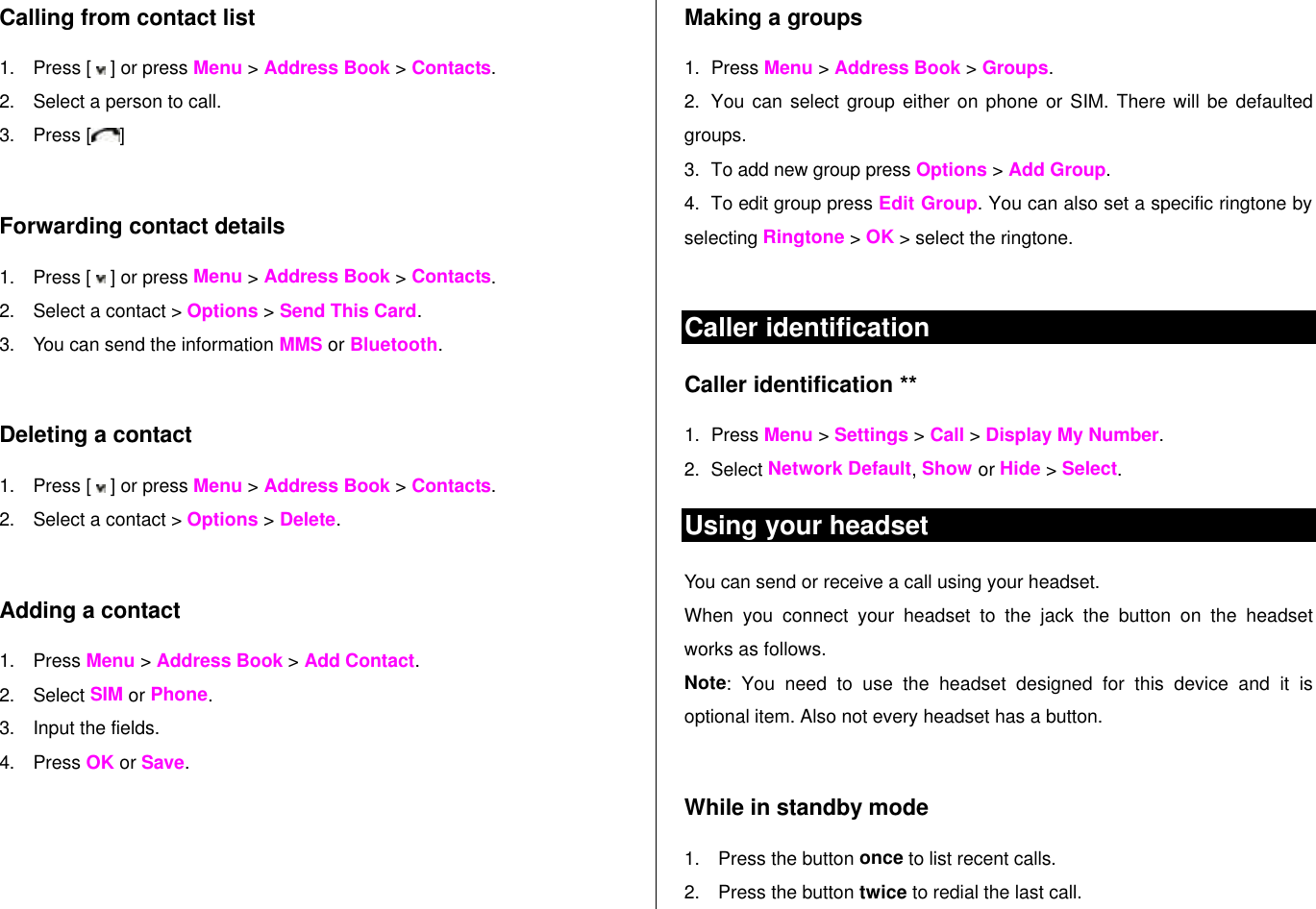

Calling from contact list 1. Press [ ] or press Menu > Address Book > Contacts. 2. Select a person to call. 3. Press [ ] Forwarding contact details 1. Press [ ] or press Menu > Address Book > Contacts. 2. Select a contact > Options > Send This Card. 3. You can send the information MMS or Bluetooth. Deleting a contact 1. Press [ ] or press Menu > Address Book > Contacts. 2. Select a contact > Options > Delete. Adding a contact 1. Press Menu > Address Book > Add Contact. 2. Select SIM or Phone. 3. Input the fields. 4. Press OK or Save. Making a groups 1. Press Menu > Address Book > Groups. 2. You can select group either on phone or SIM. There will be defaulted groups. 3. To add new group press Options > Add Group. 4. To edit group press Edit Group. You can also set a specific ringtone by selecting Ringtone > OK > select the ringtone. Caller identification Caller identification ** 1. Press Menu > Settings > Call > Display My Number. 2. Select Network Default, Show or Hide > Select. Using your headset You can send or receive a call using your headset. When you connect your headset to the jack the button on the headset works as follows. Note: You need to use the headset designed for this device and it is optional item. Also not every headset has a button. While in standby mode 1. Press the button once to list recent calls. 2. Press the button twice to redial the last call.
While the phone is closed 1. Press the button once to receive a call. 2. Press the button once to end the call. Service numbers and fixed dialing Calling your service numbers* You can see the service number to reach the service provider. 1. Press Menu > Address Book > Service Numbers. 2. Select a number > press [ ]. Viewing fixed dialing list Fixed dialing is a service that limits your access to specific numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service. 1. Press Menu > Address Book > FDN List. 2. Select a number > press [ ]. NOTE: PIN2 must be correctly entered within 3 attempts. If you input incorrect code three times in a row the PIN2 code will be blocked. If the PIN2 code is blocked please contact your service provider. PIN2 code supplied with SIM card.
3. Messaging Entering text Messaging Receiving messages Creating and sending text messages Creating a multimedia messages Message templates Settings message Voice message setting Email Using instant messenger
Entering text You can enter text with multi-tap, predictive, numeric or symbol. Useful keys [ ] Display symbols [ ] Adding space [ ] Press to change capital mode. Press to change ab Ab AB and press and hold to change from multi to predictive to Number Multi-tap (all small caps / first letter caps / all caps) Predictive (all small caps / first letter caps / all caps) Number Key characters by language Each of the following keys will scroll through these sequential options listed by language. key English Spanish French 1 . . , - / ? ! ' @ : 1 2 abc á ã ç ç à â á ä 3 def é é è ê ë 4 ghi í î ï í 5 jkl 6 mno ó ñ ô ó ö ñ 7 pqrs ß 8 tuv ú ü ù û ú ü 9 wxyz Predictive mode The predictive mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word. It will appear the most commonly used word first. The most commonly used word will appear first. To save a word not listed in phone's dictionary press Options > T9 Predictive Settings > Selection List > On. 1. Press [ ] to change the mode as predictive. 2. Press [ ] to [ ] to input text. For example, to write ‘hello’ press [ ] [ ] [ ] [ ] [ ]. Alphabet input mode Press the key labeled with the target letter once for the first letter; press it twice for the second letter, and so on. 1. Press [ ] to change the mode as multi-tap. 2. Press [ ] to [ ] to input text repeatedly. To write the letter “C”, press [ ] 3 times. To write number 2 press [ ] 4 times. Numeric mode You can input numbers in this mode. 1. Press [ ] to change the mode 123.
2. Press [ ] to [ ] and [ ] to input numbers. Symbol mode You can input symbols. 1. Press [ ] to view the symbols. 2. Press [ / / / ] to select symbol and press Insert. Messaging You can send, receive and save the text message and multimedia message. Managing memory When the message box is full the messages full icon will appear. When It means Text message is full Multimedia message is full Moving a message to SIM 1. Press Menu > Messaging > Inbox. 2. Select a message > Options > Move to SIM. Deleting a message in a mailbox 1. Select a message > Options > Delete > Yes. Replying to a message 1. Select a message > Options > Reply. Viewing memory space information 1. Press Menu > Messaging > Memory Info 2. Press [ / ] to view SIM and Phone memory. Receiving messages Viewing a new message 1. Press View or press OK. Reading a message from the inbox 1. Press Menu > Messaging > Inbox. 2. Select a received message > OK. Saving number or e-mail from received message 1. Select a received message > Options > View.
2. Press Options > Save. 3. Select New Contact or select Update Contact. Saving the object in the received multimedia message 1. Open the multimedia message. 2. Press Options > Save Objects. 3. Select an object > Save. 4. Edit the filename > Options > Save. It will be saved in one of the categories in the My Stuff folder. For details on photo album, see page 34. Listening to voice message 1. Press and hold [ ] or press Menu > Messaging > Voice Mail. It will automatically call the voice mail center. Creating and sending text messages Sending new text message 1. Press [ ] or press Menu > Messaging > Create Message. 2. Write the message. 3. Press Options > Send. 4. To view sent message press Menu > Messaging > Sent. NOTE: All successfully send messages will save in Sent. While sending or failed to send message will save in Outbox. Finding all sent messages 1. Press Menu > Messaging > Sent. Creating multimedia messages You can create new multimedia message. Capacity is 300Kb and will alert you once that is exceeded via error message. Adding saved picture to the message 1. Press [ ] or press Menu > Messaging > Create Message 2. Write a message. 3. Press Options > Add Picture > Saved Pictures. 4. Select the folder > OK > choose a file. 5. Press Options > Select. 6. To preview the whole message, press Options > Preview > Whole message. 7. To edit the text message, press [ /] to select the text box. Press Options > Send. Adding new picture to the message 1. Press [ ] or press Menu > Messaging > Create Message. 2. Write a message.
3. Press Options > Add picture > Take picture. 4. Focus on the object > OK. 5. Press Options > Send. For the taking picture, see page 33. Adding recorded voice memo to the message 1. Press [ ] or press Menu > Messaging > Create Message. 2. Write a message. 3. Press Options > Add sound > Saved sounds. 4. Select the folder > My Voice > Select. 5. Select the file, press Options > Select. 6. To listen select the recorded memo Options > Play. 7. To stop listening Pause. 8. To select other recorded memo press Back and select other memo. 9. Press Options > Send. Adding new voice memo to the message 1. Press [ ] or press Menu > Messaging > Create Message. 2. Write a message. 3. Press Options > Add sound > Record Sound. 4. Press Options > Record to record the sound. 5. To stop and save press Stop. 6. Press Options > Send. For the recording voice memo, see page 43. Adding saved video to the message 1. Press [ ] or press Menu > Messaging > Create Message. 2. Write a message. 3. Press Options > Add video > Saved Videos. 4. Select a video > Options > Select. 5. To play press Options > Preview > Current. 6. To preview the whole message press Options > Preview > Whole Message. 8. To stop press Stop. 7. Press Options > Send. Adding new video to the message 1. Press [ ] or press Menu > Messaging > Create Message. 2. Write a message. 3. Press Options > Add video > Record Video. 4. Focus on the object > Options > Record. 5. To stop recording and save press Stop. 6. Press Options > Send. For the recording video, see page 33. Adding other file to the message 1. Press [ ] or press Menu > Messaging > Create Message.
2. Write a message. 3. Press Options > Add Other file. 4. Select the file > Options > Select. 5. Press Options > Send. Message templates When you often use the same phrases, you can save the message under template messages. Adding the message as a template 1. Press Menu > Messaging > Templates. 2. Press Options > Add New. 3. Write the often used message > Options > Save. Sending message with template 1. Press Menu > Messaging > Templates. 2. Select the message to send. 3. Edit the message > Options > Send. NOTE: You can add template during writing message. Write a message > Options > Add Template. Choose Text or Multimedia and select the message to add. Message settings Setting message center 1. Press Menu > Messaging > Settings. 2. Press Text Massage. 3. Enter new Center Address. 4. Press Save. Setting profiles for multimedia message 1. Press Menu > Messaging > Settings. 2. Press Multimedia Massage > MMS Profiles. 3. Select a profile. Setting sending multimedia message 1. Press Menu > Messaging > Settings. 2. Press Multimedia Massage > Sending Settings. 3. You can set for Validity Period, Delivery Time, Priority, Creation Mode, and Max Message Size. Setting receiving multimedia message 1. Press Menu > Messaging > Settings. 2. Press Multimedia Massage > Receiving Settings. 3. You can set for Automatic Download, Allow Delivery Reply, Allow
Read Reply, and Accepted Messages. Setting e-mail gateway 1. Press Menu > Messaging > Settings. 2. Press Email Gateway. 3. Enter new gateway for receiving e-mail. 4. Press Save. Setting receiving notice for push message 1. Press Menu > Messaging > Settings. 2. Press Push Message > Receive. 3. Select On or Off. Voice message setting Setting receiving voice message 1. Press Menu > Messaging > Settings. 2. Press Voice Mail. 3. Enter the number of the voice mail center > Save. NOTE: This number may be pre-configured by the service provider upon activation. Email You can receive email from your service provider. Receiving an email 1. Press Menu > Messaging > Mobile Email. 2. Select an email > OK. Using instant messenger Use Instant Messenger (IM) to send and receive short, simple messages that are delivered immediately. Starting an instant messenger 1. Press Menu > Messaging > IM. 2. Select the IM application > Select. 3. Enter logon and password > Sign In. Viewing the conversation log You can view the log of your conversations in the Instant Messenger Saved History.
4. Multimedia Camera Photo album Video album Audio album Music player Settings music player Media player Other files Managing memory Playing games
Camera You can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia message. Setting camera settings 1. Press Menu > My Stuff > Tools & Utilities. 2. Press Camera. 3. Press Options > Settings to change settings prior to taking a picture. In options menu for camera Icons Name Description White Balance Auto( ), Day Light( ), Tungsten(), Fluorescent( ) Effect Normal( ), Sepia( ), Nagative( ), B&W( ) Self Timer Off( ), 5 secs( ), 10 secs( ) Picture Size 1280x1024( ), 1024x768( ), 640x480( ), 320x240( ), 176x220( ), 176x144( ) Advanced Picture Quality, Save Location, Shutter Sound, Timer Sound, Default File Name In options menu for video camera Icons Name Description White Balance Auto( ), daylight( ), Tungsten( ), Fluorescent( ) Effect Normal( ), Sepia( ), Nagative( ), B&W( ) Self Timer Off( ), 5 secs( ), 10 secs( ) Resolution 128x96(MMS)( ), 176x144(MMS)( ), 128x96( ), 176x144( ) Advanced Video Quality, Sound Recording, Save Location, Timer Sound, File Format, Default File Name Zoom in and out 1. Press [ /]. It ranges from x1 to x4. Increasing or decreasing the brightness 1. Press [ / ]. It ranges from -2 to +2. Quality Camera mode Remain Zoom Brightness White Balance Effect Self Timer Video mode Size
Taking a picture 1. Press [ ] in standby mode or press Menu > My Stuff > Tools & Utilities. 2. Press Camera. 3. Focus on the object > OK or press Options > Capture. NOTE: Your photo will be saved automatically to My Stuff > Graphics > Camera. Changing to video camera mode 1. Press [ ] in standby mode or press Menu > My Stuff >Tools & Utilities > Camera. 2. Press Options while camera mode is activated. 3. Press Video Camera Mode. 4. Focus on the object > OK or press Options > Record. 5. Record the motion > Stop. NOTE: Your video will be saved automatically to My Stuff > Video. Viewing the taken picture 1. Press [ ] in standby mode or press Menu > My Stuff > Tools & Utilities > Camera. 2. Press Options > Photo Album. 3. Select the picture > OK. After taking pictures To Press Send a multimedia message Options > Send via > Multimedia Message Send using Bluetooth Options > Send via > Bluetooth Upload photos on the web Options > Send via > HP’s Snapfish Set as wallpaper Options > Set as > Wallpaper Set as address book Options > Set as > Caller ID Delete Options > Delete Rename Options > Rename View photo’s information Options > Properties Recording a video 1. Press Menu > My Stuff > Tools & Utilities > Video Camera. 2. Focus on the object > OK or press Options > Record. 3. Press Stop to stop. 4. Press Options > Play to play the video clip. 5. Press [ ] to go back to preview mode. Changing to camera mode 1. Press Menu > My Stuff > Tools & Utilities > Video Camera. 2. Press Options while video camera mode is activated. 3. Press Camera Mode. For details on taking a picture, see page 33. Viewing the recorded video clip 1. Press Menu > My Stuff > Tools & Utilities > Video Camera. 2. Press Options > Video Album. 3. Select the video clip > OK.

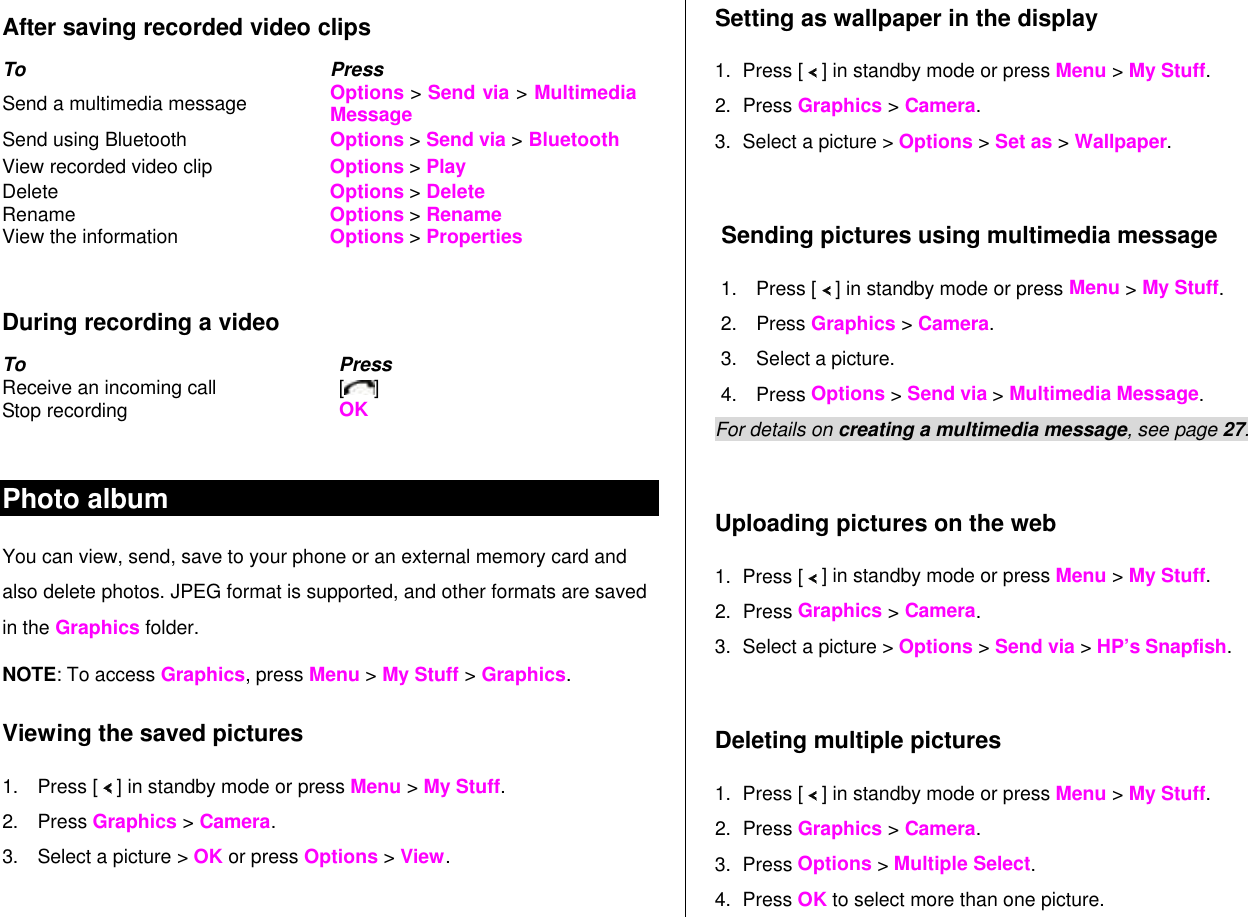

After saving recorded video clips To Press Send a multimedia message Options > Send via > Multimedia Message Send using Bluetooth Options > Send via > Bluetooth View recorded video clip Options > Play Delete Options > Delete Rename Options > Rename View the information Options > Properties During recording a video To Press Receive an incoming call [ ] Stop recording OK Photo album You can view, send, save to your phone or an external memory card and also delete photos. JPEG format is supported, and other formats are saved in the Graphics folder. NOTE: To access Graphics, press Menu > My Stuff > Graphics. Viewing the saved pictures 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Graphics > Camera. 3. Select a picture > OK or press Options > View. Setting as wallpaper in the display 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Graphics > Camera. 3. Select a picture > Options > Set as > Wallpaper. Sending pictures using multimedia message 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Graphics > Camera. 3. Select a picture. 4. Press Options > Send via > Multimedia Message. For details on creating a multimedia message, see page 27. Uploading pictures on the web 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Graphics > Camera. 3. Select a picture > Options > Send via > HP’s Snapfish. Deleting multiple pictures 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Graphics > Camera. 3. Press Options > Multiple Select. 4. Press OK to select more than one picture.
5. Press OK to unselect. 6. Press Options > Delete. Viewing file information 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Graphics > Camera. 3. Select a picture. 4. Press Options > Properties. Video album You can view, send, save and delete videos. Playing the saved video clips 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Video. 3. Select a video clip > OK or press Options > Play. Using video player controls To Press Pause OK Play OK Rewind and hold Fast forward and hold Rotate to landscape mode Options > Landscape Control volume Side key up or down or / Sending video clip using multimedia message 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Video. 3. Select a video. 4. Press Options > Send via > Multimedia Message. For details on creating a multimedia message, see page 27. Deleting multiple video clips 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Video. 3. Press Options > Multiple Select. 4. Press OK to select more than one video. 5. Press OK to unselect. 6. Press Options > Delete. Audio album You can play, send, delete, moves to external memory or to phone the saved sounds. The supported formats are MP3, AAC, AAC+, and WMA.
To listen the recorded sound 1. Press Menu > My Stuff > Audio. 2. Press My Voice > select a sound > Options > Play. To use sound controls To Press Play & Pause OK Stop Options > Stop Rewind Hold Fast forward Hold Control volume Side key up or down To set as a ring tone 1. Press Menu > My Stuff > Audio. 2. Select a sound > Options > Set as Ring Tone. To move or copy multiple sound to external memory 1. Press Menu > My Stuff > Audio. 2. Press Options > Multiple Select. 3. Press OK to select more than one sound file. 4. Press Options > Copy to External Memory or Move to External Memory. The selected sound will copy to Audio folder in external memory card. To send sound file using multimedia message 1. Press Menu > My Stuff > Audio. 2. Select a sound file. 3. Press Options > Send via > Multimedia Message. Music Player You can listen MP3 and Streaming Music even your device is closed. It can be only play audio files saved in MP3, .AAC, .AAC+, and .WMA,. When It means Music is playing Music has been paused Music has been stopped NOTE: microSD card must be inserted to transfer music to your device. Adding music from Windows Media Player® 1. Connect the USB cable to the device and the computer. 2. Select Music Player > Yes. 3. Open the Sync tab in Windows Media Player® in your computer. 4. Select the music from the list and drag and drop to your device. Note: Windows Media Player® 10, 11 and Vista version is required.
Playing the music 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Select the categorize using [ /] to play the music. 3. Select the file using [ /] then press OK. 4. Press Options > Add to Playlist to add to the playlist. 5. Press Options > Stop to stop playing. NOTE: To stop playing music in the standby mode, press [ ]. Icons for player Icon Name Description Volume Previous Next Short Press : Previous, Next Long Press : Fast Rewind, Fast Forward Pause Play Repeat On Shuffle On Listening music with headset 1. While music is playing in the standby mode, press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Press Now Playing > Options > Transfer to B/T Headset. Viewing the information 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Select the categorize using [ /] to play the music. 3. Select the file using [ /] then press OK. 4. Press Options > Properties. 5. Use [/] to view Title, Artist, Album, Genre, Filename, Location, Format, Bit Rate, Length, Size, Date Added, License, and Sharing. Setting as ringtone 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Select the categorize using [ /] to play the music. 3. Select the file using [ /] then press OK. 4. Press Options > Set as Ring Tone. NOTE: During playing the music the file can not be set as ring tone. You cannot set a file which is larger then 300 Kb as a ringtone. Deleting music 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Select the music from the list. 3. Press Options > Delete.
Note: If the music is playing you cannot delete. Shopping the music 1. Press Options > Music Player in standby mode or press Menu > AT&T Music. 2. Press Shop Music. 3. To go to previous page press Back. Using music identification 1. Press Menu > AT&T Music. 2. Press MusicID. 3. Hold the phone close to the music. Your phone will analyze the music and display the artist, title, and album. NOTE: For the cost plan contact your nearest carrier. Listening the radio 1. Press Menu > AT&T Music. 2. Press XM Radio. Watching the music video 1. Press Menu > AT&T Music. 2. Press Music Videos. Viewing Billboard information 1. Press Menu > AT&T Music. 2. Press The Buzz. Launching to community 1. Press Menu > AT&T Music. 2. Press Community. Launching more applications 1. Press Menu > AT&T Music. 2. Press Music Apps. Music player settings Shuffling music 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Press Settings. 3. Select Play Mode > Shuffle. 4. Select Shuffle On or Shuffle Off > OK.
Repeating the music 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Press Settings. 3. Select Play Mode > Repeat. 4. Select Repeat All Tracks, Repeat Single Track or Repeat Off > OK. Setting equalizer 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Press Settings. 3. Select Equalizer. 4. Select the category by using [ /] > OK. Removing 1. Press Options > Music Player in standby mode or press Menu > AT&T Music > Music Player. 2. Press Settings. 3. Select Remove. 4. Select Only License File or Exception License File > OK. Media player You can play MP3s and video clips with the media player. The MP3 player can only play audio files without video file, saved in MP3 format, saved as MP3, .AAC, .AAC+, and .WMA,. NOTE: Do not use this feature illegally. Sound and video can be protected by copyright. It is illegal to copy such sound / video tracks for the purpose of selling or distribution. Pantech does not in any way support the unauthorized use of content on your phone media player. <Audio player> <Video player> Icons for player Icon Name Description Volume Mute Previous Next Short Press : Previous, Next Long Press : Fast Rewind, Fast Forward Background skin Video image Playing time Duration Loop Player controls Volume controls
Pause Play Repeat On Playing the video clip 1. Press [ ] in standby mode or press Menu > My Stuff 2. Press Tools & Utilities > Media Player. 3. Press Video. 4. Select a file > Options > Play. Playing the audio file 1. Press [ ] in standby mode or press Menu > My Stuff 2. Press Tools & Utilities > Media Player 3. Press Audio. 4. Select the folder > select a file > Options > Play. For the video player control see page 35. Other files You can manage files in unsupported formats saved on your phone. It also lists files received via Bluetooth from other devices. Viewing the list of the files 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Other Files. Managing memory Viewing memory status 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Memory Info. 3. Use [ /] to view the information. Playing games You can download games to play with. It is easy to download and you can preview them beforehand. You will only be able to view games that are available on your mobile. Shop games 1. Press [ ] in standby mode or press Menu > My Stuff. 2. Press Games & Apps. 3. Select Shop Games > Select. 4. Play the demo and press BUY to download the complete game.
5. Useful Features Alarm Calendar Notepad and voice memo Calculator, converter and stop watch Business card Memory information
Alarm Setting an alarm 1. Press Menu > My Stuff > Tools & Utilities > Alarms. 2. Press New for new alarm for the first time. 3. Set the Cycle, Time, Alarm Sound and Snooze > Save. Viewing the saved alarms 1. Press Menu > My Stuff > Tools & Utilities > Alarms. Editing existing alarms 1. Press Menu > My Stuff > Tools & Utilities > Alarms. 2. Select an alarm > Options > Change Alarm. 3. Press Options > Delete to delete an alarm. Calendar Calendar helps you manage your schedule including your time for calls or special days. You can set a reminder on any given date with this function. Viewing calendar 1. Press Menu > My Stuff > Tools & Utilities > Calendar. NOTE: Monthly view is displayed as default. In the monthly view To Press Move to another day [] for Previous [] for Next Move to another week [] for Previous [] for Next View other month Side key up for Previous Side key down for Next Creating a new event and edit 1. Select a day > Options > New Event. 2. Select Schedule, Task, or Note. 3. Input the events > Save. NOTE: You can create up to 50 scheduled events. Note. You can create events for dates from 01/01/2000 to 12/31/2050. Notepad and voice memo Using notepad 1. Press Menu > My Stuff > Tools & Utilities > Notepad. 2. Press Yes for the first time. To add new note press Options > Create
New. 3. To edit memo press Options > Edit. 4. Press Options > Save to save. Recording voice memo 3. Press Menu > My Stuff > Tools & Utilities > Voice Memo. 4. Press Options > Record. 5. Press Stop to stop recording. It will automatically save on My Voice. 6. Press Options > Play to listen. NOTE: To access My Voice, press Options > My Voice. Listening the recorded sound 1. Press Menu > My Stuff > Audio > My Voice. 2. Select a sound > Options > Play. Using sound controls To Press Pause OK Play OK Stop Options > Stop Fast forward And hold Fast rewind And hold Control volume Side key up or down or / Calculator, converter and stop watch Using stop watch 1. Press Menu > My Stuff > Tools & Utilities > Stop Watch. 2. Press Options > Start to start. 3. Press Stop to stop. 4. Press Continue to restart. 5. Press Reset to clear. 6. To change to lap time, press Options > Advanced Settings > Lap Time Mode. 7. To split the stopwatch, press Options > Advanced Settings > Split Time Mode. Using the calculator 1. Press Menu > My Stuff > Tools & Utilities > Calculator. 2. Use [ / / / /OK] to calculate. 3. Press Clear or [ ] to erase one digit. 4. Press Reset to reset. 5. Press [ ] to use the decimal point. Using the converter 1. Press Menu > My Stuff > Tools & Utilities > Converter. 2. Select the categories 3. Select current unit and enter figure. 4. Select the unit to be changed.
Business card You can send your information by sending it as multimedia message. Creating your own business card 1. Press Menu > Address Book > My Business Card. 2. Press Yes for new business card for the first time 3. Edit the fields > Options > Save or press OK. Forwarding 1. Press Menu > Address Book > My Business Card. 2. Press Options > Send This Card > MMS or Bluetooth. 3. Write a message for MMS. 4. Press Options > Send. Updating information 1. Press Menu > Address Book > My Business Card. 2. Press Options > Edit. 3. Update information. 4. Press Options > Save. Memory information You can view the information of your phone for Used, Graphics, Video, Audio, Other Files, Games & Apps, and System. Viewing the information 1. Press Menu > My Stuff > Memory Info.
6. Connectivity Bluetooth Using the browser Profiles settings
Bluetooth Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connection can be used to send images, text, business cards, calendar notes, or to connect to computers using Bluetooth technology. Your mobile phone supports: • Connect to PC to access internet. • Connect to Hands-Free. • Connect to electronic devices. Icons for Bluetooth Bluetooth is active Sending or receiving file using Bluetooth Bluetooth is active and the headset is connected USB is connected Activating 1. Press Menu > Settings > Connectivity > Bluetooth > Activation. 2. Select On or Off. Adding a device 1. Press Menu > Settings > Connectivity > Bluetooth >My Devices. 2. Press Search or press OK. 3. The available device will display. 4. To select the device press Options > Select Device. To view the details press View Detail. 5. Enter password. NOTE: The other device must be in pairing mode. Sending an object 1. Select the file from Menu > My Stuff > Graphics, Video, Audio, or Other Files. 2. Press Options > Send via > Bluetooth. 3. Press Search or press OK. 4. Select the device > Select. NOTE: If the other Bluetooth device requests pairing, the object is sent after pairing is completed. Locked object or ones containing original rights may not be forwarded. Receiving an object The receiving an object starts only when the receipt has been approved. The received file will be saved in each place. For example, if you received contacts information from the sender, it will be saved in your phone’s memory.
Setting the visibility 1. Press Menu > Settings > Connectivity > Bluetooth > Visibility. 2. Select Hide or Show. Naming the phone 1. Press Menu > Settings > Connectivity > Bluetooth > My Bluetooth Info. 2. Select the Name > Edit > edit the field > Options > Save. NOTE: This is what others will see in their device’s display for your phone when searching for your device. Using the browser Accessing browser 1. Press OK in standby mode or press Menu > MEdia Net > MEdia Net Home. NOTE: It will access provider’s homepage. Viewing bookmarks 1. Press Menu > MEdia Net > Bookmarks. 2. To open the site, press Options > Go. 3. To send via text message, press Send by MSG. Setting new bookmarks 1. Press Menu > MEdia Net > Bookmarks. 2. Press Options > Create New. 3. Enter the field > Save. Entering address 1. Press Menu > MEdia Net > Enter Address. 2. Enter the web address > Go. Viewing history 1. Press Menu > MEdia Net > History. Setting advanced options 1. Press Menu > MEdia Net > Manage > Options. 2. Select the category > Select > select the option. Profile settings You can set profile and view Profile Name, Home URL, Connection Type, Proxy Address, and Proxy Port.
Adding new profile 1. Press Menu > MEdia Net > Manage > WAP Profiles. 2. Press Options > Create. 3. Enter the fields > Options > Save. Editing profile 1. Press Menu > MEdia Net > Manage > WAP Profiles. 2. Select other profile > Options > Edit. Viewing default profile 1. Press Menu > MEdia Net > Manage > WAP Profiles. 2. Select MEdia Net > Options > View. Deleting profile 1. Press Menu > MEdia Net > Manage > WAP Profiles 2. Select a profile > Options > Delete.
7. Settings Language Time and date Ringtones Decorating the display Locks To enable fixed dialing Reset TTY

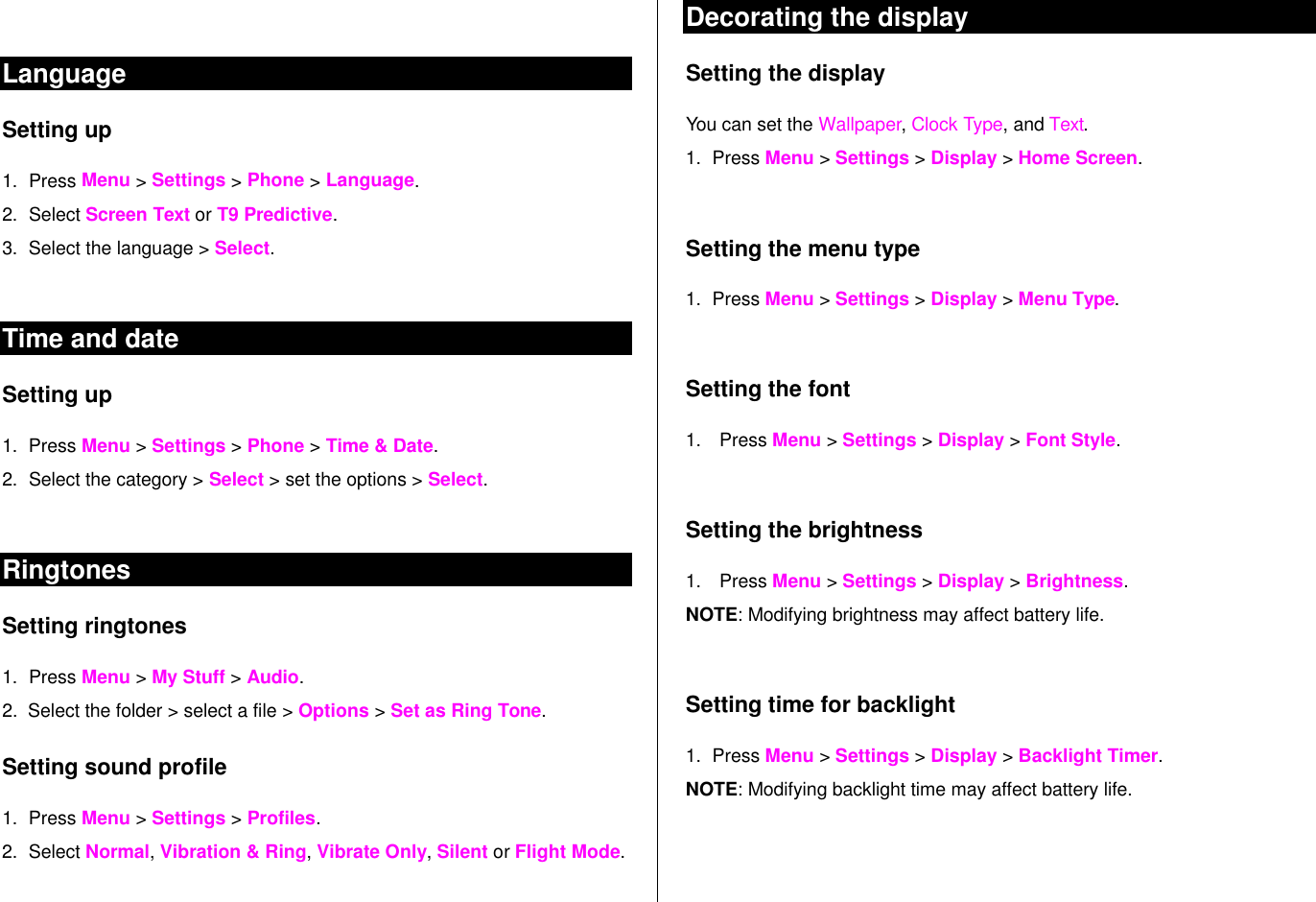

Language Setting up 1. Press Menu > Settings > Phone > Language. 2. Select Screen Text or T9 Predictive. 3. Select the language > Select. Time and date Setting up 1. Press Menu > Settings > Phone > Time & Date. 2. Select the category > Select > set the options > Select. Ringtones Setting ringtones 1. Press Menu > My Stuff > Audio. 2. Select the folder > select a file > Options > Set as Ring Tone. Setting sound profile 1. Press Menu > Settings > Profiles. 2. Select Normal, Vibration & Ring, Vibrate Only, Silent or Flight Mode. Decorating the display Setting the display You can set the Wallpaper, Clock Type, and Text. 1. Press Menu > Settings > Display > Home Screen. Setting the menu type 1. Press Menu > Settings > Display > Menu Type. Setting the font 1. Press Menu > Settings > Display > Font Style. Setting the brightness 1. Press Menu > Settings > Display > Brightness. NOTE: Modifying brightness may affect battery life. Setting time for backlight 1. Press Menu > Settings > Display > Backlight Timer. NOTE: Modifying backlight time may affect battery life.
Locks Locking the phone 1. Press Menu > Settings > Security > Phone Lock > Phone Lock. 2. Select On. NOTE: The default password is ‘1234’. To change the password press Menu > Settings > Security > Phone Lock > Change Password. Locking the PIN The Personal Identification Number is the security code that protects the phone or SIM against unauthorized use. 1. Press Menu > Settings > Security > PIN > PIN Lock. . 2. Enter PIN code > OK. NOTE: To change the PIN code press Menu > Settings > Security > PIN > Change PIN. Changing PIN 2 1. Press Menu > Settings > Security > Change PIN2. To enable fixed dialing Enabling 1. Press Menu > Settings > Security > FDN. 2. Select On or Off. For details on fixed dialing, see page 23. Reset Resetting the phone 1. Press Menu > Settings > Reset 2. Enter password > Master Reset. NOTE: It will return configuration settings to default. The default password is ‘1234’. Clearing the phone 1. Press Menu > Settings > Reset 2. Enter password > Master Clear. NOTE: It will change the setting as default and erase all personal data. The default password is ‘1234’. TTY The teletypewriter (TTY) is a telecommunications device that allows people who are deaf or hard of hearing, or who have speech or language disabilities, to communicate via a telephone. Setting teletypewriter 1. Press Menu > Settings > TTY. 2. Select Disable, TTY Full, TTY Talk, or TTY Hear.
- Disabled: TTY mode is disable. - TTY Full: User who cannot talk and hear sends and receives a text message. - TTY Talk: User who can talk but cannot hear receives a text message and send voice message. -TTY Hear: User who can hear but cannot talk sends a text message and receive voice message.
8. Appendix Alert message Troubleshooting checklist Safety information Safety precautions About the battery usage FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices FCC Regulatory Compliance Warranty
Alert message If you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier. When the “Insert SIM Card” message appears: Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card with a dry cloth. If it is out of order, take it to your service provider. When the “Phone and SIM messages if full. Delete messages” message appears: The received or saved messages are full in your phone or SIM memory. You need to delete the message. When the “Multimedia Message Full” message appears: The saved messages are full in your phone memory. When you receive new message you will see “Multimedia Message Full. Move To Inbox?" You can move to inbox or delete the message. When the “Password” message appears in Phone locked state: Enter the phone password. The default password is”1234”. If you cannot remember the password, contact the nearest carrier. When the “Enter PIN1” message appears: Input PIN1. If you cannot remember it, contact your service provider. You can still receive calls even if your mobile phone becomes locked after entering the incorrect PIN1 on three consecutive attempts. When the “No Service” or “Network Search” appears: If you cannot make/receive a call when you are indoors or undergrounds where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact your service provider. Troubleshooting checklist When audio quality is poor: End a call and try again. When the other party cannot hear you speaking: Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone located below the [*] key. When battery lifetime is shorter than usual: This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.
When your mobile phone does not turn on: Make sure your battery is charged. Check to see if your phone works while recharging the battery. When you are unable to send a message: Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service. When you are unable to make a call: Your phone may be set the FDN or Phone Barring function. Cancel the FDN function or turn off the Phone Barring function, press Menu > Settings > Security > Phone Barring > Off. When you are unable to charge the battery: This may be the result of one of the following three cases. 1. Your charger may be out of order. Contact your nearest dealer. 2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment. 3. Your battery may have not been connected to the charger properly. Check the connector. When you are unable to input data into your Address Book: Your Address Book memory may be full. Try deleting some entries from your Address Book. When you are unable to select a certain function: You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider. Safety information The following list shows how to maintain your mobile phone, together with precautions to take. • Keep your mobile phone and its accessories out of the reach of children. • Maintain your mobile phone in dry conditions and keep it within normal operating temperatures. Temperatures higher than 55°C (131°F) or lower than -20°C (-4°F) may damage your phone. • Do not use or store your mobile phone in dusty, dirty areas. • Do not attempt to disassemble your mobile phone. • Do not drop or cause severe impact to your mobile phone. • Do not use chemical products, cleaning solvents or detergents to clean your mobile phone. • If your mobile phone does not work properly, contact your dealer immediately. • Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty. • Ensure that the battery and battery charger do not come in contact with
conductive objects. Safety precautions Using a mobile phone while driving may be prohibited. Please check local laws and regulations with regard to the prohibition of mobile phone use while driving, and comply with them. Use of your phone while you are driving may disturb your concentration and so cause an accident. Always switch your phone off to drive safely. You should use your phone in an emergency, either use a hands free device built into your car or pull over in a safe place first. Switch off in restricted areas Always switch your phone off in areas where mobile phone use is restricted. Switch off in explosive or dangerous areas Always switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone’s battery in such areas. Switch off in aircraft Always switch your phone off or select Flight Mode (press the Menu > Settings > Profiles > Flight Mode) when you are in an aircraft. The electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft. Switch off in hospitals and near medical equipment Always switch your phone off in hospitals, and obey the regulations or rules of the hospital. Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment. Installing a hands free device in your vehicle Install vehicle hands free devices away from the steering wheel and airbag expansion area, otherwise injury may result. Mobile phones and other electronic devices Mobile phones emit electromagnetic waves that may affect nearby electronic devices. When it is switched on, do not place your phone close to delicate electronic equipment. About the battery usage Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies. • Do not use a damaged battery or charger. • Do not disassemble or open crush, bend or deform, puncture or shred • Do not modify or remanufacture, attempt to insert foreign objects into
the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard. • Do not put your battery into contact with conductive objects. • Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode. • Do not use an unauthorized charger. • Only use the battery for the device for which it is specified • Only use the battery with a charging device that has been qualified with the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. • Do not short circuit a battery or allow metallic conductive objects to contact battery terminals. • Replace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. • Promptly dispose of used batteries in accordance with local regulations • Battery usage by children should be supervised. • Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. • Use your battery for the specified purpose only. • The closer you are to your network’s base station, the longer your phone usage time because less battery power is consumed for the connection. • The battery recharging time varies depending on the remaining battery capacity and the battery and charger type you use. • Battery life inevitably shortens over time. • Use an authorized battery and charger only. • Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger, once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures. • To prevent injury or burns, ensure that no metal objects come into contact with the + and – terminals of the battery. FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities. While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. • M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. • T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings. Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use. In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation. The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard. To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See Page XX for instructions to disable these components.
FCC Regulatory Compliance FCC Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements(NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable. Statement according to FCC part 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Statement according to FCC part 15.21 Modifications not expressly approved by this company could void the user's authority to operate the equipment. RF exposure FCC For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Health and Safety Information FCC This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and
had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *. * In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. **This device contains 1800 MHz GSM and 900 MHz EGSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations. Warranty Protect Your Warranty Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit. “Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident”. Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction. If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product. 12 Month Limited Warranty Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s). The antenna, key pad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable. This Warranty does not apply to: (a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;
(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced. (c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions; (d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company; (e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts; (f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source. The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole. To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer’s return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing. In addition, you may telephone us at (800) 962-8622, or email us at HandsetHelp@Pantech.com THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. PANTECH WIRELESS, INC. 11240 Warland Drive, Cypress, CA 90630 (800) 962-8622
