Pantech Co CDMAPT003 Cellular CDMA Phone User Manual

Pantech Co Ltd Cellular CDMA Phone

Contents

user manual

%QPVGPVU0QVGUQP%GNN2JQPG7UG+NNWUVTCVKQPUCPF5ETGGPUJQVUKP6JKU/CPWCN)GVVKPI4GCF[/CMKPICPF#PUYGTKPI%CNNU%JCTCEVGT+PRWV2JQPG$QQM2CKT(WPEVKQP/CKN%COGTC'<YGD'<0GYU(NCUJ'<0CXK+P%CUGQH.QUUQH;QWT266TQWDNGUJQQVKPI+PFGZPT003$CUKE/CPWCNread this manual to masterthe cellular phone
IntroductionThank you for purchasing the PT003. Before using your PT003, be sure to read the PT003 Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.Manuals for the PT003There are three manuals for the PT003: the Basic Manual, printed Instruction Manual (Japanese) and printed full Instruction Manual (Japanese). For learning the basics:Read the PT003 Basic Manual (this manual) or printed PT003 Instruction Manual (Japanese). For learning details on using each function:The printed full Instruction Manual (Japanese) gives detailed instructions on using each function.To ensure proper usage of the PT003, be sure to read the Safety Precautions “” in the Instruction Manual.The keyword searchable au Online Manual is also available on the au homepage:http://www.au.kddi.com/manual/index.html• To access from EZweb (Packet communication charges do not apply.): R Top Menu/Search   (au Customer Support)   (Online Manual)

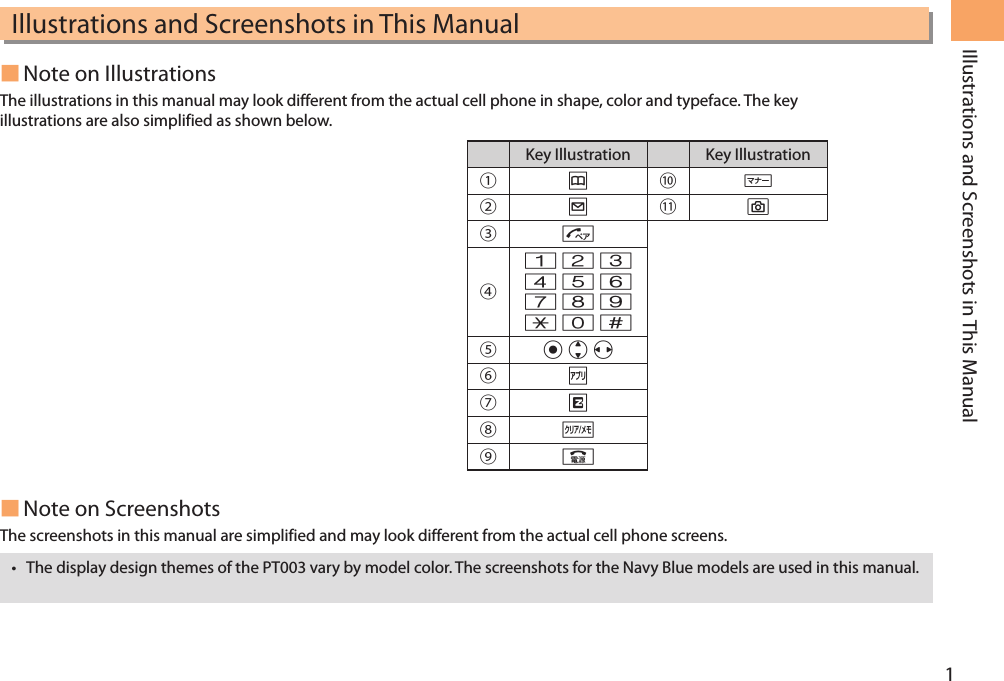

1Illustrations and Screenshots in This ManualIllustrations and Screenshots in This Manual Note on IllustrationsThe illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below.Key Illustration Key Illustration󰒄&󰒍(󰒅L󰒎)󰒆N󰒇123456789*0#󰒈cjs󰒉%󰒊R󰒋C󰒌F Note on Screenshots The screenshots in this manual are simplified and may look different from the actual cell phone screens.• The display design themes of the PT003 vary by model color. The screenshots for the Navy Blue models are used in this manual.
2Notes on Cell Phone UseNotes on Cell Phone UseCell Phone EtiquetteThe cell phone always emits weak radio waves when power is on.Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you. Use of cell phones is not allowed in some places.• Do not use the cell phone while you are driving. Doing so is both dangerous and prohibited by law.• Using a cell phone in an aircraft is prohibited by law. Be sure to turn the cell phone off. Radio waves from cell phones may interfere with medical electrical equipment.• Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places.• Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry cell phones. Be considerate of where you use the cell phone and how loudly you talk.• Do not make calls in theaters, museums, libraries, and other similar places. Turn power off or turn on manner mode not to disturb others around you by ring tones.• Do not use the cell phone on a street where you might interrupt the flow of pedestrians.• Move to areas where you will not inconvenience others on trains or in hotel lobbies.• Refrain from talking in a loud voice.• Obtain the permission of other people before you take their photos with the cell phone's camera.• Do not record information with the cell phone's camera in bookstores and other locations where taking photos is not permitted.Do not use the cell phone while driving!Turn off your cell phone or put it in Drive Mode while driving.Do not use the cell phone while driving a car/motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law.Prohibited!• Looking at a cell phone display• Talking on a cell phone while holding itDrive ModeIn Drive Mode, a Japanese message meaning "I'm driving now, so I can't answer your call." is played when a call is received, and asks the caller to leave a message on the easy voice memo. When the standby screen is displayed, press ((, use jj to select Drive Mode, and then press cc(OK).

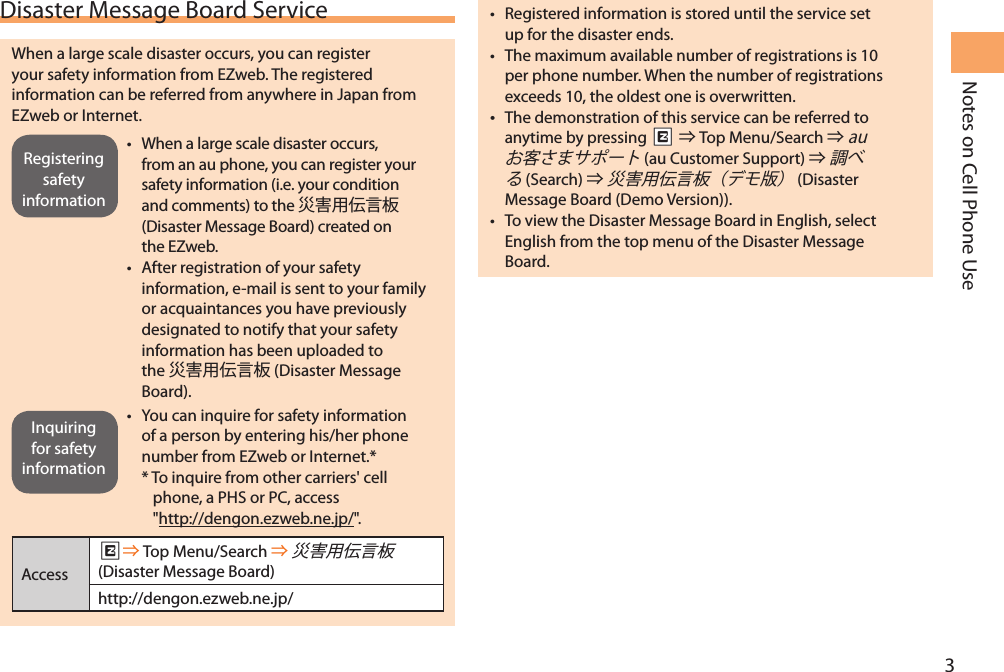

3Notes on Cell Phone UseDisaster Message Board ServiceWhen a large scale disaster occurs, you can register your safety information from EZweb. The registered information can be referred from anywhere in Japan from EZweb or Internet.• When a large scale disaster occurs, from an au phone, you can register your safety information (i.e. your condition and comments) to the  (Disaster Message Board) created on the EZweb.• After registration of your safety information, e-mail is sent to your family or acquaintances you have previously designated to notify that your safety information has been uploaded to the  (Disaster Message Board).• You can inquire for safety information of a person by entering his/her phone number from EZweb or Internet.** To inquire from other carriers' cell phone, a PHS or PC, access "http://dengon.ezweb.ne.jp/".AccessR Top Menu/Search   (Disaster Message Board)http://dengon.ezweb.ne.jp/• Registered information is stored until the service set up for the disaster ends.• The maximum available number of registrations is 10 per phone number. When the number of registrations exceeds 10, the oldest one is overwritten. The demonstration of this service can be referred to anytime by pressing RR  Top Menu/Search   (au Customer Support)  (Search )   (Disaster Message Board (Demo Version)).• To view the Disaster Message Board in English, select English from the top menu of the Disaster Message Board.Registering safety informationInquiring for safety information

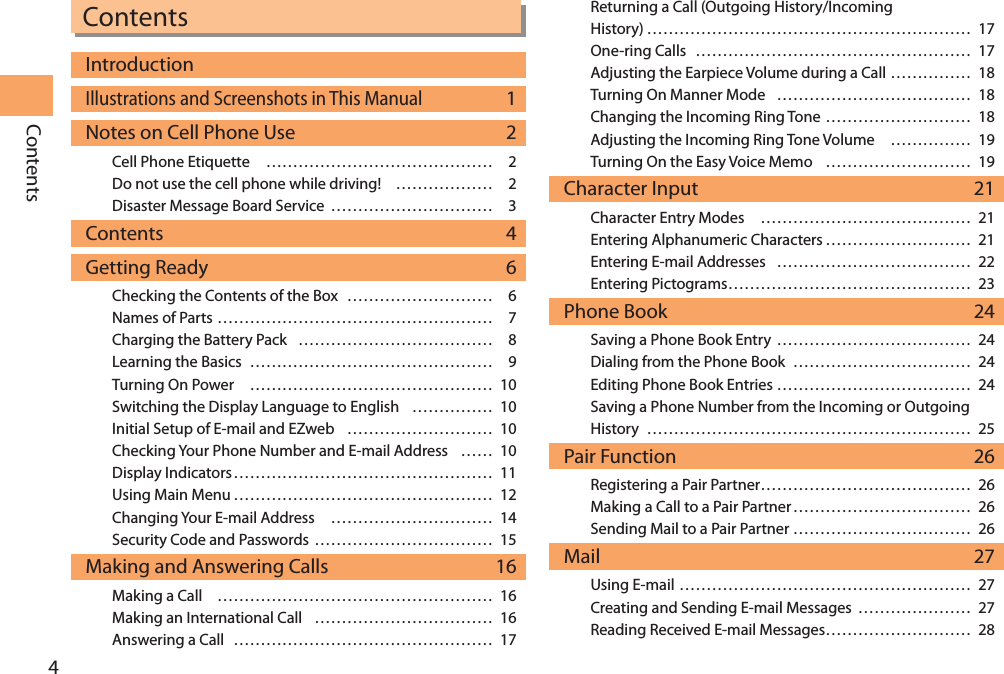

4ContentsContentsIntroductionIllustrations and Screenshots in This Manual 1Notes on Cell Phone Use 2Cell Phone Etiquette …………………………………… 2Do not use the cell phone while driving! ……………… 2Disaster Message Board Service ………………………… 3Contents 4Getting Ready 6Checking the Contents of the Box ……………………… 6Names of Parts …………………………………………… 7Charging the Battery Pack ……………………………… 8Learning the Basics ……………………………………… 9Turning On Power ……………………………………… 10Switching the Display Language to English …………… 10Initial Setup of E-mail and EZweb ……………………… 10Checking Your Phone Number and E-mail Address …… 10Display Indicators ………………………………………… 11Using Main Menu ………………………………………… 12Changing Your E-mail Address ………………………… 14Security Code and Passwords …………………………… 15Making and Answering Calls 16Making a Call …………………………………………… 16Making an International Call …………………………… 16Answering a Call ………………………………………… 17Returning a Call (Outgoing History/Incoming History) …………………………………………………… 17One-ring Calls …………………………………………… 17Adjusting the Earpiece Volume during a Call …………… 18Turning On Manner Mode ……………………………… 18Changing the Incoming Ring Tone ……………………… 18Adjusting the Incoming Ring Tone Volume …………… 19Turning On the Easy Voice Memo ……………………… 19Character Input 21Character Entry Modes ………………………………… 21Entering Alphanumeric Characters ……………………… 21Entering E-mail Addresses ……………………………… 22Entering Pictograms ……………………………………… 23Phone Book 24Saving a Phone Book Entry ……………………………… 24Dialing from the Phone Book …………………………… 24Editing Phone Book Entries ……………………………… 24Saving a Phone Number from the Incoming or Outgoing History …………………………………………………… 25Pair Function 26Registering a Pair Partner ………………………………… 26Making a Call to a Pair Partner …………………………… 26Sending Mail to a Pair Partner …………………………… 26Mail 27Using E-mail ……………………………………………… 27Creating and Sending E-mail Messages ………………… 27Reading Received E-mail Messages……………………… 28

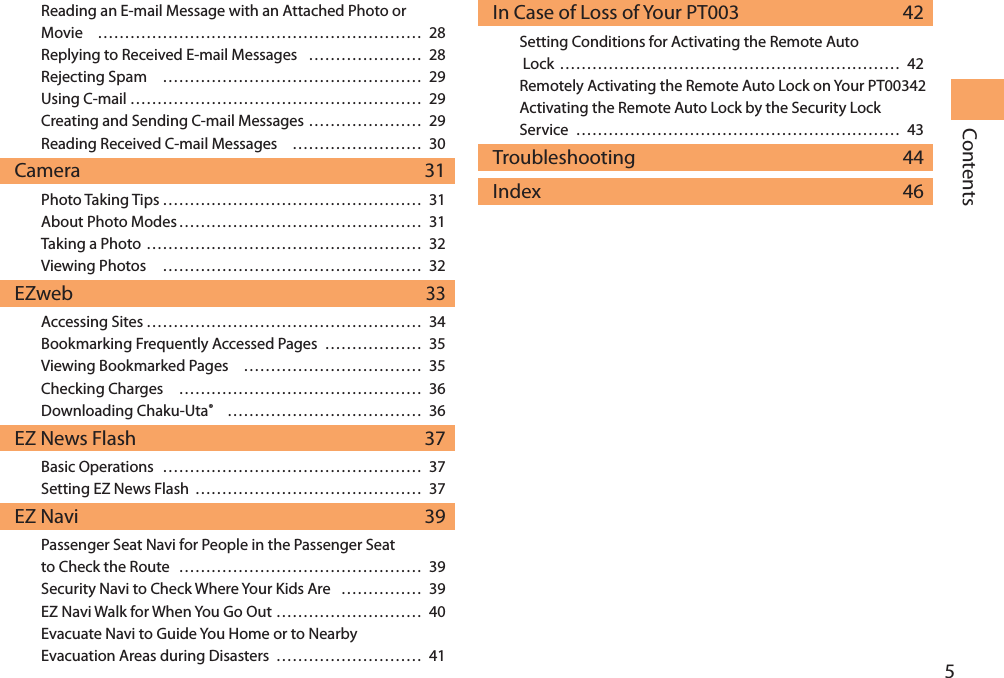

5ContentsReading an E-mail Message with an Attached Photo or Movie …………………………………………………… 28Replying to Received E-mail Messages ………………… 28Rejecting Spam ………………………………………… 29Using C-mail ……………………………………………… 29Creating and Sending C-mail Messages ………………… 29Reading Received C-mail Messages …………………… 30Camera 31Photo Taking Tips ………………………………………… 31About Photo Modes ……………………………………… 31Taking a Photo …………………………………………… 32Viewing Photos ………………………………………… 32EZweb 33Accessing Sites …………………………………………… 34Bookmarking Frequently Accessed Pages ……………… 35Viewing Bookmarked Pages …………………………… 35Checking Charges ……………………………………… 36Downloading Chaku-Uta® ……………………………… 36EZ News Flash 37Basic Operations ………………………………………… 37Setting EZ News Flash …………………………………… 37EZ Navi 39Passenger Seat Navi for People in the Passenger Seat to Check the Route ……………………………………… 39Security Navi to Check Where Your Kids Are …………… 39EZ Navi Walk for When You Go Out ……………………… 40Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters ……………………… 41In Case of Loss of Your PT003 42Setting Conditions for Activating the Remote Auto Lock ……………………………………………………… 42Remotely Activating the Remote Auto Lock on Your PT003 42Activating the Remote Auto Lock by the Security Lock Service …………………………………………………… 43Troubleshooting 44Index 46

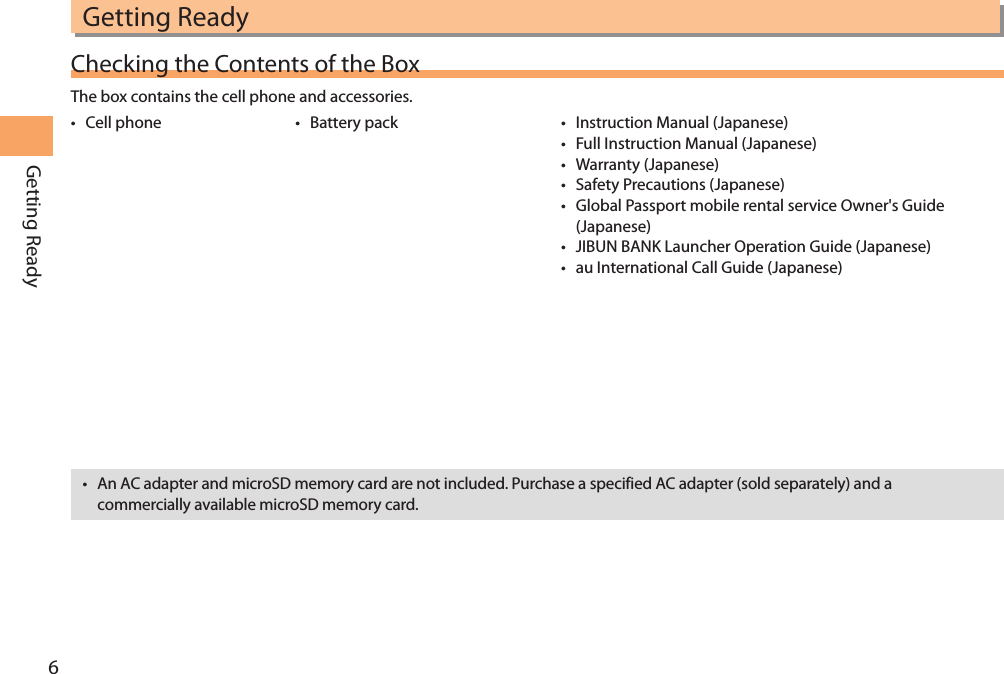

6Getting ReadyGetting ReadyChecking the Contents of the BoxThe box contains the cell phone and accessories.• Cell phone • Battery pack • Instruction Manual (Japanese)• Full Instruction Manual (Japanese)• Warranty (Japanese)• Safety Precautions (Japanese)• Global Passport mobile rental service Owner's Guide (Japanese)• JIBUN BANK Launcher Operation Guide (Japanese)• au International Call Guide (Japanese)• An AC adapter and microSD memory card are not included. Purchase a specified AC adapter (sold separately) and a commercially available microSD memory card.
7Getting ReadyNames of Parts From the Front From the Back From the Sides
8Getting Ready 󰜏Unfold the power plug of the AC adapter and plug it into a 100 V AC power outlet. 󰜏Confirm that the charging indicator lights.• Charging: The charging indicator lights.• Charging finished: The charging indicator goes out.• Be sure to close the cover of the external connection jack when charging is finished.• Do not pull or twist the cover of the external connection jack forcibly.Charging the Battery PackThe battery pack is not fully charged at the time of purchase.Be sure to charge the battery pack before using the cell phone for the first time.• An AC adapter is not included. Purchase a specified AC adapter (sold separately). 󰜏Connect a specified AC adapter to the cell phone with the battery pack attached.• Open the cover of the external connection jack. Check the shape of the connector of the AC adapter, and plug it straight into the external connection jack.
9Getting ReadyLearning the Basics Key Assignments Side Key Assignments• If you lose track of where you are or if you make a mistake, press CC to return to the previous screen. Return to the standby screen by pressing FF.

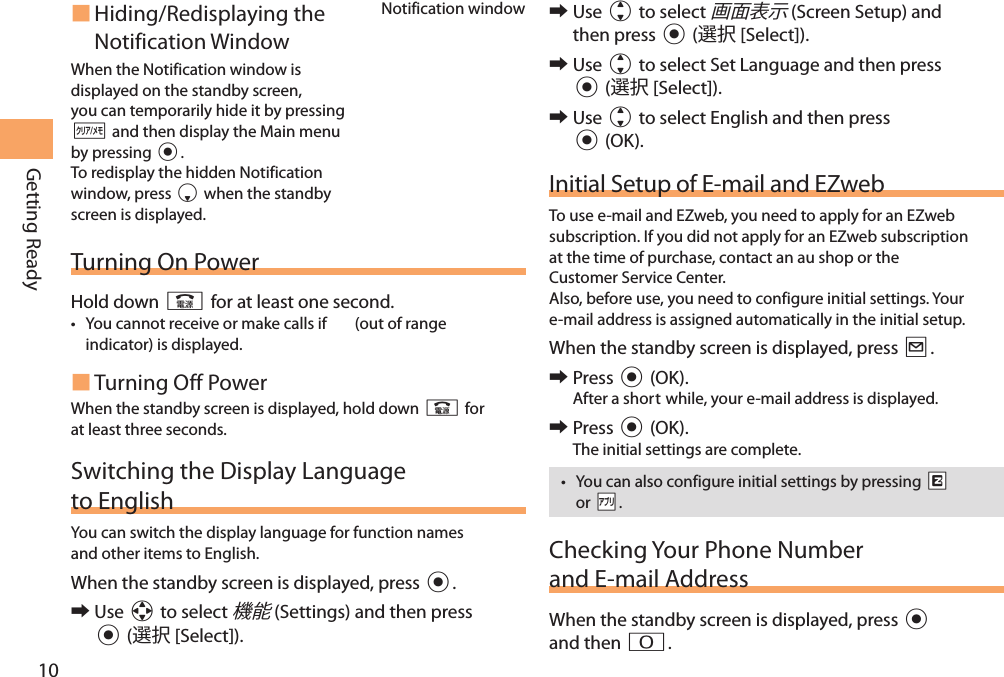

10Getting Ready Hiding/Redisplaying the Notification WindowWhen the Notification window is displayed on the standby screen, you can temporarily hide it by pressing C and then display the Main menu by pressing c.To redisplay the hidden Notification window, press d when the standby screen is displayed.Turning On PowerHold down F for at least one second.• You cannot receive or make calls if (out of range indicator) is displayed. Turning Off PowerWhen the standby screen is displayed, hold down F for at least three seconds.Switching the Display Language to EnglishYou can switch the display language for function names and other items to English.When the standby screen is displayed, press c. 󰜏Use a to select  (Settings) and then press c ( [Select]).Notification window 󰜏Use j to select  (Screen Setup) and then press c ( [Select]). 󰜏Use j to select Set Language and then press c ( [Select]). 󰜏Use j to select English and then press c (OK).Initial Setup of E-mail and EZwebTo use e-mail and EZweb, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the Customer Service Center.Also, before use, you need to configure initial settings. Your e-mail address is assigned automatically in the initial setup.When the standby screen is displayed, press L. 󰜏Press c (OK).After a short while, your e-mail address is displayed. 󰜏Press c (OK).The initial settings are complete.• You can also configure initial settings by pressing RR or %%.Checking Your Phone Number and E-mail AddressWhen the standby screen is displayed, press c and then 0.
11Getting ReadyDisplay IndicatorsDisplay indicators inform you of mail arrival, current settings, etc. Display󰚧󰚩󰚨Indicator Description󰒄Signal strength 󰒅Battery level 󰒆microSD memory card (commercially available) inserted 󰒇During a callConnecting to EZweb 󰒈EZapps activated Connecting over SSL󰒉Missed calls󰒊Receiving EZ News Flash information󰒋New or unread e-mail/ C-mailNew or unread emergency earthquake bulletin󰒌Displaying secret informations󰒍Movable to next/ previous screenScrollableIndicator Description󰒎Current date and time󰒏Easy voice memo set󰒐Manner mode set󰒑Alarm set󰒒Schedule alarm set󰒓Signal off mode set󰒔USB connected󰒕Ring tone off󰒖Vibrator on󰒗Auto lock activated󰚜Side key disable feature on󰚧Ticker field󰚨Wallpaper󰚩Info pane󰚪Notification icon󰚫Shortcut menu

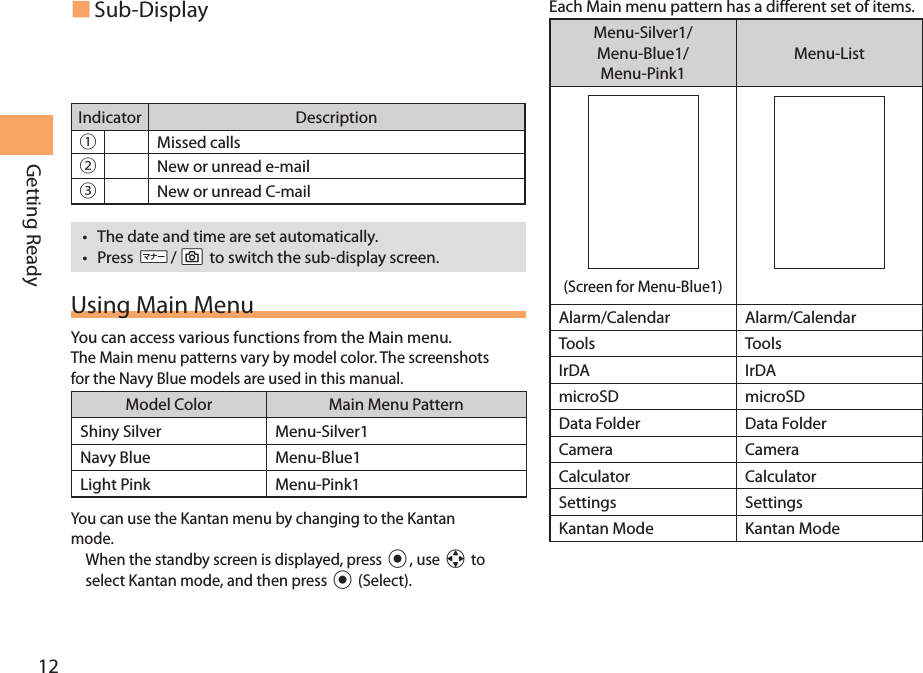

12Getting Ready Sub-DisplayIndicator Description󰒄Missed calls󰒅New or unread e-mail󰒆New or unread C-mail• The date and time are set automatically.• Press ((/)) to switch the sub-display screen.Using Main MenuYou can access various functions from the Main menu.The Main menu patterns vary by model color. The screenshots for the Navy Blue models are used in this manual.Model Color Main Menu PatternShiny Silver Menu-Silver1Navy Blue Menu-Blue1Light Pink Menu-Pink1You can use the Kantan menu by changing to the Kantan mode.When the standby screen is displayed, press c, use a to select Kantan mode, and then press c (Select).Each Main menu pattern has a different set of items.Menu-Silver1/ Menu-Blue1/ Menu-Pink1Menu-List(Screen for Menu-Blue1)Alarm/Calendar Alarm/CalendarTools ToolsIrDA IrDAmicroSD microSDData Folder Data FolderCamera CameraCalculator CalculatorSettings SettingsKantan Mode Kantan Mode
13Getting ReadyMenu-Silver2 Menu-Silver3 Menu-Blue2 Menu-Pink2 Kantan MenuCalculator Alarm EZnavi Calculator CallAlarm Calendar Data Data Camera FunctionCamera Kantan Mode Calculator IrDA microSDSecurity Navi Tools Tools Tools EZ ServiceData Folder Camera Camera Camera Data FolderCalendar Settings Alarm/Calendar Alarm/Calendar ToolsSD Card Menu EZnavi IrDA EZnavi MemoTools Data Folder Settings Settings SettingsIrDA microSD Kantan Mode Kantan ModeSound Setup CalculatorSettings Sound SetupKantan Mode IrDA

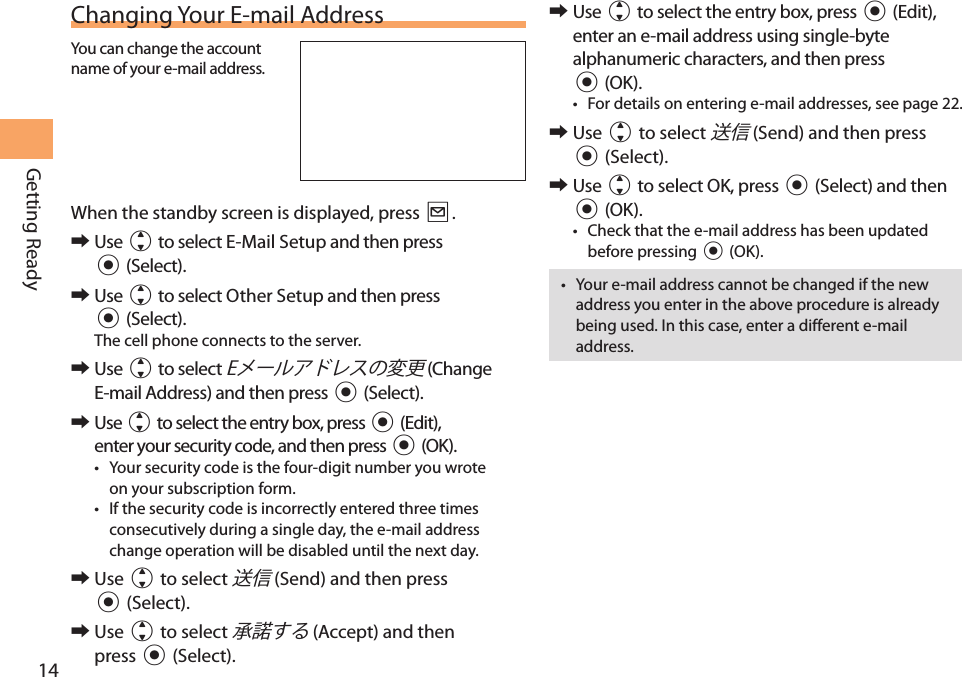

14Getting ReadyChanging Your E-mail AddressYou can change the account name of your e-mail address.When the standby screen is displayed, press L. 󰜏Use j to select E-Mail Setup and then press c (Select). 󰜏Use j to select Other Setup and then press c (Select).The cell phone connects to the server. 󰜏Use j to select  (Change E-mail Address) and then press c (Select). 󰜏Use j to select the entry box, press c (Edit), enter your security code, and then press c (OK).• Your security code is the four-digit number you wrote on your subscription form.• If the security code is incorrectly entered three times consecutively during a single day, the e-mail address change operation will be disabled until the next day. 󰜏Use j to select  (Send) and then press c (Select). 󰜏Use j to select  (Accept) and then press c (Select). 󰜏Use j to select the entry box, press c (Edit), enter an e-mail address using single-byte alphanumeric characters, and then press c (OK).• For details on entering e-mail addresses, see page 22. 󰜏Use j to select  (Send) and then press c (Select). 󰜏Use j to select OK, press c (Select) and then c (OK).• Check that the e-mail address has been updated before pressing c (OK).• Your e-mail address cannot be changed if the new address you enter in the above procedure is already being used. In this case, enter a different e-mail address.

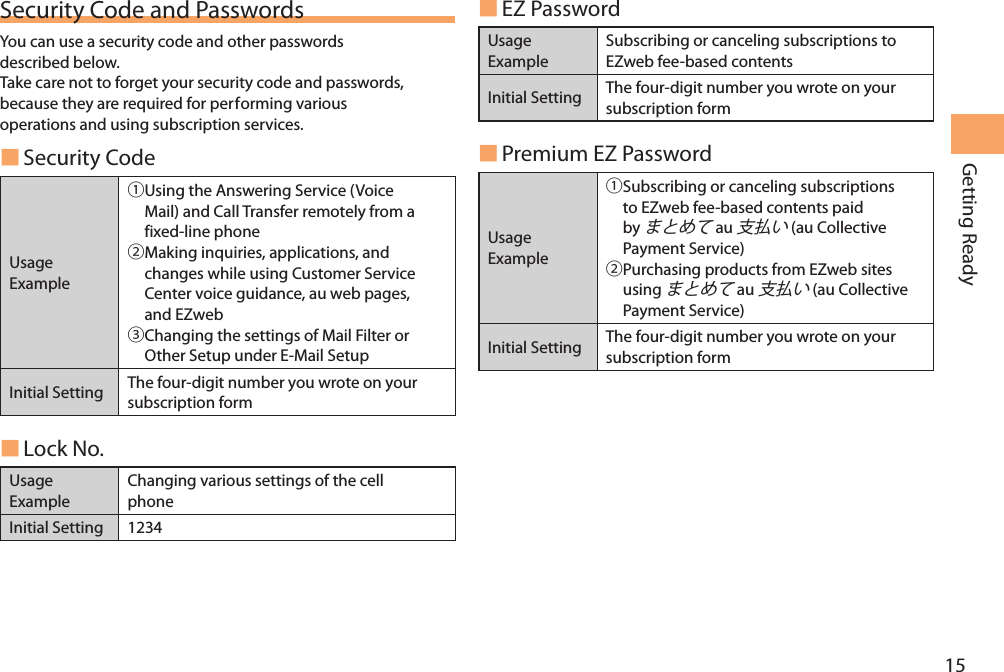

15Getting ReadySecurity Code and PasswordsYou can use a security code and other passwords described below.Take care not to forget your security code and passwords, because they are required for performing various operations and using subscription services. Security Code Usage Example󰒄Using the Answering Service (Voice Mail) and Call Transfer remotely from a fixed-line phone󰒅Making inquiries, applications, and changes while using Customer Service Center voice guidance, au web pages, and EZweb󰒆Changing the settings of Mail Filter or Other Setup under E-Mail SetupInitial Setting The four-digit number you wrote on your subscription form Lock No.Usage ExampleChanging various settings of the cell phoneInitial Setting 1234 EZ PasswordUsage ExampleSubscribing or canceling subscriptions to EZweb fee-based contentsInitial Setting The four-digit number you wrote on your subscription form Premium EZ PasswordUsage Example󰒄Subscribing or canceling subscriptions to EZweb fee-based contents paid by  au  (au Collective Payment Service)󰒅Purchasing products from EZweb sites using  au  (au Collective Payment Service)Initial Setting The four-digit number you wrote on your subscription form
16Making and Answering CallsMaking and Answering CallsMaking a CallWhen the standby screen is displayed, use 0 to 9 to enter a phone number.• When calling to a fixed-line phone, you also need to enter the area code. 󰜏Press N.• To end the call, press F.• After you enter a phone number, you can add 184 or 186 to the phone number as follows: 󰜏Press cc (Call). 󰜏Use jj to select 184 + Call or 186 + Call and then press cc (Select). 󰜏Press cc (Call). 󰜏Press cc (Select).184 + Call: When you do not want to inform the other party of your phone number.186 + Call: When you want to inform the other party of your phone number.Making an International Call 001 International Call ServiceAvailable without any additional applicationExample: To call 212-123- in the USAEnter the access code, a country code, area code and phone number, and then press N.001010↑KDDI internationalaccess code↑Countrycode(USA)↑Area code↑Phone number212 123-XXXX1• International call charges are billed together with monthly local call charges.• For more information on 001 International Call Service, dial either of the following numbers: From au cell phones (toll-free):157 (area code not required)• From fixed-line phones (toll-free):0077-7-111 (Open 9:00 to 20:00 everyday)

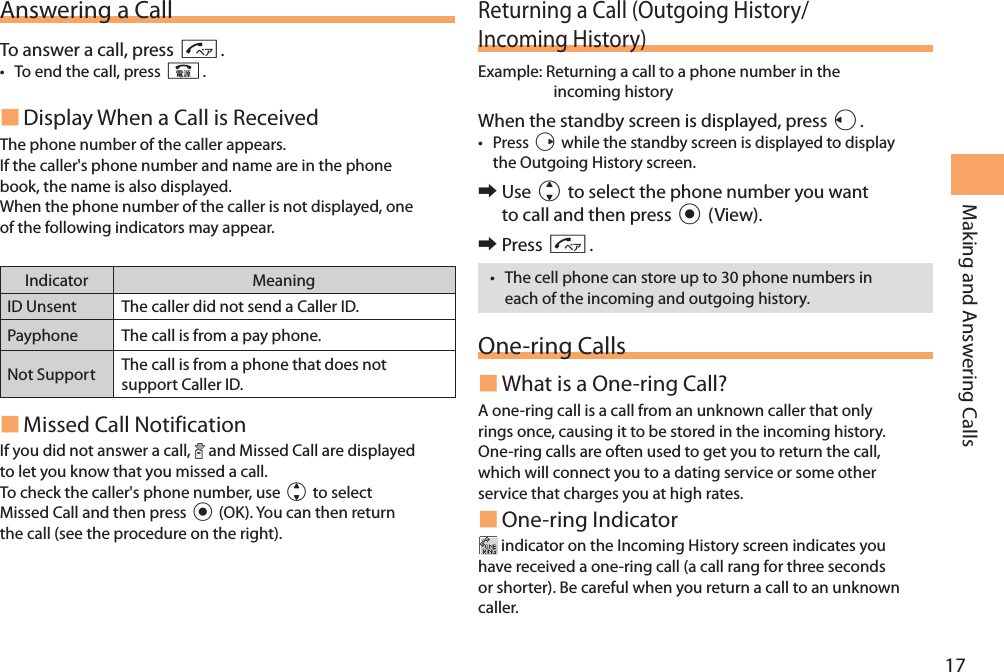

17Making and Answering CallsAnswering a CallTo answer a call, press N.• To end the call, press F. Display When a Call is Received The phone number of the caller appears. If the caller's phone number and name are in the phone book, the name is also displayed.When the phone number of the caller is not displayed, one of the following indicators may appear.Indicator MeaningID Unsent The caller did not send a Caller ID.Payphone The call is from a pay phone. Not Support The call is from a phone that does not support Caller ID. Missed Call NotificationIf you did not answer a call, and Missed Call are displayed to let you know that you missed a call.To check the caller's phone number, use j to select Missed Call and then press c (OK). You can then return the call (see the procedure on the right).Returning a Call (Outgoing History/Incoming History)Example: Returning a call to a phone number in the incoming historyWhen the standby screen is displayed, press l.• Press r while the standby screen is displayed to display the Outgoing History screen. 󰜏Use j to select the phone number you want to call and then press c (View). 󰜏Press N.• The cell phone can store up to 30 phone numbers in each of the incoming and outgoing history.One-ring Calls What is a One-ring Call?A one-ring call is a call from an unknown caller that only rings once, causing it to be stored in the incoming history. One-ring calls are often used to get you to return the call, which will connect you to a dating service or some other service that charges you at high rates. One-ring Indicator indicator on the Incoming History screen indicates you have received a one-ring call (a call rang for three seconds or shorter). Be careful when you return a call to an unknown caller.

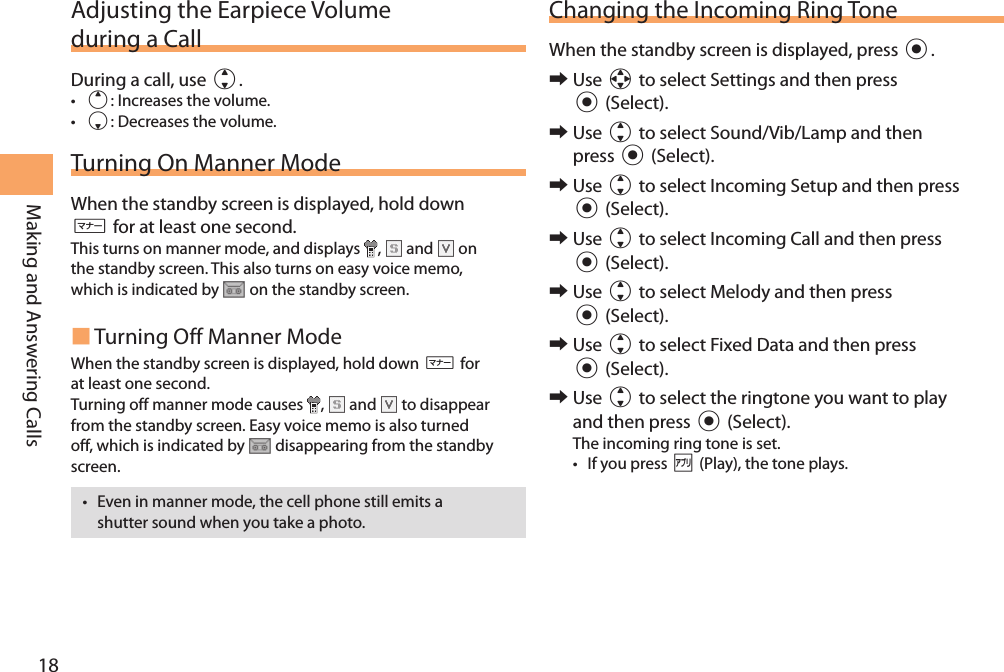

18Making and Answering CallsAdjusting the Earpiece Volume during a CallDuring a call, use j.• u: Increases the volume.• d: Decreases the volume.Turning On Manner ModeWhen the standby screen is displayed, hold down ( for at least one second.This turns on manner mode, and displays , and on the standby screen. This also turns on easy voice memo, which is indicated by on the standby screen. Turning Off Manner Mode When the standby screen is displayed, hold down ( for at least one second.Turning off manner mode causes , and to disappear from the standby screen. Easy voice memo is also turned off, which is indicated by disappearing from the standby screen.• Even in manner mode, the cell phone still emits a shutter sound when you take a photo.Changing the Incoming Ring ToneWhen the standby screen is displayed, press c. 󰜏Use a to select Settings and then press c (Select). 󰜏Use j to select Sound/Vib/Lamp and then press c (Select). 󰜏Use j to select Incoming Setup and then press c (Select). 󰜏Use j to select Incoming Call and then press c (Select). 󰜏Use j to select Melody and then press c (Select). 󰜏Use j to select Fixed Data and then press c (Select). 󰜏Use j to select the ringtone you want to play and then press c (Select).The incoming ring tone is set.• If you press % (Play), the tone plays.

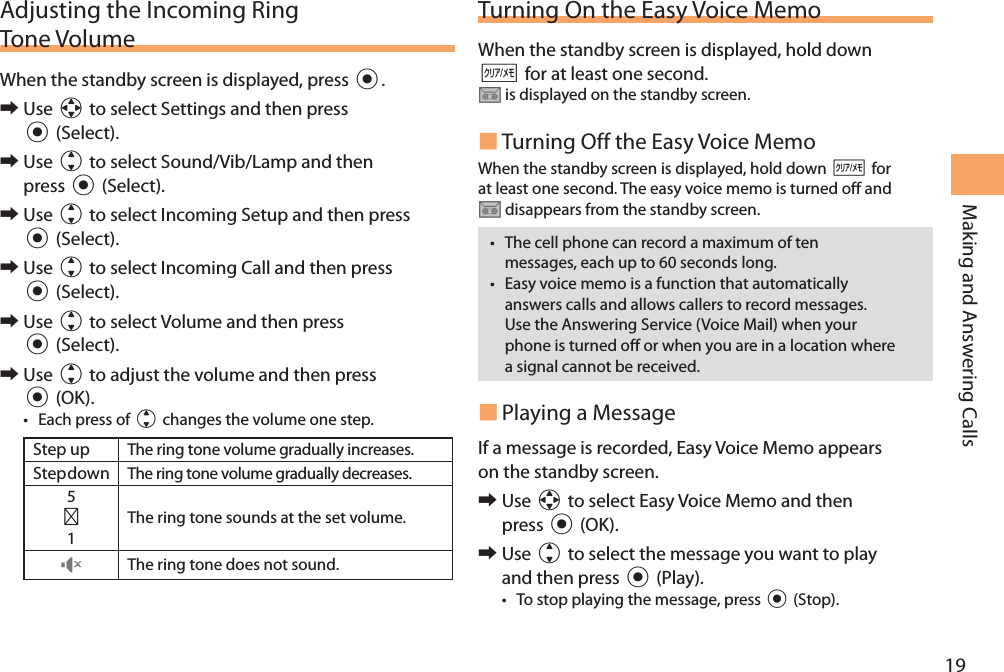

19Making and Answering CallsAdjusting the Incoming Ring Tone VolumeWhen the standby screen is displayed, press c. 󰜏Use a to select Settings and then press c (Select). 󰜏Use j to select Sound/Vib/Lamp and then press c (Select). 󰜏Use j to select Incoming Setup and then press c (Select). 󰜏Use j to select Incoming Call and then press c (Select). 󰜏Use j to select Volume and then press c (Select). 󰜏Use j to adjust the volume and then press c (OK).• Each press of j changes the volume one step.Step up The ring tone volume gradually increases.Step down The ring tone volume gradually decreases.51The ring tone sounds at the set volume.The ring tone does not sound.Turning On the Easy Voice MemoWhen the standby screen is displayed, hold down C for at least one second. is displayed on the standby screen. Turning Off the Easy Voice MemoWhen the standby screen is displayed, hold down C for at least one second. The easy voice memo is turned off and disappears from the standby screen.• The cell phone can record a maximum of ten messages, each up to 60 seconds long.• Easy voice memo is a function that automatically answers calls and allows callers to record messages. Use the Answering Service (Voice Mail) when your phone is turned off or when you are in a location where a signal cannot be received. Playing a MessageIf a message is recorded, Easy Voice Memo appears on the standby screen. 󰜏Use a to select Easy Voice Memo and then press c (OK). 󰜏Use j to select the message you want to play and then press c (Play).• To stop playing the message, press c (Stop).

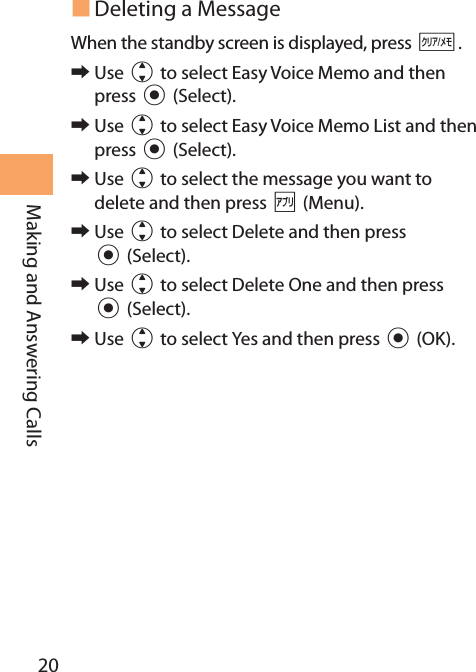

20Making and Answering Calls Deleting a MessageWhen the standby screen is displayed, press C. 󰜏Use j to select Easy Voice Memo and then press c (Select). 󰜏Use j to select Easy Voice Memo List and then press c (Select). 󰜏Use j to select the message you want to delete and then press % (Menu). 󰜏Use j to select Delete and then press c (Select). 󰜏Use j to select Delete One and then press c (Select). 󰜏Use j to select Yes and then press c (OK).

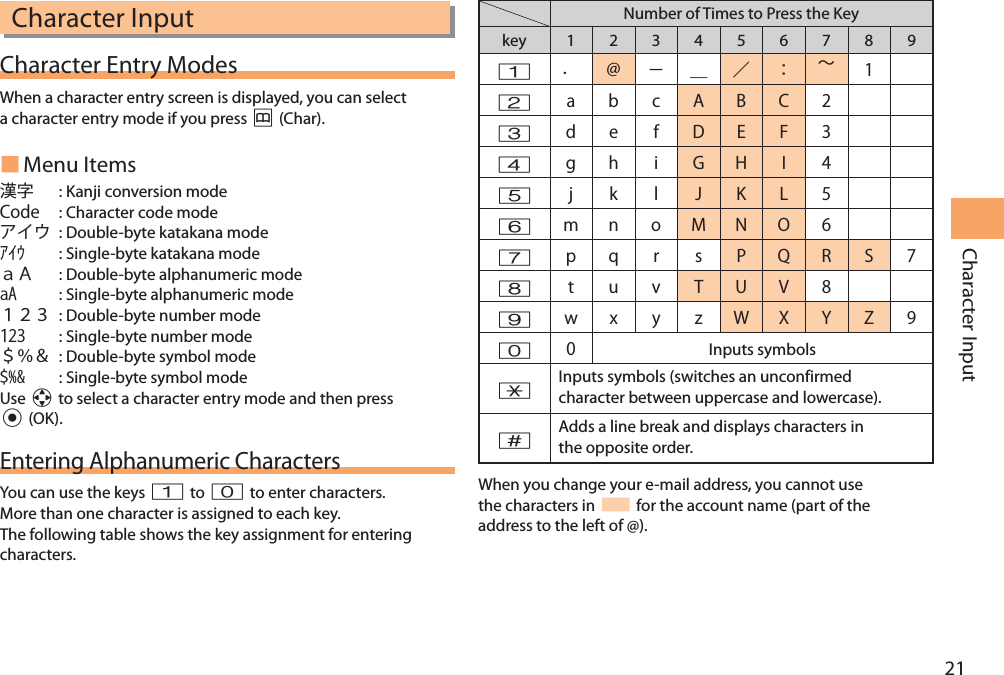

21Character InputCharacter InputCharacter Entry ModesWhen a character entry screen is displayed, you can select a character entry mode if you press & (Char). Menu Items : Kanji conversion mode : Character code mode : Double-byte katakana mode : Single-byte katakana mode : Double-byte alphanumeric mode : Single-byte alphanumeric mode : Double-byte number mode : Single-byte number mode : Double-byte symbol mode : Single-byte symbol modeUse a to select a character entry mode and then press c (OK).Entering Alphanumeric CharactersYou can use the keys 1 to 0 to enter characters. More than one character is assigned to each key. The following table shows the key assignment for entering characters.Number of Times to Press the Keykey 12345678912      3      4      5      6      7        8      9        0Inputs symbols*Inputs symbols (switches an unconfirmed character between uppercase and lowercase).#Adds a line break and displays characters in the opposite order.When you change your e-mail address, you cannot use the characters in  for the account name (part of the address to the left of @).

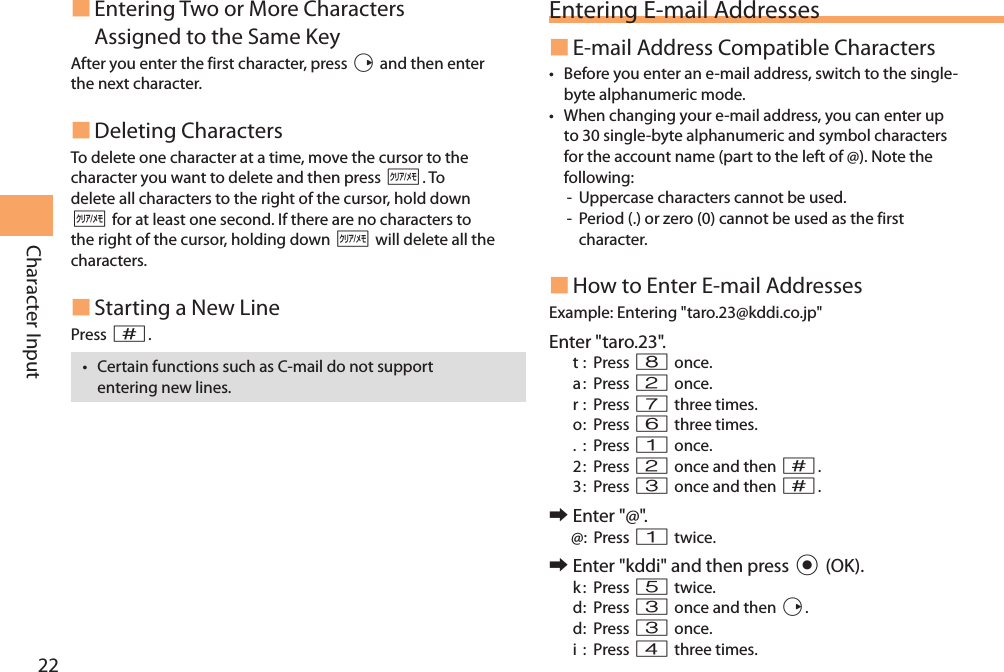

22Character Input Entering Two or More Characters Assigned to the Same KeyAfter you enter the first character, press r and then enter the next character. Deleting CharactersTo delete one character at a time, move the cursor to the character you want to delete and then press C. To delete all characters to the right of the cursor, hold down C for at least one second. If there are no characters to the right of the cursor, holding down C will delete all the characters. Starting a New LinePress #.• Certain functions such as C-mail do not support entering new lines.Entering E-mail Addresses E-mail Address Compatible Characters• Before you enter an e-mail address, switch to the single-byte alphanumeric mode.• When changing your e-mail address, you can enter up to 30 single-byte alphanumeric and symbol characters for the account name (part to the left of @). Note the following:- Uppercase characters cannot be used. - Period (.) or zero (0) cannot be used as the first character. How to Enter E-mail AddressesExample: Entering "taro.23@kddi.co.jp"Enter "taro.23".t : Press 8 once.a : Press 2 once.r : Press 7 three times.o : Press 6 three times.. : Press 1 once.2 : Press 2 once and then #.3 : Press 3 once and then #. 󰜏Enter "@".@: Press 1 twice. 󰜏Enter "kddi" and then press c (OK).k : Press 5 twice.d : Press 3 once and then r.d : Press 3 once.i : Press 4 three times.
23Character Input 󰜏Press % (Menu). 󰜏Use j to select Useful Sentence and then press c (Select). 󰜏Use j to select .co.jp and then press c (Select).".co.jp" is entered.Entering PictogramsWhen a character entry screen is displayed, press R. 󰜏Use a to select the pictogram you want to enter and then press c (Select).• You can enter pictograms consecutively if you press % (Repeat) instead of c (Select).• Each time you press RR in the character entry screen, the character entry mode changes in following order: Pictograms  Emoticons  Double-byte symbols  Single-byte symbols...• You can switch categories of pictograms and emoticon by pressing ##/** on each selection screen.

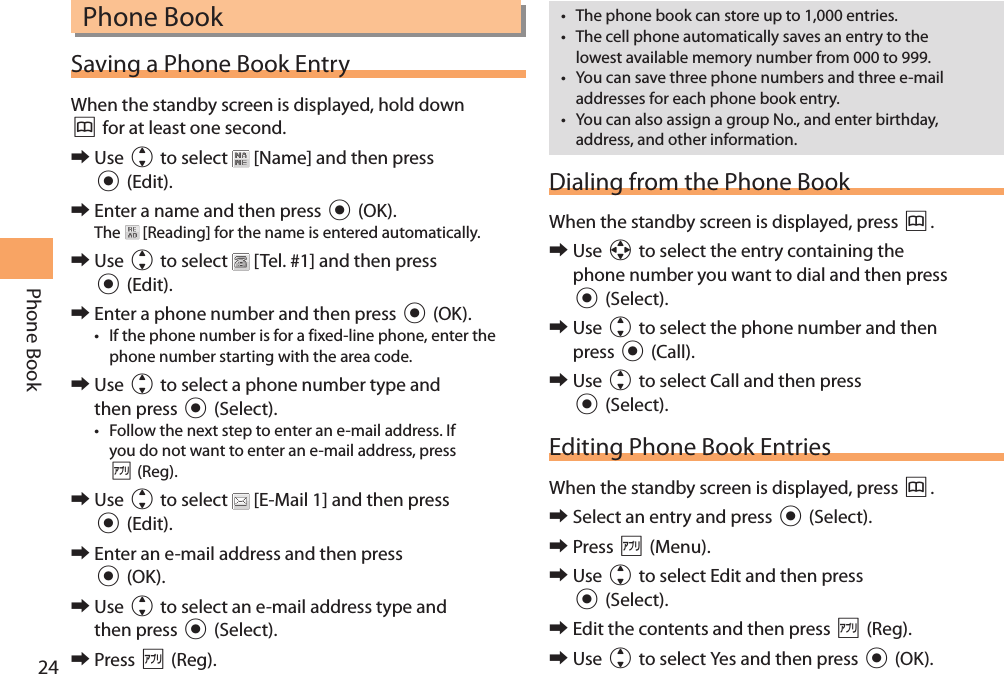

24Phone BookPhone BookSaving a Phone Book EntryWhen the standby screen is displayed, hold down & for at least one second. 󰜏Use j to select [Name] and then press c (Edit). 󰜏Enter a name and then press c (OK).The [Reading] for the name is entered automatically. 󰜏Use j to select [Tel. #1] and then press c (Edit). 󰜏Enter a phone number and then press c (OK).• If the phone number is for a fixed-line phone, enter the phone number starting with the area code. 󰜏Use j to select a phone number type and then press c (Select).• Follow the next step to enter an e-mail address. If you do not want to enter an e-mail address, press % (Reg). 󰜏Use j to select [E-Mail 1] and then press c (Edit). 󰜏Enter an e-mail address and then press c (OK). 󰜏Use j to select an e-mail address type and then press c (Select). 󰜏Press % (Reg).• The phone book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999.• You can save three phone numbers and three e-mail addresses for each phone book entry.• You can also assign a group No., and enter birthday, address, and other information. Dialing from the Phone BookWhen the standby screen is displayed, press &. 󰜏Use a to select the entry containing the phone number you want to dial and then press c (Select). 󰜏Use j to select the phone number and then press c (Call). 󰜏Use j to select Call and then press c (Select).Editing Phone Book EntriesWhen the standby screen is displayed, press &. 󰜏Select an entry and press c (Select). 󰜏Press % (Menu). 󰜏Use j to select Edit and then press c (Select). 󰜏Edit the contents and then press % (Reg). 󰜏Use j to select Yes and then press c (OK).

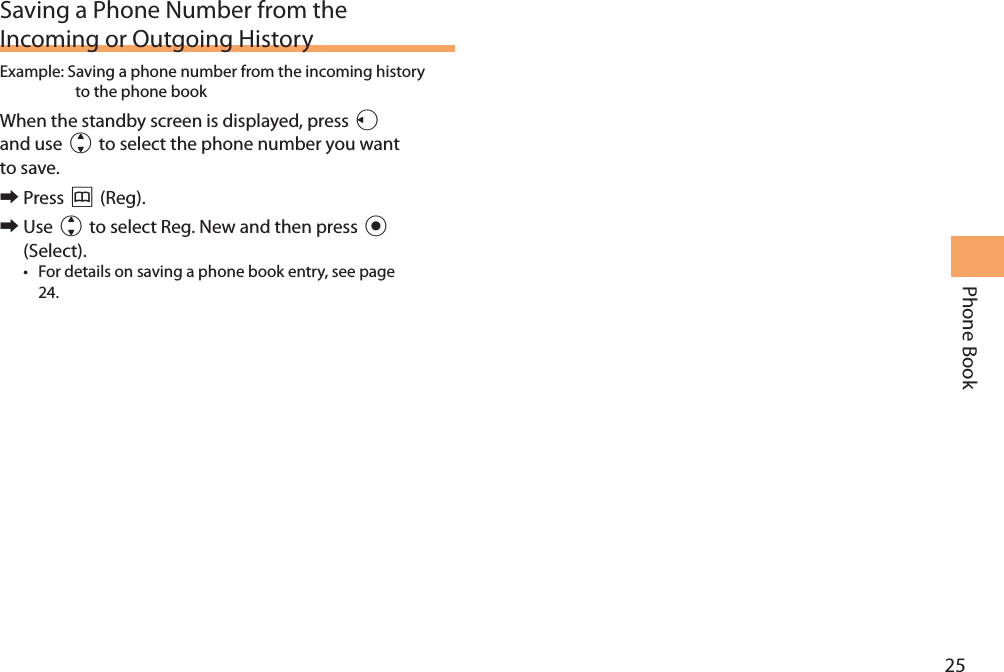

25Phone BookSaving a Phone Number from the Incoming or Outgoing HistoryExample: Saving a phone number from the incoming history to the phone bookWhen the standby screen is displayed, press l and use j to select the phone number you want to save. 󰜏Press & (Reg). 󰜏Use j to select Reg. New and then press c (Select).• For details on saving a phone book entry, see page 24.

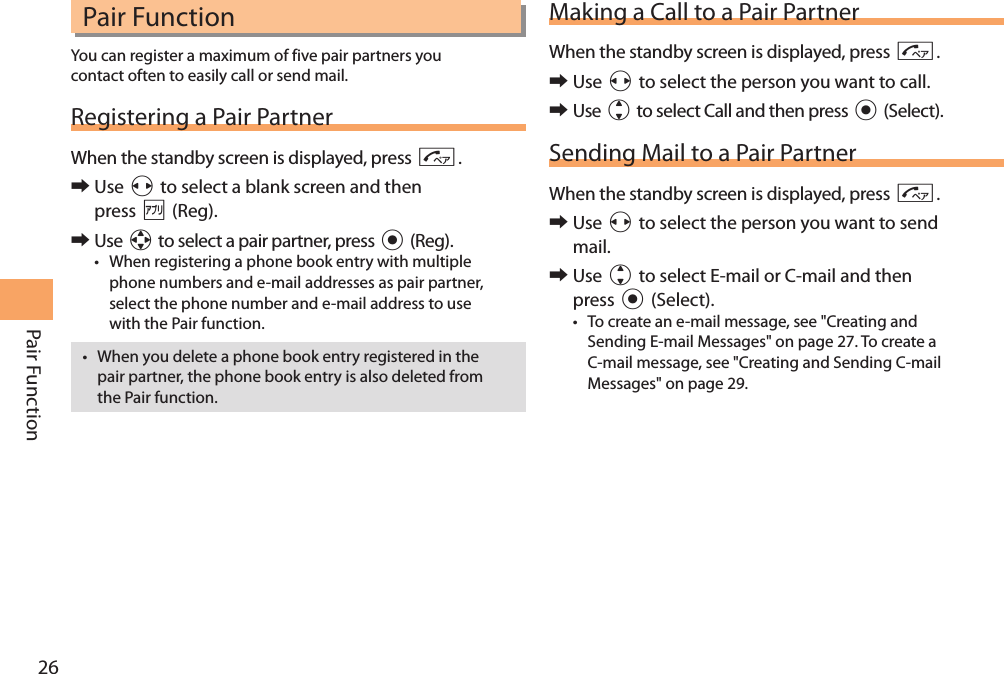

26Pair Function Pair FunctionYou can register a maximum of five pair partners you contact often to easily call or send mail.Registering a Pair PartnerWhen the standby screen is displayed, press N. 󰜏Use s to select a blank screen and then press % (Reg). 󰜏Use a to select a pair partner, press c (Reg).• When registering a phone book entry with multiple phone numbers and e-mail addresses as pair partner, select the phone number and e-mail address to use with the Pair function.• When you delete a phone book entry registered in the pair partner, the phone book entry is also deleted from the Pair function.Making a Call to a Pair PartnerWhen the standby screen is displayed, press N. 󰜏Use s to select the person you want to call. 󰜏Use j to select Call and then press c (Select).Sending Mail to a Pair PartnerWhen the standby screen is displayed, press N. 󰜏Use s to select the person you want to send mail. 󰜏Use j to select E-mail or C-mail and then press c (Select).• To create an e-mail message, see "Creating and Sending E-mail Messages" on page 27. To create a C-mail message, see "Creating and Sending C-mail Messages" on page 29.

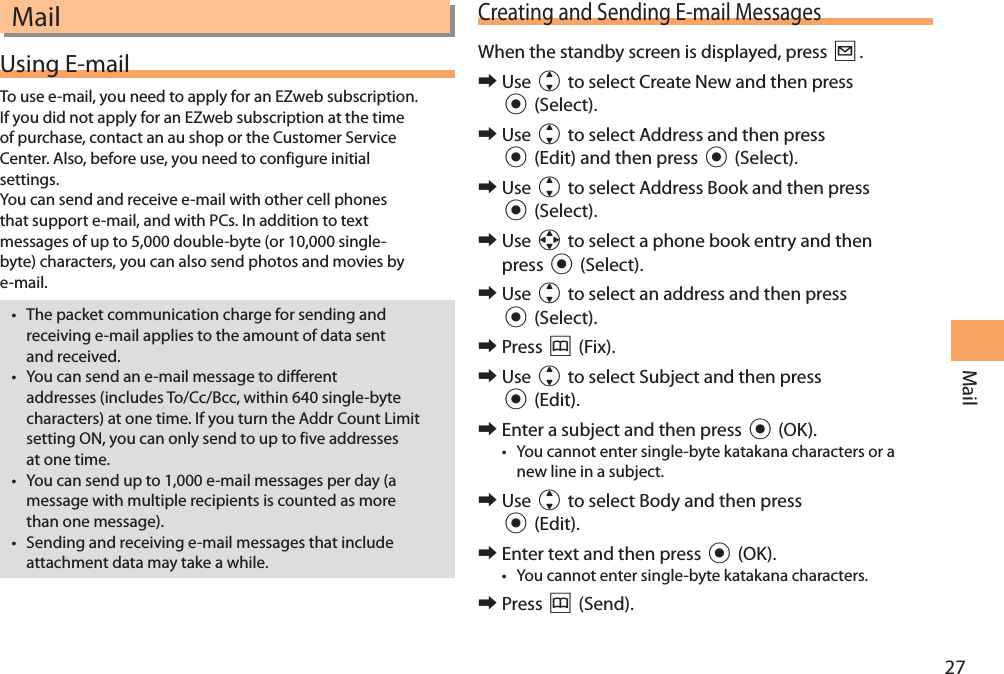

27MailMailUsing E-mailTo use e-mail, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the Customer Service Center. Also, before use, you need to configure initial settings. You can send and receive e-mail with other cell phones that support e-mail, and with PCs. In addition to text messages of up to 5,000 double-byte (or 10,000 single-byte) characters, you can also send photos and movies by e-mail. • The packet communication charge for sending and receiving e-mail applies to the amount of data sent and received.• You can send an e-mail message to different addresses (includes To/Cc/Bcc, within 640 single-byte characters) at one time. If you turn the Addr Count Limit setting ON, you can only send to up to five addresses at one time.• You can send up to 1,000 e-mail messages per day (a message with multiple recipients is counted as more than one message).• Sending and receiving e-mail messages that include attachment data may take a while.Creating and Sending E-mail MessagesWhen the standby screen is displayed, press L. 󰜏Use j to select Create New and then press c (Select). 󰜏Use j to select Address and then press c (Edit) and then press c (Select). 󰜏Use j to select Address Book and then press c (Select). 󰜏Use a to select a phone book entry and then press c (Select). 󰜏Use j to select an address and then press c (Select). 󰜏Press & (Fix). 󰜏Use j to select Subject and then press c (Edit). 󰜏Enter a subject and then press c (OK).• You cannot enter single-byte katakana characters or a new line in a subject. 󰜏Use j to select Body and then press c (Edit). 󰜏Enter text and then press c (OK).• You cannot enter single-byte katakana characters. 󰜏Press & (Send).

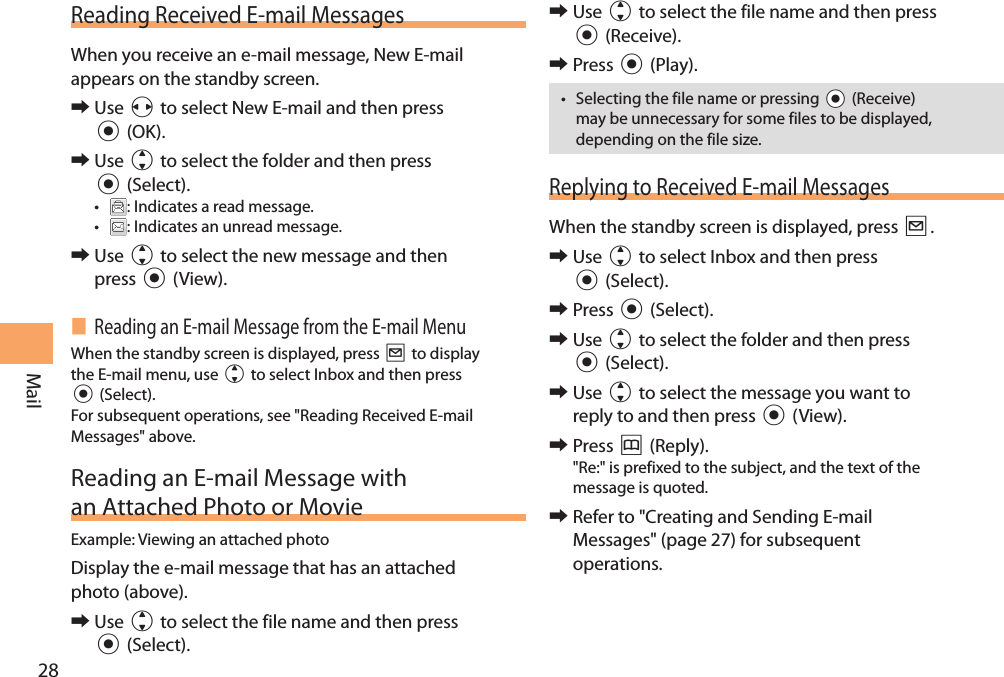

28MailReading Received E-mail MessagesWhen you receive an e-mail message, New E-mail appears on the standby screen. 󰜏Use s to select New E-mail and then press c (OK). 󰜏Use j to select the folder and then press c (Select).• : Indicates a read message.• : Indicates an unread message. 󰜏Use j to select the new message and then press c (View). Reading an E-mail Message from the E-mail MenuWhen the standby screen is displayed, press L to display the E-mail menu, use j to select Inbox and then press c (Select). For subsequent operations, see "Reading Received E-mail Messages" above. Reading an E-mail Message with an Attached Photo or MovieExample: Viewing an attached photoDisplay the e-mail message that has an attached photo (above). 󰜏Use j to select the file name and then press c (Select). 󰜏Use j to select the file name and then press c (Receive). 󰜏Press c (Play).• Selecting the file name or pressing cc (Receive) may be unnecessary for some files to be displayed, depending on the file size.Replying to Received E-mail MessagesWhen the standby screen is displayed, press L. 󰜏Use j to select Inbox and then press c (Select). 󰜏Press c (Select). 󰜏Use j to select the folder and then press c (Select). 󰜏Use j to select the message you want to reply to and then press c (View). 󰜏Press & (Reply)."Re:" is prefixed to the subject, and the text of the message is quoted. 󰜏Refer to "Creating and Sending E-mail Messages" (page 27) for subsequent operations.
29MailRejecting SpamSetting mail filters to reject spam is recommended.The  (Recommended Settings) helps you to set mail filters easily. Recommended SettingsMail filter is set to reject spoofing mail, auto-forwarding mail and to receive mail sent from a cell phone, PHS, or PC.When the standby screen is displayed, press L. 󰜏Use j to select E-Mail Setup and then press c (Select). 󰜏Use j to select Mail Filter and then press c (Select). 󰜏Use j to select  (Settings) and then press c (Select). 󰜏Use j to select  (Registration) and then press c (Select).• You can also prevent spam by changing your e-mail address. For details on changing your e-mail address, see page 14.Using C-mailC-mail is a service that uses phone numbers as addresses to exchange messages between au cell phones that support C-mail. A C-mail message can contain up to 50 double-byte (or 100 single-byte) characters.• The C-mail send charge applies when sending C-mail. C-mail Safety BlockC-mail safety block is a function that allows you to reject C-mails that include URLs (http://, https://) or phone numbers in the C-mail message text.C-mail safety block is valid by default. Cancel the setting if you want to receive C-mails that include URLs and phone numbers in the message text.Creating and Sending C-mail MessagesWhen the standby screen is displayed, hold down L for at least one second. 󰜏Use j to select Create New and then press c (Select). 󰜏Use j to select and then press c (Edit). 󰜏Use j to select Address Book and then press c (Select).

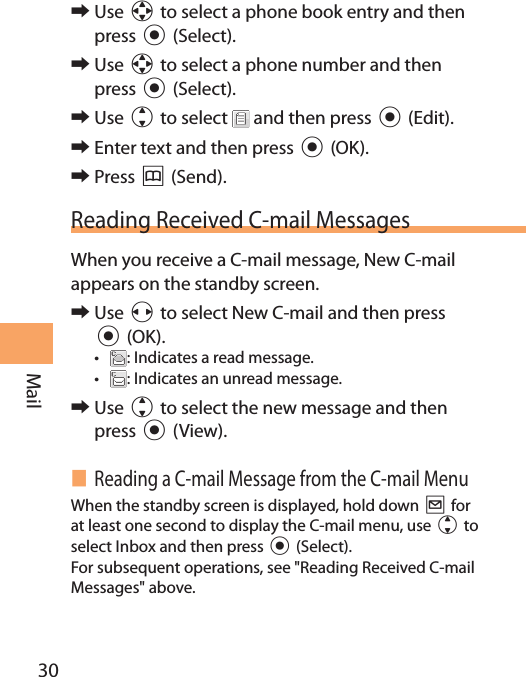

30Mail 󰜏Use a to select a phone book entry and then press c (Select). 󰜏Use a to select a phone number and then press c (Select). 󰜏Use j to select and then press c (Edit). 󰜏Enter text and then press c (OK). 󰜏Press & (Send).Reading Received C-mail MessagesWhen you receive a C-mail message, New C-mail appears on the standby screen. 󰜏Use s to select New C-mail and then press c (OK).• : Indicates a read message.• : Indicates an unread message. 󰜏Use j to select the new message and then press c (View). Reading a C-mail Message from the C-mail MenuWhen the standby screen is displayed, hold down L for at least one second to display the C-mail menu, use j to select Inbox and then press c (Select). For subsequent operations, see "Reading Received C-mail Messages" above.
31CameraCameraYour cell phone has a CMOS camera with 1.97 effective megapixels for shooting photos and movies. You can use the self-timer and autofocus.Shot images can be used for the standby screen, and attached to e-mail messages.Photo Taking TipsWhen taking photos, frame the subject within the display and hold the cell phone steady with both hands to avoid shaking. Portrait Position Landscape PositionAbout Photo ModesThe following modes are available for taking photos. Wallpaper (240 x 400) is set at the time of purchase.Mode Photo Size Storage LocationW.paper ModeWallpaper (240 x 320) The Photo Folder in the Data Folder of the cell phoneWallpaper (240 x 400)DSCMode0.3M (640 x 480) The Camera Folder in the Data Folder of a microSD memory card*1M (1280 x 960)2M (1600 x 1200)* When a microSD memory card (commercially available) is not inserted, the files are saved to the Data Folder of the cell phone.• Take care not to cover the lens with a strap or finger.

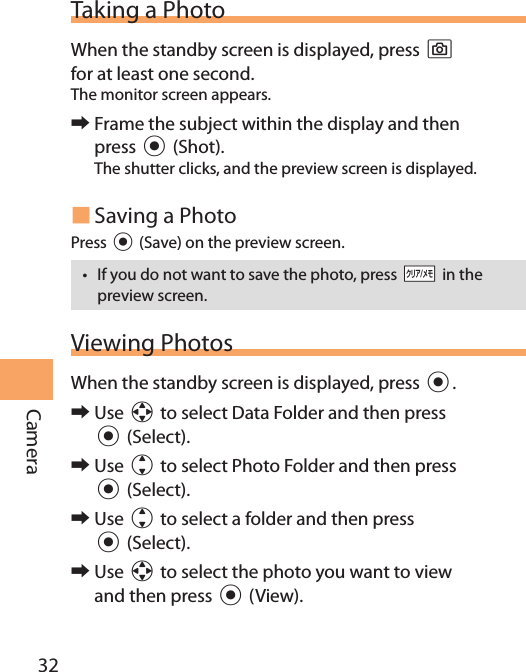

32CameraTaking a PhotoWhen the standby screen is displayed, press ) for at least one second.The monitor screen appears. 󰜏Frame the subject within the display and then press c (Shot).The shutter clicks, and the preview screen is displayed. Saving a PhotoPress c (Save) on the preview screen.• If you do not want to save the photo, press CC in the preview screen.Viewing PhotosWhen the standby screen is displayed, press c. 󰜏Use a to select Data Folder and then press c (Select). 󰜏Use j to select Photo Folder and then press c (Select). 󰜏Use j to select a folder and then press c (Select). 󰜏Use a to select the photo you want to view and then press c (View).
33EZwebEZweb EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta®, news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the Customer Service Center. Also, before use, you need to configure initial settings.• The packet communication charge for EZweb connection applies to the amount of data sent and received, not to the length of time connected. • In addition to communication charges, some sites charge for providing information.EZweb Subscription Required

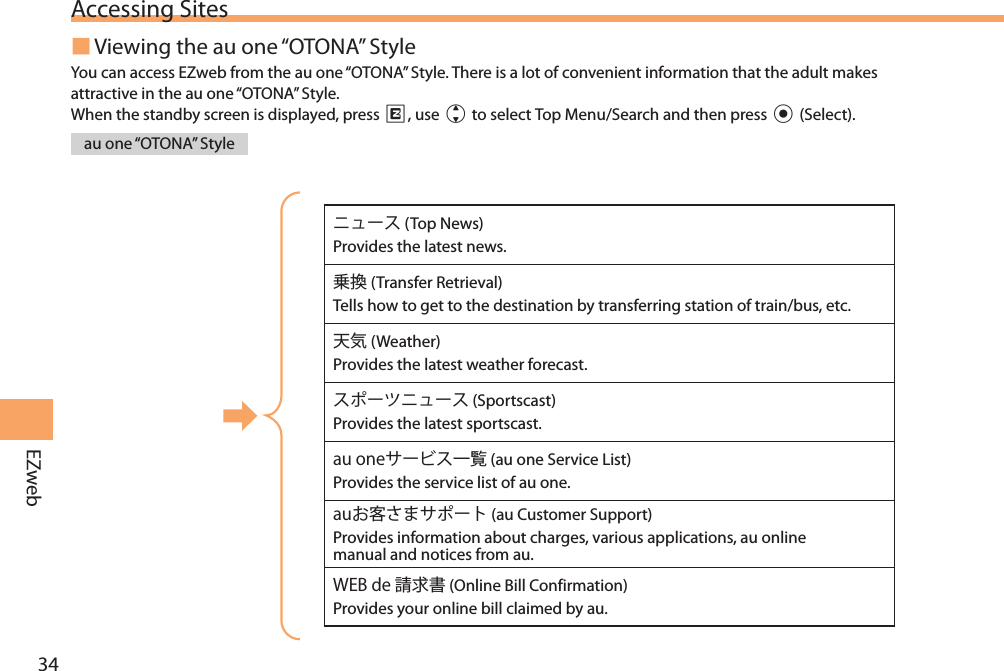

34EZwebAccessing Sites Viewing the au one “OTONA” StyleYou can access EZweb from the au one “OTONA” Style. There is a lot of convenient information that the adult makes attractive in the au one “OTONA” Style. When the standby screen is displayed, press R, use j to select Top Menu/Search and then press c (Select).au one “OTONA” Style (Top News)Provides the latest news. (Transfer Retrieval)Tells how to get to the destination by transferring station of train/bus, etc.  (Weather)Provides the latest weather forecast. (Sportscast)Provides the latest sportscast.  (au one Service List)Provides the service list of au one.  (au Customer Support)Provides information about charges, various applications, au online manual and notices from au.  (Online Bill Confirmation)Provides your online bill claimed by au.
35EZweb Basic OperationsUse j to select the site you want to access and then press c (Select).Press C to return to the previous screen. Hold down C for at least one second to return to the au one Top.The following describes the basic operations that are available while accessing sites.Key Operation DescriptionFExits EZweb.jMoves the cursor up and down. When there is data available above or below the current screen, scrolls up and down the screen one line at a time. sWhen there is data available previous or next to the current screen, moves the screen page by page.lReturns to the previous screen.rMoves to the next screen.CReturns to the previous screen.Bookmarking Frequently Accessed PagesWhen the page you want to bookmark is displayed, press % (Browser menu). 󰜏Use j to select New bookmark and then press c (Select). • Some pages cannot be bookmarked. 󰜏Press % (Reg).The displayed page is bookmarked, and its title and URL are added to the Bookmark. • The Bookmark can contain up to 100 titles and URLs.Viewing Bookmarked PagesWhen the standby screen is displayed, press R and then use s to select EZweb. 󰜏Use j to select Bookmark(s) and then press c (Select). 󰜏Use j to select the bookmark for the page you want to view and then press c (Select).The cell phone connects to the site.

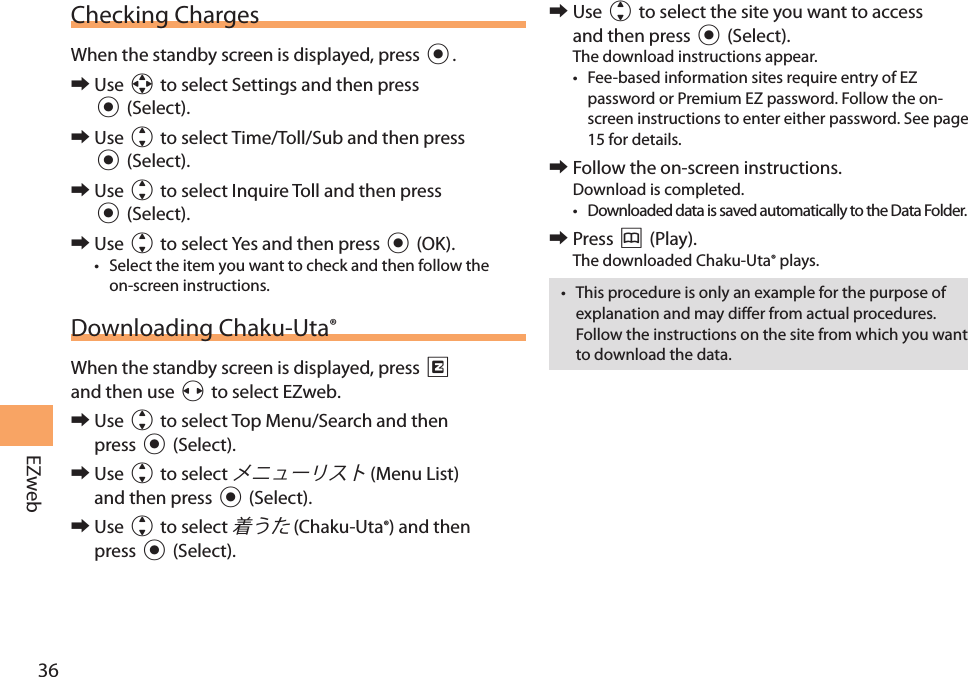

36EZwebChecking ChargesWhen the standby screen is displayed, press c. 󰜏Use a to select Settings and then press c (Select). 󰜏Use j to select Time/Toll/Sub and then press c (Select). 󰜏Use j to select Inquire Toll and then press c (Select). 󰜏Use j to select Yes and then press c (OK). • Select the item you want to check and then follow the on-screen instructions. Downloading Chaku-Uta®When the standby screen is displayed, press R and then use s to select EZweb. 󰜏Use j to select Top Menu/Search and then press c (Select). 󰜏Use j to select  (Menu List) and then press c (Select). 󰜏Use j to select  (Chaku-Uta®) and then press c (Select). 󰜏Use j to select the site you want to access and then press c (Select).The download instructions appear.• Fee-based information sites require entry of EZ password or Premium EZ password. Follow the on-screen instructions to enter either password. See page 15 for details. 󰜏Follow the on-screen instructions.Download is completed.• Downloaded data is saved automatically to the Data Folder. 󰜏Press & (Play).The downloaded Chaku-Uta® plays.• This procedure is only an example for the purpose of explanation and may differ from actual procedures. Follow the instructions on the site from which you want to download the data.

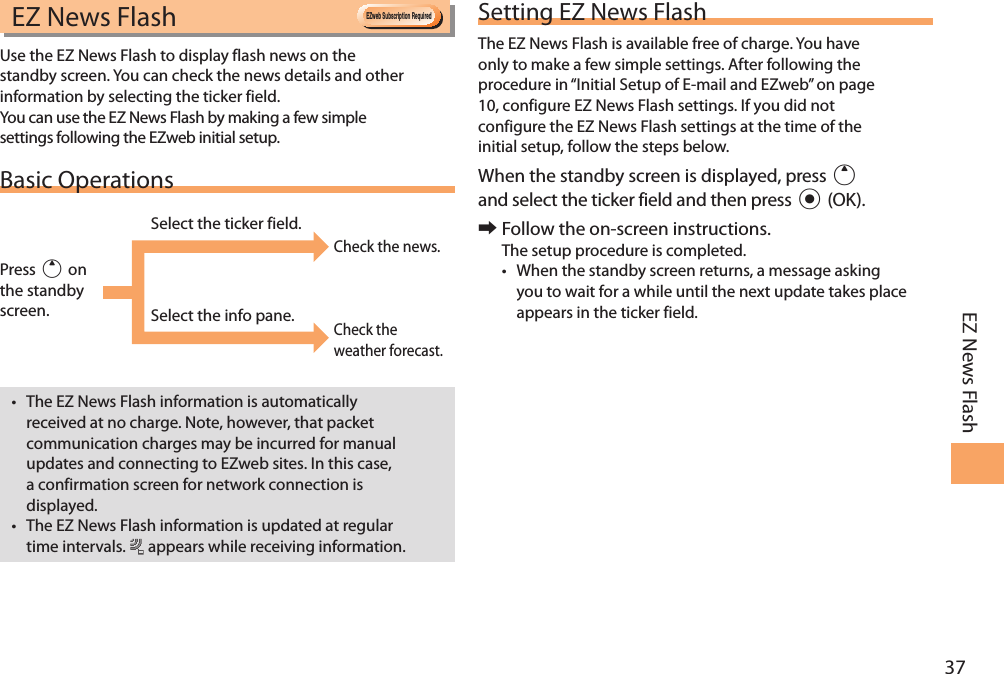

37EZ News FlashEZ News Flash Use the EZ News Flash to display flash news on the standby screen. You can check the news details and other information by selecting the ticker field.You can use the EZ News Flash by making a few simple settings following the EZweb initial setup.Basic Operations• The EZ News Flash information is automatically received at no charge. Note, however, that packet communication charges may be incurred for manual updates and connecting to EZweb sites. In this case, a confirmation screen for network connection is displayed.• The EZ News Flash information is updated at regular time intervals. appears while receiving information.Setting EZ News FlashThe EZ News Flash is available free of charge. You have only to make a few simple settings. After following the procedure in “Initial Setup of E-mail and EZweb” on page 10, configure EZ News Flash settings. If you did not configure the EZ News Flash settings at the time of the initial setup, follow the steps below.When the standby screen is displayed, press u and select the ticker field and then press c (OK). 󰜏Follow the on-screen instructions.The setup procedure is completed.• When the standby screen returns, a message asking you to wait for a while until the next update takes place appears in the ticker field.EZweb Subscription RequiredCheck the news.Check the weather forecast.Select the ticker field.Select the info pane.Press u on the standby screen.

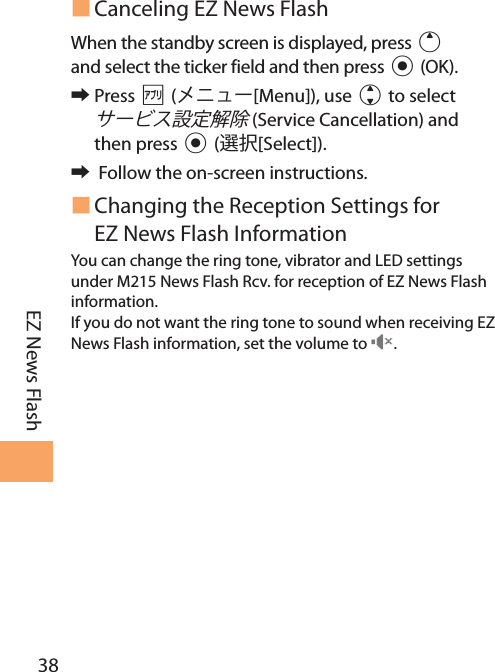

38EZ News Flash Canceling EZ News FlashWhen the standby screen is displayed, press u and select the ticker field and then press c (OK). 󰜏Press % ([Menu]), use j to select  (Service Cancellation) and then press c ([Select]). 󰜏 Follow the on-screen instructions. Changing the Reception Settings for EZ News Flash InformationYou can change the ring tone, vibrator and LED settings under M215 News Flash Rcv. for reception of EZ News Flash information.If you do not want the ring tone to sound when receiving EZ News Flash information, set the volume to .

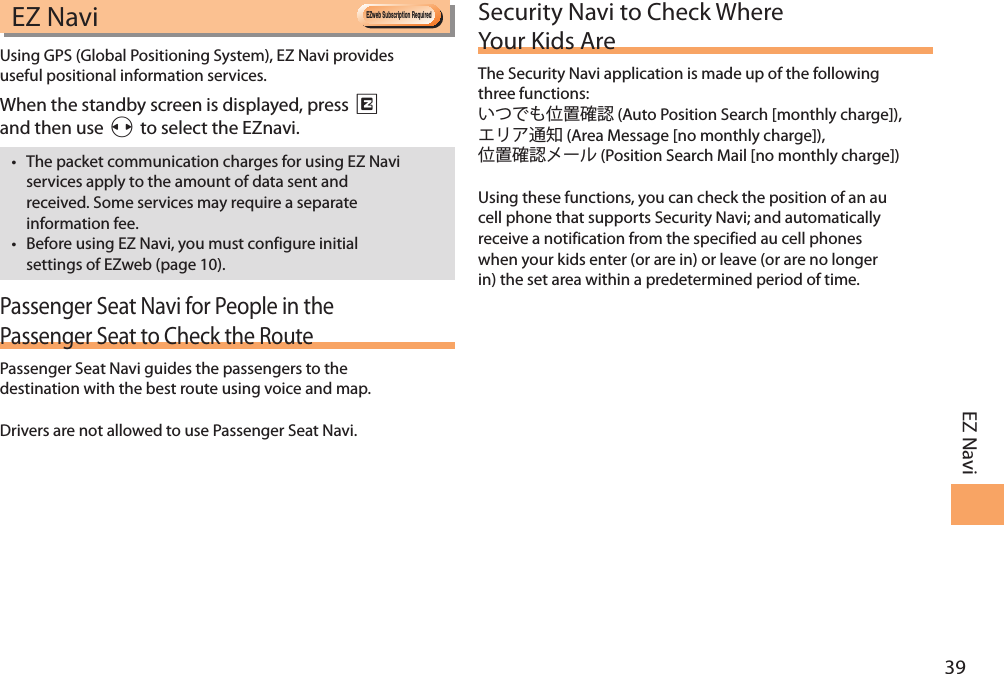

39EZ NaviEZ Navi Using GPS (Global Positioning System), EZ Navi provides useful positional information services.When the standby screen is displayed, press R and then use s to select the EZnavi.• The packet communication charges for using EZ Navi services apply to the amount of data sent and received. Some services may require a separate information fee.• Before using EZ Navi, you must configure initial settings of EZweb (page 10).Passenger Seat Navi for People in the Passenger Seat to Check the RoutePassenger Seat Navi guides the passengers to the destination with the best route using voice and map.Drivers are not allowed to use Passenger Seat Navi.Security Navi to Check Where Your Kids AreThe Security Navi application is made up of the following three functions: (Auto Position Search [monthly charge]),  (Area Message [no monthly charge]),  (Position Search Mail [no monthly charge])Using these functions, you can check the position of an au cell phone that supports Security Navi; and automatically receive a notification from the specified au cell phones when your kids enter (or are in) or leave (or are no longer in) the set area within a predetermined period of time. EZweb Subscription Required

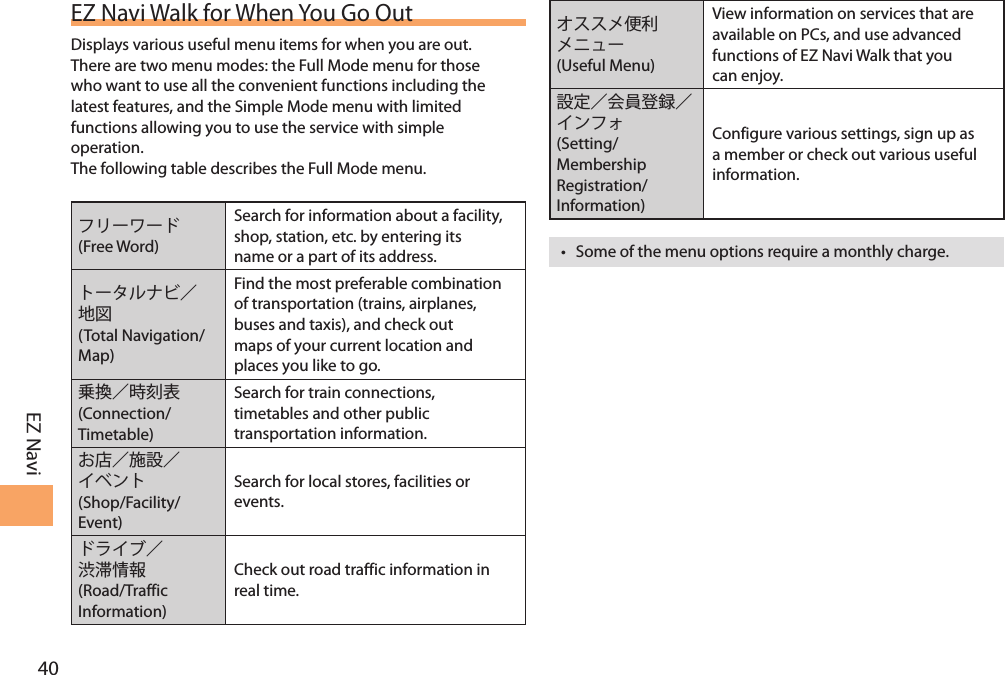

40EZ NaviEZ Navi Walk for When You Go OutDisplays various useful menu items for when you are out.There are two menu modes: the Full Mode menu for those who want to use all the convenient functions including the latest features, and the Simple Mode menu with limited functions allowing you to use the service with simple operation.The following table describes the Full Mode menu.(Free Word)Search for information about a facility, shop, station, etc. by entering its name or a part of its address.(Total Navigation/Map)Find the most preferable combination of transportation (trains, airplanes, buses and taxis), and check out maps of your current location and places you like to go.(Connection/Timetable)Search for train connections, timetables and other public transportation information.(Shop/Facility/Event)Search for local stores, facilities or events.(Road/Traffic Information)Check out road traffic information in real time.(Useful Menu)View information on services that are available on PCs, and use advanced functions of EZ Navi Walk that you can enjoy.(Setting/Membership Registration/Information)Configure various settings, sign up as a member or check out various useful information.• Some of the menu options require a monthly charge.

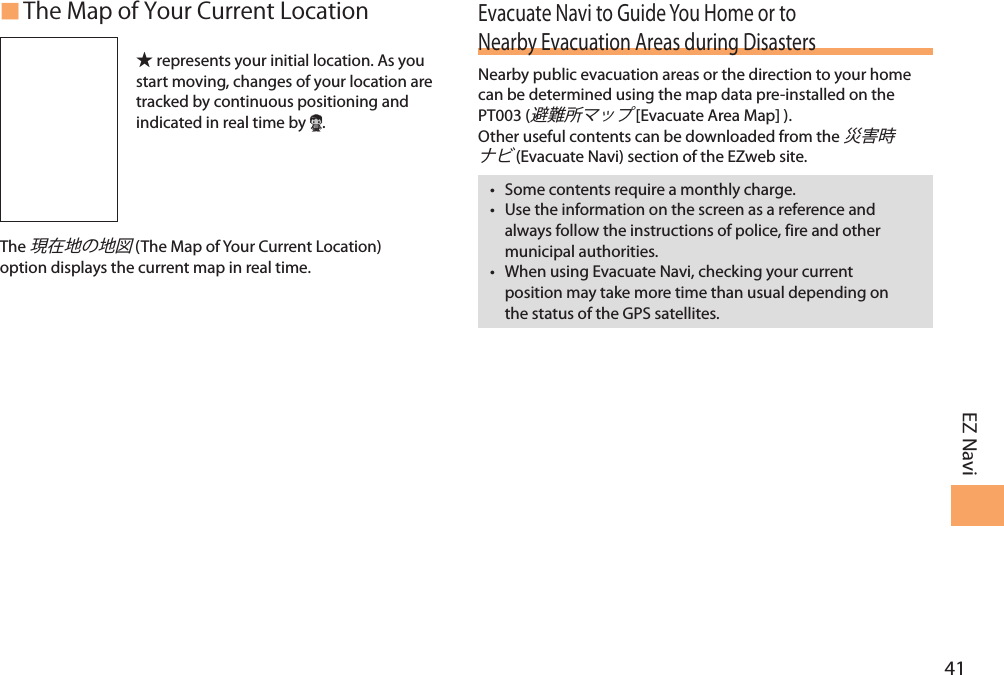

41EZ Navi  represents your initial location. As you start moving, changes of your location are tracked by continuous positioning and indicated in real time by .The  (The Map of Your Current Location) option displays the current map in real time.Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during DisastersNearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the PT003 ( [Evacuate Area Map] ). Other useful contents can be downloaded from the  (Evacuate Navi) section of the EZweb site.• Some contents require a monthly charge. • Use the information on the screen as a reference and always follow the instructions of police, fire and other municipal authorities. • When using Evacuate Navi, checking your current position may take more time than usual depending on the status of the GPS satellites.

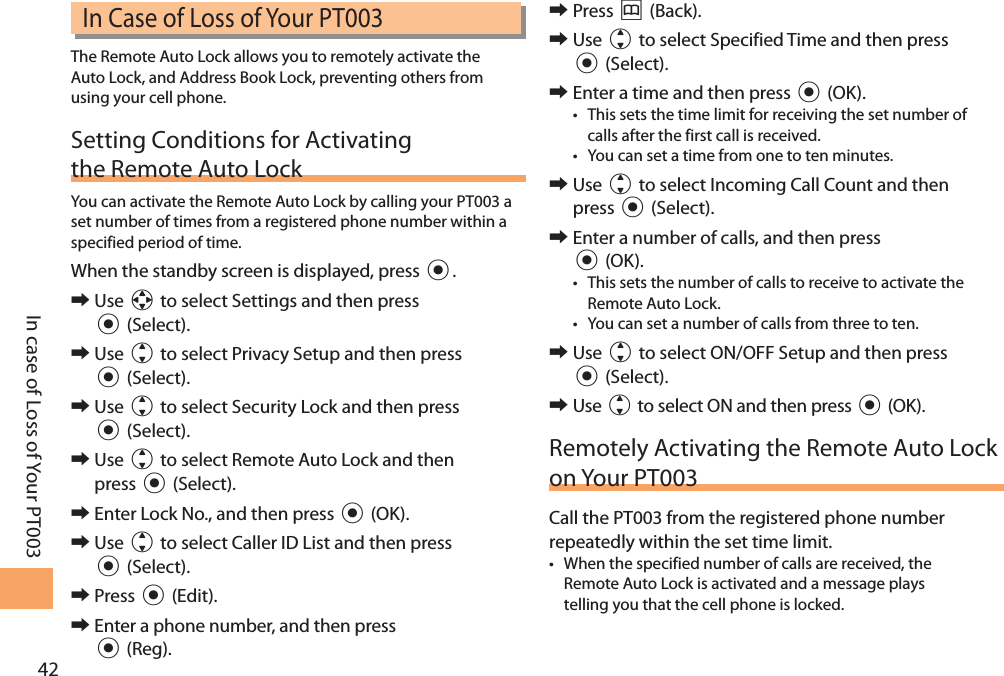

42In case of Loss of Your PT003In Case of Loss of Your PT003The Remote Auto Lock allows you to remotely activate the Auto Lock, and Address Book Lock, preventing others from using your cell phone.Setting Conditions for Activating the Remote Auto LockYou can activate the Remote Auto Lock by calling your PT003 a set number of times from a registered phone number within a specified period of time. When the standby screen is displayed, press c. 󰜏Use a to select Settings and then press c (Select). 󰜏Use j to select Privacy Setup and then press c (Select). 󰜏Use j to select Security Lock and then press c (Select). 󰜏Use j to select Remote Auto Lock and then press c (Select). 󰜏Enter Lock No., and then press c (OK). 󰜏Use j to select Caller ID List and then press c (Select). 󰜏Press c (Edit). 󰜏Enter a phone number, and then press c (Reg). 󰜏Press & (Back). 󰜏Use j to select Specified Time and then press c (Select). 󰜏Enter a time and then press c (OK).• This sets the time limit for receiving the set number of calls after the first call is received.• You can set a time from one to ten minutes. 󰜏Use j to select Incoming Call Count and then press c (Select). 󰜏Enter a number of calls, and then press c (OK).• This sets the number of calls to receive to activate the Remote Auto Lock.• You can set a number of calls from three to ten. 󰜏Use j to select ON/OFF Setup and then press c (Select). 󰜏Use j to select ON and then press c (OK).Remotely Activating the Remote Auto Lock on Your PT003Call the PT003 from the registered phone number repeatedly within the set time limit.• When the specified number of calls are received, the Remote Auto Lock is activated and a message plays telling you that the cell phone is locked.
43In case of Loss of Your PT003Activating the Remote Auto Lock by the Security Lock ServiceEven if the Remote Auto Lock is not set in advance, the Remote Auto Lock can be activated by calling Customer Service Center or completing the application process on au Customer Support from a PC. The Security Lock Service is available free of charge. Calling Customer Service Center to Activating/Canceling the Remote Auto Lock From an au cell phone: 113 without a prefix (toll free) From any other cell phone or fixed-line phone: 0077-7-113 (toll free) Open 24 hours Follow the voice guidance to complete the application process. Activating/Canceling the Remote Auto Lock from a PCLogin to au Customer Support (https://cs.kddi.com/) and complete the application process by following the on-screen instructions. • The Remote Auto Lock cannot be activated when the PT003 is turned off or out of the service area, or Emission OFF is set to ON. • You must fill out an application to use au Customer Support (the application can be filled out even after your cell phone is lost).
44TroubleshootingTroubleshootingSymptom Possible Cause Remedy PageCannot turn on power.Is the battery pack charged? Charge the battery pack. 8Did you hold down F for at least one second? Hold down F for at least one second. 10Cannot make calls.Is power turned on? Hold down F for at least one second. 10Is (out of range indicator) displayed?Move to a location where (out of range indicator) is no longer displayed, and try again.10Is your hand or a metal object covering the area around the built-in antenna?Make sure your hand or any other metal object is not covering the area around the built-in antenna.7 Did you enter the phone number starting with the area code?When making a call to a phone other than a cell phone, you need to enter the area code even if you are inside the same area.16Cannot receive calls. Is (out of range indicator) displayed? Move to a location where (out of range indicator) is no longer displayed. 10Is power turned on? Hold down F for at least one second. 10No response when a key is pressed. Is power turned on? Hold down F for at least one second. 10A warning tone sounds and power turns off.Is there enough power left in the battery pack? Charge the battery pack. 8Calls are answered automatically. Is easy voice memo turned on? Hold down C for at least one second to turn off easy voice memo. 19Cannot hear the other party. Is the earpiece volume too low? Press u during a call to increase the earpiece volume. 18

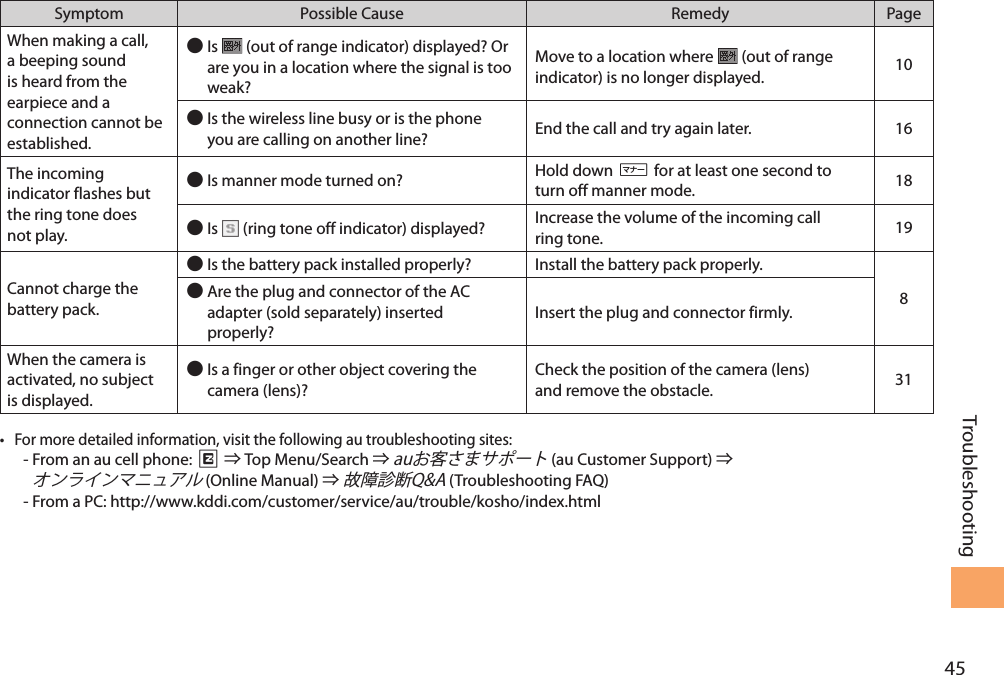

45TroubleshootingSymptom Possible Cause Remedy PageWhen making a call, a beeping sound is heard from the earpiece and a connection cannot be established.Is (out of range indicator) displayed? Or are you in a location where the signal is too weak?Move to a location where (out of range indicator) is no longer displayed. 10Is the wireless line busy or is the phone you are calling on another line? End the call and try again later. 16The incoming indicator flashes but the ring tone does not play.Is manner mode turned on? Hold down ( for at least one second to turn off manner mode. 18Is (ring tone off indicator) displayed? Increase the volume of the incoming call ring tone. 19Cannot charge the battery pack.Is the battery pack installed properly? Install the battery pack properly. 8Are the plug and connector of the AC adapter (sold separately) inserted properly?Insert the plug and connector firmly. When the camera is activated, no subject is displayed. Is a finger or other object covering the camera (lens)? Check the position of the camera (lens) and remove the obstacle. 31• For more detailed information, visit the following au troubleshooting sites:- From an au cell phone: R  Top Menu/Search   (au Customer Support)   (Online Manual)   (Troubleshooting FAQ)- From a PC: http://www.kddi.com/customer/service/au/trouble/kosho/index.html
46IndexIndexAAccessories 6BBattery level  11Battery pack  6,8Battery pack cover 7CCamera  31Photo taking tips 31Taking a photo 32Cell phone etiquette  2Character input  21Character entry modes  21Deleting characters 22Entering characters from the same key 22Starting a new line  22Charging the battery pack 8Checking charges  36C-mail 29C-mail safety block  29Creating and sending 29Reading Received mail  30Contents 4DDisaster Message Board Service  3Display 7,11Domain  14Downloading Chaku-Uta® 36EEarpiece volume 18Easy voice memo  19Playback  19Turning off  19Turning on  19E-mail  27Creating and sending 27Initial settings  10Reading Received mail  28Replying  28Viewing attached images  28E-mail address  10Available characters  21Changing 14Entering  22Entering pictograms  23Evacuate Navi 41EZ Navi  39EZ Navi Walk  40EZ News Flash 37Canceling 38Changing the Reception Settings  38
47IndexInfo pane 37Setting 37Ticker field  37EZ password  15EZweb 33Accessing sites 34au one Top  34Basic operations  35Initial settings  10IIncoming history  17Indicators  11Initial settings 10E-mailEZweb  10International Call  16Internet  33Sites 34,35KKey assignments 9LLanguage  10Learning the basics 9Lock No.  15MMail 27C-mail  29E-mail  27Mail filters  29Recommended settings  29Main menu 12Manner mode 18NNames of parts  7Notification window  10OOne-ring calls 17Outgoing history  17PPair Function  26Making a call to a pair partner  26Registering a pair partner  26Sending mail to a pair partner  26Passenger Seat Navi  39Passwords  15Phone (call) 16184/186  16Answering  17International Call 16

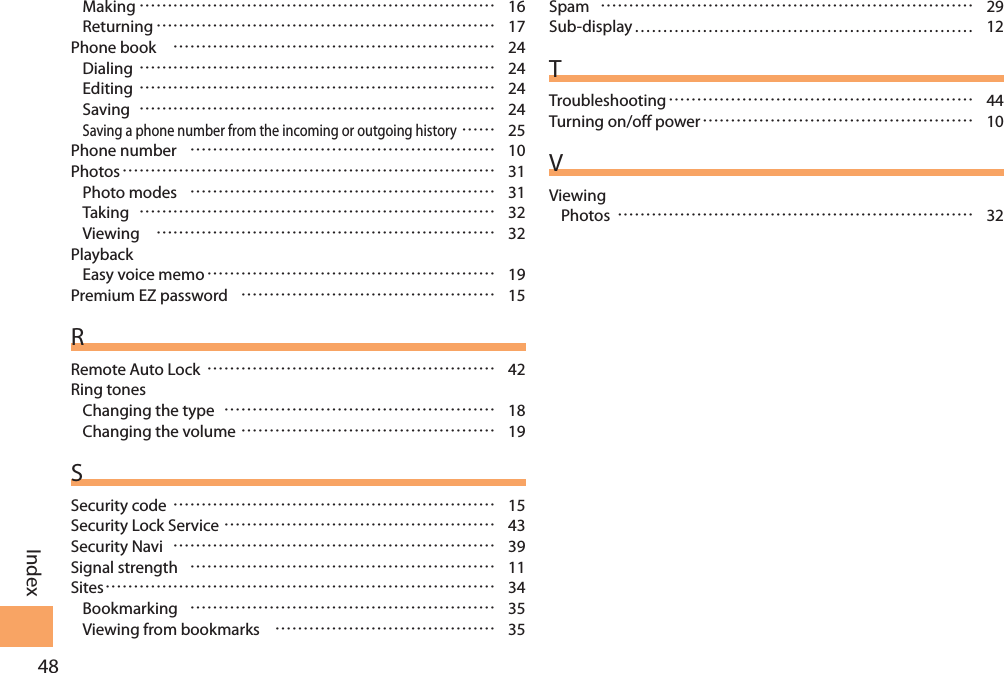

48IndexMaking 16Returning 17Phone book  24Dialing 24Editing 24Saving  24Saving a phone number from the incoming or outgoing history 25Phone number  10Photos 31Photo modes  31Taking  32Viewing  32PlaybackEasy voice memo 19Premium EZ password  15RRemote Auto Lock  42Ring tonesChanging the type  18Changing the volume 19SSecurity code 15Security Lock Service 43Security Navi  39Signal strength  11Sites 34Bookmarking  35Viewing from bookmarks  35Spam  29Sub-display …………………………………………………… 12TTroubleshooting 44Turning on/off power 10VViewingPhotos  32
FCC NoticeThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help and for additional suggestions.WarningThe user is cautioned that changes or modifications not expresslyapproved by the manufacturer could void the user’s authority to operate the equipment.In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.Body-worn OperationThis device was tested for typical body-worn operations with the back of the phone kept 0.59 inches (2 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.59 inches (2 cm) must be maintained between the user’s body and the back of the phone, including the antenna. All beltclips, holsters and similar accessories used by this device must not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure limits and should be avoided.Turn off your phone before flyingYou should turn off your phone when boarding any aircraft. To prevent possible interference with aircraft systems, U.S. Federal Aviation Administration (FAA) regulations require you to have permission from a crew member to use your phone while the plane is on the ground. To prevent any risk of interference, FCC regulations prohibit using your phone while the plane is in the air.

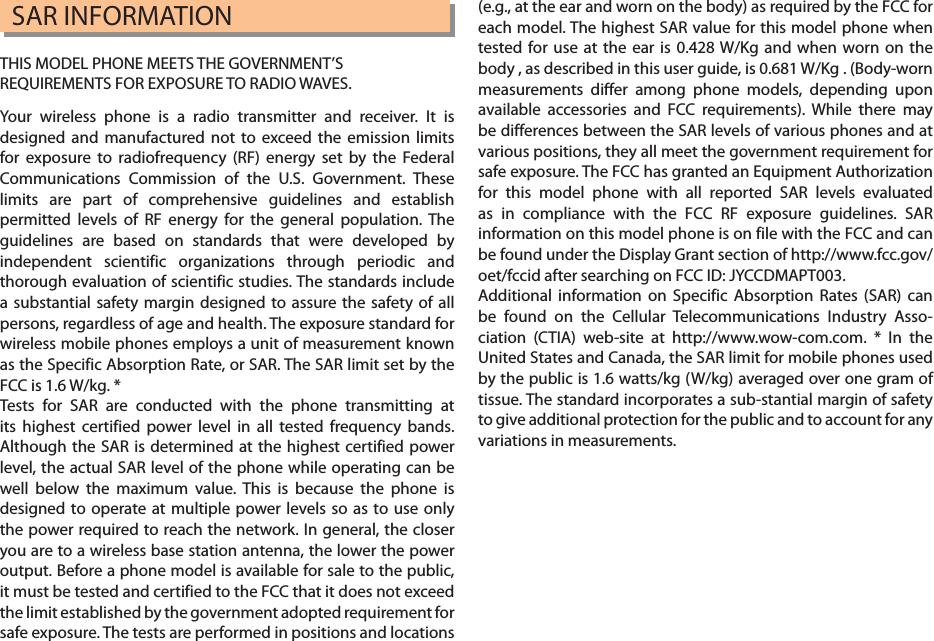

SAR INFORMATIONTHIS MODEL PHONE MEETS THE GOVERNMENT’SREQUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 0.428 W/Kg and when worn on the body , as described in this user guide, is 0.681 W/Kg . (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: JYCCDMAPT003.Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements.
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities. While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. THIS PHONE HAS A HAC RATING OF M4. Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use. In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation. The M mark is intended to be synonymous with the U mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U marks is referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard. For information about hearing aids and digital wireless phones FCC Hearing Aid Compatibility and Volume Control: http://www.fcc.gov/cgb/dro/hearing.html Gallaudet University, RERC: https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm

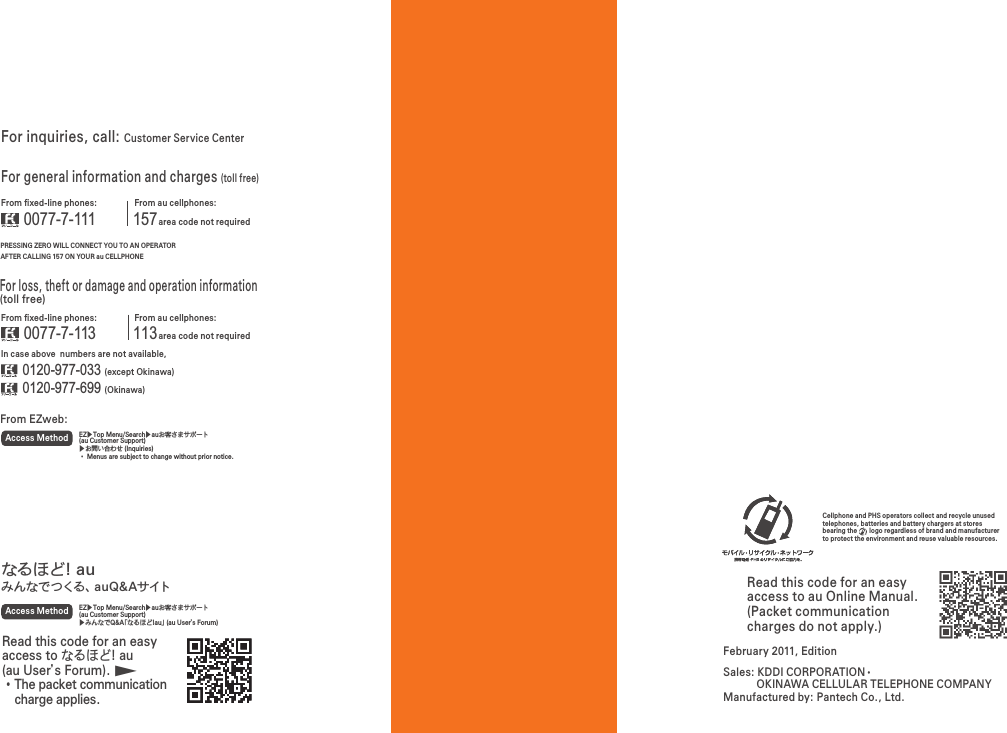

For inquiries, call: Customer Service CenterFor general information and charges (toll free)For loss, theft or damage and operation information(toll free)From fixed-line phones:PRESSING ZERO WILL CONNECT YOU TO AN OPERATORAFTER CALLING 157 ON YOUR au CELLPHONEFrom au cellphones:From fixed-line phones:From EZweb:From au cellphones:area code not requiredAccess Method EZ▶Top Menu/Search▶auお客さまサポート (au Customer Support)▶お問い合わせ (Inquiries)・ Menus are subject to change without prior notice. Access Method EZ▶Top Menu/Search▶auお客さまサポート (au Customer Support)▶みんなでQ&A「なるほど!au」 (au User’s Forum)Read this code for an easy access to au Online Manual.(Packet communication charges do not apply.)Read this code for an easy access to なるほど! au (au User’s Forum).▶・The packet communication charge applies.Sales: KDDI CORPORATION • OKINAWA CELLULAR TELEPHONE COMPANYManufactured by: Pantech Co., Ltd.February 2011, EditionCellphone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing the logo regardless of brand and manufacturer to protect the environment and reuse valuable resources.なるほど! auみんなでつくる、auQ&AサイトIn case above numbers are not available,0120-977-033 (except Okinawa)0077-7-111 157area code not required0077-7-113 1130120-977-699 (Okinawa)
