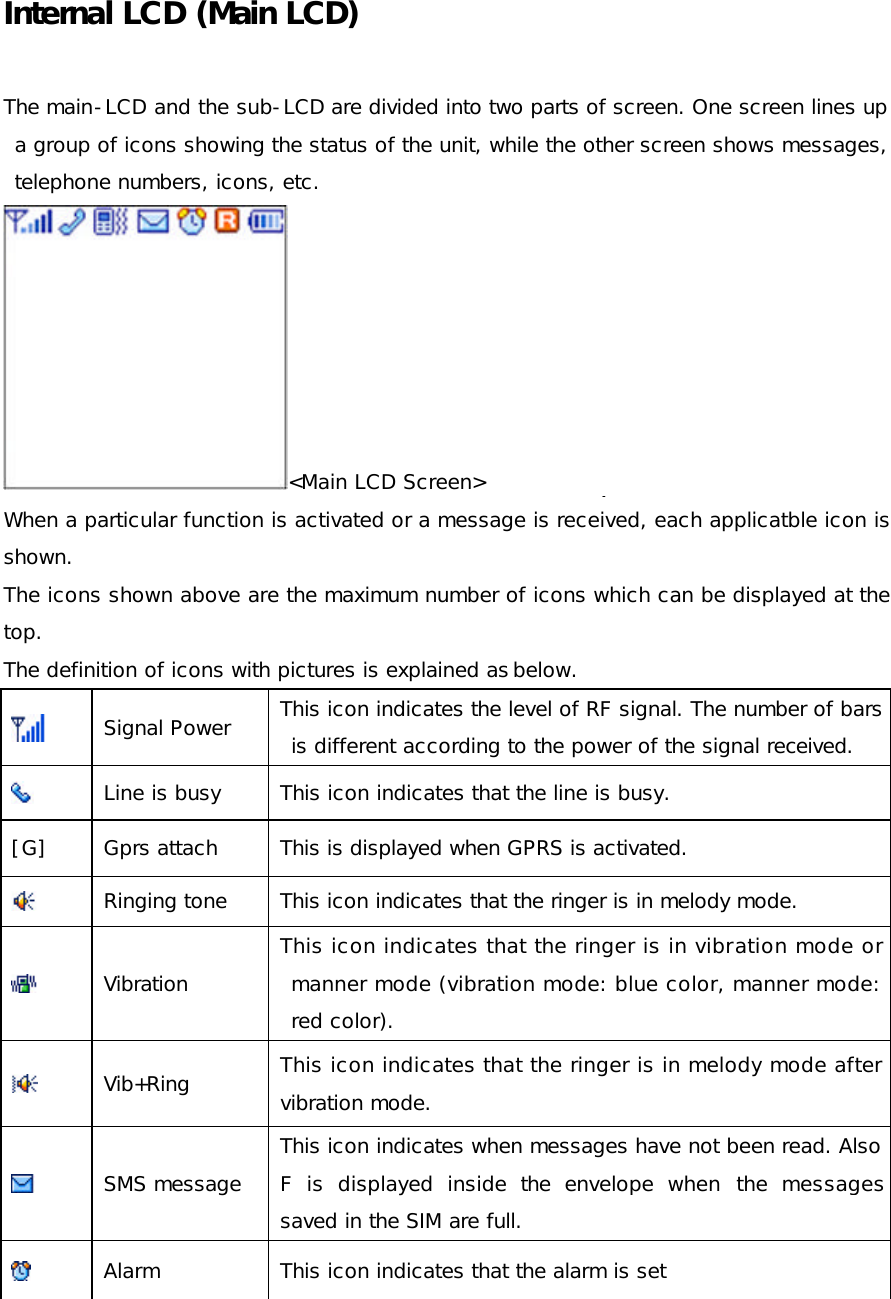

![Internal LCD (Main LCD) The main-LCD and the sub-LCD are divided into two parts of screen. One screen lines up a group of icons showing the status of the unit, while the other screen shows messages, telephone numbers, icons, etc. <Main LCD Screen> When a particular function is activated or a message is received, each applicatble icon is shown. The icons shown above are the maximum number of icons which can be displayed at the top. The definition of icons with pictures is explained as below. Signal Power This icon indicates the level of RF signal. The number of bars is different according to the power of the signal received. Line is busy This icon indicates that the line is busy. [G] Gprs attach This is displayed when GPRS is activated. Ringing tone This icon indicates that the ringer is in melody mode. Vibration This icon indicates that the ringer is in vibration mode or manner mode (vibration mode: blue color, manner mode: red color). Vib+Ring This icon indicates that the ringer is in melody mode after vibration mode. SMS message This icon indicates when messages have not been read. Also F is displayed inside the envelope when the messages saved in the SIM are full. Alarm This icon indicates that the alarm is set](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-8.png)
![Roaming This icon indicates that the roaming system is supported. Battery This indicates the level of the battery. [마이크] Answering Machine This icon is displayed when the answering machine is turned on. [테이프] Answering Machine This icon is displayed if there is a recorded message in an incoming call.. Sub-LCD Menu options In the case of being in standby mode when the hinged door of the unit is closed, you can adjust the time shown in the Sub LCD by using the [Vol Down] key. Analog and Digital time alternatively appear. If you press the [Vol Up], [Vol Down] or [SIDE CAMERA] key for a moment, the backlight of the Sub LCD turns on. If you long press the [SIDE CAMERA] key when the hinged door of the unit is closed, the Sub LCD will carry out the camera preview function. Flash ON You can use the camera flash as an emergency light. 1) If you keep pressing the [Vol Up] key for a while in standby mode, the flash turns on. 2) Stop pressing the [Vol Up] key in order to turn off the flash.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-9.png)

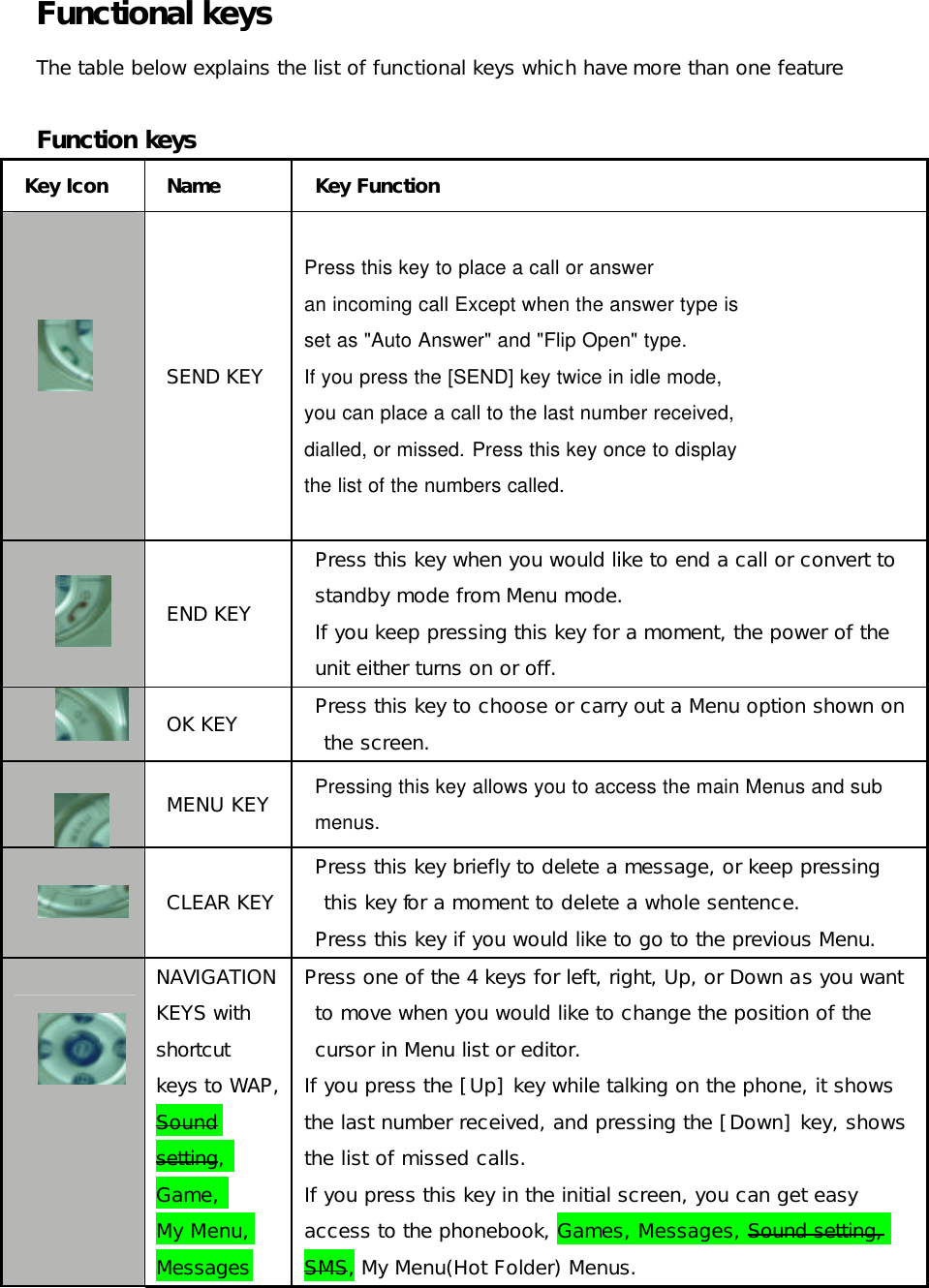

![Functional keys The table below explains the list of functional keys which have more than one feature Function keys Key Icon Name Key Function SEND KEY Press this key to place a call or answer an incoming call Except when the answer type is set as "Auto Answer" and "Flip Open" type. If you press the [SEND] key twice in idle mode, you can place a call to the last number received, dialled, or missed. Press this key once to display the list of the numbers called. END KEY Press this key when you would like to end a call or convert to standby mode from Menu mode. If you keep pressing this key for a moment, the power of the unit either turns on or off. OK KEY Press this key to choose or carry out a Menu option shown on the screen. MENU KEY Pressing this key allows you to access the main Menus and sub menus. CLEAR KEY Press this key briefly to delete a message, or keep pressing this key for a moment to delete a whole sentence. Press this key if you would like to go to the previous Menu. NAVIGATION KEYS with shortcut keys to WAP, Sound setting, Game, My Menu, Messages Press one of the 4 keys for left, right, Up, or Down as you want to move when you would like to change the position of the cursor in Menu list or editor. If you press the [Up] key while talking on the phone, it shows the last number received, and pressing the [Down] key, shows the list of missed calls. If you press this key in the initial screen, you can get easy access to the phonebook, Games, Messages, Sound setting, SMS, My Menu(Hot Folder) Menus.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-10.png)
![and Phonebook SIDE UP and DOWN KEYS Press this key if you would like to adjust the volume of the conversation. If the hinged door of the unit is closed, this will carry out FLASH and Sub LCD related jobs. CAMERA KEY If you press this key in the initial screen, you can directly access the [Camera] Menu. SIDE CAMERA KEY If you press this key when the phone flip is closed, you can directly access the [CAMERA Preview] mode. WAP KEY If you press this key in the initial screen, you can directly access the [WAP] Menu](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-11.png)

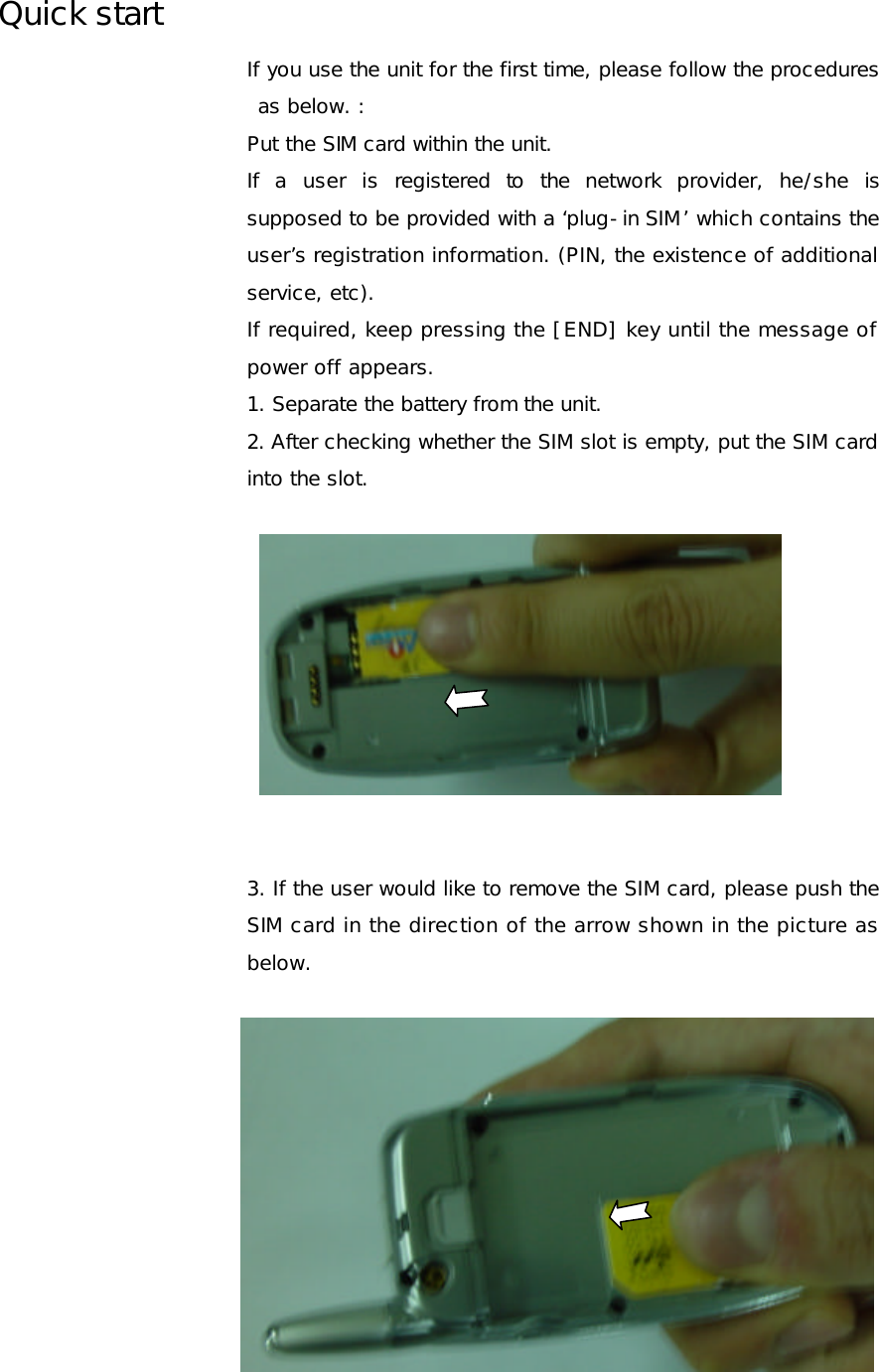

![Quick start If you use the unit for the first time, please follow the procedures as below. : Put the SIM card within the unit. If a user is registered to the network provider, he/she is supposed to be provided with a ‘plug-in SIM’ which contains the user’s registration information. (PIN, the existence of additional service, etc). If required, keep pressing the [END] key until the message of power off appears. 1. Separate the battery from the unit. 2. After checking whether the SIM slot is empty, put the SIM card into the slot. 3. If the user would like to remove the SIM card, please push the SIM card in the direction of the arrow shown in the picture as below.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-12.png)

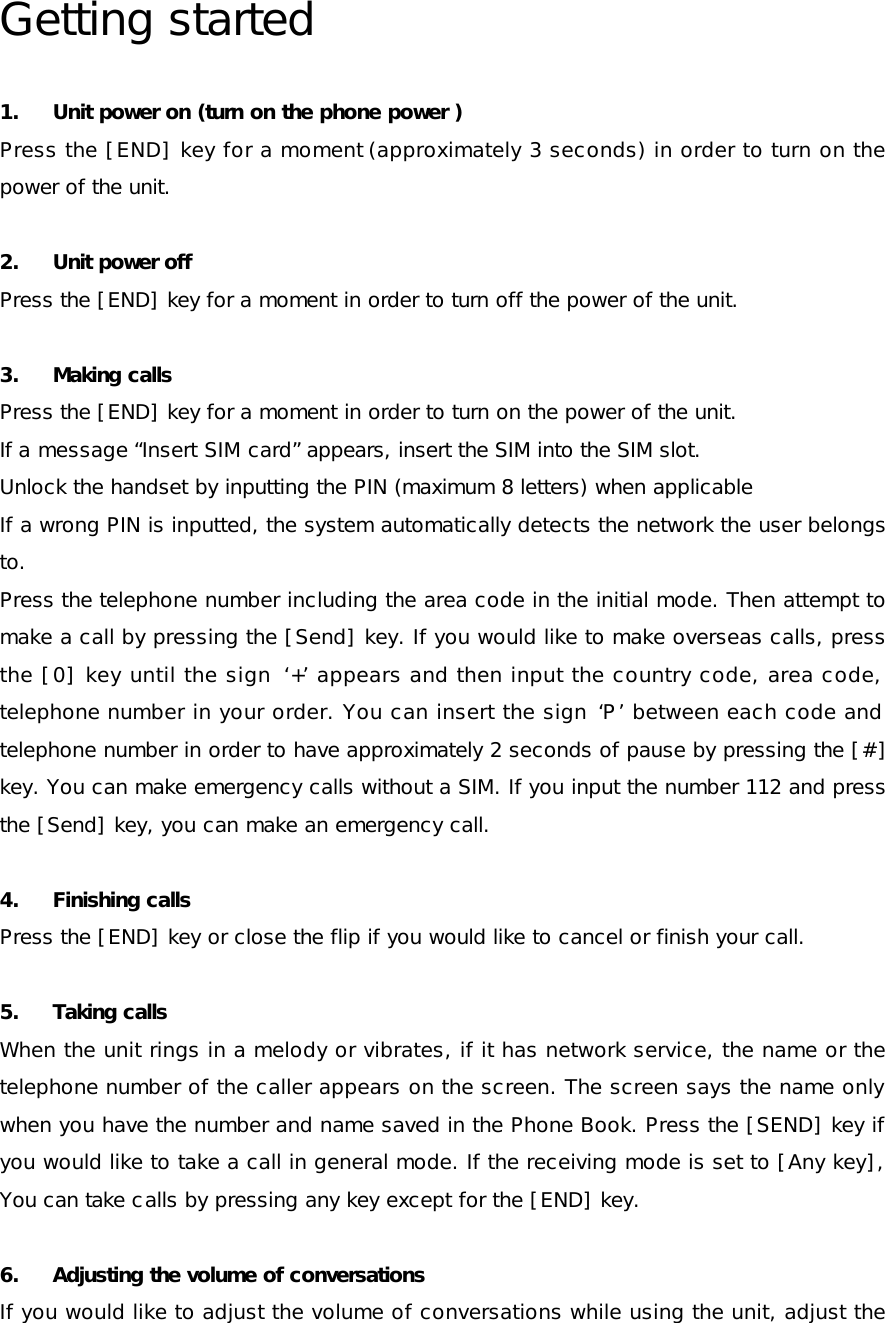

![Getting started 1. Unit power on (turn on the phone power ) Press the [END] key for a moment (approximately 3 seconds) in order to turn on the power of the unit. 2. Unit power off Press the [END] key for a moment in order to turn off the power of the unit. 3. Making calls Press the [END] key for a moment in order to turn on the power of the unit. If a message “Insert SIM card” appears, insert the SIM into the SIM slot. Unlock the handset by inputting the PIN (maximum 8 letters) when applicable If a wrong PIN is inputted, the system automatically detects the network the user belongs to. Press the telephone number including the area code in the initial mode. Then attempt to make a call by pressing the [Send] key. If you would like to make overseas calls, press the [0] key until the sign ‘+’ appears and then input the country code, area code, telephone number in your order. You can insert the sign ‘P’ between each code and telephone number in order to have approximately 2 seconds of pause by pressing the [#] key. You can make emergency calls without a SIM. If you input the number 112 and press the [Send] key, you can make an emergency call. 4. Finishing calls Press the [END] key or close the flip if you would like to cancel or finish your call. 5. Taking calls When the unit rings in a melody or vibrates, if it has network service, the name or the telephone number of the caller appears on the screen. The screen says the name only when you have the number and name saved in the Phone Book. Press the [SEND] key if you would like to take a call in general mode. If the receiving mode is set to [Any key], You can take calls by pressing any key except for the [END] key. 6. Adjusting the volume of conversations If you would like to adjust the volume of conversations while using the unit, adjust the](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-15.png)
![volume by pressing the volume key on the side of the unit for up to 8 steps as you wish. 7. Searching the main Menu If you would like to move to the main Menu in the initial screen, press the [Menu] key. Press the [End] key if you would like to escape from the Menu and return to the initial screen. You can select one of the items in the Menu by pressing the Navigation key [Up][left] and [Down][right]. You can reply to questions with ‘Yes’ by pressing the [OK] key, and ‘No’ the [Clr] key. 8. Inputting letters and number in the handset If You would like to input a number, select the number key pad you desire to input. If you input a number in the handset, the system should be in ‘T9’ mode. (i.e. Phone book, Message). For more details, please refer to the ‘T9’ page. If you would like to delete a wrongly inputted letter, press the [Clr] key and to delete a whole sentence, keep pressing the[Clr] key for a moment. If you keep pressing the [Clr] key for a while, all the letters in the screen are deleted.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-16.png)

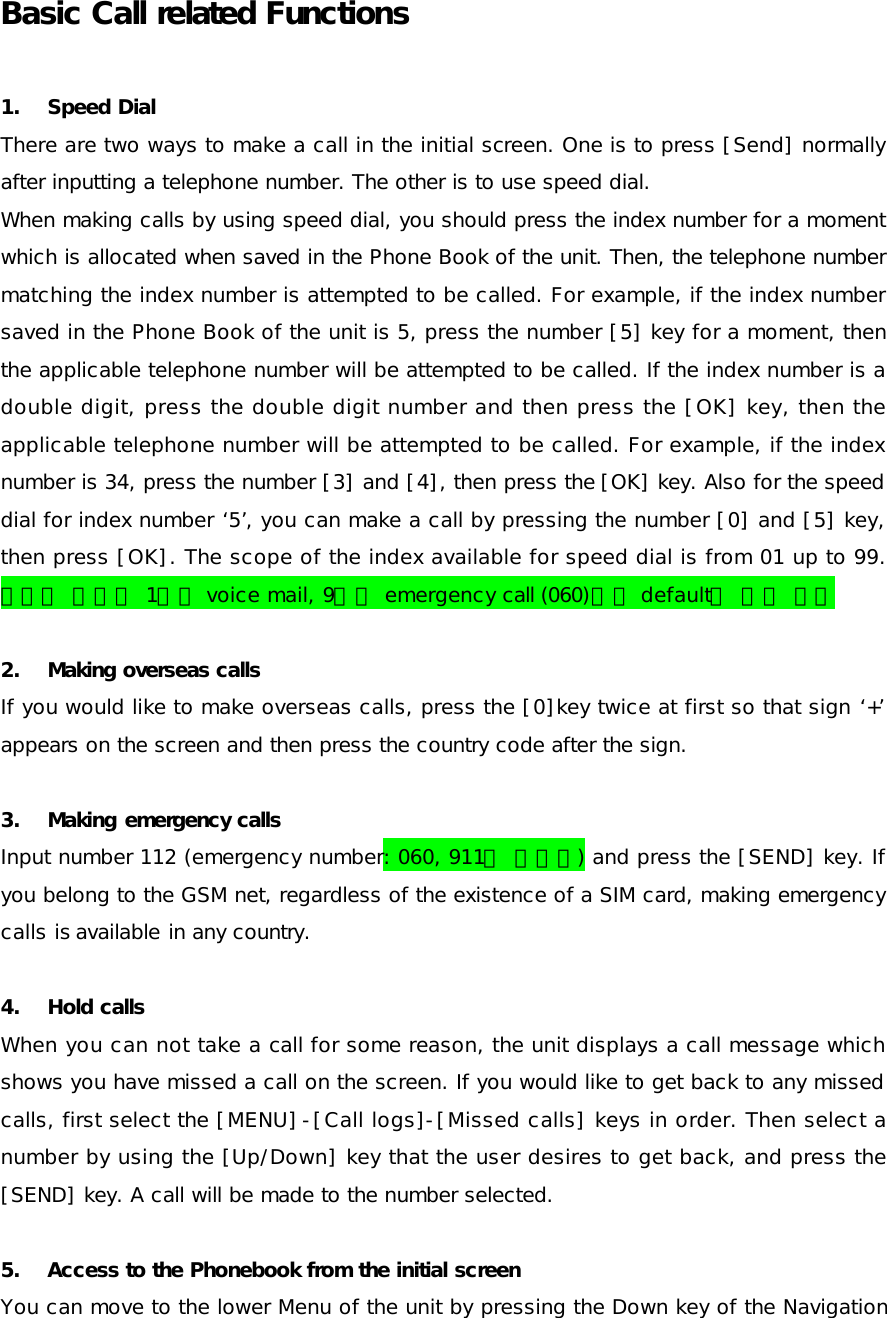

![Basic Call related Functions 1. Speed Dial There are two ways to make a call in the initial screen. One is to press [Send] normally after inputting a telephone number. The other is to use speed dial. When making calls by using speed dial, you should press the index number for a moment which is allocated when saved in the Phone Book of the unit. Then, the telephone number matching the index number is attempted to be called. For example, if the index number saved in the Phone Book of the unit is 5, press the number [5] key for a moment, then the applicable telephone number will be attempted to be called. If the index number is a double digit, press the double digit number and then press the [OK] key, then the applicable telephone number will be attempted to be called. For example, if the index number is 34, press the number [3] and [4], then press the [OK] key. Also for the speed dial for index number ‘5’, you can make a call by pressing the number [0] and [5] key, then press [OK]. The scope of the index available for speed dial is from 01 up to 99. 스피드 다이얼 1번은 voice mail, 9번은 emergency call (060)으로 default로 잡혀 있음 2. Making overseas calls If you would like to make overseas calls, press the [0]key twice at first so that sign ‘+’ appears on the screen and then press the country code after the sign. 3. Making emergency calls Input number 112 (emergency number: 060, 911도 해당됨) and press the [SEND] key. If you belong to the GSM net, regardless of the existence of a SIM card, making emergency calls is available in any country. 4. Hold calls When you can not take a call for some reason, the unit displays a call message which shows you have missed a call on the screen. If you would like to get back to any missed calls, first select the [MENU]-[Call logs]-[Missed calls] keys in order. Then select a number by using the [Up/Down] key that the user desires to get back, and press the [SEND] key. A call will be made to the number selected. 5. Access to the Phonebook from the initial screen You can move to the lower Menu of the unit by pressing the Down key of the Navigation](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-17.png)

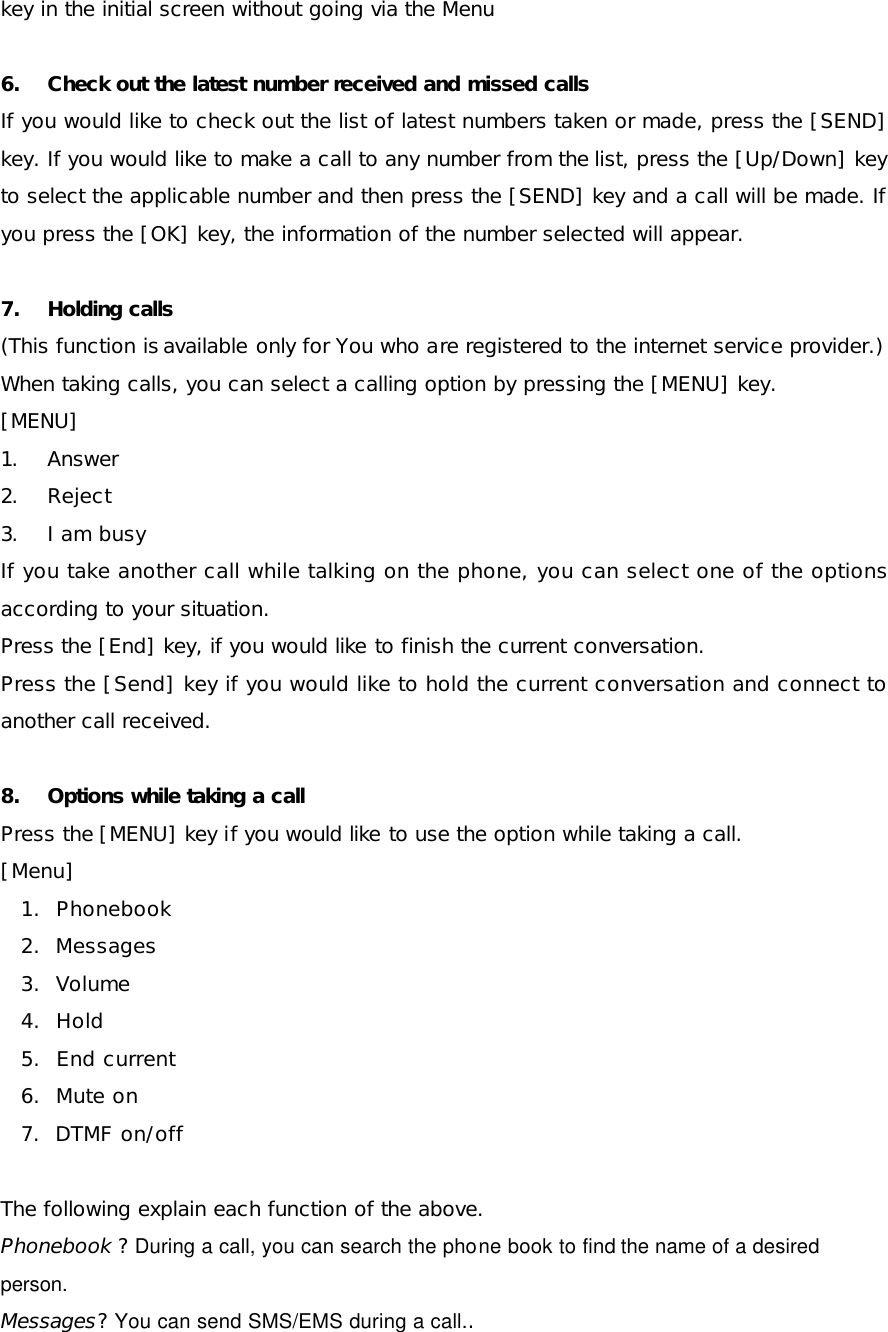

![key in the initial screen without going via the Menu 6. Check out the latest number received and missed calls If you would like to check out the list of latest numbers taken or made, press the [SEND] key. If you would like to make a call to any number from the list, press the [Up/Down] key to select the applicable number and then press the [SEND] key and a call will be made. If you press the [OK] key, the information of the number selected will appear. 7. Holding calls (This function is available only for You who are registered to the internet service provider.) When taking calls, you can select a calling option by pressing the [MENU] key. [MENU] 1. Answer 2. Reject 3. I am busy If you take another call while talking on the phone, you can select one of the options according to your situation. Press the [End] key, if you would like to finish the current conversation. Press the [Send] key if you would like to hold the current conversation and connect to another call received. 8. Options while taking a call Press the [MENU] key if you would like to use the option while taking a call. [Menu] 1. Phonebook 2. Messages 3. Volume 4. Hold 5. End current 6. Mute on 7. DTMF on/off The following explain each function of the above. Phonebook ? During a call, you can search the phone book to find the name of a desired person. Messages? You can send SMS/EMS during a call..](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-18.png)

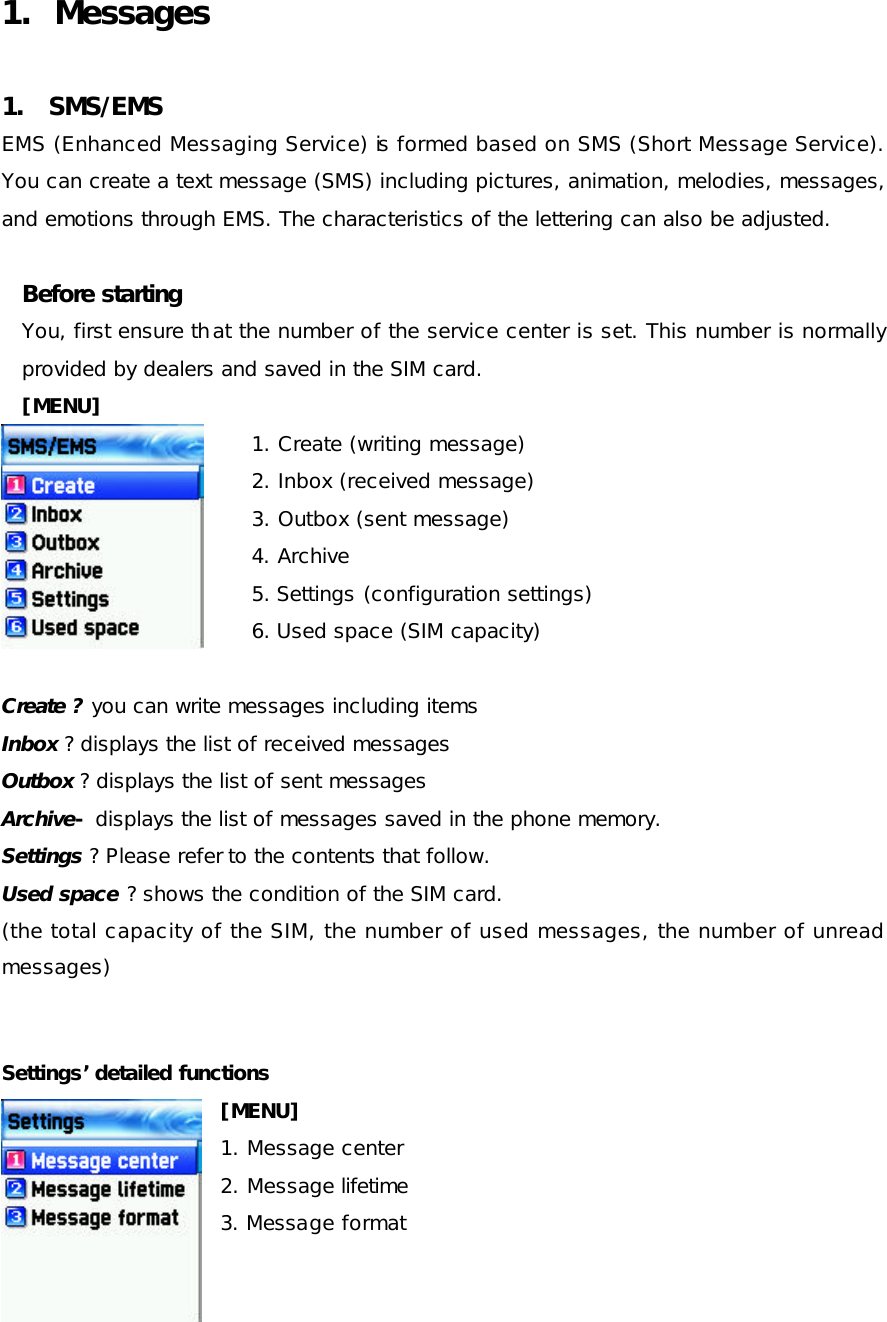

![1. Messages 1. SMS/EMS EMS (Enhanced Messaging Service) is formed based on SMS (Short Message Service). You can create a text message (SMS) including pictures, animation, melodies, messages, and emotions through EMS. The characteristics of the lettering can also be adjusted. Before starting You, first ensure that the number of the service center is set. This number is normally provided by dealers and saved in the SIM card. [MENU] 1. Create (writing message) 2. Inbox (received message) 3. Outbox (sent message) 4. Archive 5. Settings (configuration settings) 6. Used space (SIM capacity) Create ? you can write messages including items Inbox ? displays the list of received messages Outbox ? displays the list of sent messages Archive- displays the list of messages saved in the phone memory. Settings ? Please refer to the contents that follow. Used space ? shows the condition of the SIM card. (the total capacity of the SIM, the number of used messages, the number of unread messages) Settings’ detailed functions [MENU] 1. Message center 2. Message lifetime 3. Message format](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-21.png)
![Message center ? Authorization of the URL of proxy relay or set MMSC. Message lifetime ?Adjustment of the lifetime of messages (1hour~6 months) Message format ? Normal , fax, voice mail, ERMES, National paging, X.400, Internet) Used space detailed functions 1. Capacity 2. Used records 3. Unread records Capacity ? displays the maximum number of messages that the SIM can save Used records ? displays the number of messages saved in the SIM. Unread records ? displays the number of messages unread. Message check in Inbox, Outbox, Archive 1. Inbox (received messages) 1. If you press the [OK] key after selecting the “Inbox” Menu, the list will then be displayed. The list displays caller’s numbers corresponding to the names saved in the Phone Book. 2. Press the [OK] key to select the message from the list of the “Inbox”. 3. The selected message appears. If the message includes any items, when positioning the cursor at the item, for Animated parts, it moves and for Melodies, it makes sounds. 4. If you press the [Menu] key, Menus such as “Edit”, “Delete ”, “Forward”, ”Text Reply” or “Voice call” pop up and you can select any Menu as desired. 2. Outbox (sent messages) 1. Press the [OK] key after selecting the “Outbox” menu, then the list will be displayed. 2. Select a message in the list of the “Outbox” by pressing the [OK] key. 3. Press the [Menu] key when the selected message appears. 4. You can select a menu among the “Edit”, “Delete ”, and “Forward” icons that pop up. 3. Archive 1. Press the [OK] key after selecting the “Archive” menu, then the list will be displayed 2. Press the [Menu] key among the list of the “Archive” The size of the data under the](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-22.png)

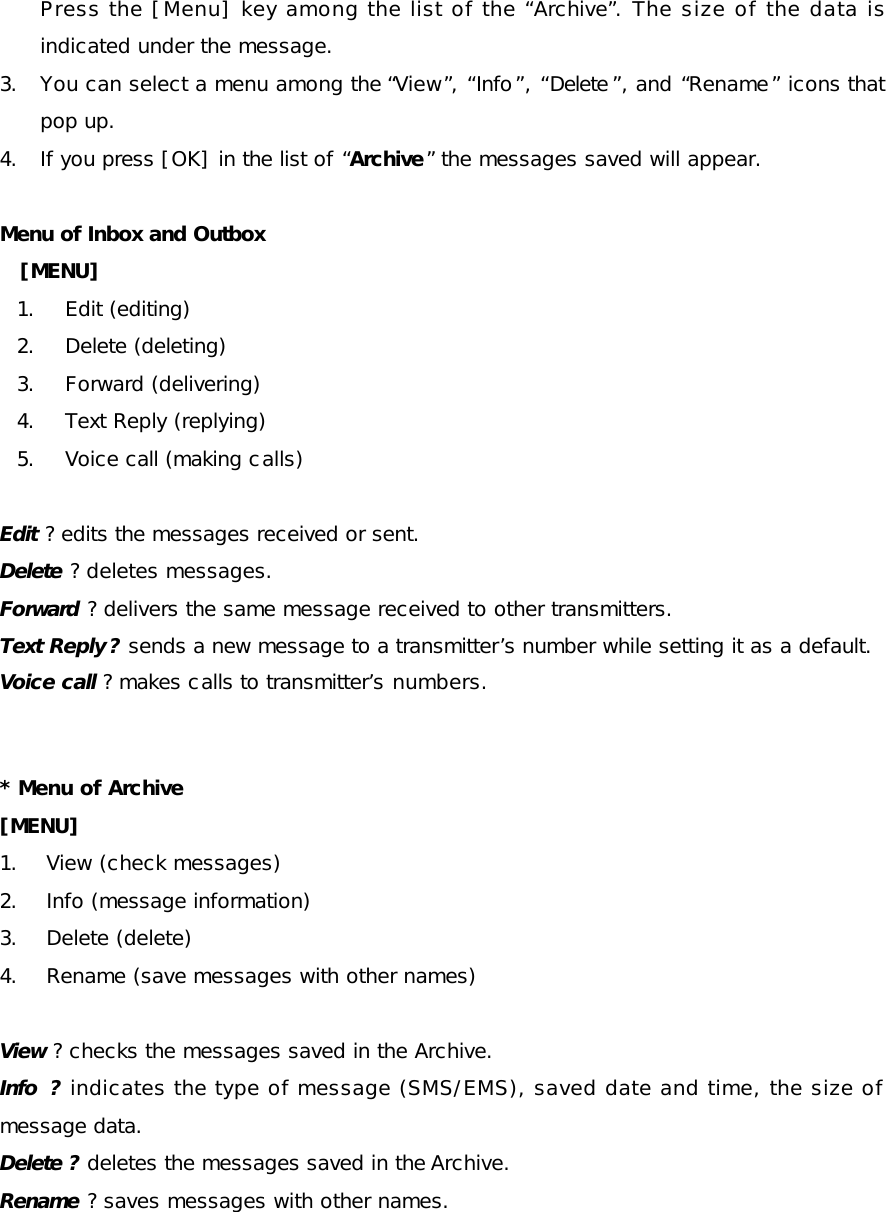

![Press the [Menu] key among the list of the “Archive”. The size of the data is indicated under the message. 3. You can select a menu among the “View”, “Info”, “Delete ”, and “Rename” icons that pop up. 4. If you press [OK] in the list of “Archive” the messages saved will appear. Menu of Inbox and Outbox [MENU] 1. Edit (editing) 2. Delete (deleting) 3. Forward (delivering) 4. Text Reply (replying) 5. Voice call (making calls) Edit ? edits the messages received or sent. Delete ? deletes messages. Forward ? delivers the same message received to other transmitters. Text Reply ? sends a new message to a transmitter’s number while setting it as a default. Voice call ? makes calls to transmitter’s numbers. * Menu of Archive [MENU] 1. View (check messages) 2. Info (message information) 3. Delete (delete) 4. Rename (save messages with other names) View ? checks the messages saved in the Archive. Info ? indicates the type of message (SMS/EMS), saved date and time, the size of message data. Delete ? deletes the messages saved in the Archive. Rename ? saves messages with other names.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-23.png)

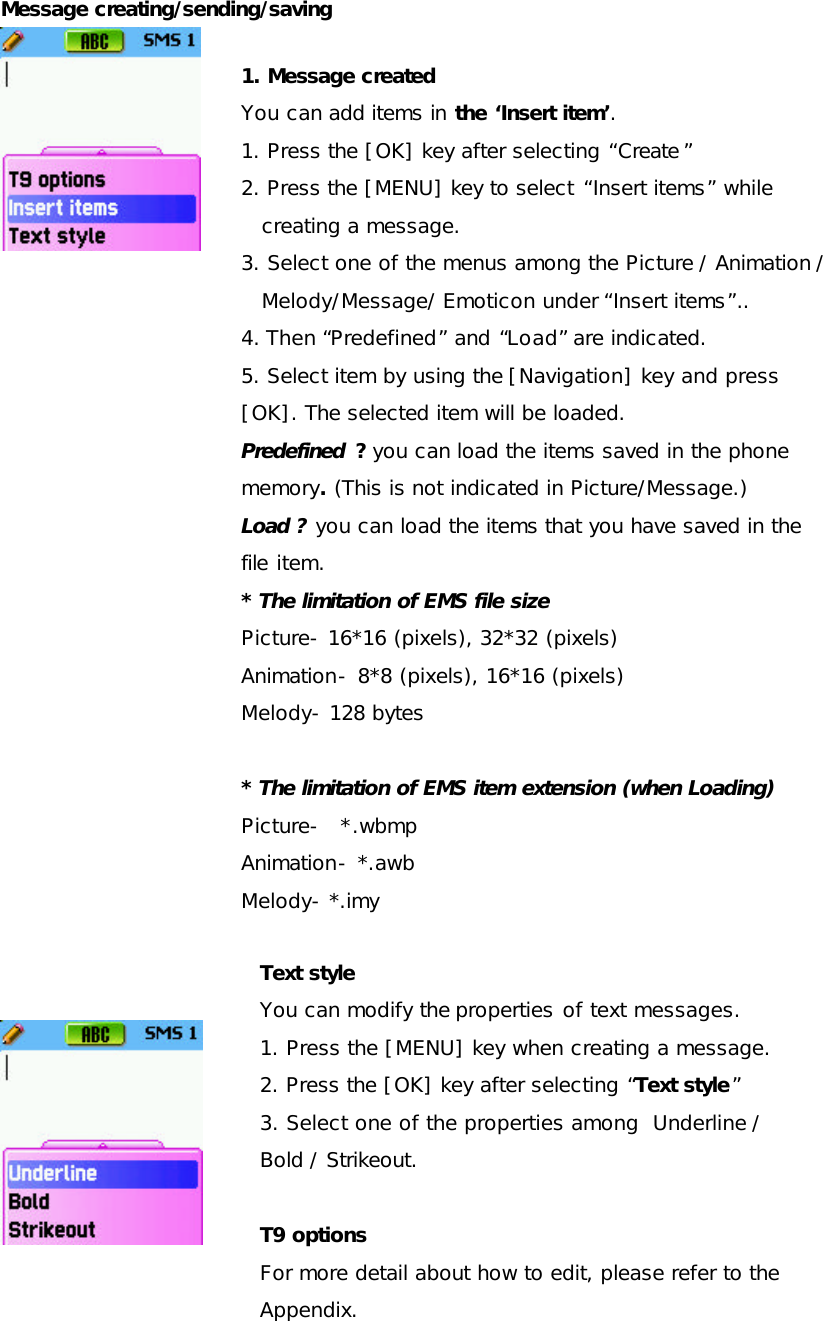

![Message creating/sending/saving 1. Message created You can add items in the ‘Insert item’. 1. Press the [OK] key after selecting “Create ” 2. Press the [MENU] key to select “Insert items” while creating a message. 3. Select one of the menus among the Picture / Animation / Melody/Message/ Emoticon under “Insert items”.. 4. Then “Predefined” and “Load” are indicated. 5. Select item by using the [Navigation] key and press [OK]. The selected item will be loaded. Predefined ? you can load the items saved in the phone memory. (This is not indicated in Picture/Message.) Load ? you can load the items that you have saved in the file item. * The limitation of EMS file size Picture- 16*16 (pixels), 32*32 (pixels) Animation- 8*8 (pixels), 16*16 (pixels) Melody- 128 bytes * The limitation of EMS item extension (when Loading) Picture- *.wbmp Animation- *.awb Melody- *.imy Text style You can modify the properties of text messages. 1. Press the [MENU] key when creating a message. 2. Press the [OK] key after selecting “Text style” 3. Select one of the properties among Underline / Bold / Strikeout. T9 options For more detail about how to edit, please refer to the Appendix.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-24.png)

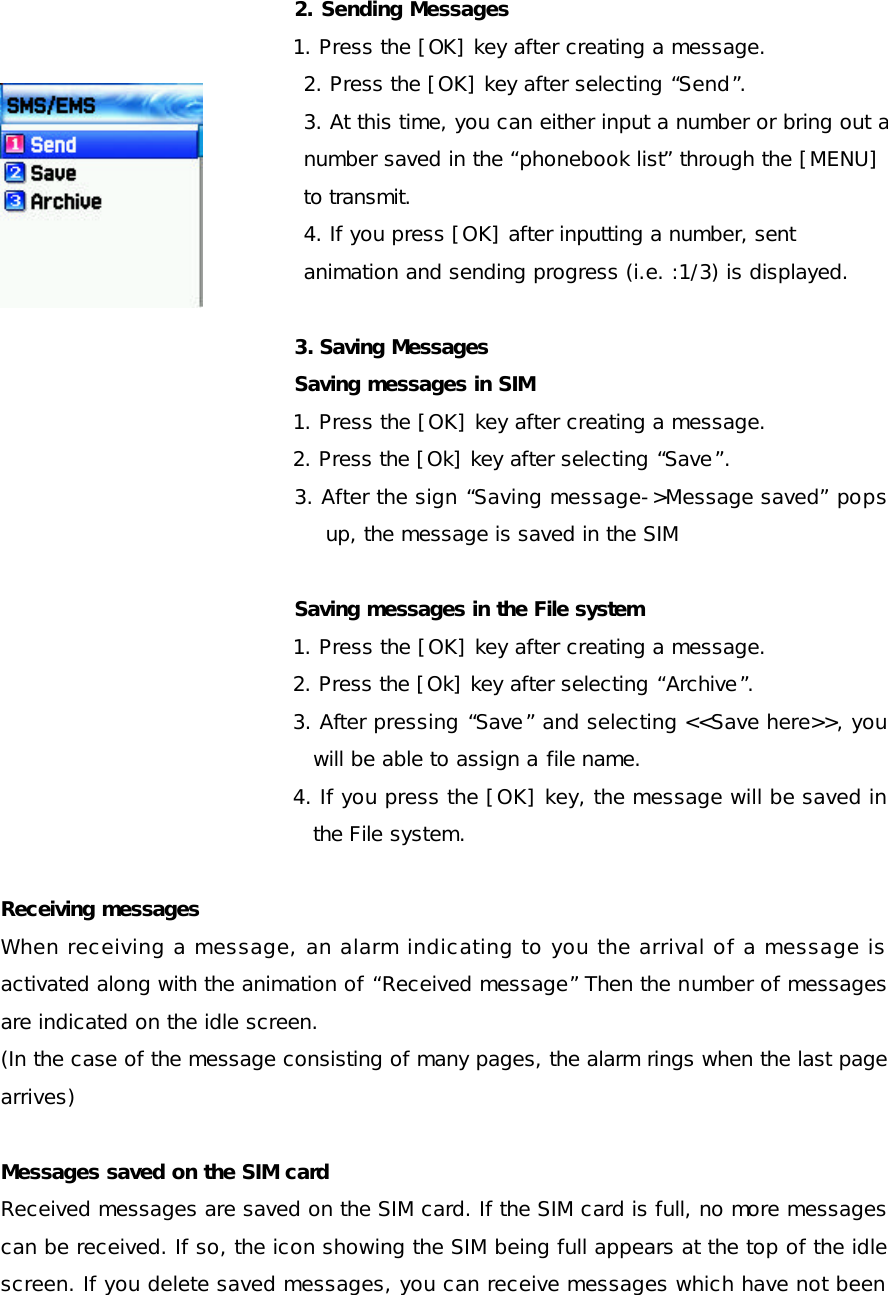

![2. Sending Messages 1. Press the [OK] key after creating a message. 2. Press the [OK] key after selecting “Send”. 3. At this time, you can either input a number or bring out a number saved in the “phonebook list” through the [MENU] to transmit. 4. If you press [OK] after inputting a number, sent animation and sending progress (i.e. :1/3) is displayed. 3. Saving Messages Saving messages in SIM 1. Press the [OK] key after creating a message. 2. Press the [Ok] key after selecting “Save”. 3. After the sign “Saving message->Message saved” pops up, the message is saved in the SIM Saving messages in the File system 1. Press the [OK] key after creating a message. 2. Press the [Ok] key after selecting “Archive”. 3. After pressing “Save” and selecting <<Save here>>, you will be able to assign a file name. 4. If you press the [OK] key, the message will be saved in the File system. Receiving messages When receiving a message, an alarm indicating to you the arrival of a message is activated along with the animation of “Received message” Then the number of messages are indicated on the idle screen. (In the case of the message consisting of many pages, the alarm rings when the last page arrives) Messages saved on the SIM card Received messages are saved on the SIM card. If the SIM card is full, no more messages can be received. If so, the icon showing the SIM being full appears at the top of the idle screen. If you delete saved messages, you can receive messages which have not been](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-25.png)

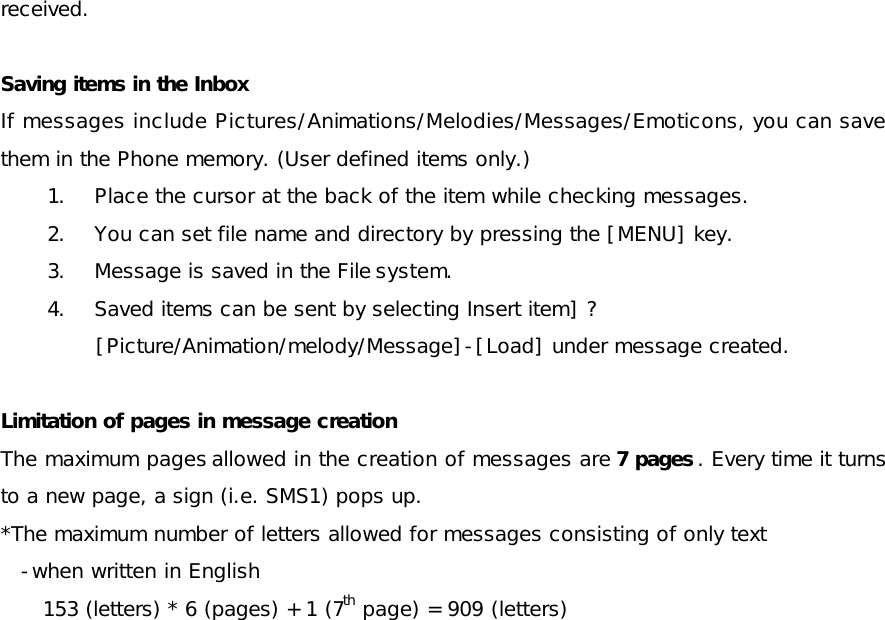

![received. Saving items in the Inbox If messages include Pictures/Animations/Melodies/Messages/Emoticons, you can save them in the Phone memory. (User defined items only.) 1. Place the cursor at the back of the item while checking messages. 2. You can set file name and directory by pressing the [MENU] key. 3. Message is saved in the File system. 4. Saved items can be sent by selecting Insert item] ?[Picture/Animation/melody/Message]-[Load] under message created. Limitation of pages in message creation The maximum pages allowed in the creation of messages are 7 pages . Every time it turns to a new page, a sign (i.e. SMS1) pops up. *The maximum number of letters allowed for messages consisting of only text -when written in English 153 (letters) * 6 (pages) + 1 (7th page) = 909 (letters)](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-26.png)
![?? Spam filter: sets spam filter for the MMS messages set as “Advertisement”. ?? Off : receives all the MMS messages ?? Prompt if spam: asks you whether spam messages should be downloaded. ?? Reject spam : does not receive all spam messages. ?? Creating and sending Multi-media messages A new message can be written by selecting the “Create ” menu. If you select the “Create ” menu, the first page of MMS messages is displayed in the screen. At the top of the message page there is a status bar showing the information and status of pages. This indicates whether the current page includes sound, the order of pages, and the size of the message. 1. Select MMS in the Message Menu and move to “Create” then press [OK] to select it. 2. Input desired text. (i.e. “Hello world”). 3. You can add, modify, and delete the object of images and sounds in multi-media message. You can use the Menu Option by using [MENU] key. – Add picture : Select “Add picture” or “Add photo” after pressing the [MENU] key in order to insert images. Then, select desired image files ( *.bmp, *.jpg, *gif, *.png) in the list by pressing the [OK] key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-28.png)

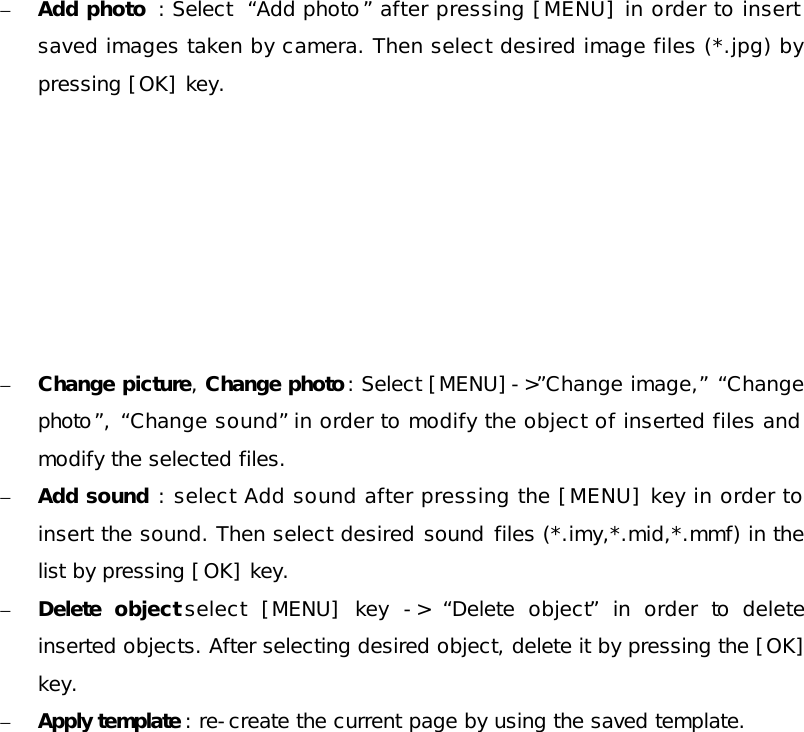

![– Add photo : Select “Add photo” after pressing [MENU] in order to insert saved images taken by camera. Then select desired image files (*.jpg) by pressing [OK] key. – Change picture, Change photo: Select [MENU]->”Change image,” “Change photo”, “Change sound” in order to modify the object of inserted files and modify the selected files. – Add sound : select Add sound after pressing the [MENU] key in order to insert the sound. Then select desired sound files (*.imy,*.mid,*.mmf) in the list by pressing [OK] key. – Delete object select [MENU] key -> “Delete object” in order to delete inserted objects. After selecting desired object, delete it by pressing the [OK] key. – Apply template : re-create the current page by using the saved template.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-29.png)
![4. You can adjust the object properties of images and sound inserted. – Object properties : after pressing the [MENU] key select More->Object properties and press the [OK] key after selecting the desired object (image, sound). Then, you can select how long or when the object will be displayed at the time the page is read. 5. Adjust “Page properties” – Page property ->Page layout : After pressing the [MENU] key, select More->Page properties->”Page layout”. Then select whether the image or text should be placed in the upper part of a massage. – Page property ->Displayed for : After pressing the [MENU] key select More->Page properties->”Displayed for”. Then select when it turns to the next page at the time each page is read. 6. Press the [MENU] key and select preview in order to confirm that the created message is properly displayed. If there is no problem, select [CLR] 7. When the Address options menu is displayed, select "TO" and press the "ok" key in order to select a dial number. You can input dial number directly from the Phonebook by pressing [MENU] key. When completing inputting the number, move to “Add address” and escape from it by pressing the [OK] key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-30.png)

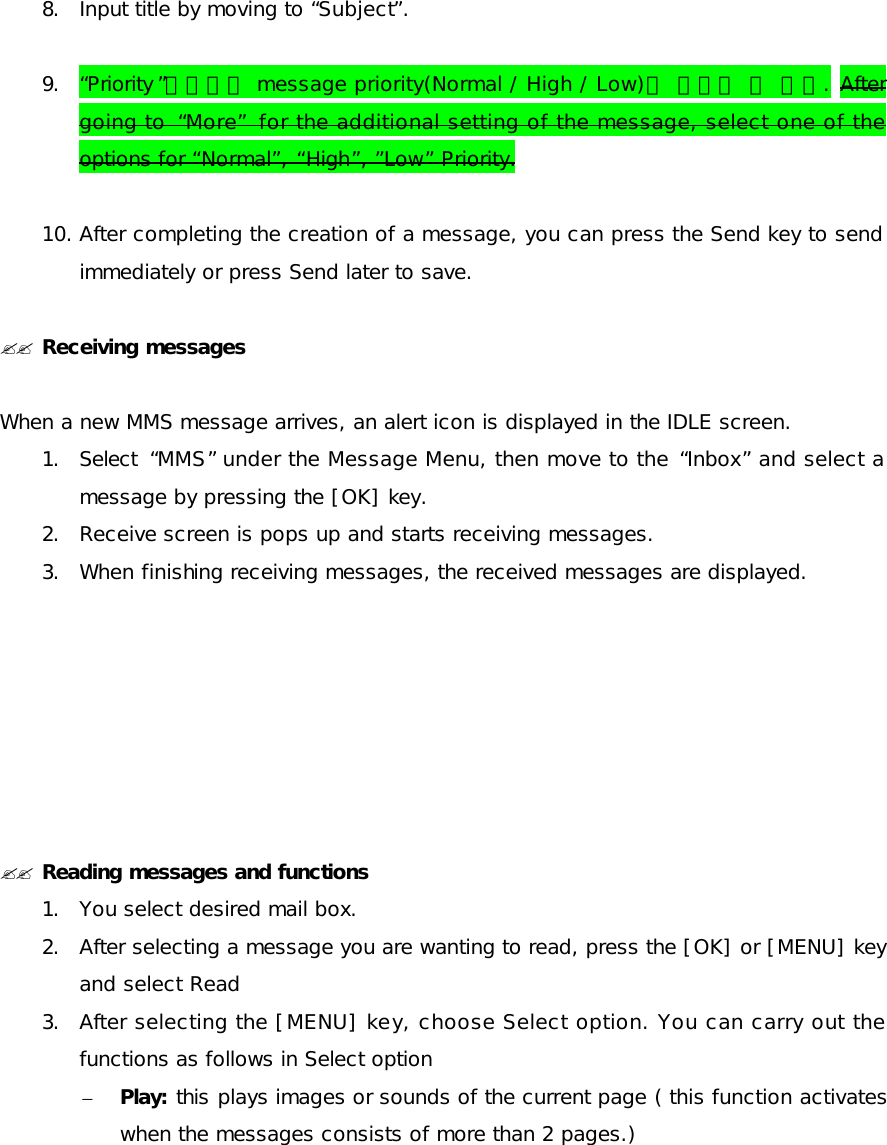

![8. Input title by moving to “Subject”. 9. “Priority ”항목에서 message priority(Normal / High / Low)를 설정할 수 있다. After going to “More” for the additional setting of the message, select one of the options for “Normal”, “High”, ”Low” Priority. 10. After completing the creation of a message, you can press the Send key to send immediately or press Send later to save. ?? Receiving messages When a new MMS message arrives, an alert icon is displayed in the IDLE screen. 1. Select “MMS” under the Message Menu, then move to the “Inbox” and select a message by pressing the [OK] key. 2. Receive screen is pops up and starts receiving messages. 3. When finishing receiving messages, the received messages are displayed. ?? Reading messages and functions 1. You select desired mail box. 2. After selecting a message you are wanting to read, press the [OK] or [MENU] key and select Read 3. After selecting the [MENU] key, choose Select option. You can carry out the functions as follows in Select option – Play: this plays images or sounds of the current page ( this function activates when the messages consists of more than 2 pages.)](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-31.png)

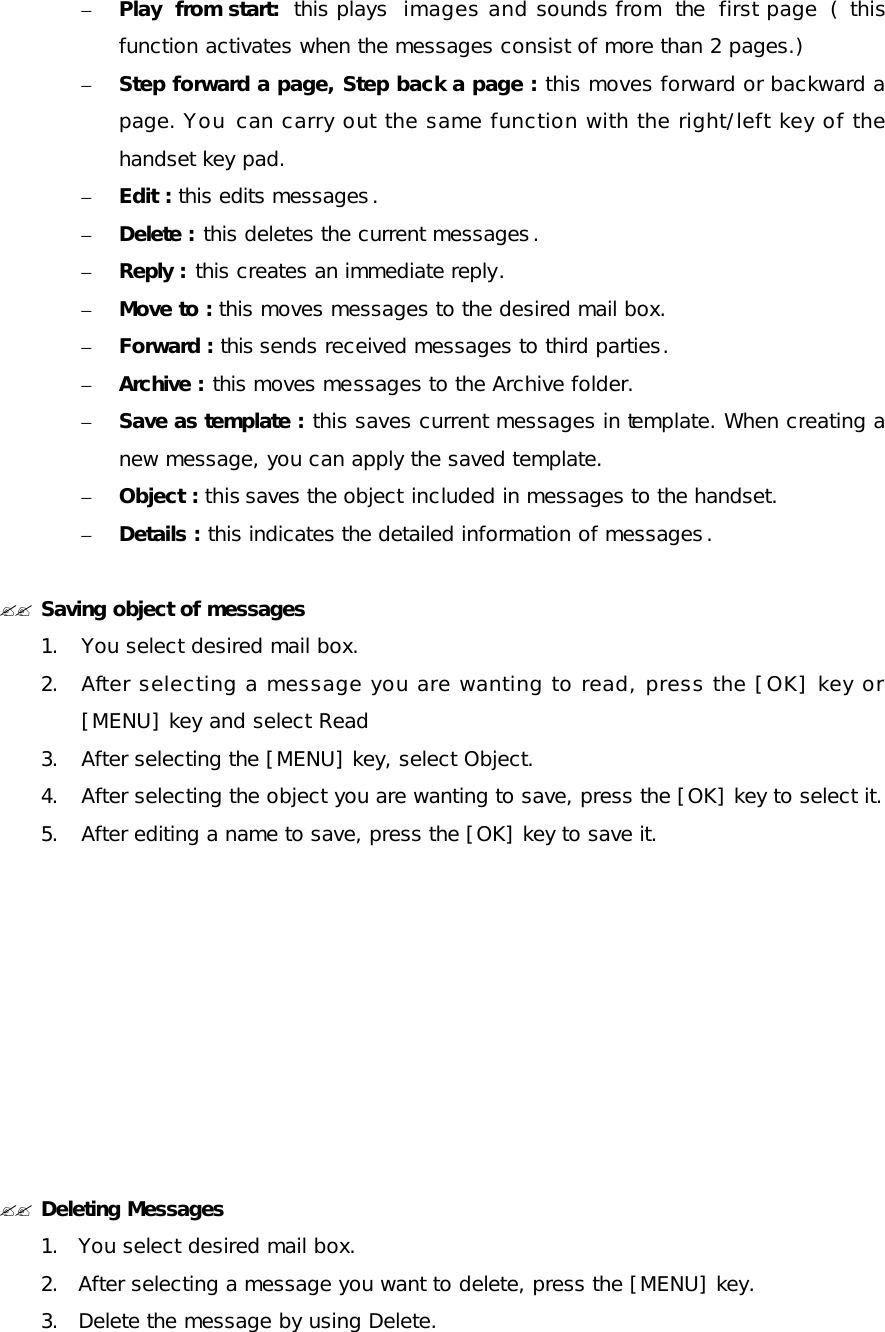

![– Play from start: this plays images and sounds from the first page ( this function activates when the messages consist of more than 2 pages.) – Step forward a page, Step back a page : this moves forward or backward a page. You can carry out the same function with the right/left key of the handset key pad. – Edit : this edits messages. – Delete : this deletes the current messages. – Reply : this creates an immediate reply. – Move to : this moves messages to the desired mail box. – Forward : this sends received messages to third parties. – Archive : this moves messages to the Archive folder. – Save as template : this saves current messages in template. When creating a new message, you can apply the saved template. – Object : this saves the object included in messages to the handset. – Details : this indicates the detailed information of messages. ?? Saving object of messages 1. You select desired mail box. 2. After selecting a message you are wanting to read, press the [OK] key or [MENU] key and select Read 3. After selecting the [MENU] key, select Object. 4. After selecting the object you are wanting to save, press the [OK] key to select it. 5. After editing a name to save, press the [OK] key to save it. ?? Deleting Messages 1. You select desired mail box. 2. After selecting a message you want to delete, press the [MENU] key. 3. Delete the message by using Delete.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-32.png)

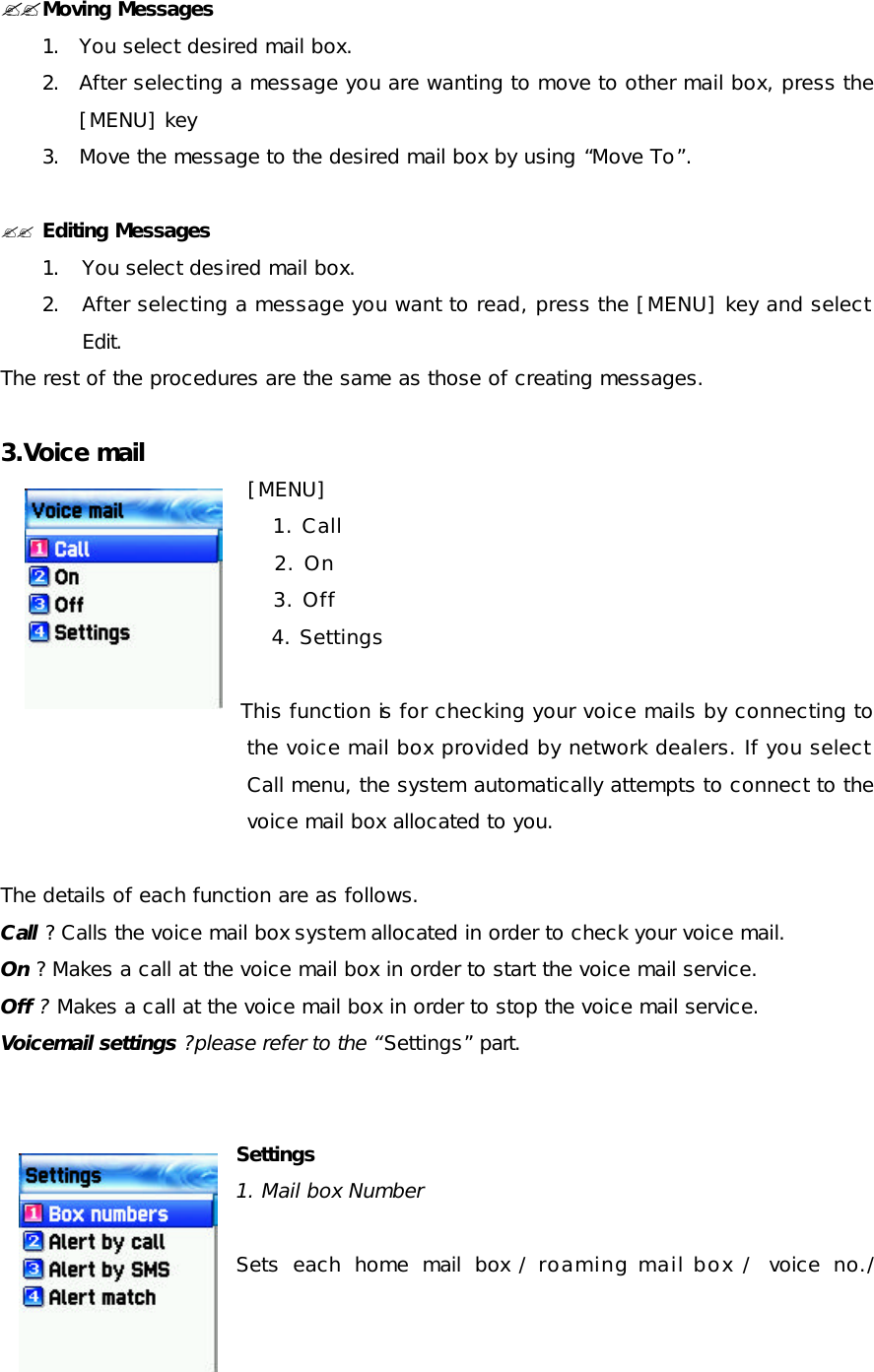

![??Moving Messages 1. You select desired mail box. 2. After selecting a message you are wanting to move to other mail box, press the [MENU] key 3. Move the message to the desired mail box by using “Move To”. ?? Editing Messages 1. You select desired mail box. 2. After selecting a message you want to read, press the [MENU] key and select Edit. The rest of the procedures are the same as those of creating messages. 3.Voice mail [MENU] 1. Call 2. On 3. Off 4. Settings This function is for checking your voice mails by connecting to the voice mail box provided by network dealers. If you select Call menu, the system automatically attempts to connect to the voice mail box allocated to you. The details of each function are as follows. Call ? Calls the voice mail box system allocated in order to check your voice mail. On ? Makes a call at the voice mail box in order to start the voice mail service. Off ? Makes a call at the voice mail box in order to stop the voice mail service. Voicemail settings ?please refer to the “Settings” part. Settings 1. Mail box Number Sets each home mail box / roaming mail box / voice no./](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-33.png)

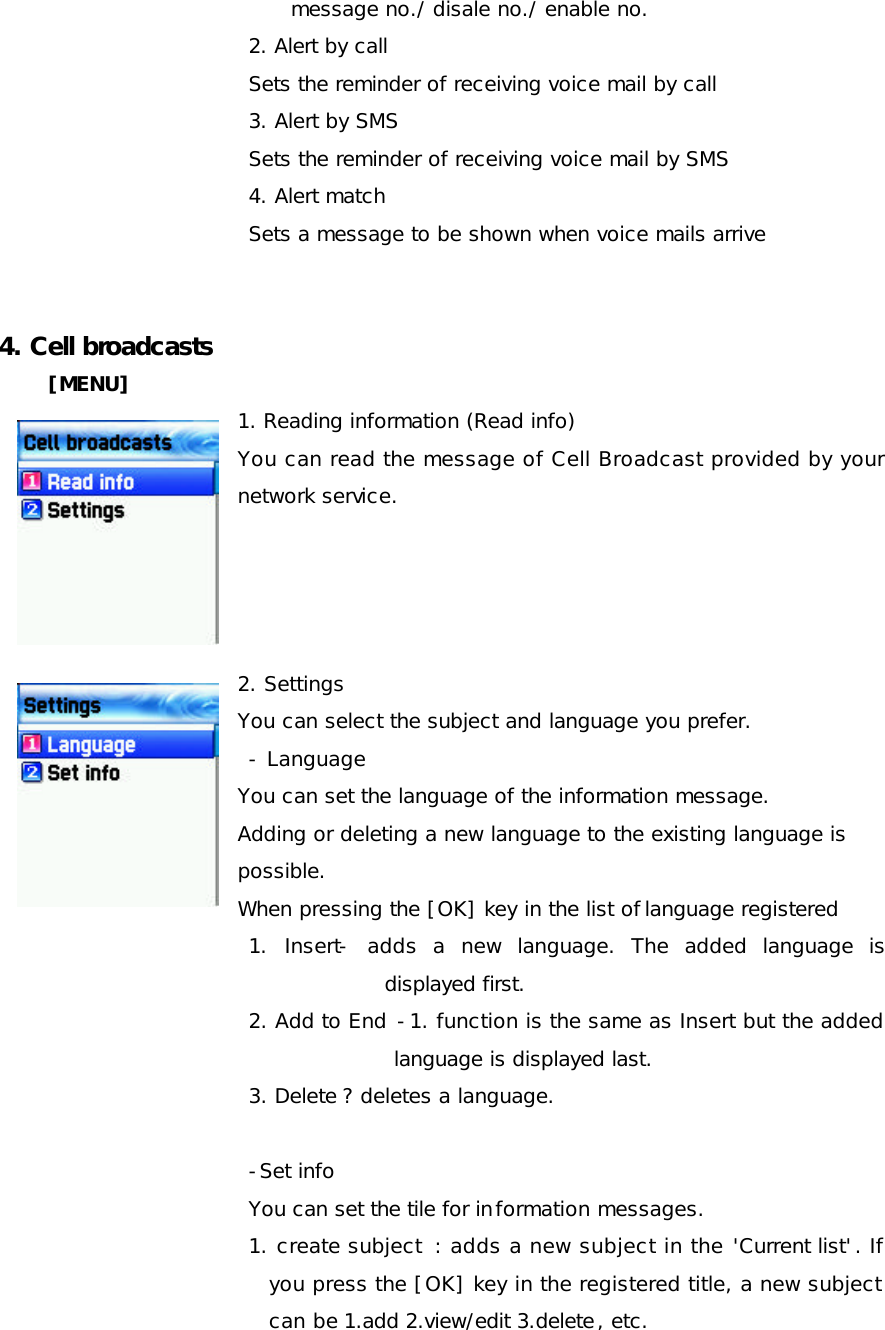

![message no./ disale no./ enable no. 2. Alert by call Sets the reminder of receiving voice mail by call 3. Alert by SMS Sets the reminder of receiving voice mail by SMS 4. Alert match Sets a message to be shown when voice mails arrive 4. Cell broadcasts [MENU] 1. Reading information (Read info) You can read the message of Cell Broadcast provided by your network service. 2. Settings You can select the subject and language you prefer. - Language You can set the language of the information message. Adding or deleting a new language to the existing language is possible. When pressing the [OK] key in the list of language registered 1. Insert- adds a new language. The added language is displayed first. 2. Add to End -1. function is the same as Insert but the added language is displayed last. 3. Delete ? deletes a language. -Set info You can set the tile for information messages. 1. create subject : adds a new subject in the 'Current list'. If you press the [OK] key in the registered title, a new subject can be 1.add 2.view/edit 3.delete, etc.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-34.png)

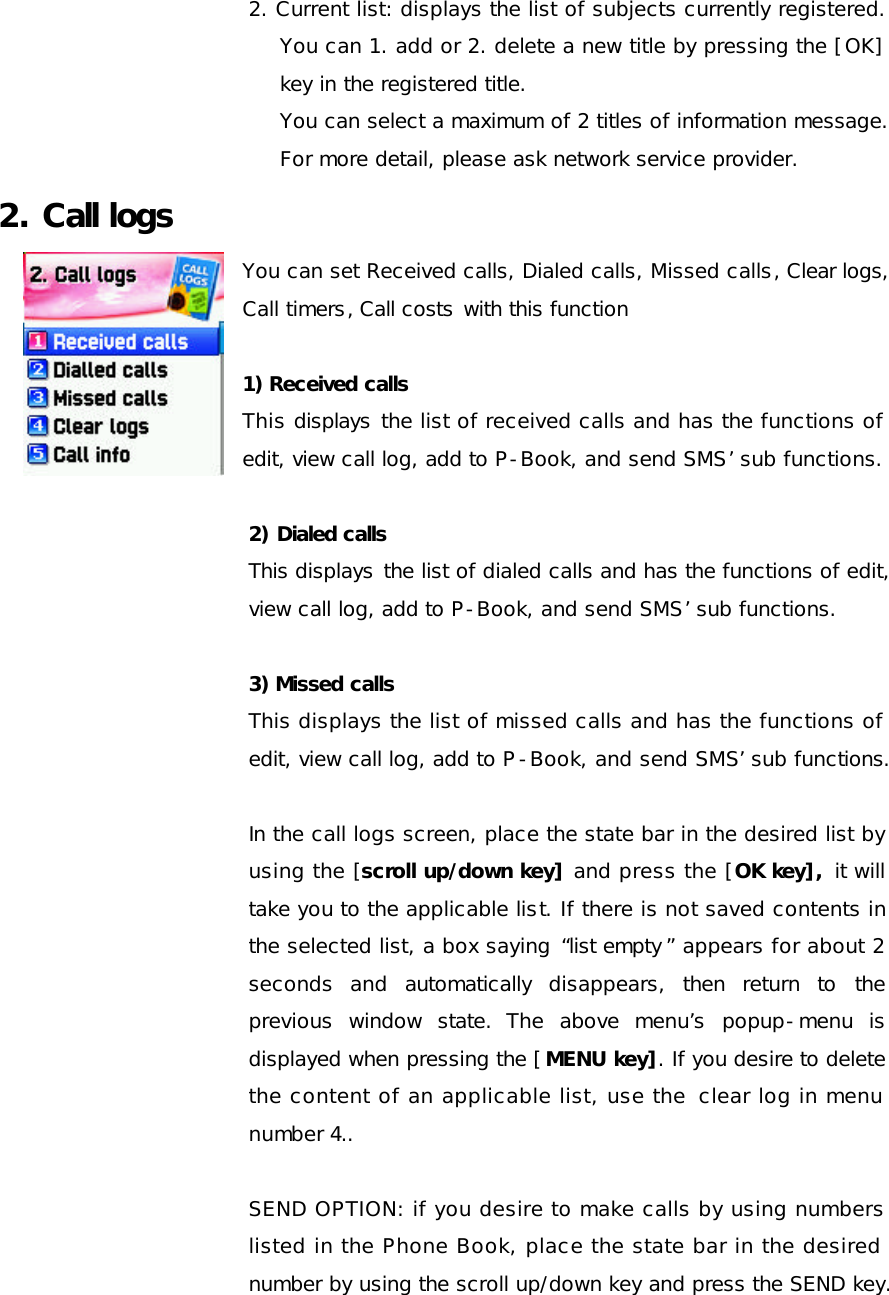

![2. Current list: displays the list of subjects currently registered. You can 1. add or 2. delete a new title by pressing the [OK] key in the registered title. You can select a maximum of 2 titles of information message. For more detail, please ask network service provider. 2. Call logs You can set Received calls, Dialed calls, Missed calls, Clear logs, Call timers, Call costs with this function 1) Received calls This displays the list of received calls and has the functions of edit, view call log, add to P-Book, and send SMS’ sub functions. 2) Dialed calls This displays the list of dialed calls and has the functions of edit, view call log, add to P-Book, and send SMS’ sub functions. 3) Missed calls This displays the list of missed calls and has the functions of edit, view call log, add to P-Book, and send SMS’ sub functions. In the call logs screen, place the state bar in the desired list by using the [scroll up/down key] and press the [OK key], it will take you to the applicable list. If there is not saved contents in the selected list, a box saying “list empty ” appears for about 2 seconds and automatically disappears, then return to the previous window state. The above menu’s popup-menu is displayed when pressing the [MENU key]. If you desire to delete the content of an applicable list, use the clear log in menu number 4.. SEND OPTION: if you desire to make calls by using numbers listed in the Phone Book, place the state bar in the desired number by using the scroll up/down key and press the SEND key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-35.png)

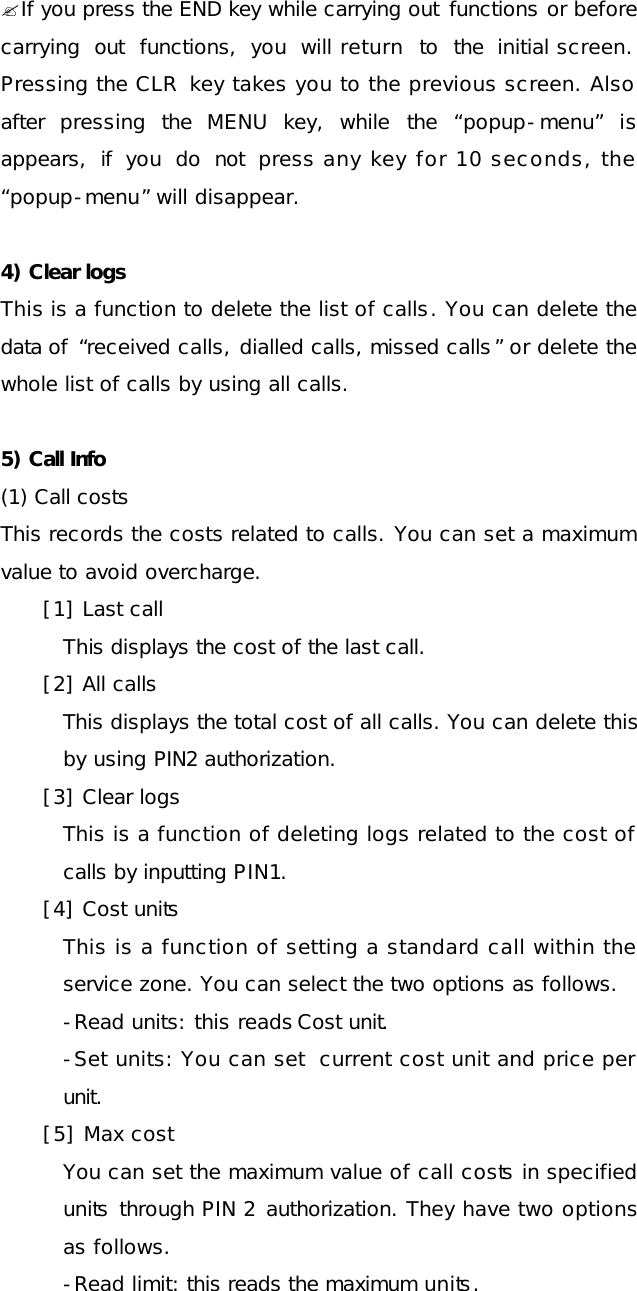

![?If you press the END key while carrying out functions or before carrying out functions, you will return to the initial screen. Pressing the CLR key takes you to the previous screen. Also after pressing the MENU key, while the “popup-menu” is appears, if you do not press any key for 10 seconds, the “popup-menu” will disappear. 4) Clear logs This is a function to delete the list of calls. You can delete the data of “received calls, dialled calls, missed calls” or delete the whole list of calls by using all calls. 5) Call Info (1) Call costs This records the costs related to calls. You can set a maximum value to avoid overcharge. [1] Last call This displays the cost of the last call. [2] All calls This displays the total cost of all calls. You can delete this by using PIN2 authorization. [3] Clear logs This is a function of deleting logs related to the cost of calls by inputting PIN1. [4] Cost units This is a function of setting a standard call within the service zone. You can select the two options as follows. -Read units: this reads Cost unit. -Set units: You can set current cost unit and price per unit. [5] Max cost You can set the maximum value of call costs in specified units through PIN 2 authorization. They have two options as follows. -Read limit: this reads the maximum units.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-37.png)
![-Set limit: this sets the maximum units. (2) Call timers This is a function to read the information on call times. [1] Last call This displays the time lapse of the latest call. [2] Dialled calls This displays the time lapse of the Dialled calls. [3] Received calls This displays the time lapse of the Received calls. [4] All calls This displays the total lapsed time of all calls [5] Reset call time This initializes the call time of Last call or All call. 6) GPRS Info (1) Current connection (GPRS current) (2) All connections This displays what You recently have received or sent in kilo bites by using GPRS. (3) Last connection This displays what You have received or sent all in kilobites by using GPRS. (4) Clear logs This deletes the log related to GPRS. 3. Sound You can set the sound of bells, messages, keys, flip. etc. 3.1 Ringing settings 3.2 Message alert 3.3 Key tone 3.4 Flip open tone 3.5 Sound effect 3.1 Ringing Settings Ring Type](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-38.png)

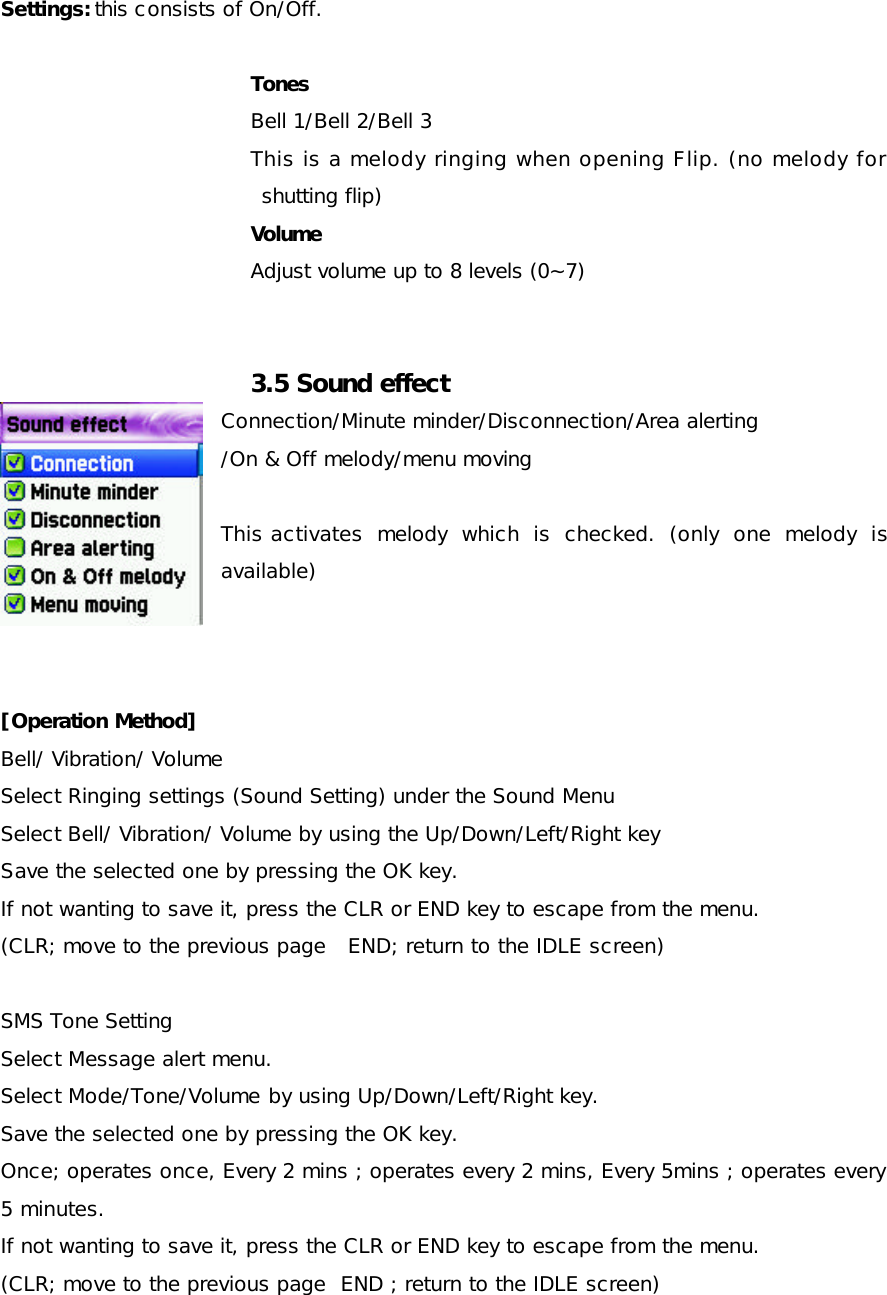

![Settings: this consists of On/Off. Tones Bell 1/Bell 2/Bell 3 This is a melody ringing when opening Flip. (no melody for shutting flip) Volume Adjust volume up to 8 levels (0~7) 3.5 Sound effect Connection/Minute minder/Disconnection/Area alerting /On & Off melody/menu moving This activates melody which is checked. (only one melody is available) [Operation Method] Bell/ Vibration/ Volume Select Ringing settings (Sound Setting) under the Sound Menu Select Bell/ Vibration/ Volume by using the Up/Down/Left/Right key Save the selected one by pressing the OK key. If not wanting to save it, press the CLR or END key to escape from the menu. (CLR; move to the previous page END; return to the IDLE screen) SMS Tone Setting Select Message alert menu. Select Mode/Tone/Volume by using Up/Down/Left/Right key. Save the selected one by pressing the OK key. Once; operates once, Every 2 mins ; operates every 2 mins, Every 5mins ; operates every 5 minutes. If not wanting to save it, press the CLR or END key to escape from the menu. (CLR; move to the previous page END ; return to the IDLE screen)](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-40.png)

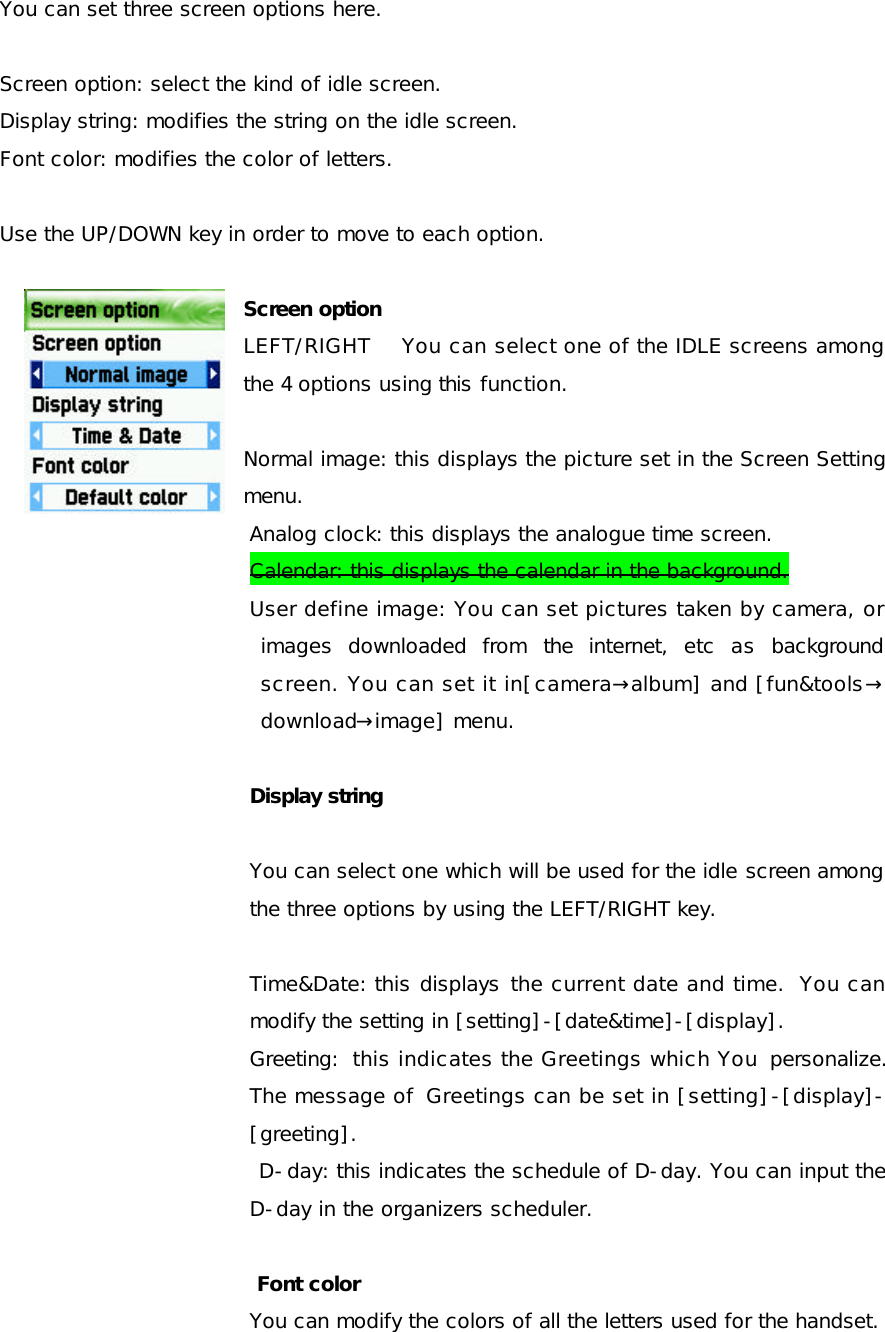

![You can set three screen options here. Screen option: select the kind of idle screen. Display string: modifies the string on the idle screen. Font color: modifies the color of letters. Use the UP/DOWN key in order to move to each option. Screen option LEFT/RIGHT You can select one of the IDLE screens among the 4 options using this function. Normal image: this displays the picture set in the Screen Setting menu. Analog clock: this displays the analogue time screen. Calendar: this displays the calendar in the background. User define image: You can set pictures taken by camera, or images downloaded from the internet, etc as background screen. You can set it in[camera→album] and [fun&tools→ download→image] menu. Display string You can select one which will be used for the idle screen among the three options by using the LEFT/RIGHT key. Time&Date: this displays the current date and time. You can modify the setting in [setting]-[date&time]-[display]. Greeting: this indicates the Greetings which You personalize. The message of Greetings can be set in [setting]-[display]-[greeting]. D-day: this indicates the schedule of D-day. You can input the D-day in the organizers scheduler. Font color You can modify the colors of all the letters used for the handset.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-43.png)

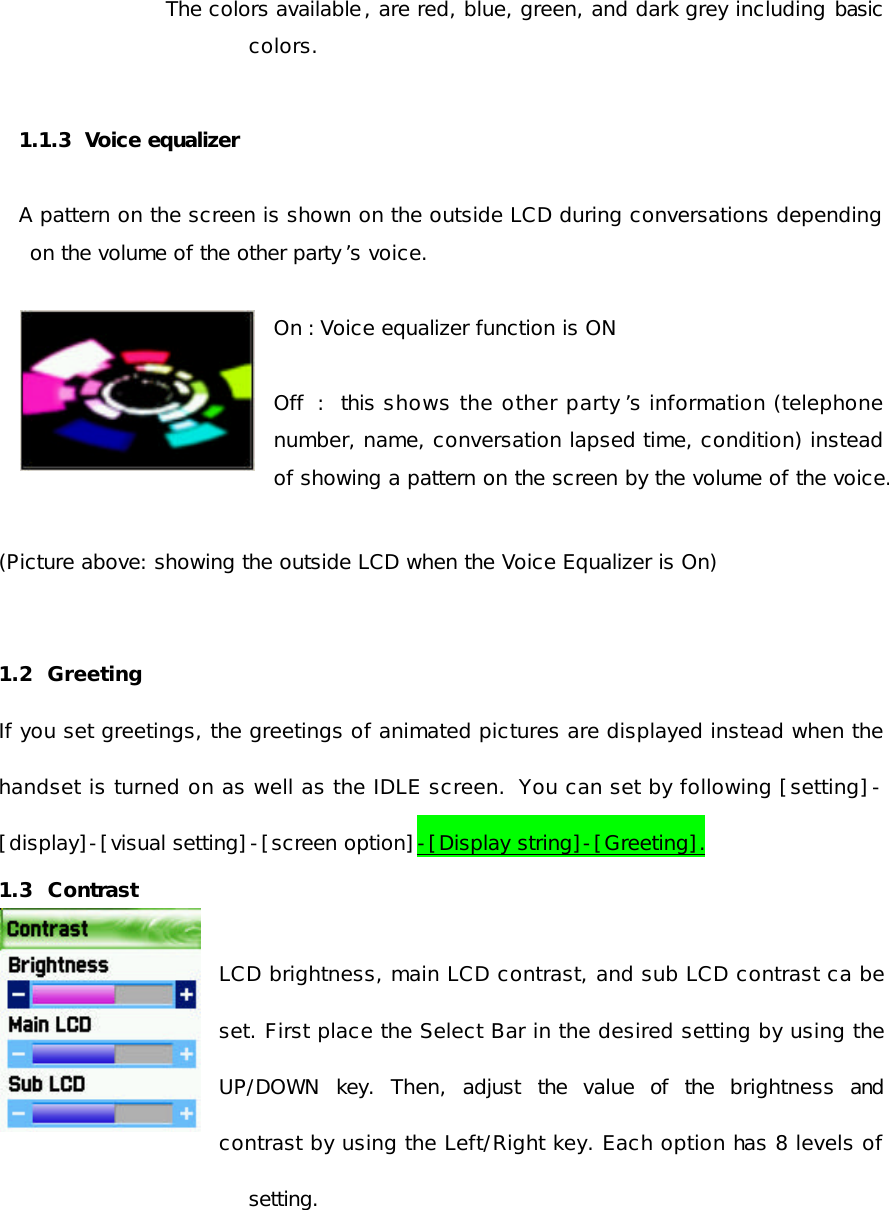

![The colors available, are red, blue, green, and dark grey including basic colors. 1.1.3 Voice equalizer A pattern on the screen is shown on the outside LCD during conversations depending on the volume of the other party ’s voice. On : Voice equalizer function is ON Off : this shows the other party ’s information (telephone number, name, conversation lapsed time, condition) instead of showing a pattern on the screen by the volume of the voice. (Picture above: showing the outside LCD when the Voice Equalizer is On) 1.2 Greeting If you set greetings, the greetings of animated pictures are displayed instead when the handset is turned on as well as the IDLE screen. You can set by following [setting]-[display]-[visual setting]-[screen option]-[Display string]-[Greeting]. 1.3 Contrast LCD brightness, main LCD contrast, and sub LCD contrast ca be set. First place the Select Bar in the desired setting by using the UP/DOWN key. Then, adjust the value of the brightness and contrast by using the Left/Right key. Each option has 8 levels of setting.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-44.png)

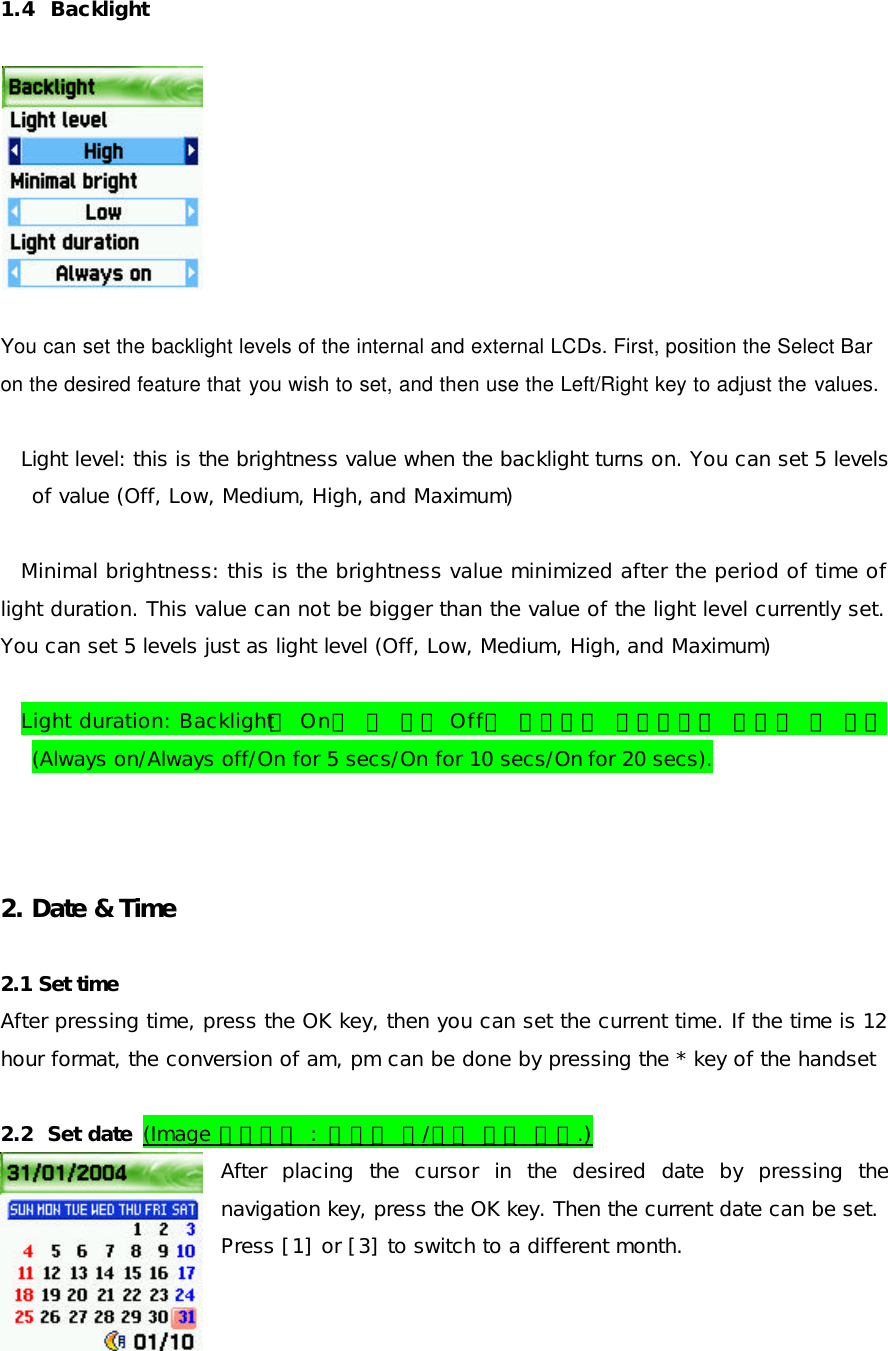

![1.4 Backlight You can set the backlight levels of the internal and external LCDs. First, position the Select Bar on the desired feature that you wish to set, and then use the Left/Right key to adjust the values. Light level: this is the brightness value when the backlight turns on. You can set 5 levels of value (Off, Low, Medium, High, and Maximum) Minimal brightness: this is the brightness value minimized after the period of time of light duration. This value can not be bigger than the value of the light level currently set. You can set 5 levels just as light level (Off, Low, Medium, High, and Maximum) Light duration: Backlight가 On된 후 다시 Off될 때까지의 지속시간을 설정할 수 있음(Always on/Always off/On for 5 secs/On for 10 secs/On for 20 secs). 2. Date & Time 2.1 Set time After pressing time, press the OK key, then you can set the current time. If the time is 12 hour format, the conversion of am, pm can be done by pressing the * key of the handset 2.2 Set date (Image 변경바람 : 아랫줄 양/음력 표시 없음.) After placing the cursor in the desired date by pressing the navigation key, press the OK key. Then the current date can be set. Press [1] or [3] to switch to a different month.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-45.png)

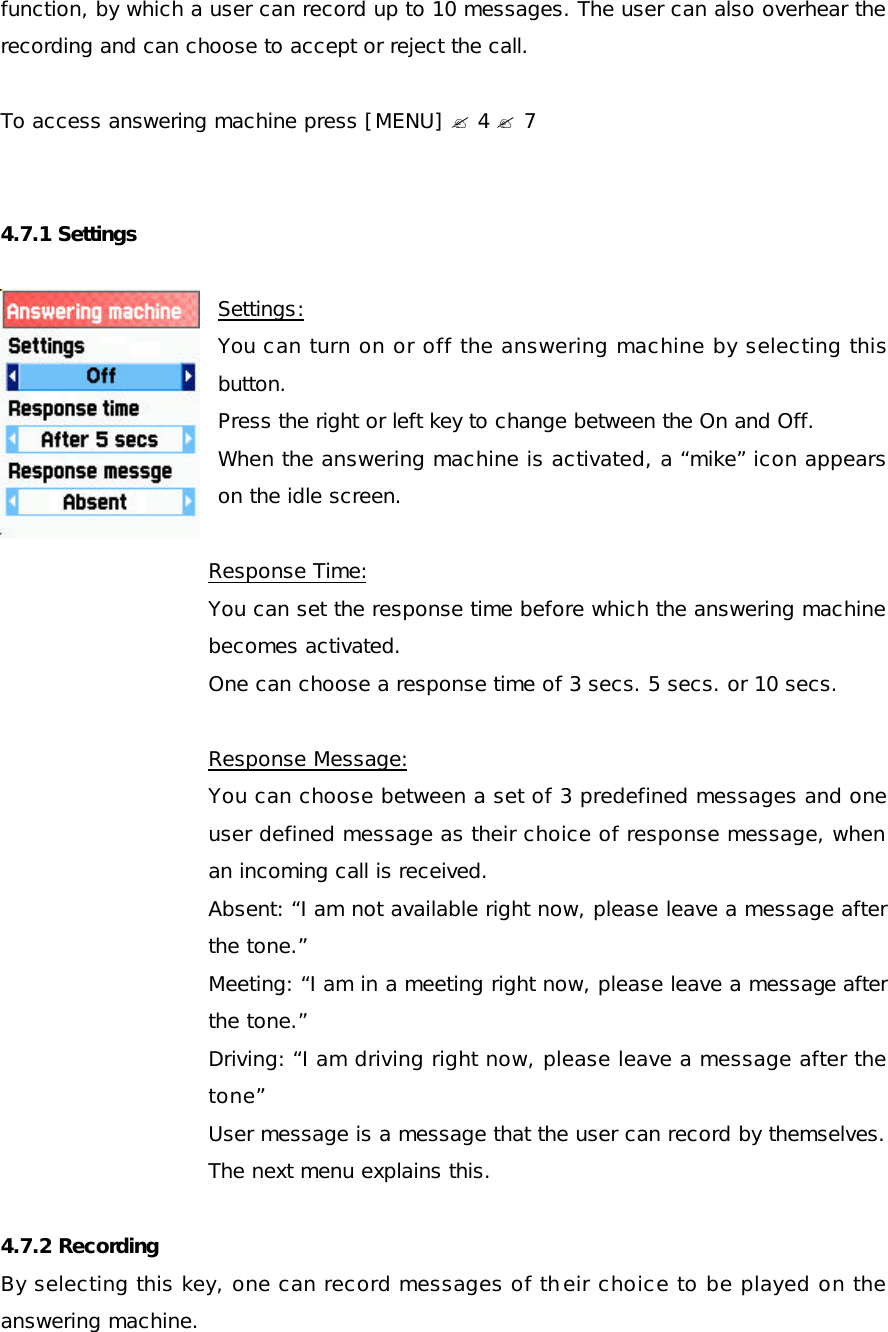

![function, by which a user can record up to 10 messages. The user can also overhear the recording and can choose to accept or reject the call. To access answering machine press [MENU] ? 4 ? 7 4.7.1 Settings Settings: You can turn on or off the answering machine by selecting this button. Press the right or left key to change between the On and Off. When the answering machine is activated, a “mike” icon appears on the idle screen. Response Time: You can set the response time before which the answering machine becomes activated. One can choose a response time of 3 secs. 5 secs. or 10 secs. Response Message: You can choose between a set of 3 predefined messages and one user defined message as their choice of response message, when an incoming call is received. Absent: “I am not available right now, please leave a message after the tone.” Meeting: “I am in a meeting right now, please leave a message after the tone.” Driving: “I am driving right now, please leave a message after the tone” User message is a message that the user can record by themselves. The next menu explains this. 4.7.2 Recording By selecting this key, one can record messages of their choice to be played on the answering machine.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-49.png)

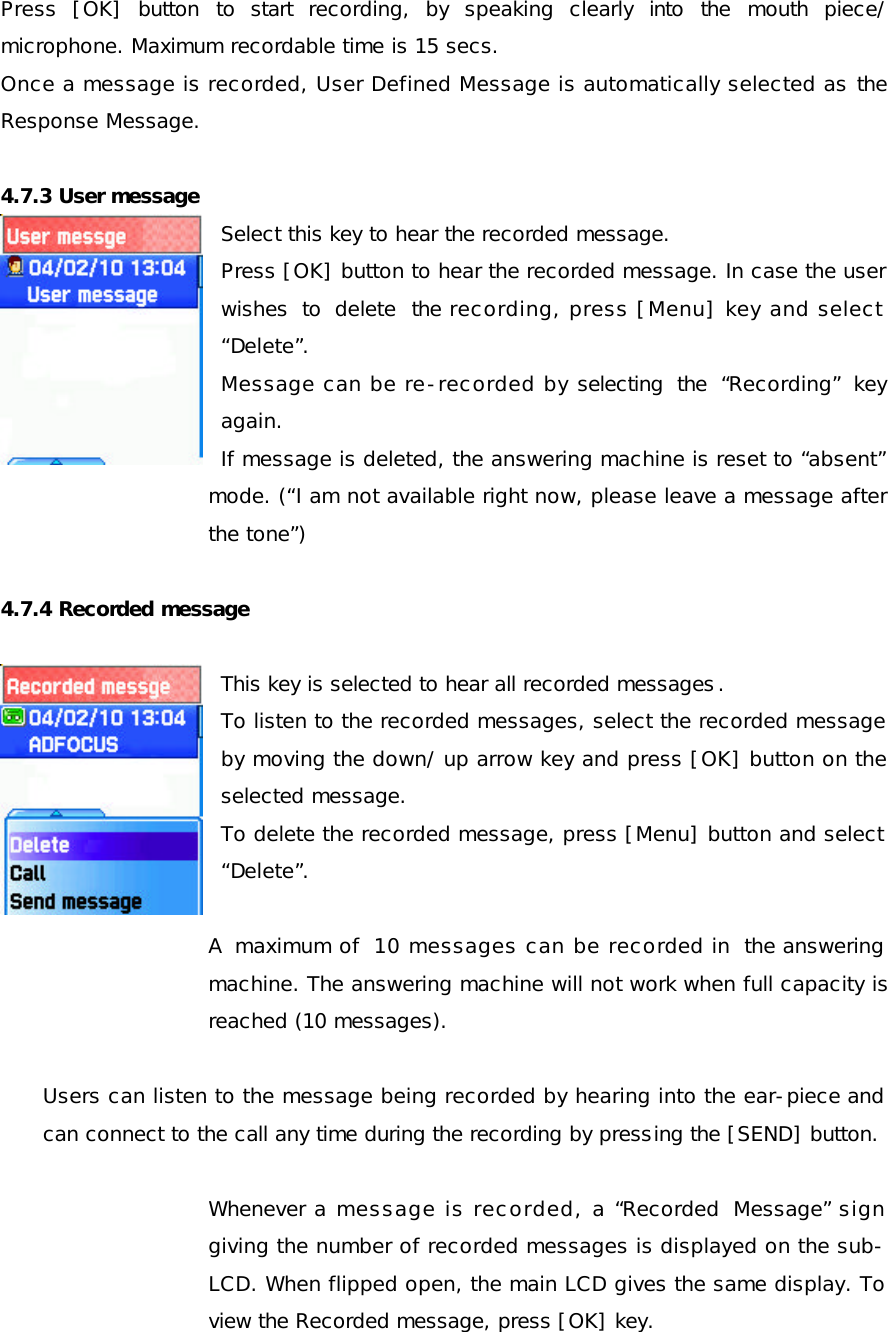

![Press [OK] button to start recording, by speaking clearly into the mouth piece/ microphone. Maximum recordable time is 15 secs. Once a message is recorded, User Defined Message is automatically selected as the Response Message. 4.7.3 User message Select this key to hear the recorded message. Press [OK] button to hear the recorded message. In case the user wishes to delete the recording, press [Menu] key and select “Delete”. Message can be re-recorded by selecting the “Recording” key again. If message is deleted, the answering machine is reset to “absent” mode. (“I am not available right now, please leave a message after the tone”) 4.7.4 Recorded message This key is selected to hear all recorded messages. To listen to the recorded messages, select the recorded message by moving the down/ up arrow key and press [OK] button on the selected message. To delete the recorded message, press [Menu] button and select “Delete”. A maximum of 10 messages can be recorded in the answering machine. The answering machine will not work when full capacity is reached (10 messages). Users can listen to the message being recorded by hearing into the ear-piece and can connect to the call any time during the recording by pressing the [SEND] button. Whenever a message is recorded, a “Recorded Message” sign giving the number of recorded messages is displayed on the sub-LCD. When flipped open, the main LCD gives the same display. To view the Recorded message, press [OK] key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-50.png)

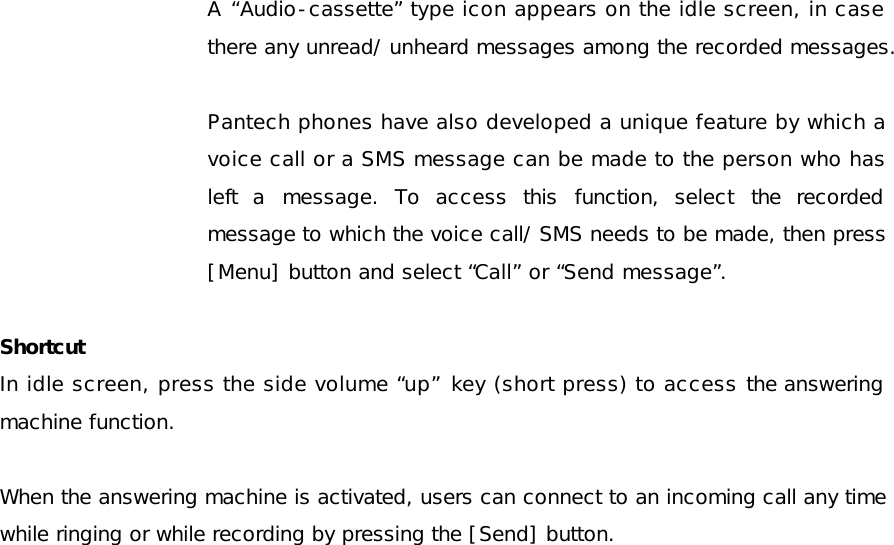

![A “Audio-cassette” type icon appears on the idle screen, in case there any unread/ unheard messages among the recorded messages. Pantech phones have also developed a unique feature by which a voice call or a SMS message can be made to the person who has left a message. To access this function, select the recorded message to which the voice call/ SMS needs to be made, then press [Menu] button and select “Call” or “Send message”. Shortcut In idle screen, press the side volume “up” key (short press) to access the answering machine function. When the answering machine is activated, users can connect to an incoming call any time while ringing or while recording by pressing the [Send] button.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-51.png)
![5. Net Services 1. Divert calls Divert calls ? according to the service status of you, diverts calls into other number as set. 1. 1 All calls Divert all calls ? sets other numbers to be diverted for voice call, receiving data, fax, message service. 1. 1. 1 On This sets call diversion for all calls. If you press On, the screen saying “Input a number to be diverted” will appear. After inputting a number to be diverted press the [OK] button. Then the screen saying “Input transfer time ranged from 5 to 30 seconds” will appear. After that press the [OK] button to be transferred to the network. 1. 1. 2 Off This cancels the setting of “Call diversion for all calls”. 1. 1. 3 Status This indicates the current status being set.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-52.png)

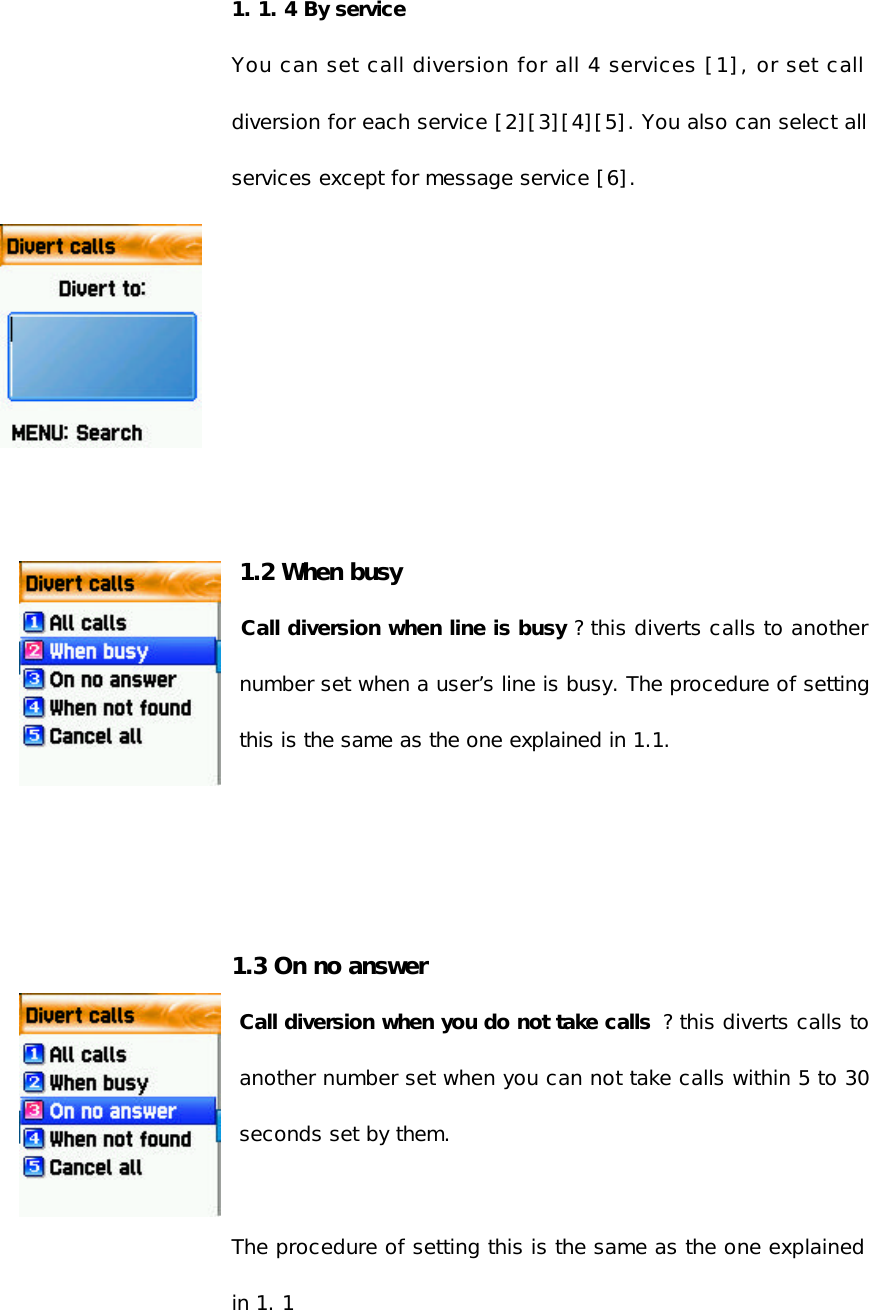

![1. 1. 4 By service You can set call diversion for all 4 services [1], or set call diversion for each service [2][3][4][5]. You also can select all services except for message service [6]. 1.2 When busy Call diversion when line is busy ? this diverts calls to another number set when a user’s line is busy. The procedure of setting this is the same as the one explained in 1.1. 1.3 On no answer Call diversion when you do not take calls ? this diverts calls to another number set when you can not take calls within 5 to 30 seconds set by them. The procedure of setting this is the same as the one explained in 1. 1](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-53.png)
![Answer type ? this sets the method of taking calls for incoming calls. 2. 1. 1 Flip open To take incoming calls, open the flip of the unit. 2. 1. 2 Send key To take incoming calls, press the [SEND] key. 2. 1. 3 Any key To take incoming calls, press any key except for the [END] key. 2. 1. 4 Auto answer For incoming calls, this will automatically connect after 10 seconds of ringing, 2. 2 Call waiting Call waiting ? When the line is busy, this reminds you that another call is attempting to be connected if there is another call.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-55.png)
![Set preferred Network ? When the network list currently provided by handset is displayed, press the [MENU] key. Then the sub options as follow will appear. - Insert: this adds the preferred net work to the top of the current list. - Add to end : this adds the preferred net work to the end of the current list - Delete: this deletes the contents of selected networks. Units have had the profiles of the various dealers of every country saved on them. This menu provides a function that you select and register to dealers by your preference. (2) Add new N/W Follow the following procedures in order to register a new network. Country code: a window saying ‘input country code’ will appear. (3 digits) Network code: a window saying ‘input a code of desired network’ will appear. (2 digits) Enter name: you should input directly the applicable name of the network.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-57.png)

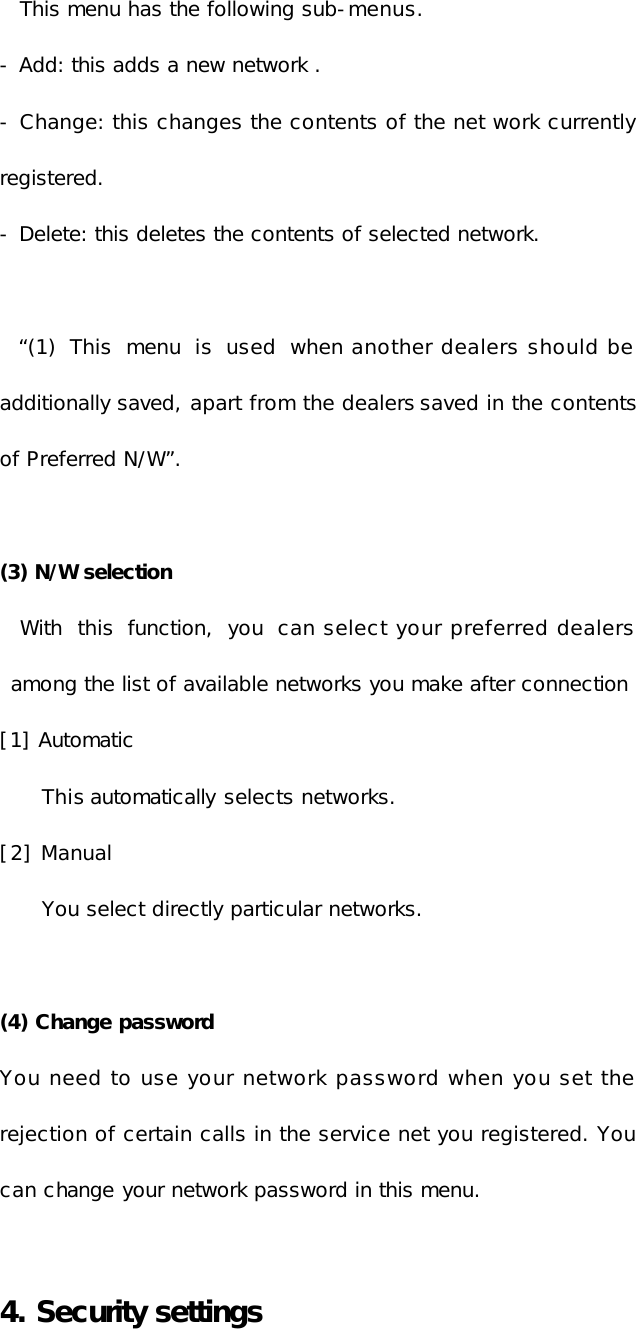

![This menu has the following sub-menus. - Add: this adds a new network . - Change: this changes the contents of the net work currently registered. - Delete: this deletes the contents of selected network. “(1) This menu is used when another dealers should be additionally saved, apart from the dealers saved in the contents of Preferred N/W”. (3) N/W selection With this function, you can select your preferred dealers among the list of available networks you make after connection [1] Automatic This automatically selects networks. [2] Manual You select directly particular networks. (4) Change password You need to use your network password when you set the rejection of certain calls in the service net you registered. You can change your network password in this menu. 4. Security settings](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-58.png)

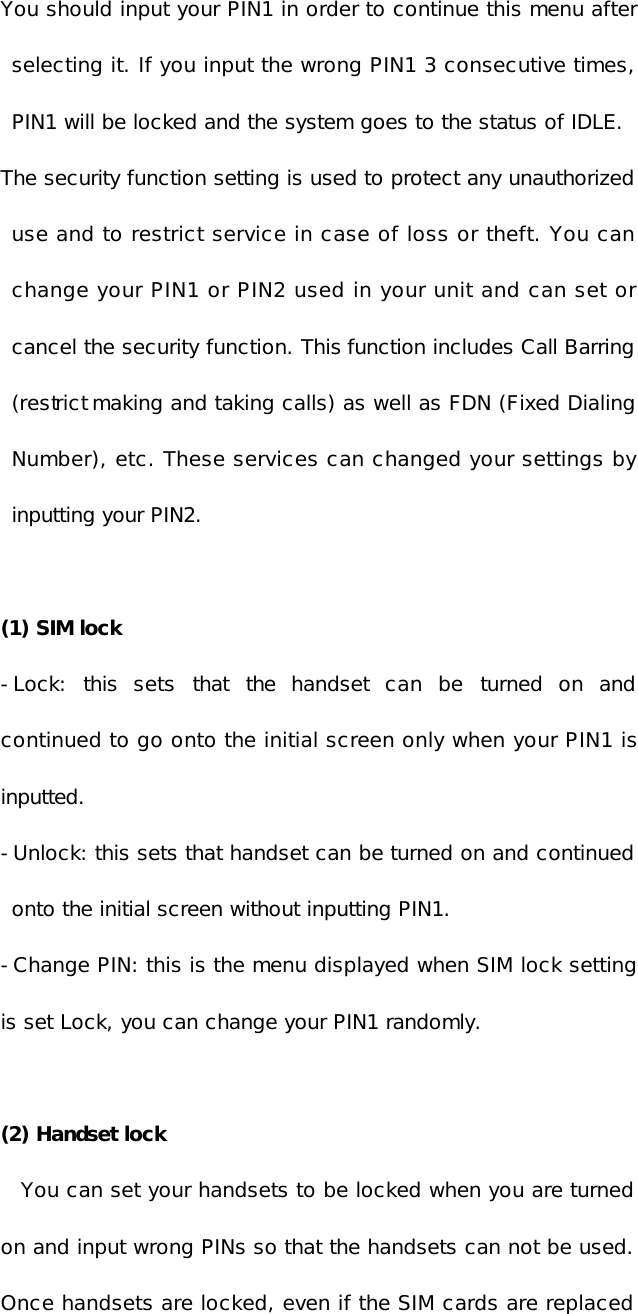

![with others, the lock continues. However, emergency calls can be made even in the lock state of handsets. Also this function can be carried out by pressing the [#] key for a moment in the IDLE screen. If you press the [#] key in the lock state, the handset will be unlocked. However that is temporarily carried out while the phone is turned on. This function includes the following sub menus. -Unlock: this frees access to the menu and calls -Call only: this allows general calls but restricting access to the menu by inputting a password onto the handset. - Lock: this allows only emergency calls and restricts access to menus or general calls by the input of the password of the handset. -Change code: you can change your handset password randomly. (3) H/S barring H/S barring is a function that you can restrict the attempts of making or receiving calls of the handset in various ways. Normally, barring services is run from the network but H/S barring restricts the handset itself. Its main functions are as follows. [1] Incoming](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-60.png)
![This rejects all incoming calls. You can select On/Off in the menu. [2] Outgoing This restricts making calls. This function includes sub optional menu classified by (1) restricts all dial calls, (2) restricts particular calls, which means the restriction of calls applied to prefixes set and (3) no restriction of dial calls. If you select the Bar prefix, then the bar list is displayed. You can select and set here or, popup menus such as add, modify, delete, delete all, etc. Once H/S barring function is set, if there is a call attempt, a message saying “Call failed / Call barred” is displayed. (4) N/W barring This function is decided according to the existence of service dealers or subscribers’ selection. You can individually set the whole group of basic services or each group just like call diversion services (Call Divert). You can individually set On/Off regarding (1) All services, (2) Voice calls, (3) Data service, (4) Fax service, (5) Message service and (6) All services except message services. If changing settings, the inputting of the PIN will be required.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-61.png)

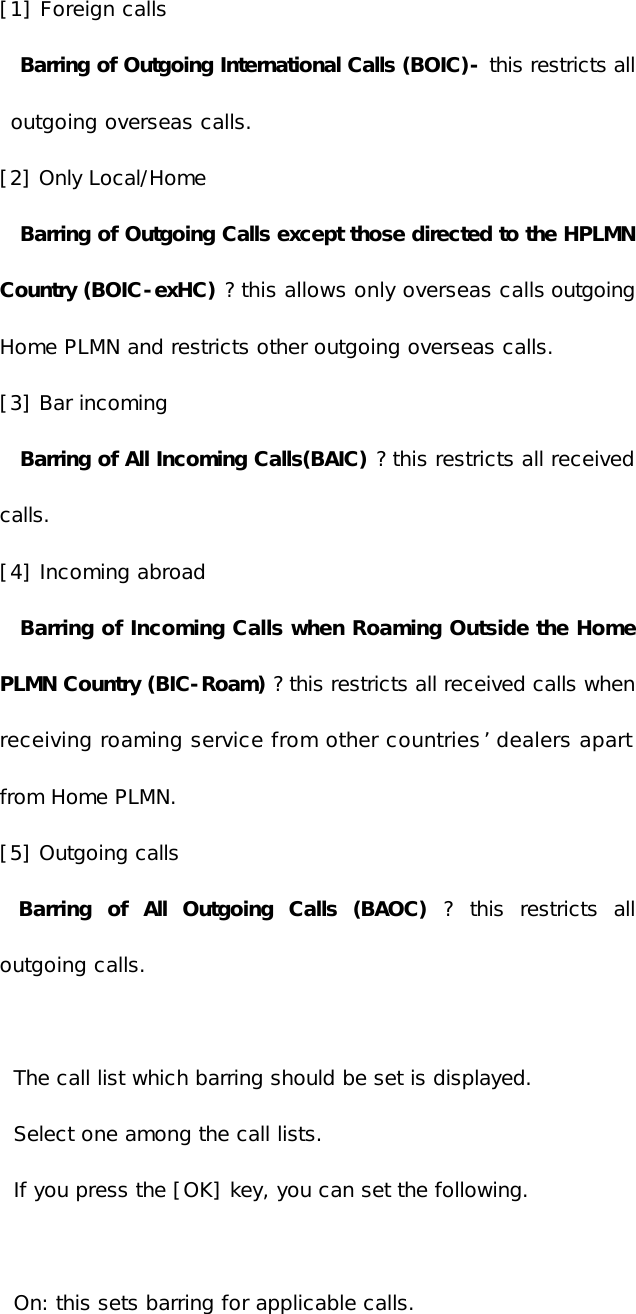

![[1] Foreign calls Barring of Outgoing International Calls (BOIC)- this restricts all outgoing overseas calls. [2] Only Local/Home Barring of Outgoing Calls except those directed to the HPLMN Country (BOIC-exHC) ? this allows only overseas calls outgoing Home PLMN and restricts other outgoing overseas calls. [3] Bar incoming Barring of All Incoming Calls(BAIC) ? this restricts all received calls. [4] Incoming abroad Barring of Incoming Calls when Roaming Outside the Home PLMN Country (BIC-Roam) ? this restricts all received calls when receiving roaming service from other countries’ dealers apart from Home PLMN. [5] Outgoing calls Barring of All Outgoing Calls (BAOC) ? this restricts all outgoing calls. The call list which barring should be set is displayed. Select one among the call lists. If you press the [OK] key, you can set the following. On: this sets barring for applicable calls.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-62.png)

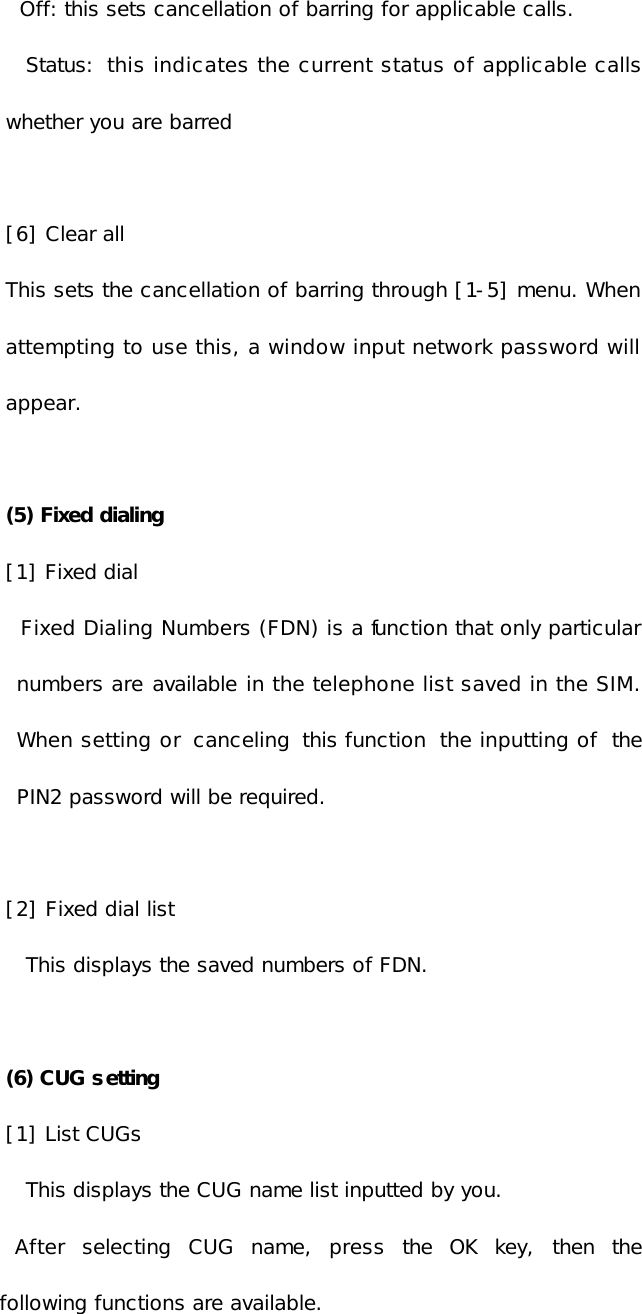

![Off: this sets cancellation of barring for applicable calls. Status: this indicates the current status of applicable calls whether you are barred [6] Clear all This sets the cancellation of barring through [1-5] menu. When attempting to use this, a window input network password will appear. (5) Fixed dialing [1] Fixed dial Fixed Dialing Numbers (FDN) is a function that only particular numbers are available in the telephone list saved in the SIM. When setting or canceling this function the inputting of the PIN2 password will be required. [2] Fixed dial list This displays the saved numbers of FDN. (6) CUG setting [1] List CUGs This displays the CUG name list inputted by you. After selecting CUG name, press the OK key, then the following functions are available.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-63.png)

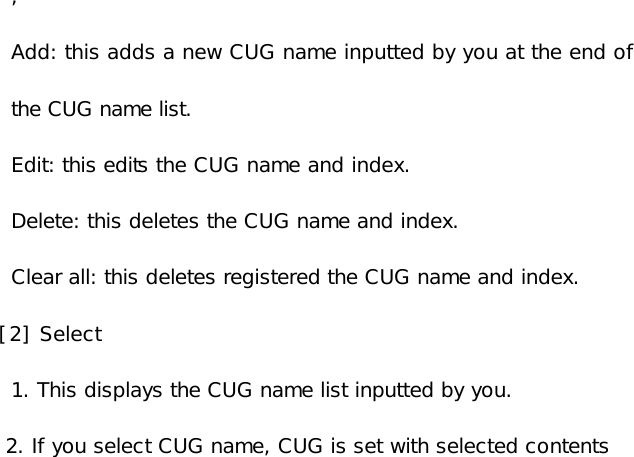

![, Add: this adds a new CUG name inputted by you at the end of the CUG name list. Edit: this edits the CUG name and index. Delete: this deletes the CUG name and index. Clear all: this deletes registered the CUG name and index. [2] Select 1. This displays the CUG name list inputted by you. 2. If you select CUG name, CUG is set with selected contents](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-64.png)

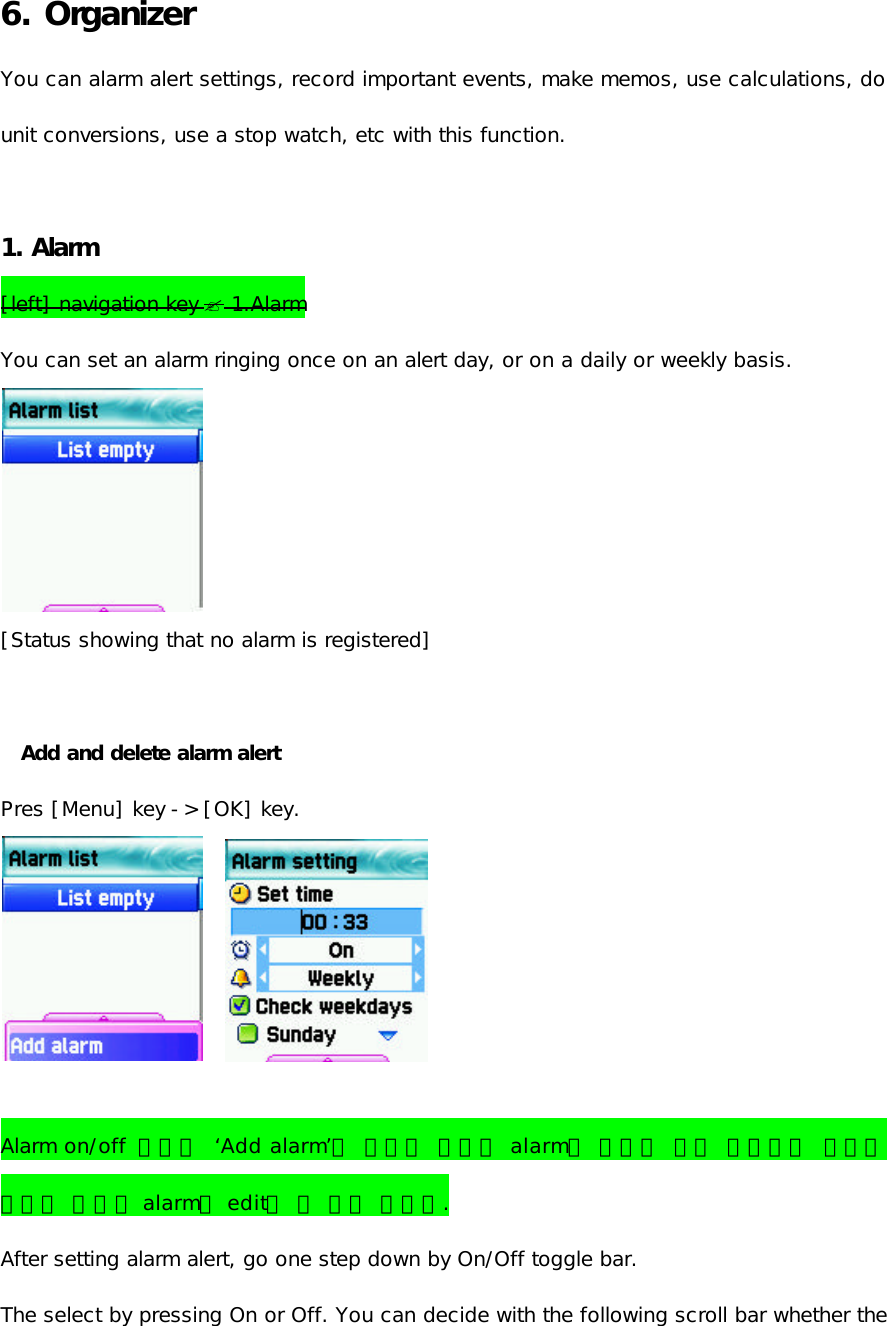

![6. Organizer You can alarm alert settings, record important events, make memos, use calculations, do unit conversions, use a stop watch, etc with this function. 1. Alarm [left] navigation key ? 1.Alarm You can set an alarm ringing once on an alert day, or on a daily or weekly basis. [Status showing that no alarm is registered] Add and delete alarm alert Pres [Menu] key -> [OK] key. Alarm on/off 설정은 ‘Add alarm’을 통해서 새로운 alarm을 설정할 때는 동작하지 않으며 기존의 저장된 alarm을 edit할 때 설정 가능함. After setting alarm alert, go one step down by On/Off toggle bar. The select by pressing On or Off. You can decide with the following scroll bar whether the](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-65.png)

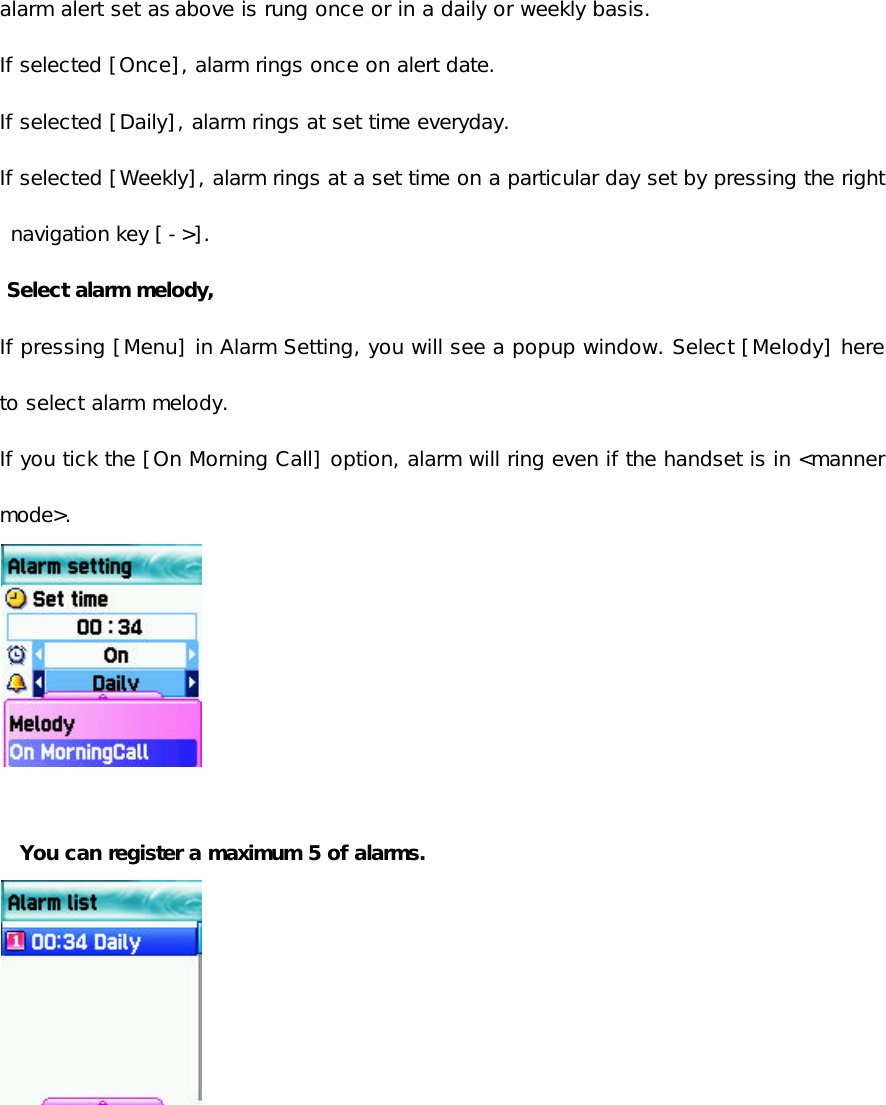

![alarm alert set as above is rung once or in a daily or weekly basis. If selected [Once], alarm rings once on alert date. If selected [Daily], alarm rings at set time everyday. If selected [Weekly], alarm rings at a set time on a particular day set by pressing the right navigation key [->]. Select alarm melody, If pressing [Menu] in Alarm Setting, you will see a popup window. Select [Melody] here to select alarm melody. If you tick the [On Morning Call] option, alarm will ring even if the handset is in <manner mode>. You can register a maximum 5 of alarms.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-66.png)

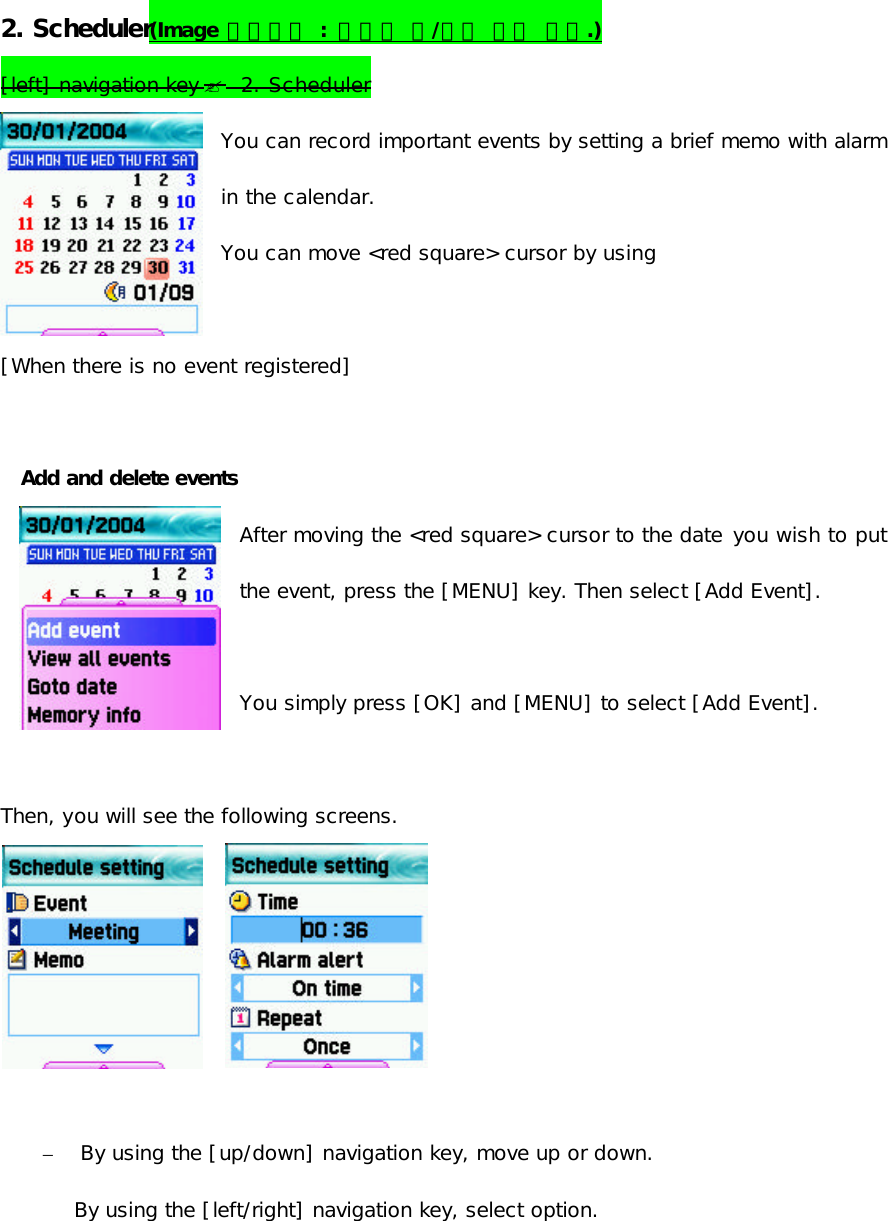

![2. Scheduler(Image 변경바람 : 아랫줄 양/음력 표시 없음.) [left] navigation key ? 2. Scheduler You can record important events by setting a brief memo with alarm in the calendar. You can move <red square> cursor by using [When there is no event registered] Add and delete events After moving the <red square> cursor to the date you wish to put the event, press the [MENU] key. Then select [Add Event]. You simply press [OK] and [MENU] to select [Add Event]. Then, you will see the following screens. – By using the [up/down] navigation key, move up or down. By using the [left/right] navigation key, select option.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-67.png)

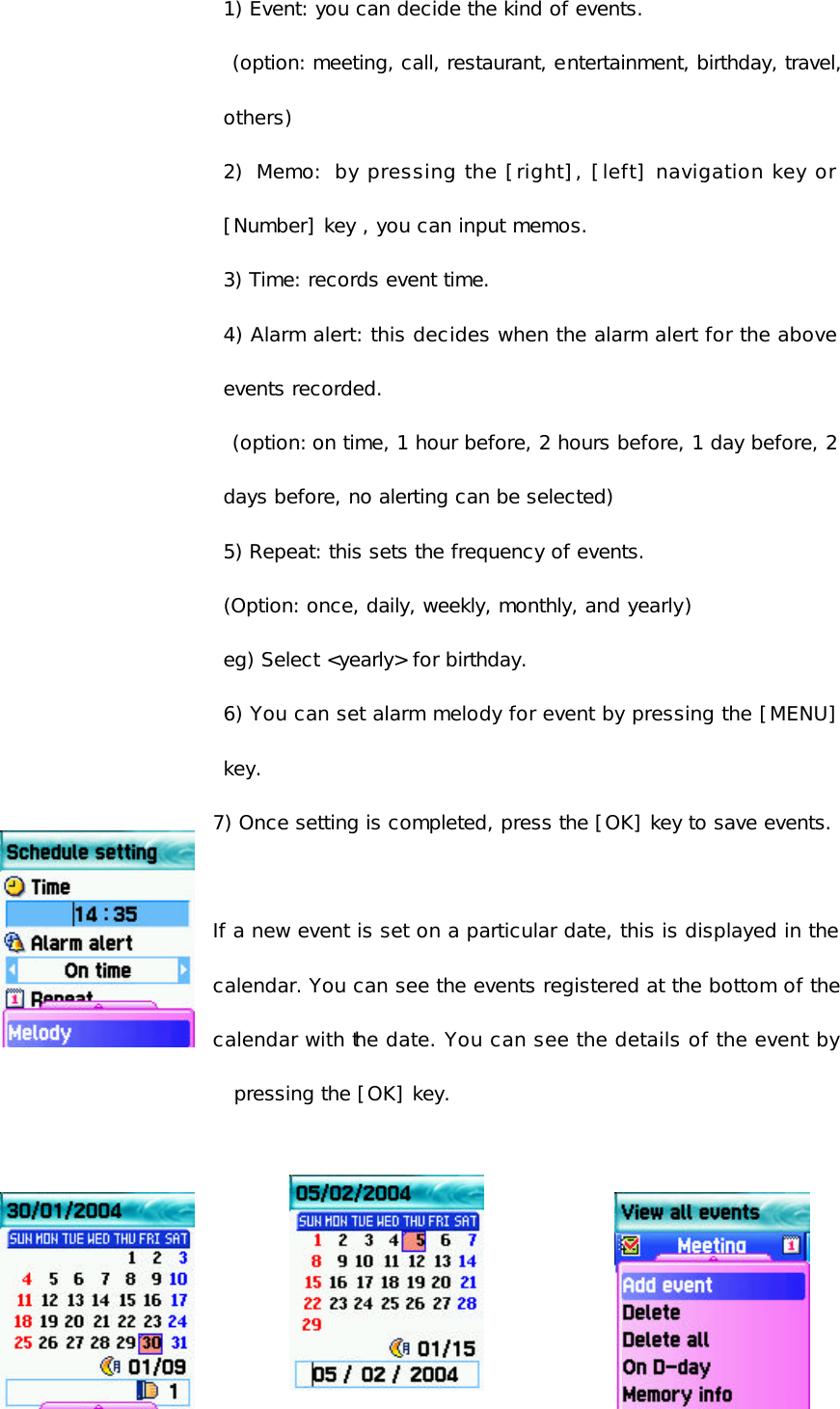

![1) Event: you can decide the kind of events. (option: meeting, call, restaurant, entertainment, birthday, travel, others) 2) Memo: by pressing the [right], [left] navigation key or [Number] key , you can input memos. 3) Time: records event time. 4) Alarm alert: this decides when the alarm alert for the above events recorded. (option: on time, 1 hour before, 2 hours before, 1 day before, 2 days before, no alerting can be selected) 5) Repeat: this sets the frequency of events. (Option: once, daily, weekly, monthly, and yearly) eg) Select <yearly> for birthday. 6) You can set alarm melody for event by pressing the [MENU] key. 7) Once setting is completed, press the [OK] key to save events. If a new event is set on a particular date, this is displayed in the calendar. You can see the events registered at the bottom of the calendar with the date. You can see the details of the event by pressing the [OK] key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-68.png)

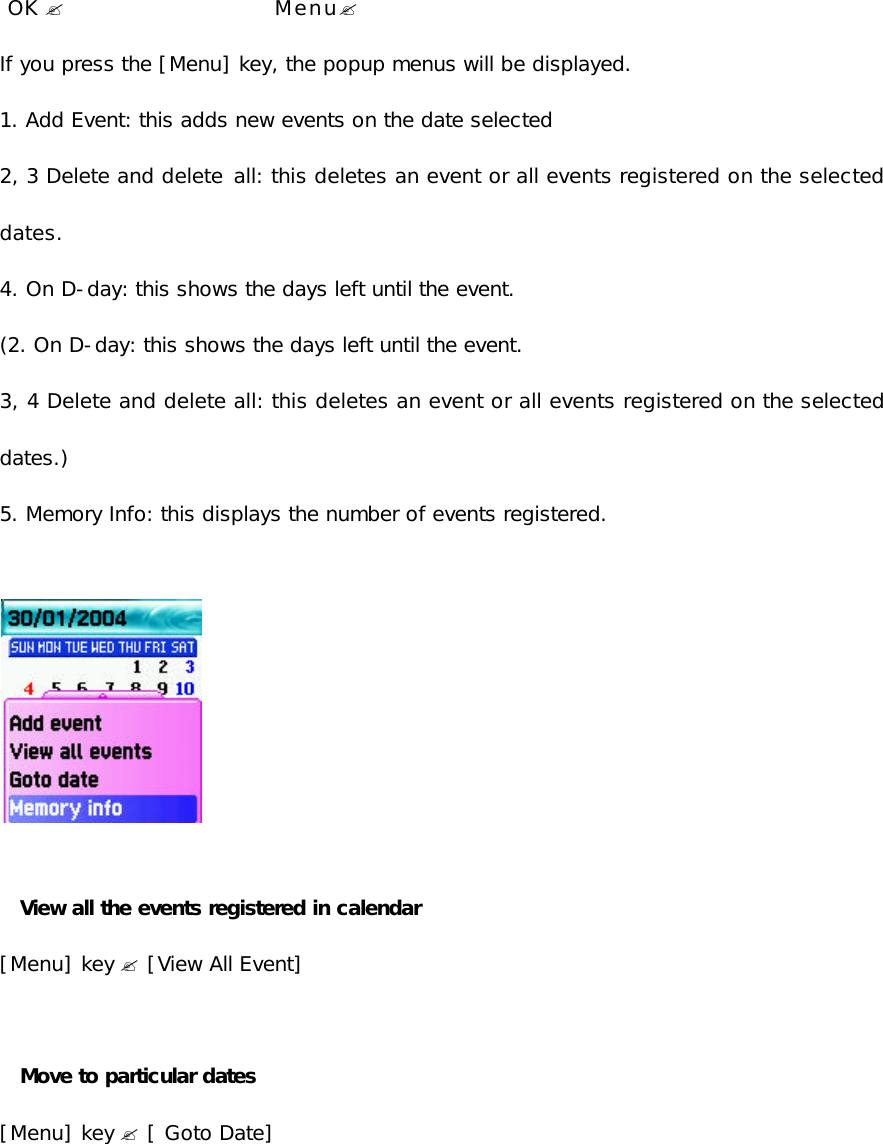

![OK ? Menu? If you press the [Menu] key, the popup menus will be displayed. 1. Add Event: this adds new events on the date selected 2, 3 Delete and delete all: this deletes an event or all events registered on the selected dates. 4. On D-day: this shows the days left until the event. (2. On D-day: this shows the days left until the event. 3, 4 Delete and delete all: this deletes an event or all events registered on the selected dates.) 5. Memory Info: this displays the number of events registered. View all the events registered in calendar [Menu] key ? [View All Event] Move to particular dates [Menu] key ? [ Goto Date]](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-69.png)

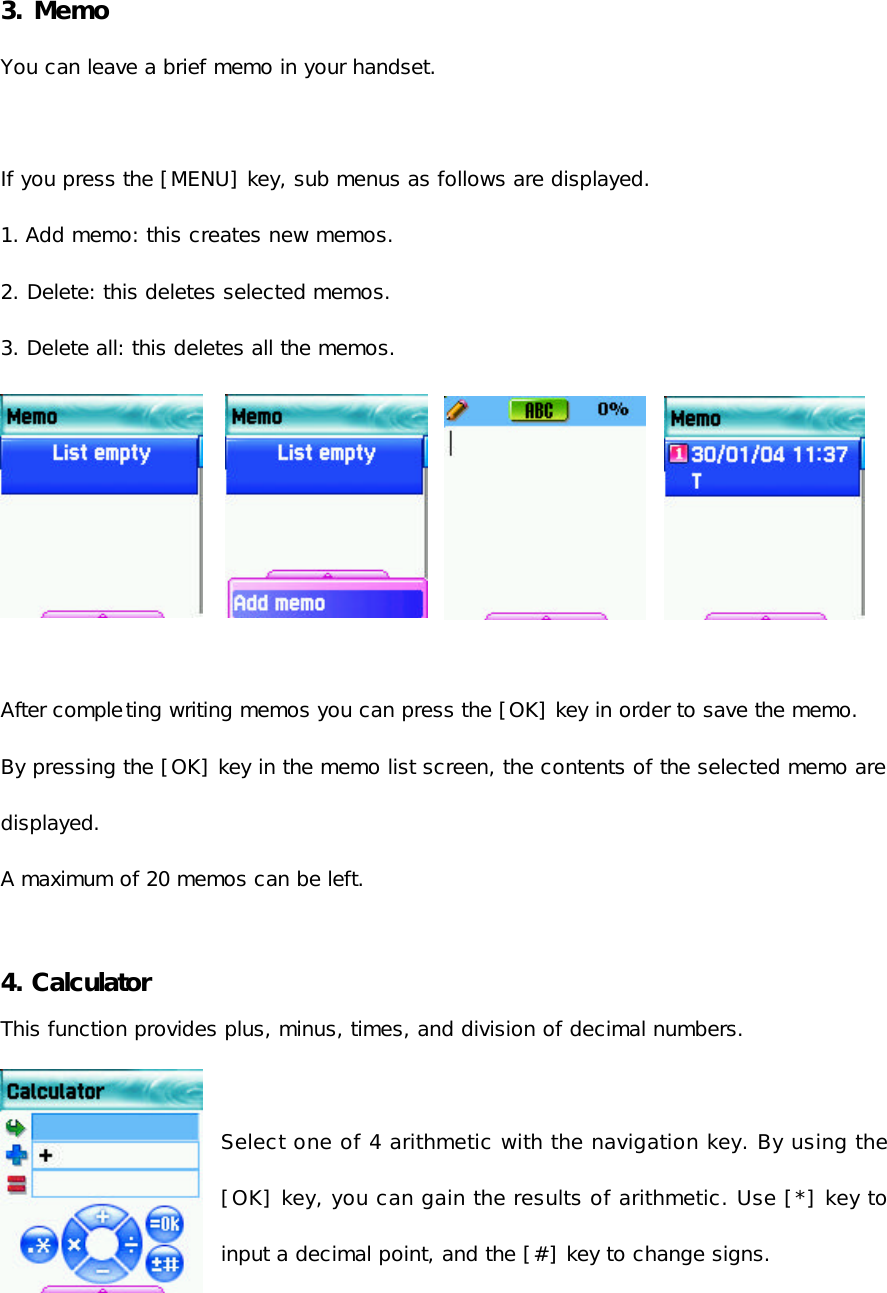

![3. Memo You can leave a brief memo in your handset. If you press the [MENU] key, sub menus as follows are displayed. 1. Add memo: this creates new memos. 2. Delete: this deletes selected memos. 3. Delete all: this deletes all the memos. After completing writing memos you can press the [OK] key in order to save the memo. By pressing the [OK] key in the memo list screen, the contents of the selected memo are displayed. A maximum of 20 memos can be left. 4. Calculator This function provides plus, minus, times, and division of decimal numbers. Select one of 4 arithmetic with the navigation key. By using the [OK] key, you can gain the results of arithmetic. Use [*] key to input a decimal point, and the [#] key to change signs.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-71.png)

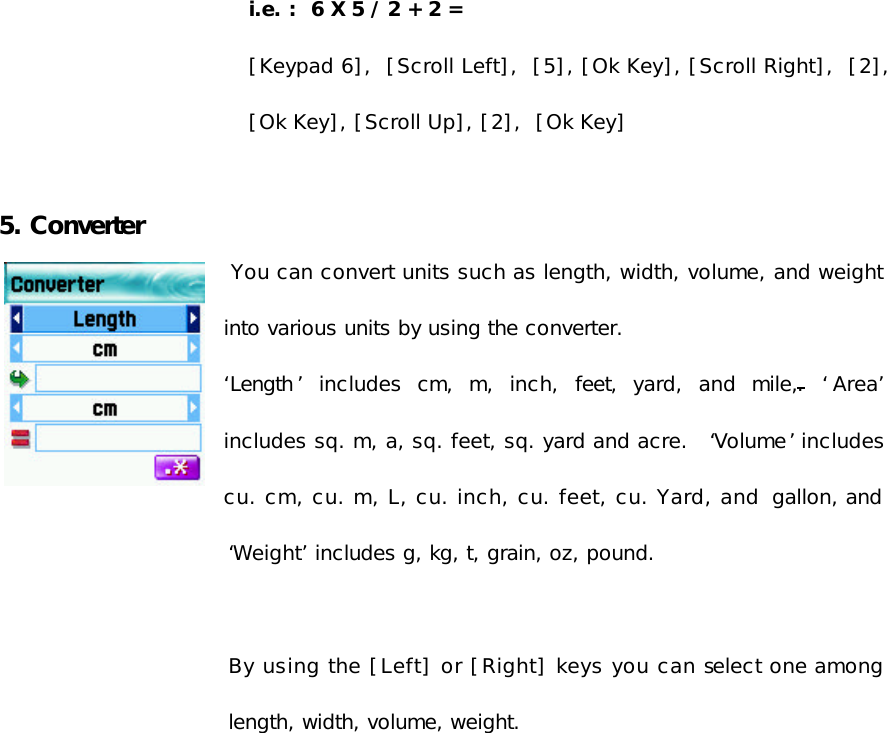

![i.e. : 6 X 5 / 2 + 2 = [Keypad 6], [Scroll Left], [5], [Ok Key], [Scroll Right], [2], [Ok Key], [Scroll Up], [2], [Ok Key] 5. Converter You can convert units such as length, width, volume, and weight into various units by using the converter. ‘Length ’ includes cm, m, inch, feet, yard, and mile,. ‘Area’ includes sq. m, a, sq. feet, sq. yard and acre. ‘Volume’ includes cu. cm, cu. m, L, cu. inch, cu. feet, cu. Yard, and gallon, and ‘Weight’ includes g, kg, t, grain, oz, pound. By using the [Left] or [Right] keys you can select one among length, width, volume, weight.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-72.png)

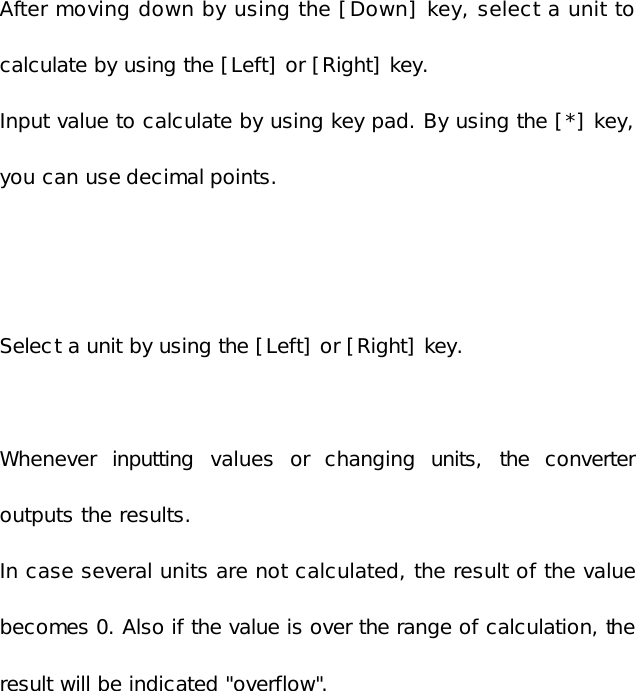

![After moving down by using the [Down] key, select a unit to calculate by using the [Left] or [Right] key. Input value to calculate by using key pad. By using the [*] key, you can use decimal points. Select a unit by using the [Left] or [Right] key. Whenever inputting values or changing units, the converter outputs the results. In case several units are not calculated, the result of the value becomes 0. Also if the value is over the range of calculation, the result will be indicated "overflow".](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-73.png)

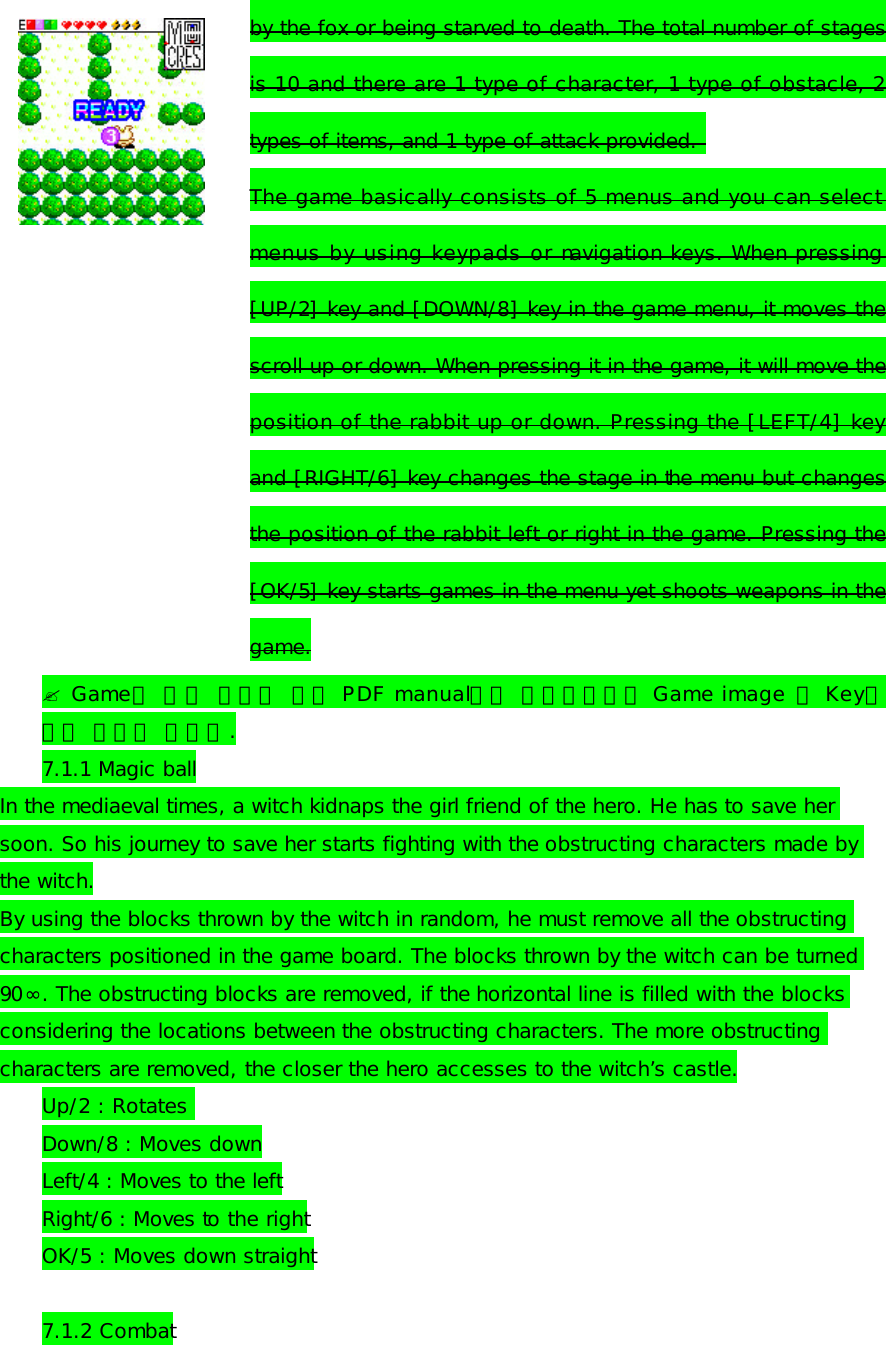

![by the fox or being starved to death. The total number of stages is 10 and there are 1 type of character, 1 type of obstacle, 2 types of items, and 1 type of attack provided. The game basically consists of 5 menus and you can select menus by using keypads or navigation keys. When pressing [UP/2] key and [DOWN/8] key in the game menu, it moves the scroll up or down. When pressing it in the game, it will move the position of the rabbit up or down. Pressing the [LEFT/4] key and [RIGHT/6] key changes the stage in the menu but changes the position of the rabbit left or right in the game. Pressing the [OK/5] key starts games in the menu yet shoots weapons in the game. ? Game에 대한 내용은 영문 PDF manual에서 인용하였으며 Game image 및 Key에 대한 설명이 필요함. 7.1.1 Magic ball In the mediaeval times, a witch kidnaps the girl friend of the hero. He has to save her soon. So his journey to save her starts fighting with the obstructing characters made by the witch. By using the blocks thrown by the witch in random, he must remove all the obstructing characters positioned in the game board. The blocks thrown by the witch can be turned 90∞. The obstructing blocks are removed, if the horizontal line is filled with the blocks considering the locations between the obstructing characters. The more obstructing characters are removed, the closer the hero accesses to the witch’s castle. Up/2 : Rotates Down/8 : Moves down Left/4 : Moves to the left Right/6 : Moves to the right OK/5 : Moves down straight 7.1.2 Combat](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-75.png)

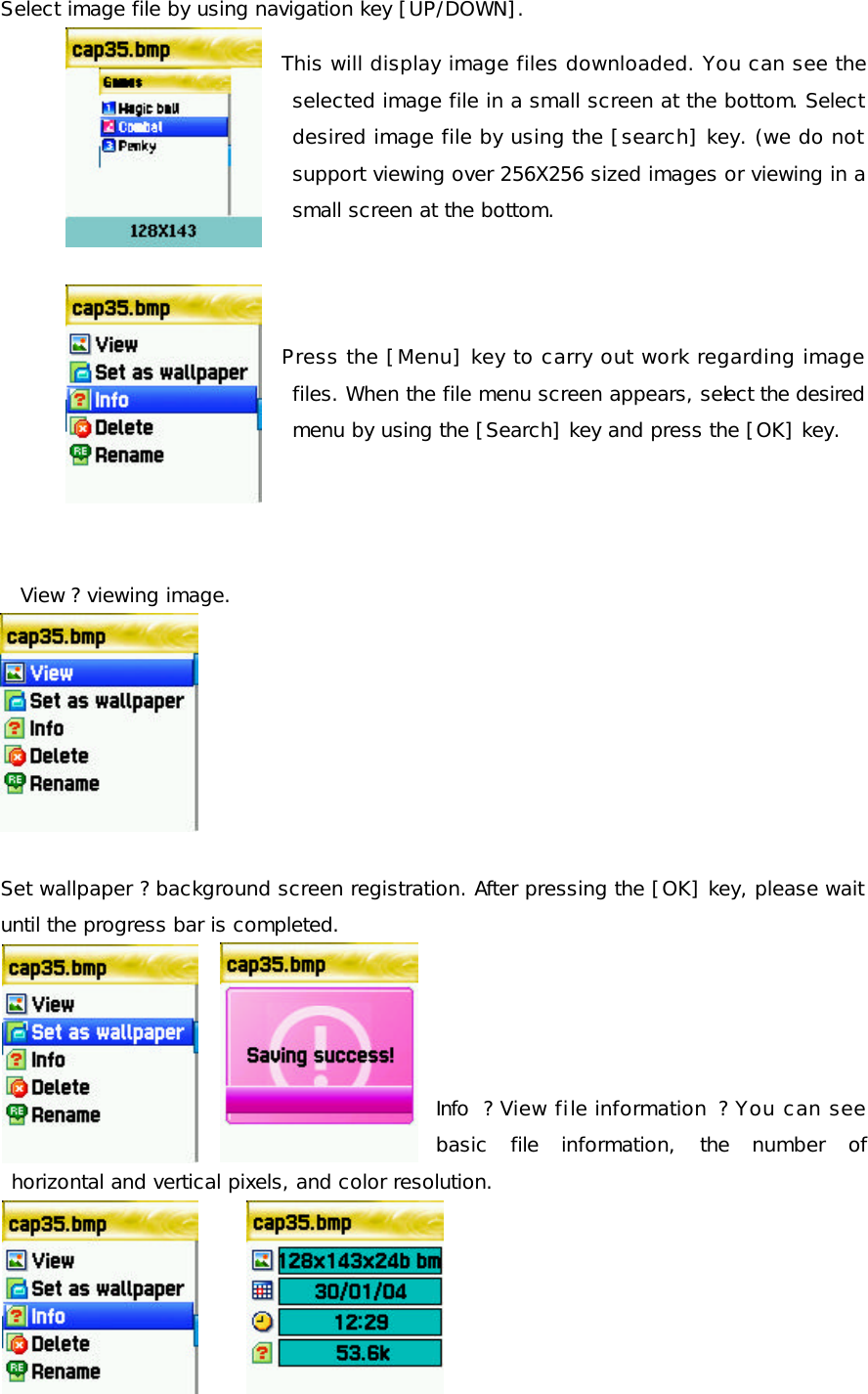

![Select image file by using navigation key [UP/DOWN]. This will display image files downloaded. You can see the selected image file in a small screen at the bottom. Select desired image file by using the [search] key. (we do not support viewing over 256X256 sized images or viewing in a small screen at the bottom. Press the [Menu] key to carry out work regarding image files. When the file menu screen appears, select the desired menu by using the [Search] key and press the [OK] key. View ? viewing image. Set wallpaper ? background screen registration. After pressing the [OK] key, please wait until the progress bar is completed. Info ? View file information ? You can see basic file information, the number of horizontal and vertical pixels, and color resolution.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-77.png)

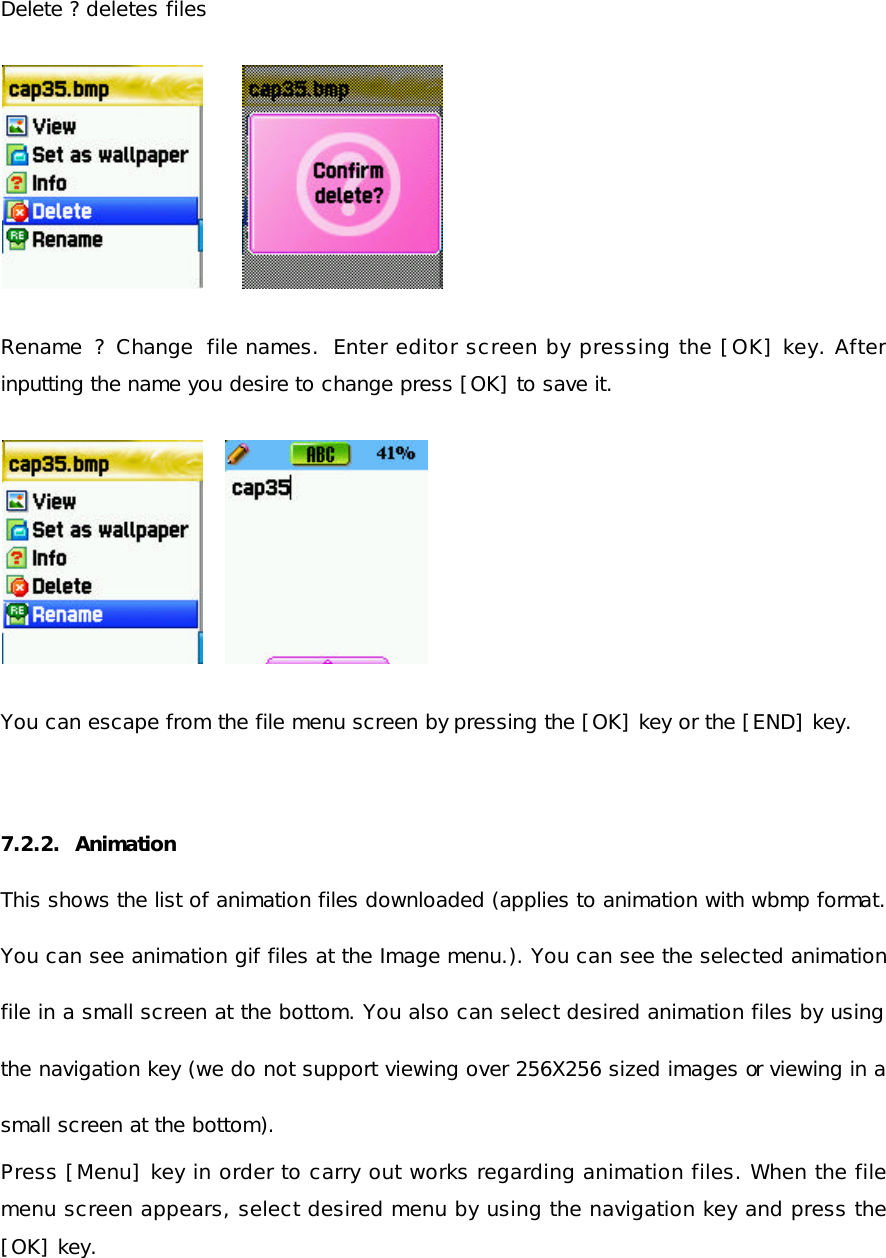

![Delete ? deletes files Rename ? Change file names. Enter editor screen by pressing the [OK] key. After inputting the name you desire to change press [OK] to save it. You can escape from the file menu screen by pressing the [OK] key or the [END] key. 7.2.2. Animation This shows the list of animation files downloaded (applies to animation with wbmp format. You can see animation gif files at the Image menu.). You can see the selected animation file in a small screen at the bottom. You also can select desired animation files by using the navigation key (we do not support viewing over 256X256 sized images or viewing in a small screen at the bottom). Press [Menu] key in order to carry out works regarding animation files. When the file menu screen appears, select desired menu by using the navigation key and press the [OK] key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-78.png)

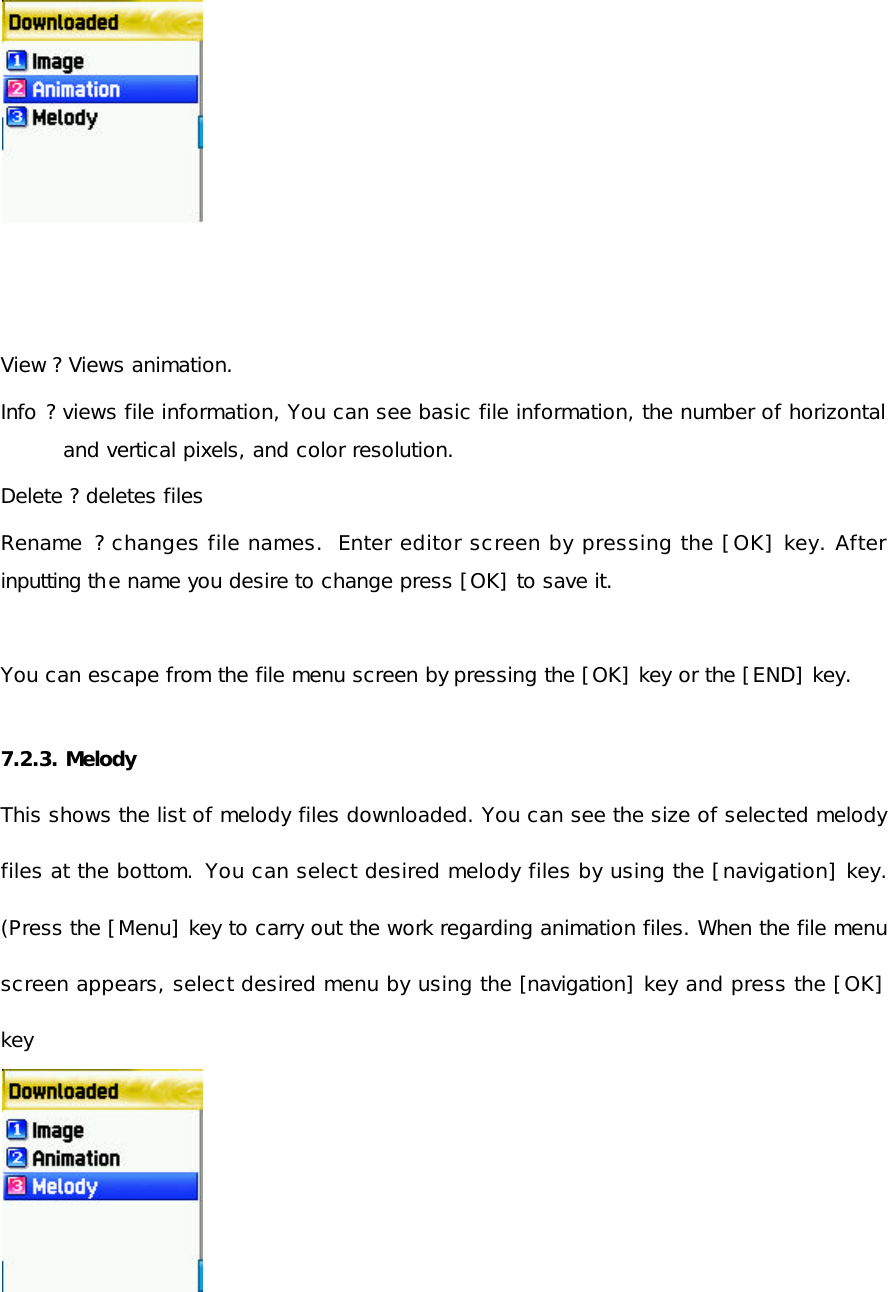

![View ? Views animation. Info ? views file information, You can see basic file information, the number of horizontal and vertical pixels, and color resolution. Delete ? deletes files Rename ? changes file names. Enter editor screen by pressing the [OK] key. After inputting the name you desire to change press [OK] to save it. You can escape from the file menu screen by pressing the [OK] key or the [END] key. 7.2.3. Melody This shows the list of melody files downloaded. You can see the size of selected melody files at the bottom. You can select desired melody files by using the [navigation] key. (Press the [Menu] key to carry out the work regarding animation files. When the file menu screen appears, select desired menu by using the [navigation] key and press the [OK] key](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-79.png)

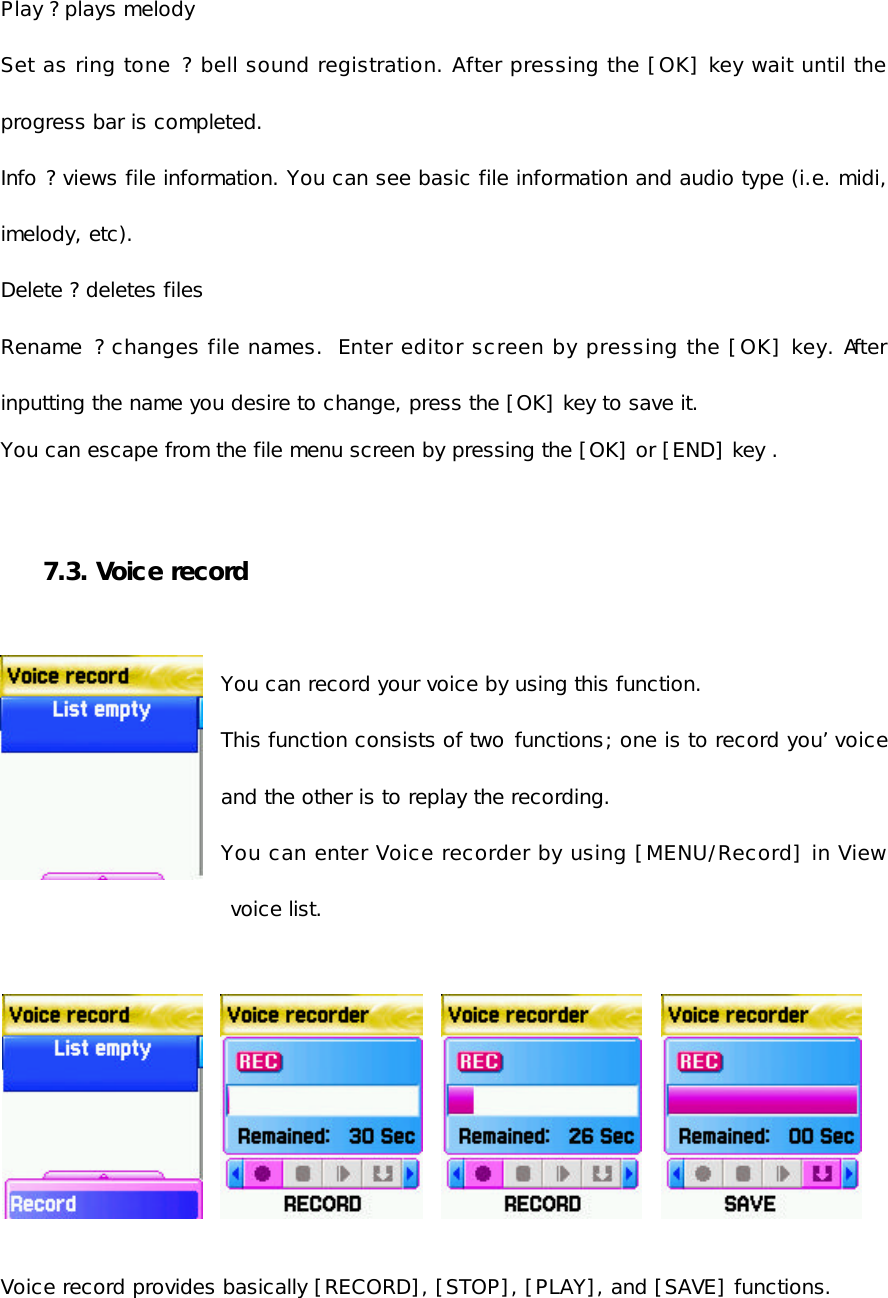

![Play ? plays melody Set as ring tone ? bell sound registration. After pressing the [OK] key wait until the progress bar is completed. Info ? views file information. You can see basic file information and audio type (i.e. midi, imelody, etc). Delete ? deletes files Rename ? changes file names. Enter editor screen by pressing the [OK] key. After inputting the name you desire to change, press the [OK] key to save it. You can escape from the file menu screen by pressing the [OK] or [END] key . 7.3. Voice record You can record your voice by using this function. This function consists of two functions; one is to record you’ voice and the other is to replay the recording. You can enter Voice recorder by using [MENU/Record] in View voice list. Voice record provides basically [RECORD], [STOP], [PLAY], and [SAVE] functions.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-80.png)

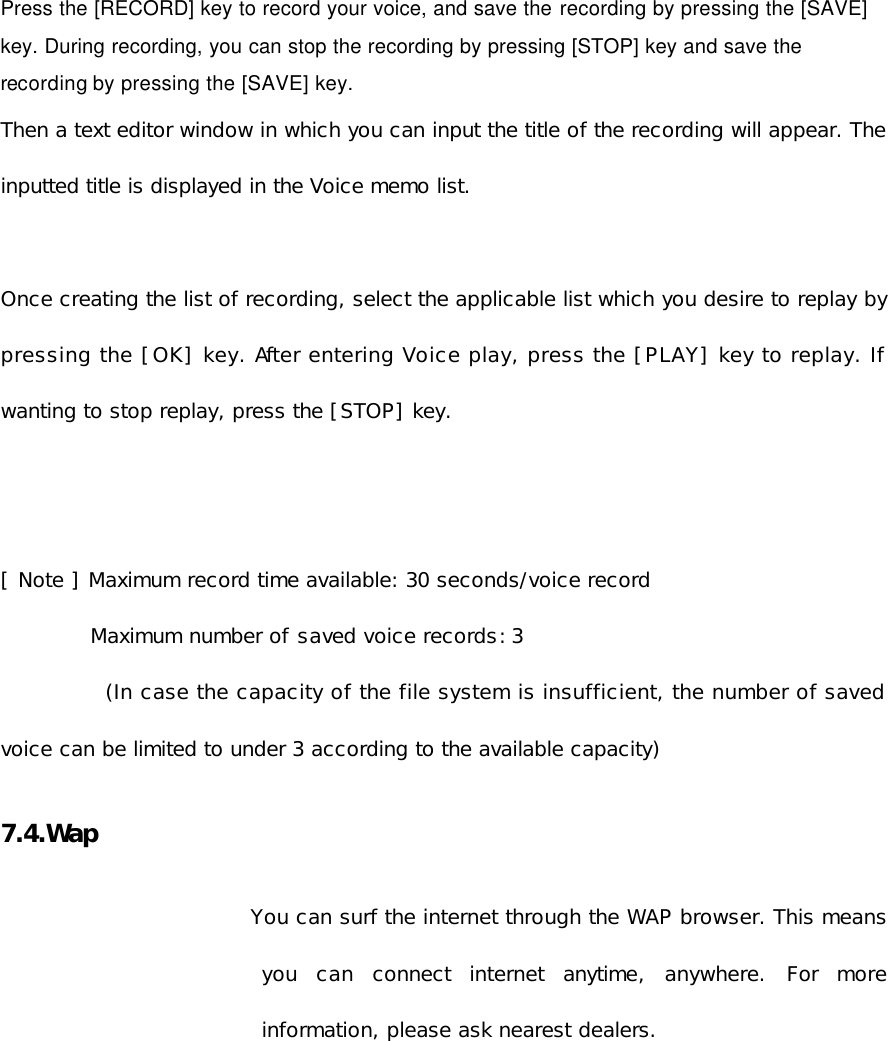

![Press the [RECORD] key to record your voice, and save the recording by pressing the [SAVE] key. During recording, you can stop the recording by pressing [STOP] key and save the recording by pressing the [SAVE] key. Then a text editor window in which you can input the title of the recording will appear. The inputted title is displayed in the Voice memo list. Once creating the list of recording, select the applicable list which you desire to replay by pressing the [OK] key. After entering Voice play, press the [PLAY] key to replay. If wanting to stop replay, press the [STOP] key. [ Note ] Maximum record time available: 30 seconds/voice record Maximum number of saved voice records: 3 (In case the capacity of the file system is insufficient, the number of saved voice can be limited to under 3 according to the available capacity) 7.4.Wap You can surf the internet through the WAP browser. This means you can connect internet anytime, anywhere. For more information, please ask nearest dealers.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-81.png)
![7.5.Camera You can take and save photos any time anywhere by using the camera function. The saved photos can be checked by using the Album menu. A change of name is also available. [ Snapshot ] You can take photos by selecting this menu. You can carry out the function by pressing ‘1’ in the Camera menu or selecting ‘Snapshot’. A. Function i) Select Snapshot to run preview mode. ii) Take photos by using ‘OK’ or ‘Side camera’ key. iii) After taking photos press the ‘OK’ key to continue to the stage of save photos. After inputting the name of photos, press the ‘OK’ key to save photos. After taking photos, if pressing ‘MENU’ key, this carries out preview mode without saving photos iv) In the preview mode press the ‘Volume Up/Down’ key or ‘Camera’ key to convert preview screen from main LCD to sub LCD or the other way round. v) In the preview mode by using the ‘navigation’ key various setting values can be modified. Select objects by using the ‘left-right navigation’ key Modify the value of the selected objects by using the ‘up-down navigation’ key. The name of the selected objects is displayed at the bottom left corner and its setting value at the bottom right corner.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-87.png)

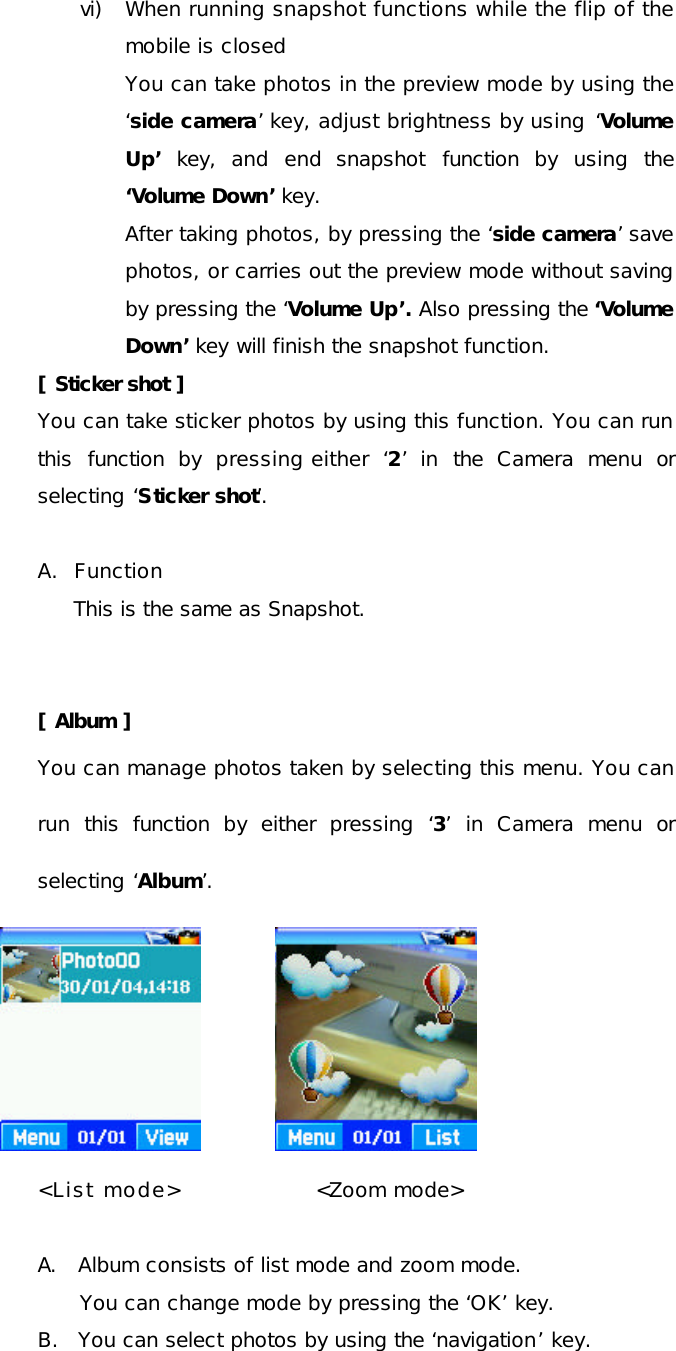

![vi) When running snapshot functions while the flip of the mobile is closed You can take photos in the preview mode by using the ‘side camera’ key, adjust brightness by using ‘Volume Up’ key, and end snapshot function by using the ‘Volume Down’ key. After taking photos, by pressing the ‘side camera’ save photos, or carries out the preview mode without saving by pressing the ‘Volume Up’. Also pressing the ‘Volume Down’ key will finish the snapshot function. [ Sticker shot ] You can take sticker photos by using this function. You can run this function by pressing either ‘2’ in the Camera menu or selecting ‘Sticker shot’. A. Function This is the same as Snapshot. [ Album ] You can manage photos taken by selecting this menu. You can run this function by either pressing ‘3’ in Camera menu or selecting ‘Album’. <List mode> <Zoom mode> A. Album consists of list mode and zoom mode. You can change mode by pressing the ‘OK’ key. B. You can select photos by using the ‘navigation’ key.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-88.png)

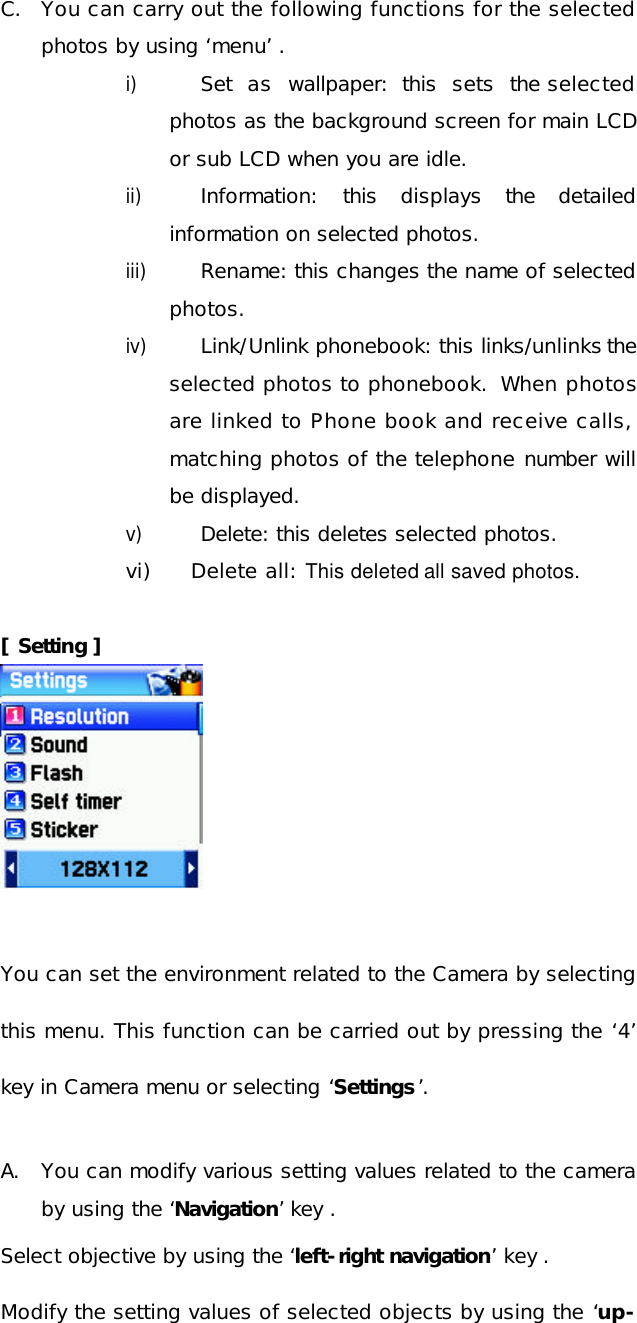

![C. You can carry out the following functions for the selected photos by using ‘menu’ . i) Set as wallpaper: this sets the selected photos as the background screen for main LCD or sub LCD when you are idle. ii) Information: this displays the detailed information on selected photos. iii) Rename: this changes the name of selected photos. iv) Link/Unlink phonebook: this links/unlinks the selected photos to phonebook. When photos are linked to Phone book and receive calls, matching photos of the telephone number will be displayed. v) Delete: this deletes selected photos. vi) Delete all: This deleted all saved photos. [ Setting ] You can set the environment related to the Camera by selecting this menu. This function can be carried out by pressing the ‘4’ key in Camera menu or selecting ‘Settings’. A. You can modify various setting values related to the camera by using the ‘Navigation’ key . Select objective by using the ‘left-right navigation’ key . Modify the setting values of selected objects by using the ‘up-](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-89.png)
![down navigation’ key . The setting value of currently selected objective is displayed at the bottom of the screen. B. Save and end the current setting values by pressing the ‘OK’ key. Pressing the ‘END’ key finishes without saving the changed setting values. 7.6. Memory info This displays the consumption and capacity of memory. In order to select memory info press [MENU] ? [4] ? [6] keys in order and press [OK] key. 8. STK STK is a service provided by service dealers while using the GSM net. For more information, please contact the service dealers you are registered to.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-90.png)
![[HOT KEY] Phonebook Phonebook supports the function of saving the list of private telephone numbers. The addition and deletion of telephone numbers is always available. Besides this, you can select a desired saving space between SIM/Phone memories. A maximum of 1,000 telephone numbers can be saved. (Phone memory 800 개이며 SIM 에 따라 1,000 개 이상 저장될 수 있음) ※ If you press the down key in the IDLE screen, you can enter Phonebook. (1) Group search (1) Group search You can search telephone numbers by group with this function. ok ok menu/select ‘Edit’](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-91.png)

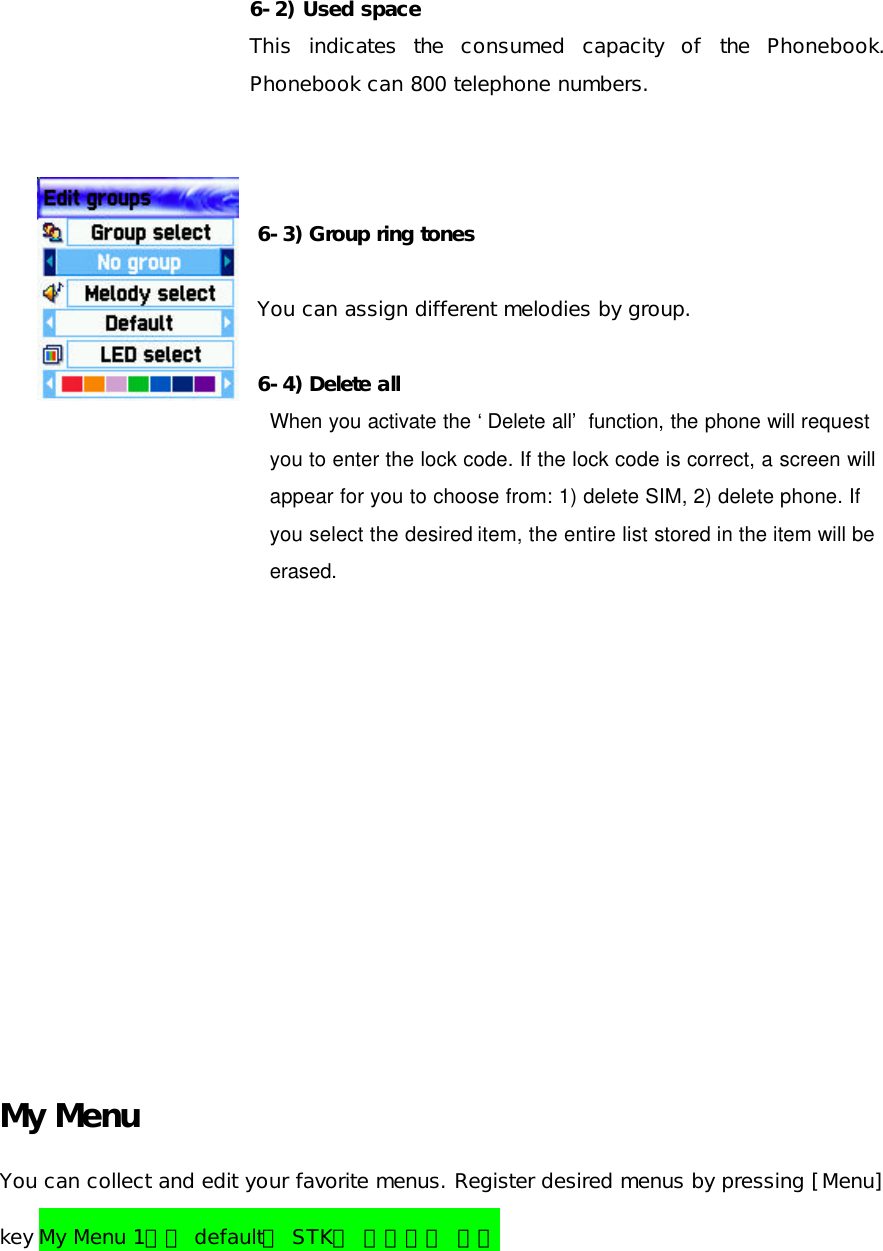

![6-2) Used space This indicates the consumed capacity of the Phonebook. Phonebook can 800 telephone numbers. 6-3) Group ring tones You can assign different melodies by group. 6-4) Delete all When you activate the ‘Delete all’ function, the phone will request you to enter the lock code. If the lock code is correct, a screen will appear for you to choose from: 1) delete SIM, 2) delete phone. If you select the desired item, the entire list stored in the item will be erased. My Menu You can collect and edit your favorite menus. Register desired menus by pressing [Menu] key My Menu 1번은 default로 STK가 적용되어 있음](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-95.png)

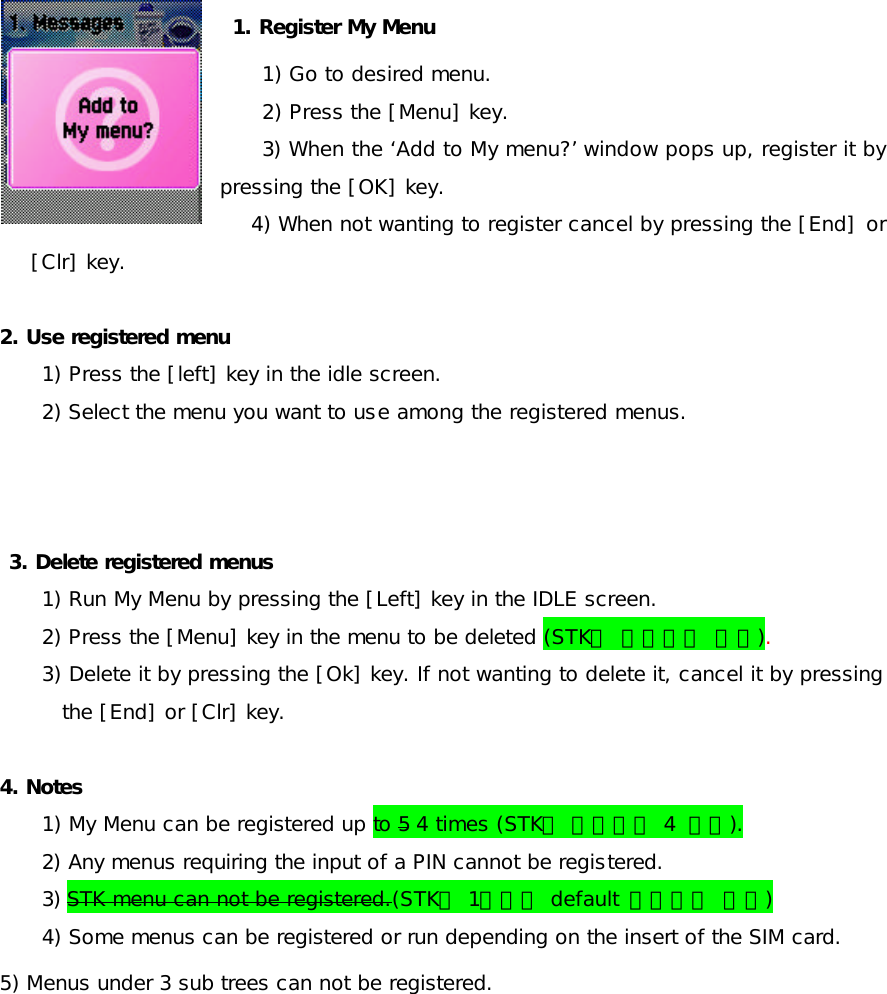

![1. Register My Menu 1) Go to desired menu. 2) Press the [Menu] key. 3) When the ‘Add to My menu?’ window pops up, register it by pressing the [OK] key. 4) When not wanting to register cancel by pressing the [End] or [Clr] key. 2. Use registered menu 1) Press the [left] key in the idle screen. 2) Select the menu you want to use among the registered menus. 3. Delete registered menus 1) Run My Menu by pressing the [Left] key in the IDLE screen. 2) Press the [Menu] key in the menu to be deleted (STK는 삭제되지 않음). 3) Delete it by pressing the [Ok] key. If not wanting to delete it, cancel it by pressing the [End] or [Clr] key. 4. Notes 1) My Menu can be registered up to 5 4 times (STK를 제외하고 4 번임). 2) Any menus requiring the input of a PIN cannot be registered. 3) STK menu can not be registered.(STK는 1번으로 default 적용되어 있음) 4) Some menus can be registered or run depending on the insert of the SIM card. 5) Menus under 3 sub trees can not be registered.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-96.png)

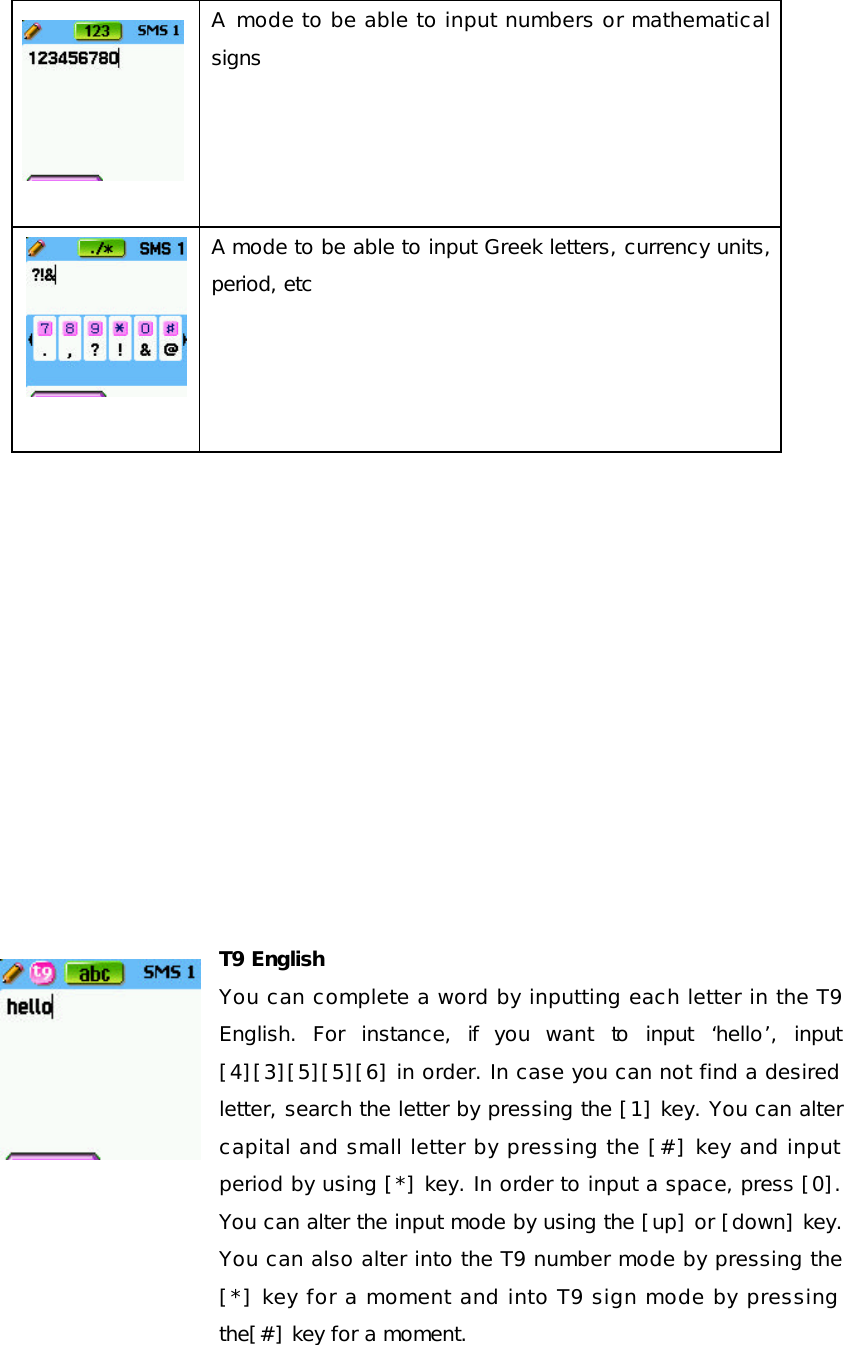

![A mode to be able to input numbers or mathematical signs A mode to be able to input Greek letters, currency units, period, etc T9 English You can complete a word by inputting each letter in the T9 English. For instance, if you want to input ‘hello’, input [4][3][5][5][6] in order. In case you can not find a desired letter, search the letter by pressing the [1] key. You can alter capital and small letter by pressing the [#] key and input period by using [*] key. In order to input a space, press [0]. You can alter the input mode by using the [up] or [down] key. You can also alter into the T9 number mode by pressing the [*] key for a moment and into T9 sign mode by pressing the[#] key for a moment.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-99.png)

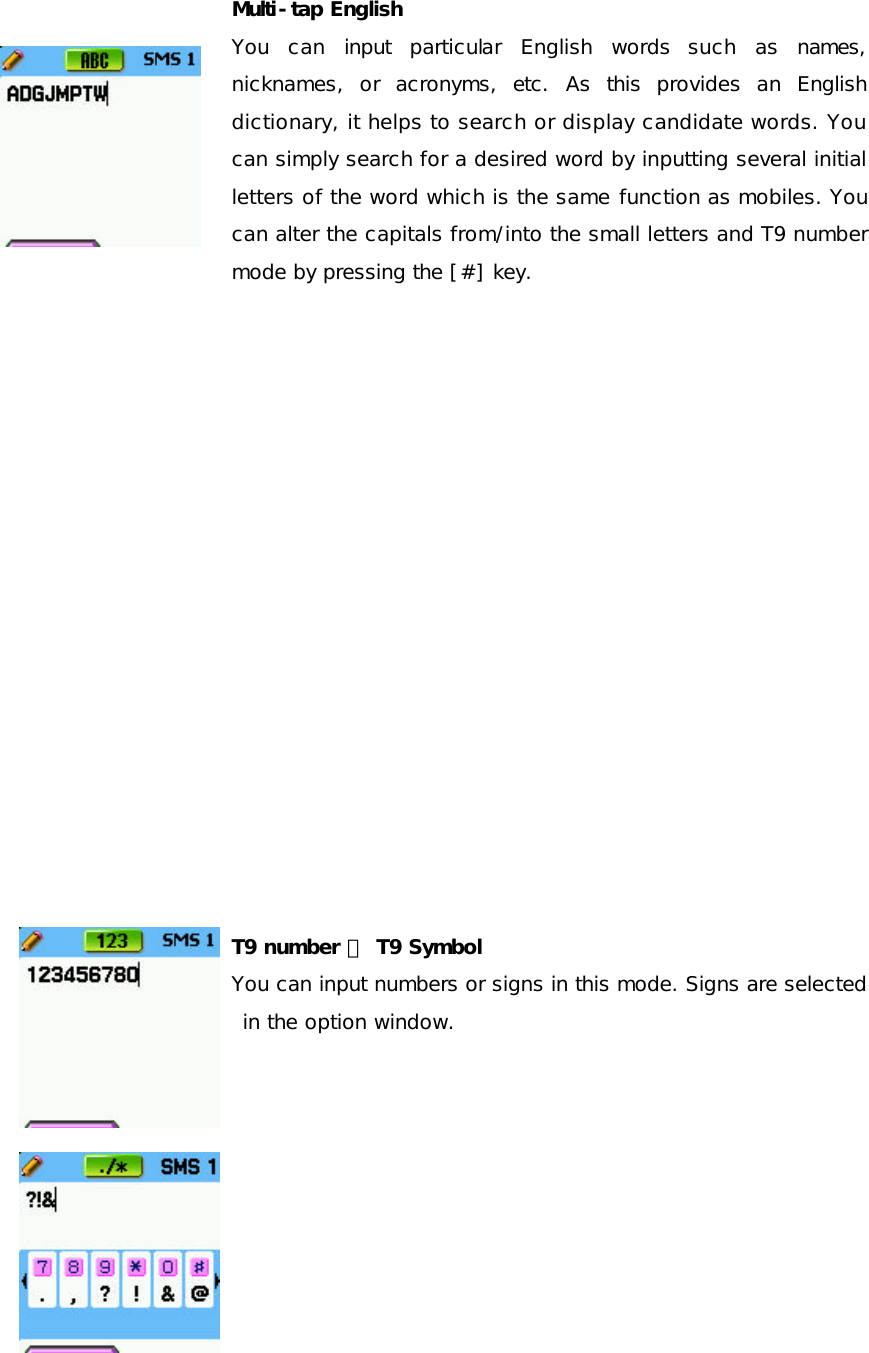

![Multi-tap English You can input particular English words such as names, nicknames, or acronyms, etc. As this provides an English dictionary, it helps to search or display candidate words. You can simply search for a desired word by inputting several initial letters of the word which is the same function as mobiles. You can alter the capitals from/into the small letters and T9 number mode by pressing the [#] key. T9 number 와 T9 Symbol You can input numbers or signs in this mode. Signs are selected in the option window.](https://usermanual.wiki/Pantech-Co/G310C/User-Guide-581645-Page-100.png)
