P9060 User Manual

Users Manual

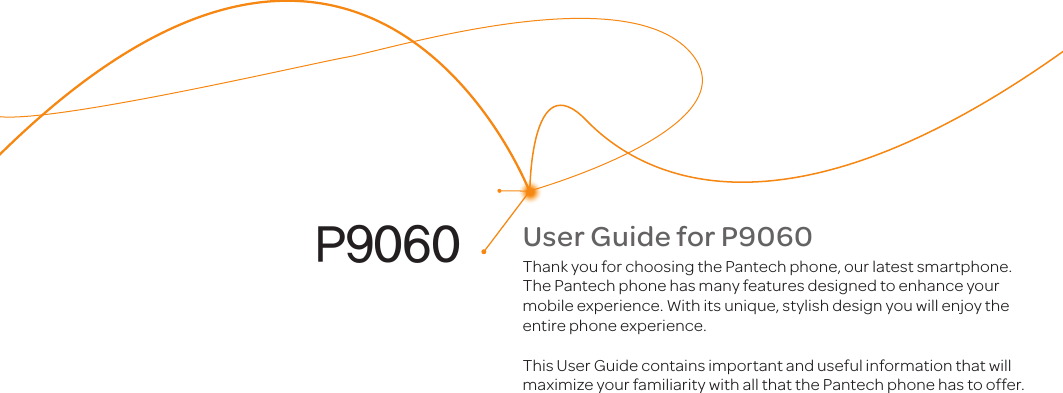

User Guide for P9060Thank you for choosing the Pantech phone, our latest smartphone. The Pantech phone has many features designed to enhance your mobile experience. With its unique, stylish design you will enjoy the entire phone experience.This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech phone has to offer.P9060

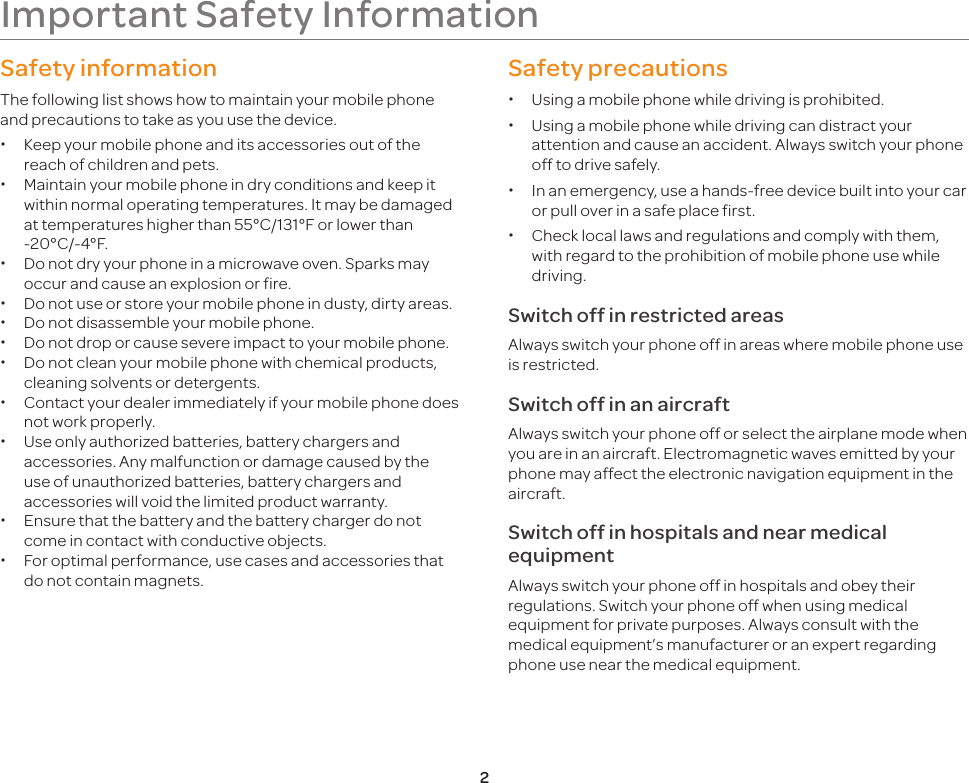

2Important Safety InformationSafety informationThe following list shows how to maintain your mobile phone and precautions to take as you use the device. xKeep your mobile phone and its accessories out of the reach of children and pets. xMaintain your mobile phone in dry conditions and keep it within normal operating temperatures. It may be damaged at temperatures higher than 55°C/131°F or lower than -20°C/-4°F. xDo not dry your phone in a microwave oven. Sparks may occur and cause an explosion or fire. xDo not use or store your mobile phone in dusty, dirty areas. xDo not disassemble your mobile phone. xDo not drop or cause severe impact to your mobile phone. xDo not clean your mobile phone with chemical products, cleaning solvents or detergents. xContact your dealer immediately if your mobile phone does not work properly. xUse only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty. xEnsure that the battery and the battery charger do not come in contact with conductive objects. xFor optimal performance, use cases and accessories that do not contain magnets.Safety precautions xUsing a mobile phone while driving is prohibited. xUsing a mobile phone while driving can distract your attention and cause an accident. Always switch your phone off to drive safely. xIn an emergency, use a hands-free device built into your car or pull over in a safe place first. xCheck local laws and regulations and comply with them, with regard to the prohibition of mobile phone use while driving.Switch off in restricted areasAlways switch your phone off in areas where mobile phone use is restricted.Switch off in an aircraftAlways switch your phone off or select the airplane mode when you are in an aircraft. Electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.Switch off in hospitals and near medical equipmentAlways switch your phone off in hospitals and obey their regulations. Switch your phone off when using medical equipment for private purposes. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment.

3Important Safety InformationSwitch off in dangerous areasAlways switch your phone off in areas where explosive or dangerous materials (e.g. fuels or chemical products) are located and obey relevant instructions or signals. Do not insert or remove your mobile phone’s battery in such areas.Install a hands-free device in a safe locationInstall a hands-free device away from the steering wheel and airbag expansion areas. Otherwise you can be injured in a car accident.Keep away from other electronic devicesMobile phones emit electromagnetic waves that may affect nearby electronic devices. After switching on your phone, do not place it close to other electronic goods.About the battery usageYour phone is powered by a Lithium Ion (Li-Ion) battery. In other words, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect.” xDo not use a damaged battery or charger. xDo not disassemble, open crush, bend, deform, puncture or shred the battery. xDo not modify or remanufacture, insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard. xDo not put your battery in contact with conductive objects. xDispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode. xDo not use an unauthorized charger or battery. xUse the battery only for the device for which it is specified. xUse the battery with a charging device that has been qualified for the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. xDo not short circuit a battery or allow metallic conductive objects to contact battery terminals. xReplace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. xChildren should be supervised when they use the battery. xAvoid dropping the phone or the battery. If the phone or the battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. xUse your battery for the specified purpose only. xThe closer you move to your network’s base station, the longer you can use your phone because less battery power is required for connection. xThe battery recharging time varies depending on the remaining battery capacity and the battery and charger type. xBattery life inevitably shortens over time. xSince overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce its capacity and life. xTo prevent injury or burns, ensure that no metal objects come into contact with the + and – terminals of the battery.

4Important Safety Information xThe symbol “>” refers to the next action. For example, “Tap Settings > Language & keyboard” means that you should tap Settings first and Language & keyboard next. x"Applications" refers to the screen where all applications of the phone appear. x"Home screen" refers to the screen that appears first when you unlock the screen. x"Idle mode" refers to the status when you stay on the home screen ready to run an application. xChannels through which you can share your items such as contacts or pictures increase as you subscribe to a service. For example, if you sign up for Facebook or Twitter, you can also share your information with others through Facebook or Twitter.About Google accountsWe recommend that you have a Google account to use some applications provided by Google, e.g. Calendar, Latitude, Market, Talk, of the phone. For more information on setting up a Google account, refer to Activating the phone on page 13.Basic instructionsUseful tipsTo understand information contained in this user guide, please keep in mind the following: xWe assume that you start operating applications from the Applications screen.1. Tap on the bottom of the home screen to access Applications.2. Flick the screen left or right. (Grid view only) Flick the screen up or down. (List view only)3. Tap an application you want to run and use.orAccessing ApplicationsGrid view List view xWords in bold fonts refer to the relevant action on the screen. For example, “Tap Add to contacts” for the screen below means that you have to tap . xWords in all capital letters refer to hard keys of your phone. For example, LOCK/PWR indicates the lock/power key on the top right of the handset that locks the screen or turns on/off power.

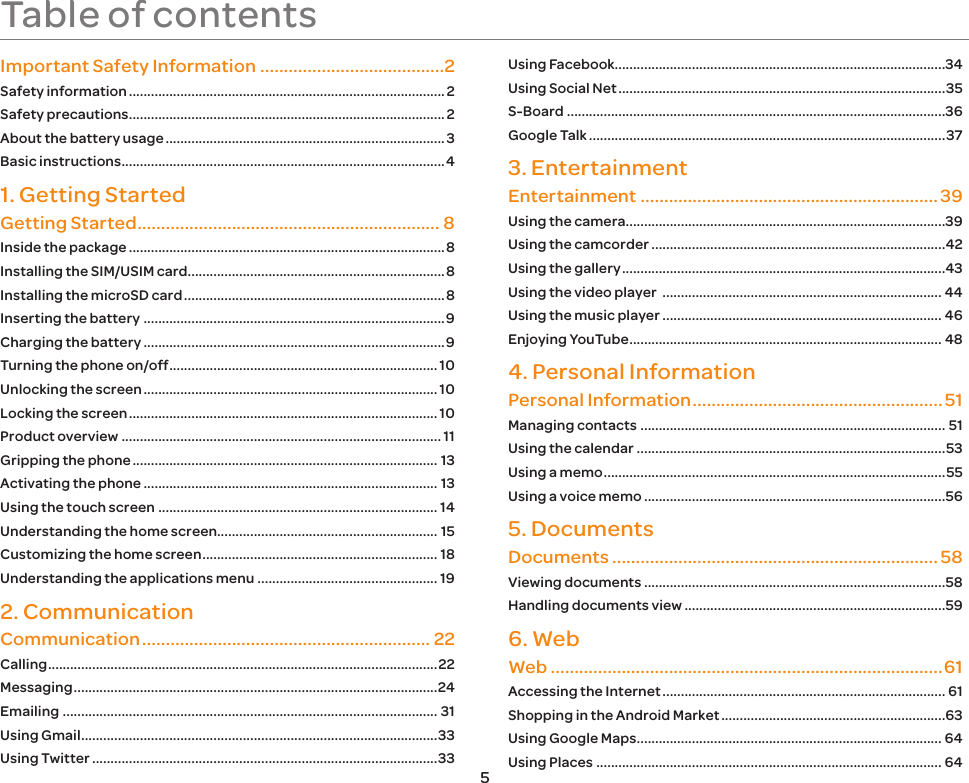

5Table of contentsImportant Safety Information .......................................2Safety information ...................................................................................... 2Safety precautions ......................................................................................2About the battery usage ............................................................................ 3Basic instructions ........................................................................................41. Getting StartedGetting Started ................................................................ 8Inside the package ......................................................................................8Installing the SIM/USIM card......................................................................8Installing the microSD card .......................................................................8Inserting the battery ..................................................................................9Charging the battery ..................................................................................9Turning the phone on/off ......................................................................... 10Unlocking the screen ................................................................................ 10Locking the screen .................................................................................... 10Product overview ....................................................................................... 11Gripping the phone ................................................................................... 13Activating the phone ................................................................................ 13Using the touch screen ............................................................................ 14Understanding the home screen............................................................ 15Customizing the home screen ................................................................ 18Understanding the applications menu ................................................. 192. CommunicationCommunication ............................................................. 22Calling ..........................................................................................................22Messaging ...................................................................................................24Emailing ...................................................................................................... 31Using Gmail .................................................................................................33Using Twitter ..............................................................................................33Using Facebook..........................................................................................34Using Social Net .........................................................................................35S-Board .......................................................................................................36Google Talk .................................................................................................373. EntertainmentEntertainment ............................................................... 39Using the camera.......................................................................................39Using the camcorder ................................................................................42Using the gallery ........................................................................................43Using the video player ............................................................................ 44Using the music player ............................................................................ 46Enjoying YouTube ..................................................................................... 484. Personal InformationPersonal Information .....................................................51Managing contacts ................................................................................... 51Using the calendar ....................................................................................53Using a memo .............................................................................................55Using a voice memo ..................................................................................565. DocumentsDocuments ..................................................................... 58Viewing documents ..................................................................................58Handling documents view .......................................................................596. WebWeb ...................................................................................61Accessing the Internet ............................................................................. 61Shopping in the Android Market .............................................................63Using Google Maps ................................................................................... 64Using Places .............................................................................................. 64

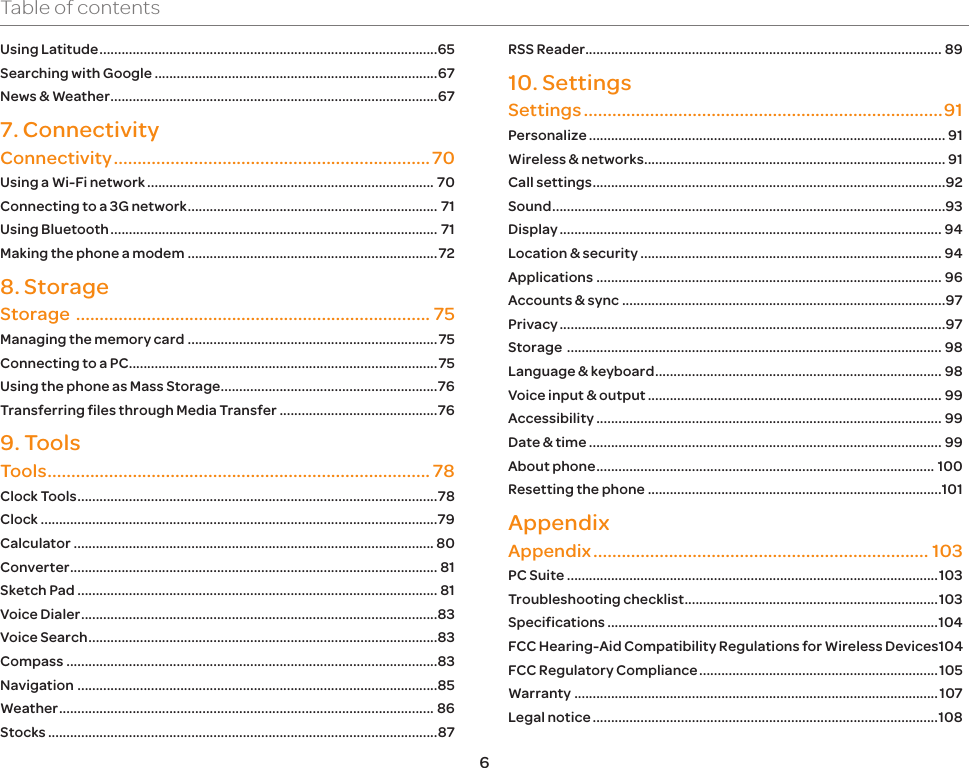

6Table of contentsUsing Latitude ............................................................................................65Searching with Google .............................................................................67News & Weather .........................................................................................677. ConnectivityConnectivity ................................................................... 70Using a Wi-Fi network .............................................................................. 70Connecting to a 3G network .................................................................... 71Using Bluetooth ......................................................................................... 71Making the phone a modem ....................................................................728. StorageStorage ........................................................................... 75Managing the memory card ....................................................................75Connecting to a PC ....................................................................................75Using the phone as Mass Storage ...........................................................76Transferring files through Media Transfer ...........................................769. ToolsTools ................................................................................. 78Clock Tools ..................................................................................................78Clock ............................................................................................................79Calculator .................................................................................................. 80Converter .................................................................................................... 81Sketch Pad .................................................................................................. 81Voice Dialer .................................................................................................83Voice Search ...............................................................................................83Compass .....................................................................................................83Navigation ..................................................................................................85Weather ...................................................................................................... 86Stocks ..........................................................................................................87RSS Reader ................................................................................................. 8910. SettingsSettings ............................................................................91Personalize ................................................................................................. 91Wireless & networks .................................................................................. 91Call settings ................................................................................................92Sound ...........................................................................................................93Display ........................................................................................................ 94Location & security .................................................................................. 94Applications .............................................................................................. 96Accounts & sync ........................................................................................97Privacy .........................................................................................................97Storage ...................................................................................................... 98Language & keyboard .............................................................................. 98Voice input & output ................................................................................ 99Accessibility .............................................................................................. 99Date & time ................................................................................................ 99About phone ............................................................................................ 100Resetting the phone ................................................................................101AppendixAppendix ....................................................................... 103PC Suite .....................................................................................................103Troubleshooting checklist .....................................................................103Specifications ..........................................................................................104FCC Hearing-Aid Compatibility Regulations for Wireless Devices 104FCC Regulatory Compliance .................................................................105Warranty ...................................................................................................107Legal notice ..............................................................................................108

11. Getting StartedGetting StartedInside the packageInstalling the SIM/USIM cardInstalling the microSD cardInserting the batteryCharging the batteryTurning the phone on/offUnlocking the screenLocking the screenProduct overviewGripping the phoneActivating the phoneUsing the touch screenUnderstanding the home screenCustomizing the home screenUnderstanding the applications menu

8Getting StartedFollow the outlined steps that should be taken first before using the phone.Inside the packageThe package should contain the following items: xHandset xBattery xMicroSD card xAdapter xUSB cable xGetting Started CDInstalling the SIM/USIM card1. Press and hold the latch and slide it to remove the battery cover.2. Insert the SIM/USIM card into the slot. Ensure that the gold contacts of the card go against the metal contacts of the phone.3. Close the battery cover by sliding it up until you hear “click.” About the SIM/USIM cardWhen you subscribe to the network operator, you receive the Subscriber Identity Module (SIM) card or the Universal Subscriber Identity Module (USIM) card that contains your registration information, PIN code, etc. You should keep it secure and handle carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity.Note Do not lose or transfer your SIM/USIM card to someone. Pantech is not responsible for damage due to theft or loss.Installing the microSD cardWhen you want to handle image files such as photos or videos or an external memory card , use the microSD card.1. Press and hold the latch and slide it to remove the battery cover.2. Insert the microSD card into the slot. Ensure that the gold contacts of the card go against the metal contacts of the phone.3. Close the battery cover by sliding it up until you hear “click.”About the microSD cardA microSD card is a removable flash memory card where you can save data. Save pictures and contacts, and download applications to the SD card. You can expand the external memory up to 32GB. It is recommended that you format the

9Getting StartedCharging the battery1. Open the protective cover on the right side of the phone and connect the charger adapter to the USB connector of the phone. Correct IncorrectNote Make sure to align the connector as indicated in the image. Otherwise, the charging connector will be damaged and the battery will not be charged.Battery Charging - Power ONmicroSD card before using the phone. For more information, refer to page 75.Note We recommend you format the microSD card before using the phone. For more information, refer to page 75.Inserting the battery1. Press and hold the latch and slide it to remove the battery cover.2. Align the gold contacts on the battery with the contacts located at the top of the battery compartment on the phone.3. Press the battery down until it lays flat in the compartment.4. Close the battery cover by sliding it up until you hear “click.”About the batteryThe phone uses a Lithium Ion (Li-Ion) battery. Make sure to use the authorized battery and charger only. Maximum hours to use the battery might vary depending on service types offered by the service provider and temperatures. For more details, inquire at your nearest dealer.Note The Li-Ion battery can be recharged while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies.

10Getting Started2. Disconnect the charger from the phone when the battery is fully charged.Turning the phone on/offTo turn on the phone,1. Press and hold the LOCK/PWR key for a few seconds.2. Unlock the screen.To turn the phone off,1. Press and hold the LOCK/PWR key.2. Tap Power off.3. Tap OK.Note If you press the LOCK/PWR key shortly, the LCD screen turns on or off.Unlocking the screenThe screen is locked by default when you turn on power. To unlock the screen,1. Press the LOCK/PWR key, n, B, l or m.2. Drag one of the application icons into the circle diagonally. The phone will open the corresponding application.3. Enter a PIN or a password if the screen is locked by a PIN or a password. For more information on screen lock, refer to Location & security in Settings on page 94.Key DescriptionViews messages.Accesses the Internet.Views Call log.Goes to the home screen or an application if the application is running before locking. Views emails.Launches Music Player.Locking the screenLock the screen to protect information in the phone or save the usage of the battery.To lock the screen, press the LOCK/PWR key in any mode.

11Getting StartedProduct overviewTouch modeFront view Rear viewKey FunctionBACK Ends an application; returns to the previous menuMENU Displays options available; turns on the screen; rearranges the home screenLOCK/PWR Locks the screen; turns on/off the phoneKey FunctionSEARCH Searches through the Internet; searches applications, contacts and messages that are savedHOME Moves to the Home screen; turns on the screen; manages applications that are runningNote Make sure not to cover the proximity sensor with the LCD protection film. If the sensor is covered, you might experience difficulties using the touch screen.

12Getting StartedKey FunctionVOLUME Adjusts all sound volumes; adjusts the ring modeSide viewKey FunctionUSB connector Connects the phone and your PC via the USB cableInternal antenna Receives data from other partiesNote The phone may not be compatible with specific earphone or headset models. The stereo earphones that support common call management features including making and answering calls have not been standardized. Therefore the phone may not be compatible with some stereo earphones.

13Getting StartedGripping the phoneHold the phone in the right position for a call as indicated below:Correct Incorrect xMake sure not to block the internal antenna embedded in the phone. Check the location of the antenna on the illustration on page 12. xMetal accessories can affect the quality of calls.Note If you place your hand over the area where the internal antenna is installed during a call or transmission/reception of data, the signals may be poor and the battery life may drain very fastActivating the phoneGo through the following steps when you turn on the phone for the first time.Learning how to use the phone1. Press and hold the LOCK/PWR key to turn on the phone.2. Tap the android.3. Select and tap a language for the phone and tap Next.4. Tap either Mobile network or Wi-Fi or Wi-Fi only, for Internet connection and tap Next.5. Tap Connect to Wi-Fi network > Next if you want to establish a connection to the Wi-Fi network. Or tap Next if you want to connect to the network later.6. Select and tap an available Wi-Fi network if you have tapped Connect to Wi-Fi network > Next in step 2. Follow the necessary steps to connect to the Wi-Fi network. For more information, refer to page 91.7. Check the mobile network or Wi-Fi network and tap Next.8. Tap See location in applications (such as Maps) using wireless networks to Use Google location, tap Agree for Location consent, and tap Next.9. Tap Google account if you want to set up a Google account and follow the necessary steps, or just tap Next. For more information on creating a Google account, refer to the next section.10. Check how to unlock screen and tap Next in the middle of the screen.11. Check how to view new events in the notification bar and tap Next.12. Tap Tap here to start typing in the middle of the screen if you want to learn how to use the onscreen keyboard and follow the instructions. Or you can tap Skip and learn it later.13. Tap Sync now for Address Book sync. You should insert a SIM/USIM card in the phone. Tap Skip if you want to sync later and tap OK.Note You can do all of these steps later by tapping Tutorial.

14Getting StartedCreating a Google accountAfter finishing learning how to use the phone:1. Tap Settings > Accounts & sync > Add account.2. Tap Google > Next > Create.3. Enter your first name, last name, and user name for the account, and if you finish entering them, tap Next. The user name should be less than 6 or more than 30 characters. You can also select an alternative.4. Tap Next > Connect to Wi-Fi if you have not connected the phone to the Wi-Fi network and follow the instructions.5. Enter a password and enter it again to confirm , and then tap . You should enter at least 8 characters.6. Tap Next.7. Select and tap a security question and enter an answer.8. Enter a secondary email address and tap > Create.9. Tap I agree, Next for the Google Terms of Service.10. Tap Try again if your password is too weak for a password or contains invalid characters.11. Repeat the steps 5 to 9.12. Type the characters that appear on screen and tap > Next.13. Tap Finish setup.Note Steps for connecting to Wi-Fi network and Google location service might not appear if you have already done with them.Using the touch screenRun an application or perform functions with the touch screen. The following finger actions help you easily understand how to use the touch screen and the phone.Tap: Tap once to access a menu or an option.Double tap: Tap an item twice.Drag: Tap and hold your finger on an item and move it without losing contact with the screen.Flick: Place a finger on the screen and move the screen up or down, or left or right.Pinch: Place two fingers on the screen and move them apart to zoom in a picture, a document or a web page, or move them together to zoom out.Select and tap: Tap one in the list of options available.Press and hold: Press a key for a few seconds.Tap Drag

15Getting StartedFlick Press and holdNote Use one finger at a time except when you deal with a picture or a document. The phone will not recognize it when you use more than two fingers at the same time.CAUTION xDo not use sharp tools that can scratch the touch screen. xDo not allow the touch screen to come in contact with water or chemicals. The touch screen may malfunction in humid conditions or in chemicals. xDo not sit on the phone. The touch screen can be damaged.Understanding the home screenHome screen is the starting point to use applications. Access shortcuts, widgets or folders, and display a wallpaper according to your preference.idle modeNote Press B you want to move to the home screen.No. Description1Displays notification and easy settings. Drag down 1.2Moves to the selected page. Tap 2 or flick left or right on the screen.3Opens Shortcuts, Widgets, folders, etc. Tap an icon.4Runs the menu items used frequently. Tap a icon.

16Getting StartedHome screen iconsIcon DescriptionMakes calls.Opens messaging.Accesses the Internet.Opens Applications menu.Note The home screen displays the menu items used frequently as the home screen icons. You can run them easily and immediately.Navigating the home screenThe phone provides seven different screens where you can place items according to your preference.1. Flick the screen from the left to the right or vice versa.2. Tap a desired application or widget to run.Sample home screensNote If you want to change or edit the home screen or to add a widget to the home screen, press n. page 18Screen indicatorsIcon Description Connected to a Wi-Fi networkAn alarm has been set.Sync in progressTTY is active.The GPS is active.There is a message that is not sent.New voicemailBluetooth is connected.Bluetooth is active but not connected to other device.Portable Wi-Fi hotspot is active.USB tethering is active.The speakerphone is active. Strength of signal: The bar becomes bigger when the signal is strong.Airplane mode is active.There is no signal.A call is under way.

17Getting StartedIcon DescriptionThere is a call on hold.There is a missed call. Strength of battery: The greener, the more it is charged.The battery is charging.There is an upcoming event.Music is being played.There is no SIM/USIM card.The phone vibrates when there is an incoming call.The other party cannot listen to you during a call.The phone doesn’t ring when there is an incoming call.The memory disk is full.There is an error.Navigating the notification and easy setting screenThe Easy Settings and Notification help manage a few important functions easily and check ongoing events such network, GPS, alarm, or soune setting or the current running applications.1. Drag the top of the home screen down.2. Tap an icon in Easy Setting that you want to run. The icon turns orange when the function is on.3. Tap or drag up the bottom of the home screen to close the Easy Setting and notification mode.

18Getting StartedCustomizing the home screenAdding a shortcut1. Press and hold on an empty space on the home screen.2. Tap Shortcuts.3. Select and tap an item among those in the list to place on the home screen as a shortcut.Note You can also make a shortcut of an application by pressing and holding the application in Applications.Adding a widget1. Press and hold an empty space on the screen.2. Tap Widgets.3. Tap either Pantech Widgets or Android Widgets.4. Select and tap an item among those in the list to place on the home screen as a shortcut.Pantech Widgets Android Widgets Note Make sure to secure enough room on the screen for a widget. Depending on the type of the widget, you have to delete another widget or shortcut or rearrange them.Adding a folder1. Press and hold an empty space on the home screen.2. Tap Folders.3. Select and tap an item among those in the list to place on the home screen as a shortcut.

19Getting StartedAdding a wallpaper from the Gallery1. Press and hold an empty space on the home screen and tap Wallpapers, or press n in idle mode and tap Wallpaper.2. Tap Gallery.3. Select and tap a picture and adjust the size.4. Tap Save.Note If you want to create a live wallpaper, tap Wallpapers > Live wallpapers, select a wallpaper and tap Set wallpaper. Please remember that Maps consumes the battery relatively quickly. Even if you select wallpaper other than Maps, it is recommended that you save the battery consumption by tapping Force stop (Tap Settings > Applications > Manage applications > Maps).Deleting a shortcut or a widget from the home screen1. Press and hold a shortcut or widget you want to delete.2. Drag it to the trash bin on the bottom of the screen and release it.Changing the home screen theme1. Press n in idle mode and tap Themes. The User theme (Unsaved) is selected by default.2. Select and tap a home screen theme among contextual themes and tap Done.3. Tap Yes in the saving theme screen, enter a new user theme name and tap Done. The home screen appears under the new name.Deleting the user theme from the home screen1. Press n in idle mode and tap Themes.2. Press n and tap Delete.3. Select and tap one of the personal themes.4. Tap Done.Changing the order of screens1. Press and hold n in idle mode.2. Press and hold a screen and drag it to the new position.3. Tap a screen or press o or l if you want to go back to the home screen.Note You can also change the order of screens by pinching to zoom the screen in.Selecting the language1. Press n in idle mode.2. Tap Settings > Language & keyboard > Select language.3. Select and tap a language that you want to use for the phone.Note We recommend to set the language option first before using other functions.Understanding the applications menuWhen you download an application in the phone, it will be added to the applications menu.Changing the view mode

20Getting Started1. Tap on the bottom of the home screen.2. Press n and tap List View if in the Alphabetic Grid, User Defined Grid, or Date Grid view mode.3. Press n and tap Alphabetic Grid, User Defined Grid, or Date Grid to see applications at a glance if in the list view mode.Sorting applications1. Tap on the bottom of the home screen.2. Press n and tap Sort.3. Select and tap Alphabetic Grid, User Defined Grid, or Date Grid. Sorting function is not available in the list view.Rearranging applications (User Defined Grid view only) 1. Tap on the bottom of the home screen.2. Press n and tap Rearrange. 3. Press and hold an application and drag it to its new location. If you want to undo your changes, press n and tap Reset.Changing the background image (Grid view only) 1. Tap on the bottom of the home screen.2. Press n and tap Background.3. Flick the screen left or right and tap an image you want to change.4. Tap OK.Uninstalling applications (Grid view only)1. Tap on the bottom of the home screen.2. Press n and tap Uninstall. The removable downloaded applications will appear. Uninstalling function is not available in the list view.3. Tap an application you want to uninstall.4. Tap OK.5. Press n and tap Exit if you want to return to the applications menu.Adding an application shortcut to the home screen1. Tap on the bottom of the home screen.2. Press and hold an application you want to place as a shortcut.3. Drag the shortcut to the new position if you want to rearrange.Searching applications 1. Tap on the bottom of the home screen.2. Press m, and enter a word to search.

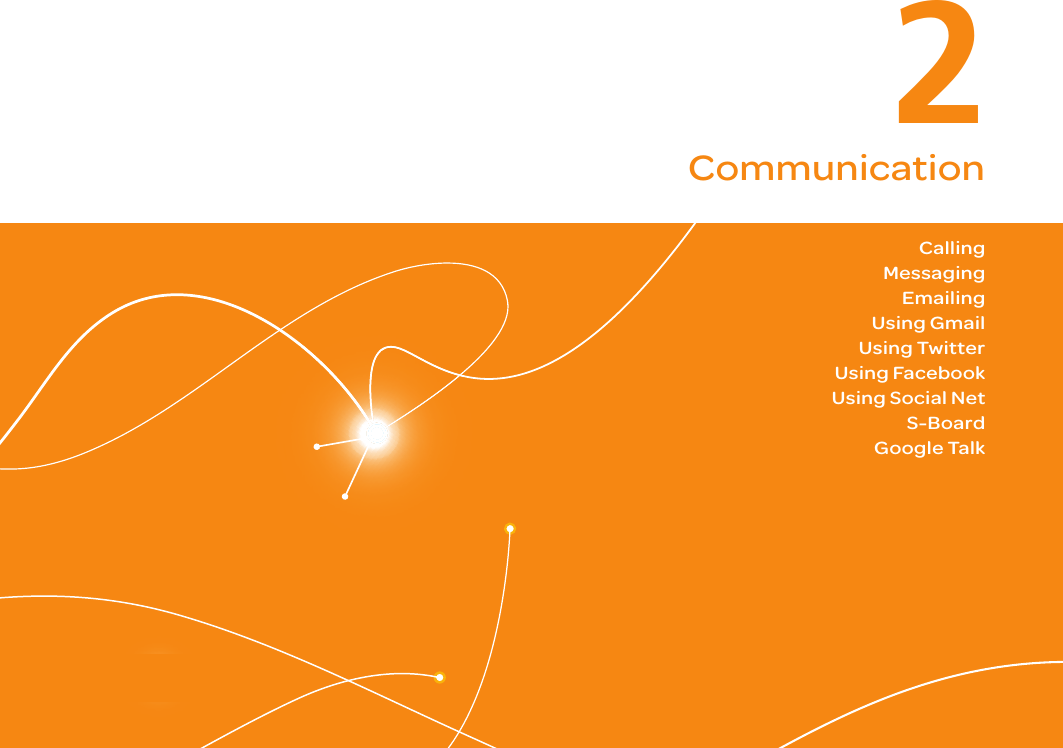

2. Communication2CommunicationCallingMessagingEmailingUsing GmailUsing TwitterUsing FacebookUsing Social NetS-BoardGoogle Talk

22CommunicationCallingMaking a call1. Tap on the bottom of the home screen.2. Enter the area code and the phone number. Tap to delete the previous number. Press and hold to delete the whole number.3. Tap on the top of the screen.Answering and ending a call1. Drag to the right to answer the call.2. Tap to end a call during the conversation. After ending a call, its summary is shortly displayed.Adjusting the volume1. Press the volume key + to increase the volume during a call. Press the volume key - to decrease the volume during a call.Note Press the volume key in idle mode if you want to adjust the ringer volume. If you want to set it to the vibration mode, press the volume key all the way down until the mode appears.Holding and unholding a call1. Tap Hold during a call. The party will hear nothing.2. Tap Unhold to resume the call.3. Tap End to finish the call.Turning Noise Suppression on/off1. Press n during holding a call.2. Select and tap an option you want.Swapping a call for a multiparty call1. Tap Add call during a call. The first party will hear a waiting sound.2. Tap Swap to change the calling party.3. Tap End to finish the call.Making a conference call1. Tap on the bottom of the home screen.2. Enter the area code and the phone number.3. Tap Add call to invite a third party to the call.4. Tap Merge calls to let all the parties to participate in the conversation.

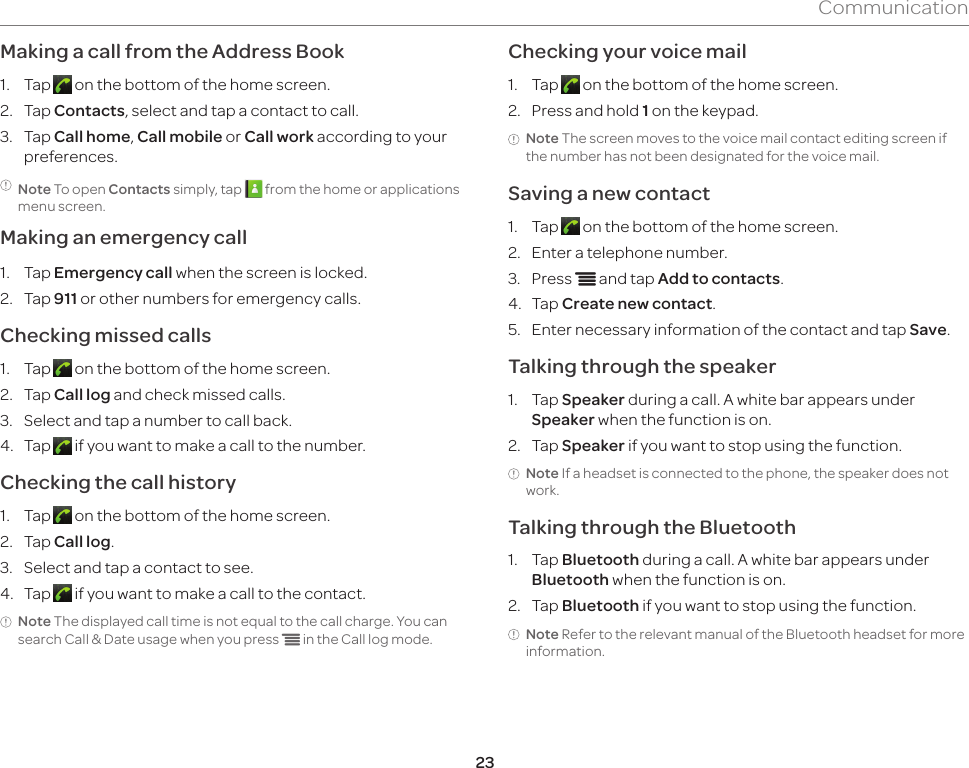

23CommunicationMaking a call from the Address Book1. Tap on the bottom of the home screen.2. Tap Contacts, select and tap a contact to call.3. Tap Call home, Call mobile or Call work according to your preferences.Note To open Contacts simply, tap from the home or applications menu screen.Making an emergency call1. Tap Emergency call when the screen is locked.2. Tap 911 or other numbers for emergency calls.Checking missed calls1. Tap on the bottom of the home screen.2. Tap Call log and check missed calls.3. Select and tap a number to call back.4. Tap if you want to make a call to the number.Checking the call history1. Tap on the bottom of the home screen.2. Tap Call log.3. Select and tap a contact to see.4. Tap if you want to make a call to the contact.Note The displayed call time is not equal to the call charge. You can search Call & Date usage when you press n in the Call log mode.Checking your voice mail1. Tap on the bottom of the home screen.2. Press and hold 1 on the keypad.Note The screen moves to the voice mail contact editing screen if the number has not been designated for the voice mail.Saving a new contact1. Tap on the bottom of the home screen.2. Enter a telephone number.3. Press n and tap Add to contacts. 4. Tap Create new contact.5. Enter necessary information of the contact and tap Save.Talking through the speaker1. Tap Speaker during a call. A white bar appears under Speaker when the function is on.2. Tap Speaker if you want to stop using the function.Note If a headset is connected to the phone, the speaker does not work.Talking through the Bluetooth1. Tap Bluetooth during a call. A white bar appears under Bluetooth when the function is on.2. Tap Bluetooth if you want to stop using the function.Note Refer to the relevant manual of the Bluetooth headset for more information.

24CommunicationMuting the phone1. Tap Mute during a call. A white bar appears under Mute when the function is on.2. Tap Mute if you want to turn off the function.Adding a call1. Tap Add call to make a call to another party during a call with a party.2. Enter the telephone number and tap .Note The current call is held when you make a call with another party.Using the Yellow Pages1. Tap on the home screen.2. Tap > YP.3. Tap Change (You can specify the location where you want to find business).If you don’t change, it would do a search near current location by default.4. Select and tap a business name that you want to see from each category, or enter a business name and tap .MessagingSending a new message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number or tap , > a contact > Done. Enter another recipient's number or tap if you want to send a message to multi people.4. Tap in the message field and then enter a message using the virtual keyboard.5. Tap Send.Note A failed message remains in the list. If you want to delete it, press and hold the message and tap Delete. To send a new message, you can also press n and tap New message.Entering a message using voice1. Tap Messaging from the applications menu.2. Tap New Message and tap in the body of the text.3. Tap in the virtual keyboard and speak your message.4. Tap Send.Note You can also send a voice message by pressing n and taping Voice mail.Entering a message using the keyboardUse different keyboard settings for different characters.1. Tap Messaging from the applications menu. 2. Tap New message and tap in the body of the text.

25Communication3. Tap to select and enter letters for the message. xWhen is selected, the next letter entered is capitalized. xWhen is selected, all letters entered are capitalized.4. Tap if you want to enter a number or/and common symbols. Tap > if you want to enter complicated symbols.Capital letters Numbers and common symbolsComplicated symbolsCreating a message using Swype1. Tap Messaging from the applications menu.2. Tap New message and tap on the empty space.3. Press and hold in the message field.4. Tap Input method > Swype.5. Drag your finger on the screen and enter a message.Note If you want to change the text input method, press and hold in the message field and tap Input method > Android keyboard.About SwypeSwype is a fast and easy way to enter a message. For example, drag your finger on the screen keyboard as shown and input “Quick.”Entering “Quick”Setting Swype options1. Tap > Options.2. Tap Language if you want to change the language for Swype.3. Tap Word prediction if you want to see predicted words while you enter a message.4. Tap Audio feedback if you want to turn on sounds from Swype.5. Tap Vibrate on keypress if you want the phone to vibrate when you press any key.6. Tap Enable tip indicator if you want to see the flashing indicator for quick help. The check box is selected by default.7. Tap an option in Swype Advanced Settings if you want to select and set. If you tap Ward choice window or Speed vs. accuracy, drag the progress bar left or right and then tap OK.8. Tap Swype help or Tutorial if you need to learn more about how to use Swype.

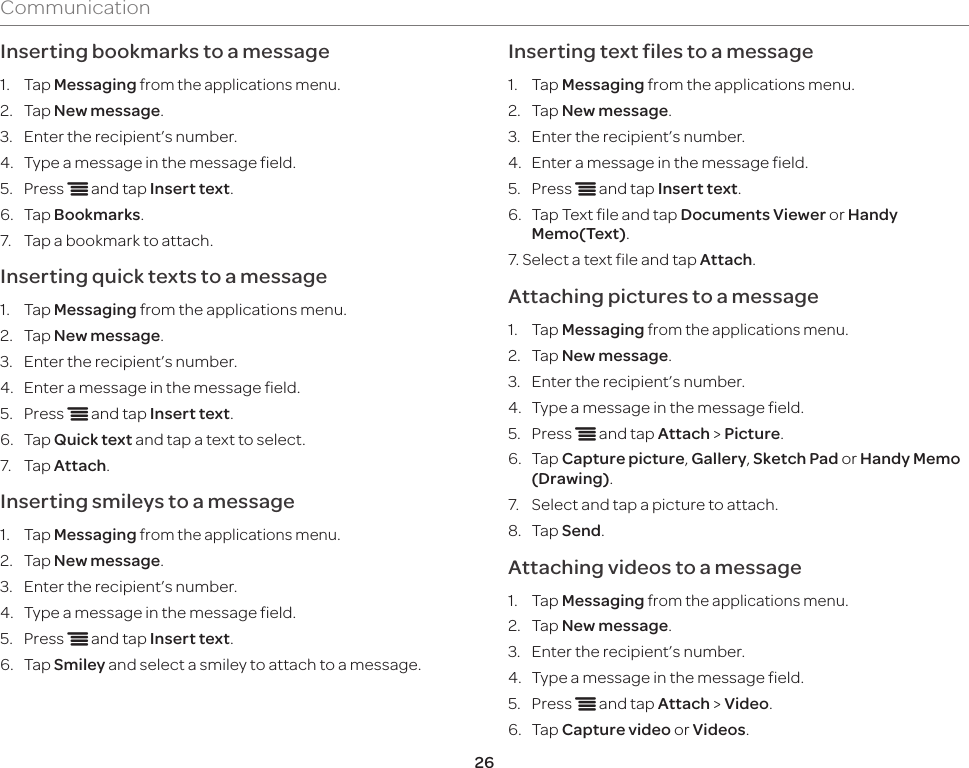

26CommunicationInserting bookmarks to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Type a message in the message field.5. Press n and tap Insert text.6. Tap Bookmarks.7. Tap a bookmark to attach.Inserting quick texts to a message 1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Insert text.6. Tap Quick text and tap a text to select.7. Tap Attach.Inserting smileys to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Type a message in the message field.5. Press n and tap Insert text.6. Tap Smiley and select a smiley to attach to a message.Inserting text files to a message 1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Insert text.6. Tap Text file and tap Documents Viewer or Handy Memo(Text).7. Select a text file and tap Attach.Attaching pictures to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Type a message in the message field.5. Press n and tap Attach > Picture.6. Tap Capture picture, Gallery, Sketch Pad or Handy Memo (Drawing).7. Select and tap a picture to attach.8. Tap Send.Attaching videos to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Type a message in the message field.5. Press n and tap Attach > Video.6. Tap Capture video or Videos.

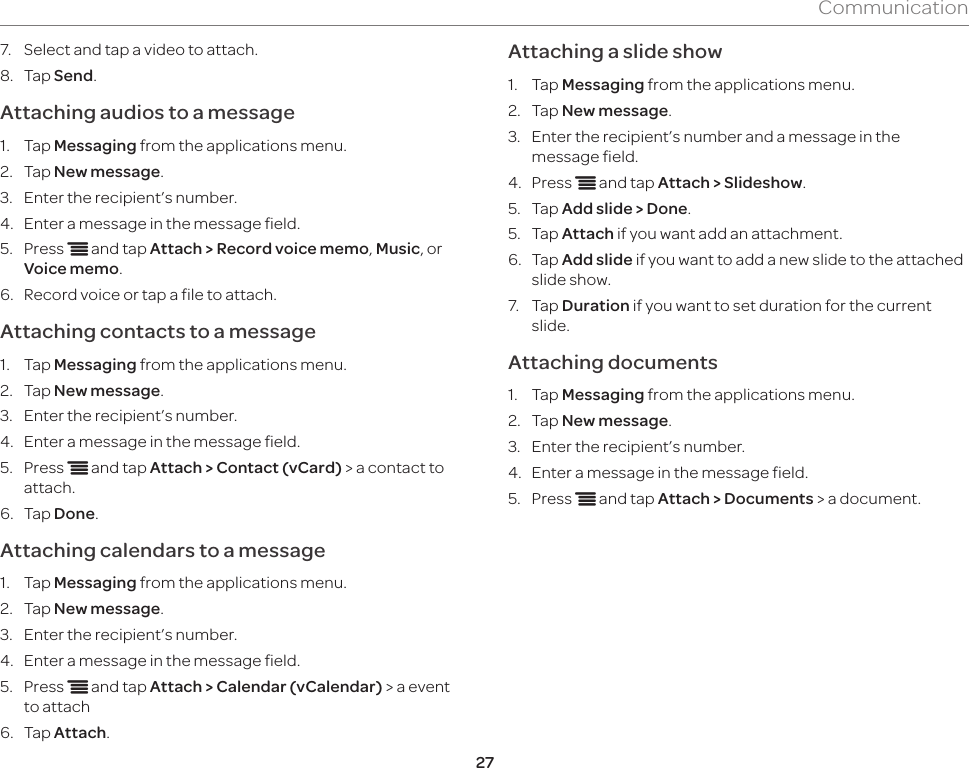

27Communication7. Select and tap a video to attach.8. Tap Send.Attaching audios to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Attach > Record voice memo, Music, or Voice memo.6. Record voice or tap a file to attach.Attaching contacts to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Attach > Contact (vCard) > a contact to attach.6. Tap Done.Attaching calendars to a message1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Attach > Calendar (vCalendar) > a event to attach6. Tap Attach.Attaching a slide show 1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number and a message in the message field.4. Press n and tap Attach > Slideshow.5. Tap Add slide > Done.5. Tap Attach if you want add an attachment.6. Tap Add slide if you want to add a new slide to the attached slide show.7. Tap Duration if you want to set duration for the current slide.Attaching documents1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Attach > Documents > a document.

28CommunicationAttaching locations1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number.4. Enter a message in the message field.5. Press n and tap Attach > Location.6. Tap either Searching for GPS signal or Find on map.7. Place the indicator on the map and tap Done.8. Tap either Address or Google maps Web link.9. Tap Send.Adding cc/bcc 1. Tap Messaging from the applications menu.2. Tap New message.3. Enter the recipient’s number in the To: field.4. Press n > Add cc/bc.5. Tap in the Cc: field and enter a recipient’s number for CC.6. Tap in the Bcc: field and enter a recipient’s number for BCC.Adding templates1. Tap Messaging from the applications menu.2. Tap New message.3. Press n and tap Templates.4. Tap a template > Attach.Viewing received messages 1. Tap Messaging from the applications menu. Unread messages will appear in bold fonts.2. Tap a sender you want to read the messages. The threaded message view will appear.3. Press and hold a message if you want to view and tap Detail view.Replying to a received message1. Tap Messaging from the applications menu.2. Tap a sender you want to reply to.3. Tap in the text box and enter a message using the virtual keyboard.4. Tap Send.Locking/Unlocking messages1. Tap Messaging from the applications menu.2. Tap a sender whose message you want to lock (unlock).3. Press and hold a message that you want to lock (Unlock).4. Tap lock (Unlock).

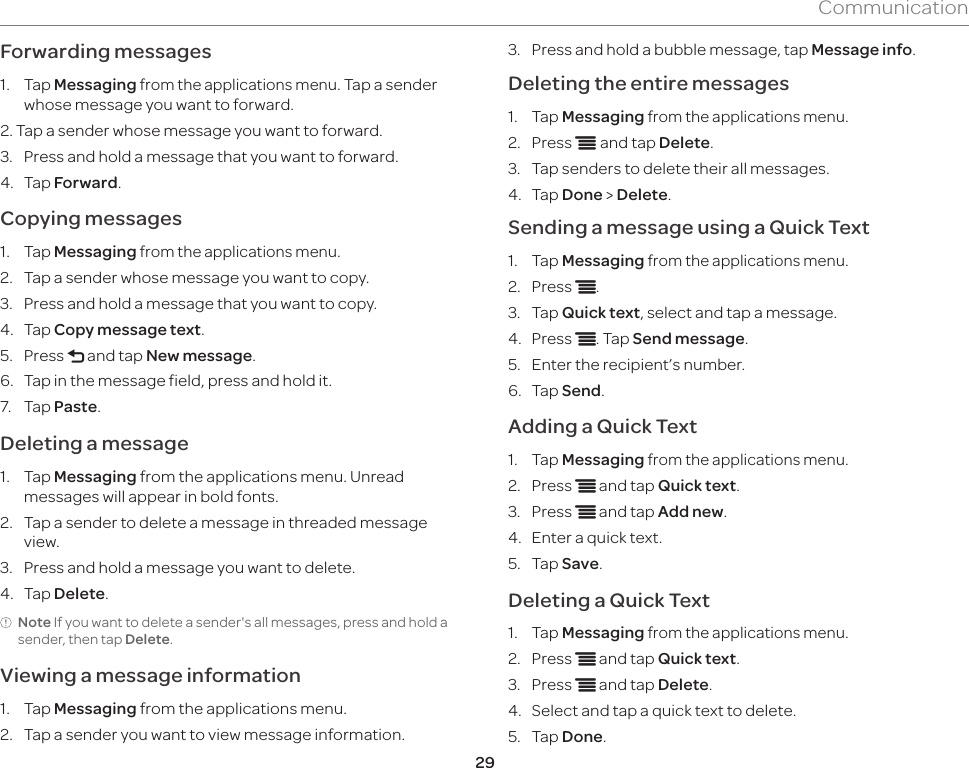

29CommunicationForwarding messages1. Tap Messaging from the applications menu. Tap a sender whose message you want to forward.2. Tap a sender whose message you want to forward.3. Press and hold a message that you want to forward.4. Tap Forward.Copying messages1. Tap Messaging from the applications menu.2. Tap a sender whose message you want to copy.3. Press and hold a message that you want to copy.4. Tap Copy message text.5. Press l and tap New message.6. Tap in the message field, press and hold it.7. Tap Paste.Deleting a message 1. Tap Messaging from the applications menu. Unread messages will appear in bold fonts.2. Tap a sender to delete a message in threaded message view.3. Press and hold a message you want to delete.4. Tap Delete.Note If you want to delete a sender's all messages, press and hold a sender, then tap Delete.Viewing a message information1. Tap Messaging from the applications menu.2. Tap a sender you want to view message information.3. Press and hold a bubble message, tap Message info.Deleting the entire messages1. Tap Messaging from the applications menu.2. Press n and tap Delete.3. Tap senders to delete their all messages.4. Tap Done > Delete.Sending a message using a Quick Text1. Tap Messaging from the applications menu. 2. Press n.3. Tap Quick text, select and tap a message.4. Press n. Tap Send message.5. Enter the recipient’s number.6. Tap Send.Adding a Quick Text1. Tap Messaging from the applications menu.2. Press n and tap Quick text.3. Press n and tap Add new.4. Enter a quick text.5. Tap Save.Deleting a Quick Text1. Tap Messaging from the applications menu.2. Press n and tap Quick text.3. Press n and tap Delete.4. Select and tap a quick text to delete.5. Tap Done.

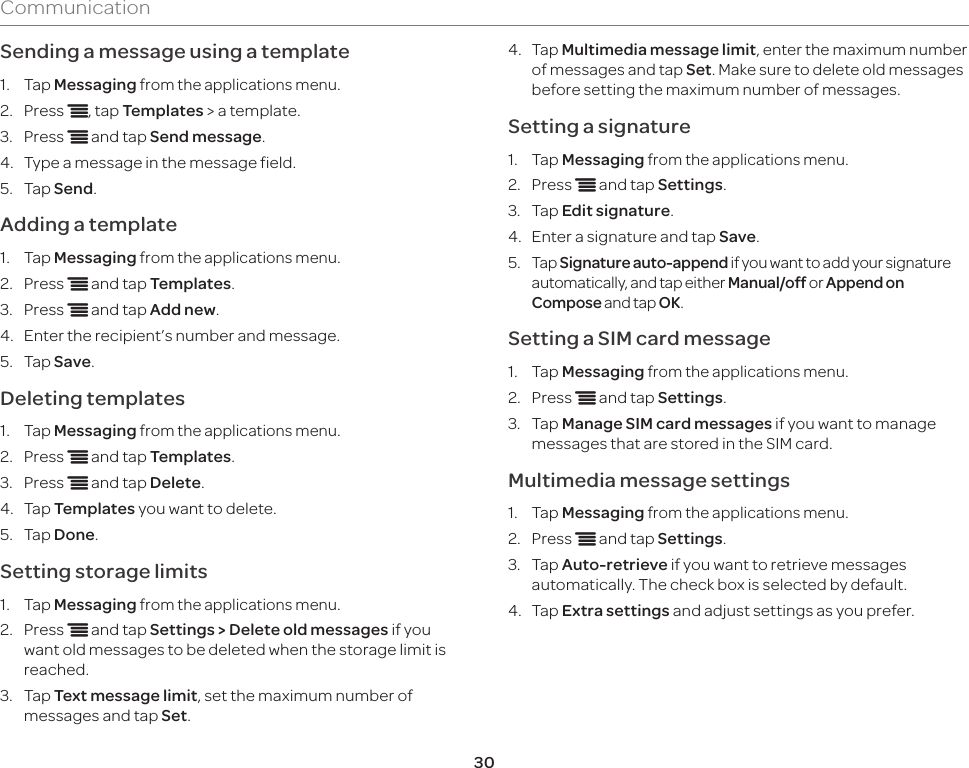

30CommunicationSending a message using a template1. Tap Messaging from the applications menu.2. Press n, tap Templates > a template.3. Press n and tap Send message.4. Type a message in the message field.5. Tap Send.Adding a template1. Tap Messaging from the applications menu.2. Press n and tap Templates.3. Press n and tap Add new. 4. Enter the recipient’s number and message.5. Tap Save.Deleting templates1. Tap Messaging from the applications menu.2. Press n and tap Templates.3. Press n and tap Delete. 4. Tap Templates you want to delete.5. Tap Done.Setting storage limits1. Tap Messaging from the applications menu.2. Press n and tap Settings > Delete old messages if you want old messages to be deleted when the storage limit is reached.3. Tap Text message limit, set the maximum number of messages and tap Set.4. Tap Multimedia message limit, enter the maximum number of messages and tap Set. Make sure to delete old messages before setting the maximum number of messages.Setting a signature1. Tap Messaging from the applications menu.2. Press n and tap Settings.3. Tap Edit signature.4. Enter a signature and tap Save.5. Tap Signature auto-append if you want to add your signature automatically, and tap either Manual/off or Append on Compose and tap OK.Setting a SIM card message1. Tap Messaging from the applications menu.2. Press n and tap Settings.3. Tap Manage SIM card messages if you want to manage messages that are stored in the SIM card.Multimedia message settings1. Tap Messaging from the applications menu.2. Press n and tap Settings.3. Tap Auto-retrieve if you want to retrieve messages automatically. The check box is selected by default.4. Tap Extra settings and adjust settings as you prefer.

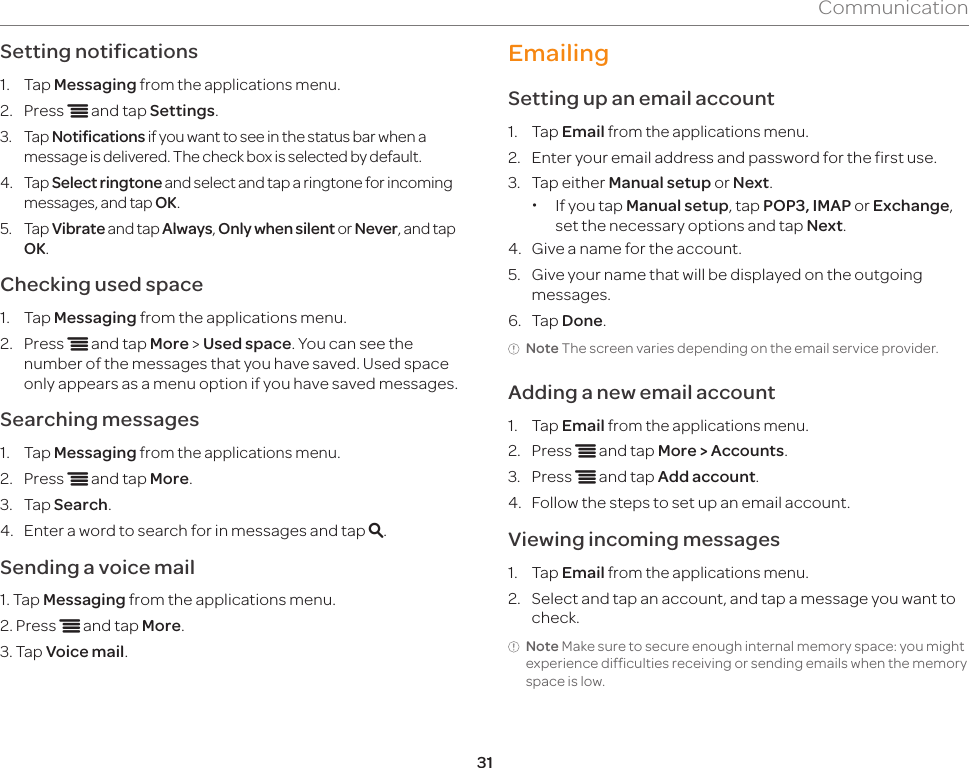

31CommunicationSetting notifications1. Tap Messaging from the applications menu.2. Press n and tap Settings.3. Tap Notifications if you want to see in the status bar when a message is delivered. The check box is selected by default.4. Tap Select ringtone and select and tap a ringtone for incoming messages, and tap OK.5. Tap Vibrate and tap Always, Only when silent or Never, and tap OK.Checking used space1. Tap Messaging from the applications menu.2. Press n and tap More > Used space. You can see the number of the messages that you have saved. Used space only appears as a menu option if you have saved messages.Searching messages1. Tap Messaging from the applications menu.2. Press n and tap More. 3. Tap Search.4. Enter a word to search for in messages and tap m.Sending a voice mail1. Tap Messaging from the applications menu.2. Press n and tap More.3. Tap Voice mail.EmailingSetting up an email account1. Tap Email from the applications menu.2. Enter your email address and password for the first use.3. Tap either Manual setup or Next. xIf you tap Manual setup, tap POP3, IMAP or Exchange, set the necessary options and tap Next.4. Give a name for the account.5. Give your name that will be displayed on the outgoing messages.6. Tap Done.Note The screen varies depending on the email service provider.Adding a new email account1. Tap Email from the applications menu.2. Press n and tap More > Accounts.3. Press n and tap Add account.4. Follow the steps to set up an email account.Viewing incoming messages1. Tap Email from the applications menu.2. Select and tap an account, and tap a message you want to check.Note Make sure to secure enough internal memory space: you might experience difficulties receiving or sending emails when the memory space is low.

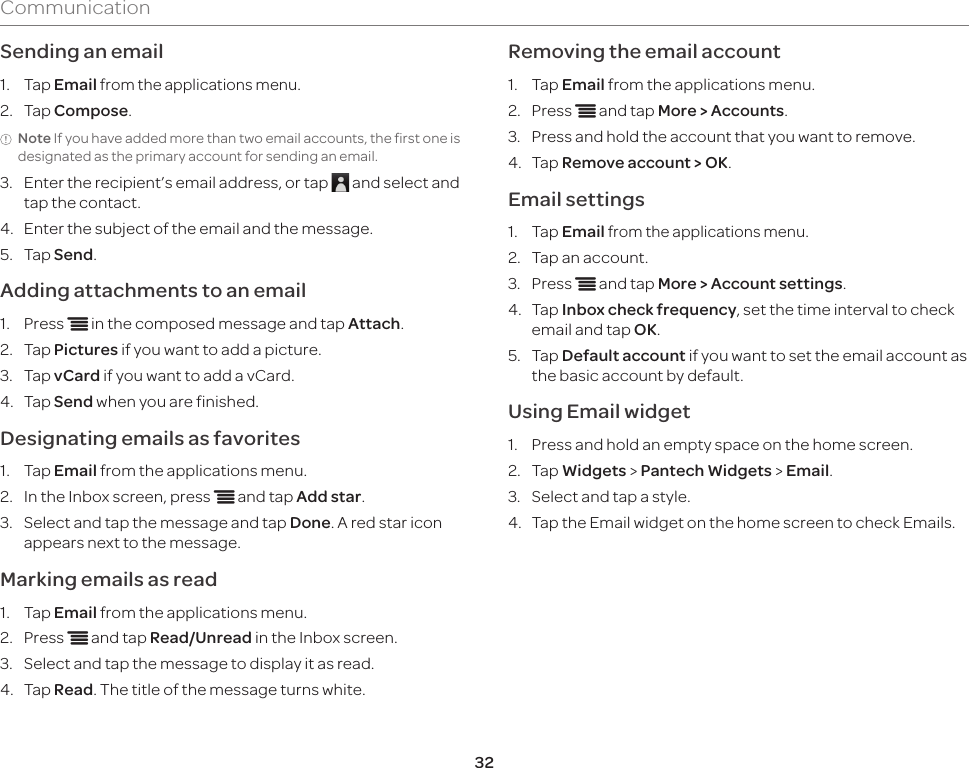

32CommunicationSending an email1. Tap Email from the applications menu.2. Tap Compose.Note If you have added more than two email accounts, the first one is designated as the primary account for sending an email.3. Enter the recipient’s email address, or tap and select and tap the contact.4. Enter the subject of the email and the message.5. Tap Send.Adding attachments to an email1. Press n in the composed message and tap Attach.2. Tap Pictures if you want to add a picture.3. Tap vCard if you want to add a vCard.4. Tap Send when you are finished.Designating emails as favorites1. Tap Email from the applications menu.2. In the Inbox screen, press n and tap Add star.3. Select and tap the message and tap Done. A red star icon appears next to the message.Marking emails as read1. Tap Email from the applications menu.2. Press n and tap Read/Unread in the Inbox screen.3. Select and tap the message to display it as read.4. Tap Read. The title of the message turns white.Removing the email account1. Tap Email from the applications menu.2. Press n and tap More > Accounts.3. Press and hold the account that you want to remove.4. Tap Remove account > OK.Email settings1. Tap Email from the applications menu.2. Tap an account.3. Press n and tap More > Account settings.4. Tap Inbox check frequency, set the time interval to check email and tap OK.5. Tap Default account if you want to set the email account as the basic account by default.Using Email widget1. Press and hold an empty space on the home screen.2. Tap Widgets > Pantech Widgets > Email.3. Select and tap a style.4. Tap the Email widget on the home screen to check Emails.

33CommunicationUsing GmailAdding a Gmail account1. Tap Gmail from the applications menu.2. Tap Next.3. Tap Sign in if you have a Gmail account.4. Enter your user name and password.5. Tap Sign in.Note For more information on adding a Gmail account, refer to Creating a Gmail account on page 14.Reading incoming messages1. Tap Gmail from the applications menu.2. Select and tap the message to read.3. Tap Archive if you want to preserve the message in a separate folder.4. Tap Delete if you want to delete the message.Note You can read messages by label. Press n in the Inbox screen and tap Go to labels.Sending an email through Gmail1. Tap Gmail from the applications menu.2. Press n and tap Compose.3. Enter the recipient’s email address, the subject and the message.4. Tap or press n and tap Send.Designating emails as spam1. Tap Gmail from the applications menu.2. Select and tap an email.3. Press n and tap More.4. Tap Report spam if you want to report the email and put it from your inbox.Setting Gmail options1. Tap Gmail from the applications menu.2. Press n and tap More > Settings.3. Tap Confirm actions, tap Archive, Delete and/or Send to see the confirmation message for each action, and tap OK.4. Tap Reply all if you want to make it default to reply all to incoming messages.5. Tap Email notifications if you want to see if a new mail arrives. The check box is selected by default.Using TwitterJoining in Twitter1. Tap Twitter from the applications menu.2. Tap Sign In, enter Username or email address and password, and tap Sign In again. If you do not have an account, tap Sign Up and follow the necessary steps.

34CommunicationPosting Tweet1. Tap Twitter from the applications menu.2. Tap on the top of the screen.3. Enter a message in the box. You can enter up to 140 words for a message.4. Tap , and select and tap a picture from your gallery if you want to attach a picture for the message. You can take a photo right away by tapping and running the camera.5. Tap Tweet. Posting TweetSending messages1. Tap Twitter from the applications menu.2. Tap on the top of the screen.3. Enter a message in the box.4. Tap .5. Tap the check box next to the recipient you want to send to and tap OK.6. Tap Tweet.Searching Tweets or people1. Tap Twitter from the applications menu.2. Tap .3. Type the keyword in the box and tap . You can also tap one of keywords that appear below the box.Adjusting settings for notifications1. Tap Twitter from the applications menu.2. Press n and tap Settings.3. Tap Tweets if you want to know when there is a new Tweet for your account.4. Tap Vibrate if you want the phone to make vibrations when there is an incoming notification.5. Tap Notification ringtone if you want to assign a ringtone for the notification. Then, select and tap one in the list and tap OK.Adjusting settings for sync1. Tap Twitter from the applications menu.2. Press n and tap Settings.3. Tap Sync Contacts > Sync all > Done if you want to synchronize data about the people you are following to Contacts of the phone.4. Tap Refresh interval, select and tap the time for refreshing Tweets.Using FacebookJoining-in Facebook1. Tap Facebook from the applications menu.2. Tap I agree for the end user license agreement screen.3. Enter your email address and password.4. Tap Login. If you don’t have the account, tap Sign up and follow the necessary steps.5. Select and tap an option for syncing and tap Next.

35Communication6. Tap Finish to complete the process. Tap Back if you want to see the previous screen and change any options.Posting messages1. Tap Facebook from the applications menu.2. Enter a message in the box on the top and tap Share if you want to display a new status to your friends.Note If your friend has posted a new message, it appears first. Then, press l, tap and post a message.Sending messages1. Tap Facebook from the applications menu.2. Tap Messages.3. Press n and tap Compose. Or you can tap to post a message.4. Enter the recipient’s name, or tap , select and tap the check box next to the recipient you want and tap Done.5. Enter the subject and contents of the message.6. Tap Send.First screen Posting a messageAdjusting settings1. Tap Facebook from the applications menu.2. Press n and tap Settings.3. Tap Refresh interval and set the frequency for refreshing.4. Tap Messages if you want to see when a new message arrives. The check box is selected by default.5. Tap Friend requests if you want to see when a friend wants to add you on Facebook. The check box is selected by default.Using Social NetAdding the Social Net widget1. Press and hold an empty space on the home screen.2. Tap Widgets.3. Tap Pantech Widgets > Social Net.4. Select and tap a style.5. Tap the widget on the screen and log in to Twitter, Facebook or MySpace. When updated, the relevant icon changes color.About the Social Net widgetThe Social Net widget helps use the social networking services easily. Check updates in Twitter, MySpace and/or Facebook at a glance and post your messages.

36CommunicationS-BoardForm a group with your friends through S-Board and share contents and logs that you have created using the phone.Sharing media1. Tap S-Board from the applications menu.2. Tap Contents on the top left of the screen.3. Tap a content icon.4. Select content from a corresponding application.5. Move the attached icon.6. Resize the icon if it is resizable.7. Tap Share.Deleting logs1. Tap S-Board from the applications menu.2. Tap Logs.3. Press n and tap Delete Logs.4. Select and tap logs you want to remove.5. Tap Done.Adding members to a group1. Tap S-Board from the applications menu.2. Press n and tap Add members.3. Enter the name or phone number of a member to add to the group. You can also add by tapping , selecting and tapping a contact, and tapping Done.4. Tap Next on the top of the screen.5. Enter a message in the empty space and tap Done.6. Tap Send.Deleting members from a group1. Tap S-Board from the applications menu.2. Press n and tap Delete members.3. Select and tap a member you want to remove.4. Tap Next on the top of the screen.5. Enter a message in the empty space.6. Tap Send.Editing a group1. Tap S-Board from the applications menu.2. Press n and tap Edit group.3. Tap Photo, select and tap a picture from the Gallery.4. Change the name of the group.5. Tap if you want to set the group as your favorite.6. Tap Done.Deleting a group1. Tap S-Board from the applications menu.2. Press n and tap Delete group.3. Tap Yes.4. Enter a message in the empty space.5. Tap Send.

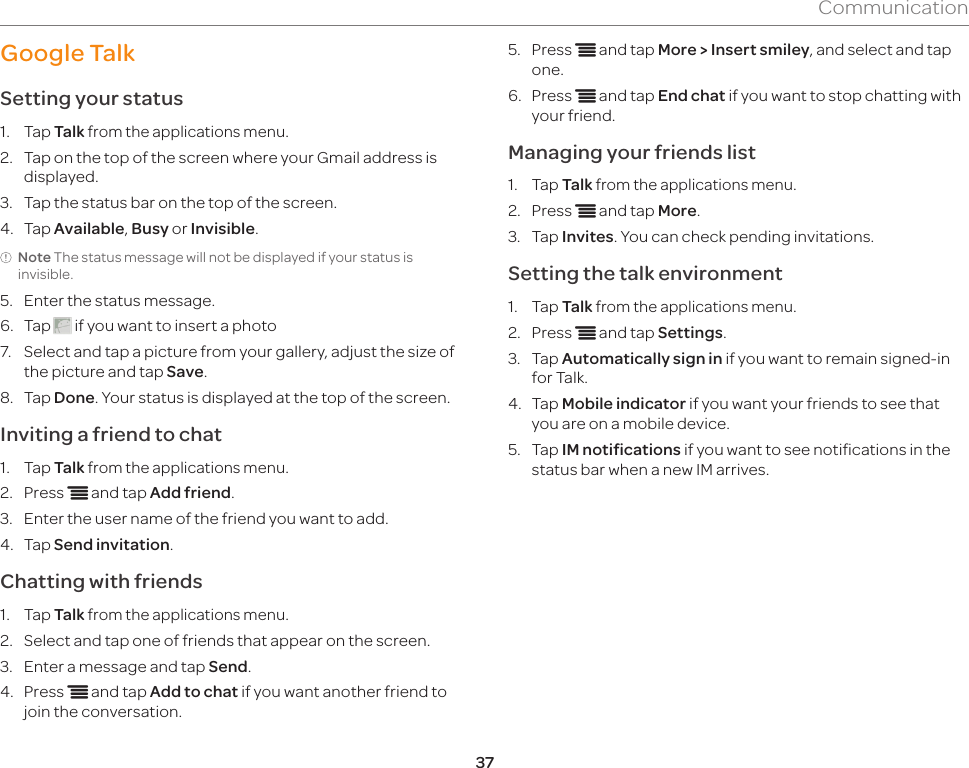

37CommunicationGoogle TalkSetting your status1. Tap Talk from the applications menu.2. Tap on the top of the screen where your Gmail address is displayed.3. Tap the status bar on the top of the screen.4. Tap Available, Busy or Invisible.Note The status message will not be displayed if your status is invisible.5. Enter the status message.6. Tap if you want to insert a photo7. Select and tap a picture from your gallery, adjust the size of the picture and tap Save.8. Tap Done. Your status is displayed at the top of the screen.Inviting a friend to chat1. Tap Talk from the applications menu.2. Press n and tap Add friend.3. Enter the user name of the friend you want to add.4. Tap Send invitation.Chatting with friends1. Tap Talk from the applications menu.2. Select and tap one of friends that appear on the screen.3. Enter a message and tap Send.4. Press n and tap Add to chat if you want another friend to join the conversation.5. Press n and tap More > Insert smiley, and select and tap one.6. Press n and tap End chat if you want to stop chatting with your friend.Managing your friends list1. Tap Talk from the applications menu.2. Press n and tap More.3. Tap Invites. You can check pending invitations.Setting the talk environment1. Tap Talk from the applications menu.2. Press n and tap Settings.3. Tap Automatically sign in if you want to remain signed-in for Talk.4. Tap Mobile indicator if you want your friends to see that you are on a mobile device.5. Tap IM notifications if you want to see notifications in the status bar when a new IM arrives.

3. Entertainment3EntertainmentUsing the cameraUsing the camcorderUsing the galleryUsing the video playerUsing the music playerEnjoying YouTube

39EntertainmentThe phone offers a variety of tools for entertainment purposes.Using the cameraTake pictures with the built-in camera. They can be saved and sent via multimedia messages.Tap any area on the screen to display the camera menu options.Camera menu optionsIcon Name DescriptionShutter Takes a pictureFunction Adds special functions: White Balance, Filter, and timerEffect Adds special effects: Single shot, Multi shot, Division shot, and PolaroidBrightness Adjusts brightnessZoom Zooms the object in or outGallery Views saved picturesIcon Name DescriptionSettingChanges settings: Resolution, Shutter Sound, Focus mode, Store location, Save picture toCamera mode Changes to the camera modeCamcorder mode Changes to the camcorder modeTaking pictures1. Tap Camera. The screen changes to landscape mode by default.2. Tap on the screen and select options if necessary. Option buttons disappear in a few seconds.3. Focus on the object and tap . The shutter sound occurs and the picture is saved automatically.4. Tap Share, Set as or Delete. xShare : Uploads the recorded picture via Bluetooth, Facebook, Gmail, Messaging, Online Locker, Picasa or Twitter. xSet as: Sets as Wallpaper or Contact icon. xDelete: Deletes the saved picture.5. Press C if you want to take another picture.Focusing on the object

40EntertainmentNote The screen moves to Applications if you do not touch the screen or run the camera for two minutes.Adding special functions1. Tap on the screen or press A while in the camera mode.2. Tap and select a special function you want to add.3. Tap Done.White Balance FilterTimerAdding special effects1. Tap on the screen or press n while in the camera mode.2. Tap and select a special function you want to add.3. Tap Done.Note When the phone turns off or exits in the camera mode, the current effects setting returns to the default setting.Adjusting brightness1. Tap on the screen or press n while in the camera mode.2. Tap .3. Drag to the left to reduce brightness, or to the right to increase brightness.Zooming in/out1. Tap on the screen or press n while in the camera mode.2. Tap .3. Drag to the left to zoom out, or to the right to zoom in.Moving to Gallery1. Press .The current screen moves to Gallery > Camera > Grid view.2. Select a picture you want to view.

41EntertainmentChanging settings1. Tap on the screen or press n while in the camera mode.2. Tap .3. Tap Resolution and adjust the resolution from 640x480 to 2560x1920.4. Tap Shutter Sound if you want to make sound when taking a picture. The check box is selected by default.5. Tap Focus mode, and tap Auto, Infinity or Macro.6. Tap Store location if you want to take a picture with geo-information. The GPS icon will appear on the top of the screen. Tap GPS > GPS Searching.7. Tap Save picture to if you want to take a picture with the saving location.Sharing pictures1. Tap on the screen and tap while in the camera mode, or tap Gallery in Applications.2. Press and hold a picture to share. If you want to share all pictures, tap Select All. You can also select a few pictures.3. Tap Share.4. Tap Facebook, Bluetooth, Twitter, Picasa, Online Locker, Gmail, or Messaging.Cropping a picture1. Tap on the screen and tap while in the camera mode or tap Gallery in Applications.2. Select and tap a picture to crop.3. Tap Menu > More > Crop.4. Adjust the size of the picture and tap Save.Setting a picture as wallpaper1. Tap on the screen and tap while in the camera mode or tap Gallery in Applications.2. Select and tap a picture to set as wallpaper.3. Tap Menu > More > Set as > Wallpaper.4. Adjust the size of the picture and tap Save.Assigning a picture to a contact1. Tap on the screen and tap while in the camera mode or tap Gallery in Applications.2. Select and tap a picture to assign to a contact.3. Tap Menu > More > Set as > Contact icon.4. Select and tap a contact to set the picture for its icon.5. Adjust the size of the picture and tap Save.Deleting pictures1. Tap while in the camera mode or tap Gallery in Applications.2. Press and hold a picture to delete. If you want to delete all pictures, tap Select All. You can also select a few pictures.3. Tap Delete > Confirm Delete.

42EntertainmentUsing the camcorderRecord videos with the built-in camera. They can be saved and sent via multimedia messages. Tap any area on the screen to display the camcorder menu options.Camcorder menu optionsIcon Name DescriptionVideo Records a videoFunction Uses functions: White Balance, Filter, DurationBrightness Adjusts brightnessZoom Zooms the object in or outGallery Views saved videosSettings Changes settings: Resolution, Shutter Sound, Save video toCamera mode Changes to the camera modeCamcorder mode Changes to the camcorder modeRecording videos1. Tap Camcorder from the applications menu. The screen changes to landscape mode by default.2. Tap on the screen and select options if necessary. Option buttons disappear in a few seconds. 3. Focus on the object and press . The recording start sound occurs. Press C if you want to cancel recording.4. Tap to stop recording. The recording end sound occurs.5. Tap Share, Play or Delete. xShare : Uploads the recorded video via Bluetooth, Gmail, Messaging, Online Locker, or YouTube. xPlay: Plays back the recorded video. xDelete: Deletes the recorded video.6. Press C if you want to record another video.Recording a videoNote The screen moves to Applications if you do not touch the screen or run an application for two minutes. The camcorder screen is set to landscape mode only. If you have an incoming call while recording a video, the phone will stop recording and save it.Recording videos for a certain period of time1. Tap on the screen while in the camcorder mode.2. Tap and tap Duration.

43Entertainment3. Select and tap a time duration and tap Done.4. Tap . The video will record for the selected duration.Adding special functions1. Tap on the screen or press n while in the camcorder mode.2. Tap and select a special function.3. Tap Done.Note The camcorder mode does not support Effect and GPS.Adjusting brightness1. Tap on the screen while in the camcorder mode.2. Tap .3. Drag to the left to reduce brightness, or to the right to increase brightness.Zooming in/out1. Tap on the screen while in the camcorder mode.2. Tap .3. Drag to the left to zoom out, or to the right to zoom in.Changing settings1. Tap on the screen while in the camcorder mode.2. Tap .3. Tap Resolution and adjust the resolution from 176x144 (QCIF) to 1280x720 (720P).4. Tap Shutter Sound if you want to make a sound when taking a video. The check box is selected by default.5. Tap Save video to if you want to record a video with the saving location.Sharing videos1. Tap on the screen and tap while in the camcorder mode, or tap Gallery in Applications.2. Tap on the first video on the screen.3. Press and hold a video to share. If you want to share all videos, tap Select All. You can also select a few videos.4. Tap Share.5. Tap Bluetooth, YouTube, Online Locker, Gmail, or Messaging.Selecting a video Sharing a video

44EntertainmentDeleting videos1. Tap on the screen and tap while in the camcorder mode or tap Gallery in Applications.2. Tap on the first video on the screen.3. Press and hold a video to delete. If you want to delete all videos, tap Select All. You can also select a few videos.4. Tap Delete > Confirm Delete.Using the galleryYou can see pictures or videos stored in your product.Viewing pictures1. Tap Gallery from the applications menu.2. Select and tap a picture to view.3. Tap the image on the screen to zoom in or out. Double-tap on the screen to zoom in to the maximum.4. Flick the screen to the left or right if you want to see other pictures.Note Functions of the gallery disappear in a few seconds. Tap on the screen if you want to see functions available.Viewing pictures in a slideshow1. Tap Gallery from the applications menu.2. Select and tap the pictures that you want to view in a slideshow.3. Tap Slideshow.4. Tap on the screen if you want to stop the slideshow.5. Tap on the screen and tap Slideshow if you want to resume the slideshow.Viewing videos1. Tap Gallery from the applications menu.2. Select a video to view. An item with is a video.3. Tap on the screen to pause, fast-forward or rewind the video.Video Player settings1. Press n while a video is playing through Video Player.2. Tap Settings.3. Tap Caption language if you want to change the caption language. The default language is English. You can activate it during playback. 4. Tap Repeat if you want to repeat the video playback and tap Repeat all, Repeat single movie, or Repeat off.5. Tap Sound Effect, select and tap an effect from the 3D sounds and equalizer, and tap Done.Using the video player

45EntertainmentViewing a video1. Tap Video Player from the applications menu.2. Tap All or Folder.3. Press and hold a video you want to view. 4. Tap Play. The selected video plays back in full view.5. Tap any area on the screen during playback if you want to display the video player options.Note You can just tap a video from the list to view. To view some videos sequentially, press n in the video list mode and tap Play Selected Items.Video Player iconsIcon Name DescriptionBookmark Displays the thumbnail video clipsRewindPress if you want to move the previous file. Press and hold if you want to rewind the current video.Play Plays the videoPause Pauses the videoIcon Name DescriptionFast-forwardPress if you want to move to the next file. Press and hold if you want to forward fast the current video.Resize Adjusts the screen size.Deleting a video1. Tap Video Player from the applications menu.2. Tap All or Folder.3. Press and hold a video you want to delete. 4. Tap Delete. 5. Tap Yes.Note To delete some videos at a time, press n in the video list mode and tap Delete.Sharing videos1. Tap Video Player from the applications menu.2. Tap All or Folder.3. Press and hold a video you want to share. 4. Press n and tap Share.5. Select and tap Bluetooth, Facebook, Gmail, Messaging, Online Locker, or YouTube.Viewing properties1. Tap Video Player from the applications menu.2. Tap All or Folder.3. Press and hold a video whose property you want to view. 4. Press n.

46Entertainment5. Tap Properties.Video player setting1. Tap Video Player from the applications menu.2. Tap All or Folder.3. Press n and tap Setting.4. Select and tap a video player setting option you want. 5. Select and tap an item.Using the music playerEnjoy music on the phone. Make sure to insert a microSD card to transfer music to the phone and listen to it.Listening to music1. Tap Music Player from the applications menu.2. Select and tap a file from the list to listen to. Files that the phone offers include MP3, AAC, AAC+, eAAC+, WMA, OGG, etc.Note Press and hold the artist name, album title or song title if you want to search for related information with Music Player, Web or YouTube.Music Player iconsIcon DescriptionRates the fileNowplaying list bar Progress barRandom play music on/off togglePauses and plays a fileMoves to the next/previous fileFast-forwards or rewinds the file if you press and hold : Repeat All / : Repeat One / : Repeat Off Playing back music in shuffle1. Tap Music Player from the applications menu.2. Press n and tap Settings.3. Select and tap Shuffle.Adding sound effects1. Tap Music Player from the applications menu.2. Press n and tap Settings.3. Tap Sound Effect.4. Add sound effects according to your preferences.5. Tap Done.Controlling volume1. Tap Music Player from the applications menu.2. Press Volume key and the volume controller appears.

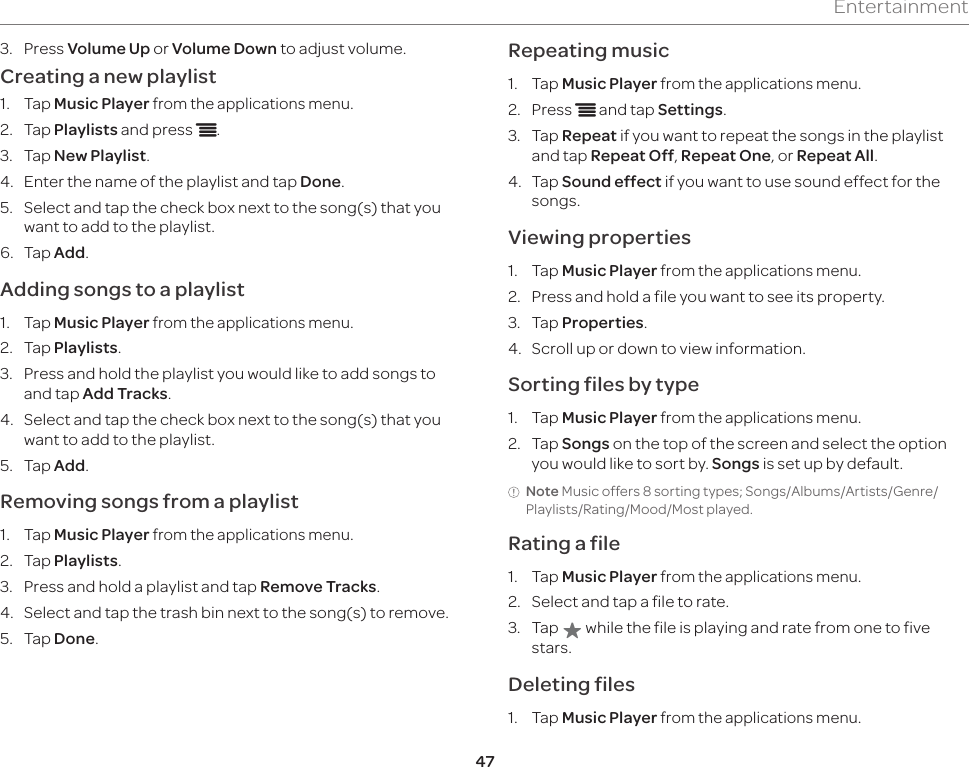

47Entertainment3. Press Volume Up or Volume Down to adjust volume.Creating a new playlist1. Tap Music Player from the applications menu.2. Tap Playlists and press n.3. Tap New Playlist.4. Enter the name of the playlist and tap Done.5. Select and tap the check box next to the song(s) that you want to add to the playlist.6. Tap Add.Adding songs to a playlist1. Tap Music Player from the applications menu.2. Tap Playlists.3. Press and hold the playlist you would like to add songs to and tap Add Tracks.4. Select and tap the check box next to the song(s) that you want to add to the playlist.5. Tap Add.Removing songs from a playlist1. Tap Music Player from the applications menu.2. Tap Playlists.3. Press and hold a playlist and tap Remove Tracks.4. Select and tap the trash bin next to the song(s) to remove.5. Tap Done.Repeating music1. Tap Music Player from the applications menu.2. Press n and tap Settings.3. Tap Repeat if you want to repeat the songs in the playlist and tap Repeat Off, Repeat One, or Repeat All.4. Tap Sound effect if you want to use sound effect for the songs.Viewing properties1. Tap Music Player from the applications menu.2. Press and hold a file you want to see its property.3. Tap Properties.4. Scroll up or down to view information.Sorting files by type1. Tap Music Player from the applications menu.2. Tap Songs on the top of the screen and select the option you would like to sort by. Songs is set up by default.Note Music offers 8 sorting types; Songs/Albums/Artists/Genre/Playlists/Rating/Mood/Most played.Rating a file1. Tap Music Player from the applications menu.2. Select and tap a file to rate.3. Tap while the file is playing and rate from one to five stars.Deleting files1. Tap Music Player from the applications menu.

48Entertainment2. Press n and tap Delete.3. Select and tap the trash bin next to the file you want to delete.4. Tap Done.Note You can also delete the song while playing back.Using Music widget1. Press and hold an empty space on the home screen.2. Tap Widgets > Pantech Widgets > Music.3. Select and tap a style.4. Tap the Music widget on the home screen. Enjoying YouTubeWatching videos1. Tap YouTube from the applications menu.2. Select and tap a video to watch. 3. Double-tap the screen to watch the video in full screen.Uploading videos1. Tap YouTube from the applications menu.2. Press n and tap Upload.3. Select and tap a video to upload.4. Set a title for the video and tap Upload.Checking upload status1. Tap on the top of the screen and drag it down while the video is being uploaded.2. Tap Uploading. You can see the status of the upload.3. Press n and tap Pause uploads if you want to pause uploading. Press n and tap Resume uploads if you want to resume upload.4. Tap the video on the top of the screen and tap Cancel if you want to cancel the upload.Creating a YouTube account1. Tap YouTube from the applications menu.2. Press n and tap My Channel > Add account.3. Tap here on the bottom of the YouTube sign-in screen.4. Follow the steps to create an account.Sharing videos1. Tap YouTube from the applications menu.2. Select and tap a video to share.3. Tap More > Share on the top of the screen.4. Tap Bluetooth, Email, Facebook, Gmail, Messaging or Twitter.Watching videos by category1. Tap YouTube from the applications menu.2. Press n and tap Browse.3. Select and tap a category.

49Entertainment4. Flick the screen to scroll, select and tap a video to watch.Watching videos by upload date1. Tap YouTube from the applications menu.2. Press n and tap Browse.3. Select and tap a category.4. Tap This week on the top of the screen.5. Select and tap one among time intervals.Viewing my account information1. Tap YouTube from the applications menu.2. Press n and tap My Channel.3. Tap your Google account. You can tap Add account and add an account for YouTube. 4. Tap each item for your account including Uploads, Favorites, Playlists and Subscriptions.YouTube Settings1. Tap YouTube from the applications menu.2. Press n and tap Settings.3. Tap High quality on mobile if you want to watch high-quality videos.4. Tap Caption font size and select and tap the font size if you want to adjust the size of the font.5. Tap Clear search history if you want to remove search history from the search box and tap OK.6. Tap SafeSearch filtering if you want to block videos that contain restricted content, and select and tap the filtering option.

504. Personal Information4Personal InformationManaging contactsUsing the calendarUsing a memoUsing a voice memo

51Personal InformationThis chapter explains how to manage contacts and to communicate via memos.Managing contactsViewing contacts information1. Tap Contacts from the applications menu.2. Select and tap a contact for more information.Note To view the contact menu items simply, press and hold a contact. The phone displays View, Edit, Share, Options, Add to favorites, and Delete. Creating contacts1. Tap Contacts from the applications menu.2. Tap Create new contact.3. Enter related information and tap Save.Note You can create a contact by entering the telephone number first. Tap , enter a telephone number, press n and tap Add to contacts > Create new contact.Editing contacts1. Tap Contacts from the applications menu.2. Press and hold a contact to edit, and tap Edit.3. Edit information and tap Save.Sharing contact details1. Tap Contacts from the applications menu.2. Press and hold a contact to share and tap Share.3. Tap Bluetooth, Gmail or Messaging.Setting contact options1. Tap Contacts from the applications menu.2. Press and hold a contact, and tap Options.Note You cannot find option menu when you press and hold a SIM contact.3. Tap Ringtone, select and tap a ringtone for the contact and tap OK.4. Tap Incoming calls if you want to send incoming calls from the contact to voicemail directly.

52Personal InformationAdding to favorite contacts1. Tap Contacts from the applications menu.2. Press and hold a contact to add to favorites, and tap Add to favorites. An orange star appears next to the contact.Note You cannot press and hold a SIM contact.3. Tap Favorites on the top of the screen if you want to see added favorite contacts.Deleting contacts1. Tap Contacts from the applications menu.2. Press and hold a contact to delete and tap Delete.3. Tap Yes.Searching contacts information1. Tap Contacts from the applications menu. 2. Press n and tap Search.3. Enter the name of contact. The search result appears instantly.Setting display options1. Tap Contacts from the applications menu.2. Press n and tap Display options.3. Tap Only contacts with phones if you want to see only contacts with phone numbers.4. Tap Sort list by and tap either Given name or Family name.5. Tap View contact names as to display.6. Tap your account, select and tap the category for system group.7. Tap Done when you are finished.Setting up Address Book1. Tap Contacts from the applications menu. 2. Press n and tap Settings.3. Tap Address Book > OK. Your contacts are backed up to your Address Book and changes to contacts are automatically saved.Managing accounts and sync1. Tap Contacts from the applications menu.2. Press n and tap More > Accounts.3. Tap Background data to allow applications to retrieve data at any time.4. Tap Auto sync if you want to sync data automatically.5. Tap Add account if you want to add an account and follow the next steps for creating accounts.Importing/Exporting contacts information1. Tap Contacts from the applications menu. 2. Press n and tap More > Import/Export.3. Tap Import from SD card, Export to SD card or Share visible contacts. xTap Address Books, SIM or your account if you tapped Import from SD card.

53Personal Information xTap OK if you want to export your contact list to the SD card, if you tapped Export to SD card. xTap Bluetooth, Email, Gmail or Messaging if you tapped Share visible contacts. Follow the next steps to share contacts.4. Tap OK.Using Contacts widget1. Press and hold an empty space on the home screen.2. Tap Widgets > Pantech Widgets >Contacts.3. Select and tap a style. You can select Person or People.4. Tap the Contacts widget on the home screen to view your favorite contacts.Person PeopleNote If you select the People style, you can select up to 30 contacts to add to it.Using the calendarManage your schedule with the calendar. Make sure to have a Google account. For details on Google account, refer to page 14.Creating an event1. Tap Calendar from the applications menu.2. Tap a day in the calendar. (Weekly and Monthly view only)3. Press and hold the time that you want to add an event to and tap New event.4. Enter necessary information. Press n and tap Show extra options if you need more options.5. Tap Done.Note You can also create an event by pressing n and tapping More > New event.Viewing the calendar1. Tap Calendar from the applications menu.2. Tap a day that you want to view events for the day. A blue dot indicates an event for a day.3. Press n and tap Week or Month if you want to see events for a weekly or monthly basis.4. Tap Today if you want to view events for today.5. Tap Agenda if you want to see events in the text mode.

54Personal InformationMonthly view Day viewWeekly view AgendaCalendar iconsIcon DescriptionTodayDay with eventsHighlighted dayHighlighted day with eventsSetting reminders1. Tap Calendar from the applications menu.2. Press n and tap More > Settings.3. Tap Set alerts & notifications and select and tap an option if you want to change the notification method.4. Tap Select ringtone if you want to set a specific ringtone for calendar reminders, and select and tap one.Editing events1. Tap Calendar from the applications menu.2. Tap the day that you want to edit events.3. Press the event that you want to edit.4. Press n and tap Edit event.5. Edit the details and tap Done.Editing an event

55Personal InformationUsing a memoWrite a memo with your finger, the keypad or your voice. Make sure to insert a microSD card to use the memo.Creating a new text memo1. Tap Handy Memo from the applications menu. 2. Enter a memo. If there are saved memos, tap Create new > Text memo.3. Tap Save.Drawing a new handy memo1. Tap Handy Memo from the applications menu.2. Press n and tap Hand drawing memo. If there are saved memos, tap Create new > Hand drawing memo.3. Draw a memo with your finger and adjust the thickness of the pencil and the eraser.4. Tap Save.Editing a memo1. Tap Handy Memo from the applications menu.2. Press and hold a memo to edit and tap Edit.3. Edit the memo and tap Save.Sharing a memo1. Tap Handy Memo from the applications menu.2. Press and hold a memo to share, and tap Share.3. Tap Bluetooth, Facebook, Gmail, Messaging or Twitter for the text memo. Tap Bluetooth, Facebook, Gmail, Messaging, Online Locker, Picasa, or Twitter for the drawing memo.Deleting a memo1. Tap Handy Memo from the applications menu.2. Press and hold a memo to delete, and tap Delete.3. Tap Yes.Using Memo widget1. Press and hold an empty space on the home screen.2. Tap Widgets > Pantech Widgets > Memo.3. Select the text or drawing memos and tap Done.4. Tap the memo widget on the home screen. The expanded view appears. Flick or drag left or right to move to the previous or next page.

56Personal InformationUsing a voice memoRecording voice1. Tap Voice Memo from the applications menu.2. Tap to start recording your voice.3. Tap to stop recording your voice.Note Once you have recorded a voice memo, the screen to play it appears. Tap to replay the recorded voice memo. Press C if you want to record a new voice memo. If you have an incoming call while recording a voice, the current recorded voice is saved automatically.Ready to record Recording startsListening to recorded voices1. Tap Voice Memo from the applications menu.2. Tap Open.3. Select and tap a memo to listen.4. Tap .Sharing a voice memo1. Tap Voice Memo from the applications menu.2. Tap Open.3. Press and hold a memo to share, and tap Share.4. Tap Bluetooth, Gmail, or Messaging.Deleting a voice memo1. Tap Voice Memo from the applications menu.2. Tap Open.3. Press and hold a memo to delete, and tap Delete > Yes.

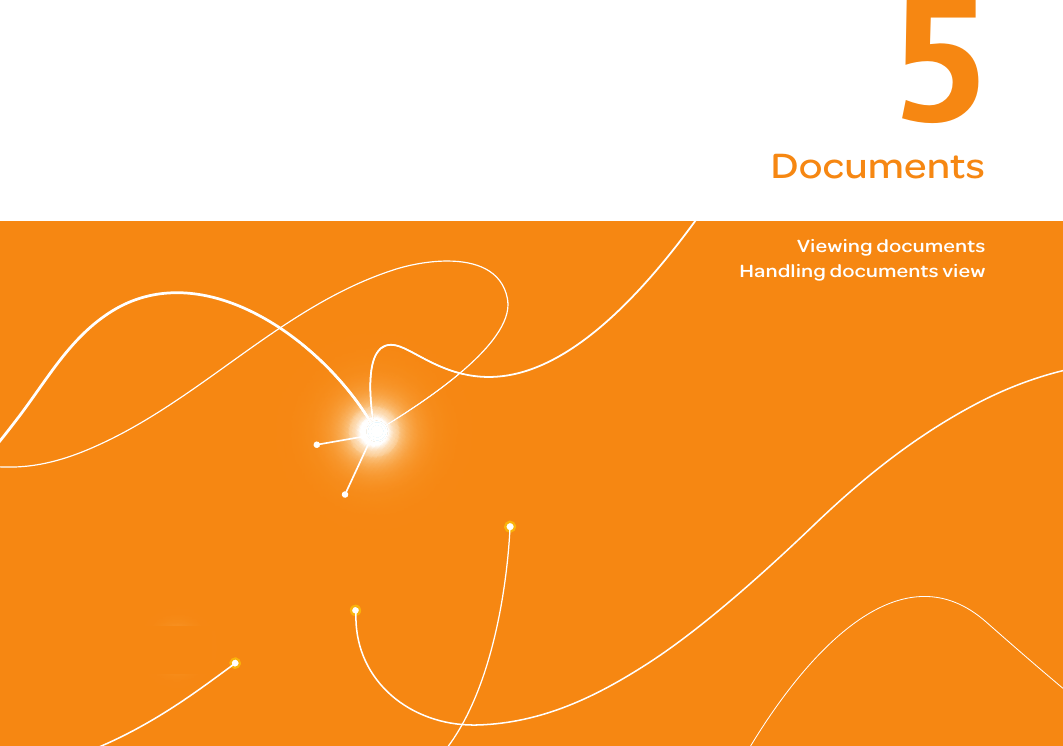

5. Documents5DocumentsViewing documentsHandling documents view

58DocumentsViewing documentsRead documents that are stored in a variety of formats in the phone.Reading documents1. Tap Document Viewer from the applications menu.2. Select and tap a folder where you have stored documents.3. Select and tap a document to read.4. Tap anywhere on the screen while a document is open.5. Tap and tap or drag up if you want to zoom in the document. Tap and tap or drag down if you want to zoom out. You can also zoom in the document by pinching your fingers apart, and zoom out by pinching your fingers together.6. Tap if you want to fit the document to width.7. Tap if you want to fit the document to height.No. Icon Description1Displays Document file name2Displays the current shown area of the screen.3Zooms in or out the current screen.4Moves to the previous page.5Current page number/total page number.6Moves to the next page.7Resets the screen height or width.Searching for words in a document1. Tap Document Viewer from the applications menu.2. Open a document.3. Press n and tap Word Search.4. Enter a word to search for and tap in the virtual keyboard.5. Tap to see the word that you have searched for in the next sentence or page.6. Tap Done if you want to stop searching for the word.

59DocumentsMoving to a page in a document1. Tap Document Viewer from the applications menu.2. Open a document.3. Tap to move to the previous page. Tap to move to the next page.4. Press n and tap Go to Page.5. Enter the page to go and tap .Sharing documents1. Tap Document Viewer from the applications menu.2. Select and tap a folder where you have stored documents.3. Press and hold a document to share, and tap Share.4. Tap Bluetooth, Email, or Messaging.Deleting documents1. Tap Document Viewer from the applications menu.2. Select and tap a folder where you have stored documents.3. Press and hold a document to delete, and tap Delete > Yes.Renaming documents1. Tap Document Viewer from the applications menu.2. Select and tap a folder where you have stored documents.3. Press and hold a document to rename, and tap Rename.4. Enter the new name and tap Save.Adding recent documents as Widget1. Press and hold an empty space on the home screen.2. Tap Widgets.3. Tap Pantech Widgets.4. Tap Recent Documents.Handling documents viewZooming in/out with two fingersPinch two fingers to zoom in/out as the shown figures.Rotating the document viewer

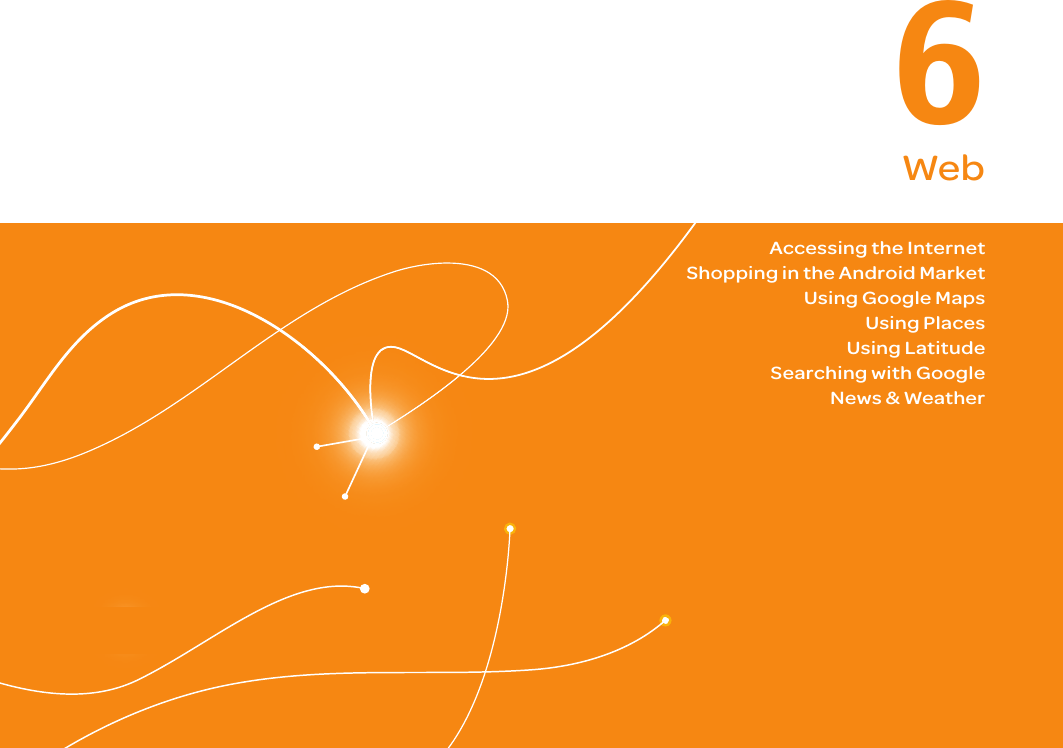

6. Web6WebAccessing the InternetShopping in the Android MarketUsing Google MapsUsing PlacesUsing LatitudeSearching with GoogleNews & Weather

61WebThis chapter introduces useful applications that you can use through the Internet. Make sure to connect the phone to a 3G or Wi-Fi network.Accessing the InternetSearching for information in the Internet1. Tap Web from the applications menu.2. Tap on the search box and type the keyword using the virtual keyboard.3. Tap Go or tap in the virtual keyboard.4. Pinch two fingers apart on the screen if you want to zoom in the web page. You will not zoom in some web pages to the maximum if they are optimized for mobile devices.5. Press n and tap Back or Forward if you want to visit the previous web page again.Changing the home page1. Tap Web from the applications menu.2. Press n and tap More. 3. Tap Settings > Set home page.4. Enter a new URL if you want to change the home page, and tap OK.5. Tap Use current page if you want to use the current page as the home page.Using voice search1. Tap Web from the applications menu.2. Tap on the search box and tap .3. Speak a keyword as clearly as you can.4. Select and tap the web page in the search result.Refreshing a page1. Tap to refresh the page.2. Tap to stop refreshing the page.Visiting a new page1. Tap Web from the applications menu.2. Tap the address bar and enter a new URL.3. Tap next to the address bar or tap in the virtual keyboard.Opening a new window1. Tap Web from the applications menu.2. Press n and tap New window. Another window appears.

62WebViewing the thumbnail windows1. Tap Web from the applications menu.2. Press n and tap Windows.3. Select and tap a window on the bottom of the screen that you want to see.4. Tap on the screen. You can see the window in full screen view.Adding bookmarks as Widget1. Tap Web from the applications menu.2. Press n and tap Bookmarks while you are visiting a web page.3. Tap +Add on the top of the screen.4. Enter the name and location of the website and tap OK.Bookmarks Adding a bookmarkViewing browser history1. Tap Web from the applications menu.2. Press n and tap Bookmarks.3. Tap Most visited if you want to see web pages that you visit the most. Tap the star icon next to the website if you want to add it to bookmarks.4. Tap History if you want to see past browsing activity. Press n and tap Clear history if you want to delete the browsing history.Setting the display options1. Tap Web from the applications menu.2. Press n and tap More > Settings.3. Tap Text size, select and tap your preferred text size.4. Tap Default zoom, select and tap your preferred zoom mode.5. Tap Block pop-up windows if you want to prevent pop-up windows from appearing. The check box is selected by default.Setting privacy options1. Tap Web from the applications menu.2. Press n and tap More.3. Tap Settings.4. Tap Clear all cookie data > OK if you want to delete all cookie data.5. Tap Clear form data > OK if you want to delete all form data.

63WebShopping in the Android MarketDownload useful applications from the Android Market and use them for your purposes.Downloading applications1. Tap Market from the applications menu.2. Tap Next and follow the necessary steps for adding a Google account if you do not have a Google account.3. Tap Accept on the Android Market Terms of Service if you are accessing the Android Market for the first time.4. Tap Apps in the middle of the screen if you want to install useful applications.5. Select and tap a category.6. Tap Top paid, Top free or Just in.7. Select and tap an application.8. Tap FREE > OK for free applications. Tap the paid price > OK and follow the necessary steps for paid applications.Application information Installing an applicationSearching applications1. Tap Market from the applications menu.2. Tap and enter the name or the keyword of the application that you want to install and tap or .3. Select and tap the application and install it.Running downloaded applications1. Drag the notifications on the top of the home screen down.2. Tap the application that you have downloaded from the Android Market. indicates that an application is completely downloaded. You can also run the application in the Applications screen.Deleting applications from the Android Market1. Tap Market from the applications menu.2. Tap My apps. All the applications that you have downloaded will appear.3. Select and tap the application to delete.4. Tap Uninstall > OK.Deleting applications from Settings1. Tap Settings from the applications menu.2. Tap Applications > Manage applications.3. Select and tap an application to delete.4. Tap Uninstall > OK.5. Tap OK.

64WebNote You can double-tap the screen to zoom in the map.Searching directions1. Tap Maps from the applications menu.2. Press n and tap Directions.3. Enter the name of the place you want to visit.4. Decide whether you want to go to the end point by car, public transportation, or foot.5. Tap Go.Searching the current location on the map1. Tap Maps from the applications menu.2. Tap . Your location is indicated as .Using PlacesFinding places1. Tap Places from the applications menu.2. Enter a keyword in the search box, or tap Restaurants, Coffee, Bars, Attractions, ATMs, Gas Stations, or Explore Nearby.3. Select and tap a place in the search results.Note If you want to sort the result by distance or ratings by customers, tap Distance or Rating in the search results.Using Google MapsGoogle Maps offers useful information based on your region. Make sure to connect the phone to a Wi-Fi or 3G network. If you turn on the GPS function, you can obtain more accurate information.Searching places1. Tap Maps from the applications menu. You can see your current location on the map.Note Make sure to connect to wireless networks or GPS satellites by tapping Settings > Location & security and tapping either Use wireless networks or Use GPS satellites.2. Tap on the search box and type the keyword using the virtual keyboard and tap or .3. Tap if you want to see the result list. appears when there are many results that match your search.4. Select and tap the location that you want to see, and check the related information.Zooming in and out of the map1. Tap to zoom in the map.2. Tap to zoom out of the map.

65WebViewing places at a glance1. Tap Places from the applications menu.2. Select and tap a category.3. Press n in the search results and tap See map. You can see related places in the map.Adding a category for places1. Tap Places from the applications menu.2. Tap Add on the bottom of the screen and enter a category to add. The category appears on the screen.Adding starred places1. Tap Places from the applications menu.2. Select and tap a category.3. Select and tap a place that you want to see.4. Tap the star icon for each place. When selected, the icon turns yellow.Note You can see stared places by pressing n and tapping Starred Places in the first screen of Places.Using LatitudeShare your location with your friends or check those of your friends. Make sure to have a Google account to use Latitude.Joining Latitude1. Tap Latitude from the applications menu.2. Tap OK for the tip on the updated map.3. Tap Allow & Share if you allow your location to be informed to your friends. The Latitude screen appears shortly where your personal information is displayed.4. Press l if you want to see your location in the map.Adding friends from contacts1. Tap Latitude from the applications menu.2. Press n and tap Add friends.3. Tap Select from Contacts.4. Select and tap the contact you want to add as your friend and tap Add friends.Note All contacts are displayed by default. If you want to classify contacts, tap All Contacts on the top of the screen, and select and tap a category of contacts.5. Tap Yes if you want to send sharing requests.Adding friends from email addresses1. Tap Latitude from the applications menu.2. Press n and tap Add friends.3. Tap Add via email address.4. Enter the email address of your friend and tap Add friends.5. Tap Yes if you want to send sharing requests.

66WebAccepting invitation from friends1. Tap Latitude from the applications menu.2. Tap 1 new sharing request on the top of the screen.3. Tap Accept and share back. You can see the location of your friend shortly below.Managing friends1. Tap Latitude from the applications menu.2. Tap one of the friends in the screen.3. Tap Real-time updating, and select and tap the time interval for refreshing locations.4. Tap Sharing options, and select and tap an option.5. Tap Remove this friend and tap OK if you want to remove the friend from Latitude.Checking personal settings1. Tap Latitude from the applications menu.2. Tap your name on the top of the screen. You can see your name, Gmail account and your current location.3. Tap Change your photo, tap either Take a picture or Pick from gallery, and change your photo.Adjusting privacy settings1. Tap Latitude from the applications menu.2. Press n and tap Settings.3. Tap Detect your location, Set your location or Do not detect your location for a location reporting. Detect your location is selected by default.4. Tap Enable location history if you want to store your locations in the past and visualize them on the Latitude website.5. Tap Sign out of Latitude if you do not want to use Latitude. If you want to join Latitude again, press n and tap Join Latitude.Note For more information on the map, refer to Using Google Maps on page 64

67WebSearching with GoogleSearching for information with Google1. Tap Google Search, or press m in idle mode.2. Enter a keyword in the search box and tap or . You can also tap and say it on the phone.Setting search options1. Tap Google Search from the applications menu.2. Press n and tap Search settings.3. Tap Google search.4. Tap Show web suggestions if you want to see suggestions from Google as you search through Google. The check box is selected by default.5. Tap Use My Location if you allow your location to be used for Google search results.Selecting items that can be searched1. Tap Google Search from the applications menu.2. Press n and tap Search settings.3. Tap Searchable items.4. Select and tap items you want to include for the search result.Managing search history1. Tap Google Search from the applications menu.2. Press n and tap Manage search history.Note Make sure to tap Search history first if you want to use Manage search history.3. Enter the email address and password for your Google account.4. Select and tap search history in the list and tap Remove if you want to remove the search history.News & WeatherNews and Weather offers news in various fields and weather information in your region.Viewing weather information1. Tap News & Weather from the applications menu. Information on your current region for the moment is provided by default.2. Tap on the weather information in the middle of the screen if you want to check the weather forecast throughout the day.3. Tap on the chart and drag the vertical bar on the screen to the left or right if you want to see weather information for a certain time of the day.Weekly weather forecast Daily weather forecast

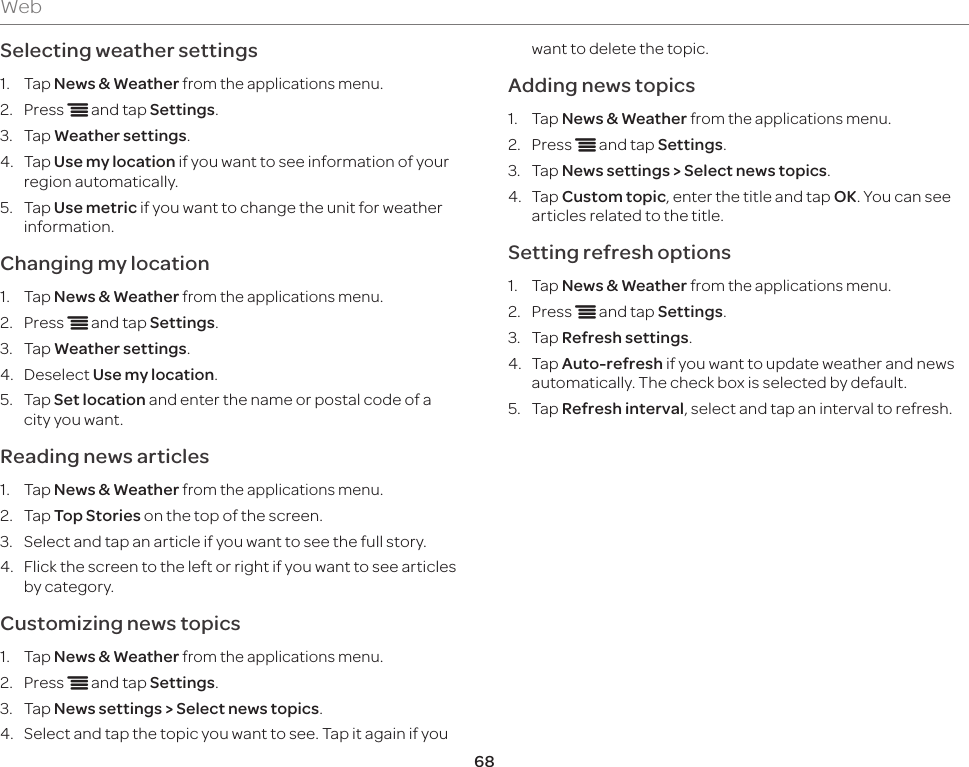

68WebSelecting weather settings1. Tap News & Weather from the applications menu.2. Press n and tap Settings.3. Tap Weather settings.4. Tap Use my location if you want to see information of your region automatically.5. Tap Use metric if you want to change the unit for weather information.Changing my location1. Tap News & Weather from the applications menu.2. Press n and tap Settings.3. Tap Weather settings.4. Deselect Use my location.5. Tap Set location and enter the name or postal code of a city you want.Reading news articles1. Tap News & Weather from the applications menu.2. Tap Top Stories on the top of the screen.3. Select and tap an article if you want to see the full story.4. Flick the screen to the left or right if you want to see articles by category.Customizing news topics1. Tap News & Weather from the applications menu.2. Press n and tap Settings.3. Tap News settings > Select news topics.4. Select and tap the topic you want to see. Tap it again if you want to delete the topic.Adding news topics1. Tap News & Weather from the applications menu.2. Press n and tap Settings.3. Tap News settings > Select news topics.4. Tap Custom topic, enter the title and tap OK. You can see articles related to the title.Setting refresh options1. Tap News & Weather from the applications menu.2. Press n and tap Settings.3. Tap Refresh settings.4. Tap Auto-refresh if you want to update weather and news automatically. The check box is selected by default.5. Tap Refresh interval, select and tap an interval to refresh.

697. Connectivity7ConnectivityUsing a Wi-Fi networkConnecting to a 3G networkUsing BluetoothMaking the phone a modem

70ConnectivityThis chapter introduces useful tips on how to connect to the network available that enables applications of the phone to run.Using a Wi-Fi networkConnecting to a Wi-Fi network1. Tap Settings from the applications menu.2. Tap Wireless & networks > Wi-Fi settings.3. Tap Wi-Fi to activate the technology.4. Select and tap a network. You should enter the password if the network is secured. indicates a secured Wi-Fi network.5. Tap Connect. Once the network is remembered, the phone will automatically connect to it when in range.Activating Wi-FIConnecting to a Wi-Fi networkNote The icon next to each network indicates the strength of the signal. For example, indicates the signal is poor while indicates the signal is strong.Using the Easy Setting1. Tap on the top of the home screen and drag it down, or press n in idle mode and tap Notifications.2. Tap in Easy Setting. The icon turns red when the function is on.About network notificationsYou are informed by default when a Wi-Fi network is available around you. The message in the status bar indicates a network is available. Tap Network notification in the Wi-Fi settings if you do not want to be informed the availability of the network.Setting Wi-Fi networks1. Tap Settings from the applications menu.2. Tap Wireless & networks > Wi-Fi settings.3. Tap Wi-Fi to activate the technology.4. Tap Automatic connection if you want the phone to connect to Wi-Fi network automatically.5. Tap WPS button connection if you want to establish a new wireless connection using the Wi-Fi Protected Setup (WPS). You should press WPS button on your Wi-Fi access point within two minutes.Searching for Wi-Fi networks1. Tap Settings from the applications menu.2. Tap Wireless & networks > Wi-Fi settings.3. Tap Wi-Fi to activate the technology. The phone scans networks automatically every six seconds. The newly found networks appear on the bottom of the list.

71ConnectivityAdding a Wi-Fi network1. Tap Settings from the applications menu.2. Tap Wireless & networks > Wi-Fi settings.3. Tap Wi-Fi to activate the technology.4. Tap Add Wi-Fi network.5. Enter Network SSID and select the security type among Open, WEP, WPA/WPA2 PSK and 802.1x EAP. Aside from Open, you must enter a password for the network.6. Tap Save.Disconnecting to a Wi-Fi network1. Tap the network that is connected to the phone.2. Tap Forget to disconnect with the network.Note You can also disconnect to the Wi-Fi network by pressing and holding the network and tapping Forget network.Connecting to a 3G networkUse 3G (or EDGE if available) to connect the phone to the Internet and exchange multimedia messages. You will need a data plan to access a 3G network.3G settings are already preconfigured on the phone, and it is ready to use 3G services. Please do not change the settings: this may cause services to stop working. Note Using 3G loads Internet data faster in some cases, but may decrease battery performance. If you are making a lot of phone calls, you may want to turn 3G function off to extend battery performance.Using BluetoothBluetooth technology enables wireless connections between electronic devices. Using this technology, you can send images, text, and business cards.With Bluetooth technology, the phone provides: xConnection to hands-free devices. xConnection to electronic devices.Pairing with devices1. Tap Settings from the applications menu.2. Tap Wireless & networks > Bluetooth settings.3. Tap Bluetooth to activate the technology.4. Tap Scan for devices.5. Select and tap a device from the list.6. Enter PIN to pair with the device.7. Tap OK.Scanning devices Requesting pairing

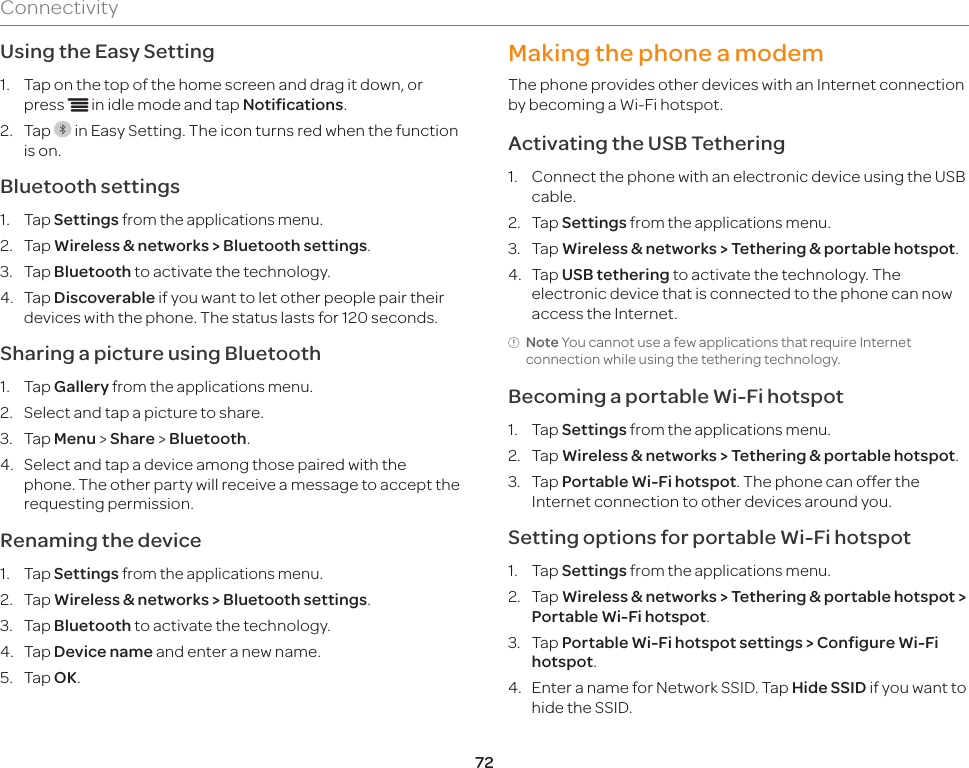

72ConnectivityUsing the Easy Setting1. Tap on the top of the home screen and drag it down, or press n in idle mode and tap Notifications.2. Tap in Easy Setting. The icon turns red when the function is on.Bluetooth settings1. Tap Settings from the applications menu.2. Tap Wireless & networks > Bluetooth settings.3. Tap Bluetooth to activate the technology.4. Tap Discoverable if you want to let other people pair their devices with the phone. The status lasts for 120 seconds.Sharing a picture using Bluetooth1. Tap Gallery from the applications menu.2. Select and tap a picture to share.3. Tap Menu > Share > Bluetooth.4. Select and tap a device among those paired with the phone. The other party will receive a message to accept the requesting permission.Renaming the device1. Tap Settings from the applications menu.2. Tap Wireless & networks > Bluetooth settings.3. Tap Bluetooth to activate the technology.4. Tap Device name and enter a new name.5. Tap OK.Making the phone a modemThe phone provides other devices with an Internet connection by becoming a Wi-Fi hotspot.Activating the USB Tethering1. Connect the phone with an electronic device using the USB cable.2. Tap Settings from the applications menu.3. Tap Wireless & networks > Tethering & portable hotspot.4. Tap USB tethering to activate the technology. The electronic device that is connected to the phone can now access the Internet.Note You cannot use a few applications that require Internet connection while using the tethering technology.Becoming a portable Wi-Fi hotspot1. Tap Settings from the applications menu.2. Tap Wireless & networks > Tethering & portable hotspot.3. Tap Portable Wi-Fi hotspot. The phone can offer the Internet connection to other devices around you.Setting options for portable Wi-Fi hotspot1. Tap Settings from the applications menu.2. Tap Wireless & networks > Tethering & portable hotspot > Portable Wi-Fi hotspot.3. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi hotspot.4. Enter a name for Network SSID. Tap Hide SSID if you want to hide the SSID.

73Connectivity5. Tap WPA2(AES), WPA(TKIP), WPA/WPA2 mixed, or Open for Security and enter the related items if you want to allow limited devices to access the Internet through the phone, and tap Save.Wi-Fi hotspot for Open Wi-Fi hotspot for WPA2 PSKNote The default password is an 8-digit random number. When you tap Configure Wi-Fi hotspot > Show password, you can view the current password.

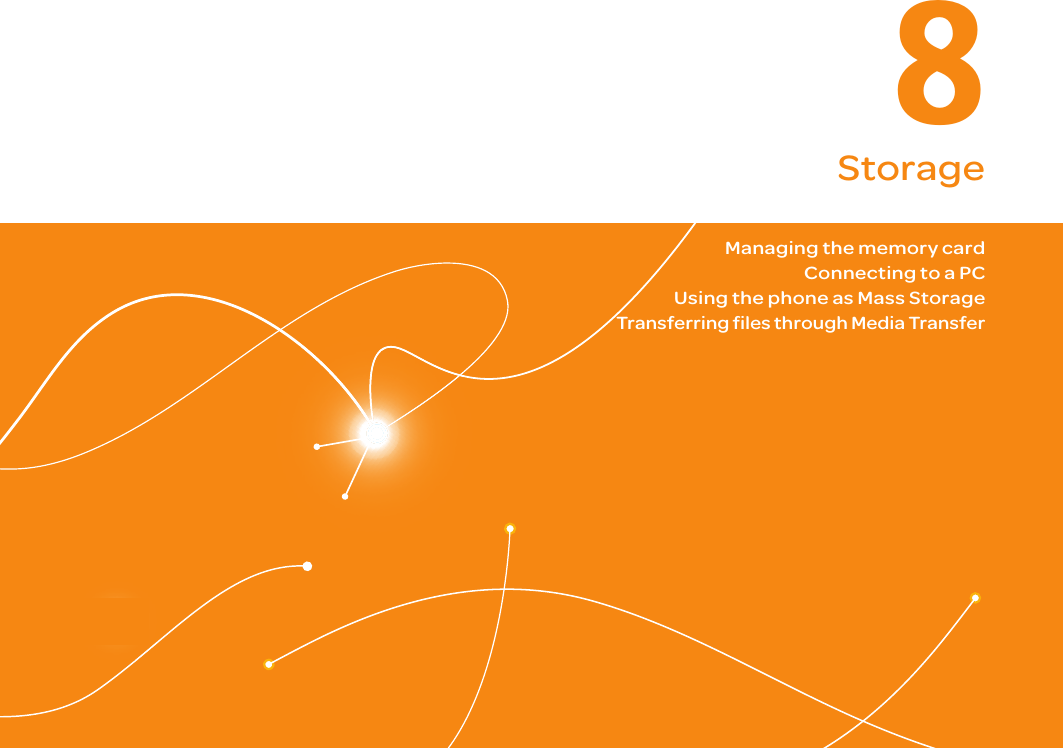

748. Storage8StorageManaging the memory cardConnecting to a PCUsing the phone as Mass StorageTransferring files through Media Transfer

75Storage The microSD card offers useful functions including mass storage and media file transfer.Managing the memory cardYou should manage the microSD card carefully. If you do not follow the steps described below to manage the memory card, you can incur serious damage to the card.Viewing available memory1. Tap Settings from the applications menu.2. Tap Storage. You can view and check the status of Total space and Available space for SD card and Internal storage.Unmounting the SD Card1. Tap Settings from the applications menu.2. Tap Storage > Unmount SD card > OK.3. Press and hold the LOCK/PWR key.4. Tap Power off > OK.5. Open the battery cover.6. Remove the battery.7. Remove the SD card.Note If you want to mount the SD card, tap Settings > Storage > Mount SD card.Formatting the microSD card1. Tap Settings from the applications menu.2. Tap Storage > Unmount SD card > OK.3. Tap Erase SD Card > Erase SD Card > Erase everything.Connecting to a PCSynchronize files and exchange data with a computer using the PC data cable. Keep in mind that you cannot transfer media files if you turn on the USB debugging mode (Settings > Applications > Development > USB debugging).Selecting the USB mode1. Tap Settings from the applications menu.2. Tap Storage > USB Mode. If you have turned on the USB debugging function, tap OK to turn it off.3. Select and tap a USB mode. xTap Media Transfer > OK if you want to transfer media files between the phone and your PC when they are connected. xTap Mass storage > OK if you want to save mass files in the phone. xTap Ask on connection > OK if you want to select the USB mode whenever the phone is connected.4. Connect the USB cable to the phone.5. Connect the other end of the cable to your computer.Turning on/off the USB mode in the Easy Setting1. Connect the phone to your computer using the USB cable.2. Tap on the top of the home screen and drag it down, or press n in idle mode and tap Notifications. 3. Tap USB connected > Turn on USB storage. Keep in mind that you can use this function only when you have selected the USB mass storage mode.

76Storage4. Tap OK.Note Tap Turn off USB storage in the notifications screen if you want to turn off the function, and tap Turn off USB storage.Using the phone as Mass StorageCopy files between your computer and the microSD card in the phone. In the mass storage mode, a few applications—Handy Memo, Voice Memo, Sketch Pad, Music Player, Camera, Camcorder, Document Viewer—that need the microSD card will not run.Copying files1. Tap Settings from the applications menu.2. Tap Storage > USB Mode. If you have turned on the USB debugging function, tap OK to turn it off.3. Tap Mass Storage > Turn on USB storage > OK.4. Select and copy files to transfer from the phone.5. Paste files to your PC.6. Tap Turn off USB storage if you finish copying files and then disconnect the phone from your computer.Transferring files through Media TransferTransfer media files between your computer and the microSD card in the phone. Once you have turned on the MTP connection, media files are collected through Windows Media PlayerTM. Transferring files1. Tap Settings from the applications menu.2. Tap Storage > USB Mode. If you have turned on the USB debugging function, tap OK to turn it off.3. Tap Media Transfer > Turn on MTP connection > OK.4. Select files to transfer from the phone or your PC.5. Transfer files to your PC or the phone.6. Tap Turn off MTP connection if you finish transferring files and then disconnect the phone from your computer.

779. Tools9ToolsClock ToolsClockCalculatorConverterSketch PadVoice DialerVoice SearchCompassNavigationWeatherStocksRSS Reader

78ToolsThe phone offers a variety of tools that help you live a convenient life.Clock ToolsClock Tools offers the current time in major cities and time zones around the world. World time is displayed first by default.Viewing the world time1. Tap Clock Tools from the applications menu.2. Tap Add new city and enter the name of a city. Type the first letter and you can find the city more easily.3. Select and tap the city.Rearranging the order of cities1. Tap Clock Tools from the applications menu.2. Press n and tap Rearrange.3. Select a city to relocate and drag up or down to rearrange the order.4. Tap Done.Deleting a city1. Tap Clock Tools from the applications menu.2. Press n and tap Delete.3. Select and tap the trash icon next to the city to delete.4. Tap Done.Note You can delete a city by pressing and holding it and tapping Delete > Yes.Using the timer1. Tap Clock Tools from the applications menu.2. Tap Timer.3. Press n and tap Set for setting the time.4. Set the hour, minute and second and tap Done.5. Tap Start.Note You can reset the time by tapping Reset while the timer is running.Using the stopwatch1. Tap Clock Tools from the applications menu.2. Tap Stopwatch.3. Tap Lap on the top of the screen and tap Start. This function is used when you want to measure time that takes to run for a certain distance.

79Tools4. Tap Lap > Split on the top of the screen and tap Start. This function is used when you want to measure the accumulated time.5. Tap Reset to restart the stopwatch.Lapping time Splitting timeClockClock helps set the alarm and see basic information on your region including time and weather. Desk clock is provided by default.Adding a new alarm1. Tap Clock from the applications menu.2. Tap and tap Add alarm.3. Enter the hour and the minute and tap Set.4. Adjust settings for alarm and tap Done. You will see a green bar under the set alarm.Desk Clock Adding an alarmChanging an alarm1. Tap Clock from the applications menu.2. Tap .3. Select and tap the alarm time to change.4. Adjust settings and tap Done.Deactivating an alarm1. Tap Clock from the applications menu.2. Tap .3. Tap of the alarm to deactivate. A green bar indicates that the alarm is on. The color disappears when the alarm is turned off.Deleting an alarm1. Tap Clock from the applications menu.2. Tap .3. Press and hold the alarm to delete, and tap Delete alarm.4. Tap OK.

80ToolsSetting an alarm1. Tap Clock from the applications menu.2. Tap .3. Press n and tap Settings.4. Tap Alarm in silent mode if you want to play the alarm even when the phone is in silent mode. The check box is selected by default.5. Tap Alarm volume if you want to adjust the volume, set the volume and tap OK.6. Tap Snooze duration if you want to adjust the snooze duration, select and tap the duration and tap OK.7. Tap Side button behavior if you want to assign an action for the side buttons, select and tap the option and tap OK.Adding Clock widgetYou can create a different integrate clock with Weather, Clock, and Schedule functions.1. Press and hold an empty space on the home screen.2. Tap Widgets > Pantech Widgets > Integrated Clock.3. Select and tap a style.4. Tap World Time, Weather, or Calendar section on the Integrated Clock widget to view the details.CalculatorPerform basic mathematical calculations with the calculator in the phone.Doing calculations1. Tap Calculator from the applications menu.2. Enter a number and tap a mathematical sign you want to use.3. Tap C to delete a number and hold C to delete the whole number.Note You can calculate numbers up to six decimal places.

81ToolsSaving a calculation1. Tap Calculator from the applications menu.2. Press n during a calculation.3. Tap Save and enter the file name. The date of the day appears on the screen by default.4. Tap Done.Editing a saved calculation1. Tap Calculator from the applications menu.2. Press n and tap List.3. Select and tap a calculation to edit.4. Tap the result and edit it.5. Press n and tap Save.Deleting a calculation1. Tap Calculator from the applications menu.2. Press n and tap List.3. Press and hold the calculation to delete, and tap Delete.4. Tap Yes.ConverterConverter helps convert values for length, volume, weight, temperature, area and speed.Converting values1. Tap Converter from the applications menu.2. Select a unit type. Length is selected by default. Change the unit type by tapping or .3. Tap on the box below the unit type and enter a value.4. Select the original unit by dragging the wheel in the middle of the screen.5. Select a target unit. The changed value promptly appears below.Resetting a conversion1. Tap Converter from the applications menu.2. Press n during a conversion and tap Reset.Sketch PadSketch a drawing and share it with your friends. The screen is set to portrait mode only.Creating a drawing1. Tap Sketch Pad from the applications menu.2. Tap Create new if there are saved drawings. The sketch board appears first if there are no saved drawings.3. Sketch a drawing.

82ToolsEditing a drawing1. Tap Sketch Pad from the applications menu.2. Press and hold the drawing to edit, and tap Edit.3. Edit the drawing and tap Save.Saving to the Gallery1. Tap Sketch Pad from the applications menu.2. Press and hold the drawing to save to the gallery, and tap Save to gallery.Sharing a drawing1. Tap Sketch Pad from the applications menu.2. Press and hold the drawing to share, and tap Share.3. Tap Bluetooth, Facebook, Gmail, Messaging, Online Locker, Picasa, or Twitter.Changing the view mode1. Tap Sketch Pad from the applications menu.2. Press n and tap List view. You can see the file name and file format of the drawings.3. Press n and tap Thumbnail view if you want to see drawings only.4. Select the size and color of the brush and the size of the eraser.5. Press n and tap Background if you want to select as background of the drawing.6. Press n and tap Import image if you want to select a photo as background of the drawing.7. Tap Save and enter the name of the drawing to save.8. Tap Save. Sketch Pad iconsIcon DescriptionSet the size of the PenSet the color of the PenSet the size of the eraserUndo the previous drawingRedo the next drawingMove canvasDeleting a drawing1. Tap Sketch Pad from the applications menu.2. Press and hold the drawing to delete, and tap Delete.3. Tap Yes.

83ToolsVoice DialerPerform functions by speaking on the phone.Searching for a contact1. Tap Voice Dialer from the applications menu.2. Say a contact’s name.3. Tap on the message or OK.Voice SearchSearch the Internet by speaking on the phone.1. Tap Voice Search or press and hold m.2. Say a keyword on the mic.Voice search Search resultsCompassCompass helps you find your location using the speed and the distance of your moving. Turn on the GPS function to use.Setting the way point1. Tap Compass from the applications menu.2. Press n and tap Search Way Point.3. Type the way point name in the box and select an address and tap Done. You can see the distance and the direction from the current location.Note When there is interference on the compass, keep it away from the interfering items or wave the phone in a figure 8 motion.You can also set a way point by pressing and holding the I’mark in the list and tapping Set as way point.Moving toward the way point1. Tap Start after you set the way point and start moving. The moving track begins to be recorded.2. Tap Pause if you stop recording temporarily. Tap Resume if you want to resume recording. 3. Tap Stop if you want to end recording.4. Tap Yes if you want to export data. The data is saved in the external memory card.Note You might experience difficulties using the compass if you are indoors or near metal materials.

84ToolsReviewing the moving track1. Tap Compass from the applications menu.2. Press n and tap Map View. indicates your current location on the map.3. Tap Start. The marker on the map starts moving.4. Tap and move it up if you want to zoom in the map. Move it down if you want to zoom out the map.Searching the way point1. Tap Compass from the applications menu.2. Press n and tap Search way point.3. Tap on the search box and type the keyword using the virtual keyboard.4. Select an address and tap Done.Creating I’mark1. Tap Compass from the applications menu.2. Press n and tap Add to I’mark.3. Enter the name, latitude, longitude, proximate range and comment and tap Save.Deleting I’mark1. Tap Compass from the applications menu.2. Press n and tap I’mark list.3. Press n and tap Delete.4. Select and tap the I’mark to delete.5. Tap Done.Note You can delete a I’mark by pressing and holding the I’mark in the list and tapping Delete.Adding a photo for I’mark1. Tap Compass from the applications menu.2. Press n and tap Add photo.3. Tap Take a photo if you want to take a picture.4. Tap Picture if you want to add a photo from your gallery.

85ToolsNavigationSearching for the destination by voice1. Tap Navigation from the applications menu.2. Tap Speak Destination and speak your destination toward the phone.3. Select and tap a destination in the list when there are many possible destinations.Note You can also search the destination by typing it or selecting in the contacts. Finding directions using Google Maps1. Tap Maps from the application menu.2. Press n and tap Directions.3. Enter the name of the end point.4. Tap , or , and tap Go.5. Select and tap a place in the results. Note For more information on Google Maps, refer to Using Google Maps on page 64. Setting the end point manually1. Tap Maps from the application menu.2. Press n and tap Directions.3. Tap Point on map if you want to set the end point.4. Tap a point on the map.5. Tap Tap to select this point.6. Tap , or , and tap Go.Note You can also set your location following the same process.Checking the traffic conditions1. Press n and tap Route Info while Navigation is running.2. Flick the screen along the suggested route to the destination. Depending on the traffic conditions, the road appears in green (good), yellow (congested) or red ( jammed).3. Tap and tap the route if you want to set an alternative route.

86ToolsWeatherAdding a new city1. Tap Weather from the applications menu.2. Tap Add new city.3. Enter the name of the city you want, or flick the screen upwards and tap one. Weather information of the city appears on the list.Viewing weather information1. Tap Weather from the applications menu.2. Select and tap a city in the list you want to see.3. Flick the screen to the left to see forecasted weather information of the city. Or press n and tap Forecast.4. Tap Update to view updated information.Current weather Weather forecastChanging the temperature unit1. Tap Weather from the applications menu.2. Press n and tap Settings.3. Tap or . The temperature changes from Fahrenheit to Celsius or vice versa.Rearranging the order of cities1. Tap Weather from the applications menu.2. Press n and tap Rearrange.3. Select a city and drag up or down to move the city.4. Tap Done.Deleting a city1. Tap Weather from the applications menu.2. Press n and tap Delete.3. Select and tap the trash icon next to the city to delete.4. Tap Done.Updating weather information1. Tap Weather from the applications menu.2. Press n.3. Tap Update all.

87ToolsStocksCheck the current stock market conditions and establish your investment strategy with the phone. Stocks is in synch with Google Finance by default.Checking the current stock market conditions1. Tap Stocks from the applications menu. You can see the overall stock market conditions for the moment.2. Select and tap an index in the list. The fluctuation of the index for one day is displayed by default.3. Tap Prev or Next above the graph in the middle of the screen if you want to adjust the period of the fluctuation.Note You can also change the period by tapping the graph and select and tap one from one day to the maximum when data is available.The overall market conditionsDetailed informationRenaming the stock market index1. Tap Stocks from the applications menu.2. Press and hold an index to rename and tap Rename.3. Enter a new name of the index and tap OK.Note You can also rename an index by pressing n and tapping Edit, selecting and tapping an index to rename.Deleting the stock market index1. Tap Stocks from the applications menu.2. Press and hold an index to delete and tap Delet e.Note You can also delete an index by pressing n and tapping Edit, selecting and tapping next to an index to delete. The trash bin appears in front of the index. Then, tap the trash bin.Adding the stock market index1. Tap Stocks from the applications menu.2. Press n and tap Edit.3. Tap on the box in the bottom of the screen, enter the name of the index and tap .

88ToolsSharing the stock market information1. Tap Stocks from the applications menu.2. Select and tap an index to see the relevant information.3. Press n and tap Share.4. Tap Bluetooth, Facebook, Gmail, Messaging or Twitter.Adjusting the alert1. Tap Stocks from the applications menu.2. Select and tap an index to receive the alert.3. Press n and tap Alert.4. Enter the value for Above and tap ; enter the value for Below and tap .Setting the alert1. Tap Stocks from the applications menu.2. Press n and tap Settings.3. Tap Ringtone, and select and tap a ringtone for the alert and tap OK.4. Tap Check interval, and select and tap the refresh period.5. Tap Check time, adjust the time for checking stock market indexes and tap OK.Writing notes1. Tap Stocks from the applications menu.2. Select and tap an index to write notes.3. Press n and tap Notes.4. Tap on the screen and enter a message.5. Press l if you want to check the notes. Press l again and you can see the note on the bottom of the screen.Viewing related news articles1. Tap Stocks from the applications menu.2. Select and tap an index to see the relevant news.3. Flick the screen downwards, and select and tap an article to see.Adjusting the appearance1. Tap Stocks from the applications menu.2. Press n and tap Settings.3. Tap Sort, and select and tap the sorting order for the stock market indexes.4. Tap Default Chart, and select and tap the refresh period. The comparing period of the graph for each index changes accordingly.Adding the Stocks widget1. Press and hold the empty space of the screen.2. Tap Widgets.3. Tap Android Widgets > Stocks.4. Select and tap a market in the portfolio list and tap Save. You can see the stock market indexes on the home screen.

89ToolsRSS ReaderRSS Reader helps check updated news from various sources.Creating channels1. Tap RSS Reader from the applications menu.2. Tap All channels > Add Channel. If you have already subscribed to channels, Tap RSS Reader > All channels, and press n and tap Add channel.3. Tap URL, Google Reader or Recommendation. xTap URL and enter the title and URL of the channel, tap Category, select the relevant category and tap Done. If there is no category you want, tap Create New and create a category. xTap Google Reader, select and tap a channel, and tap Add.Note Make sure to register your Google account first by tapping RSS Reader, pressing n and tapping Settings > Username. xTap Recommendation, select and tap a category you want to add, and select and tap a channel and tap Add.Viewing new feeds1. Tap RSS Reader.2. Tap New feeds.3. Press n and tap Update.4. Select and tap updated new feeds to read.Managing favorites1. Tap RSS Reader.2. Tap Favorites.3. Tap the star icon next to a favorite if you want to lease the favorite.Managing categories1. Tap RSS Reader from the applications menu.2. Tap Categories.3. Press n and tap Edit category.4. Select and tap a category, enter a new name and tap Save.5. Tap Create New if you want to make a new category, enter the name of the category and tap Save.Setting options1. Tap RSS Reader.2. Press n and tap Settings.3. Tap Automatic Update, select the interval of updating feeds and tap OK.4. Tap Automatic Delete and select the timing to delete feeds automatically, and tap OK.5. Tap Limited Update Size, select the size of updated feeds, and tap OK.

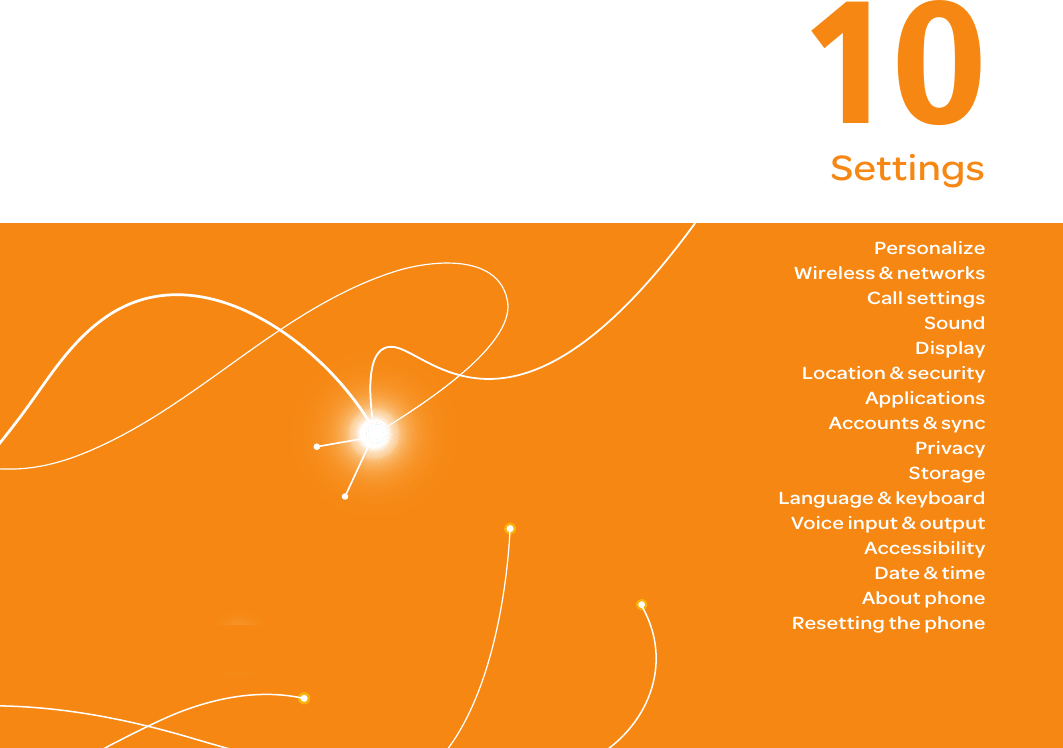

10. Settings10SettingsPersonalizeWireless & networksCall settingsSoundDisplayLocation & securityApplicationsAccounts & syncPrivacyStorageLanguage & keyboardVoice input & outputAccessibilityDate & timeAbout phoneResetting the phone

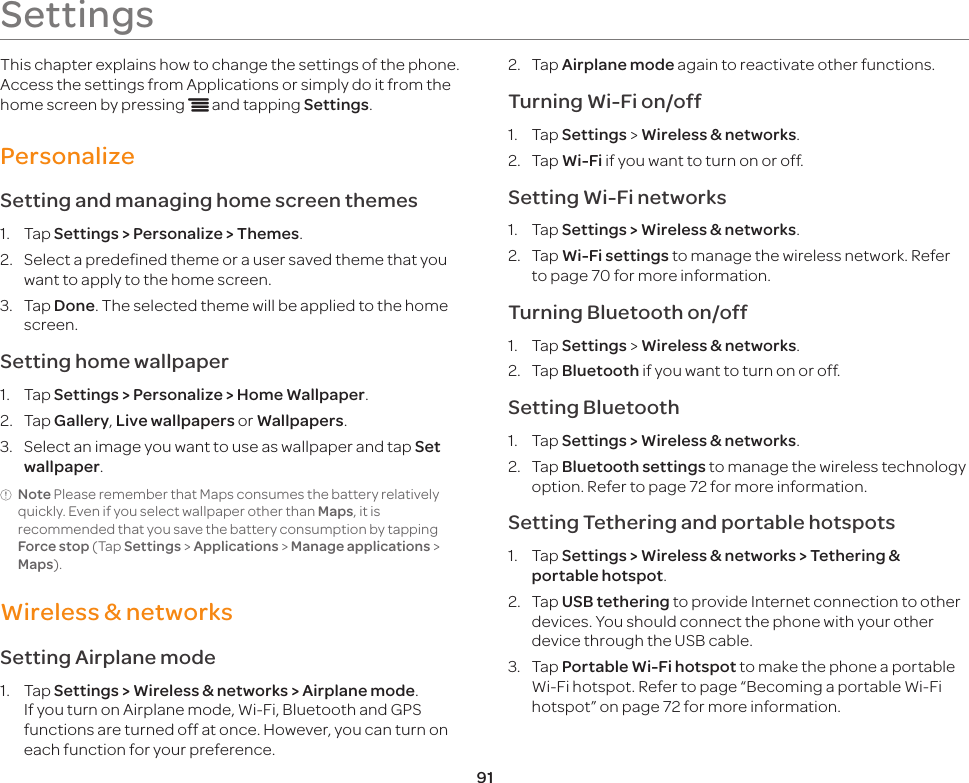

91SettingsThis chapter explains how to change the settings of the phone. Access the settings from Applications or simply do it from the home screen by pressing n and tapping Settings.PersonalizeSetting and managing home screen themes1. Tap Settings > Personalize > Themes.2. Select a predefined theme or a user saved theme that you want to apply to the home screen.3. Tap Done. The selected theme will be applied to the home screen.Setting home wallpaper1. Tap Settings > Personalize > Home Wallpaper.2. Tap Gallery, Live wallpapers or Wallpapers.3. Select an image you want to use as wallpaper and tap Set wallpaper.Note Please remember that Maps consumes the battery relatively quickly. Even if you select wallpaper other than Maps, it is recommended that you save the battery consumption by tapping Force stop (Tap Settings > Applications > Manage applications > Maps).Wireless & networksSetting Airplane mode1. Tap Settings > Wireless & networks > Airplane mode. If you turn on Airplane mode, Wi-Fi, Bluetooth and GPS functions are turned off at once. However, you can turn on each function for your preference.2. Tap Airplane mode again to reactivate other functions.Turning Wi-Fi on/off1. Tap Settings > Wireless & networks.2. Tap Wi-Fi if you want to turn on or off.Setting Wi-Fi networks1. Tap Settings > Wireless & networks. 2. Tap Wi-Fi settings to manage the wireless network. Refer to page 70 for more information.Turning Bluetooth on/off1. Tap Settings > Wireless & networks.2. Tap Bluetooth if you want to turn on or off.Setting Bluetooth1. Tap Settings > Wireless & networks.2. Tap Bluetooth settings to manage the wireless technology option. Refer to page 72 for more information.Setting Tethering and portable hotspots1. Tap Settings > Wireless & networks > Tethering & portable hotspot.2. Tap USB tethering to provide Internet connection to other devices. You should connect the phone with your other device through the USB cable.3. Tap Portable Wi-Fi hotspot to make the phone a portable Wi-Fi hotspot. Refer to page “Becoming a portable Wi-Fi hotspot” on page 72 for more information.

92SettingsSetting VPN settings1. Tap Settings > Wireless & networks > VPN settings > Add VPN.2. Tap Add PPTP VPN, Add L2TP VPN, Add L2TP/IPSec PSK VPN or Add L2TP/IPSec CRT VPN.3. Set up the network by entering necessary information.Setting mobile networks1. Tap Settings > Wireless & networks > Mobile networks.2. Tap Data Services to allow access to data over mobile network.3. Tap International Data roaming to connect to data services when roaming and tap OK.Note You may incur significant roaming charges.4. Tap Access Point Names> Phone APN, Broadband APN, or Wap APN. Press n and tap New APN if you want to add an APN in the Phone APN or Wap APN mode.5. Tap Network operators > Default Setup > Automatic or Manual if you want to search networks and select one.Call settingsManaging fixed dialing numbers1. Tap Settings > Call settings > Fixed Dialing Numbers.2. Tap FDN activation, Change PIN2 or FDN list.3. Enter the necessary information.Setting your voicemail1. Tap Settings > Call settings > Voicemail settings > Voicemail number.2. Enter the voicemail number or tap and select a contact to designate as the voicemail number and tap OK.3. Tap OK.Setting Auto RedialTap Settings > Call settings > Auto Redial.Setting TTY mode1. Tap Settings > Call settings > TTY mode.2. Tap TTY Off, TTY Full, TTY HCO or TTY VCO.3. Tap OK.Setting DTMF Tones1. Tap Settings > Call settings > DTMF Tones.2. Tap Normal or Long.3. Tap OK.Setting Caller ID1. Tap Settings > Call settings > Caller ID.2. Tap Network default, Hide number or Show number.3. Tap OK.Setting Call forwarding1. Tap Settings > Call settings > Call forwarding.2. Tap Always forward, Forward when busy, Forward when unanswered or Forward when unreachable.Setting Call waitingTap Settings > Call settings > Call waiting > Call waiting.

93SettingsTurning suppression on/off1. Tap Settings > Call settings.2. Tap Noise Suppression if you want to turn suppression on or off.SoundSetting silent mode1. Tap Settings > Sound > Silent mode. All other functions except the media volume and alarms are silenced if you select this option.2. Tap Silent mode again to activate all functions.Setting to vibrate1. Tap Settings > Sound > Vibrate.2. Tap Always, Never, Only in Silent mode or Only when not in Silent mode.3. Tap OK.Setting volume1. Tap Settings > Sound > Volume. Make sure to deselect Silent mode.2. Adjust the volume for ringtone, media and alarm. Tap Use incoming call volume for notifications if you want to use this function. Otherwise, deselect it and adjust the volume for notifications.3. Tap OK.Setting phone ringtone1. Tap Settings > Sound > Phone ringtone.2. Select and tap a ringtone in the list.3. Tap OK.Setting notification ringtone1. Tap Settings > Sound > Notification ringtone.2. Select and tap a ringtone for notifications.3. Tap OK.Setting feedback options1. Tap Settings > Sound.2. Tap Audible touch tones if you want to play tones when using the dial pad. It is selected by default.3. Tap Audible selection if you want to play sound when making selection on the screen.4. Tap Screen lock sounds if you want to play sound when locking and unlocking the screen.5. Tap Haptic feedback if you want the phone to vibrate when you press soft keys. It is selected by default.Setting Sound effect1. Tap Settings > Sound > NASH Sound Effect.2. Select and tap an effect from 3D sounds and equalizers. You can choose the user set.3. Tap Done.

94SettingsDisplaySetting brightness1. Tap Settings > Display > Brightness.2. Drag to the right to increase the brightness. Drag it to the left to decrease the brightness.3. Tap OK.Setting auto-rotate screenTap Settings > Display > Auto-rotate screen if you want tomake the screen rotate automatically when you move the phone horizontally or vertically. Setting animation options1. Tap Settings > Display > Animation.2. Tap No animations, Some animations or All animations.3. Tap OK.Setting screen timeout1. Tap Settings > Display > Screen timeout.2. Select and tap the time interval to turn off the screen.3. Tap OK.Location & securitySetting my location1. Tap Settings > Location & security > Use wireless networks.2. Tap Agree to allow Google’s location service to collect anonymous location data.3. Tap Use GPS satellites if you want to find street-level locations.Setting screen lock with a pattern key1. Tap Settings > Location & security > Set up screen lock > Pattern.2. Read “Securing your phone” page and tap Next.3. Watch how to set up the pattern and tap Next.4. Drag your pattern on the screen and tap Continue. Make sure to connect the pattern with at least four dots. Tap Retry and draw another pattern if you want to set up one.5. Tap Continue.6. Drag the pattern again and tap Confirm.Setting the pattern lock Unlocking the pattern lock

95SettingsSetting screen lock with a PIN1. Tap Settings > Location & security > Set up screen lock > PIN.2. Enter numbers as PIN and tap Continue. The PIN should be at least 4 characters.3. Enter the numbers again to confirm.4. Tap OK.Setting PIN Entering PINForgot your password for Google account?If you have forgotten your password for Google account, resetit at the Google website. 1. Open your web browser on your computer and go to https://www.google.com/accounts/recovery.2. Enter the email address or username that you use to sign in to your Google account and click Submit.3. Enter the characters that you see on the screen and click Continue.4. Select an option about recovering your account and click Continue.5. Take necessary steps for each option: xEnter the answer for security questions if you have selected Answer your security question. This option will not be available if you have signed in to your Google account within last five days. xCheck your email account you provided when you created your Google Account and follow the instructions if you have selected Email to @****. xFill in the form for Google Accounts Help if you have selected I no longer have access to these, and click Submit on the bottom of the window.Setting screen lock with a password1. Tap Settings > Location & security > Set up screen lock > Password.2. Enter your password and tap Continue. The password should be at least 4 characters.3. Enter the password again to confirm.4. Tap OK.Setting the password lock Unlocking the password lock

96SettingsSetting SIM card lock1. Tap Settings > Location & security > Set up SIM card lock.2. Tap Lock SIM card and enter the SIM PIN if you want to require a PIN to use the phone.3. Tap Change SIM PIN and enter the old SIM PIN and a new SIM PIN if you want to change the SIM PIN.Displaying passwords1. Tap Settings > Location & security. 2. Tap Visible passwords if you want to see passwords while typing it.Selecting device administrators1. Tap Settings > Location & security. 2. Tap Select device administrators if you want to add or remove device administrators.Setting to use secure credentials Tap Use secure credentials if you allow application to access secure certificates and other credentials.Installing certificates from SD card Tap Install from SD card if you want to install encrypted certificates from SD card.Setting the credential storage password1. Tap Settings > Location & security > Set password.2. Enter a new password and enter it again to confirm.3. Tap OK.Clearing the storageTap Clear storage if you want to clear credential storage of all contents and reset its password.ApplicationsAllowing installation of unknown applications1. Tap Settings > Applications.2. Tap Unknown sources to allow non-market applications to be installed on the phone.Managing applications1. Tap Settings > Applications > Manage applications > Downloaded.2. Tap an application and tap Force stop if you want to stop its operation by force. Tap Uninstall if you want to uninstall the application.3. Tap Running on the top of the screen and tap an application to manage its operation.Viewing running services and applications1. Tap Settings > Applications > Running services.2. Tap a service or an application to stop its operation or to edit its options.3. Tap Stop if you want to stop its operation.

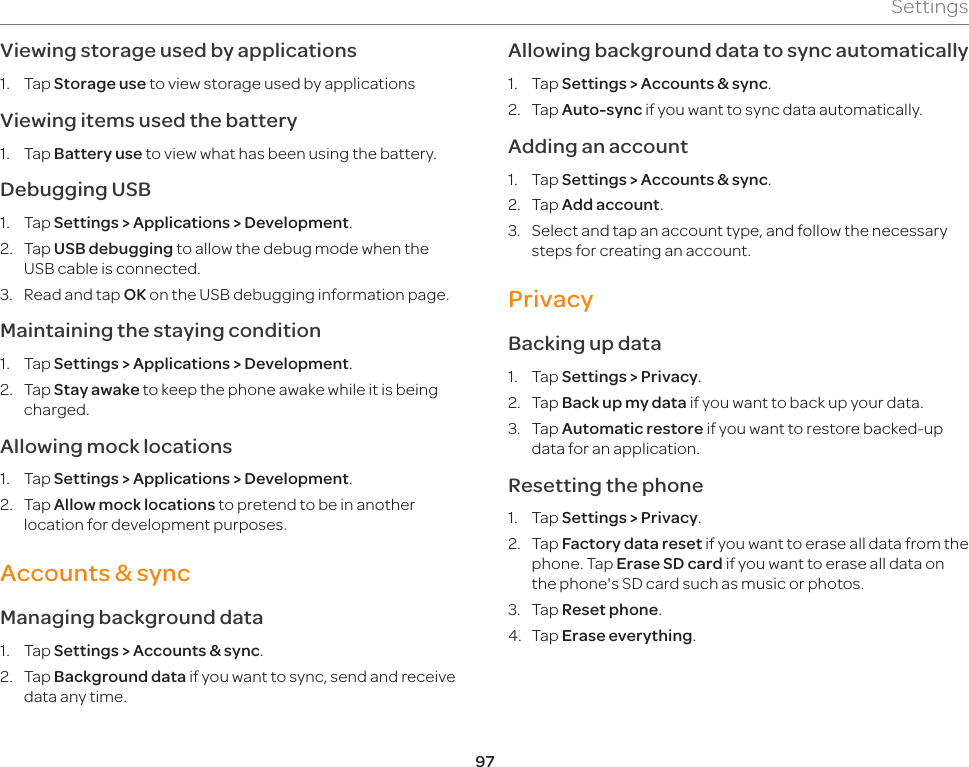

97SettingsViewing storage used by applications 1. Tap Storage use to view storage used by applicationsViewing items used the battery 1. Tap Battery use to view what has been using the battery.Debugging USB1. Tap Settings > Applications > Development.2. Tap USB debugging to allow the debug mode when the USB cable is connected.3. Read and tap OK on the USB debugging information page.Maintaining the staying condition1. Tap Settings > Applications > Development.2. Tap Stay awake to keep the phone awake while it is being charged.Allowing mock locations1. Tap Settings > Applications > Development.2. Tap Allow mock locations to pretend to be in another location for development purposes.Accounts & syncManaging background data1. Tap Settings > Accounts & sync.2. Tap Background data if you want to sync, send and receive data any time.Allowing background data to sync automatically1. Tap Settings > Accounts & sync.2. Tap Auto-sync if you want to sync data automatically.Adding an account1. Tap Settings > Accounts & sync.2. Tap Add account.3. Select and tap an account type, and follow the necessary steps for creating an account.PrivacyBacking up data1. Tap Settings > Privacy.2. Tap Back up my data if you want to back up your data.3. Tap Automatic restore if you want to restore backed-up data for an application.Resetting the phone1. Tap Settings > Privacy.2. Tap Factory data reset if you want to erase all data from the phone. Tap Erase SD card if you want to erase all data on the phone's SD card such as music or photos.3. Tap Reset phone.4. Tap Erase everything.

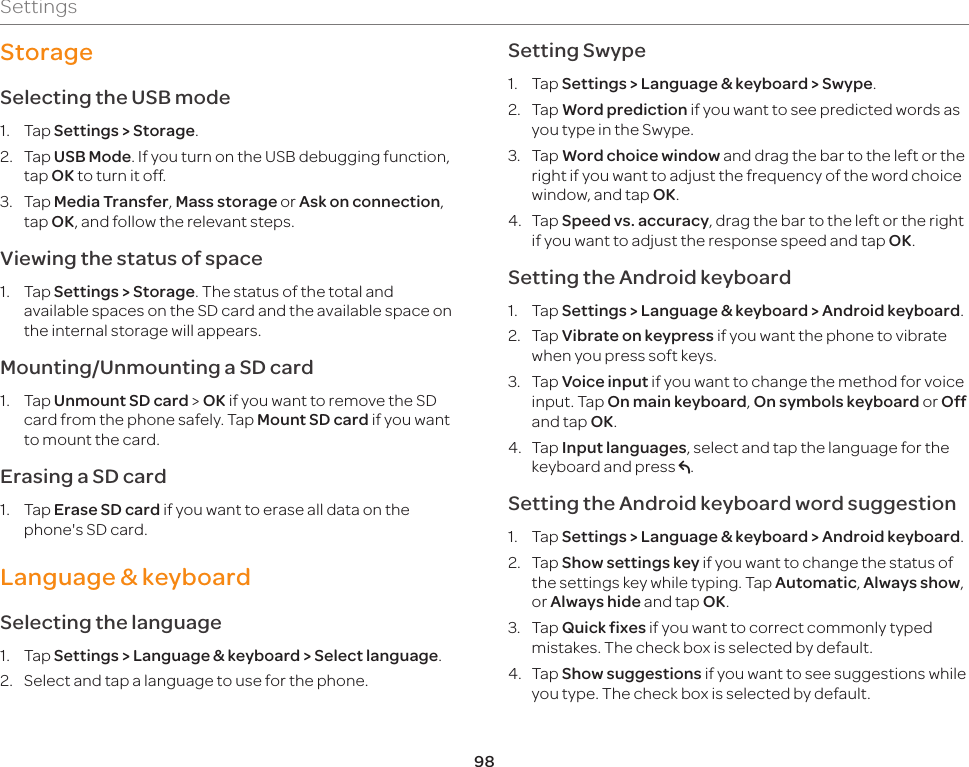

98SettingsStorage Selecting the USB mode1. Tap Settings > Storage.2. Tap USB Mode. If you turn on the USB debugging function, tap OK to turn it off.3. Tap Media Transfer, Mass storage or Ask on connection, tap OK, and follow the relevant steps. Viewing the status of space1. Tap Settings > Storage. The status of the total and available spaces on the SD card and the available space on the internal storage will appears.Mounting/Unmounting a SD card1. Tap Unmount SD card > OK if you want to remove the SD card from the phone safely. Tap Mount SD card if you want to mount the card. Erasing a SD card1. Tap Erase SD card if you want to erase all data on the phone's SD card.Language & keyboardSelecting the language1. Tap Settings > Language & keyboard > Select language.2. Select and tap a language to use for the phone.Setting Swype1. Tap Settings > Language & keyboard > Swype.2. Tap Word prediction if you want to see predicted words as you type in the Swype.3. Tap Word choice window and drag the bar to the left or the right if you want to adjust the frequency of the word choice window, and tap OK.4. Tap Speed vs. accuracy, drag the bar to the left or the right if you want to adjust the response speed and tap OK.Setting the Android keyboard1. Tap Settings > Language & keyboard > Android keyboard.2. Tap Vibrate on keypress if you want the phone to vibrate when you press soft keys.3. Tap Voice input if you want to change the method for voice input. Tap On main keyboard, On symbols keyboard or Off and tap OK.4. Tap Input languages, select and tap the language for the keyboard and press C.Setting the Android keyboard word suggestion1. Tap Settings > Language & keyboard > Android keyboard.2. Tap Show settings key if you want to change the status of the settings key while typing. Tap Automatic, Always show, or Always hide and tap OK.3. Tap Quick fixes if you want to correct commonly typed mistakes. The check box is selected by default.4. Tap Show suggestions if you want to see suggestions while you type. The check box is selected by default.

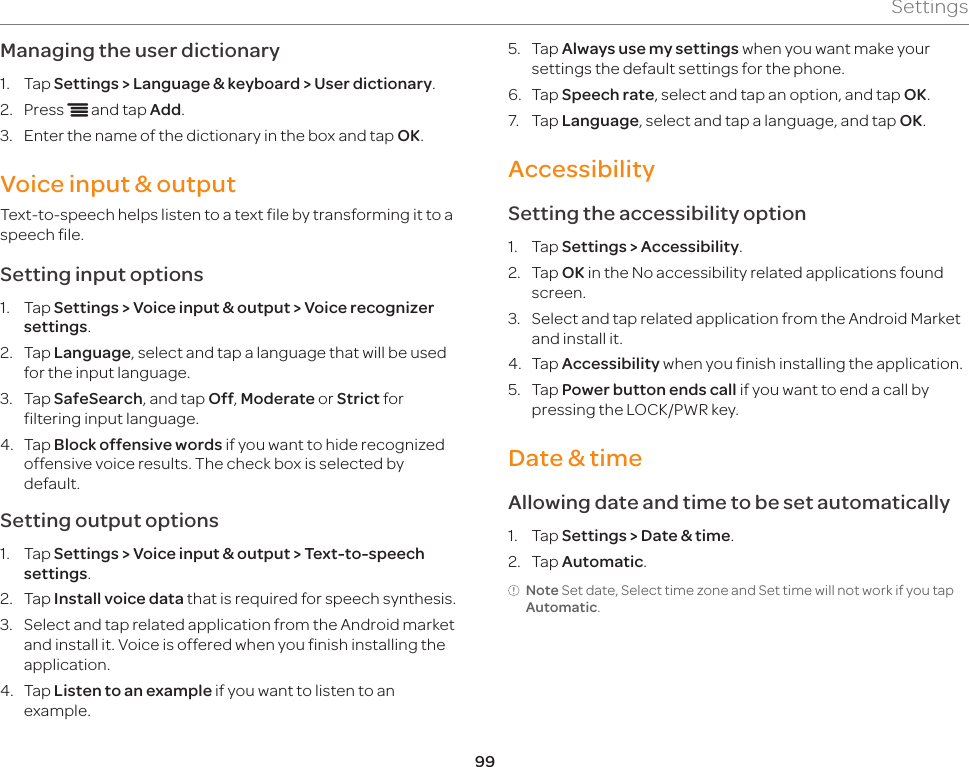

99SettingsManaging the user dictionary1. Tap Settings > Language & keyboard > User dictionary.2. Press n and tap Add.3. Enter the name of the dictionary in the box and tap OK.Voice input & outputText-to-speech helps listen to a text file by transforming it to a speech file.Setting input options1. Tap Settings > Voice input & output > Voice recognizer settings.2. Tap Language, select and tap a language that will be used for the input language.3. Tap SafeSearch, and tap Off, Moderate or Strict for filtering input language.4. Tap Block offensive words if you want to hide recognized offensive voice results. The check box is selected by default.Setting output options1. Tap Settings > Voice input & output > Text-to-speech settings.2. Tap Install voice data that is required for speech synthesis.3. Select and tap related application from the Android market and install it. Voice is offered when you finish installing the application.4. Tap Listen to an example if you want to listen to an example.5. Tap Always use my settings when you want make your settings the default settings for the phone.6. Tap Speech rate, select and tap an option, and tap OK.7. Tap Language, select and tap a language, and tap OK.AccessibilitySetting the accessibility option1. Tap Settings > Accessibility.2. Tap OK in the No accessibility related applications found screen.3. Select and tap related application from the Android Market and install it.4. Tap Accessibility when you finish installing the application.5. Tap Power button ends call if you want to end a call by pressing the LOCK/PWR key.Date & timeAllowing date and time to be set automatically1. Tap Settings > Date & time.2. Tap Automatic. Note Set date, Select time zone and Set time will not work if you tap Automatic.

100SettingsSetting the date1. Tap Settings > Date & time > Set date.2. Enter month, day and year for the phone.3. Tap Set.Setting the time zone1. Tap Settings > Date & time > Select time zone.2. Select and tap a time zone in the list.Setting time1. Tap Settings > Date & time > Set time.2. Enter the minute and the hour.3. Tap Set.Setting 24-hour format 1. Tap Settings > Date & time > Use 24-hour format if you want to set 24-hour format instead of AM/PM format.Selecting date format1. Tap Settings > Date & time > Select date format.2. Select a preferred date format.3. Tap OK.About phoneChecking the status of the phone1. Tap Settings > About phone.2. Tap Status if you want to check the current status of the phone, including battery status, battery level and your phone number.Checking battery use1. Tap Settings > About phone.2. Tap Battery use if you want to check how the battery is being used.Seeing legal information1. Tap Settings > About phone.2. Tap Legal information if you want to see the open source licenses and Google’s legal information.Learning how to use the phone1. Tap Settings > About phone.2. Tap System tutorial if you want to see how to use the phone.3. Follow the on-screen instructions.Note Make sure to set Swype as the default keyboard. Refer to Language & keyboard for more information on setting Swype.

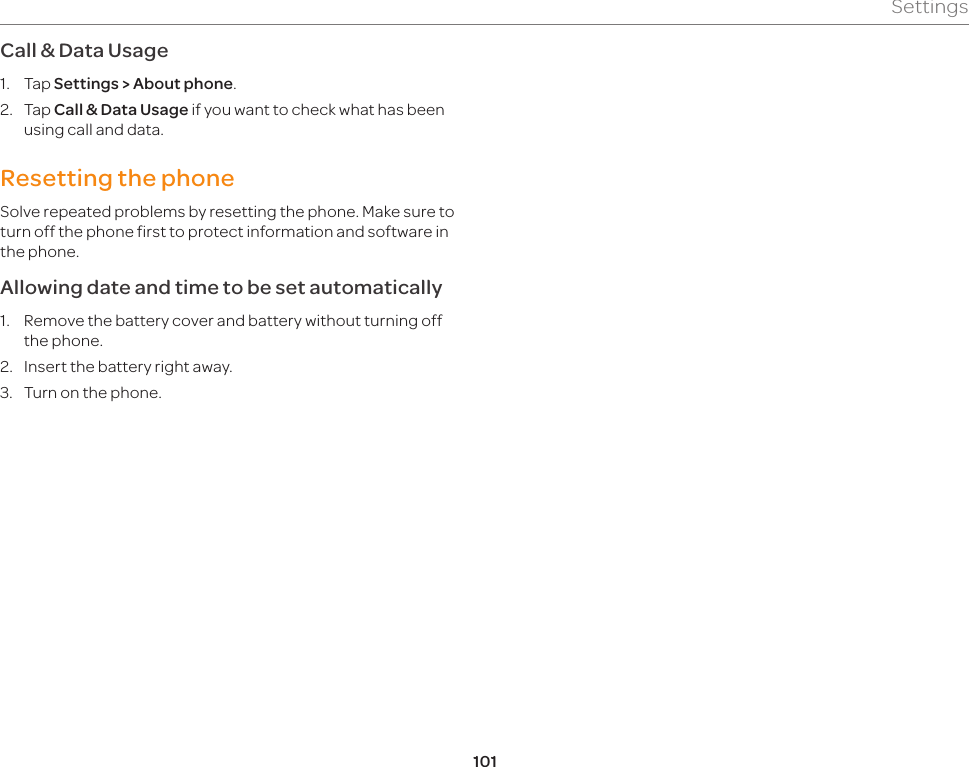

101SettingsCall & Data Usage1. Tap Settings > About phone.2. Tap Call & Data Usage if you want to check what has been using call and data.Resetting the phoneSolve repeated problems by resetting the phone. Make sure to turn off the phone first to protect information and software in the phone.Allowing date and time to be set automatically1. Remove the battery cover and battery without turning off the phone.2. Insert the battery right away.3. Turn on the phone.

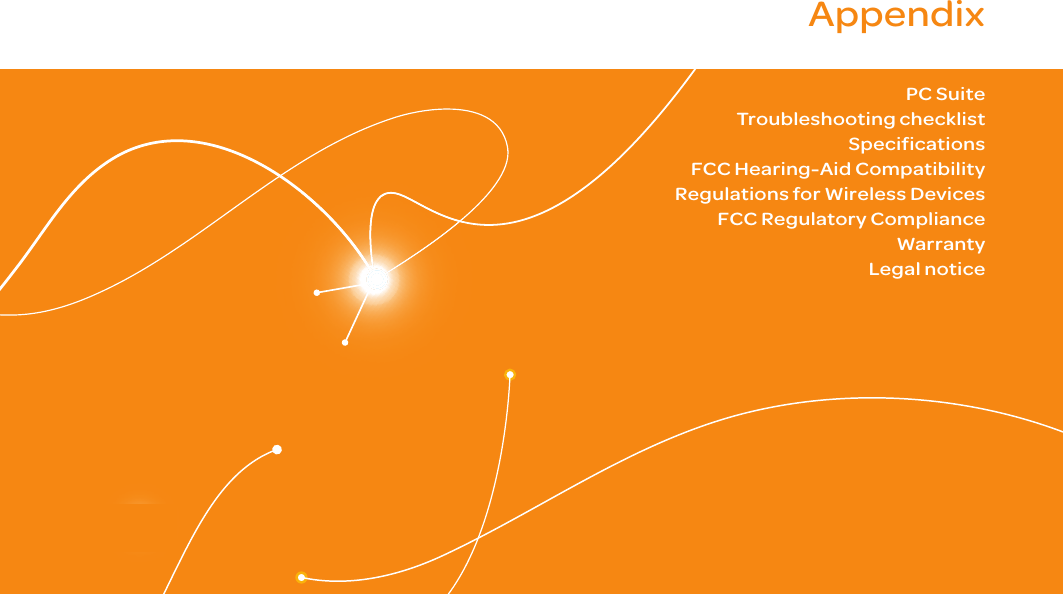

AppendixAppendixPC SuiteTroubleshooting checklistSpecificationsFCC Hearing-Aid Compatibility Regulations for Wireless DevicesFCC Regulatory ComplianceWarrantyLegal notice

103AppendixTo update softwareYou can update your software without visiting the nearest dealer.1. Tap Settings > software update.2. Tap Check for updates to check whether you need to update the software.Note After downloading the software, the device will ask you whether to update the software now. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select between 1 hour, 4 hours or 8 hours in Options. After selecting the updating time, you will be sent back to standby mode. If you go to Software Update while you postpone the process, tap Continue Update.To view the version of software1. Tap Settings > About phone.2. Scroll down to see the version of software.PC SuitePC suite is a Windows-based program that allows you to easily manage personal data and multimedia files by connecting your phone to a PC. The application can be downloaded at http://www.pantechusa.com.System requirements xMicrosoft Windows 2000 or XP family, Windows7 and Vista 32 bit xMinimum 300MB of free disk space xInterface devices such as USB for connection with the phonePC Suite features: xPC Suite launcher xContact Manager xPC Sync xMessage Manager xFile Manager xMMS PC Composer xInternet AccessTroubleshooting checklistWhen audio quality is poor: End a call and try again.When the other party cannot hear you speaking:Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone.When battery life is shorter than usual:This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.When you cannot turn on your phone:Make sure your battery is charged. Check to see if your phone works while recharging the battery.When you are unable to send a message:Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.When you are unable to make a call:Your phone may be set to “fixed dial.” Cancel the “fixed dial” function.

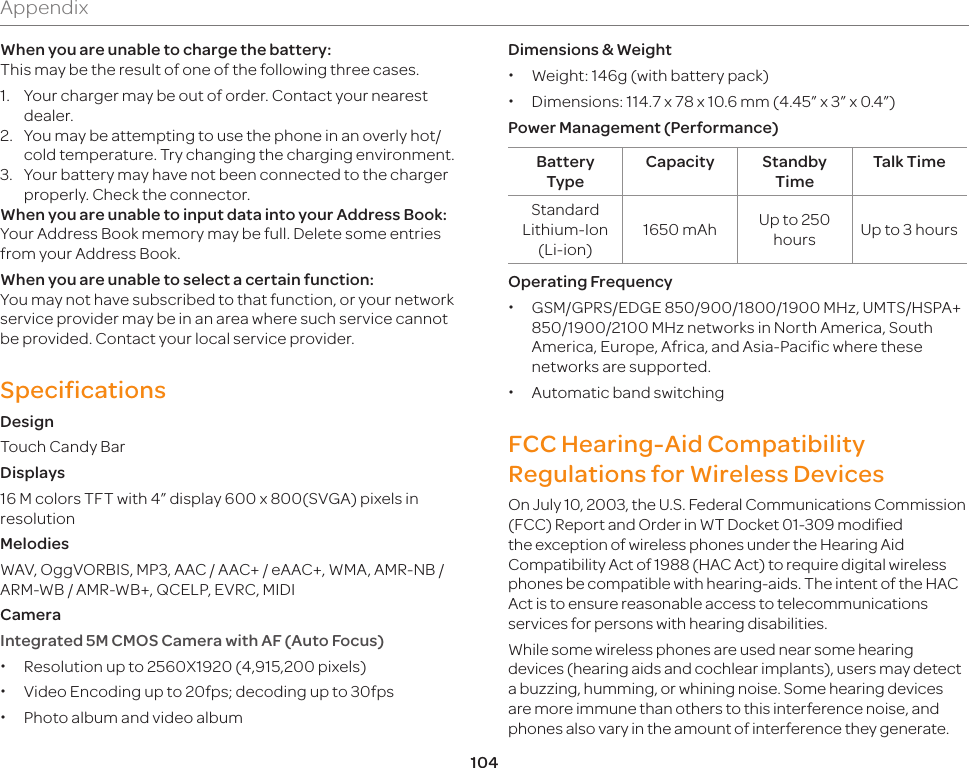

104AppendixWhen you are unable to charge the battery: This may be the result of one of the following three cases.1. Your charger may be out of order. Contact your nearest dealer.2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.3. Your battery may have not been connected to the charger properly. Check the connector.When you are unable to input data into your Address Book: Your Address Book memory may be full. Delete some entries from your Address Book.When you are unable to select a certain function:You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.SpecificationsDesignTouch Candy BarDisplays16 M colors TFT with 4” display 600 x 800(SVGA) pixels in resolution MelodiesWAV, OggVORBIS, MP3, AAC / AAC+ / eAAC+, WMA, AMR-NB / ARM-WB / AMR-WB+, QCELP, EVRC, MIDI CameraIntegrated 5M CMOS Camera with AF (Auto Focus) xResolution up to 2560X1920 (4,915,200 pixels) xVideo Encoding up to 20fps; decoding up to 30fps xPhoto album and video albumDimensions & Weight xWeight: 146g (with battery pack) xDimensions: 114.7 x 78 x 10.6 mm (4.45” x 3” x 0.4”)Power Management (Performance)Battery TypeCapacity Standby TimeTalk TimeStandard Lithium-Ion (Li-ion)1650 mAh Up to 250 hours Up to 3 hoursOperating Frequency xGSM/GPRS/EDGE 850/900/1800/1900 MHz, UMTS/HSPA+ 850/1900/2100 MHz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported. xAutomatic band switchingFCC Hearing-Aid Compatibility Regulations for Wireless DevicesOn July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

105AppendixThe wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their boxes or a label located on the boxes.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. xM-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. xT-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equals M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard. To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See page 71 for instructions to disable these components.This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider about its return and exchange policies and for information on hearing aid compatibility.

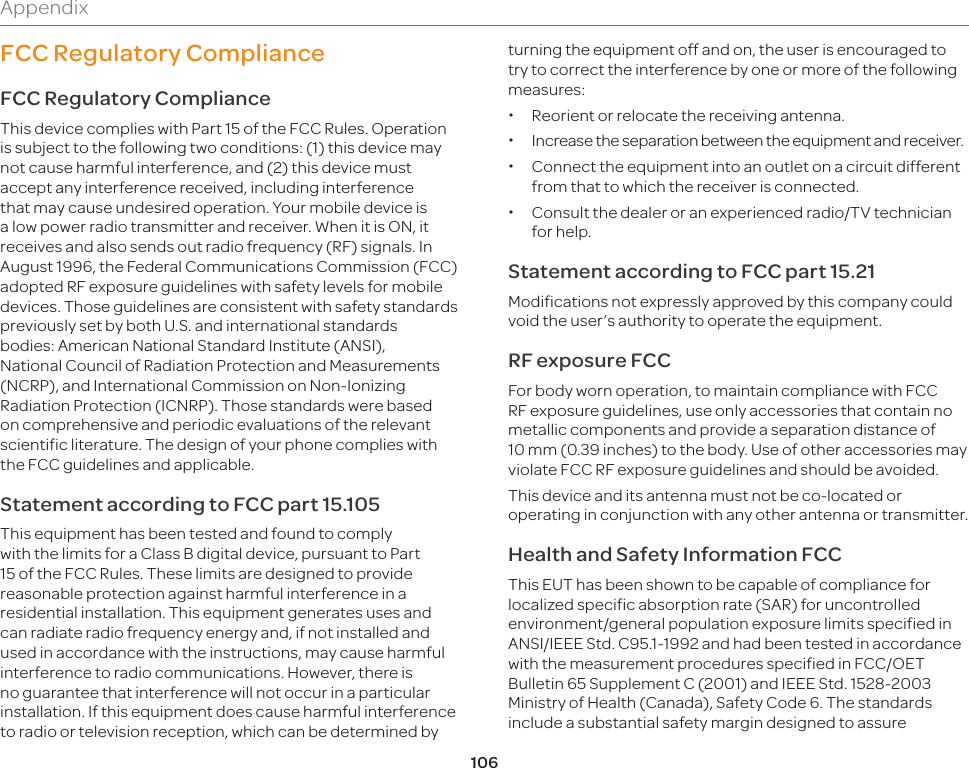

106AppendixFCC Regulatory ComplianceFCC Regulatory ComplianceThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.Statement according to FCC part 15.105This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: xReorient or relocate the receiving antenna. xIncrease the separation between the equipment and receiver. xConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. xConsult the dealer or an experienced radio/TV technician for help.Statement according to FCC part 15.21Modifications not expressly approved by this company could void the user’s authority to operate the equipment.RF exposure FCCFor body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 10mm (0.39inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Health and Safety Information FCCThis EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure

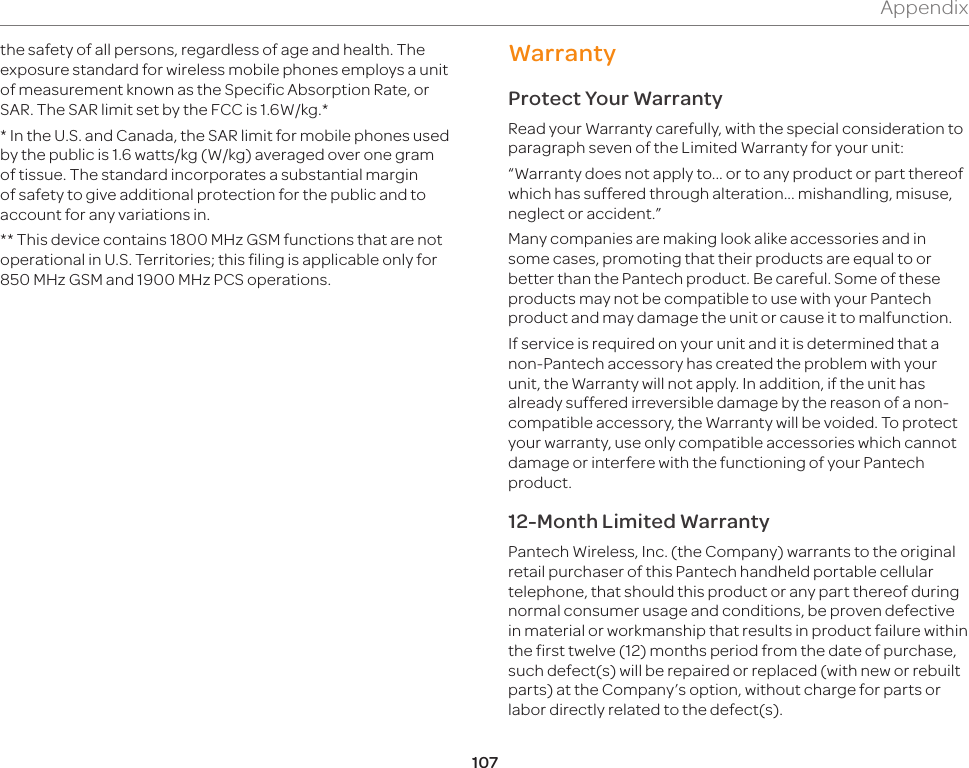

107Appendixthe safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.** In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. ** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.WarrantyProtect Your WarrantyRead your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit:“Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident.”Many companies are making look alike accessories and in some cases, promoting that their products are equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by the reason of a non-compatible accessory, the Warranty will be voided. To protect your warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product.12-Month Limited WarrantyPantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s).

108AppendixThe antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.This warranty does not apply to:(a) Products subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;(b) Products whose mechanical serial number or electronic serial number has been removed, altered or defaced(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;(f) Products damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer’s return address, daytime phone number and/ or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing. To locate Pantech Authorized Service Center, call: (800) 962-8622 or email HandsetHelp@Pantech.com. Please have the following information available when you send the phone in for repair: xA valid original Proof of Purchase xReturn address xDaytime phone number or fax number xModel number xIMEI number (Look for the 15-digit IMEI number behind the battery of the device.) xComplete description of the problem xTransportation prepaidOther Warranty ProgramYou may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale. xTHE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME

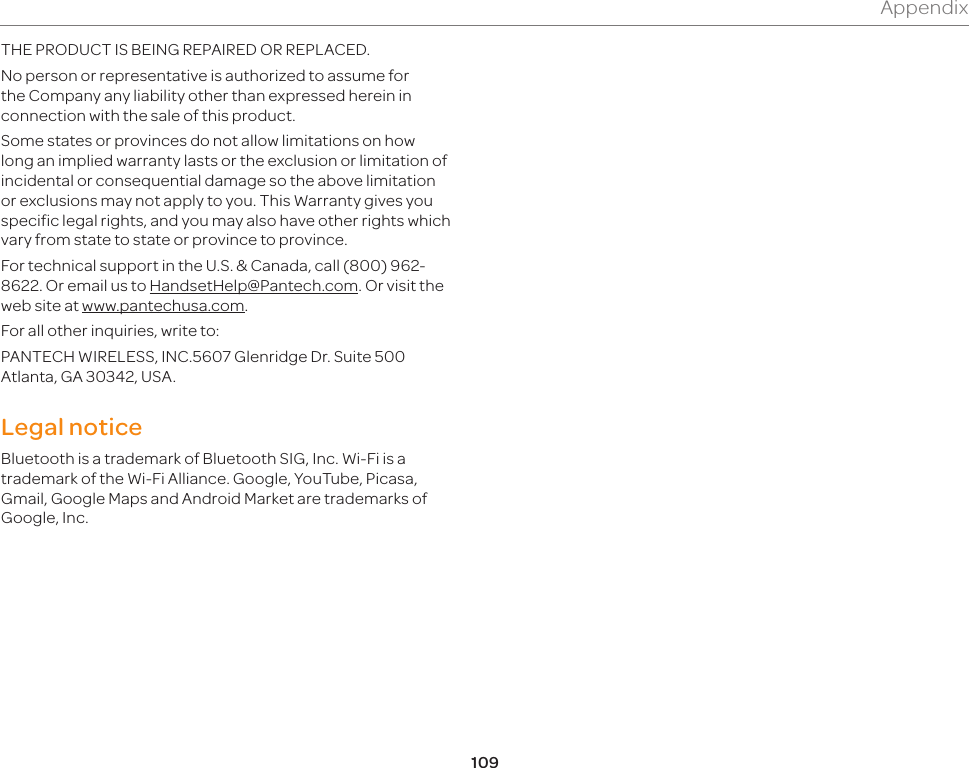

109AppendixTHE PRODUCT IS BEING REPAIRED OR REPLACED.No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.For technical support in the U.S. & Canada, call (800) 962-8622. Or email us to HandsetHelp@Pantech.com. Or visit the web site at www.pantechusa.com.For all other inquiries, write to:PANTECH WIRELESS, INC.5607 Glenridge Dr. Suite 500 Atlanta, GA 30342, USA.Legal noticeBluetooth is a trademark of Bluetooth SIG, Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. Google, YouTube, Picasa, Gmail, Google Maps and Android Market are trademarks of Google, Inc.
