Pantech Co P9090 850/1900 GSM/GPRS/EDGE/WCDMA Phone w/ Bluetooth/WLAN/NFC User Manual rev 1

Pantech Co Ltd 850/1900 GSM/GPRS/EDGE/WCDMA Phone w/ Bluetooth/WLAN/NFC Users Manual rev 1

UserManual.wiki >

P9090 User Manual

Users Manual rev 1

Thank you for choosing the Pantech P9090, our latest smartphone. The Pantech P9090 has many features designed to enhance your mobile experience. With its unique, stylish design you will enjoy the entire phone experience.This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech phone has to offer.User GuideP9090

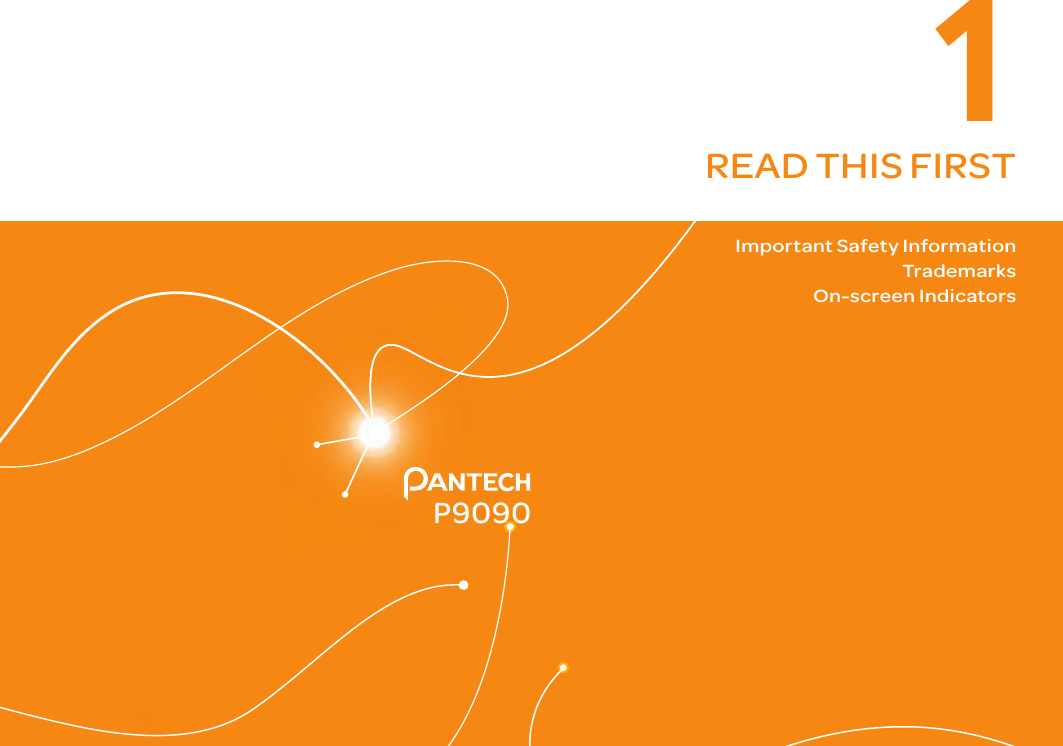

31READ THIS FIRSTImportant Safety InformationTrademarksOn-screen IndicatorsP9090

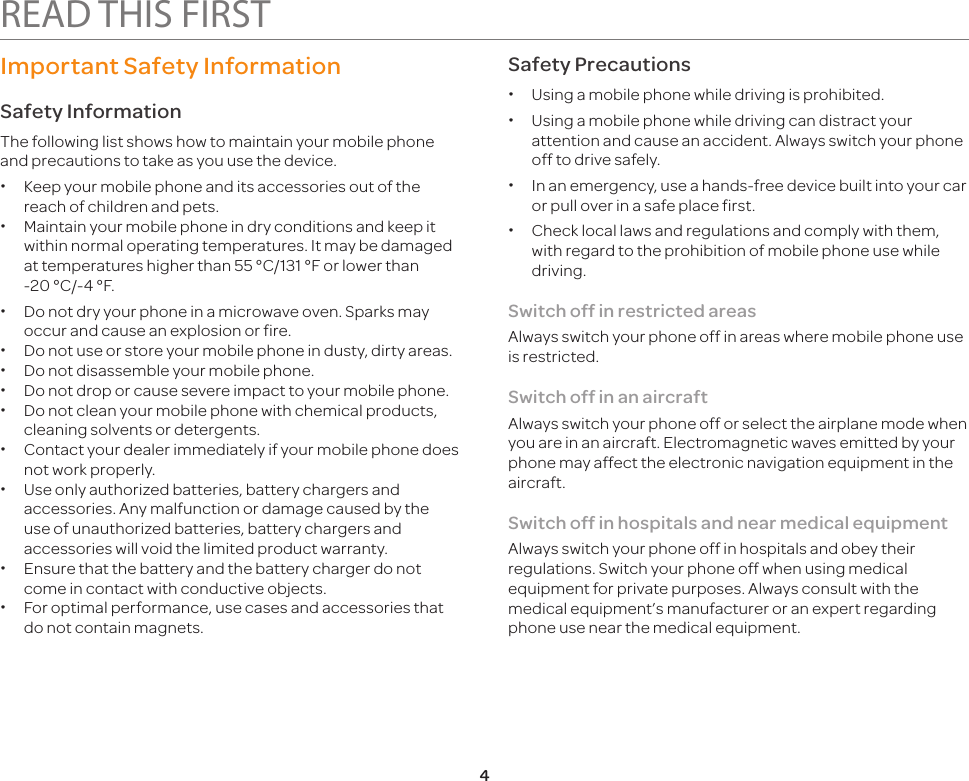

4READ THIS FIRSTImportant Safety InformationSafety InformationThe following list shows how to maintain your mobile phone and precautions to take as you use the device. xKeep your mobile phone and its accessories out of the reach of children and pets. xMaintain your mobile phone in dry conditions and keep it within normal operating temperatures. It may be damaged at temperatures higher than 55 °C/131 °F or lower than -20 °C/-4 °F. xDo not dry your phone in a microwave oven. Sparks may occur and cause an explosion or fire. xDo not use or store your mobile phone in dusty, dirty areas. xDo not disassemble your mobile phone. xDo not drop or cause severe impact to your mobile phone. xDo not clean your mobile phone with chemical products, cleaning solvents or detergents. xContact your dealer immediately if your mobile phone does not work properly. xUse only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty. xEnsure that the battery and the battery charger do not come in contact with conductive objects. xFor optimal performance, use cases and accessories that do not contain magnets.Safety Precautions xUsing a mobile phone while driving is prohibited. xUsing a mobile phone while driving can distract your attention and cause an accident. Always switch your phone off to drive safely. xIn an emergency, use a hands-free device built into your car or pull over in a safe place first. xCheck local laws and regulations and comply with them, with regard to the prohibition of mobile phone use while driving.Switch off in restricted areasAlways switch your phone off in areas where mobile phone use is restricted.Switch off in an aircraftAlways switch your phone off or select the airplane mode when you are in an aircraft. Electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.Switch off in hospitals and near medical equipmentAlways switch your phone off in hospitals and obey their regulations. Switch your phone off when using medical equipment for private purposes. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment.

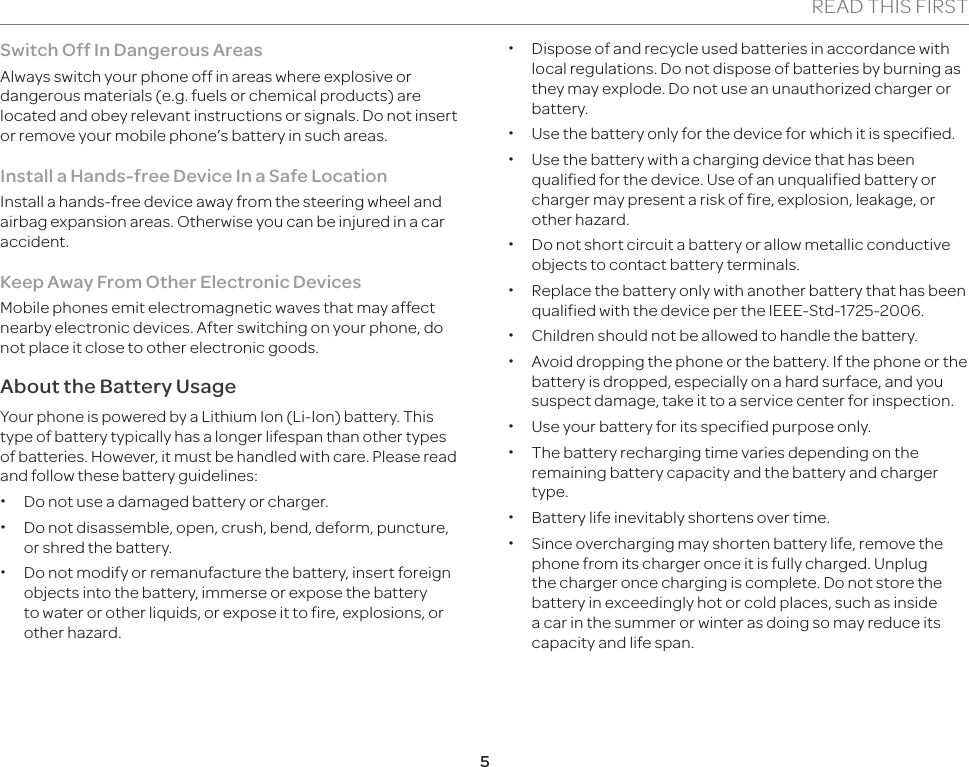

5READ THIS FIRSTSwitch Off In Dangerous AreasAlways switch your phone off in areas where explosive or dangerous materials (e.g. fuels or chemical products) are located and obey relevant instructions or signals. Do not insert or remove your mobile phone’s battery in such areas.Install a Hands-free Device In a Safe LocationInstall a hands-free device away from the steering wheel and airbag expansion areas. Otherwise you can be injured in a car accident.Keep Away From Other Electronic DevicesMobile phones emit electromagnetic waves that may affect nearby electronic devices. After switching on your phone, do not place it close to other electronic goods.About the Battery UsageYour phone is powered by a Lithium Ion (Li-Ion) battery. This type of battery typically has a longer lifespan than other types of batteries. However, it must be handled with care. Please read and follow these battery guidelines: xDo not use a damaged battery or charger. xDo not disassemble, open, crush, bend, deform, puncture, or shred the battery. xDo not modify or remanufacture the battery, insert foreign objects into the battery, immerse or expose the battery to water or other liquids, or expose it to fire, explosions, or other hazard. xDispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning as they may explode. Do not use an unauthorized charger or battery. xUse the battery only for the device for which it is specified. xUse the battery with a charging device that has been qualified for the device. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. xDo not short circuit a battery or allow metallic conductive objects to contact battery terminals. xReplace the battery only with another battery that has been qualified with the device per the IEEE-Std-1725-2006. xChildren should not be allowed to handle the battery. xAvoid dropping the phone or the battery. If the phone or the battery is dropped, especially on a hard surface, and you suspect damage, take it to a service center for inspection. xUse your battery for its specified purpose only. xThe battery recharging time varies depending on the remaining battery capacity and the battery and charger type. xBattery life inevitably shortens over time. xSince overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger once charging is complete. Do not store the battery in exceedingly hot or cold places, such as inside a car in the summer or winter as doing so may reduce its capacity and life span.

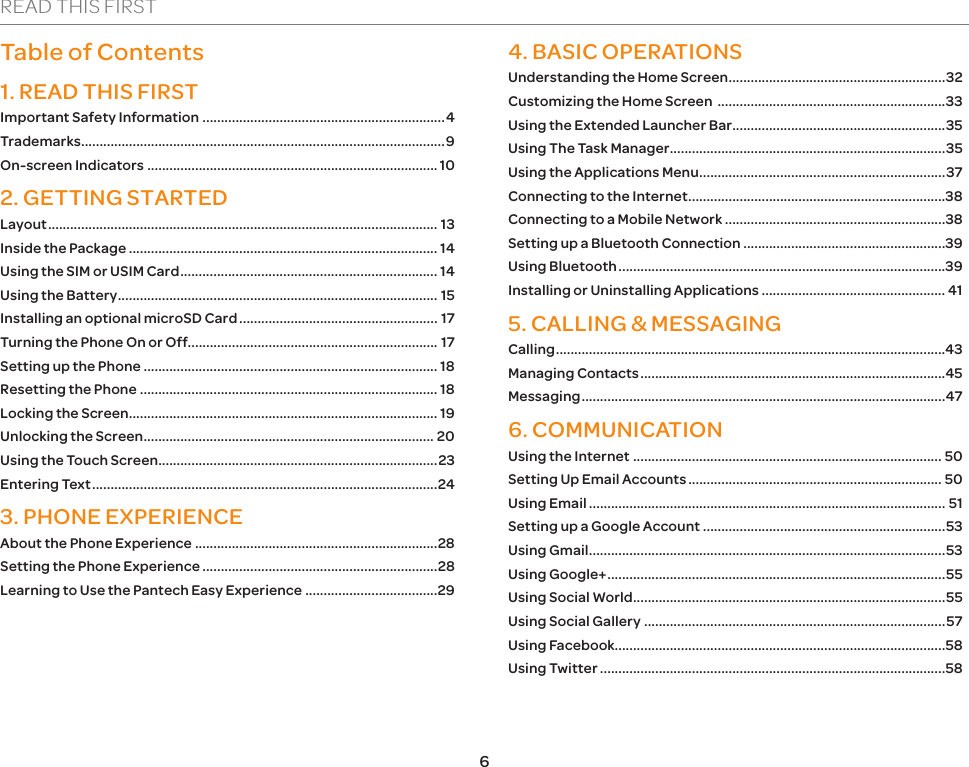

6READ THIS FIRSTTable of Contents1. READ THIS FIRSTImportant Safety Information ..................................................................4Trademarks...................................................................................................9On-screen Indicators ............................................................................... 102. GETTING STARTEDLayout .......................................................................................................... 13Inside the Package .................................................................................... 14Using the SIM or USIM Card ...................................................................... 14Using the Battery ....................................................................................... 15Installing an optional microSD Card ...................................................... 17Turning the Phone On or Off.................................................................... 17Setting up the Phone ................................................................................ 18Resetting the Phone ................................................................................. 18Locking the Screen .................................................................................... 19Unlocking the Screen ............................................................................... 20Using the Touch Screen ............................................................................23Entering Text ..............................................................................................243. PHONE EXPERIENCEAbout the Phone Experience ..................................................................28Setting the Phone Experience ................................................................28Learning to Use the Pantech Easy Experience ....................................294. BASIC OPERATIONS Understanding the Home Screen ...........................................................32Customizing the Home Screen ..............................................................33Using the Extended Launcher Bar ..........................................................35Using The Task Manager ...........................................................................35Using the Applications Menu ...................................................................37Connecting to the Internet ......................................................................38Connecting to a Mobile Network ............................................................38Setting up a Bluetooth Connection .......................................................39Using Bluetooth .........................................................................................39Installing or Uninstalling Applications .................................................. 415. CALLING & MESSAGINGCalling ..........................................................................................................43Managing Contacts ...................................................................................45Messaging ...................................................................................................476. COMMUNICATIONUsing the Internet .................................................................................... 50Setting Up Email Accounts ..................................................................... 50Using Email ................................................................................................. 51Setting up a Google Account ..................................................................53Using Gmail .................................................................................................53Using Google+ ............................................................................................55Using Social World .....................................................................................55Using Social Gallery ..................................................................................57Using Facebook..........................................................................................58Using Twitter ..............................................................................................58

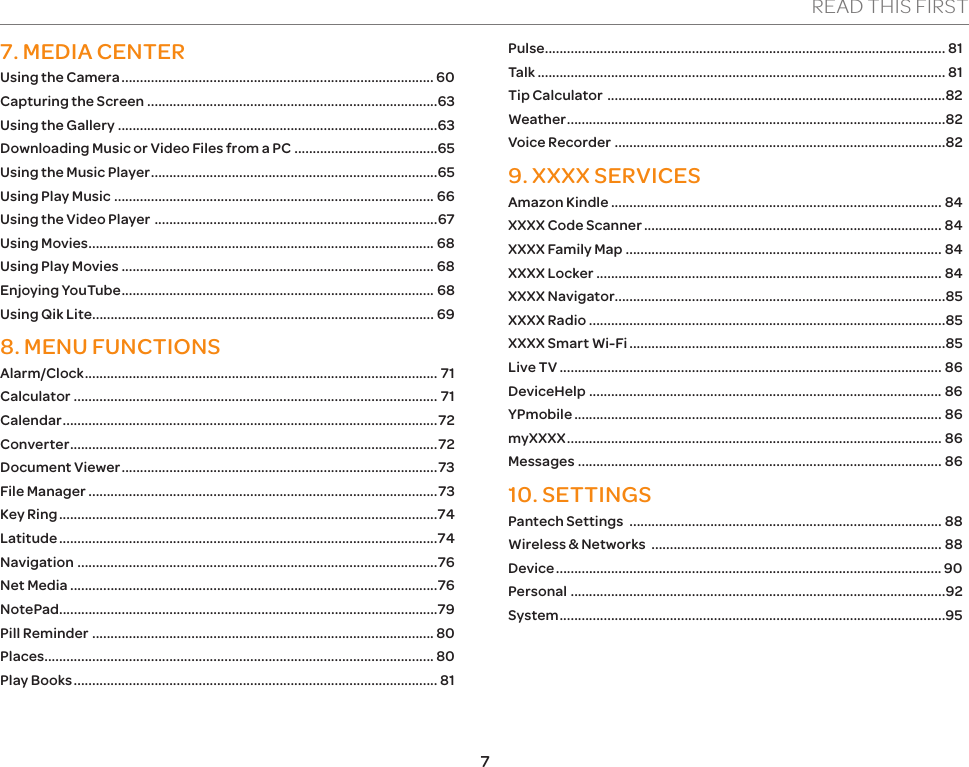

7READ THIS FIRST7. MEDIA CENTER Using the Camera ..................................................................................... 60Capturing the Screen ...............................................................................63Using the Gallery .......................................................................................63Downloading Music or Video Files from a PC .......................................65Using the Music Player ..............................................................................65Using Play Music ....................................................................................... 66Using the Video Player .............................................................................67Using Movies .............................................................................................. 68Using Play Movies ..................................................................................... 68Enjoying YouTube ..................................................................................... 68Using Qik Lite............................................................................................. 698. MENU FUNCTIONS Alarm/Clock ................................................................................................ 71Calculator ................................................................................................... 71Calendar ...................................................................................................... 72Converter ....................................................................................................72Document Viewer ......................................................................................73File Manager ...............................................................................................73Key Ring .......................................................................................................74Latitude .......................................................................................................74Navigation ..................................................................................................76Net Media ....................................................................................................76NotePad.......................................................................................................79Pill Reminder ............................................................................................. 80Places .......................................................................................................... 80Play Books ................................................................................................... 81Pulse ............................................................................................................. 81Talk ............................................................................................................... 81Tip Calculator ............................................................................................82Weather .......................................................................................................82Voice Recorder ..........................................................................................829. XXXX SERVICES Amazon Kindle .......................................................................................... 84XXXX Code Scanner ................................................................................. 84XXXX Family Map ...................................................................................... 84XXXX Locker .............................................................................................. 84XXXX Navigator..........................................................................................85XXXX Radio .................................................................................................85XXXX Smart Wi-Fi ......................................................................................85Live TV ........................................................................................................ 86DeviceHelp ................................................................................................ 86YPmobile .................................................................................................... 86myXXXX ...................................................................................................... 86Messages ................................................................................................... 8610. SETTINGSPantech Settings ..................................................................................... 88Wireless & Networks ............................................................................... 88Device ......................................................................................................... 90Personal ......................................................................................................92System .........................................................................................................95

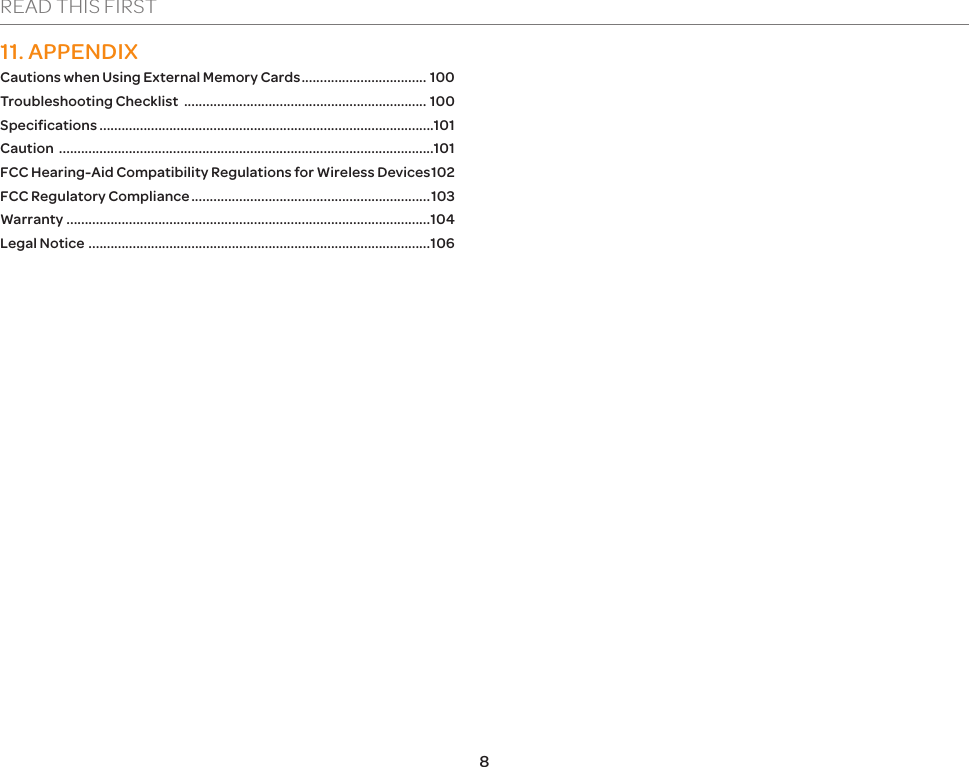

8READ THIS FIRST11. APPENDIXCautions when Using External Memory Cards .................................. 100Troubleshooting Checklist .................................................................. 100Specifications ...........................................................................................101Caution ......................................................................................................101FCC Hearing-Aid Compatibility Regulations for Wireless Devices 102FCC Regulatory Compliance .................................................................103Warranty ...................................................................................................104Legal Notice .............................................................................................106

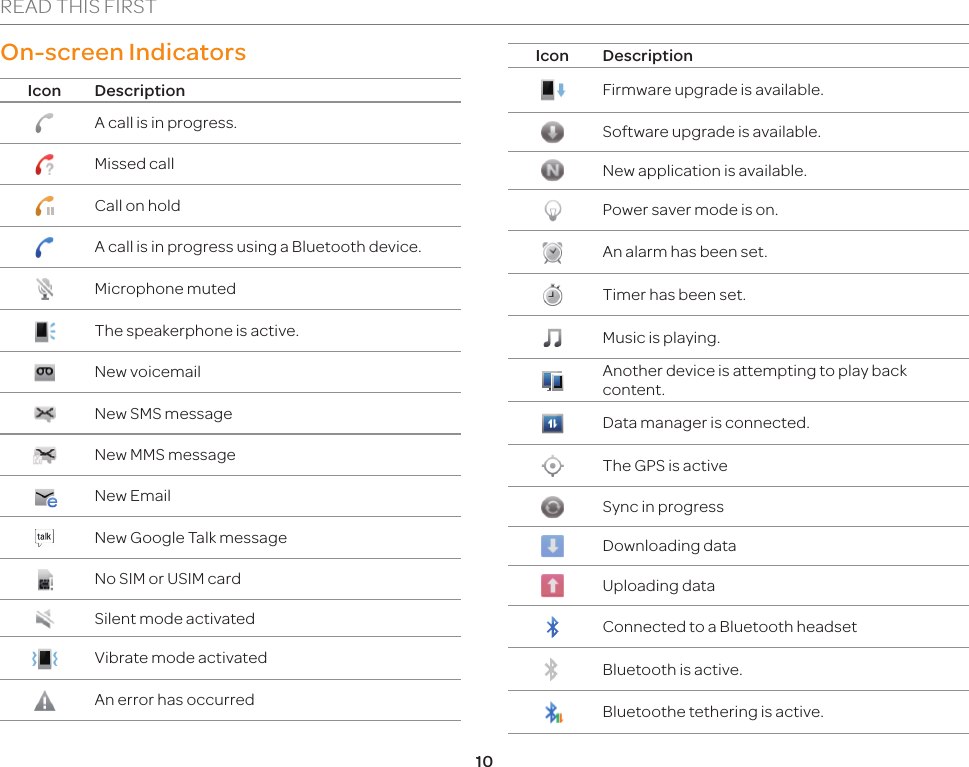

10READ THIS FIRSTOn-screen IndicatorsIcon DescriptionA call is in progress.Missed callCall on holdA call is in progress using a Bluetooth device.Microphone mutedThe speakerphone is active.New voicemail New SMS messageNew MMS messageNew EmailNew Google Talk messageNo SIM or USIM cardSilent mode activatedVibrate mode activatedAn error has occurredIcon DescriptionFirmware upgrade is available.Software upgrade is available.New application is available.Power saver mode is on.An alarm has been set.Timer has been set.Music is playing.Another device is attempting to play back content.Data manager is connected.The GPS is activeSync in progressDownloading dataUploading dataConnected to a Bluetooth headset Bluetooth is active.Bluetoothe tethering is active.

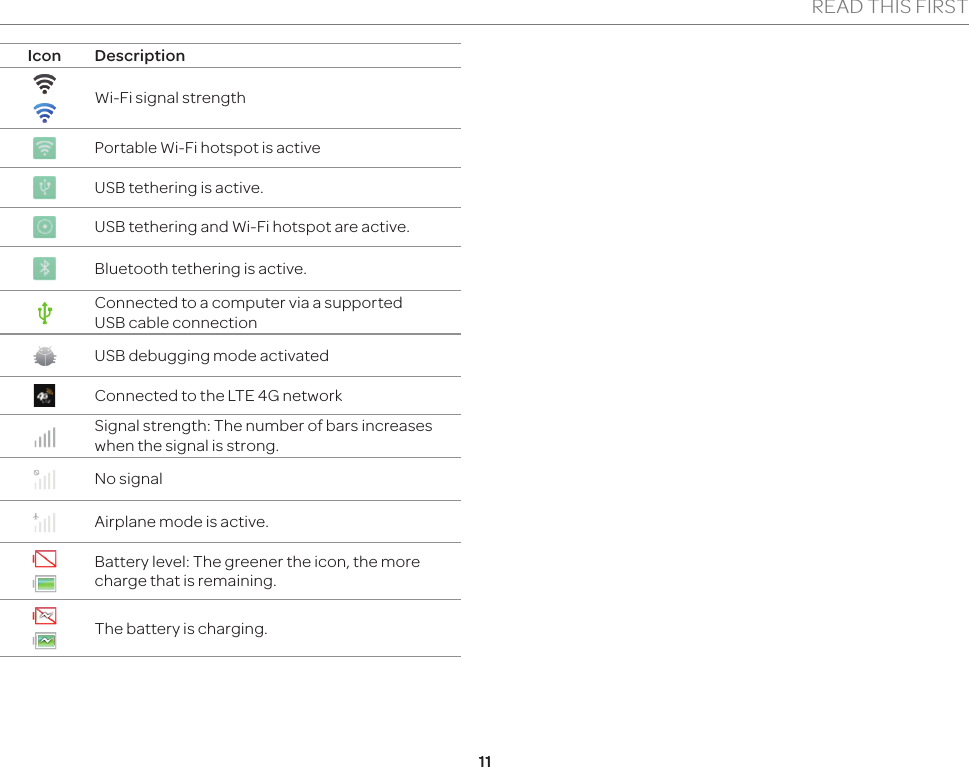

11READ THIS FIRSTIcon Description Wi-Fi signal strengthPortable Wi-Fi hotspot is activeUSB tethering is active.USB tethering and Wi-Fi hotspot are active.Bluetooth tethering is active.Connected to a computer via a supported USB cable connectionUSB debugging mode activatedConnected to the LTE 4G networkSignal strength: The number of bars increases when the signal is strong.No signalAirplane mode is active. Battery level: The greener the icon, the more charge that is remaining. The battery is charging.

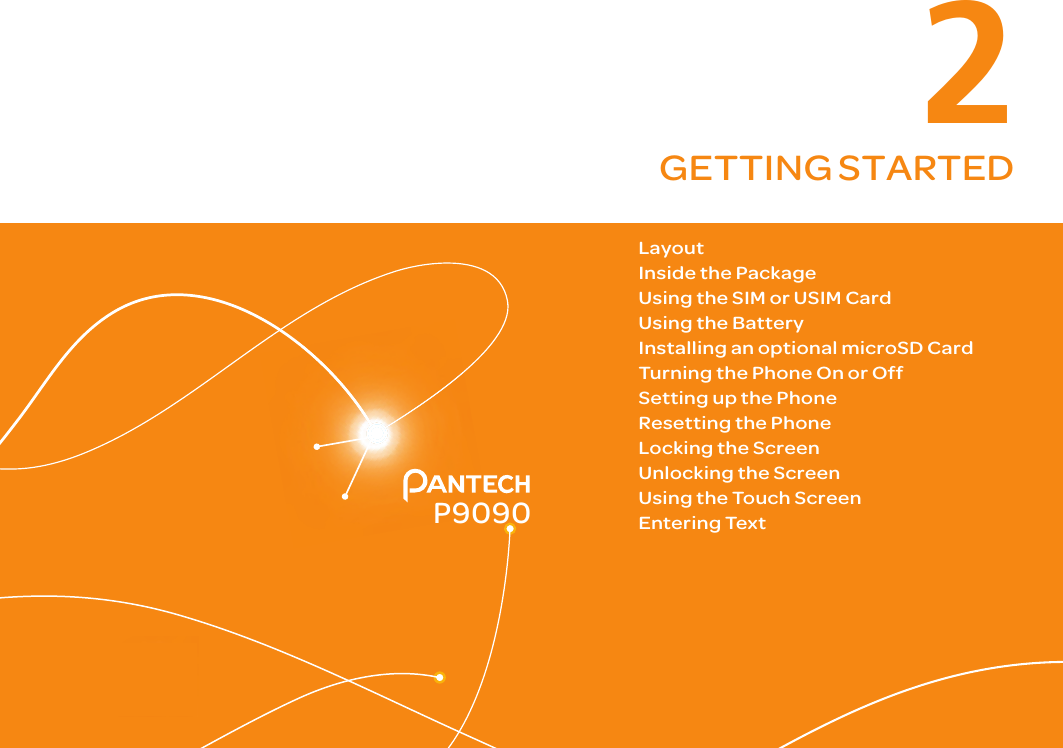

2GETTING STARTEDLayoutInside the PackageUsing the SIM or USIM CardUsing the BatteryInstalling an optional microSD CardTurning the Phone On or OffSetting up the PhoneResetting the PhoneLocking the ScreenUnlocking the ScreenUsing the Touch ScreenEntering TextP9090

13GETTING STARTEDLayoutFront ViewEarpieceProximity Sensor Front microphoneVOLUMEFront cameraTouch screenKey FunctionVOLUME Adjust sound volume. Adjust the ring mode.Rear ViewRear cameraSpeakerRear microphoneMicro USB/ Charger connectorEarphone jackInternal antenna areaLOCK/POWERFlashBattery cover removal grooveKey FunctionLOCK/PWR Lock the screen. Turn the phone on or off.

14GETTING STARTEDNote xYour phone may not be compatible with all types of stereo earphones. xDo not cover the proximity sensor area with LCD protection file. If you cover the sensor, the touch screen may not perform properly. xDo not allow the touch screen to come in contact with water or chemicals. xDo not block the internal antenna embedded in the phone. xDo not hold the handset too close to your face, as you may block the microphone and prevent others from hearing you clearly.Gripping the PhoneHold the phone in the correct position to avoid blocking the internal antenna.Correct IncorrectNote xIf you block the internal antenna, you may disrupt the wireless signal and increase battery consumption. xDo not use metallic cases or accessories, as they can interfere with the signal reception.Inside the PackageCheck your product package for the following items: xHandset xBattery xAdapter xUSB cable xQuick Start GuideUsing the SIM or USIM CardBefore Using the Card xBe careful not to damage your fingernails when you remove the battery cover. xTurn off the phone before installing the SIM or USIM card. xDo not bend or force the card. Doing so may damage the card or destroy data on the card. xTurn off the phone before removing the SIM or USIM card. xDo not expose the SIM or USIM card to moisture. xAvoid static electricity. xDo not lose or transfer your SIM or USIM card to someone. Pantech is not responsible for damage due to theft or loss.

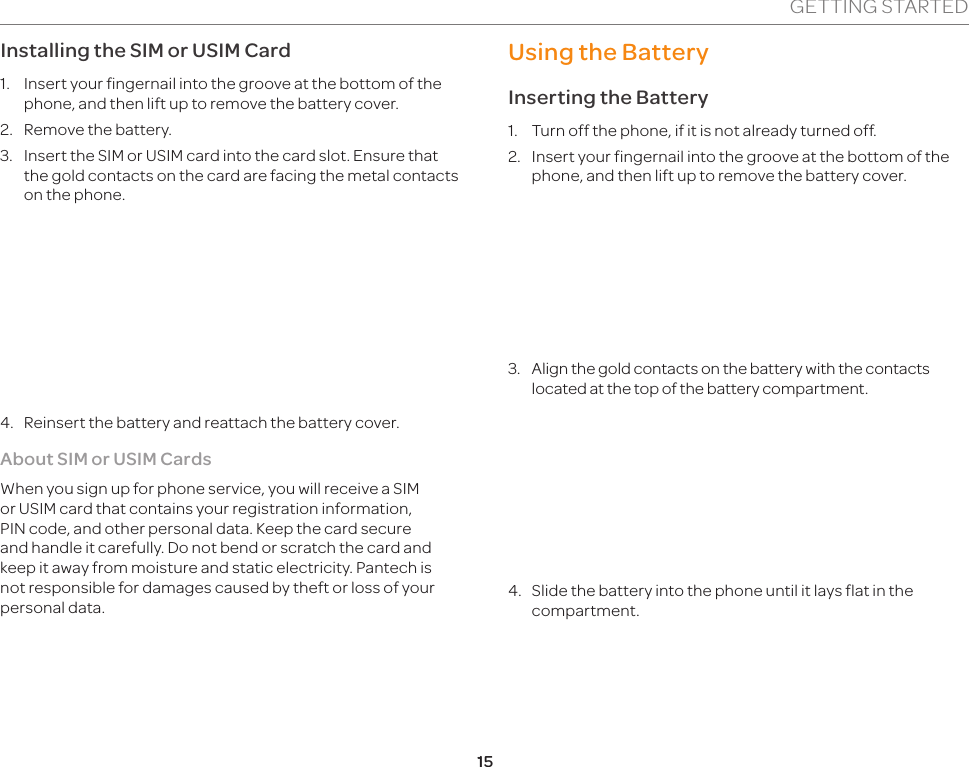

15GETTING STARTEDInstalling the SIM or USIM Card1. Insert your fingernail into the groove at the bottom of the phone, and then lift up to remove the battery cover.2. Remove the battery.3. Insert the SIM or USIM card into the card slot. Ensure that the gold contacts on the card are facing the metal contacts on the phone.4. Reinsert the battery and reattach the battery cover.About SIM or USIM CardsWhen you sign up for phone service, you will receive a SIM or USIM card that contains your registration information, PIN code, and other personal data. Keep the card secure and handle it carefully. Do not bend or scratch the card and keep it away from moisture and static electricity. Pantech is not responsible for damages caused by theft or loss of your personal data.Using the BatteryInserting the Battery1. Turn off the phone, if it is not already turned off.2. Insert your fingernail into the groove at the bottom of the phone, and then lift up to remove the battery cover.3. Align the gold contacts on the battery with the contacts located at the top of the battery compartment.4. Slide the battery into the phone until it lays flat in the compartment.

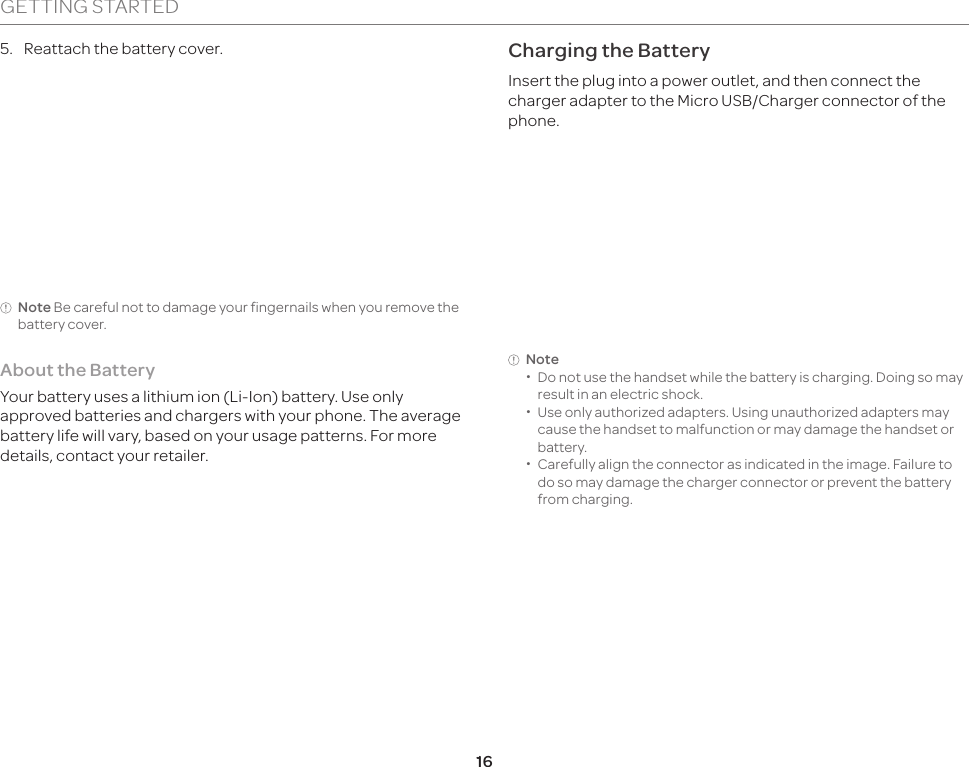

16GETTING STARTED5. Reattach the battery cover.Note Be careful not to damage your fingernails when you remove the battery cover.About the BatteryYour battery uses a lithium ion (Li-Ion) battery. Use only approved batteries and chargers with your phone. The average battery life will vary, based on your usage patterns. For more details, contact your retailer.Charging the BatteryInsert the plug into a power outlet, and then connect the charger adapter to the Micro USB/Charger connector of the phone.Note xDo not use the handset while the battery is charging. Doing so may result in an electric shock. xUse only authorized adapters. Using unauthorized adapters may cause the handset to malfunction or may damage the handset or battery. xCarefully align the connector as indicated in the image. Failure to do so may damage the charger connector or prevent the battery from charging.

17GETTING STARTEDInstalling an optional microSD CardInsert a microSD card to store files, such as photos or videos.1. Insert your fingernail into the groove at the bottom of the phone, and then lift up to remove the battery cover.2. Remove the battery.3. Insert the microSD card into the memory card slot. Ensure that the gold contacts on the card face the metal contacts on the phone.4. Reinsert the battery and reattach the battery cover.About the microSD CardInserting a microSD card allows you to store files and application data. You can use up to a 32 GB microSD card. We recommend that you format the microSD card before using it.Turning the Phone On or OffTurning the Phone OnPress and hold the LOCK/PWR key for more than two seconds.Turning the Phone Off1. Press and hold the LOCK/PWR key for more than two seconds.2. Tap Power off > OK.Note If you forcibly shut down the phone by removing the battery, the screen may malfunction shortly. This is normal and should not affect the lifespan of the screen.

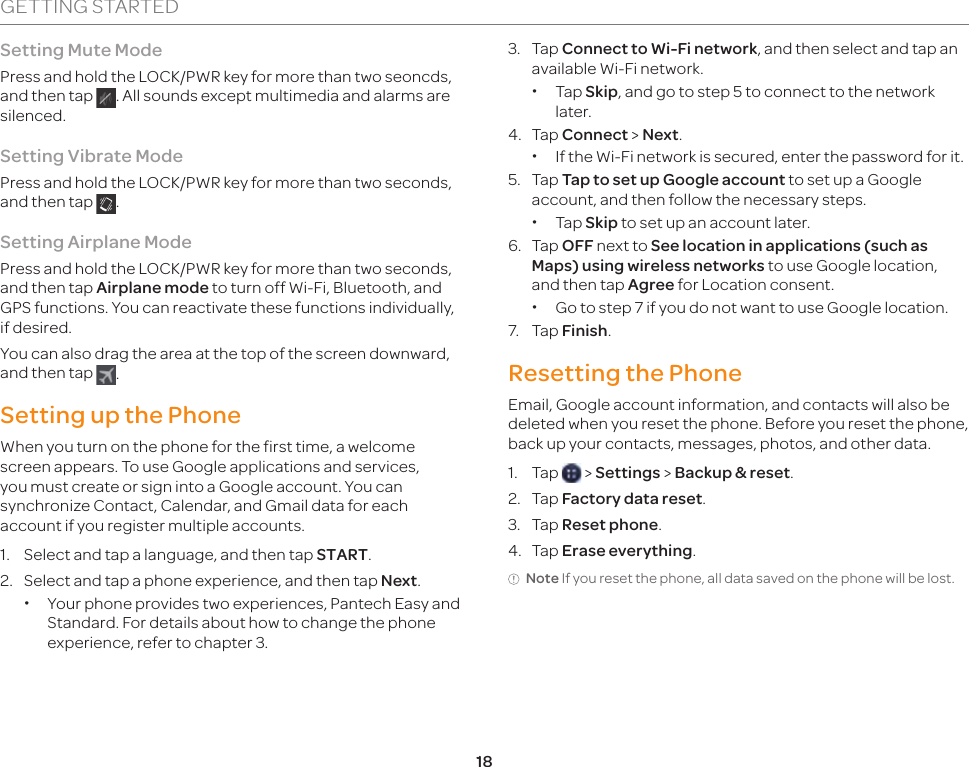

18GETTING STARTEDSetting Mute ModePress and hold the LOCK/PWR key for more than two seoncds, and then tap . All sounds except multimedia and alarms are silenced.Setting Vibrate ModePress and hold the LOCK/PWR key for more than two seconds, and then tap .Setting Airplane ModePress and hold the LOCK/PWR key for more than two seconds, and then tap Airplane mode to turn off Wi-Fi, Bluetooth, and GPS functions. You can reactivate these functions individually, if desired.You can also drag the area at the top of the screen downward, and then tap .Setting up the PhoneWhen you turn on the phone for the first time, a welcome screen appears. To use Google applications and services, you must create or sign into a Google account. You can synchronize Contact, Calendar, and Gmail data for each account if you register multiple accounts.1. Select and tap a language, and then tap START.2. Select and tap a phone experience, and then tap Next. xYour phone provides two experiences, Pantech Easy and Standard. For details about how to change the phone experience, refer to chapter 3.3. Tap Connect to Wi-Fi network, and then select and tap an available Wi-Fi network. xTap Skip, and go to step 5 to connect to the network later. 4. Tap Connect > Next. xIf the Wi-Fi network is secured, enter the password for it.5. Tap Tap to set up Google account to set up a Google account, and then follow the necessary steps. xTap Skip to set up an account later.6. Tap OFF next to See location in applications (such as Maps) using wireless networks to use Google location, and then tap Agree for Location consent. xGo to step 7 if you do not want to use Google location.7. Tap Finish.Resetting the PhoneEmail, Google account information, and contacts will also be deleted when you reset the phone. Before you reset the phone, back up your contacts, messages, photos, and other data.1. Tap > Settings > Backup & reset.2. Tap Factory data reset.3. Tap Reset phone.4. Tap Erase everything.Note If you reset the phone, all data saved on the phone will be lost.

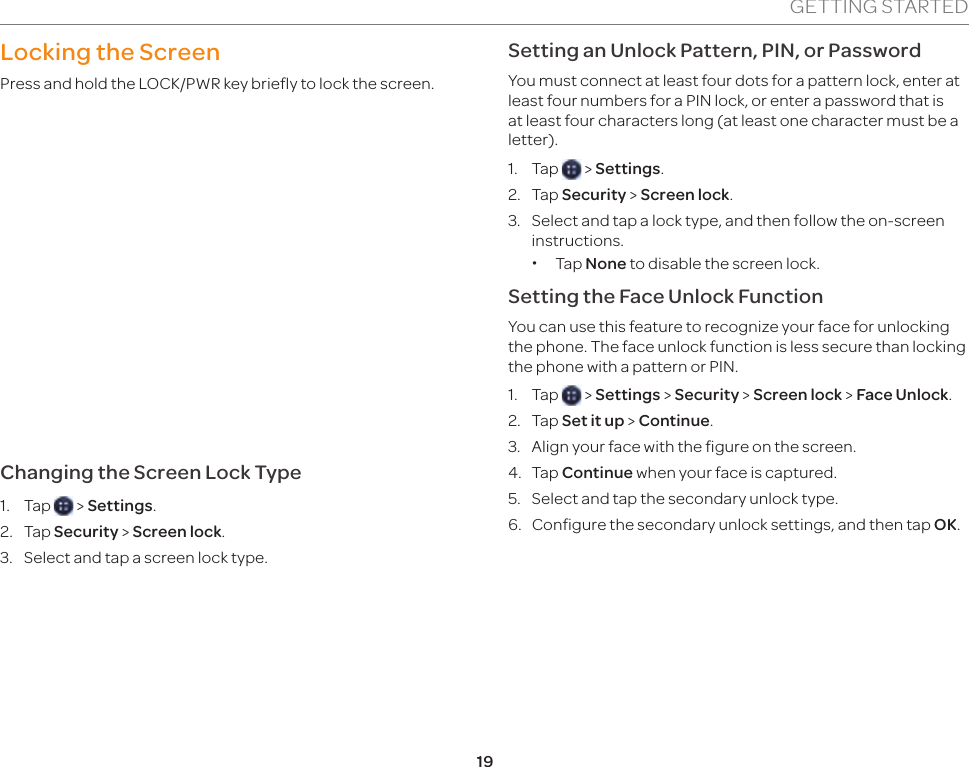

19GETTING STARTEDLocking the ScreenPress and hold the LOCK/PWR key briefly to lock the screen.Changing the Screen Lock Type1. Tap > Settings.2. Tap Security > Screen lock.3. Select and tap a screen lock type.Setting an Unlock Pattern, PIN, or PasswordYou must connect at least four dots for a pattern lock, enter at least four numbers for a PIN lock, or enter a password that is at least four characters long (at least one character must be a letter).1. Tap > Settings.2. Tap Security > Screen lock.3. Select and tap a lock type, and then follow the on-screen instructions. xTap None to disable the screen lock.Setting the Face Unlock FunctionYou can use this feature to recognize your face for unlocking the phone. The face unlock function is less secure than locking the phone with a pattern or PIN.1. Tap > Settings > Security > Screen lock > Face Unlock.2. Tap Set it up > Continue.3. Align your face with the figure on the screen. 4. Tap Continue when your face is captured.5. Select and tap the secondary unlock type.6. Configure the secondary unlock settings, and then tap OK.

20GETTING STARTEDUnlocking the ScreenUnlocking the Screen with a Pattern1. Press the LOCK/PWR key if the phone is automatically locked. 2. Draw a pattern on the screen.Note You can make emergency calls without having to unlock the screen.If You Forget Your PatternIf you draw an incorrect pattern more than five times in a row, you cannot retry for 30 seconds. When this happens, you can unlock the phone by entering your Google account information.If you draw an incorrect pattern more than 20 times total, you must do one of the following to unlock it:If you registered a Google account:Enter your account informationIf you did not register a Google account:Visit the Pantech websiteVisit a Pantech Service CenterNote For more details about registering your Google account, refer to page 53.

21GETTING STARTEDUnlocking the Screen with a PIN or Password1. Press the LOCK/PWR key if the phone is automatically locked.2. Enter your PIN or password, and then tap OK, Done, , or .Note You can make emergency calls without having to unlock the screen.If you Forget Your PIN or PasswordVisit a Pantech Service Center to unlock the phone. Unlocking the Screen with Face RecognitionWhen you set the Face Unlock function, the screen unlocks when you align your face to the figure on the screen. If the phone fails to recognize your face, use a secondary unlock type to unlock the phone.1. Press the LOCK/PWR key if the phone is automatically locked. 2. Align your face with the figure on the screen.Unlocking the Phone with the Visual LockWhen you do not use the phone for a specified length of time or press the LOCK/PWR key, the screen turns off and the phone locks automatically.1. Press the LOCK/PWR key.2. Tap and drag to . xYou can also drag an application shortcut to to unlock the screen and launch the application.Adding a Screen Lock WallpaperTo display wallpaper on the locked screen, tap > Settings > User theme > Screen lock > Wallpaper, select a folder that contains images, and then tap Save. If you do not select a folder, only the default image will appear.Changing Screen Lock ShortcutsTo change screen lock shortcuts, tap > Settings > User theme > Screen lock > Shortcuts. You can change the shortcuts to your favorite applications on the locked screen.

22GETTING STARTEDUnlocking the Phone with the Slide LockWhen you do not use the phone for a specified length of time or press the LOCK/PWR key, the screen turns off and the phone locks automatically.1. Press the LOCK/PWR key.2. Tap and drag to . xYou can also tap and drag to to unlock the screen and launch the camera application.Unlocking the Phone with the Modern LockWhen you do not use the phone for a specified length of time or press the LOCK/PWR key, the screen turns off and the phone locks.1. Press the LOCK/PWR key.2. Tap and drag into the circle. xYou can also drag an application shortcut into the circle to unlock the screen and launch the application.Adding a Screen Lock Wallpaper To display wallpaper on the locked screen, tap > Settings > User theme > Screen lock > Wallpaper > a category > an image and then tap Save.Note xIf you select an image from Gallery, you can crop the image to set as wallpaper. xIf you select Home wallpaper image, the default image will appear.Changing Screen Lock ShortcutsTo change screen lock shortcuts, tap > Settings > User theme > Screen lock > Shortcuts. You can change the shortcuts to your favorite applications on the locked screen.

23GETTING STARTEDUsing the Touch ScreenAbout the Touch Screen xDo not subject the touch screen to strong impacts. xDo not use sharp tools that can scratch the touch screen. xDo not allow the touch screen to come in contact with water or chemicals. xDo not sit on the phone. Doing so may damage the touch screen.Performing Touch Screen Commands xTap: Tap once to access a menu or an option. xDrag: Tap and hold your finger on an item, and then move your finger without lifting it from the the screen. xFlick: Place a finger on the screen and move the screen up, down, left, or right. xPinch: Place two fingers on the screen, and then spread them apart to zoom in, or squeeze together to zoom out. xSelect and tap: Tap an item in a list. xTap and hold: Touch and hold an area for a few seconds.Tap DragFlick Tap and hold

24GETTING STARTEDEntering TextEntering Text with the Android KeyboardEnter text with the keypad at the bottom of the screen. The keyboard shows word suggestions as you type. Tap a word to use it.1762345No. Description1Change the case.2Clear your input.3Start a new line.4Insert a period.5Insert a space. Tap and hold to select an input method.6Switch to Voice mode. Tap and hold to open input options.7Switch between ABC mode and Number/Symbol mode.Entering Text with SwiftKey for PantechSwiftKey predicts what you want to type before you type your text. SwiftKey learns new words as you enter them, and suggests those words in its future predictions. Tap one of the three dynamic buttons above the keyboard to select a prediction.1 2 3450@!6789No. Description1Actual characters entered. 2Primary Swiftkey prediction. Tap on the word or hit space to enter (depending on your spacebar settings.)3Secondary Swiftkey prediction. Tap on the word to enter.4Clear you input.5Start a new line.6Insert a question mark.7Insert a period.8Insert a space.

25GETTING STARTEDNo. Description9Insert a comma.0Switch to Voice mode. Tap and hold to open input options or settings; share SwiftKey via Gmail, Twitter, or more; view support.!Switch between ABC and Number/Symbol mode.@Change the case.Entering Text with the Swype KeyboardSwype is a fast and easy way to enter text. For example, drag your finger on the screen keyboard as shown and input Quick.9 82173456No. Description1Change the case.2Clear your input.3Start a new line.4Switch to Voice mode.No. Description5Insert a period.6Insert a space.7Insert a comma.8Switch between ABC mode and Number/Symbol mode. Tap and hold the key in Number/Symbol mode to edit text.9Tap and hold to open settings.Entering Text with Your VoiceUse your voice to enter text with the Voice to Text feature.1. Tap or on the keyboard.2. Speak clearly into the microphone.Editing Text1. Tap and hold a word that you want to copy or cut.2. Drag the handles to adjust the selection. xTap to select all text. 3. Tap (cut) or (copy).4. Tap the point where you want to paste the text.5. Tap the handle, and then tap PASTE.

26GETTING STARTEDAdding a Word to the User DictionaryAdd frequently-used words to the user dictionary for later use. You cannot add words that are already registered in the world suggestion list.1. Enter a word in the text input field.2. Tap the word in the word suggestion list.3. Tap the word again to add to the user dictionary. To Insert a Word from the User DictionaryEnter a few characters of the word, and then tap the word when it appears in the word suggestion list.

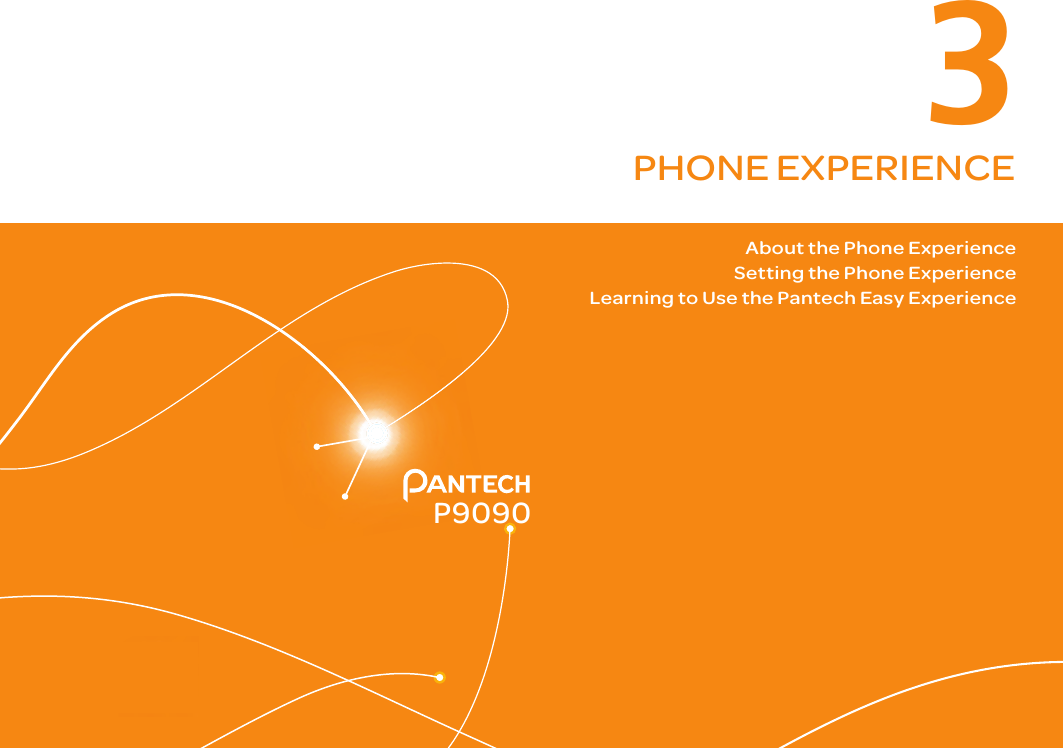

3PHONE EXPERIENCEAbout the Phone ExperienceSetting the Phone ExperienceLearning to Use the Pantech Easy ExperienceP9090

28PHONE EXPERIENCEAbout the Phone ExperienceYour phone provides two phone experiences, Pantech Easy and Standard. The Pantech Easy Experience provides an easy-to-understand interface that helps you to use the phone more simply. The Standard Experience is recommended for general users. The instructions in this manual are based on the Standard Experience.Pantech Easy Experience Pantech Standard ExperienceSetting the Phone ExperienceWhen you turn on the phone for the first time and set up the phone, you are encouraged to select a phone experience. You can change the phone experience at anytime in the Settings menu.Changing the Phone ExperienceIf you are using Pantech Easy Experience, tap > Settings > Personalize > Change Experience > Pantech Standard Experience.If you are using Pantech Standard Experience, tap > Settings > Change Experience > Pantech Easy Experience.Note Some functions and menus are not available in Pantech Easy Experience.

29PHONE EXPERIENCELearning to Use the Pantech Easy ExperienceLearn how to use the functions and menus in Pantech Easy Experience.Layout of the Home Screen3214 5678 9No. Description1Drag the area at the top of the screen downward to access Quick settings or view battery usage, current time and date, signal strength, or ongoing events.2View the current time, date, and temperature.3Access the web.4Open Quick Contacts.5Open shortcuts for applications.6Make calls.7Take pictures and record videos.No. Description8Send and receive messages.9Open menus.Menu Items in Pantech Easy Experience12345678No. Description1View contacts.2Send and receive messages.3Take pictures and record videos.4Start Document Viewer, Gallery, Music Player, or Video Player.5Access the web.6Play games or start applications.7Start Alarm/Clock, Calculator, Calendar, Converter, NotePad, Pill Reminder, or Tip Calculator. 8Access the settings. For details, refer to page 87

30PHONE EXPERIENCELocked Screen for the Pantech Easy ExperienceSwitch on to unlock the screen.

314BASIC OPERATIONS Understanding the Home ScreenCustomizing the Home Screen Using the Extended Launcher BarUsing The Task ManagerUsing the Applications MenuConnecting to the InternetConnecting to a Mobile NetworkSetting up a Bluetooth ConnectionUsing BluetoothInstalling or Uninstalling ApplicationsP9090

32BASIC OPERATIONSUnderstanding the Home ScreenLayout of the Home ScreenThe Home screen is the starting point for using applications. Here you can access widgets, shortcuts, or folders. The Home screen consists of five panels. When you access the Home screen for the first time, you will be shown usage tips for the Home screen.1234456No. Description1Notification barView the phone's status, battery usage, current time, and more.No. Description2Home screen xFlick to the left or right to move to another panel. There are two panels to the left and two panels to the right. xSpread your fingers apart to hide icons. xPinch your fingers together to edit the Home screen. 3Panel location barView the number of panels and the location of the current panel. xDrag the white line to move to another panel. xTap the line below a panel to switch to that panel.4Extended launcher barView shortcut icons and folders xTap a shortcut to run an application. xTap a folder to open it.5Basic launcher barView shortcut icons and the applications menu icon. xTap a shortcut to run an application. xTap to open the menu screen. xFlick to the left or right to view the Extended launcher bar (4) .6Navigation buttons x (Back): Return to the previous screen. x (Home): Return to the Home screen. x (Recent applications): View a list of recently-accessed applications.

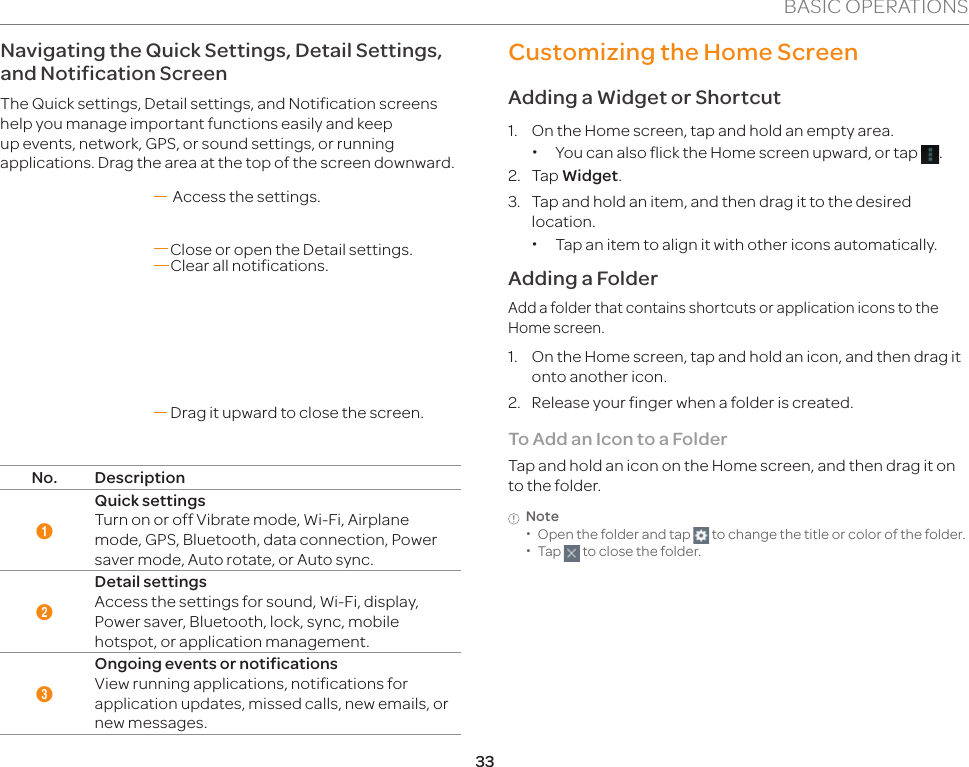

33BASIC OPERATIONSNavigating the Quick Settings, Detail Settings, and Notification ScreenThe Quick settings, Detail settings, and Notification screens help you manage important functions easily and keep up events, network, GPS, or sound settings, or running applications. Drag the area at the top of the screen downward. 1Clear all notifications.23Drag it upward to close the screen.Access the settings.Close or open the Detail settings.No. Description1Quick settingsTurn on or off Vibrate mode, Wi-Fi, Airplane mode, GPS, Bluetooth, data connection, Power saver mode, Auto rotate, or Auto sync.2Detail settingsAccess the settings for sound, Wi-Fi, display, Power saver, Bluetooth, lock, sync, mobile hotspot, or application management.3Ongoing events or notificationsView running applications, notifications for application updates, missed calls, new emails, or new messages. Customizing the Home Screen Adding a Widget or Shortcut1. On the Home screen, tap and hold an empty area. xYou can also flick the Home screen upward, or tap .2. Tap Widget.3. Tap and hold an item, and then drag it to the desired location. xTap an item to align it with other icons automatically.Adding a FolderAdd a folder that contains shortcuts or application icons to the Home screen.1. On the Home screen, tap and hold an icon, and then drag it onto another icon.2. Release your finger when a folder is created.To Add an Icon to a FolderTap and hold an icon on the Home screen, and then drag it on to the folder.Note xOpen the folder and tap to change the title or color of the folder. xTap to close the folder.

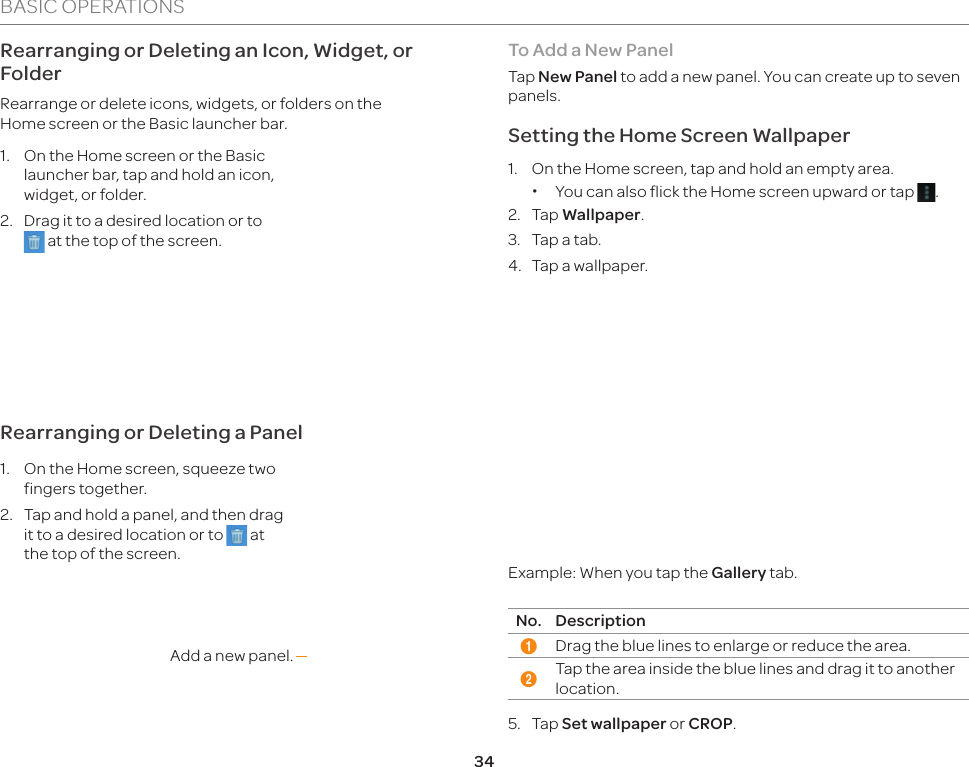

34BASIC OPERATIONSRearranging or Deleting an Icon, Widget, or FolderRearrange or delete icons, widgets, or folders on the Home screen or the Basic launcher bar.1. On the Home screen or the Basic launcher bar, tap and hold an icon, widget, or folder.2. Drag it to a desired location or to at the top of the screen.Rearranging or Deleting a Panel1. On the Home screen, squeeze two fingers together.2. Tap and hold a panel, and then drag it to a desired location or to at the top of the screen.Add a new panel.To Add a New PanelTap New Panel to add a new panel. You can create up to seven panels.Setting the Home Screen Wallpaper1. On the Home screen, tap and hold an empty area. xYou can also flick the Home screen upward or tap .2. Tap Wallpaper.3. Tap a tab.4. Tap a wallpaper.12Example: When you tap the Gallery tab.No. Description1Drag the blue lines to enlarge or reduce the area.2Tap the area inside the blue lines and drag it to another location.5. Tap Set wallpaper or CROP.

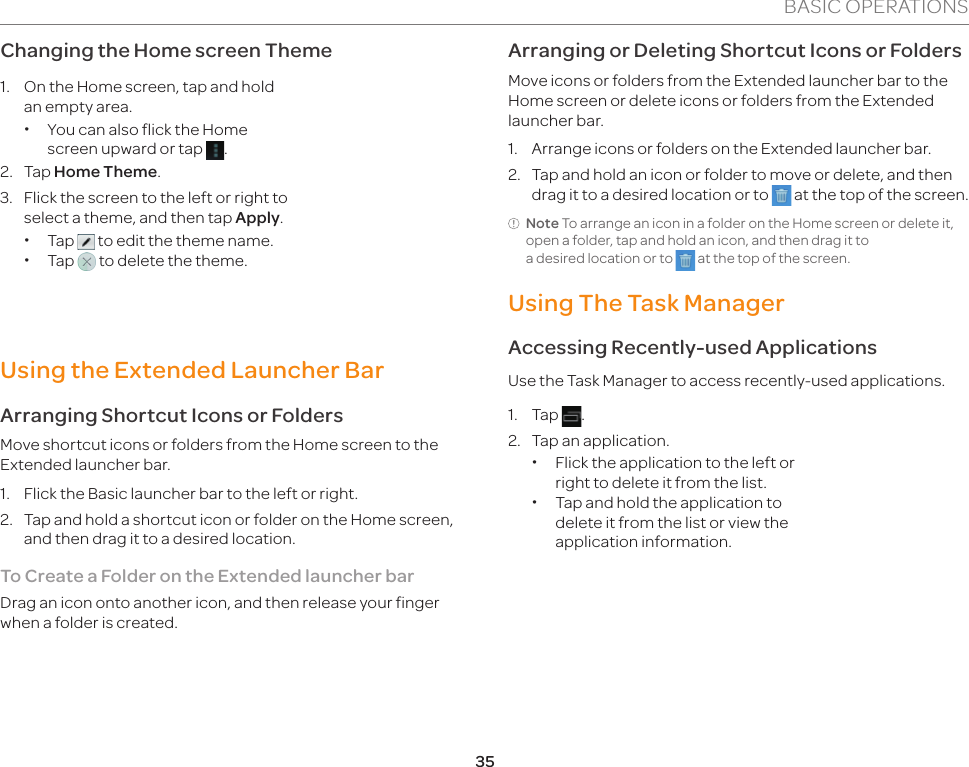

35BASIC OPERATIONSChanging the Home screen Theme1. On the Home screen, tap and hold an empty area. xYou can also flick the Home screen upward or tap .2. Tap Home Theme.3. Flick the screen to the left or right to select a theme, and then tap Apply. xTap to edit the theme name. xTap to delete the theme.Using the Extended Launcher BarArranging Shortcut Icons or FoldersMove shortcut icons or folders from the Home screen to the Extended launcher bar.1. Flick the Basic launcher bar to the left or right.2. Tap and hold a shortcut icon or folder on the Home screen, and then drag it to a desired location.To Create a Folder on the Extended launcher barDrag an icon onto another icon, and then release your finger when a folder is created.Arranging or Deleting Shortcut Icons or FoldersMove icons or folders from the Extended launcher bar to the Home screen or delete icons or folders from the Extended launcher bar.1. Arrange icons or folders on the Extended launcher bar.2. Tap and hold an icon or folder to move or delete, and then drag it to a desired location or to at the top of the screen.Note To arrange an icon in a folder on the Home screen or delete it, open a folder, tap and hold an icon, and then drag it to a desired location or to at the top of the screen.Using The Task ManagerAccessing Recently-used ApplicationsUse the Task Manager to access recently-used applications.1. Tap .2. Tap an application. xFlick the application to the left or right to delete it from the list. xTap and hold the application to delete it from the list or view the application information.

36BASIC OPERATIONSClosing Running ApplicationsIf you start an application and do not close it with the Task Manager, the application remains active even when you switch to the Home screen or start another application. Launching multiple applications can slown down the performance of the device. Close unnecessary application with the Task Manager.1. Tap > Task Manager.2. Tap End next to an application. xTap Total X apps End All to close all applications.Optimizing the SystemWhen you launch multiple applications at a time or the CPU's usage is high, the consumption of the battery and the system load will increase. Check the CPU's usage and RAM usage with the Task Manager, and then optimize the system.Tap > Task Manager.1 2 34No. Description1Select a category.2Select a view type.3View the tips.4List of active applications. xTap an application to view its information or protect it from forced closure.

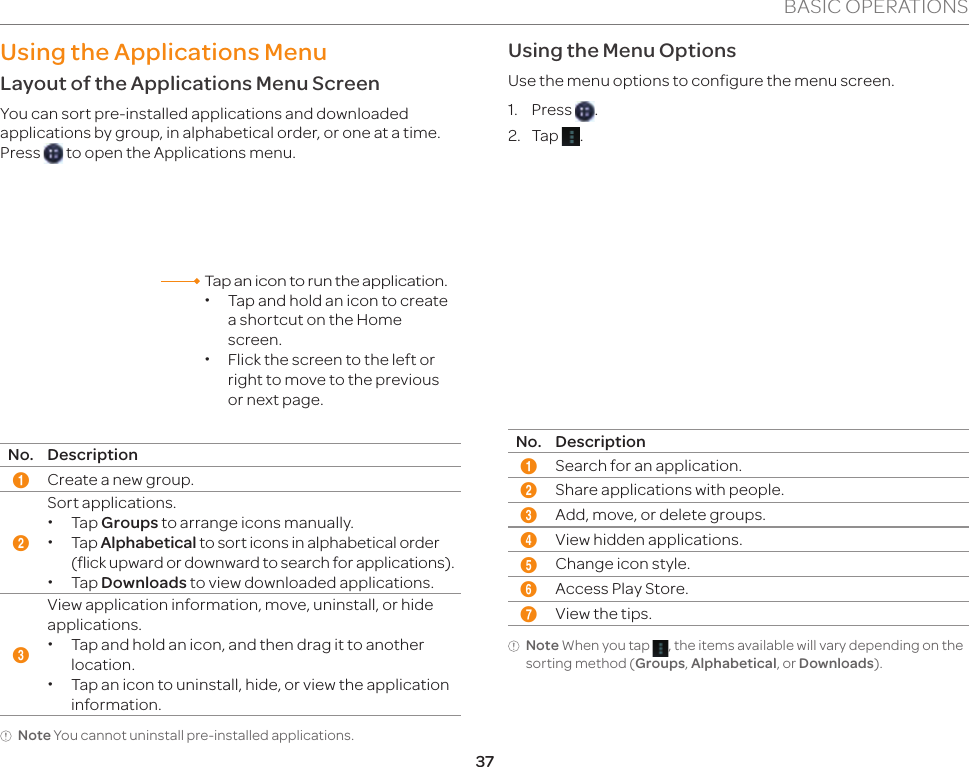

37BASIC OPERATIONSUsing the Applications MenuLayout of the Applications Menu Screen You can sort pre-installed applications and downloaded applications by group, in alphabetical order, or one at a time. Press to open the Applications menu.Tap an icon to run the application. xTap and hold an icon to create a shortcut on the Home screen. xFlick the screen to the left or right to move to the previous or next page.132No. Description1Create a new group.2Sort applications. xTap Groups to arrange icons manually. xTap Alphabetical to sort icons in alphabetical order (flick upward or downward to search for applications). xTap Downloads to view downloaded applications.3View application information, move, uninstall, or hide applications. xTap and hold an icon, and then drag it to another location. xTap an icon to uninstall, hide, or view the application information.Note You cannot uninstall pre-installed applications.Using the Menu Options Use the menu options to configure the menu screen.1. Press .2. Tap .1452367No. Description1Search for an application.2Share applications with people.3Add, move, or delete groups.4View hidden applications.5Change icon style.6Access Play Store.7View the tips.Note When you tap , the items available will vary depending on the sorting method (Groups, Alphabetical, or Downloads).

38BASIC OPERATIONSConnecting to the InternetConnecting to a Wi-Fi NetworkWhen you activate Wi-Fi after turning on the phone for the first time or resetting the phone, the Wi-Fi settings screen appears.1. Drag the area at the top of the screen downward.2. Tap Wi-Fi in Quick Settings to turn on Wi-Fi. xTap Wi-Fi again to turn off Wi-Fi.3. Select and tap a network in the Wi-Fi network list.512346No. Description1Turn Wi-Fi on or off.2Unsecured network3Secured network4Access advanced settings and configure a WPS connection.No. Description5Add a Wi-Fi network.6Search for available Wi-Fi networks again.Note You must enter a password to connect to a secured Wi-Fi network.To Configure Wi-Fi SettingsIf you turn off Wi-Fi, and then turn it on again, the phone automatically connects to the most recently-used network. To connect to another Wi-Fi network or configure Wi-Fi settings, drag the area at the top of the screen downward, and tap Wi-Fi Settings in Detail Settings. You can also tap > Settings > Wi-Fi.Connecting to a Mobile NetworkYou will need a data plan to access a mobile network.1. Drag the area at the top of the screen downward.2. Tap Data in Quick Settings to access the mobile network. xTap Data to disconnect from mobile network.To Configure Mobile Network SettingsTap > Settings > More... > Mobile networks, and then check Data Services to enable data access over mobile networks.

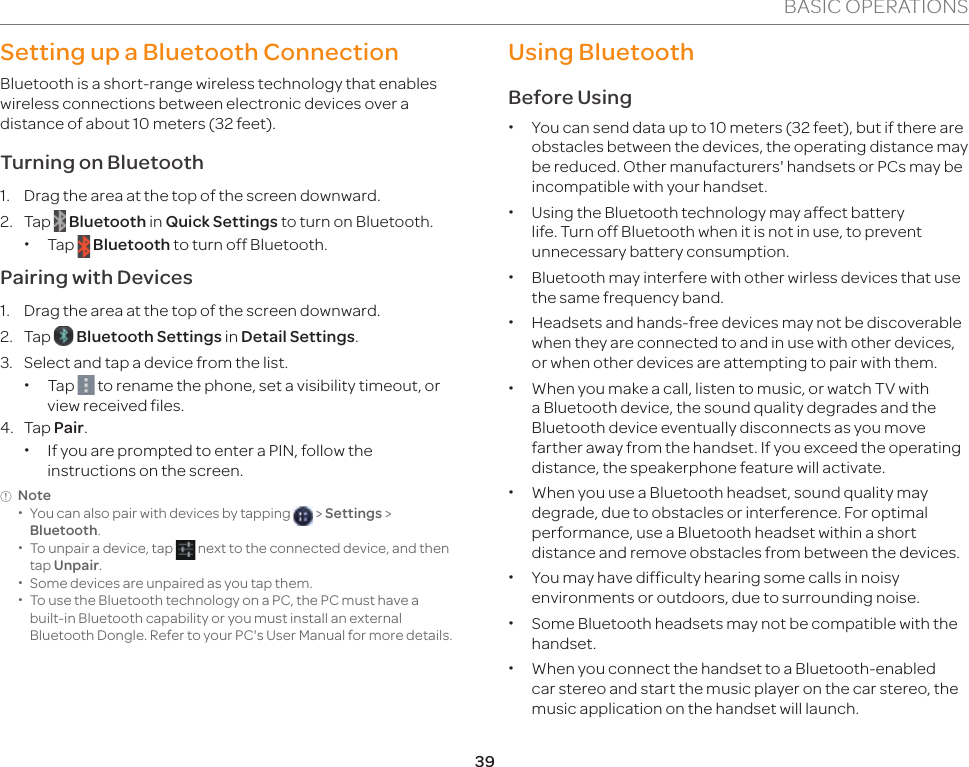

39BASIC OPERATIONSSetting up a Bluetooth ConnectionBluetooth is a short-range wireless technology that enables wireless connections between electronic devices over a distance of about 10 meters (32 feet).Turning on Bluetooth1. Drag the area at the top of the screen downward.2. Tap Bluetooth in Quick Settings to turn on Bluetooth. xTap Bluetooth to turn off Bluetooth.Pairing with Devices1. Drag the area at the top of the screen downward. 2. Tap Bluetooth Settings in Detail Settings.3. Select and tap a device from the list. xTap to rename the phone, set a visibility timeout, or view received files.4. Tap Pair. xIf you are prompted to enter a PIN, follow the instructions on the screen.Note xYou can also pair with devices by tapping > Settings > Bluetooth. xTo unpair a device, tap next to the connected device, and then tap Unpair. xSome devices are unpaired as you tap them. xTo use the Bluetooth technology on a PC, the PC must have a built-in Bluetooth capability or you must install an external Bluetooth Dongle. Refer to your PC's User Manual for more details.Using BluetoothBefore Using xYou can send data up to 10 meters (32 feet), but if there are obstacles between the devices, the operating distance may be reduced. Other manufacturers' handsets or PCs may be incompatible with your handset. xUsing the Bluetooth technology may affect battery life. Turn off Bluetooth when it is not in use, to prevent unnecessary battery consumption. xBluetooth may interfere with other wirless devices that use the same frequency band. xHeadsets and hands-free devices may not be discoverable when they are connected to and in use with other devices, or when other devices are attempting to pair with them. xWhen you make a call, listen to music, or watch TV with a Bluetooth device, the sound quality degrades and the Bluetooth device eventually disconnects as you move farther away from the handset. If you exceed the operating distance, the speakerphone feature will activate. xWhen you use a Bluetooth headset, sound quality may degrade, due to obstacles or interference. For optimal performance, use a Bluetooth headset within a short distance and remove obstacles from between the devices. xYou may have difficulty hearing some calls in noisy environments or outdoors, due to surrounding noise. xSome Bluetooth headsets may not be compatible with the handset. xWhen you connect the handset to a Bluetooth-enabled car stereo and start the music player on the car stereo, the music application on the handset will launch.

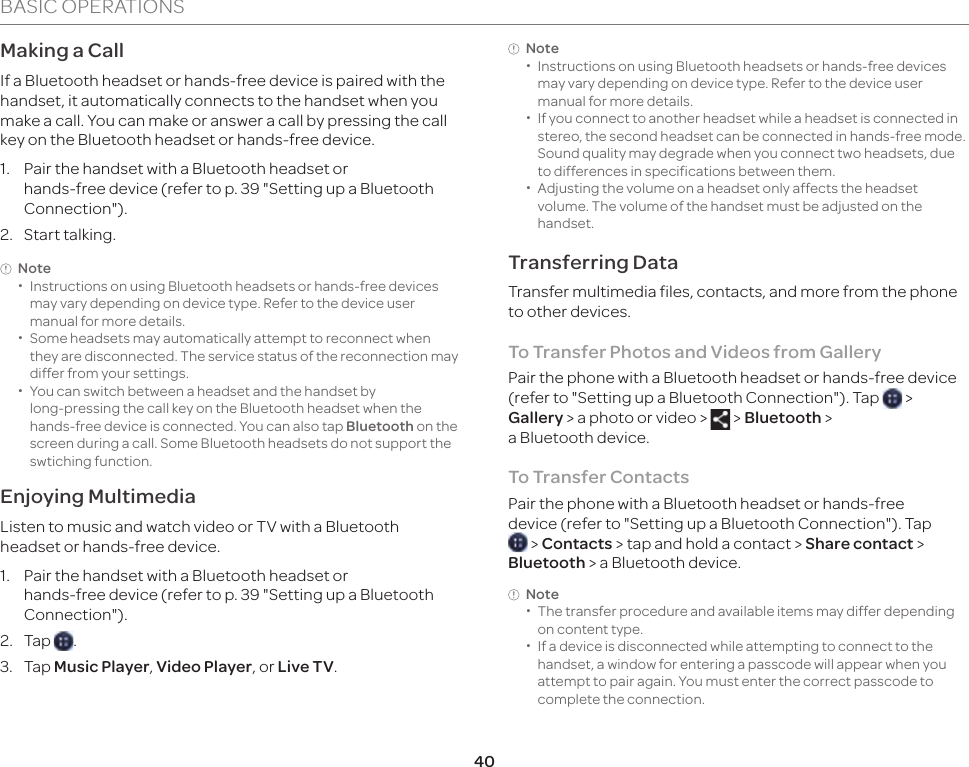

40BASIC OPERATIONSNote xInstructions on using Bluetooth headsets or hands-free devices may vary depending on device type. Refer to the device user manual for more details. xIf you connect to another headset while a headset is connected in stereo, the second headset can be connected in hands-free mode. Sound quality may degrade when you connect two headsets, due to differences in specifications between them. xAdjusting the volume on a headset only affects the headset volume. The volume of the handset must be adjusted on the handset.Transferring DataTransfer multimedia files, contacts, and more from the phone to other devices.To Transfer Photos and Videos from GalleryPair the phone with a Bluetooth headset or hands-free device (refer to "Setting up a Bluetooth Connection"). Tap > Gallery > a photo or video > > Bluetooth > a Bluetooth device.To Transfer ContactsPair the phone with a Bluetooth headset or hands-free device (refer to "Setting up a Bluetooth Connection"). Tap > Contacts > tap and hold a contact > Share contact > Bluetooth > a Bluetooth device.Note xThe transfer procedure and available items may differ depending on content type. xIf a device is disconnected while attempting to connect to the handset, a window for entering a passcode will appear when you attempt to pair again. You must enter the correct passcode to complete the connection.Making a CallIf a Bluetooth headset or hands-free device is paired with the handset, it automatically connects to the handset when you make a call. You can make or answer a call by pressing the call key on the Bluetooth headset or hands-free device.1. Pair the handset with a Bluetooth headset or hands-free device (refer to p. 39 "Setting up a Bluetooth Connection").2. Start talking.Note xInstructions on using Bluetooth headsets or hands-free devices may vary depending on device type. Refer to the device user manual for more details. xSome headsets may automatically attempt to reconnect when they are disconnected. The service status of the reconnection may differ from your settings. xYou can switch between a headset and the handset by long-pressing the call key on the Bluetooth headset when the hands-free device is connected. You can also tap Bluetooth on the screen during a call. Some Bluetooth headsets do not support the swtiching function. Enjoying MultimediaListen to music and watch video or TV with a Bluetooth headset or hands-free device.1. Pair the handset with a Bluetooth headset or hands-free device (refer to p. 39 "Setting up a Bluetooth Connection").2. Tap .3. Tap Music Player, Video Player, or Live TV.

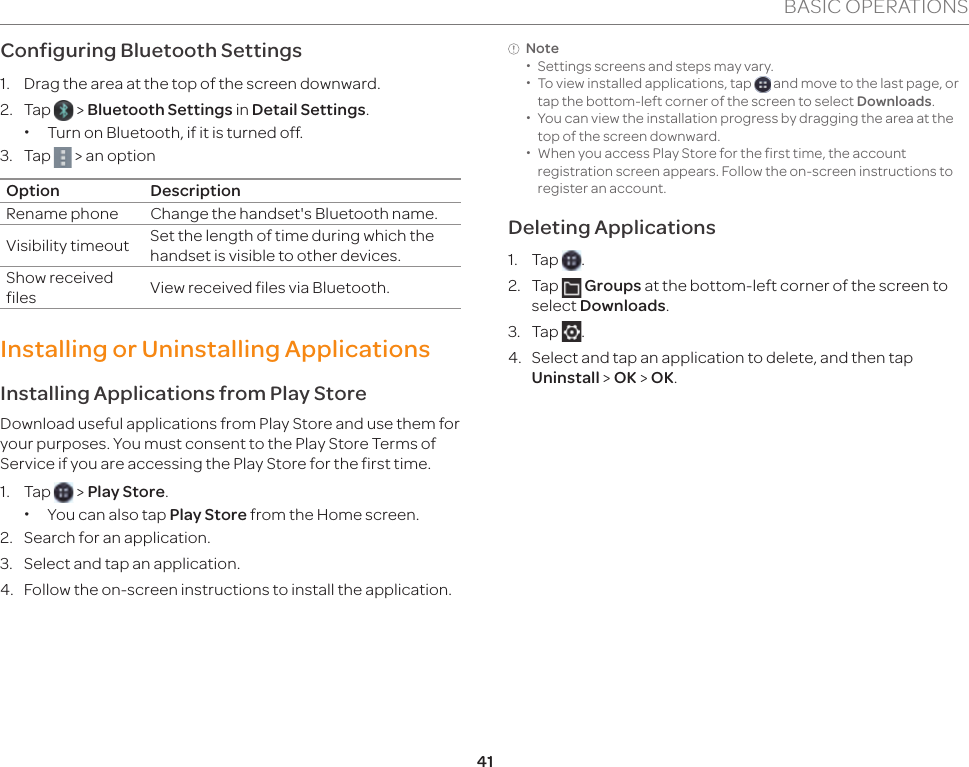

41BASIC OPERATIONSConfiguring Bluetooth Settings1. Drag the area at the top of the screen downward. 2. Tap > Bluetooth Settings in Detail Settings. xTurn on Bluetooth, if it is turned off.3. Tap > an option Option DescriptionRename phone Change the handset's Bluetooth name.Visibility timeout Set the length of time during which the handset is visible to other devices.Show received files View received files via Bluetooth.Installing or Uninstalling ApplicationsInstalling Applications from Play StoreDownload useful applications from Play Store and use them for your purposes. You must consent to the Play Store Terms of Service if you are accessing the Play Store for the first time.1. Tap > Play Store. xYou can also tap Play Store from the Home screen.2. Search for an application.3. Select and tap an application.4. Follow the on-screen instructions to install the application. Note xSettings screens and steps may vary. xTo view installed applications, tap and move to the last page, or tap the bottom-left corner of the screen to select Downloads. xYou can view the installation progress by dragging the area at the top of the screen downward. xWhen you access Play Store for the first time, the account registration screen appears. Follow the on-screen instructions to register an account.Deleting Applications1. Tap .2. Tap Groups at the bottom-left corner of the screen to select Downloads.3. Tap .4. Select and tap an application to delete, and then tap Uninstall > OK > OK.

5CALLING & MESSAGINGCallingManaging ContactsMessagingP9090

43CallingMaking a Call1. Tap Phone.2. Enter a phone number.3. Tap at the bottom of the screen. xTap to access settings.4. Tap to end a call. Note xTap and hold a speed dial number to make a call. If the speed dial number is two digits, tap the first digit, and then tap and hold the second digit. xYou must tap to end a call. If you are using other functions during a call, drag the area at the top of the screen downward, and then tap . xAvailable items that appear when you tap differ depending on how you dial the number (manually or via speed dial).Making a Call by VoiceYou can make a call or open an application with your voice.1. Tap > Voice Dialer.2. Say a command.Adding a Pause or a Wait to a Phone NumberTo Add Pause1. Tap Phone.2. Enter the phone number.3. Tap > Add 3-sec pause.4. Enter the additional number.5. Tap . xThe additional numbers will be entered automatically after 3 seconds.To Add Wait1. Tap Phone.2. Enter the phone number.3. Tap > Add wait.4. Enter the additional numbers.5. Tap .6. Tap Yes when the Send following tones? message appears on the screen.CALLING & MESSAGING

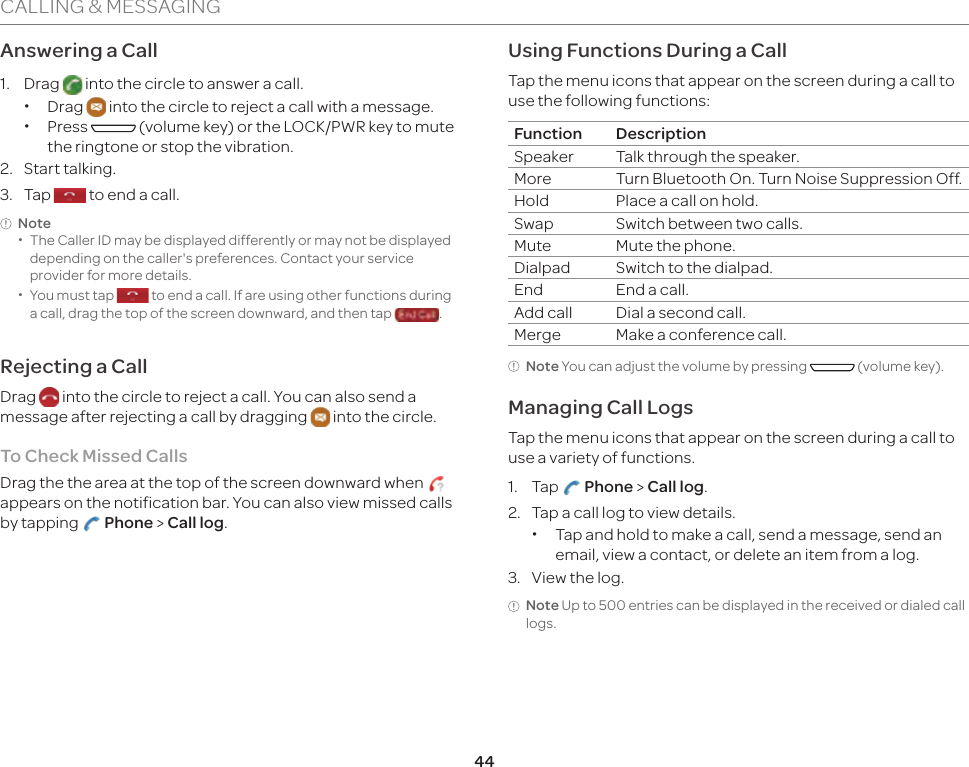

44CALLING & MESSAGINGAnswering a Call1. Drag into the circle to answer a call. xDrag into the circle to reject a call with a message. xPress (volume key) or the LOCK/PWR key to mute the ringtone or stop the vibration.2. Start talking.3. Tap to end a call.Note xThe Caller ID may be displayed differently or may not be displayed depending on the caller's preferences. Contact your service provider for more details. xYou must tap to end a call. If are using other functions during a call, drag the top of the screen downward, and then tap . Rejecting a CallDrag into the circle to reject a call. You can also send a message after rejecting a call by dragging into the circle.To Check Missed Calls Drag the the area at the top of the screen downward when appears on the notification bar. You can also view missed calls by tapping Phone > Call log.Using Functions During a CallTap the menu icons that appear on the screen during a call to use the following functions:Function DescriptionSpeaker Talk through the speaker.More Turn Bluetooth On. Turn Noise Suppression Off.Hold Place a call on hold.Swap Switch between two calls.Mute Mute the phone.Dialpad Switch to the dialpad.End End a call.Add call Dial a second call.Merge Make a conference call.Note You can adjust the volume by pressing (volume key).Managing Call LogsTap the menu icons that appear on the screen during a call to use a variety of functions.1. Tap Phone > Call log. 2. Tap a call log to view details. xTap and hold to make a call, send a message, send an email, view a contact, or delete an item from a log.3. View the log.Note Up to 500 entries can be displayed in the received or dialed call logs.

45CALLING & MESSAGINGManaging ContactsCreating ContactsSave new contacts to your phone or your Google account. If you have registered more than two Google accounts, you can select an account for saving contacts.1. Tap Contacts.2. Tap or .3. Enter related information. xTap > Join to choose a contact to merge with the new contact.4. Tap Save.12No. Description1Register a photo.2Enter a name, phone number, or email address; set a ringtone; or select a group.Setting a Speed Dial Number1. Tap Contacts.2. Tap > Speed dial setting.3. Select and tap a number, and tap Add.4. Select and tap a contact.Viewing Saved Contacts1. Tap Contacts.2. Select and tap a contact. xType the first letter of the name to show names that start with that letter.3. View the contact information. xTap to designate the contact as a favorite. xTap to edit the contact. xTap to open menus.Example: When you save a contact on your phone.

46CALLING & MESSAGINGTo Delete ContactsTap and hold a contact to delete, and then tap Delete contact > OK.Exporting or Sharing Contacts Information1. Tap Contacts.2. Tap > Import/Export. 3. Select and tap an item.Item FunctionSIM card contacts View and edit contacts on the SIM or USIM card.Export to SIM card(Copy)Copy contacts from the phone to the SIM or USIM card.Export to SIM card(Move)Move contacts from the phone to the SIM or USIM card.Import from SD card Import contacts from the SD card to the phone.Export to SD card Export contacts from the phone to the SD card.Note Contact items that can be exported may differ depending on the SIM or USIM manufacturer or service provider.Syncing Contacts with Google Account1. Tap Contacts.2. Tap > Accounts3. Select and tap an account. xTurn on Accounts & sync if it is turned off.4. Tap the check box next to Sync Contacts.Note You must register a Google account to sync contacts with it. For more details, refer to page 53. Setting Contacts GroupsManage multiple contacts in groups. If you have registered more than two Google accounts, you must select an account for setting groups.1. Tap Contacts > Groups.2. Tap .3. Select and tap an account.4. Enter a group name and add group members.5. Tap Save.To Add Group MembersTap and hold a group in the group list, and then tap Edit group. Tap the Add group member button, and select the names of the members to add.To Manage GroupsTap and hold a group in the group list, and then select and tap one of the menu items. You can edit the group or set a group ringtone. Alternatively, select and tap the group, and then tap . You can send a message to up to 10 group members by tapping Send.

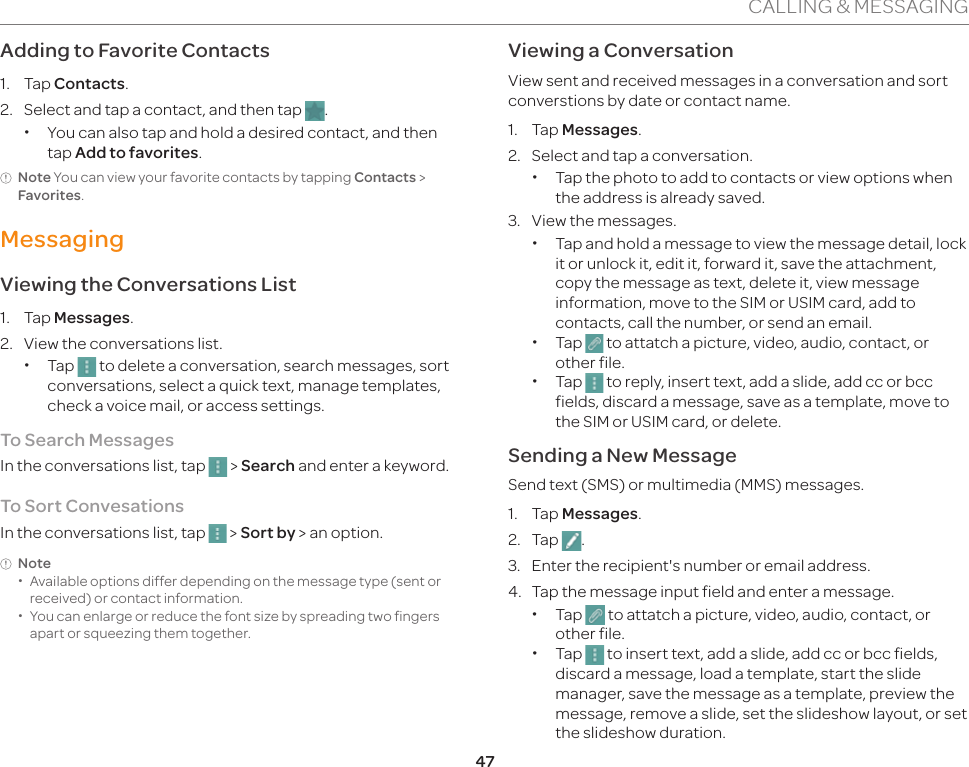

47CALLING & MESSAGINGAdding to Favorite Contacts1. Tap Contacts.2. Select and tap a contact, and then tap . xYou can also tap and hold a desired contact, and then tap Add to favorites.Note You can view your favorite contacts by tapping Contacts > Favorites.MessagingViewing the Conversations List1. Tap Messages.2. View the conversations list. xTap to delete a conversation, search messages, sort conversations, select a quick text, manage templates, check a voice mail, or access settings.To Search MessagesIn the conversations list, tap > Search and enter a keyword.To Sort ConvesationsIn the conversations list, tap > Sort by > an option.Note xAvailable options differ depending on the message type (sent or received) or contact information. xYou can enlarge or reduce the font size by spreading two fingers apart or squeezing them together.Viewing a ConversationView sent and received messages in a conversation and sort converstions by date or contact name.1. Tap Messages.2. Select and tap a conversation. xTap the photo to add to contacts or view options when the address is already saved.3. View the messages. xTap and hold a message to view the message detail, lock it or unlock it, edit it, forward it, save the attachment, copy the message as text, delete it, view message information, move to the SIM or USIM card, add to contacts, call the number, or send an email. xTap to attatch a picture, video, audio, contact, or other file. xTap to reply, insert text, add a slide, add cc or bcc fields, discard a message, save as a template, move to the SIM or USIM card, or delete.Sending a New MessageSend text (SMS) or multimedia (MMS) messages.1. Tap Messages.2. Tap .3. Enter the recipient's number or email address.4. Tap the message input field and enter a message. xTap to attatch a picture, video, audio, contact, or other file. xTap to insert text, add a slide, add cc or bcc fields, discard a message, load a template, start the slide manager, save the message as a template, preview the message, remove a slide, set the slideshow layout, or set the slideshow duration.

48CALLING & MESSAGING5. Tap Send.321No. Description1Recipient input field2Select recipients from contacts, call log, or group.3Message input fieldNote You can add multiple recipients in the recipient input field by adding a comma, space, or semicolon between each recipient's phone number or email address.Configuring Message Settings1. Tap Messages.2. Tap > Settings.3. Select and tap an item.Item FunctionStorage settingsSet the old message auto-deletion limit. Set the text message or multimedia message limit. View used memory.Signature settings Edit your signature. Set the Signature auto-append function.Text message (SMS) settings Manage SIM card messages.Multimedia message (MMS) settingsSet the Auto-retrieve function. Access extra settings. Set the storage for saving attachments.Notification settingsConfigure the message notification setting. Select a ringtone. Configure the vibration setting.

6COMMUNICATIONUsing the InternetSetting Up Email AccountsUsing EmailSetting up a Google AccountUsing GmailUsing Google+Using Social WorldUsing Social GalleryUsing FacebookUsing TwitterP9090

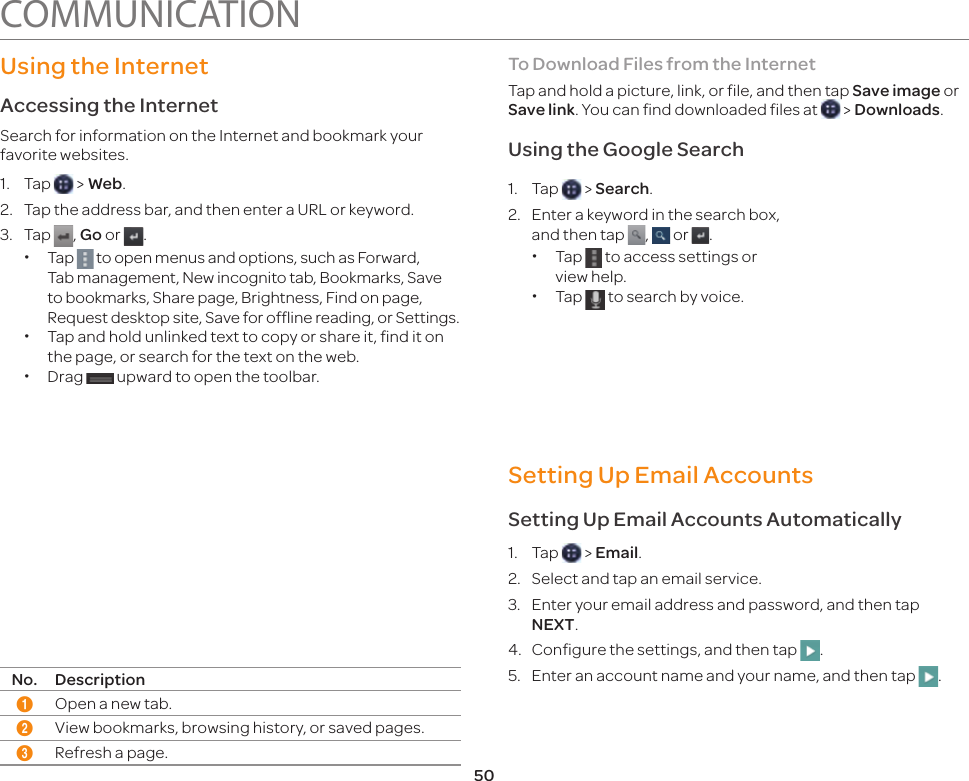

50Using the InternetAccessing the Internet Search for information on the Internet and bookmark your favorite websites.1. Tap > Web.2. Tap the address bar, and then enter a URL or keyword.3. Tap , Go or . xTap to open menus and options, such as Forward, Tab management, New incognito tab, Bookmarks, Save to bookmarks, Share page, Brightness, Find on page, Request desktop site, Save for offline reading, or Settings. xTap and hold unlinked text to copy or share it, find it on the page, or search for the text on the web. xDrag upward to open the toolbar.12 3No. Description1Open a new tab.2View bookmarks, browsing history, or saved pages.3Refresh a page.To Download Files from the InternetTap and hold a picture, link, or file, and then tap Save image or Save link. You can find downloaded files at > Downloads.Using the Google Search1. Tap > Search.2. Enter a keyword in the search box, and then tap , or . xTap to access settings or view help. xTap to search by voice.Setting Up Email AccountsSetting Up Email Accounts Automatically1. Tap > Email.2. Select and tap an email service.3. Enter your email address and password, and then tap NEXT.4. Configure the settings, and then tap .5. Enter an account name and your name, and then tap . COMMUNICATION

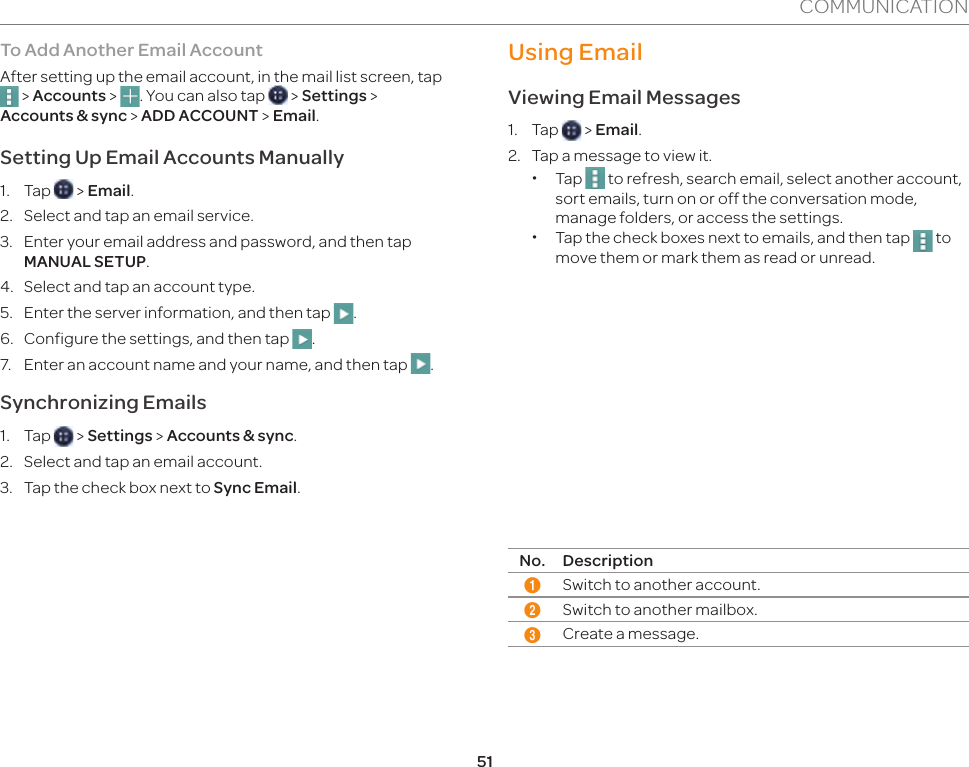

51COMMUNICATIONTo Add Another Email AccountAfter setting up the email account, in the mail list screen, tap > Accounts > . You can also tap > Settings > Accounts & sync > ADD ACCOUNT > Email.Setting Up Email Accounts Manually 1. Tap > Email.2. Select and tap an email service.3. Enter your email address and password, and then tap MANUAL SETUP.4. Select and tap an account type.5. Enter the server information, and then tap . 6. Configure the settings, and then tap .7. Enter an account name and your name, and then tap . Synchronizing Emails1. Tap > Settings > Accounts & sync.2. Select and tap an email account.3. Tap the check box next to Sync Email. Using EmailViewing Email Messages1. Tap > Email.2. Tap a message to view it. xTap to refresh, search email, select another account, sort emails, turn on or off the conversation mode, manage folders, or access the settings. xTap the check boxes next to emails, and then tap to move them or mark them as read or unread.12 3No. Description1Switch to another account.2Switch to another mailbox.3Create a message.

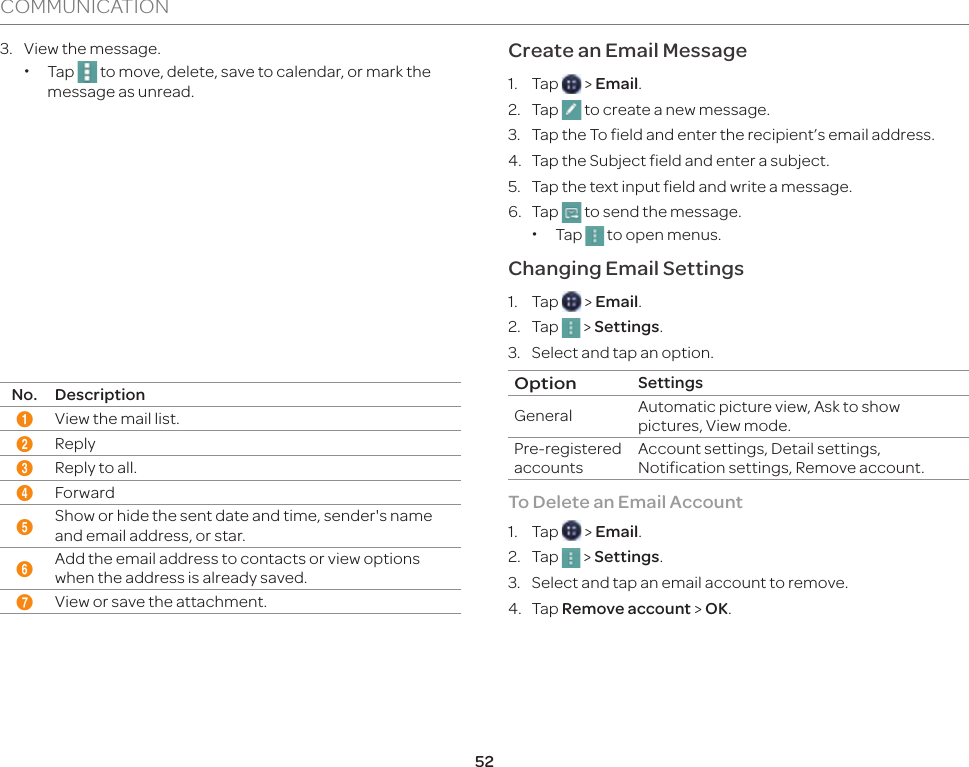

52COMMUNICATION3. View the message. xTap to move, delete, save to calendar, or mark the message as unread.1 2 3 4567No. Description1View the mail list.2Reply3Reply to all.4Forward5Show or hide the sent date and time, sender's name and email address, or star.6Add the email address to contacts or view options when the address is already saved. 7View or save the attachment.Create an Email Message1. Tap > Email.2. Tap to create a new message. 3. Tap the To field and enter the recipient’s email address. 4. Tap the Subject field and enter a subject.5. Tap the text input field and write a message. 6. Tap to send the message. xTap to open menus.Changing Email Settings 1. Tap > Email.2. Tap > Settings.3. Select and tap an option.OptionSettingsGeneral Automatic picture view, Ask to show pictures, View mode.Pre-registered accountsAccount settings, Detail settings, Notification settings, Remove account.To Delete an Email Account1. Tap > Email.2. Tap > Settings.3. Select and tap an email account to remove. 4. Tap Remove account > OK.

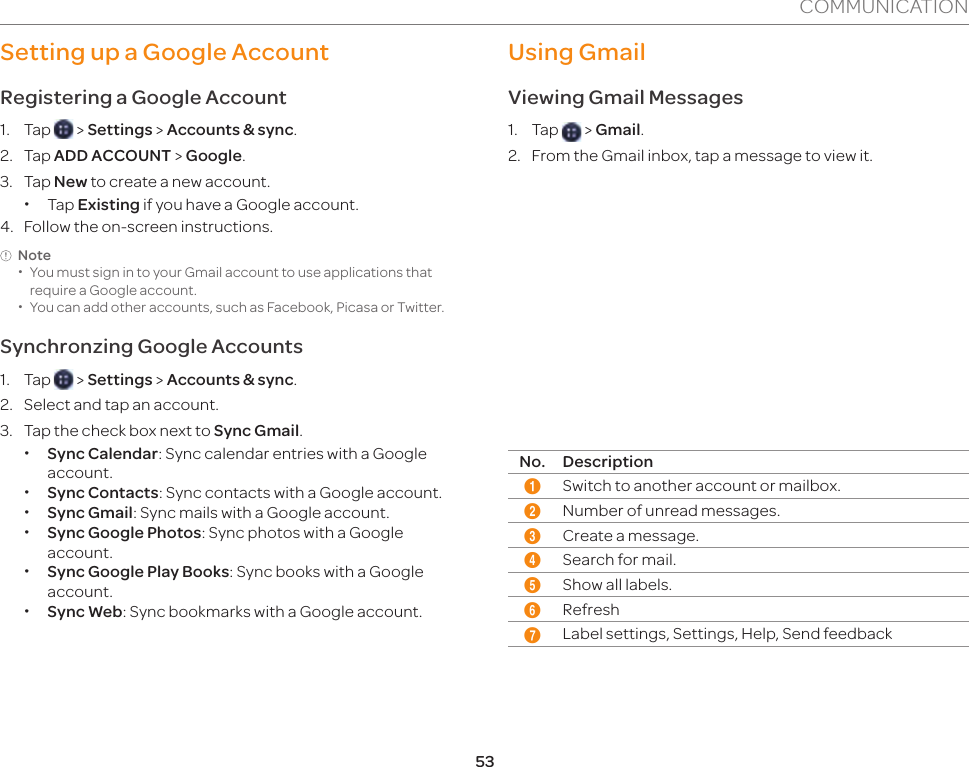

53COMMUNICATIONSetting up a Google AccountRegistering a Google Account1. Tap > Settings > Accounts & sync.2. Tap ADD ACCOUNT > Google.3. Tap New to create a new account. xTap Existing if you have a Google account. 4. Follow the on-screen instructions.Note xYou must sign in to your Gmail account to use applications that require a Google account. xYou can add other accounts, such as Facebook, Picasa or Twitter. Synchronzing Google Accounts1. Tap > Settings > Accounts & sync.2. Select and tap an account.3. Tap the check box next to Sync Gmail. xSync Calendar: Sync calendar entries with a Google account. xSync Contacts: Sync contacts with a Google account. xSync Gmail: Sync mails with a Google account. xSync Google Photos: Sync photos with a Google account. xSync Google Play Books: Sync books with a Google account. xSync Web: Sync bookmarks with a Google account.Using GmailViewing Gmail Messages1. Tap > Gmail.2. From the Gmail inbox, tap a message to view it. 13 4 56 72No. Description1Switch to another account or mailbox. 2Number of unread messages.3Create a message.4Search for mail.5Show all labels.6Refresh7Label settings, Settings, Help, Send feedback

54COMMUNICATION3. View the email message. 12 4 57 8 90 !36No. Description1Return to the mailbox.2Add the email address to contacts or view options when the address is already saved.3Designate as a favorite. 4Send a reply.5Reply to all or forward.6View or save the attachment.7Archive a message.8Delete a mail.9Change labels.0Mark unread.!Open menus.Creating a Gmail Message1. Tap > Gmail.2. Tap to create a new message.3. Tap the To field and enter the recipient’s email address. 4. Tap the Subject field and enter a subject.5. Tap the Compose email field and write a message. 6. Tap to send the message. xTap to open menus.Changing Gmail Settings1. Tap > Gmail.2. Tap > Settings.3. Select and tap an option. xTap to view help or send feedback.OptionSettings General settingsConfirm before deleting, Confirm before archiving, Confirm before sending, Reply all, Auto-advance, Message text size, Hide checkboxes, Message actions, Clear search history, Ask to show picturesPre-registered accountsPriority Inbox, Email notifications, Ringtone & vibrate, Signature, Gmail sync, Days of mail to sync, Manage labels, Download attachmentsAbout Gmail Gmail Version, Send feedback, Report a problem, License informationExperiments Enable full text search, Enable drag and drop contact chip

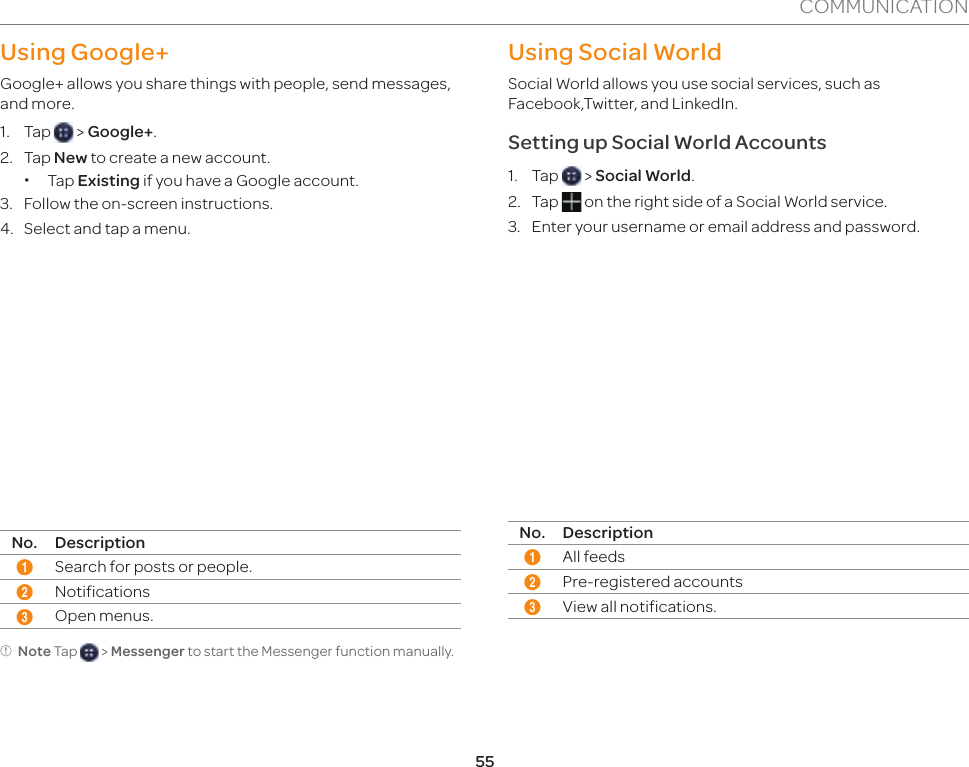

55COMMUNICATIONUsing Google+Google+ allows you share things with people, send messages, and more.1. Tap > Google+.2. Tap New to create a new account. xTap Existing if you have a Google account.3. Follow the on-screen instructions.4. Select and tap a menu.12 3No. Description1Search for posts or people.2Notifications3Open menus.Note Tap > Messenger to start the Messenger function manually.Using Social WorldSocial World allows you use social services, such as Facebook,Twitter, and LinkedIn.Setting up Social World Accounts1. Tap > Social World.2. Tap on the right side of a Social World service.3. Enter your username or email address and password. 123No. Description1All feeds2Pre-registered accounts3View all notifications.

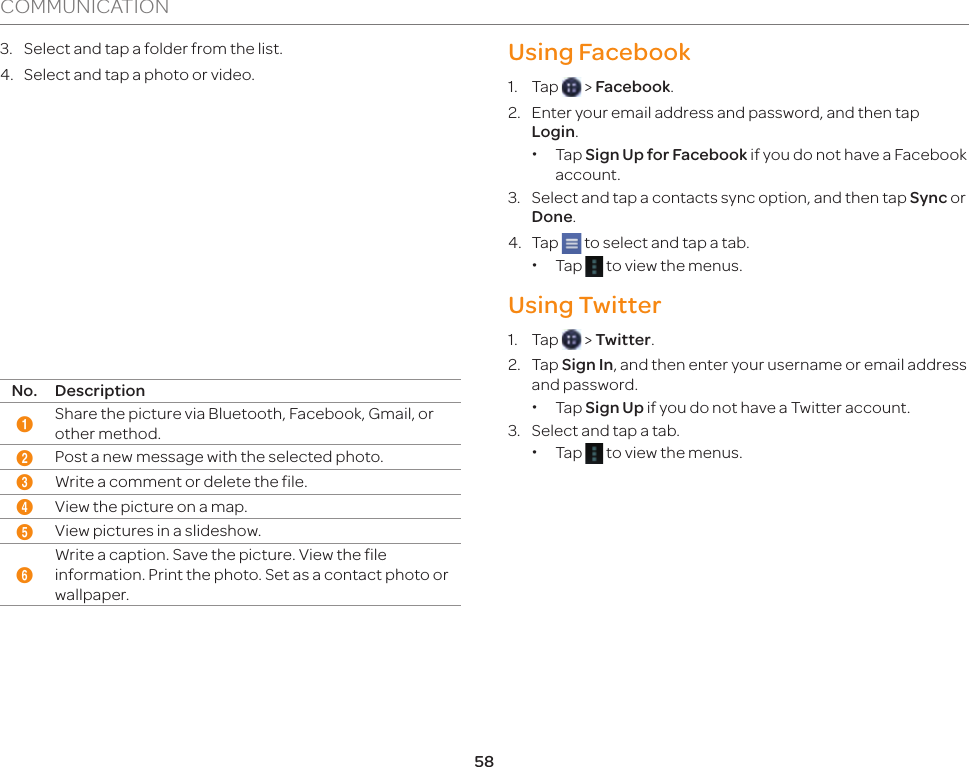

58COMMUNICATION3. Select and tap a folder from the list.4. Select and tap a photo or video.1 2 3 4 56No. Description1Share the picture via Bluetooth, Facebook, Gmail, or other method.2Post a new message with the selected photo.3Write a comment or delete the file.4View the picture on a map.5View pictures in a slideshow.6Write a caption. Save the picture. View the file information. Print the photo. Set as a contact photo or wallpaper.Using Facebook1. Tap > Facebook.2. Enter your email address and password, and then tap Login. xTap Sign Up for Facebook if you do not have a Facebook account.3. Select and tap a contacts sync option, and then tap Sync or Done.4. Tap to select and tap a tab. xTap to view the menus.Using Twitter1. Tap > Twitter.2. Tap Sign In, and then enter your username or email address and password. xTap Sign Up if you do not have a Twitter account.3. Select and tap a tab. xTap to view the menus.

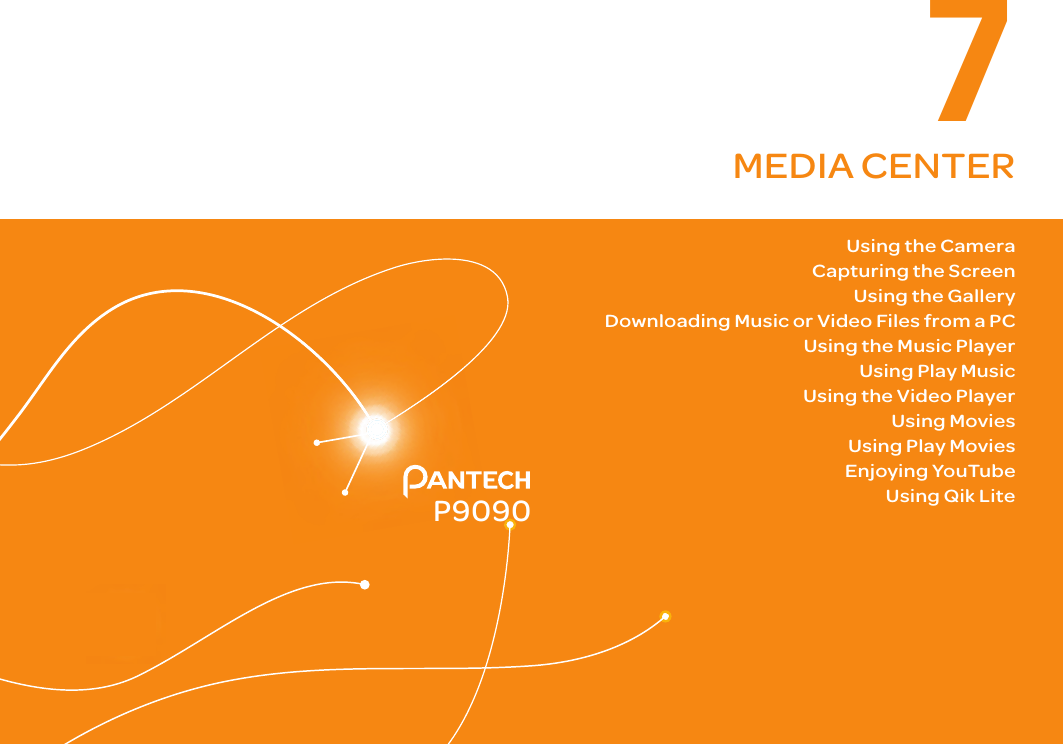

597MEDIA CENTER Using the CameraCapturing the ScreenUsing the GalleryDownloading Music or Video Files from a PCUsing the Music PlayerUsing Play MusicUsing the Video Player Using MoviesUsing Play MoviesEnjoying YouTubeUsing Qik LiteP9090

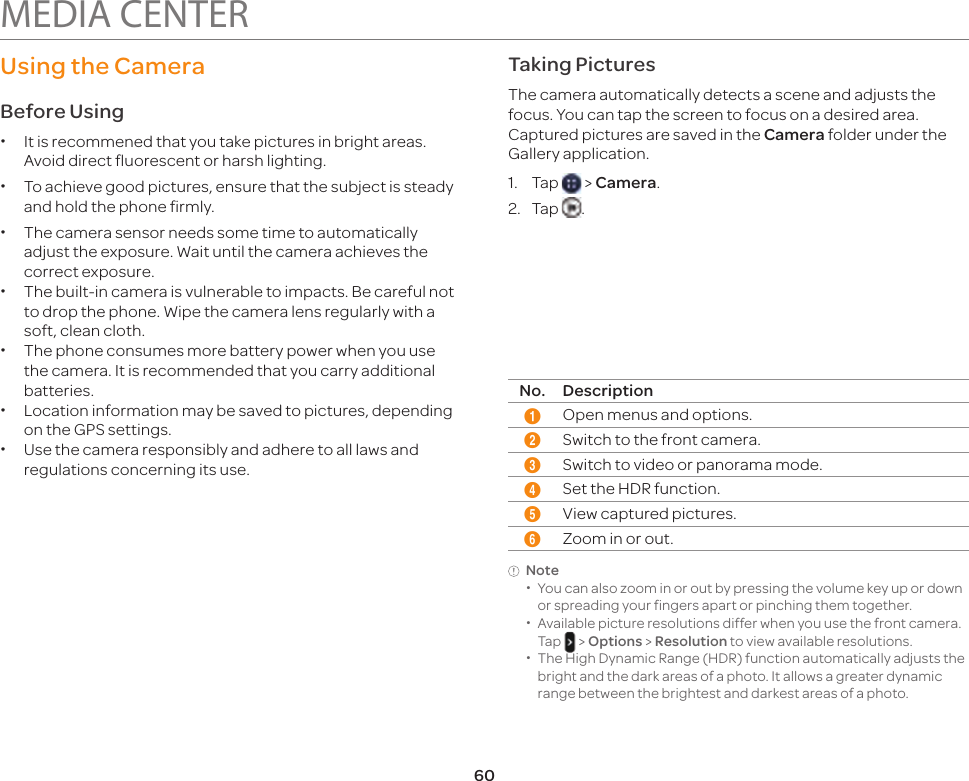

60MEDIA CENTERUsing the CameraBefore Using xIt is recommened that you take pictures in bright areas. Avoid direct fluorescent or harsh lighting. xTo achieve good pictures, ensure that the subject is steady and hold the phone firmly. xThe camera sensor needs some time to automatically adjust the exposure. Wait until the camera achieves the correct exposure. xThe built-in camera is vulnerable to impacts. Be careful not to drop the phone. Wipe the camera lens regularly with a soft, clean cloth. xThe phone consumes more battery power when you use the camera. It is recommended that you carry additional batteries. xLocation information may be saved to pictures, depending on the GPS settings. xUse the camera responsibly and adhere to all laws and regulations concerning its use.Taking PicturesThe camera automatically detects a scene and adjusts the focus. You can tap the screen to focus on a desired area. Captured pictures are saved in the Camera folder under the Gallery application.1. Tap > Camera.2. Tap . 142365No. Description1Open menus and options.2Switch to the front camera.3Switch to video or panorama mode.4Set the HDR function.5View captured pictures.6Zoom in or out.Note xYou can also zoom in or out by pressing the volume key up or down or spreading your fingers apart or pinching them together. xAvailable picture resolutions differ when you use the front camera. Tap > Options > Resolution to view available resolutions. xThe High Dynamic Range (HDR) function automatically adjusts the bright and the dark areas of a photo. It allows a greater dynamic range between the brightest and darkest areas of a photo.

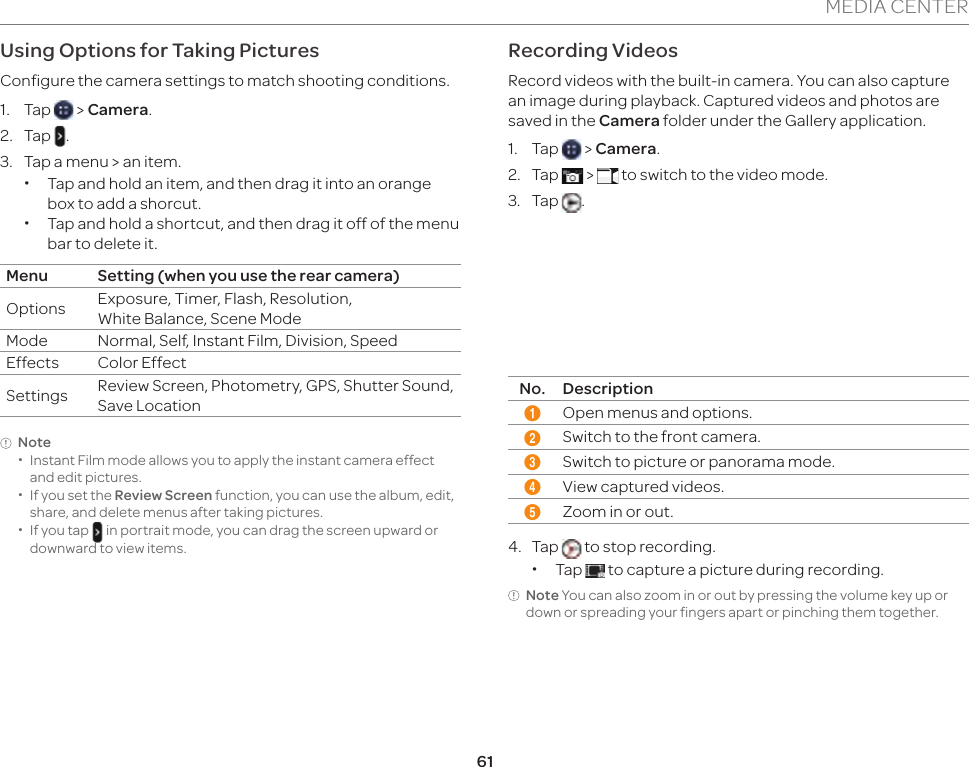

61MEDIA CENTERUsing Options for Taking PicturesConfigure the camera settings to match shooting conditions.1. Tap > Camera.2. Tap .3. Tap a menu > an item. xTap and hold an item, and then drag it into an orange box to add a shorcut. xTap and hold a shortcut, and then drag it off of the menu bar to delete it.Menu Setting (when you use the rear camera)Options Exposure, Timer, Flash, Resolution, White Balance, Scene ModeMode Normal, Self, Instant Film, Division, SpeedEffects Color EffectSettings Review Screen, Photometry, GPS, Shutter Sound, Save LocationNote xInstant Film mode allows you to apply the instant camera effect and edit pictures. xIf you set the Review Screen function, you can use the album, edit, share, and delete menus after taking pictures. xIf you tap in portrait mode, you can drag the screen upward or downward to view items.Recording VideosRecord videos with the built-in camera. You can also capture an image during playback. Captured videos and photos are saved in the Camera folder under the Gallery application.1. Tap > Camera.2. Tap > to switch to the video mode. 3. Tap .12354No. Description1Open menus and options.2Switch to the front camera.3Switch to picture or panorama mode.4View captured videos.5Zoom in or out.4. Tap to stop recording. xTap to capture a picture during recording.Note You can also zoom in or out by pressing the volume key up or down or spreading your fingers apart or pinching them together.

62MEDIA CENTERUsing Options for Recording VideosConfigure the camera settings to match shooting conditions.1. Tap > Camera.2. Tap .3. Tap a menu > an item. xTap and hold an item, and then drag it into an orange box to add a shorcut. xTap and hold a shortcut, and then drag it off of the menu bar to delete it.Menu Setting (when you use the rear camera)Options Exposure, Time Lapse, Flash, Resolution, White Balance, Scene ModeEffects Color Effect, Time Lapse EffectSettings Review Screen, Voice Rec., MMS Rec., GPS, Shutter Sound, Save LocationTaking Panoramic PicturesTake a wide panoramic scene in a single picture. Captured pictures are saved in the Camera folder under the Gallery application.1. Tap > Camera.2. Tap > to switch to panorama mode. 3. Tap . 12No. Description1Switch to picture or video mode.2View captured pictures.Viewing Captured Picture or Videos1. Tap > Camera.2. After finishing capturing, tap the image viewer at the bottom right of the screen.Note The Gallery application starts when you tap the image viewer (refer to page 63).

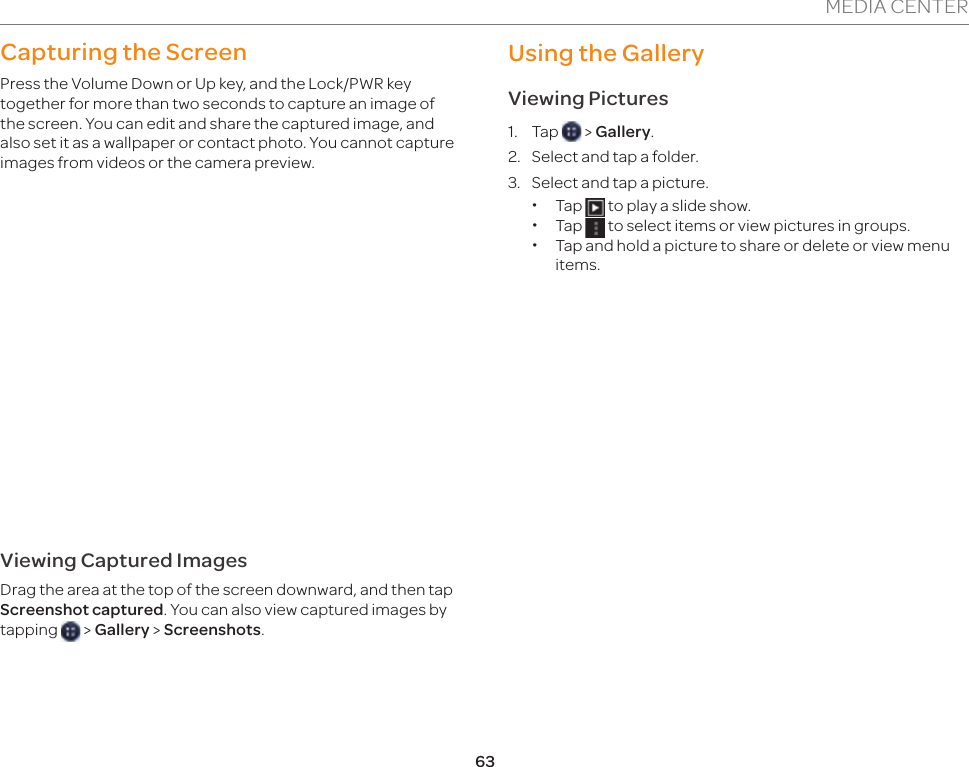

63MEDIA CENTERUsing the GalleryViewing Pictures1. Tap > Gallery.2. Select and tap a folder.3. Select and tap a picture. xTap to play a slide show. xTap to select items or view pictures in groups. xTap and hold a picture to share or delete or view menu items.Capturing the ScreenPress the Volume Down or Up key, and the Lock/PWR key together for more than two seconds to capture an image of the screen. You can edit and share the captured image, and also set it as a wallpaper or contact photo. You cannot capture images from videos or the camera preview.Viewing Captured ImagesDrag the area at the top of the screen downward, and then tap Screenshot captured. You can also view captured images by tapping > Gallery > Screenshots.

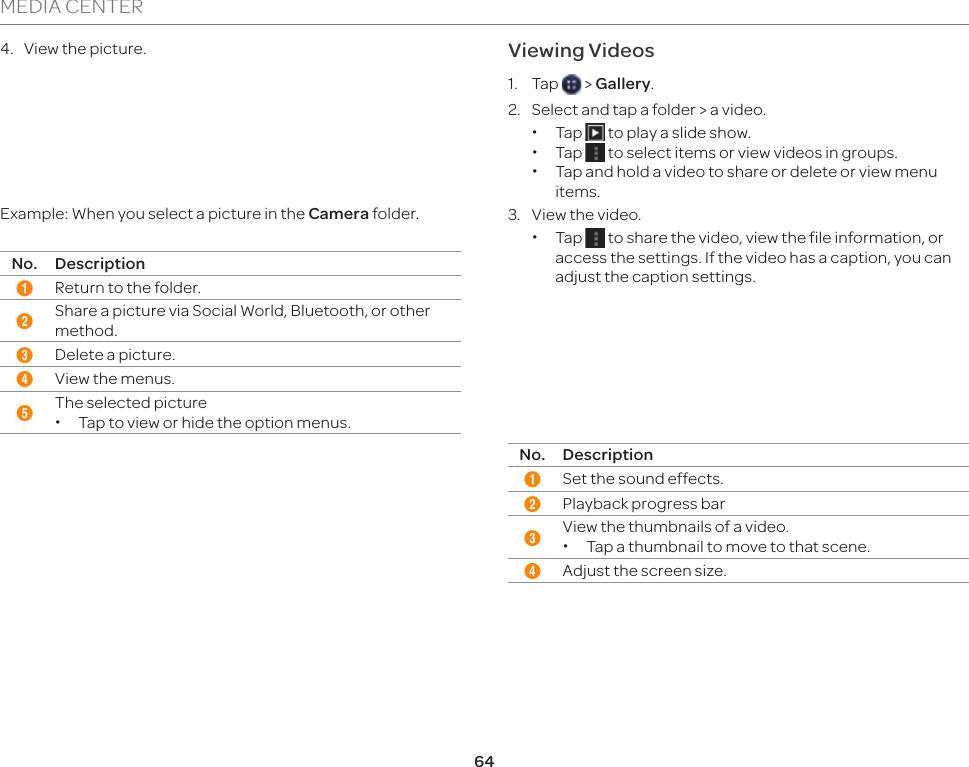

64MEDIA CENTER4. View the picture.142 35Example: When you select a picture in the Camera folder.No. Description1Return to the folder.2Share a picture via Social World, Bluetooth, or other method.3Delete a picture.4View the menus.5The selected picture xTap to view or hide the option menus.Viewing Videos1. Tap > Gallery.2. Select and tap a folder > a video. xTap to play a slide show. xTap to select items or view videos in groups. xTap and hold a video to share or delete or view menu items.3. View the video. xTap to share the video, view the file information, or access the settings. If the video has a caption, you can adjust the caption settings.23 41No. Description1Set the sound effects.2Playback progress bar3View the thumbnails of a video. xTap a thumbnail to move to that scene.4Adjust the screen size.

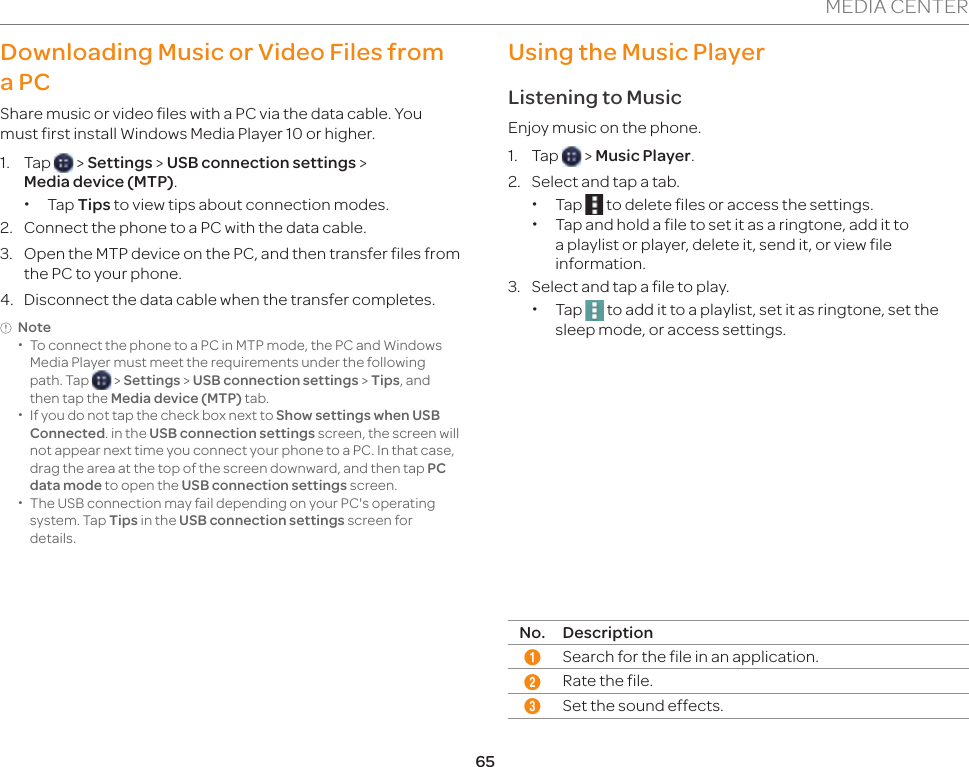

65MEDIA CENTERDownloading Music or Video Files from a PCShare music or video files with a PC via the data cable. You must first install Windows Media Player 10 or higher. 1. Tap > Settings > USB connection settings > Media device (MTP). xTap Tips to view tips about connection modes. 2. Connect the phone to a PC with the data cable.3. Open the MTP device on the PC, and then transfer files from the PC to your phone.4. Disconnect the data cable when the transfer completes.Note xTo connect the phone to a PC in MTP mode, the PC and Windows Media Player must meet the requirements under the following path. Tap > Settings > USB connection settings > Tips, and then tap the Media device (MTP) tab. xIf you do not tap the check box next to Show settings when USB Connected. in the USB connection settings screen, the screen will not appear next time you connect your phone to a PC. In that case, drag the area at the top of the screen downward, and then tap PC data mode to open the USB connection settings screen. xThe USB connection may fail depending on your PC's operating system. Tap Tips in the USB connection settings screen for details.Using the Music PlayerListening to MusicEnjoy music on the phone. 1. Tap > Music Player.2. Select and tap a tab. xTap to delete files or access the settings. xTap and hold a file to set it as a ringtone, add it to a playlist or player, delete it, send it, or view file information.3. Select and tap a file to play. xTap to add it to a playlist, set it as ringtone, set the sleep mode, or access settings.145367 82No. Description1Search for the file in an application.2Rate the file.3Set the sound effects.

66MEDIA CENTERNo. Description4Album cover xDrag to the left or right to skip to the previous or next track.5Additional features xTap to switch to the play list. xTap to view similar songs on YouTube and share the information via SNS. xTap to view the song information. 6Progress bar7Set random play.8Set repeat play.To Control Music on the Locked ScreenIf the screen is locked when you play music, drag the CD image at the upper-right of the screen to the left. You can use the playback bar to pause, playback, or skip to the previous or next track.Note xThe playback screen differs when you rotate the phone to landscape mode. xThe instructions in this manual are based on the default playback screen. Available items may differ depending on the options you select.Creating a Playlist1. Tap > Music Player.2. Drag the list to the left and tap Playlists.3. Tap > New playlist.4. Enter a name for the playlist, and then tap OK.5. Select and tap the tracks that you want to add to the playlist.6. Tap .To Add Songs to a Playlist Tap and hold a track, and then tap Add to playlist > a playlist.To Edit Playlists Drag the list to the left, tap Playlists, and tap and hold a playlist. You can edit the playlist by tapping one of the menu items.Using Play MusicPlay Music allows you to play music stored on your Google Play music library or on your phone.1. Tap > Play Music.2. Tap and select a track.3. Follow the on-screen instructions.

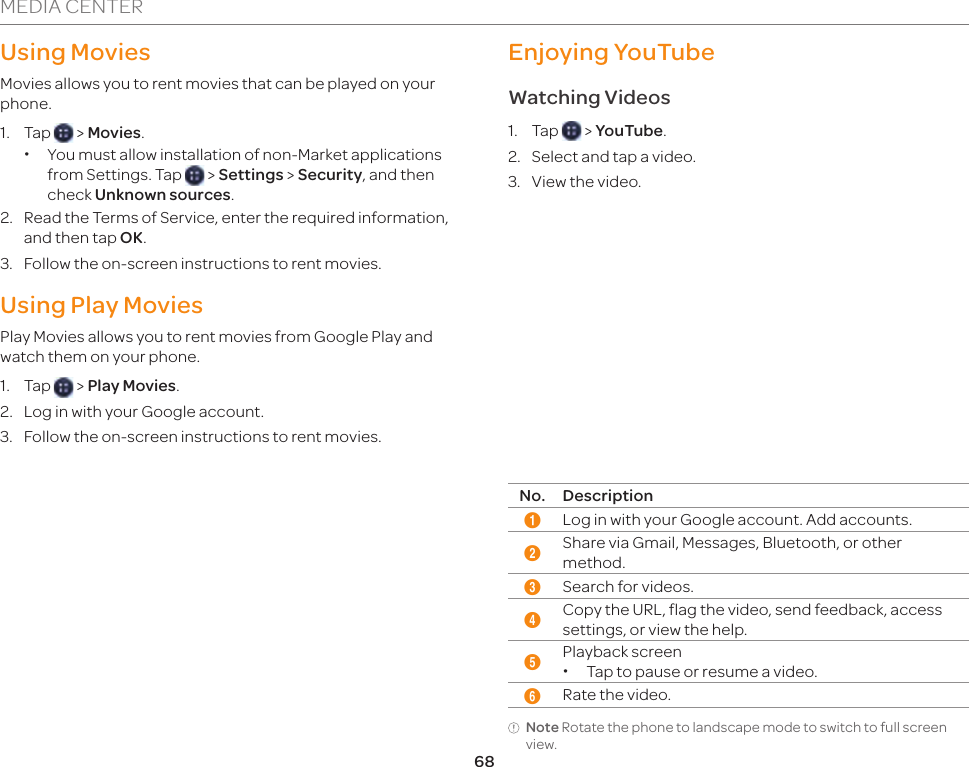

68MEDIA CENTERUsing MoviesMovies allows you to rent movies that can be played on your phone.1. Tap > Movies. xYou must allow installation of non-Market applications from Settings. Tap > Settings > Security, and then check Unknown sources.2. Read the Terms of Service, enter the required information, and then tap OK.3. Follow the on-screen instructions to rent movies.Using Play MoviesPlay Movies allows you to rent movies from Google Play and watch them on your phone.1. Tap > Play Movies.2. Log in with your Google account.3. Follow the on-screen instructions to rent movies. Enjoying YouTubeWatching Videos1. Tap > YouTube.2. Select and tap a video. 3. View the video.53 4126No. Description1Log in with your Google account. Add accounts.2Share via Gmail, Messages, Bluetooth, or other method.3Search for videos.4Copy the URL, flag the video, send feedback, access settings, or view the help.5Playback screen xTap to pause or resume a video.6Rate the video.Note Rotate the phone to landscape mode to switch to full screen view.

69MEDIA CENTERUploading Videos1. Tap > YouTube.2. Tap the ACCOUNT tab.3. Select and tap an account. xTap Add account to create an account.4. Tap .5. Select and tap a folder > a video.6. Select and tap an upload option.7. Enter the title, description, and tags for the video, and then set the privacy settings.8. Tap Upload.Using Qik LiteQik Lite allows you to make video calls, send video mail, and share videos with people over Wi-Fi networks.1. Tap > Qik Lite.2. Tap Already a Qik User?, and then log in with your username and password. xTap Get started! to create an account.3. Select an option, and then follow the on-screen instructions.Option DescriptionVideo Chat Make two-way video calls.Record & Share Record and share videos.Video Mail Send video mail.Video Gallery View your videos in a gallery.

708MENU FUNCTIONS Alarm/ClockCalculatorCalendarConverterDocument ViewerFile ManagerKey RingLatitudeNavigationNet MediaNotePadPill ReminderPlacesPlay BooksPulseTalkTip Calculator WeatherVoice RecorderP9090

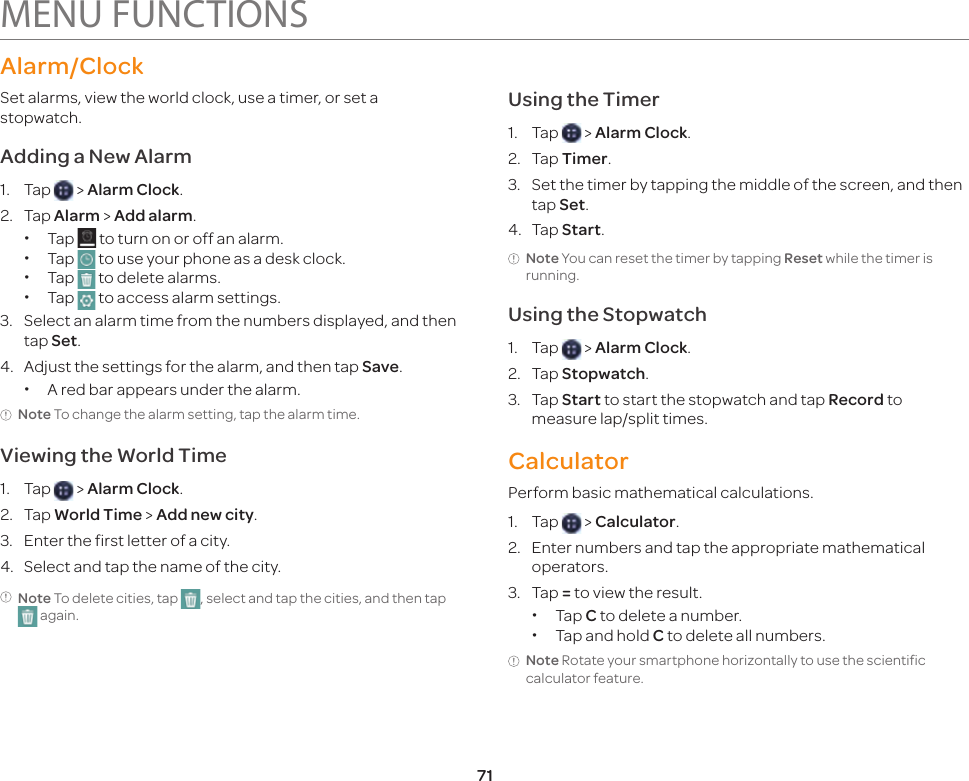

71MENU FUNCTIONSAlarm/ClockSet alarms, view the world clock, use a timer, or set a stopwatch.Adding a New Alarm1. Tap > Alarm Clock.2. Tap Alarm > Add alarm. xTap to turn on or off an alarm. xTap to use your phone as a desk clock. xTap to delete alarms. xTap to access alarm settings.3. Select an alarm time from the numbers displayed, and then tap Set.4. Adjust the settings for the alarm, and then tap Save. xA red bar appears under the alarm.Note To change the alarm setting, tap the alarm time.Viewing the World Time1. Tap > Alarm Clock.2. Tap World Time > Add new city.3. Enter the first letter of a city.4. Select and tap the name of the city.Note To delete cities, tap , select and tap the cities, and then tap again. Using the Timer1. Tap > Alarm Clock.2. Tap Timer.3. Set the timer by tapping the middle of the screen, and then tap Set. 4. Tap Start.Note You can reset the timer by tapping Reset while the timer is running.Using the Stopwatch1. Tap > Alarm Clock.2. Tap Stopwatch.3. Tap Start to start the stopwatch and tap Record to measure lap/split times.CalculatorPerform basic mathematical calculations.1. Tap > Calculator. 2. Enter numbers and tap the appropriate mathematical operators.3. Tap = to view the result. xTap C to delete a number. xTap and hold C to delete all numbers.Note Rotate your smartphone horizontally to use the scientific calculator feature.

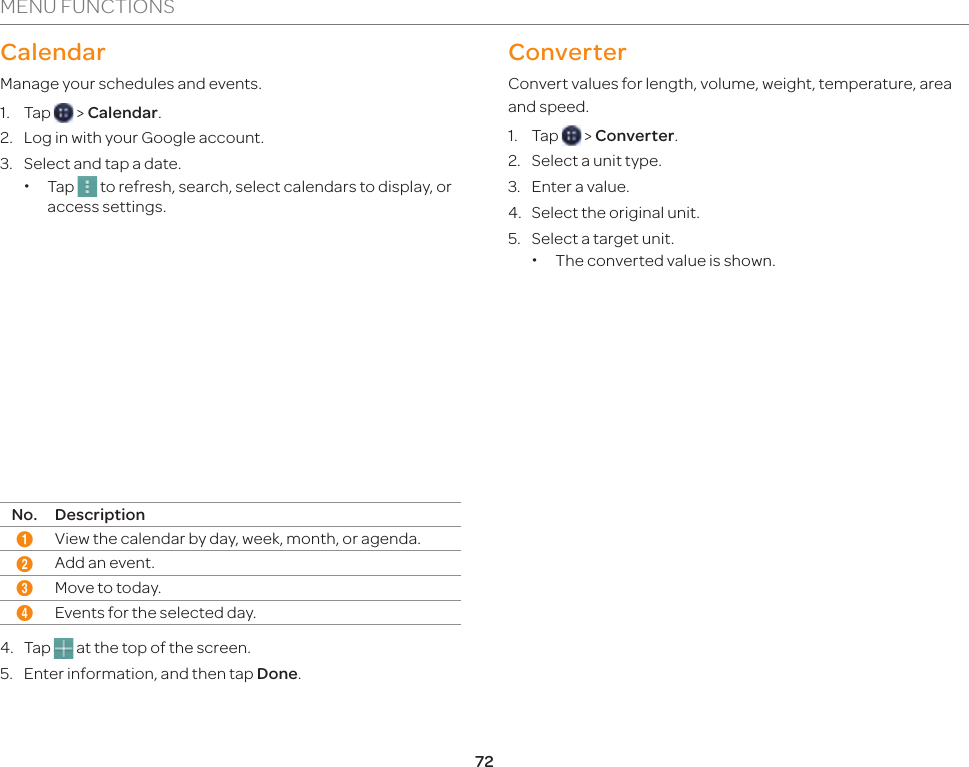

72MENU FUNCTIONSCalendarManage your schedules and events.1. Tap > Calendar.2. Log in with your Google account.3. Select and tap a date. xTap to refresh, search, select calendars to display, or access settings.12 34No. Description1View the calendar by day, week, month, or agenda.2Add an event.3Move to today.4Events for the selected day.4. Tap at the top of the screen.5. Enter information, and then tap Done.ConverterConvert values for length, volume, weight, temperature, area and speed.1. Tap > Converter.2. Select a unit type.3. Enter a value.4. Select the original unit.5. Select a target unit. xThe converted value is shown.

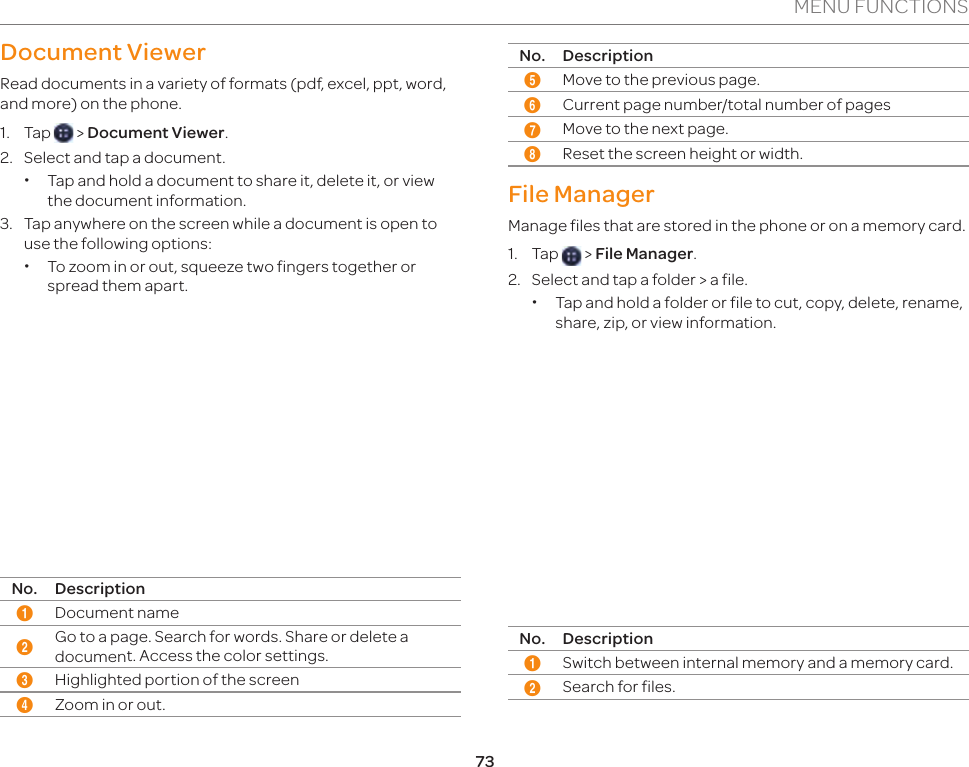

73MENU FUNCTIONSDocument ViewerRead documents in a variety of formats (pdf, excel, ppt, word, and more) on the phone.1. Tap > Document Viewer.2. Select and tap a document. xTap and hold a document to share it, delete it, or view the document information.3. Tap anywhere on the screen while a document is open to use the following options: xTo zoom in or out, squeeze two fingers together or spread them apart.12356 7 84No. Description1Document name2Go to a page. Search for words. Share or delete a document. Access the color settings.3Highlighted portion of the screen4Zoom in or out.No. Description5Move to the previous page.6Current page number/total number of pages7Move to the next page.8Reset the screen height or width.File ManagerManage files that are stored in the phone or on a memory card.1. Tap > File Manager.2. Select and tap a folder > a file. xTap and hold a folder or file to cut, copy, delete, rename, share, zip, or view information.1 2 3564No. Description1Switch between internal memory and a memory card.2Search for files.

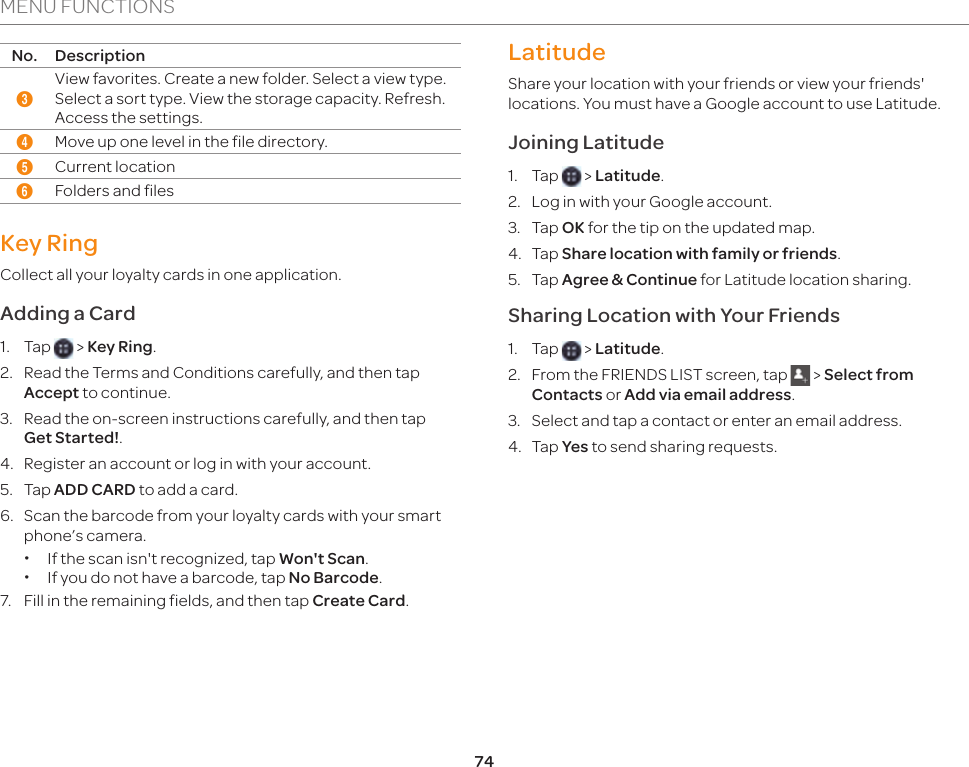

74MENU FUNCTIONSNo. Description3View favorites. Create a new folder. Select a view type. Select a sort type. View the storage capacity. Refresh. Access the settings.4Move up one level in the file directory.5Current location6Folders and filesKey RingCollect all your loyalty cards in one application.Adding a Card1. Tap > Key Ring.2. Read the Terms and Conditions carefully, and then tap Accept to continue.3. Read the on-screen instructions carefully, and then tap Get Started!.4. Register an account or log in with your account.5. Tap ADD CARD to add a card.6. Scan the barcode from your loyalty cards with your smart phone’s camera. xIf the scan isn't recognized, tap Won't Scan. xIf you do not have a barcode, tap No Barcode.7. Fill in the remaining fields, and then tap Create Card.LatitudeShare your location with your friends or view your friends' locations. You must have a Google account to use Latitude.Joining Latitude1. Tap > Latitude.2. Log in with your Google account.3. Tap OK for the tip on the updated map.4. Tap Share location with family or friends.5. Tap Agree & Continue for Latitude location sharing.Sharing Location with Your Friends 1. Tap > Latitude.2. From the FRIENDS LIST screen, tap > Select from Contacts or Add via email address.3. Select and tap a contact or enter an email address.4. Tap Yes to send sharing requests.

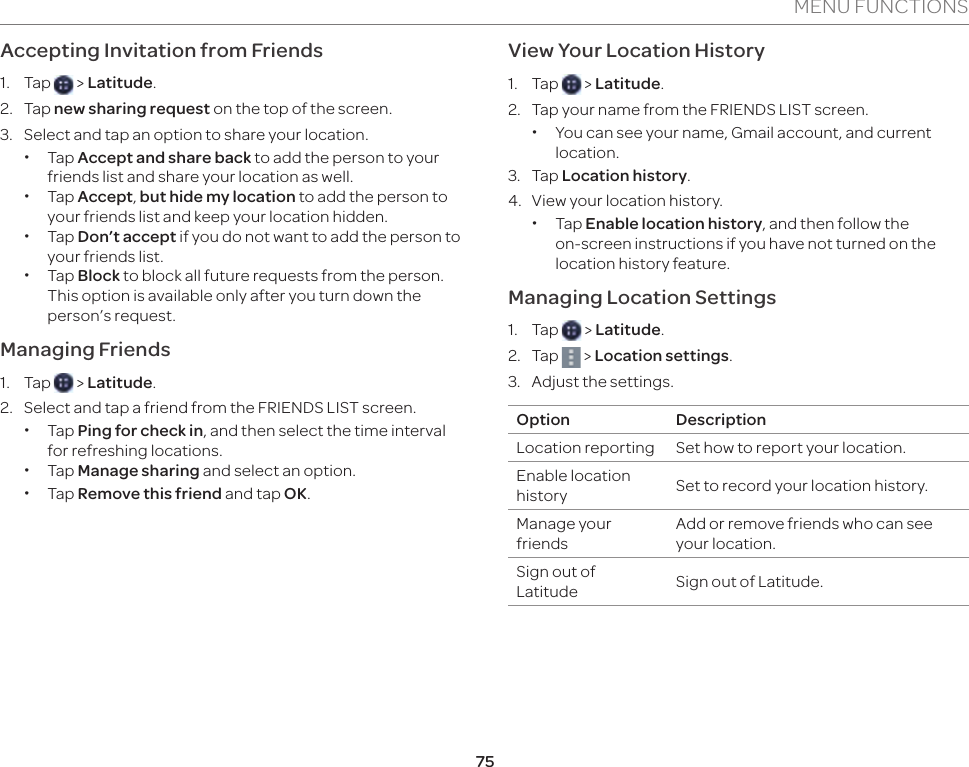

75MENU FUNCTIONSAccepting Invitation from Friends 1. Tap > Latitude.2. Tap new sharing request on the top of the screen.3. Select and tap an option to share your location. xTap Accept and share back to add the person to your friends list and share your location as well. xTap Accept, but hide my location to add the person to your friends list and keep your location hidden. xTap Don’t accept if you do not want to add the person to your friends list. xTap Block to block all future requests from the person. This option is available only after you turn down the person’s request.Managing Friends 1. Tap > Latitude.2. Select and tap a friend from the FRIENDS LIST screen. xTap Ping for check in, and then select the time interval for refreshing locations. xTap Manage sharing and select an option. xTap Remove this friend and tap OK.View Your Location History1. Tap > Latitude.2. Tap your name from the FRIENDS LIST screen. xYou can see your name, Gmail account, and current location.3. Tap Location history.4. View your location history. xTap Enable location history, and then follow the on-screen instructions if you have not turned on the location history feature.Managing Location Settings1. Tap > Latitude.2. Tap > Location settings.3. Adjust the settings.Option DescriptionLocation reporting Set how to report your location.Enable location history Set to record your location history.Manage your friendsAdd or remove friends who can see your location.Sign out of Latitude Sign out of Latitude.

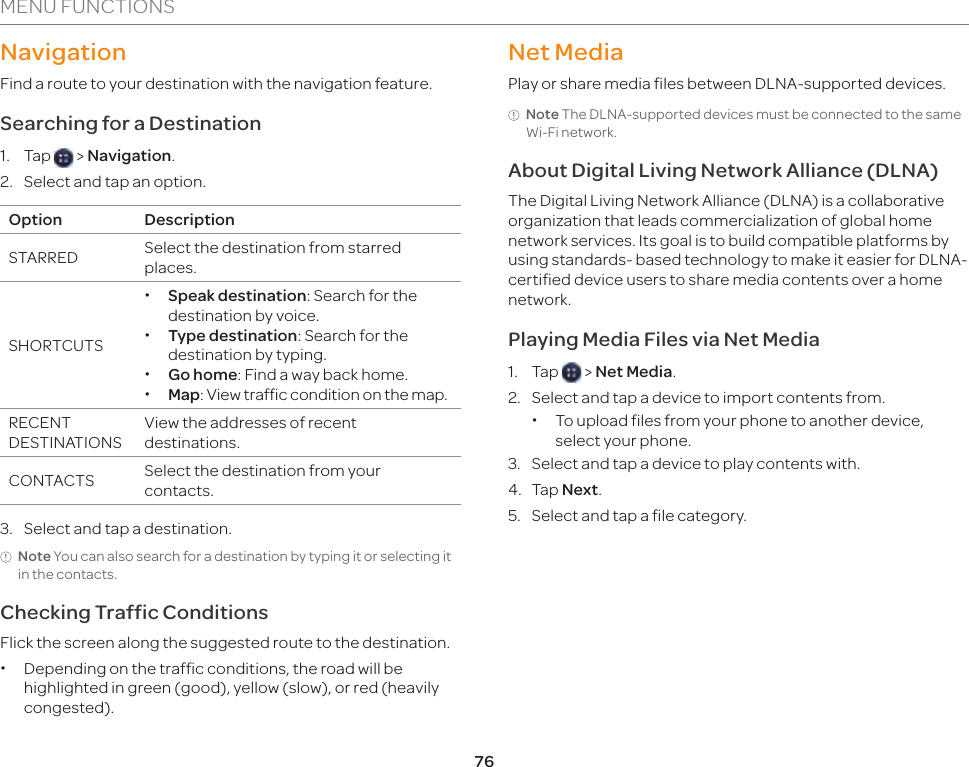

76MENU FUNCTIONSNavigationFind a route to your destination with the navigation feature.Searching for a Destination1. Tap > Navigation.2. Select and tap an option.Option DescriptionSTARRED Select the destination from starred places.SHORTCUTS xSpeak destination: Search for the destination by voice. xType destination: Search for the destination by typing. xGo home: Find a way back home. xMap: View traffic condition on the map.RECENT DESTINATIONSView the addresses of recent destinations.CONTACTS Select the destination from your contacts.3. Select and tap a destination.Note You can also search for a destination by typing it or selecting it in the contacts. Checking Traffic Conditions Flick the screen along the suggested route to the destination. xDepending on the traffic conditions, the road will be highlighted in green (good), yellow (slow), or red (heavily congested).Net MediaPlay or share media files between DLNA-supported devices.Note The DLNA-supported devices must be connected to the same Wi-Fi network.About Digital Living Network Alliance (DLNA)The Digital Living Network Alliance (DLNA) is a collaborative organization that leads commercialization of global home network services. Its goal is to build compatible platforms by using standards- based technology to make it easier for DLNA-certified device users to share media contents over a home network.Playing Media Files via Net Media1. Tap > Net Media.2. Select and tap a device to import contents from. xTo upload files from your phone to another device, select your phone.3. Select and tap a device to play contents with.4. Tap Next.5. Select and tap a file category.

77MENU FUNCTIONS6. Select and tap a file to view. xTo upload to another device, tap and hold the file, and then tap Upload. xTo download to your phone, tap and hold the file, and then tap Download.123No. Description1Search for a file.2Move to main. Select a playlist. Select files to download or upload. View files by content type or folder type. Change the sorting order.3File list7. View the file.1 23Example: When you view a photo.No. Description1Start a slide show.2View the file information.3Zoom in or out.

78MENU FUNCTIONS1234Example: When you play music.No. Description1Adjust the volume.2Create a playlist. View the file information.3Set repeat or random play.4Select a device to play the file with.1 234Example: When you play a video.No. Description1Adjust the volume.2Create a playlist. View the file information.No. Description3Set repeat or random play.4Select a device to play the file with.Sharing Media Files with Other Devices via Net Media1. Tap > Net Media.2. Select and tap a device to import contents from. xTo upload files from your phone to another device, select your phone.3. Select and tap a device to play contents with.4. Tap Next.5. Select and tap a file category.6. Select and tap a file or files to share. xTo upload to another device, tap and hold the file, and then tap Upload. xTo download to your phone, tap and hold the file, and then tap Download. xTo select multiple files, tap > Select Upload or Select Download.7. Select a device.8. Tap Next. xIf you upload a file, select a location to save a file, and then tap Confirm this position.

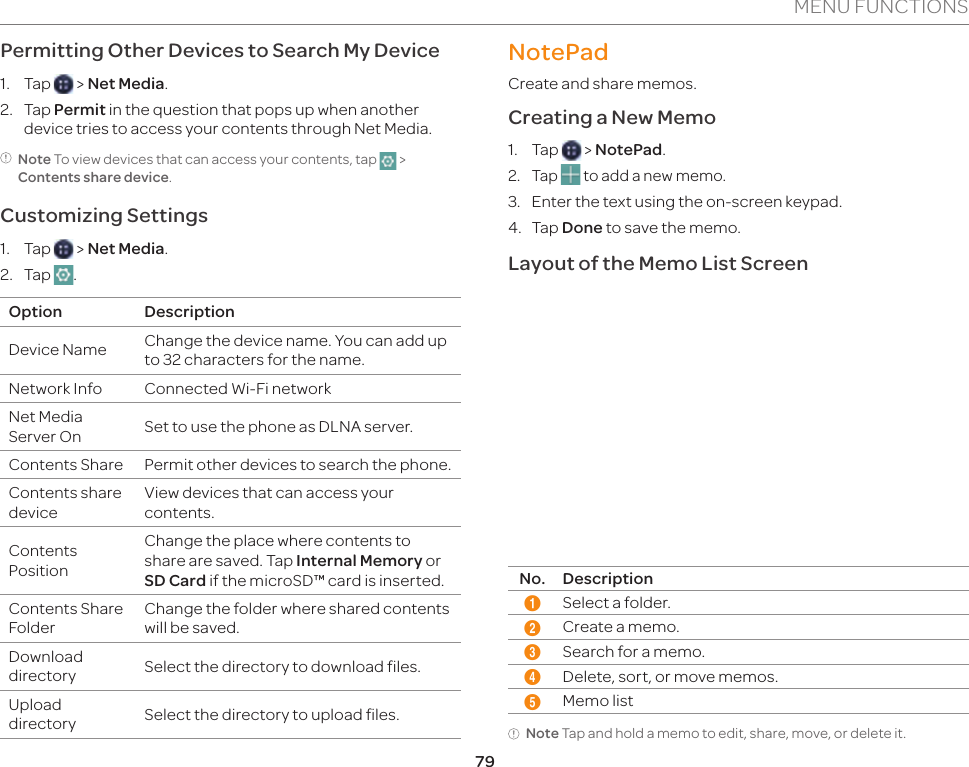

79MENU FUNCTIONSPermitting Other Devices to Search My Device1. Tap > Net Media.2. Tap Permit in the question that pops up when another device tries to access your contents through Net Media. Note To view devices that can access your contents, tap > Contents share device. Customizing Settings1. Tap > Net Media.2. Tap .Option DescriptionDevice Name Change the device name. You can add up to 32 characters for the name.Network Info Connected Wi-Fi networkNet Media Server On Set to use the phone as DLNA server.Contents Share Permit other devices to search the phone.Contents share deviceView devices that can access your contents.Contents PositionChange the place where contents to share are saved. Tap Internal Memory or SD Card if the microSD™ card is inserted. Contents Share FolderChange the folder where shared contents will be saved. Download directory Select the directory to download files.Upload directory Select the directory to upload files.NotePadCreate and share memos.Creating a New Memo 1. Tap > NotePad.2. Tap to add a new memo.3. Enter the text using the on-screen keypad.4. Tap Done to save the memo.Layout of the Memo List Screen21 3 45No. Description1Select a folder.2Create a memo.3Search for a memo.4Delete, sort, or move memos.5Memo listNote Tap and hold a memo to edit, share, move, or delete it.

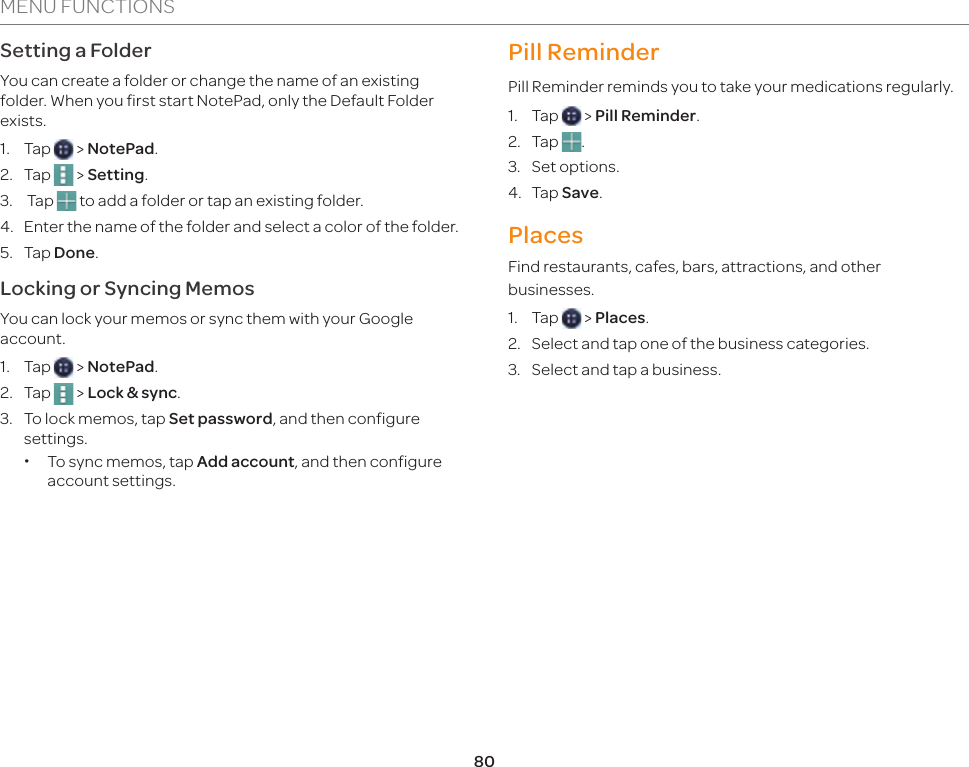

80MENU FUNCTIONSSetting a FolderYou can create a folder or change the name of an existing folder. When you first start NotePad, only the Default Folder exists.1. Tap > NotePad.2. Tap > Setting.3. Tap to add a folder or tap an existing folder.4. Enter the name of the folder and select a color of the folder.5. Tap Done.Locking or Syncing MemosYou can lock your memos or sync them with your Google account.1. Tap > NotePad.2. Tap > Lock & sync.3. To lock memos, tap Set password, and then configure settings. xTo sync memos, tap Add account, and then configure account settings.Pill ReminderPill Reminder reminds you to take your medications regularly.1. Tap > Pill Reminder.2. Tap .3. Set options.4. Tap Save.PlacesFind restaurants, cafes, bars, attractions, and other businesses.1. Tap > Places.2. Select and tap one of the business categories.3. Select and tap a business.

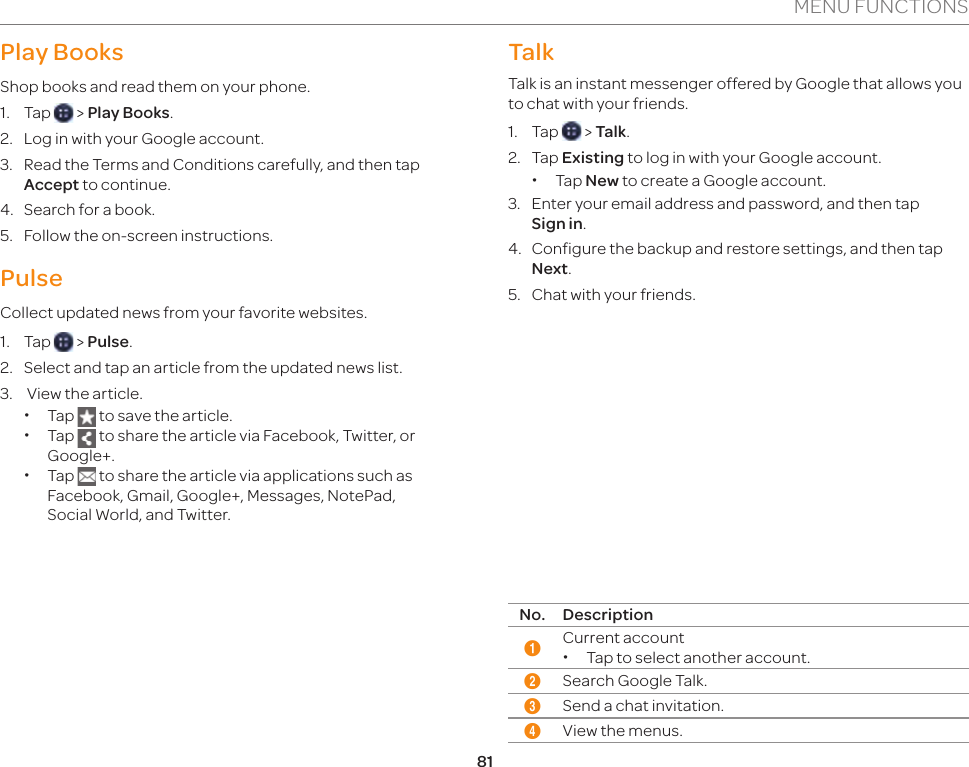

81MENU FUNCTIONSPlay BooksShop books and read them on your phone.1. Tap > Play Books.2. Log in with your Google account.3. Read the Terms and Conditions carefully, and then tap Accept to continue.4. Search for a book.5. Follow the on-screen instructions.PulseCollect updated news from your favorite websites.1. Tap > Pulse.2. Select and tap an article from the updated news list.3. View the article. xTap to save the article. xTap to share the article via Facebook, Twitter, or Google+. xTap to share the article via applications such as Facebook, Gmail, Google+, Messages, NotePad, Social World, and Twitter.TalkTalk is an instant messenger offered by Google that allows you to chat with your friends.1. Tap > Talk.2. Tap Existing to log in with your Google account. xTap New to create a Google account.3. Enter your email address and password, and then tap Sign in.4. Configure the backup and restore settings, and then tap Next.5. Chat with your friends.12 3 465No. Description1Current account xTap to select another account.2Search Google Talk.3Send a chat invitation.4View the menus.

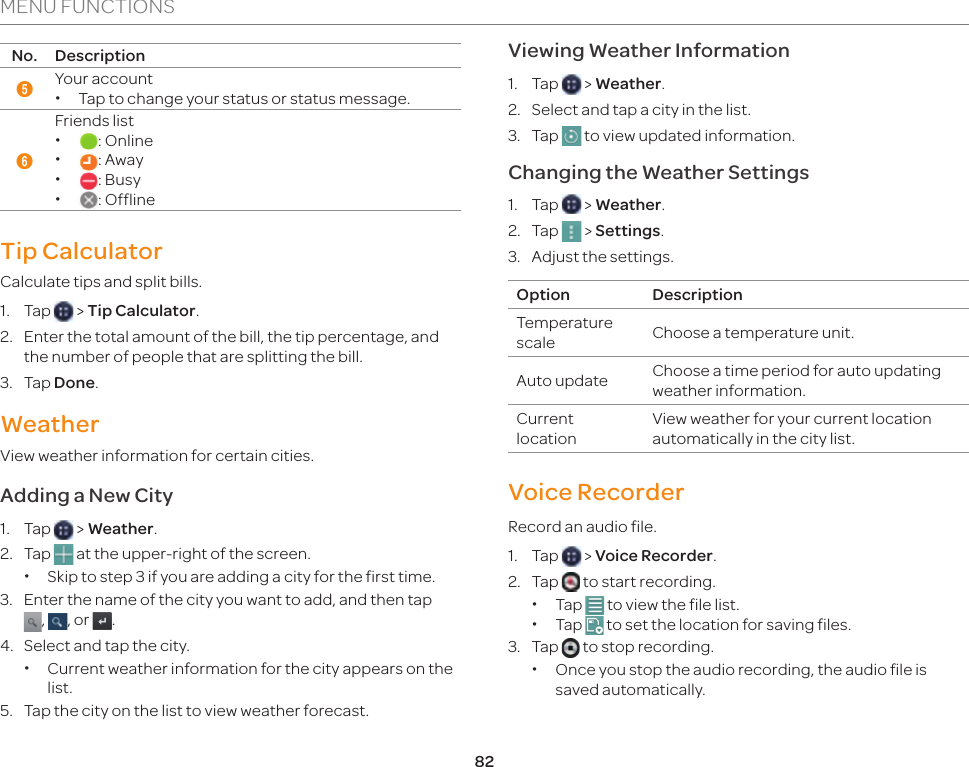

82MENU FUNCTIONSNo. Description5Your account xTap to change your status or status message.6Friends list x: Online x: Away x: Busy x: OfflineTip Calculator Calculate tips and split bills.1. Tap > Tip Calculator.2. Enter the total amount of the bill, the tip percentage, and the number of people that are splitting the bill.3. Tap Done. WeatherView weather information for certain cities.Adding a New City1. Tap > Weather.2. Tap at the upper-right of the screen. xSkip to step 3 if you are adding a city for the first time.3. Enter the name of the city you want to add, and then tap , , or .4. Select and tap the city. xCurrent weather information for the city appears on the list.5. Tap the city on the list to view weather forecast.Viewing Weather Information 1. Tap > Weather.2. Select and tap a city in the list.3. Tap to view updated information.Changing the Weather Settings1. Tap > Weather.2. Tap > Settings.3. Adjust the settings.Option DescriptionTemperature scale Choose a temperature unit.Auto update Choose a time period for auto updating weather information.Current locationView weather for your current location automatically in the city list.Voice RecorderRecord an audio file.1. Tap > Voice Recorder.2. Tap to start recording. xTap to view the file list. xTap to set the location for saving files.3. Tap to stop recording. xOnce you stop the audio recording, the audio file is saved automatically.

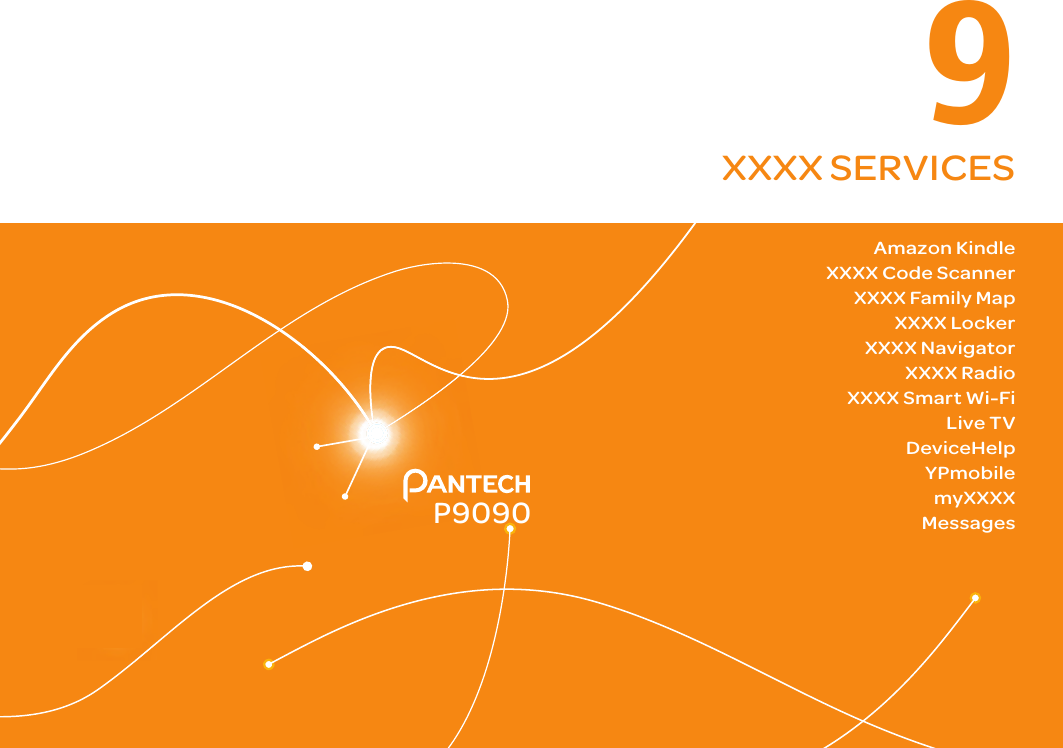

839XXXX SERVICES Amazon KindleXXXX Code ScannerXXXX Family MapXXXX LockerXXXX NavigatorXXXX RadioXXXX Smart Wi-FiLive TVDeviceHelp YPmobilemyXXXXMessages P9090

84XXXX SERVICESMake your phone do more for you with useful applications from XXXX.Amazon KindleRead books on your smartphone.1. Tap > Amazon Kindle.Note The first time you open this application, you need to download the updated application from the Play Store.2. Tap Get Kindle for Android.3. Log in with your Google account.4. Log in with your Amazon account.XXXX Code ScannerRead UPC, QR, and Data Matrix barcodes found on products, magazines, and the Internet.1. Tap > XXXX Code Scanner.Note The first time you open this application, you need to download the updated application from the Play Store.2. Log in with your Google account.3. Read the Terms and Conditions carefully, and then tap Accept to continue.4. When the pop-up appears, tap OK.5. Enter your personal information, and then tap Done.6. View the tutorial.7. Place your phone 2 to 5 inches away from a barcode. xThe scanner will automatically scan the barcode. xEnsure that the barcode is completely within the frame.8. Tap Yes to see the information provided by the barcode.XXXX Family MapView the location of your family members at any time for a monthly fee.1. Tap > XXXX Family Map.Note The first time you open this application, you need to download the updated application from the Play Store.2. Log in with your Google account.3. Enter your phone number and password, and then tap Submit.4. Follw the on-screen instructions.XXXX LockerStore and share your contents in a cloud server.1. Tap > XXXX Locker.Note The first time you open this application, you need to download the updated application from the Play Store.2. Log in with your Google account.3. Follw the on-screen instructions.

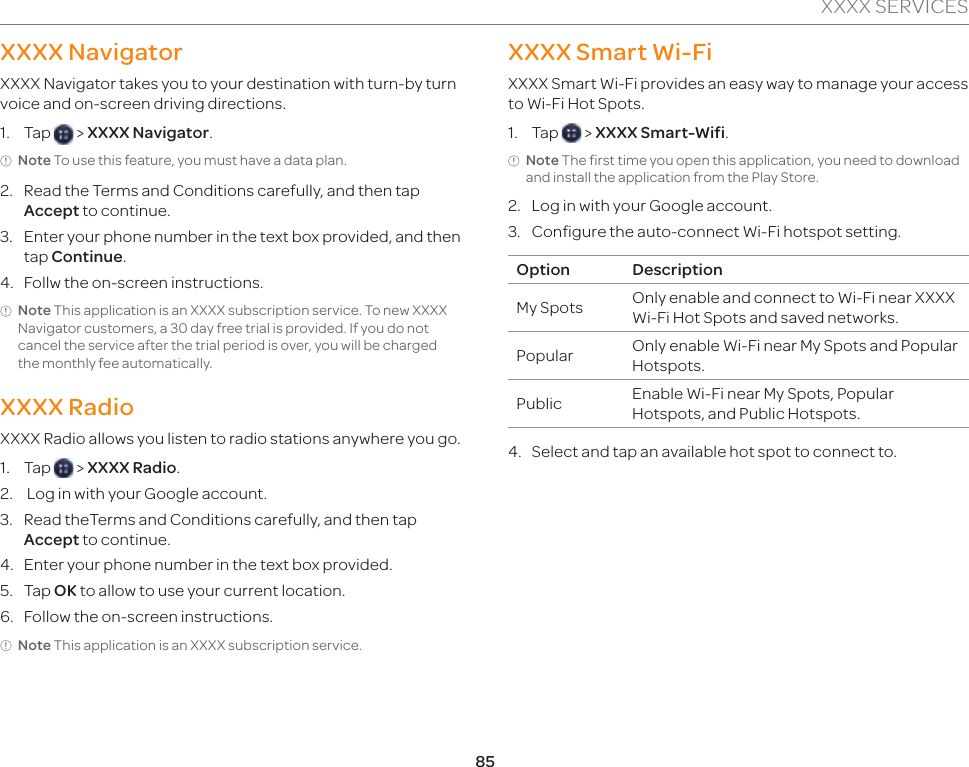

85XXXX SERVICESXXXX NavigatorXXXX Navigator takes you to your destination with turn-by turn voice and on-screen driving directions.1. Tap > XXXX Navigator.Note To use this feature, you must have a data plan.2. Read the Terms and Conditions carefully, and then tap Accept to continue.3. Enter your phone number in the text box provided, and then tap Continue.4. Follw the on-screen instructions.Note This application is an XXXX subscription service. To new XXXX Navigator customers, a 30 day free trial is provided. If you do not cancel the service after the trial period is over, you will be charged the monthly fee automatically.XXXX RadioXXXX Radio allows you listen to radio stations anywhere you go.1. Tap > XXXX Radio.2. Log in with your Google account.3. Read theTerms and Conditions carefully, and then tap Accept to continue.4. Enter your phone number in the text box provided.5. Tap OK to allow to use your current location.6. Follow the on-screen instructions.Note This application is an XXXX subscription service.XXXX Smart Wi-FiXXXX Smart Wi-Fi provides an easy way to manage your access to Wi-Fi Hot Spots.1. Tap > XXXX Smart-Wifi.Note The first time you open this application, you need to download and install the application from the Play Store.2. Log in with your Google account.3. Configure the auto-connect Wi-Fi hotspot setting.Option DescriptionMy Spots Only enable and connect to Wi-Fi near XXXX Wi-Fi Hot Spots and saved networks.Popular Only enable Wi-Fi near My Spots and Popular Hotspots.Public Enable Wi-Fi near My Spots, Popular Hotspots, and Public Hotspots.4. Select and tap an available hot spot to connect to.

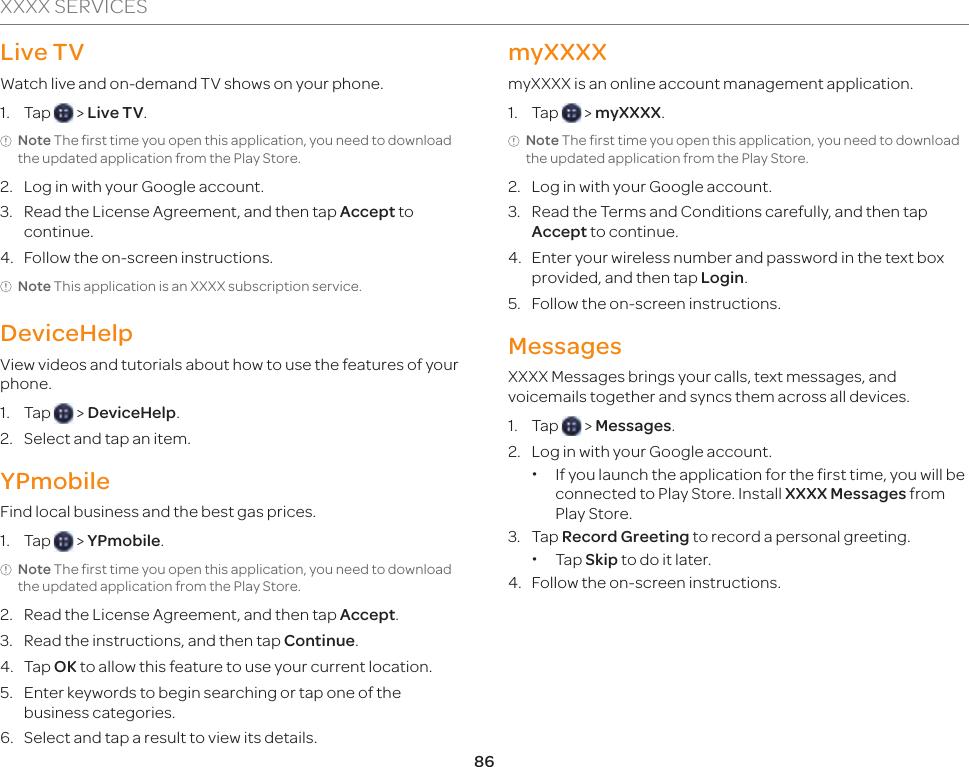

86XXXX SERVICESLive TVWatch live and on-demand TV shows on your phone.1. Tap > Live TV.Note The first time you open this application, you need to download the updated application from the Play Store.2. Log in with your Google account.3. Read the License Agreement, and then tap Accept to continue.4. Follow the on-screen instructions.Note This application is an XXXX subscription service.DeviceHelp View videos and tutorials about how to use the features of your phone.1. Tap > DeviceHelp.2. Select and tap an item.YPmobileFind local business and the best gas prices.1. Tap > YPmobile.Note The first time you open this application, you need to download the updated application from the Play Store.2. Read the License Agreement, and then tap Accept.3. Read the instructions, and then tap Continue.4. Tap OK to allow this feature to use your current location.5. Enter keywords to begin searching or tap one of the business categories.6. Select and tap a result to view its details.myXXXXmyXXXX is an online account management application.1. Tap > myXXXX.Note The first time you open this application, you need to download the updated application from the Play Store.2. Log in with your Google account.3. Read the Terms and Conditions carefully, and then tap Accept to continue.4. Enter your wireless number and password in the text box provided, and then tap Login.5. Follow the on-screen instructions.Messages XXXX Messages brings your calls, text messages, and voicemails together and syncs them across all devices.1. Tap > Messages.2. Log in with your Google account. xIf you launch the application for the first time, you will be connected to Play Store. Install XXXX Messages from Play Store. 3. Tap Record Greeting to record a personal greeting. xTap Skip to do it later. 4. Follow the on-screen instructions.

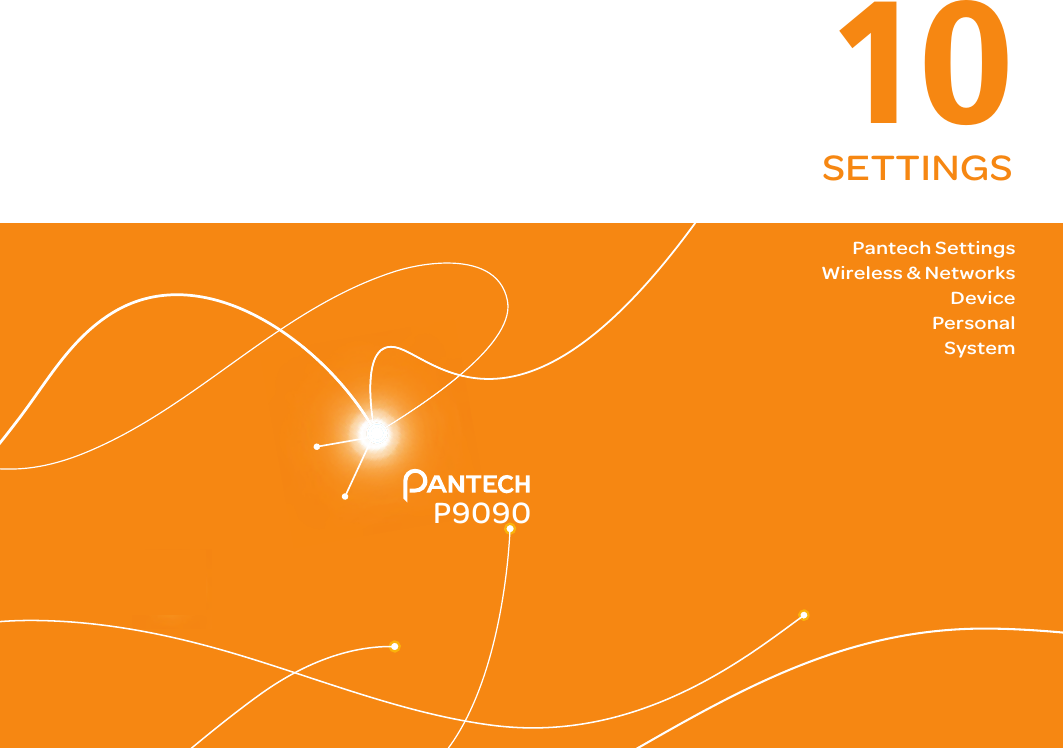

8710SETTINGSPantech Settings Wireless & Networks DevicePersonalSystemP9090

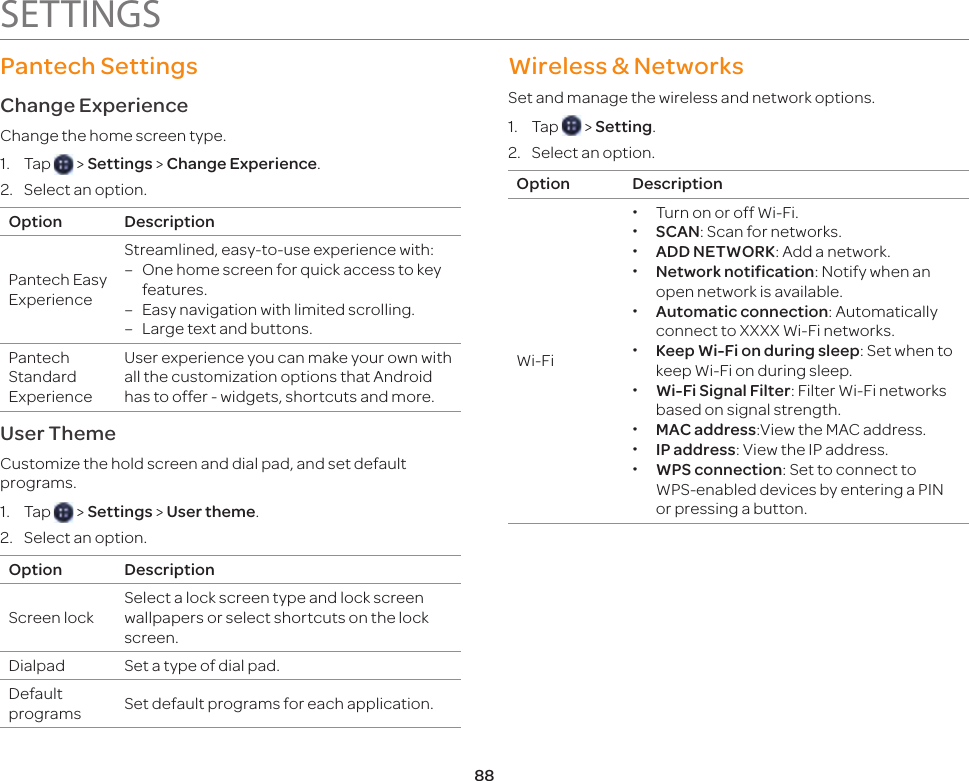

88SETTINGSPantech Settings Change Experience Change the home screen type.1. Tap > Settings > Change Experience.2. Select an option.Option DescriptionPantech Easy ExperienceStreamlined, easy-to-use experience with: – One home screen for quick access to key features. – Easy navigation with limited scrolling. – Large text and buttons.Pantech Standard ExperienceUser experience you can make your own with all the customization options that Android has to offer - widgets, shortcuts and more.User ThemeCustomize the hold screen and dial pad, and set default programs.1. Tap > Settings > User theme.2. Select an option.Option DescriptionScreen lockSelect a lock screen type and lock screen wallpapers or select shortcuts on the lock screen.Dialpad Set a type of dial pad.Default programs Set default programs for each application.Wireless & Networks Set and manage the wireless and network options.1. Tap > Setting.2. Select an option.Option DescriptionWi-Fi xTurn on or off Wi-Fi. xSCAN: Scan for networks. xADD NETWORK: Add a network. xNetwork notification: Notify when an open network is available. xAutomatic connection: Automatically connect to XXXX Wi-Fi networks. xKeep Wi-Fi on during sleep: Set when to keep Wi-Fi on during sleep. xWi-Fi Signal Filter: Filter Wi-Fi networks based on signal strength. xMAC address:View the MAC address. xIP address: View the IP address. xWPS connection: Set to connect to WPS-enabled devices by entering a PIN or pressing a button.

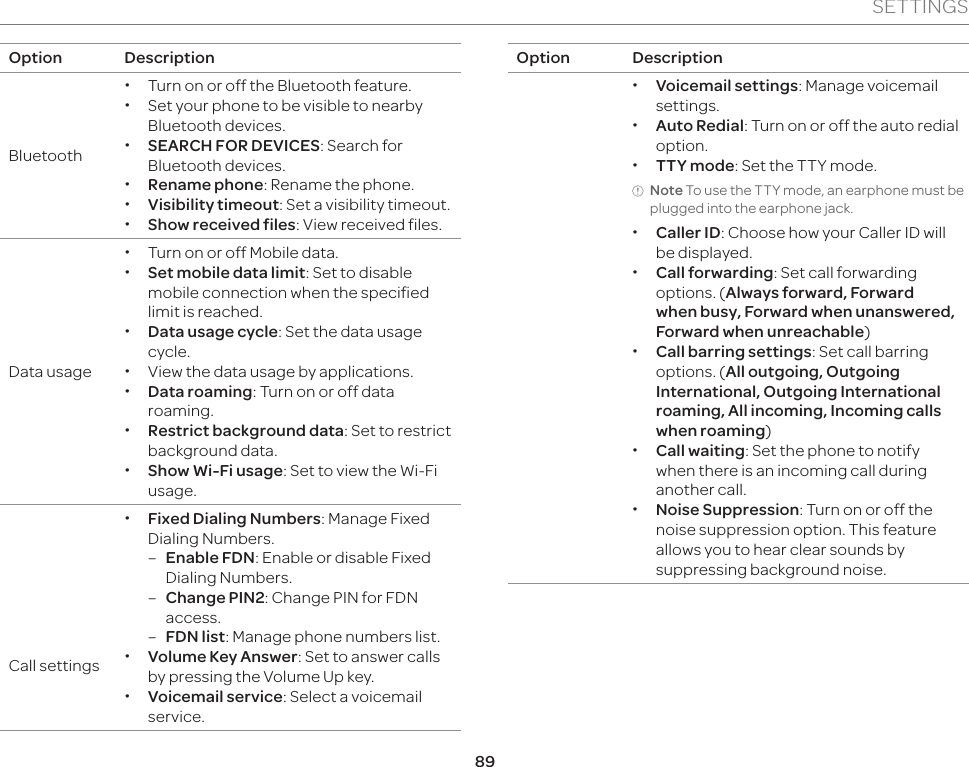

89SETTINGSOption DescriptionBluetooth xTurn on or off the Bluetooth feature. xSet your phone to be visible to nearby Bluetooth devices. xSEARCH FOR DEVICES: Search for Bluetooth devices. xRename phone: Rename the phone. xVisibility timeout: Set a visibility timeout. xShow received files: View received files.Data usage xTurn on or off Mobile data. xSet mobile data limit: Set to disable mobile connection when the specified limit is reached. xData usage cycle: Set the data usage cycle. xView the data usage by applications. xData roaming: Turn on or off data roaming. xRestrict background data: Set to restrict background data. xShow Wi-Fi usage: Set to view the Wi-Fi usage.Call settings xFixed Dialing Numbers: Manage Fixed Dialing Numbers. – Enable FDN: Enable or disable Fixed Dialing Numbers. – Change PIN2: Change PIN for FDN access. – FDN list: Manage phone numbers list. xVolume Key Answer: Set to answer calls by pressing the Volume Up key. xVoicemail service: Select a voicemail service.Option Description xVoicemail settings: Manage voicemail settings. xAuto Redial: Turn on or off the auto redial option. xTTY mode: Set the TTY mode.Note To use the TTY mode, an earphone must be plugged into the earphone jack. xCaller ID: Choose how your Caller ID will be displayed. xCall forwarding: Set call forwarding options. (Always forward, Forward when busy, Forward when unanswered, Forward when unreachable) xCall barring settings: Set call barring options. (All outgoing, Outgoing International, Outgoing International roaming, All incoming, Incoming calls when roaming) xCall waiting: Set the phone to notify when there is an incoming call during another call. xNoise Suppression: Turn on or off the noise suppression option. This feature allows you to hear clear sounds by suppressing background noise.

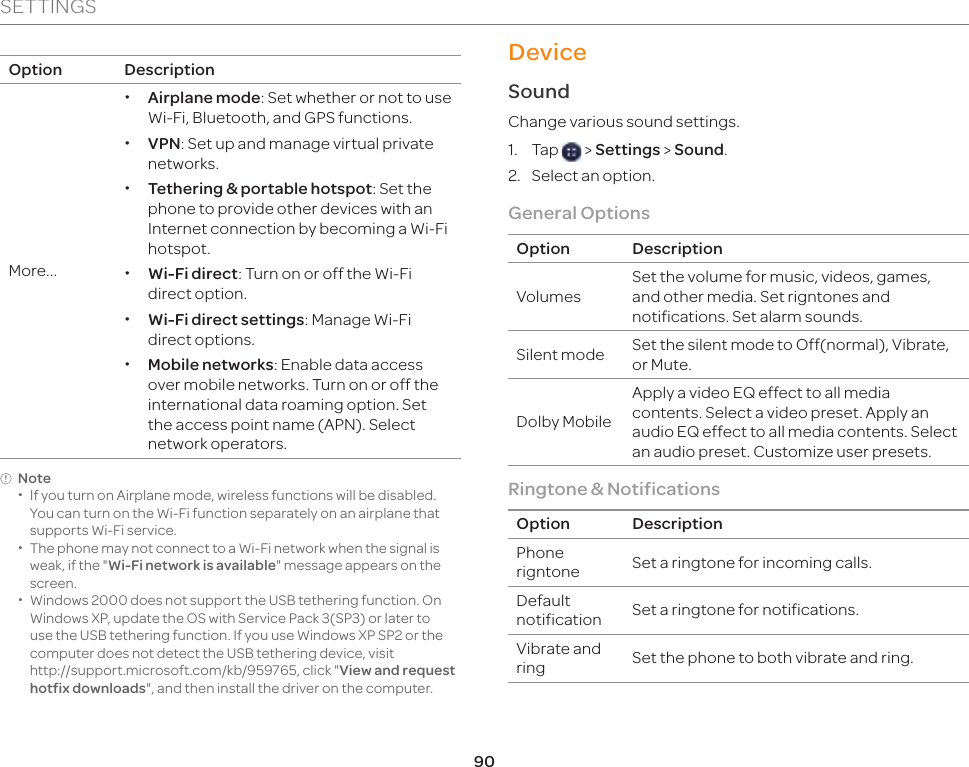

90SETTINGSOption DescriptionMore... xAirplane mode: Set whether or not to use Wi-Fi, Bluetooth, and GPS functions. xVPN: Set up and manage virtual private networks. xTethering & portable hotspot: Set the phone to provide other devices with an Internet connection by becoming a Wi-Fi hotspot. xWi-Fi direct: Turn on or off the Wi-Fi direct option. xWi-Fi direct settings: Manage Wi-Fi direct options. xMobile networks: Enable data access over mobile networks. Turn on or off the international data roaming option. Set the access point name (APN). Select network operators. Note xIf you turn on Airplane mode, wireless functions will be disabled. You can turn on the Wi-Fi function separately on an airplane that supports Wi-Fi service. xThe phone may not connect to a Wi-Fi network when the signal is weak, if the "Wi-Fi network is available" message appears on the screen. xWindows 2000 does not support the USB tethering function. On Windows XP, update the OS with Service Pack 3(SP3) or later to use the USB tethering function. If you use Windows XP SP2 or the computer does not detect the USB tethering device, visit http://support.microsoft.com/kb/959765, click "View and request hotfix downloads", and then install the driver on the computer.DeviceSoundChange various sound settings.1. Tap > Settings > Sound.2. Select an option.General Options Option DescriptionVolumesSet the volume for music, videos, games, and other media. Set rigntones and notifications. Set alarm sounds.Silent mode Set the silent mode to Off(normal), Vibrate, or Mute.Dolby MobileApply a video EQ effect to all media contents. Select a video preset. Apply an audio EQ effect to all media contents. Select an audio preset. Customize user presets.Ringtone & Notifications Option DescriptionPhone rigntone Set a ringtone for incoming calls.Default notification Set a ringtone for notifications.Vibrate and ring Set the phone to both vibrate and ring.

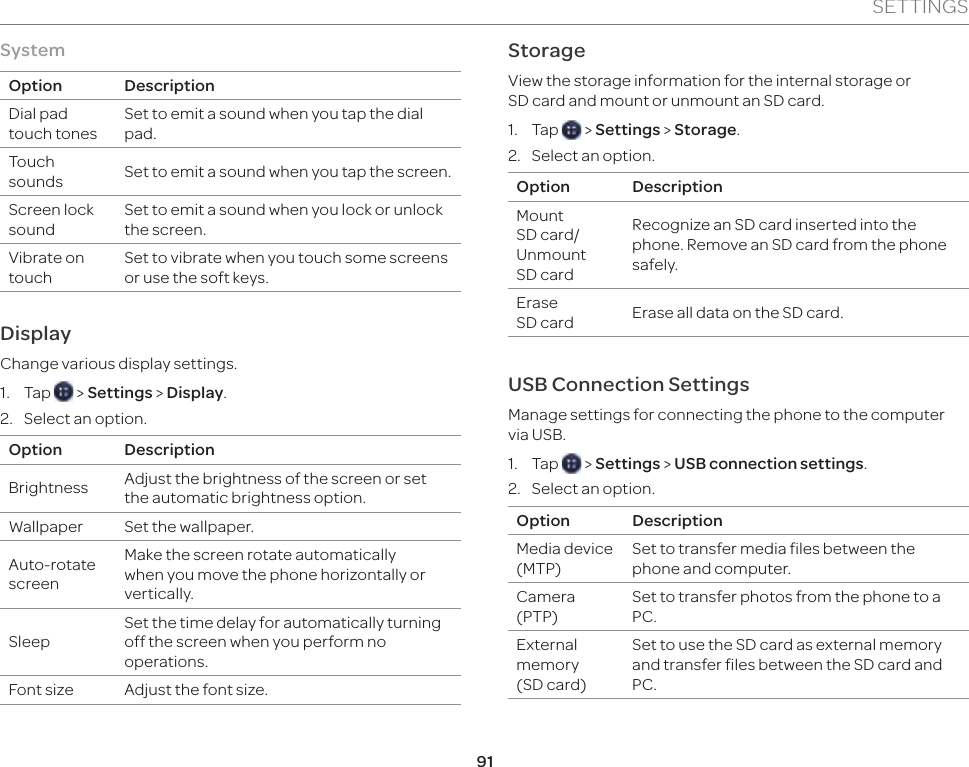

91SETTINGSSystemOption DescriptionDial pad touch tonesSet to emit a sound when you tap the dial pad.Touch sounds Set to emit a sound when you tap the screen.Screen lock soundSet to emit a sound when you lock or unlock the screen.Vibrate on touchSet to vibrate when you touch some screens or use the soft keys.DisplayChange various display settings.1. Tap > Settings > Display.2. Select an option.Option DescriptionBrightness Adjust the brightness of the screen or set the automatic brightness option.Wallpaper Set the wallpaper.Auto-rotate screenMake the screen rotate automatically when you move the phone horizontally or vertically.SleepSet the time delay for automatically turning off the screen when you perform no operations.Font size Adjust the font size.StorageView the storage information for the internal storage or SD card and mount or unmount an SD card.1. Tap > Settings > Storage.2. Select an option.Option DescriptionMount SD card/Unmount SD cardRecognize an SD card inserted into the phone. Remove an SD card from the phone safely.Erase SD card Erase all data on the SD card.USB Connection SettingsManage settings for connecting the phone to the computer via USB.1. Tap > Settings > USB connection settings.2. Select an option.Option DescriptionMedia device (MTP)Set to transfer media files between the phone and computer.Camera (PTP)Set to transfer photos from the phone to a PC.External memory (SD card) Set to use the SD card as external memory and transfer files between the SD card and PC.

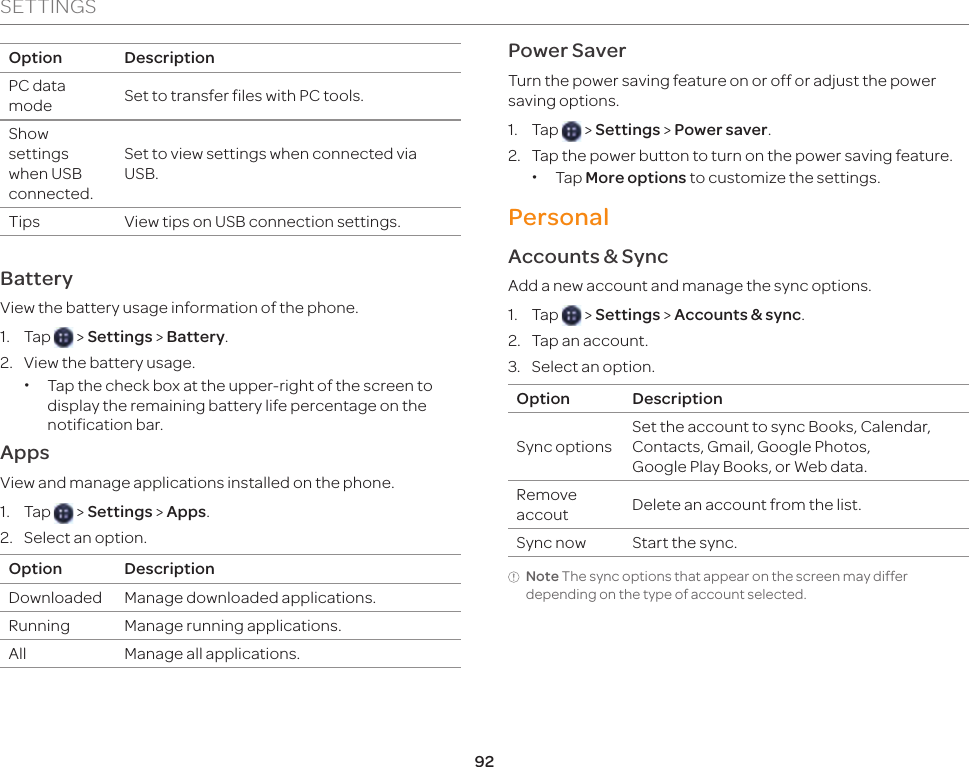

92SETTINGSOption DescriptionPC data mode Set to transfer files with PC tools.Show settings when USB connected.Set to view settings when connected via USB.Tips View tips on USB connection settings.BatteryView the battery usage information of the phone.1. Tap > Settings > Battery.2. View the battery usage. xTap the check box at the upper-right of the screen to display the remaining battery life percentage on the notification bar.AppsView and manage applications installed on the phone.1. Tap > Settings > Apps.2. Select an option.Option DescriptionDownloaded Manage downloaded applications.Running Manage running applications.All Manage all applications.Power SaverTurn the power saving feature on or off or adjust the power saving options.1. Tap > Settings > Power saver.2. Tap the power button to turn on the power saving feature. xTap More options to customize the settings.PersonalAccounts & SyncAdd a new account and manage the sync options.1. Tap > Settings > Accounts & sync.2. Tap an account.3. Select an option.Option DescriptionSync optionsSet the account to sync Books, Calendar, Contacts, Gmail, Google Photos, Google Play Books, or Web data.Remove accout Delete an account from the list.Sync now Start the sync.Note The sync options that appear on the screen may differ depending on the type of account selected.

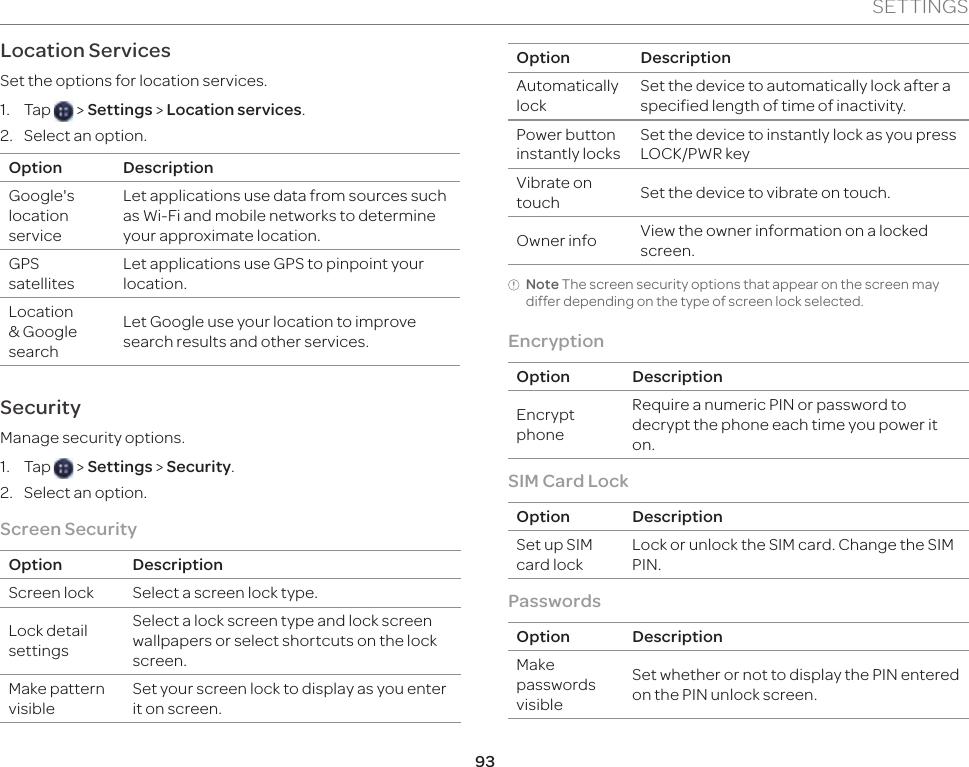

93SETTINGSLocation ServicesSet the options for location services.1. Tap > Settings > Location services.2. Select an option.Option DescriptionGoogle's location serviceLet applications use data from sources such as Wi-Fi and mobile networks to determine your approximate location.GPS satellitesLet applications use GPS to pinpoint your location.Location & Google searchLet Google use your location to improve search results and other services.SecurityManage security options.1. Tap > Settings > Security.2. Select an option.Screen Security Option DescriptionScreen lock Select a screen lock type.Lock detail settingsSelect a lock screen type and lock screen wallpapers or select shortcuts on the lock screen. Make pattern visibleSet your screen lock to display as you enter it on screen.Option DescriptionAutomatically lock Set the device to automatically lock after a specified length of time of inactivity.Power button instantly locksSet the device to instantly lock as you press LOCK/PWR keyVibrate on touch Set the device to vibrate on touch.Owner info View the owner information on a locked screen.Note The screen security options that appear on the screen may differ depending on the type of screen lock selected. EncryptionOption DescriptionEncrypt phoneRequire a numeric PIN or password to decrypt the phone each time you power it on.SIM Card LockOption DescriptionSet up SIM card lockLock or unlock the SIM card. Change the SIM PIN.PasswordsOption DescriptionMake passwords visibleSet whether or not to display the PIN entered on the PIN unlock screen.

94SETTINGSDevice Administration Option DescriptionDevice administratorsView or deactivate device administrators.Unknown sourcesSet to allow installation of non-market applications.Credential StorageOption DescriptionTrusted credentialsView the list of trusted credentials and set whether or not applications will use the credentials.Install from SD card Install certificates from an SD card.Clear credentials Remove all certificates.Language & InputSet language and text input options.1. Tap > Settings > Language & input.2. Select an option.Language Options Option DescriptionLanguage Set a language for the display text.Spelling correctionSet the automatic spelling correction option.Personal dictionary Manage word suggestions for entering text.Keyboard & Input MethodsOption DescriptionDefault Verify the default keboard.Android keyboard Set options for the Android keyboard.Google voice typing xSelect input languages: Set the voice input language. Available languages may vary depending on the voice input languages supported by Google. xBlock offensive words: Hide offensive text. When checked, Google voice recognition replaces those words in transcriptions with a placeholder comprised of hash symbols ( # ).

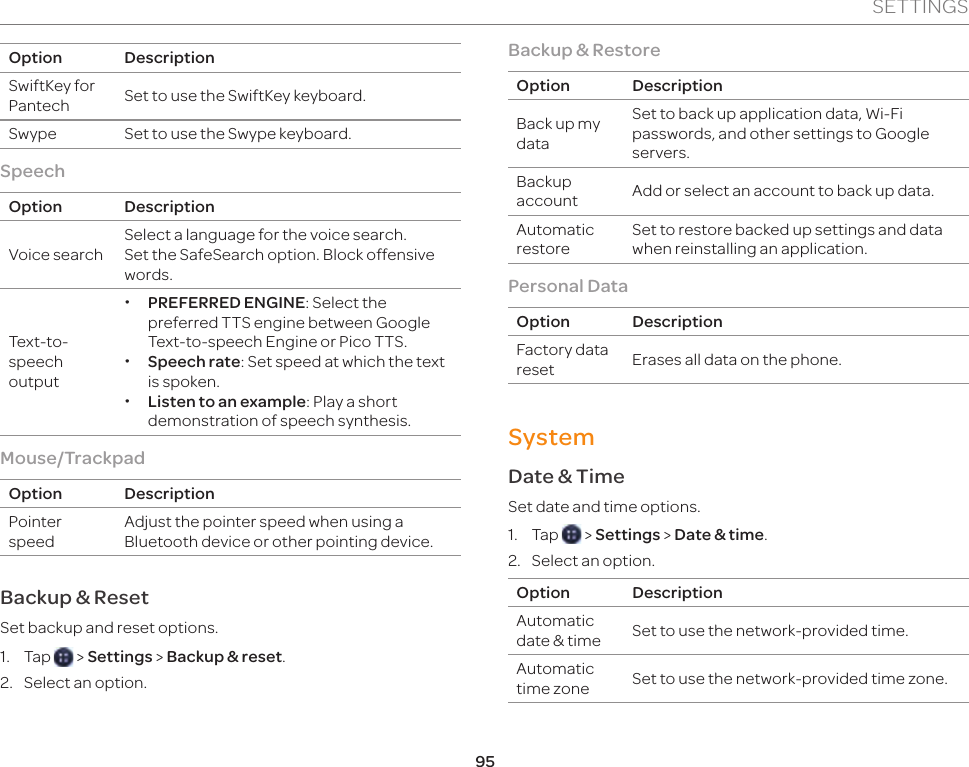

95SETTINGSOption DescriptionSwiftKey for Pantech Set to use the SwiftKey keyboard.Swype Set to use the Swype keyboard.SpeechOption DescriptionVoice searchSelect a language for the voice search. Set the SafeSearch option. Block offensive words.Text-to-speech output xPREFERRED ENGINE: Select the preferred TTS engine between Google Text-to-speech Engine or Pico TTS. xSpeech rate: Set speed at which the text is spoken. xListen to an example: Play a short demonstration of speech synthesis. Mouse/TrackpadOption DescriptionPointer speedAdjust the pointer speed when using a Bluetooth device or other pointing device.Backup & Reset Set backup and reset options.1. Tap > Settings > Backup & reset.2. Select an option.Backup & RestoreOption DescriptionBack up my dataSet to back up application data, Wi-Fi passwords, and other settings to Google servers.Backup account Add or select an account to back up data.Automatic restoreSet to restore backed up settings and data when reinstalling an application.Personal DataOption DescriptionFactory data reset Erases all data on the phone.SystemDate & TimeSet date and time options.1. Tap > Settings > Date & time.2. Select an option.Option DescriptionAutomatic date & time Set to use the network-provided time.Automatic time zone Set to use the network-provided time zone.

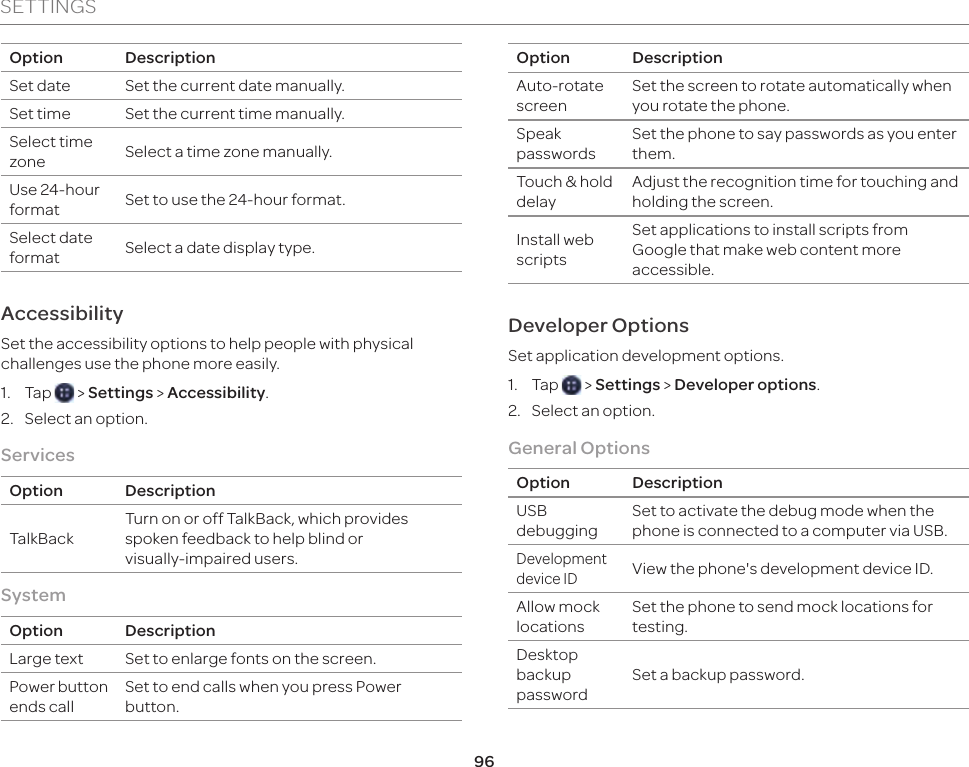

96SETTINGSOption DescriptionSet date Set the current date manually.Set time Set the current time manually.Select time zone Select a time zone manually.Use 24-hour format Set to use the 24-hour format.Select date format Select a date display type.AccessibilitySet the accessibility options to help people with physical challenges use the phone more easily.1. Tap > Settings > Accessibility.2. Select an option.ServicesOption DescriptionTalkBackTurn on or off TalkBack, which provides spoken feedback to help blind or visually-impaired users.SystemOption DescriptionLarge text Set to enlarge fonts on the screen.Power button ends callSet to end calls when you press Power button.Option DescriptionAuto-rotate screenSet the screen to rotate automatically when you rotate the phone.Speak passwordsSet the phone to say passwords as you enter them.Touch & hold delayAdjust the recognition time for touching and holding the screen.Install web scriptsSet applications to install scripts from Google that make web content more accessible.Developer OptionsSet application development options.1. Tap > Settings > Developer options.2. Select an option.General Options Option DescriptionUSB debuggingSet to activate the debug mode when the phone is connected to a computer via USB.Development device IDView the phone's development device ID.Allow mock locationsSet the phone to send mock locations for testing.Desktop backup passwordSet a backup password.

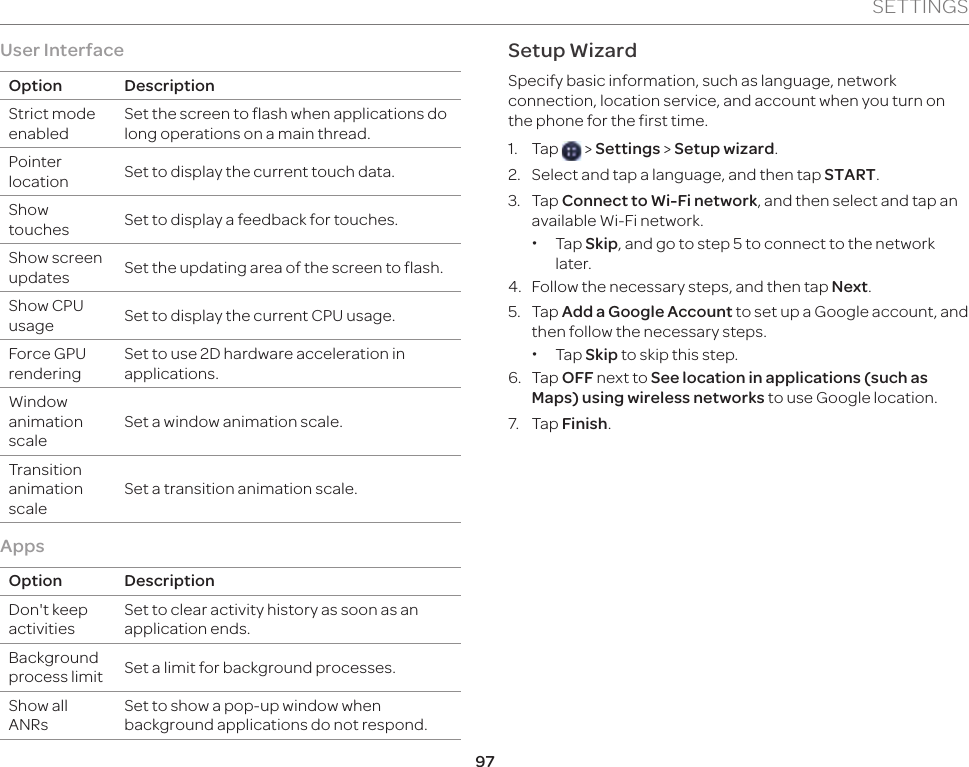

97SETTINGSUser InterfaceOption DescriptionStrict mode enabledSet the screen to flash when applications do long operations on a main thread.Pointer location Set to display the current touch data.Show touches Set to display a feedback for touches.Show screen updates Set the updating area of the screen to flash.Show CPU usage Set to display the current CPU usage.Force GPU renderingSet to use 2D hardware acceleration in applications.Window animation scaleSet a window animation scale.Transition animation scaleSet a transition animation scale.AppsOption DescriptionDon't keep activitiesSet to clear activity history as soon as an application ends.Background process limit Set a limit for background processes.Show all ANRsSet to show a pop-up window when background applications do not respond.Setup WizardSpecify basic information, such as language, network connection, location service, and account when you turn on the phone for the first time.1. Tap > Settings > Setup wizard.2. Select and tap a language, and then tap START.3. Tap Connect to Wi-Fi network, and then select and tap an available Wi-Fi network. xTap Skip, and go to step 5 to connect to the network later. 4. Follow the necessary steps, and then tap Next.5. Tap Add a Google Account to set up a Google account, and then follow the necessary steps. xTap Skip to skip this step.6. Tap OFF next to See location in applications (such as Maps) using wireless networks to use Google location.7. Tap Finish.

98SETTINGSXXXX Software UpdateCheck and update your software without visiting the dealer.1. Tap > Settings > XXXX software update.2. Select an option.Option DescriptionCheck for updates Check for software updates.Continue updateResume a postponed software update.Note After downloading the software, the device will ask you to update the software now. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select to be reminding in 1 hour, 4 hours, or 8 hours in Options. After selecting an option, you will be sent back to standby mode. To resume an update, tap Continue update.About PhoneView general information of your phone.1. Tap > Settings > About phone.2. Select an option.Option DescriptionStatusView the battery status, battery level, network, signal strength, mobile network type, service state, roaming, mobile network state, your phone number, IMEI, IMEI SV, IP address, Wi-Fi Mac address, Bluetooth address, serial number, and Up time.Legal informationView the Open source licenses and Google legal information.Model number View the model number.Android version View the Android OS version.Baseband version View the baseband version.Kernel version View the kernel version.Build number View the build number.

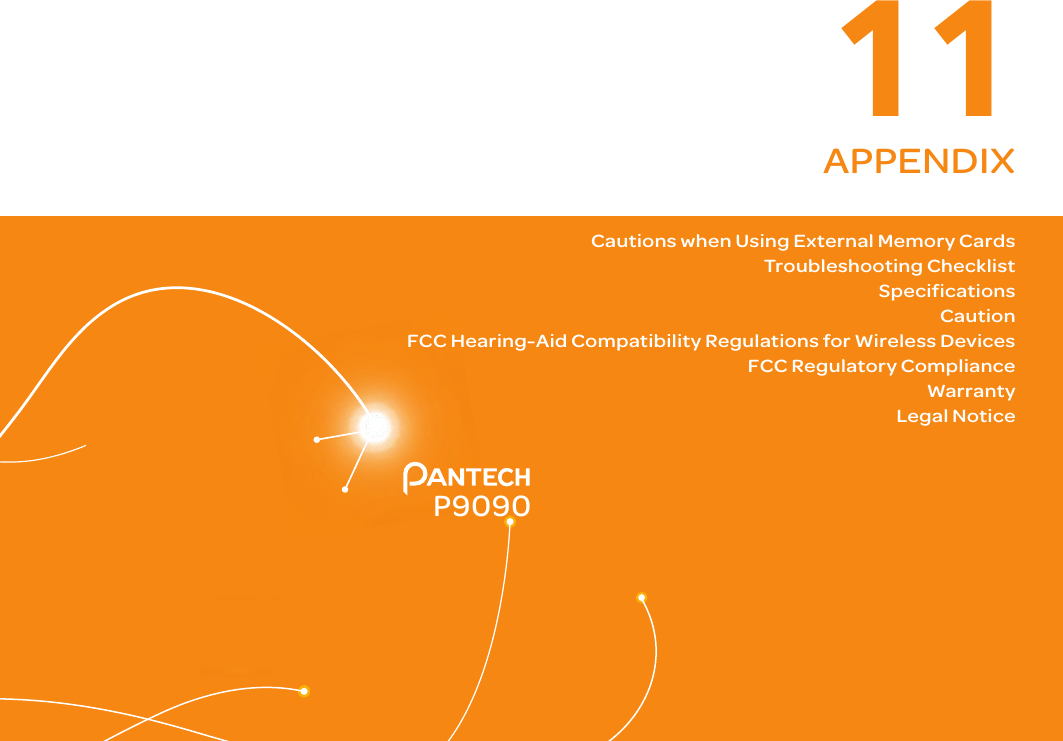

9911APPENDIXCautions when Using External Memory CardsTroubleshooting Checklist SpecificationsCaution FCC Hearing-Aid Compatibility Regulations for Wireless DevicesFCC Regulatory ComplianceWarrantyLegal Notice P9090

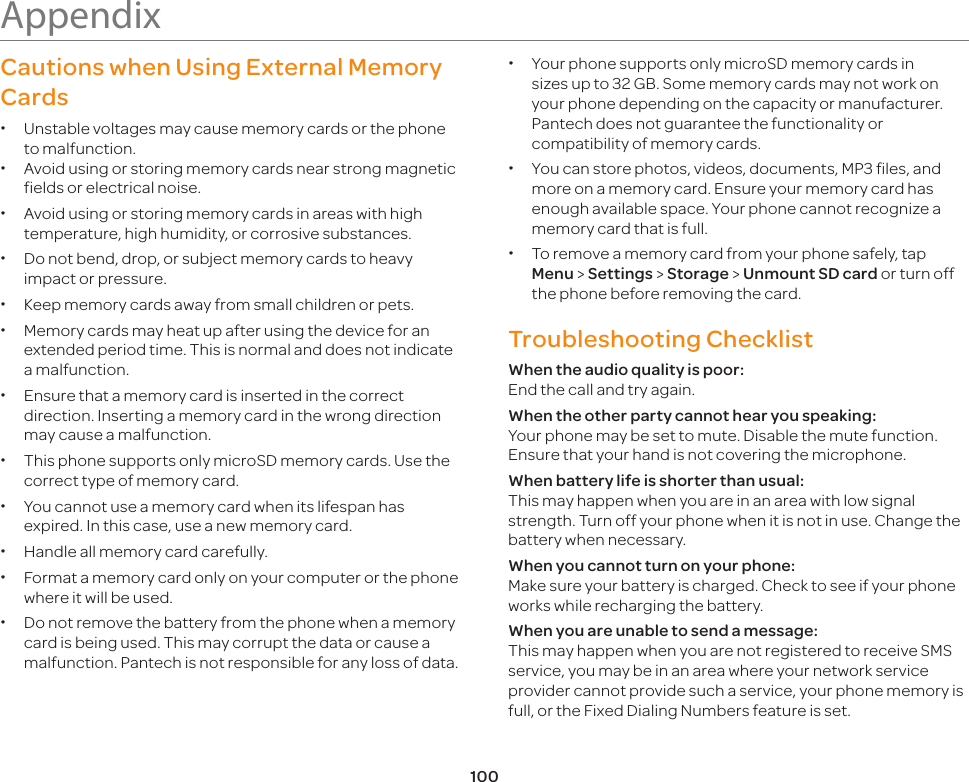

100AppendixCautions when Using External Memory Cards xUnstable voltages may cause memory cards or the phone to malfunction. xAvoid using or storing memory cards near strong magnetic fields or electrical noise. xAvoid using or storing memory cards in areas with high temperature, high humidity, or corrosive substances. xDo not bend, drop, or subject memory cards to heavy impact or pressure. xKeep memory cards away from small children or pets. xMemory cards may heat up after using the device for an extended period time. This is normal and does not indicate a malfunction. xEnsure that a memory card is inserted in the correct direction. Inserting a memory card in the wrong direction may cause a malfunction. xThis phone supports only microSD memory cards. Use the correct type of memory card. xYou cannot use a memory card when its lifespan has expired. In this case, use a new memory card. xHandle all memory card carefully. xFormat a memory card only on your computer or the phone where it will be used. xDo not remove the battery from the phone when a memory card is being used. This may corrupt the data or cause a malfunction. Pantech is not responsible for any loss of data. xYour phone supports only microSD memory cards in sizes up to 32 GB. Some memory cards may not work on your phone depending on the capacity or manufacturer. Pantech does not guarantee the functionality or compatibility of memory cards. xYou can store photos, videos, documents, MP3 files, and more on a memory card. Ensure your memory card has enough available space. Your phone cannot recognize a memory card that is full. xTo remove a memory card from your phone safely, tap Menu > Settings > Storage > Unmount SD card or turn off the phone before removing the card.Troubleshooting Checklist When the audio quality is poor: End the call and try again.When the other party cannot hear you speaking: Your phone may be set to mute. Disable the mute function. Ensure that your hand is not covering the microphone.When battery life is shorter than usual: This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when necessary. When you cannot turn on your phone: Make sure your battery is charged. Check to see if your phone works while recharging the battery.When you are unable to send a message: This may happen when you are not registered to receive SMS service, you may be in an area where your network service provider cannot provide such a service, your phone memory is full, or the Fixed Dialing Numbers feature is set.

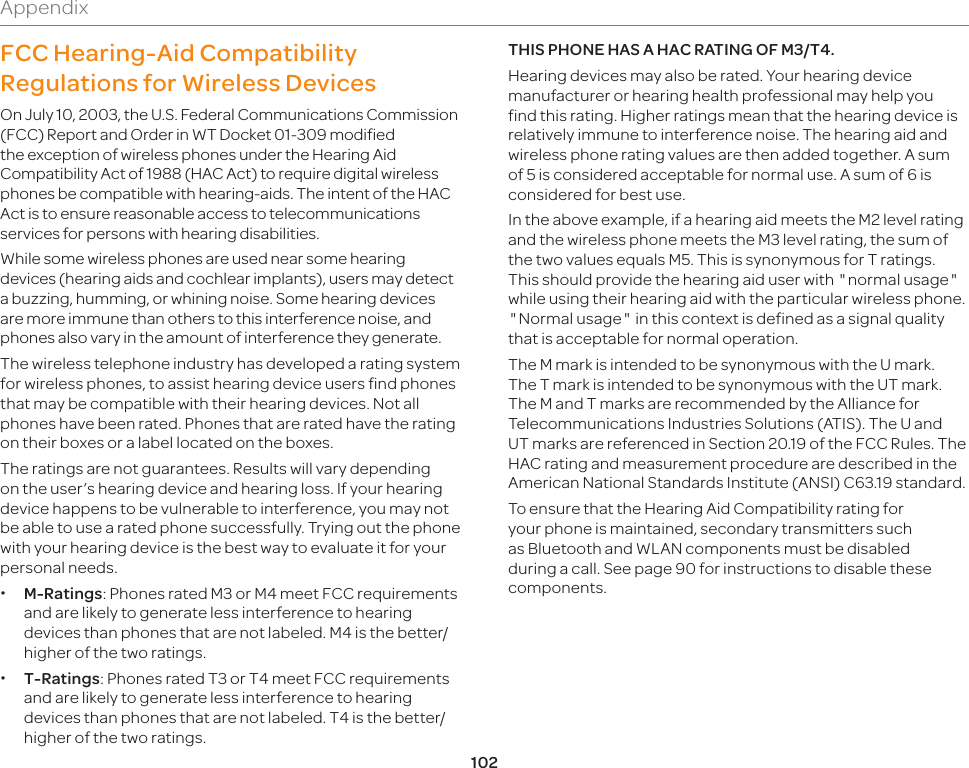

102AppendixFCC Hearing-Aid Compatibility Regulations for Wireless DevicesOn July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their boxes or a label located on the boxes.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. xM-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. xT-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.THIS PHONE HAS A HAC RATING OF M3/T4.Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equals M5. This is synonymous for T ratings. This should provide the hearing aid user with normal usage while using their hearing aid with the particular wireless phone. Normal usage in this context is defined as a signal quality that is acceptable for normal operation.The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard. To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See page 90 for instructions to disable these components.

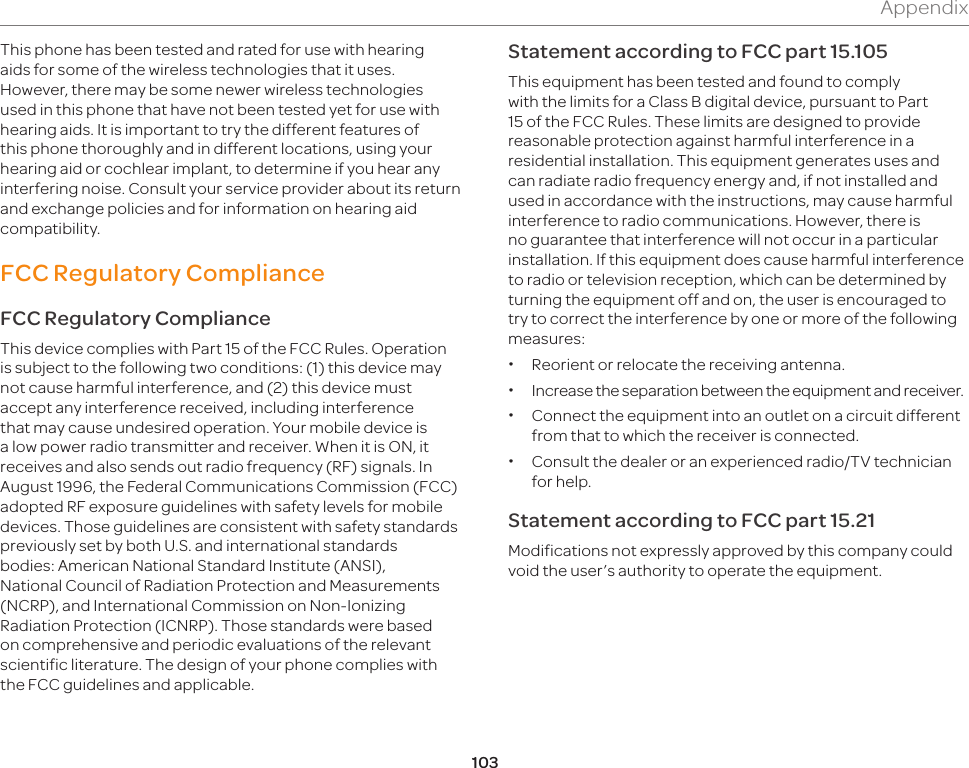

103AppendixThis phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider about its return and exchange policies and for information on hearing aid compatibility.FCC Regulatory ComplianceFCC Regulatory ComplianceThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.Statement according to FCC part 15.105This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: xReorient or relocate the receiving antenna. xIncrease the separation between the equipment and receiver. xConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. xConsult the dealer or an experienced radio/TV technician for help.Statement according to FCC part 15.21Modifications not expressly approved by this company could void the user’s authority to operate the equipment.

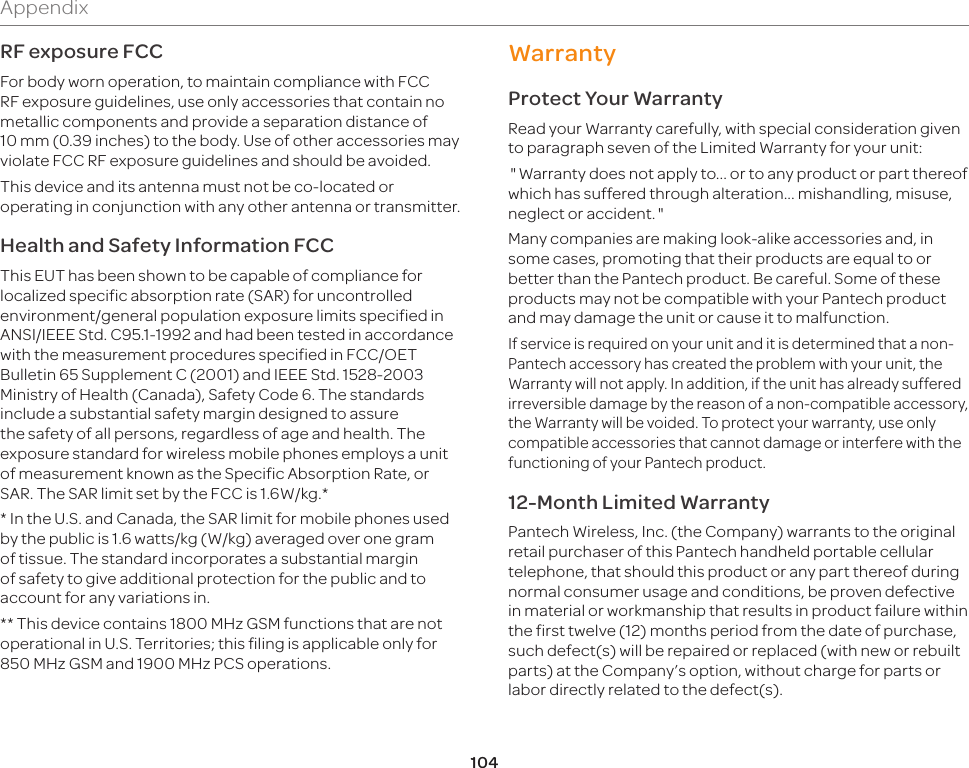

104AppendixRF exposure FCCFor body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 10mm (0.39 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Health and Safety Information FCCThis EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.** In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. ** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.WarrantyProtect Your WarrantyRead your Warranty carefully, with special consideration given to paragraph seven of the Limited Warranty for your unit:Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident.Many companies are making look-alike accessories and, in some cases, promoting that their products are equal to or better than the Pantech product. Be careful. Some of these products may not be compatible with your Pantech product and may damage the unit or cause it to malfunction.If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by the reason of a non-compatible accessory, the Warranty will be voided. To protect your warranty, use only compatible accessories that cannot damage or interfere with the functioning of your Pantech product.12-Month Limited WarrantyPantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s).

105AppendixThe antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.This warranty does not apply to:(a) Products subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;(b) Products whose mechanical serial number or electronic serial number has been removed, altered or defaced(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;(f) Products damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer’s return address, daytime phone number and/ or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing. To locate Pantech Authorized Service Center, call: (800) 962-8622 or email HandsetHelp@Pantech.com. Please have the following information available when you send the phone in for repair: xA valid original Proof of Purchase xReturn address xDaytime phone number or fax number xModel number xIMEI number (Look for the 15-digit IMEI number behind the battery of the device.) xComplete description of the problem xTransportation prepaidOther Warranty ProgramYou may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale. xTHE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.

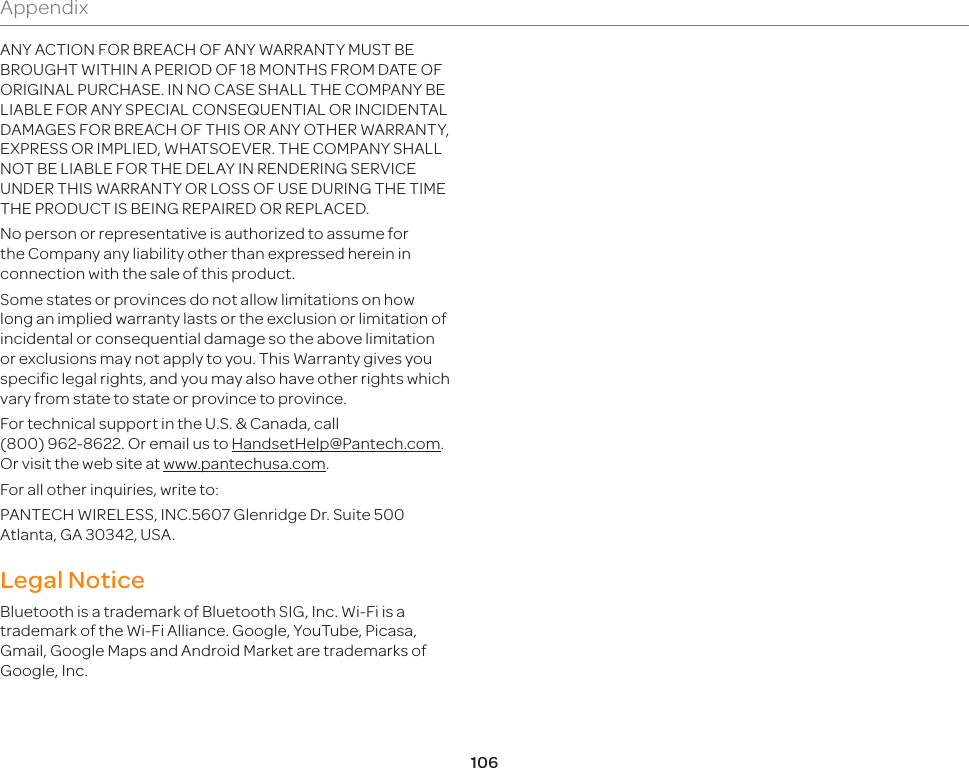

106AppendixANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.For technical support in the U.S. & Canada, call (800) 962-8622. Or email us to HandsetHelp@Pantech.com. Or visit the web site at www.pantechusa.com.For all other inquiries, write to:PANTECH WIRELESS, INC.5607 Glenridge Dr. Suite 500 Atlanta, GA 30342, USA.Legal Notice Bluetooth is a trademark of Bluetooth SIG, Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. Google, YouTube, Picasa, Gmail, Google Maps and Android Market are trademarks of Google, Inc.
