Pantech Co PC-8200N Dual- Mode CDMA Phone with Bluetooth User Manual

Pantech Co Ltd Dual- Mode CDMA Phone with Bluetooth Users Manual

Contents

Users Manual

Accept a Bluetooth partnership 1. Ensure that Bluetooth is turned on and that your phone is discoverable. 2. When prompted to accept a Bluetooth partnership with the other device, click Yes. 3. In PIN, enter a personal identification number (PIN) between 1 and 16 characters, and click Done. You must enter the same PIN that was entered on the device requesting the Bluetooth partnership. The Bluetooth partnership is created. You can now exchange information with the other device. See also Turn Bluetooth on and off Make your device discoverable Create a Bluetooth partnership Ensure that the two devices are within close range and that both Bluetooth-enabled devices are discoverable. 1. On the Home screen, click Start > Settings > Connections > Bluetooth. 2. Click Menu > Devices > Menu > New. Your phone searches for other Bluetooth-enabled devices and displays them in the list. 3. Select the device with which you want to create a Bluetooth partnership, and click Add. 4. In Passkey, if you want to use a passkey (recommended for enhanced security), enter a alphanumeric passkey between 1 and 16 characters, and click Done. Otherwise, leave the passkey blank, and click Done. 5. Enter the same passkey on the other device. Tip Once you create a partnership, the Bluetooth-enabled devices don't need to be discoverable to beam information between them; Bluetooth needs only to be turned on. See also Make your device discoverable

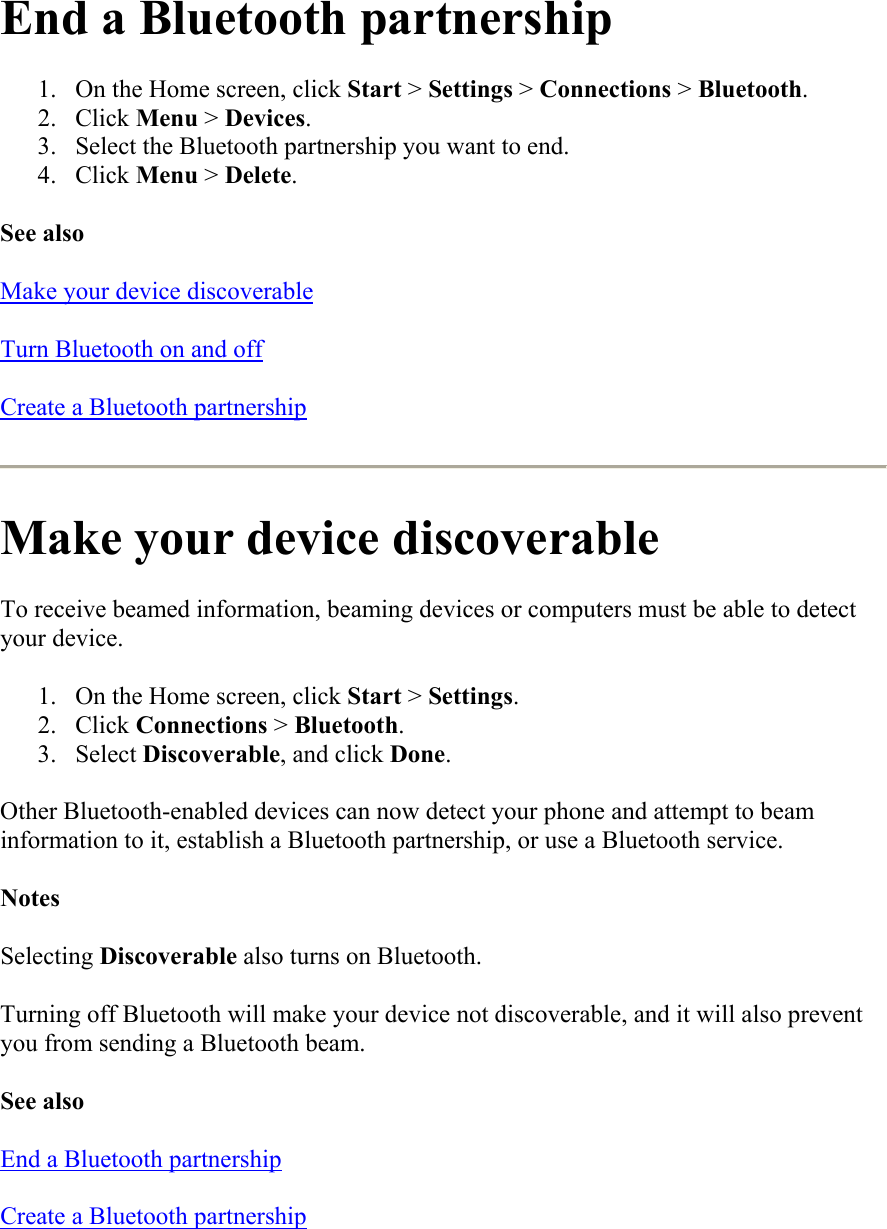

End a Bluetooth partnership 1. On the Home screen, click Start > Settings > Connections > Bluetooth. 2. Click Menu > Devices. 3. Select the Bluetooth partnership you want to end. 4. Click Menu > Delete. See also Make your device discoverable Turn Bluetooth on and off Create a Bluetooth partnership Make your device discoverable To receive beamed information, beaming devices or computers must be able to detect your device. 1. On the Home screen, click Start > Settings. 2. Click Connections > Bluetooth. 3. Select Discoverable, and click Done. Other Bluetooth-enabled devices can now detect your phone and attempt to beam information to it, establish a Bluetooth partnership, or use a Bluetooth service. Notes Selecting Discoverable also turns on Bluetooth. Turning off Bluetooth will make your device not discoverable, and it will also prevent you from sending a Bluetooth beam. See also End a Bluetooth partnership Create a Bluetooth partnership

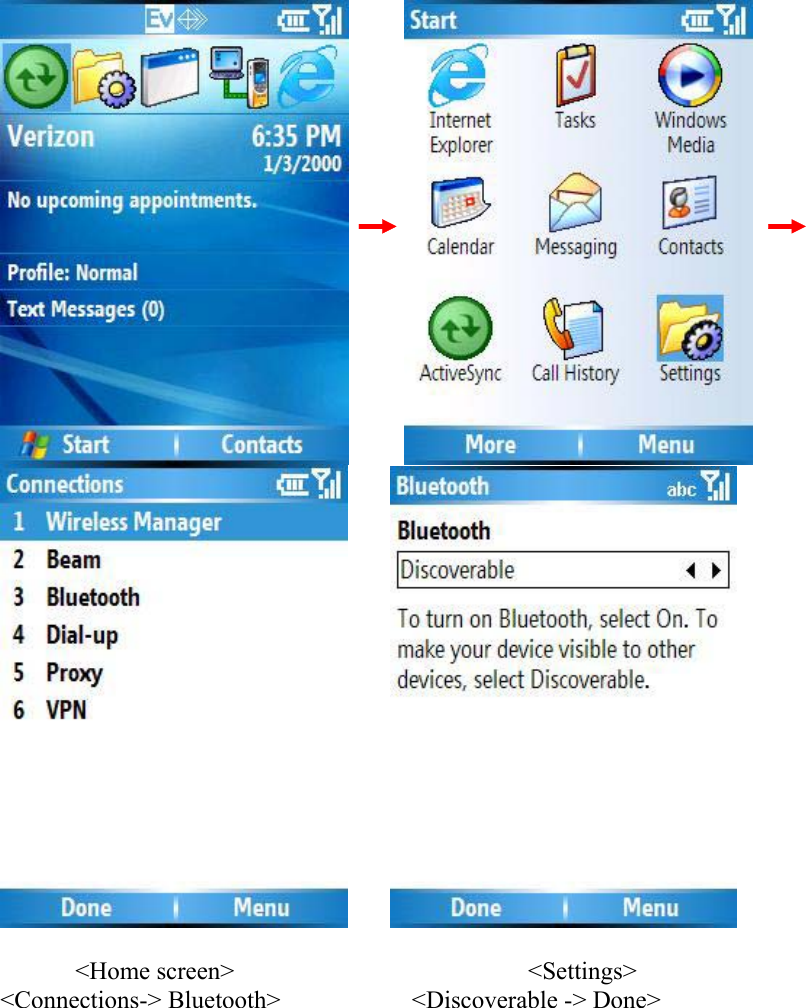

<Home screen> <Settings> <Connections-> Bluetooth> <Discoverable -> Done>
<BT discoverable On> Rename a Bluetooth partnership You can give a more meaningful name to a Bluetooth partnership to help you recognize it when selecting from a list of partnerships. 1. On the Home screen, click Start > Settings > Connections > Bluetooth. 2. Click Menu > Devices. 3. Select the Bluetooth partnership to rename. 4. Click Menu > Rename. 5. In Name, enter a new name for the Bluetooth partnership, and click Done. See also Make your device discoverable Turn Bluetooth on and off End a Bluetooth partnership Create a Bluetooth partnership Turn Bluetooth on and off
By default Bluetooth is turned off. If you turn it on, and then turn off your device, Bluetooth also turns off. When you turn on your device again, Bluetooth turns on automatically. 1. On the Home screen, click Start > Settings > Connections > Bluetooth. 2. Select On or Off, and click Done. Note You can also turn off Bluetooth using Wireless Manager. See also Make your device discoverable End a Bluetooth partnership Create a Bluetooth partnership Turn wireless power on or off Receive beamed information 1. On the Home screen, click Start > Settings. 2. Click Connections > Beam. 3. Select Receive incoming beams. 4. Do one of the following: • To receive beams by using Bluetooth, ensure Bluetooth is turned on and that your phone is discoverable and within close range. 5. Click Yes. Notes Once you select Receive incoming beams, your phone automatically receives beams until you clear this check box. Your phone can receive all types of beamed files, but you may not be able to view all types of files on the phone. You may need to copy some files to a PC for viewing. See also Turn Bluetooth on and off Make your device discoverable

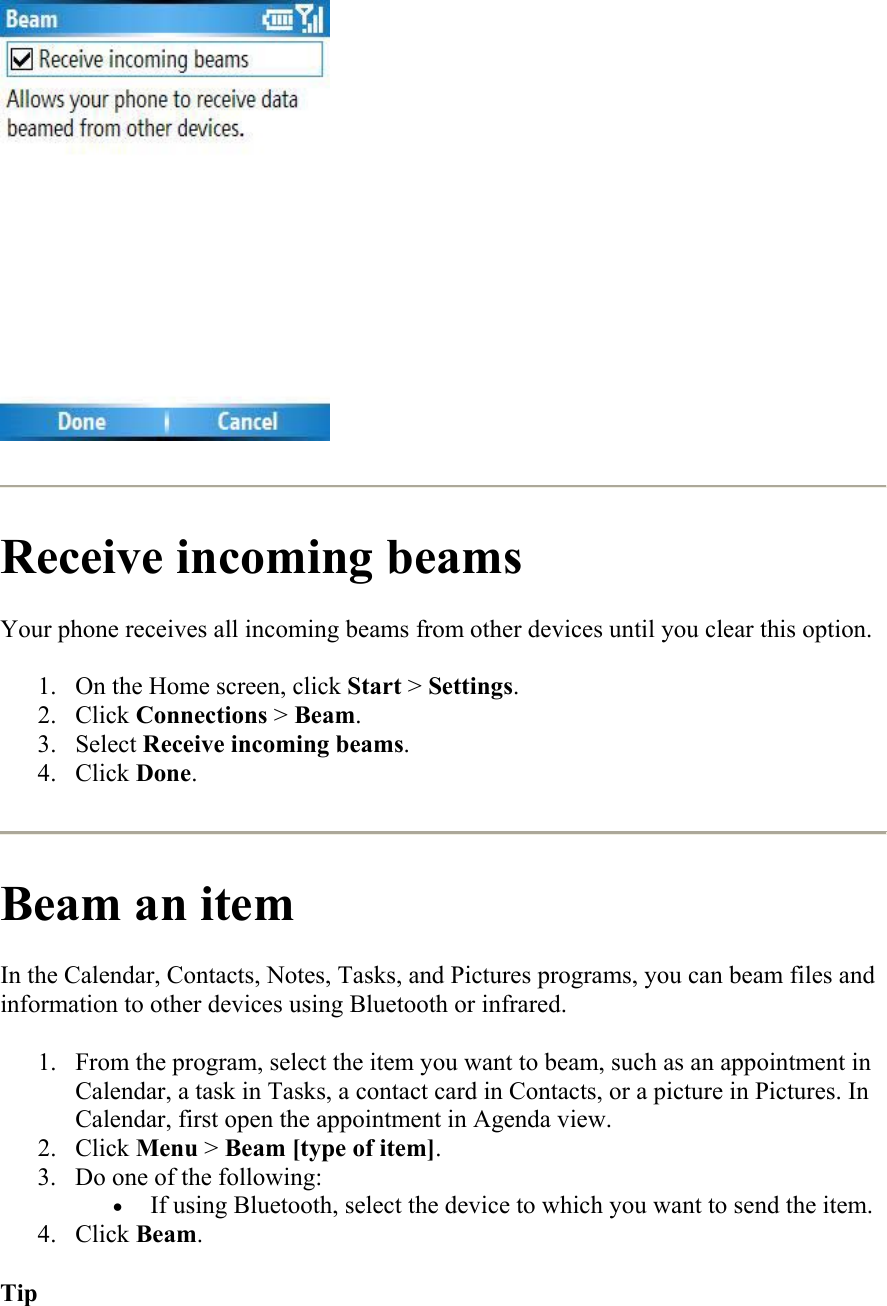

Receive incoming beams Your phone receives all incoming beams from other devices until you clear this option. 1. On the Home screen, click Start > Settings. 2. Click Connections > Beam. 3. Select Receive incoming beams. 4. Click Done. Beam an item In the Calendar, Contacts, Notes, Tasks, and Pictures programs, you can beam files and information to other devices using Bluetooth or infrared. 1. From the program, select the item you want to beam, such as an appointment in Calendar, a task in Tasks, a contact card in Contacts, or a picture in Pictures. In Calendar, first open the appointment in Agenda view. 2. Click Menu > Beam [type of item]. 3. Do one of the following: • If using Bluetooth, select the device to which you want to send the item. 4. Click Beam. Tip

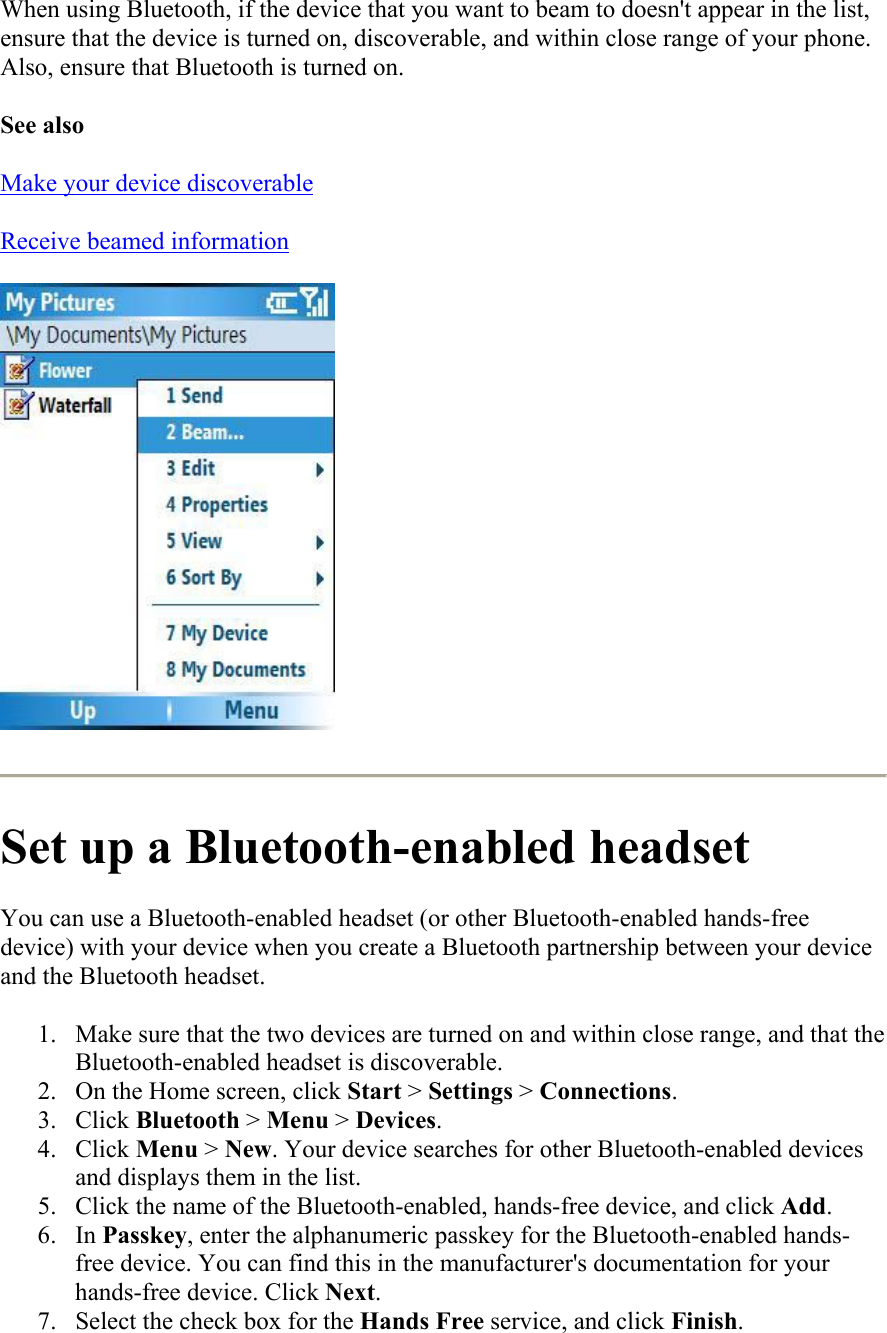

When using Bluetooth, if the device that you want to beam to doesn't appear in the list, ensure that the device is turned on, discoverable, and within close range of your phone. Also, ensure that Bluetooth is turned on. See also Make your device discoverable Receive beamed information Set up a Bluetooth-enabled headset You can use a Bluetooth-enabled headset (or other Bluetooth-enabled hands-free device) with your device when you create a Bluetooth partnership between your device and the Bluetooth headset. 1. Make sure that the two devices are turned on and within close range, and that the Bluetooth-enabled headset is discoverable. 2. On the Home screen, click Start > Settings > Connections. 3. Click Bluetooth > Menu > Devices. 4. Click Menu > New. Your device searches for other Bluetooth-enabled devices and displays them in the list. 5. Click the name of the Bluetooth-enabled, hands-free device, and click Add. 6. In Passkey, enter the alphanumeric passkey for the Bluetooth-enabled hands-free device. You can find this in the manufacturer's documentation for your hands-free device. Click Next. 7. Select the check box for the Hands Free service, and click Finish.
Set up a stereo headset Windows Mobile-based devices support A2DP (Advanced Audio Distribution Profile), which is used by Bluetooth-enabled stereo headsets. Make sure that your stereo headset also supports A2DP. 1. Make sure that your device and the stereo headset are turned on, discoverable, and within close range. 2. On the Home screen, click Start > Settings > Connections. 3. Click Bluetooth > Menu > Devices. 4. Click Menu > New. Your device searches for other Bluetooth-enabled devices and displays them in the list. 5. Select the name of the stereo headset, and click Add. 6. In Passkey, enter the alphanumeric passkey for the Bluetooth-enabled stereo headset. You can find this in the manufacturer's documentation for your hands-free device. Click Next. 7. Select the check box for the Hands Free service, and click Finish. Note If the headset becomes disconnected, turn the headset on and repeat steps 1-4 above. Select the stereo headset and click Menu > Set as Wireless Stereo.
Turn wireless power on or off You can turn the power off to your wireless connections in a single location. This is a quick way to preserve battery power or to prepare your device for an airplane flight. 1. Press POWER briefly to display the Quick List. 2. Click Wireless Manager. 3. Do one of the following: • Click the button for a desired wireless connection type (such as Bluetooth or Phone) to turn it off or on. If it is already turned off, the button is a lighter color and displays an icon marked with an X. • Click All to turn all wireless power on or off (available only when more than one wireless type exists on your device). Note To change settings for one of the displayed wireless connection types, click Menu and click the type of settings you want to change.
