User Manual

Together with our users we design and develop high quality products and solutions – built for a purpose.facebook.com/paralenzwww.paralenz.comPARALENZ® DIVE CAMERAUSER MANUAL WWW.PARALENZ.COMV3PDC-1

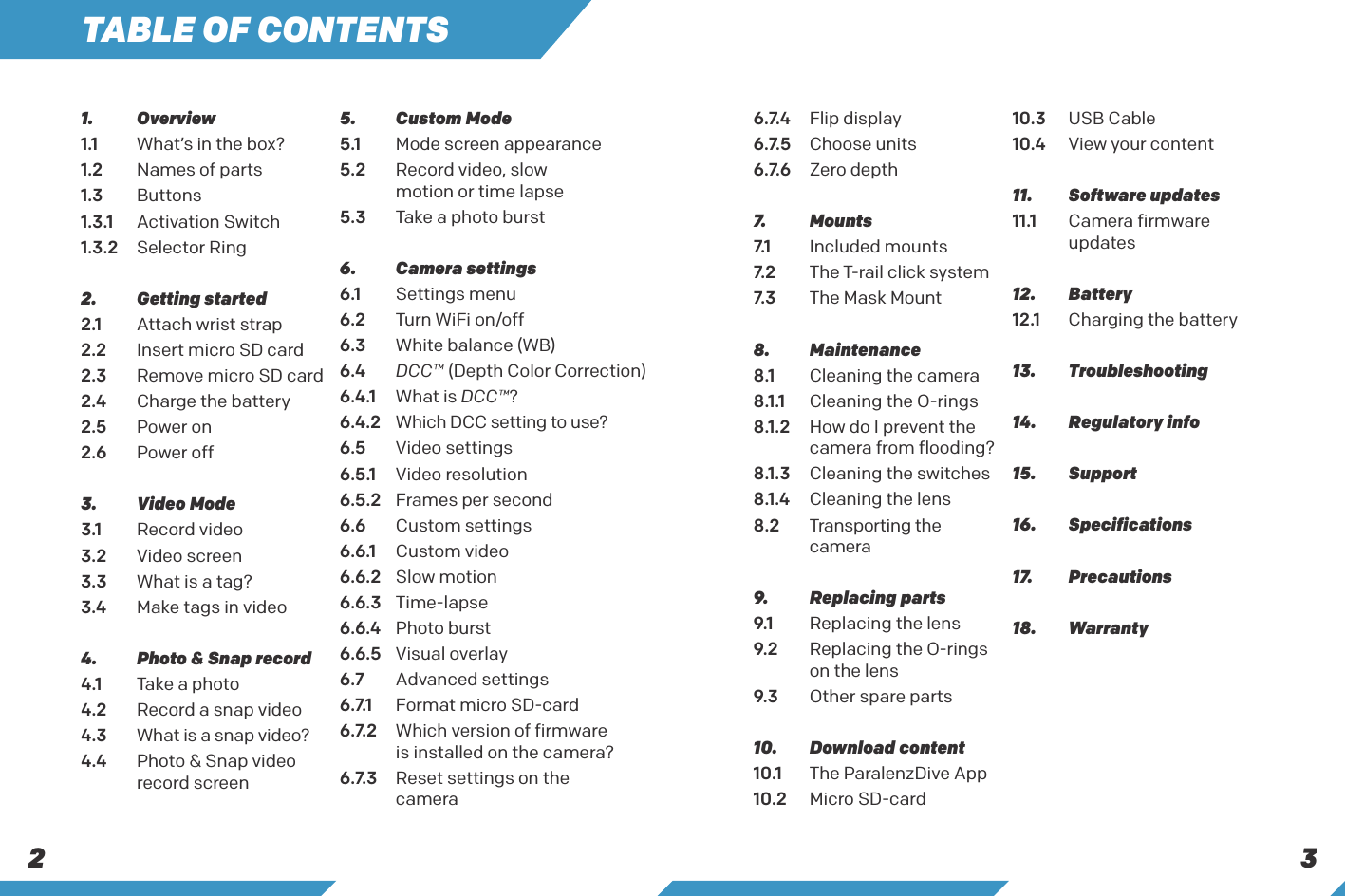

2 3TABLE OF CONTENTS1. Overview1.1 What’s in the box?1.2 Names of parts1.3 Buttons1.3.1 Activation Switch1.3.2 Selector Ring2. Getting started2.1 Attach wrist strap2.2 Insert micro SD card2.3 Remove micro SD card2.4 Charge the battery2.5 Power on2.6 Power off3. Video Mode3.1 Record video3.2 Video screen3.3 What is a tag?3.4 Make tags in video4. Photo & Snap record4.1 Take a photo 4.2 Record a snap video 4.3 What is a snap video?4.4 Photo & Snap video record screen5. Custom Mode5.1 Mode screen appearance5.2 Record video, slow motion or time lapse5.3 Take a photo burst6. Camera settings6.1 Settings menu6.2 Turn WiFi on/off6.3 White balance (WB)6.4 DCC™ (Depth Color Correction)6.4.1 What is DCC™?6.4.2 Which DCC setting to use?6.5 Video settings6.5.1 Video resolution6.5.2 Frames per second6.6 Custom settings6.6.1 Custom video6.6.2 Slow motion6.6.3 Time-lapse6.6.4 Photo burst6.6.5 Visual overlay6.7 Advanced settings6 . 7.1 Format micro SD-card6 . 7. 2 Which version of firmware is installed on the camera?6 . 7. 3 Reset settings on the camera6 . 7. 4 Flip display6 . 7. 5 Choose units6.7.6 Zero depth 7. Mounts7.1 Included mounts7. 2 The T-rail click system7. 3 The Mask Mount8. Maintenance8.1 Cleaning the camera8.1.1 Cleaning the O-rings8.1.2 How do I prevent the camera from flooding?8.1.3 Cleaning the switches8.1.4 Cleaning the lens8.2 Transporting the camera9. Replacing parts9.1 Replacing the lens9.2 Replacing the O-rings on the lens9.3 Other spare parts10. Download content10.1 The ParalenzDive App10.2 Micro SD-card10.3 USB Cable10.4 View your content11. Software updates11.1 Camera firmware updates12. Battery12.1 Charging the battery13. Troubleshooting14. Regulatory info15. Support16. Specifications17. Precautions18. Warranty

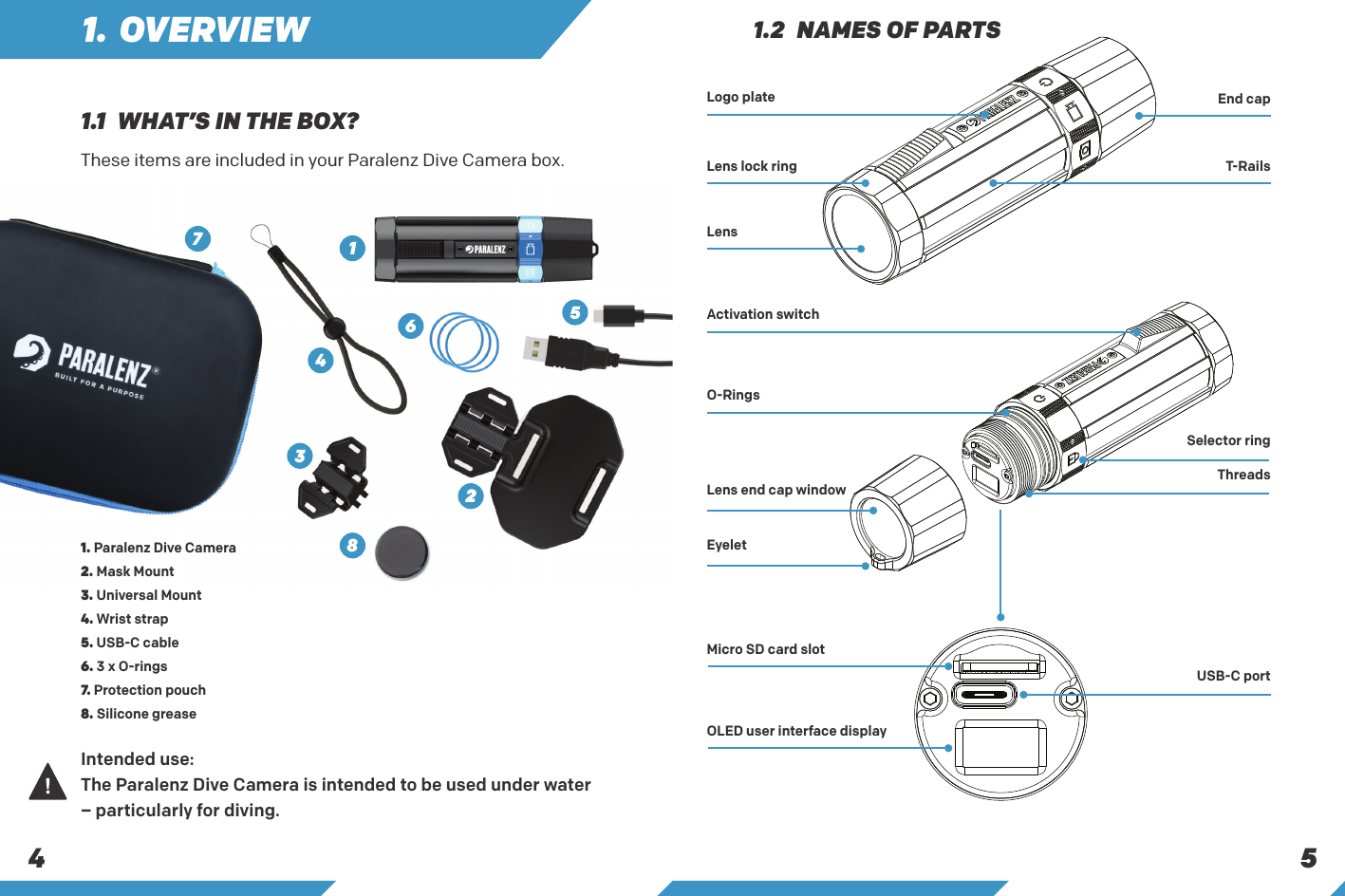

4 5These items are included in your Paralenz Dive Camera box.1.1 WHAT’S IN THE BOX?1.2 NAMES OF PARTSSelector ringThreadsEnd capT-RailsUSB-C portLogo plateLens lock ringLensActivation switchEyeletLens end cap windowO-RingsMicro SD card slotOLED user interface display1. OVERVIEW1632547Intended use: The Paralenz Dive Camera is intended to be used under water – particularly for diving. 281. Paralenz Dive Camera2. Mask Mount3. Universal Mount4. Wrist strap5. USB-C cable6. 3 x O-rings7. Protection pouch8. Silicone grease

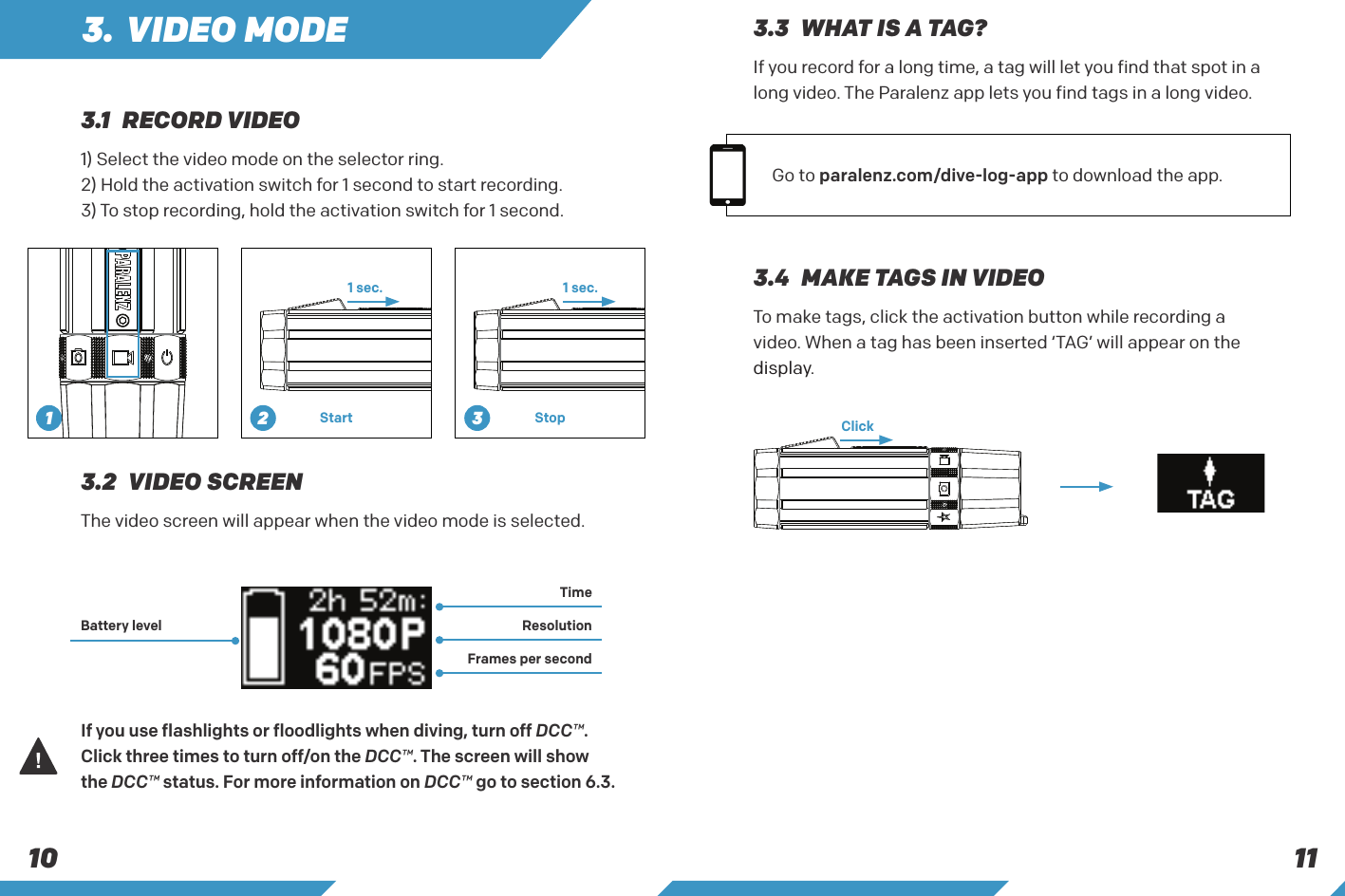

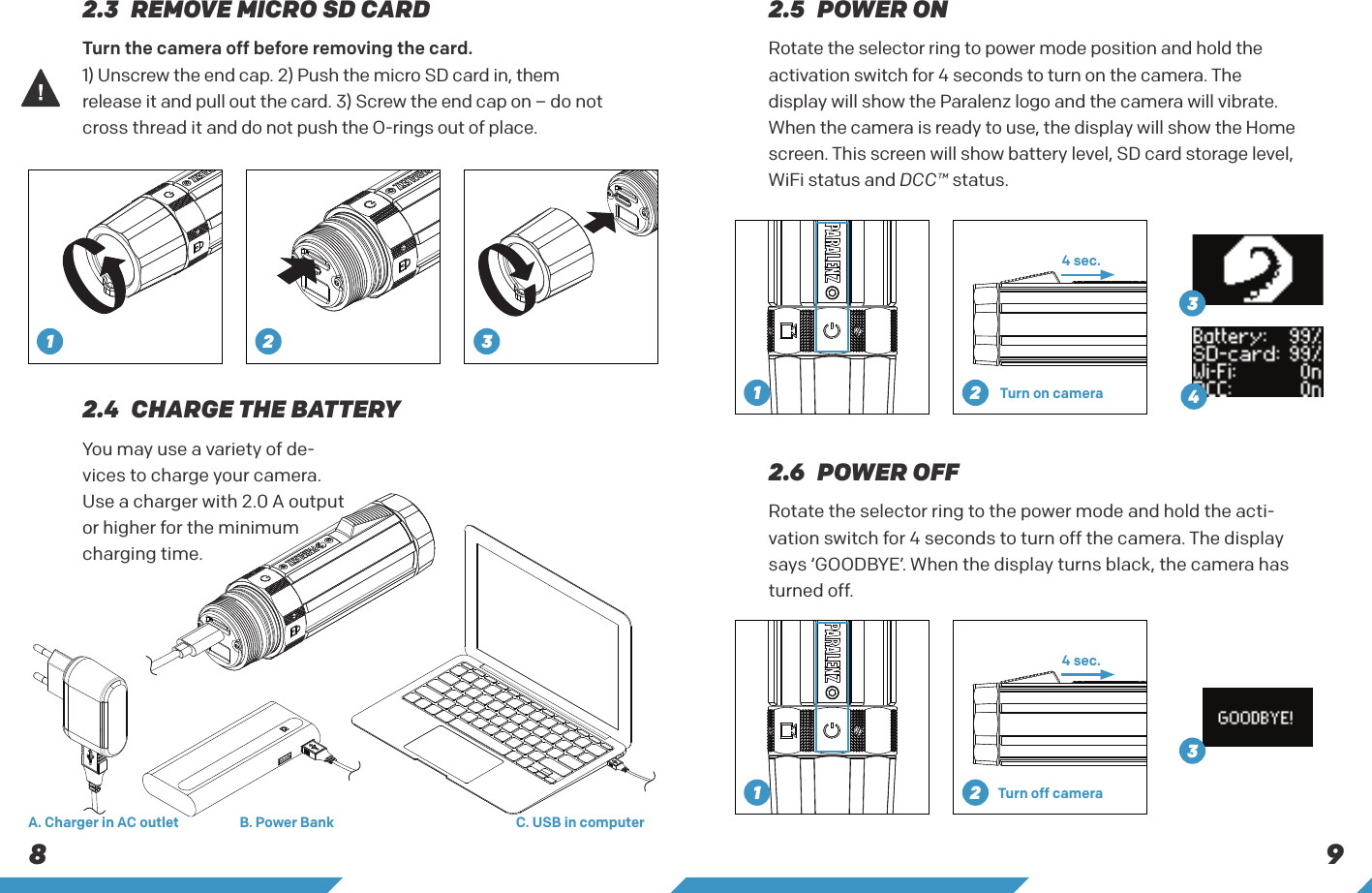

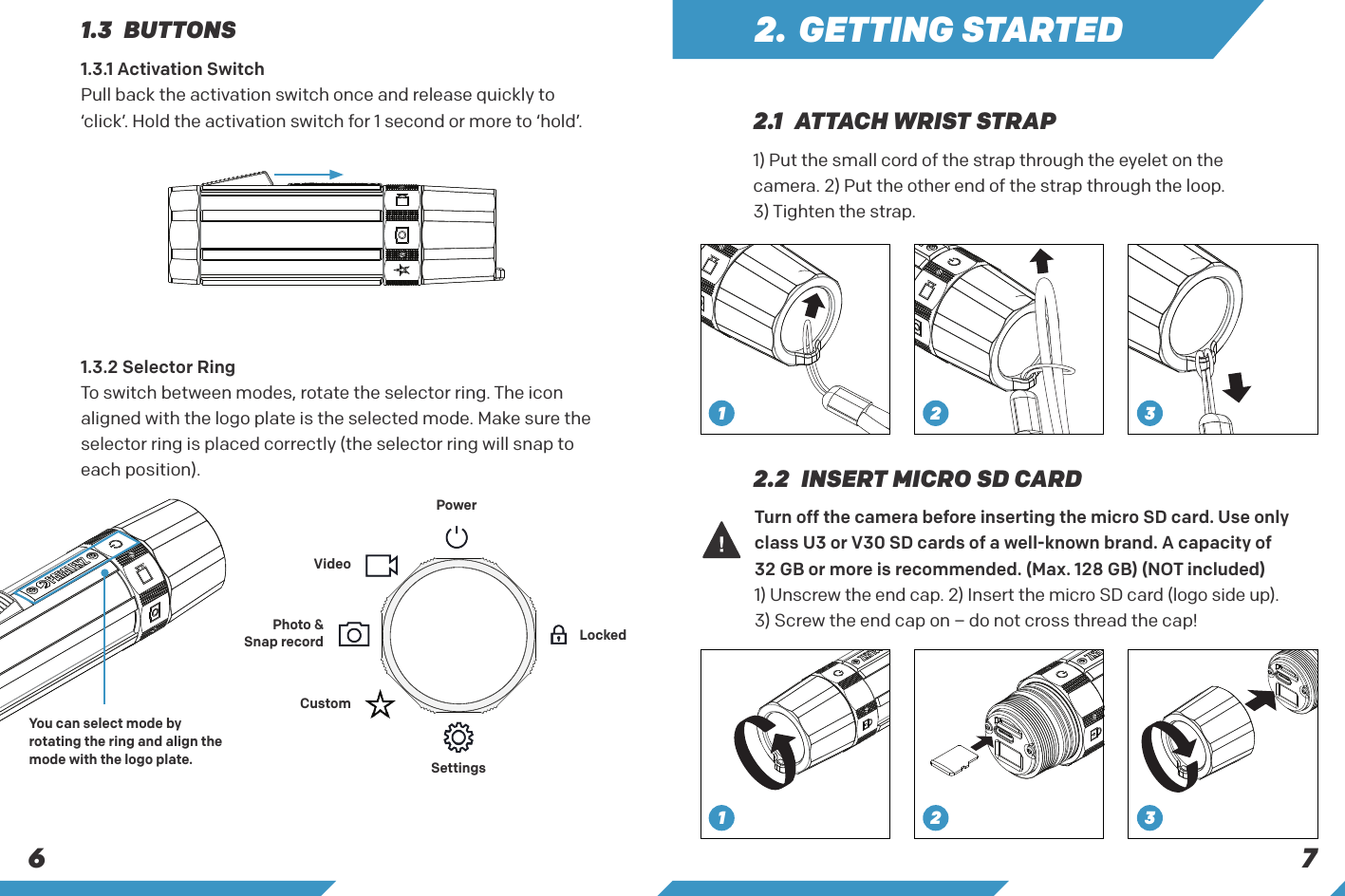

11103. VIDEO MODE1) Select the video mode on the selector ring.2) Hold the activation switch for 1 second to start recording.3) To stop recording, hold the activation switch for 1 second.To make tags, click the activation button while recording a video. When a tag has been inserted ‘TAG’ will appear on the display.The video screen will appear when the video mode is selected.If you use flashlights or floodlights when diving, turn off DCC™. Click three times to turn off/on the DCC™. The screen will show the DCC™ status. For more information on DCC™ go to section 6.3.1 sec.Click1 sec.Start Stop3.4 MAKE TAGS IN VIDEO3.2 VIDEO SCREENBattery levelTime ResolutionFrames per second3.1 RECORD VIDEOIf you record for a long time, a tag will let you find that spot in a long video. The Paralenz app lets you find tags in a long video.Go to paralenz.com/dive-log-app to download the app. 3.3 WHAT IS A TAG?1 2 3

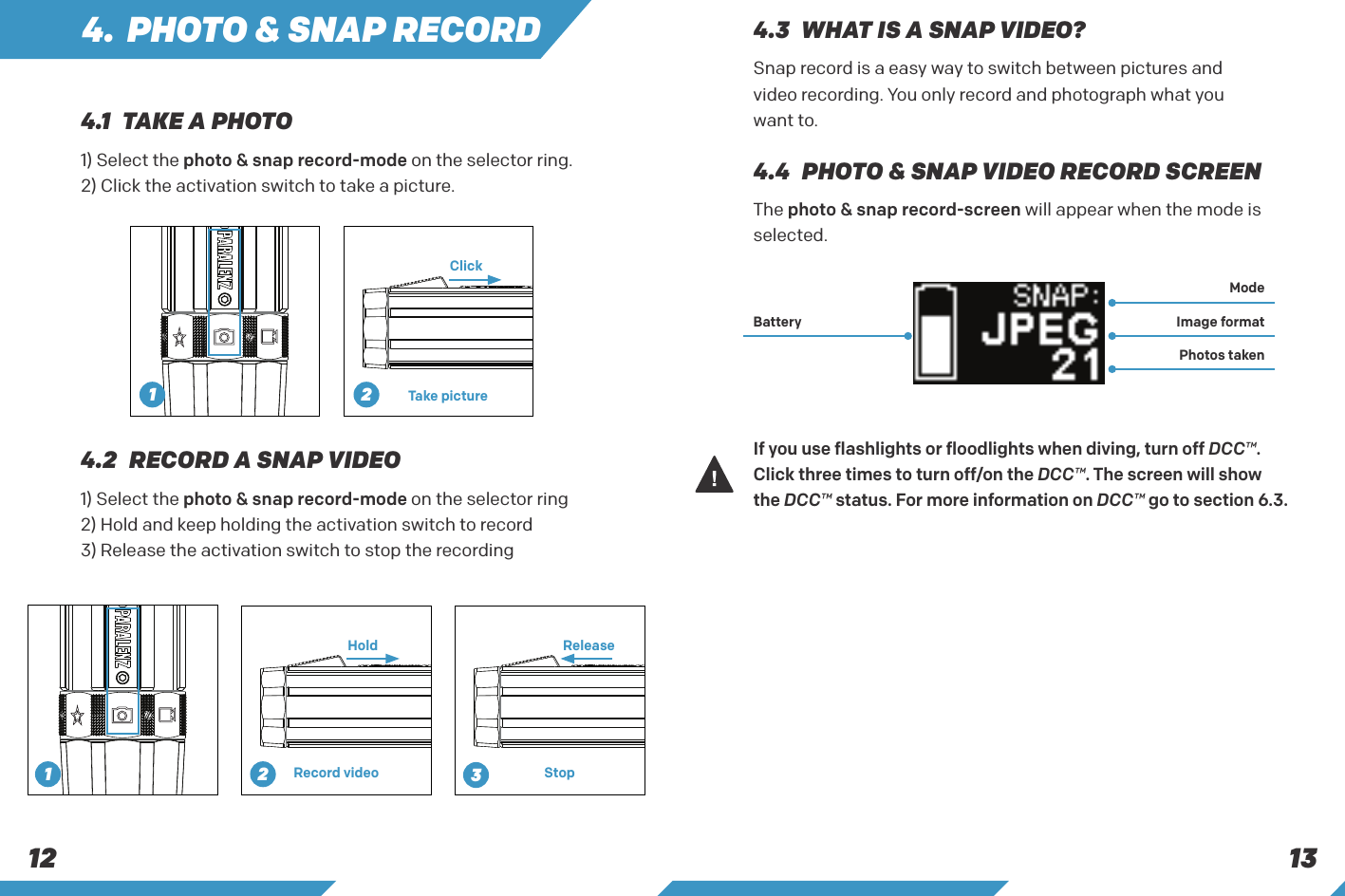

13124. PHOTO & SNAP RECORDThe photo & snap record-screen will appear when the mode is selected.If you use flashlights or floodlights when diving, turn off DCC™. Click three times to turn off/on the DCC™. The screen will show the DCC™ status. For more information on DCC™ go to section 6.3.4.4 PHOTO & SNAP VIDEO RECORD SCREENMode Battery Image formatPhotos taken1) Select the photo & snap record-mode on the selector ring2) Hold and keep holding the activation switch to record3) Release the activation switch to stop the recording4.2 RECORD A SNAP VIDEOHold ReleaseRecord video Stop1) Select the photo & snap record-mode on the selector ring.2) Click the activation switch to take a picture.ClickTake picture4.1 TAKE A PHOTOSnap record is a easy way to switch between pictures and video recording. You only record and photograph what you want to.4.3 WHAT IS A SNAP VIDEO?21231

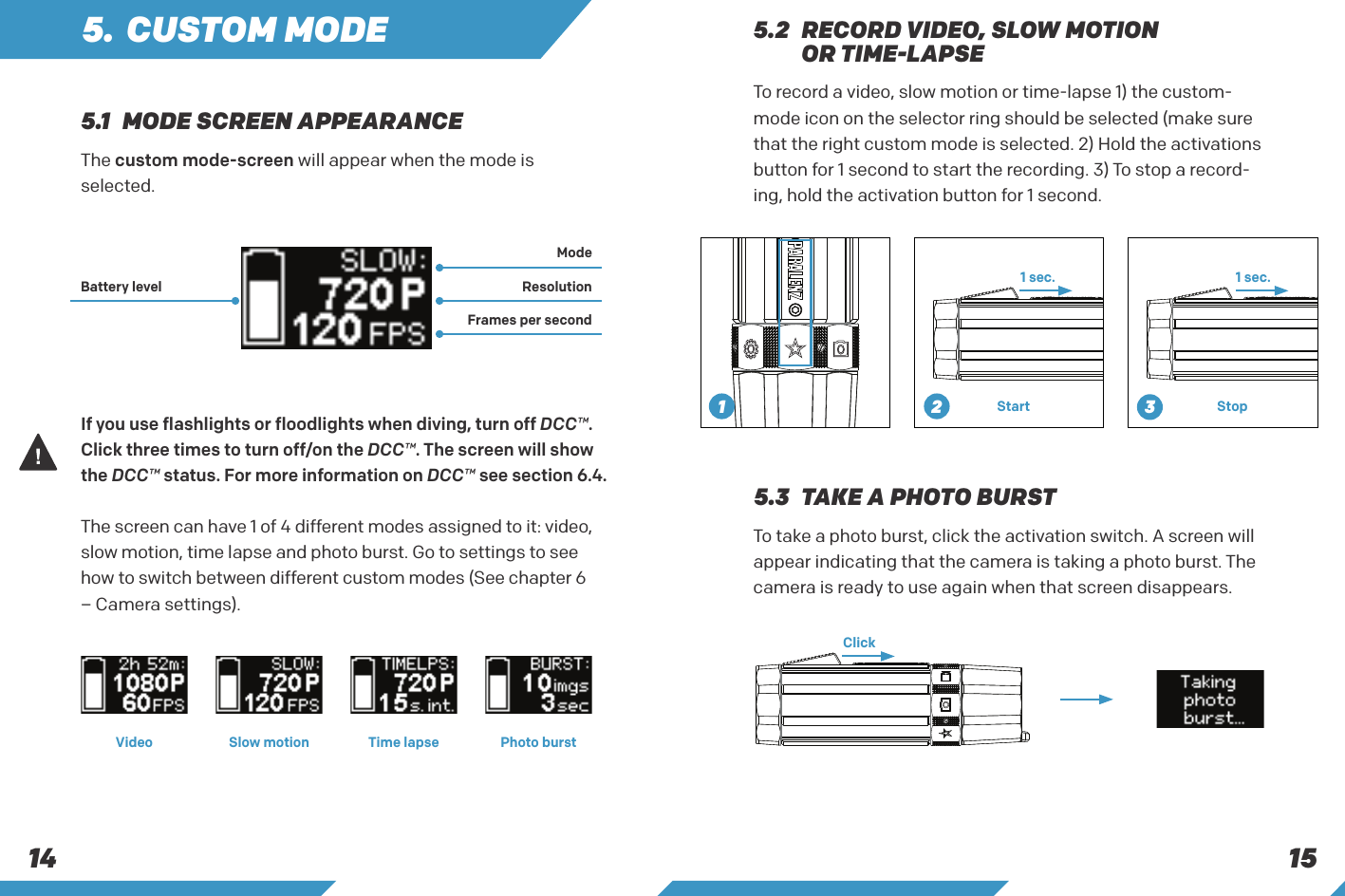

15145. CUSTOM MODEThe custom mode-screen will appear when the mode isselected.To take a photo burst, click the activation switch. A screen will appear indicating that the camera is taking a photo burst. The camera is ready to use again when that screen disappears.If you use flashlights or floodlights when diving, turn off DCC™. Click three times to turn off/on the DCC™. The screen will show the DCC™ status. For more information on DCC™ see section 6.4.The screen can have 1 of 4 different modes assigned to it: video, slow motion, time lapse and photo burst. Go to settings to see how to switch between different custom modes (See chapter 6– Camera settings). 5.3 TAKE A PHOTO BURST5.1 MODE SCREEN APPEARANCEModeBattery level ResolutionFrames per secondVideo Slow motion Time lapse Photo burstTo record a video, slow motion or time-lapse 1) the custom-mode icon on the selector ring should be selected (make sure that the right custom mode is selected. 2) Hold the activations button for 1 second to start the recording. 3) To stop a record-ing, hold the activation button for 1 second.1 sec. 1 sec.Start Stop5.2 RECORD VIDEO, SLOW MOTION OR TIME-LAPSEClick231

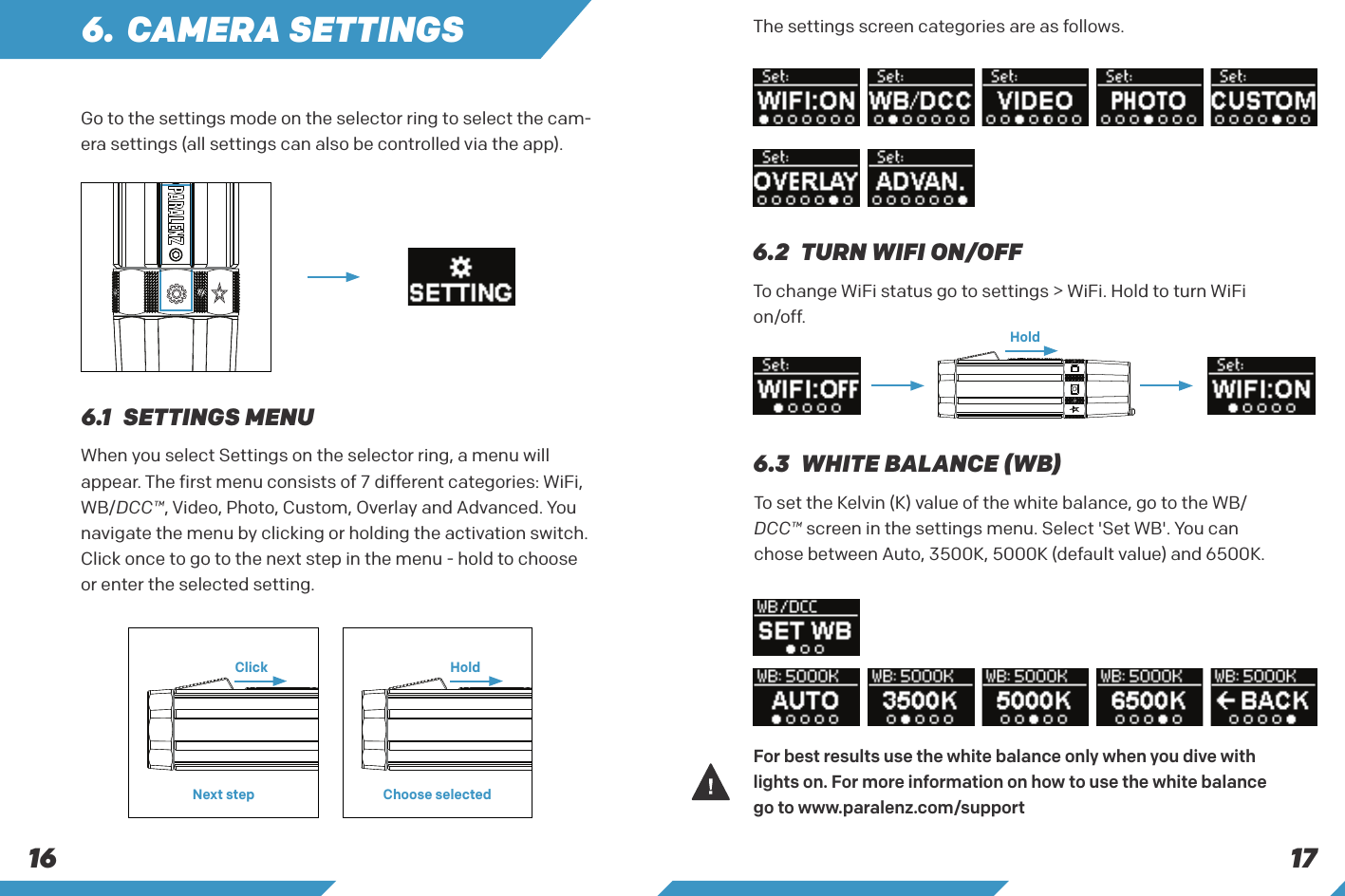

1716Go to the settings mode on the selector ring to select the cam-era settings (all settings can also be controlled via the app).When you select Settings on the selector ring, a menu will appear. The first menu consists of 7 different categories: WiFi, WB/DCC™, Video, Photo, Custom, Overlay and Advanced. You navigate the menu by clicking or holding the activation switch. Click once to go to the next step in the menu - hold to choose or enter the selected setting.The settings screen categories are as follows.To change WiFi status go to settings > WiFi. Hold to turn WiFi on/off.To set the Kelvin (K) value of the white balance, go to the WB/DCC™ screen in the settings menu. Select 'Set WB'. You can chose between Auto, 3500K, 5000K (default value) and 6500K.6. CAMERA SETTINGS6.1 SETTINGS MENU6.2 TURN WIFI ON/OFF6.3 WHITE BALANCE (WB)Click HoldNext step Choose selectedHoldFor best results use the white balance only when you dive with lights on. For more information on how to use the white balance go to www.paralenz.com/support

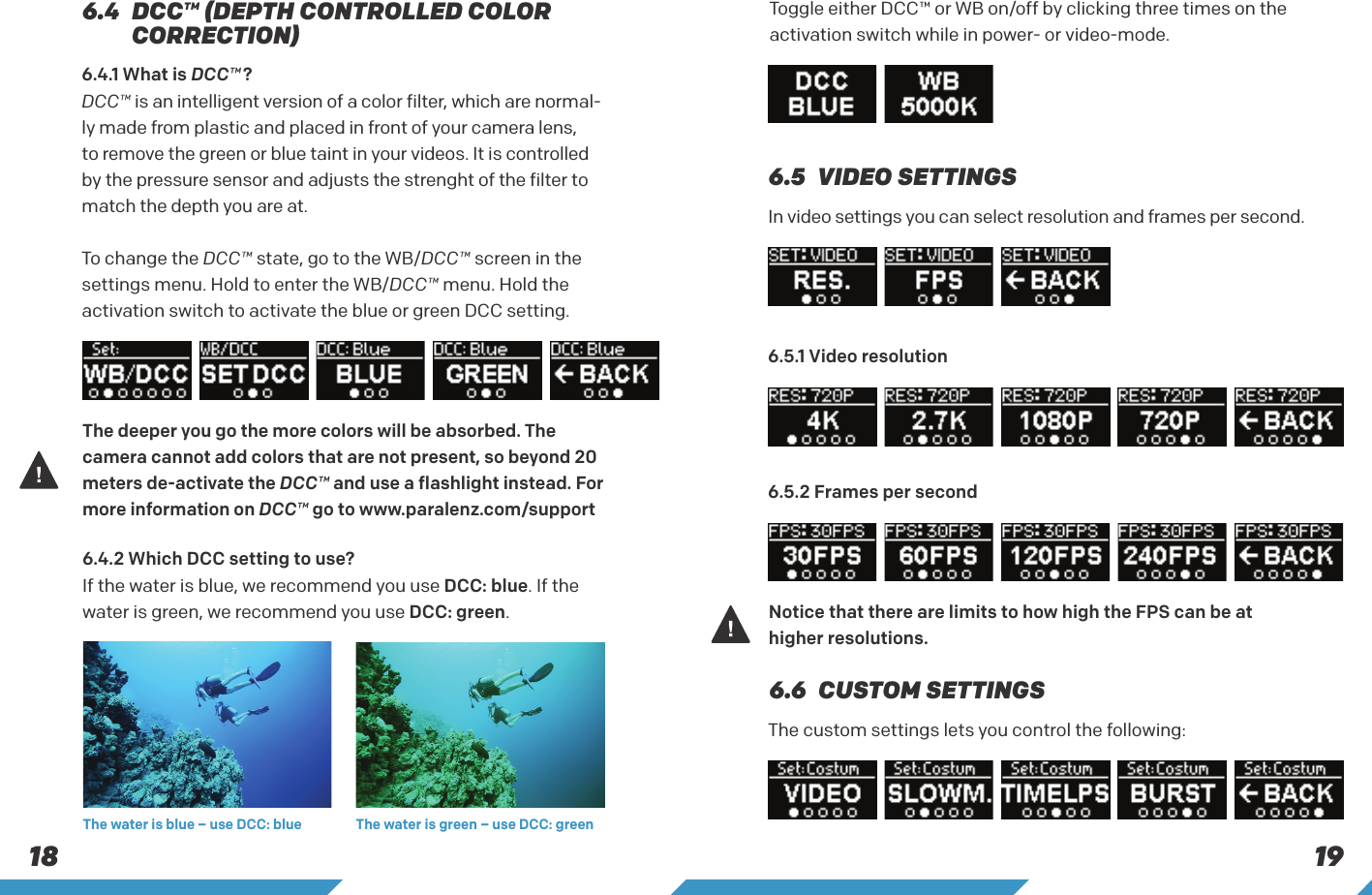

18 19The deeper you go the more colors will be absorbed. The camera cannot add colors that are not present, so beyond 20 meters de-activate the DCC™ and use a flashlight instead. For more information on DCC™ go to www.paralenz.com/support Notice that there are limits to how high the FPS can be at higher resolutions.The water is blue – use DCC: blue The water is green – use DCC: greenIn video settings you can select resolution and frames per second.The custom settings lets you control the following:6.5 VIDEO SETTINGS6.5.1 Video resolution6.5.2 Frames per second6.6 CUSTOM SETTINGS6.4.2 Which DCC setting to use? If the water is blue, we recommend you use DCC: blue. If the water is green, we recommend you use DCC: green.Toggle either DCC™ or WB on/off by clicking three times on the activation switch while in power- or video-mode.6.4 DCC™ (DEPTH CONTROLLED COLOR CORRECTION)6.4.1 What is DCC™ ? DCC™ is an intelligent version of a color filter, which are normal-ly made from plastic and placed in front of your camera lens, to remove the green or blue taint in your videos. It is controlled by the pressure sensor and adjusts the strenght of the filter to match the depth you are at. To change the DCC™ state, go to the WB/DCC™ screen in thesettings menu. Hold to enter the WB/DCC™ menu. Hold the activation switch to activate the blue or green DCC setting.

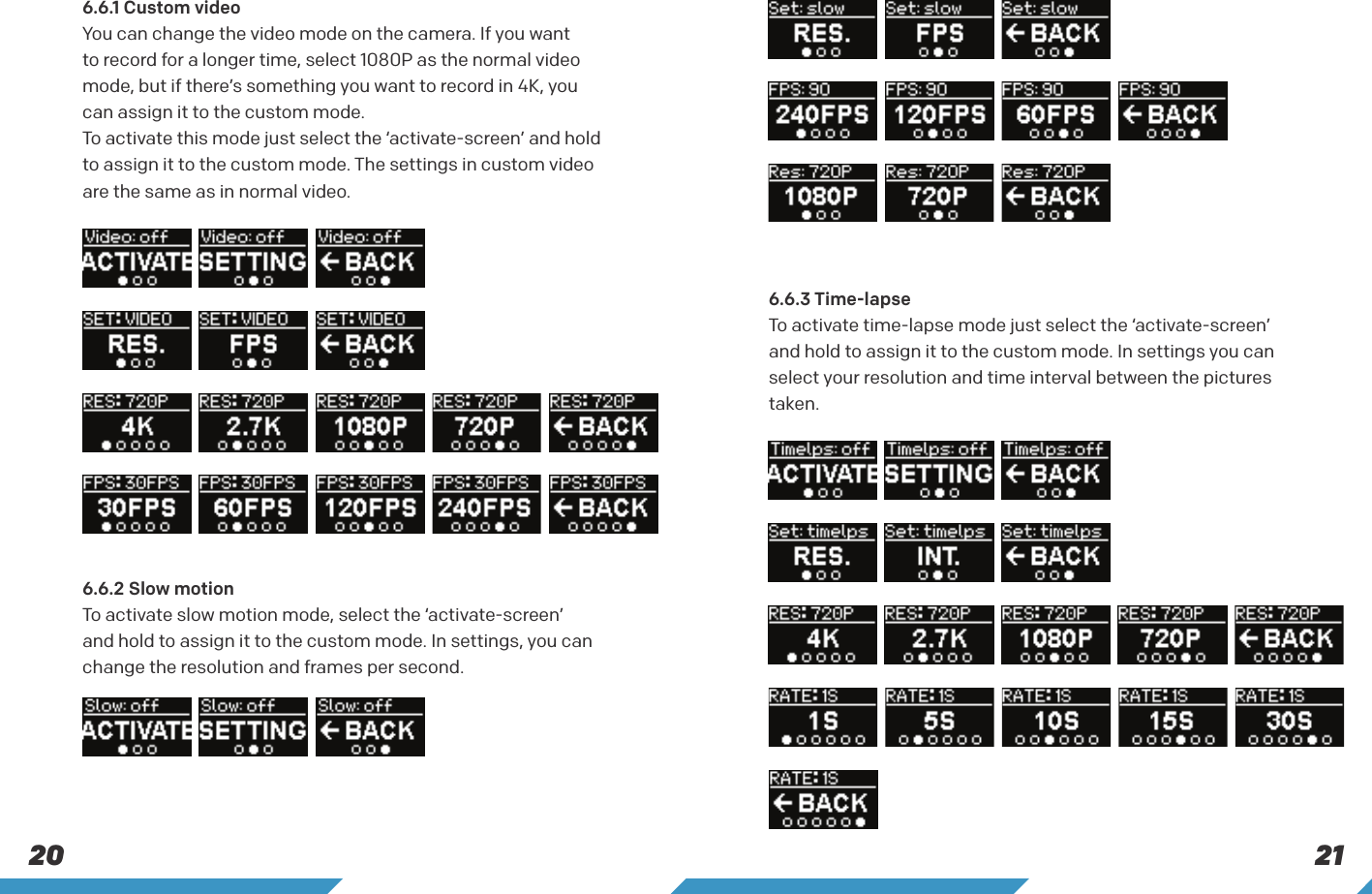

21206.6.1 Custom video You can change the video mode on the camera. If you want to record for a longer time, select 1080P as the normal video mode, but if there’s something you want to record in 4K, you can assign it to the custom mode.To activate this mode just select the ‘activate-screen’ and hold to assign it to the custom mode. The settings in custom video are the same as in normal video.6.6.3 Time-lapse To activate time-lapse mode just select the ‘activate-screen’ and hold to assign it to the custom mode. In settings you can select your resolution and time interval between the pictures taken.6.6.2 Slow motion To activate slow motion mode, select the ‘activate-screen’ and hold to assign it to the custom mode. In settings, you can change the resolution and frames per second.

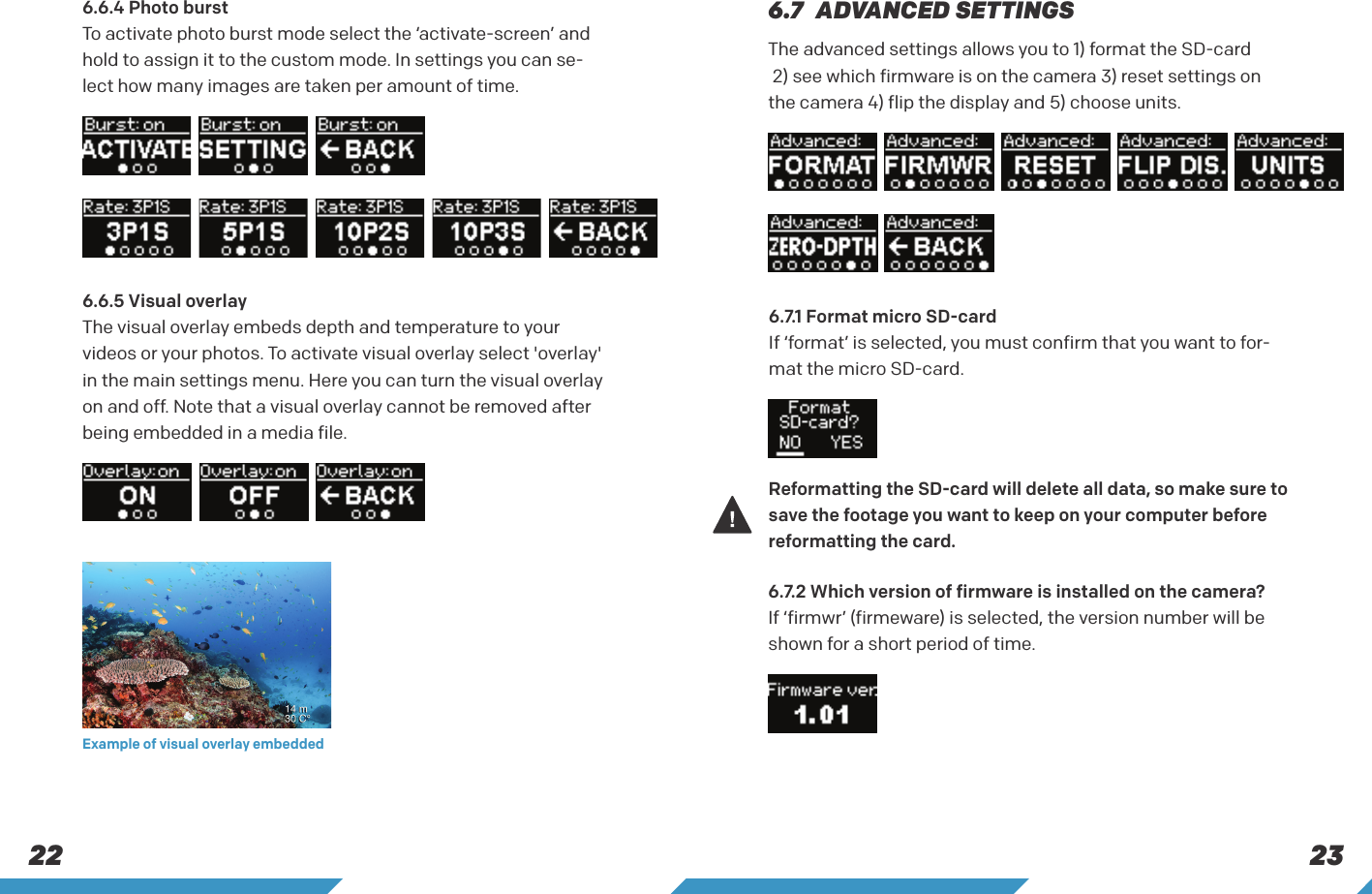

23226.7 ADVANCED SETTINGSThe advanced settings allows you to 1) format the SD-card 2) see which firmware is on the camera 3) reset settings on the camera 4) flip the display and 5) choose units.6.7.1 Format micro SD-card If ‘format’ is selected, you must confirm that you want to for-mat the micro SD-card.6.7.2 Which version of firmware is installed on the camera? If ‘firmwr’ (firmeware) is selected, the version number will be shown for a short period of time.6.6.4 Photo burst To activate photo burst mode select the ‘activate-screen’ and hold to assign it to the custom mode. In settings you can se-lect how many images are taken per amount of time.6.6.5 Visual overlayThe visual overlay embeds depth and temperature to your videos or your photos. To activate visual overlay select 'overlay' in the main settings menu. Here you can turn the visual overlay on and off. Note that a visual overlay cannot be removed after being embedded in a media file.Example of visual overlay embedded Reformatting the SD-card will delete all data, so make sure to save the footage you want to keep on your computer before reformatting the card.

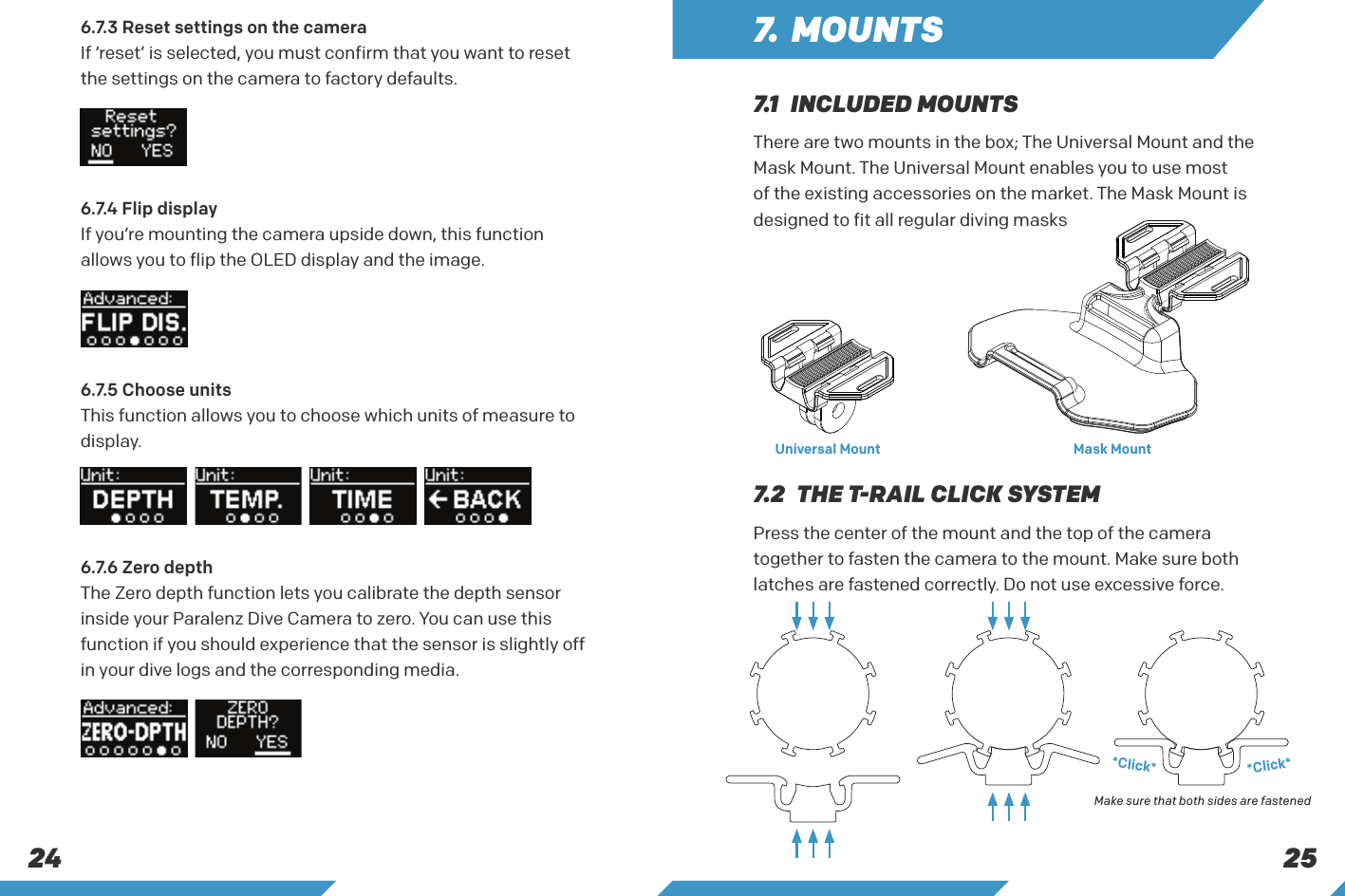

25246.7.4 Flip displayIf you’re mounting the camera upside down, this function allows you to flip the OLED display and the image.6.7.5 Choose unitsThis function allows you to choose which units of measure to display.6.7.6 Zero depthThe Zero depth function lets you calibrate the depth sensor inside your Paralenz Dive Camera to zero. You can use this function if you should experience that the sensor is slightly off in your dive logs and the corresponding media.7. MOUNTSThere are two mounts in the box; The Universal Mount and the Mask Mount. The Universal Mount enables you to use most of the existing accessories on the market. The Mask Mount is designed to fit all regular diving masksPress the center of the mount and the top of the camera together to fasten the camera to the mount. Make sure both latches are fastened correctly. Do not use excessive force.7.1 INCLUDED MOUNTS7.2 THE T-RAIL CLICK SYSTEMUniversal Mount Mask Mount*Click**Click*Make sure that both sides are fastened6.7.3 Reset settings on the camera If ‘reset’ is selected, you must confirm that you want to reset the settings on the camera to factory defaults.

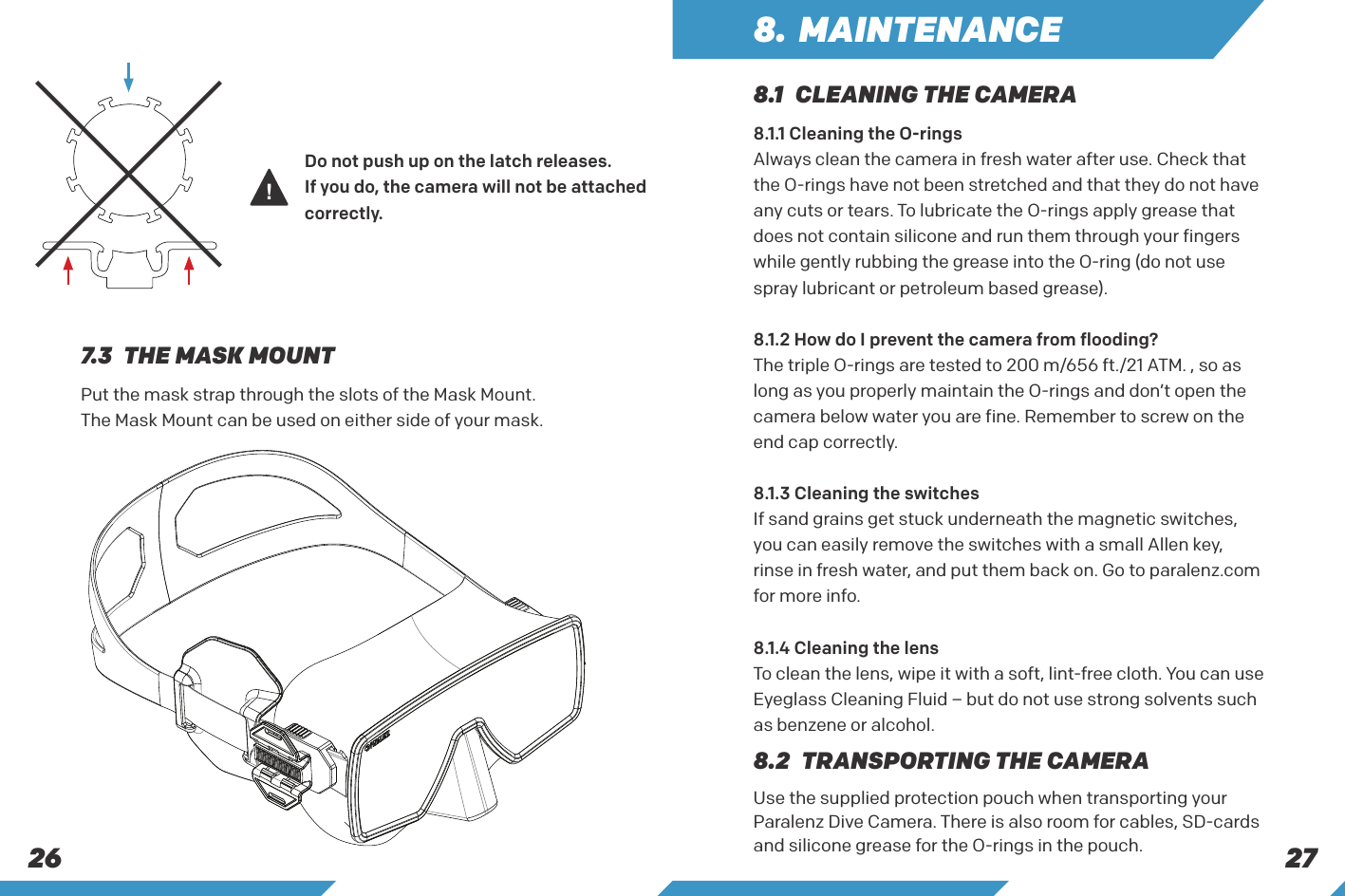

2726Do not push up on the latch releases.If you do, the camera will not be attached correctly.Put the mask strap through the slots of the Mask Mount. The Mask Mount can be used on either side of your mask. 7.3 THE MASK MOUNT8. MAINTENANCE8.1 CLEANING THE CAMERA8.2 TRANSPORTING THE CAMERA8.1.1 Cleaning the O-ringsAlways clean the camera in fresh water after use. Check that the O-rings have not been stretched and that they do not have any cuts or tears. To lubricate the O-rings apply grease that does not contain silicone and run them through your fingers while gently rubbing the grease into the O-ring (do not use spray lubricant or petroleum based grease). 8.1.2 How do I prevent the camera from flooding?The triple O-rings are tested to 200 m/656 ft./21 ATM. , so as long as you properly maintain the O-rings and don’t open the camera below water you are fine. Remember to screw on the end cap correctly.8.1.3 Cleaning the switchesIf sand grains get stuck underneath the magnetic switches, you can easily remove the switches with a small Allen key, rinse in fresh water, and put them back on. Go to paralenz.com for more info.8.1.4 Cleaning the lensTo clean the lens, wipe it with a soft, lint-free cloth. You can use Eyeglass Cleaning Fluid – but do not use strong solvents such as benzene or alcohol.Use the supplied protection pouch when transporting your Paralenz Dive Camera. There is also room for cables, SD-cards and silicone grease for the O-rings in the pouch.

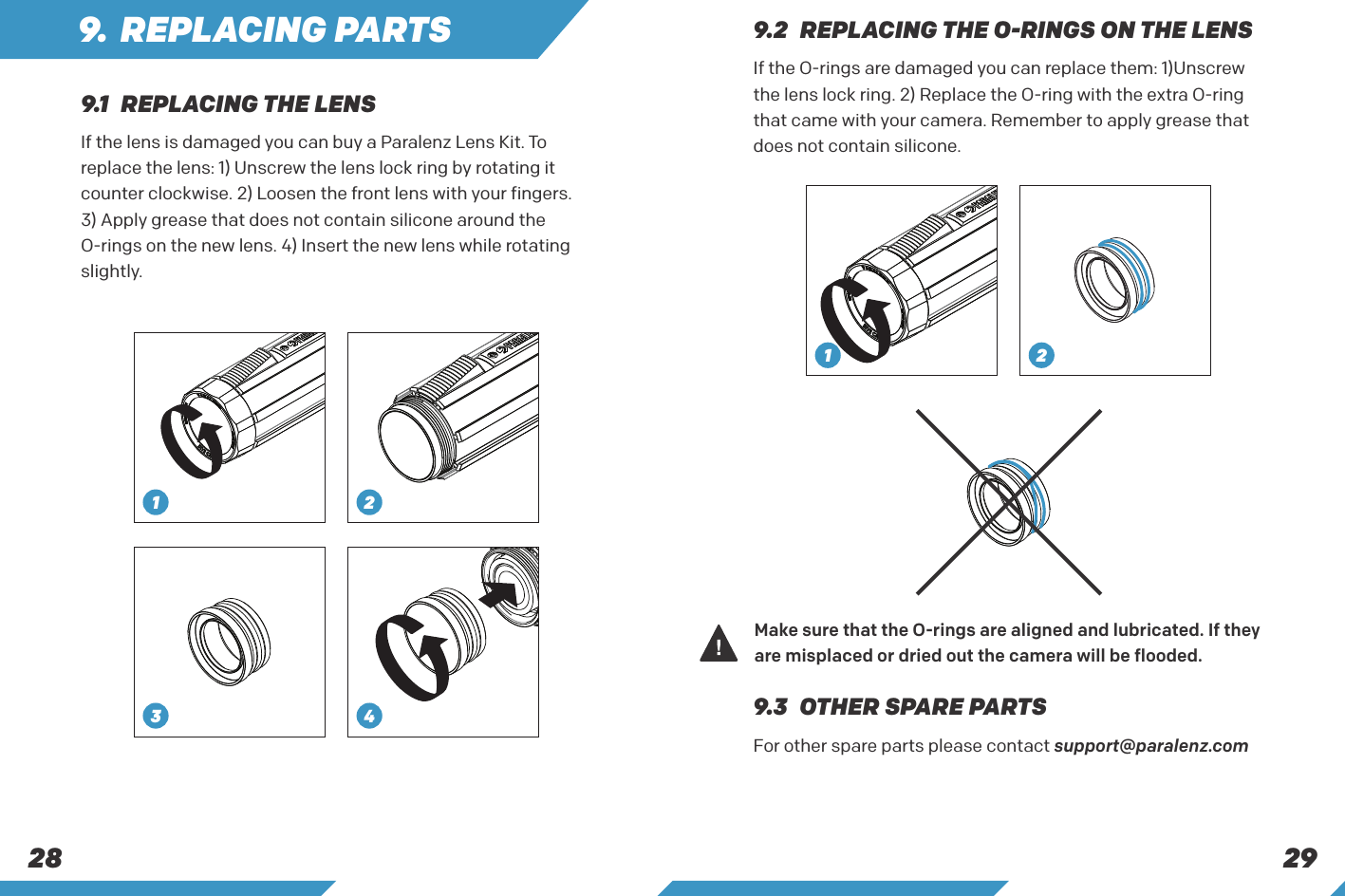

29289.1 REPLACING THE LENS9.3 OTHER SPARE PARTSIf the lens is damaged you can buy a Paralenz Lens Kit. To replace the lens: 1) Unscrew the lens lock ring by rotating it counter clockwise. 2) Loosen the front lens with your fingers.3) Apply grease that does not contain silicone around the O-rings on the new lens. 4) Insert the new lens while rotating slightly.For other spare parts please contact support@paralenz.com49. REPLACING PARTS 9.2 REPLACING THE O-RINGS ON THE LENSIf the O-rings are damaged you can replace them: 1)Unscrew the lens lock ring. 2) Replace the O-ring with the extra O-ring that came with your camera. Remember to apply grease that does not contain silicone.Make sure that the O-rings are aligned and lubricated. If they are misplaced or dried out the camera will be flooded.1 231 2

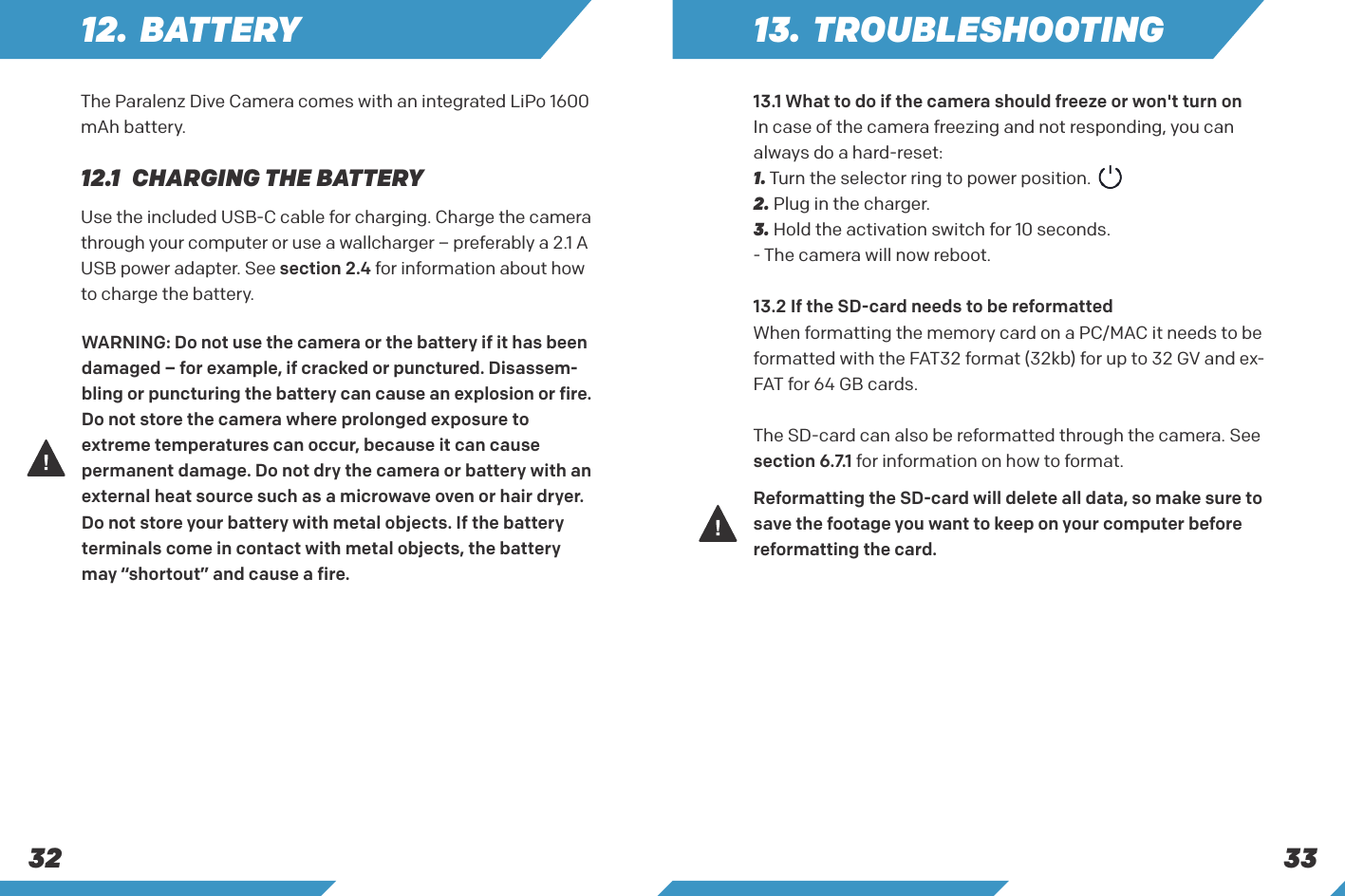

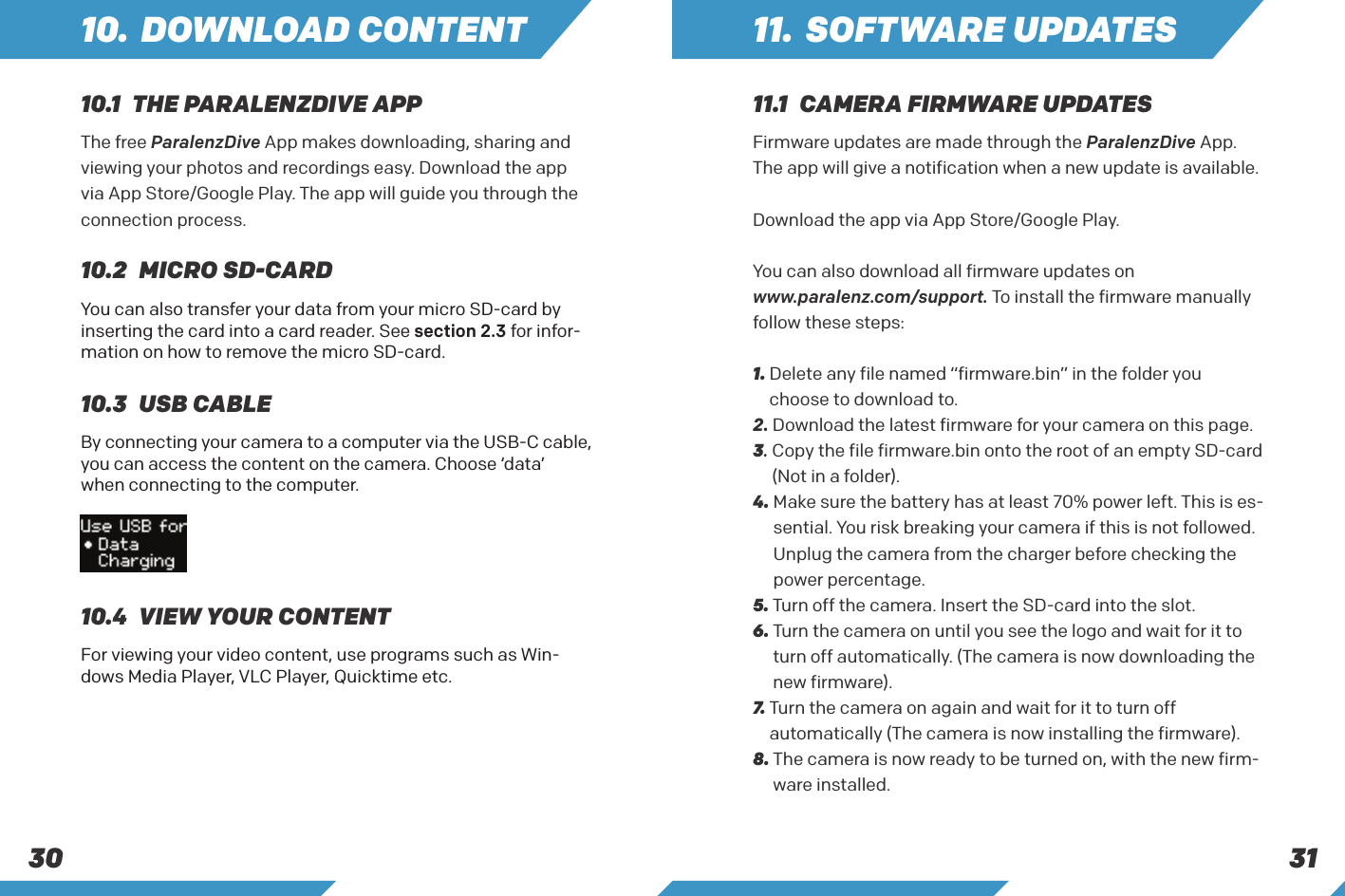

333212. BATTERY12.1 CHARGING THE BATTERYThe Paralenz Dive Camera comes with an integrated LiPo 1600 mAh battery.Use the included USB-C cable for charging. Charge the camera through your computer or use a wallcharger – preferably a 2.1 A USB power adapter. See section 2.4 for information about how to charge the battery.WARNING: Do not use the camera or the battery if it has been damaged – for example, if cracked or punctured. Disassem-bling or puncturing the battery can cause an explosion or fire.Do not store the camera where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage. Do not dry the camera or battery with an external heat source such as a microwave oven or hair dryer.Do not store your battery with metal objects. If the battery terminals come in contact with metal objects, the battery may “shortout” and cause a fire.Reformatting the SD-card will delete all data, so make sure to save the footage you want to keep on your computer before reformatting the card.13. TROUBLESHOOTING13.1 What to do if the camera should freeze or won't turn onIn case of the camera freezing and not responding, you can always do a hard-reset:1. Turn the selector ring to power position.2. Plug in the charger.3. Hold the activation switch for 10 seconds.- The camera will now reboot.13.2 If the SD-card needs to be reformattedWhen formatting the memory card on a PC/MAC it needs to be formatted with the FAT32 format (32kb) for up to 32 GV and ex-FAT for 64 GB cards.The SD-card can also be reformatted through the camera. See section 6.7.1 for information on how to format.

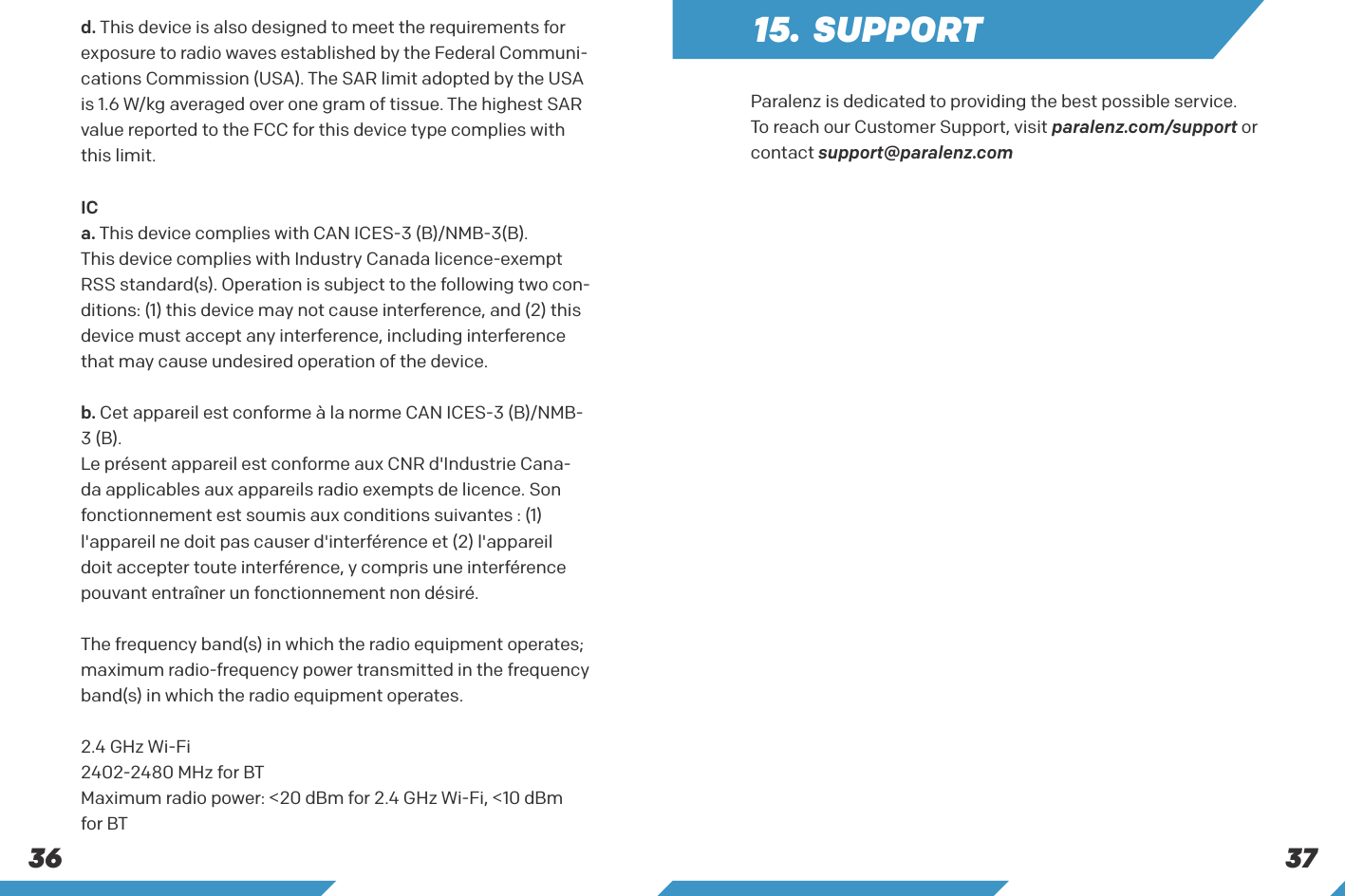

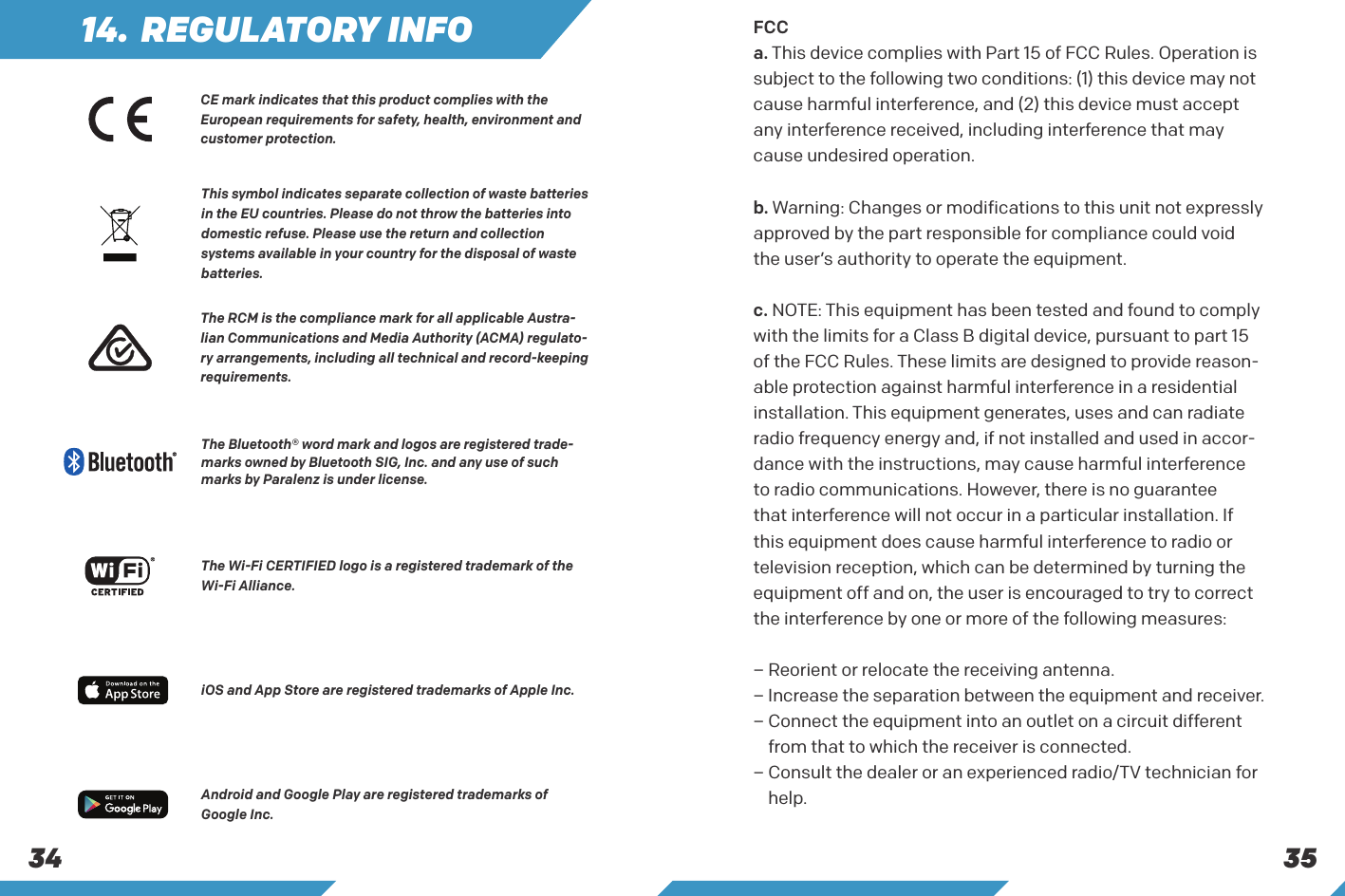

373615. SUPPORTParalenz is dedicated to providing the best possible service. To reach our Customer Support, visit paralenz.com/support or contact support@paralenz.comd. This device is also designed to meet the requirements for exposure to radio waves established by the Federal Communi-cations Commission (USA). The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported to the FCC for this device type complies with this limit.ICa. This device complies with CAN ICES-3 (B)/NMB-3(B).This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two con-ditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.b. Cet appareil est conforme à la norme CAN ICES-3 (B)/NMB-3 (B).Le présent appareil est conforme aux CNR d'Industrie Cana-da applicables aux appareils radio exempts de licence. Son fonctionnement est soumis aux conditions suivantes : (1) l'appareil ne doit pas causer d'interférence et (2) l'appareil doit accepter toute interférence, y compris une interférence pouvant entraîner un fonctionnement non désiré.The frequency band(s) in which the radio equipment operates; maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates.2.4 GHz Wi-Fi2402-2480 MHz for BTMaximum radio power: <20 dBm for 2.4 GHz Wi-Fi, <10 dBm for BT

381 7. PRECAUTIONSTo avoid malfunction, explosion, or fire: Do not microwave, open, drop, puncture, take apart, bend, crush, paint, or incinerate the camera. Do not solder or glue parts onto the camera and do not insert foreign objects into any openings, such as the Micro USB port. Do not use the camera if it is damaged, this includes a punc-ture, missing O-ring, or water inside and do not attempt to remove or change the battery. Do not dry the camera in an oven, with a hairdryer or any other external heat source, especially open fire.Do not use the Paralenz Dive Camera for dives deeper than 200M/556F/21 ATM. When opening and charging the camera, make sure that your hands are not wet, and that water from other sources cannot enter the camera or charger. This may cause electrical shock. The Paralenz Dive Camera should not in any way be used as a dive computer, or as a supplement to a dive computer. When charging, make sure the charger is a USB type charger, of max 5V, or use a USB plug on a computer. If the front lens on the Paralenz Dive Camera should break, take care to avoid injury. Keep out of reach of children.Waterproof to 200 M/656 FT./21 ATM. Video resolution 4k-30 fps / 1080p-100 fps / 720p-240 fpsStill resolution 8 MPWhite balance Auto, 3500K, 5000K, 6500K + DCC™ (switch between WB and DCC™)Battery life LiPo – 1600 mAh / 3+ hours recording (1080 p – 30 fps)EIS - Electronic imageand tilt stabilization Will be available soon through firmware updateApp Viewing / Sharing / Settings (iOS & Android)Usable with gloves YesShockproof YesLens / lens distortion correction140° / lens distortion correction will soon be available through firmware updateWeight 155 g (5.5 oz)Dimensions 116 x 35 x 38 mm (4.5 x 1.4 x 1.5”)Housing Military grade aluminum & polycarbonateAudio recording Yes (internal microphone)Port USB-C (for fast charging)Storage 128 GB micro SD-card max. (Class: U3 or V30) – not includedMounts Mask Mount & Universal Mount includedDive log video overlay YesConnectivity WiFi, Bluetooth & USBDisplay 0.5” OLEDOperating temperature -20°C to 85°C / -4°F to 185°F / EVA padding (minimizing battery discharge in cold water)Extra casing needed NoSensors Pressure / temperature16. SPECIFICATIONS39

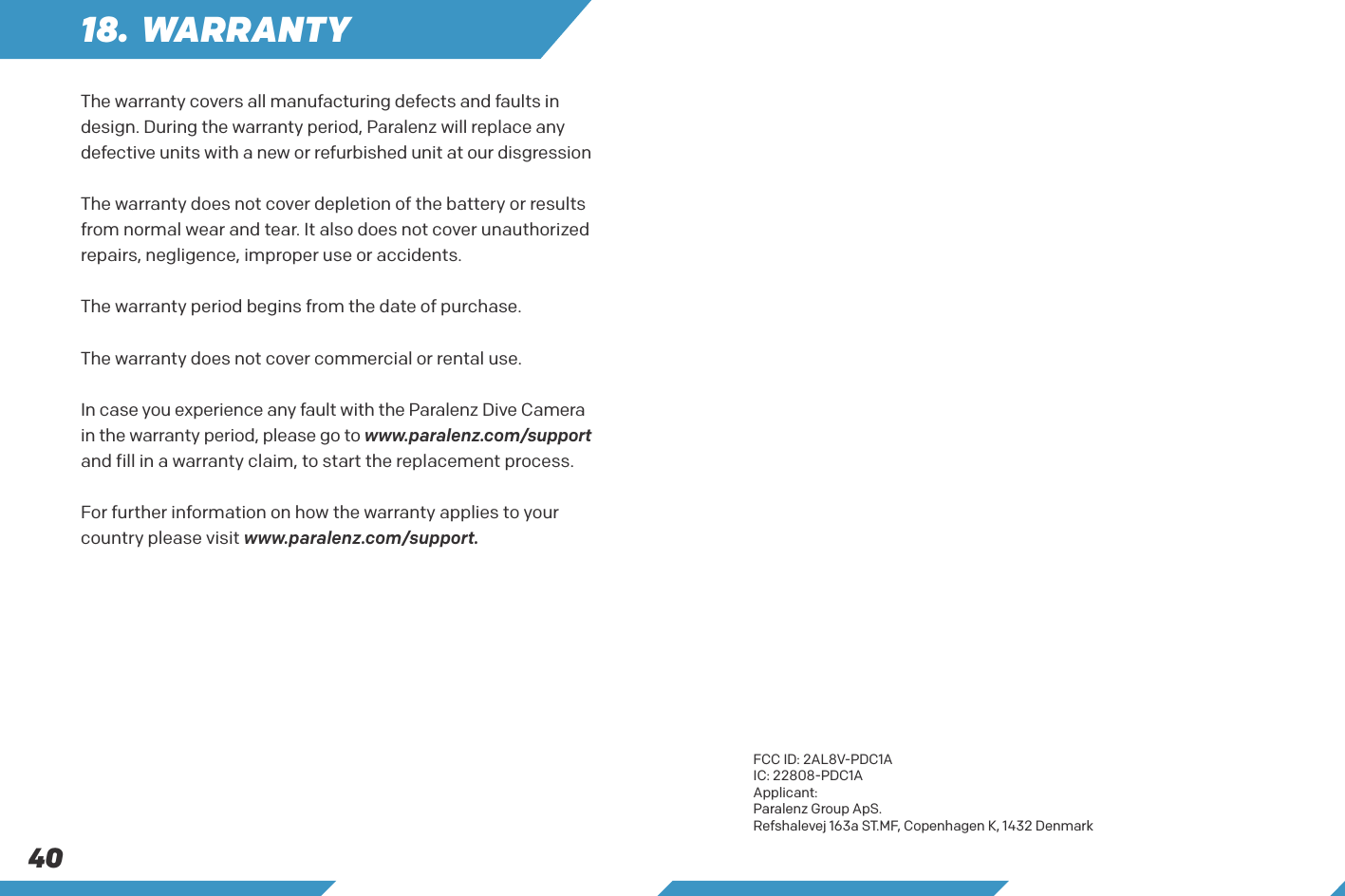

4018. WARRANTYThe warranty covers all manufacturing defects and faults in design. During the warranty period, Paralenz will replace any defective units with a new or refurbished unit at our disgressionThe warranty does not cover depletion of the battery or results from normal wear and tear. It also does not cover unauthorized repairs, negligence, improper use or accidents.The warranty period begins from the date of purchase. The warranty does not cover commercial or rental use. In case you experience any fault with the Paralenz Dive Camera in the warranty period, please go to www.paralenz.com/support and fill in a warranty claim, to start the replacement process.For further information on how the warranty applies to your country please visit www.paralenz.com/support.FCC ID: 2AL8V-PDC1AIC: 22808-PDC1AApplicant: Paralenz Group ApS.Refshalevej 163a ST.MF, Copenhagen K, 1432 Denmark

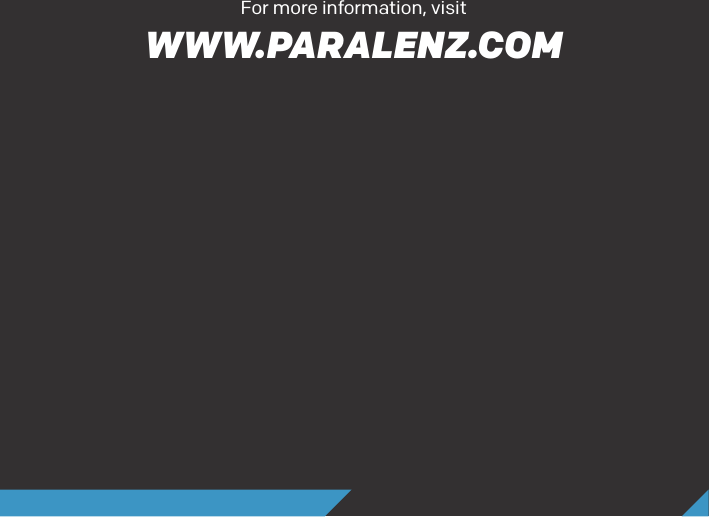

For more information, visitWWW.PARALENZ.COM
