Phychips RED4S RFID Module User Manual

Phychips Inc. RFID Module

User Manual

RED4S User’s Manuals

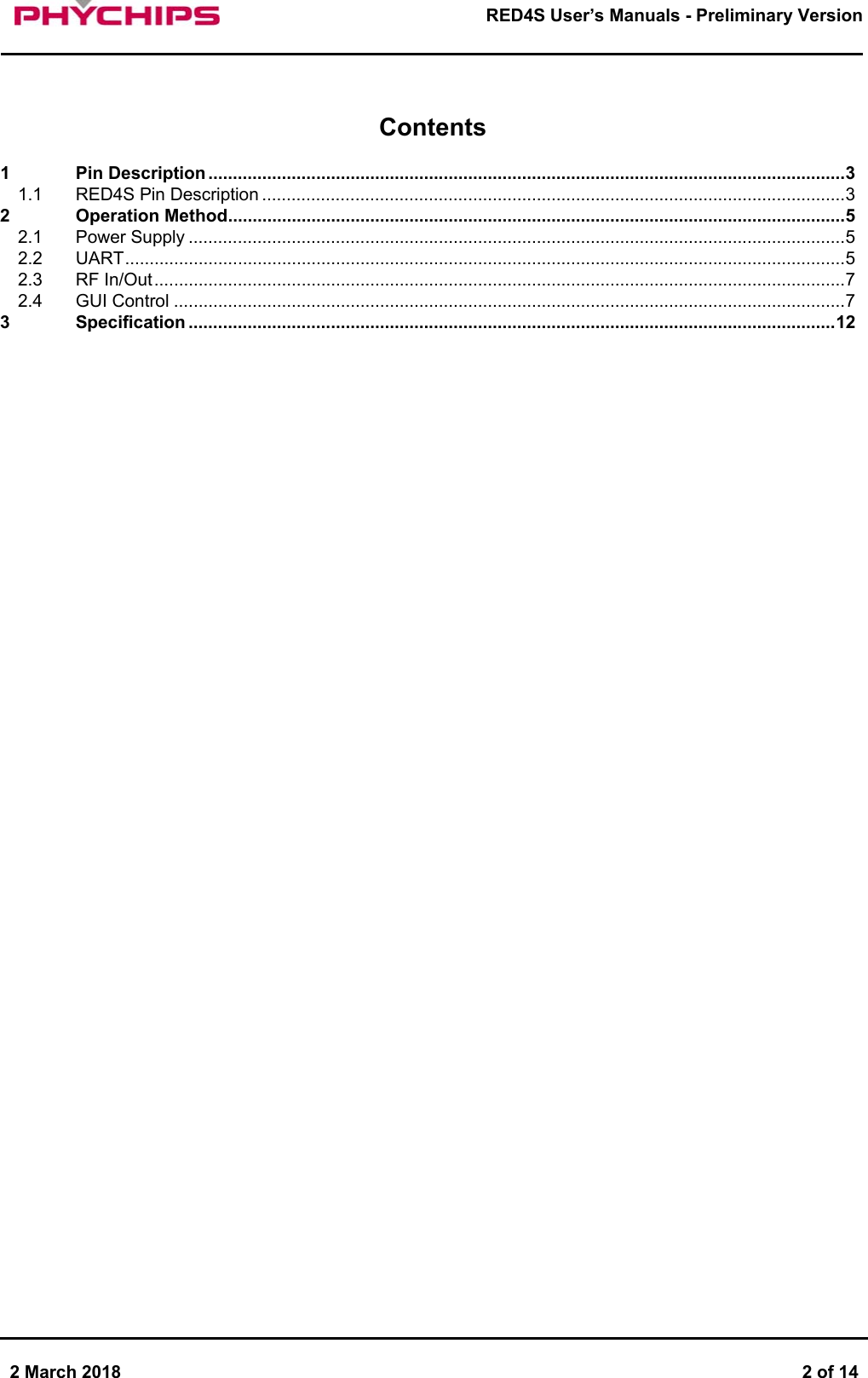

2 March 2018 2 of 14 RED4S User’s Manuals - Preliminary Version Contents1 Pin Description .................................................................................................................................. 3 1.1 RED4S Pin Description ....................................................................................................................... 3 2 Operation Method .............................................................................................................................. 5 2.1 Power Supply ...................................................................................................................................... 5 2.2 UART ................................................................................................................................................... 5 2.3 RF In/Out ............................................................................................................................................. 7 2.4 GUI Control ......................................................................................................................................... 7 3 Specification .................................................................................................................................... 12

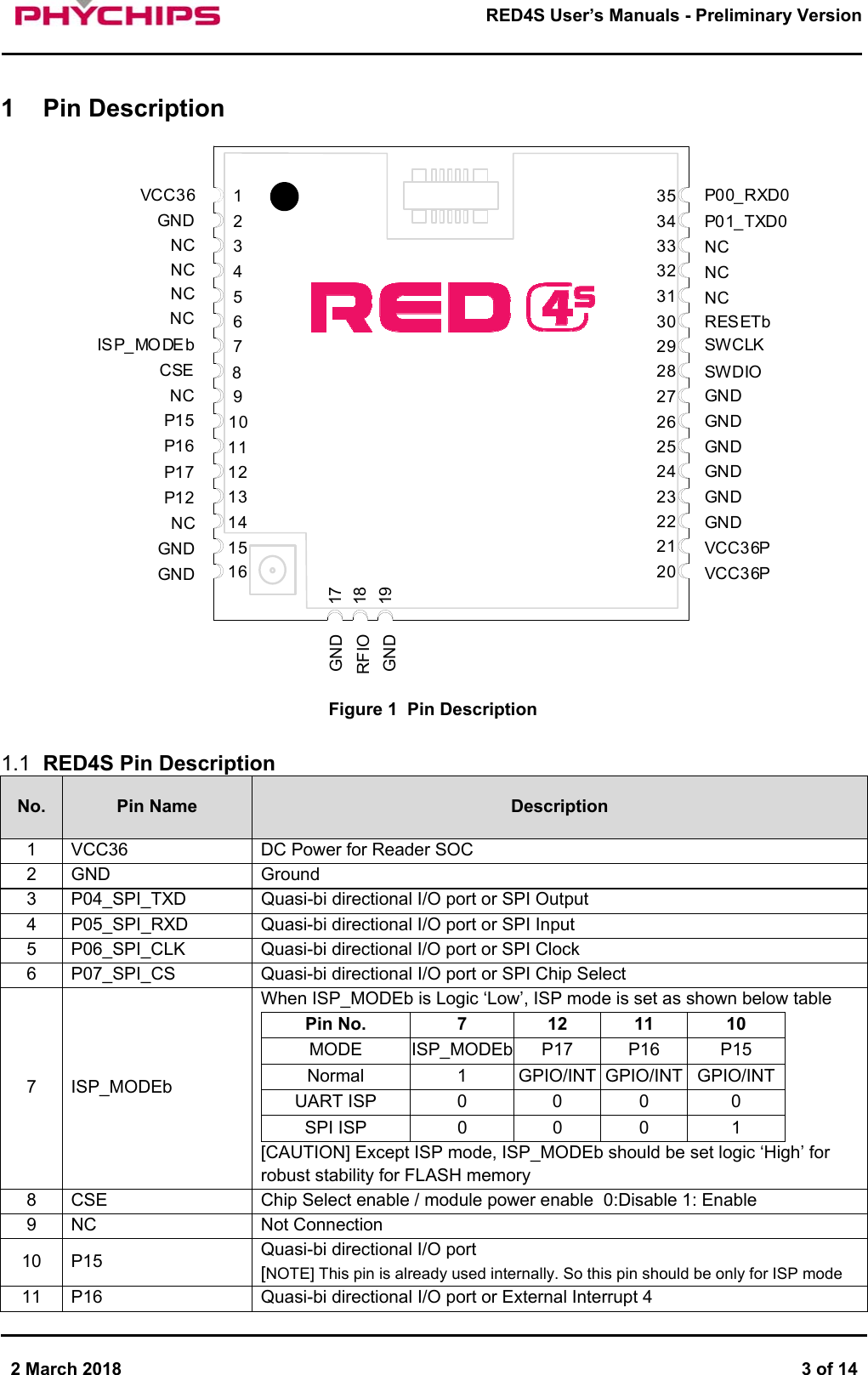

2 March 2018 3 of 14 RED4S User’s Manuals - Preliminary Version 1 Pin Description 171819VCC36GNDNCP01_TXD0NCNCNCNCIS P_MO DE bCSENCP15P16P17P12NCGNDGNDP00_RXD0NCNCRESETbSWCLKSWDIOGNDGNDGNDGNDGNDGNDVCC36PVCC36P20212223242526272829303132333435GNDRFIOGND12345678910111213151614 Figure 1 Pin Description 1.1 RED4S Pin Description No. Pin Name Description 1 VCC36 DC Power for Reader SOC 2 GND Ground 3 P04_SPI_TXD Quasi-bi directional I/O port or SPI Output 4 P05_SPI_RXD Quasi-bi directional I/O port or SPI Input 5 P06_SPI_CLK Quasi-bi directional I/O port or SPI Clock 6 P07_SPI_CS Quasi-bi directional I/O port or SPI Chip Select 7 ISP_MODEb When ISP_MODEb is Logic ‘Low’, ISP mode is set as shown below table Pin No. 7 12 11 10 MODE ISP_MODEb P17 P16 P15 Normal 1 GPIO/INT GPIO/INT GPIO/INT UART ISP 0 0 0 0 SPI ISP 0 0 0 1 [CAUTION] Except ISP mode, ISP_MODEb should be set logic ‘High’ for robust stability for FLASH memory 8 CSE Chip Select enable / module power enable 0:Disable 1: Enable 9 NC Not Connection 10 P15 Quasi-bi directional I/O port [NOTE] This pin is already used internally. So this pin should be only for ISP mode 11 P16 Quasi-bi directional I/O port or External Interrupt 4

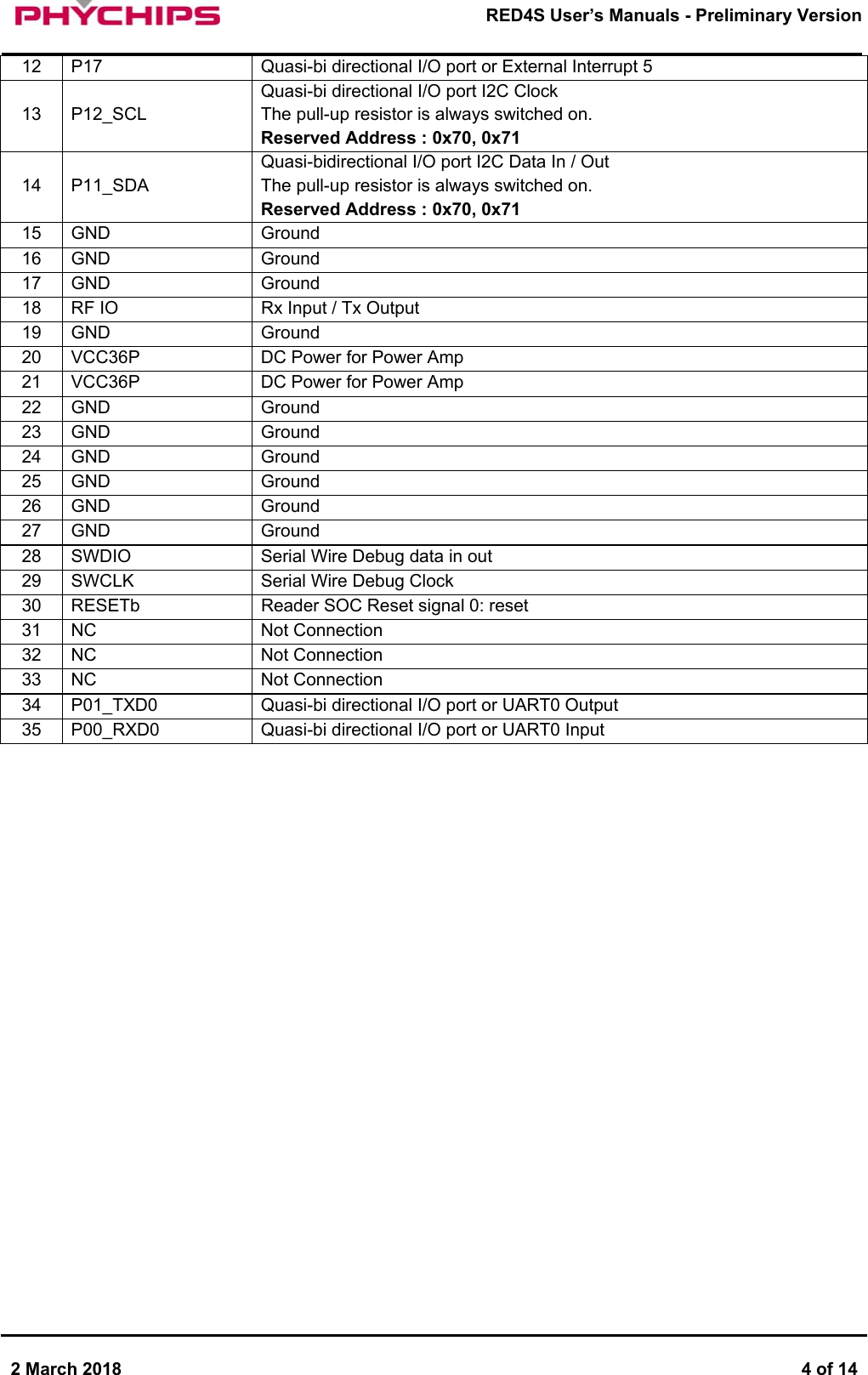

2 March 2018 4 of 14 RED4S User’s Manuals - Preliminary Version 12 P17 Quasi-bi directional I/O port or External Interrupt 5 13 P12_SCL Quasi-bi directional I/O port I2C Clock The pull-up resistor is always switched on. Reserved Address : 0x70, 0x71 14 P11_SDA Quasi-bidirectional I/O port I2C Data In / Out The pull-up resistor is always switched on. Reserved Address : 0x70, 0x71 15 GND Ground 16 GND Ground 17 GND Ground 18 RF IO Rx Input / Tx Output 19 GND Ground 20 VCC36P DC Power for Power Amp 21 VCC36P DC Power for Power Amp 22 GND Ground 23 GND Ground 24 GND Ground 25 GND Ground 26 GND Ground 27 GND Ground 28 SWDIO Serial Wire Debug data in out 29 SWCLK Serial Wire Debug Clock 30 RESETb Reader SOC Reset signal 0: reset 31 NC Not Connection 32 NC Not Connection 33 NC Not Connection 34 P01_TXD0 Quasi-bi directional I/O port or UART0 Output 35 P00_RXD0 Quasi-bi directional I/O port or UART0 Input

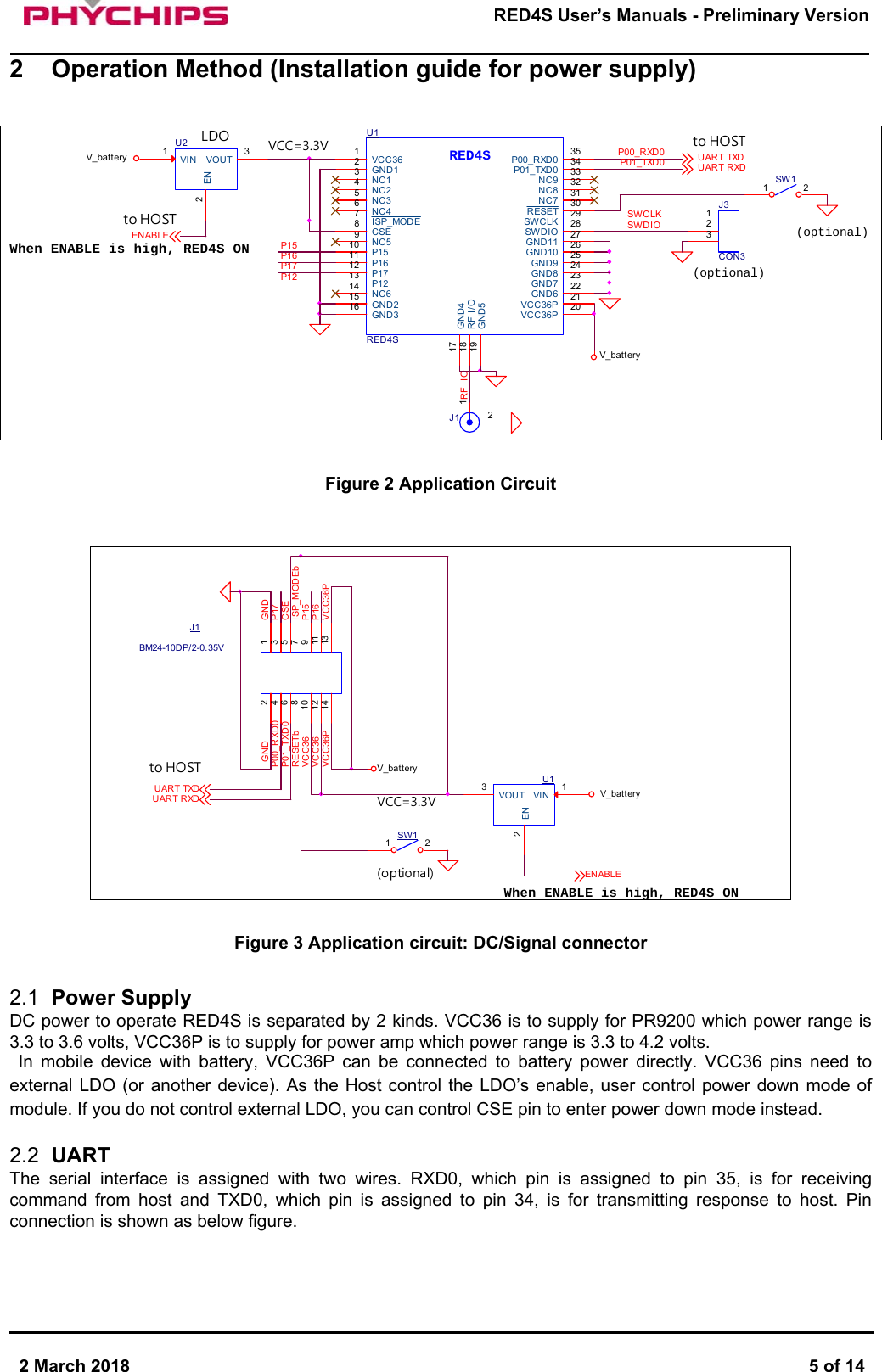

2 March 2018 5 of 14 RED4S User’s Manuals - Preliminary Version 2 Operation Method (Installation guide for power supply) to HOSTUART TXDUART RXDJ112J3CON3123(optional)U2VIN1EN2VOUT 3to HOSTVCC=3.3VLDOENABLEV_batteryV_batterySW11 2When ENABLE is high, RED4S ONRED4SU1RED4SVCC361GND12GND10 26GND9 25P00_RXD0 35P01_TXD0 34NC7 31NC13NC24NC35NC46NC59NC614 P1213NC9 33NC8 32GND215GND316GND417RF I/O18GND519VCC36P 20VCC36P 21GND6 22GND7 23P1510P1611ISP_MODE7P1712SWDIO 28SWCLK 29RESET 30CSE8GND11 27GND8 24RF_IOSWDIOSWCLKP00_RXD0P01_TXD0P16P12P15P17(optional) Figure 2 Application Circuit (optional)J1BM24-10DP/2-0.35V1234567891011121314P01_TXD0VCC36VCC36RESETbP00_RXD0ISP_MODEbCSEV_batteryVCC36PSW11 2U1VIN 1EN2VOUT3VCC=3.3VENABLEV_batteryWhen ENABLE is high, RED4S ONto HOSTUART RXDUART TXDP16P15P17GND GNDVCC36P Figure 3 Application circuit: DC/Signal connector 2.1 Power Supply DC power to operate RED4S is separated by 2 kinds. VCC36 is to supply for PR9200 which power range is 3.3 to 3.6 volts, VCC36P is to supply for power amp which power range is 3.3 to 4.2 volts. In mobile device with battery, VCC36P can be connected to battery power directly. VCC36 pins need to external LDO (or another device). As the Host control the LDO’s enable, user control power down mode of module. If you do not control external LDO, you can control CSE pin to enter power down mode instead. 2.2 UART The serial interface is assigned with two wires. RXD0, which pin is assigned to pin 35, is for receiving command from host and TXD0, which pin is assigned to pin 34, is for transmitting response to host. Pin connection is shown as below figure.

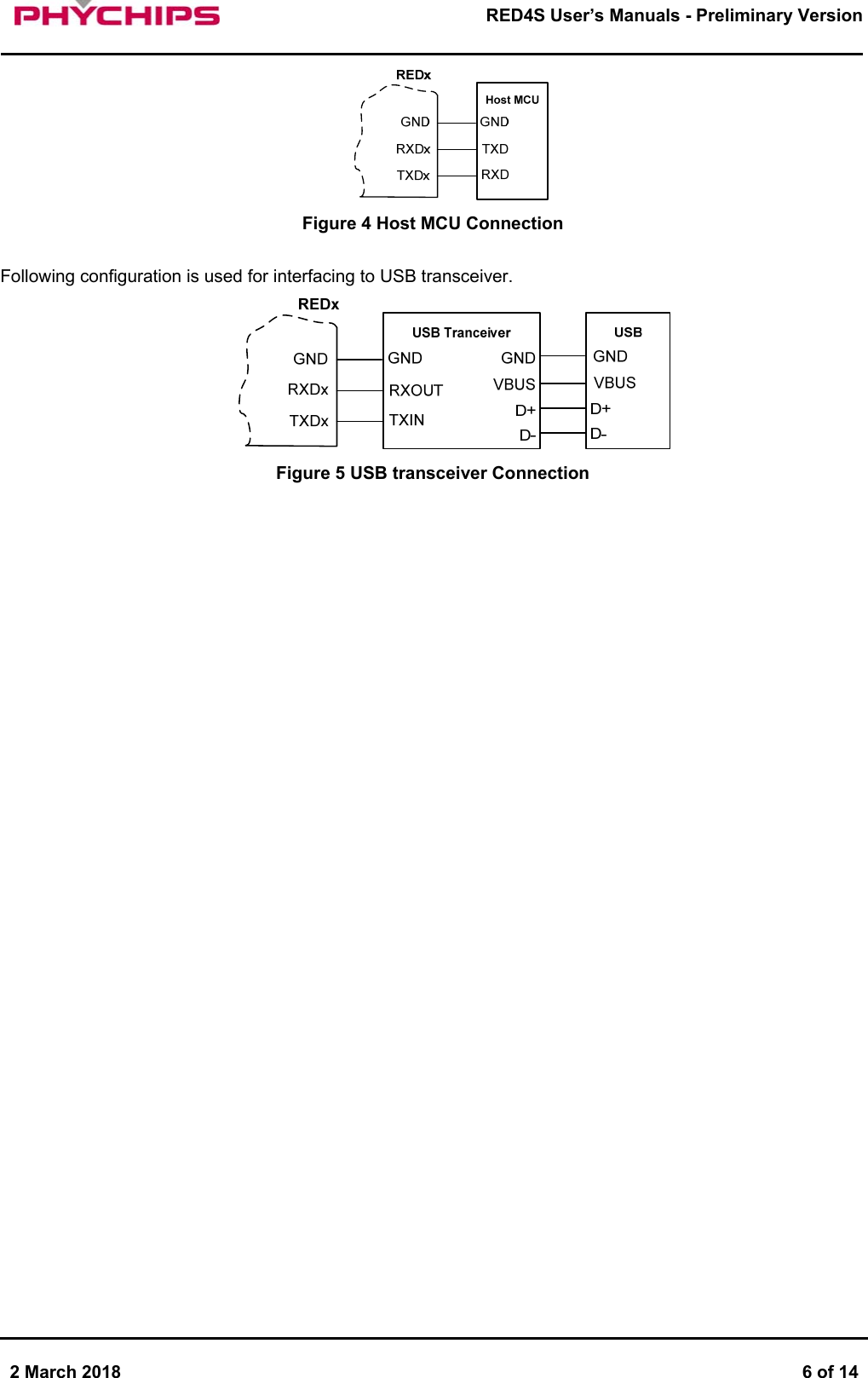

2 March 2018 6 of 14 RED4S User’s Manuals - Preliminary Version Figure 4 Host MCU Connection Following configuration is used for interfacing to USB transceiver. Figure 5 USB transceiver Connection

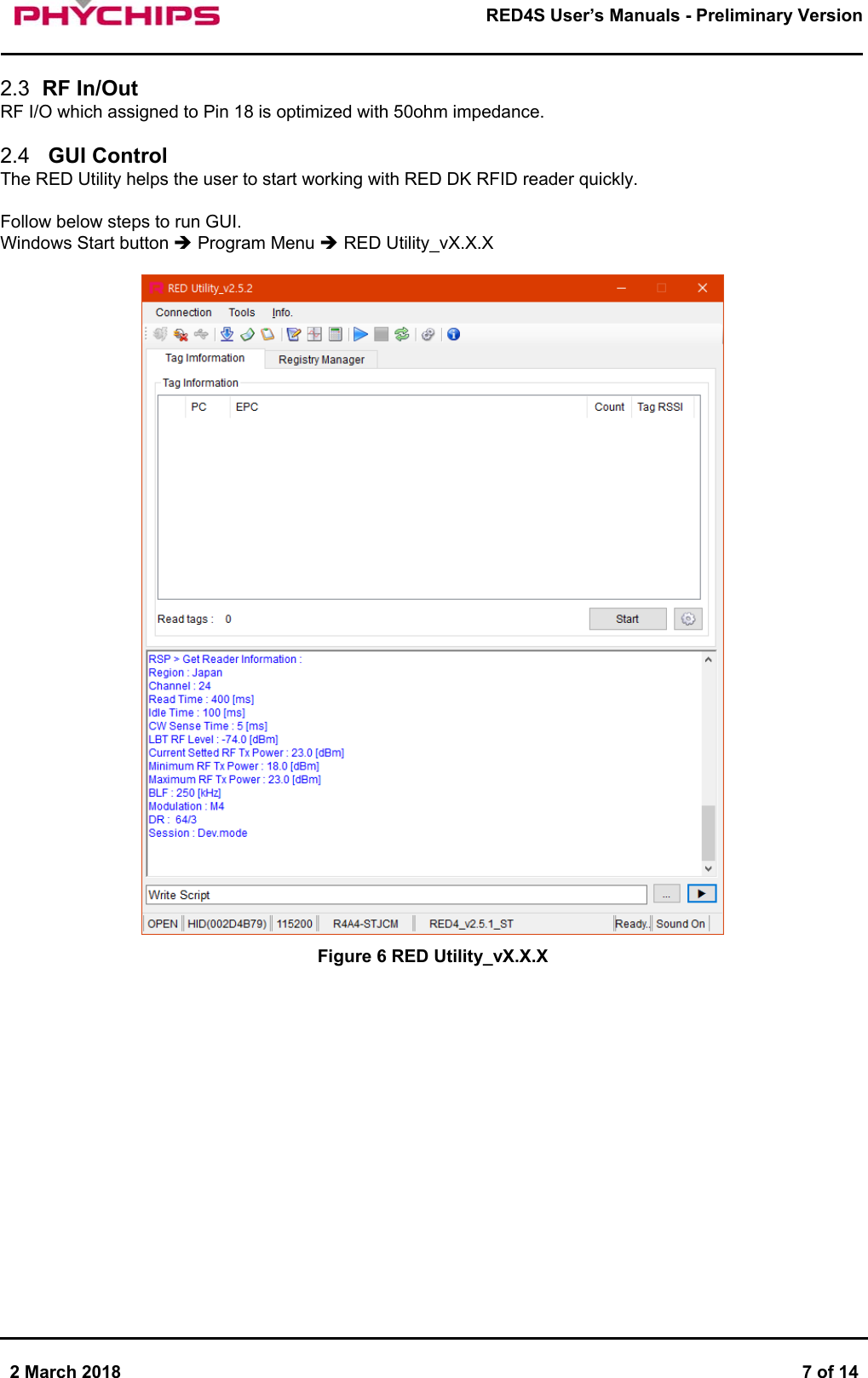

2 March 2018 7 of 14 RED4S User’s Manuals - Preliminary Version 2.3 RF In/Out RF I/O which assigned to Pin 18 is optimized with 50ohm impedance. 2.4 GUI Control The RED Utility helps the user to start working with RED DK RFID reader quickly. Follow below steps to run GUI. Windows Start button  Program Menu  RED Utility_vX.X.X Figure 6 RED Utility_vX.X.X

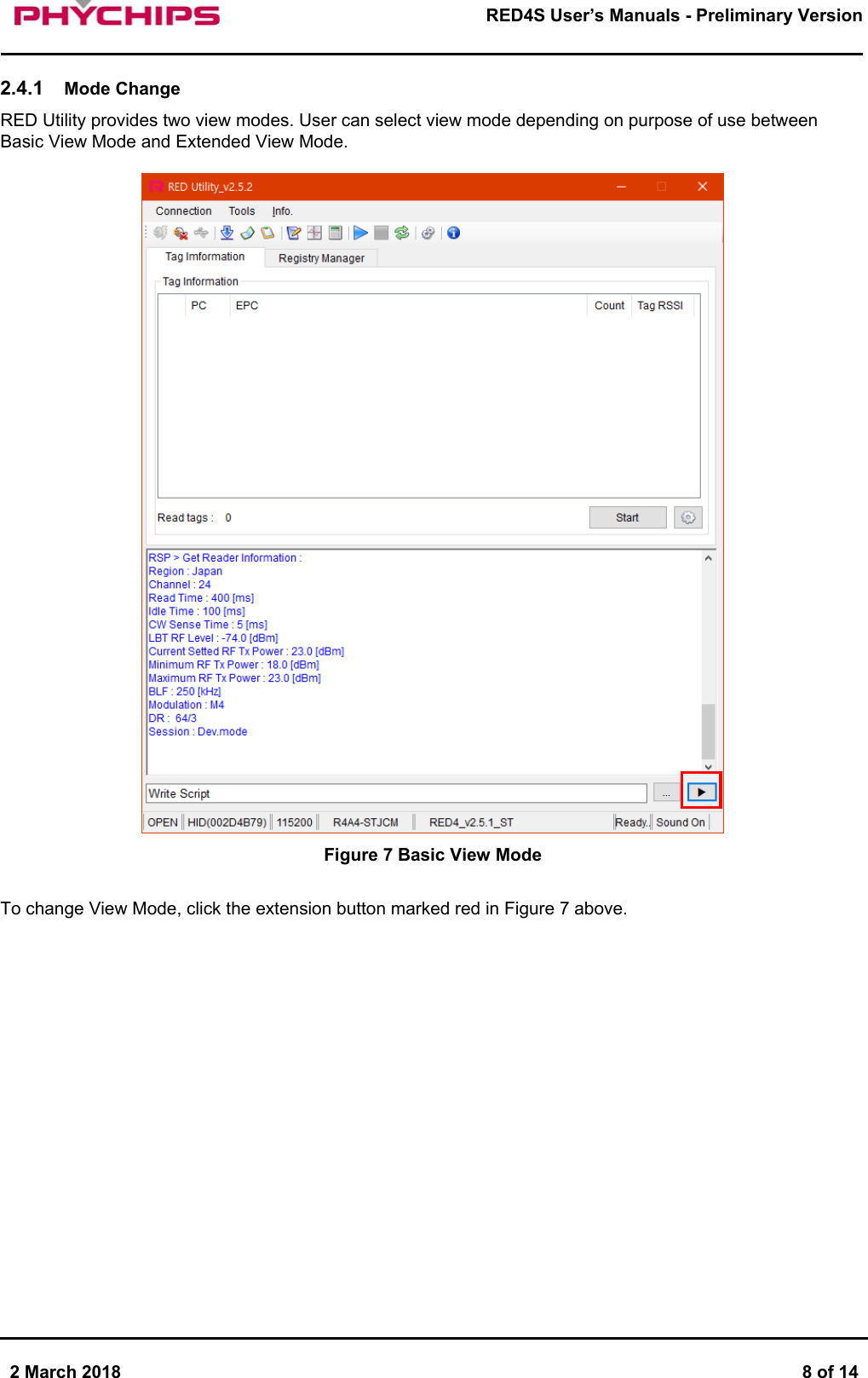

2 March 2018 8 of 14 RED4S User’s Manuals - Preliminary Version 2.4.1 Mode Change RED Utility provides two view modes. User can select view mode depending on purpose of use between Basic View Mode and Extended View Mode. Figure 7 Basic View Mode To change View Mode, click the extension button marked red in Figure 7 above.

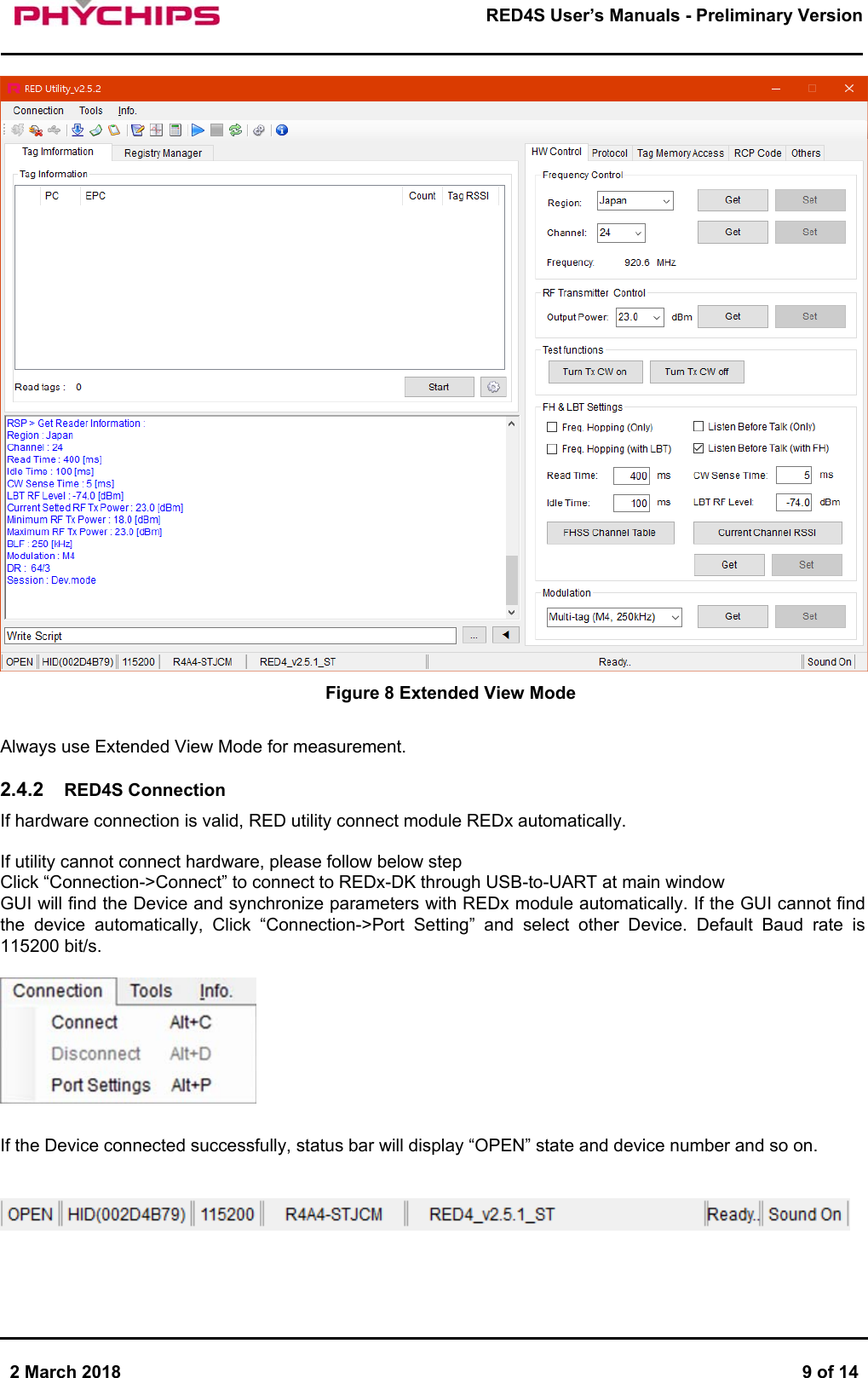

2 March 2018 9 of 14 RED4S User’s Manuals - Preliminary Version Figure 8 Extended View Mode Always use Extended View Mode for measurement. 2.4.2 RED4S Connection If hardware connection is valid, RED utility connect module REDx automatically. If utility cannot connect hardware, please follow below step Click “Connection->Connect” to connect to REDx-DK through USB-to-UART at main window GUI will find the Device and synchronize parameters with REDx module automatically. If the GUI cannot find the device automatically, Click “Connection->Port Setting” and select other Device. Default Baud rate is 115200 bit/s. If the Device connected successfully, status bar will display “OPEN” state and device number and so on.

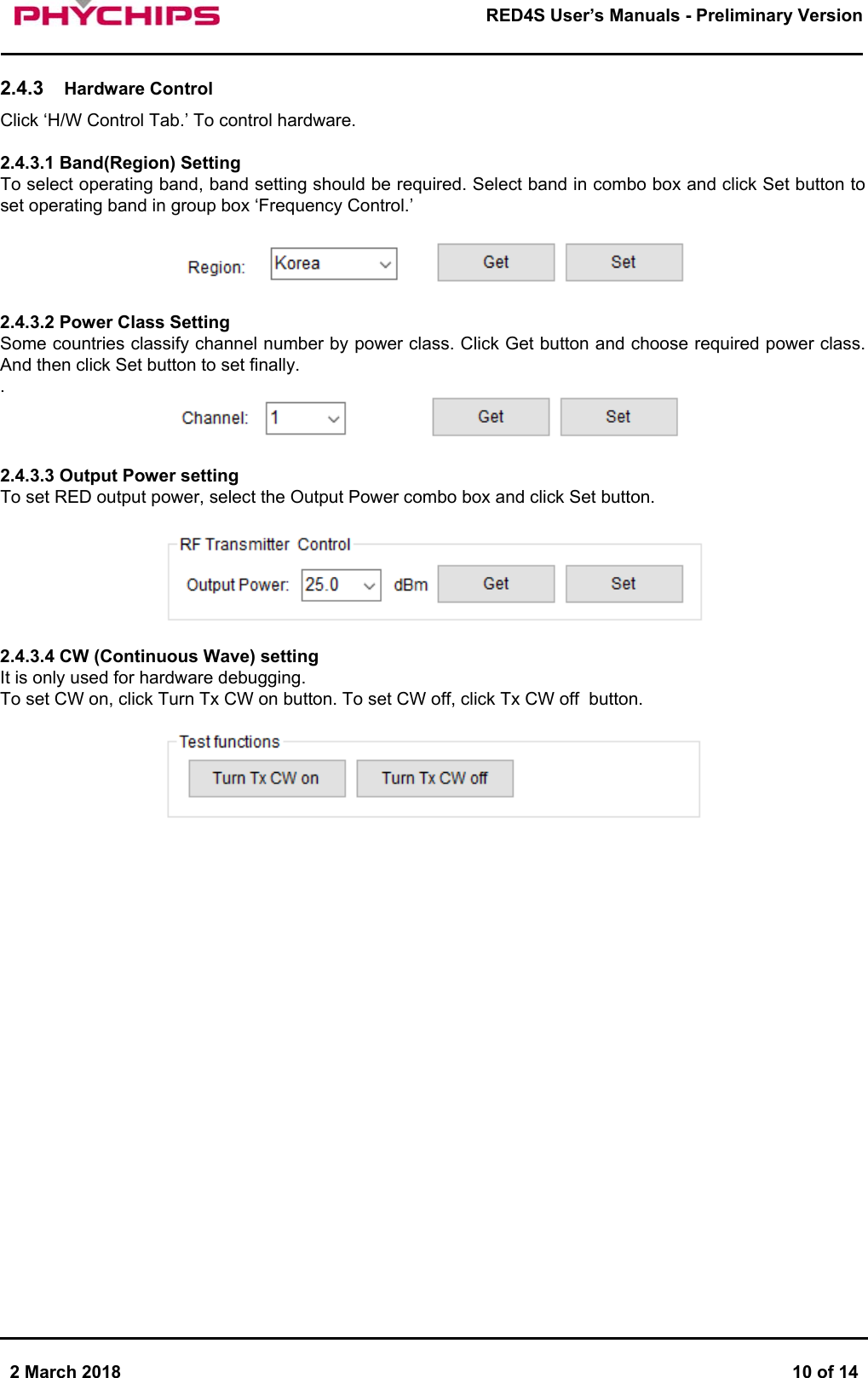

2 March 2018 10 of 14 RED4S User’s Manuals - Preliminary Version 2.4.3 Hardware Control Click ‘H/W Control Tab.’ To control hardware. 2.4.3.1 Band(Region) Setting To select operating band, band setting should be required. Select band in combo box and click Set button to set operating band in group box ‘Frequency Control.’ 2.4.3.2 Power Class Setting Some countries classify channel number by power class. Click Get button and choose required power class. And then click Set button to set finally. . 2.4.3.3 Output Power setting To set RED output power, select the Output Power combo box and click Set button. 2.4.3.4 CW (Continuous Wave) setting It is only used for hardware debugging. To set CW on, click Turn Tx CW on button. To set CW off, click Tx CW off button.
2 March 2018 11 of 14 RED4S User’s Manuals - Preliminary Version 2.4.4 Tag Inventory Procedure Click Start button in Tag Information Tab to read UHF RFID tag with RED Utility. Click Start button and Tag’s EPC information is displayed.

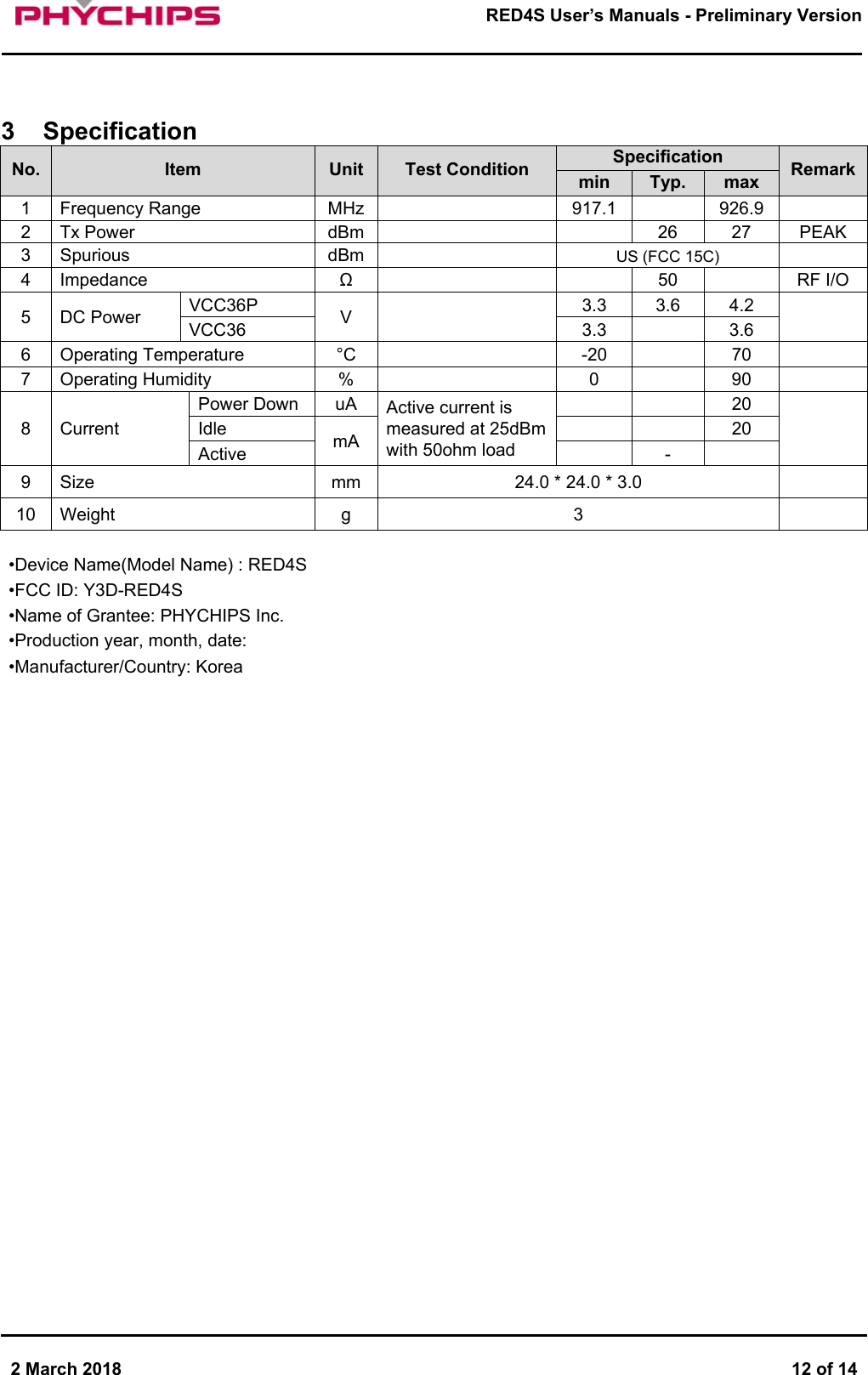

2 March 2018 12 of 14 RED4S User’s Manuals - Preliminary Version 3 Specification No. Item Unit Test Condition Specification Remark min Typ. max 1 Frequency Range MHz 917.1 926.9 2 Tx Power dBm 26 27 PEAK 3 Spurious dBm US (FCC 15C) 4 Impedance Ω 50 RF I/O 5 DC Power VCC36P V 3.3 3.6 4.2 VCC36 3.3 3.6 6 Operating Temperature °C -20 70 7 Operating Humidity % 0 90 8 Current Power Down uA Active current is measured at 25dBm with 50ohm load 20 Idle mA 20 Active - 9 Size mm 24.0 * 24.0 * 3.0 10 Weight g 3 •Device Name(Model Name) : RED4S •FCC ID: Y3D-RED4S •Name of Grantee: PHYCHIPS Inc. •Production year, month, date: •Manufacturer/Country: Korea

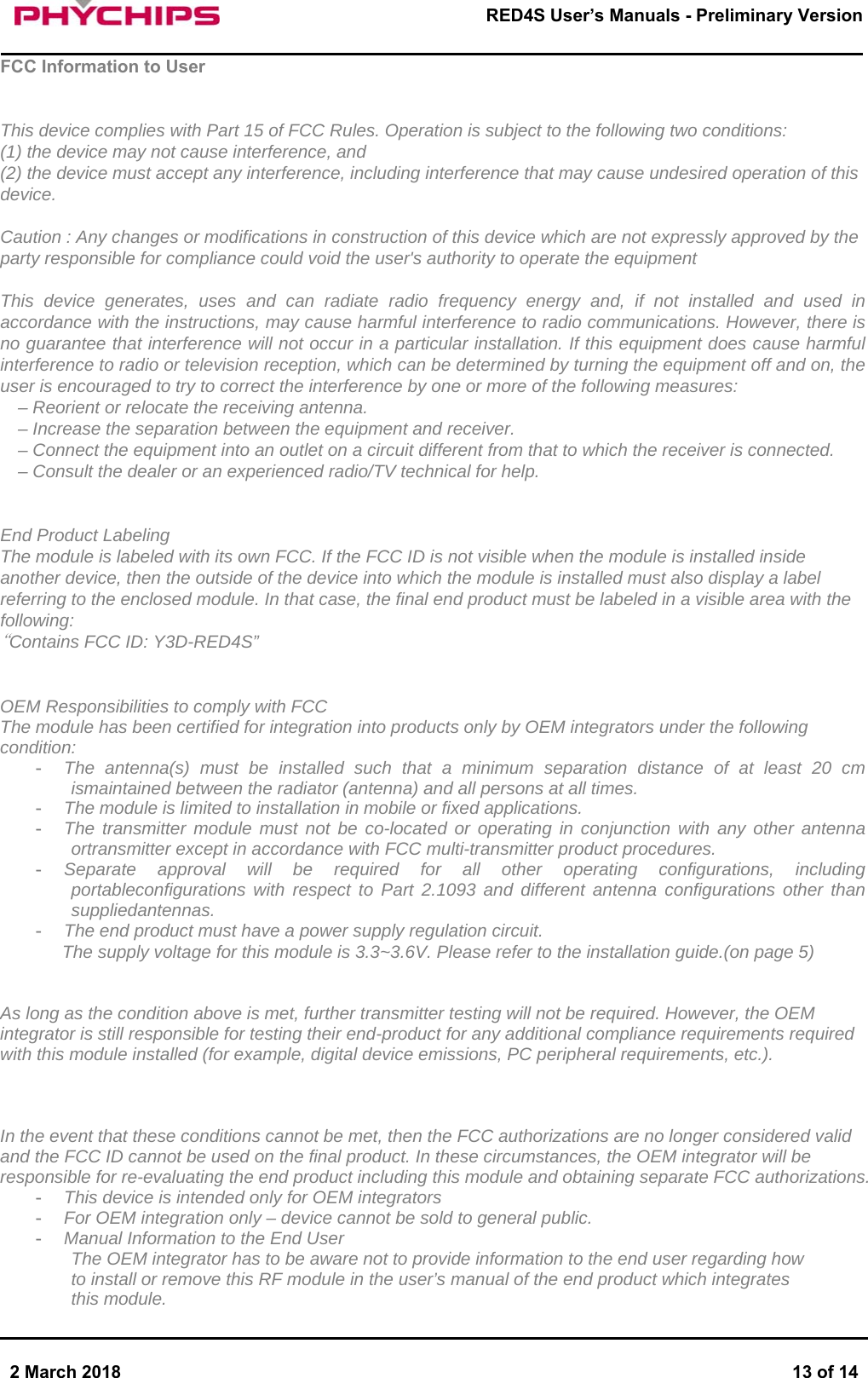

2 March 2018 13 of 14 RED4S User’s Manuals - Preliminary Version FCC Information to User This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause interference, and (2) the device must accept any interference, including interference that may cause undesired operation of this device. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technical for help. End Product Labeling The module is labeled with its own FCC. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the following: “Contains FCC ID: Y3D-RED4S” OEM Responsibilities to comply with FCC The module has been certified for integration into products only by OEM integrators under the following condition: - The antenna(s) must be installed such that a minimum separation distance of at least 20 cm ismaintained between the radiator (antenna) and all persons at all times. - The module is limited to installation in mobile or fixed applications. - The transmitter module must not be co-located or operating in conjunction with any other antenna ortransmitter except in accordance with FCC multi-transmitter product procedures. - Separate approval will be required for all other operating configurations, including portableconfigurations with respect to Part 2.1093 and different antenna configurations other than suppliedantennas. - The end product must have a power supply regulation circuit. The supply voltage for this module is 3.3~3.6V. Please refer to the installation guide.(on page 5) As long as the condition above is met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). In the event that these conditions cannot be met, then the FCC authorizations are no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product including this module and obtaining separate FCC authorizations. - This device is intended only for OEM integrators - For OEM integration only – device cannot be sold to general public. - Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module.

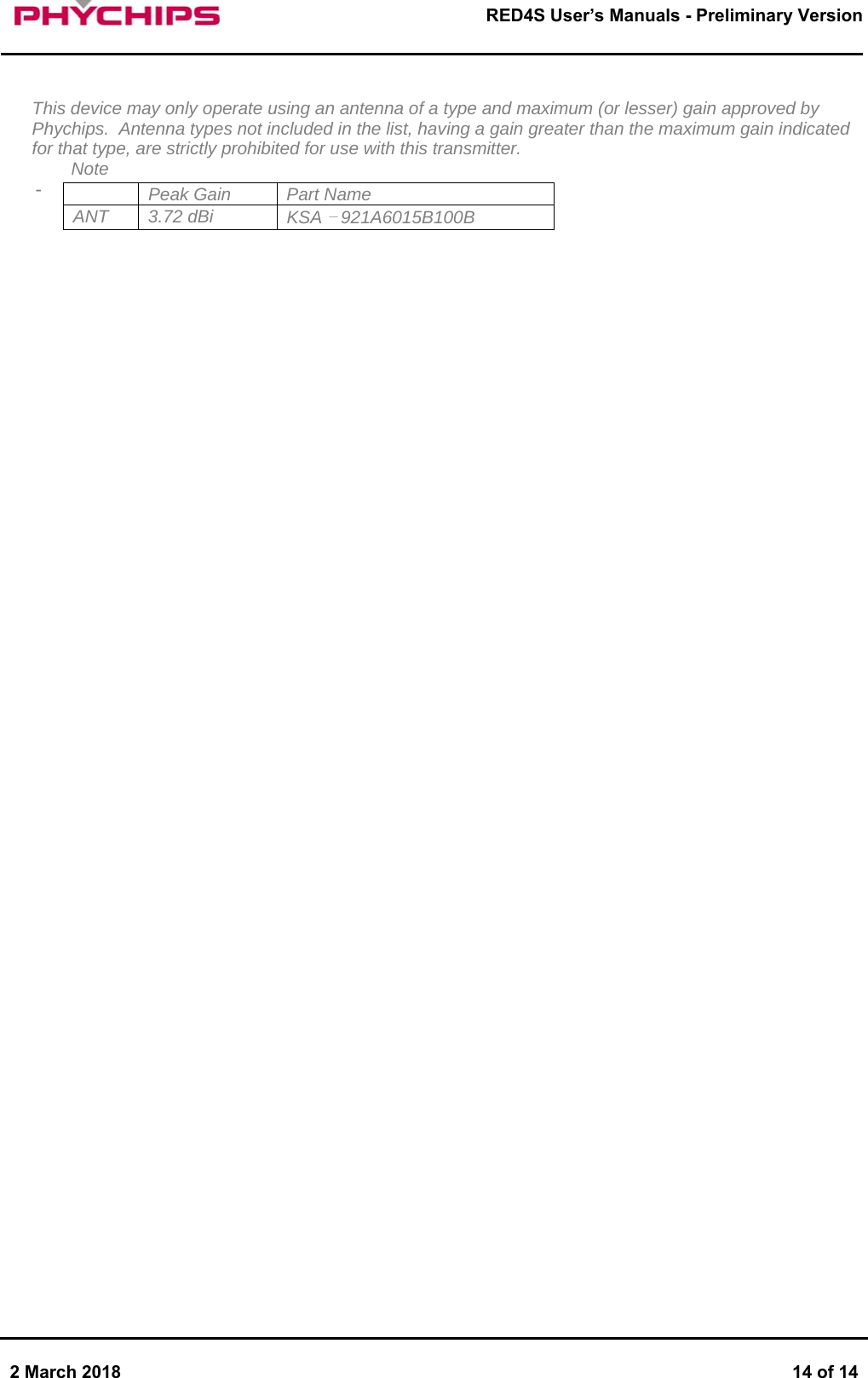

2 March 2018 14 of 14 RED4S User’s Manuals - Preliminary Version This device may only operate using an antenna of a type and maximum (or lesser) gain approved by Phychips. Antenna types not included in the list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this transmitter. Note - Peak Gain Part Name ANT 3.72 dBi KSA – 921A6015B100B
