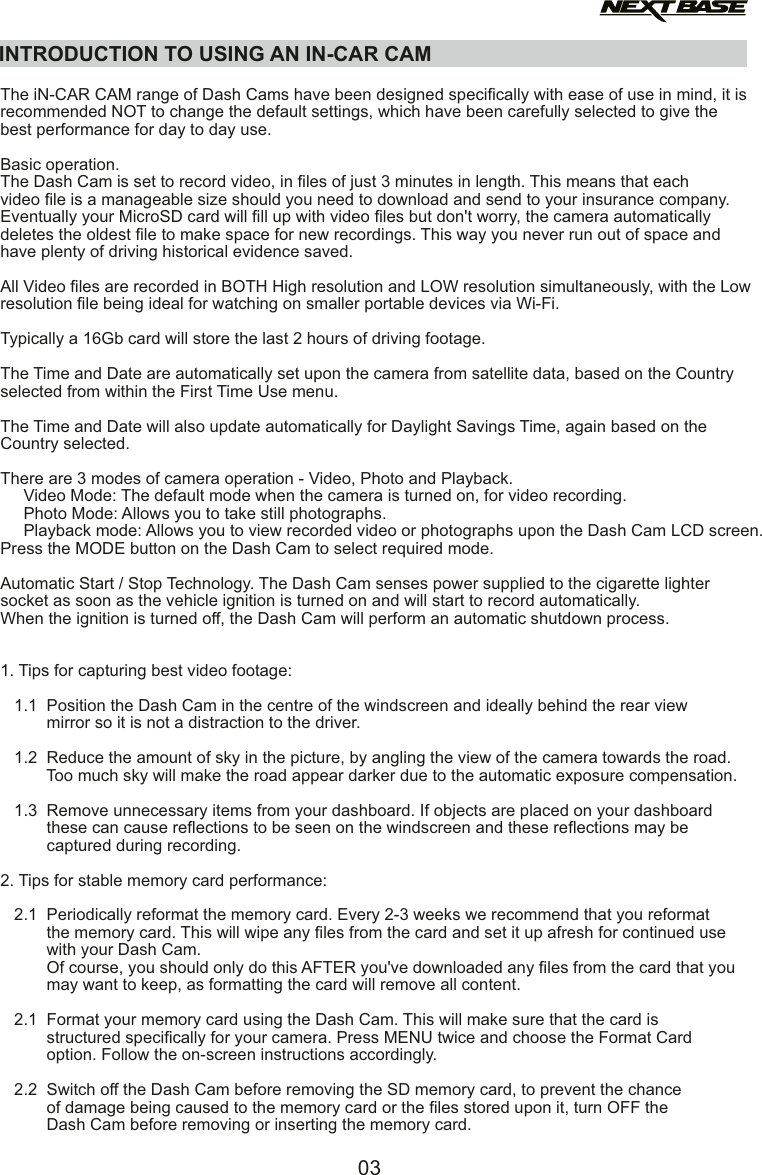

INTRODUCTION TO USING AN IN-CAR CAM03 The iN-CAR CAM range of Dash Cams have been designed specifically with ease of use in mind, it is recommended NOT to change the default settings, which have been carefully selected to give the best performance for day to day use.Basic operation.The Dash Cam is set to record video, in files of just 3 minutes in length. This means that each video file is a manageable size should you need to download and send to your insurance company. Eventually your MicroSD card will fill up with video files but don't worry, the camera automatically deletes the oldest file to make space for new recordings. This way you never run out of space and have plenty of driving historical evidence saved. All Video files are recorded in BOTH High resolution and LOW resolution simultaneously, with the Lowresolution file being ideal for watching on smaller portable devices via Wi-Fi.Typically a 16Gb card will store the last 2 hours of driving footage.The Time and Date are automatically set upon the camera from satellite data, based on the Countryselected from within the First Time Use menu.The Time and Date will also update automatically for Daylight Savings Time, again based on the Country selected.There are 3 modes of camera operation - Video, Photo and Playback. Video Mode: The default mode when the camera is turned on, for video recording. Photo Mode: Allows you to take still photographs. Playback mode: Allows you to view recorded video or photographs upon the Dash Cam LCD screen.Press the MODE button on the Dash Cam to select required mode.Automatic Start / Stop Technology. The Dash Cam senses power supplied to the cigarette lighter socket as soon as the vehicle ignition is turned on and will start to record automatically.When the ignition is turned off, the Dash Cam will perform an automatic shutdown process.1. Tips for capturing best video footage: 1.1 Position the Dash Cam in the centre of the windscreen and ideally behind the rear view mirror so it is not a distraction to the driver. 1.2 Reduce the amount of sky in the picture, by angling the view of the camera towards the road. Too much sky will make the road appear darker due to the automatic exposure compensation. 1.3 Remove unnecessary items from your dashboard. If objects are placed on your dashboard these can cause reflections to be seen on the windscreen and these reflections may be captured during recording.2. Tips for stable memory card performance: 2.1 Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat the memory card. This will wipe any files from the card and set it up afresh for continued use with your Dash Cam. Of course, you should only do this AFTER you've downloaded any files from the card that you may want to keep, as formatting the card will remove all content. 2.1 Format your memory card using the Dash Cam. This will make sure that the card is structured specifically for your camera. Press MENU twice and choose the Format Card option. Follow the on-screen instructions accordingly. 2.2 Switch off the Dash Cam before removing the SD memory card, to prevent the chance of damage being caused to the memory card or the files stored upon it, turn OFF the Dash Cam before removing or inserting the memory card.

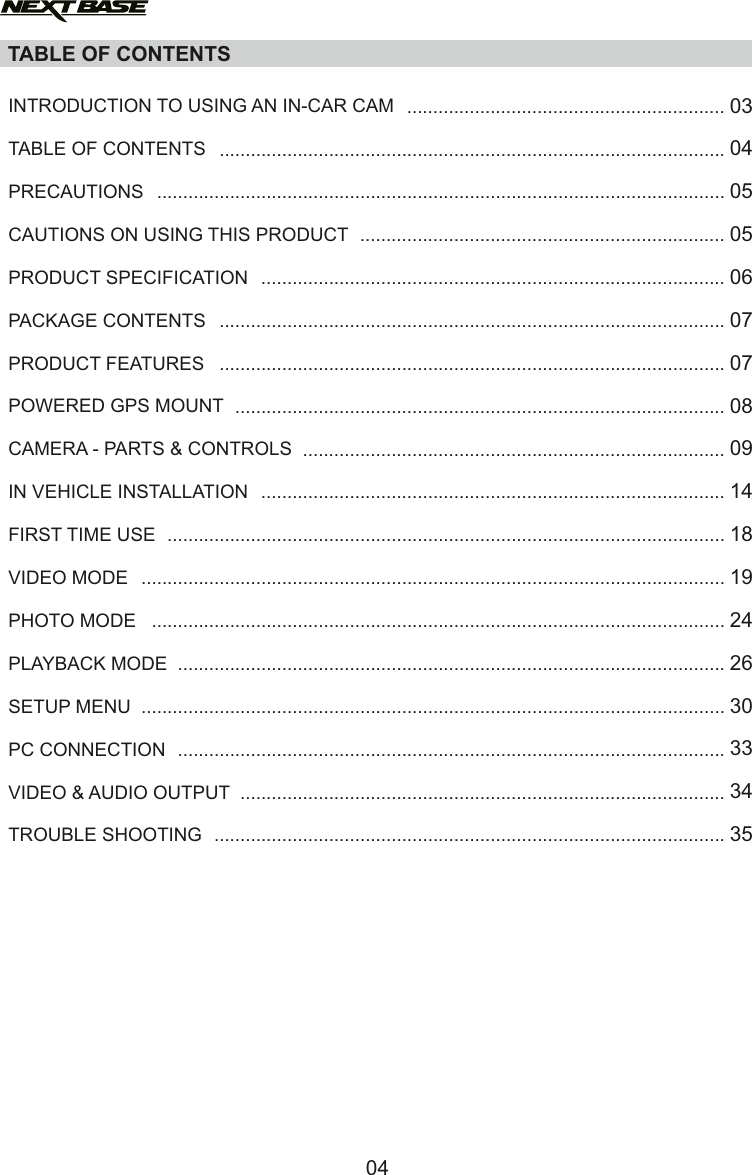

TABLE OF CONTENTSINTRODUCTION TO USING AN IN-CAR CAMTABLE OF CONTENTSPRECAUTIONSCAUTIONS ON USING THIS PRODUCTPRODUCT SPECIFICATIONPACKAGE CONTENTSPRODUCT FEATURESPOWERED GPS MOUNTCAMERA - PARTS & CONTROLSIN VEHICLE INSTALLATIONFIRST TIME USEVIDEO MODEPHOTO MODEPLAYBACK MODESETUP MENUPC CONNECTIONVIDEO & AUDIO OUTPUTTROUBLE SHOOTING..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................03040505060707080914181924263033343504

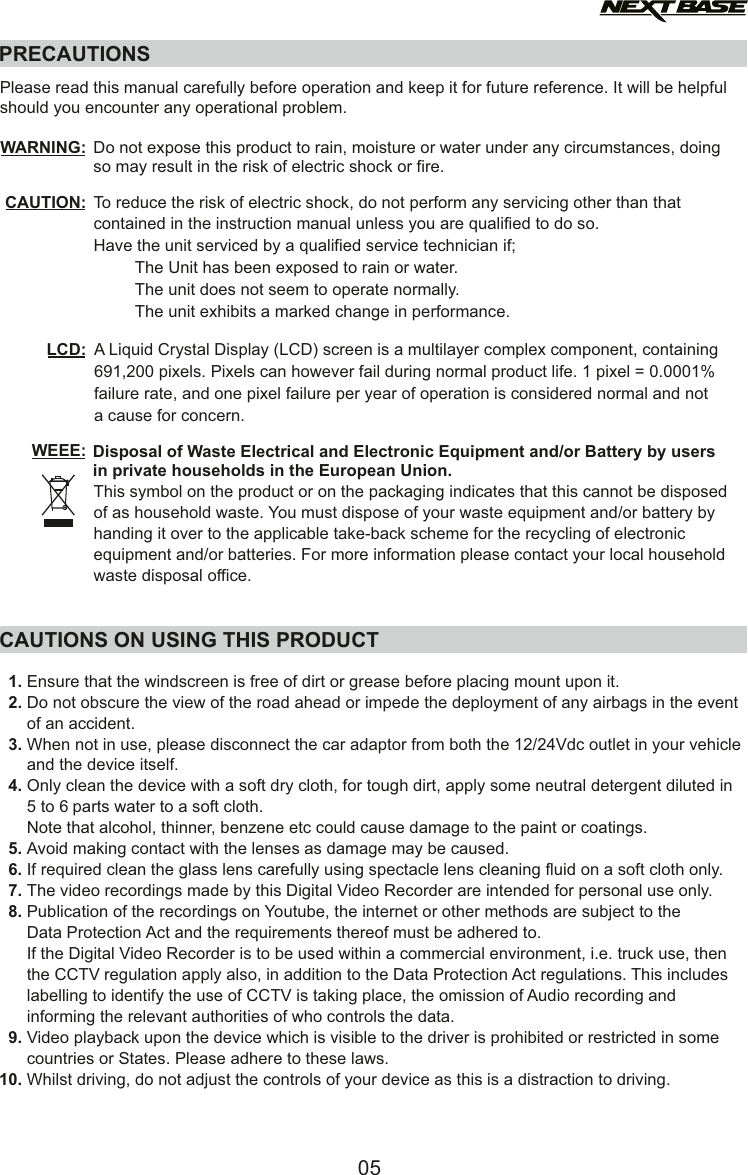

PRECAUTIONSCAUTION:LCD:WEEE: Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.This symbol on the product or on the packaging indicates that this cannot be disposed of as household waste. You must dispose of your waste equipment and/or battery by handing it over to the applicable take-back scheme for the recycling of electronic equipment and/or batteries. For more information please contact your local household waste disposal office.A Liquid Crystal Display (LCD) screen is a multilayer complex component, containing 691,200 pixels. Pixels can however fail during normal product life. 1 pixel = 0.0001% failure rate, and one pixel failure per year of operation is considered normal and not a cause for concern.To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so.Have the unit serviced by a qualified service technician if; The Unit has been exposed to rain or water. The unit does not seem to operate normally. The unit exhibits a marked change in performance.WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire.Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. 1. Ensure that the windscreen is free of dirt or grease before placing mount upon it.Do not obscure the view of the road ahead or impede the deployment of any airbags in the event 2. of an accident.When not in use, please disconnect the car adaptor from both the 12/24Vdc outlet in your vehicle 3. and the device itself. 4. Only clean the device with a soft dry cloth, for tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth. Note that alcohol, thinner, benzene etc could cause damage to the paint or coatings. Avoid making contact with the len s as damage be caused. 5. se may If required clean the glass lens carefully using spectacle lens cleaning fluid on a soft cloth only. 6. The video recordings made by this Digital Video Recorder are intended for personal use only. 7. Publication of the recordings on Youtube, the internet or other methods are subject to the 8. Data Protection Act and the requirements thereof must be adhered to.If the Digital Video Recorder is to be used within a commercial environment, i.e. truck use, then the CCTV regulation apply also, in addition to the Data Protection Act regulations. This includes olabelling to identify the use f CCTV is taking place, the omission of Audio recording and he relevant informing t authorities of who controls the data.Video playback upon the device which is visible to the driver is prohibited or restricted in some 9. countries or States. Please adhere to these laws.Whilst driving, do not adjust the controls of your device as this is a distraction to driving. 10. CAUTIONS ON USING THIS PRODUCT05

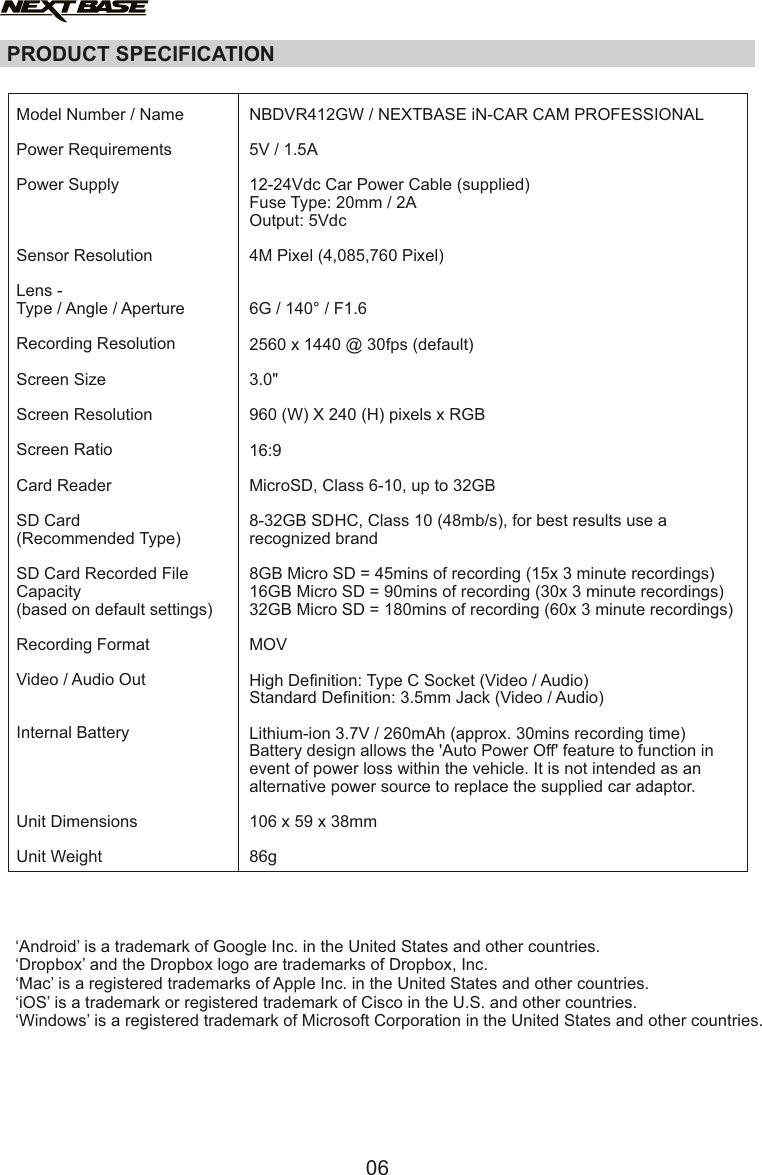

Model Number / NamePower RequirementsPower SupplySensor ResolutionLens -Type / Angle / ApertureRecording ResolutionScreen SizeScreen ResolutionScreen RatioCard ReaderSD Card(Recommended Type)SD Card Recorded FileCapacity(based on default settings)Recording FormatVideo / Audio OutInternal BatteryUnit DimensionsUnit WeightNBDVR412GW / NEXTBASE iN-CAR CAM PROFESSIONAL5V / 1.5A12-24Vdc Car Power Cable (supplied)Fuse Type: 20mm / 2AOutput: 5Vdc4M Pixel (4,085,760 Pixel)6G / 140° / F1.62560 x 1440 @ 30fps (default)3.0"960 (W) X 240 (H) pixels x RGB16:9MicroSD, Class 6-10, up to 32GB8-32GB SDHC, Class 10 (48mb/s), for best results use a recognized brand 8GB Micro SD = 45mins of recording (15x 3 minute recordings)16GB Micro SD = 90mins of recording (30x 3 minute recordings)32GB Micro SD = 180mins of recording (60x 3 minute recordings)MOVHigh Definition: Type C Socket (Video / Audio)Standard Definition: 3.5mm Jack (Video / Audio)Lithium-ion 3.7V / 260mAh (approx. 30mins recording time)Battery design allows the 'Auto Power Off' feature to function in event of power loss within the vehicle. It is not intended as an alternative power source to replace the supplied car adaptor.106 x 59 x 38mm86gPRODUCT SPECIFICATION‘Android’ is a trademark of Google Inc. in the United States and other countries.‘Dropbox’ and the Dropbox logo are trademarks of Dropbox, Inc.‘Mac’ is a registered trademarks of Apple Inc. in the United States and other countries.‘iOS’ is a trademark or registered trademark of Cisco in the U.S. and other countries.‘Windows’ is a registered trademark of Microsoft Corporation in the United States and other countries.06

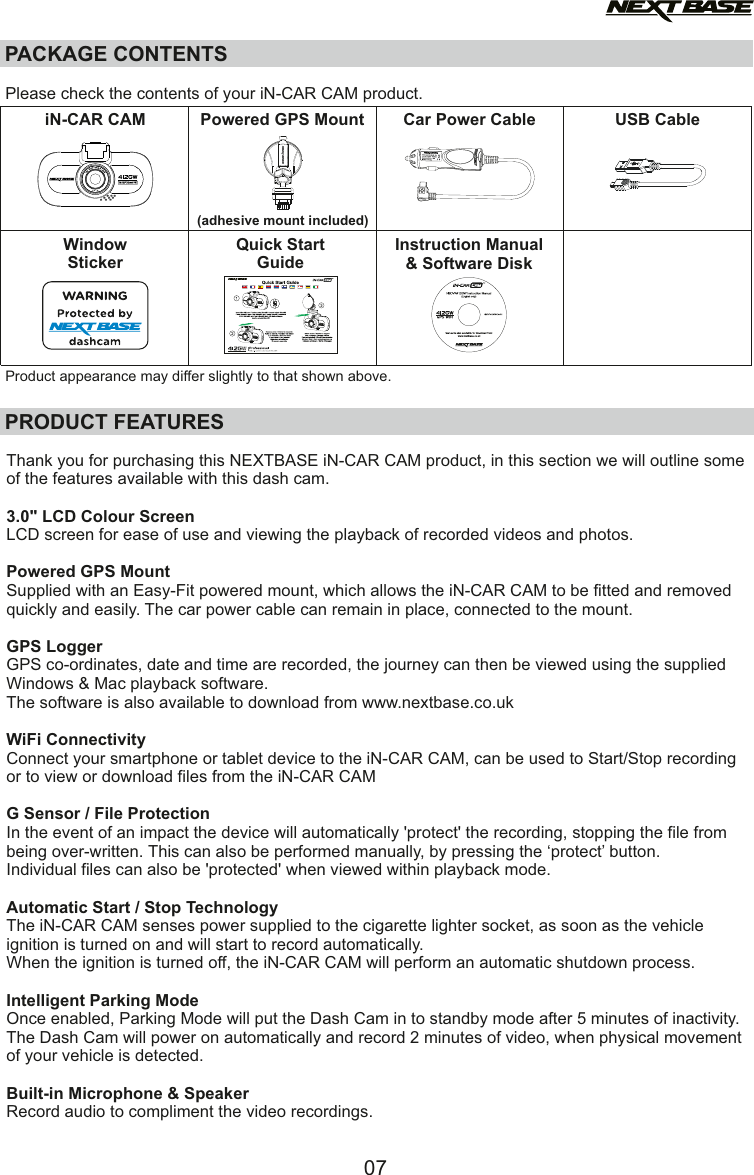

PACKAGE CONTENTSiN-CAR CAM Powered GPS Mount Car Power Cable USB CablePRODUCT FEATURESInstruction Manual& Software DiskQuick StartGuidePlease check the contents of your iN-CAR CAM product.Product appearance may differ slightly to that shown above.WindowStickerThank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some of the features available with this dash cam.3.0" LCD Colour ScreenLCD screen for ease of use and viewing the playback of recorded videos and photos.Powered GPS MountSupplied with an Easy-Fit powered mount, which allows the iN-CAR CAM to be fitted and removedquickly and easily. The car power cable can remain in place, connected to the mount.GPS LoggerGPS co-ordinates, date and time are recorded, the journey can then be viewed using the suppliedWindows & Mac playback software. The software is also available to download from www.nextbase.co.ukWiFi ConnectivityConnect your smartphone or tablet device to the iN-CAR CAM, can be used to Start/Stop recording or to view or download files from the iN-CAR CAMG Sensor / File ProtectionIn the event of an impact the device will automatically 'protect' the recording, stopping the file from being over-written. This can also be performed manually, by pressing the ‘protect’ button.Individual files can also be 'protected' when viewed within playback mode.Automatic Start / Stop TechnologyThe iN-CAR CAM senses power supplied to the cigarette lighter socket, as soon as the vehicleignition is turned on and will start to record automatically.When the ignition is turned off, the iN-CAR CAM will perform an automatic shutdown process.Intelligent Parking ModeOnce enabled, Parking Mode will put the Dash Cam in to standby mode after 5 minutes of inactivity.The Dash Cam will power on automatically and record 2 minutes of video, when physical movement of your vehicle is detected. Built-in Microphone & SpeakerRecord audio to compliment the video recordings.07(adhesive mount included)

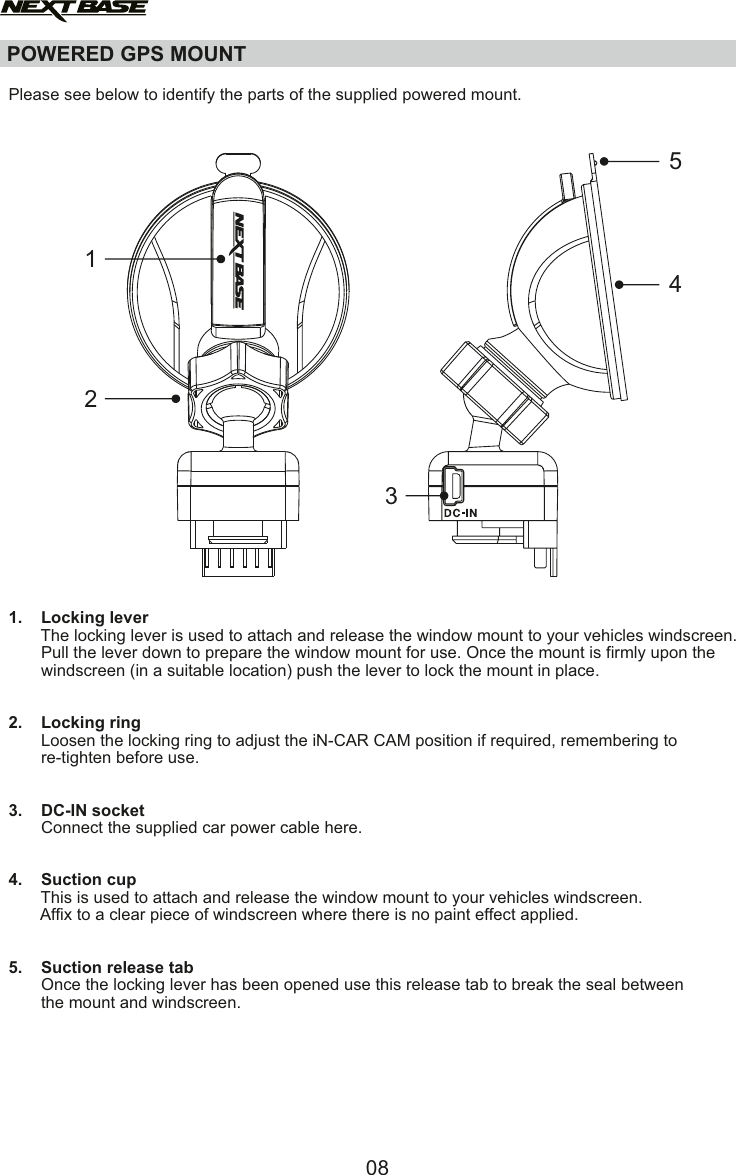

POWERED GPS MOUNT Please see below to identify the parts of the supplied powered mount.1. Locking lever The locking lever is used to attach and release the window mount to your vehicles windscreen. Pull the lever down to prepare the window mount for use. Once the mount is firmly upon the windscreen (in a suitable location) push the lever to lock the mount in place.2. Locking ring Loosen the locking ring to adjust the iN-CAR CAM position if required, remembering to re-tighten before use.3. DC-IN socket Connect the supplied car power cable here. 4. Suction cup This is used to attach and release the window mount to your vehicles windscreen. Affix to a clear piece of windscreen where there is no paint effect applied.5. Suction release tab Once the locking lever has been opened use this release tab to break the seal between the mount and windscreen.4513208

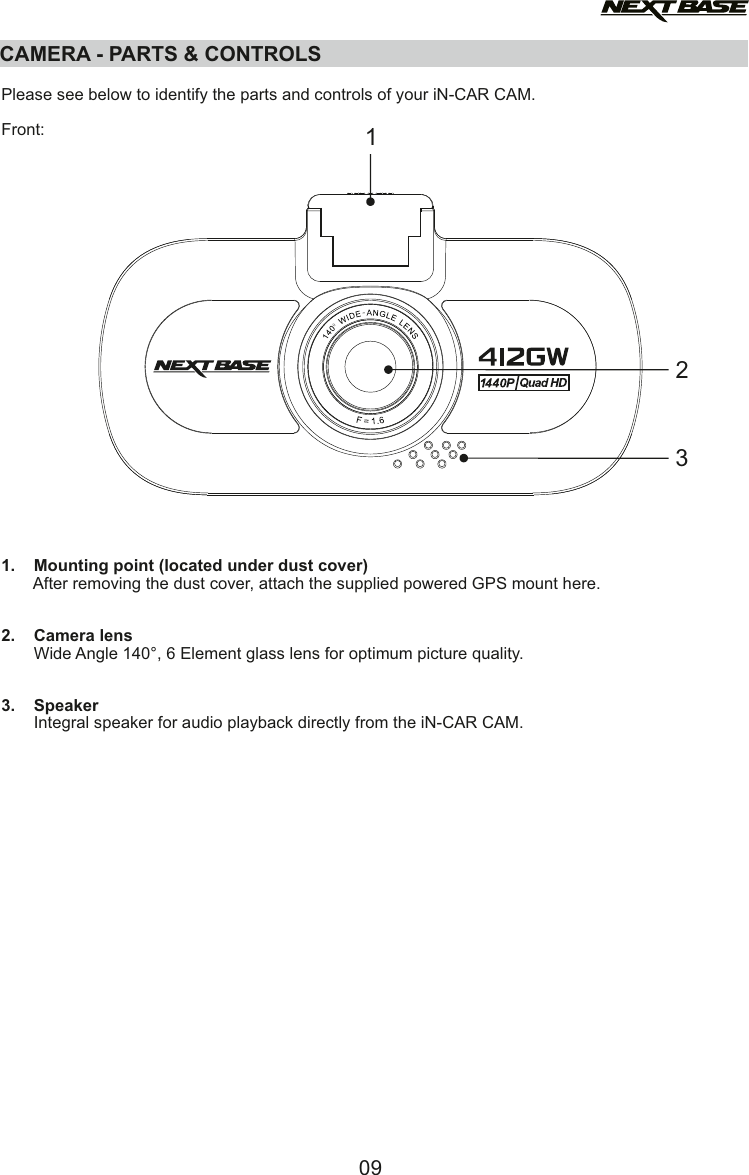

CAMERA - PARTS & CONTROLS Please see below to identify the parts and controls of your iN-CAR CAM.Front:1. Mounting point (located under dust cover) After removing the dust cover, attach the supplied powered GPS mount here.2. Camera lens Wide Angle 140°, 6 Element glass lens for optimum picture quality.3. Speaker Integral speaker for audio playback directly from the iN-CAR CAM.12309

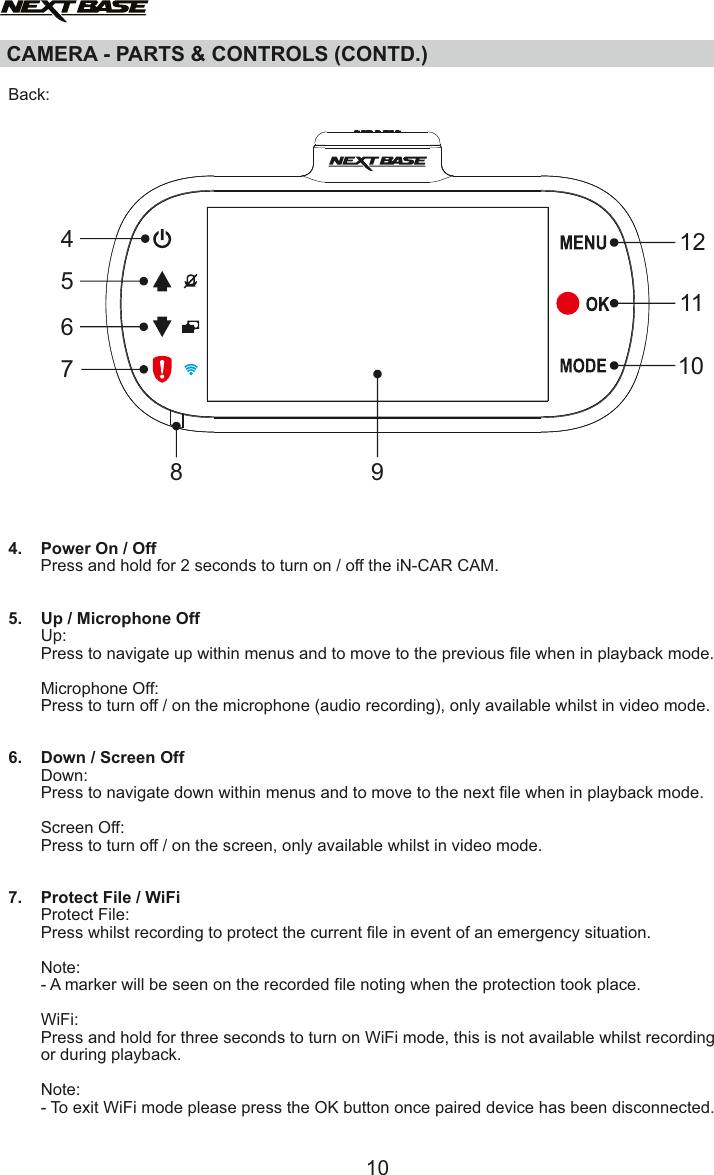

CAMERA - PARTS & CONTROLS (CONTD.) Back:4. Power On / Off Press and hold for 2 seconds to turn on / off the iN-CAR CAM.5. Up / Microphone Off Up: Press to navigate up within menus and to move to the previous file when in playback mode. Microphone Off: Press to turn off / on the microphone (audio recording), only available whilst in video mode.6. Down / Screen Off Down: Press to navigate down within menus and to move to the next file when in playback mode. Screen Off: Press to turn off / on the screen, only available whilst in video mode.7. Protect File / WiFi Protect File: Press whilst recording to protect the current file in event of an emergency situation. Note: - A marker will be seen on the recorded file noting when the protection took place. WiFi: Press and hold for three seconds to turn on WiFi mode, this is not available whilst recording or during playback. Note: - To exit WiFi mode please press the OK button once paired device has been disconnected.1047561210118 9

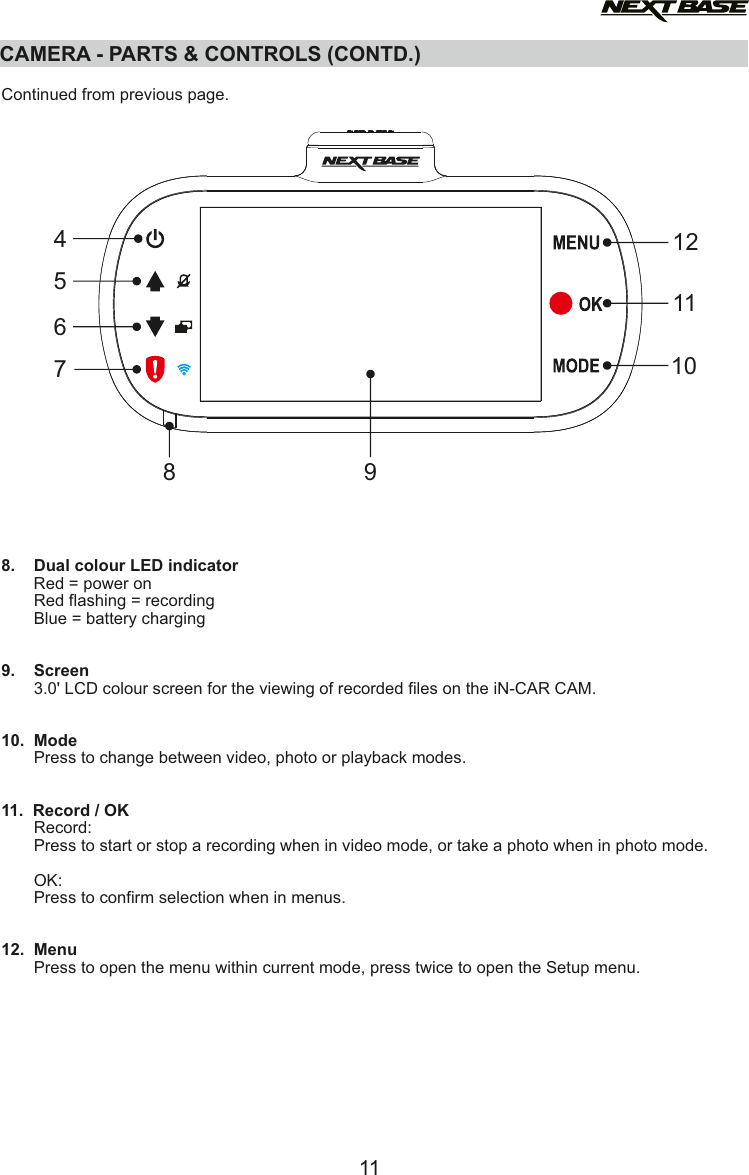

CAMERA - PARTS & CONTROLS (CONTD.)CAMERA - PARTS & CONTROLS (CONTD.) Continued from previous page.8. Dual colour LED indicator Red = power on Red flashing = recording Blue = battery charging9. Screen 3.0' LCD colour screen for the viewing of recorded files on the iN-CAR CAM.10. Mode Press to change between video, photo or playback modes.11. Record / OK Record: Press to start or stop a recording when in video mode, or take a photo when in photo mode. OK: Press to confirm selection when in menus.12. Menu Press to open the menu within current mode, press twice to open the Setup menu.1147561210118 9

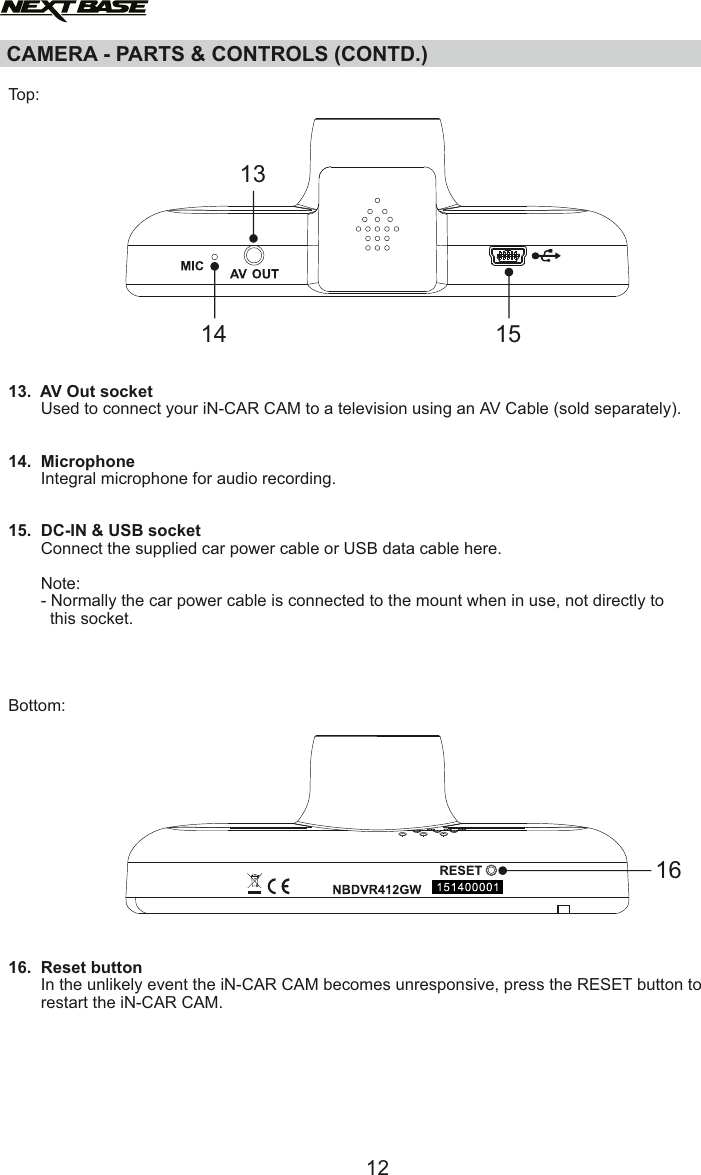

CAMERA - PARTS & CONTROLS (CONTD.) Top:13. AV Out socket Used to connect your iN-CAR CAM to a television using an AV Cable (sold separately).14. Microphone Integral microphone for audio recording.15. DC-IN & USB socket Connect the supplied car power cable or USB data cable here. Note: - Normally the car power cable is connected to the mount when in use, not directly to this socket.Bottom:16. Reset button In the unlikely event the iN-CAR CAM becomes unresponsive, press the RESET button to restart the iN-CAR CAM.16121314 15

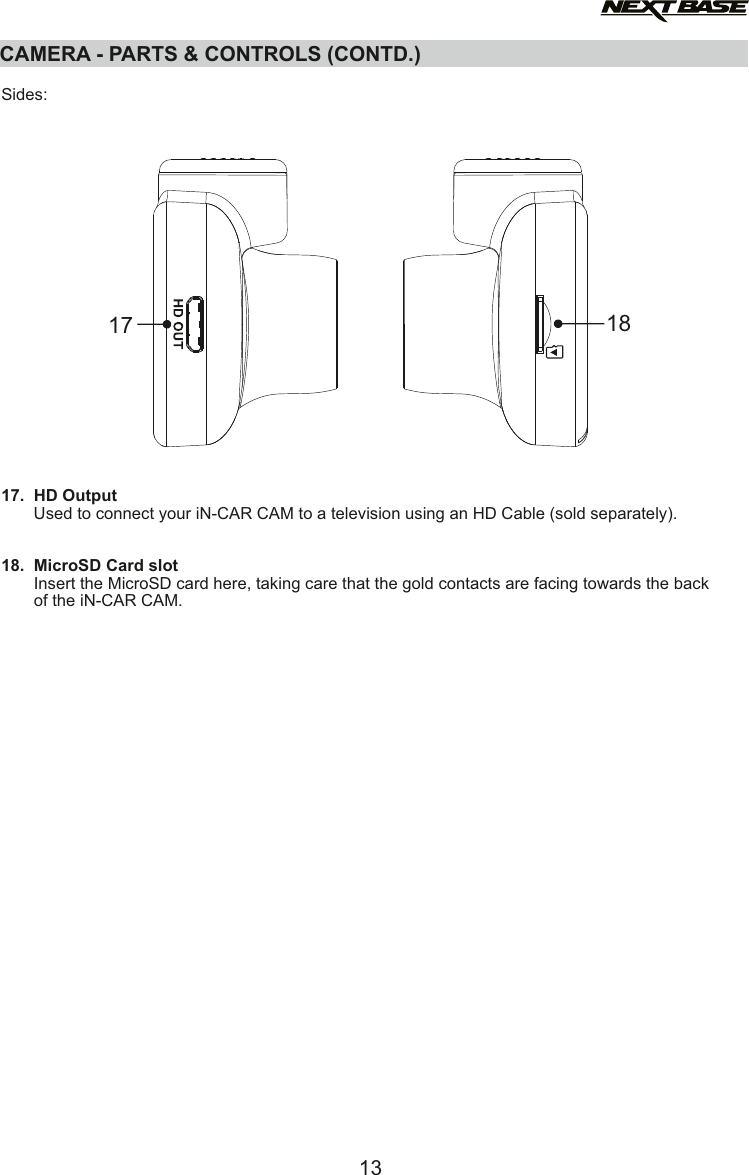

CAMERA - PARTS & CONTROLS (CONTD.) Sides:17. HD Output Used to connect your iN-CAR CAM to a television using an HD Cable (sold separately).18. MicroSD Card slot Insert the MicroSD card here, taking care that the gold contacts are facing towards the back of the iN-CAR CAM.17 1813

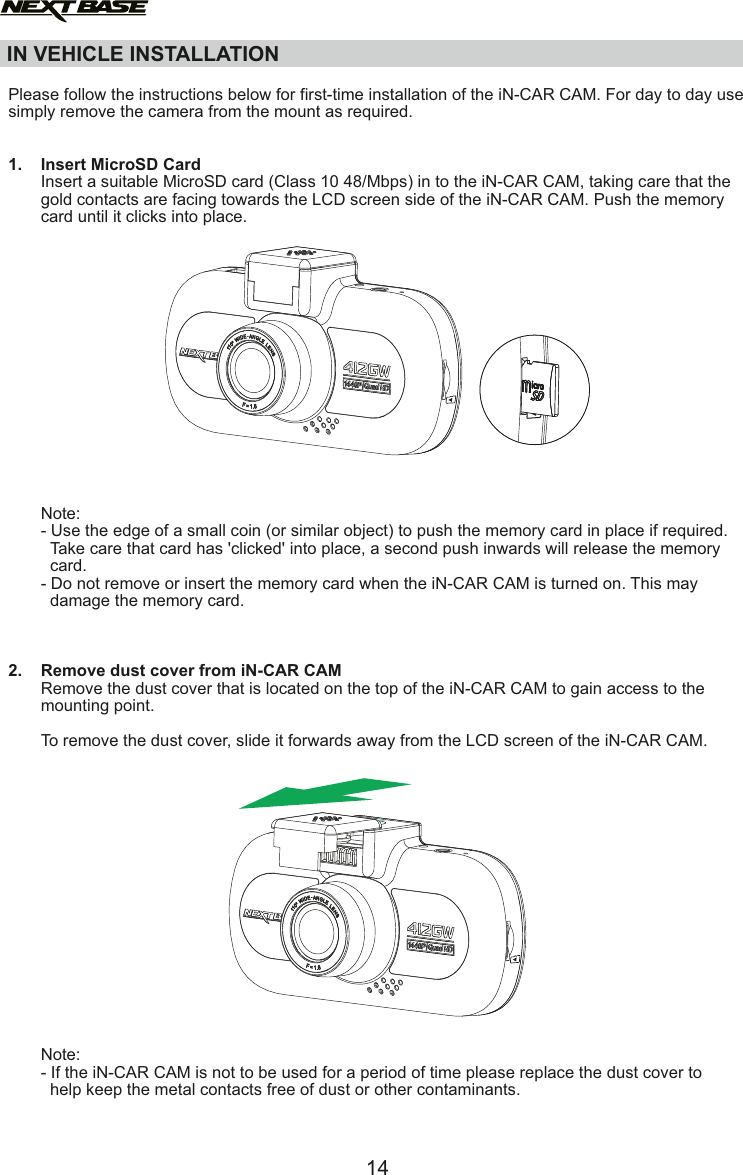

IN VEHICLE INSTALLATION Please follow the instructions below for first-time installation of the iN-CAR CAM. For day to day use simply remove the camera from the mount as required.1. Insert MicroSD Card Insert a suitable MicroSD card (Class 10 48/Mbps) in to the iN-CAR CAM, taking care that the gold contacts are facing towards the LCD screen side of the iN-CAR CAM. Push the memory card until it clicks into place. Note: - Use the edge of a small coin (or similar object) to push the memory card in place if required. Take care that card has 'clicked' into place, a second push inwards will release the memory card. - Do not remove or insert the memory card when the iN-CAR CAM is turned on. This may damage the memory card.2. Remove dust cover from iN-CAR CAM Remove the dust cover that is located on the top of the iN-CAR CAM to gain access to the mounting point. To remove the dust cover, slide it forwards away from the LCD screen of the iN-CAR CAM. Note: - If the iN-CAR CAM is not to be used for a period of time please replace the dust cover to help keep the metal contacts free of dust or other contaminants.14

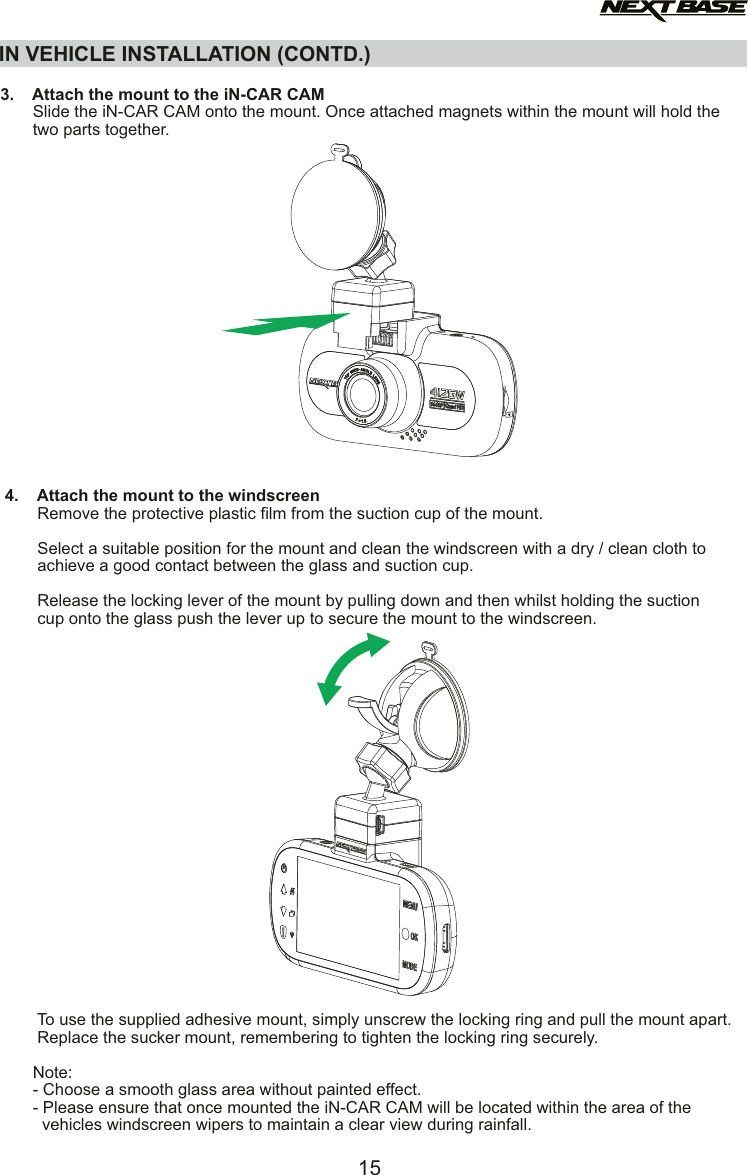

IN VEHICLE INSTALLATION (CONTD.) 3. Attach the mount to the iN-CAR CAM Slide the iN-CAR CAM onto the mount. Once attached magnets within the mount will hold the two parts together. 4. Attach the mount to the windscreen Remove the protective plastic film from the suction cup of the mount. Select a suitable position for the mount and clean the windscreen with a dry / clean cloth to achieve a good contact between the glass and suction cup. Release the locking lever of the mount by pulling down and then whilst holding the suction cup onto the glass push the lever up to secure the mount to the windscreen. To use the supplied adhesive mount, simply unscrew the locking ring and pull the mount apart. Replace the sucker mount, remembering to tighten the locking ring securely. Note: - Choose a smooth glass area without painted effect. - Please ensure that once mounted the iN-CAR CAM will be located within the area of the vehicles windscreen wipers to maintain a clear view during rainfall.15

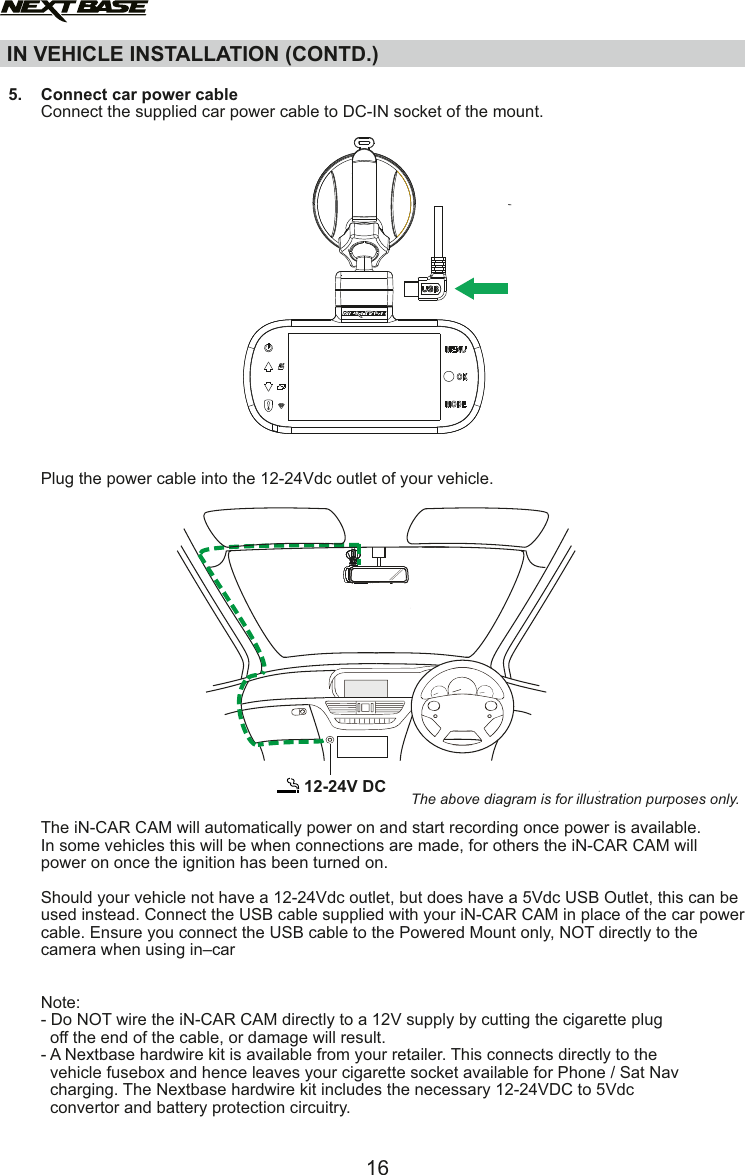

IN VEHICLE INSTALLATION (CONTD.)12-24V DC The above diagram is for illustration purposes only. 5. Connect car power cable Connect the supplied car power cable to DC-IN socket of the mount. Plug the power cable into the 12-24Vdc outlet of your vehicle. The iN-CAR CAM will automatically power on and start recording once power is available. In some vehicles this will be when connections are made, for others the iN-CAR CAM will power on once the ignition has been turned on. Should your vehicle not have a 12-24Vdc outlet, but does have a 5Vdc USB Outlet, this can be used instead. Connect the USB cable supplied with your iN-CAR CAM in place of the car power cable. Ensure you connect the USB cable to the Powered Mount only, NOT directly to the camera when using in–car Note: - Do NOT wire the iN-CAR CAM directly to a 12V supply by cutting the cigarette plug off the end of the cable, or damage will result. - A Nextbase hardwire kit is available from your retailer. This connects directly to the vehicle fusebox and hence leaves your cigarette socket available for Phone / Sat Nav charging. The Nextbase hardwire kit includes the necessary 12-24VDC to 5Vdc convertor and battery protection circuitry. 16

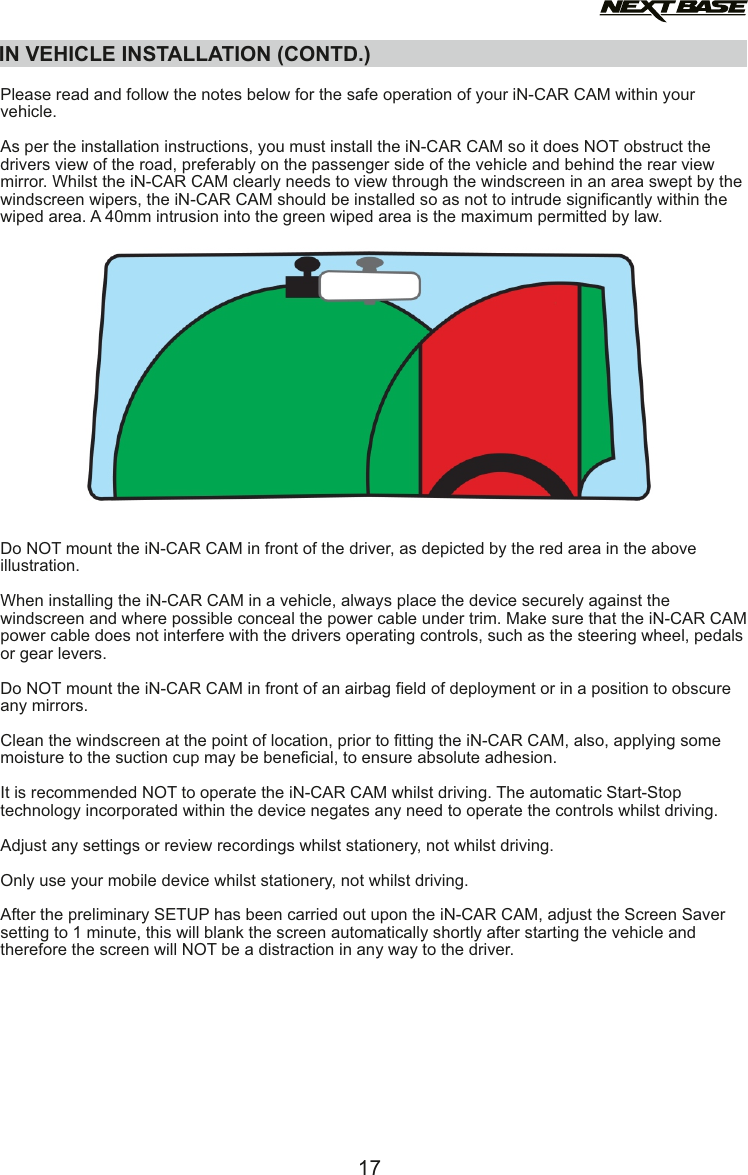

Please read and follow the notes below for the safe operation of your iN-CAR CAM within your vehicle.As per the installation instructions, you must install the iN-CAR CAM so it does NOT obstruct thedrivers view of the road, preferably on the passenger side of the vehicle and behind the rear view mirror. Whilst the iN-CAR CAM clearly needs to view through the windscreen in an area swept by the windscreen wipers, the iN-CAR CAM should be installed so as not to intrude significantly within the wiped area. A 40mm intrusion into the green wiped area is the maximum permitted by law. Do NOT mount the iN-CAR CAM in front of the driver, as depicted by the red area in the above illustration.When installing the iN-CAR CAM in a vehicle, always place the device securely against the windscreen and where possible conceal the power cable under trim. Make sure that the iN-CAR CAM power cable does not interfere with the drivers operating controls, such as the steering wheel, pedals or gear levers. Do NOT mount the iN-CAR CAM in front of an airbag field of deployment or in a position to obscure any mirrors.Clean the windscreen at the point of location, prior to fitting the iN-CAR CAM, also, applying somemoisture to the suction cup may be beneficial, to ensure absolute adhesion.It is recommended NOT to operate the iN-CAR CAM whilst driving. The automatic Start-Stoptechnology incorporated within the device negates any need to operate the controls whilst driving.Adjust any settings or review recordings whilst stationery, not whilst driving.Only use your mobile device whilst stationery, not whilst driving.After the preliminary SETUP has been carried out upon the iN-CAR CAM, adjust the Screen Saver setting to 1 minute, this will blank the screen automatically shortly after starting the vehicle andtherefore the screen will NOT be a distraction in any way to the driver. IN VEHICLE INSTALLATION (CONTD.)17

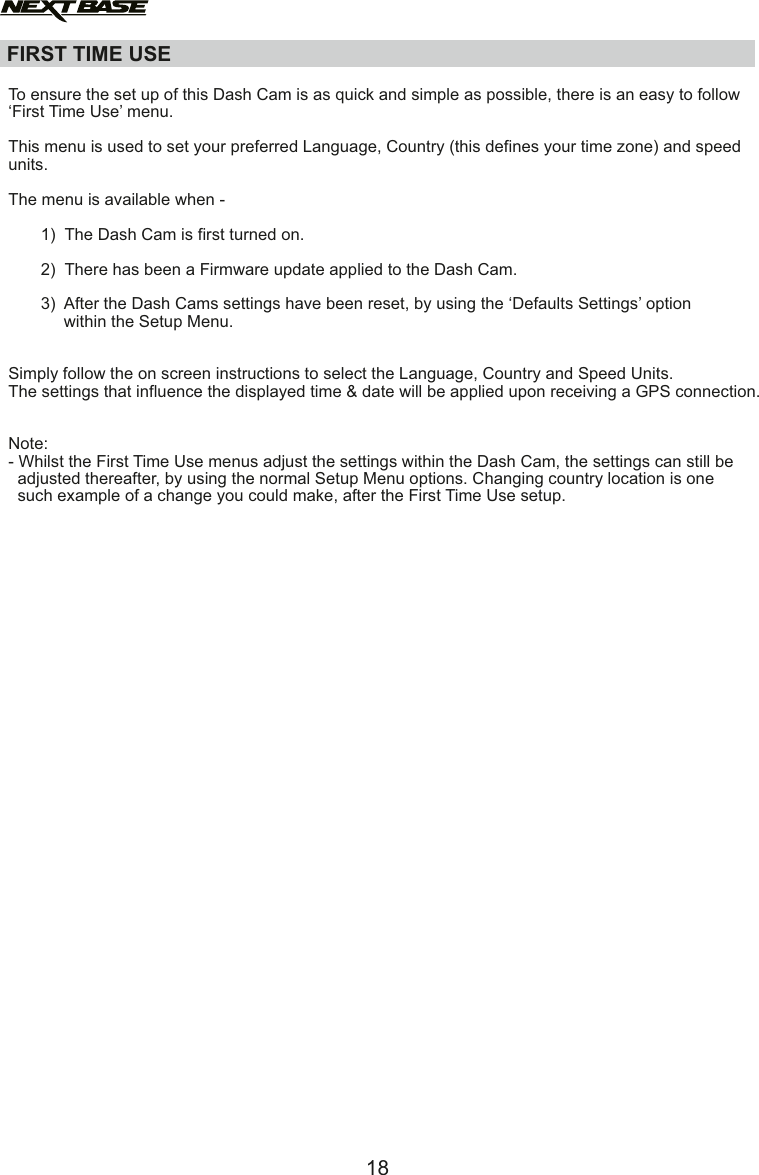

FIRST TIME USE To ensure the set up of this Dash Cam is as quick and simple as possible, there is an easy to follow‘First Time Use’ menu. This menu is used to set your preferred Language, Country (this defines your time zone) and speedunits.The menu is available when - 1) The Dash Cam is first turned on. 2) There has been a Firmware update applied to the Dash Cam. 3) After the Dash Cams settings have been reset, by using the ‘Defaults Settings’ option within the Setup Menu.Simply follow the on screen instructions to select the Language, Country and Speed Units.The settings that influence the displayed time & date will be applied upon receiving a GPS connection.Note:- Whilst the First Time Use menus adjust the settings within the Dash Cam, the settings can still be adjusted thereafter, by using the normal Setup Menu options. Changing country location is one such example of a change you could make, after the First Time Use setup. 18

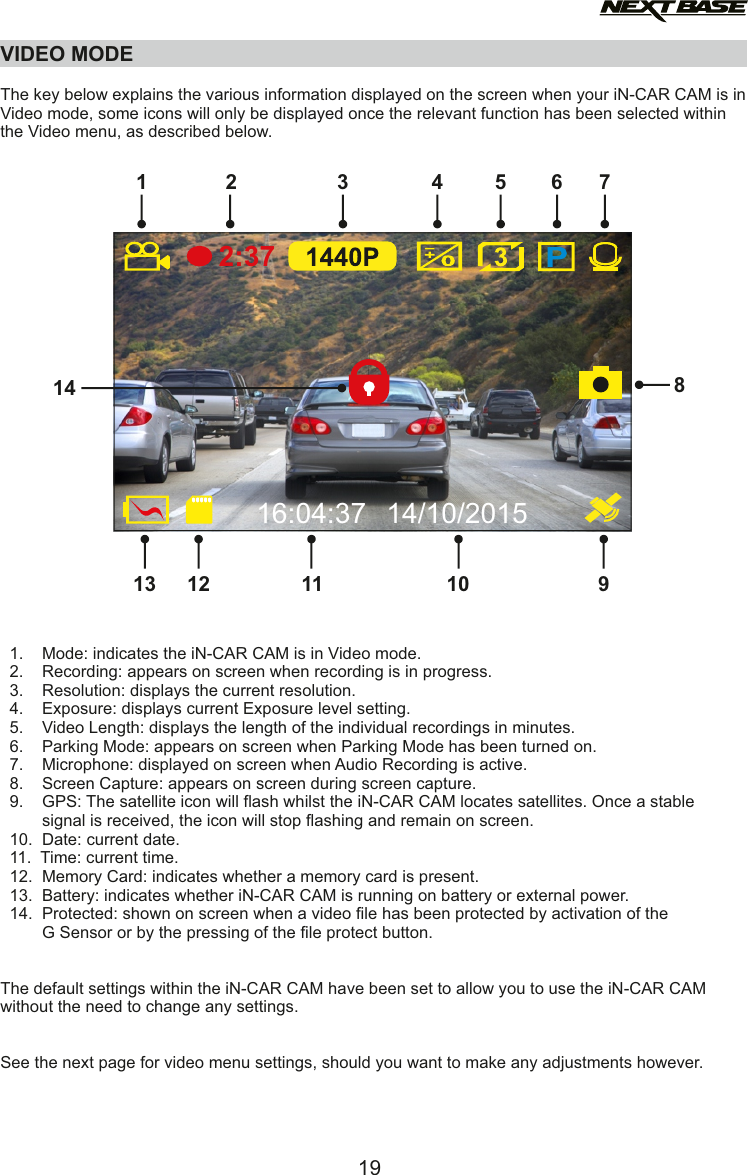

VIDEO MODEThe key below explains the various information displayed on the screen when your iN-CAR CAM is in Video mode, some icons will only be displayed once the relevant function has been selected within the Video menu, as described below. 1. Mode: indicates the iN-CAR CAM is in Video mode. 2. Recording: appears on screen when recording is in progress. 3. Resolution: displays the current resolution. 4. Exposure: displays current Exposure level setting. 5. Video Length: displays the length of the individual recordings in minutes. 6. Parking Mode: appears on screen when Parking Mode has been turned on. 7. Microphone: displayed on screen when Audio Recording is active. 8. Screen Capture: appears on screen during screen capture. 9. GPS: The satellite icon will flash whilst the iN-CAR CAM locates satellites. Once a stable signal is received, the icon will stop flashing and remain on screen. 10. Date: current date. 11. Time: current time. 12. Memory Card: indicates whether a memory card is present. 13. Battery: indicates whether iN-CAR CAM is running on battery or external power. 14. Protected: shown on screen when a video file has been protected by activation of the G Sensor or by the pressing of the file protect button.The default settings within the iN-CAR CAM have been set to allow you to use the iN-CAR CAM without the need to change any settings.See the next page for video menu settings, should you want to make any adjustments however.1914/10/20152:3716:04:3781 2 3 45679111213 1014

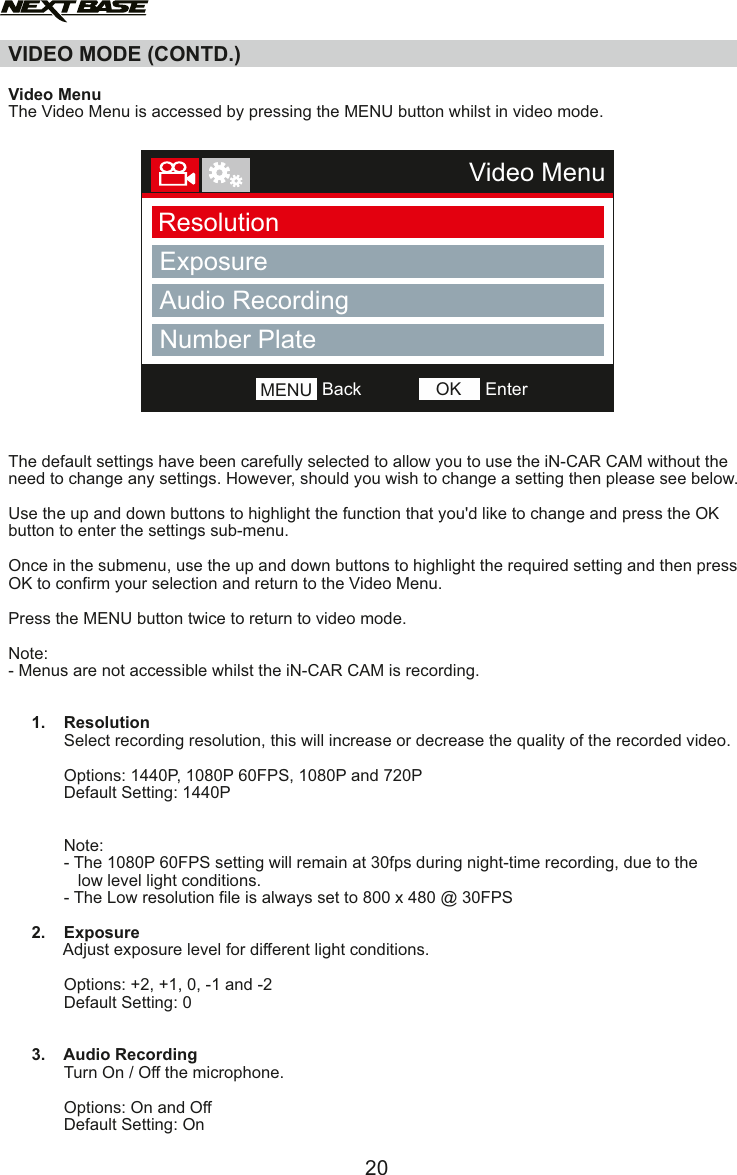

VIDEO MODE (CONTD.) Video MenuThe Video Menu is accessed by pressing the MENU button whilst in video mode. The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings. However, should you wish to change a setting then please see below.Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.Once in the submenu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Video Menu.Press the MENU button twice to return to video mode. Note:- Menus are not accessible whilst the iN-CAR CAM is recording. 1. Resolution Select recording resolution, this will increase or decrease the quality of the recorded video. Options: 1440P, 1080P 60FPS, 1080P and 720P Default Setting: 1440P Note: - The 1080P 60FPS setting will remain at 30fps during night-time recording, due to the low level light conditions. - The Low resolution file is always set to 800 x 480 @ 30FPS 2. Exposure Adjust exposure level for different light conditions. Options: +2, +1, 0, -1 and -2 Default Setting: 0 3. Audio Recording Turn On / Off the microphone. Options: On and Off Default Setting: On 20Video MenuResolutionExposureAudio RecordingNumber PlateBackMENU EnterOK

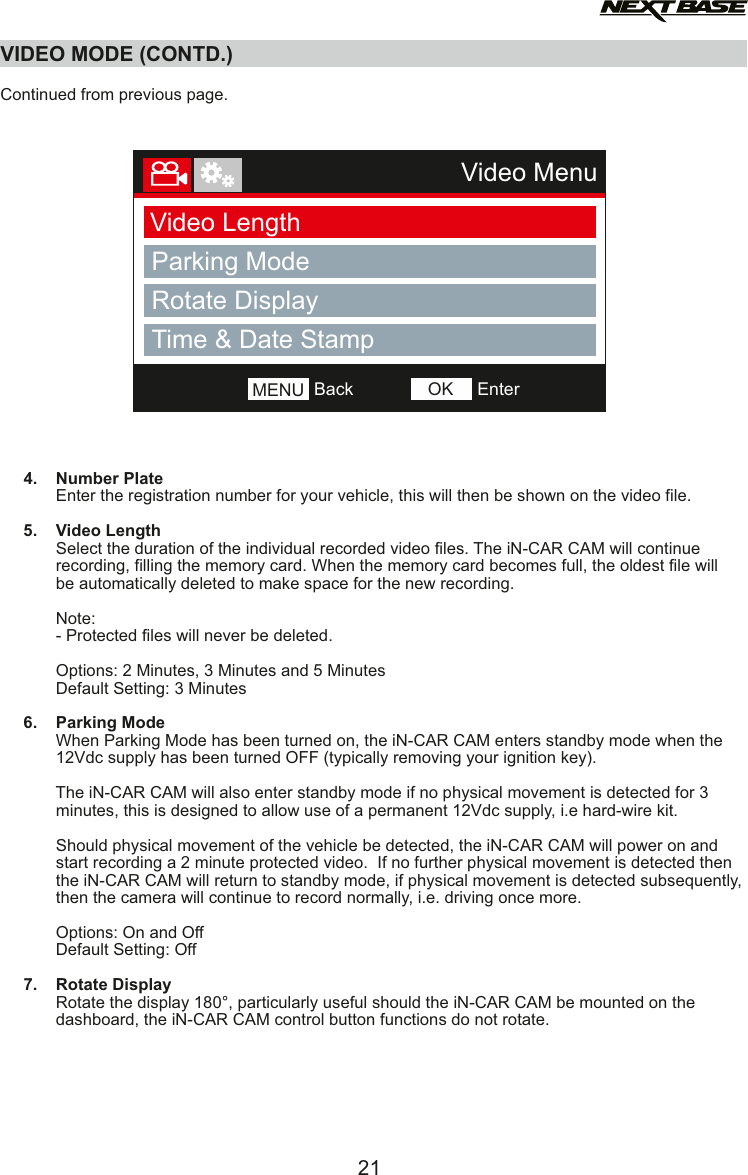

VIDEO MODE (CONTD.) Continued from previous page. 4. Number Plate Enter the registration number for your vehicle, this will then be shown on the video file. 5. Video Length Select the duration of the individual recorded video files. The iN-CAR CAM will continue recording, filling the memory card. When the memory card becomes full, the oldest file will be automatically deleted to make space for the new recording. Note: - Protected files will never be deleted. Options: 2 Minutes, 3 Minutes and 5 Minutes Default Setting: 3 Minutes 6. Parking Mode When Parking Mode has been turned on, the iN-CAR CAM enters standby mode when the 12Vdc supply has been turned OFF (typically removing your ignition key). The iN-CAR CAM will also enter standby mode if no physical movement is detected for 3 minutes, this is designed to allow use of a permanent 12Vdc supply, i.e hard-wire kit. Should physical movement of the vehicle be detected, the iN-CAR CAM will power on and start recording a 2 minute protected video. If no further physical movement is detected then the iN-CAR CAM will return to standby mode, if physical movement is detected subsequently, then the camera will continue to record normally, i.e. driving once more. Options: On and Off Default Setting: Off 7. Rotate Display Rotate the display 180°, particularly useful should the iN-CAR CAM be mounted on the dashboard, the iN-CAR CAM control button functions do not rotate. 21Video MenuVideo LengthParking ModeRotate DisplayNumber PlateBackMENU EnterOKTime & Date Stamp

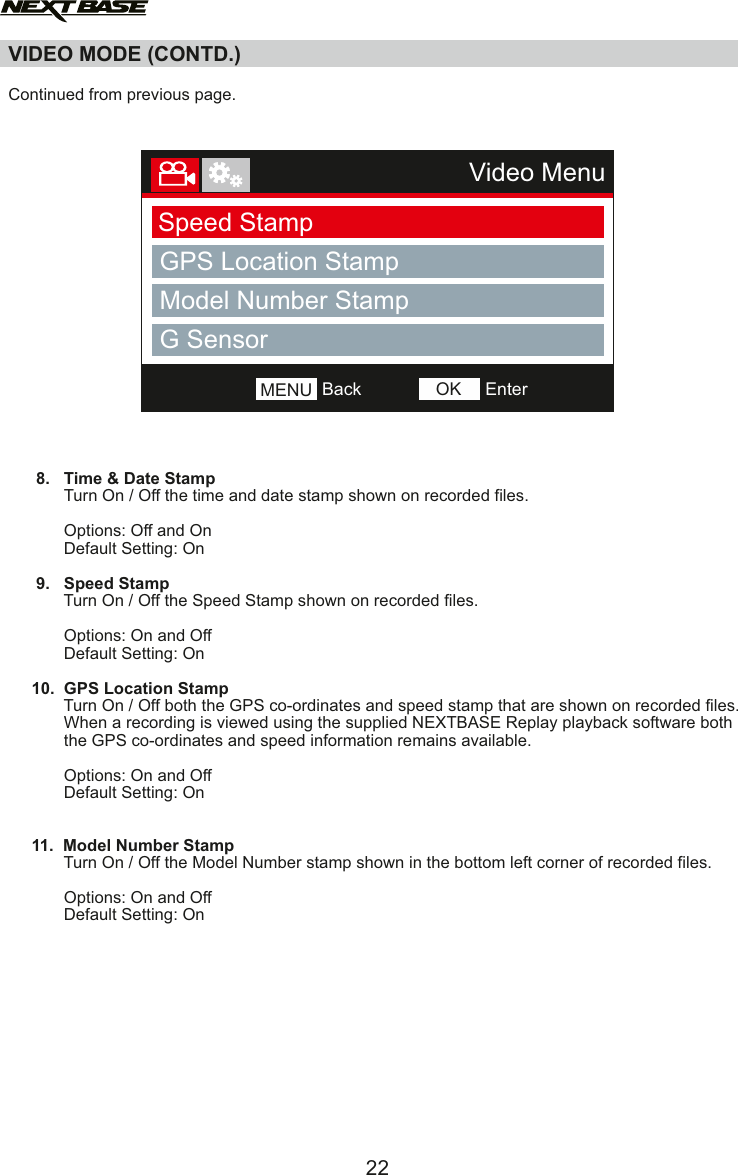

VIDEO MODE (CONTD.) Continued from previous page. 8. Time & Date Stamp Turn On / Off the time and date stamp shown on recorded files. Options: Off and On Default Setting: On 9. Speed Stamp Turn On / Off the Speed Stamp shown on recorded files. Options: On and Off Default Setting: On 10. GPS Location Stamp Turn On / Off both the GPS co-ordinates and speed stamp that are shown on recorded files. When a recording is viewed using the supplied NEXTBASE Replay playback software both the GPS co-ordinates and speed information remains available. Options: On and Off Default Setting: On 11. Model Number Stamp Turn On / Off the Model Number stamp shown in the bottom left corner of recorded files. Options: On and Off Default Setting: On 22Video MenuSpeed StampGPS Location StampModel Number StampNumber PlateBackMENU EnterOKG Sensor

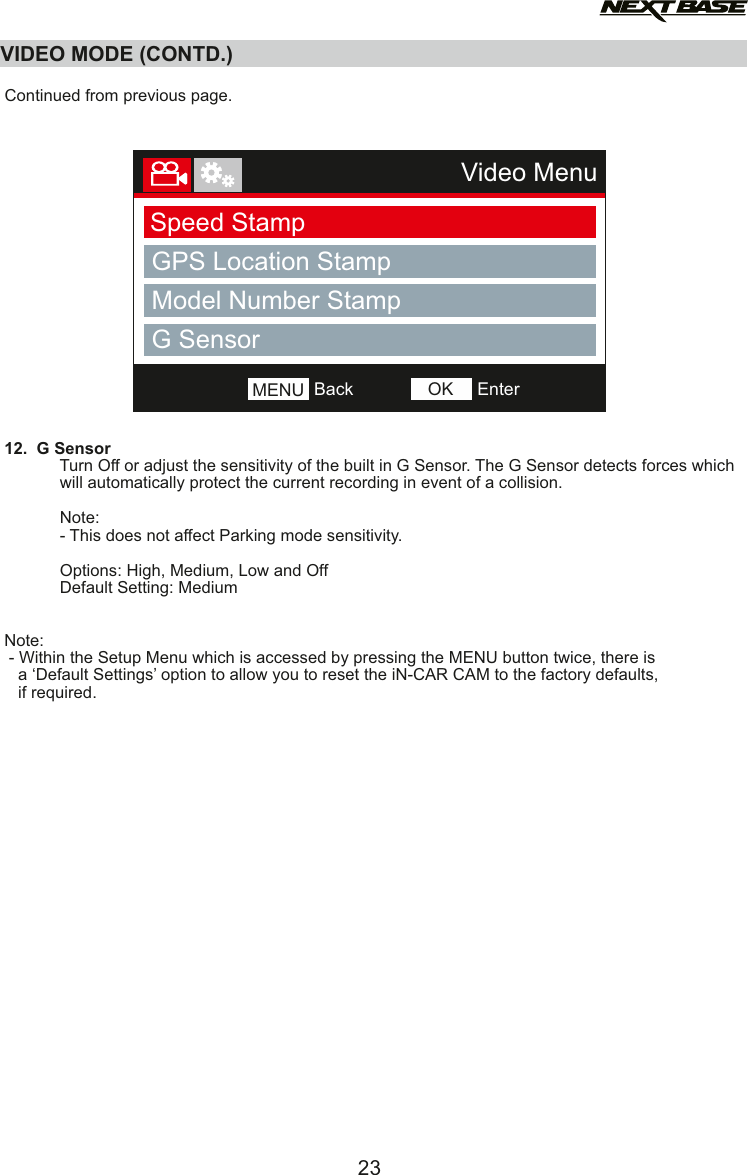

12. G Sensor Turn Off or adjust the sensitivity of the built in G Sensor. The G Sensor detects forces which will automatically protect the current recording in event of a collision. Note: - This does not affect Parking mode sensitivity. Options: High, Medium, Low and Off Default Setting: MediumNote: - Within the Setup Menu which is accessed by pressing the MENU button twice, there is a ‘Default Settings’ option to allow you to reset the iN-CAR CAM to the factory defaults, if required.VIDEO MODE (CONTD.)23Video MenuSpeed StampGPS Location StampModel Number StampNumber PlateBackMENU EnterOKG SensorContinued from previous page.

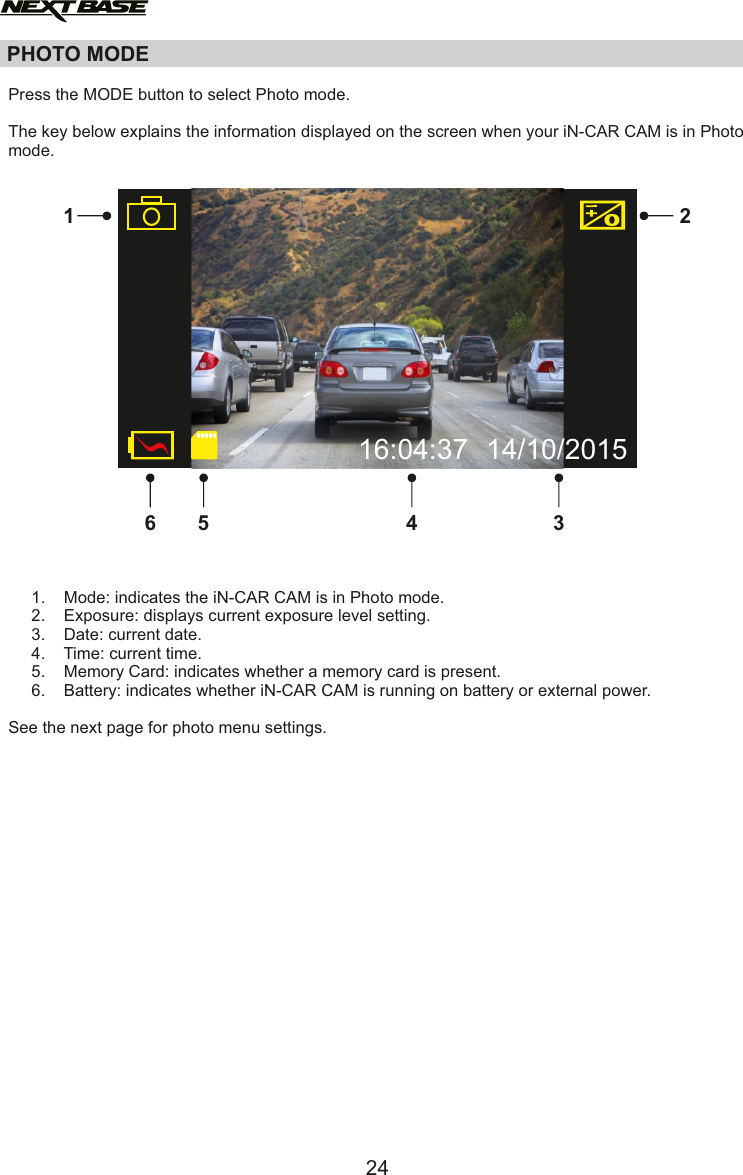

Press the MODE button to select Photo mode.The key below explains the information displayed on the screen when your iN-CAR CAM is in Photo mode. 1. Mode: indicates the iN-CAR CAM is in Photo mode. 2. Exposure: displays current exposure level setting. 3. Date: current date. 4. Time: current time. 5. Memory Card: indicates whether a memory card is present. 6. Battery: indicates whether iN-CAR CAM is running on battery or external power.See the next page for photo menu settings.PHOTO MODE1 234562416:04:37 14/10/2015

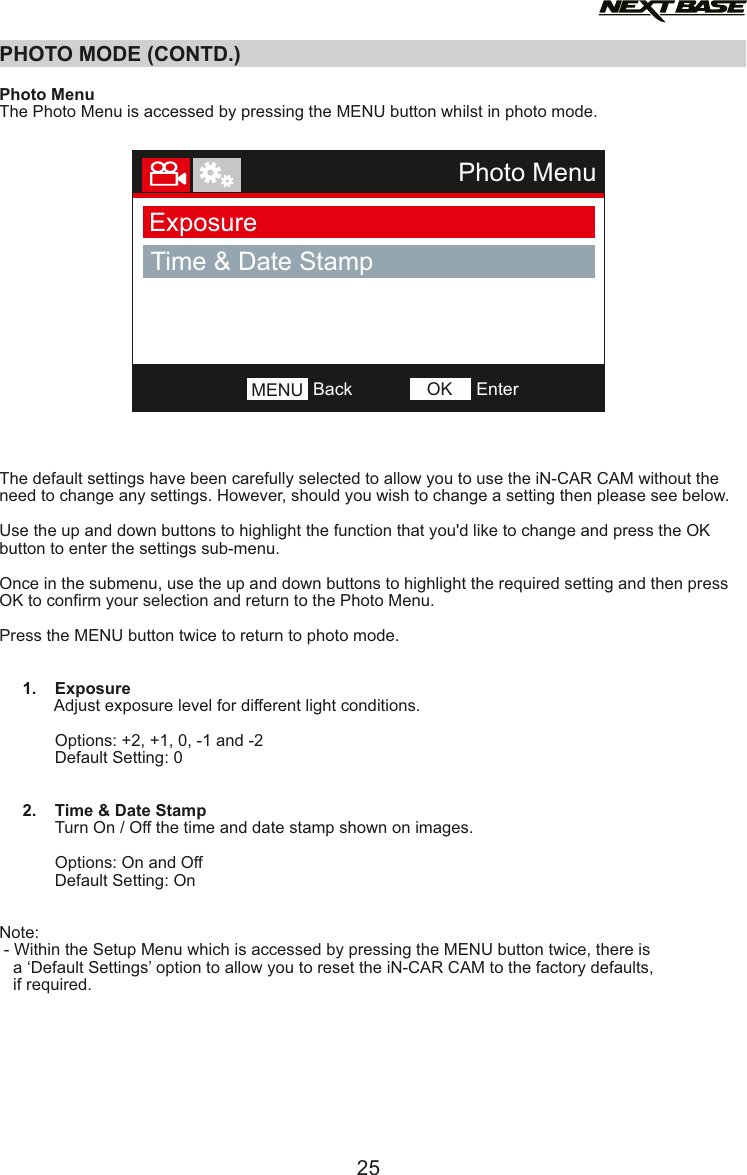

PHOTO MODE (CONTD.) Photo MenuThe Photo Menu is accessed by pressing the MENU button whilst in photo mode. The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings. However, should you wish to change a setting then please see below.Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.Once in the submenu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.Press the MENU button twice to return to photo mode. 1. Exposure Adjust exposure level for different light conditions. Options: +2, +1, 0, -1 and -2 Default Setting: 0 2. Time & Date Stamp Turn On / Off the time and date stamp shown on images. Options: On and Off Default Setting: OnNote: - Within the Setup Menu which is accessed by pressing the MENU button twice, there is a ‘Default Settings’ option to allow you to reset the iN-CAR CAM to the factory defaults, if required.25Photo MenuExposureTime & Date StampBackMENU EnterOK

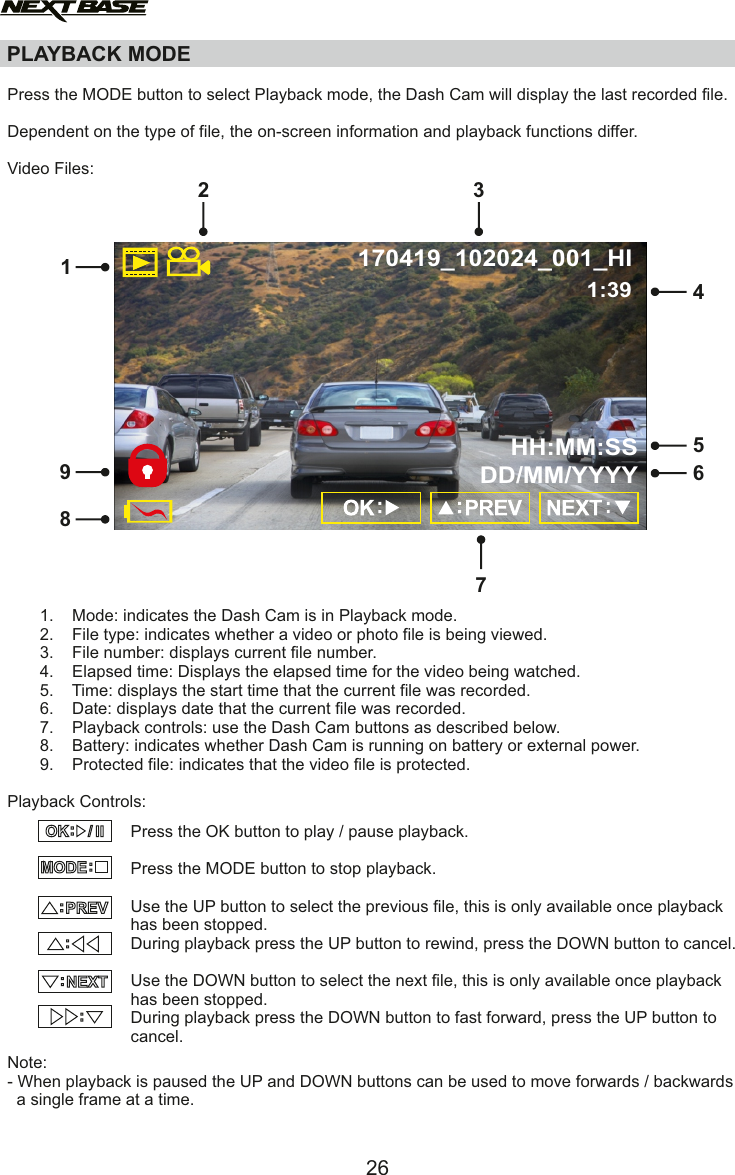

PLAYBACK MODEPress the MODE button to select Playback mode, the Dash Cam will display the last recorded file.Dependent on the type of file, the on-screen information and playback functions differ.Video Files: 1. Mode: indicates the Dash Cam is in Playback mode. 2. File type: indicates whether a video or photo file is being viewed. 3. File number: displays current file number. 4. Elapsed time: Displays the elapsed time for the video being watched. 5. Time: displays the start time that the current file was recorded. 6. Date: displays date that the current file was recorded. 7. Playback controls: use the Dash Cam buttons as described below. 8. Battery: indicates whether Dash Cam is running on battery or external power. 9. Protected file: indicates that the video file is protected.Playback Controls:Note:- When playback is paused the UP and DOWN buttons can be used to move forwards / backwards a single frame at a time.Press the OK button to play / pause playback.Press the MODE button to stop playback.Use the UP button to select the previous file, this is only available once playbackhas been stopped.During playback press the UP button to rewind, press the DOWN button to cancel. Use the DOWN button to select the next file, this is only available once playback has been stopped.During playback press the DOWN button to fast forward, press the UP button to cancel.MODE::PREV/ II OK::NEXT::417256893170419_102024_001_HIHH:MM:SSDD/MM/YYYY1:3926

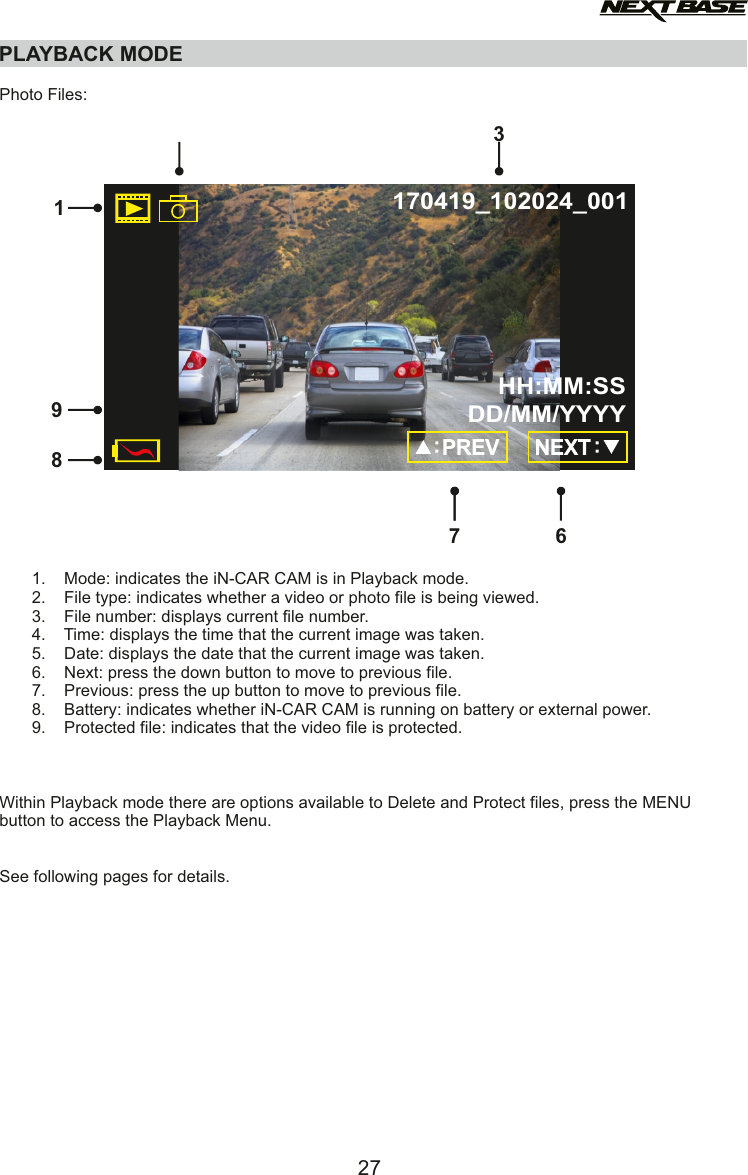

PLAYBACK MODEPhoto Files: 1. Mode: indicates the iN-CAR CAM is in Playback mode. 2. File type: indicates whether a video or photo file is being viewed. 3. File number: displays current file number. 4. Time: displays the time that the current image was taken. 5. Date: displays the date that the current image was taken. 6. Next: press the down button to move to previous file. 7. Previous: press the up button to move to previous file. 8. Battery: indicates whether iN-CAR CAM is running on battery or external power. 9. Protected file: indicates that the video file is protected.Within Playback mode there are options available to Delete and Protect files, press the MENU button to access the Playback Menu.See following pages for details.27163897170419_102024_001HH:MM:SSDD/MM/YYYY

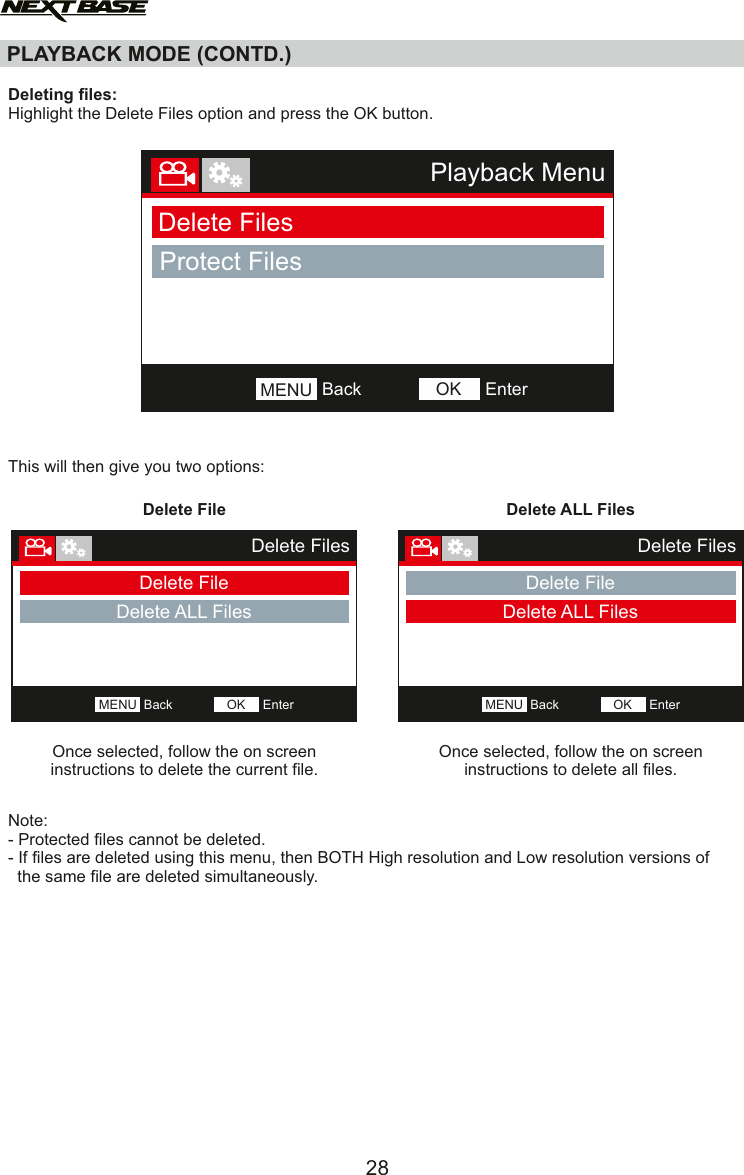

PLAYBACK MODE (CONTD.)Deleting files:Highlight the Delete Files option and press the OK button.This will then give you two options:Note:- Protected files cannot be deleted.- If files are deleted using this menu, then BOTH High resolution and Low resolution versions of the same file are deleted simultaneously.28Playback MenuDelete FilesProtect FilesBackMENU EnterOKDelete FileOnce selected, follow the on screen instructions to delete the current file.Delete FilesDelete FileDelete ALL FilesBackMENU EnterOKDelete ALL FilesOnce selected, follow the on screen instructions to delete all files.Delete FilesDelete FileDelete ALL FilesBackMENU EnterOK

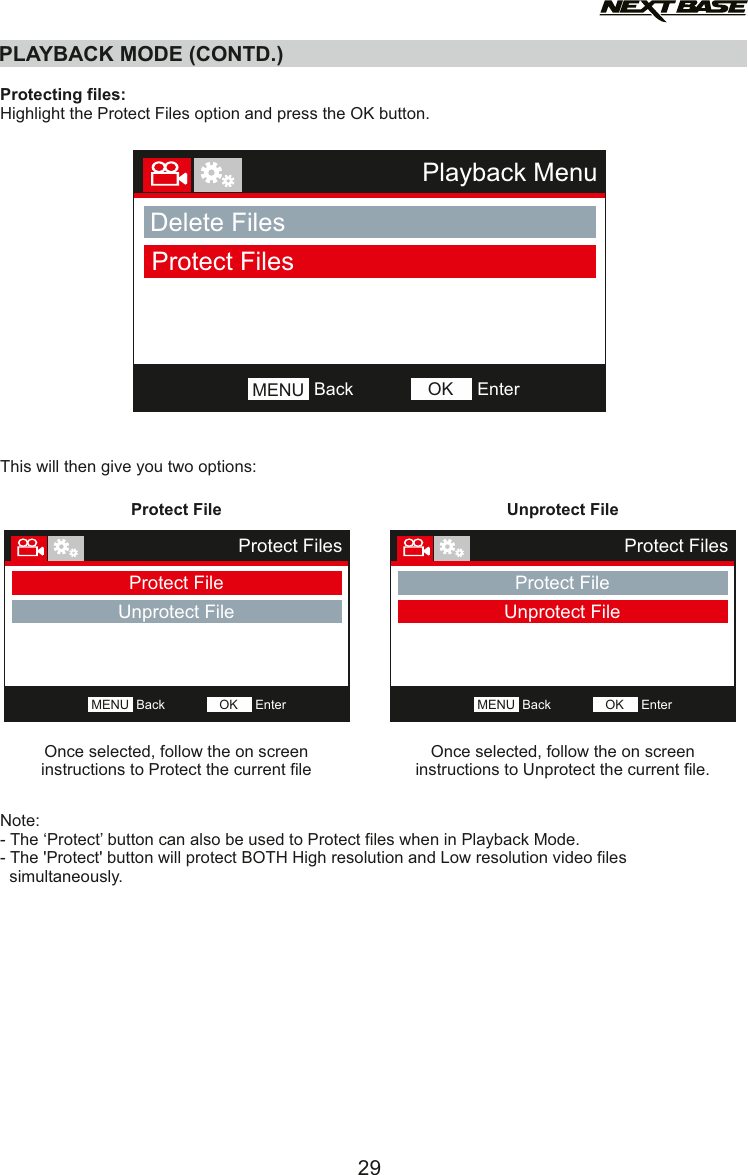

PLAYBACK MODE (CONTD.)Protecting files:Highlight the Protect Files option and press the OK button.This will then give you two options:Note:- The ‘Protect’ button can also be used to Protect files when in Playback Mode.- The 'Protect' button will protect BOTH High resolution and Low resolution video files simultaneously.29Playback MenuDelete FilesProtect FilesBackMENU EnterOKProtect FileOnce selected, follow the on screen instructions to Protect the current fileUnprotect FileOnce selected, follow the on screen instructions to Unprotect the current file.Protect FilesProtect FileUnprotect FileBackMENU EnterOKProtect FilesProtect FileUnprotect FileBackMENU EnterOK

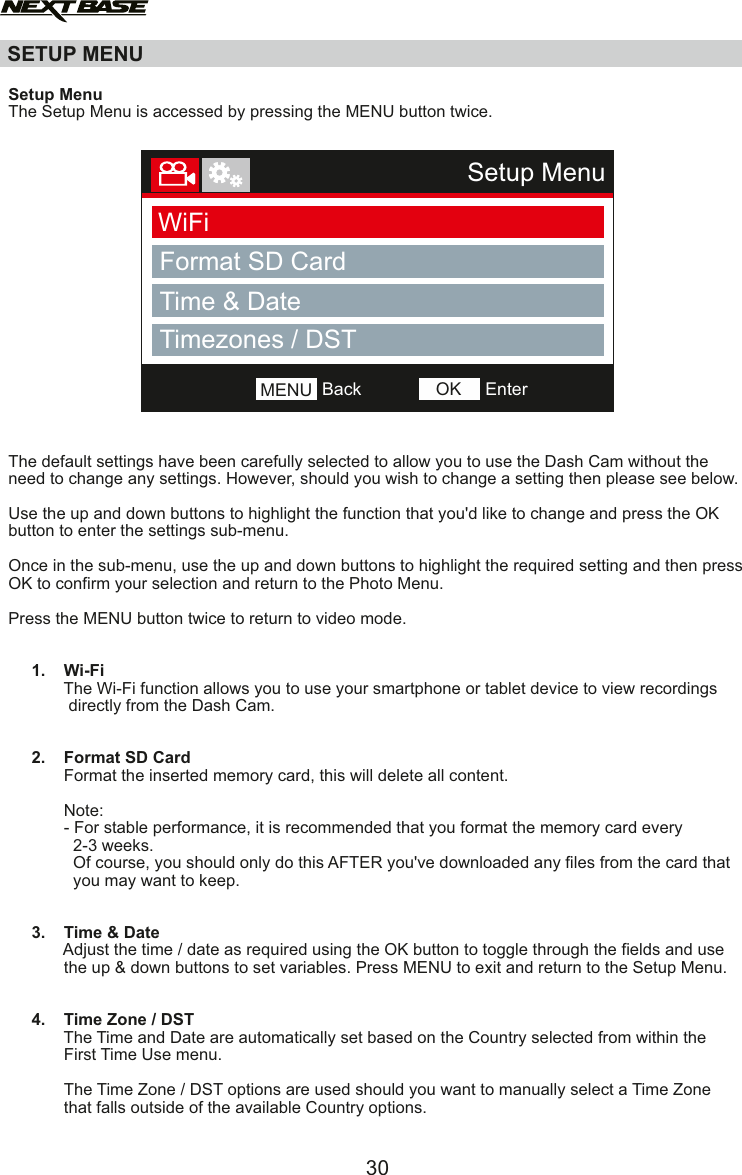

SETUP MENU30Setup MenuWiFiFormat SD CardBackMENU EnterOKTimezones / DSTTime & Date Setup MenuThe Setup Menu is accessed by pressing the MENU button twice. The default settings have been carefully selected to allow you to use the Dash Cam without the need to change any settings. However, should you wish to change a setting then please see below.Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu.Once in the sub-menu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.Press the MENU button twice to return to video mode. 1. Wi-Fi The Wi-Fi function allows you to use your smartphone or tablet device to view recordings directly from the Dash Cam. 2. Format SD Card Format the inserted memory card, this will delete all content. Note: - For stable performance, it is recommended that you format the memory card every 2-3 weeks. Of course, you should only do this AFTER you've downloaded any files from the card that you may want to keep. 3. Time & Date Adjust the time / date as required using the OK button to toggle through the fields and use the up & down buttons to set variables. Press MENU to exit and return to the Setup Menu. 4. Time Zone / DST The Time and Date are automatically set based on the Country selected from within the First Time Use menu. The Time Zone / DST options are used should you want to manually select a Time Zone that falls outside of the available Country options.

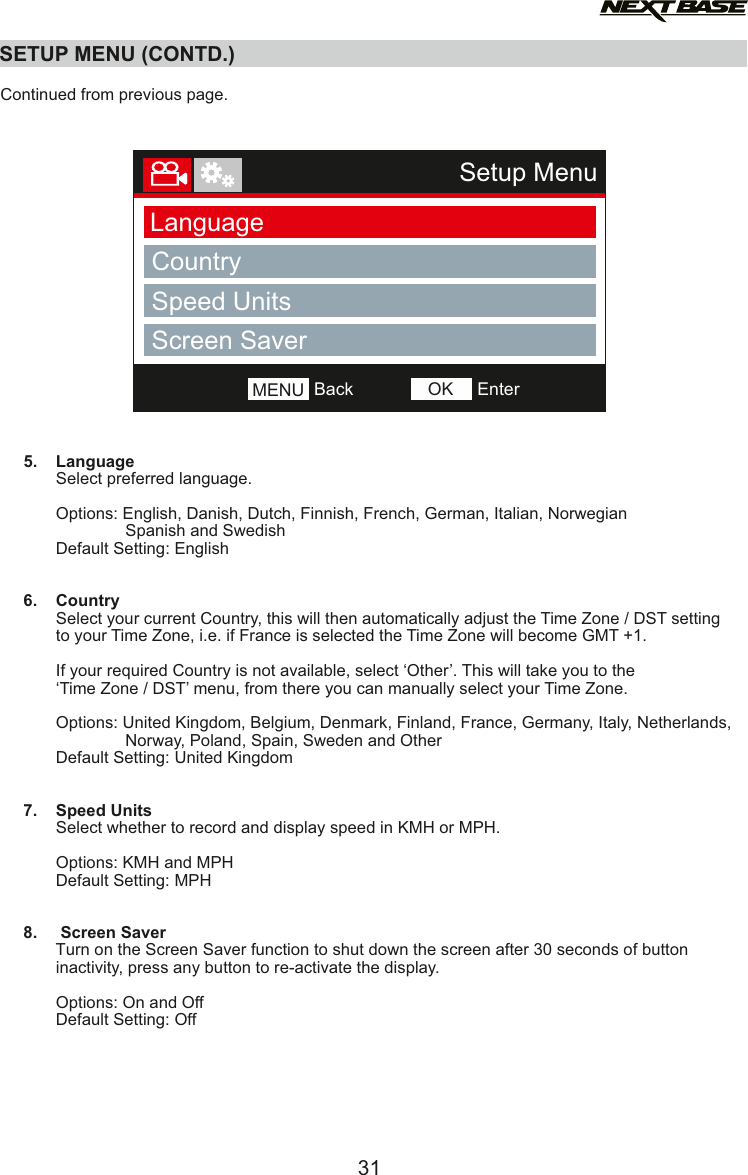

SETUP MENU (CONTD.)31Setup MenuLanguageCountryBackMENU EnterOKSpeed UnitsScreen Saver Continued from previous page. 5. Language Select preferred language. Options: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian Spanish and Swedish Default Setting: English 6. Country Select your current Country, this will then automatically adjust the Time Zone / DST setting to your Time Zone, i.e. if France is selected the Time Zone will become GMT +1. If your required Country is not available, select ‘Other’. This will take you to the ‘Time Zone / DST’ menu, from there you can manually select your Time Zone. Options: United Kingdom, Belgium, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Spain, Sweden and Other Default Setting: United Kingdom 7. Speed Units Select whether to record and display speed in KMH or MPH. Options: KMH and MPH Default Setting: MPH 8. Screen Saver Turn on the Screen Saver function to shut down the screen after 30 seconds of button inactivity, press any button to re-activate the display. Options: On and Off Default Setting: Off

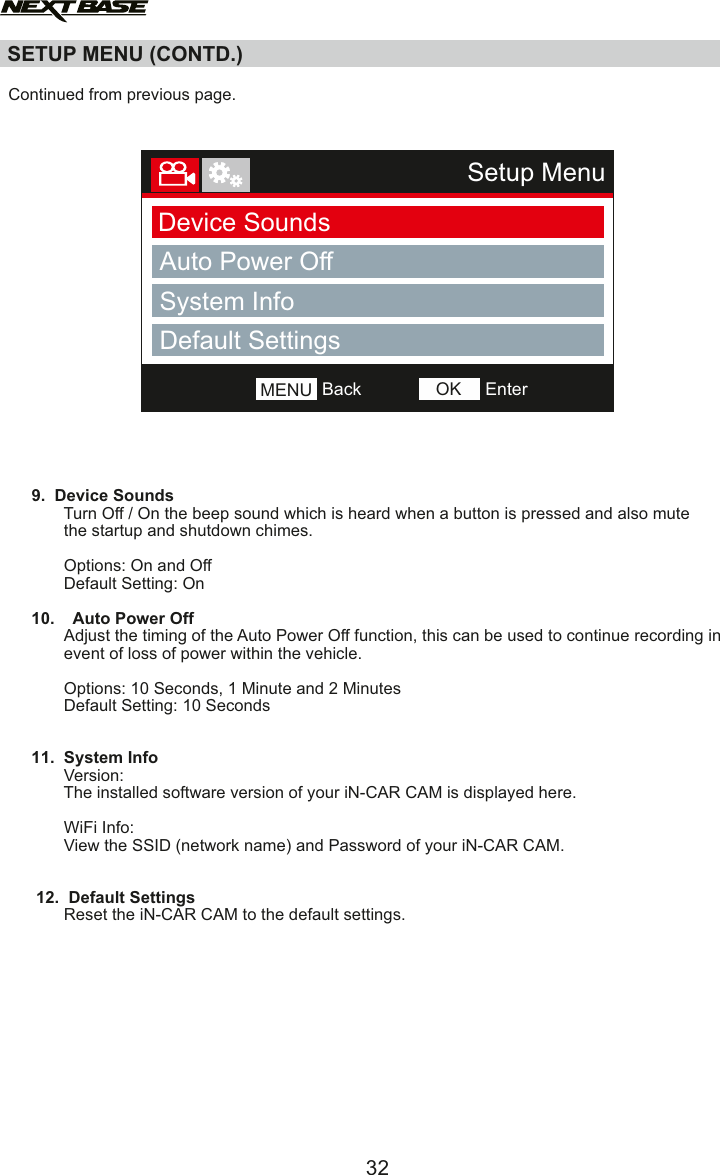

Continued from previous page. 9. Device Sounds Turn Off / On the beep sound which is heard when a button is pressed and also mute the startup and shutdown chimes. Options: On and Off Default Setting: On 10. Auto Power OffAdjust the timing of the Auto Power Off function, this can be used to continue recording in event of loss of power within the vehicle. Options: 10 Seconds, 1 Minute and 2 Minutes Default Setting: 10 Seconds 11. System Info Version: The installed software version of your iN-CAR CAM is displayed here. WiFi Info: View the SSID (network name) and Password of your iN-CAR CAM. 12. Default Settings Reset the iN-CAR CAM to the default settings.SETUP MENU (CONTD.)32Setup MenuDevice SoundsAuto Power OffBackMENU EnterOKSystem InfoDefault Settings

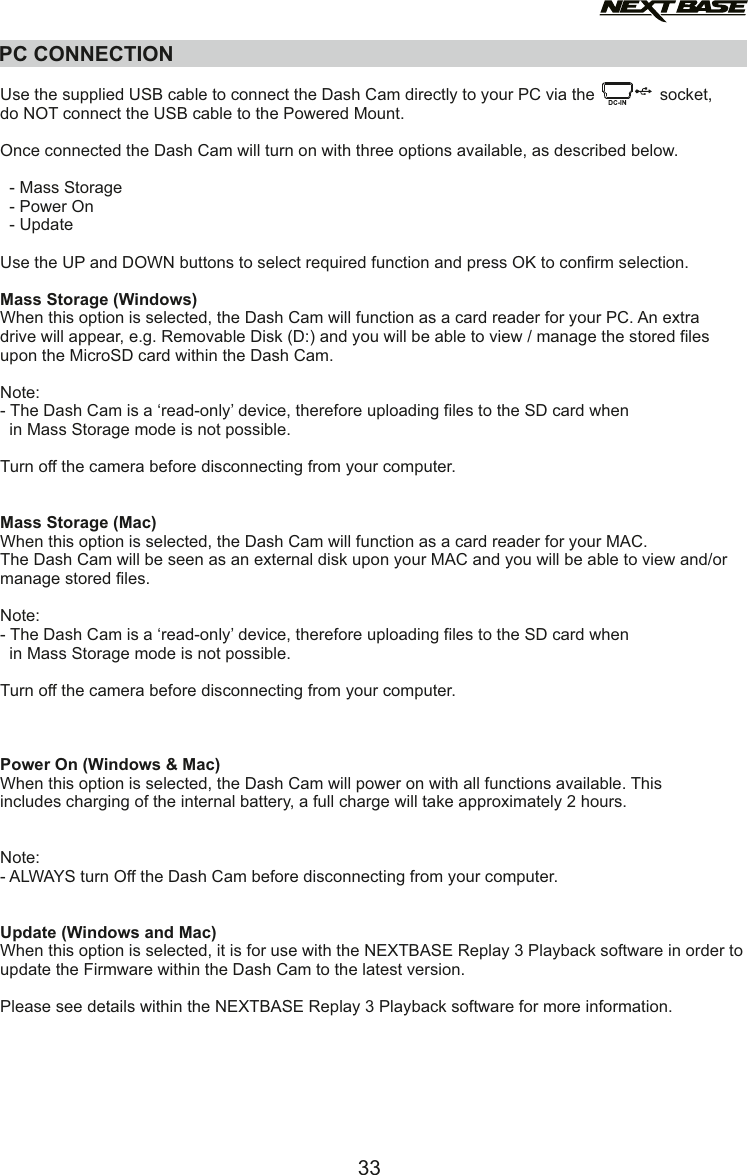

PC CONNECTIONUse the supplied USB cable to connect the Dash Cam directly to your PC via the socket,do NOT connect the USB cable to the Powered Mount. Once connected the Dash Cam will turn on with three options available, as described below. - Mass Storage - Power On - UpdateUse the UP and DOWN buttons to select required function and press OK to confirm selection.Mass Storage (Windows)When this option is selected, the Dash Cam will function as a card reader for your PC. An extra drive will appear, e.g. Removable Disk (D:) and you will be able to view / manage the stored files upon the MicroSD card within the Dash Cam. Note: - The Dash Cam is a ‘read-only’ device, therefore uploading files to the SD card when in Mass Storage mode is not possible. Turn off the camera before disconnecting from your computer.Mass Storage (Mac)When this option is selected, the Dash Cam will function as a card reader for your MAC. The Dash Cam will be seen as an external disk upon your MAC and you will be able to view and/ormanage stored files.Note: - The Dash Cam is a ‘read-only’ device, therefore uploading files to the SD card when in Mass Storage mode is not possible. Turn off the camera before disconnecting from your computer.Power On (Windows & Mac)When this option is selected, the Dash Cam will power on with all functions available. This includes charging of the internal battery, a full charge will take approximately 2 hours.Note:- ALWAYS turn Off the Dash Cam before disconnecting from your computer.Update (Windows and Mac)When this option is selected, it is for use with the NEXTBASE Replay 3 Playback software in order toupdate the Firmware within the Dash Cam to the latest version.Please see details within the NEXTBASE Replay 3 Playback software for more information.33

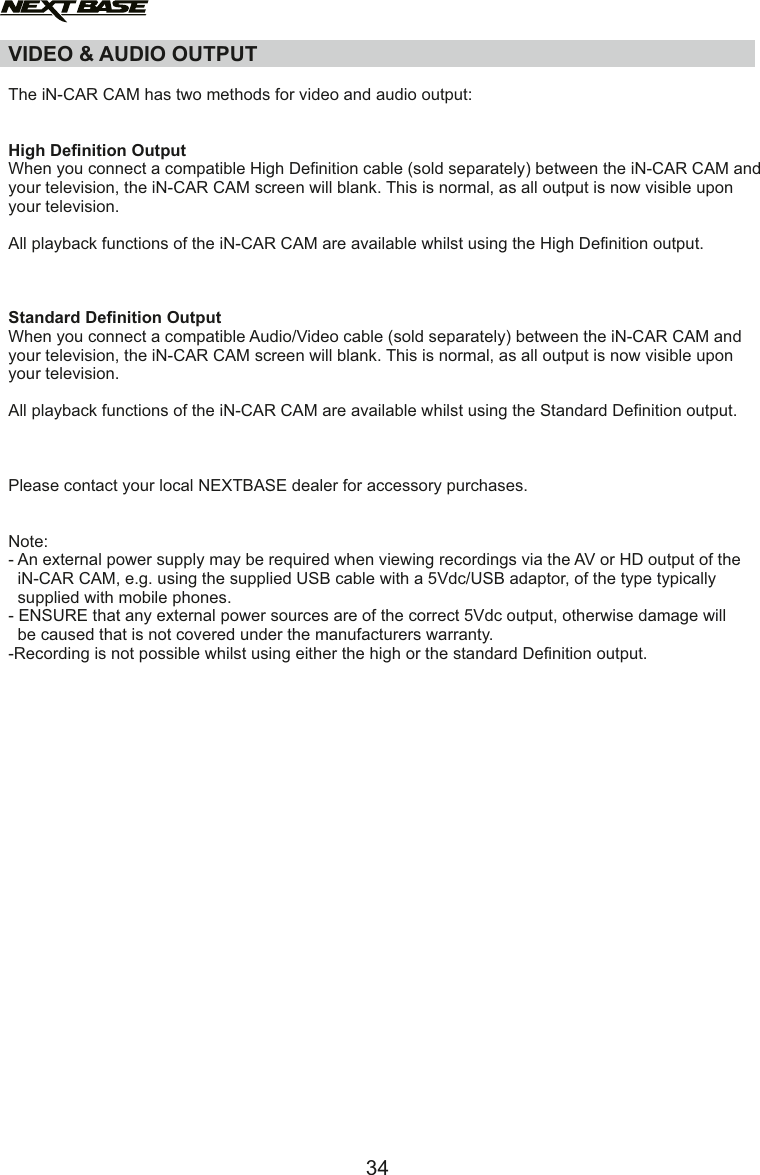

The iN-CAR CAM has two methods for video and audio output:High Definition OutputWhen you connect a compatible High Definition cable (sold separately) between the iN-CAR CAM and your television, the iN-CAR CAM screen will blank. This is normal, as all output is now visible upon your television. All playback functions of the iN-CAR CAM are available whilst using the High Definition output.Standard Definition OutputWhen you connect a compatible Audio/Video cable (sold separately) between the iN-CAR CAM and your television, the iN-CAR CAM screen will blank. This is normal, as all output is now visible upon your television. All playback functions of the iN-CAR CAM are available whilst using the Standard Definition output.Please contact your local NEXTBASE dealer for accessory purchases.Note:- An external power supply may be required when viewing recordings via the AV or HD output of the iN-CAR CAM, e.g. using the supplied USB cable with a 5Vdc/USB adaptor, of the type typically supplied with mobile phones.- ENSURE that any external power sources are of the correct 5Vdc output, otherwise damage will be caused that is not covered under the manufacturers warranty.-Recording is not possible whilst using either the high or the standard Definition output.VIDEO & AUDIO OUTPUT34

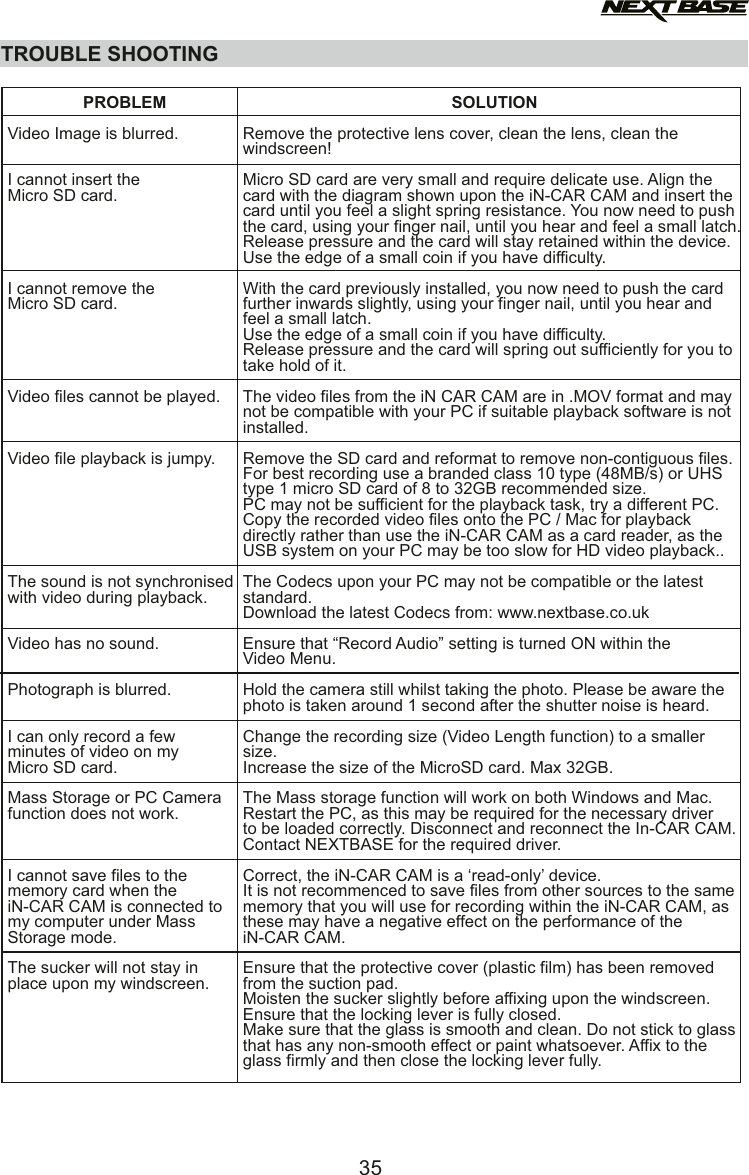

TROUBLE SHOOTINGVideo Image is blurred.I cannot insert the Micro SD card.I cannot remove the Micro SD card.Video files cannot be played.Video file playback is jumpy. The sound is not synchronised with video during playback.Video has no sound. Photograph is blurred.I can only record a few minutes of video on my Micro SD card.Mass Storage or PC Camera function does not work.I cannot save files to thememory card when theiN-CAR CAM is connected to my computer under MassStorage mode.The sucker will not stay in place upon my windscreen.Remove the protective lens cover, clean the lens, clean the windscreen!Micro SD card are very small and require delicate use. Align the card with the diagram shown upon the iN-CAR CAM and insert the card until you feel a slight spring resistance. You now need to push the card, using your finger nail, until you hear and feel a small latch. Release pressure and the card will stay retained within the device.Use the edge of a small coin if you have difficulty.With the card previously installed, you now need to push the card further inwards slightly, using your finger nail, until you hear and feel a small latch. Use the edge of a small coin if you have difficulty.Release pressure and the card will spring out sufficiently for you to take hold of it.The video files from the iN CAR CAM are in .MOV format and may not be compatible with your PC if suitable playback software is notinstalled.Remove the SD card and reformat to remove non-contiguous files. For best recording use a branded class 10 type (48MB/s) or UHS type 1 micro SD card of 8 to 32GB recommended size.PC may not be sufficient for the playback task, try a different PC. Copy the recorded video files onto the PC / Mac for playback directly rather than use the iN-CAR CAM as a card reader, as the USB system on your PC may be too slow for HD video playback..The Codecs upon your PC may not be compatible or the latest standard. Download the latest Codecs from: www.nextbase.co.ukEnsure that “Record Audio” setting is turned ON within the Video Menu.Hold the camera still whilst taking the photo. Please be aware the photo is taken around 1 second after the shutter noise is heard.Change the recording size (Video Length function) to a smaller size.Increase the size of the MicroSD card. Max 32GB.The Mass storage function will work on both Windows and Mac. Restart the PC, as this may be required for the necessary driver to be loaded correctly. Disconnect and reconnect the In-CAR CAM. Contact NEXTBASE for the required driver.Correct, the iN-CAR CAM is a ‘read-only’ device. It is not recommenced to save files from other sources to the samememory that you will use for recording within the iN-CAR CAM, asthese may have a negative effect on the performance of the iN-CAR CAM.Ensure that the protective cover (plastic film) has been removed from the suction pad.Moisten the sucker slightly before affixing upon the windscreen. Ensure that the locking lever is fully closed. Make sure that the glass is smooth and clean. Do not stick to glass that has any non-smooth effect or paint whatsoever. Affix to the glass firmly and then close the locking lever fully.PROBLEM SOLUTION35

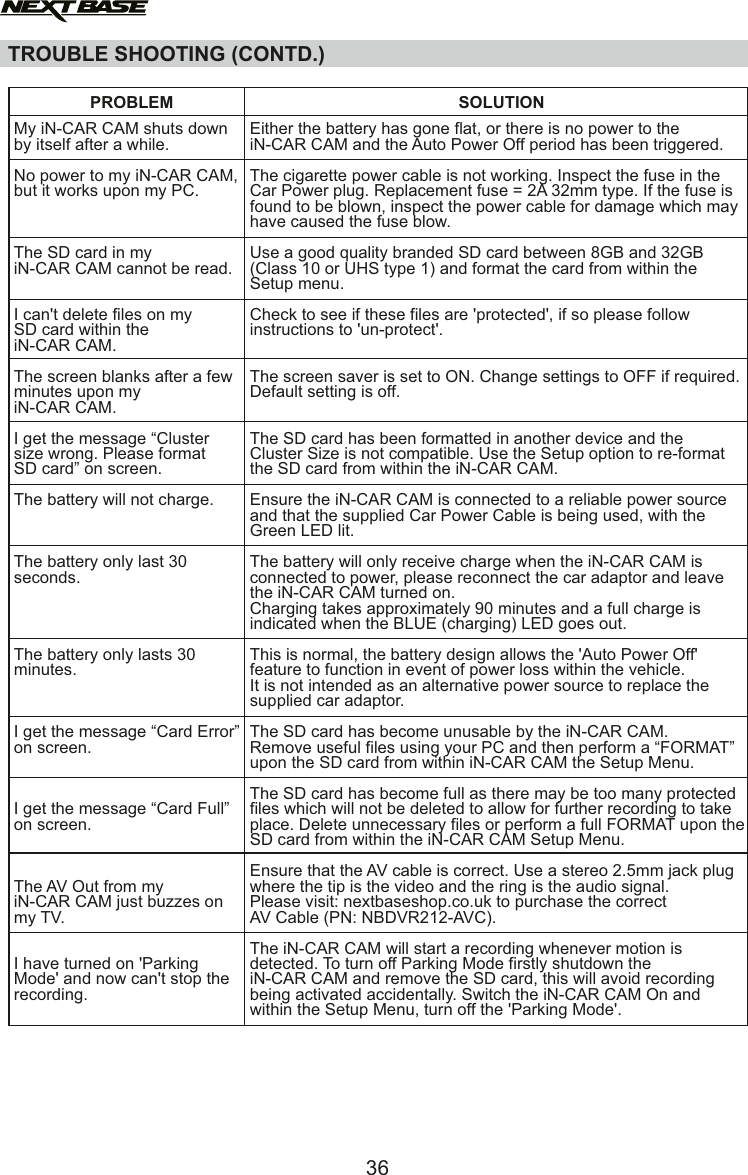

TROUBLE SHOOTING (CONTD.)My iN-CAR CAM shuts downby itself after a while.No power to my iN-CAR CAM, but it works upon my PC.The SD card in my iN-CAR CAM cannot be read.I can't delete files on my SD card within the iN-CAR CAM.The screen blanks after a few minutes upon my iN-CAR CAM.I get the message “Cluster size wrong. Please format SD card” on screen. The battery will not charge.The battery only last 30 seconds.The battery only lasts 30 minutes.I get the message “Card Error” on screen. I get the message “Card Full”on screen. The AV Out from my iN-CAR CAM just buzzes on my TV.I have turned on 'Parking Mode' and now can't stop the recording.PROBLEM SOLUTIONEither the battery has gone flat, or there is no power to theiN-CAR CAM and the Auto Power Off period has been triggered.The cigarette power cable is not working. Inspect the fuse in the Car Power plug. Replacement fuse = 2A 32mm type. If the fuse is found to be blown, inspect the power cable for damage which may have caused the fuse blow.Use a good quality branded SD card between 8GB and 32GB (Class 10 or UHS type 1) and format the card from within the Setup menu.Check to see if these files are 'protected', if so please follow instructions to 'un-protect'.The screen saver is set to ON. Change settings to OFF if required. Default setting is off.The SD card has been formatted in another device and the Cluster Size is not compatible. Use the Setup option to re-format the SD card from within the iN-CAR CAM.Ensure the iN-CAR CAM is connected to a reliable power source and that the supplied Car Power Cable is being used, with the Green LED lit.The battery will only receive charge when the iN-CAR CAM is connected to power, please reconnect the car adaptor and leave the iN-CAR CAM turned on.Charging takes approximately 90 minutes and a full charge is indicated when the BLUE (charging) LED goes out.This is normal, the battery design allows the 'Auto Power Off' feature to function in event of power loss within the vehicle. It is not intended as an alternative power source to replace the supplied car adaptor.The SD card has become unusable by the iN-CAR CAM. Remove useful files using your PC and then perform a “FORMAT” upon the SD card from within iN-CAR CAM the Setup Menu.The SD card has become full as there may be too many protected files which will not be deleted to allow for further recording to take place. Delete unnecessary files or perform a full FORMAT upon the SD card from within the iN-CAR CAM Setup Menu.Ensure that the AV cable is correct. Use a stereo 2.5mm jack plug where the tip is the video and the ring is the audio signal.Please visit: nextbaseshop.co.uk to purchase the correct AV Cable (PN: NBDVR212-AVC).The iN-CAR CAM will start a recording whenever motion is detected. To turn off Parking Mode firstly shutdown theiN-CAR CAM and remove the SD card, this will avoid recording being activated accidentally. Switch the iN-CAR CAM On and within the Setup Menu, turn off the 'Parking Mode'.36

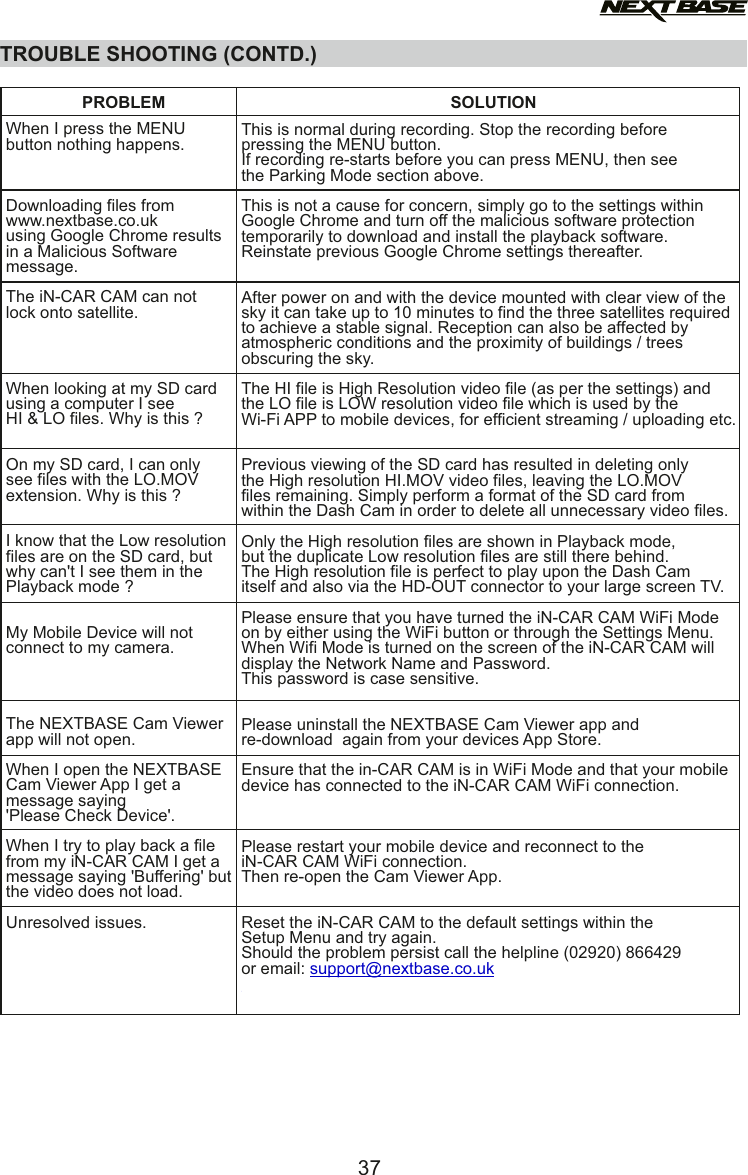

TROUBLE SHOOTING (CONTD.)When I press the MENU button nothing happens.Downloading files fromwww.nextbase.co.uk using Google Chrome results in a Malicious Software message.The iN-CAR CAM can not lock onto satellite.When looking at my SD cardusing a computer I seeHI & LO files. Why is this ?On my SD card, I can onlysee files with the LO.MOVextension. Why is this ?I know that the Low resolutionfiles are on the SD card, butwhy can't I see them in thePlayback mode ?My Mobile Device will not connect to my camera.The NEXTBASE Cam Viewer app will not open.When I open the NEXTBASE Cam Viewer App I get a message saying 'Please Check Device'.When I try to play back a file from my iN-CAR CAM I get a message saying 'Buffering' but the video does not load.Unresolved issues.This is normal during recording. Stop the recording beforepressing the MENU button.If recording re-starts before you can press MENU, then seethe Parking Mode section above.This is not a cause for concern, simply go to the settings within Google Chrome and turn off the malicious software protectiontemporarily to download and install the playback software.Reinstate previous Google Chrome settings thereafter.After power on and with the device mounted with clear view of the sky it can take up to 10 minutes to find the three satellites required to achieve a stable signal. Reception can also be affected by atmospheric conditions and the proximity of buildings / trees obscuring the sky.The HI file is High Resolution video file (as per the settings) andthe LO file is LOW resolution video file which is used by theWi-Fi APP to mobile devices, for efficient streaming / uploading etc.Previous viewing of the SD card has resulted in deleting onlythe High resolution HI.MOV video files, leaving the LO.MOVfiles remaining. Simply perform a format of the SD card fromwithin the Dash Cam in order to delete all unnecessary video files.Only the High resolution files are shown in Playback mode,but the duplicate Low resolution files are still there behind.The High resolution file is perfect to play upon the Dash Camitself and also via the HD-OUT connector to your large screen TV.Please ensure that you have turned the iN-CAR CAM WiFi Mode on by either using the WiFi button or through the Settings Menu. When Wifi Mode is turned on the screen of the iN-CAR CAM will display the Network Name and Password. This password is case sensitive.Please uninstall the NEXTBASE Cam Viewer app and re-download again from your devices App Store.Ensure that the in-CAR CAM is in WiFi Mode and that your mobile device has connected to the iN-CAR CAM WiFi connection.Please restart your mobile device and reconnect to the iN-CAR CAM WiFi connection. Then re-open the Cam Viewer App.Reset the iN-CAR CAM to the default settings within theSetup Menu and try again.Should the problem persist call the helpline (02920) 866429or email: support@nextbase.co.ukPROBLEM SOLUTION37

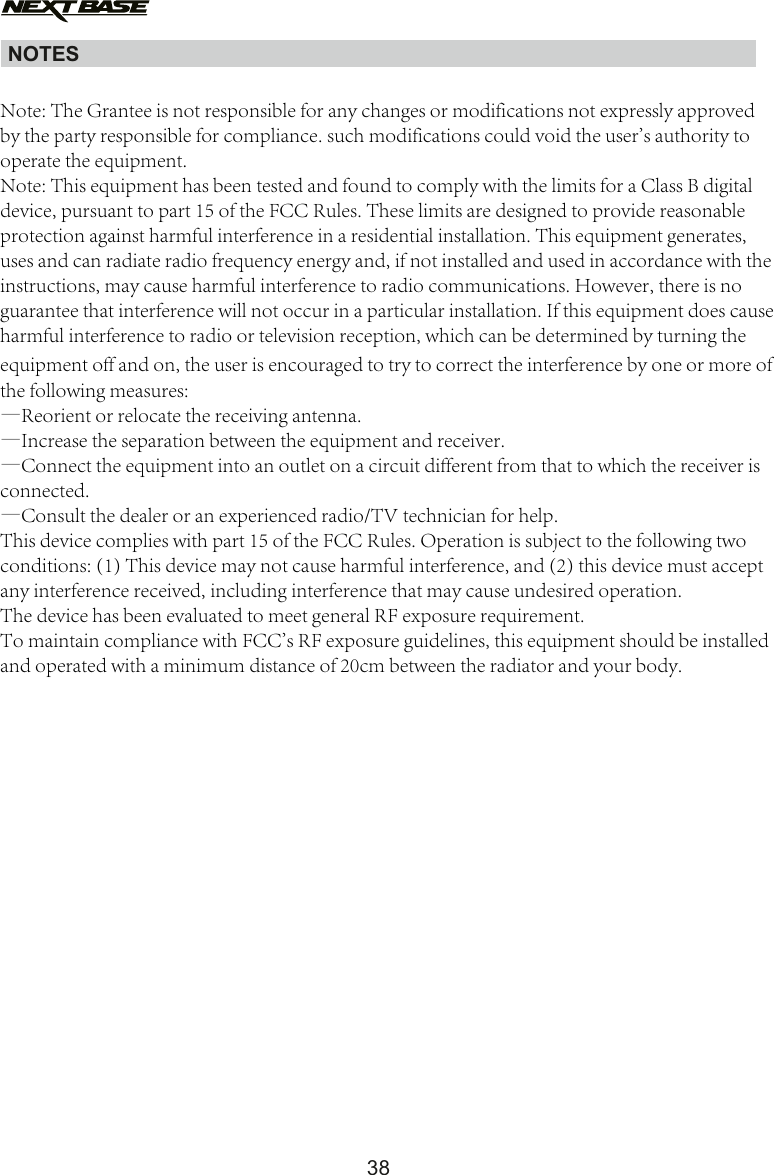

NOTES38Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
NBDVR412GW-IM-ENG-R8www.nextbase.co.uk
