Powervision Tech PRASC10 PowerRay Standard Controller User Manual

Powervision Tech Inc. PowerRay Standard Controller Users Manual

User Manual

PowerRay Quick Start GuidePowerVisionCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 1 2017/5/24 16:35:41

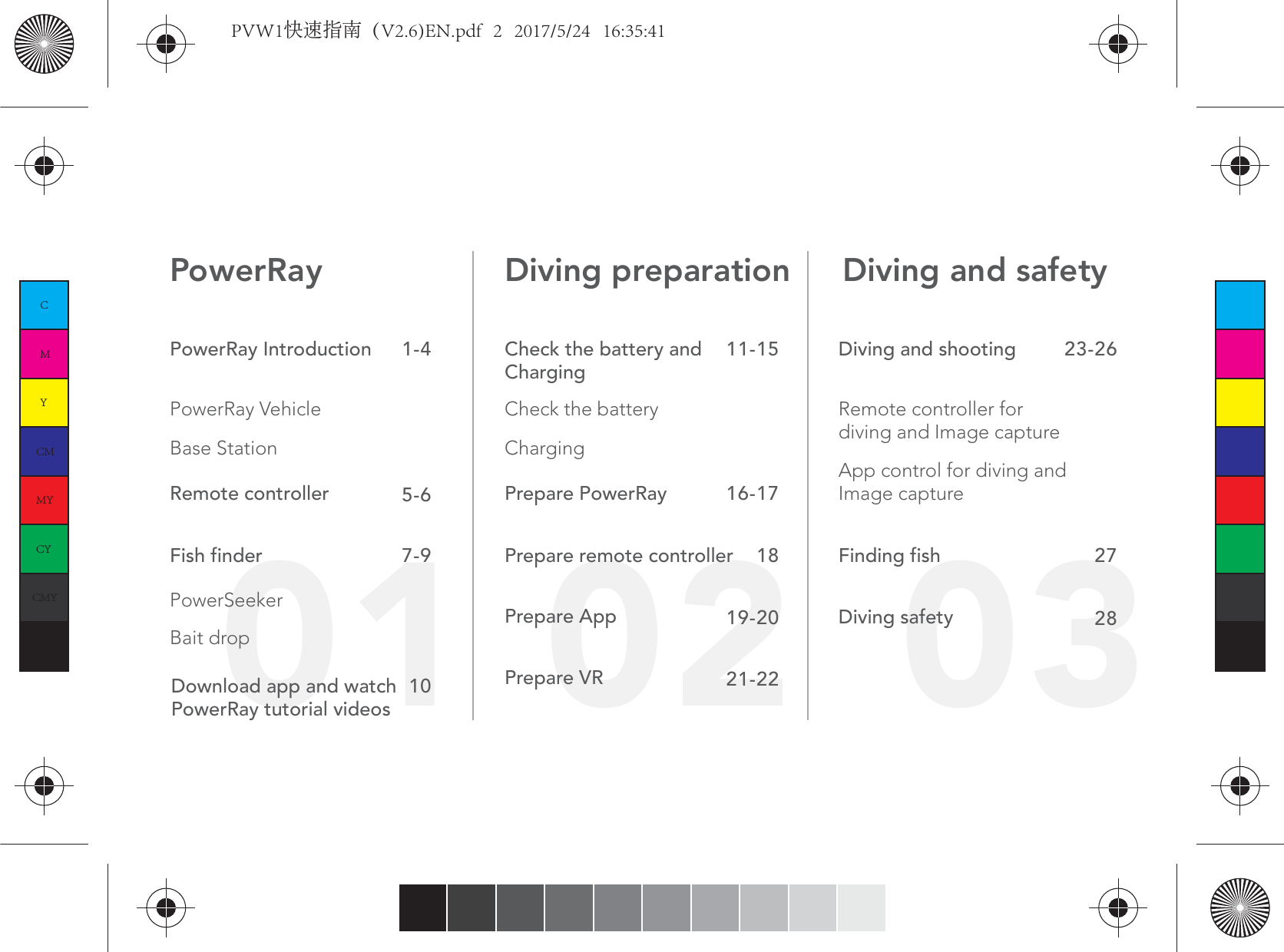

01 02 03PowerRayPowerRay IntroductionPowerRay VehicleBase StationFish finderDownload app and watch PowerRay tutorial videosPowerSeekerBait dropRemote controllerDiving preparation 11-1516-171819-2021-221-45-67-9Diving safety 2810Diving and safetyRemote controller for diving and Image captureApp control for diving and Image captureFinding fish23-2627Diving and shootingPrepare PowerRayPrepare remote controllerPrepare AppPrepare VR Check the battery and ChargingCheck the batteryChargingCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 2 2017/5/24 16:35:41
PowerRay IntroductionCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 3 2017/5/24 16:35:41

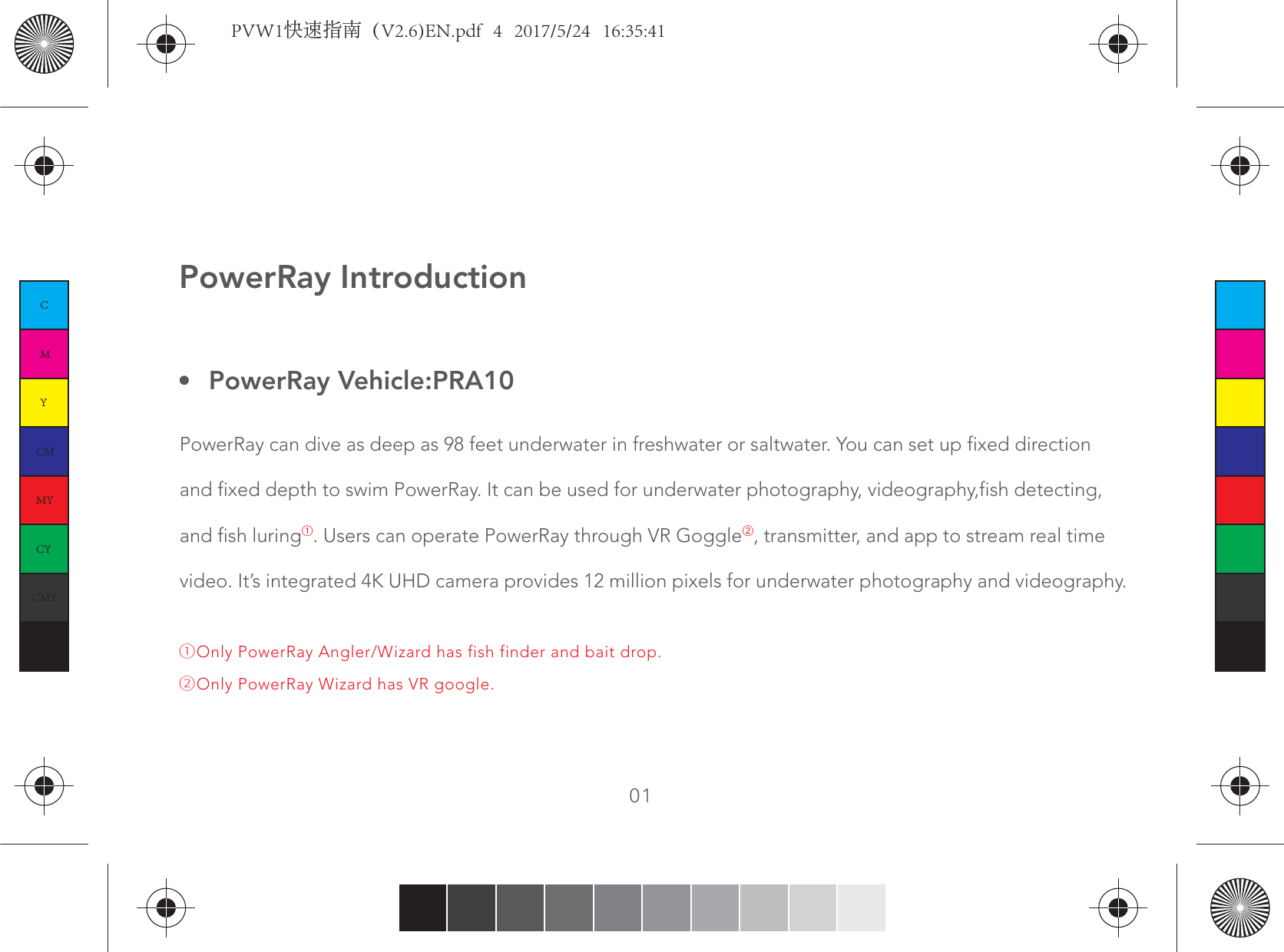

PowerRay Vehicle:PRA10΍Only PowerRay Angler/Wizard has fish finder and bait drop.ΎOnly PowerRay Wizard has VR google. PowerRay IntroductionPowerRay can dive as deep as 98 feet underwater in freshwater or saltwater. You can set up fixed direction and fixed depth to swim PowerRay. It can be used for underwater photography, videography,fish detecting, and fish luring΍. Users can operate PowerRay through VR GoggleΎ, transmitter, and app to stream real time video. It’s integrated 4K UHD camera provides 12 million pixels for underwater photography and videography.01CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 4 2017/5/24 16:35:41

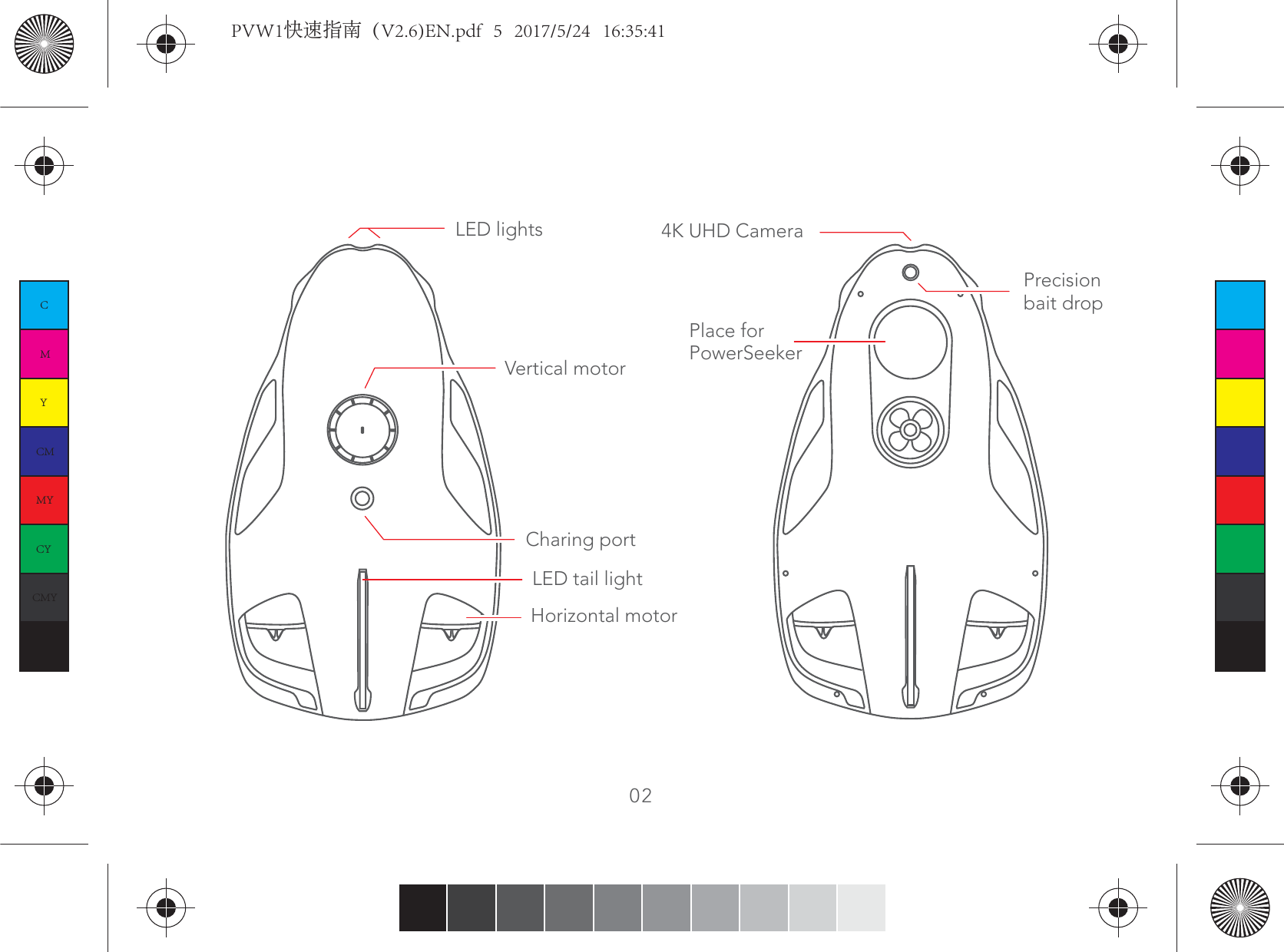

02LED lights 4K UHD CameraPrecision bait dropPlace for PowerSeekerVertical motorCharing port LED tail lightHorizontal motor CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 5 2017/5/24 16:35:41

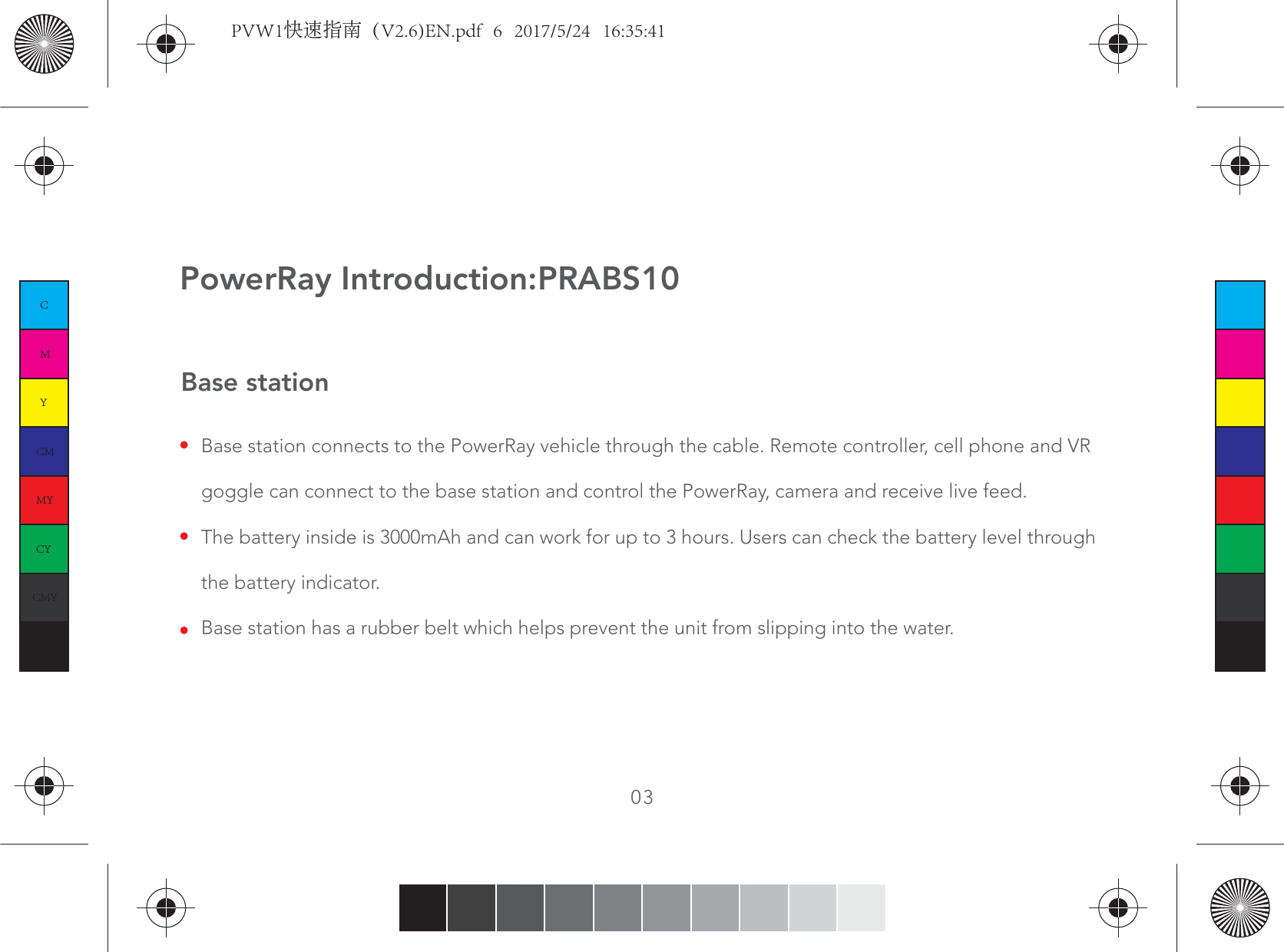

Base stationPowerRay Introduction:PRABS10Base station connects to the PowerRay vehicle through the cable. Remote controller, cell phone and VR goggle can connect to the base station and control the PowerRay, camera and receive live feed.The battery inside is 3000mAh and can work for up to 3 hours. Users can check the battery level through the battery indicator.Base station has a rubber belt which helps prevent the unit from slipping into the water. 03CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 6 2017/5/24 16:35:41

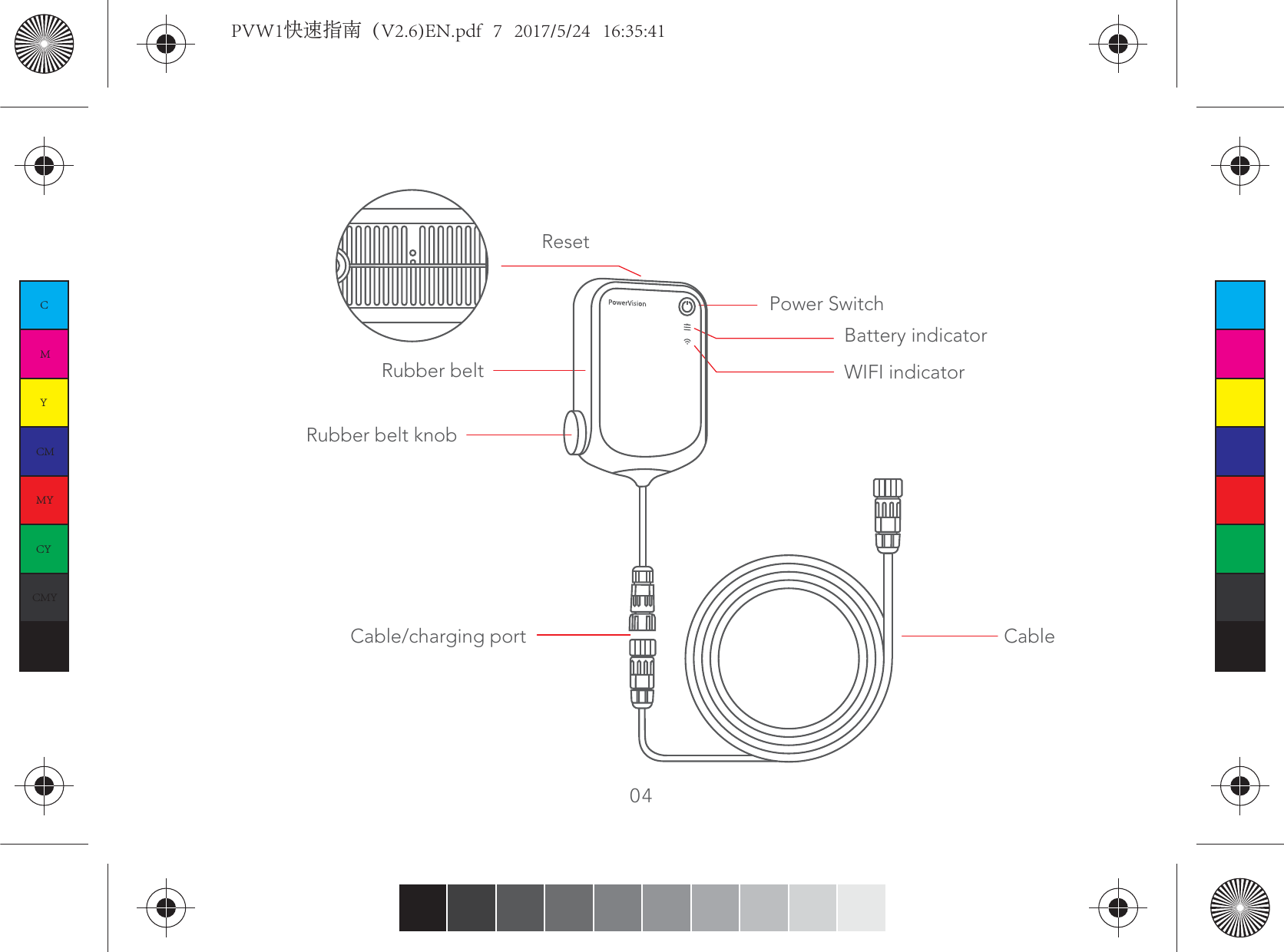

Power SwitchBattery indicatorRubber belt knobCable/charging portRubber belt WIFI indicator 04ResetCableCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 7 2017/5/24 16:35:41

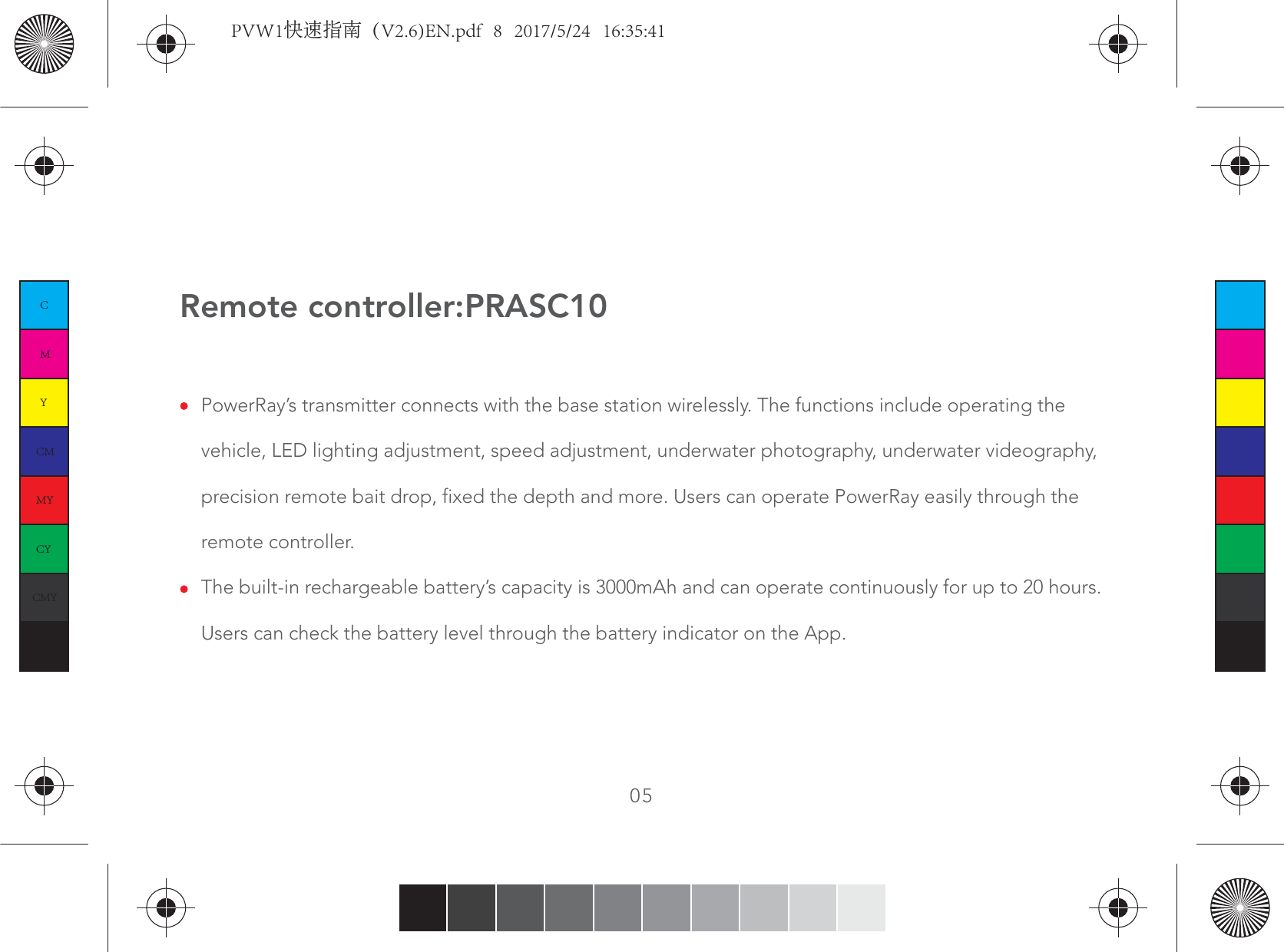

Remote controller:PRASC10PowerRay’s transmitter connects with the base station wirelessly. The functions include operating the vehicle, LED lighting adjustment, speed adjustment, underwater photography, underwater videography, precision remote bait drop, fixed the depth and more. Users can operate PowerRay easily through the remote controller.The built-in rechargeable battery’s capacity is 3000mAh and can operate continuously for up to 20 hours. Users can check the battery level through the battery indicator on the App.05CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 8 2017/5/24 16:35:41

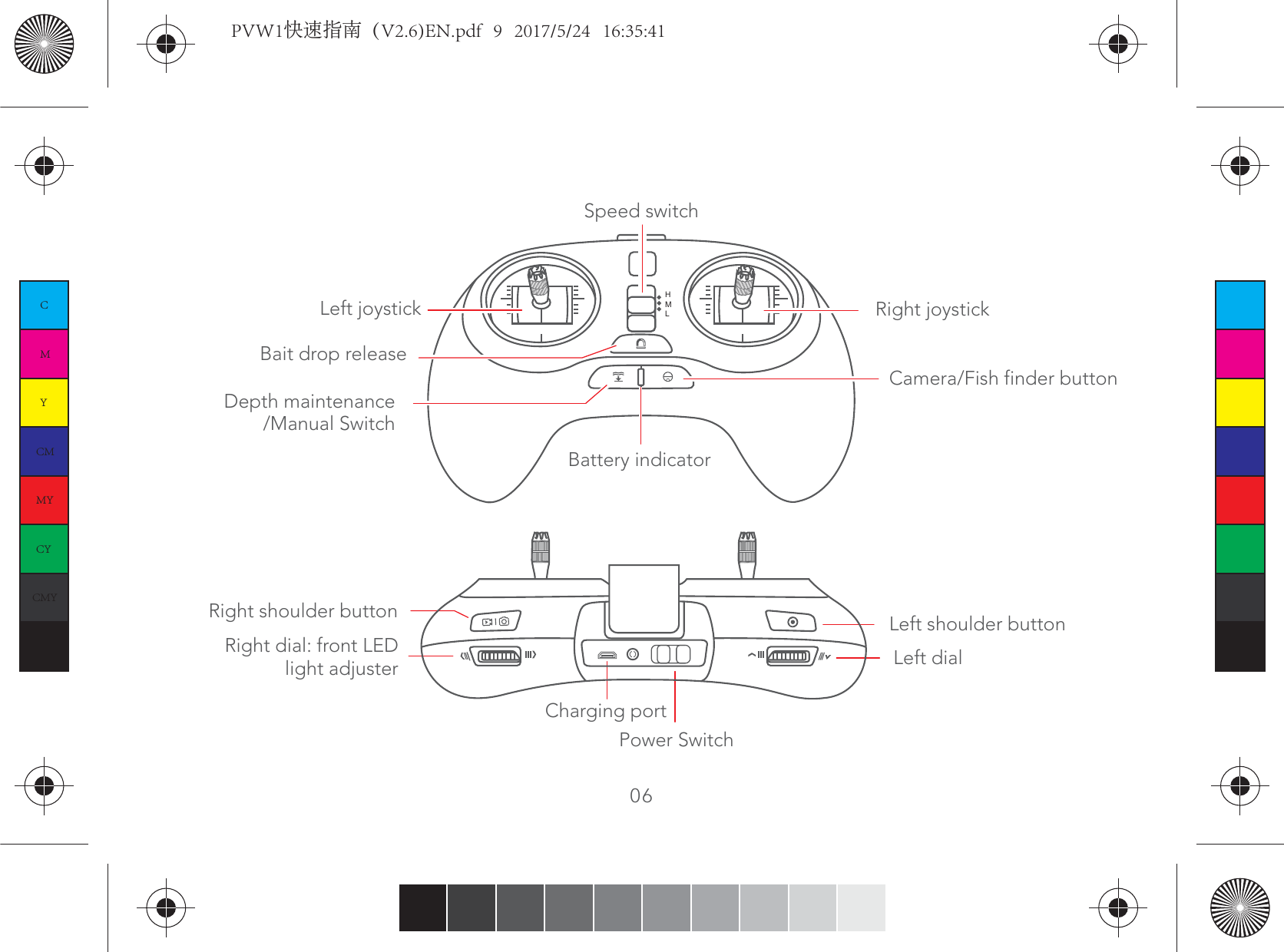

Left joystickBait drop releaseRight joystickBattery indicatorDepth maintenance/Manual SwitchCamera/Fish finder button 06HMLCharging portRight dial: front LEDlight adjusterRight shoulder button Left shoulder buttonPower SwitchLeft dialSpeed switchCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 9 2017/5/24 16:35:41

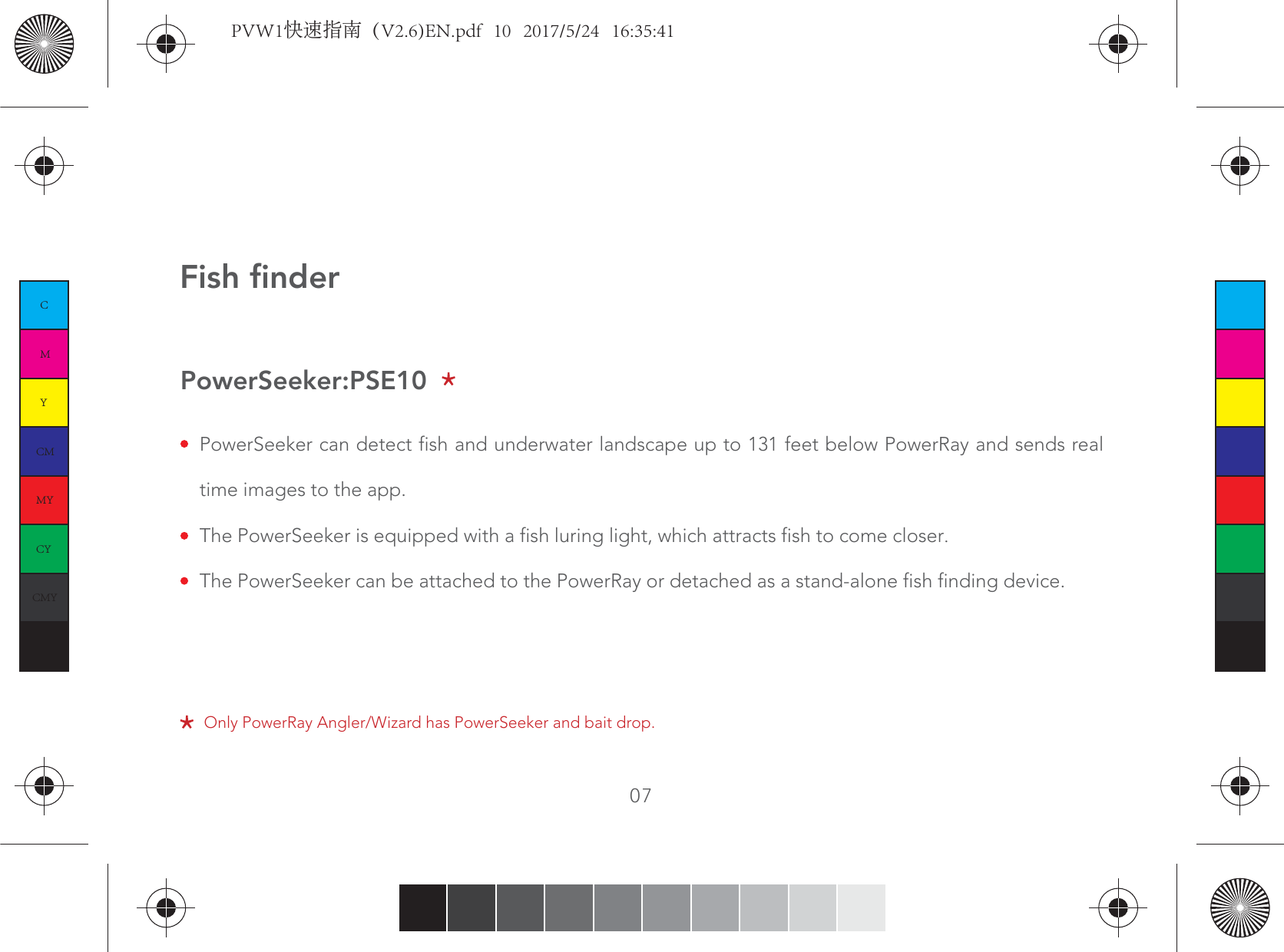

PowerSeeker:PSE10Only PowerRay Angler/Wizard has PowerSeeker and bait drop.Fish finderPowerSeeker can detect fish and underwater landscape up to 131 feet below PowerRay and sends real time images to the app.The PowerSeeker is equipped with a fish luring light, which attracts fish to come closer.The PowerSeeker can be attached to the PowerRay or detached as a stand-alone fish finding device.07CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 10 2017/5/24 16:35:41

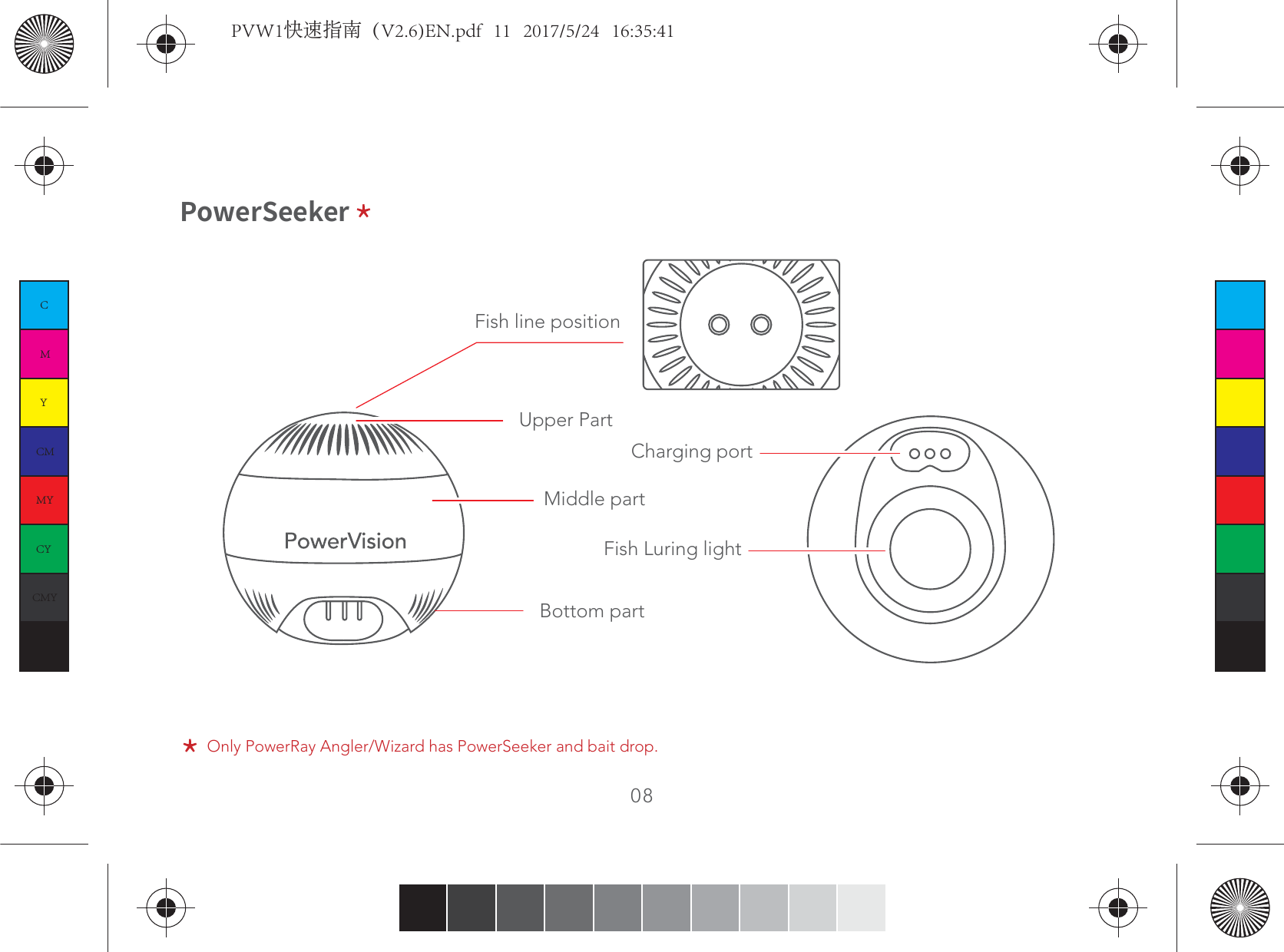

Upper Part Charging portFish Luring lightBottom partMiddle part08Fish line positionOnly PowerRay Angler/Wizard has PowerSeeker and bait drop. 1PXFS4FFLFSCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 11 2017/5/24 16:35:41
Bait dropFish finder devicePlease put fish line on the hook, and operate the PowerRay to drop the bait through Remote controller or on Vision+.09 Only PowerRay Angler/Wizard has fish finder and bait drop.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 12 2017/5/24 16:35:41

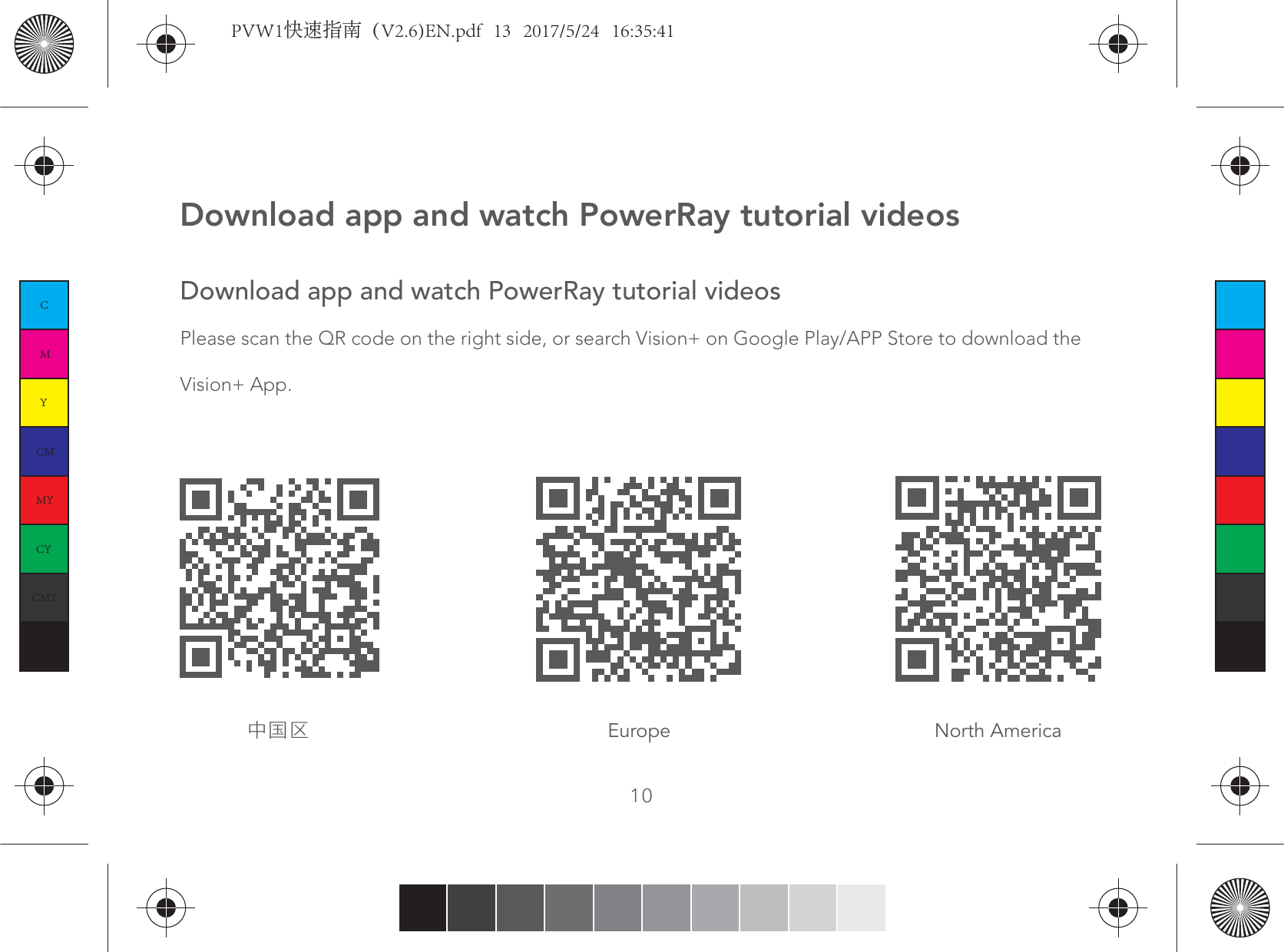

Download app and watch PowerRay tutorial videosDownload app and watch PowerRay tutorial videosPlease scan the QR code on the right side, or search Vision+ on Google Play/APP Store to download the Vision+ App.10⚥㕂⼓ Europe North AmericaCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 13 2017/5/24 16:35:41
Diving Preparation CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 14 2017/5/24 16:35:41

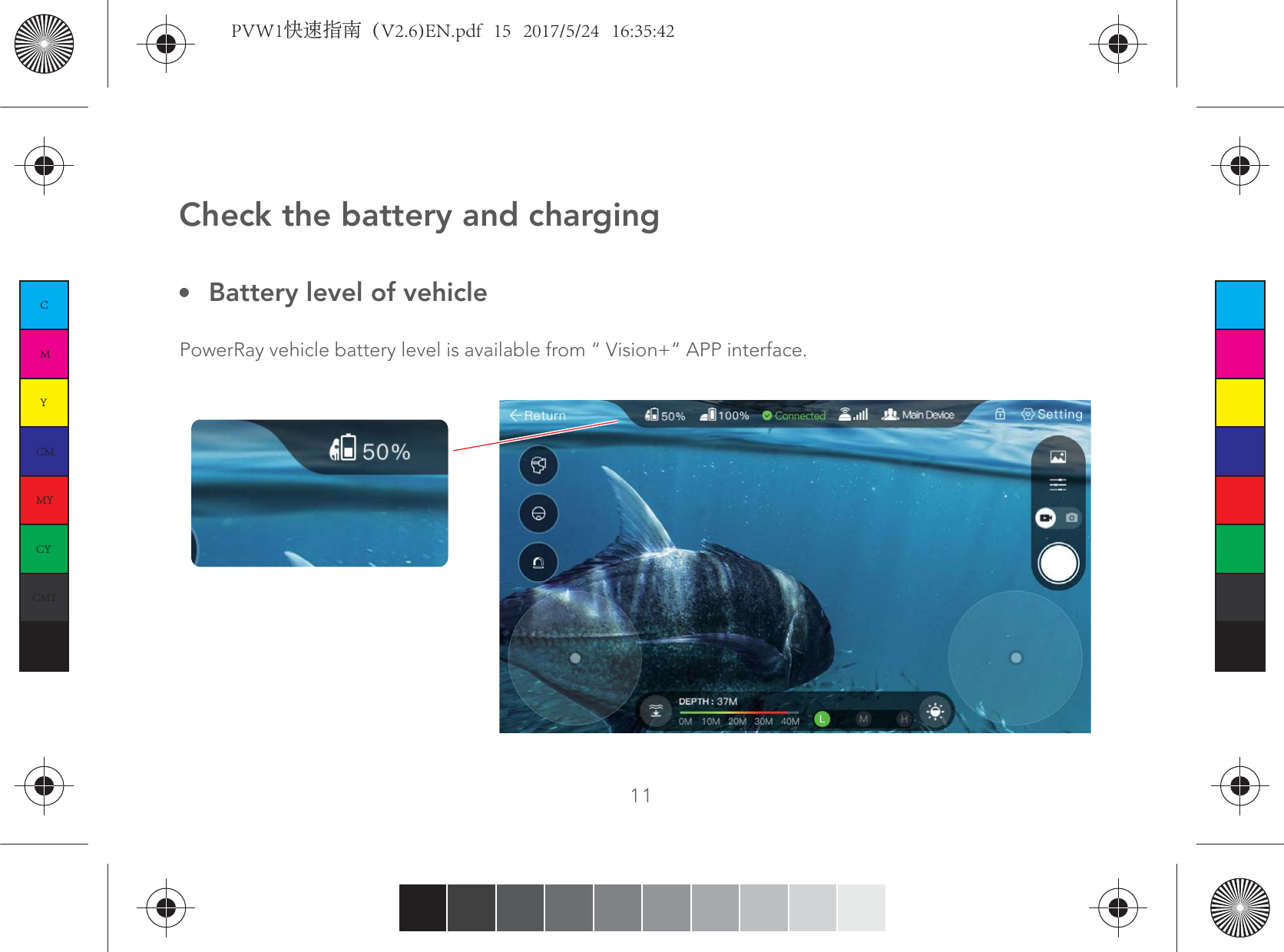

Battery level of vehicleCheck the battery and chargingPowerRay vehicle battery level is available from “ Vision+” APP interface.11CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 15 2017/5/24 16:35:42
Battery level of base stationcheck battery indicatorGreen:above 60% Yellow:60%~20% Red:below 20%12CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 16 2017/5/24 16:35:42
HMLBattery level of fish finderBattery level of remote controllerCheck the battery indicator13The fish finder will automatically turn on when the charging port touches the water. It will turn off 1 minute after leaving the water. You can read the battery level through Vision+ App.Green:above 60% Yellow:60%~20% Red:below 20%CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 17 2017/5/24 16:35:42

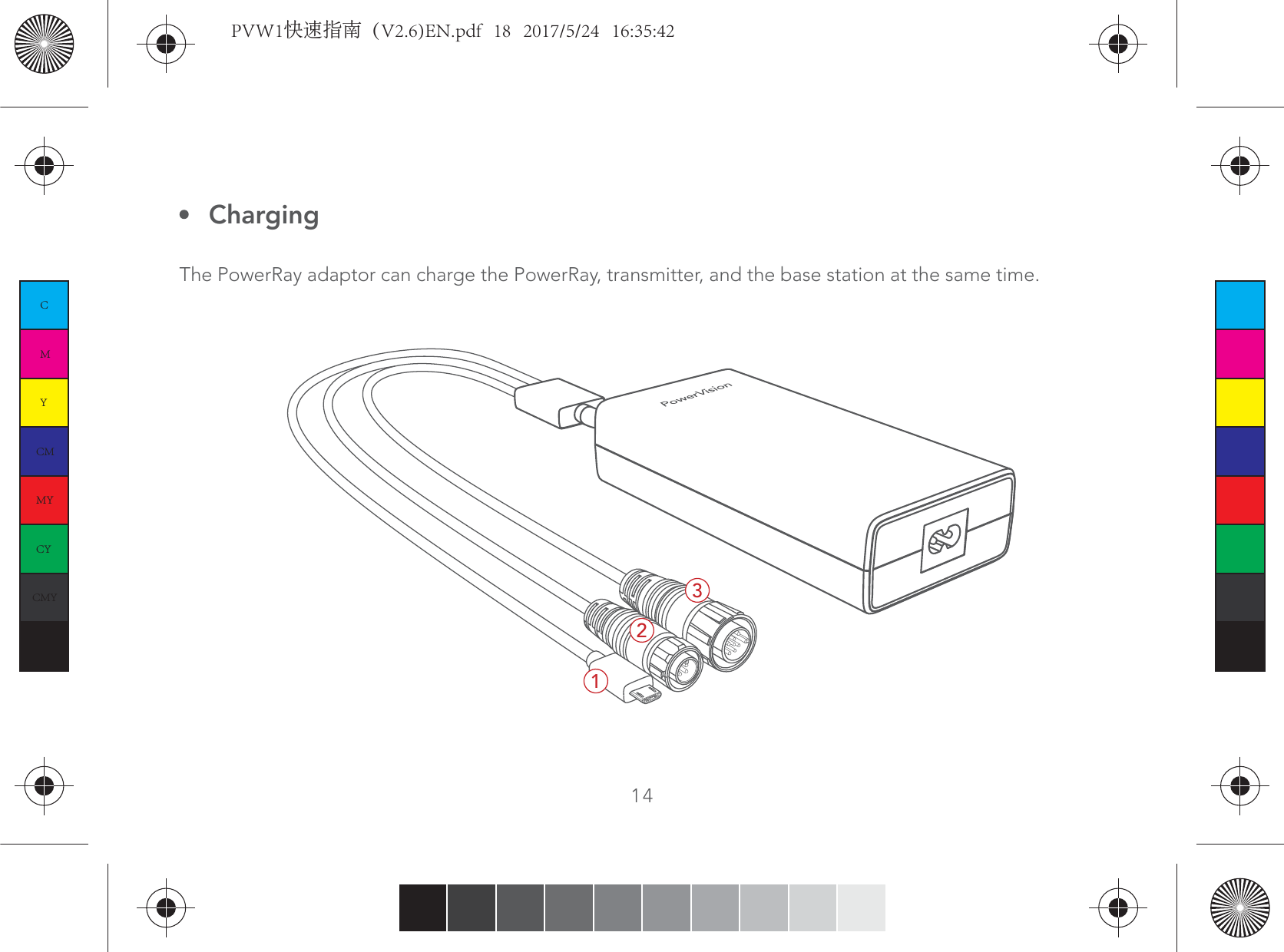

ChargingThe PowerRay adaptor can charge the PowerRay, transmitter, and the base station at the same time.14123CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 18 2017/5/24 16:35:42

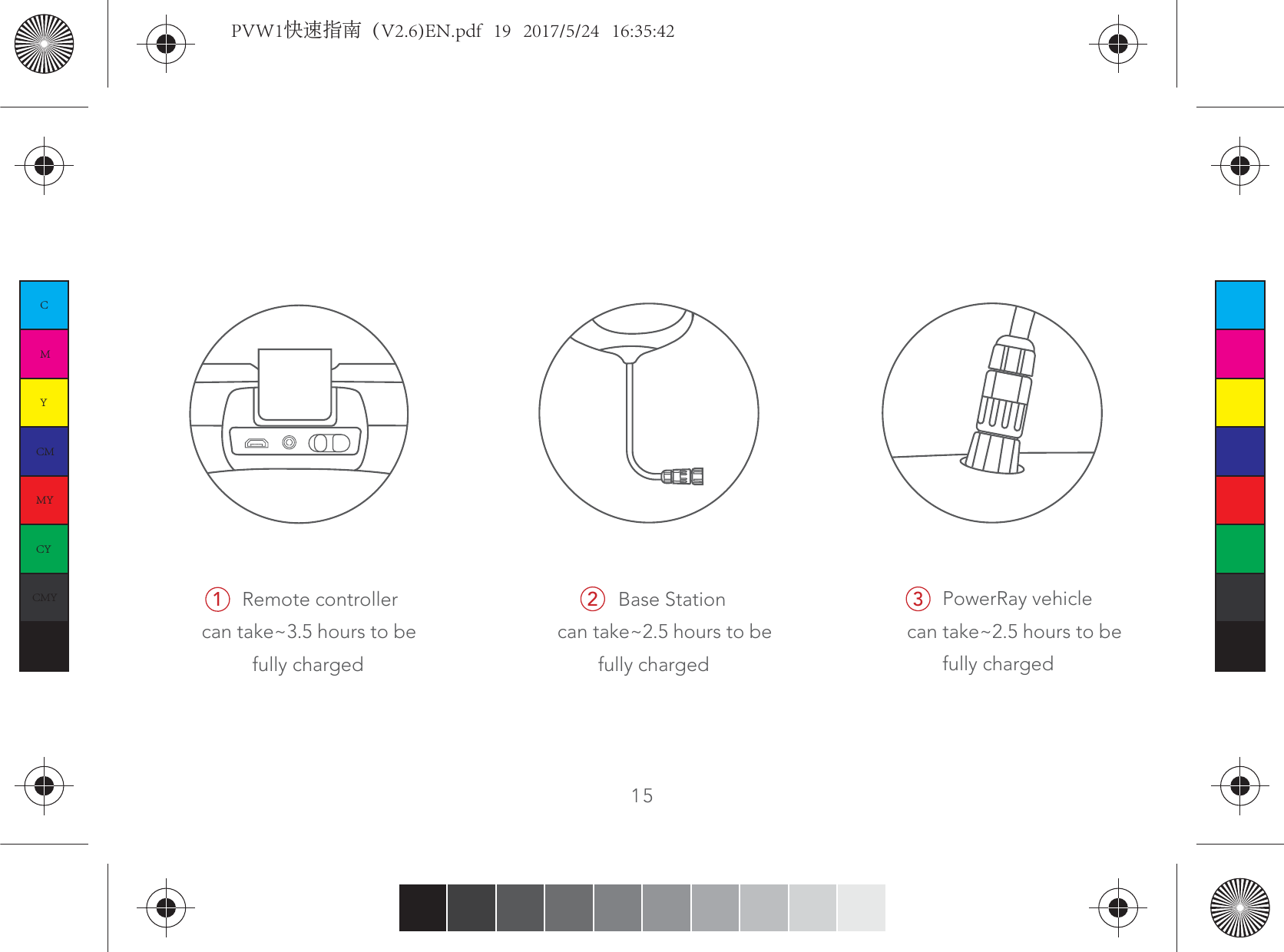

15 Base Station can take~2.5 hours to be fully charged2 PowerRay vehicle can take~2.5 hours to be fully charged3 Remote controller can take~3.5 hours to be fully charged1CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 19 2017/5/24 16:35:42
2.Plug the cable into base station. 3.Open the vehicle chargingport protector.(make sure this is always 100% dry whiledoing this) Prepare PowerRay161.Turn on the base station by pressing the power switch for 3 seconds.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 20 2017/5/24 16:35:42

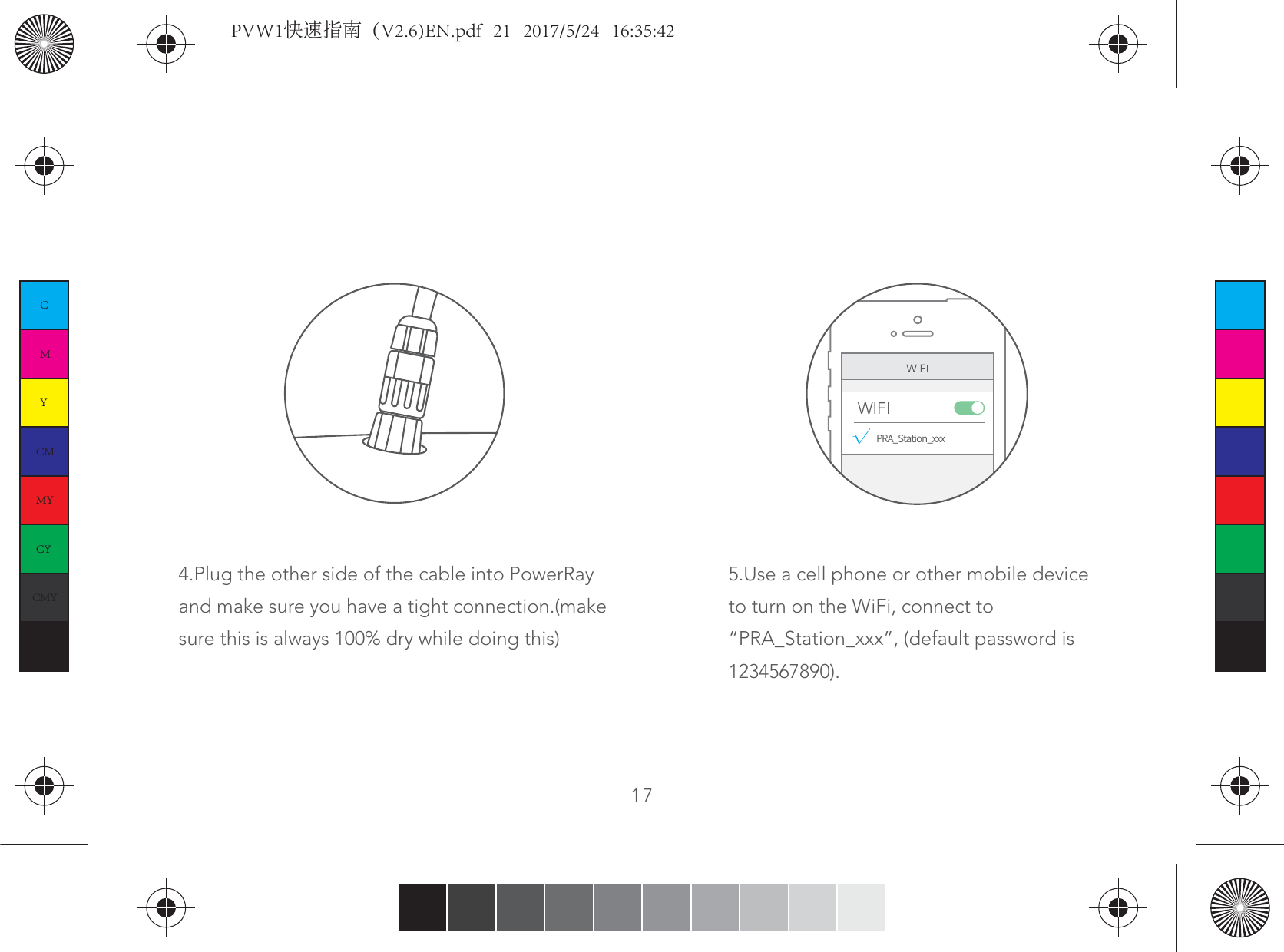

13"@4UBUJPO@YYYWIFI174.Plug the other side of the cable into PowerRay and make sure you have a tight connection.(make sure this is always 100% dry while doing this)5.Use a cell phone or other mobile device to turn on the WiFi, connect to “PRA_Station_xxx”, (default password is 1234567890). CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 21 2017/5/24 16:35:42

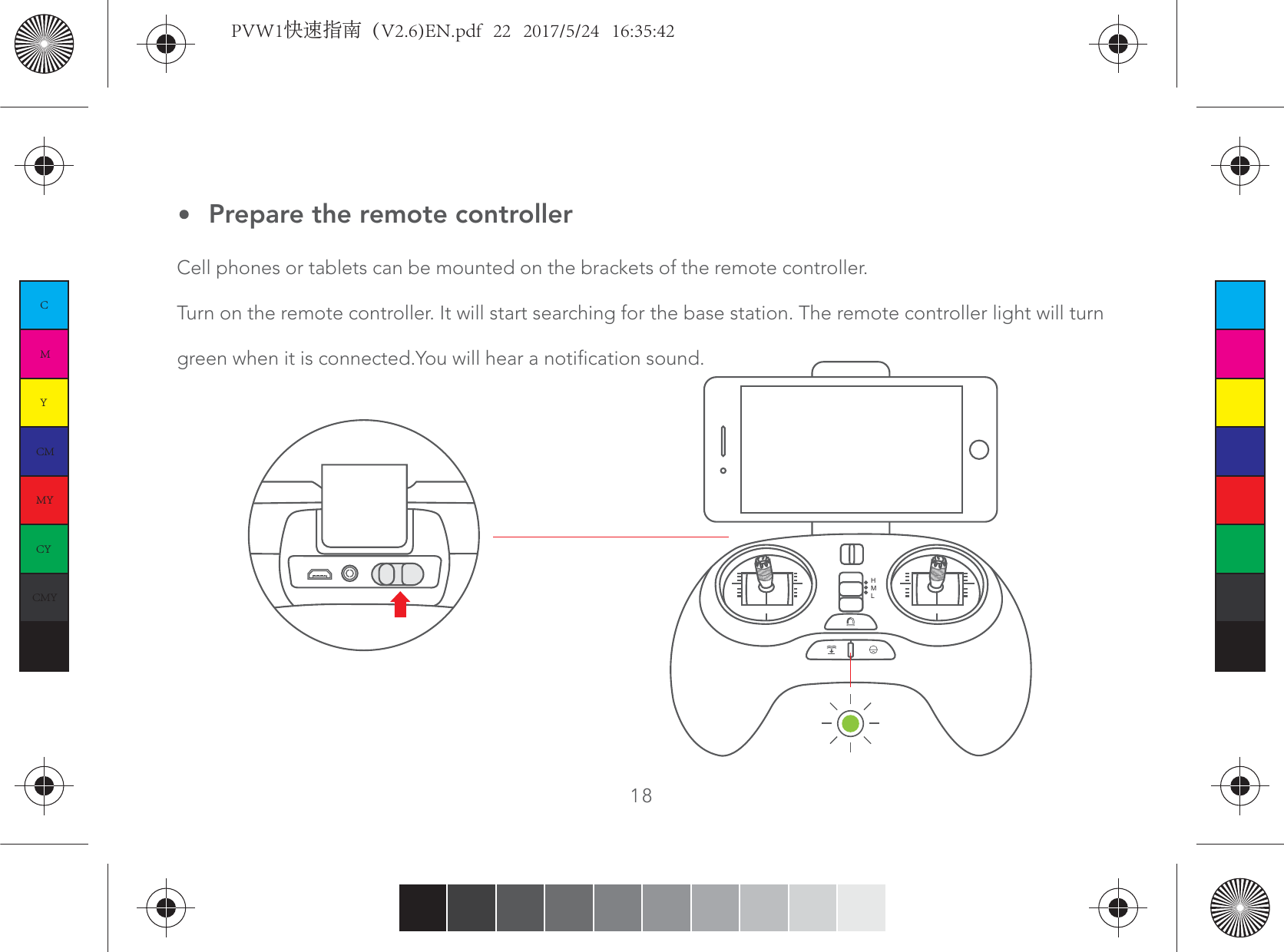

HML18Prepare the remote controllerCell phones or tablets can be mounted on the brackets of the remote controller.Turn on the remote controller. It will start searching for the base station. The remote controller light will turn green when it is connected.You will hear a notification sound.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 22 2017/5/24 16:35:42

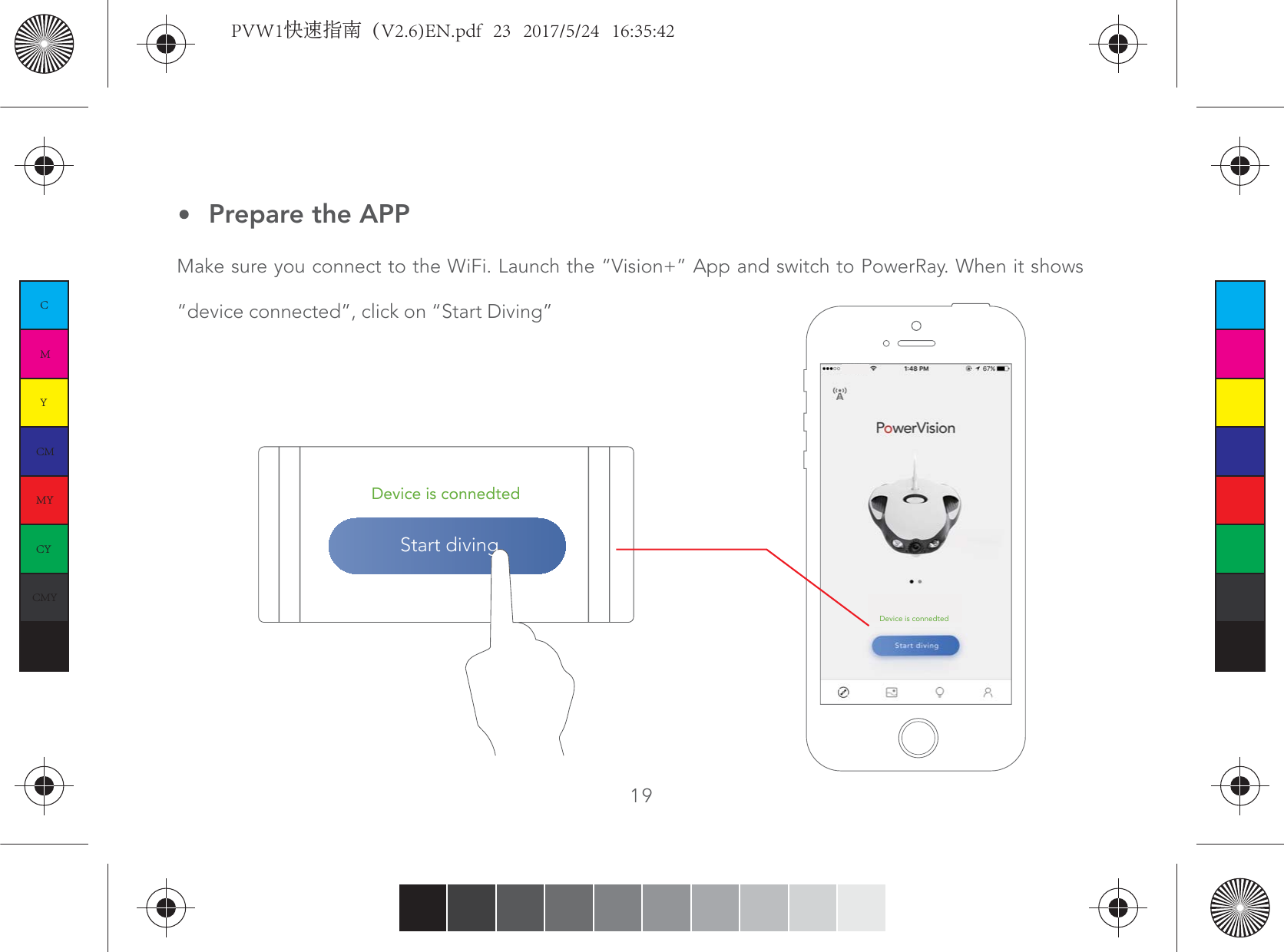

Make sure you connect to the WiFi. Launch the “Vision+” App and switch to PowerRay. When it shows “device connected”, click on “Start Diving”19Prepare the APPDevice is connedtedDevice is connedtedStart divingCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 23 2017/5/24 16:35:42

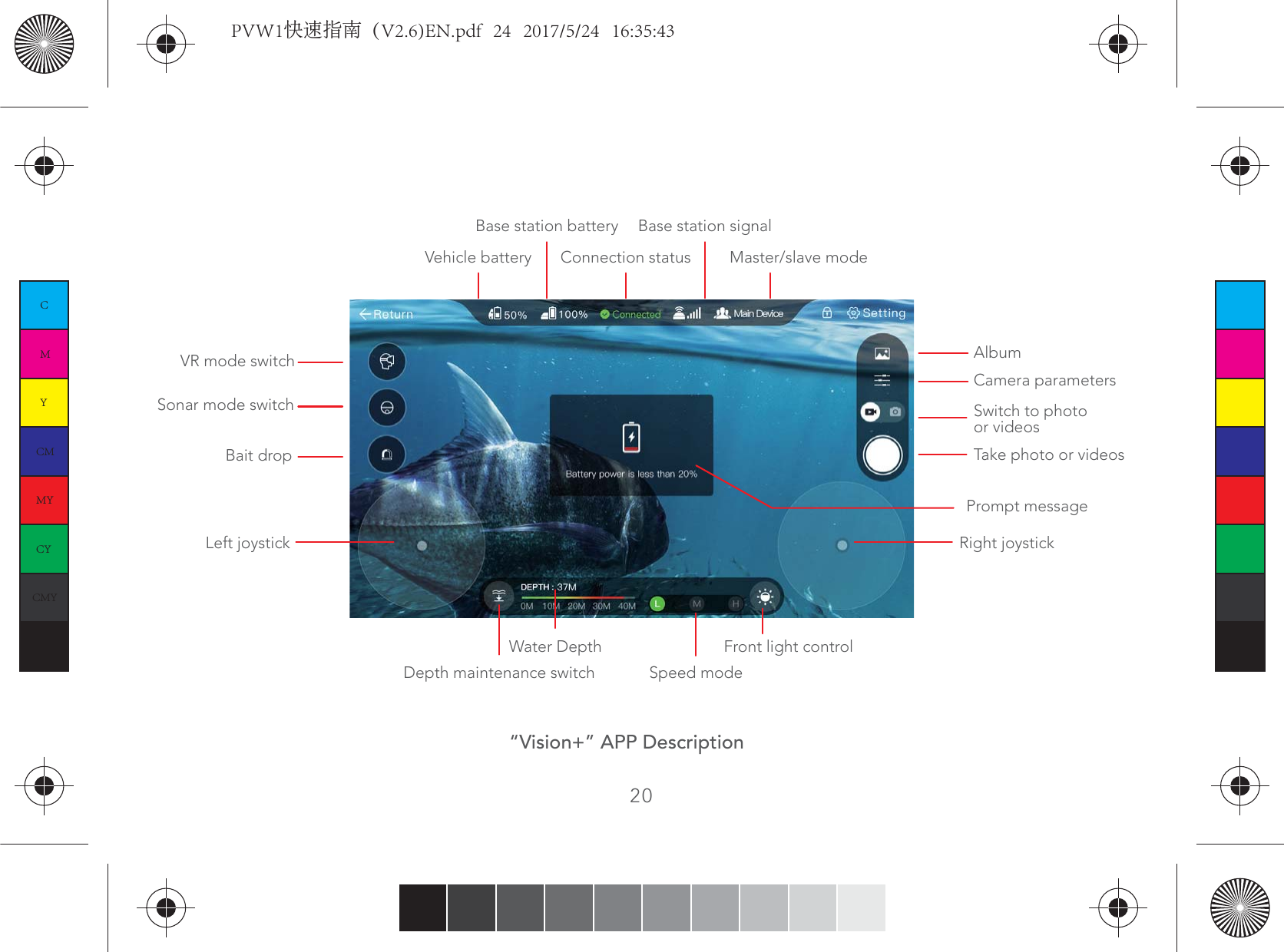

Vehicle batteryBase station battery“Vision+” APP DescriptionConnection status Master/slave modeFront light controlSpeed modeAlbumCamera parametersDepth maintenance switchWater DepthSwitch to photo or videosTake photo or videosPrompt messageRight joystickLeft joystickBait dropSonar mode switchVR mode switchBase station signal20CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 24 2017/5/24 16:35:43

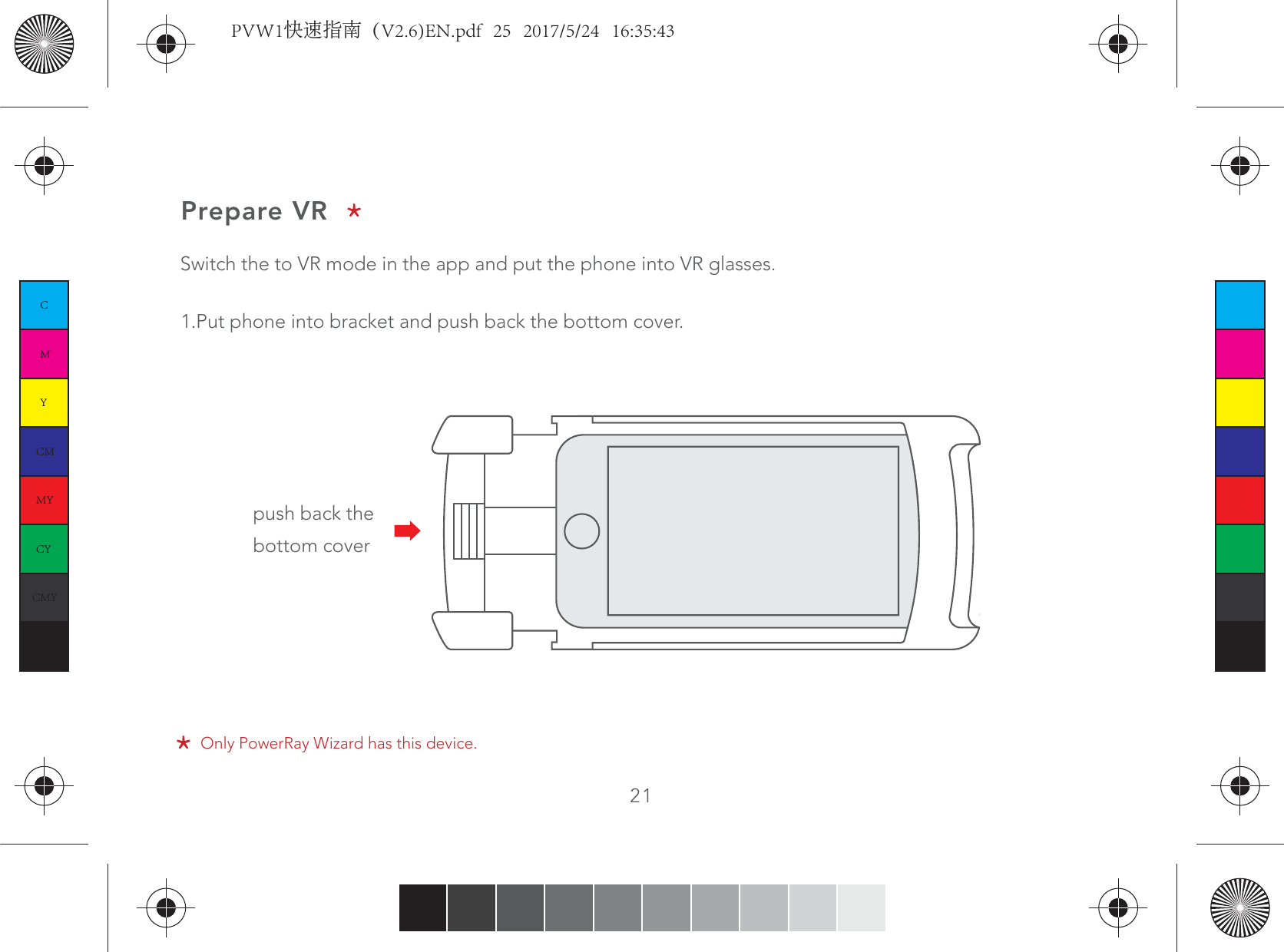

21Prepare VRSwitch the to VR mode in the app and put the phone into VR glasses.1.Put phone into bracket and push back the bottom cover.push back the bottom coverOnly PowerRay Wizard has this device.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 25 2017/5/24 16:35:43
222.Insert the bracket into VR goggleOnly PowerRay Wizard has this device.3. VR goggle head gesture functionHead gesture function activation Press down the left shoulder button on the controller to enable this function. You can move the PowerRay through head gestures. Release the left shoulder button to disable this function.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 26 2017/5/24 16:35:43
01Diving and safetyCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 27 2017/5/24 16:35:43
Diving and shootingTo prevent the user from spinning the propellers accidently outside the water, user needs to unlock the PowerRay to enable the motorsLocking & Unlocking PowerRay23HME-Lock: dial the left finger wheel to the right and press camera/fish finder button for 1 second until it vibrates.-Unlock: dial the left finger wheel to the left and press camera/fish finder button for 1 second until it vibrates. HMECMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 28 2017/5/24 16:35:43

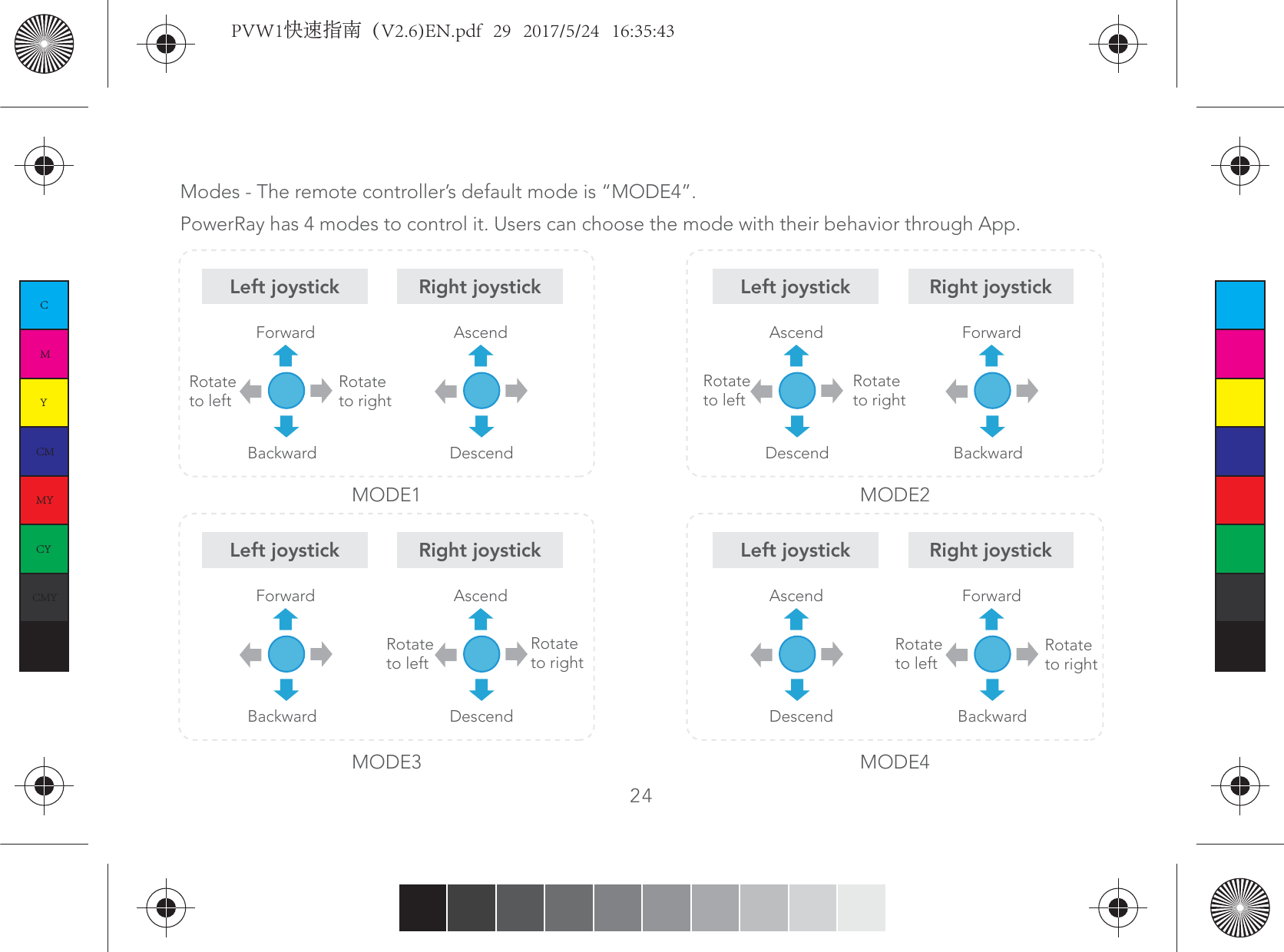

ForwardBackwardRotateto rightRotateto leftRotateto rightRotateto leftAscendDescend24MODE1ForwardBackward Rotateto rightRotateto leftAscendDescendLeft joystick Right joystickMODE2ForwardBackward Left joystick Right joystickMODE3ForwardBackward Rotateto rightRotateto leftAscendDescendLeft joystick Right joystickMODE4AscendDescendLeft joystick Right joystickModes - The remote controller’s default mode is “MODE4”.PowerRay has 4 modes to control it. Users can choose the mode with their behavior through App.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 29 2017/5/24 16:35:43

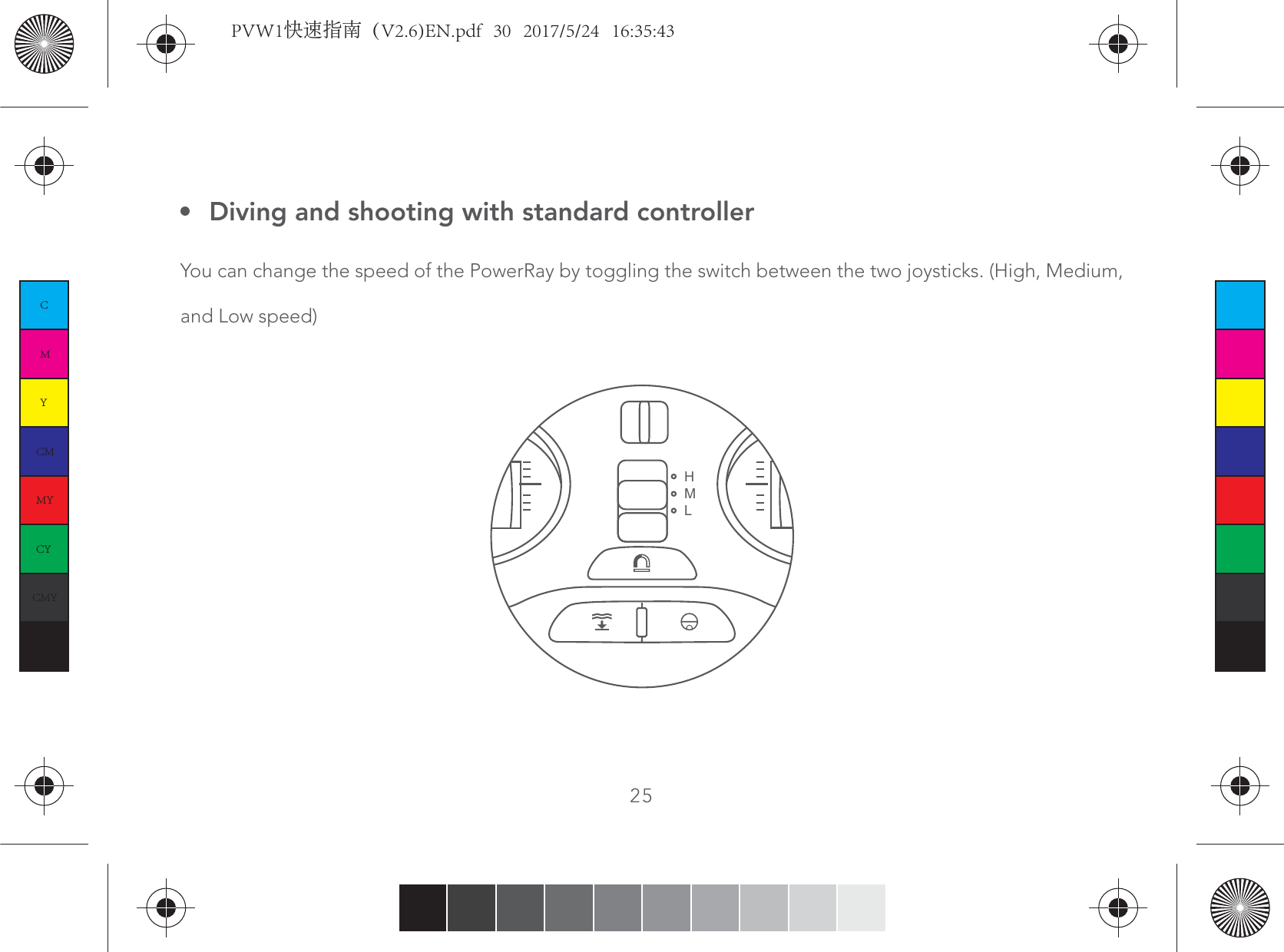

25Diving and shooting with standard controllerYou can change the speed of the PowerRay by toggling the switch between the two joysticks. (High, Medium, and Low speed)HMLCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 30 2017/5/24 16:35:43

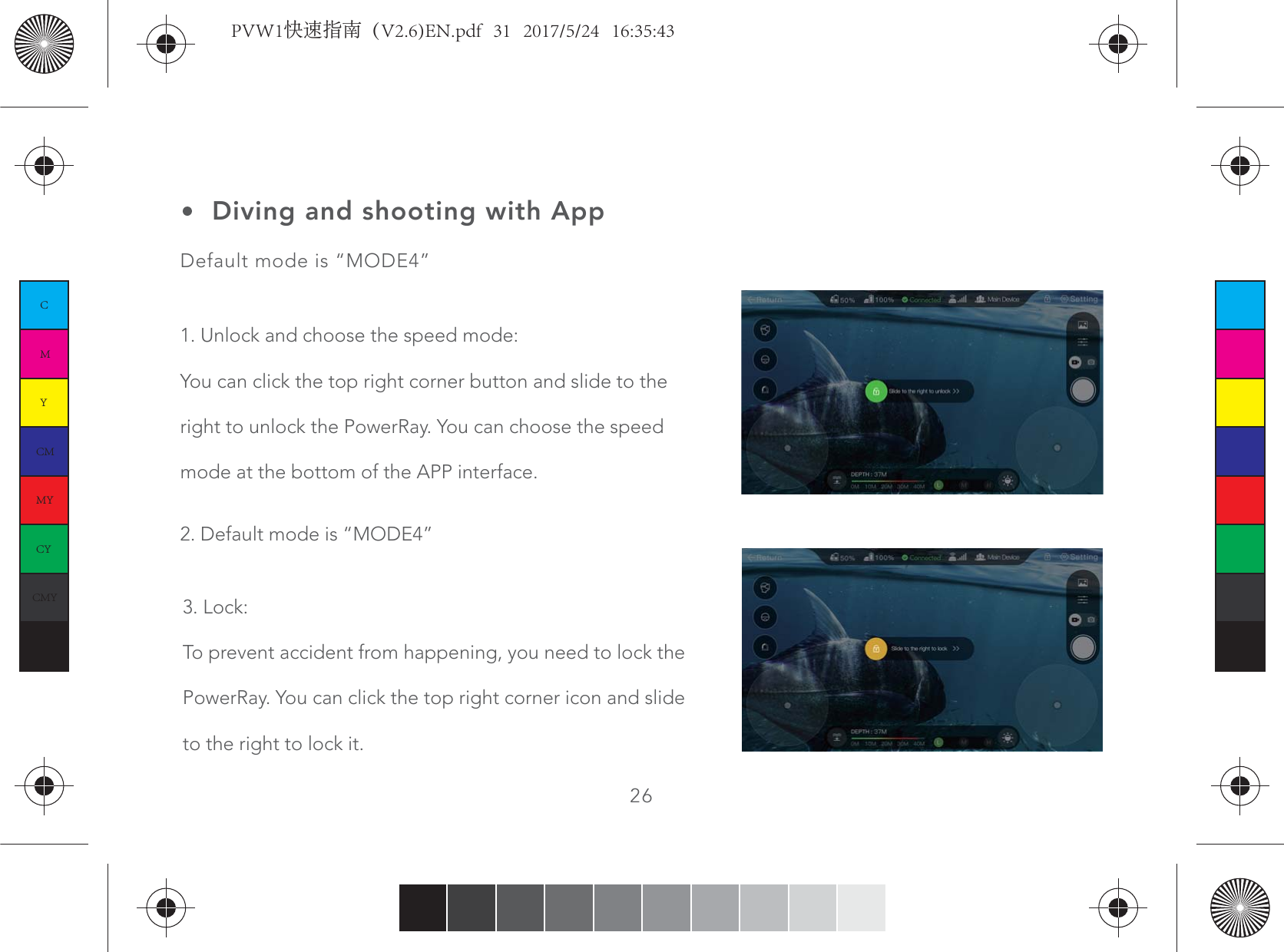

26Diving and shooting with AppDefault mode is “MODE4”1. Unlock and choose the speed mode:You can click the top right corner button and slide to the right to unlock the PowerRay. You can choose the speed mode at the bottom of the APP interface.3. Lock:To prevent accident from happening, you need to lock the PowerRay. You can click the top right corner icon and slide to the right to lock it.2. Default mode is “MODE4”CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 31 2017/5/24 16:35:43

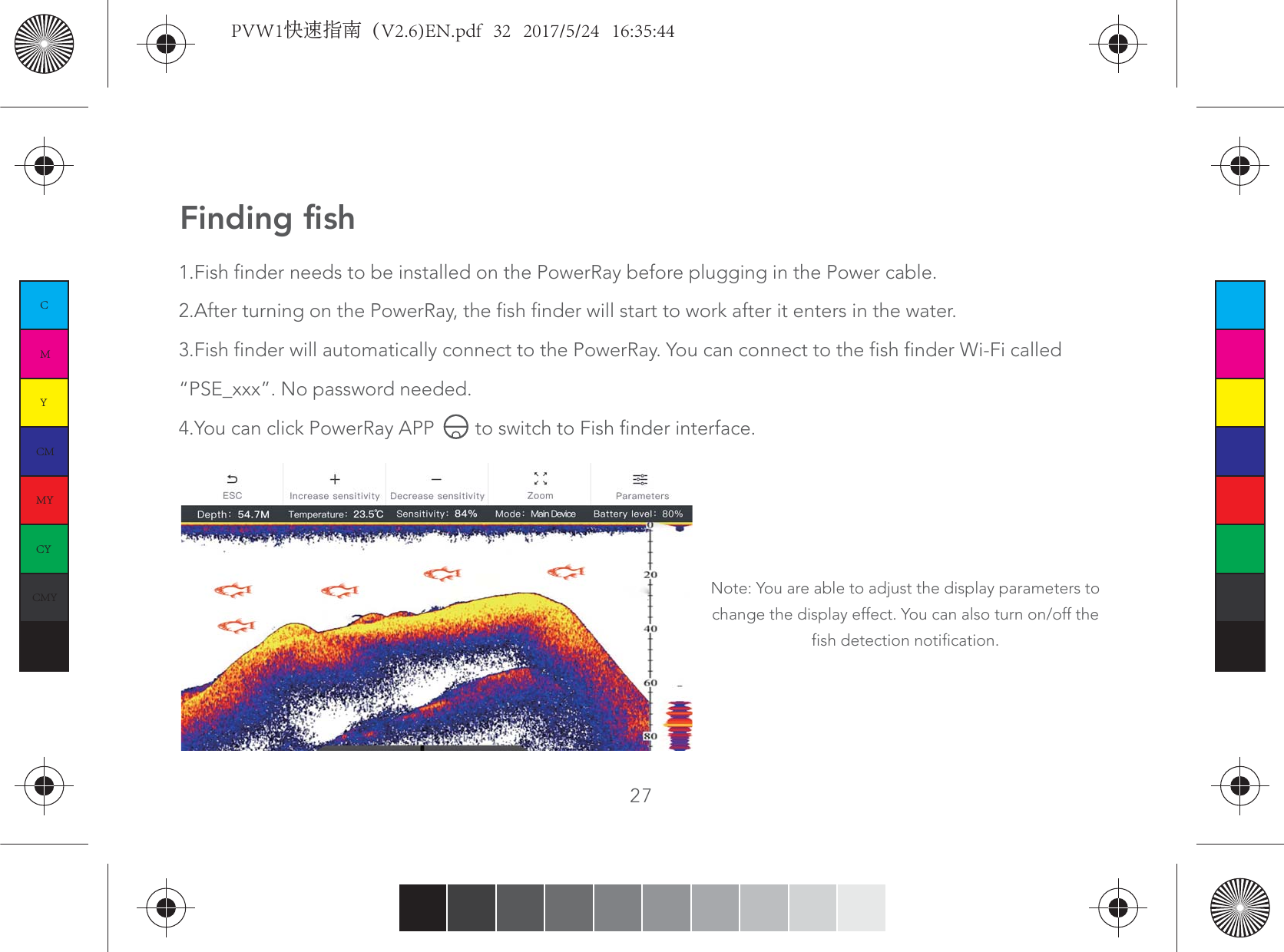

27Finding fish1.Fish finder needs to be installed on the PowerRay before plugging in the Power cable.2.After turning on the PowerRay, the fish finder will start to work after it enters in the water.3.Fish finder will automatically connect to the PowerRay. You can connect to the fish finder Wi-Fi called “PSE_xxx”. No password needed.4.You can click PowerRay APP to switch to Fish finder interface.Note: You are able to adjust the display parameters to change the display effect. You can also turn on/off the fish detection notification. CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 32 2017/5/24 16:35:44

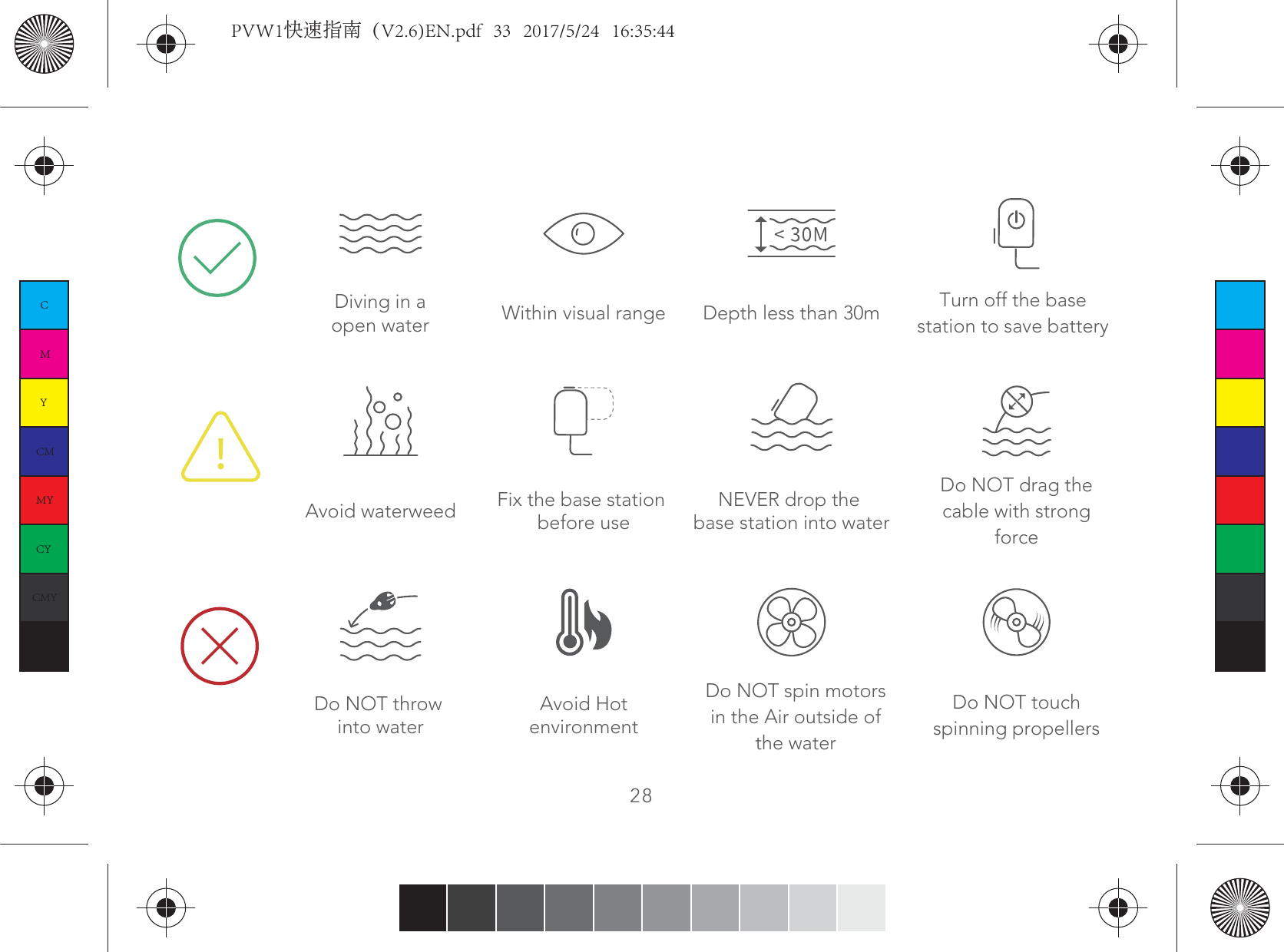

28Diving in aopen waterAvoid waterweedDo NOT throw into waterAvoid HotenvironmentFix the base station before useNEVER drop the base station into waterWithin visual range Depth less than 30m Turn off the base station to save batteryDo NOT drag the cable with strong forceDo NOT touch spinning propellersDo NOT spin motors in the Air outside of the waterCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 33 2017/5/24 16:35:44

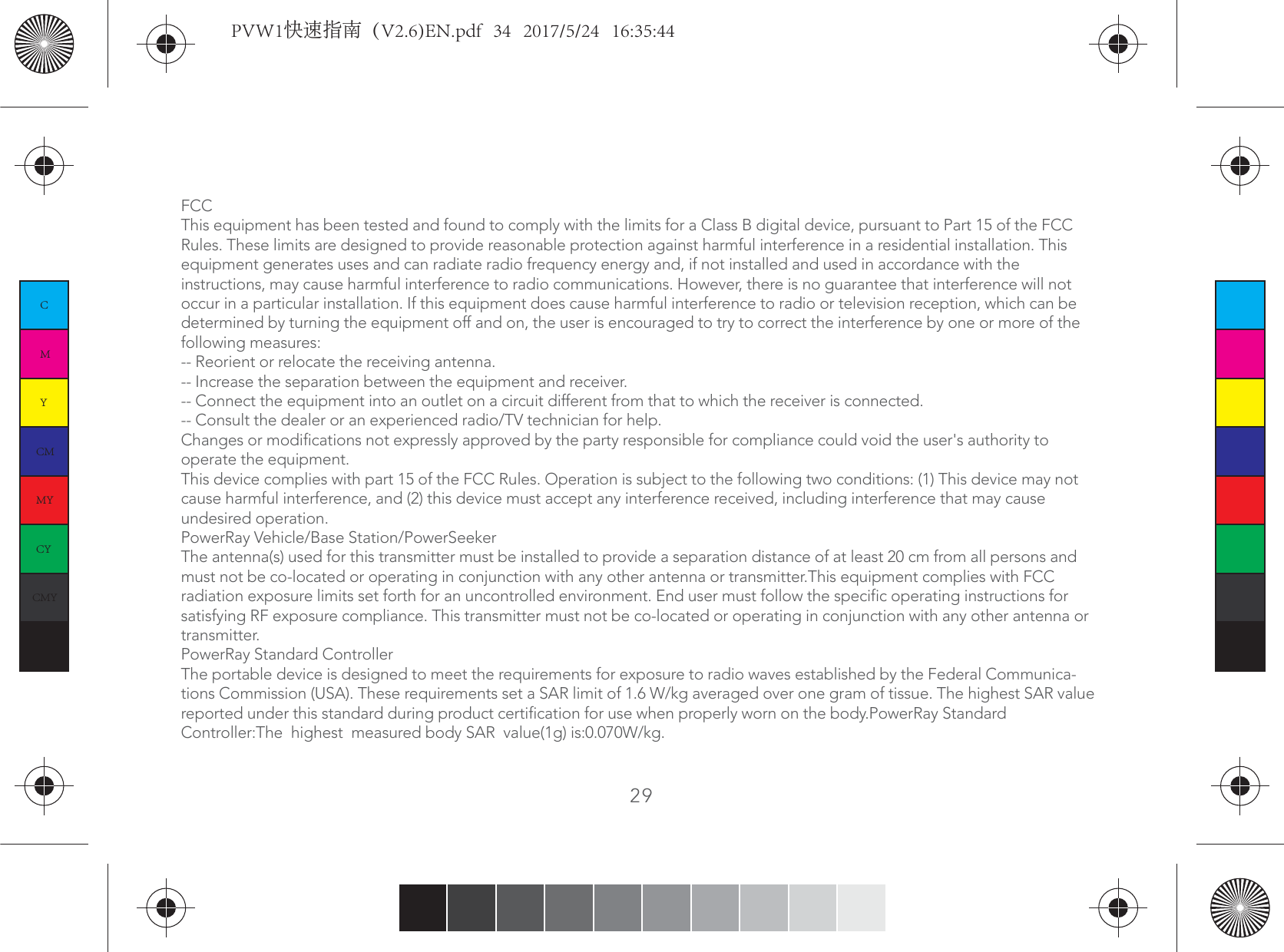

29FCCThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.PowerRay Vehicle/Base Station/PowerSeekerThe antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.PowerRay Standard ControllerThe portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communica-tions Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.PowerRay Standard Controller:The highest measured body SAR value(1g) is:0.070W/kg.CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 34 2017/5/24 16:35:44

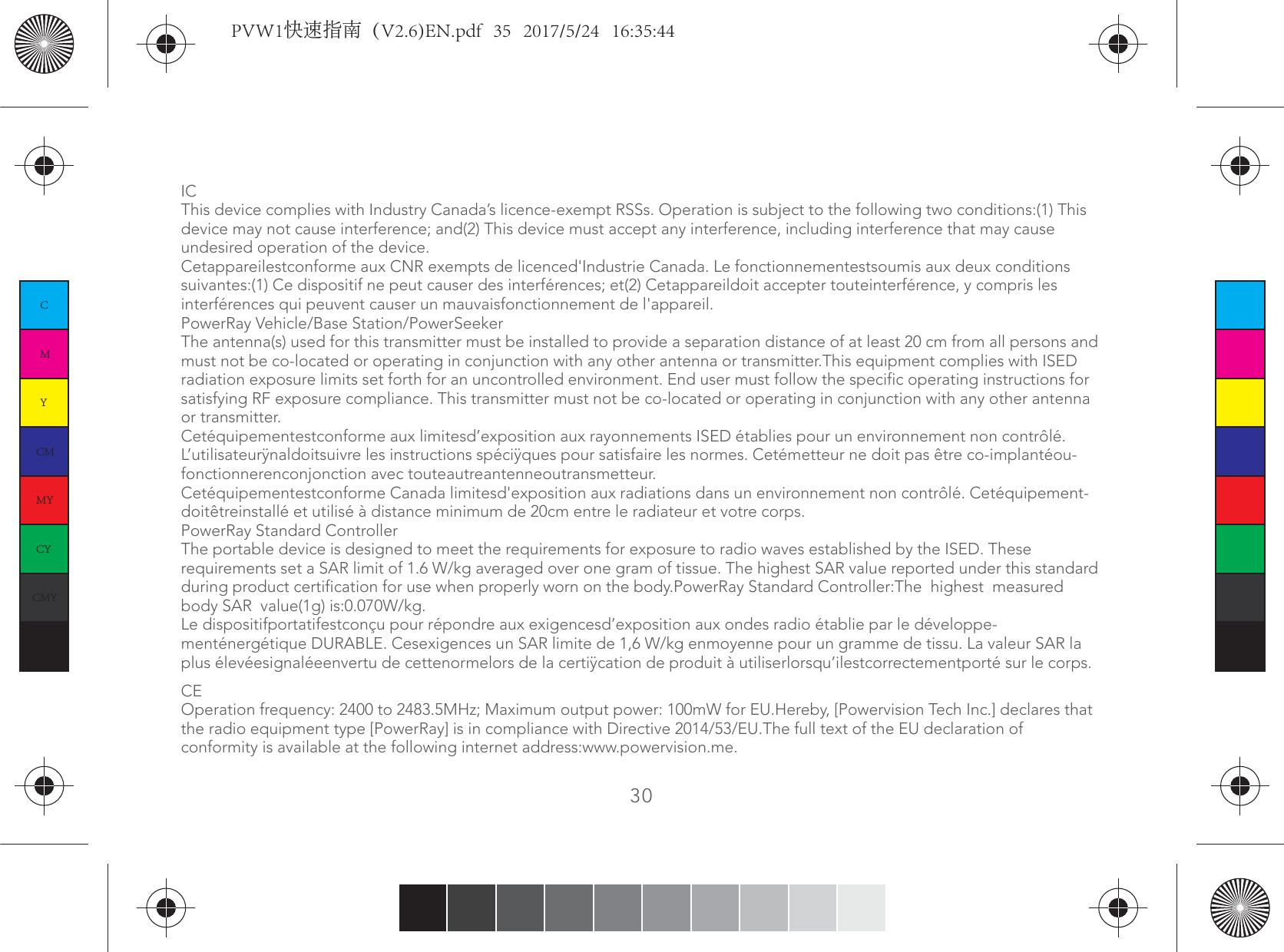

ICThis device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:(1) This device may not cause interference; and(2) This device must accept any interference, including interference that may cause undesired operation of the device.Cetappareilestconforme aux CNR exempts de licenced'Industrie Canada. Le fonctionnementestsoumis aux deux conditions suivantes:(1) Ce dispositif ne peut causer des interférences; et(2) Cetappareildoit accepter touteinterférence, y compris les interférences qui peuvent causer un mauvaisfonctionnement de l'appareil.PowerRay Vehicle/Base Station/PowerSeekerThe antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Cetéquipementestconforme aux limitesd’exposition aux rayonnements ISED établies pour un environnement non contrôlé. L’utilisateurÿnaldoitsuivre les instructions spéciÿques pour satisfaire les normes. Cetémetteur ne doit pas être co-implantéou-fonctionnerenconjonction avec touteautreantenneoutransmetteur.Cetéquipementestconforme Canada limitesd'exposition aux radiations dans un environnement non contrôlé. Cetéquipement-doitêtreinstallé et utilisé à distance minimum de 20cm entre le radiateur et votre corps. PowerRay Standard ControllerThe portable device is designed to meet the requirements for exposure to radio waves established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.PowerRay Standard Controller:The highest measured body SAR value(1g) is:0.070W/kg.Le dispositifportatifestconçu pour répondre aux exigencesd’exposition aux ondes radio établie par le développe-menténergétique DURABLE. Cesexigences un SAR limite de 1,6 W/kg enmoyenne pour un gramme de tissu. La valeur SAR la plus élevéesignaléeenvertu de cettenormelors de la certiÿcation de produit à utiliserlorsqu’ilestcorrectementporté sur le corps.CEOperation frequency: 2400 to 2483.5MHz; Maximum output power: 100mW for EU.Hereby, [Powervision Tech Inc.] declares that the radio equipment type [PowerRay] is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address:www.powervision.me.30CMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 35 2017/5/24 16:35:44
PowerVisionwww.powervision.meCMYCMMYCYCMYKPVW1快速指南（V2.6)EN.pdf 36 2017/5/24 16:35:44
