Precision Squared Technology 2300A01 MULTIMEDIA CONTROLLER User Manual keypoint manual

Precision Squared Technology Corporation MULTIMEDIA CONTROLLER keypoint manual

USERS MANUAL

User's ManualUSB Presentation & Multimedia ControllerKEYPOINT

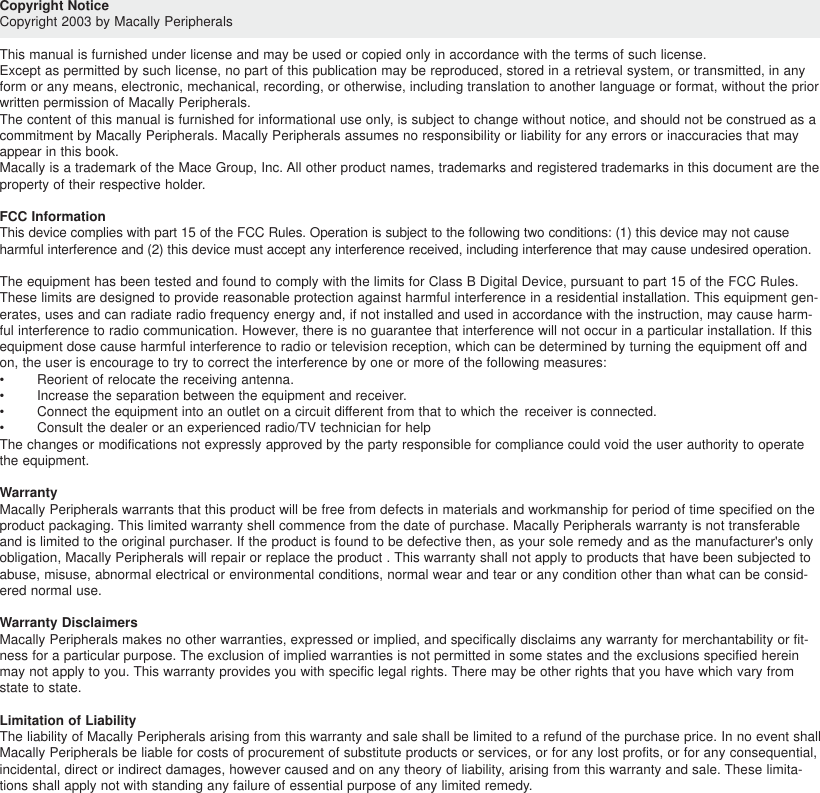

Copyright NoticeCopyright 2003 by Macally PeripheralsThis manual is furnished under license and may be used or copied only in accordance with the terms of such license.Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in anyform or any means, electronic, mechanical, recording, or otherwise, including translation to another language or format, without the priorwritten permission of Macally Peripherals.The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as acommitment by Macally Peripherals. Macally Peripherals assumes no responsibility or liability for any errors or inaccuracies that mayappear in this book.Macally is a trademark of the Mace Group, Inc. All other product names, trademarks and registered trademarks in this document are theproperty of their respective holder.FCC InformationThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not causeharmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gen-erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harm-ful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If thisequipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off andon, the user is encourage to try to correct the interference by one or more of the following measures:•Reorient of relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for helpThe changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operatethe equipment.WarrantyMacally Peripherals warrants that this product will be free from defects in materials and workmanship for period of time specified on theproduct packaging. This limited warranty shell commence from the date of purchase. Macally Peripherals warranty is not transferableand is limited to the original purchaser. If the product is found to be defective then, as your sole remedy and as the manufacturer's onlyobligation, Macally Peripherals will repair or replace the product . This warranty shall not apply to products that have been subjected toabuse, misuse, abnormal electrical or environmental conditions, normal wear and tear or any condition other than what can be consid-ered normal use.Warranty DisclaimersMacally Peripherals makes no other warranties, expressed or implied, and specifically disclaims any warranty for merchantability or fit-ness for a particular purpose. The exclusion of implied warranties is not permitted in some states and the exclusions specified hereinmay not apply to you. This warranty provides you with specific legal rights. There may be other rights that you have which vary fromstate to state. Limitation of LiabilityThe liability of Macally Peripherals arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shallMacally Peripherals be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential,incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale. These limita-tions shall apply not with standing any failure of essential purpose of any limited remedy.
3ContentsIntroducing the Macally USB KeyPoint 4About This Guide 4System Requirements 4Registration 4About Macally Products and Services 4Package Contents 4Hardware Basics 5Software Installation 6For Mac OS 9.2 6For Mac OS X v10.1.5 or Mac OS X v10.2 7For Windows 98SE/ME 8For Windows XP/2000 8Software Basics 6Managing Macally KeyPoint in General View for Mac 12Example 1 13Example 2 14Managing Macally KeyPoint in General View for PC 15Example 1 16Example 2 17World Wide Office 18

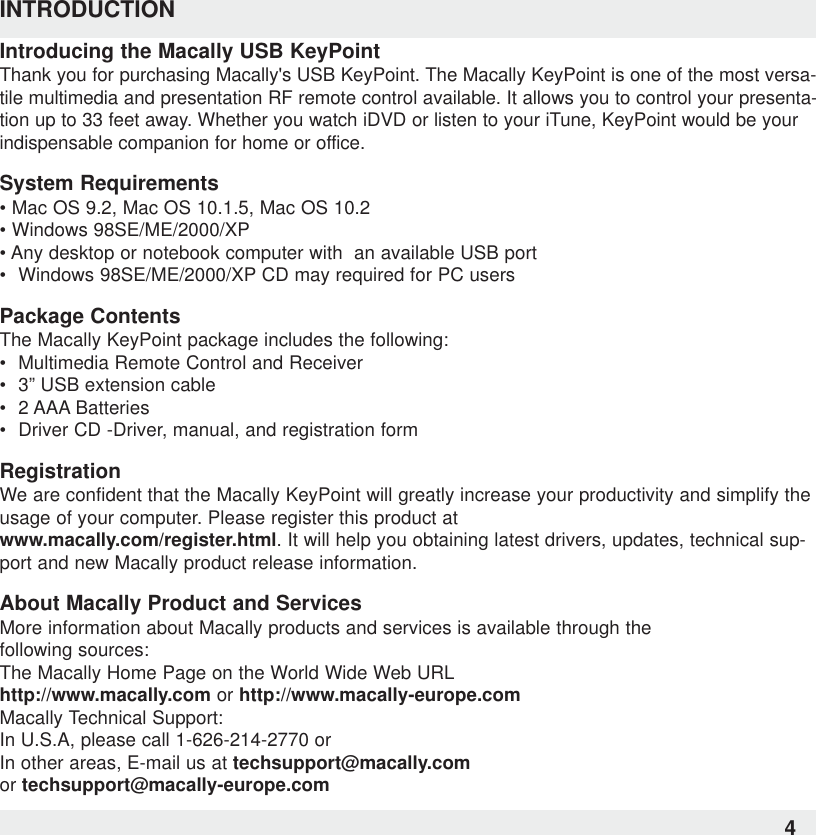

4INTRODUCTIONIntroducing the Macally USB KeyPointThank you for purchasing Macally's USB KeyPoint. The Macally KeyPoint is one of the most versa-tile multimedia and presentation RF remote control available. It allows you to control your presenta-tion up to 33 feet away. Whether you watch iDVD or listen to your iTune, KeyPoint would be yourindispensable companion for home or office.System Requirements• Mac OS 9.2, Mac OS 10.1.5, Mac OS 10.2• Windows 98SE/ME/2000/XP• Any desktop or notebook computer with an available USB port•Windows 98SE/ME/2000/XP CD may required for PC usersPackage Contents The Macally KeyPoint package includes the following:•Multimedia Remote Control and Receiver•3” USB extension cable•2 AAA Batteries•Driver CD -Driver, manual, and registration formRegistration We are confident that the Macally KeyPoint will greatly increase your productivity and simplify theusage of your computer. Please register this product at www.macally.com/register.html. It will help you obtaining latest drivers, updates, technical sup-port and new Macally product release information.About Macally Product and Services More information about Macally products and services is available through the following sources:The Macally Home Page on the World Wide Web URLhttp://www.macally.com or http://www.macally-europe.comMacally Technical Support:In U.S.A, please call 1-626-214-2770 orIn other areas, E-mail us at techsupport@macally.com or techsupport@macally-europe.com

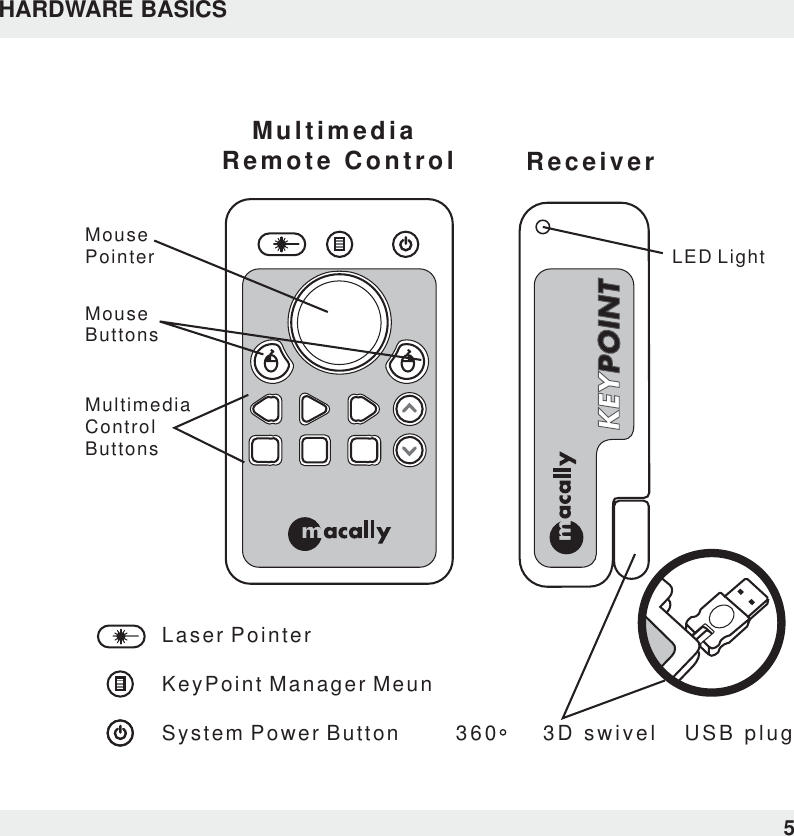

5HARDWARE BASICSSystem Power ButtonKeyPoint Manager MeunLaser PointerMultimediaControl ButtonsLED LightReceiverMultimedia Remote ControlMouse ButtonsMouse Pointer360 3D swivel USB plug
6SOFTWARE INSTALLATIONFor Mac OS 9.2To install the Macally USB KeyPoint1. Insert the Macally KeyPoint Driver CD.2. Open “MacOS 9.2” Folder.3. Click at Install Keypoint file and the following window will pop up, click “Install” and follow the on screen procedure to install the driver.(Fig 1)Fig 14. Follow the step-by-step on screen procedure to finish software installation5. Restart the computer after the installation.

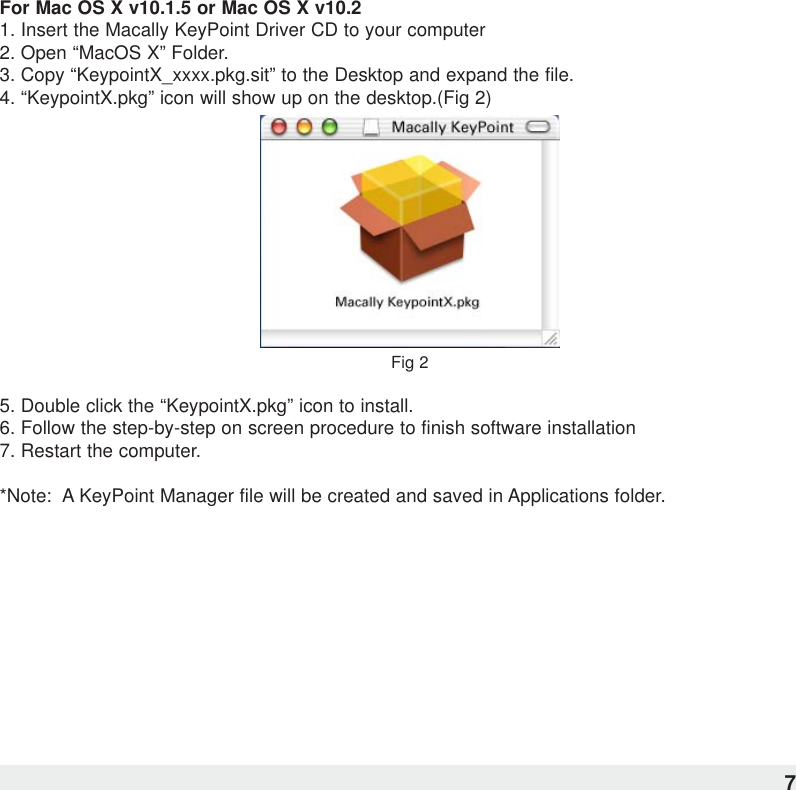

For Mac OS X v10.1.5 or Mac OS X v10.21. Insert the Macally KeyPoint Driver CD to your computer2. Open “MacOS X” Folder.3. Copy “KeypointX_xxxx.pkg.sit” to the Desktop and expand the file.4. “KeypointX.pkg” icon will show up on the desktop.(Fig 2)Fig 25. Double click the “KeypointX.pkg” icon to install.6. Follow the step-by-step on screen procedure to finish software installation7. Restart the computer.*Note: A KeyPoint Manager file will be created and saved in Applications folder.7

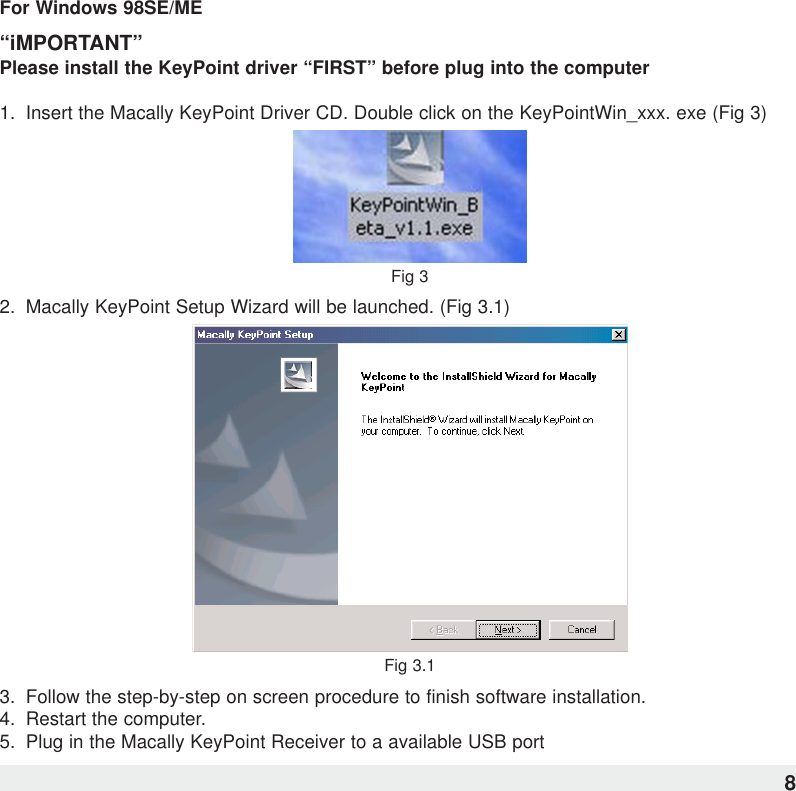

For Windows 98SE/ME“iMPORTANT”Please install the KeyPoint driver “FIRST” before plug into the computer1. Insert the Macally KeyPoint Driver CD. Double click on the KeyPointWin_xxx. exe (Fig 3)Fig 32. Macally KeyPoint Setup Wizard will be launched. (Fig 3.1)Fig 3.13. Follow the step-by-step on screen procedure to finish software installation.4. Restart the computer.5. Plug in the Macally KeyPoint Receiver to a available USB port8

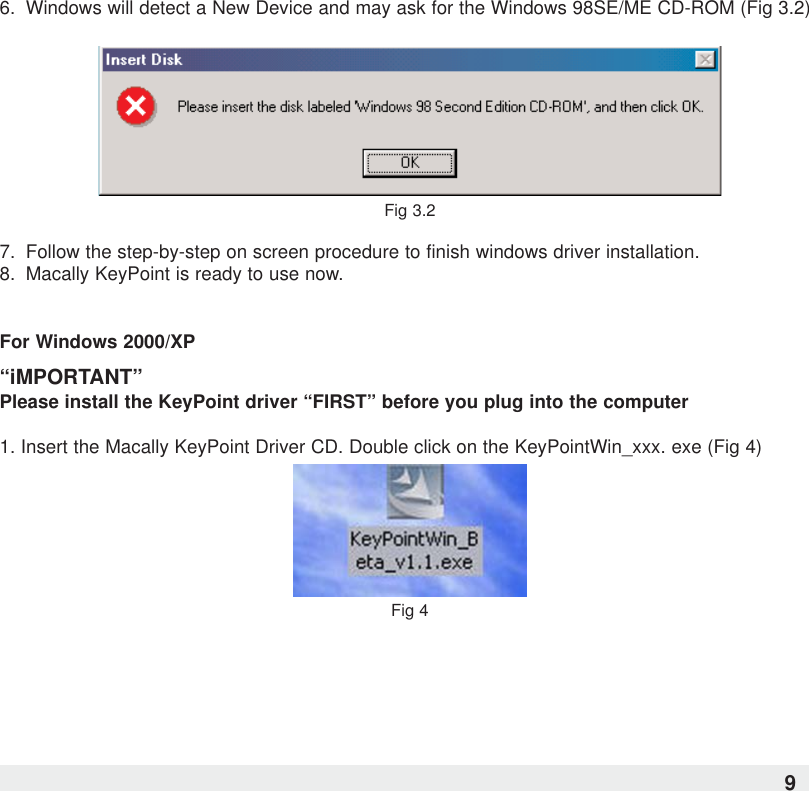

6. Windows will detect a New Device and may ask for the Windows 98SE/ME CD-ROM (Fig 3.2)Fig 3.27. Follow the step-by-step on screen procedure to finish windows driver installation.8. Macally KeyPoint is ready to use now.For Windows 2000/XP“iMPORTANT”Please install the KeyPoint driver “FIRST” before you plug into the computer1. Insert the Macally KeyPoint Driver CD. Double click on the KeyPointWin_xxx. exe (Fig 4)Fig 49
2. Macally KeyPoint Setup Wizard is launched. (Fig 4.1)Click “Next” to continue the InstallShield and follow the step-by-step on screen procedure.Fig 4.13. When the “Alert” windows pop up (Fig 4.2),and ask you to plug the KeyPoint, plug the KeyPoint Receiver to you computer and click “Yes” to continueFig 4.24. Follow the step-by-step on screen procedure to finish software installation.5. Restart the computer and the KeyPoint is ready to use now.10

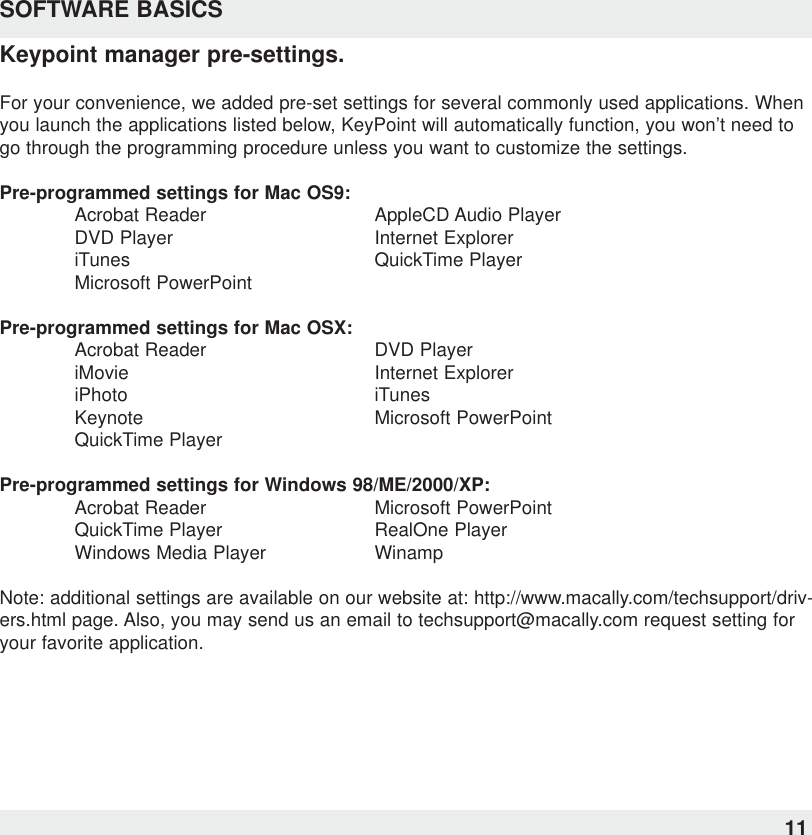

SOFTWARE BASICSKeypoint manager pre-settings.For your convenience, we added pre-set settings for several commonly used applications. Whenyou launch the applications listed below, KeyPoint will automatically function, you won’t need togo through the programming procedure unless you want to customize the settings.Pre-programmed settings for Mac OS9:Acrobat Reader AppleCD Audio PlayerDVD Player Internet ExploreriTunes QuickTime PlayerMicrosoft PowerPointPre-programmed settings for Mac OSX:Acrobat Reader DVD PlayeriMovie Internet ExploreriPhoto iTunesKeynote Microsoft PowerPointQuickTime PlayerPre-programmed settings for Windows 98/ME/2000/XP:Acrobat Reader Microsoft PowerPointQuickTime Player RealOne PlayerWindows Media Player WinampNote: additional settings are available on our website at: http://www.macally.com/techsupport/driv-ers.html page. Also, you may send us an email to techsupport@macally.com request setting foryour favorite application.11

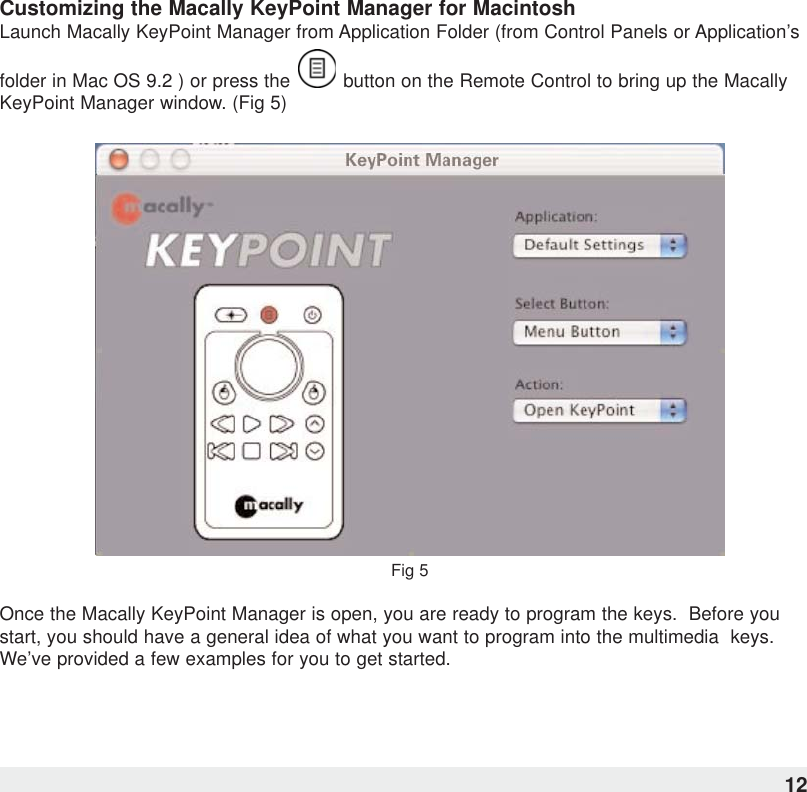

Customizing the Macally KeyPoint Manager for MacintoshLaunch Macally KeyPoint Manager from Application Folder (from Control Panels or Application’sfolder in Mac OS 9.2 ) or press the button on the Remote Control to bring up the MacallyKeyPoint Manager window. (Fig 5)Fig 5Once the Macally KeyPoint Manager is open, you are ready to program the keys. Before youstart, you should have a general idea of what you want to program into the multimedia keys.We’ve provided a few examples for you to get started.12

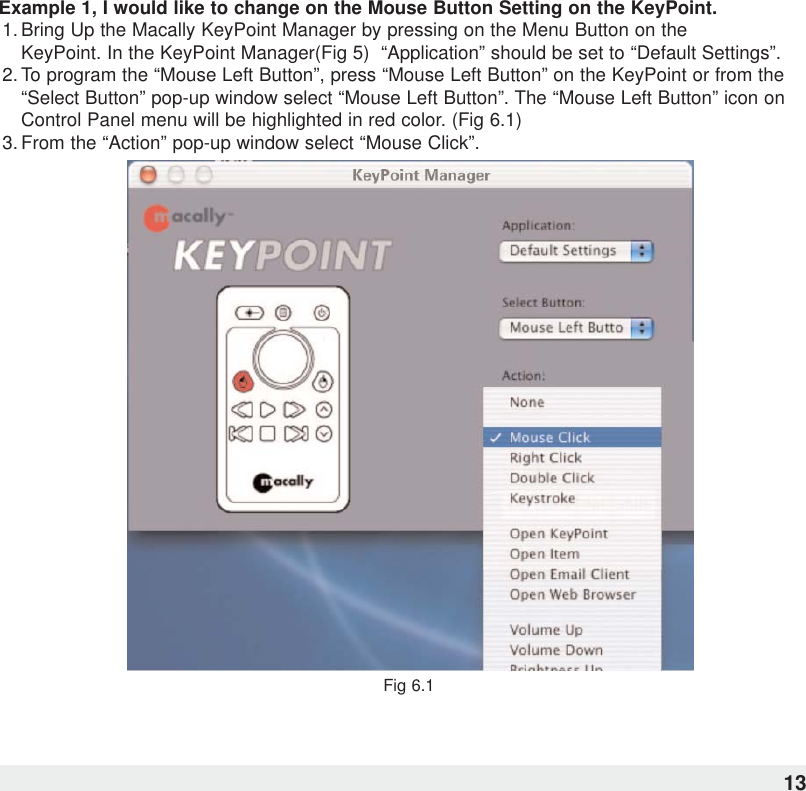

Example 1, I would like to change on the Mouse Button Setting on the KeyPoint.1. Bring Up the Macally KeyPoint Manager by pressing on the Menu Button on the KeyPoint. In the KeyPoint Manager(Fig 5) “Application” should be set to “Default Settings”.2. To program the “Mouse Left Button”, press “Mouse Left Button” on the KeyPoint or from the“Select Button” pop-up window select “Mouse Left Button”. The “Mouse Left Button” icon onControl Panel menu will be highlighted in red color. (Fig 6.1) 3. From the “Action” pop-up window select “Mouse Click”.Fig 6.113

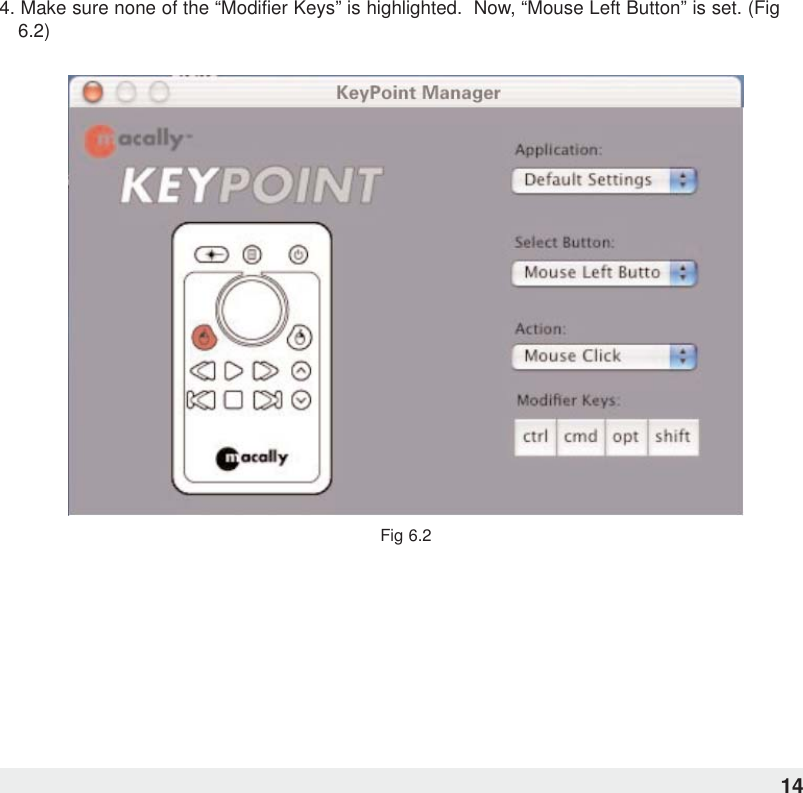

4. Make sure none of the “Modifier Keys” is highlighted. Now, “Mouse Left Button” is set. (Fig6.2)Fig 6.214

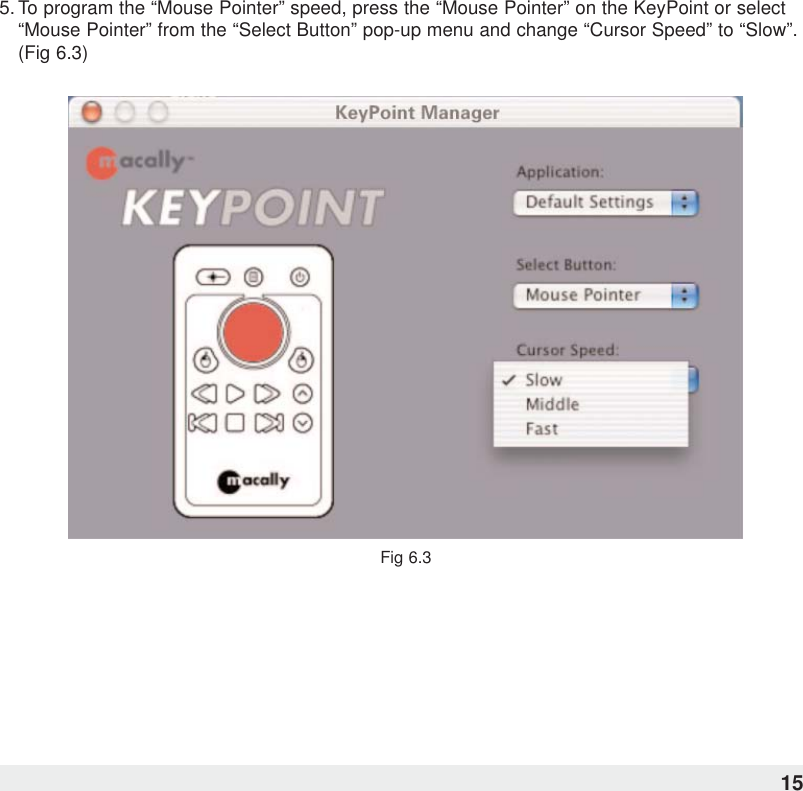

5. To program the “Mouse Pointer” speed, press the “Mouse Pointer” on the KeyPoint or select“Mouse Pointer” from the “Select Button” pop-up menu and change “Cursor Speed” to “Slow”.(Fig 6.3)Fig 6.315

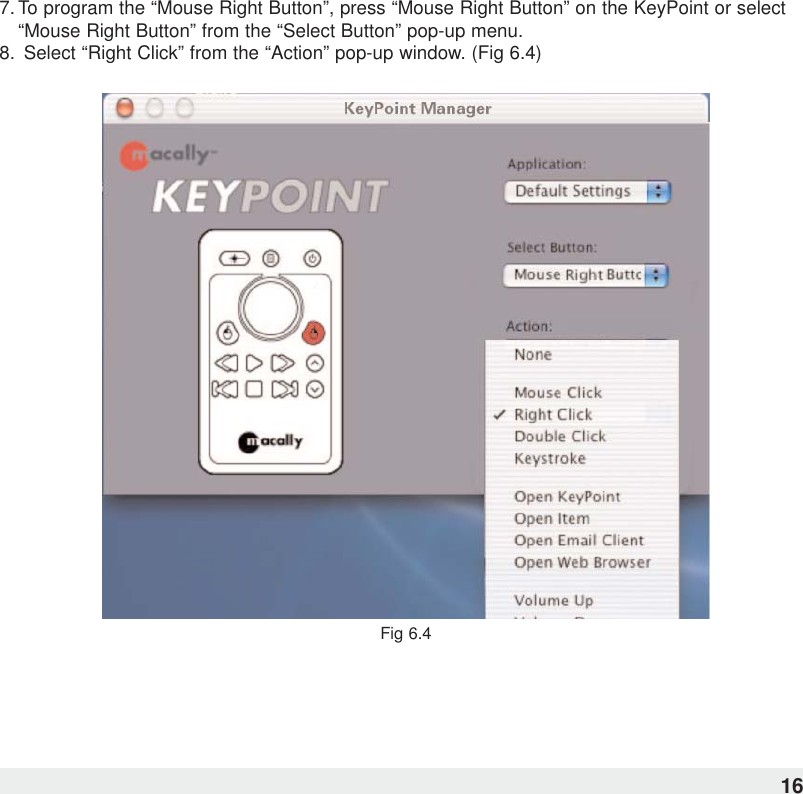

7. To program the “Mouse Right Button”, press “Mouse Right Button” on the KeyPoint or select“Mouse Right Button” from the “Select Button” pop-up menu.8. Select “Right Click” from the “Action” pop-up window. (Fig 6.4)Fig 6.416

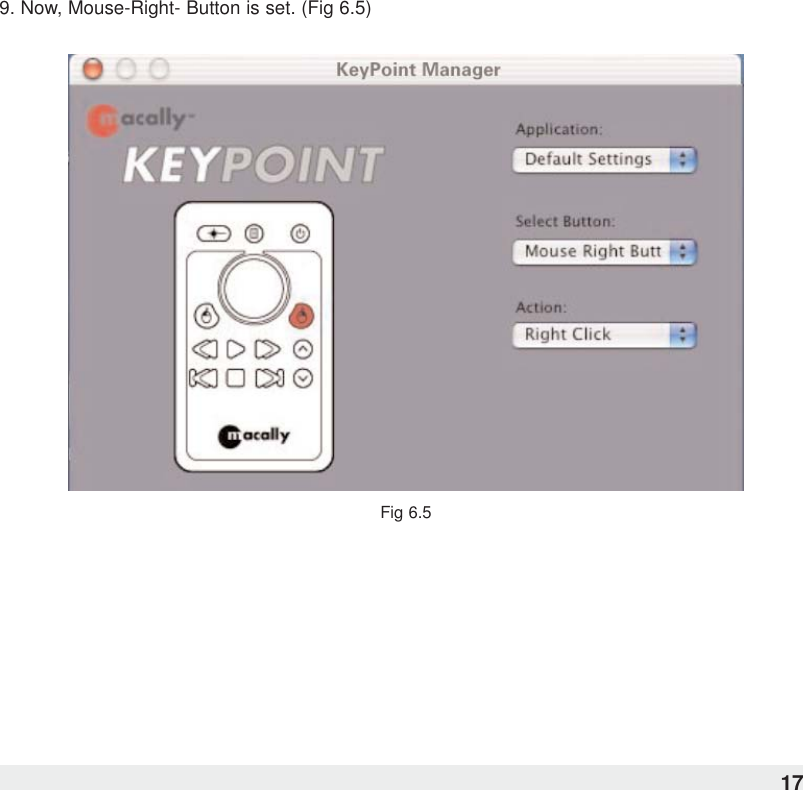

9. Now, Mouse-Right- Button is set. (Fig 6.5)Fig 6.517

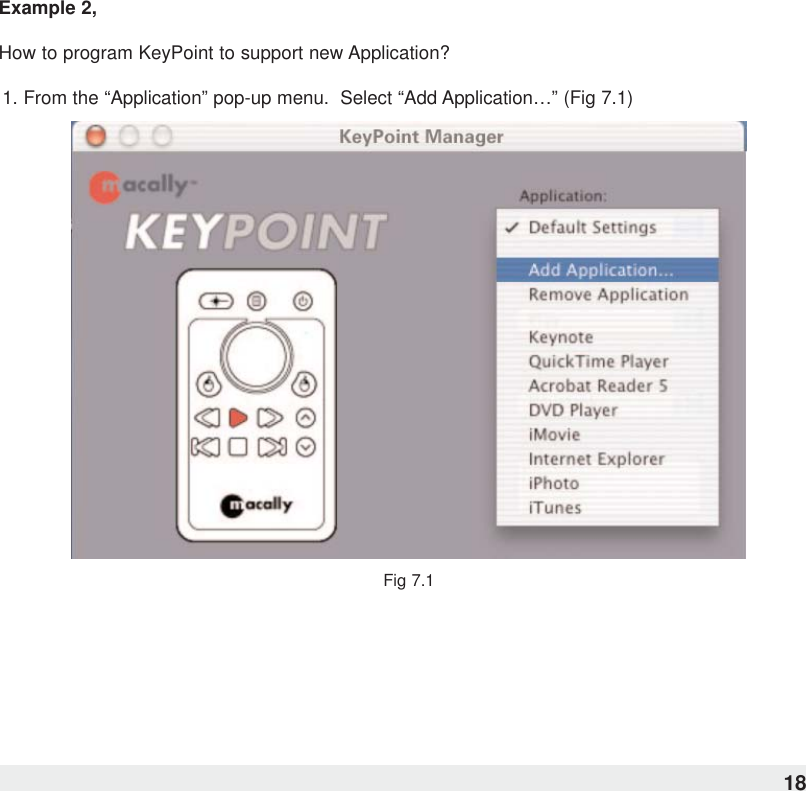

Example 2, How to program KeyPoint to support new Application?1. From the “Application” pop-up menu. Select “Add Application…” (Fig 7.1)Fig 7.118

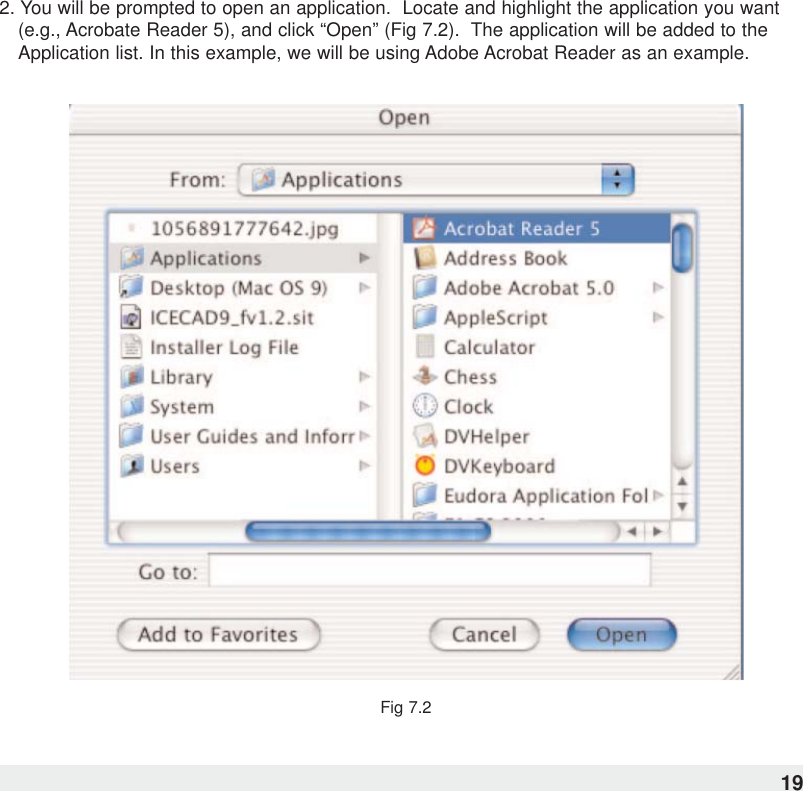

2. You will be prompted to open an application. Locate and highlight the application you want(e.g., Acrobate Reader 5), and click “Open” (Fig 7.2). The application will be added to theApplication list. In this example, we will be using Adobe Acrobat Reader as an example.Fig 7.219

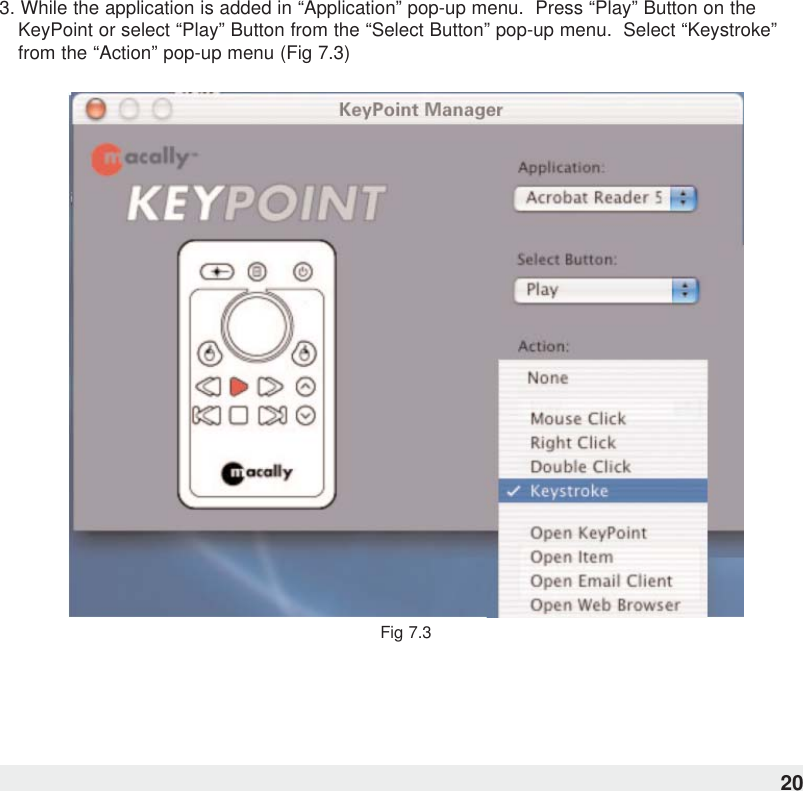

3. While the application is added in “Application” pop-up menu. Press “Play” Button on theKeyPoint or select “Play” Button from the “Select Button” pop-up menu. Select “Keystroke”from the “Action” pop-up menu (Fig 7.3)Fig 7.320

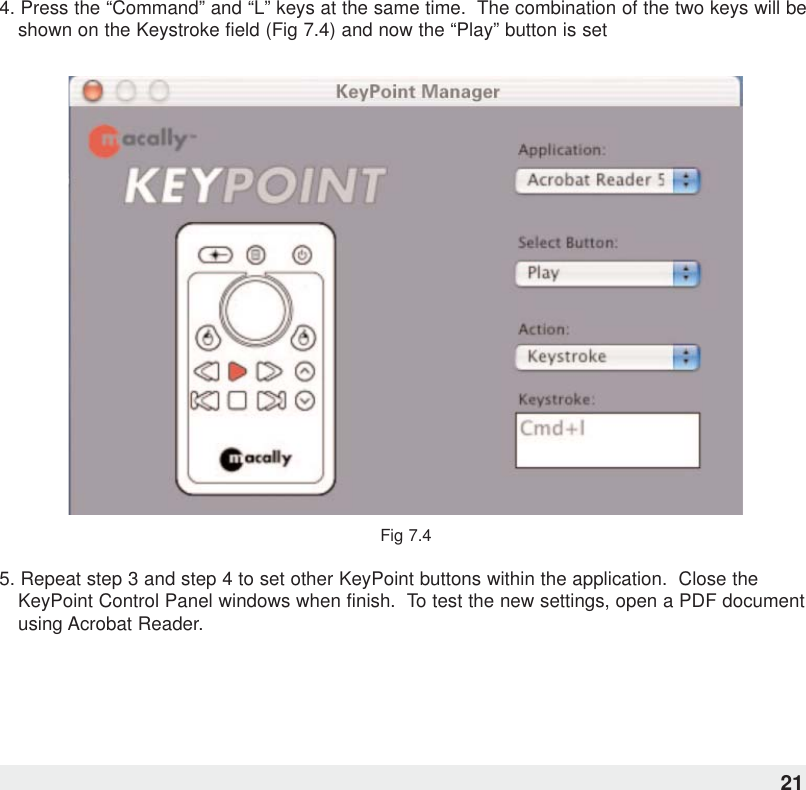

4. Press the “Command” and “L” keys at the same time. The combination of the two keys will beshown on the Keystroke field (Fig 7.4) and now the “Play” button is setFig 7.45. Repeat step 3 and step 4 to set other KeyPoint buttons within the application. Close theKeyPoint Control Panel windows when finish. To test the new settings, open a PDF documentusing Acrobat Reader.21

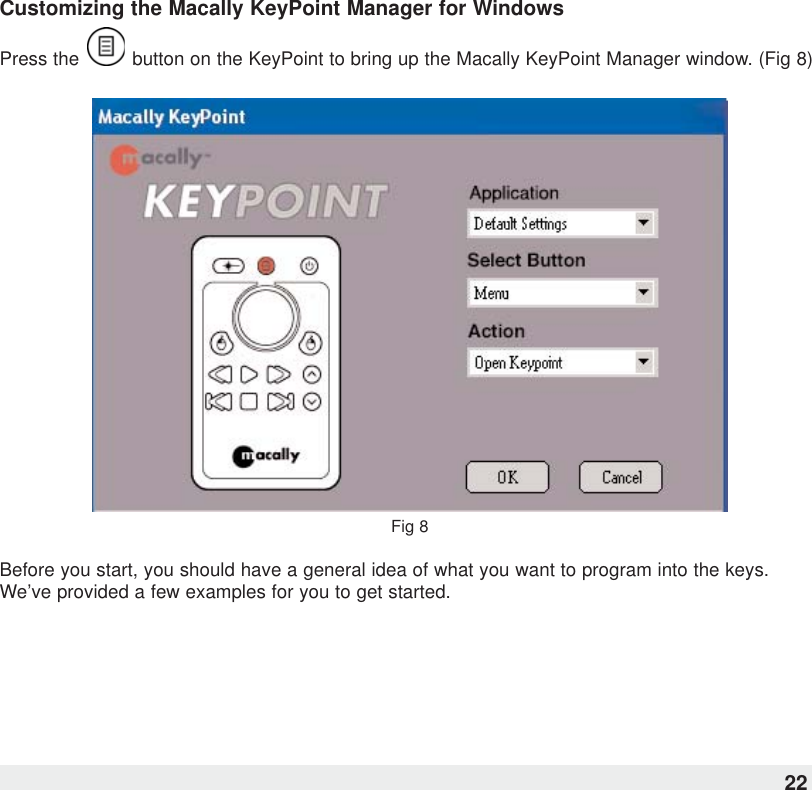

Customizing the Macally KeyPoint Manager for WindowsPress the button on the KeyPoint to bring up the Macally KeyPoint Manager window. (Fig 8)Fig 8Before you start, you should have a general idea of what you want to program into the keys.We’ve provided a few examples for you to get started.22

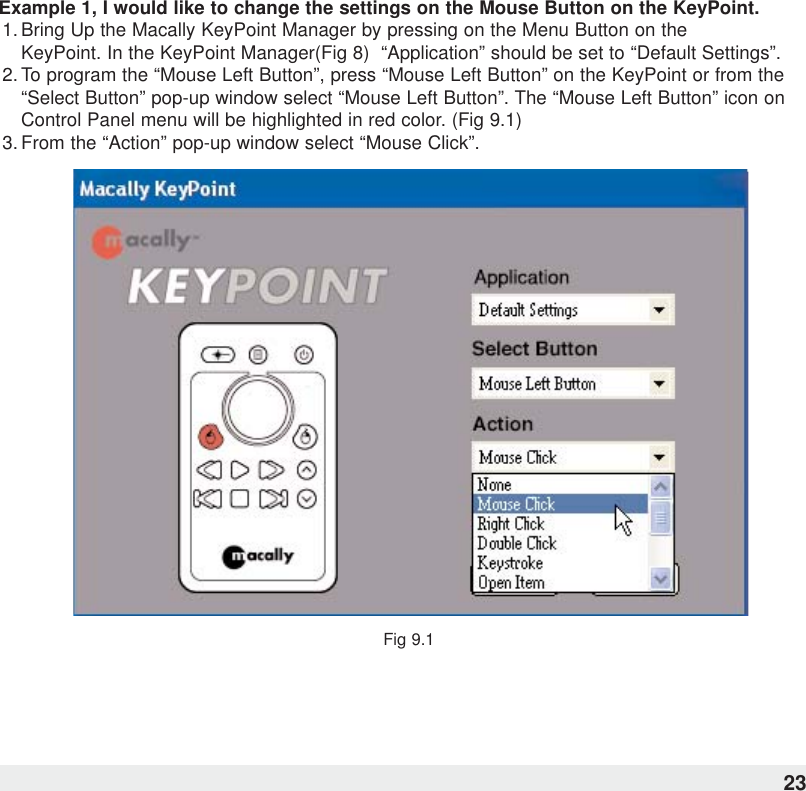

Example 1, I would like to change the settings on the Mouse Button on the KeyPoint.1. Bring Up the Macally KeyPoint Manager by pressing on the Menu Button on the KeyPoint. In the KeyPoint Manager(Fig 8) “Application” should be set to “Default Settings”.2. To program the “Mouse Left Button”, press “Mouse Left Button” on the KeyPoint or from the“Select Button” pop-up window select “Mouse Left Button”. The “Mouse Left Button” icon onControl Panel menu will be highlighted in red color. (Fig 9.1) 3. From the “Action” pop-up window select “Mouse Click”.Fig 9.123

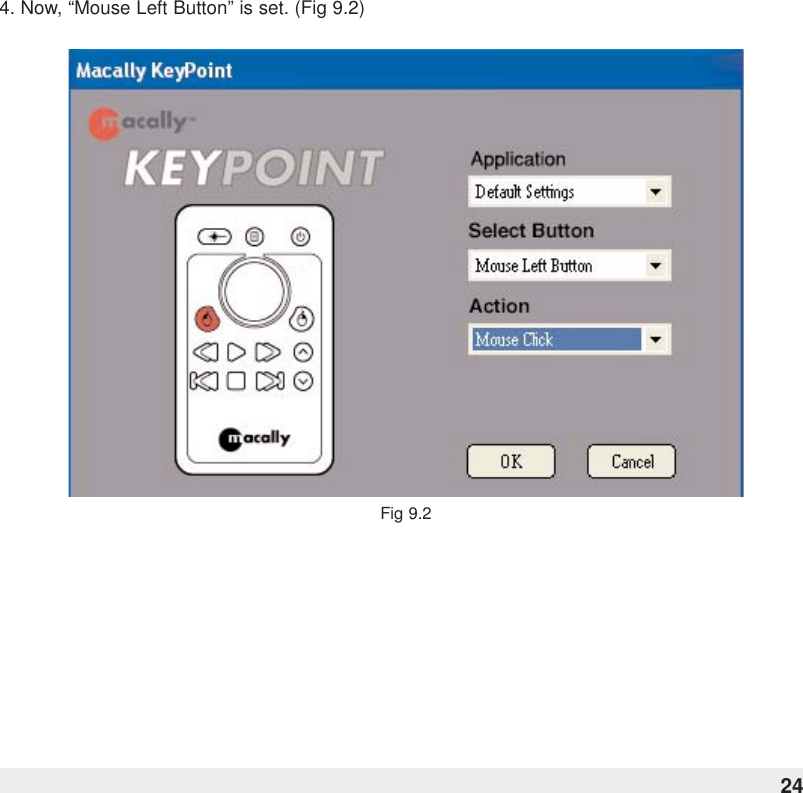

4. Now, “Mouse Left Button” is set. (Fig 9.2)Fig 9.224

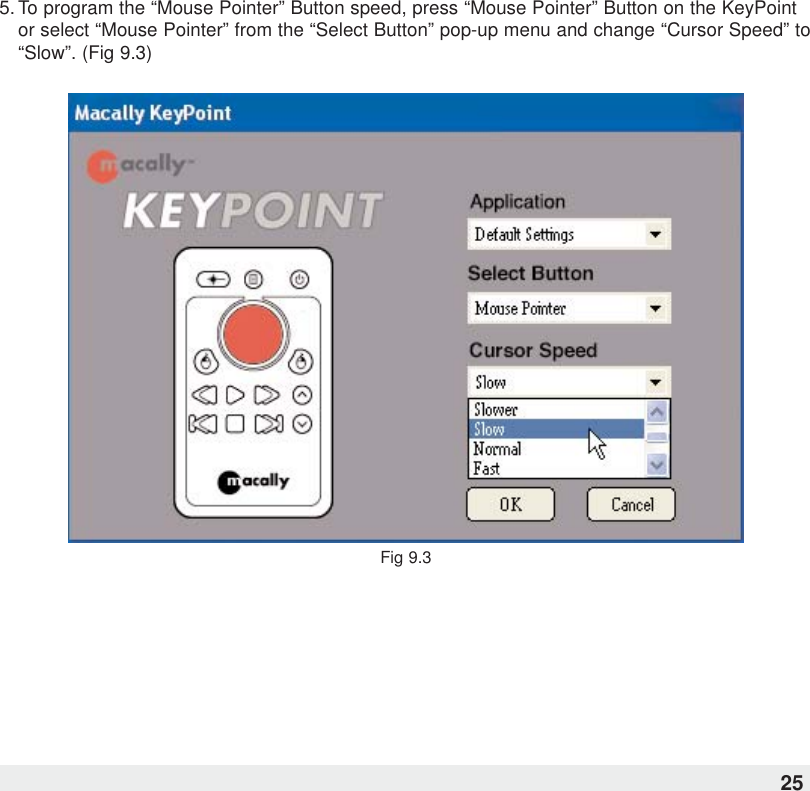

5. To program the “Mouse Pointer” Button speed, press “Mouse Pointer” Button on the KeyPointor select “Mouse Pointer” from the “Select Button” pop-up menu and change “Cursor Speed” to“Slow”. (Fig 9.3)Fig 9.325

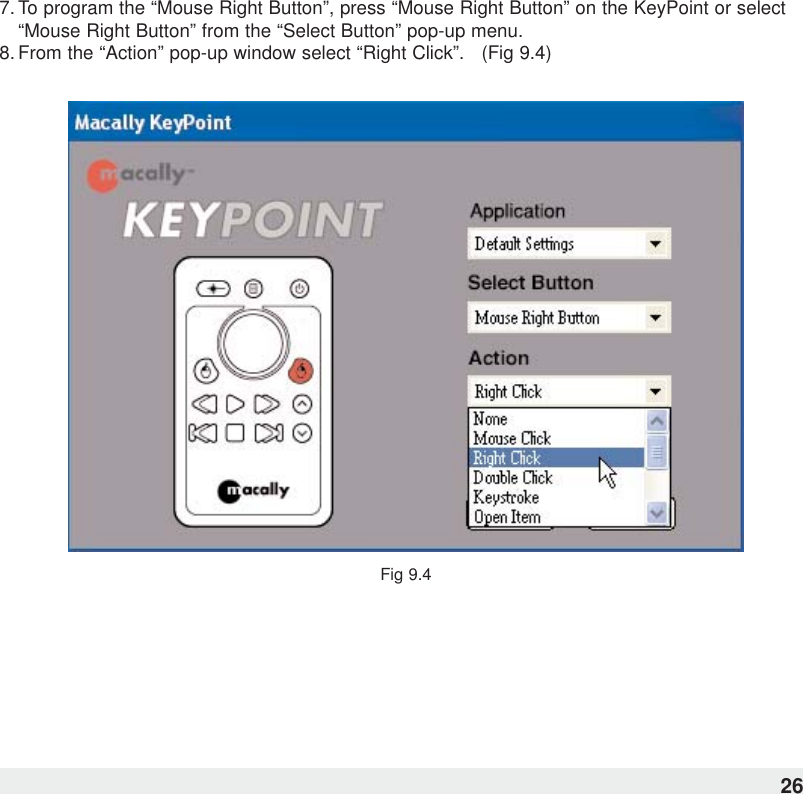

7. To program the “Mouse Right Button”, press “Mouse Right Button” on the KeyPoint or select“Mouse Right Button” from the “Select Button” pop-up menu.8. From the “Action” pop-up window select “Right Click”. (Fig 9.4)Fig 9.426

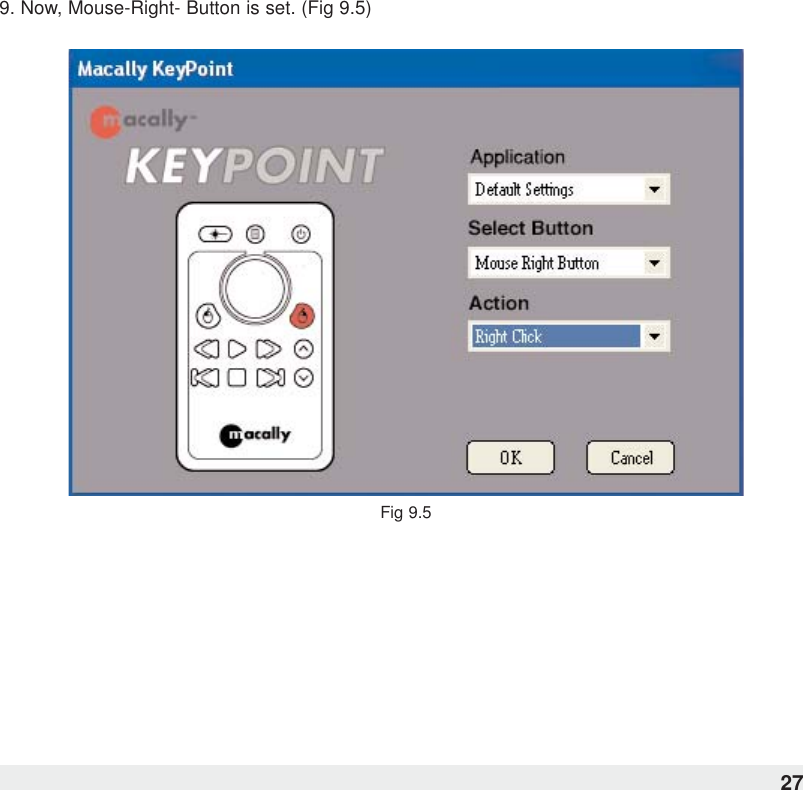

9. Now, Mouse-Right- Button is set. (Fig 9.5)Fig 9.527

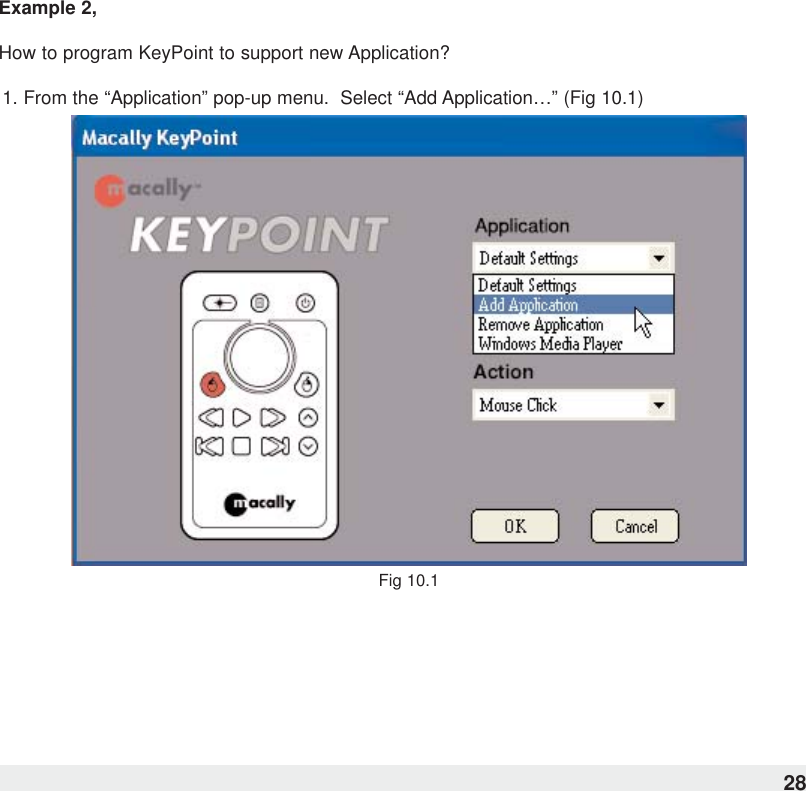

Example 2, How to program KeyPoint to support new Application?1. From the “Application” pop-up menu. Select “Add Application…” (Fig 10.1)Fig 10.128

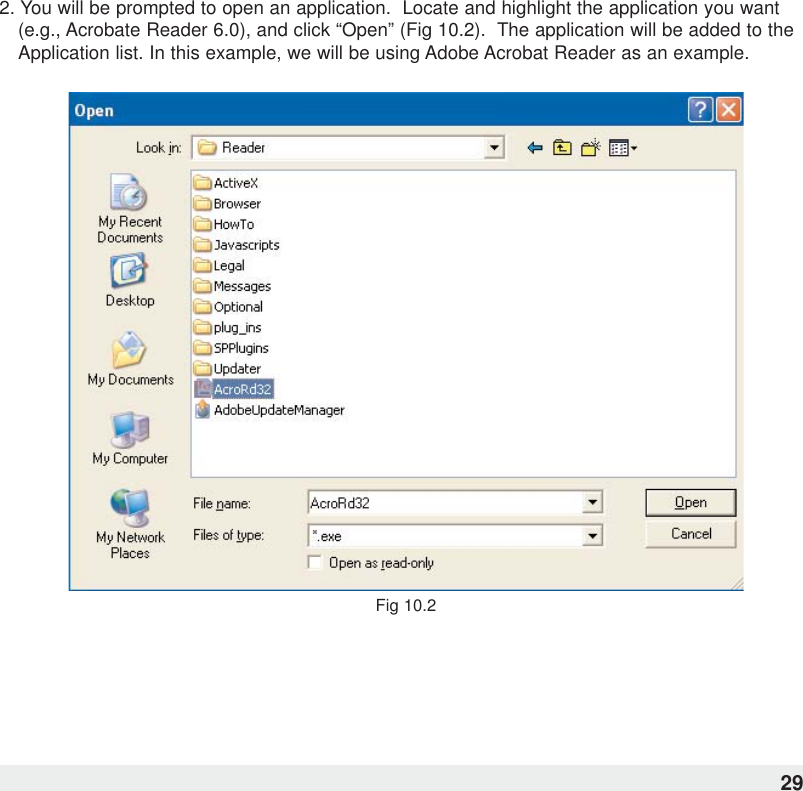

2. You will be prompted to open an application. Locate and highlight the application you want(e.g., Acrobate Reader 6.0), and click “Open” (Fig 10.2). The application will be added to theApplication list. In this example, we will be using Adobe Acrobat Reader as an example.Fig 10.229

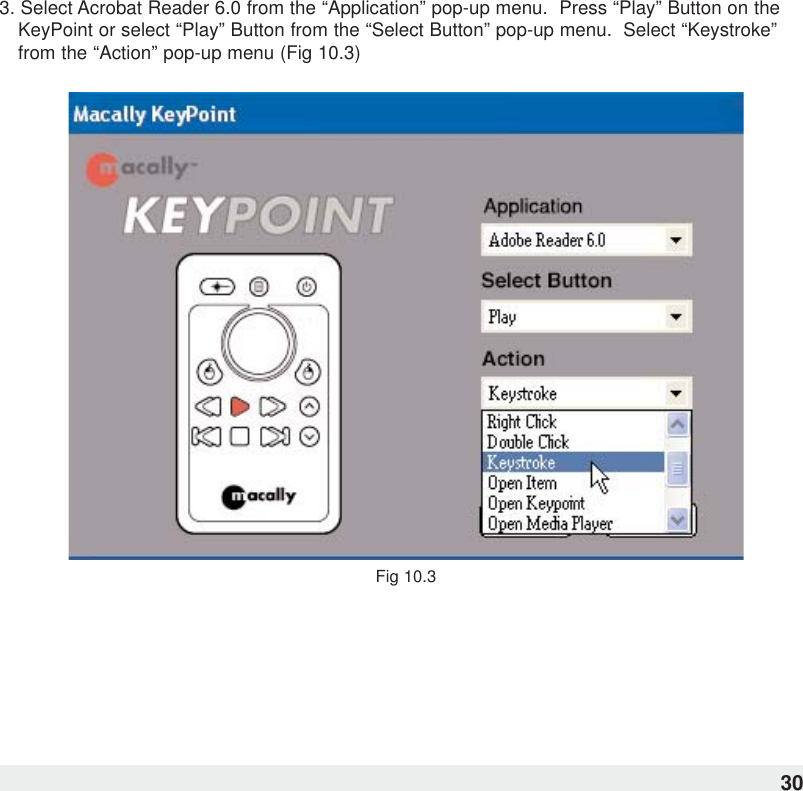

3. Select Acrobat Reader 6.0 from the “Application” pop-up menu. Press “Play” Button on theKeyPoint or select “Play” Button from the “Select Button” pop-up menu. Select “Keystroke”from the “Action” pop-up menu (Fig 10.3)Fig 10.330

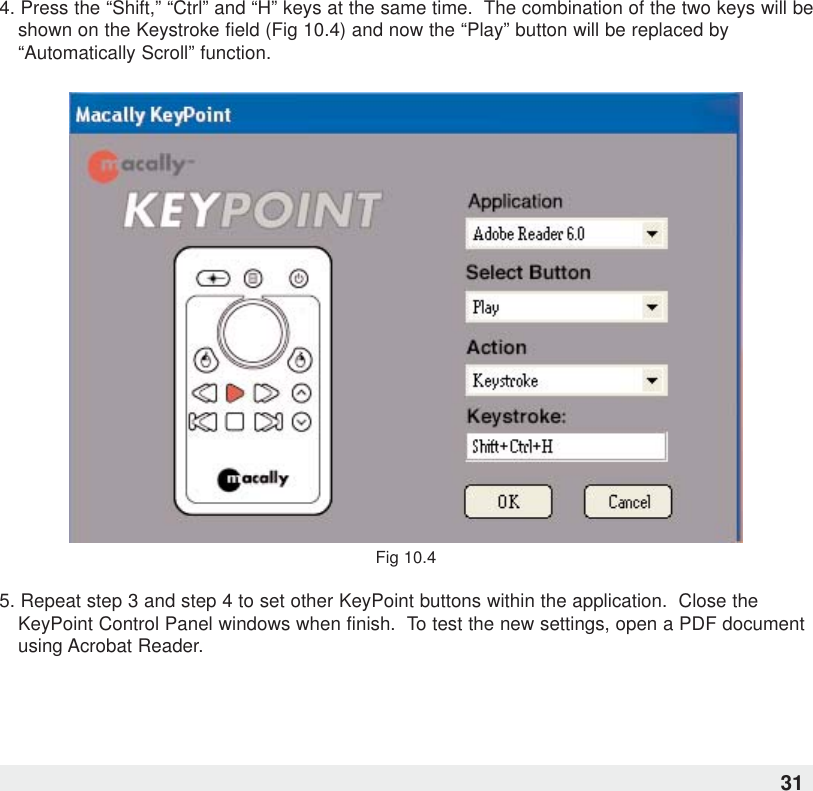

4. Press the “Shift,” “Ctrl” and “H” keys at the same time. The combination of the two keys will beshown on the Keystroke field (Fig 10.4) and now the “Play” button will be replaced by“Automatically Scroll” function.Fig 10.45. Repeat step 3 and step 4 to set other KeyPoint buttons within the application. Close theKeyPoint Control Panel windows when finish. To test the new settings, open a PDF documentusing Acrobat Reader.31
FAQs (Frequently Asked Questions)Q1. I am using Microsoft Windows, the menu button on the KeyPoint does not bring up the menu screen after I install the driver. How to fix this problem?A1. Please unplug the USB KeyPoint Receiver, and uninstall the current driver first, then restartyour computer. In Windows 2000/XP, during the re-installation, please DO NOT plug the receiver before the system asked to do so; In Windows 98SE/ME, please complete the driver re-installation first and then plug the USB Receiver to the computer.Q2. I am using Windows Media Player, when I press the Volume control; the volume bar on the player does not move at all, what should I do to make it work?A2. The default setting for the volume control is for the system sound volume control, therefore,even the volume bar on the Windows Media Player window does not move, but the volume still will change on the Notification area.However, you may reset the volume control button as keystroke to control the volume bar on the Media Player window.Q3. In Windows Media Player, why does the Rewind and Fast Forward button does not work?A3. Windows Media Player does not support Rewind and Fast Forward function, therefore, those two buttons DO NOT work, but you can program these two buttons to do other functions of your choice32
