Pro Tracker TRACKER1 Pro-tracker The Ultimate Tracking Device User Manual Microsoft PowerPoint Module manual 2014 10 31

Pro-Tracker LLC Pro-tracker The Ultimate Tracking Device Microsoft PowerPoint Module manual 2014 10 31

Users Manual

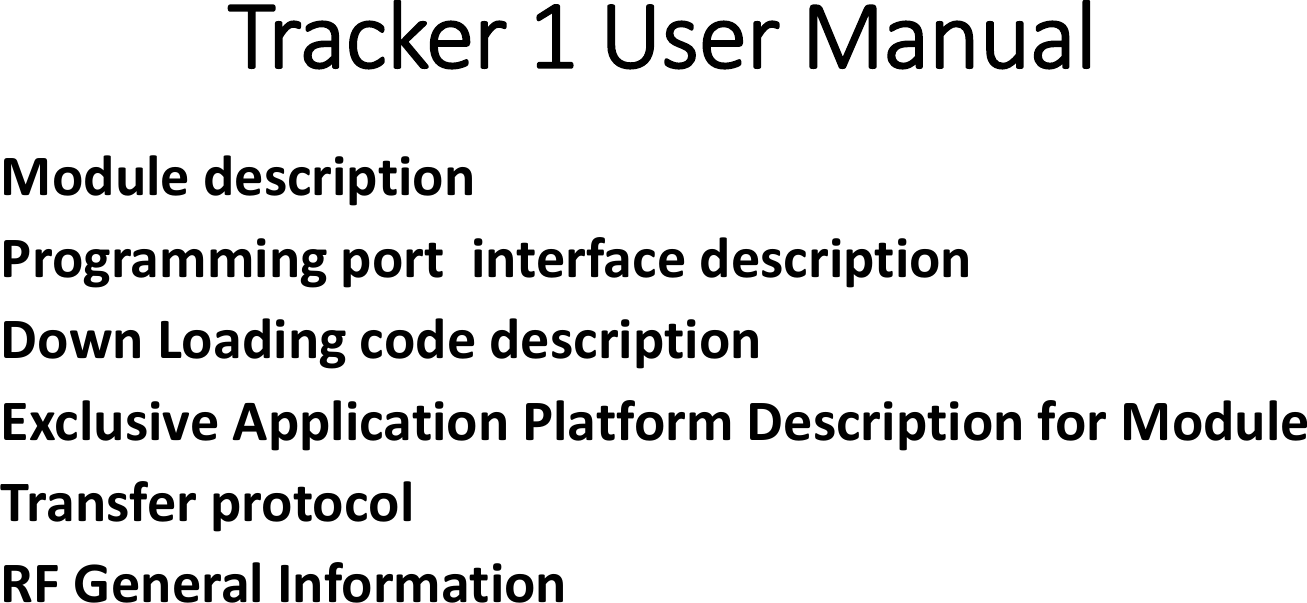

Tracker1UserManualModuledescriptionProgrammingportinterfacedescriptionDownLoadingcodedescriptionExclusiveApplicationPlatformDescriptionforModuleTransferprotocolRFGeneralInformation

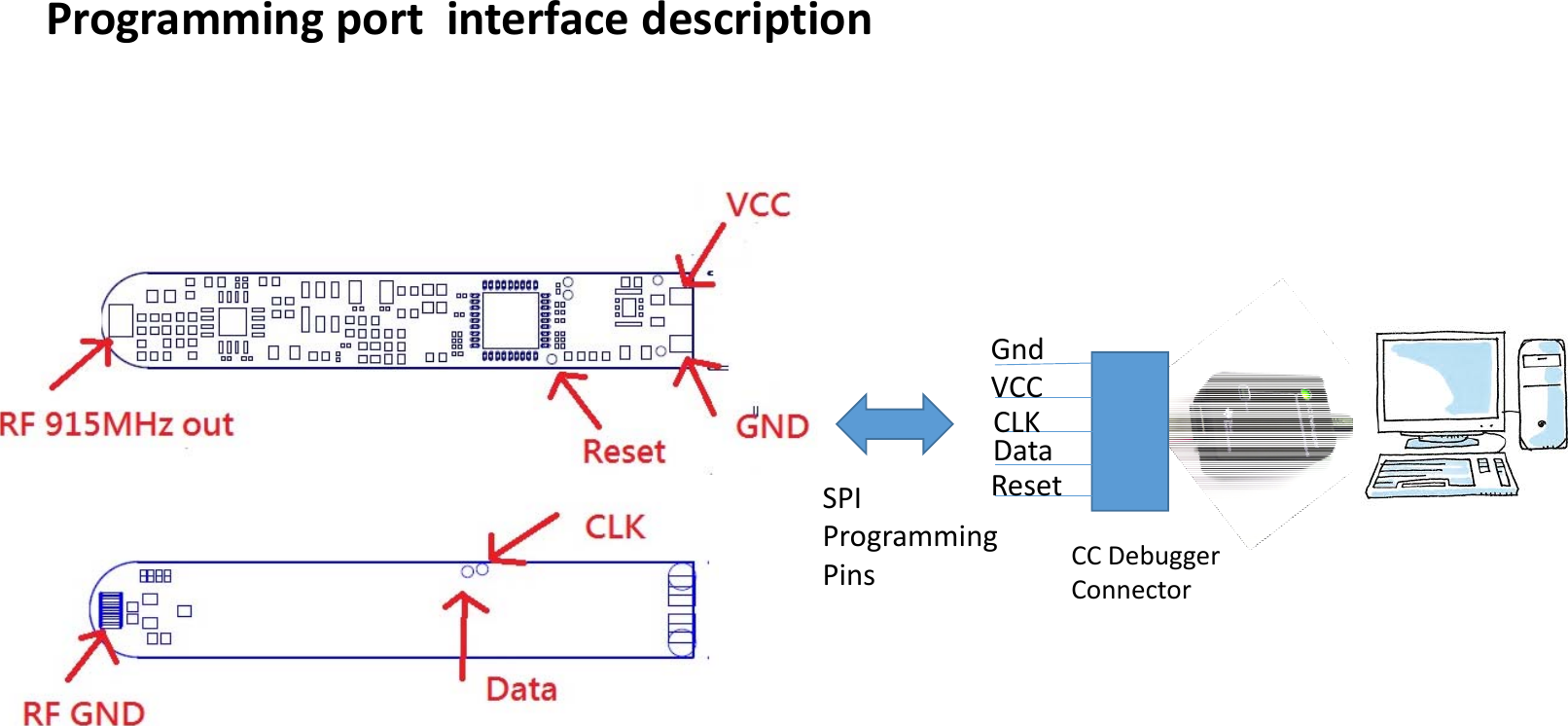

CCDebuggerConnectorGndVCCCLKDataResetSPIProgrammingPinsProgrammingportinterfacedescription

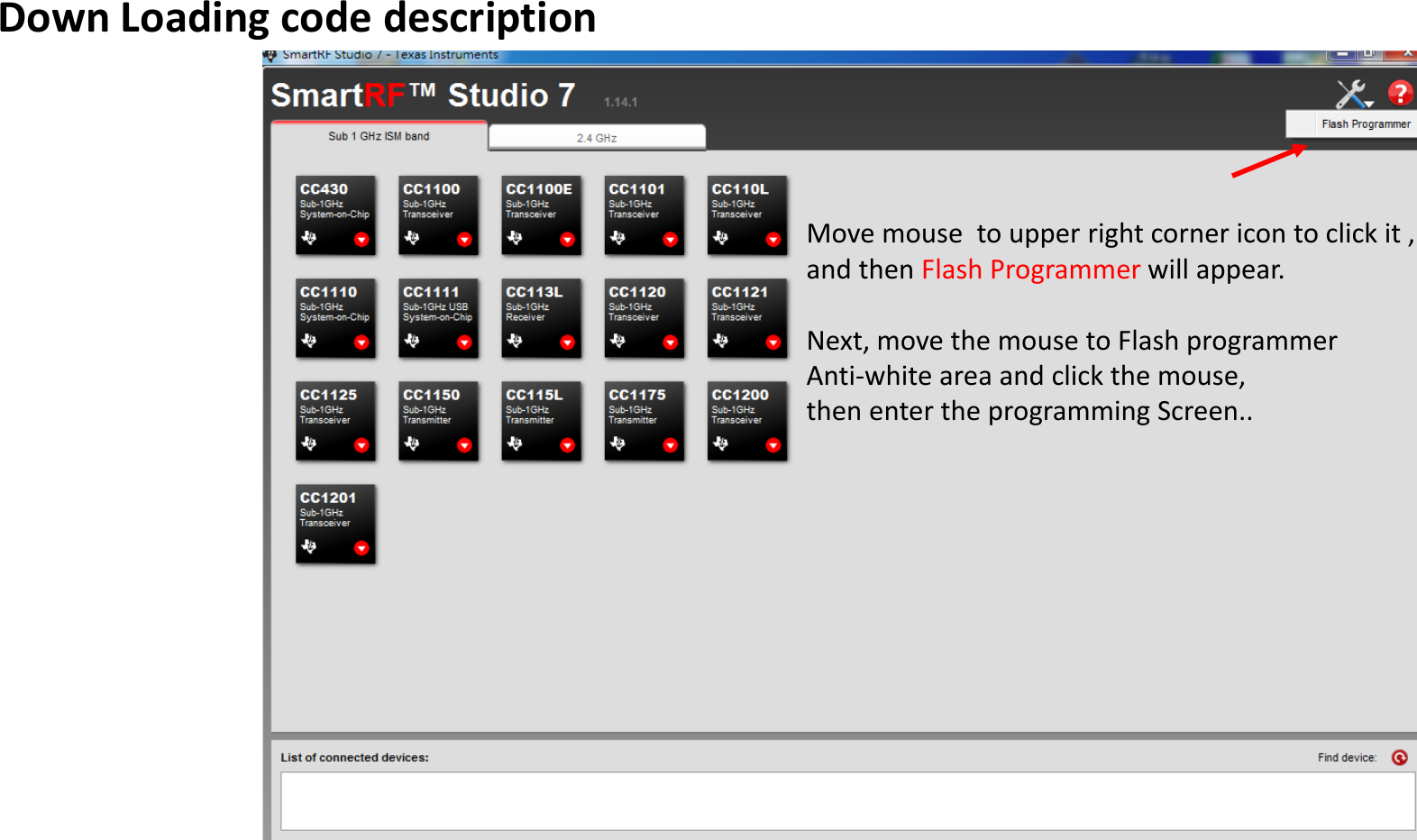

Movemousetoupperrightcornericontoclickit,andthenFlashProgrammerwillappear.Next,movethemousetoFlashprogrammerAnti‐whiteareaandclickthemouse,thenentertheprogrammingScreen..DownLoadingcodedescription

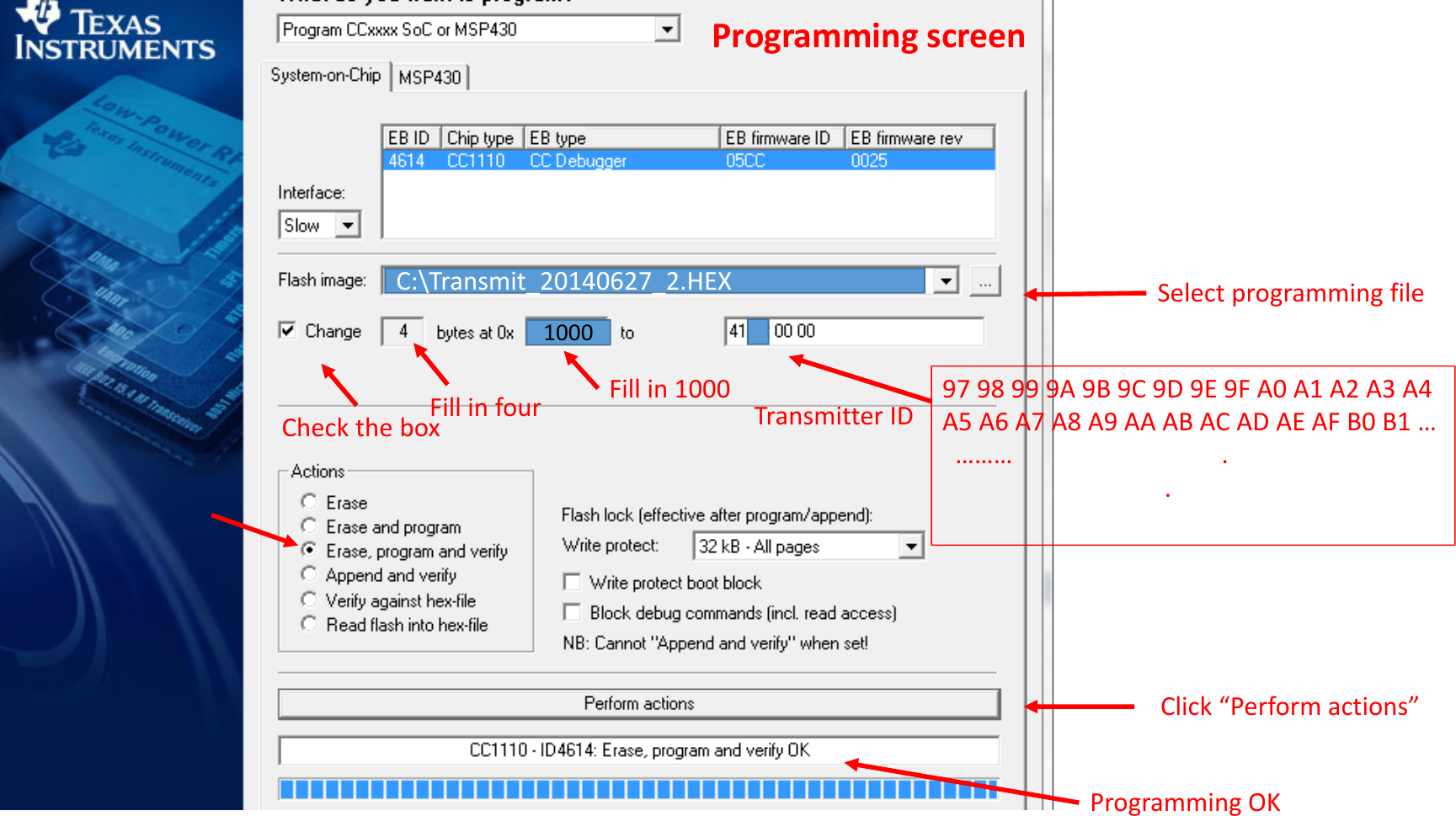

SelectprogrammingfileChecktheboxFillinfour Fillin1000 9798999A9B9C9D9E9FA0A1A2A3A4A5A6A7A8A9AAABACADAEAFB0B1…………..TransmitterIDClick“Performactions”ProgrammingOKProgrammingscreenC:\Transmit_20140627_2.HEX1000

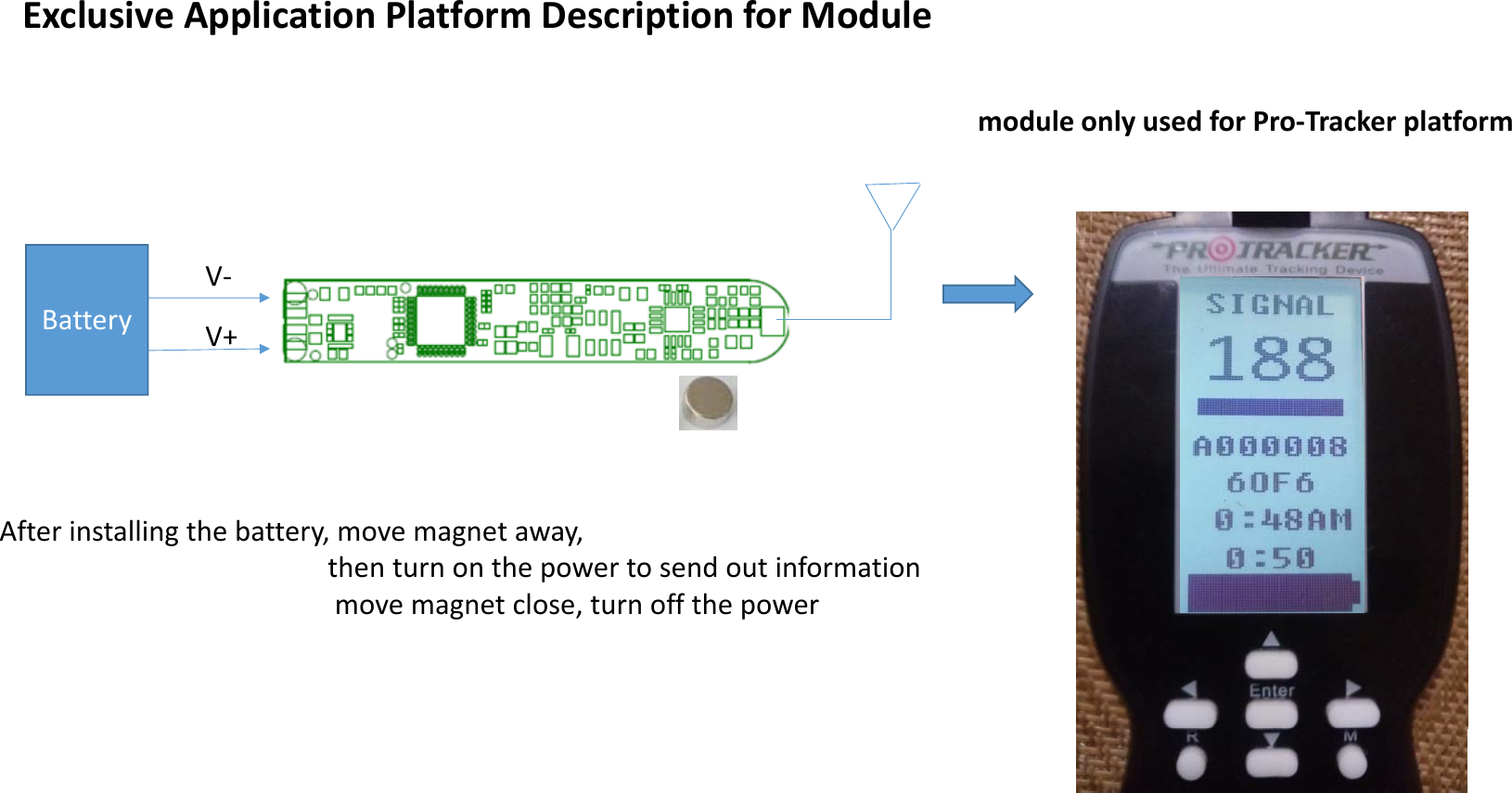

Battery V+V‐Afterinstallingthebattery,movemagnetaway,thenturnonthepowertosendoutinformationmovemagnetclose,turnoffthepowermoduleonlyusedforPro‐TrackerplatformExclusiveApplicationPlatformDescriptionforModule

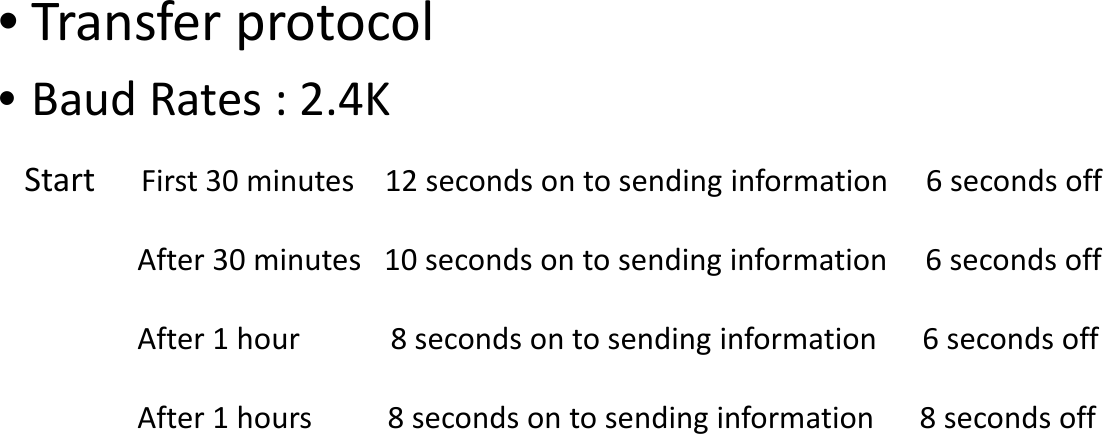

•Transferprotocol•BaudRates:2.4KStart First30minutes 12secondsontosendinginformation 6secondsoffAfter30minutes 10secondson tosendinginformation6secondsoffAfter1hour 8secondsontosendinginformation 6secondsoffAfter1hours 8secondson tosendinginformation8secondsoff

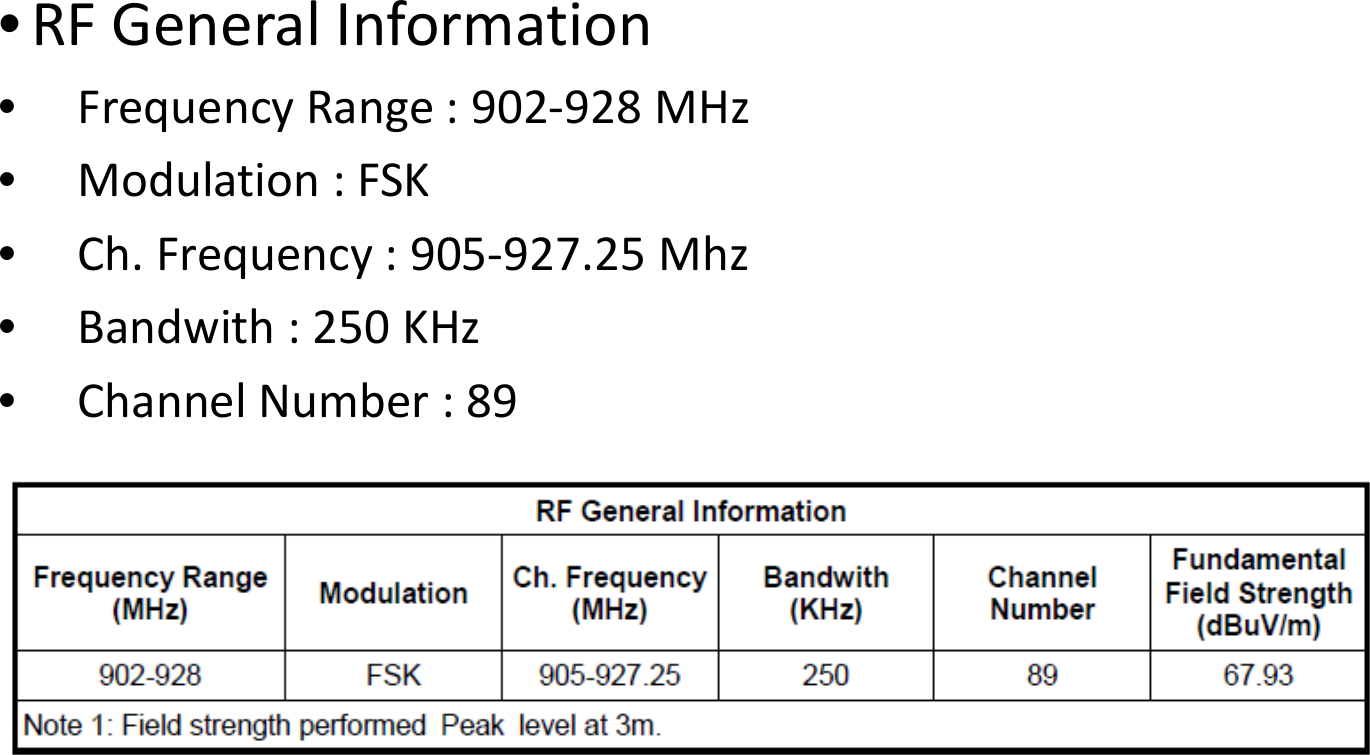

•RFGeneralInformation•FrequencyRange:902‐928MHz•Modulation:FSK•Ch.Frequency:905‐927.25Mhz•Bandwith :250KHz•ChannelNumber:89

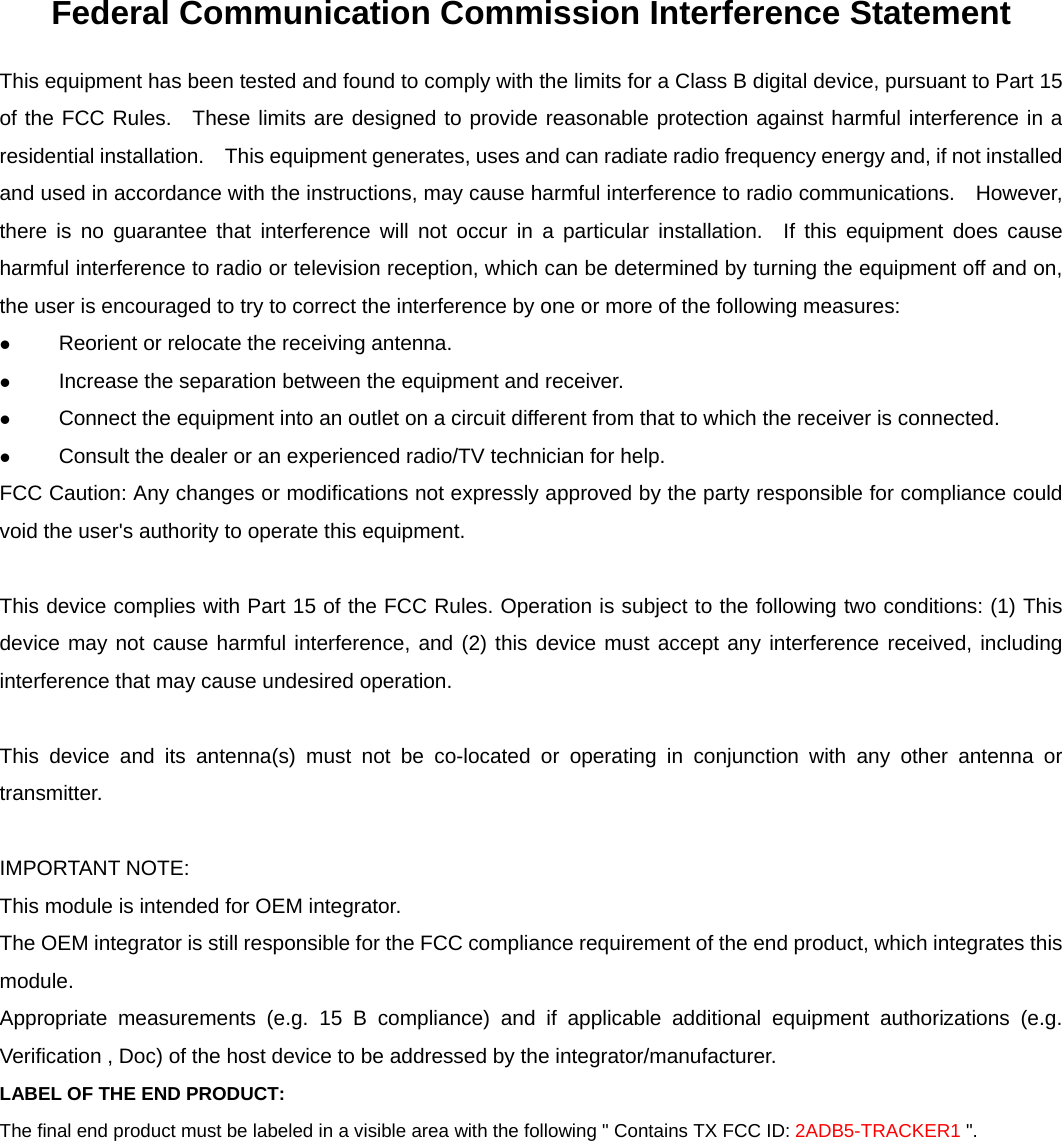

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator/manufacturer. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: 2ADB5-TRACKER1 ".
