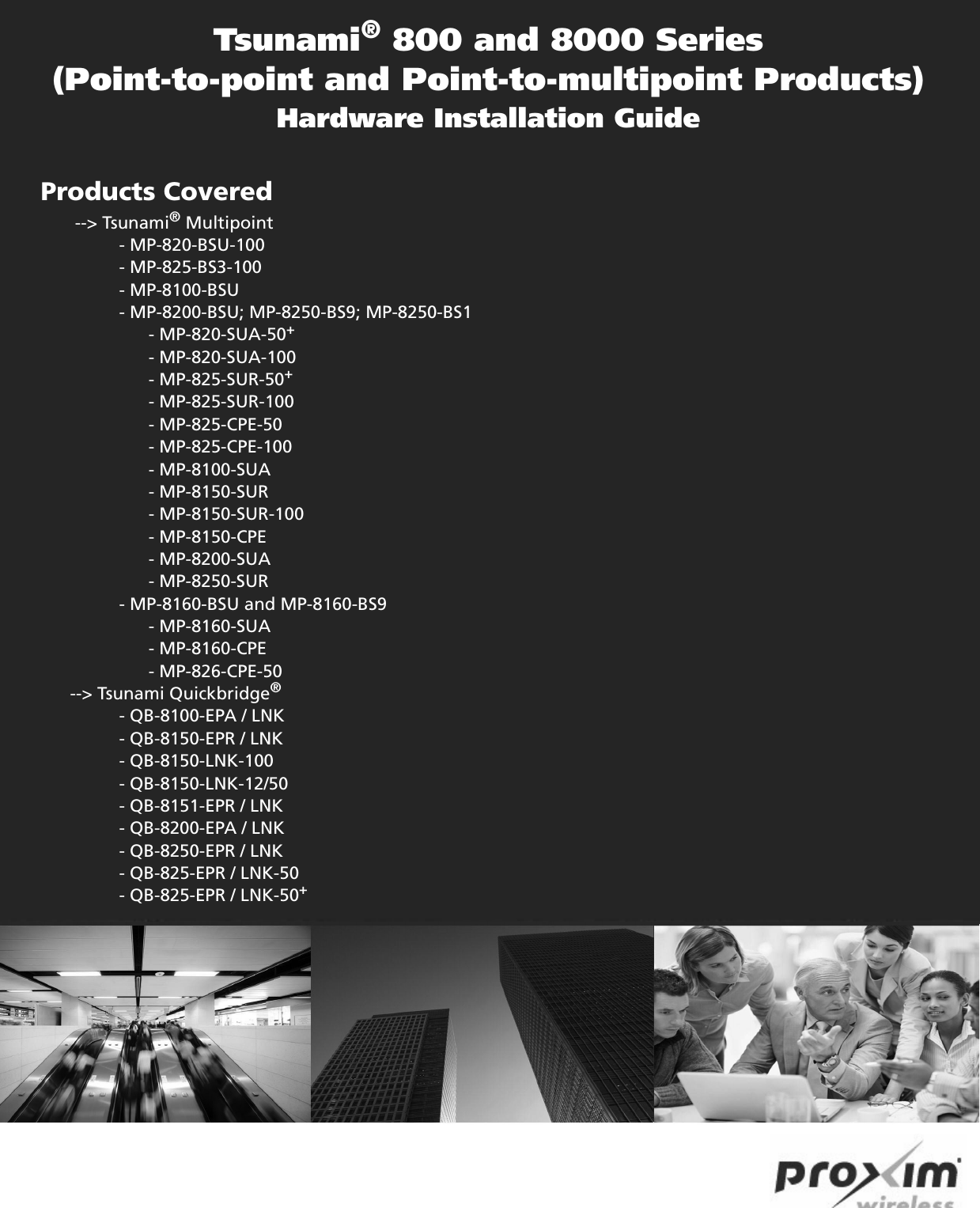

Tsunami® 800 and 8000 Series(Point-to-point and Point-to-multipoint Products)Hardware Installation GuideProducts Covered --> Tsunami® Multipoint - MP-820-BSU-100 - MP-825-BS3-100 - MP-8100-BSU - MP-8200-BSU; MP-8250-BS9; MP-8250-BS1 - MP-820-SUA-50+ - MP-820-SUA-100 - MP-825-SUR-50+ - MP-825-SUR-100 - MP-825-CPE-50 - MP-825-CPE-100 - MP-8100-SUA - MP-8150-SUR - MP-8150-SUR-100 - MP-8150-CPE - MP-8200-SUA - MP-8250-SUR - MP-8160-BSU and MP-8160-BS9 - MP-8160-SUA - MP-8160-CPE - MP-826-CPE-50 --> Tsunami Quickbridge® - QB-8100-EPA / LNK - QB-8150-EPR / LNK - QB-8150-LNK-100 - QB-8150-LNK-12/50 - QB-8151-EPR / LNK - QB-8200-EPA / LNK - QB-8250-EPR / LNK - QB-825-EPR / LNK-50 - QB-825-EPR / LNK-50+

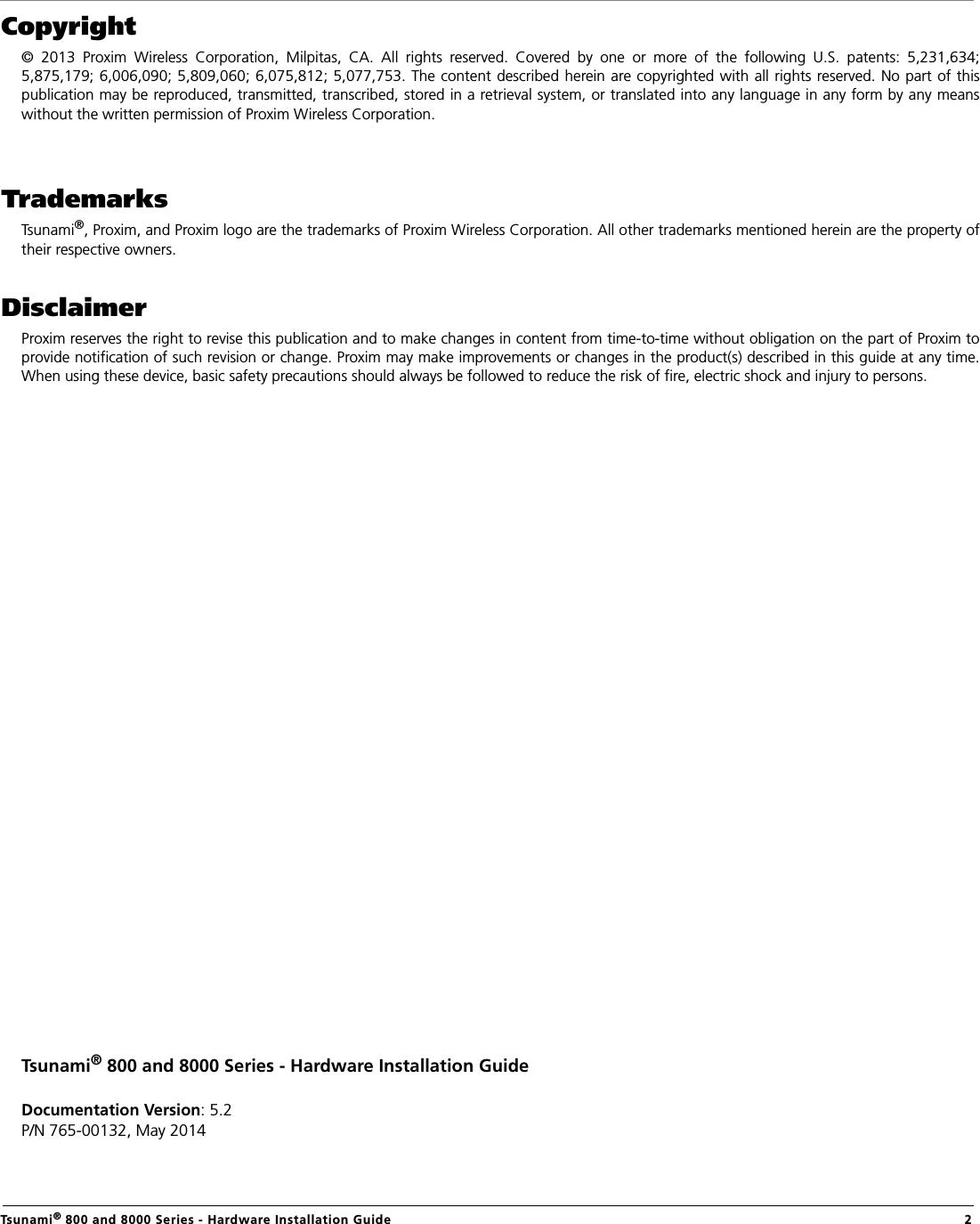

Tsunami® 800 and 8000 Series - Hardware Installation Guide 2Copyright© 2013 Proxim Wireless Corporation, Milpitas, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634;5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. The content described herein are copyrighted with all rights reserved. No part of thispublication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any meanswithout the written permission of Proxim Wireless Corporation.TrademarksTsunami®, Proxim, and Proxim logo are the trademarks of Proxim Wireless Corporation. All other trademarks mentioned herein are the property oftheir respective owners.DisclaimerProxim reserves the right to revise this publication and to make changes in content from time-to-time without obligation on the part of Proxim toprovide notification of such revision or change. Proxim may make improvements or changes in the product(s) described in this guide at any time.When using these device, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons.Tsunami® 800 and 8000 Series - Hardware Installation GuideDocumentation Version: 5.2P/N 765-00132, May 2014
Tsunami® 800 and 8000 Series - Hardware Installation Guide 3
Tsunami® 800 and 8000 Series - Hardware Installation Guide 4
Tsunami® 800 and 8000 Series - Hardware Installation Guide 5

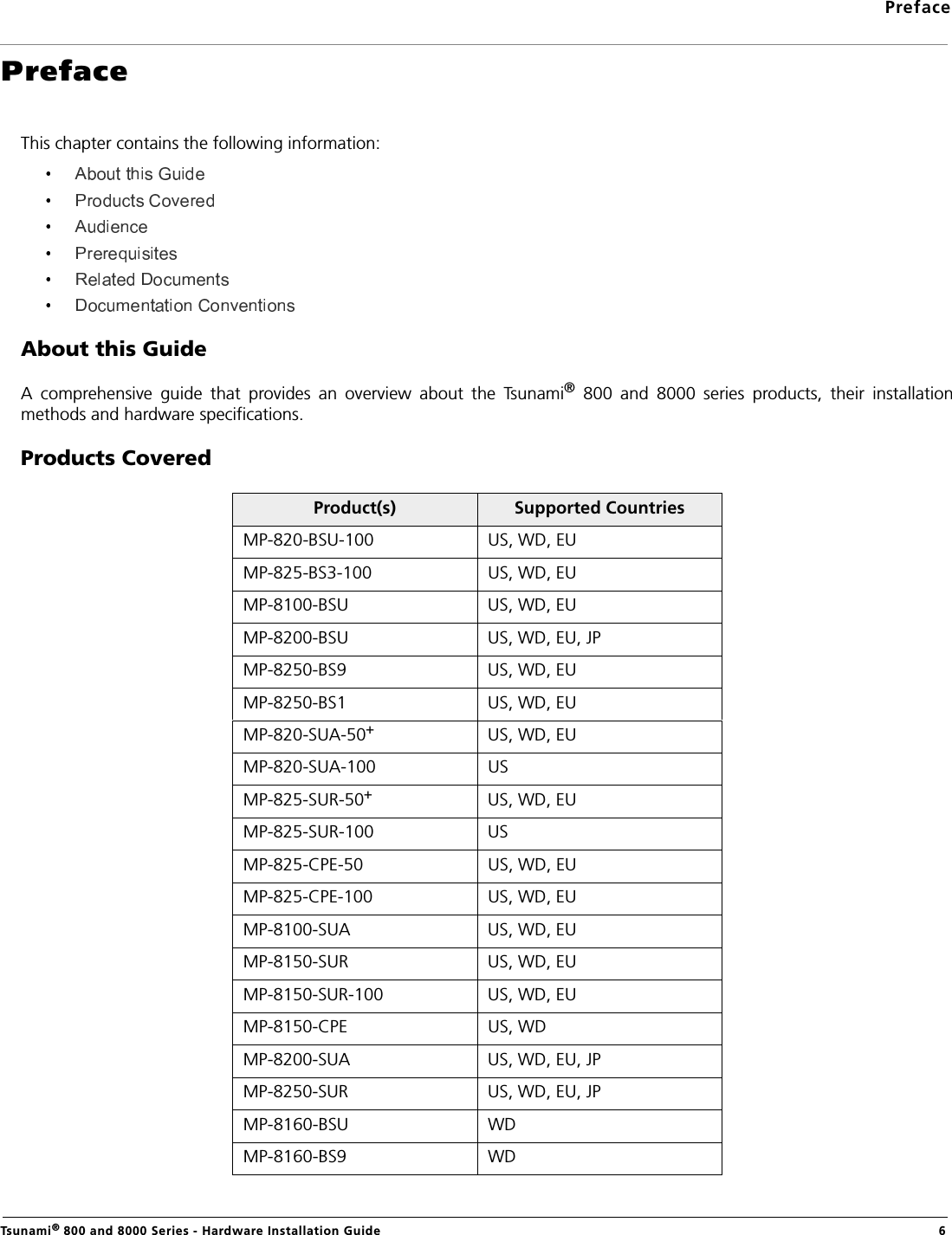

PrefaceTsunami® 800 and 8000 Series - Hardware Installation Guide 6PrefaceThis chapter contains the following information:About this GuideA comprehensive guide that provides an overview about the Tsunami® 800 and 8000 series products, their installationmethods and hardware specifications.Products CoveredProduct(s) Supported CountriesMP-820-BSU-100 US, WD, EUMP-825-BS3-100 US, WD, EUMP-8100-BSU US, WD, EUMP-8200-BSU US, WD, EU, JPMP-8250-BS9 US, WD, EUMP-8250-BS1 US, WD, EUMP-820-SUA-50+US, WD, EUMP-820-SUA-100 USMP-825-SUR-50+US, WD, EUMP-825-SUR-100 USMP-825-CPE-50 US, WD, EUMP-825-CPE-100 US, WD, EUMP-8100-SUA US, WD, EUMP-8150-SUR US, WD, EUMP-8150-SUR-100 US, WD, EUMP-8150-CPE US, WDMP-8200-SUA US, WD, EU, JPMP-8250-SUR US, WD, EU, JPMP-8160-BSU WDMP-8160-BS9 WD

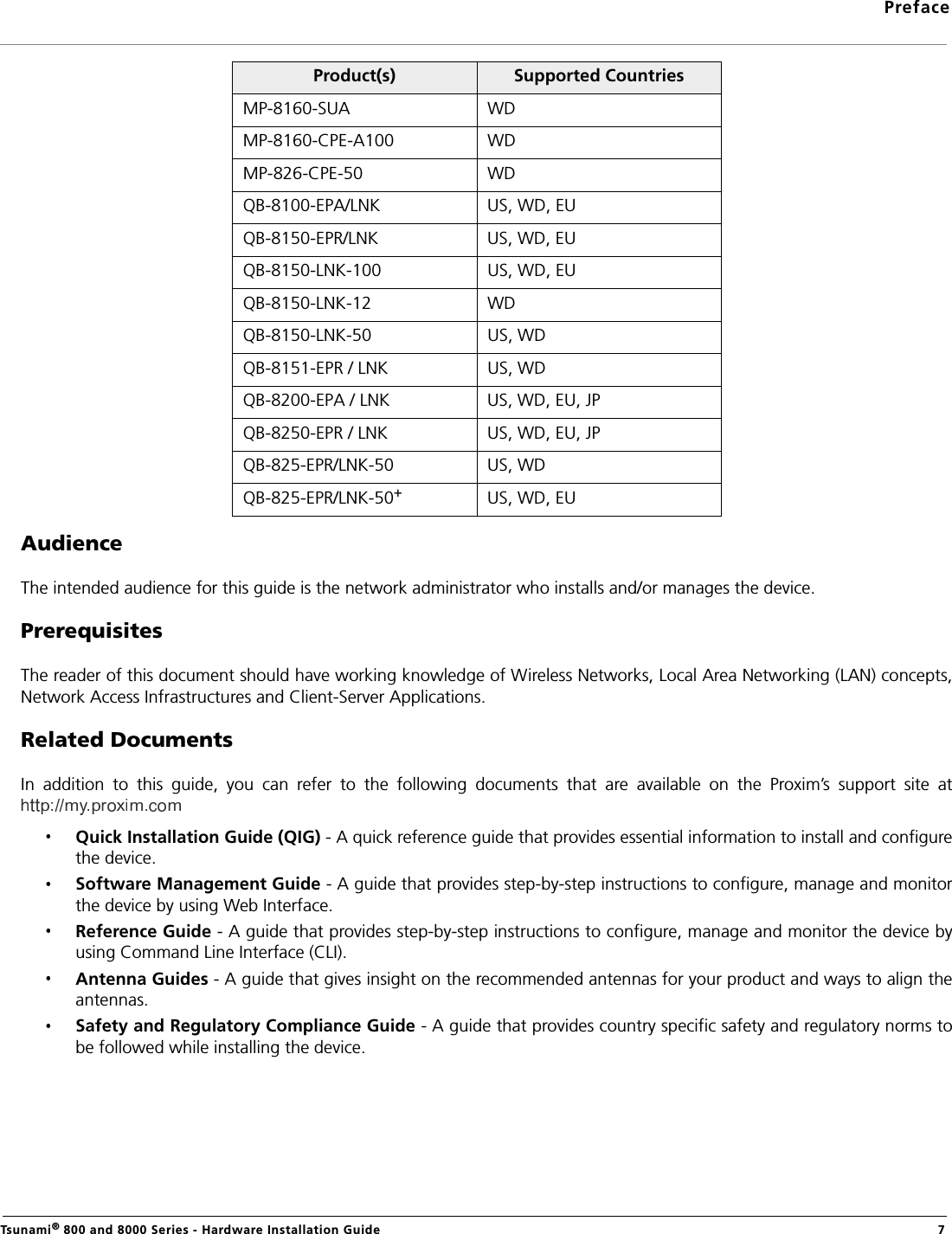

PrefaceTsunami® 800 and 8000 Series - Hardware Installation Guide 7AudienceThe intended audience for this guide is the network administrator who installs and/or manages the device.PrerequisitesThe reader of this document should have working knowledge of Wireless Networks, Local Area Networking (LAN) concepts,Network Access Infrastructures and Client-Server Applications.Related DocumentsIn addition to this guide, you can refer to the following documents that are available on the Proxim’s support site atQuick Installation Guide (QIG) - A quick reference guide that provides essential information to install and configurethe device.Software Management Guide - A guide that provides step-by-step instructions to configure, manage and monitorthe device by using Web Interface.Reference Guide - A guide that provides step-by-step instructions to configure, manage and monitor the device byusing Command Line Interface (CLI).Antenna Guides - A guide that gives insight on the recommended antennas for your product and ways to align theantennas.Safety and Regulatory Compliance Guide - A guide that provides country specific safety and regulatory norms tobe followed while installing the device.MP-8160-SUA WDMP-8160-CPE-A100 WDMP-826-CPE-50 WDQB-8100-EPA/LNK US, WD, EUQB-8150-EPR/LNK US, WD, EUQB-8150-LNK-100 US, WD, EUQB-8150-LNK-12 WDQB-8150-LNK-50 US, WDQB-8151-EPR / LNK US, WDQB-8200-EPA / LNK US, WD, EU, JPQB-8250-EPR / LNK US, WD, EU, JPQB-825-EPR/LNK-50 US, WDQB-825-EPR/LNK-50+US, WD, EUProduct(s) Supported Countries

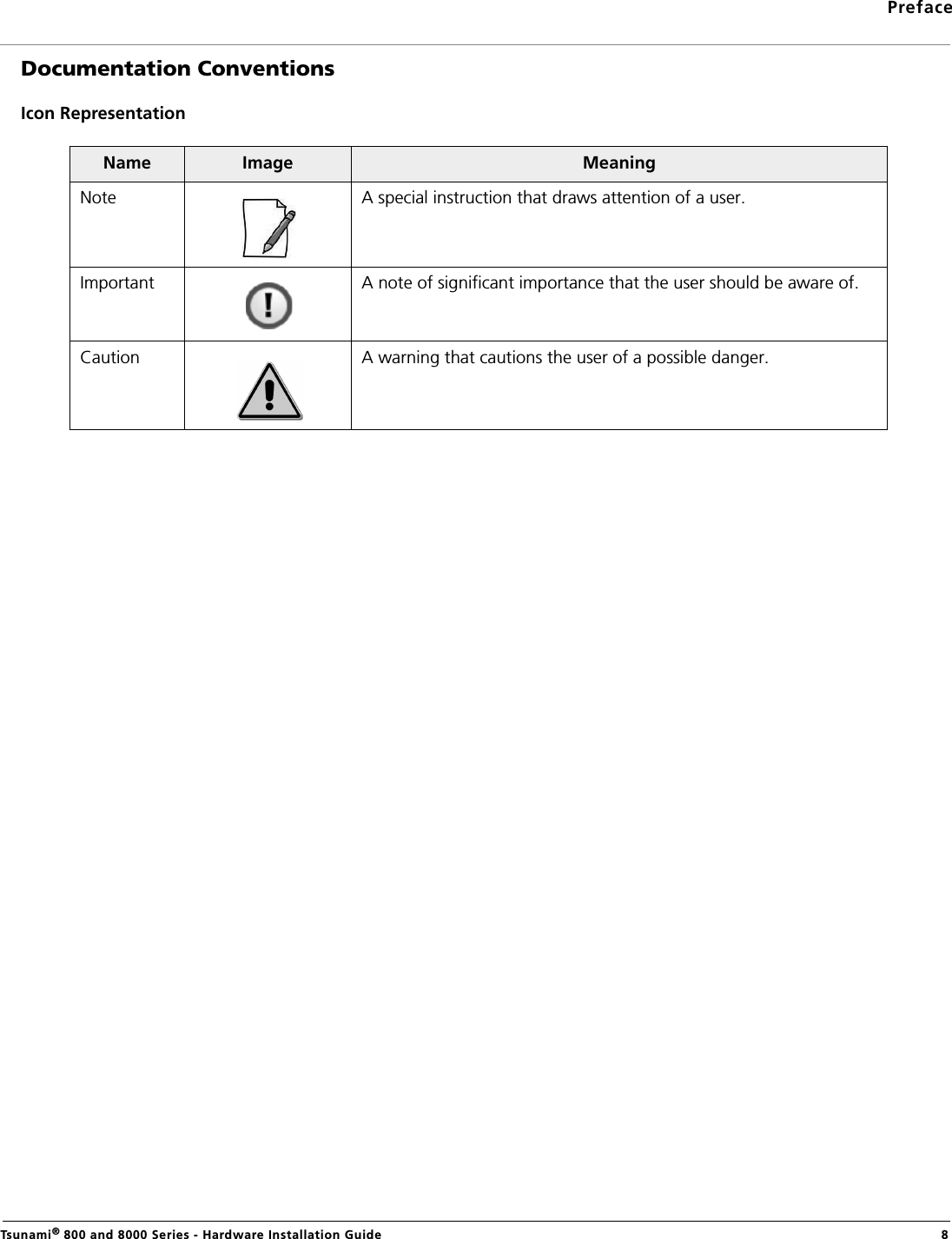

PrefaceTsunami® 800 and 8000 Series - Hardware Installation Guide 8Documentation ConventionsIcon RepresentationName Image MeaningNote A special instruction that draws attention of a user.Important A note of significant importance that the user should be aware of.Caution A warning that cautions the user of a possible danger.

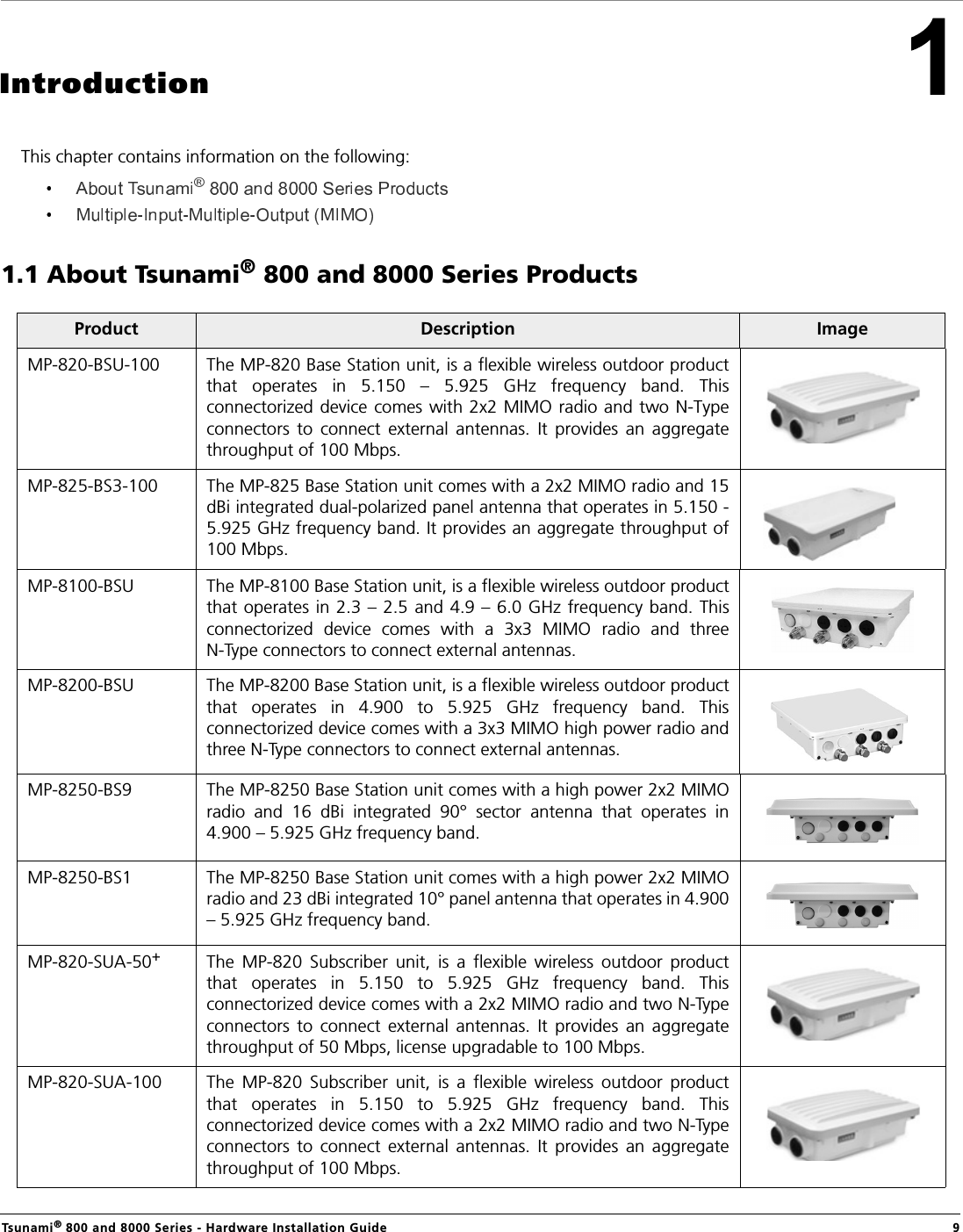

Tsunami® 800 and 8000 Series - Hardware Installation Guide 9IntroductionThis chapter contains information on the following:1.1 About Tsunami® 800 and 8000 Series ProductsProduct Description ImageMP-820-BSU-100 The MP-820 Base Station unit, is a flexible wireless outdoor productthat operates in 5.150 – 5.925 GHz frequency band. Thisconnectorized device comes with 2x2 MIMO radio and two N-Typeconnectors to connect external antennas. It provides an aggregatethroughput of 100 Mbps.MP-825-BS3-100 The MP-825 Base Station unit comes with a 2x2 MIMO radio and 15dBi integrated dual-polarized panel antenna that operates in 5.150 -5.925 GHz frequency band. It provides an aggregate throughput of100 Mbps.MP-8100-BSU The MP-8100 Base Station unit, is a flexible wireless outdoor productthat operates in 2.3 – 2.5 and 4.9 – 6.0 GHz frequency band. Thisconnectorized device comes with a 3x3 MIMO radio and threeN-Type connectors to connect external antennas.MP-8200-BSU The MP-8200 Base Station unit, is a flexible wireless outdoor productthat operates in 4.900 to 5.925 GHz frequency band. Thisconnectorized device comes with a 3x3 MIMO high power radio andthree N-Type connectors to connect external antennas.MP-8250-BS9 The MP-8250 Base Station unit comes with a high power 2x2 MIMOradio and 16 dBi integrated 90° sector antenna that operates in4.900 – 5.925 GHz frequency band.MP-8250-BS1 The MP-8250 Base Station unit comes with a high power 2x2 MIMOradio and 23 dBi integrated 10° panel antenna that operates in 4.900– 5.925 GHz frequency band.MP-820-SUA-50+The MP-820 Subscriber unit, is a flexible wireless outdoor productthat operates in 5.150 to 5.925 GHz frequency band. Thisconnectorized device comes with a 2x2 MIMO radio and two N-Typeconnectors to connect external antennas. It provides an aggregatethroughput of 50 Mbps, license upgradable to 100 Mbps.MP-820-SUA-100 The MP-820 Subscriber unit, is a flexible wireless outdoor productthat operates in 5.150 to 5.925 GHz frequency band. Thisconnectorized device comes with a 2x2 MIMO radio and two N-Typeconnectors to connect external antennas. It provides an aggregatethroughput of 100 Mbps.

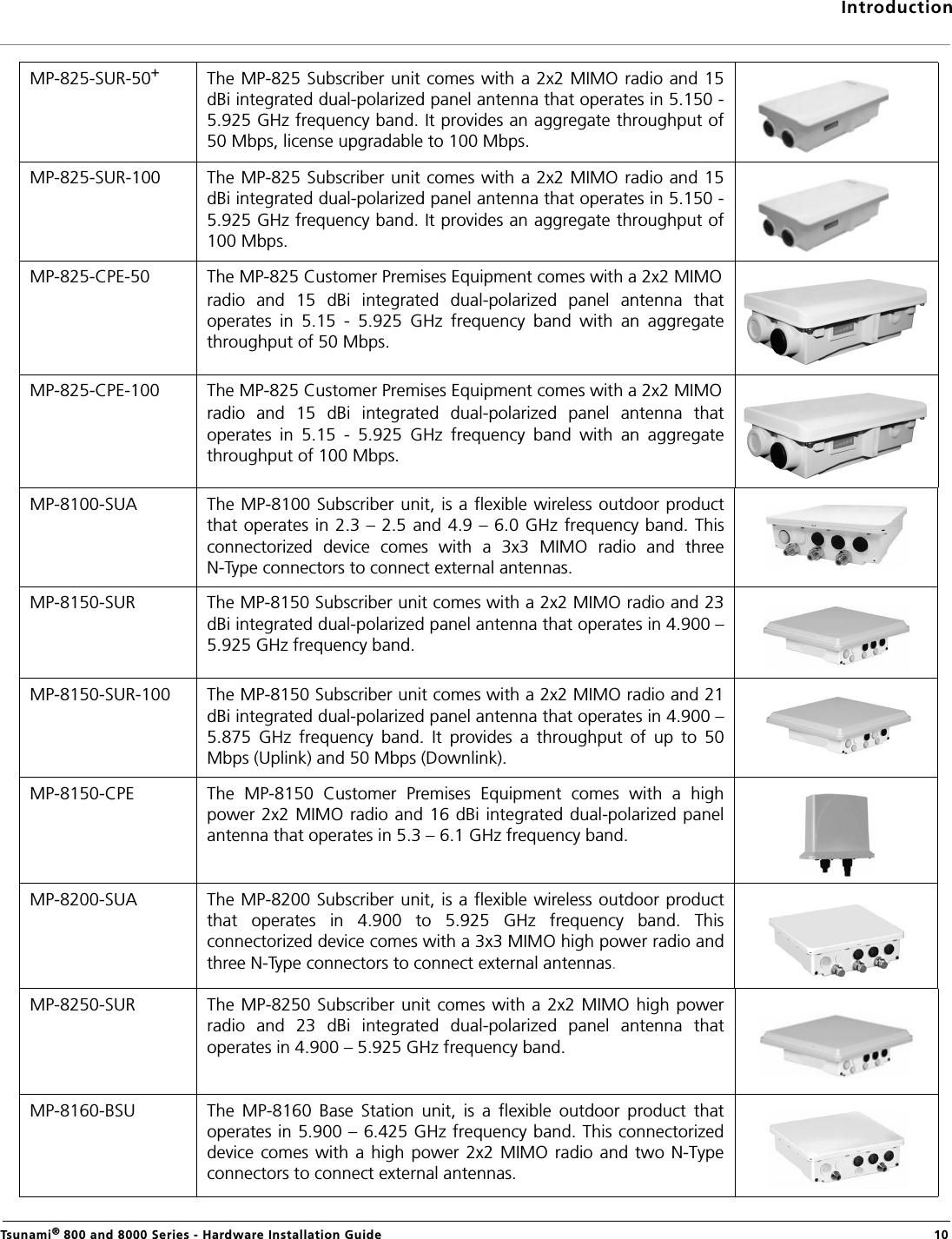

IntroductionTsunami® 800 and 8000 Series - Hardware Installation Guide 10MP-825-SUR-50+The MP-825 Subscriber unit comes with a 2x2 MIMO radio and 15dBi integrated dual-polarized panel antenna that operates in 5.150 -5.925 GHz frequency band. It provides an aggregate throughput of50 Mbps, license upgradable to 100 Mbps.MP-825-SUR-100 The MP-825 Subscriber unit comes with a 2x2 MIMO radio and 15dBi integrated dual-polarized panel antenna that operates in 5.150 -5.925 GHz frequency band. It provides an aggregate throughput of100 Mbps.MP-825-CPE-50 The MP-825 Customer Premises Equipment comes with a 2x2 MIMOradio and 15 dBi integrated dual-polarized panel antenna thatoperates in 5.15 - 5.925 GHz frequency band with an aggregatethroughput of 50 Mbps.MP-825-CPE-100 The MP-825 Customer Premises Equipment comes with a 2x2 MIMOradio and 15 dBi integrated dual-polarized panel antenna thatoperates in 5.15 - 5.925 GHz frequency band with an aggregatethroughput of 100 Mbps.MP-8100-SUA The MP-8100 Subscriber unit, is a flexible wireless outdoor productthat operates in 2.3 – 2.5 and 4.9 – 6.0 GHz frequency band. Thisconnectorized device comes with a 3x3 MIMO radio and threeN-Type connectors to connect external antennas.MP-8150-SUR The MP-8150 Subscriber unit comes with a 2x2 MIMO radio and 23dBi integrated dual-polarized panel antenna that operates in 4.900 –5.925 GHz frequency band.MP-8150-SUR-100 The MP-8150 Subscriber unit comes with a 2x2 MIMO radio and 21dBi integrated dual-polarized panel antenna that operates in 4.900 –5.875 GHz frequency band. It provides a throughput of up to 50Mbps (Uplink) and 50 Mbps (Downlink).MP-8150-CPE The MP-8150 Customer Premises Equipment comes with a highpower 2x2 MIMO radio and 16 dBi integrated dual-polarized panelantenna that operates in 5.3 – 6.1 GHz frequency band.MP-8200-SUA The MP-8200 Subscriber unit, is a flexible wireless outdoor productthat operates in 4.900 to 5.925 GHz frequency band. Thisconnectorized device comes with a 3x3 MIMO high power radio andthree N-Type connectors to connect external antennas.MP-8250-SUR The MP-8250 Subscriber unit comes with a 2x2 MIMO high powerradio and 23 dBi integrated dual-polarized panel antenna thatoperates in 4.900 – 5.925 GHz frequency band.MP-8160-BSU The MP-8160 Base Station unit, is a flexible outdoor product thatoperates in 5.900 – 6.425 GHz frequency band. This connectorizeddevice comes with a high power 2x2 MIMO radio and two N-Typeconnectors to connect external antennas.

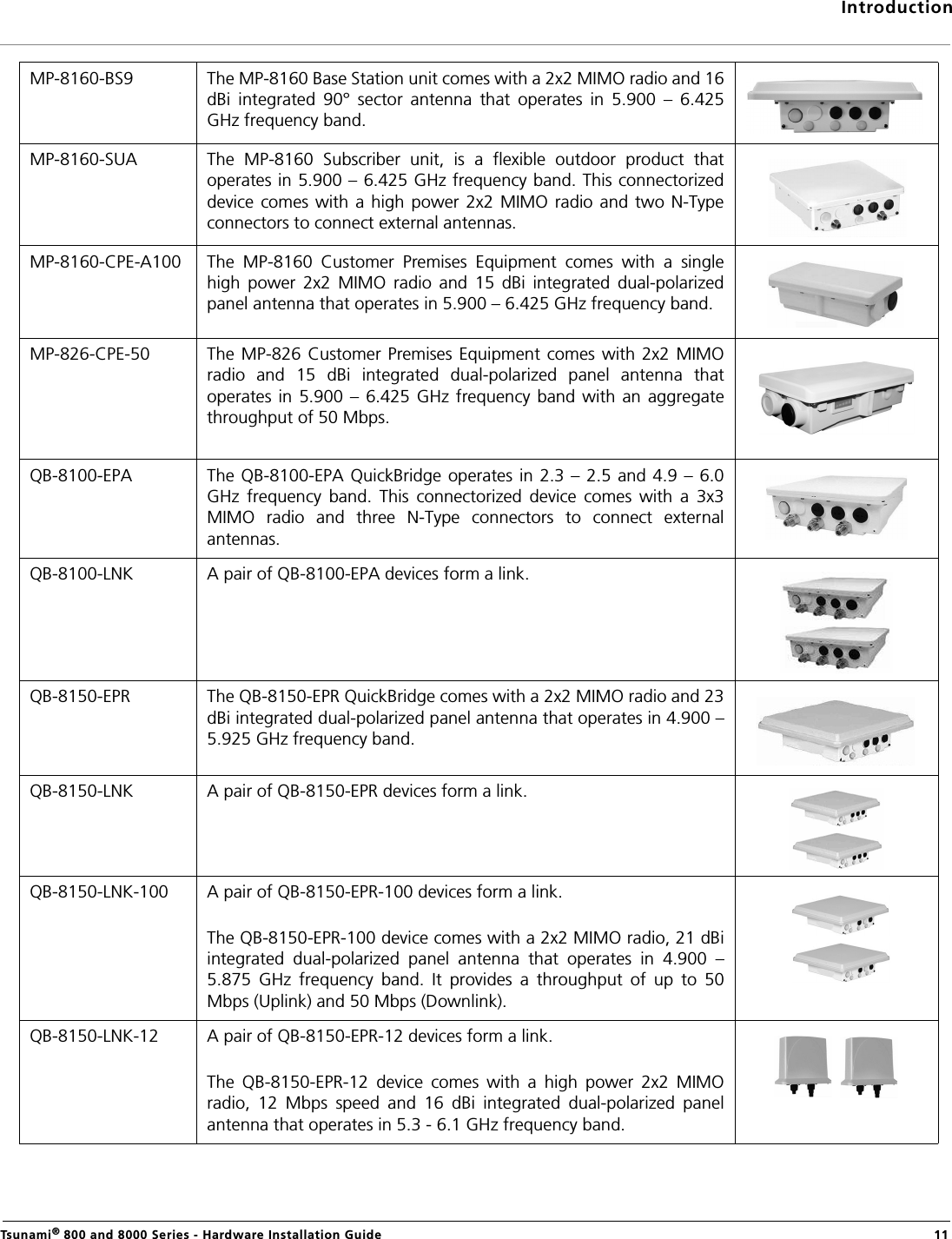

IntroductionTsunami® 800 and 8000 Series - Hardware Installation Guide 11MP-8160-BS9 The MP-8160 Base Station unit comes with a 2x2 MIMO radio and 16dBi integrated 90° sector antenna that operates in 5.900 – 6.425GHz frequency band.MP-8160-SUA The MP-8160 Subscriber unit, is a flexible outdoor product thatoperates in 5.900 – 6.425 GHz frequency band. This connectorizeddevice comes with a high power 2x2 MIMO radio and two N-Typeconnectors to connect external antennas.MP-8160-CPE-A100 The MP-8160 Customer Premises Equipment comes with a singlehigh power 2x2 MIMO radio and 15 dBi integrated dual-polarizedpanel antenna that operates in 5.900 – 6.425 GHz frequency band.MP-826-CPE-50 The MP-826 Customer Premises Equipment comes with 2x2 MIMOradio and 15 dBi integrated dual-polarized panel antenna thatoperates in 5.900 – 6.425 GHz frequency band with an aggregatethroughput of 50 Mbps.QB-8100-EPA The QB-8100-EPA QuickBridge operates in 2.3 – 2.5 and 4.9 – 6.0GHz frequency band. This connectorized device comes with a 3x3MIMO radio and three N-Type connectors to connect externalantennas.QB-8100-LNK A pair of QB-8100-EPA devices form a link.QB-8150-EPR The QB-8150-EPR QuickBridge comes with a 2x2 MIMO radio and 23dBi integrated dual-polarized panel antenna that operates in 4.900 –5.925 GHz frequency band.QB-8150-LNK A pair of QB-8150-EPR devices form a link.QB-8150-LNK-100 A pair of QB-8150-EPR-100 devices form a link. The QB-8150-EPR-100 device comes with a 2x2 MIMO radio, 21 dBiintegrated dual-polarized panel antenna that operates in 4.900 –5.875 GHz frequency band. It provides a throughput of up to 50Mbps (Uplink) and 50 Mbps (Downlink).QB-8150-LNK-12 A pair of QB-8150-EPR-12 devices form a link. The QB-8150-EPR-12 device comes with a high power 2x2 MIMOradio, 12 Mbps speed and 16 dBi integrated dual-polarized panelantenna that operates in 5.3 - 6.1 GHz frequency band.

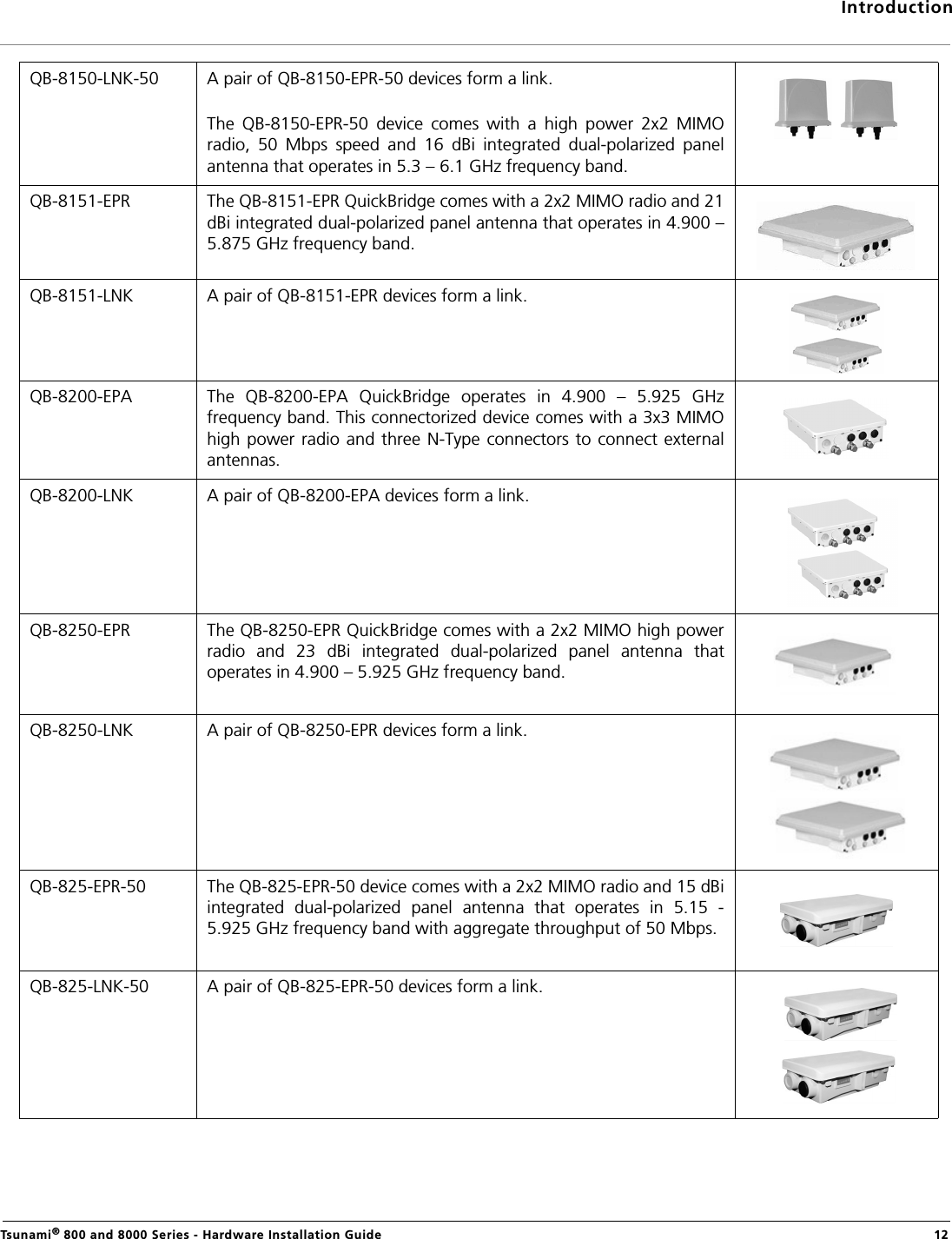

IntroductionTsunami® 800 and 8000 Series - Hardware Installation Guide 12QB-8150-LNK-50 A pair of QB-8150-EPR-50 devices form a link. The QB-8150-EPR-50 device comes with a high power 2x2 MIMOradio, 50 Mbps speed and 16 dBi integrated dual-polarized panelantenna that operates in 5.3 – 6.1 GHz frequency band.QB-8151-EPR The QB-8151-EPR QuickBridge comes with a 2x2 MIMO radio and 21dBi integrated dual-polarized panel antenna that operates in 4.900 –5.875 GHz frequency band.QB-8151-LNK A pair of QB-8151-EPR devices form a link.QB-8200-EPA The QB-8200-EPA QuickBridge operates in 4.900 – 5.925 GHzfrequency band. This connectorized device comes with a 3x3 MIMOhigh power radio and three N-Type connectors to connect externalantennas.QB-8200-LNK A pair of QB-8200-EPA devices form a link.QB-8250-EPR The QB-8250-EPR QuickBridge comes with a 2x2 MIMO high powerradio and 23 dBi integrated dual-polarized panel antenna thatoperates in 4.900 – 5.925 GHz frequency band.QB-8250-LNK A pair of QB-8250-EPR devices form a link.QB-825-EPR-50 The QB-825-EPR-50 device comes with a 2x2 MIMO radio and 15 dBiintegrated dual-polarized panel antenna that operates in 5.15 -5.925 GHz frequency band with aggregate throughput of 50 Mbps.QB-825-LNK-50 A pair of QB-825-EPR-50 devices form a link.

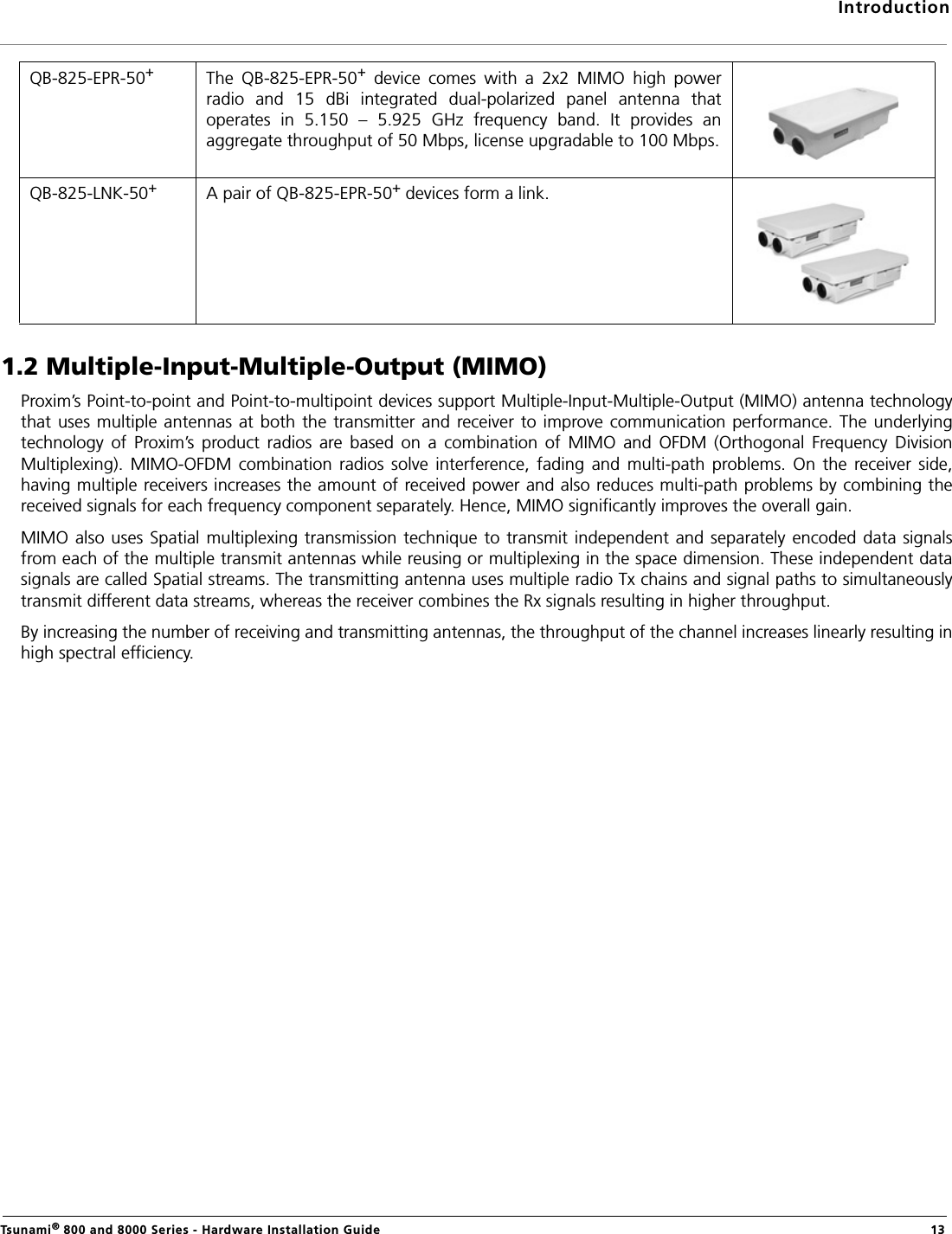

IntroductionTsunami® 800 and 8000 Series - Hardware Installation Guide 131.2 Multiple-Input-Multiple-Output (MIMO)Proxim’s Point-to-point and Point-to-multipoint devices support Multiple-Input-Multiple-Output (MIMO) antenna technologythat uses multiple antennas at both the transmitter and receiver to improve communication performance. The underlyingtechnology of Proxim’s product radios are based on a combination of MIMO and OFDM (Orthogonal Frequency DivisionMultiplexing). MIMO-OFDM combination radios solve interference, fading and multi-path problems. On the receiver side,having multiple receivers increases the amount of received power and also reduces multi-path problems by combining thereceived signals for each frequency component separately. Hence, MIMO significantly improves the overall gain.MIMO also uses Spatial multiplexing transmission technique to transmit independent and separately encoded data signalsfrom each of the multiple transmit antennas while reusing or multiplexing in the space dimension. These independent datasignals are called Spatial streams. The transmitting antenna uses multiple radio Tx chains and signal paths to simultaneouslytransmit different data streams, whereas the receiver combines the Rx signals resulting in higher throughput.By increasing the number of receiving and transmitting antennas, the throughput of the channel increases linearly resulting inhigh spectral efficiency.QB-825-EPR-50+The QB-825-EPR-50+ device comes with a 2x2 MIMO high powerradio and 15 dBi integrated dual-polarized panel antenna thatoperates in 5.150 – 5.925 GHz frequency band. It provides anaggregate throughput of 50 Mbps, license upgradable to 100 Mbps.QB-825-LNK-50+A pair of QB-825-EPR-50+ devices form a link.

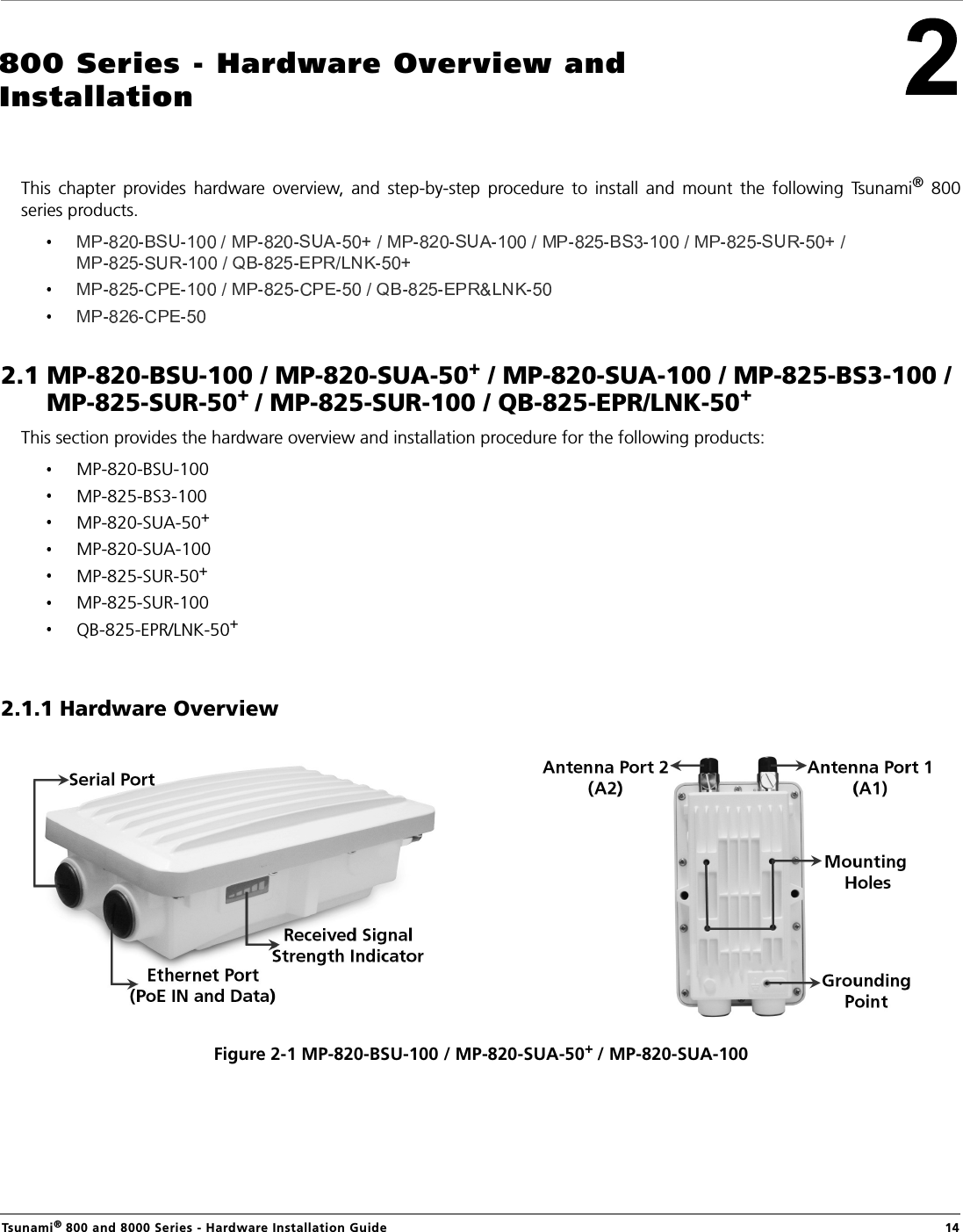

Tsunami® 800 and 8000 Series - Hardware Installation Guide 14800 Series - Hardware Overview and InstallationThis chapter provides hardware overview, and step-by-step procedure to install and mount the following Tsunami® 800series products. 2.1 MP-820-BSU-100 / MP-820-SUA-50+ / MP-820-SUA-100 / MP-825-BS3-100 / MP-825-SUR-50+ / MP-825-SUR-100 / QB-825-EPR/LNK-50+This section provides the hardware overview and installation procedure for the following products: MP-820-BSU-100MP-825-BS3-100MP-820-SUA-50+MP-820-SUA-100MP-825-SUR-50+MP-825-SUR-100QB-825-EPR/LNK-50+2.1.1 Hardware OverviewFigure 2-1 MP-820-BSU-100 / MP-820-SUA-50+ / MP-820-SUA-100

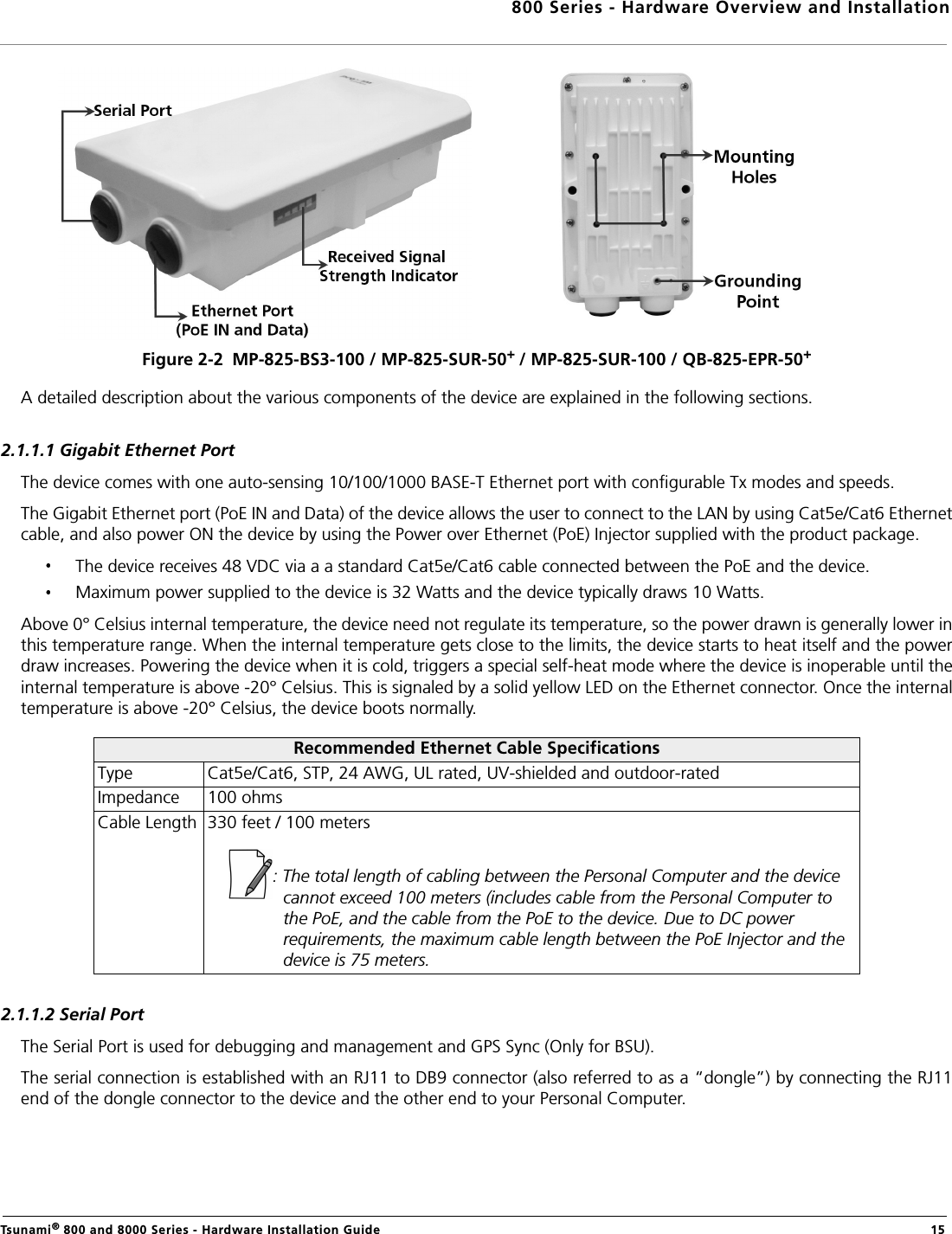

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 15Figure 2-2 MP-825-BS3-100 / MP-825-SUR-50+ / MP-825-SUR-100 / QB-825-EPR-50+A detailed description about the various components of the device are explained in the following sections.2.1.1.1 Gigabit Ethernet PortThe device comes with one auto-sensing 10/100/1000 BASE-T Ethernet port with configurable Tx modes and speeds.The Gigabit Ethernet port (PoE IN and Data) of the device allows the user to connect to the LAN by using Cat5e/Cat6 Ethernetcable, and also power ON the device by using the Power over Ethernet (PoE) Injector supplied with the product package.The device receives 48 VDC via a a standard Cat5e/Cat6 cable connected between the PoE and the device.Maximum power supplied to the device is 32 Watts and the device typically draws 10 Watts.Above 0° Celsius internal temperature, the device need not regulate its temperature, so the power drawn is generally lower inthis temperature range. When the internal temperature gets close to the limits, the device starts to heat itself and the powerdraw increases. Powering the device when it is cold, triggers a special self-heat mode where the device is inoperable until theinternal temperature is above -20° Celsius. This is signaled by a solid yellow LED on the Ethernet connector. Once the internaltemperature is above -20° Celsius, the device boots normally.2.1.1.2 Serial PortThe Serial Port is used for debugging and management and GPS Sync (Only for BSU).The serial connection is established with an RJ11 to DB9 connector (also referred to as a “dongle”) by connecting the RJ11end of the dongle connector to the device and the other end to your Personal Computer.Recommended Ethernet Cable SpecificationsType Cat5e/Cat6, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device. Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.

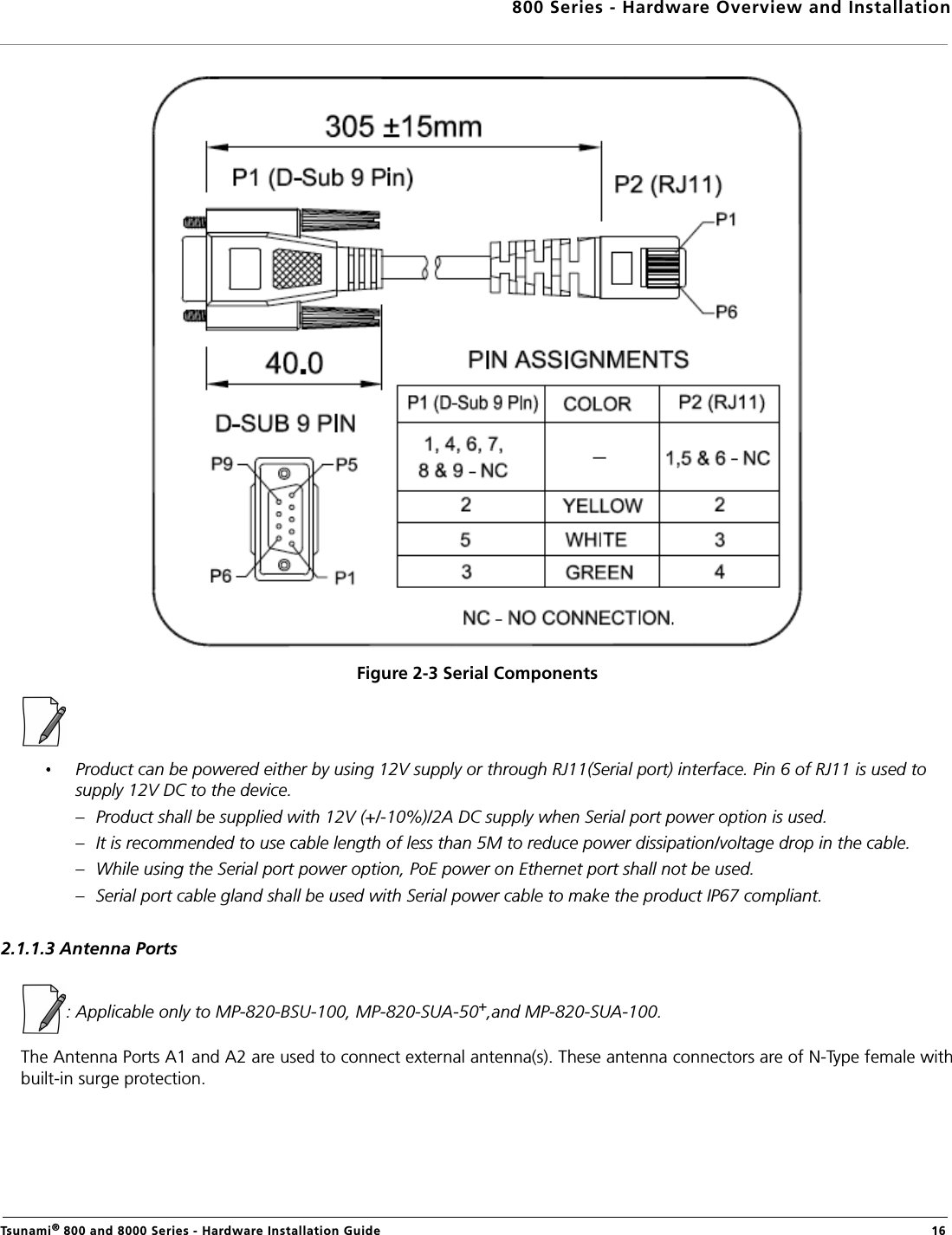

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 16Figure 2-3 Serial ComponentsProduct can be powered either by using 12V supply or through RJ11(Serial port) interface. Pin 6 of RJ11 is used to supply 12V DC to the device.– Product shall be supplied with 12V (+/-10%)/2A DC supply when Serial port power option is used.– It is recommended to use cable length of less than 5M to reduce power dissipation/voltage drop in the cable.– While using the Serial port power option, PoE power on Ethernet port shall not be used.– Serial port cable gland shall be used with Serial power cable to make the product IP67 compliant. 2.1.1.3 Antenna Ports : Applicable only to MP-820-BSU-100, MP-820-SUA-50+,and MP-820-SUA-100.The Antenna Ports A1 and A2 are used to connect external antenna(s). These antenna connectors are of N-Type female withbuilt-in surge protection.

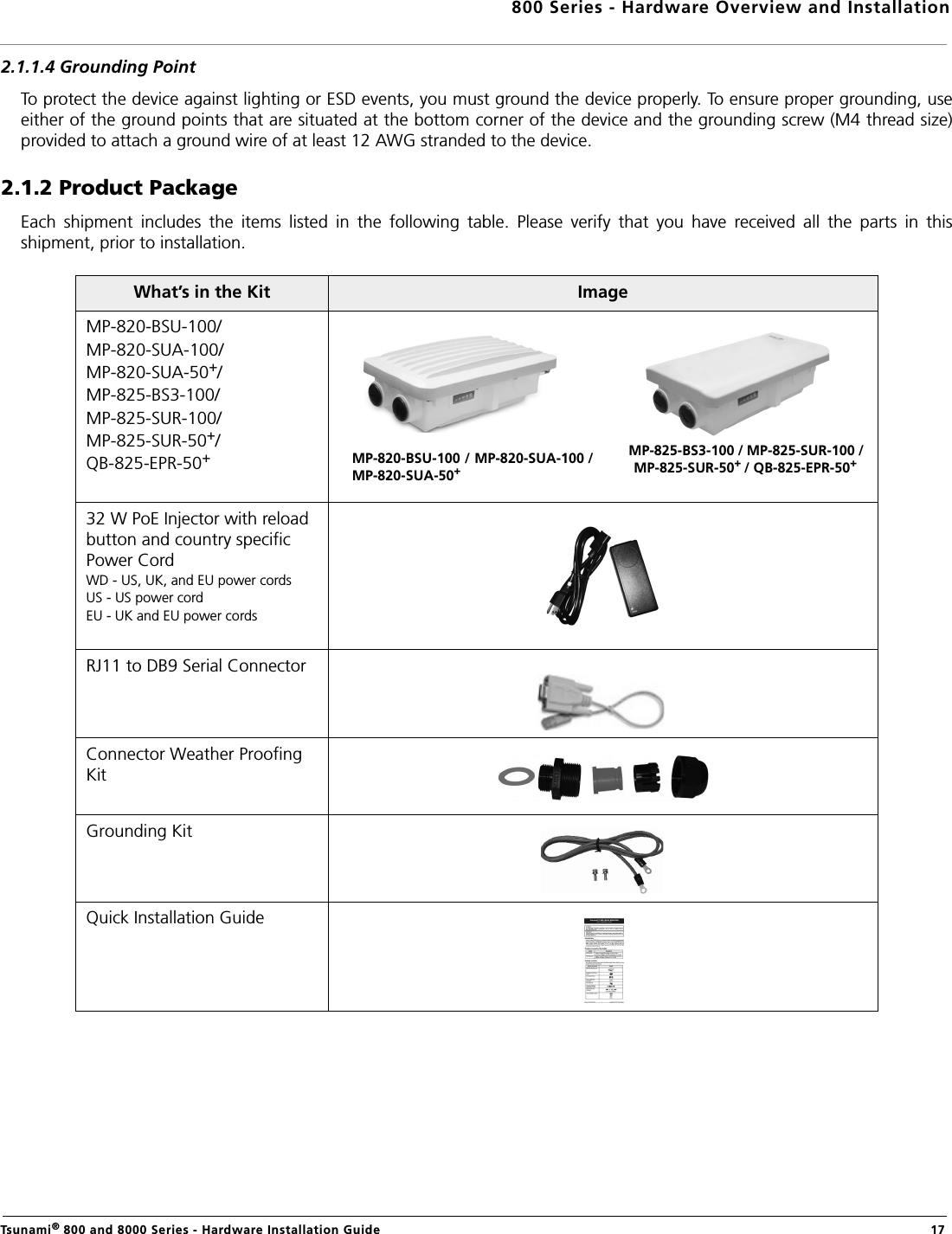

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 172.1.1.4 Grounding PointTo protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding, useeither of the ground points that are situated at the bottom corner of the device and the grounding screw (M4 thread size)provided to attach a ground wire of at least 12 AWG stranded to the device.2.1.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in thisshipment, prior to installation.What’s in the Kit ImageMP-820-BSU-100/MP-820-SUA-100/MP-820-SUA-50+/MP-825-BS3-100/MP-825-SUR-100/MP-825-SUR-50+/QB-825-EPR-50+32 W PoE Injector with reload button and country specific Power CordWD - US, UK, and EU power cordsUS - US power cordEU - UK and EU power cordsRJ11 to DB9 Serial ConnectorConnector Weather Proofing KitGrounding KitQuick Installation GuideMP-820-BSU-100 / MP-820-SUA-100 /MP-820-SUA-50+ MP-825-BS3-100 / MP-825-SUR-100 / MP-825-SUR-50+ / QB-825-EPR-50+

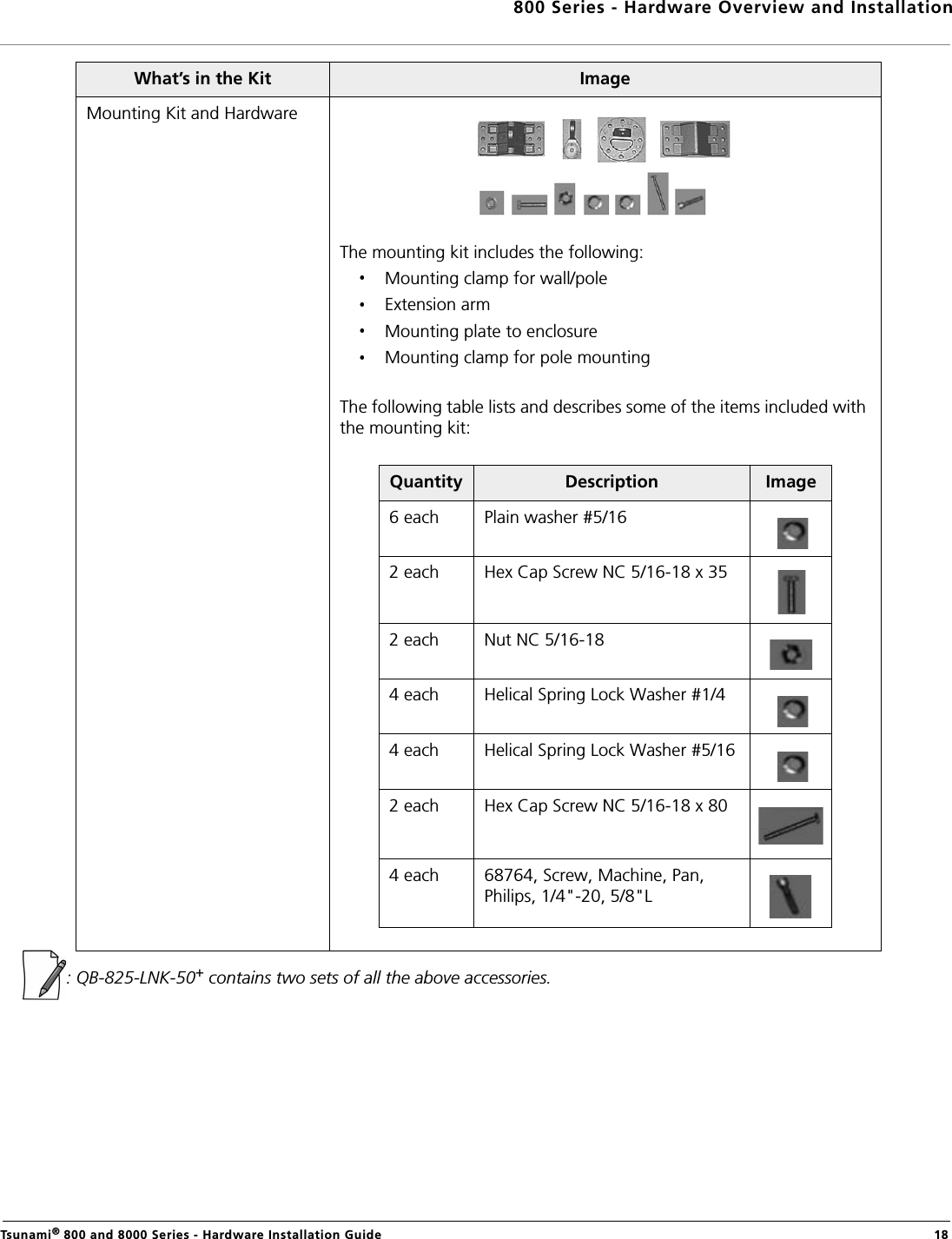

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 18: QB-825-LNK-50+ contains two sets of all the above accessories.Mounting Kit and HardwareThe mounting kit includes the following:Mounting clamp for wall/poleExtension armMounting plate to enclosureMounting clamp for pole mountingThe following table lists and describes some of the items included with the mounting kit:What’s in the Kit ImageQuantity Description Image6 each Plain washer #5/162 each Hex Cap Screw NC 5/16-18 x 352 each Nut NC 5/16-184 each Helical Spring Lock Washer #1/44 each Helical Spring Lock Washer #5/162 each Hex Cap Screw NC 5/16-18 x 804 each 68764, Screw, Machine, Pan, Philips, 1/4"-20, 5/8"L

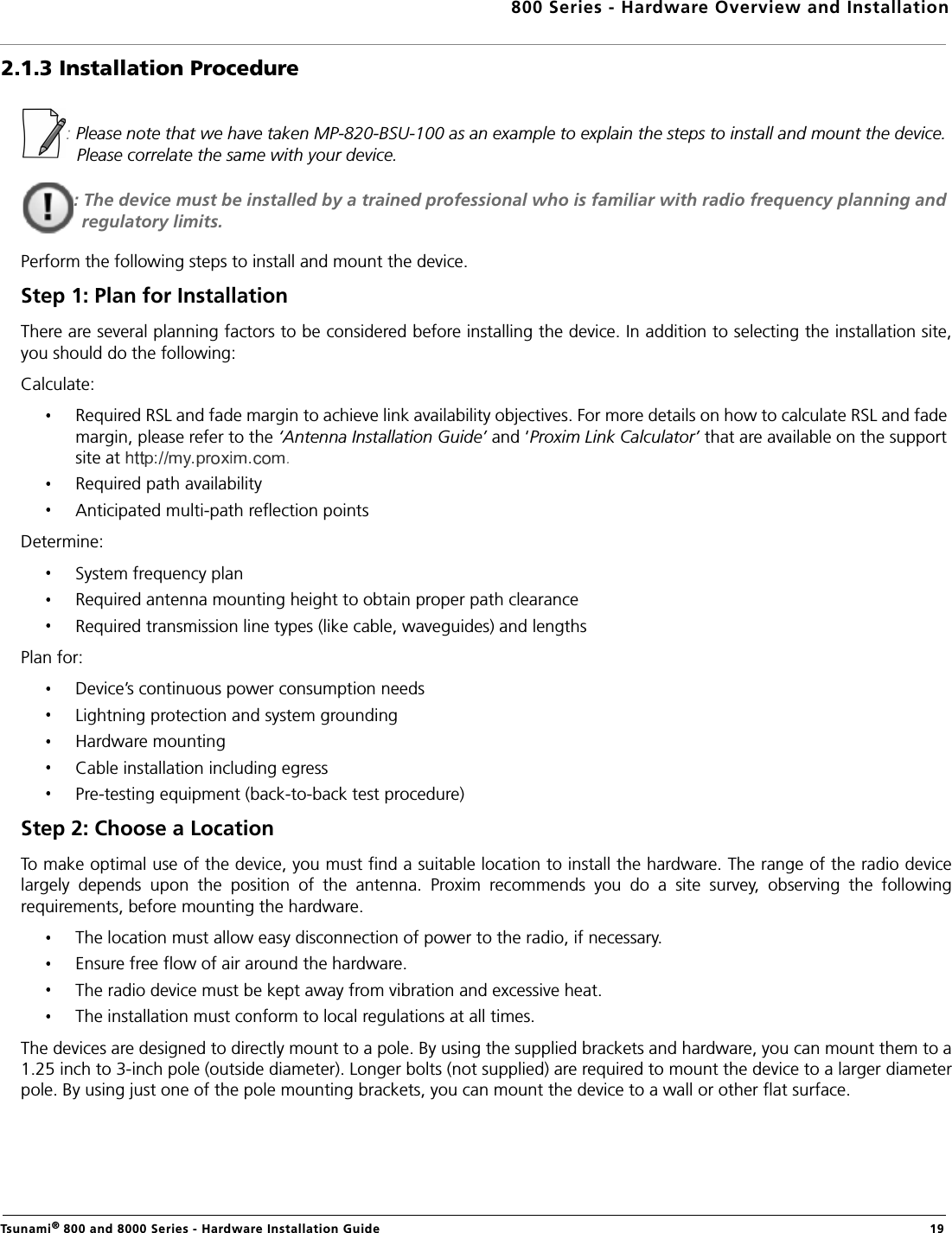

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 192.1.3 Installation Procedure: Please note that we have taken MP-820-BSU-100 as an example to explain the steps to install and mount the device. Please correlate the same with your device.: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:Calculate:Required RSL and fade margin to achieve link availability objectives. For more details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ that are available on the support site at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System frequency planRequired antenna mounting height to obtain proper path clearanceRequired transmission line types (like cable, waveguides) and lengthsPlan for:Device’s continuous power consumption needsLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. The range of the radio devicelargely depends upon the position of the antenna. Proxim recommends you do a site survey, observing the followingrequirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.The devices are designed to directly mount to a pole. By using the supplied brackets and hardware, you can mount them to a1.25 inch to 3-inch pole (outside diameter). Longer bolts (not supplied) are required to mount the device to a larger diameterpole. By using just one of the pole mounting brackets, you can mount the device to a wall or other flat surface.

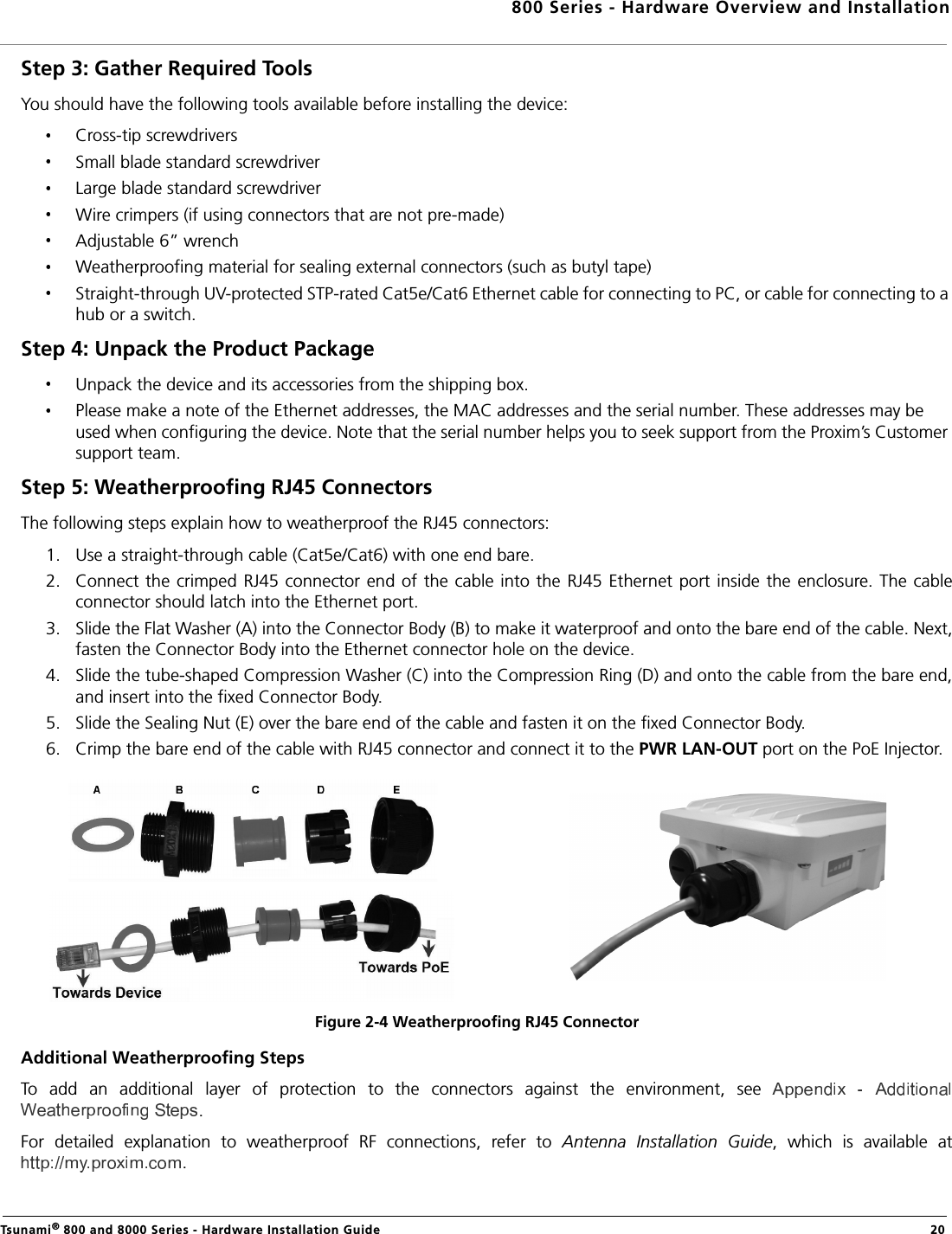

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 20Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversSmall blade standard screwdriverLarge blade standard screwdriverWire crimpers (if using connectors that are not pre-made)Adjustable 6” wrenchWeatherproofing material for sealing external connectors (such as butyl tape)Straight-through UV-protected STP-rated Cat5e/Cat6 Ethernet cable for connecting to PC, or cable for connecting to a hub or a switch.Step 4: Unpack the Product Package Unpack the device and its accessories from the shipping box.Please make a note of the Ethernet addresses, the MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team.Step 5: Weatherproofing RJ45 ConnectorsThe following steps explain how to weatherproof the RJ45 connectors:1. Use a straight-through cable (Cat5e/Cat6) with one end bare.2. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cableconnector should latch into the Ethernet port.3. Slide the Flat Washer (A) into the Connector Body (B) to make it waterproof and onto the bare end of the cable. Next,fasten the Connector Body into the Ethernet connector hole on the device.4. Slide the tube-shaped Compression Washer (C) into the Compression Ring (D) and onto the cable from the bare end,and insert into the fixed Connector Body.5. Slide the Sealing Nut (E) over the bare end of the cable and fasten it on the fixed Connector Body.6. Crimp the bare end of the cable with RJ45 connector and connect it to the PWR LAN-OUT port on the PoE Injector.Figure 2-4 Weatherproofing RJ45 ConnectorAdditional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .For detailed explanation to weatherproof RF connections, refer to Antenna Installation Guide, which is available at.

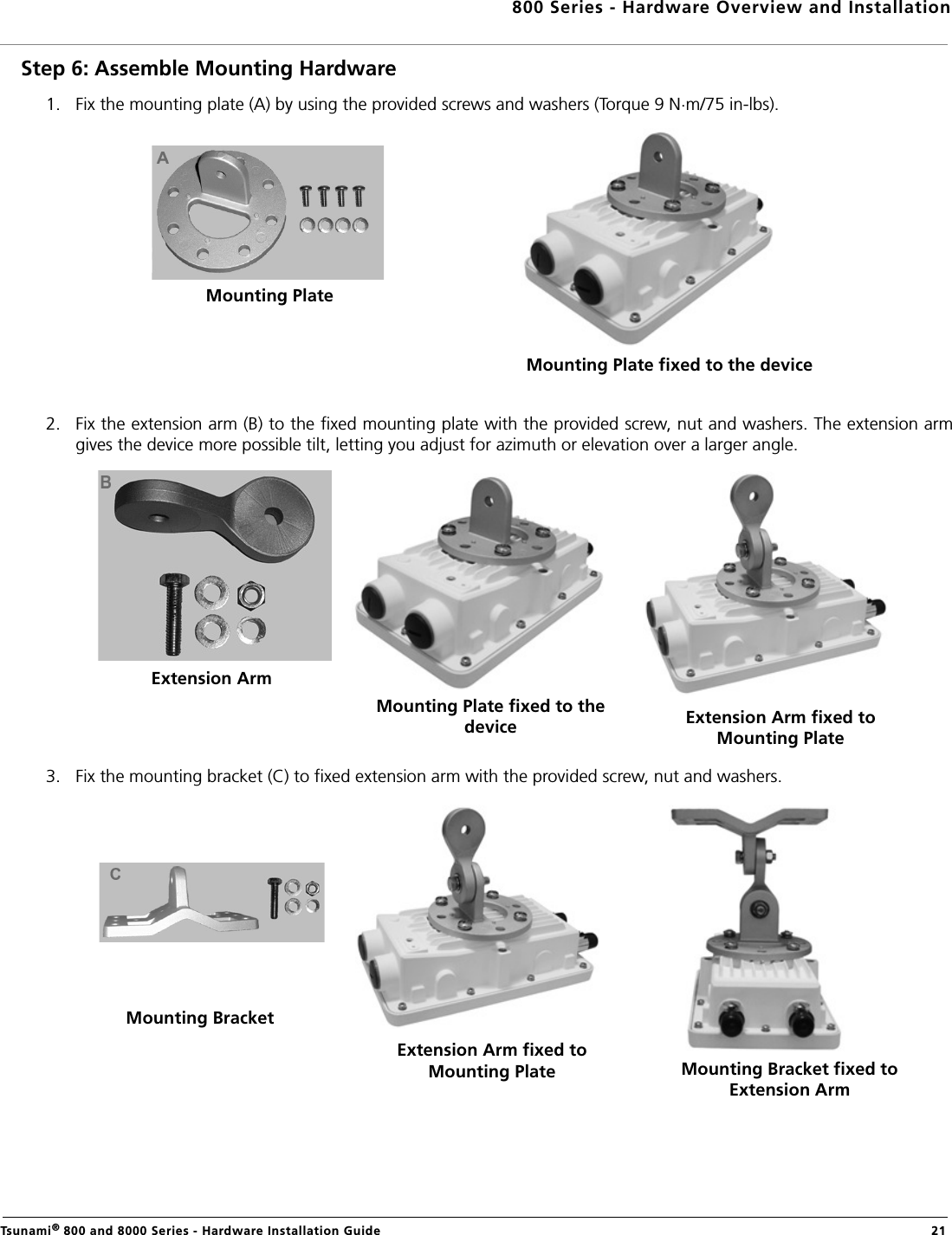

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 21Step 6: Assemble Mounting Hardware1. Fix the mounting plate (A) by using the provided screws and washers (Torque 9 N.m/75 in-lbs).2. Fix the extension arm (B) to the fixed mounting plate with the provided screw, nut and washers. The extension armgives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle.3. Fix the mounting bracket (C) to fixed extension arm with the provided screw, nut and washers.Mounting PlateMounting Plate fixed to the deviceExtension ArmMounting Plate fixed to the device Extension Arm fixed to Mounting PlateMounting BracketExtension Arm fixed to Mounting Plate Mounting Bracket fixed to Extension Arm

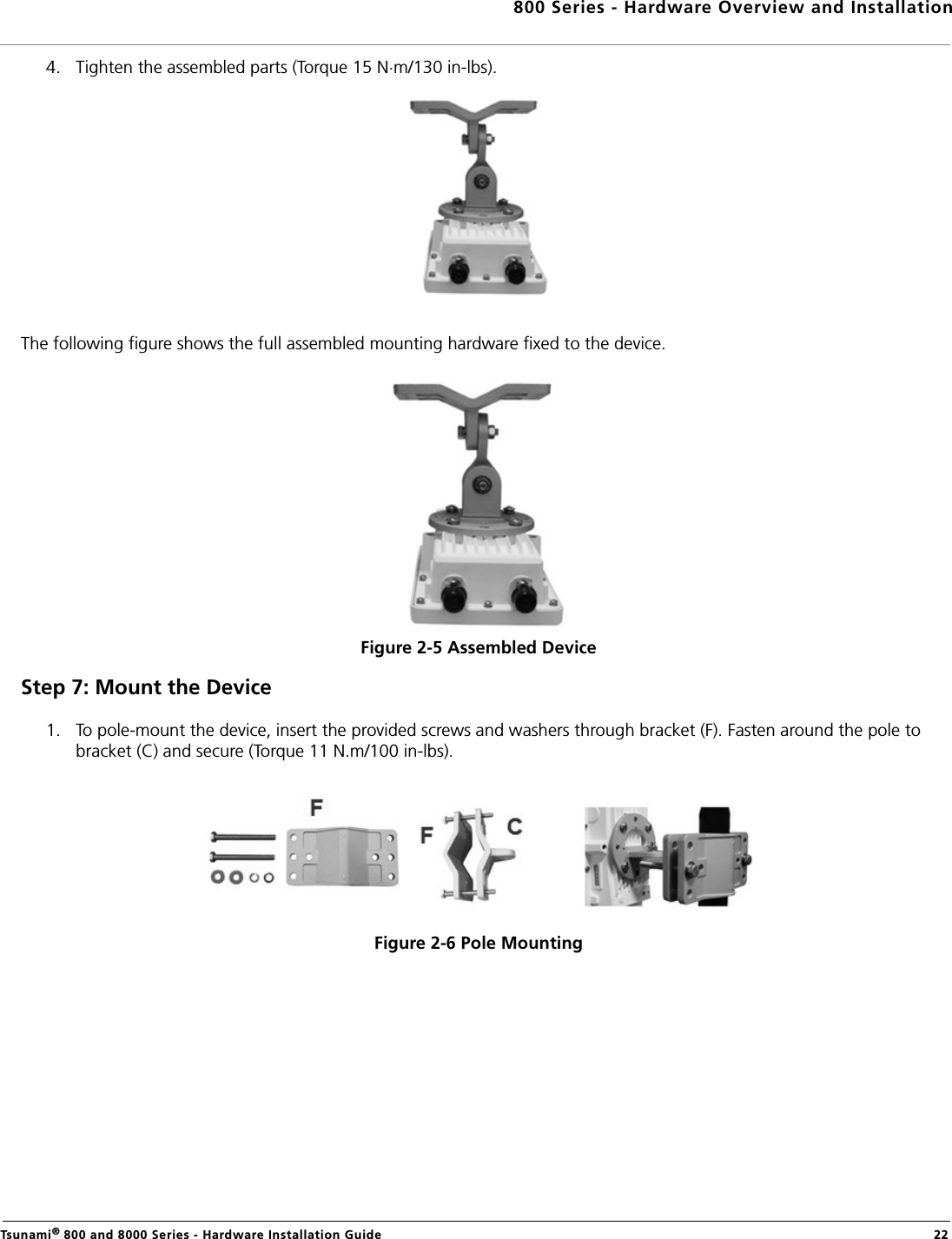

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 224. Tighten the assembled parts (Torque 15 N.m/130 in-lbs).The following figure shows the full assembled mounting hardware fixed to the device.Figure 2-5 Assembled DeviceStep 7: Mount the Device1. To pole-mount the device, insert the provided screws and washers through bracket (F). Fasten around the pole to bracket (C) and secure (Torque 11 N.m/100 in-lbs).Figure 2-6 Pole Mounting

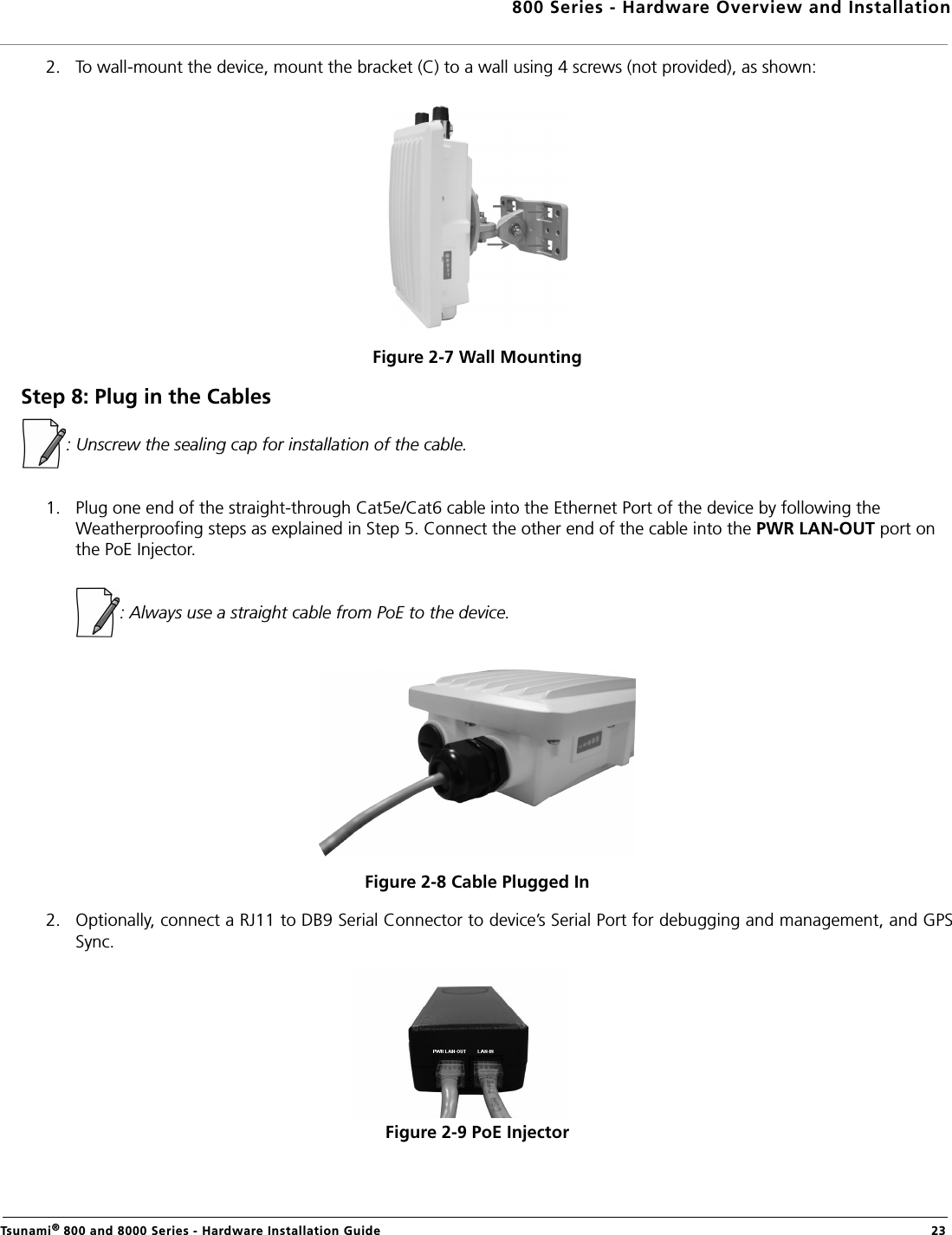

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 232. To wall-mount the device, mount the bracket (C) to a wall using 4 screws (not provided), as shown:Figure 2-7 Wall MountingStep 8: Plug in the Cables: Unscrew the sealing cap for installation of the cable.1. Plug one end of the straight-through Cat5e/Cat6 cable into the Ethernet Port of the device by following the Weatherproofing steps as explained in Step 5. Connect the other end of the cable into the PWR LAN-OUT port on the PoE Injector. : Always use a straight cable from PoE to the device.Figure 2-8 Cable Plugged In2. Optionally, connect a RJ11 to DB9 Serial Connector to device’s Serial Port for debugging and management, and GPSSync.Figure 2-9 PoE Injector

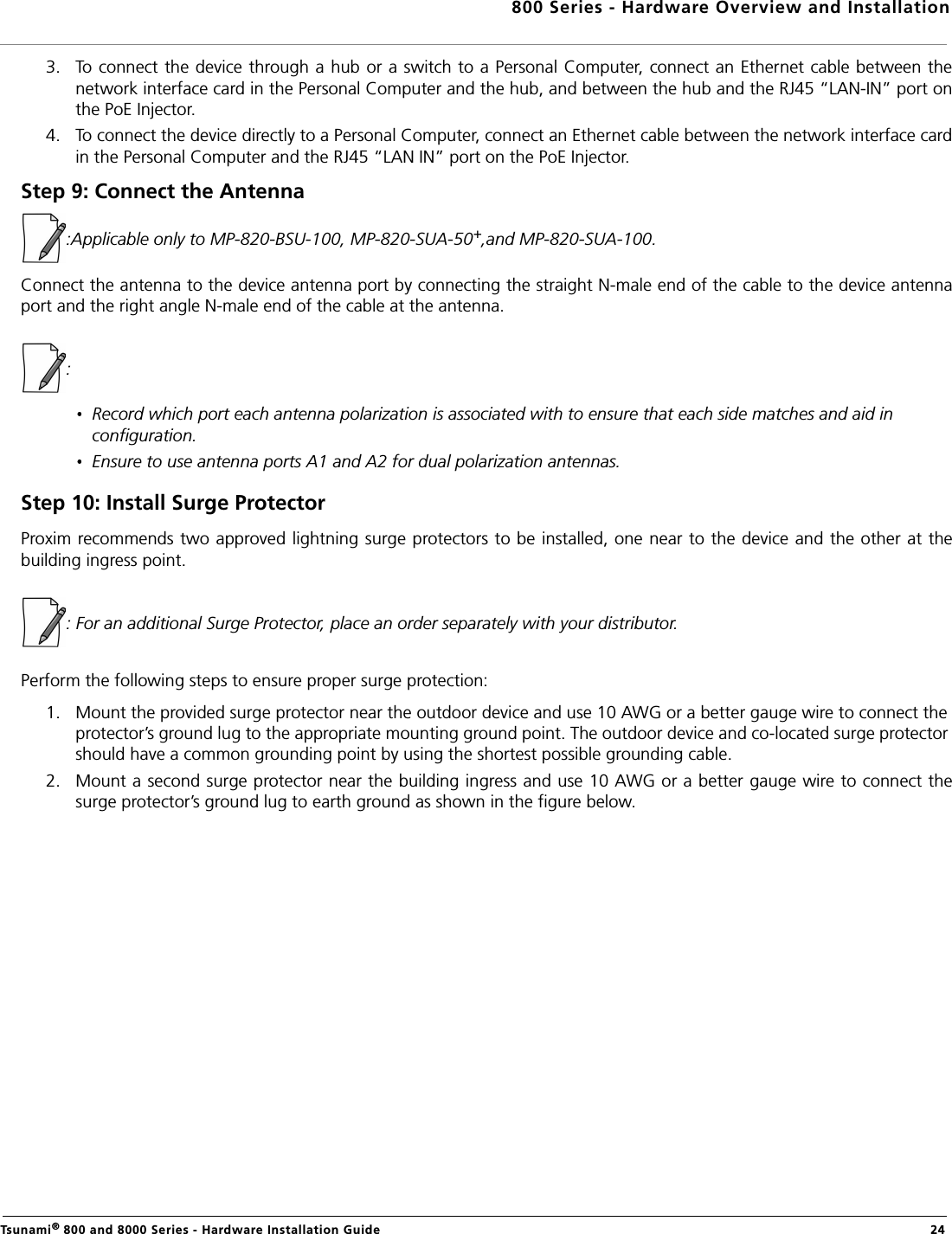

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 243. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub, and between the hub and the RJ45 “LAN-IN” port onthe PoE Injector.4. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interface cardin the Personal Computer and the RJ45 “LAN IN” port on the PoE Injector.Step 9: Connect the Antenna:Applicable only to MP-820-BSU-100, MP-820-SUA-50+,and MP-820-SUA-100.Connect the antenna to the device antenna port by connecting the straight N-male end of the cable to the device antennaport and the right angle N-male end of the cable at the antenna. : Record which port each antenna polarization is associated with to ensure that each side matches and aid in configuration.Ensure to use antenna ports A1 and A2 for dual polarization antennas.Step 10: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point.: For an additional Surge Protector, place an order separately with your distributor.Perform the following steps to ensure proper surge protection:1. Mount the provided surge protector near the outdoor device and use 10 AWG or a better gauge wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point by using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or a better gauge wire to connect thesurge protector’s ground lug to earth ground as shown in the figure below.

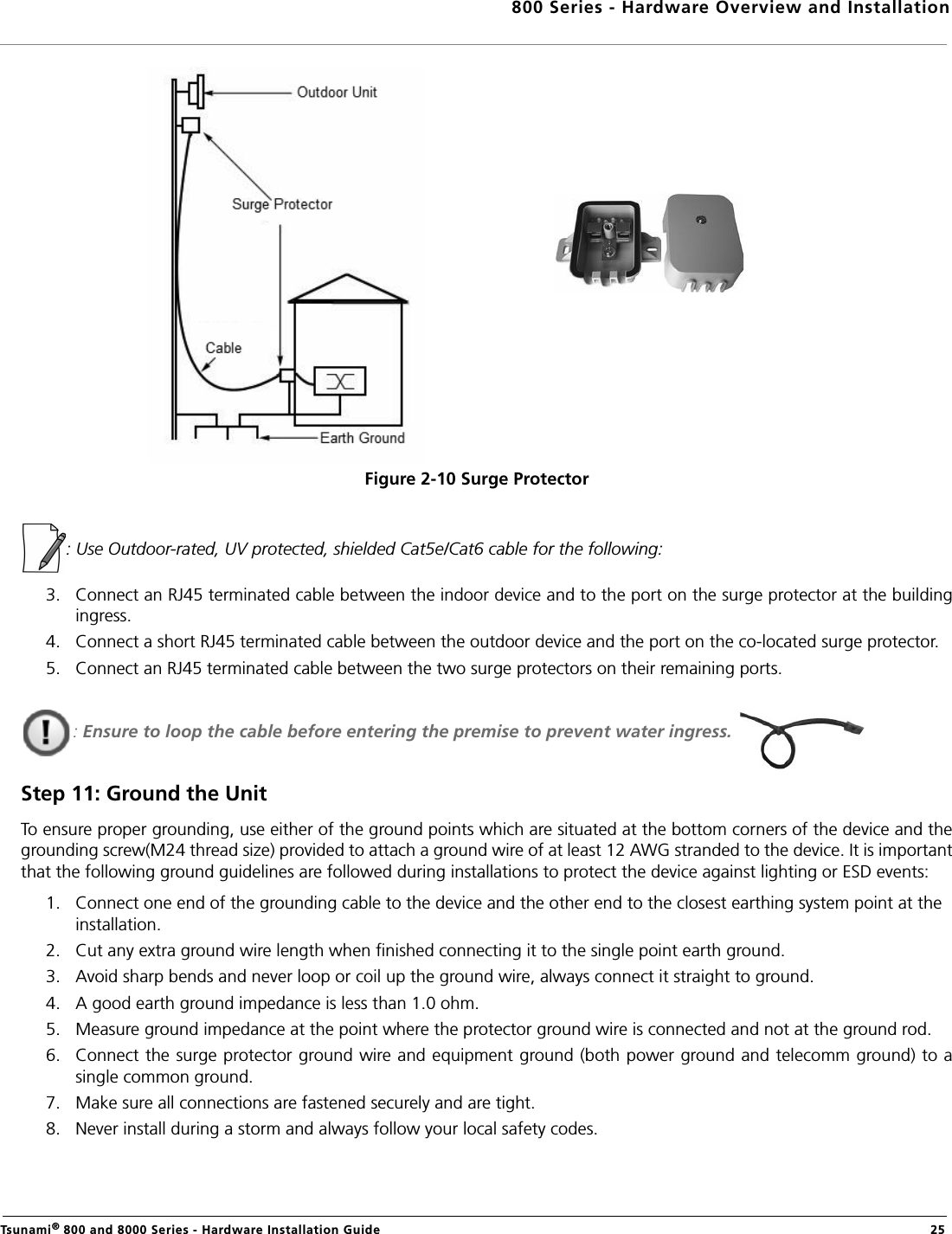

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 25Figure 2-10 Surge Protector: Use Outdoor-rated, UV protected, shielded Cat5e/Cat6 cable for the following:3. Connect an RJ45 terminated cable between the indoor device and to the port on the surge protector at the buildingingress. 4. Connect a short RJ45 terminated cable between the outdoor device and the port on the co-located surge protector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress. Step 11: Ground the UnitTo ensure proper grounding, use either of the ground points which are situated at the bottom corners of the device and thegrounding screw(M24 thread size) provided to attach a ground wire of at least 12 AWG stranded to the device. It is importantthat the following ground guidelines are followed during installations to protect the device against lighting or ESD events:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Measure ground impedance at the point where the protector ground wire is connected and not at the ground rod.6. Connect the surge protector ground wire and equipment ground (both power ground and telecomm ground) to asingle common ground. 7. Make sure all connections are fastened securely and are tight. 8. Never install during a storm and always follow your local safety codes.

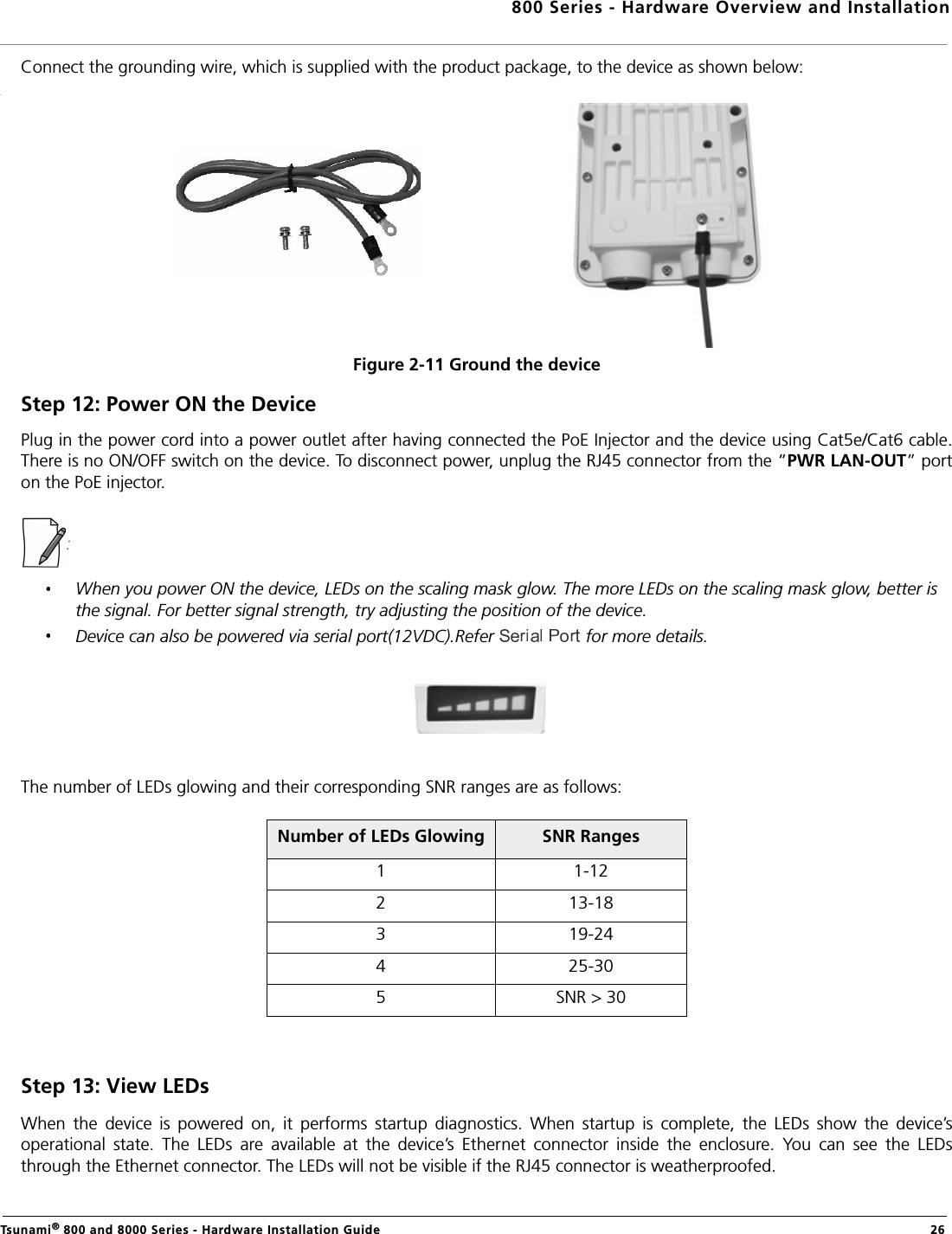

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 26Connect the grounding wire, which is supplied with the product package, to the device as shown below:Figure 2-11 Ground the deviceStep 12: Power ON the DevicePlug in the power cord into a power outlet after having connected the PoE Injector and the device using Cat5e/Cat6 cable.There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the “PWR LAN-OUT” porton the PoE injector.: When you power ON the device, LEDs on the scaling mask glow. The more LEDs on the scaling mask glow, better is the signal. For better signal strength, try adjusting the position of the device.Device can also be powered via serial port(12VDC).Refer for more details.The number of LEDs glowing and their corresponding SNR ranges are as follows:Step 13: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational state. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LEDsthrough the Ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.Number of LEDs Glowing SNR Ranges1 1-122 13-183 19-244 25-305 SNR > 30

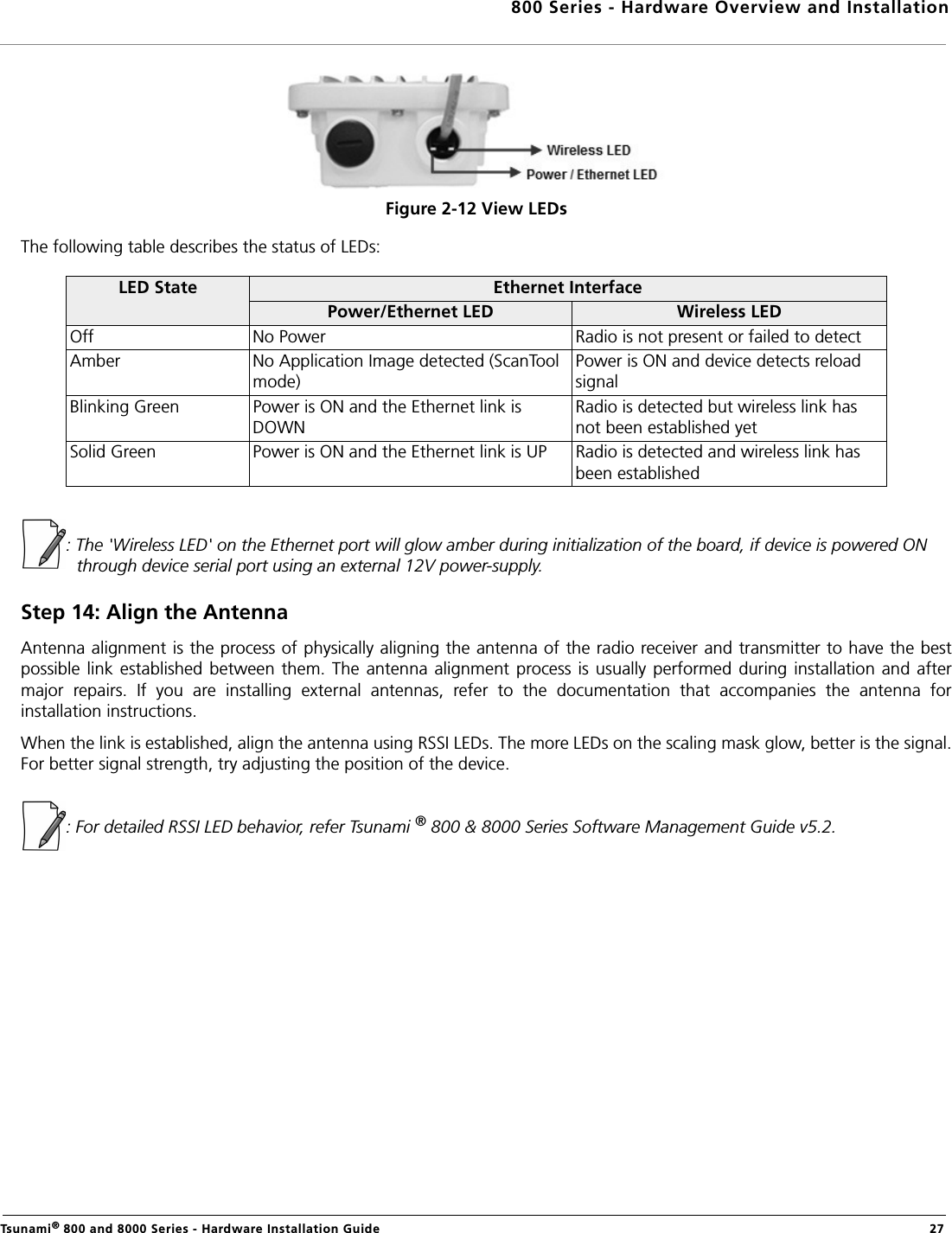

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 27Figure 2-12 View LEDsThe following table describes the status of LEDs:: The 'Wireless LED' on the Ethernet port will glow amber during initialization of the board, if device is powered ON through device serial port using an external 12V power-supply.Step 14: Align the AntennaAntenna alignment is the process of physically aligning the antenna of the radio receiver and transmitter to have the bestpossible link established between them. The antenna alignment process is usually performed during installation and aftermajor repairs. If you are installing external antennas, refer to the documentation that accompanies the antenna forinstallation instructions.When the link is established, align the antenna using RSSI LEDs. The more LEDs on the scaling mask glow, better is the signal.For better signal strength, try adjusting the position of the device.: For detailed RSSI LED behavior, refer Tsunami ® 800 & 8000 Series Software Management Guide v5.2.LED State Ethernet InterfacePower/Ethernet LED Wireless LEDOff No Power Radio is not present or failed to detectAmber No Application Image detected (ScanTool mode)Power is ON and device detects reload signalBlinking Green Power is ON and the Ethernet link is DOWNRadio is detected but wireless link has not been established yet Solid Green Power is ON and the Ethernet link is UP Radio is detected and wireless link has been established

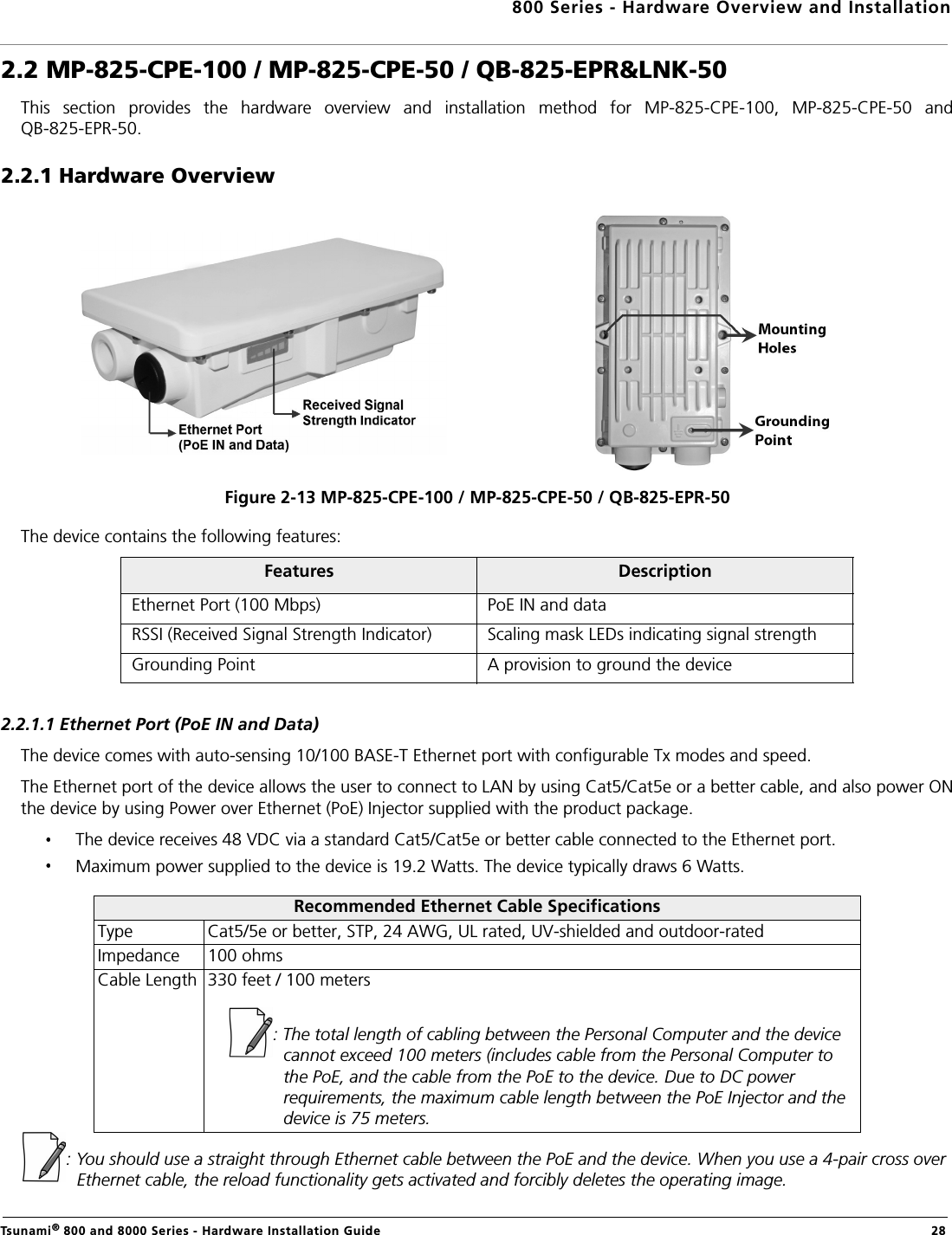

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 282.2 MP-825-CPE-100 / MP-825-CPE-50 / QB-825-EPR&LNK-50This section provides the hardware overview and installation method for MP-825-CPE-100, MP-825-CPE-50 andQB-825-EPR-50.2.2.1 Hardware OverviewFigure 2-13 MP-825-CPE-100 / MP-825-CPE-50 / QB-825-EPR-50The device contains the following features:2.2.1.1 Ethernet Port (PoE IN and Data)The device comes with auto-sensing 10/100 BASE-T Ethernet port with configurable Tx modes and speed.The Ethernet port of the device allows the user to connect to LAN by using Cat5/Cat5e or a better cable, and also power ONthe device by using Power over Ethernet (PoE) Injector supplied with the product package.The device receives 48 VDC via a standard Cat5/Cat5e or better cable connected to the Ethernet port.Maximum power supplied to the device is 19.2 Watts. The device typically draws 6 Watts.: You should use a straight through Ethernet cable between the PoE and the device. When you use a 4-pair cross over Ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.Features DescriptionEthernet Port (100 Mbps) PoE IN and dataRSSI (Received Signal Strength Indicator) Scaling mask LEDs indicating signal strengthGrounding Point A provision to ground the deviceRecommended Ethernet Cable SpecificationsType Cat5/5e or better, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device. Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.

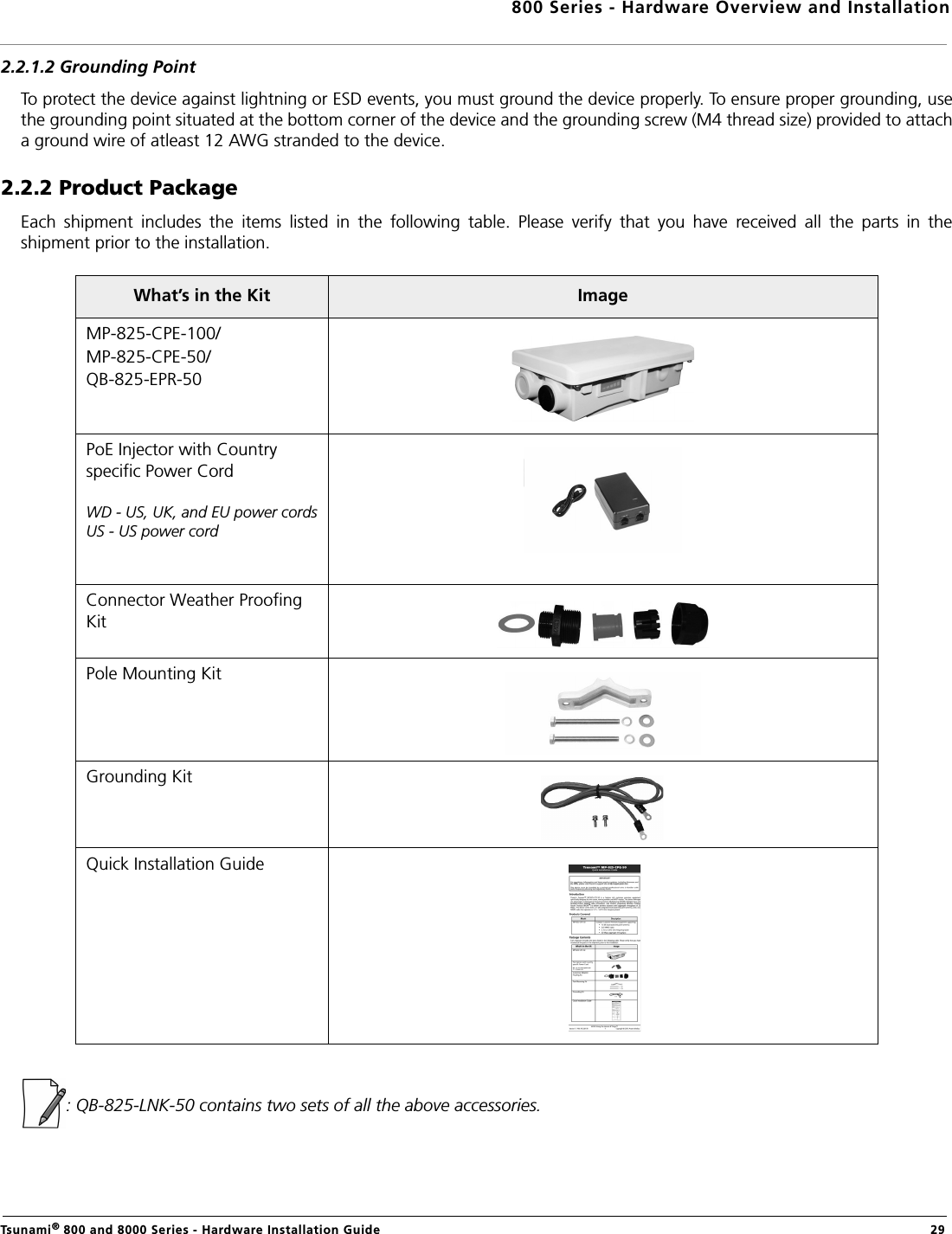

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 292.2.1.2 Grounding PointTo protect the device against lightning or ESD events, you must ground the device properly. To ensure proper grounding, usethe grounding point situated at the bottom corner of the device and the grounding screw (M4 thread size) provided to attacha ground wire of atleast 12 AWG stranded to the device.2.2.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in theshipment prior to the installation. : QB-825-LNK-50 contains two sets of all the above accessories.What’s in the Kit ImageMP-825-CPE-100/MP-825-CPE-50/QB-825-EPR-50PoE Injector with Country specific Power CordWD - US, UK, and EU power cordsUS - US power cordConnector Weather Proofing KitPole Mounting KitGrounding KitQuick Installation Guide

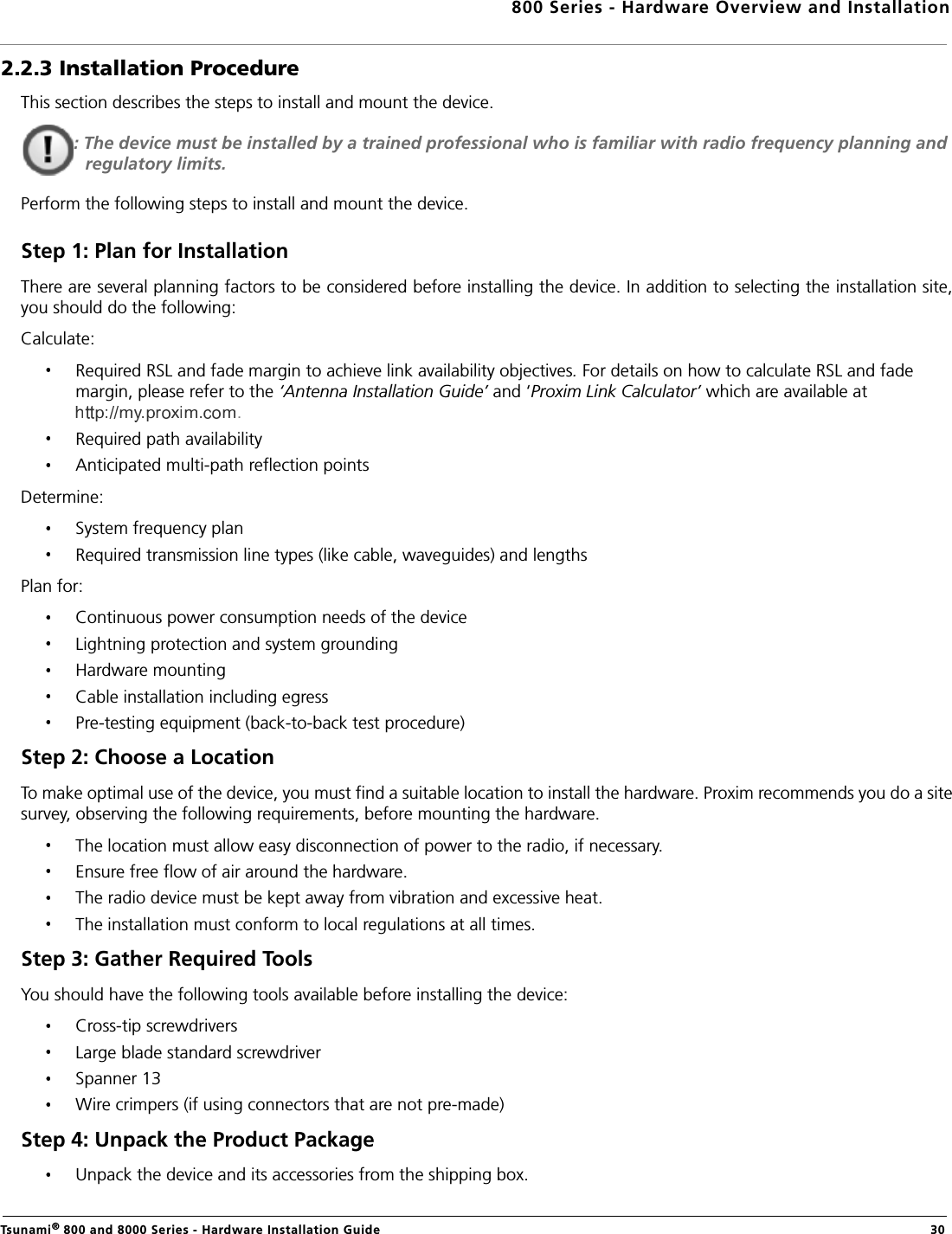

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 302.2.3 Installation ProcedureThis section describes the steps to install and mount the device.: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:Calculate:Required RSL and fade margin to achieve link availability objectives. For details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ which are available at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System frequency planRequired transmission line types (like cable, waveguides) and lengthsPlan for:Continuous power consumption needs of the deviceLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. Proxim recommends you do a sitesurvey, observing the following requirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversLarge blade standard screwdriverSpanner 13Wire crimpers (if using connectors that are not pre-made)Step 4: Unpack the Product Package Unpack the device and its accessories from the shipping box.

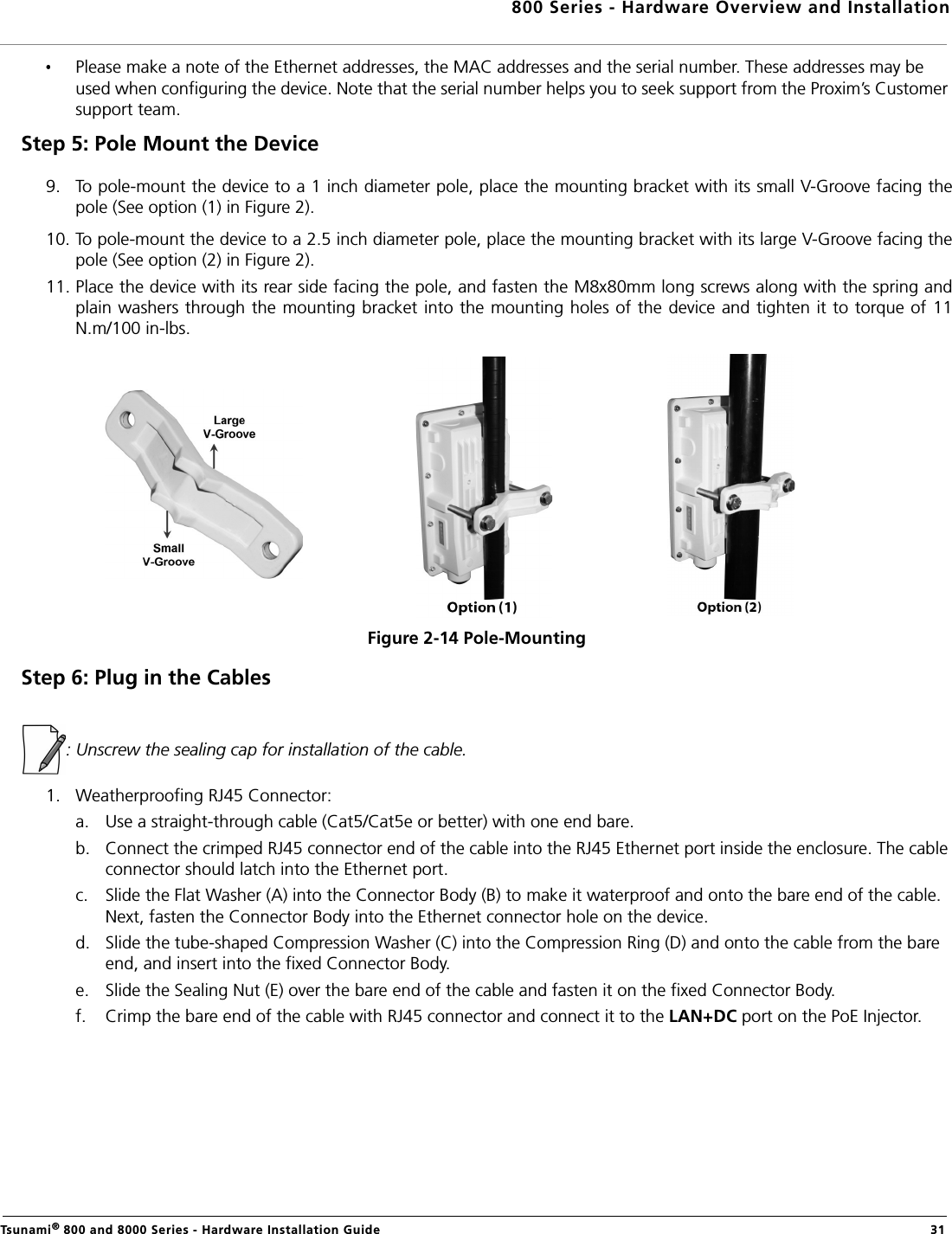

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 31Please make a note of the Ethernet addresses, the MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team.Step 5: Pole Mount the Device 9. To pole-mount the device to a 1 inch diameter pole, place the mounting bracket with its small V-Groove facing thepole (See option (1) in Figure 2).10. To pole-mount the device to a 2.5 inch diameter pole, place the mounting bracket with its large V-Groove facing thepole (See option (2) in Figure 2). 11. Place the device with its rear side facing the pole, and fasten the M8x80mm long screws along with the spring andplain washers through the mounting bracket into the mounting holes of the device and tighten it to torque of 11N.m/100 in-lbs.Figure 2-14 Pole-MountingStep 6: Plug in the Cables: Unscrew the sealing cap for installation of the cable.1. Weatherproofing RJ45 Connector:a. Use a straight-through cable (Cat5/Cat5e or better) with one end bare.b. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cable connector should latch into the Ethernet port.c. Slide the Flat Washer (A) into the Connector Body (B) to make it waterproof and onto the bare end of the cable. Next, fasten the Connector Body into the Ethernet connector hole on the device.d. Slide the tube-shaped Compression Washer (C) into the Compression Ring (D) and onto the cable from the bare end, and insert into the fixed Connector Body.e. Slide the Sealing Nut (E) over the bare end of the cable and fasten it on the fixed Connector Body.f. Crimp the bare end of the cable with RJ45 connector and connect it to the LAN+DC port on the PoE Injector.
800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 32Figure 2-15 Weatherproofing RJ45 Connector2. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub/switch, and between the hub/switch and the RJ45 LANport on the PoE Injector. 3. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interface cardin the Personal Computer and the RJ45 LAN port on the PoE Injector.: Use only the PoE supplied with the product. You should use a straight through Ethernet cable between the PoE and the device. When you use a 4-pair cross over Ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.The following figure is the pictorial representation of the cabling setup.Figure 2-16 Cabling SetupAdditional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .Step 8: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point.: To buy a suitable Surge Protector, place an order separately with your distributor.

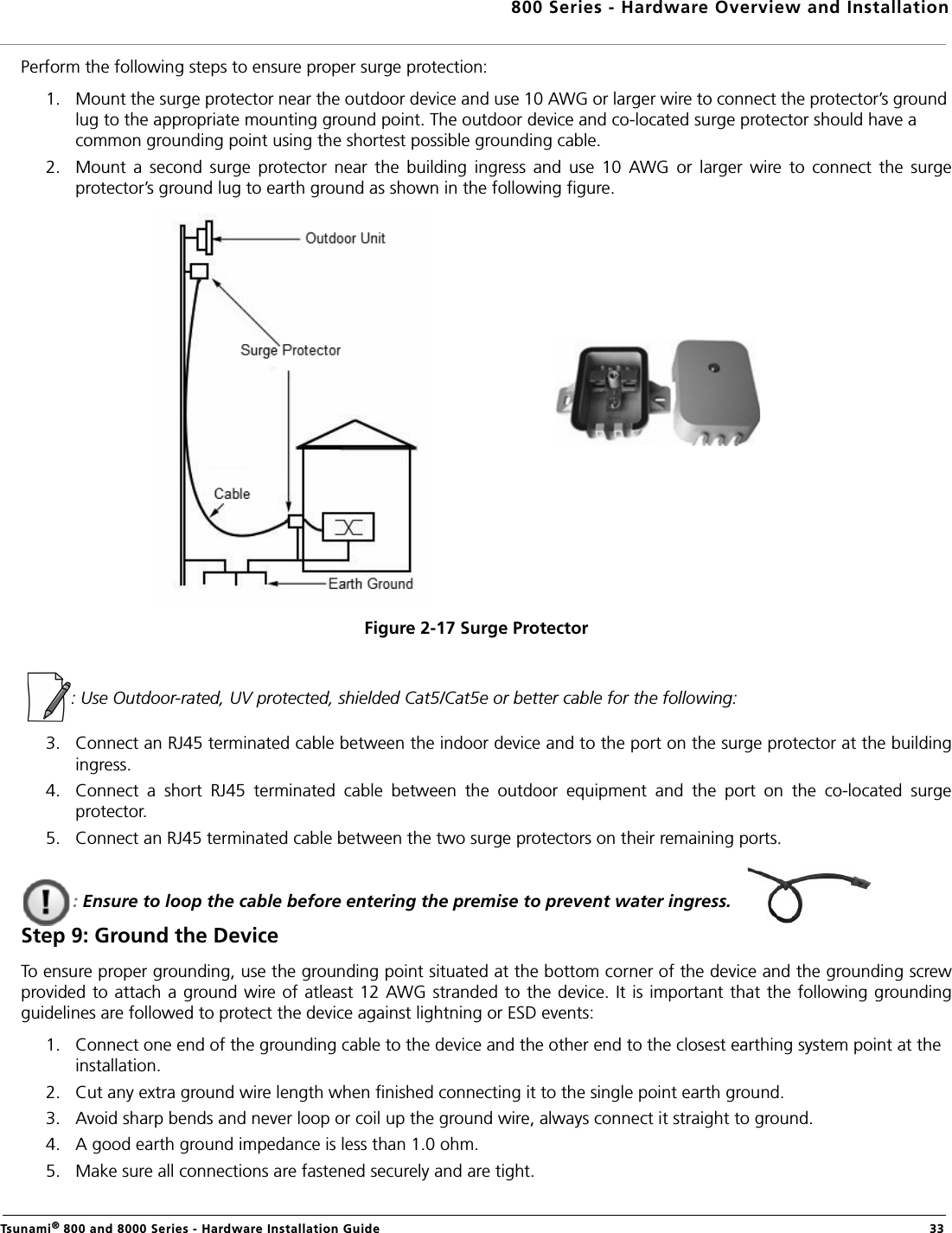

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 33Perform the following steps to ensure proper surge protection:1. Mount the surge protector near the outdoor device and use 10 AWG or larger wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or larger wire to connect the surgeprotector’s ground lug to earth ground as shown in the following figure.Figure 2-17 Surge Protector : Use Outdoor-rated, UV protected, shielded Cat5/Cat5e or better cable for the following:3. Connect an RJ45 terminated cable between the indoor device and to the port on the surge protector at the buildingingress. 4. Connect a short RJ45 terminated cable between the outdoor equipment and the port on the co-located surgeprotector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress.Step 9: Ground the DeviceTo ensure proper grounding, use the grounding point situated at the bottom corner of the device and the grounding screwprovided to attach a ground wire of atleast 12 AWG stranded to the device. It is important that the following groundingguidelines are followed to protect the device against lightning or ESD events:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Make sure all connections are fastened securely and are tight.

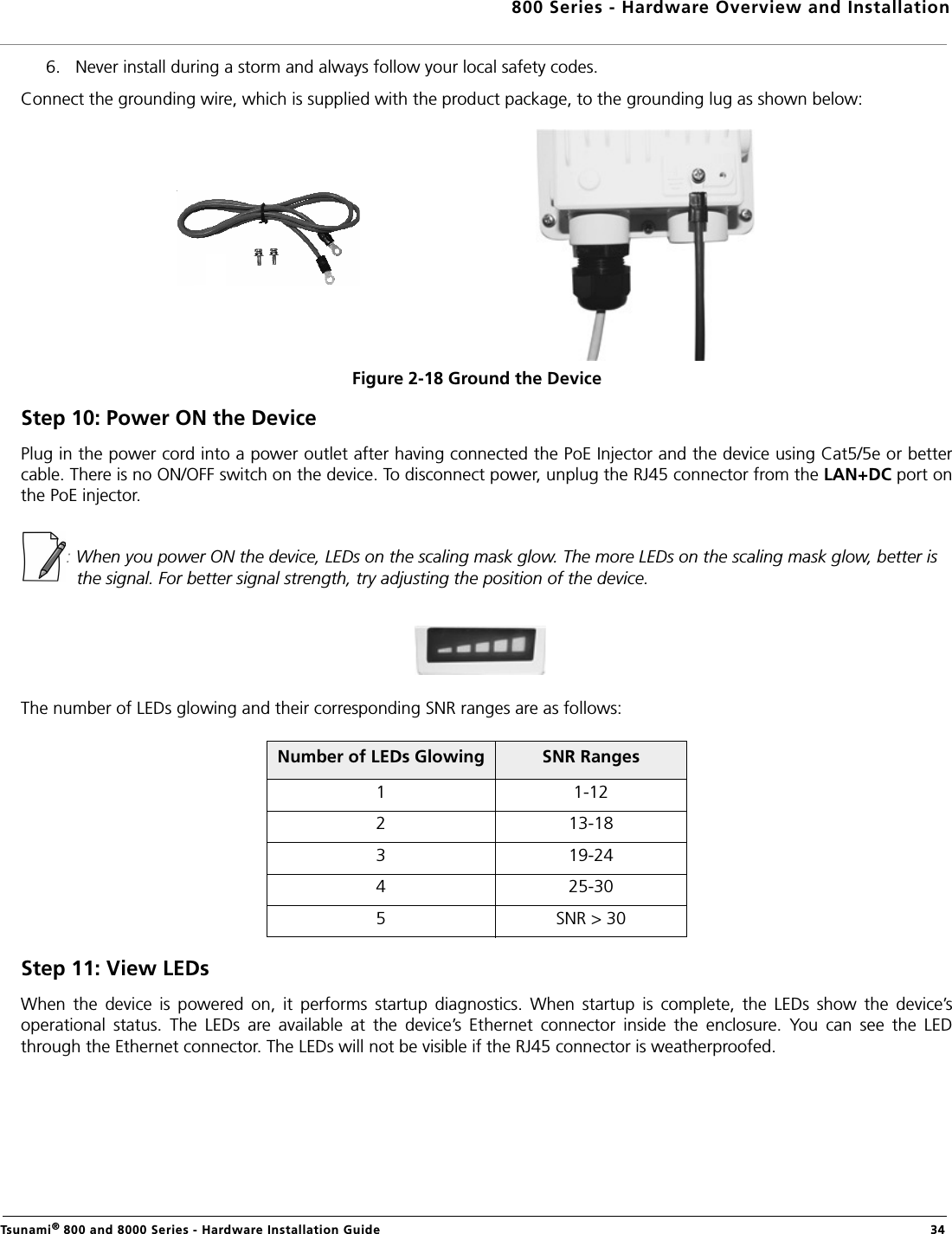

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 346. Never install during a storm and always follow your local safety codes.Connect the grounding wire, which is supplied with the product package, to the grounding lug as shown below:Figure 2-18 Ground the DeviceStep 10: Power ON the DevicePlug in the power cord into a power outlet after having connected the PoE Injector and the device using Cat5/5e or bettercable. There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the LAN+DC port onthe PoE injector.: When you power ON the device, LEDs on the scaling mask glow. The more LEDs on the scaling mask glow, better is the signal. For better signal strength, try adjusting the position of the device.The number of LEDs glowing and their corresponding SNR ranges are as follows:Step 11: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational status. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LEDthrough the Ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.Number of LEDs Glowing SNR Ranges1 1-122 13-183 19-244 25-305 SNR > 30

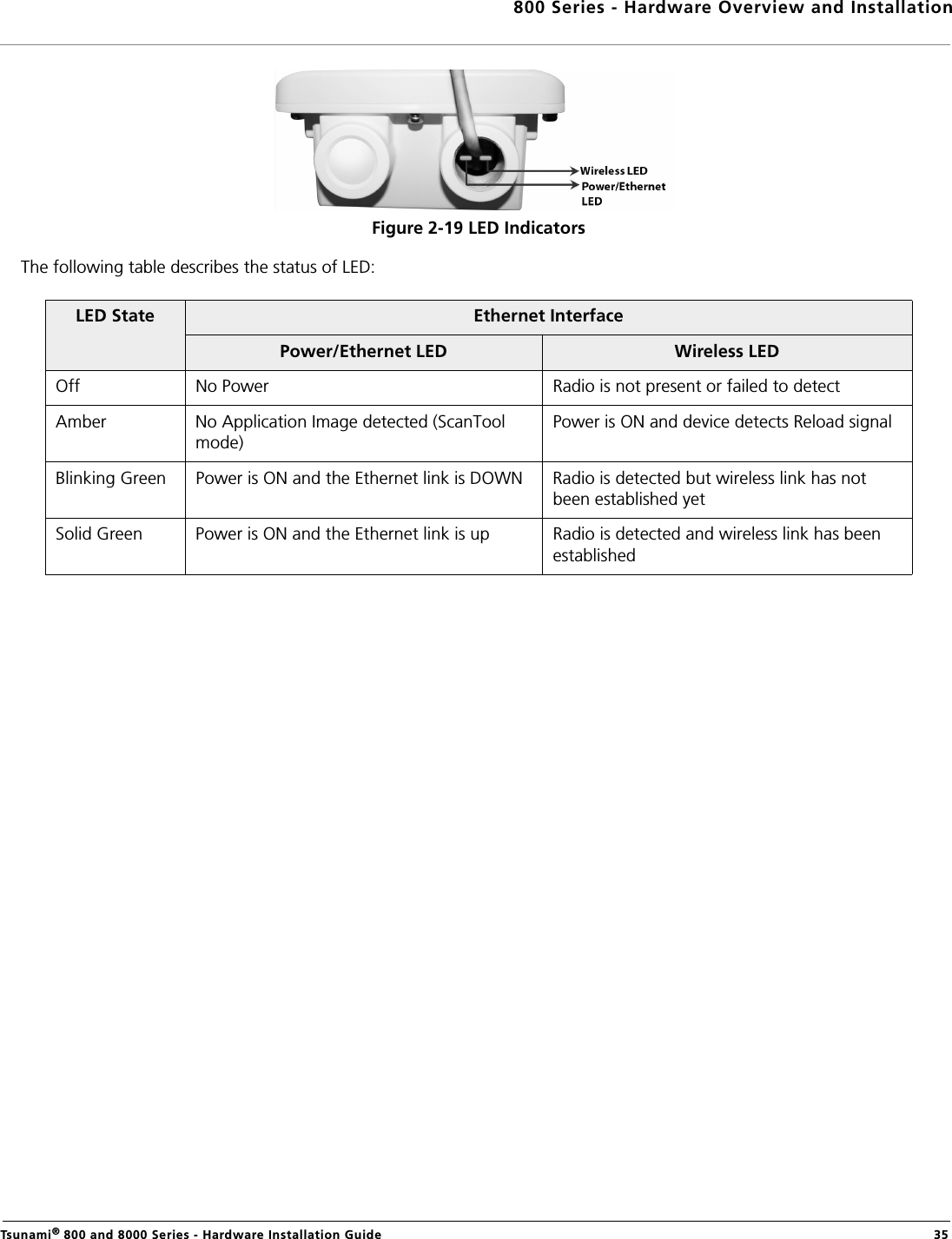

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 35Figure 2-19 LED IndicatorsThe following table describes the status of LED:LED State Ethernet InterfacePower/Ethernet LED Wireless LEDOff No Power Radio is not present or failed to detectAmber No Application Image detected (ScanTool mode)Power is ON and device detects Reload signalBlinking Green Power is ON and the Ethernet link is DOWN Radio is detected but wireless link has not been established yet Solid Green Power is ON and the Ethernet link is up Radio is detected and wireless link has been established

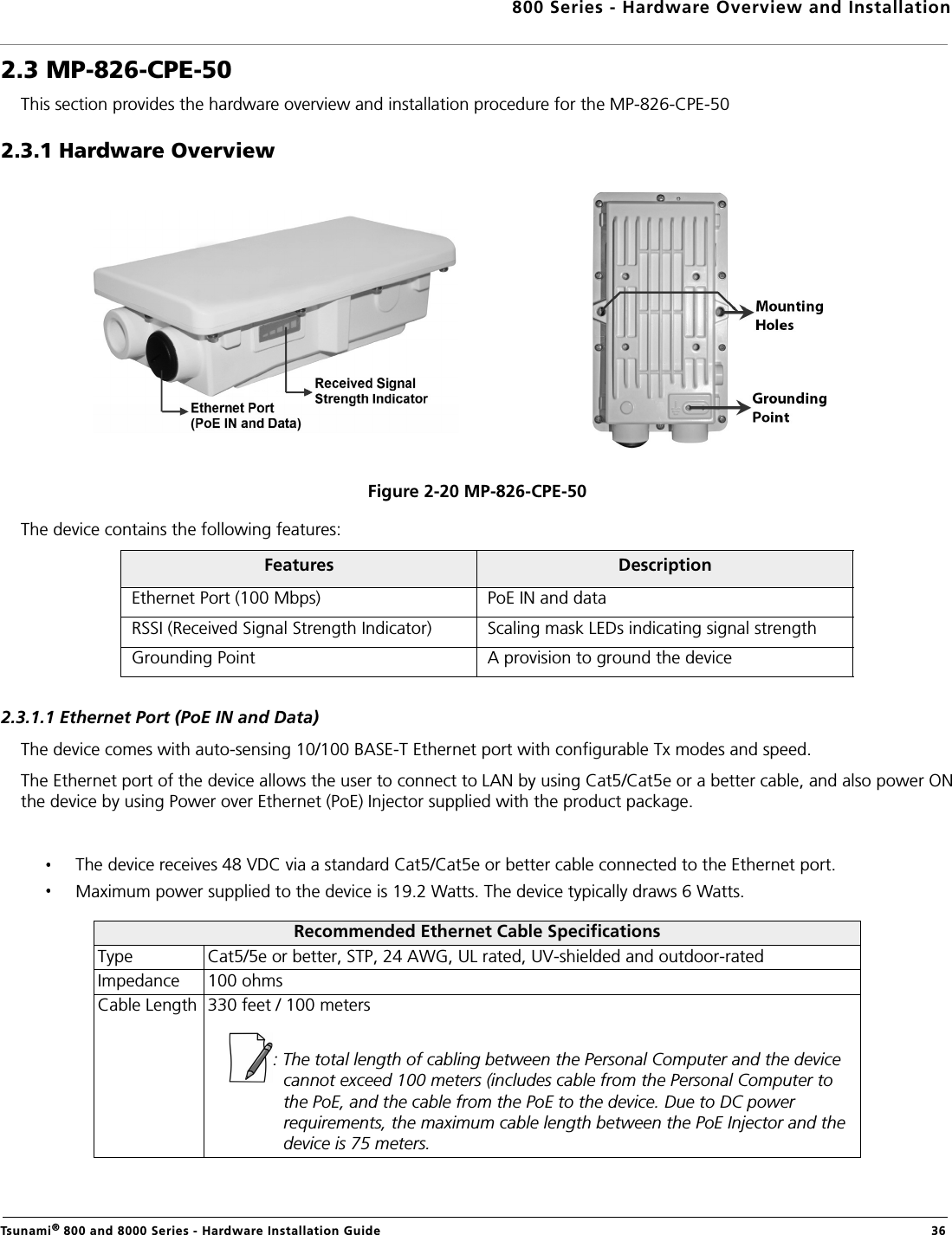

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 362.3 MP-826-CPE-50This section provides the hardware overview and installation procedure for the MP-826-CPE-502.3.1 Hardware OverviewFigure 2-20 MP-826-CPE-50The device contains the following features:2.3.1.1 Ethernet Port (PoE IN and Data)The device comes with auto-sensing 10/100 BASE-T Ethernet port with configurable Tx modes and speed.The Ethernet port of the device allows the user to connect to LAN by using Cat5/Cat5e or a better cable, and also power ONthe device by using Power over Ethernet (PoE) Injector supplied with the product package.The device receives 48 VDC via a standard Cat5/Cat5e or better cable connected to the Ethernet port.Maximum power supplied to the device is 19.2 Watts. The device typically draws 6 Watts.Features DescriptionEthernet Port (100 Mbps) PoE IN and dataRSSI (Received Signal Strength Indicator) Scaling mask LEDs indicating signal strengthGrounding Point A provision to ground the deviceRecommended Ethernet Cable SpecificationsType Cat5/5e or better, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device. Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.
800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 37: You should use a straight through Ethernet cable between the PoE and the device. When you use a 4-pair cross over Ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.2.3.1.2 Grounding PointTo protect the device against lightning or ESD events, you must ground the device properly. To ensure proper grounding, usethe grounding point situated at the bottom corner of the device and the grounding screw (M4 thread size) provided to attacha ground wire of atleast 12 AWG stranded to the device.2.3.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in theshipment prior to the installation. What’s in the Kit ImageMP-826-CPE-50PoE Injector with Country specific Power CordWD - US, UK, and EU power cordsUS - US power cordConnector Weather Proofing KitPole Mounting KitThe mounting kit supplied with 8xx / 8xxx series can also be used with this device. Please refer “Step:6 Assemble Mounting Hardware” of section for step-by-step mounting procedure.Grounding Kit

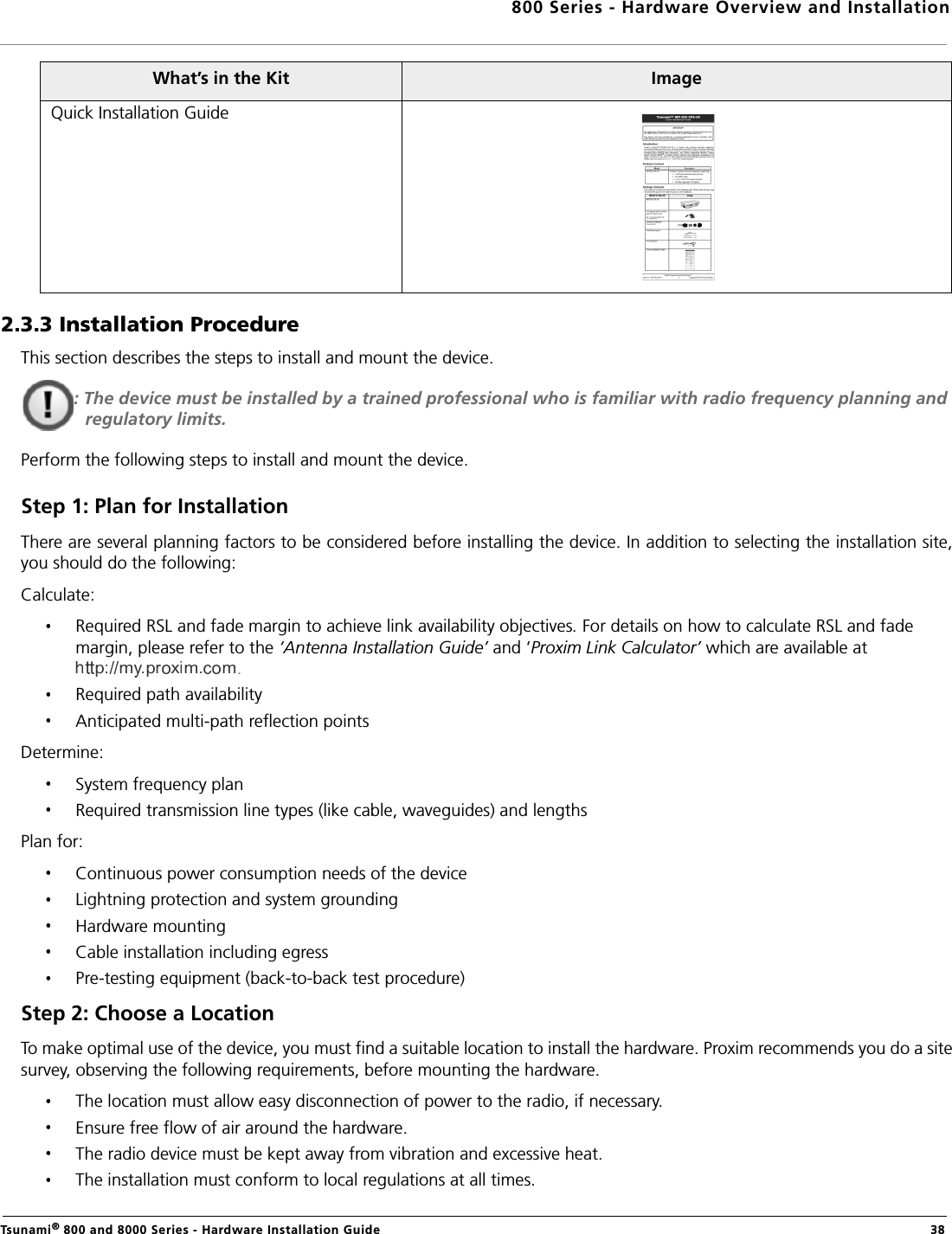

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 382.3.3 Installation ProcedureThis section describes the steps to install and mount the device.: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:Calculate:Required RSL and fade margin to achieve link availability objectives. For details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ which are available at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System frequency planRequired transmission line types (like cable, waveguides) and lengthsPlan for:Continuous power consumption needs of the deviceLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. Proxim recommends you do a sitesurvey, observing the following requirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.Quick Installation GuideWhat’s in the Kit Image

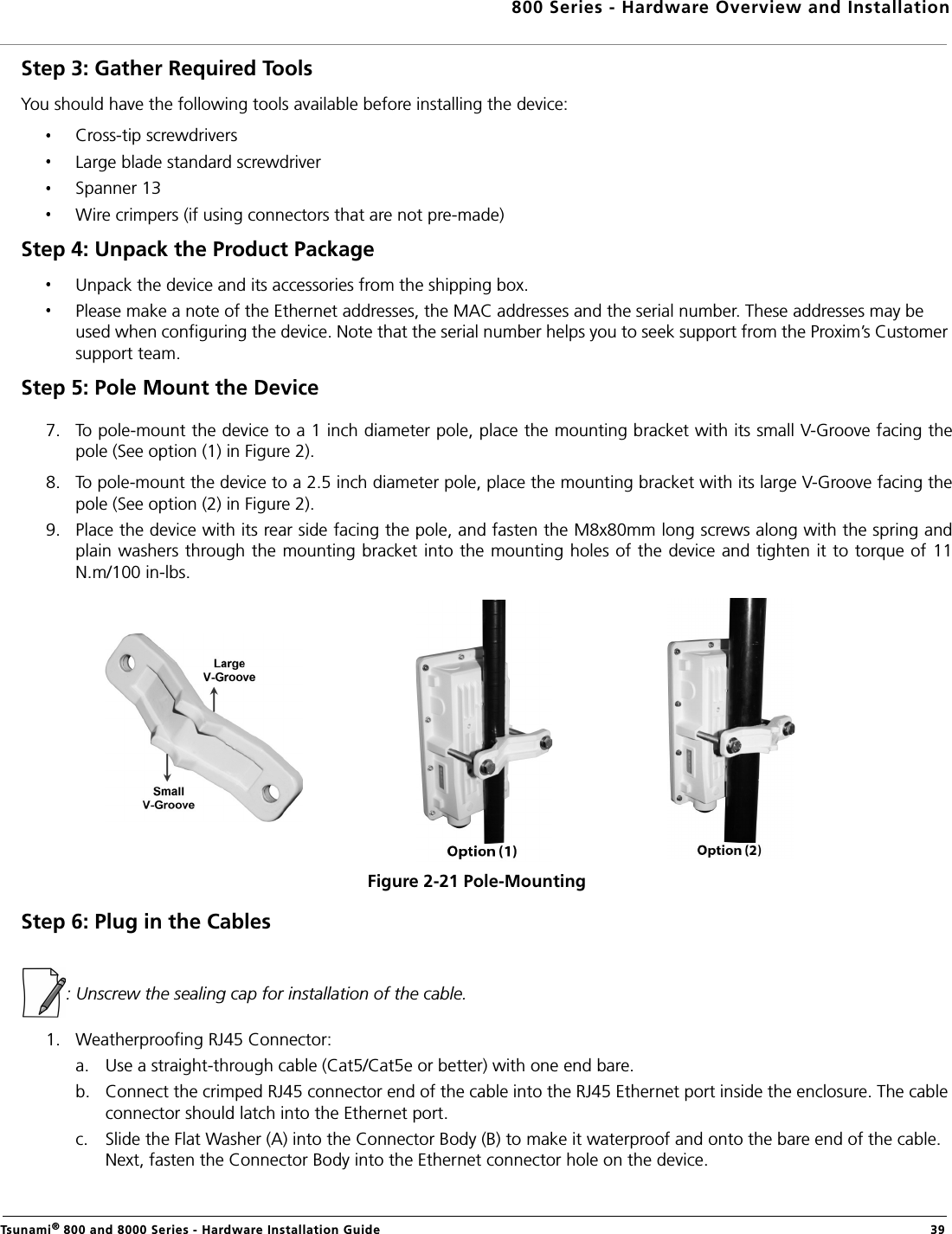

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 39Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversLarge blade standard screwdriverSpanner 13Wire crimpers (if using connectors that are not pre-made)Step 4: Unpack the Product Package Unpack the device and its accessories from the shipping box.Please make a note of the Ethernet addresses, the MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team.Step 5: Pole Mount the Device 7. To pole-mount the device to a 1 inch diameter pole, place the mounting bracket with its small V-Groove facing thepole (See option (1) in Figure 2).8. To pole-mount the device to a 2.5 inch diameter pole, place the mounting bracket with its large V-Groove facing thepole (See option (2) in Figure 2). 9. Place the device with its rear side facing the pole, and fasten the M8x80mm long screws along with the spring andplain washers through the mounting bracket into the mounting holes of the device and tighten it to torque of 11N.m/100 in-lbs.Figure 2-21 Pole-MountingStep 6: Plug in the Cables: Unscrew the sealing cap for installation of the cable.1. Weatherproofing RJ45 Connector:a. Use a straight-through cable (Cat5/Cat5e or better) with one end bare.b. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cable connector should latch into the Ethernet port.c. Slide the Flat Washer (A) into the Connector Body (B) to make it waterproof and onto the bare end of the cable. Next, fasten the Connector Body into the Ethernet connector hole on the device.

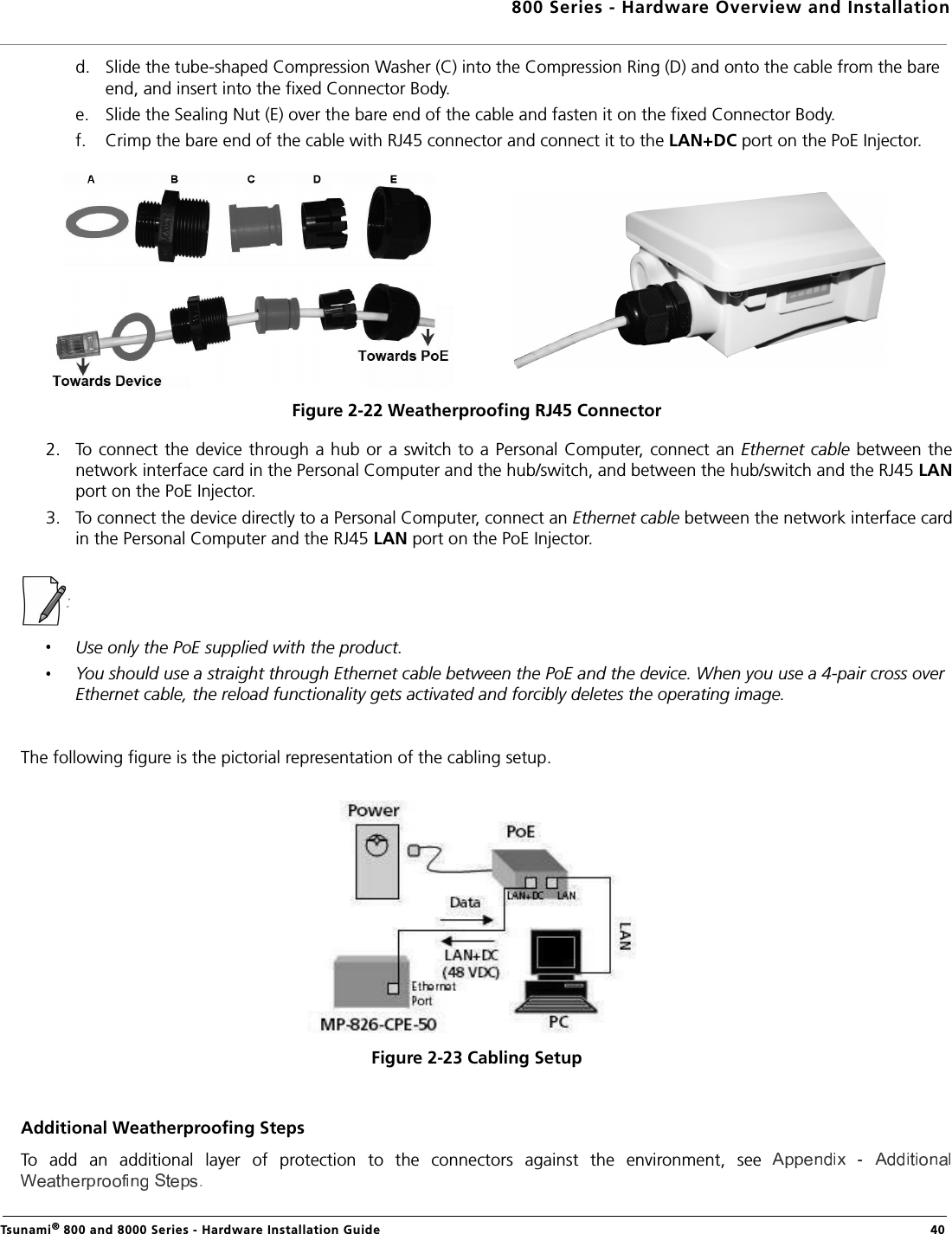

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 40d. Slide the tube-shaped Compression Washer (C) into the Compression Ring (D) and onto the cable from the bare end, and insert into the fixed Connector Body.e. Slide the Sealing Nut (E) over the bare end of the cable and fasten it on the fixed Connector Body.f. Crimp the bare end of the cable with RJ45 connector and connect it to the LAN+DC port on the PoE Injector.Figure 2-22 Weatherproofing RJ45 Connector2. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub/switch, and between the hub/switch and the RJ45 LANport on the PoE Injector. 3. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interface cardin the Personal Computer and the RJ45 LAN port on the PoE Injector.: Use only the PoE supplied with the product. You should use a straight through Ethernet cable between the PoE and the device. When you use a 4-pair cross over Ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.The following figure is the pictorial representation of the cabling setup.Figure 2-23 Cabling SetupAdditional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .

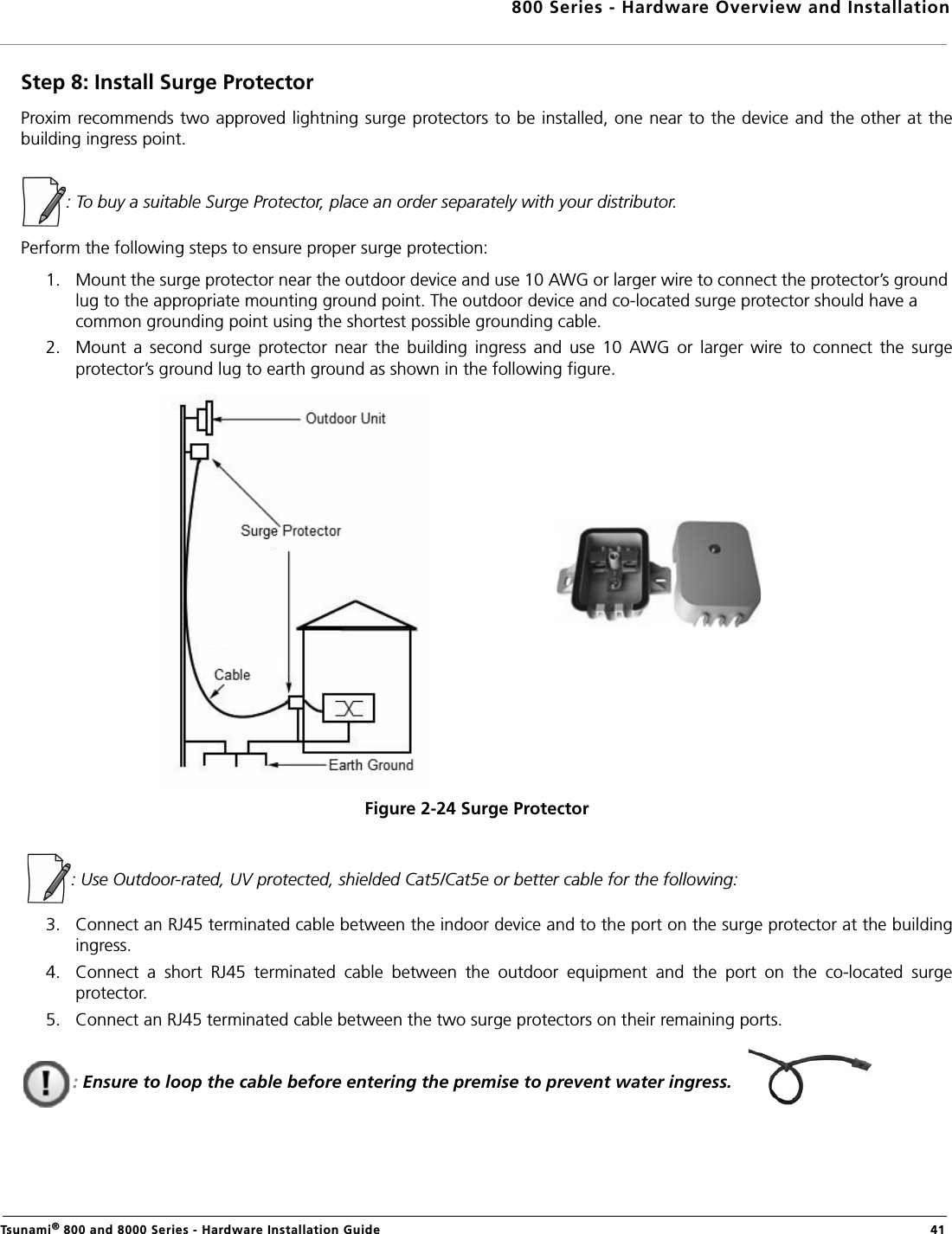

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 41Step 8: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point.: To buy a suitable Surge Protector, place an order separately with your distributor. Perform the following steps to ensure proper surge protection:1. Mount the surge protector near the outdoor device and use 10 AWG or larger wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or larger wire to connect the surgeprotector’s ground lug to earth ground as shown in the following figure.Figure 2-24 Surge Protector : Use Outdoor-rated, UV protected, shielded Cat5/Cat5e or better cable for the following:3. Connect an RJ45 terminated cable between the indoor device and to the port on the surge protector at the buildingingress. 4. Connect a short RJ45 terminated cable between the outdoor equipment and the port on the co-located surgeprotector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress.

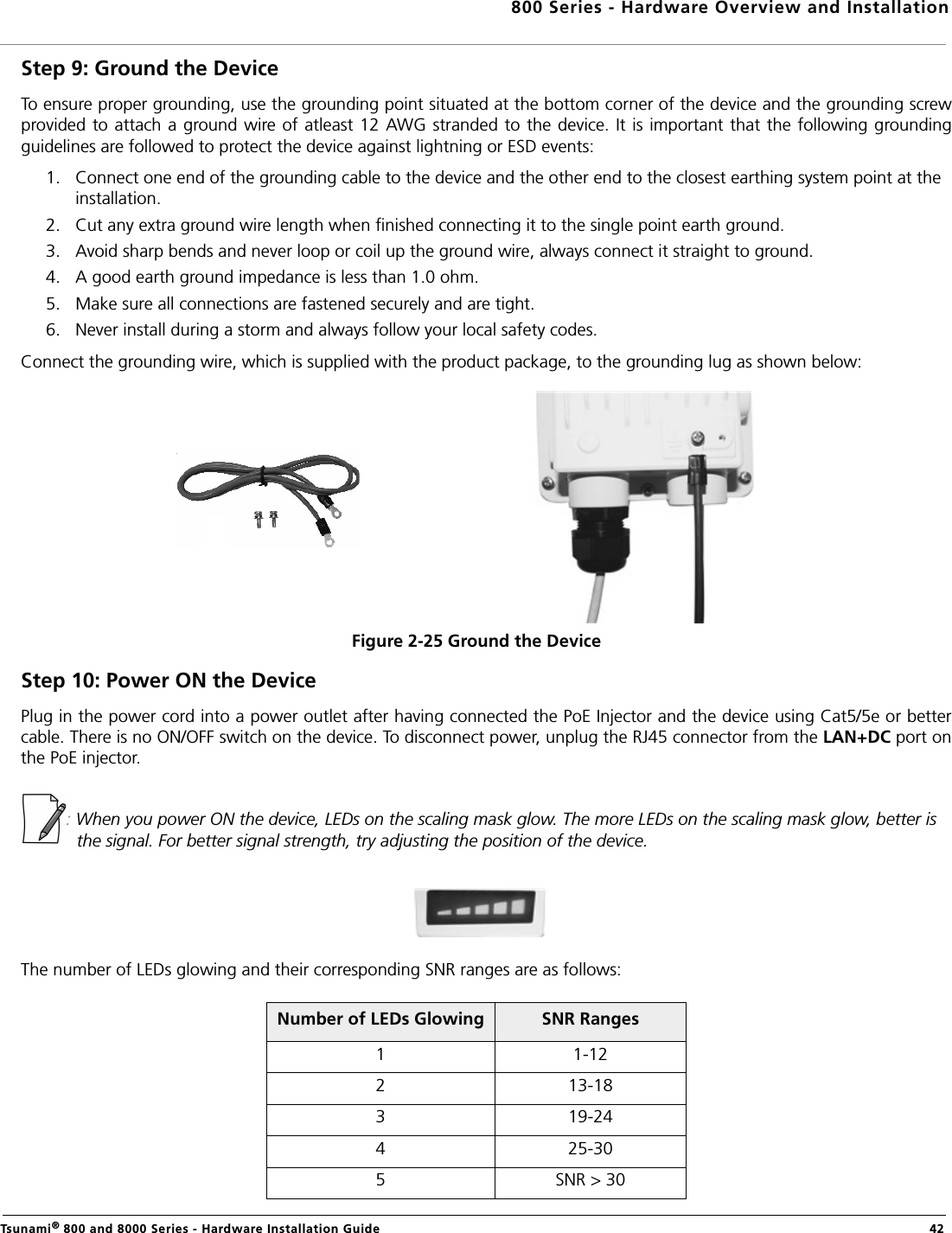

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 42Step 9: Ground the DeviceTo ensure proper grounding, use the grounding point situated at the bottom corner of the device and the grounding screwprovided to attach a ground wire of atleast 12 AWG stranded to the device. It is important that the following groundingguidelines are followed to protect the device against lightning or ESD events:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Make sure all connections are fastened securely and are tight. 6. Never install during a storm and always follow your local safety codes.Connect the grounding wire, which is supplied with the product package, to the grounding lug as shown below:Figure 2-25 Ground the DeviceStep 10: Power ON the DevicePlug in the power cord into a power outlet after having connected the PoE Injector and the device using Cat5/5e or bettercable. There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the LAN+DC port onthe PoE injector.: When you power ON the device, LEDs on the scaling mask glow. The more LEDs on the scaling mask glow, better is the signal. For better signal strength, try adjusting the position of the device.The number of LEDs glowing and their corresponding SNR ranges are as follows:Number of LEDs Glowing SNR Ranges1 1-122 13-183 19-244 25-305 SNR > 30

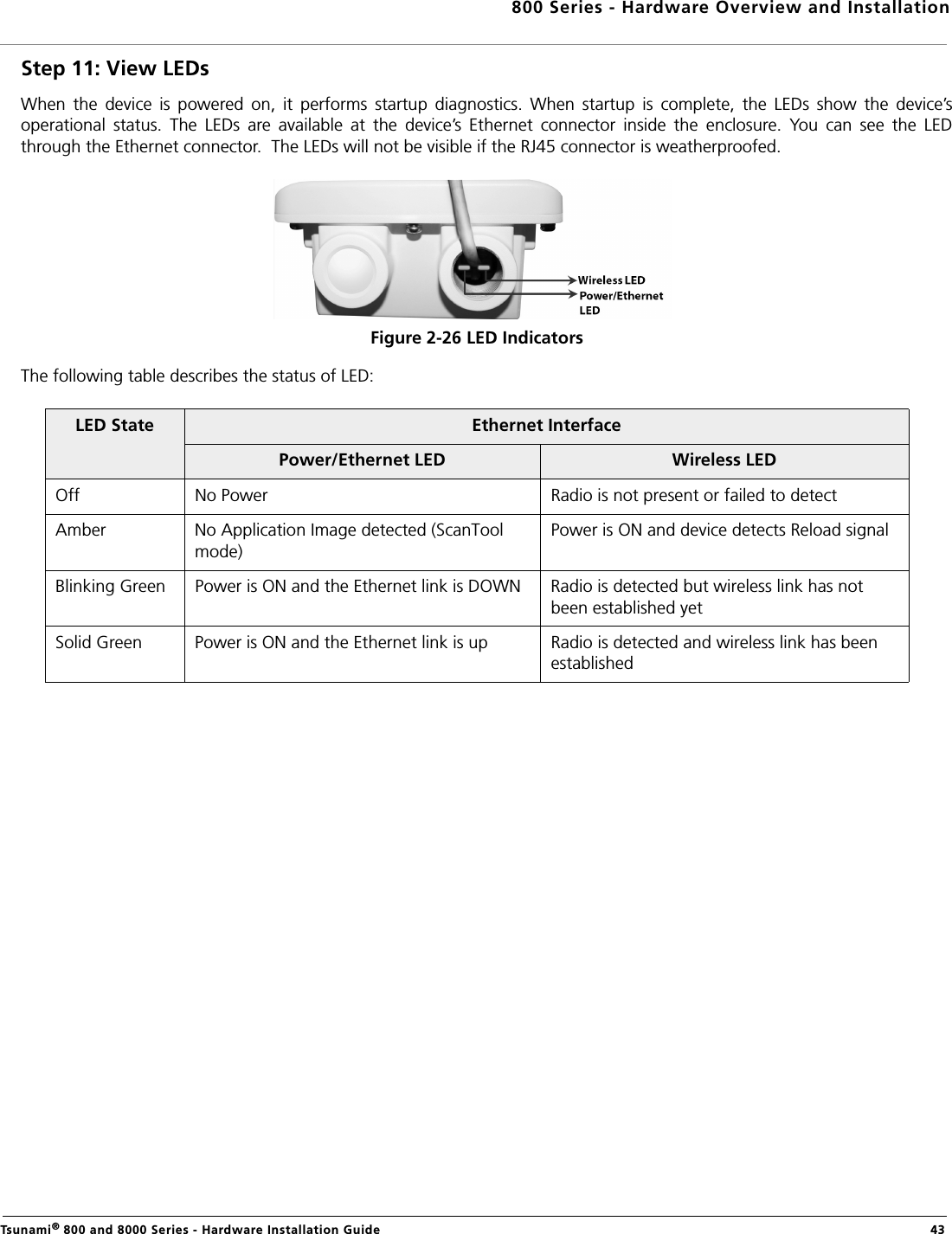

800 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 43Step 11: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational status. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LEDthrough the Ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.Figure 2-26 LED IndicatorsThe following table describes the status of LED:LED State Ethernet InterfacePower/Ethernet LED Wireless LEDOff No Power Radio is not present or failed to detectAmber No Application Image detected (ScanTool mode)Power is ON and device detects Reload signalBlinking Green Power is ON and the Ethernet link is DOWN Radio is detected but wireless link has not been established yet Solid Green Power is ON and the Ethernet link is up Radio is detected and wireless link has been established

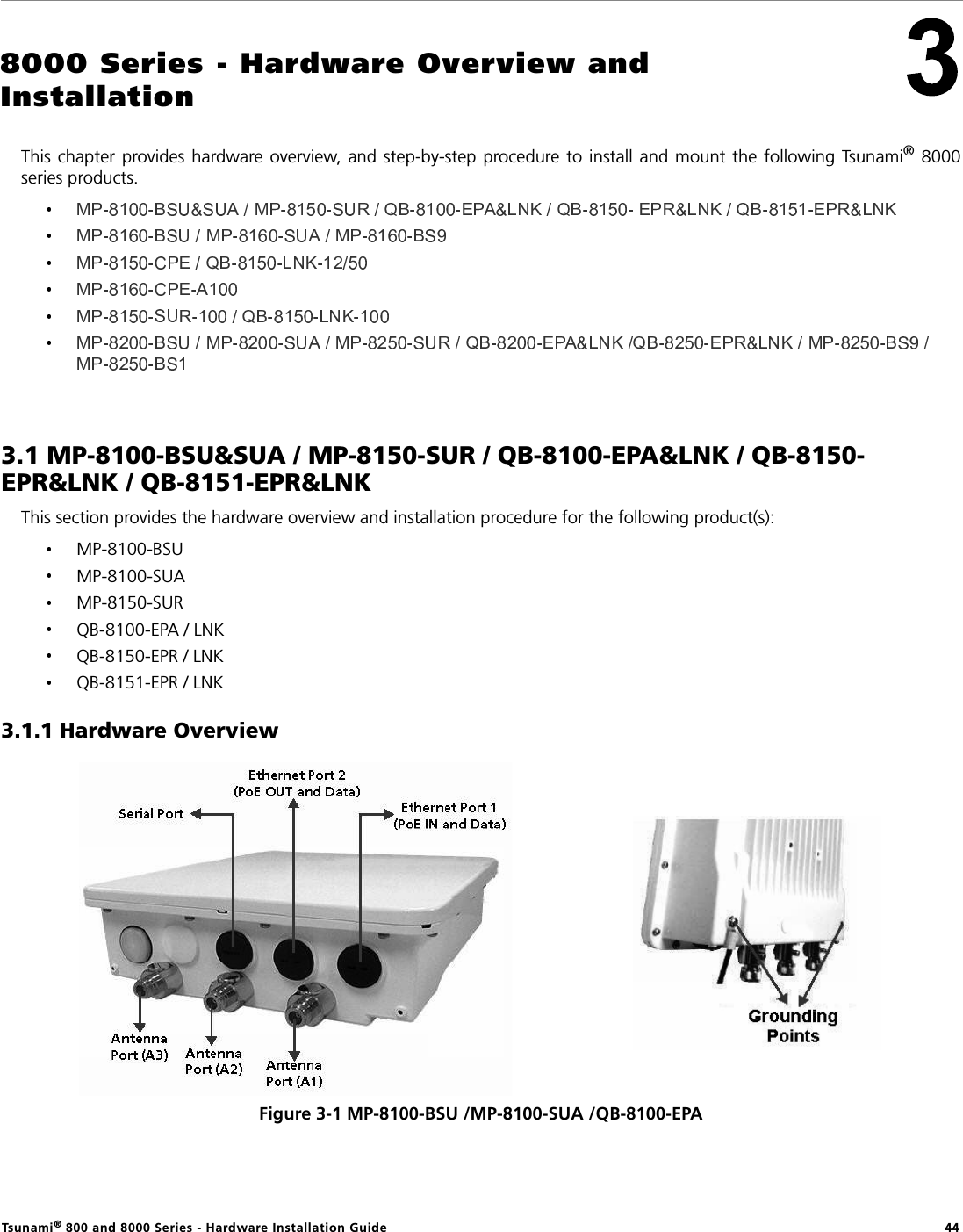

Tsunami® 800 and 8000 Series - Hardware Installation Guide 448000 Series - Hardware Overview and InstallationThis chapter provides hardware overview, and step-by-step procedure to install and mount the following Tsunami® 8000series products. 3.1 MP-8100-BSU&SUA / MP-8150-SUR / QB-8100-EPA&LNK / QB-8150- EPR&LNK / QB-8151-EPR&LNKThis section provides the hardware overview and installation procedure for the following product(s): MP-8100-BSUMP-8100-SUAMP-8150-SURQB-8100-EPA / LNK QB-8150-EPR / LNKQB-8151-EPR / LNK3.1.1 Hardware OverviewFigure 3-1 MP-8100-BSU /MP-8100-SUA /QB-8100-EPA

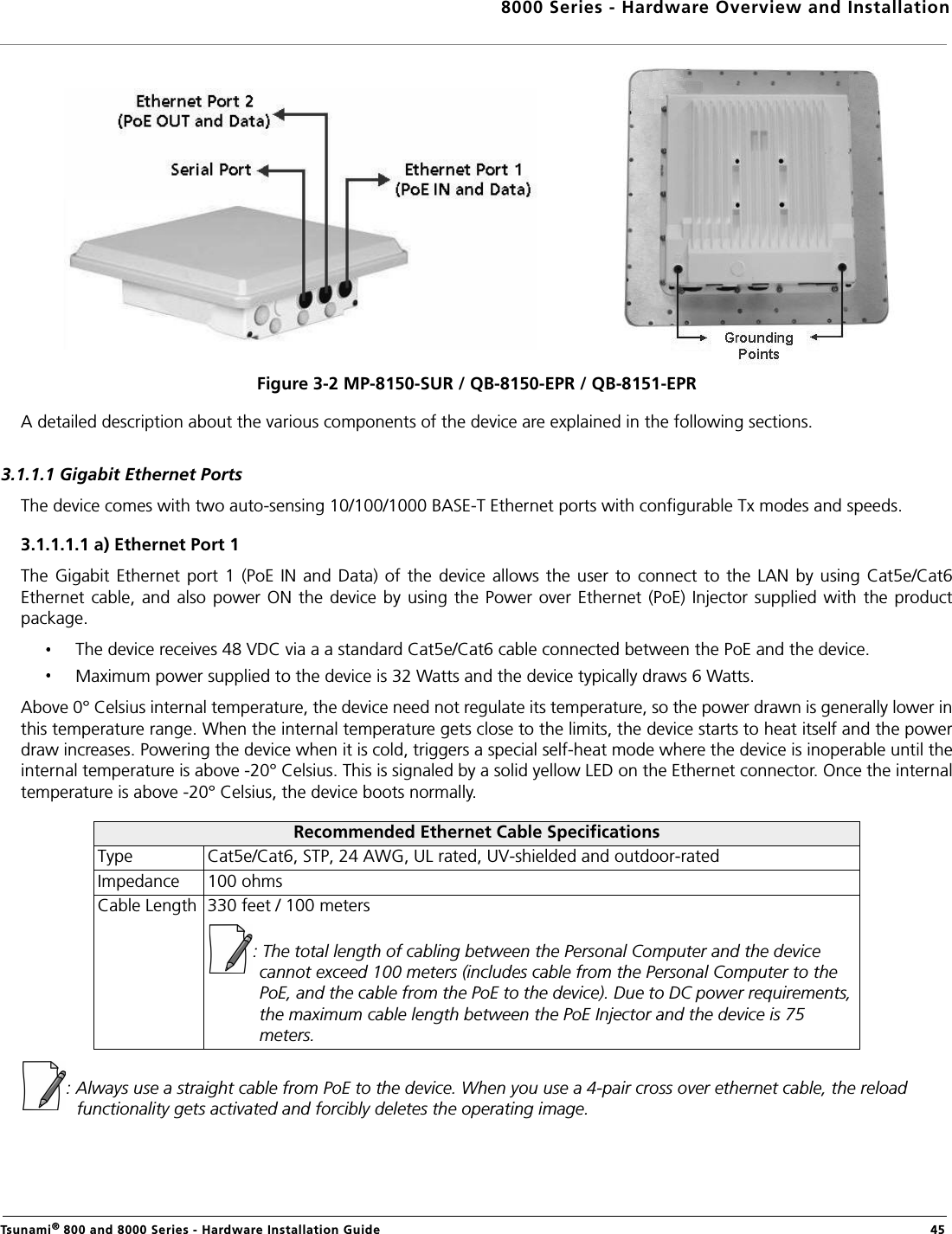

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 45Figure 3-2 MP-8150-SUR / QB-8150-EPR / QB-8151-EPRA detailed description about the various components of the device are explained in the following sections.3.1.1.1 Gigabit Ethernet PortsThe device comes with two auto-sensing 10/100/1000 BASE-T Ethernet ports with configurable Tx modes and speeds.3.1.1.1.1 a) Ethernet Port 1The Gigabit Ethernet port 1 (PoE IN and Data) of the device allows the user to connect to the LAN by using Cat5e/Cat6Ethernet cable, and also power ON the device by using the Power over Ethernet (PoE) Injector supplied with the productpackage.The device receives 48 VDC via a a standard Cat5e/Cat6 cable connected between the PoE and the device.Maximum power supplied to the device is 32 Watts and the device typically draws 6 Watts.Above 0° Celsius internal temperature, the device need not regulate its temperature, so the power drawn is generally lower inthis temperature range. When the internal temperature gets close to the limits, the device starts to heat itself and the powerdraw increases. Powering the device when it is cold, triggers a special self-heat mode where the device is inoperable until theinternal temperature is above -20° Celsius. This is signaled by a solid yellow LED on the Ethernet connector. Once the internaltemperature is above -20° Celsius, the device boots normally.: Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.Recommended Ethernet Cable SpecificationsType Cat5e/Cat6, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device). Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.

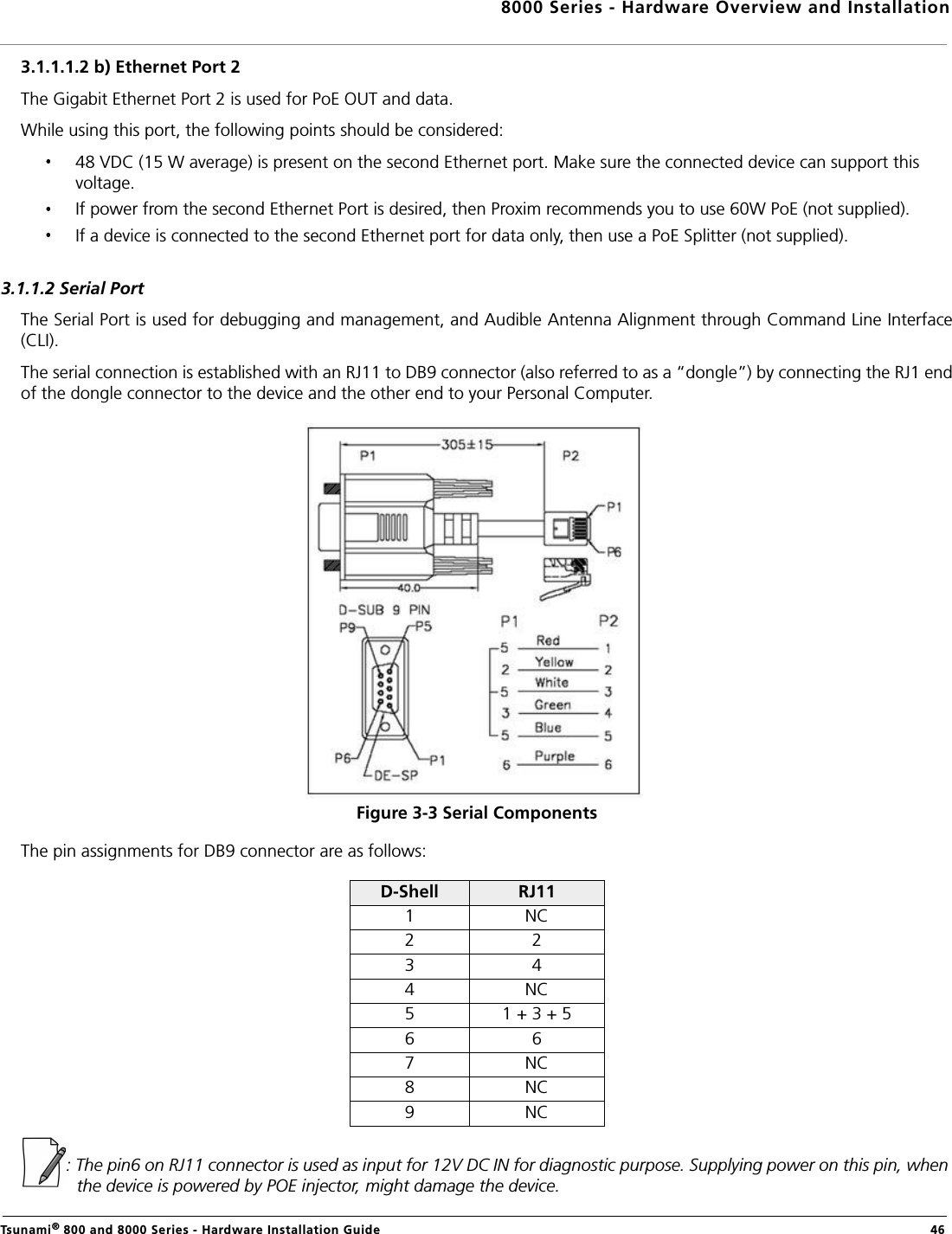

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 463.1.1.1.2 b) Ethernet Port 2The Gigabit Ethernet Port 2 is used for PoE OUT and data.While using this port, the following points should be considered:48 VDC (15 W average) is present on the second Ethernet port. Make sure the connected device can support this voltage.If power from the second Ethernet Port is desired, then Proxim recommends you to use 60W PoE (not supplied).If a device is connected to the second Ethernet port for data only, then use a PoE Splitter (not supplied).3.1.1.2 Serial PortThe Serial Port is used for debugging and management, and Audible Antenna Alignment through Command Line Interface(CLI).The serial connection is established with an RJ11 to DB9 connector (also referred to as a “dongle”) by connecting the RJ1 endof the dongle connector to the device and the other end to your Personal Computer.Figure 3-3 Serial ComponentsThe pin assignments for DB9 connector are as follows:: The pin6 on RJ11 connector is used as input for 12V DC IN for diagnostic purpose. Supplying power on this pin, when the device is powered by POE injector, might damage the device. D-Shell RJ111 NC2 23 44 NC5 1 + 3 + 56 67 NC8 NC9 NC

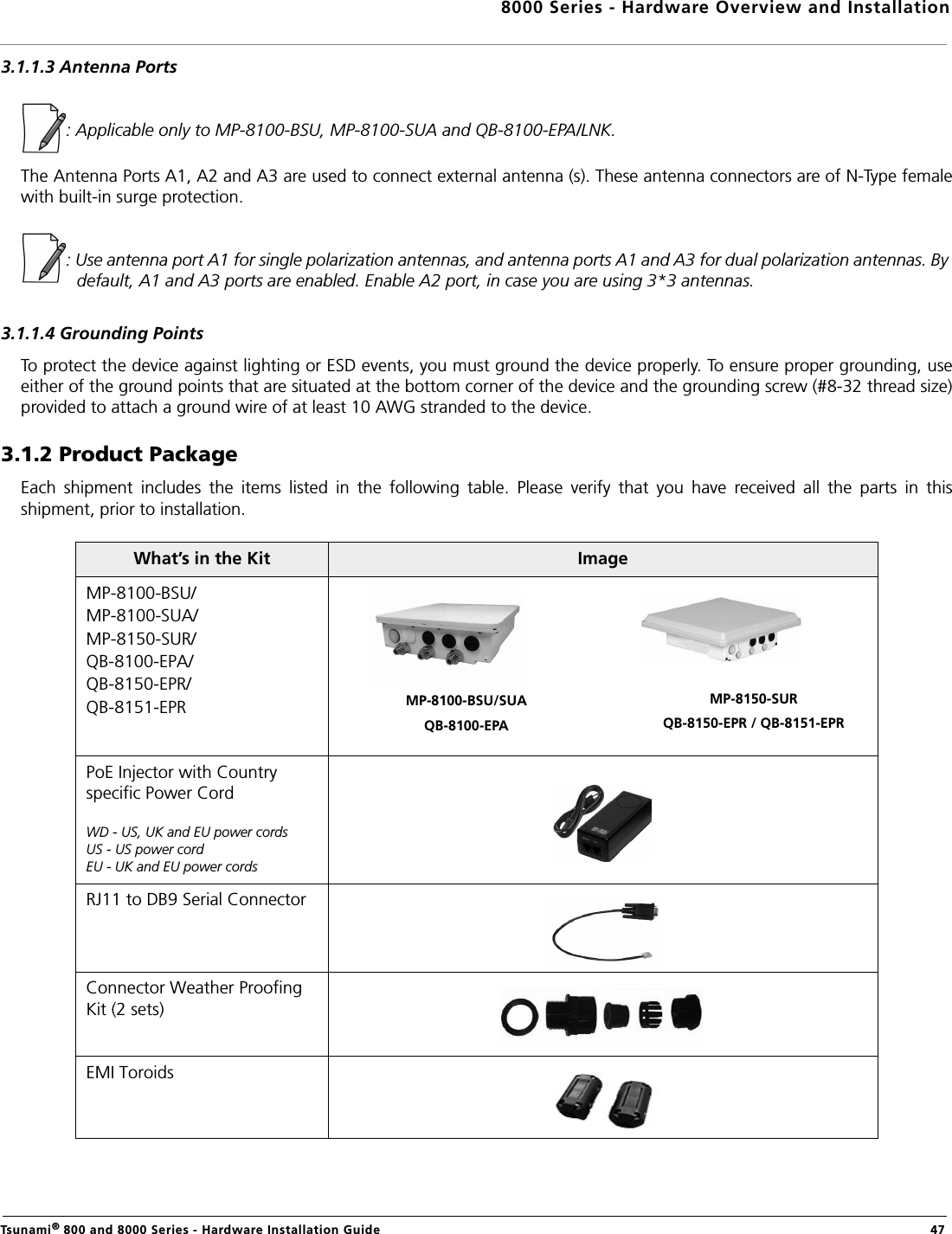

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 473.1.1.3 Antenna Ports : Applicable only to MP-8100-BSU, MP-8100-SUA and QB-8100-EPA/LNK.The Antenna Ports A1, A2 and A3 are used to connect external antenna (s). These antenna connectors are of N-Type femalewith built-in surge protection. : Use antenna port A1 for single polarization antennas, and antenna ports A1 and A3 for dual polarization antennas. By default, A1 and A3 ports are enabled. Enable A2 port, in case you are using 3*3 antennas.3.1.1.4 Grounding PointsTo protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding, useeither of the ground points that are situated at the bottom corner of the device and the grounding screw (#8-32 thread size)provided to attach a ground wire of at least 10 AWG stranded to the device.3.1.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in thisshipment, prior to installation.What’s in the Kit ImageMP-8100-BSU/MP-8100-SUA/MP-8150-SUR/QB-8100-EPA/QB-8150-EPR/QB-8151-EPRPoE Injector with Country specific Power CordWD - US, UK and EU power cordsUS - US power cord EU - UK and EU power cordsRJ11 to DB9 Serial ConnectorConnector Weather Proofing Kit (2 sets)EMI ToroidsMP-8100-BSU/SUAQB-8100-EPAMP-8150-SURQB-8150-EPR / QB-8151-EPR

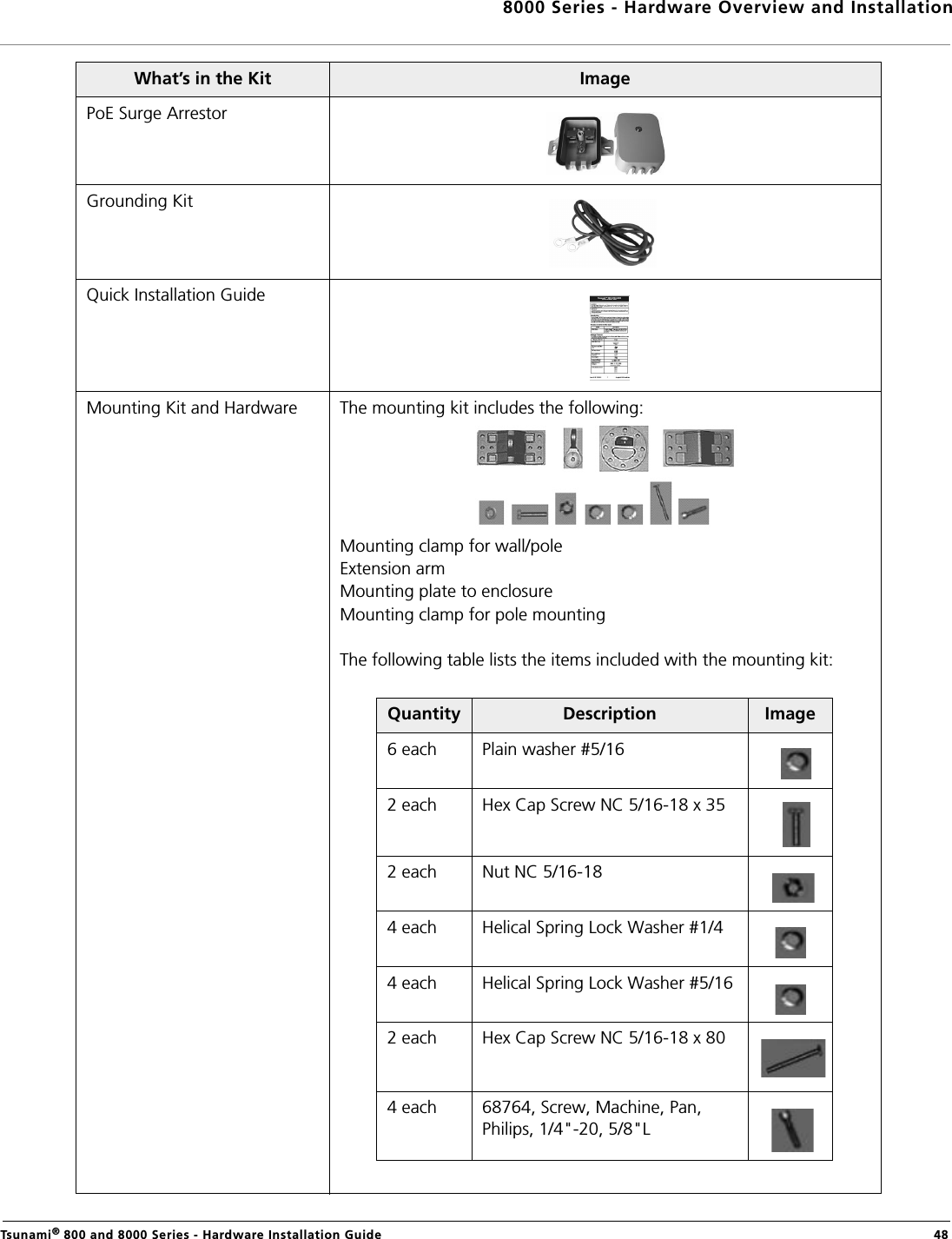

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 48PoE Surge ArrestorGrounding KitQuick Installation GuideMounting Kit and Hardware The mounting kit includes the following:Mounting clamp for wall/poleExtension armMounting plate to enclosureMounting clamp for pole mountingThe following table lists the items included with the mounting kit:What’s in the Kit ImageQuantity Description Image6 each Plain washer #5/162 each Hex Cap Screw NC 5/16-18 x 352 each Nut NC 5/16-184 each Helical Spring Lock Washer #1/44 each Helical Spring Lock Washer #5/162 each Hex Cap Screw NC 5/16-18 x 804 each 68764, Screw, Machine, Pan, Philips, 1/4"-20, 5/8"L

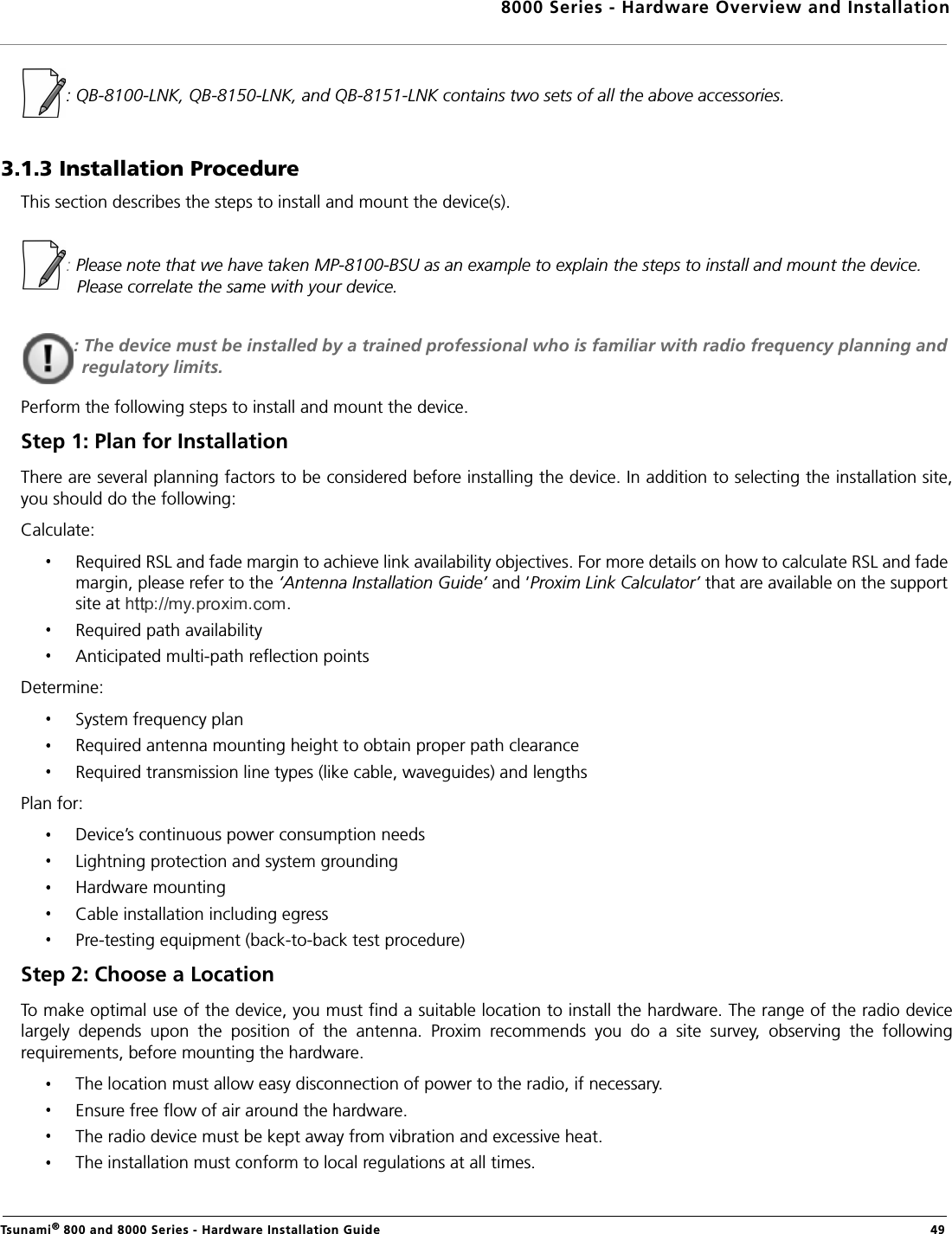

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 49: QB-8100-LNK, QB-8150-LNK, and QB-8151-LNK contains two sets of all the above accessories.3.1.3 Installation ProcedureThis section describes the steps to install and mount the device(s).: Please note that we have taken MP-8100-BSU as an example to explain the steps to install and mount the device. Please correlate the same with your device.: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:Calculate:Required RSL and fade margin to achieve link availability objectives. For more details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ that are available on the support site at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System frequency planRequired antenna mounting height to obtain proper path clearanceRequired transmission line types (like cable, waveguides) and lengthsPlan for:Device’s continuous power consumption needsLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. The range of the radio devicelargely depends upon the position of the antenna. Proxim recommends you do a site survey, observing the followingrequirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.

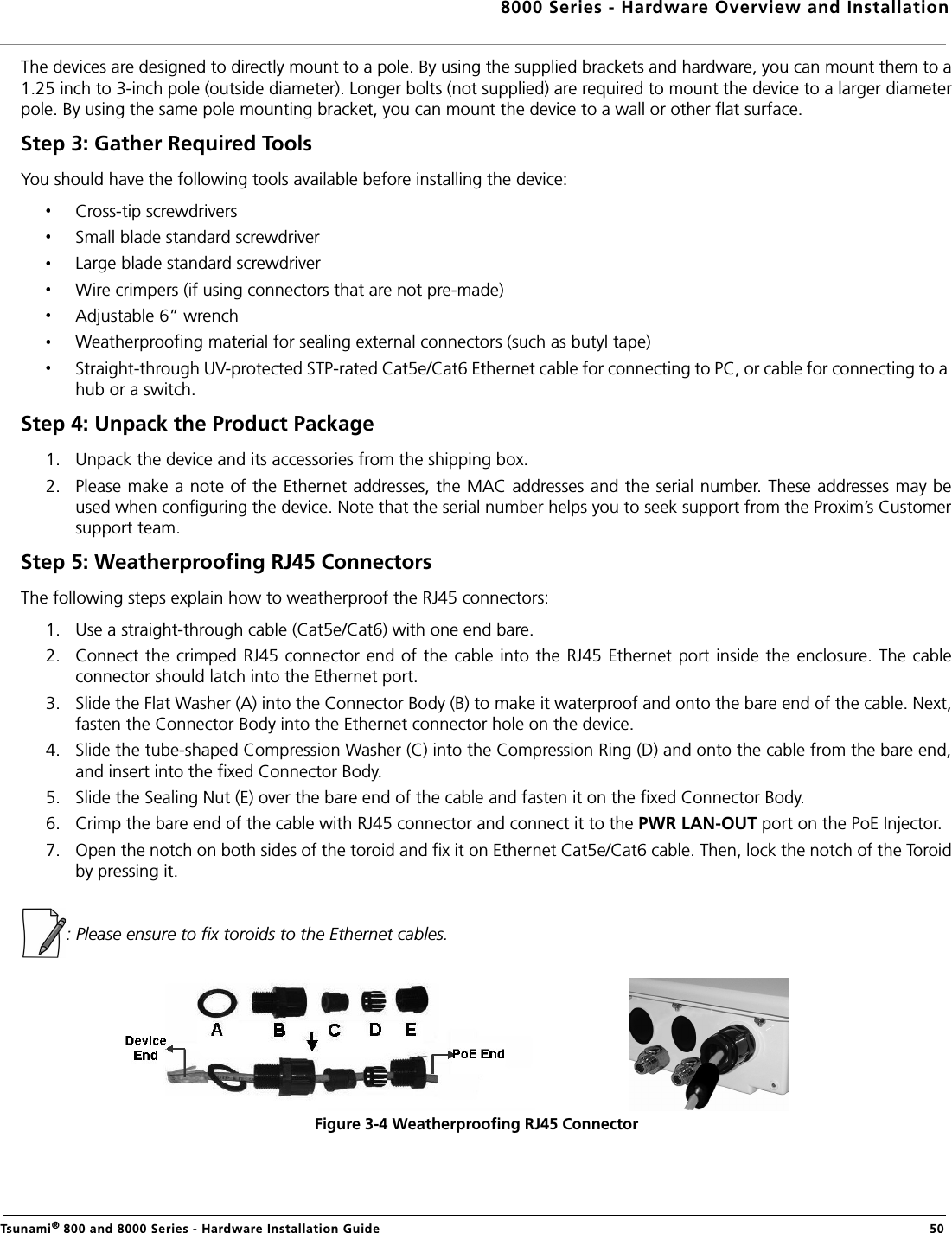

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 50The devices are designed to directly mount to a pole. By using the supplied brackets and hardware, you can mount them to a1.25 inch to 3-inch pole (outside diameter). Longer bolts (not supplied) are required to mount the device to a larger diameterpole. By using the same pole mounting bracket, you can mount the device to a wall or other flat surface.Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversSmall blade standard screwdriverLarge blade standard screwdriverWire crimpers (if using connectors that are not pre-made)Adjustable 6” wrenchWeatherproofing material for sealing external connectors (such as butyl tape)Straight-through UV-protected STP-rated Cat5e/Cat6 Ethernet cable for connecting to PC, or cable for connecting to a hub or a switch.Step 4: Unpack the Product Package 1. Unpack the device and its accessories from the shipping box.2. Please make a note of the Ethernet addresses, the MAC addresses and the serial number. These addresses may beused when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customersupport team.Step 5: Weatherproofing RJ45 ConnectorsThe following steps explain how to weatherproof the RJ45 connectors:1. Use a straight-through cable (Cat5e/Cat6) with one end bare.2. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cableconnector should latch into the Ethernet port.3. Slide the Flat Washer (A) into the Connector Body (B) to make it waterproof and onto the bare end of the cable. Next,fasten the Connector Body into the Ethernet connector hole on the device.4. Slide the tube-shaped Compression Washer (C) into the Compression Ring (D) and onto the cable from the bare end,and insert into the fixed Connector Body.5. Slide the Sealing Nut (E) over the bare end of the cable and fasten it on the fixed Connector Body.6. Crimp the bare end of the cable with RJ45 connector and connect it to the PWR LAN-OUT port on the PoE Injector.7. Open the notch on both sides of the toroid and fix it on Ethernet Cat5e/Cat6 cable. Then, lock the notch of the Toroidby pressing it.: Please ensure to fix toroids to the Ethernet cables.Figure 3-4 Weatherproofing RJ45 Connector

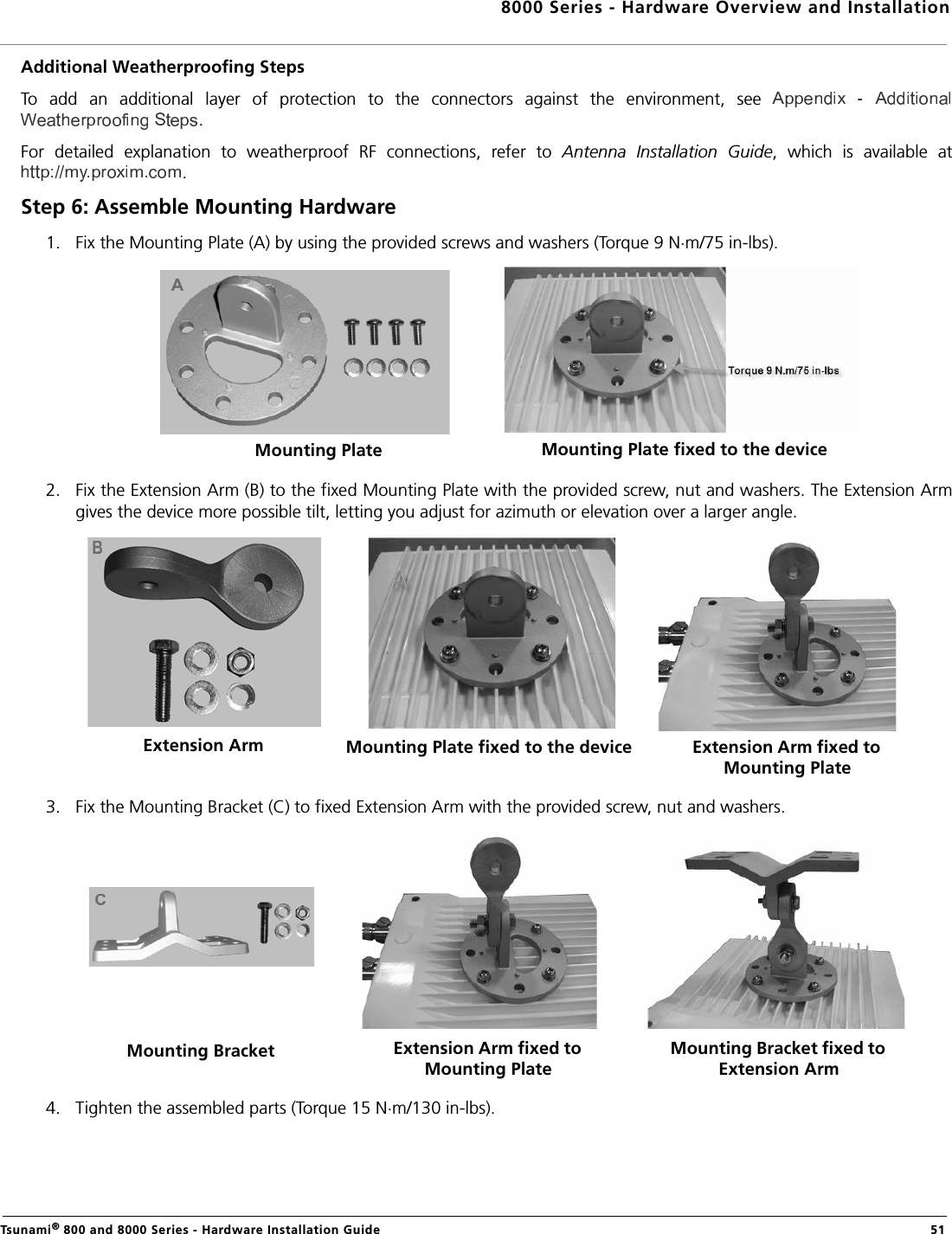

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 51Additional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .For detailed explanation to weatherproof RF connections, refer to Antenna Installation Guide, which is available at.Step 6: Assemble Mounting Hardware1. Fix the Mounting Plate (A) by using the provided screws and washers (Torque 9 N.m/75 in-lbs).2. Fix the Extension Arm (B) to the fixed Mounting Plate with the provided screw, nut and washers. The Extension Armgives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle.3. Fix the Mounting Bracket (C) to fixed Extension Arm with the provided screw, nut and washers.4. Tighten the assembled parts (Torque 15 N.m/130 in-lbs).Mounting Plate Mounting Plate fixed to the deviceExtension Arm Mounting Plate fixed to the device Extension Arm fixed to Mounting PlateMounting Bracket Extension Arm fixed to Mounting PlateMounting Bracket fixed to Extension Arm

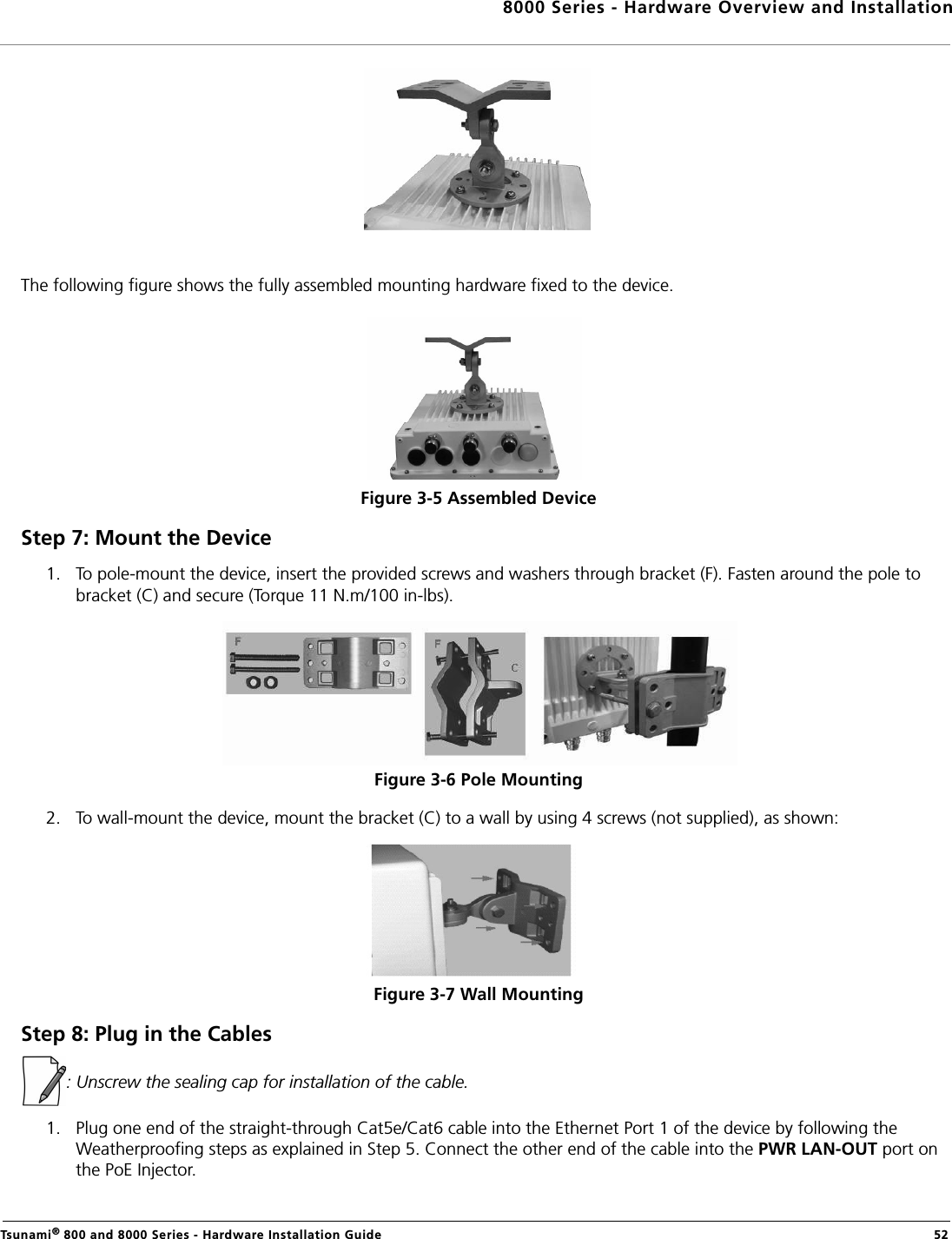

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 52The following figure shows the fully assembled mounting hardware fixed to the device.Figure 3-5 Assembled DeviceStep 7: Mount the Device1. To pole-mount the device, insert the provided screws and washers through bracket (F). Fasten around the pole to bracket (C) and secure (Torque 11 N.m/100 in-lbs).Figure 3-6 Pole Mounting 2. To wall-mount the device, mount the bracket (C) to a wall by using 4 screws (not supplied), as shown:Figure 3-7 Wall MountingStep 8: Plug in the Cables: Unscrew the sealing cap for installation of the cable.1. Plug one end of the straight-through Cat5e/Cat6 cable into the Ethernet Port 1 of the device by following the Weatherproofing steps as explained in Step 5. Connect the other end of the cable into the PWR LAN-OUT port on the PoE Injector.
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 53 : Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.Figure 3-8 Cable Plugged In2. Plugging in the second Cat5e/Cat6 cable into the Ethernet Port 2 interface of the device is optional. While using thesecond Ethernet Port for PoE OUT and data, the following should be considered:48 VDC (15 W average) is present on the second Ethernet port. Make sure the connected device can support thisvoltage.If power from the second Ethernet Port is desired, then Proxim recommends to use 60W PoE (not supplied).If the device is connected to the second Ethernet port for data, then use a PoE Splitter (not supplied)3. Optionally, connect a RJ11 to DB9 Serial Connector to device’s Serial Port for debugging and management, andaudible antenna alignment.Figure 3-9 PoE Injector4. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub, and between the hub and the RJ45 LAN-IN port on thePoE Injector. 5. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interface cardin the Personal Computer and the RJ45 LAN-IN port on the PoE Injector.Step 9: Connect the Antenna : Applicable only to MP-8100-BSU, MP-8100-SUA and QB-8100-EPA/LNK.Connect the antenna to the device antenna port by connecting the straight N-male end of the cable to the device antennaport and the right angle N-male end of the cable at the antenna. : Record which port each antenna polarization is associated with to ensure that each side matches and aid in configuration.

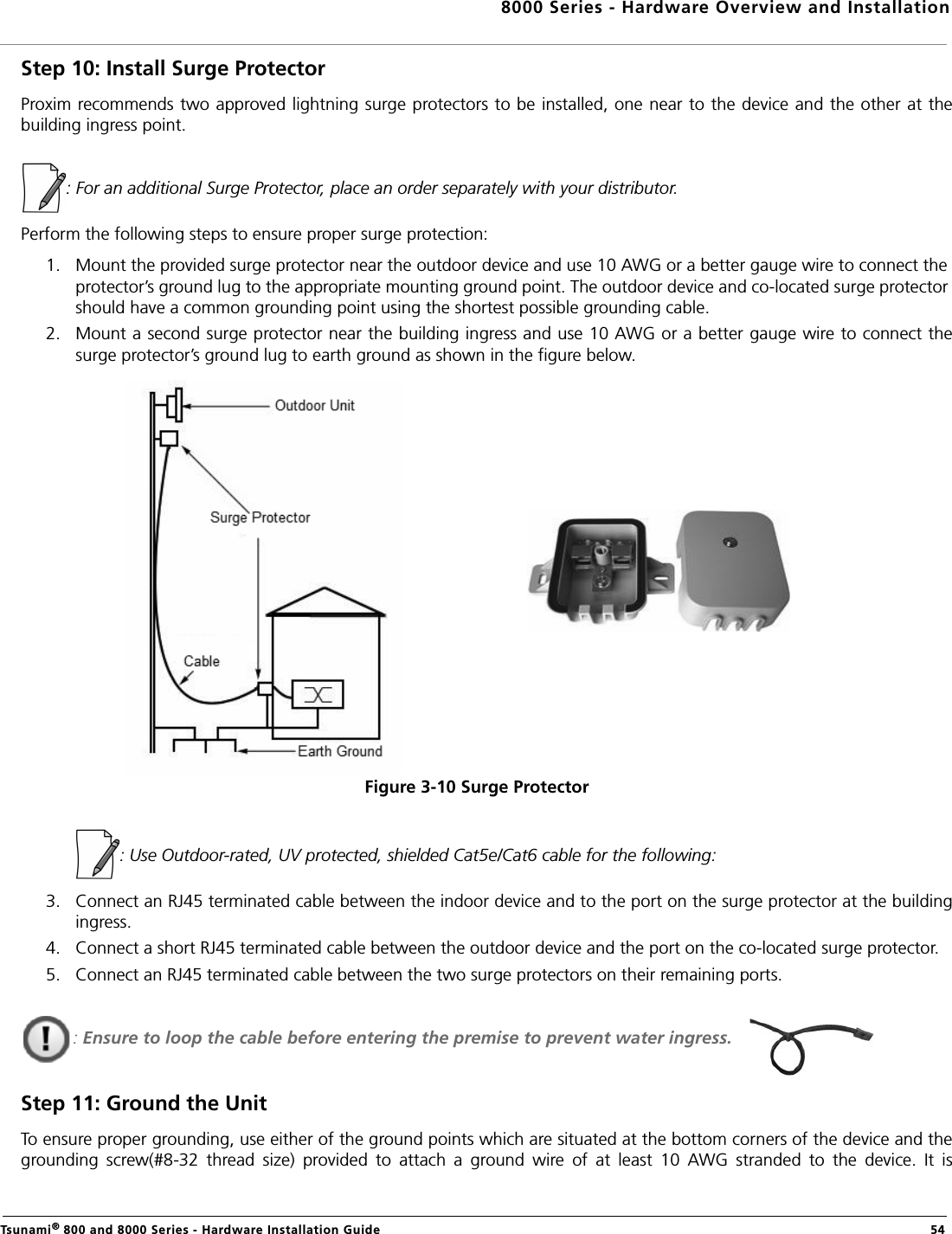

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 54Step 10: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point.: For an additional Surge Protector, place an order separately with your distributor.Perform the following steps to ensure proper surge protection:1. Mount the provided surge protector near the outdoor device and use 10 AWG or a better gauge wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or a better gauge wire to connect thesurge protector’s ground lug to earth ground as shown in the figure below.Figure 3-10 Surge Protector : Use Outdoor-rated, UV protected, shielded Cat5e/Cat6 cable for the following:3. Connect an RJ45 terminated cable between the indoor device and to the port on the surge protector at the buildingingress. 4. Connect a short RJ45 terminated cable between the outdoor device and the port on the co-located surge protector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress.Step 11: Ground the UnitTo ensure proper grounding, use either of the ground points which are situated at the bottom corners of the device and thegrounding screw(#8-32 thread size) provided to attach a ground wire of at least 10 AWG stranded to the device. It is

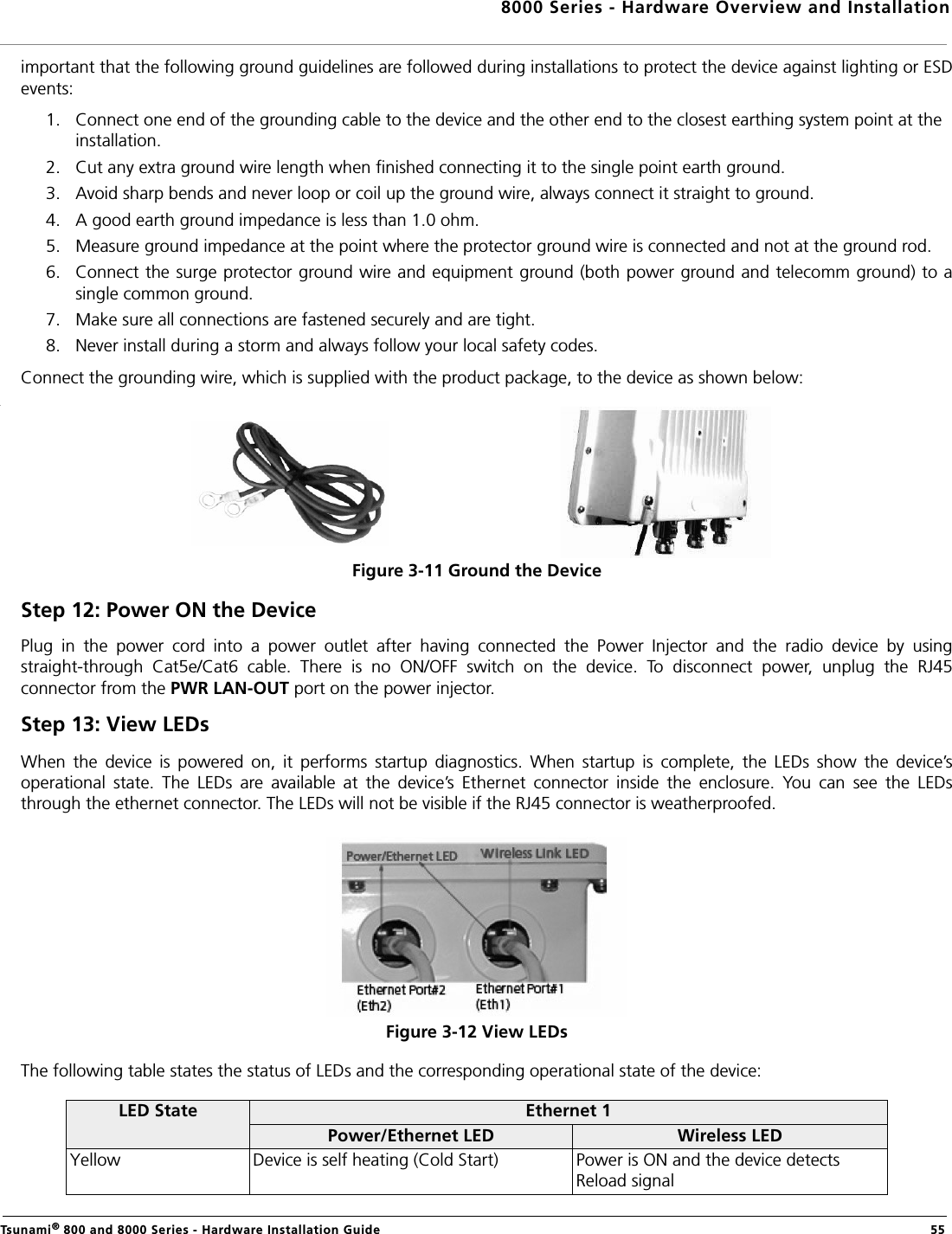

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 55important that the following ground guidelines are followed during installations to protect the device against lighting or ESDevents:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Measure ground impedance at the point where the protector ground wire is connected and not at the ground rod.6. Connect the surge protector ground wire and equipment ground (both power ground and telecomm ground) to asingle common ground. 7. Make sure all connections are fastened securely and are tight. 8. Never install during a storm and always follow your local safety codes. Connect the grounding wire, which is supplied with the product package, to the device as shown below:Figure 3-11 Ground the DeviceStep 12: Power ON the DevicePlug in the power cord into a power outlet after having connected the Power Injector and the radio device by usingstraight-through Cat5e/Cat6 cable. There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45connector from the PWR LAN-OUT port on the power injector.Step 13: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational state. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LEDsthrough the ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.Figure 3-12 View LEDsThe following table states the status of LEDs and the corresponding operational state of the device:LED State Ethernet 1Power/Ethernet LED Wireless LEDYellow Device is self heating (Cold Start) Power is ON and the device detects Reload signal

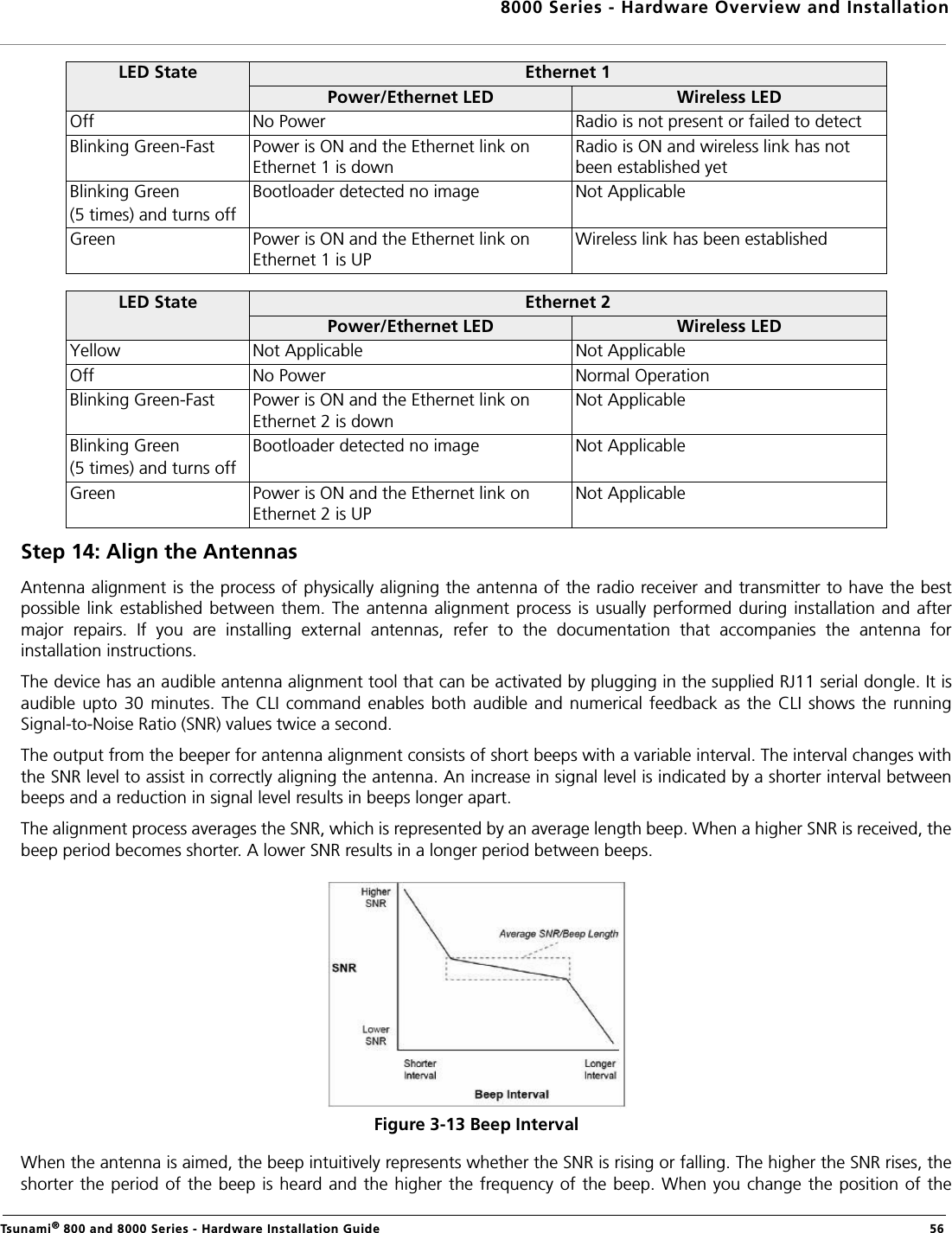

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 56Step 14: Align the AntennasAntenna alignment is the process of physically aligning the antenna of the radio receiver and transmitter to have the bestpossible link established between them. The antenna alignment process is usually performed during installation and aftermajor repairs. If you are installing external antennas, refer to the documentation that accompanies the antenna forinstallation instructions. The device has an audible antenna alignment tool that can be activated by plugging in the supplied RJ11 serial dongle. It isaudible upto 30 minutes. The CLI command enables both audible and numerical feedback as the CLI shows the runningSignal-to-Noise Ratio (SNR) values twice a second.The output from the beeper for antenna alignment consists of short beeps with a variable interval. The interval changes withthe SNR level to assist in correctly aligning the antenna. An increase in signal level is indicated by a shorter interval betweenbeeps and a reduction in signal level results in beeps longer apart.The alignment process averages the SNR, which is represented by an average length beep. When a higher SNR is received, thebeep period becomes shorter. A lower SNR results in a longer period between beeps.Figure 3-13 Beep IntervalWhen the antenna is aimed, the beep intuitively represents whether the SNR is rising or falling. The higher the SNR rises, theshorter the period of the beep is heard and the higher the frequency of the beep. When you change the position of theOff No Power Radio is not present or failed to detectBlinking Green-Fast Power is ON and the Ethernet link on Ethernet 1 is downRadio is ON and wireless link has not been established yet Blinking Green(5 times) and turns offBootloader detected no image Not ApplicableGreen Power is ON and the Ethernet link on Ethernet 1 is UPWireless link has been established LED State Ethernet 2Power/Ethernet LED Wireless LEDYellow Not Applicable Not ApplicableOff No Power Normal OperationBlinking Green-Fast Power is ON and the Ethernet link on Ethernet 2 is downNot ApplicableBlinking Green(5 times) and turns offBootloader detected no image Not ApplicableGreen Power is ON and the Ethernet link on Ethernet 2 is UPNot ApplicableLED State Ethernet 1Power/Ethernet LED Wireless LED

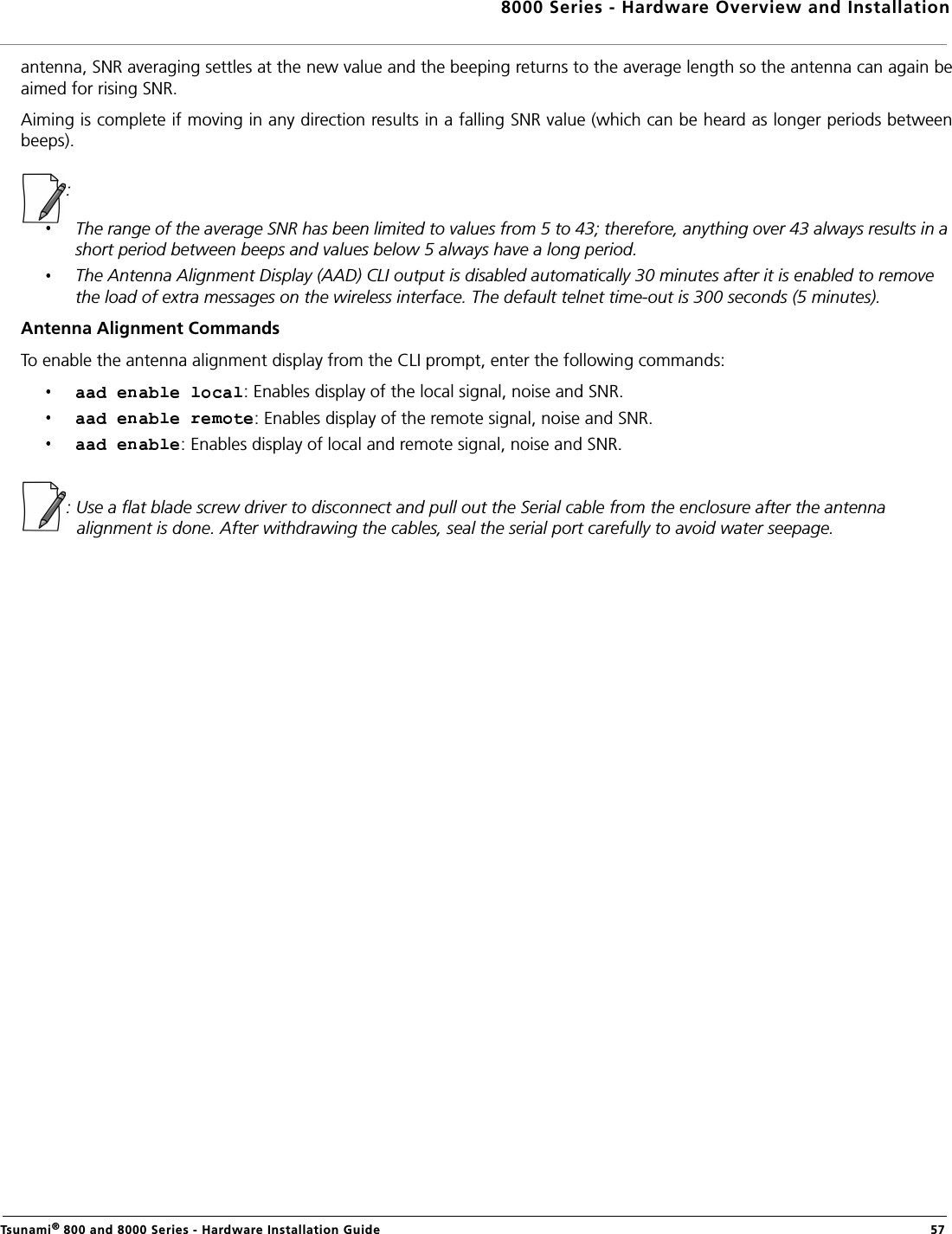

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 57antenna, SNR averaging settles at the new value and the beeping returns to the average length so the antenna can again beaimed for rising SNR.Aiming is complete if moving in any direction results in a falling SNR value (which can be heard as longer periods betweenbeeps).:The range of the average SNR has been limited to values from 5 to 43; therefore, anything over 43 always results in a short period between beeps and values below 5 always have a long period.The Antenna Alignment Display (AAD) CLI output is disabled automatically 30 minutes after it is enabled to remove the load of extra messages on the wireless interface. The default telnet time-out is 300 seconds (5 minutes). Antenna Alignment CommandsTo enable the antenna alignment display from the CLI prompt, enter the following commands: : Enables display of the local signal, noise and SNR. : Enables display of the remote signal, noise and SNR. : Enables display of local and remote signal, noise and SNR. : Use a flat blade screw driver to disconnect and pull out the Serial cable from the enclosure after the antenna alignment is done. After withdrawing the cables, seal the serial port carefully to avoid water seepage.

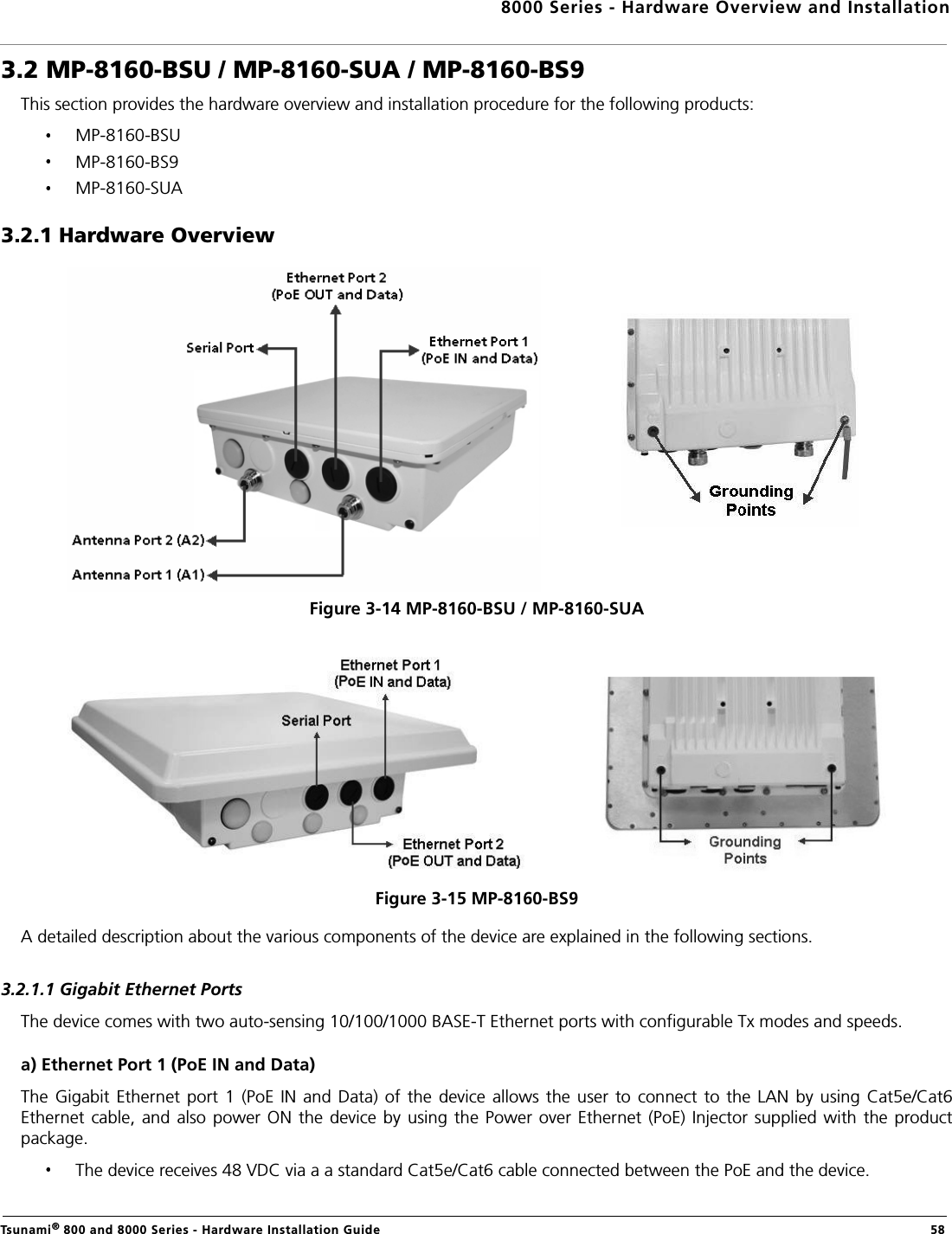

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 583.2 MP-8160-BSU / MP-8160-SUA / MP-8160-BS9This section provides the hardware overview and installation procedure for the following products: MP-8160-BSUMP-8160-BS9MP-8160-SUA3.2.1 Hardware OverviewFigure 3-14 MP-8160-BSU / MP-8160-SUAFigure 3-15 MP-8160-BS9A detailed description about the various components of the device are explained in the following sections.3.2.1.1 Gigabit Ethernet PortsThe device comes with two auto-sensing 10/100/1000 BASE-T Ethernet ports with configurable Tx modes and speeds.a) Ethernet Port 1 (PoE IN and Data)The Gigabit Ethernet port 1 (PoE IN and Data) of the device allows the user to connect to the LAN by using Cat5e/Cat6Ethernet cable, and also power ON the device by using the Power over Ethernet (PoE) Injector supplied with the productpackage.The device receives 48 VDC via a a standard Cat5e/Cat6 cable connected between the PoE and the device.

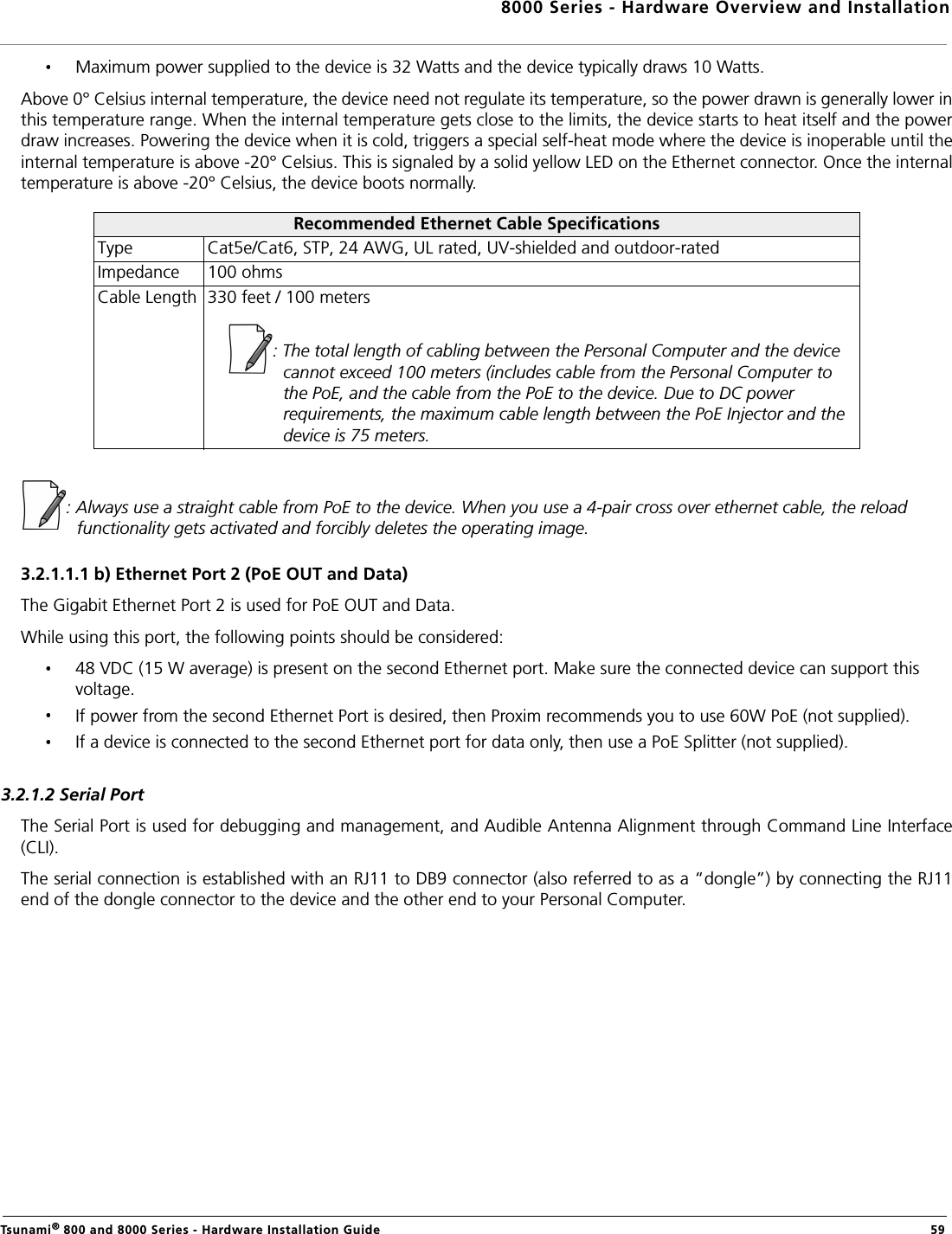

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 59Maximum power supplied to the device is 32 Watts and the device typically draws 10 Watts.Above 0° Celsius internal temperature, the device need not regulate its temperature, so the power drawn is generally lower inthis temperature range. When the internal temperature gets close to the limits, the device starts to heat itself and the powerdraw increases. Powering the device when it is cold, triggers a special self-heat mode where the device is inoperable until theinternal temperature is above -20° Celsius. This is signaled by a solid yellow LED on the Ethernet connector. Once the internaltemperature is above -20° Celsius, the device boots normally.: Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.3.2.1.1.1 b) Ethernet Port 2 (PoE OUT and Data)The Gigabit Ethernet Port 2 is used for PoE OUT and Data.While using this port, the following points should be considered:48 VDC (15 W average) is present on the second Ethernet port. Make sure the connected device can support this voltage.If power from the second Ethernet Port is desired, then Proxim recommends you to use 60W PoE (not supplied).If a device is connected to the second Ethernet port for data only, then use a PoE Splitter (not supplied).3.2.1.2 Serial PortThe Serial Port is used for debugging and management, and Audible Antenna Alignment through Command Line Interface(CLI).The serial connection is established with an RJ11 to DB9 connector (also referred to as a “dongle”) by connecting the RJ11end of the dongle connector to the device and the other end to your Personal Computer.Recommended Ethernet Cable SpecificationsType Cat5e/Cat6, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device. Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.

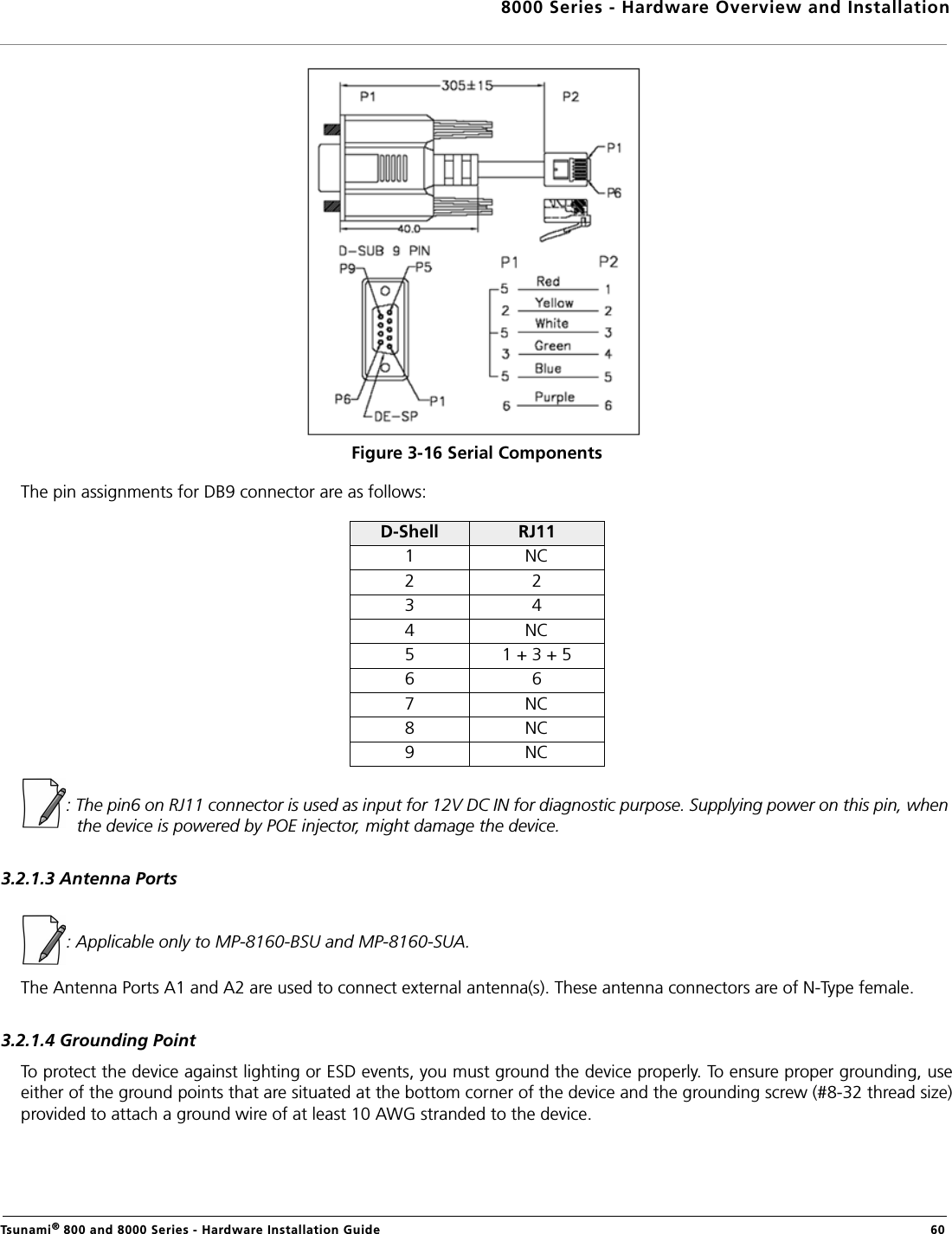

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 60Figure 3-16 Serial ComponentsThe pin assignments for DB9 connector are as follows:: The pin6 on RJ11 connector is used as input for 12V DC IN for diagnostic purpose. Supplying power on this pin, when the device is powered by POE injector, might damage the device. 3.2.1.3 Antenna Ports : Applicable only to MP-8160-BSU and MP-8160-SUA.The Antenna Ports A1 and A2 are used to connect external antenna(s). These antenna connectors are of N-Type female.3.2.1.4 Grounding PointTo protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding, useeither of the ground points that are situated at the bottom corner of the device and the grounding screw (#8-32 thread size)provided to attach a ground wire of at least 10 AWG stranded to the device.D-Shell RJ111 NC2 23 44 NC5 1 + 3 + 56 67 NC8 NC9 NC

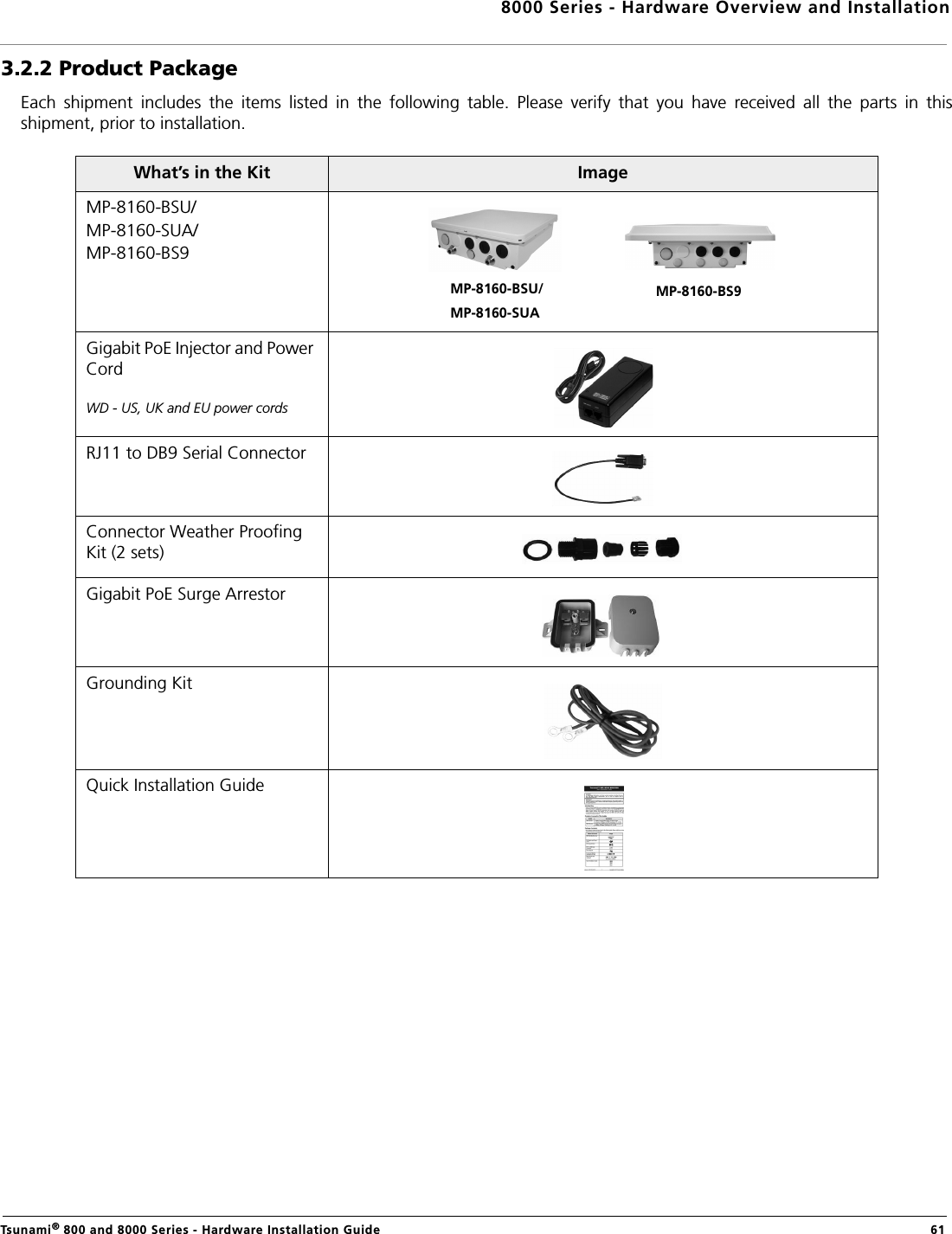

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 613.2.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in thisshipment, prior to installation.What’s in the Kit ImageMP-8160-BSU/MP-8160-SUA/MP-8160-BS9Gigabit PoE Injector and Power CordWD - US, UK and EU power cordsRJ11 to DB9 Serial ConnectorConnector Weather Proofing Kit (2 sets)Gigabit PoE Surge ArrestorGrounding KitQuick Installation GuideMP-8160-BSU/MP-8160-SUAMP-8160-BS9
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 623.2.3 Installation Procedure: Please note that we have taken MP-8160-BSU as an example to explain the steps to install and mount the device. Please correlate the same with your device.: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Mounting Kit and HardwareThe mounting kit includes the following:Mounting clamp for wall/poleExtension armMounting plate to enclosureMounting clamp for pole mountingThe following table lists and describes some of the items included with the mounting kit:What’s in the Kit ImageQuantity Description Image6 each Plain washer #5/162 each Hex Cap Screw NC 5/16-18 x 352 each Nut NC 5/16-184 each Helical Spring Lock Washer #1/44 each Helical Spring Lock Washer #5/162 each Hex Cap Screw NC 5/16-18 x 804 each 68764, Screw, Machine, Pan, Philips, 1/4"-20, 5/8"L

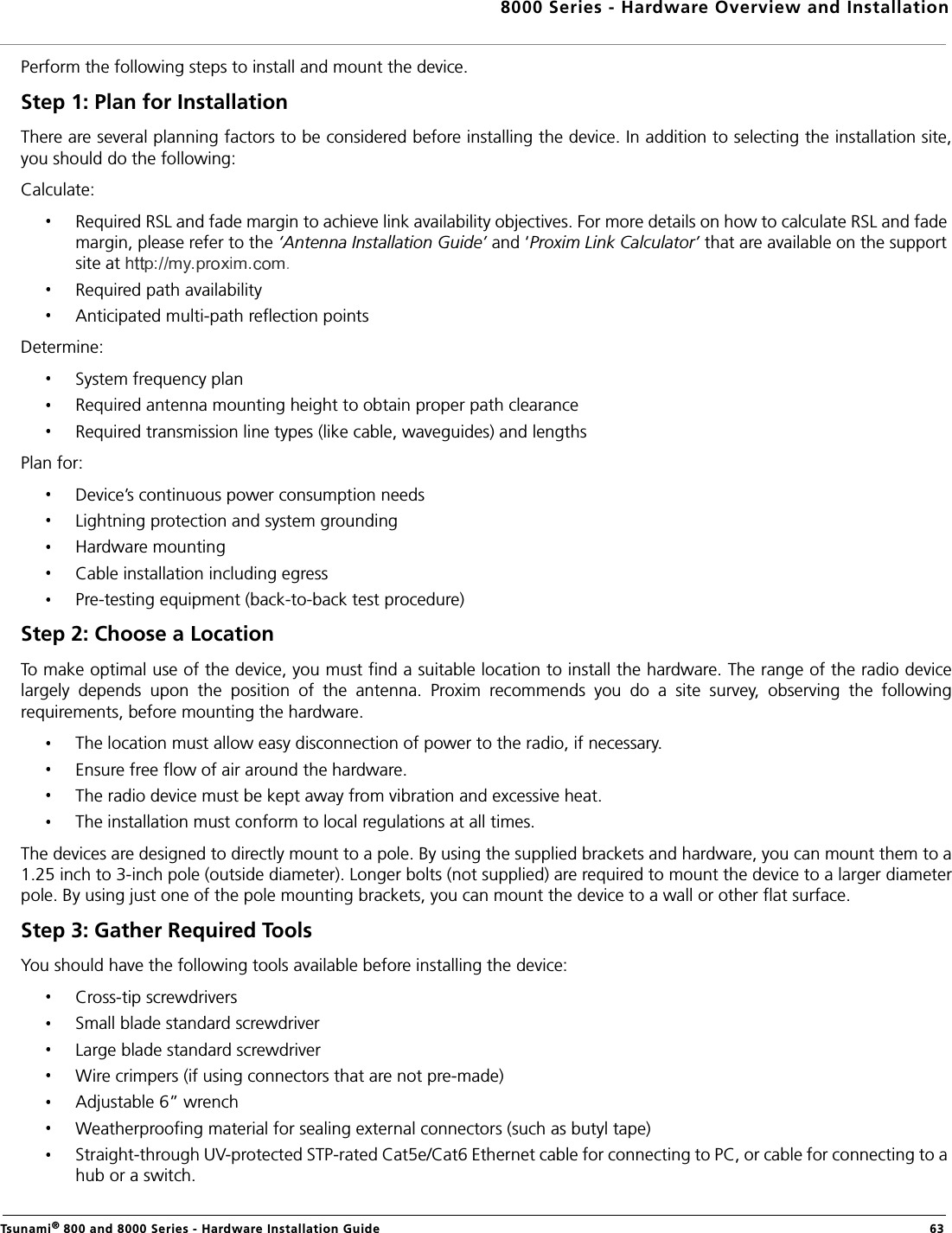

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 63Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:Calculate:Required RSL and fade margin to achieve link availability objectives. For more details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ that are available on the support site at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System frequency planRequired antenna mounting height to obtain proper path clearanceRequired transmission line types (like cable, waveguides) and lengthsPlan for:Device’s continuous power consumption needsLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. The range of the radio devicelargely depends upon the position of the antenna. Proxim recommends you do a site survey, observing the followingrequirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.The devices are designed to directly mount to a pole. By using the supplied brackets and hardware, you can mount them to a1.25 inch to 3-inch pole (outside diameter). Longer bolts (not supplied) are required to mount the device to a larger diameterpole. By using just one of the pole mounting brackets, you can mount the device to a wall or other flat surface.Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversSmall blade standard screwdriverLarge blade standard screwdriverWire crimpers (if using connectors that are not pre-made)Adjustable 6” wrenchWeatherproofing material for sealing external connectors (such as butyl tape)Straight-through UV-protected STP-rated Cat5e/Cat6 Ethernet cable for connecting to PC, or cable for connecting to a hub or a switch.

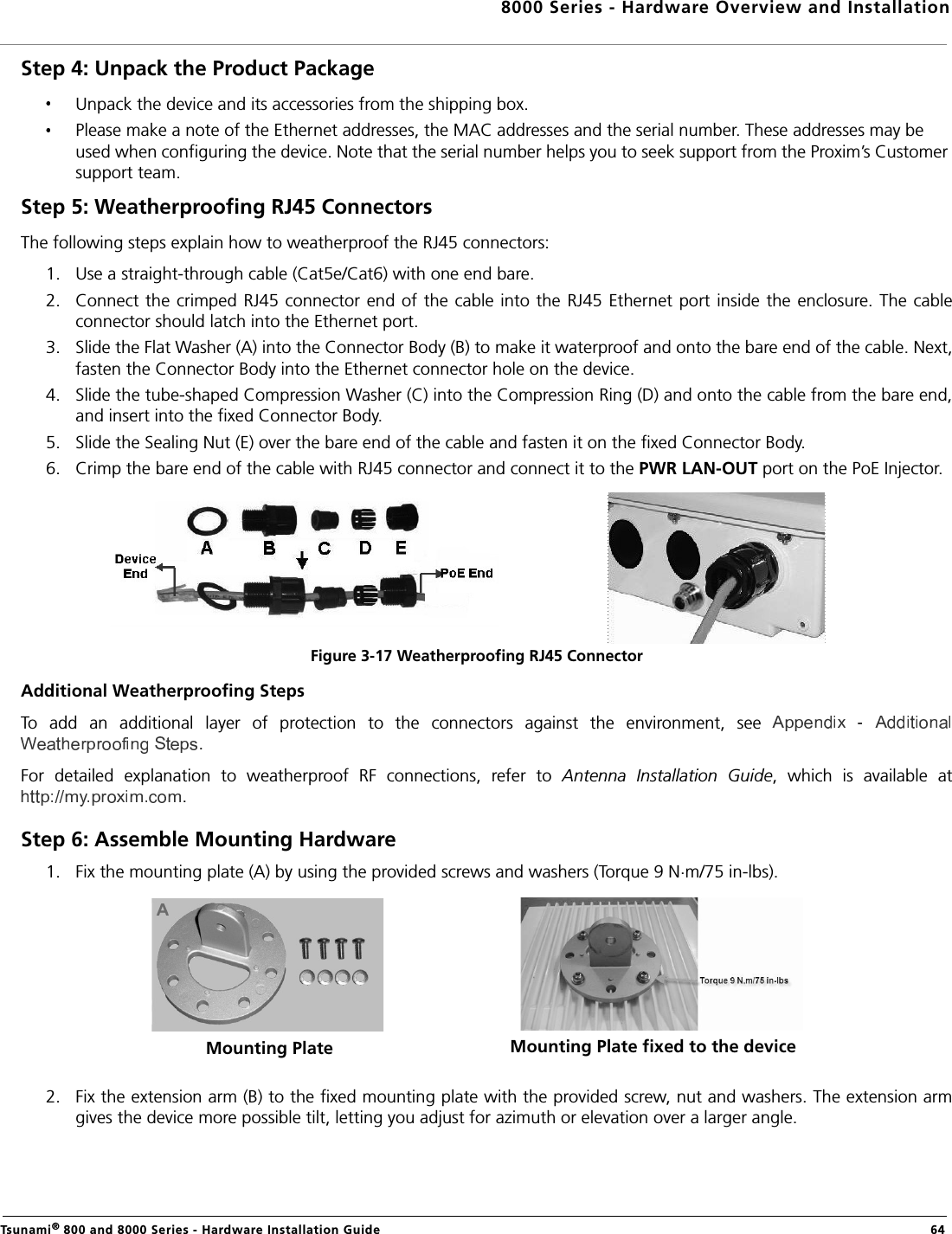

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 64Step 4: Unpack the Product Package Unpack the device and its accessories from the shipping box.Please make a note of the Ethernet addresses, the MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team.Step 5: Weatherproofing RJ45 ConnectorsThe following steps explain how to weatherproof the RJ45 connectors:1. Use a straight-through cable (Cat5e/Cat6) with one end bare.2. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cableconnector should latch into the Ethernet port.3. Slide the Flat Washer (A) into the Connector Body (B) to make it waterproof and onto the bare end of the cable. Next,fasten the Connector Body into the Ethernet connector hole on the device.4. Slide the tube-shaped Compression Washer (C) into the Compression Ring (D) and onto the cable from the bare end,and insert into the fixed Connector Body.5. Slide the Sealing Nut (E) over the bare end of the cable and fasten it on the fixed Connector Body.6. Crimp the bare end of the cable with RJ45 connector and connect it to the PWR LAN-OUT port on the PoE Injector.Figure 3-17 Weatherproofing RJ45 ConnectorAdditional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .For detailed explanation to weatherproof RF connections, refer to Antenna Installation Guide, which is available at.Step 6: Assemble Mounting Hardware1. Fix the mounting plate (A) by using the provided screws and washers (Torque 9 N.m/75 in-lbs).2. Fix the extension arm (B) to the fixed mounting plate with the provided screw, nut and washers. The extension armgives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle.Mounting Plate Mounting Plate fixed to the device
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 653. Fix the mounting bracket (C) to fixed extension arm with the provided screw, nut and washers.4. Tighten the assembled parts (Torque 15 N.m/130 in-lbs).The following figure shows the full assembled mounting hardware fixed to the device.Figure 3-18 Assembled DeviceExtension Arm Mounting Plate fixed to the deviceExtension Arm fixed to Mounting PlateMounting Bracket Extension Arm fixed to Mounting PlateMounting Bracket fixed to Extension Arm

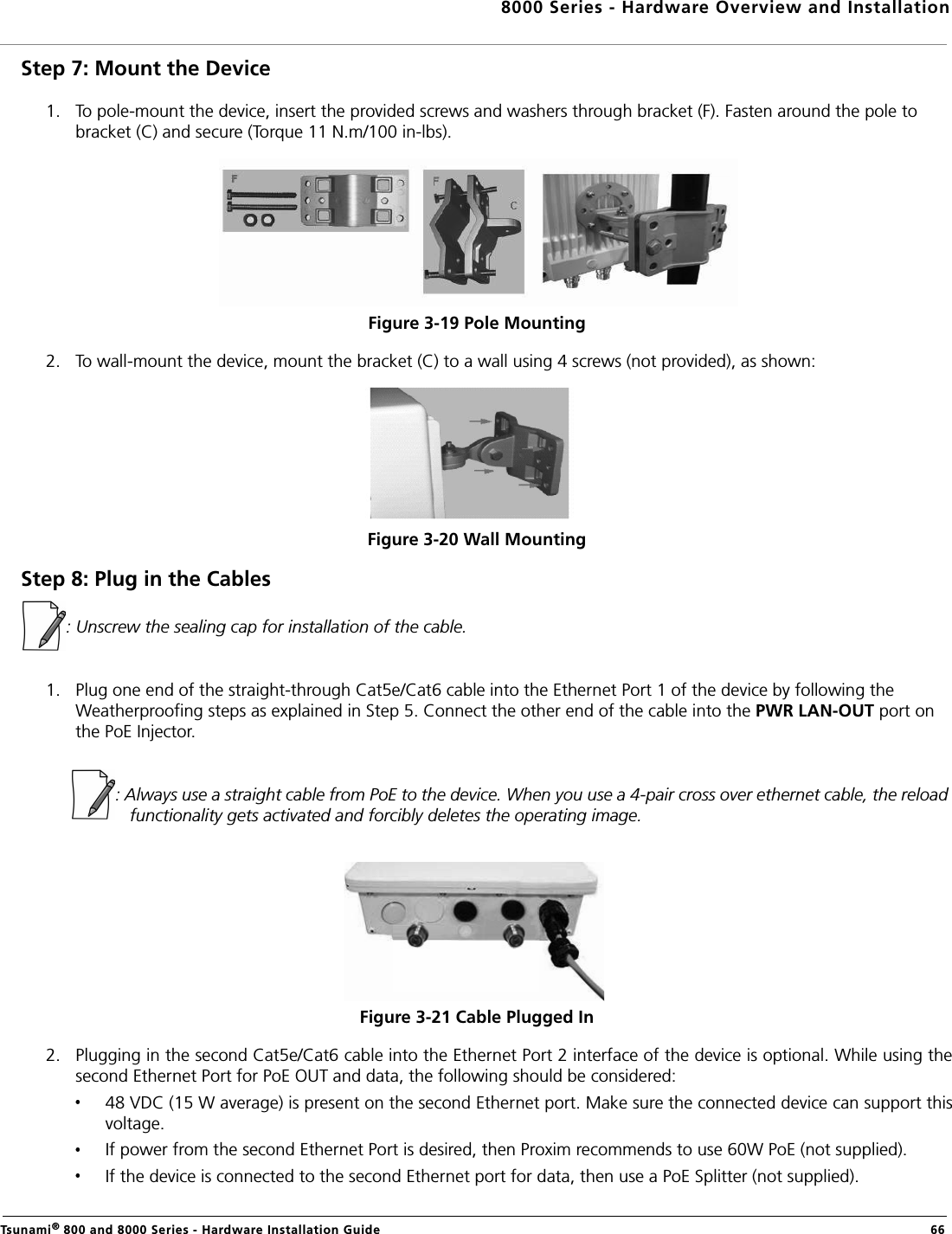

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 66Step 7: Mount the Device1. To pole-mount the device, insert the provided screws and washers through bracket (F). Fasten around the pole to bracket (C) and secure (Torque 11 N.m/100 in-lbs).Figure 3-19 Pole Mounting 2. To wall-mount the device, mount the bracket (C) to a wall using 4 screws (not provided), as shown:Figure 3-20 Wall MountingStep 8: Plug in the Cables: Unscrew the sealing cap for installation of the cable.1. Plug one end of the straight-through Cat5e/Cat6 cable into the Ethernet Port 1 of the device by following the Weatherproofing steps as explained in Step 5. Connect the other end of the cable into the PWR LAN-OUT port on the PoE Injector. : Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.Figure 3-21 Cable Plugged In2. Plugging in the second Cat5e/Cat6 cable into the Ethernet Port 2 interface of the device is optional. While using thesecond Ethernet Port for PoE OUT and data, the following should be considered:48 VDC (15 W average) is present on the second Ethernet port. Make sure the connected device can support thisvoltage.If power from the second Ethernet Port is desired, then Proxim recommends to use 60W PoE (not supplied).If the device is connected to the second Ethernet port for data, then use a PoE Splitter (not supplied).
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 673. Optionally, connect a RJ11 to DB9 Serial Connector to device’s Serial Port for debugging and management, andaudible antenna alignment.Figure 3-22 PoE Injector4. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub, and between the hub and the RJ45 “LAN-IN” port onthe PoE Injector.5. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interface cardin the Personal Computer and the RJ45 “LAN IN” port on the PoE Injector.Step 9: Connect the Antenna:Applicable only to MP-8160-BSU and MP-8160-SUA.Connect the antenna to the device antenna port by connecting the straight N-male end of the cable to the device antennaport and the right angle N-male end of the cable at the antenna. : Record which port each antenna polarization is associated with to ensure that each side matches and aid in configuration.Step 10: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point.: For an additional Surge Protector, place an order separately with your distributor.Perform the following steps to ensure proper surge protection:1. Mount the provided surge protector near the outdoor device and use 10 AWG or a better gauge wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point by using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or a better gauge wire to connect thesurge protector’s ground lug to earth ground as shown in the figure below.

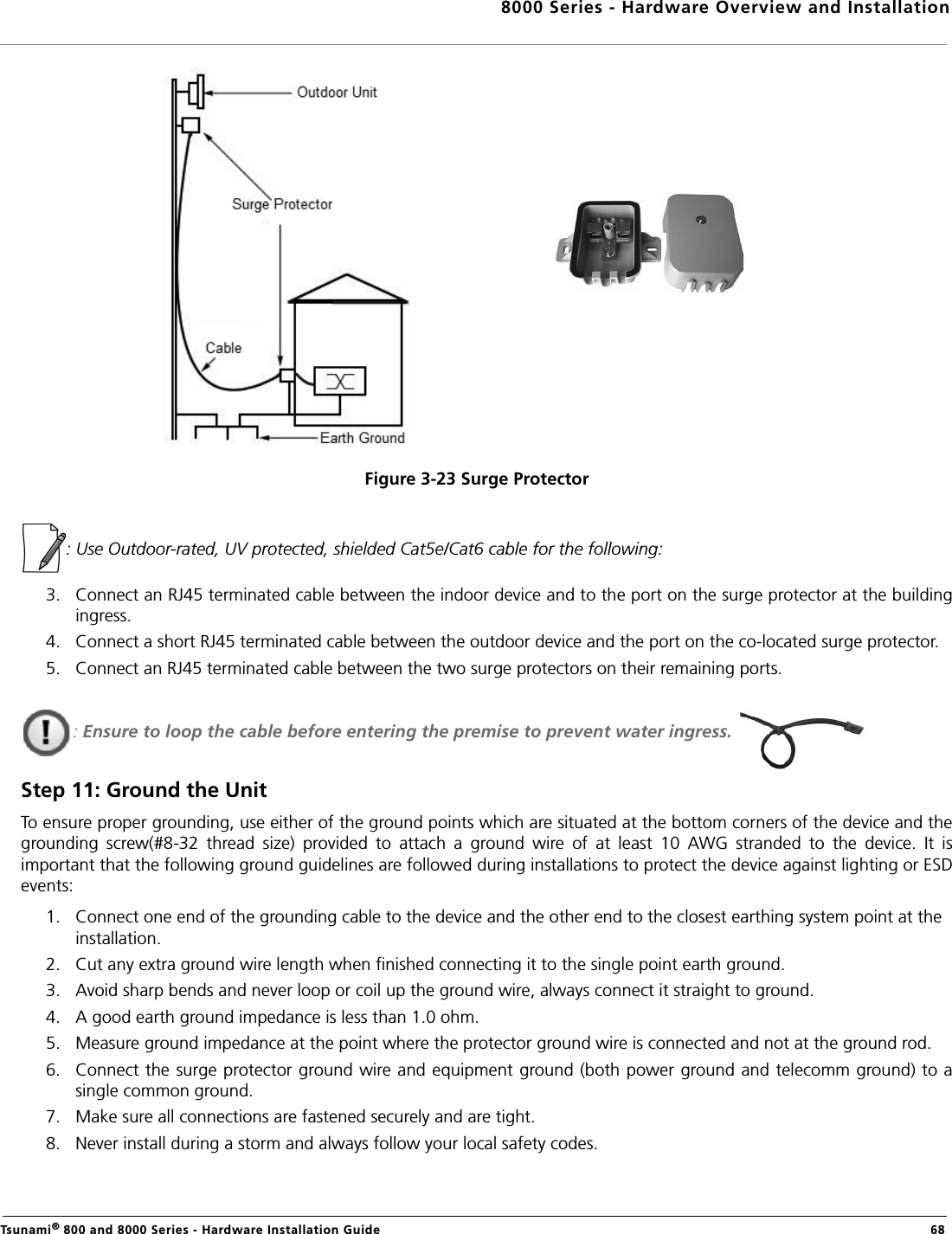

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 68Figure 3-23 Surge Protector: Use Outdoor-rated, UV protected, shielded Cat5e/Cat6 cable for the following:3. Connect an RJ45 terminated cable between the indoor device and to the port on the surge protector at the buildingingress. 4. Connect a short RJ45 terminated cable between the outdoor device and the port on the co-located surge protector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress. Step 11: Ground the UnitTo ensure proper grounding, use either of the ground points which are situated at the bottom corners of the device and thegrounding screw(#8-32 thread size) provided to attach a ground wire of at least 10 AWG stranded to the device. It isimportant that the following ground guidelines are followed during installations to protect the device against lighting or ESDevents:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Measure ground impedance at the point where the protector ground wire is connected and not at the ground rod.6. Connect the surge protector ground wire and equipment ground (both power ground and telecomm ground) to asingle common ground. 7. Make sure all connections are fastened securely and are tight. 8. Never install during a storm and always follow your local safety codes.

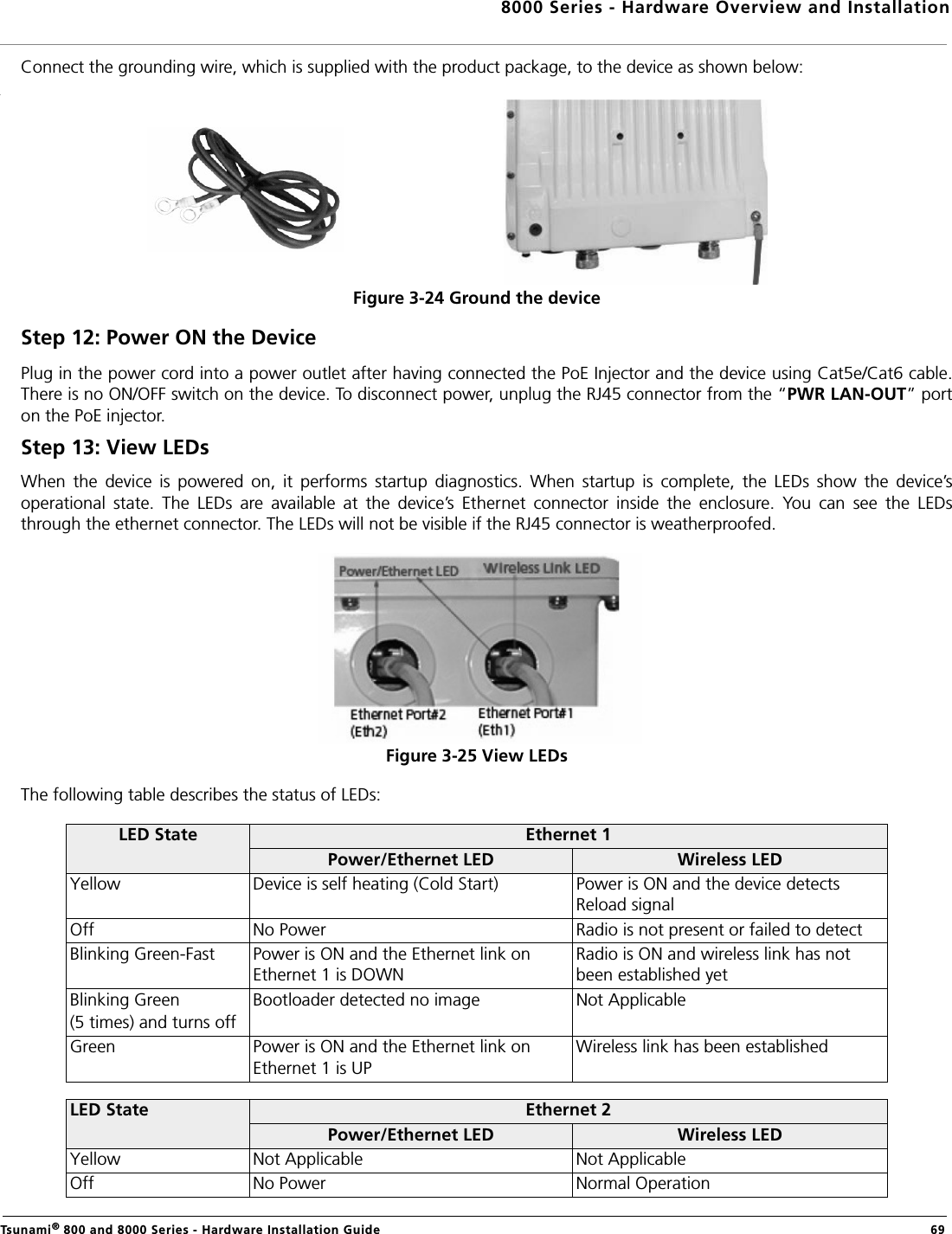

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 69Connect the grounding wire, which is supplied with the product package, to the device as shown below:Figure 3-24 Ground the deviceStep 12: Power ON the DevicePlug in the power cord into a power outlet after having connected the PoE Injector and the device using Cat5e/Cat6 cable.There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the “PWR LAN-OUT” porton the PoE injector.Step 13: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational state. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LEDsthrough the ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.Figure 3-25 View LEDsThe following table describes the status of LEDs:LED State Ethernet 1Power/Ethernet LED Wireless LEDYellow Device is self heating (Cold Start) Power is ON and the device detects Reload signalOff No Power Radio is not present or failed to detectBlinking Green-Fast Power is ON and the Ethernet link on Ethernet 1 is DOWNRadio is ON and wireless link has not been established yet Blinking Green(5 times) and turns offBootloader detected no image Not ApplicableGreen Power is ON and the Ethernet link on Ethernet 1 is UPWireless link has been established LED State Ethernet 2Power/Ethernet LED Wireless LEDYellow Not Applicable Not ApplicableOff No Power Normal Operation

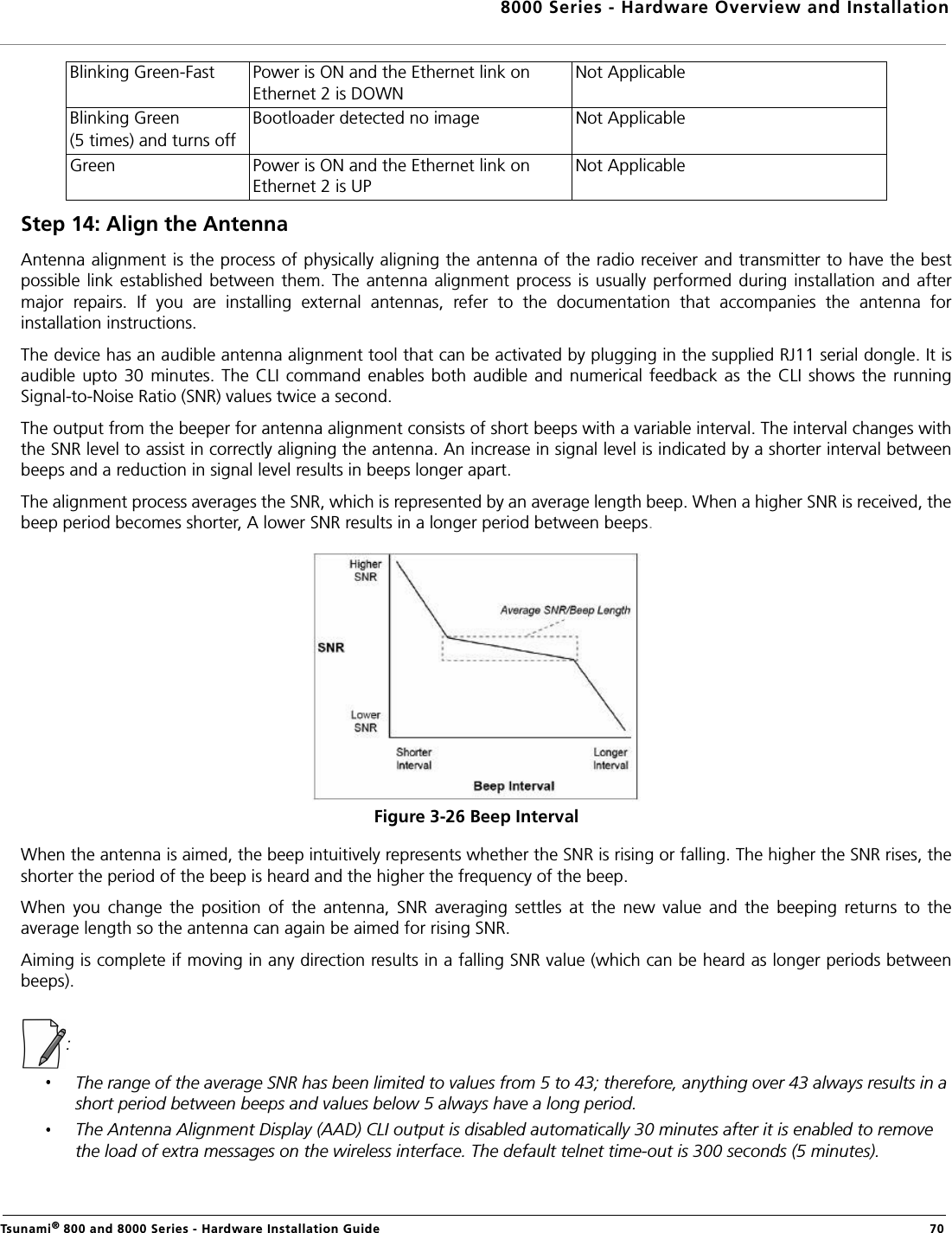

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 70Step 14: Align the AntennaAntenna alignment is the process of physically aligning the antenna of the radio receiver and transmitter to have the bestpossible link established between them. The antenna alignment process is usually performed during installation and aftermajor repairs. If you are installing external antennas, refer to the documentation that accompanies the antenna forinstallation instructions. The device has an audible antenna alignment tool that can be activated by plugging in the supplied RJ11 serial dongle. It isaudible upto 30 minutes. The CLI command enables both audible and numerical feedback as the CLI shows the runningSignal-to-Noise Ratio (SNR) values twice a second.The output from the beeper for antenna alignment consists of short beeps with a variable interval. The interval changes withthe SNR level to assist in correctly aligning the antenna. An increase in signal level is indicated by a shorter interval betweenbeeps and a reduction in signal level results in beeps longer apart.The alignment process averages the SNR, which is represented by an average length beep. When a higher SNR is received, thebeep period becomes shorter, A lower SNR results in a longer period between beeps.Figure 3-26 Beep IntervalWhen the antenna is aimed, the beep intuitively represents whether the SNR is rising or falling. The higher the SNR rises, theshorter the period of the beep is heard and the higher the frequency of the beep.When you change the position of the antenna, SNR averaging settles at the new value and the beeping returns to theaverage length so the antenna can again be aimed for rising SNR.Aiming is complete if moving in any direction results in a falling SNR value (which can be heard as longer periods betweenbeeps).:The range of the average SNR has been limited to values from 5 to 43; therefore, anything over 43 always results in a short period between beeps and values below 5 always have a long period.The Antenna Alignment Display (AAD) CLI output is disabled automatically 30 minutes after it is enabled to remove the load of extra messages on the wireless interface. The default telnet time-out is 300 seconds (5 minutes). Blinking Green-Fast Power is ON and the Ethernet link on Ethernet 2 is DOWNNot ApplicableBlinking Green(5 times) and turns offBootloader detected no image Not ApplicableGreen Power is ON and the Ethernet link on Ethernet 2 is UPNot Applicable

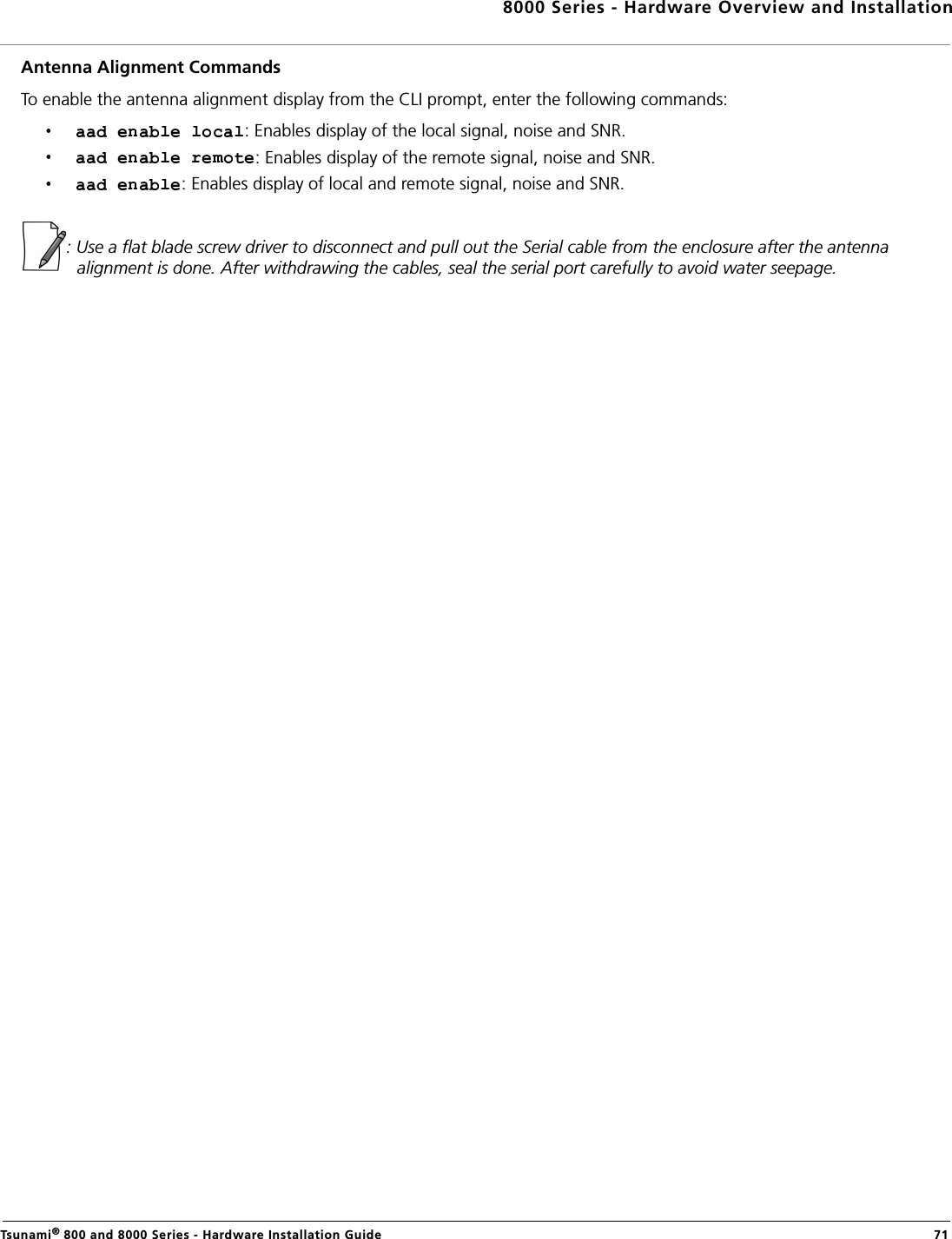

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 71Antenna Alignment CommandsTo enable the antenna alignment display from the CLI prompt, enter the following commands: : Enables display of the local signal, noise and SNR. : Enables display of the remote signal, noise and SNR. : Enables display of local and remote signal, noise and SNR. : Use a flat blade screw driver to disconnect and pull out the Serial cable from the enclosure after the antenna alignment is done. After withdrawing the cables, seal the serial port carefully to avoid water seepage.
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 723.3 MP-8150-CPE / QB-8150-LNK-12/50This section provides the hardware overview and installation method for the following products: MP-8150-CPEQB-8150-LNK-12/503.3.1 Hardware OverviewFigure 3-27 MP-8150-CPE / QB-8150-EPR-12 / QB-8150-EPR-50A detailed description about the various components of the device are explained in the following sections.3.3.1.1 Ethernet Port (PoE IN and Data)The device comes with auto-sensing 10/100 BASE-T Ethernet port with configurable Tx modes and speeds.The Ethernet port of the device allows the user to connect to the LAN by using Cat5/5e or better Ethernet cable, and alsopower ON the device by using the Power over Ethernet (PoE) Injector supplied with the product package.The device receives 48 VDC via a standard Cat5/5e or better cable connected to the Ethernet port.Maximum power supplied to the device is 19 Watts. The device typically draws 7 Watts.: Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.3.3.1.2 Serial PortThe Serial Port is used for debugging and management of the device through Command Line Interface (CLI).Recommended Ethernet Cable SpecificationsType Cat5/5e or better cable, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the PC to the PoE, and the cable from the PoE to the device. Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.

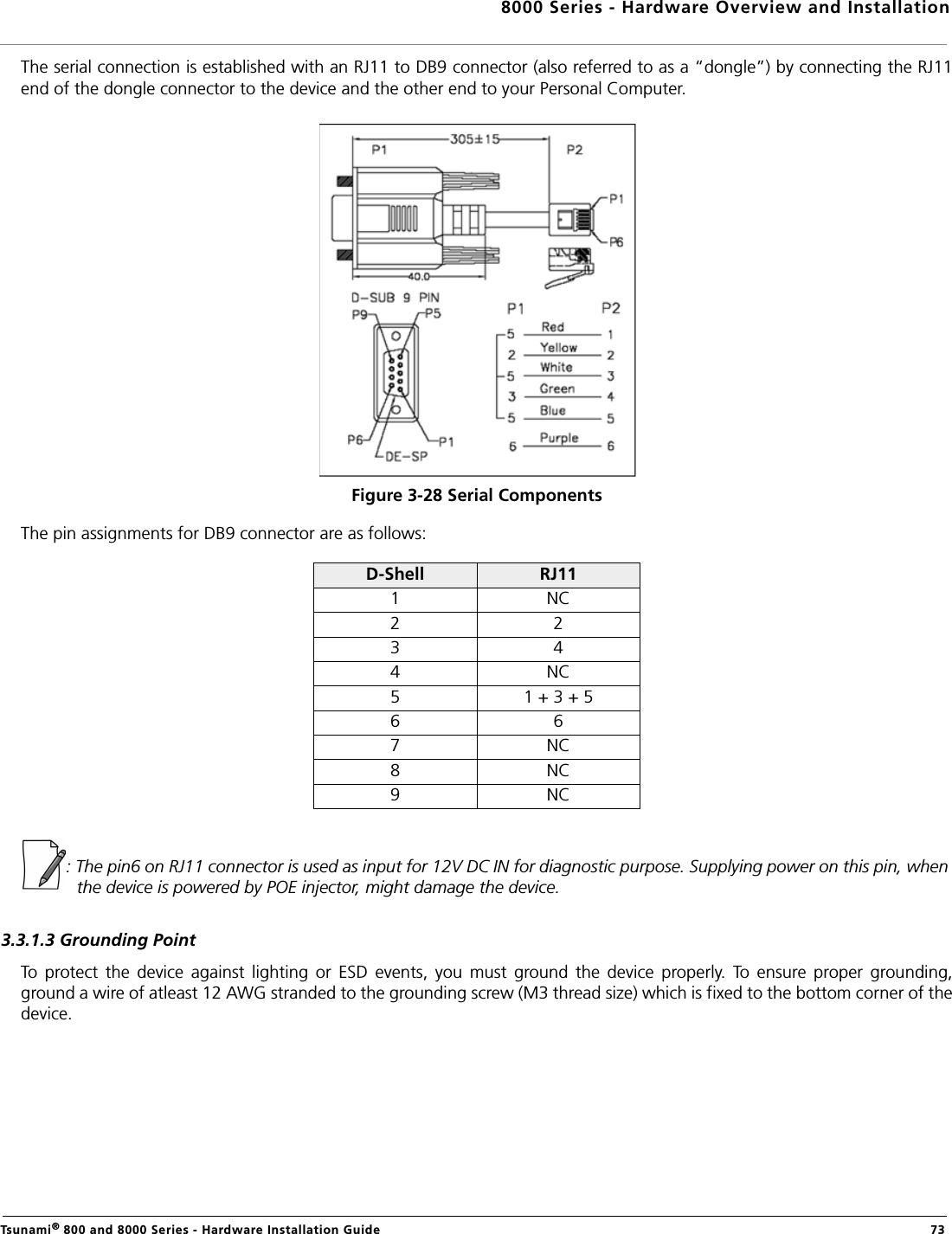

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 73The serial connection is established with an RJ11 to DB9 connector (also referred to as a “dongle”) by connecting the RJ11end of the dongle connector to the device and the other end to your Personal Computer.Figure 3-28 Serial ComponentsThe pin assignments for DB9 connector are as follows:: The pin6 on RJ11 connector is used as input for 12V DC IN for diagnostic purpose. Supplying power on this pin, when the device is powered by POE injector, might damage the device. 3.3.1.3 Grounding PointTo protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding,ground a wire of atleast 12 AWG stranded to the grounding screw (M3 thread size) which is fixed to the bottom corner of thedevice.D-Shell RJ111 NC2 23 44 NC5 1 + 3 + 56 67 NC8 NC9 NC

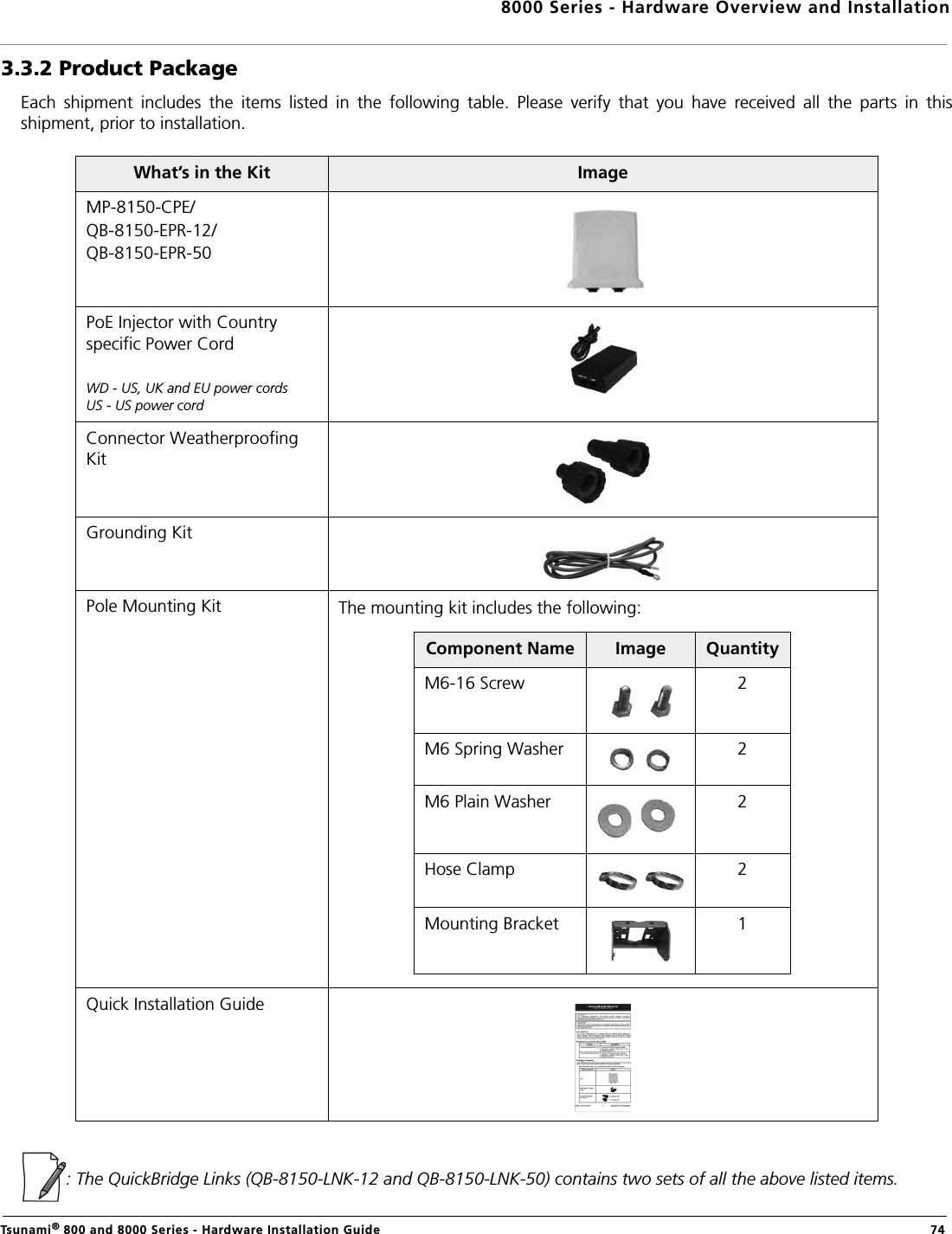

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 743.3.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in thisshipment, prior to installation. : The QuickBridge Links (QB-8150-LNK-12 and QB-8150-LNK-50) contains two sets of all the above listed items.What’s in the Kit ImageMP-8150-CPE/QB-8150-EPR-12/QB-8150-EPR-50PoE Injector with Country specific Power CordWD - US, UK and EU power cordsUS - US power cord Connector Weatherproofing KitGrounding KitPole Mounting Kit The mounting kit includes the following:Quick Installation GuideComponent Name Image QuantityM6-16 Screw 2 M6 Spring Washer 2M6 Plain Washer 2Hose Clamp 2Mounting Bracket 1

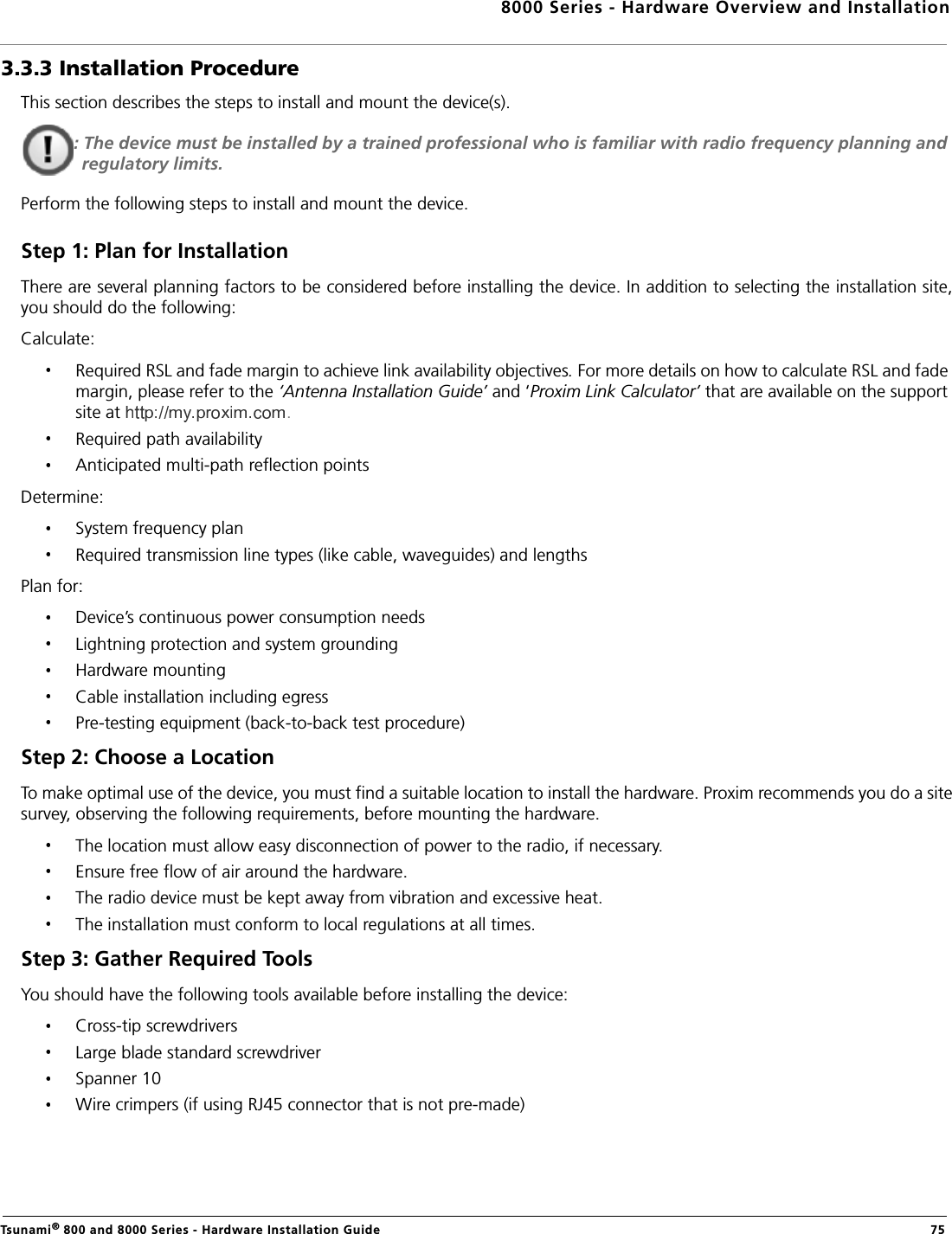

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 753.3.3 Installation ProcedureThis section describes the steps to install and mount the device(s).: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:Calculate:Required RSL and fade margin to achieve link availability objectives. For more details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ that are available on the support site at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System frequency planRequired transmission line types (like cable, waveguides) and lengthsPlan for:Device’s continuous power consumption needsLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. Proxim recommends you do a sitesurvey, observing the following requirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversLarge blade standard screwdriverSpanner 10 Wire crimpers (if using RJ45 connector that is not pre-made)

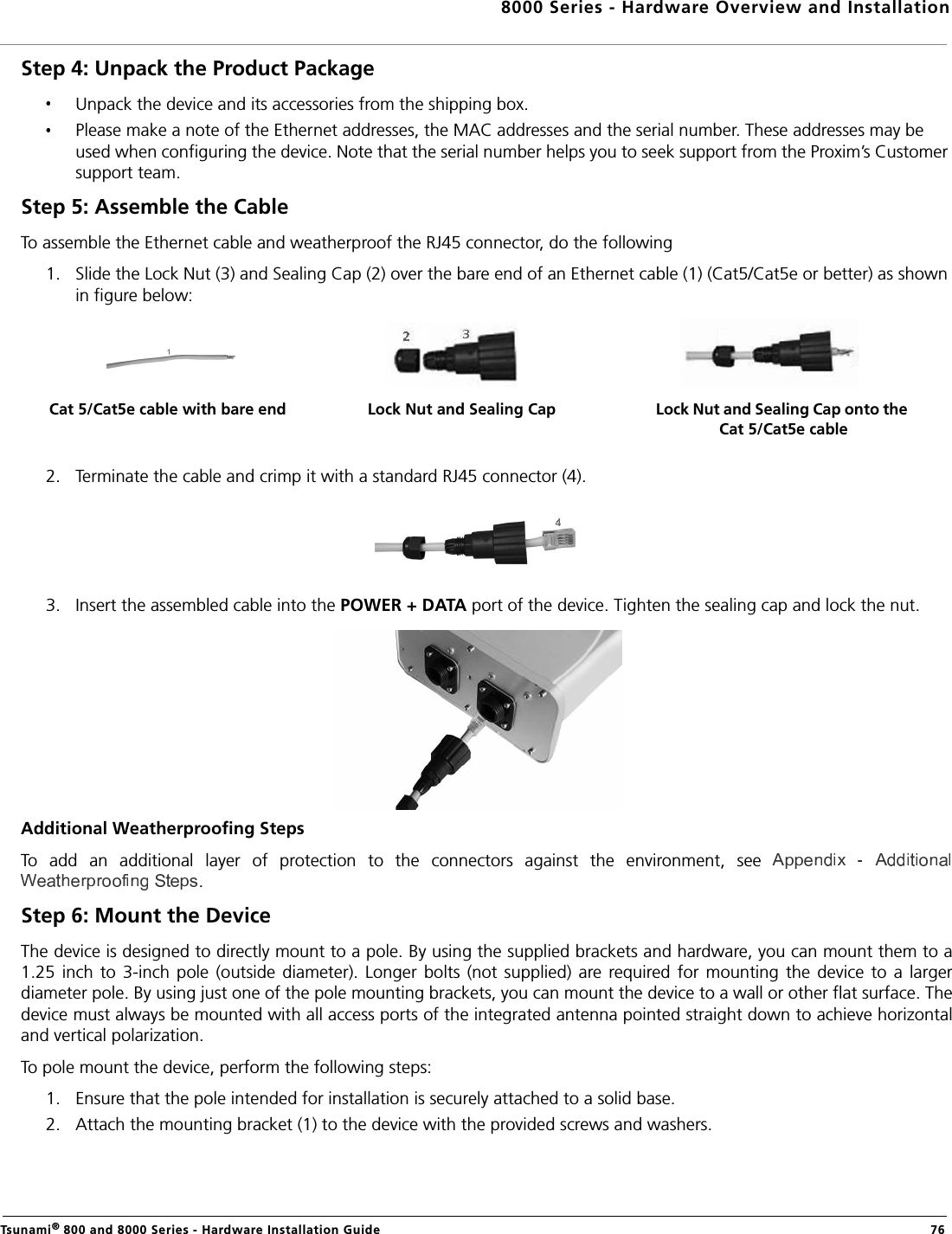

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 76Step 4: Unpack the Product Package Unpack the device and its accessories from the shipping box.Please make a note of the Ethernet addresses, the MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team.Step 5: Assemble the Cable To assemble the Ethernet cable and weatherproof the RJ45 connector, do the following1. Slide the Lock Nut (3) and Sealing Cap (2) over the bare end of an Ethernet cable (1) (Cat5/Cat5e or better) as shown in figure below:2. Terminate the cable and crimp it with a standard RJ45 connector (4). 3. Insert the assembled cable into the POWER + DATA port of the device. Tighten the sealing cap and lock the nut.Additional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .Step 6: Mount the DeviceThe device is designed to directly mount to a pole. By using the supplied brackets and hardware, you can mount them to a1.25 inch to 3-inch pole (outside diameter). Longer bolts (not supplied) are required for mounting the device to a largerdiameter pole. By using just one of the pole mounting brackets, you can mount the device to a wall or other flat surface. Thedevice must always be mounted with all access ports of the integrated antenna pointed straight down to achieve horizontaland vertical polarization. To pole mount the device, perform the following steps:1. Ensure that the pole intended for installation is securely attached to a solid base.2. Attach the mounting bracket (1) to the device with the provided screws and washers.Lock Nut and Sealing Cap Lock Nut and Sealing Cap onto the Cat 5/Cat5e cableCat 5/Cat5e cable with bare end

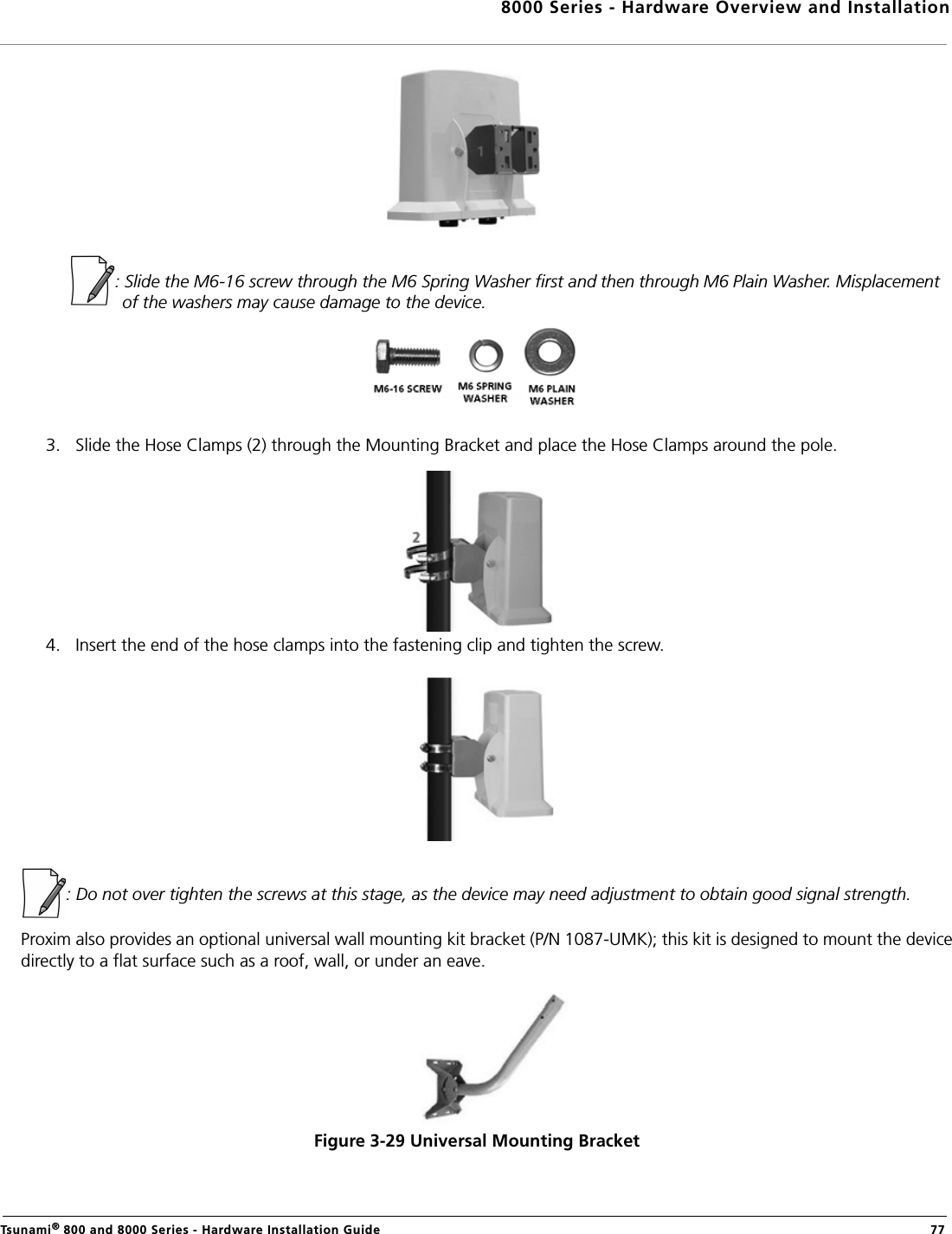

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 77 : Slide the M6-16 screw through the M6 Spring Washer first and then through M6 Plain Washer. Misplacement of the washers may cause damage to the device.3. Slide the Hose Clamps (2) through the Mounting Bracket and place the Hose Clamps around the pole.4. Insert the end of the hose clamps into the fastening clip and tighten the screw.: Do not over tighten the screws at this stage, as the device may need adjustment to obtain good signal strength.Proxim also provides an optional universal wall mounting kit bracket (P/N 1087-UMK); this kit is designed to mount the devicedirectly to a flat surface such as a roof, wall, or under an eave.Figure 3-29 Universal Mounting Bracket
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 78Step 7: Plug in the Cables1. Plug one end of the Cat5/Cat5e or better Ethernet cable (5.5 mm/.217 in OD maximum) into the Ethernet (RJ45) jack of the device. Ensure that the cable connector is latched securely. You can hear a click sound when the cable connector latches into the jack, then tighten the sealing nut by hand. : Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.2. Connect the other end of the Cat5/Cat5e or better cable to the LAN+DC port on the PoE Injector.Figure 3-30 PoE Injector3. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interface cardin the Personal Computer and the RJ45 LAN port on the PoE Injector.4. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub. Connect another Ethernet cable between the hub andthe RJ45 LAN port on the PoE Injector.Step 8: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point. : To buy a suitable Surge Protector, place an order separately with your distributor. Perform the following steps to ensure proper surge protection:1. Mount the provided surge protector near the outdoor device and use 10 AWG or a better gauge wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point by using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or a better gauge wire to connect thesurge protector’s ground lug to earth ground as shown in the figure below.

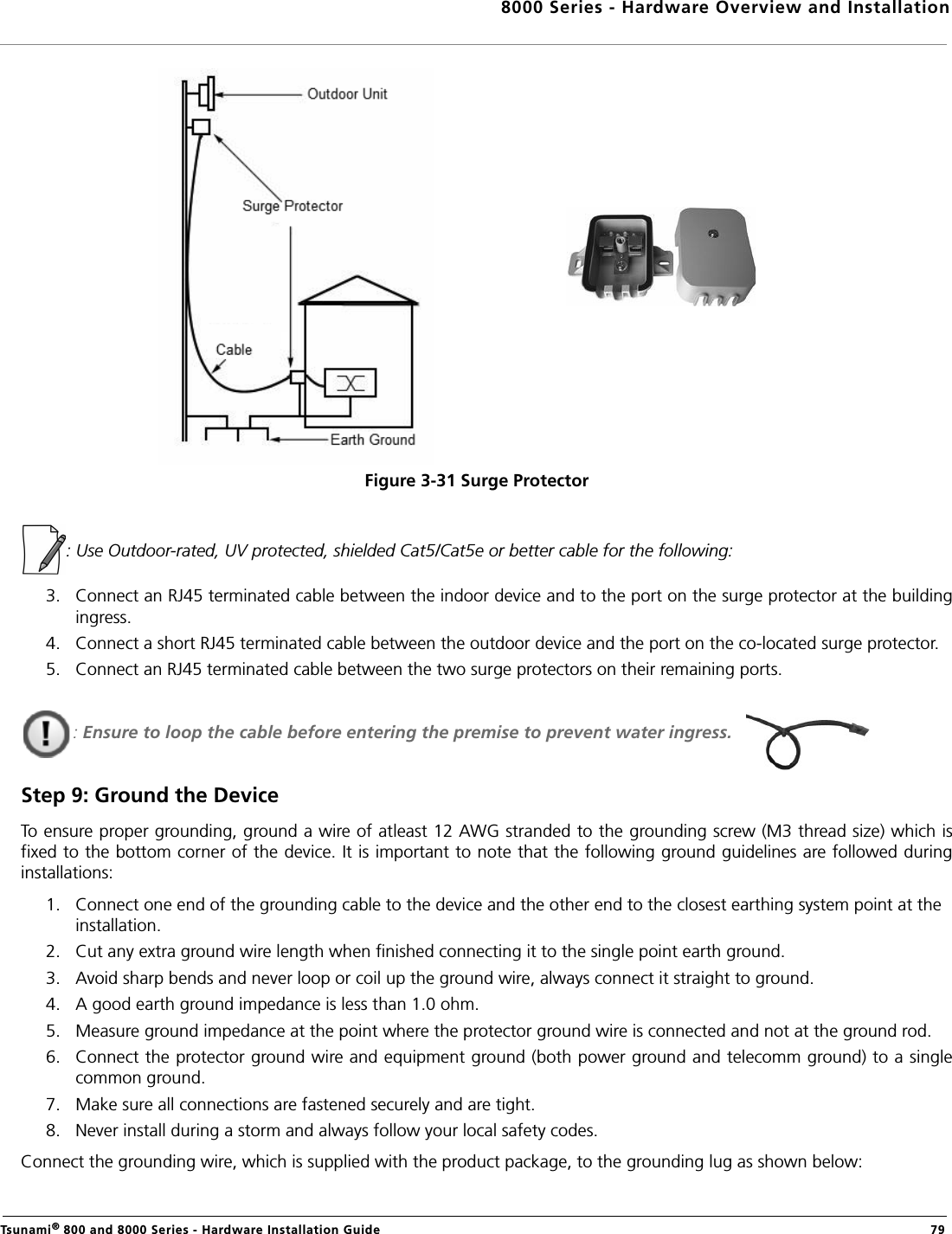

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 79Figure 3-31 Surge Protector: Use Outdoor-rated, UV protected, shielded Cat5/Cat5e or better cable for the following:3. Connect an RJ45 terminated cable between the indoor device and to the port on the surge protector at the buildingingress. 4. Connect a short RJ45 terminated cable between the outdoor device and the port on the co-located surge protector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress. Step 9: Ground the DeviceTo ensure proper grounding, ground a wire of atleast 12 AWG stranded to the grounding screw (M3 thread size) which isfixed to the bottom corner of the device. It is important to note that the following ground guidelines are followed duringinstallations:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Measure ground impedance at the point where the protector ground wire is connected and not at the ground rod.6. Connect the protector ground wire and equipment ground (both power ground and telecomm ground) to a singlecommon ground. 7. Make sure all connections are fastened securely and are tight. 8. Never install during a storm and always follow your local safety codes.Connect the grounding wire, which is supplied with the product package, to the grounding lug as shown below:

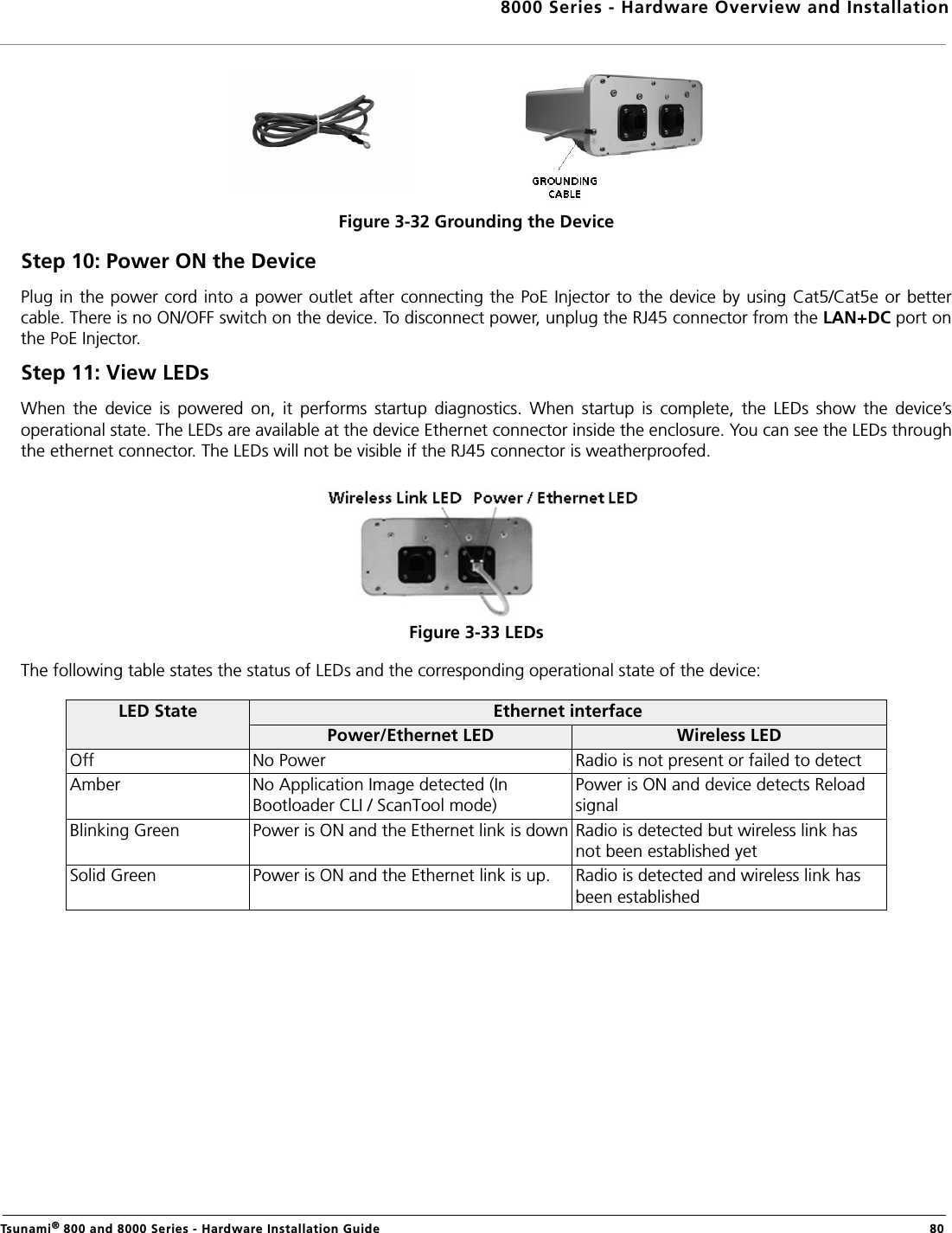

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 80Figure 3-32 Grounding the DeviceStep 10: Power ON the DevicePlug in the power cord into a power outlet after connecting the PoE Injector to the device by using Cat5/Cat5e or bettercable. There is no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the LAN+DC port onthe PoE Injector.Step 11: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational state. The LEDs are available at the device Ethernet connector inside the enclosure. You can see the LEDs throughthe ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.Figure 3-33 LEDsThe following table states the status of LEDs and the corresponding operational state of the device:LED State Ethernet interfacePower/Ethernet LED Wireless LEDOff No Power Radio is not present or failed to detectAmber No Application Image detected (In Bootloader CLI / ScanTool mode)Power is ON and device detects Reload signalBlinking Green Power is ON and the Ethernet link is down Radio is detected but wireless link has not been established yetSolid Green Power is ON and the Ethernet link is up. Radio is detected and wireless link has been established

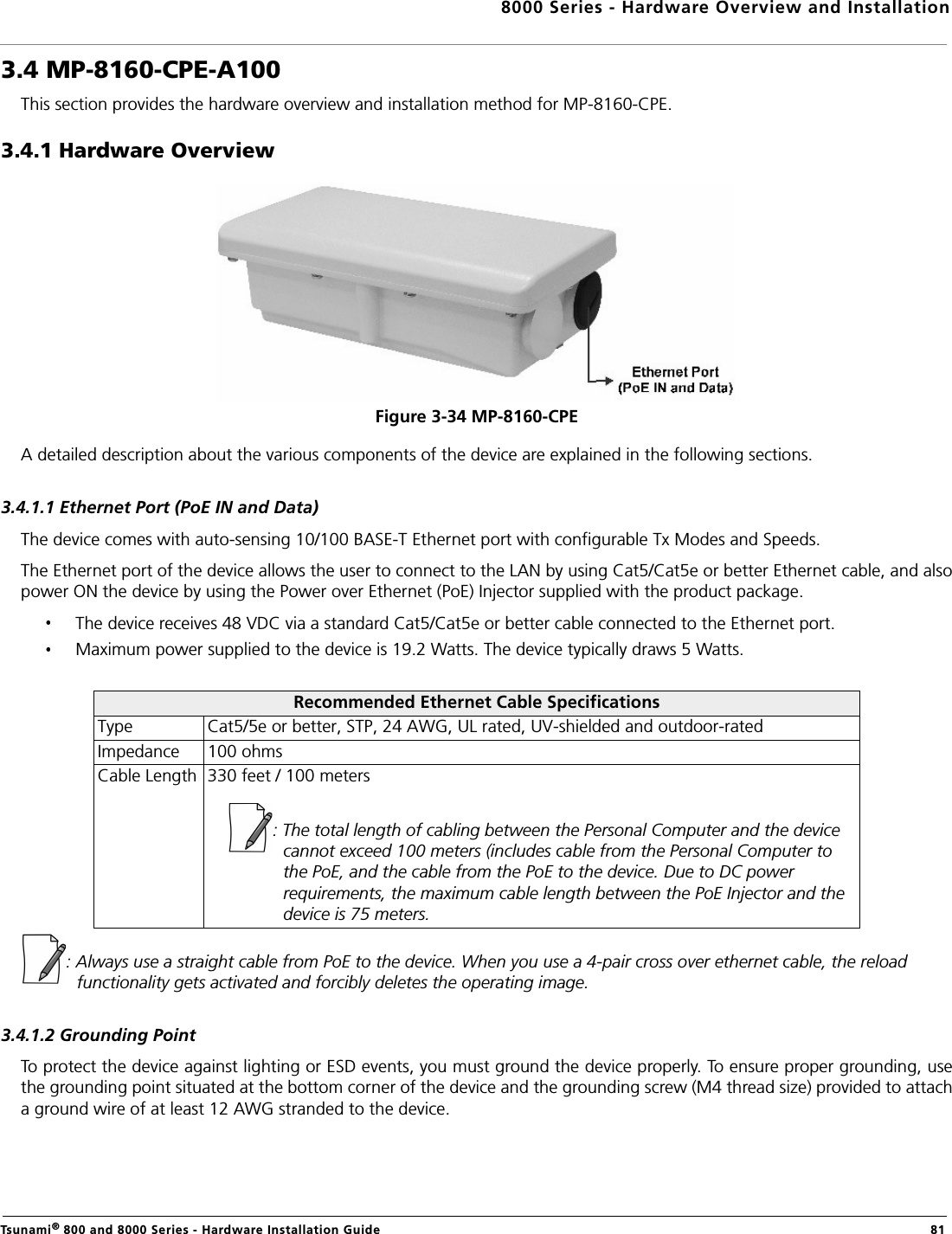

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 813.4 MP-8160-CPE-A100This section provides the hardware overview and installation method for MP-8160-CPE. 3.4.1 Hardware OverviewFigure 3-34 MP-8160-CPE A detailed description about the various components of the device are explained in the following sections.3.4.1.1 Ethernet Port (PoE IN and Data)The device comes with auto-sensing 10/100 BASE-T Ethernet port with configurable Tx Modes and Speeds.The Ethernet port of the device allows the user to connect to the LAN by using Cat5/Cat5e or better Ethernet cable, and alsopower ON the device by using the Power over Ethernet (PoE) Injector supplied with the product package.The device receives 48 VDC via a standard Cat5/Cat5e or better cable connected to the Ethernet port.Maximum power supplied to the device is 19.2 Watts. The device typically draws 5 Watts.: Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.3.4.1.2 Grounding PointTo protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding, usethe grounding point situated at the bottom corner of the device and the grounding screw (M4 thread size) provided to attacha ground wire of at least 12 AWG stranded to the device.Recommended Ethernet Cable SpecificationsType Cat5/5e or better, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device. Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 823.4.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in theshipment prior to installation. 3.4.3 Installation ProcedureThis section describes the steps to install and mount the device.: The device must be installed by a trained professional who is familiar with radio frequency planning and regulatory limits.Perform the following steps to install and mount the device.Step 1: Plan for InstallationThere are several planning factors to be considered before installing the device. In addition to selecting the installation site,you should do the following:What’s in the Kit ImageMP-8160-CPEPoE Injector and Power Cord WD - EU power cordConnector Weather Proofing KitPole Mounting KitGrounding KitQuick Installation Guide
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 83Calculate:Required RSL and fade margin to achieve link availability objectives. For more details on how to calculate RSL and fade margin, please refer to the ‘Antenna Installation Guide’ and ‘Proxim Link Calculator’ that are available on the support site at .Required path availabilityAnticipated multi-path reflection pointsDetermine:System Frequency PlanRequired transmission line types (like cable, waveguides) and lengthsPlan for:Device’s continuous power consumption needsLightning protection and system groundingHardware mountingCable installation including egressPre-testing equipment (back-to-back test procedure)Step 2: Choose a LocationTo make optimal use of the device, you must find a suitable location to install the hardware. Proxim recommends you do a sitesurvey, observing the following requirements, before mounting the hardware.The location must allow easy disconnection of power to the radio, if necessary.Ensure free flow of air around the hardware. The radio device must be kept away from vibration and excessive heat. The installation must conform to local regulations at all times.Step 3: Gather Required Tools You should have the following tools available before installing the device:Cross-tip screwdriversLarge blade standard screwdriverSpanner 13Wire crimpers (if using connectors that are not pre-made)Step 4: Unpack the Product Package Unpack the device and its accessories from the shipping box.Please make a note of the Ethernet addresses, MAC addresses and the serial number. These addresses may be used when configuring the device. Note that the serial number helps you to seek support from the Proxim’s Customer support team.Step 5: Pole Mount the Device 1. To pole-mount the device to a 1 inch diameter pole, place the mounting bracket with its small V-Groove facing the pole.2. To pole-mount the device to a 2.5 inch diameter pole, place the mounting bracket with its large V-Groove facing thepole.3. Place the device with its rear side facing the pole, and screw the M8x80mm long screws along with the spring andplain washers through the mounting bracket into the mounting holes of the device and tighten it to torque of 11N.m/100 in-lbs.

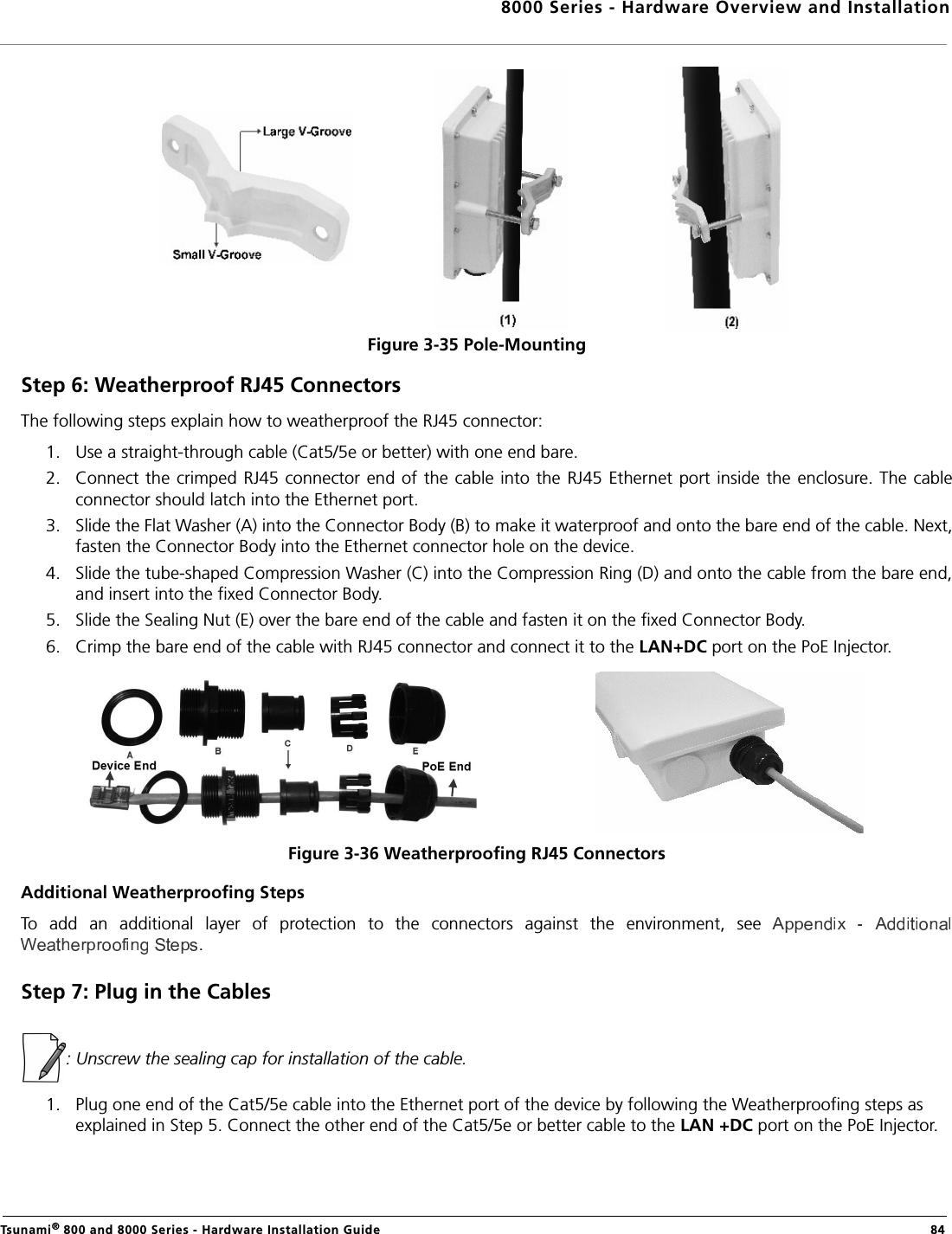

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 84Figure 3-35 Pole-MountingStep 6: Weatherproof RJ45 ConnectorsThe following steps explain how to weatherproof the RJ45 connector:1. Use a straight-through cable (Cat5/5e or better) with one end bare.2. Connect the crimped RJ45 connector end of the cable into the RJ45 Ethernet port inside the enclosure. The cableconnector should latch into the Ethernet port.3. Slide the Flat Washer (A) into the Connector Body (B) to make it waterproof and onto the bare end of the cable. Next,fasten the Connector Body into the Ethernet connector hole on the device.4. Slide the tube-shaped Compression Washer (C) into the Compression Ring (D) and onto the cable from the bare end,and insert into the fixed Connector Body.5. Slide the Sealing Nut (E) over the bare end of the cable and fasten it on the fixed Connector Body.6. Crimp the bare end of the cable with RJ45 connector and connect it to the LAN+DC port on the PoE Injector.Figure 3-36 Weatherproofing RJ45 ConnectorsAdditional Weatherproofing StepsTo add an additional layer of protection to the connectors against the environment, see .Step 7: Plug in the Cables: Unscrew the sealing cap for installation of the cable.1. Plug one end of the Cat5/5e cable into the Ethernet port of the device by following the Weatherproofing steps as explained in Step 5. Connect the other end of the Cat5/5e or better cable to the LAN +DC port on the PoE Injector.

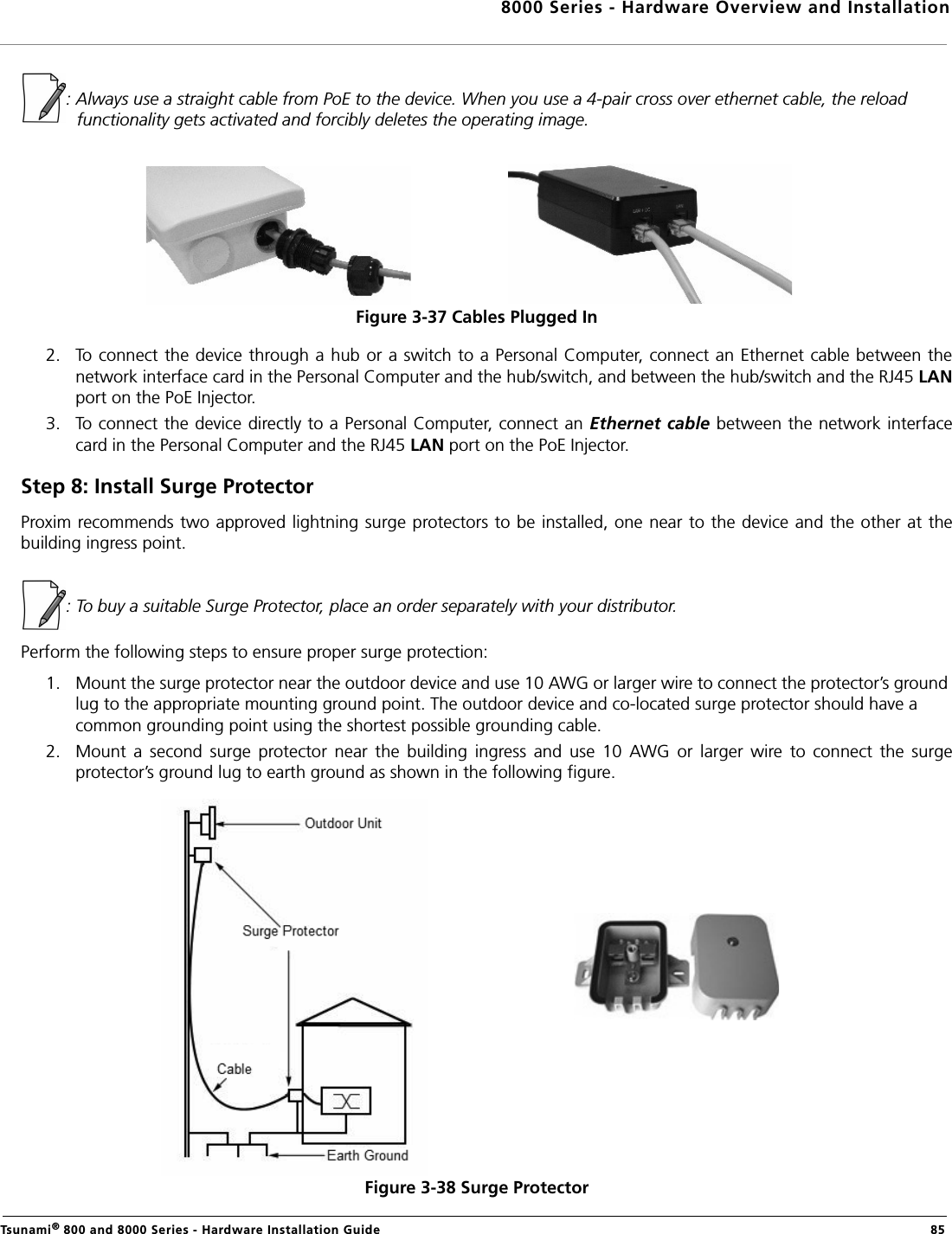

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 85: Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.Figure 3-37 Cables Plugged In2. To connect the device through a hub or a switch to a Personal Computer, connect an Ethernet cable between thenetwork interface card in the Personal Computer and the hub/switch, and between the hub/switch and the RJ45 LANport on the PoE Injector. 3. To connect the device directly to a Personal Computer, connect an Ethernet cable between the network interfacecard in the Personal Computer and the RJ45 LAN port on the PoE Injector.Step 8: Install Surge ProtectorProxim recommends two approved lightning surge protectors to be installed, one near to the device and the other at thebuilding ingress point.: To buy a suitable Surge Protector, place an order separately with your distributor. Perform the following steps to ensure proper surge protection:1. Mount the surge protector near the outdoor device and use 10 AWG or larger wire to connect the protector’s ground lug to the appropriate mounting ground point. The outdoor device and co-located surge protector should have a common grounding point using the shortest possible grounding cable.2. Mount a second surge protector near the building ingress and use 10 AWG or larger wire to connect the surgeprotector’s ground lug to earth ground as shown in the following figure.Figure 3-38 Surge Protector

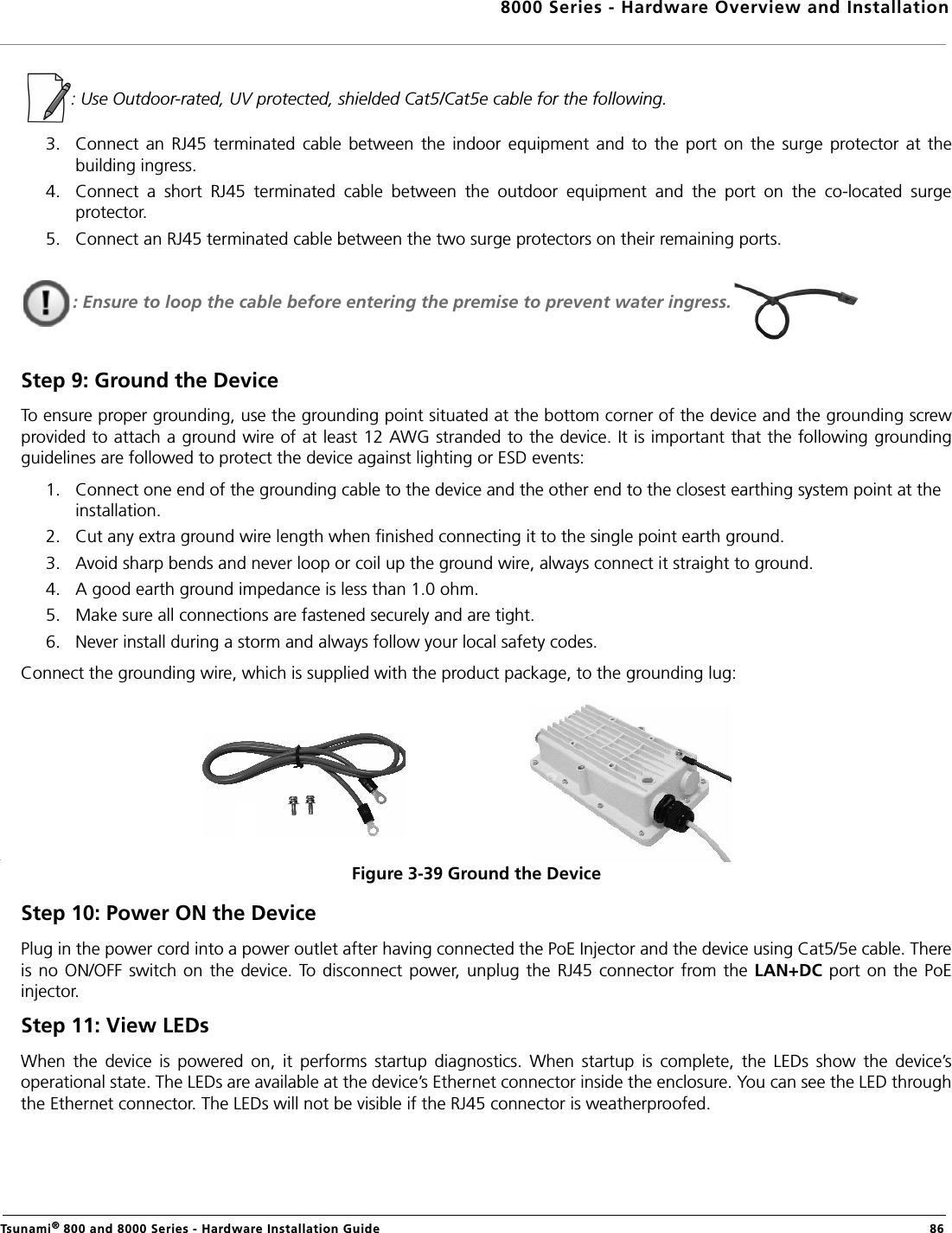

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 86 : Use Outdoor-rated, UV protected, shielded Cat5/Cat5e cable for the following.3. Connect an RJ45 terminated cable between the indoor equipment and to the port on the surge protector at thebuilding ingress. 4. Connect a short RJ45 terminated cable between the outdoor equipment and the port on the co-located surgeprotector.5. Connect an RJ45 terminated cable between the two surge protectors on their remaining ports.: Ensure to loop the cable before entering the premise to prevent water ingress.Step 9: Ground the DeviceTo ensure proper grounding, use the grounding point situated at the bottom corner of the device and the grounding screwprovided to attach a ground wire of at least 12 AWG stranded to the device. It is important that the following groundingguidelines are followed to protect the device against lighting or ESD events:1. Connect one end of the grounding cable to the device and the other end to the closest earthing system point at the installation.2. Cut any extra ground wire length when finished connecting it to the single point earth ground. 3. Avoid sharp bends and never loop or coil up the ground wire, always connect it straight to ground.4. A good earth ground impedance is less than 1.0 ohm. 5. Make sure all connections are fastened securely and are tight. 6. Never install during a storm and always follow your local safety codes.Connect the grounding wire, which is supplied with the product package, to the grounding lug:Figure 3-39 Ground the DeviceStep 10: Power ON the DevicePlug in the power cord into a power outlet after having connected the PoE Injector and the device using Cat5/5e cable. Thereis no ON/OFF switch on the device. To disconnect power, unplug the RJ45 connector from the LAN+DC port on the PoEinjector.Step 11: View LEDsWhen the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the device’soperational state. The LEDs are available at the device’s Ethernet connector inside the enclosure. You can see the LED throughthe Ethernet connector. The LEDs will not be visible if the RJ45 connector is weatherproofed.

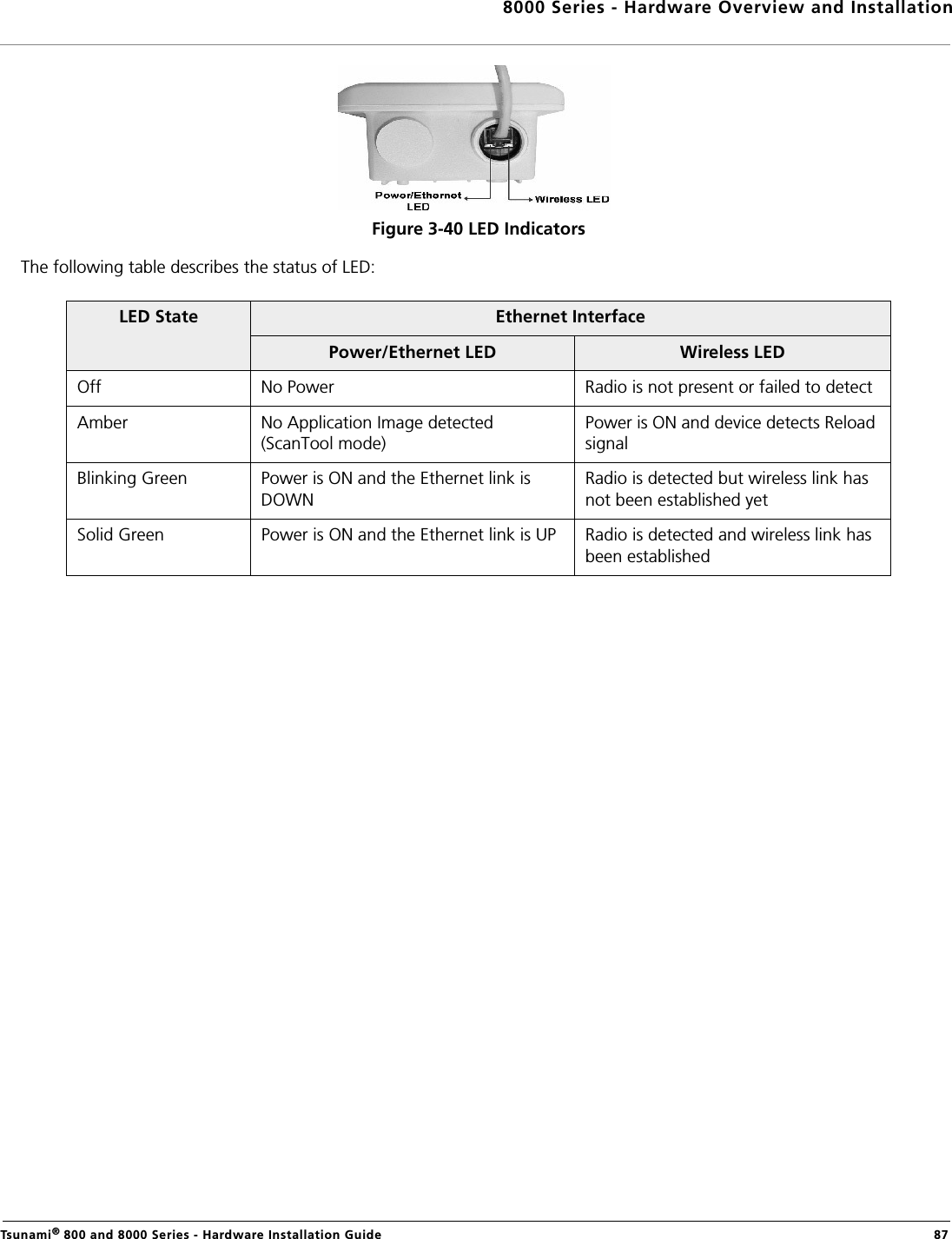

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 87Figure 3-40 LED IndicatorsThe following table describes the status of LED:LED State Ethernet InterfacePower/Ethernet LED Wireless LEDOff No Power Radio is not present or failed to detectAmber No Application Image detected (ScanTool mode)Power is ON and device detects Reload signalBlinking Green Power is ON and the Ethernet link is DOWNRadio is detected but wireless link has not been established yet Solid Green Power is ON and the Ethernet link is UP Radio is detected and wireless link has been established
8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 883.5 MP-8150-SUR-100 / QB-8150-LNK-100This section provides the hardware overview and installation method for the following product(s): MP-8150-SUR-100QB-8150-LNK-1003.5.1 Hardware OverviewFigure 3-41 MP-8150-SUR-100 / QB-8150-EPR-100A detailed description about the various components of the device are explained in the following sections.3.5.1.1 Gigabit Ethernet PortThe device comes with one auto-sensing 10/100/1000 BASE-T Ethernet port with configurable Tx Modes and speeds.The Gigabit Ethernet port (PoE IN and Data) of the device allows the user to connect to the LAN by using Cat5e/Cat6 Ethernetcable, and also power ON the device by using the Power over Ethernet (PoE) Injector supplied with the product package.The device receives 48 VDC via a a standard Cat5e/Cat6 cable connected between the PoE and the device.Maximum power supplied to the device is 32 Watts and the device typically draws 6 Watts.Above 0° Celsius internal temperature, the device does not regulate its temperature, so the power drawn is generally lower inthis temperature range. When the internal temperature gets close to the limits, the device starts to heat itself and the powerdraw increases. Powering the device when it is cold, triggers a special self-heat mode where the device is inoperable until theinternal temperature is above -20° Celsius. This is signaled by a solid yellow LED on the Ethernet connector. Once the internaltemperature is above -20° Celsius, the device boots normally.: Always use a straight cable from PoE to the device. When you use a 4-pair cross over ethernet cable, the reload functionality gets activated and forcibly deletes the operating image.Recommended Ethernet Cable SpecificationsType Cat5e/Cat6, STP, 24 AWG, UL rated, UV-shielded and outdoor-ratedImpedance 100 ohmsCable Length 330 feet / 100 meters: The total length of cabling between the Personal Computer and the device cannot exceed 100 meters (includes cable from the Personal Computer to the PoE, and the cable from the PoE to the device). Due to DC power requirements, the maximum cable length between the PoE Injector and the device is 75 meters.

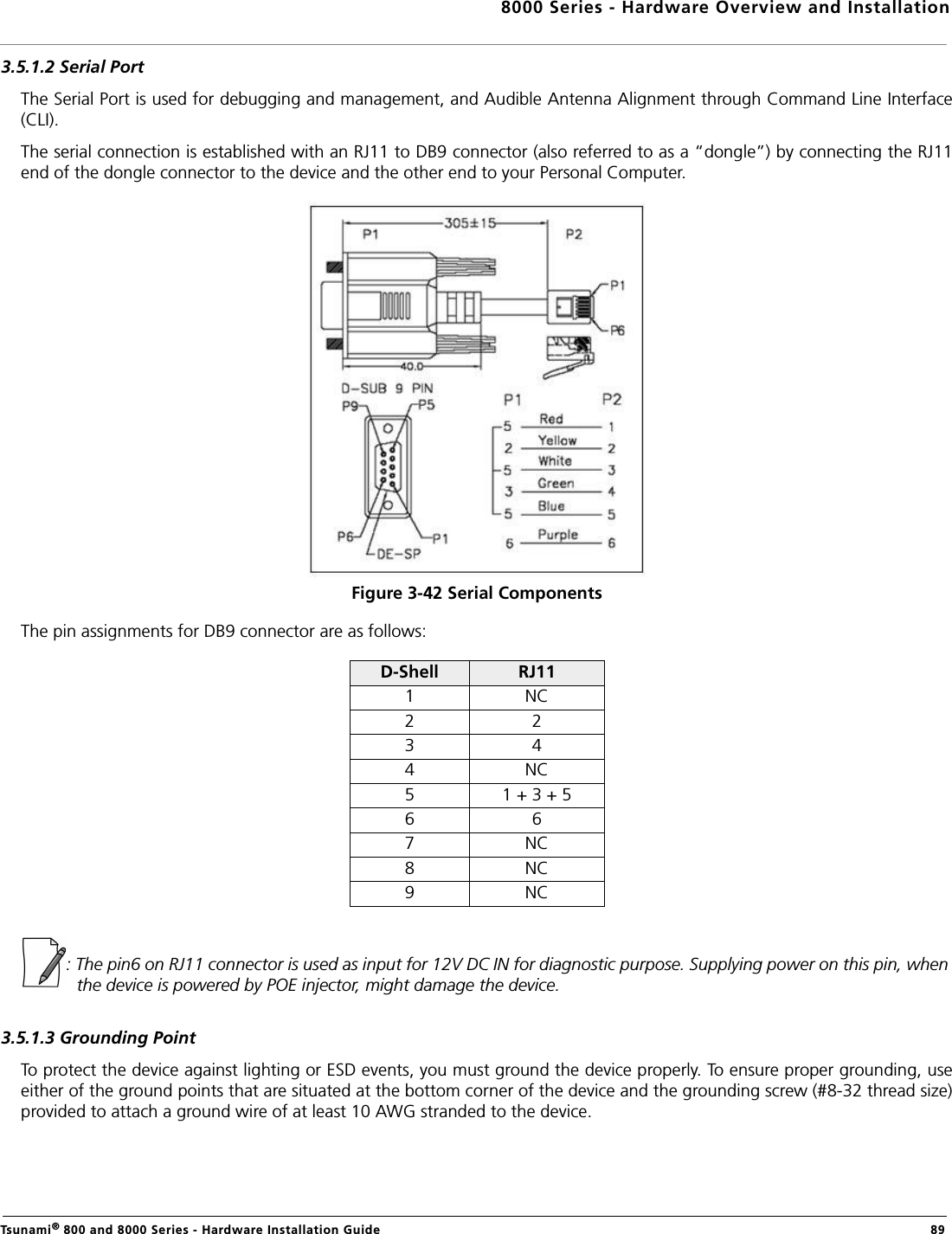

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 893.5.1.2 Serial PortThe Serial Port is used for debugging and management, and Audible Antenna Alignment through Command Line Interface(CLI).The serial connection is established with an RJ11 to DB9 connector (also referred to as a “dongle”) by connecting the RJ11end of the dongle connector to the device and the other end to your Personal Computer.Figure 3-42 Serial ComponentsThe pin assignments for DB9 connector are as follows:: The pin6 on RJ11 connector is used as input for 12V DC IN for diagnostic purpose. Supplying power on this pin, when the device is powered by POE injector, might damage the device. 3.5.1.3 Grounding PointTo protect the device against lighting or ESD events, you must ground the device properly. To ensure proper grounding, useeither of the ground points that are situated at the bottom corner of the device and the grounding screw (#8-32 thread size)provided to attach a ground wire of at least 10 AWG stranded to the device.D-Shell RJ111 NC2 23 44 NC5 1 + 3 + 56 67 NC8 NC9 NC

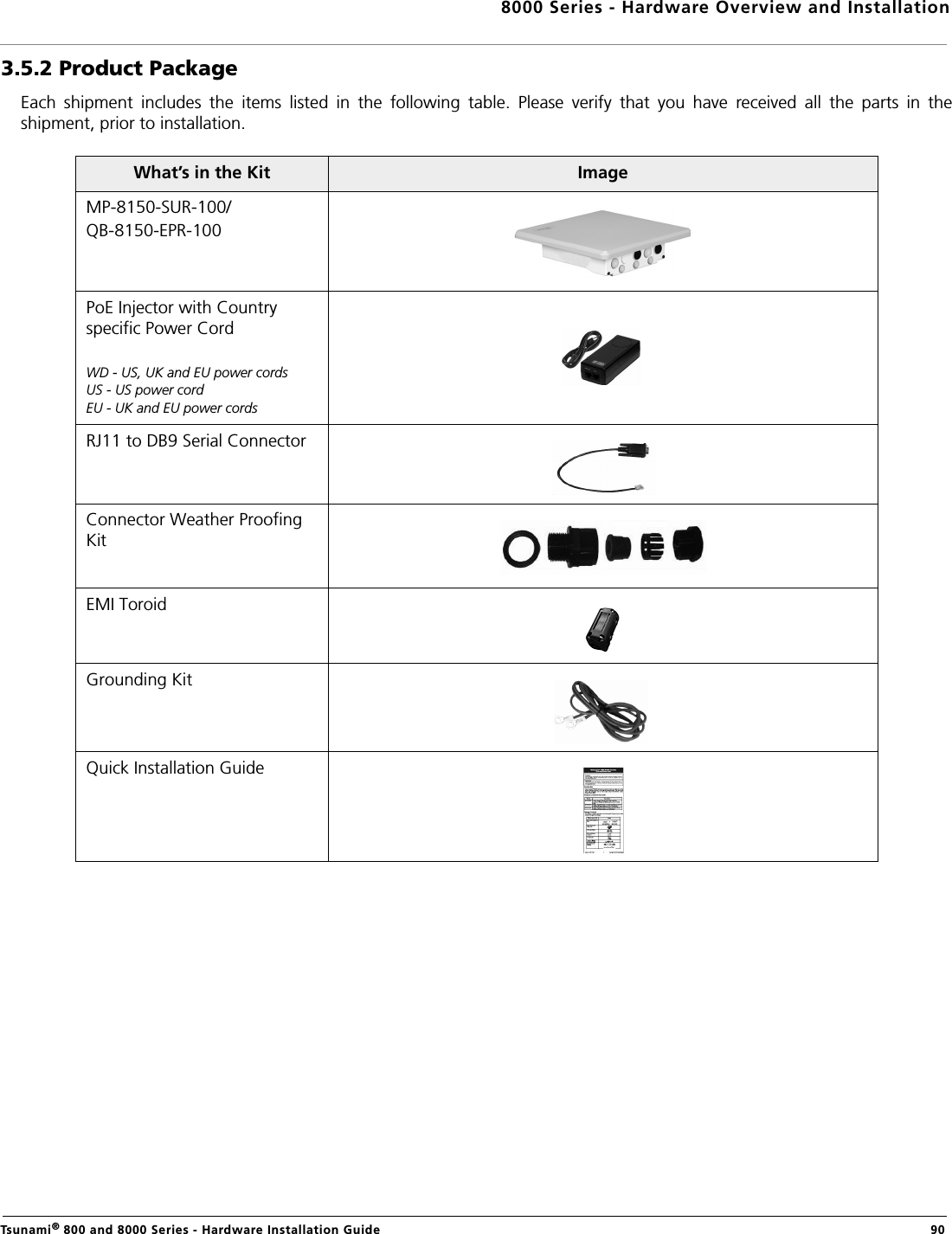

8000 Series - Hardware Overview and InstallationTsunami® 800 and 8000 Series - Hardware Installation Guide 903.5.2 Product PackageEach shipment includes the items listed in the following table. Please verify that you have received all the parts in theshipment, prior to installation.What’s in the Kit ImageMP-8150-SUR-100/QB-8150-EPR-100PoE Injector with Country specific Power CordWD - US, UK and EU power cordsUS - US power cord EU - UK and EU power cordsRJ11 to DB9 Serial ConnectorConnector Weather Proofing Kit EMI ToroidGrounding KitQuick Installation Guide
