Puretek Co PT-3519 Modem Card User Manual PT 3517 B

Puretek Industrial Co Ltd Modem Card PT 3517 B

Manual

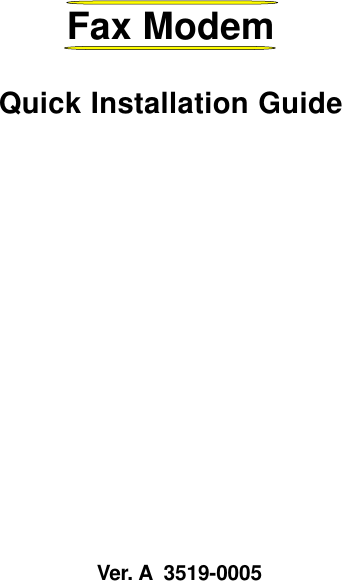

Fax ModemQuick Installation GuideVer. A 3519-0005

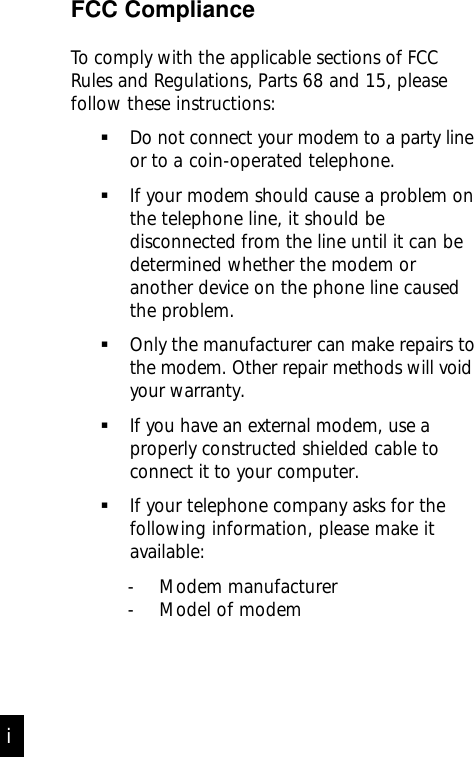

FCC ComplianceTo comply with the applicable sections of FCCRules and Regulations, Parts 68 and 15, pleasefollow these instructions:Do not connect your modem to a party lineor to a coin-operated telephone.If your modem should cause a problem onthe telephone line, it should bedisconnected from the line until it can bedetermined whether the modem oranother device on the phone line causedthe problem.Only the manufacturer can make repairs tothe modem. Other repair methods will voidyour warranty.If you have an external modem, use aproperly constructed shielded cable toconnect it to your computer.If your telephone company asks for thefollowing information, please make itavailable:- Modem manufacturer- Model of modemi

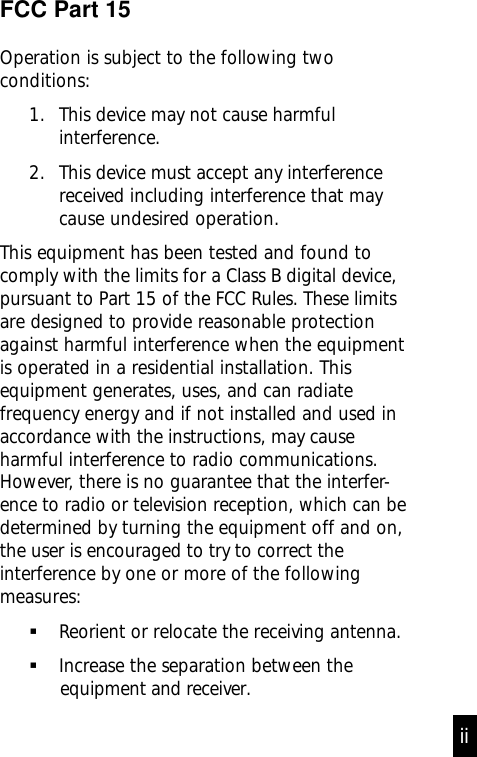

FCC Part 15Operation is subject to the following twoconditions:1. This device may not cause harmfulinterference.2. This device must accept any interferencereceived including interference that maycause undesired operation.This equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protectionagainst harmful interference when the equipmentis operated in a residential installation. Thisequipment generates, uses, and can radiatefrequency energy and if not installed and used inaccordance with the instructions, may causeharmful interference to radio communications.However, there is no guarantee that the interfer-ence to radio or television reception, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct theinterference by one or more of the followingmeasures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.ii

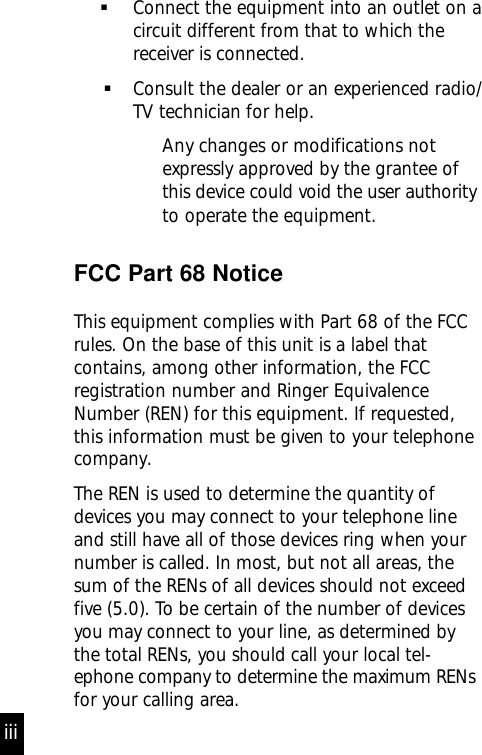

Connect the equipment into an outlet on acircuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.Any changes or modifications notexpressly approved by the grantee ofthis device could void the user authorityto operate the equipment.FCC Part 68 NoticeThis equipment complies with Part 68 of the FCCrules. On the base of this unit is a label thatcontains, among other information, the FCCregistration number and Ringer EquivalenceNumber (REN) for this equipment. If requested,this information must be given to your telephonecompany.The REN is used to determine the quantity ofdevices you may connect to your telephone lineand still have all of those devices ring when yournumber is called. In most, but not all areas, thesum of the RENs of all devices should not exceedfive (5.0). To be certain of the number of devicesyou may connect to your line, as determined bythe total RENs, you should call your local tel-ephone company to determine the maximum RENsfor your calling area.iii

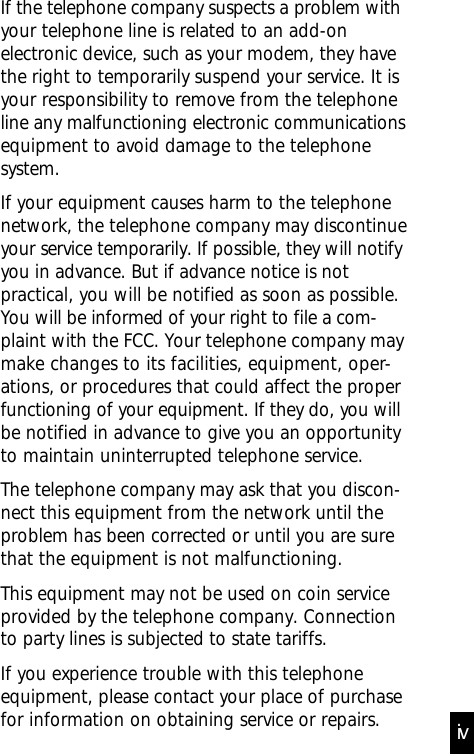

If the telephone company suspects a problem withyour telephone line is related to an add-onelectronic device, such as your modem, they havethe right to temporarily suspend your service. It isyour responsibility to remove from the telephoneline any malfunctioning electronic communicationsequipment to avoid damage to the telephonesystem.If your equipment causes harm to the telephonenetwork, the telephone company may discontinueyour service temporarily. If possible, they will notifyyou in advance. But if advance notice is notpractical, you will be notified as soon as possible.You will be informed of your right to file a com-plaint with the FCC. Your telephone company maymake changes to its facilities, equipment, oper-ations, or procedures that could affect the properfunctioning of your equipment. If they do, you willbe notified in advance to give you an opportunityto maintain uninterrupted telephone service.The telephone company may ask that you discon-nect this equipment from the network until theproblem has been corrected or until you are surethat the equipment is not malfunctioning.This equipment may not be used on coin serviceprovided by the telephone company. Connectionto party lines is subjected to state tariffs.If you experience trouble with this telephoneequipment, please contact your place of purchasefor information on obtaining service or repairs. iv

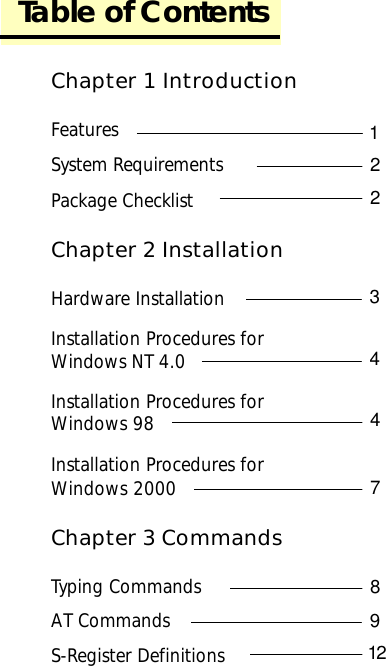

Chapter 1 IntroductionFeaturesSystem RequirementsPackage ChecklistChapter 2 InstallationHardware InstallationInstallation Procedures forWindows NT 4.0Installation Procedures forWindows 98Installation Procedures forWindows 2000Chapter 3 CommandsTyping CommandsAT CommandsS-Register DefinitionsTable of Contents1112113141417181911212

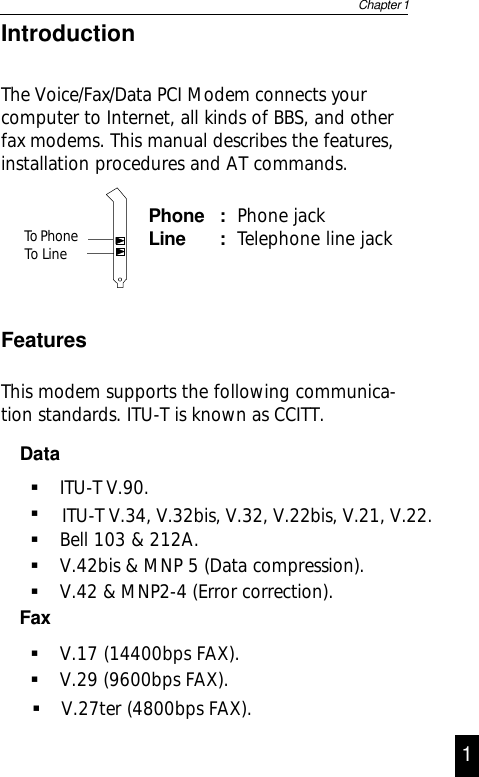

IntroductionThe Voice/Fax/Data PCI Modem connects yourcomputer to Internet, all kinds of BBS, and otherfax modems. This manual describes the features,installation procedures and AT commands.Phone : Phone jackLine : Telephone line jackFeaturesThis modem supports the following communica-tion standards. ITU-T is known as CCITT.DataITU-T V.90.Bell 103 & 212A.V.42bis & MNP 5 (Data compression).V.42 & MNP2-4 (Error correction).FaxV.17 (14400bps FAX).V.29 (9600bps FAX).Chapter 11V.27ter (4800bps FAX).ITU-T V.34, V.32bis, V.32, V.22bis, V.21, V.22. To Phone To Line

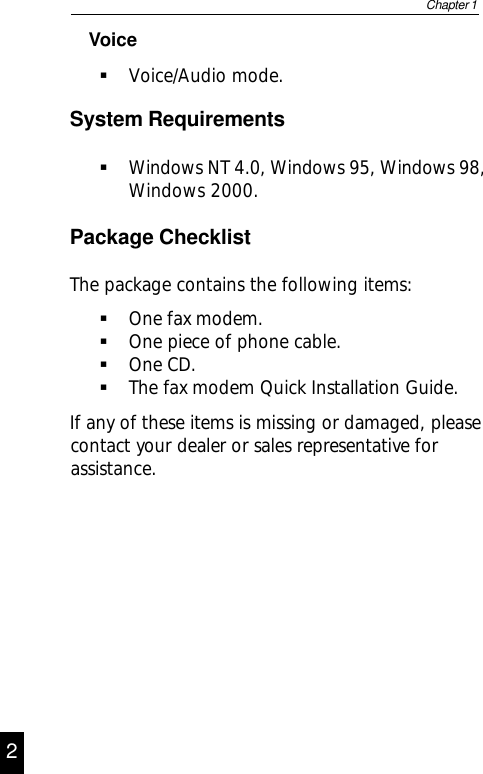

VoiceVoice/Audio mode.System RequirementsWindows NT 4.0, Windows 95, Windows 98,Windows 2000.Package ChecklistThe package contains the following items:One fax modem.One piece of phone cable.One CD.The fax modem Quick Installation Guide.If any of these items is missing or damaged, pleasecontact your dealer or sales representative forassistance.Chapter 12

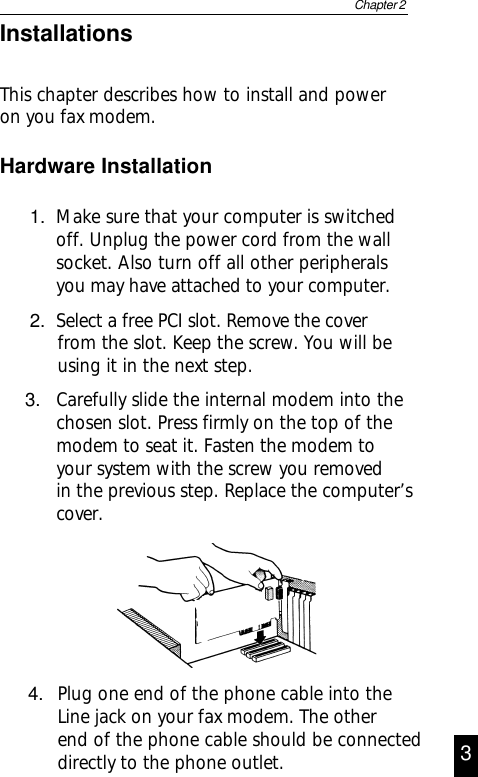

1. Make sure that your computer is switchedoff. Unplug the power cord from the wallsocket. Also turn off all other peripheralsyou may have attached to your computer.2. Select a free PCI slot. Remove the coverfrom the slot. Keep the screw. You will beusing it in the next step.Hardware InstallationChapter 23InstallationsThis chapter describes how to install and poweron you fax modem.4. Plug one end of the phone cable into theLine jack on your fax modem. The otherend of the phone cable should be connecteddirectly to the phone outlet.3. Carefully slide the internal modem into thechosen slot. Press firmly on the top of themodem to seat it. Fasten the modem toyour system with the screw you removedin the previous step. Replace the computer’scover.

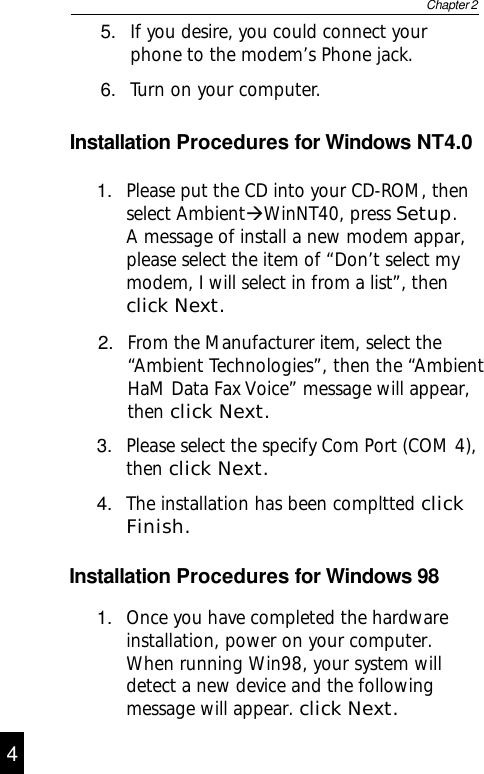

Installation Procedures for Windows NT4.01. Please put the CD into your CD-ROM, thenselect AmbientÆWinNT40, press Setup.A message of install a new modem appar,please select the item of “Don’t select mymodem, I will select in from a list”, thenclick Next.2. From the Manufacturer item, select the“Ambient Technologies”, then the “AmbientHaM Data Fax Voice” message will appear,then click Next.3. Please select the specify Com Port (COM 4),then click Next.4. The installation has been compltted clickFinish.1. Once you have completed the hardwareinstallation, power on your computer.When running Win98, your system willdetect a new device and the followingmessage will appear. click Next.Installation Procedures for Windows 984Chapter 25. If you desire, you could connect yourphone to the modem’s Phone jack.6. Turn on your computer.

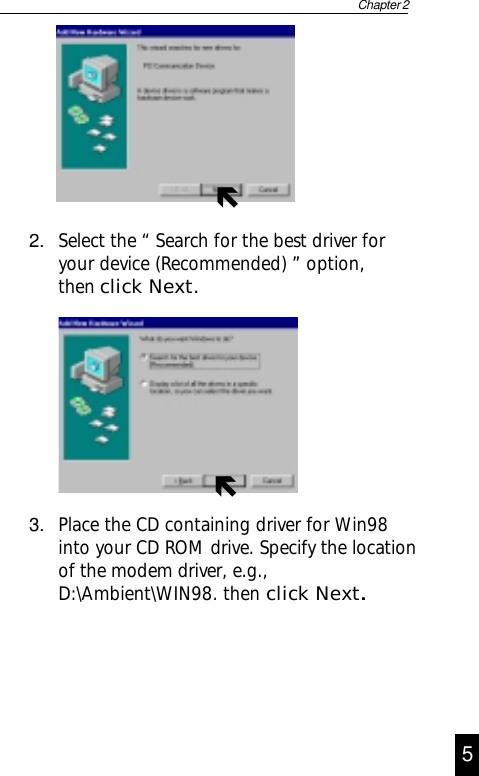

3. Place the CD containing driver for Win98into your CD ROM drive. Specify the locationof the modem driver, e.g.,D:\Ambient\WIN98. then click Next.....2. Select the “ Search for the best driver foryour device (Recommended) ” option,then click Next.Chapter 245ÑÑ

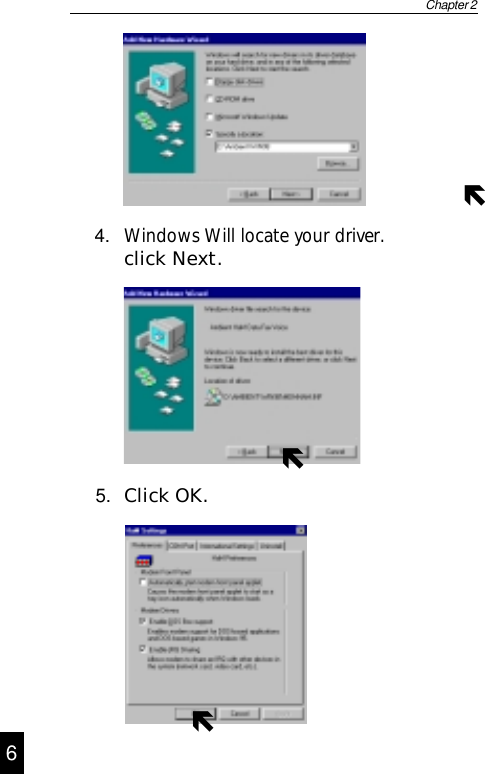

4. Windows Will locate your driver.click Next.ÑChapter 255. Click OK.6ÑÑ

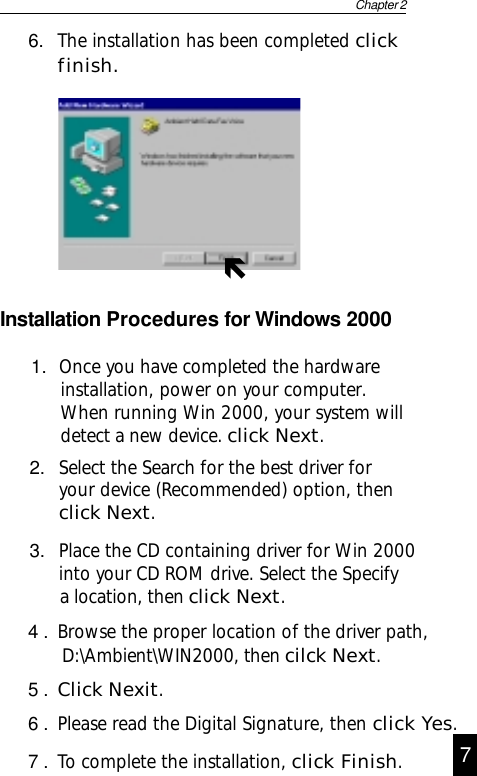

Chapter 266. The installation has been completed clickfinish.Installation Procedures for Windows 20003. Place the CD containing driver for Win 2000into your CD ROM drive. Select the Specify a location, then click Next.2. Select the Search for the best driver foryour device (Recommended) option, thenclick Next.1. Once you have completed the hardwareinstallation, power on your computer.When running Win 2000, your system willdetect a new device. click Next.4 . Browse the proper location of the driver path, D:\Ambient\WIN2000, then cilck Next.5 . Click Nexit.6 . Please read the Digital Signature, then click Yes.7 . To complete the installation, click Finish.7Ñ

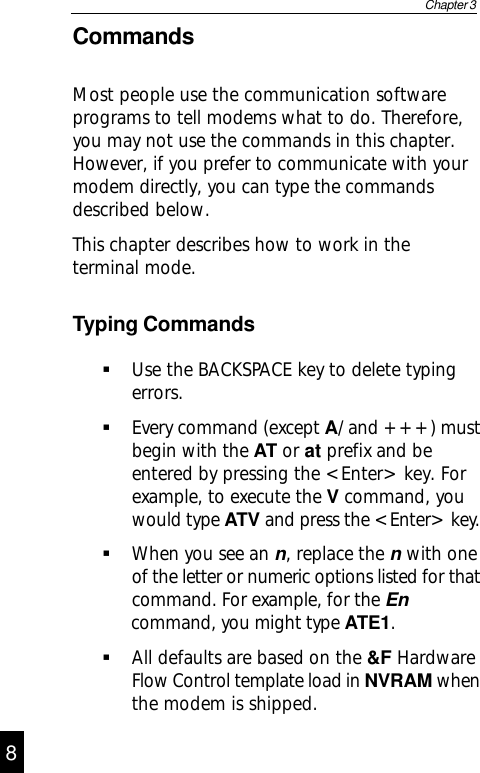

CommandsMost people use the communication softwareprograms to tell modems what to do. Therefore,you may not use the commands in this chapter.However, if you prefer to communicate with yourmodem directly, you can type the commandsdescribed below.This chapter describes how to work in theterminal mode.Typing CommandsUse the BACKSPACE key to delete typingerrors.Every command (except A/ and +++) mustbegin with the AT or at prefix and beentered by pressing the <Enter> key. Forexample, to execute the V command, youwould type ATV and press the <Enter> key.When you see an n, replace the n with oneof the letter or numeric options listed for that command. For example, for the En command, you might type ATE1.All defaults are based on the &F HardwareFlow Control template load in NVRAM whenthe modem is shipped.Chapter 398

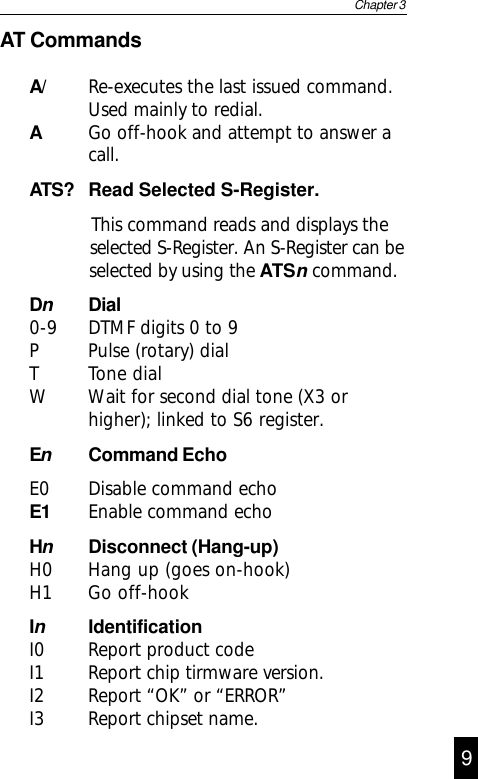

AT CommandsA/ Re-executes the last issued command.Used mainly to redial.AGo off-hook and attempt to answer acall.ATS? Read Selected S-Register. This command reads and displays the selected S-Register. An S-Register can be selected by using the ATSn command.DnDial0-9 DTMF digits 0 to 9P Pulse (rotary) dialT Tone dialW Wait for second dial tone (X3 orhigher); linked to S6 register.EnCommand EchoE0 Disable command echoE1 Enable command echoHnDisconnect (Hang-up)H0 Hang up (goes on-hook)H1 Go off-hookInIdentificationI0 Report product codeI1 Report chip tirmware version.I2 Report “OK” or “ERROR”I3 Report chipset name.Chapter 310 9

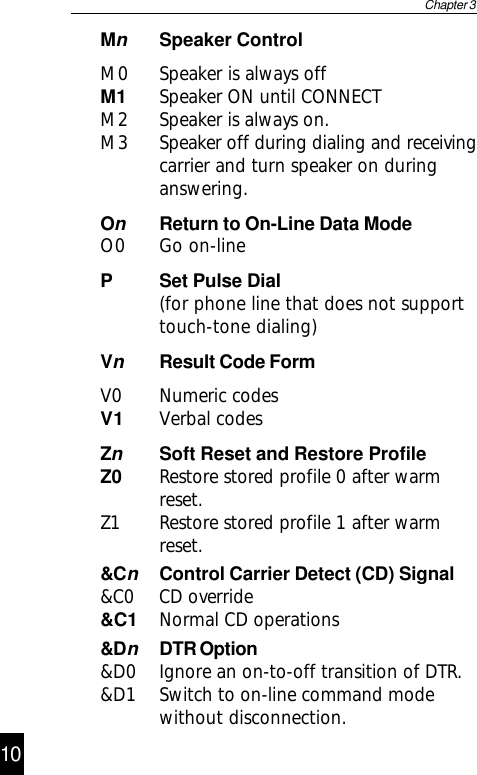

&DnDTR Option&D0 Ignore an on-to-off transition of DTR.&D1 Switch to on-line command modewithout disconnection.MnSpeaker ControlM0 Speaker is always offM1 Speaker ON until CONNECTM2 Speaker is always on.M3 Speaker off during dialing and receivingcarrier and turn speaker on duringanswering.OnReturn to On-Line Data ModeO0 Go on-lineP Set Pulse Dial(for phone line that does not supporttouch-tone dialing)VnResult Code FormV0 Numeric codesV1 Verbal codesZnSoft Reset and Restore ProfileZ0 Restore stored profile 0 after warmreset.Z1 Restore stored profile 1 after warmreset.Chapter 3&CnControl Carrier Detect (CD) Signal&C0 CD override&C1 Normal CD operations1110

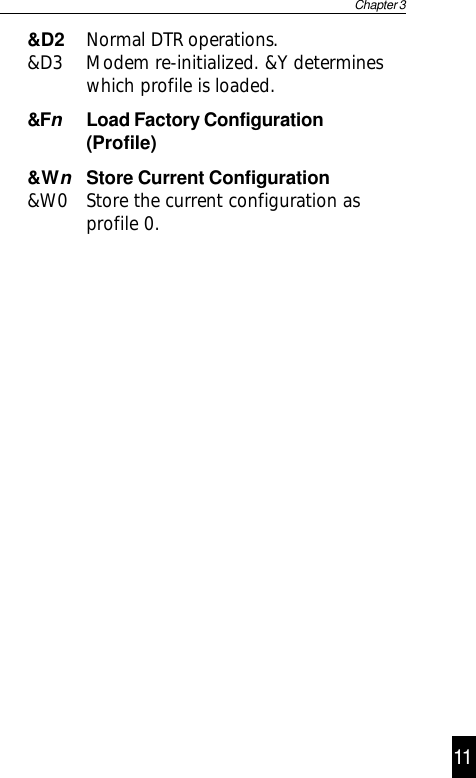

Chapter 312 11&D2 Normal DTR operations.&D3 Modem re-initialized. &Y determineswhich profile is loaded.&FnLoad Factory Configuration(Profile)&WnStore Current Configuration&W0 Store the current configuration asprofile 0.

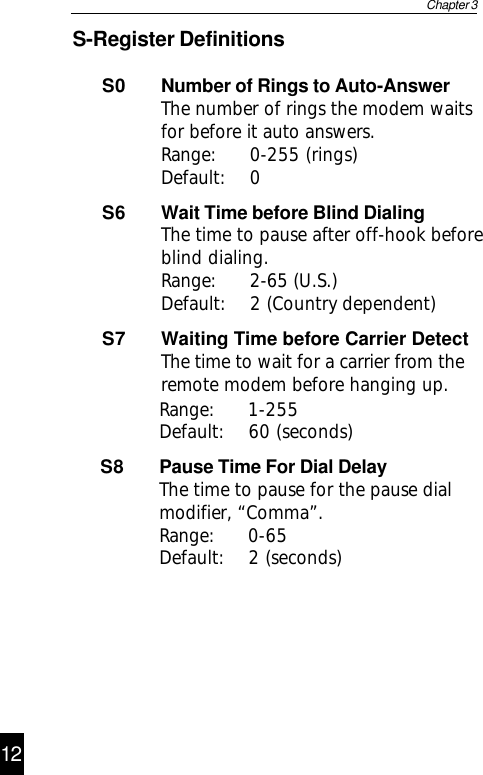

S-Register DefinitionsS0 Number of Rings to Auto-AnswerThe number of rings the modem waitsfor before it auto answers.Range: 0-255 (rings)Default: 0S6 Wait Time before Blind DialingThe time to pause after off-hook beforeblind dialing.Range: 2-65 (U.S.)Default: 2 (Country dependent)S7 Waiting Time before Carrier DetectThe time to wait for a carrier from theremote modem before hanging up.Chapter 3Default: 60 (seconds)S8 Pause Time For Dial DelayThe time to pause for the pause dialmodifier, “Comma”.Range: 0-65Default: 2 (seconds)13Range: 1-25512
