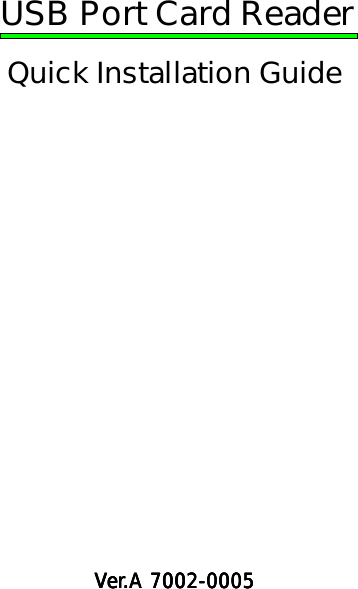

VVVVVererererer.A 7002-0005.A 7002-0005.A 7002-0005.A 7002-0005.A 7002-0005USB Port Card ReaderQuick Installation Guide

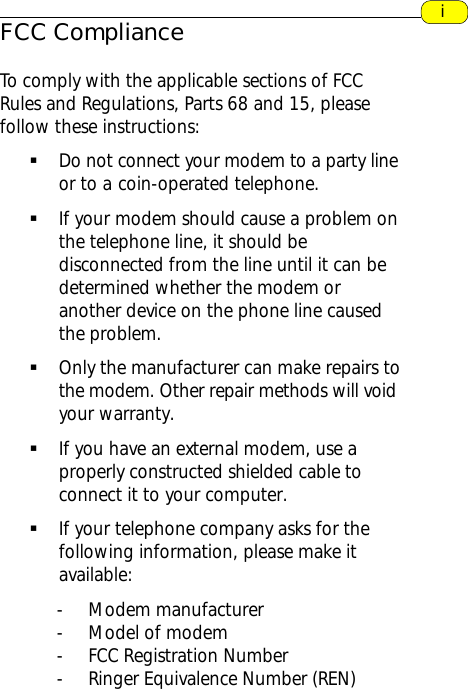

FCC ComplianceTo comply with the applicable sections of FCCRules and Regulations, Parts 68 and 15, pleasefollow these instructions:§Do not connect your modem to a party lineor to a coin-operated telephone.§If your modem should cause a problem onthe telephone line, it should bedisconnected from the line until it can bedetermined whether the modem oranother device on the phone line causedthe problem.§Only the manufacturer can make repairs tothe modem. Other repair methods will voidyour warranty.§If you have an external modem, use aproperly constructed shielded cable toconnect it to your computer.§If your telephone company asks for thefollowing information, please make itavailable:- Modem manufacturer- Model of modem- FCC Registration Number- Ringer Equivalence Number (REN)i

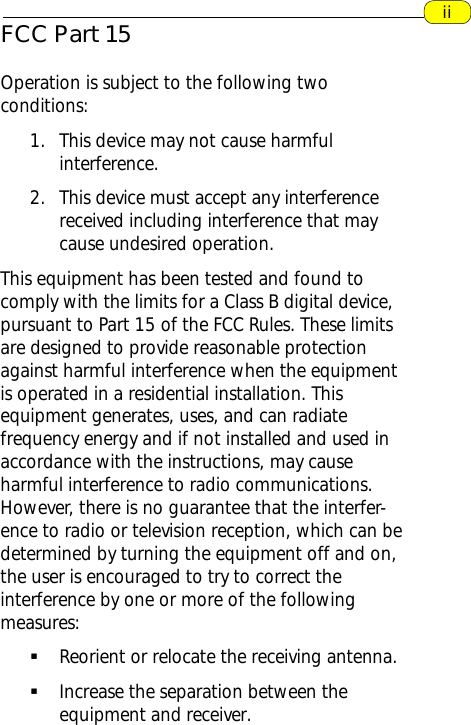

FCC Part 15Operation is subject to the following twoconditions:1. This device may not cause harmfulinterference.2. This device must accept any interferencereceived including interference that maycause undesired operation.This equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protectionagainst harmful interference when the equipmentis operated in a residential installation. Thisequipment generates, uses, and can radiatefrequency energy and if not installed and used inaccordance with the instructions, may causeharmful interference to radio communications.However, there is no guarantee that the interfer-ence to radio or television reception, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct theinterference by one or more of the followingmeasures:§Reorient or relocate the receiving antenna.§Increase the separation between theequipment and receiver.ii

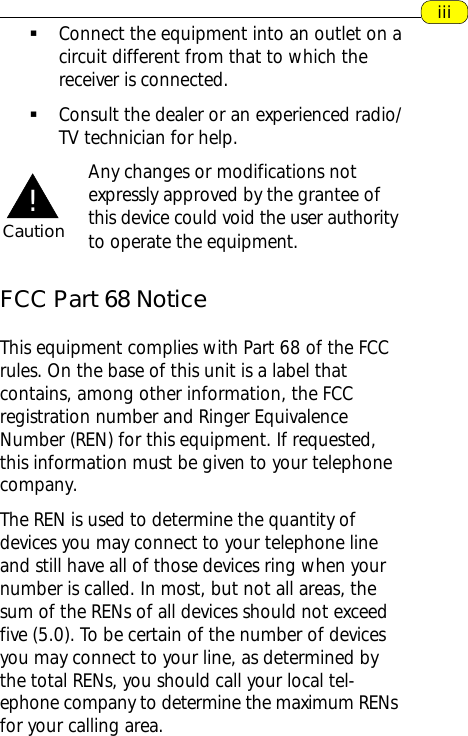

iii§Connect the equipment into an outlet on acircuit different from that to which thereceiver is connected.§Consult the dealer or an experienced radio/TV technician for help.Any changes or modifications notexpressly approved by the grantee ofthis device could void the user authorityto operate the equipment.FCC Part 68 NoticeThis equipment complies with Part 68 of the FCCrules. On the base of this unit is a label thatcontains, among other information, the FCCregistration number and Ringer EquivalenceNumber (REN) for this equipment. If requested,this information must be given to your telephonecompany.The REN is used to determine the quantity ofdevices you may connect to your telephone lineand still have all of those devices ring when yournumber is called. In most, but not all areas, thesum of the RENs of all devices should not exceedfive (5.0). To be certain of the number of devicesyou may connect to your line, as determined bythe total RENs, you should call your local tel-ephone company to determine the maximum RENsfor your calling area.Caution!

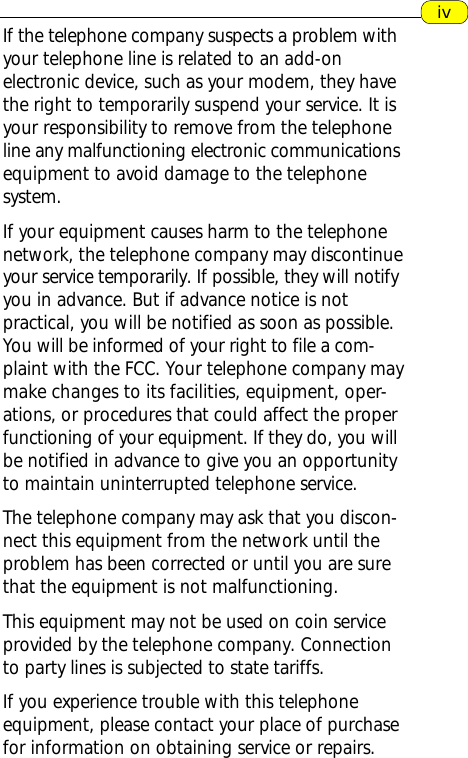

ivIf the telephone company suspects a problem withyour telephone line is related to an add-onelectronic device, such as your modem, they havethe right to temporarily suspend your service. It isyour responsibility to remove from the telephoneline any malfunctioning electronic communicationsequipment to avoid damage to the telephonesystem.If your equipment causes harm to the telephonenetwork, the telephone company may discontinueyour service temporarily. If possible, they will notifyyou in advance. But if advance notice is notpractical, you will be notified as soon as possible.You will be informed of your right to file a com-plaint with the FCC. Your telephone company maymake changes to its facilities, equipment, oper-ations, or procedures that could affect the properfunctioning of your equipment. If they do, you willbe notified in advance to give you an opportunityto maintain uninterrupted telephone service.The telephone company may ask that you discon-nect this equipment from the network until theproblem has been corrected or until you are surethat the equipment is not malfunctioning.This equipment may not be used on coin serviceprovided by the telephone company. Connectionto party lines is subjected to state tariffs.If you experience trouble with this telephoneequipment, please contact your place of purchasefor information on obtaining service or repairs.

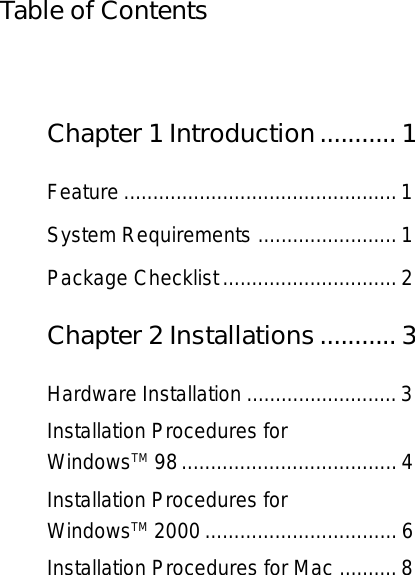

Chapter 1 Introduction........... 1Feature ............................................... 1System Requirements ........................ 1Package Checklist..............................2Chapter 2 Installations........... 3Hardware Installation .......................... 3Installation Procedures forWindowsTM 98 ..................................... 4Installation Procedures forWindowsTM 2000 ................................. 6Installation Procedures for Mac .......... 8Table of Contents

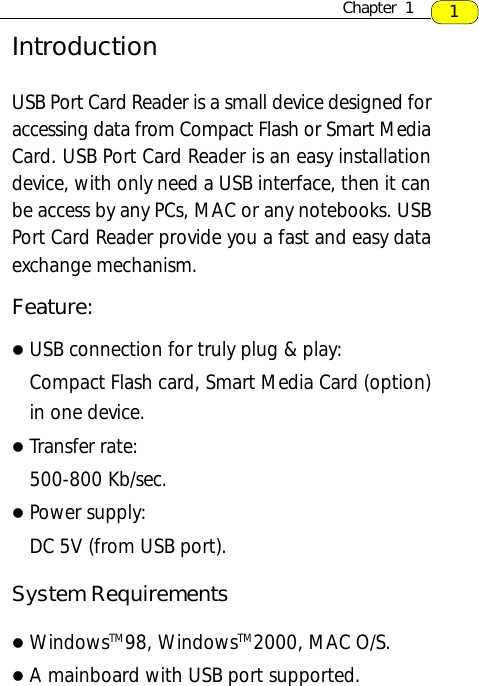

IntroductionUSB Port Card Reader is a small device designed foraccessing data from Compact Flash or Smart MediaCard. USB Port Card Reader is an easy installationdevice, with only need a USB interface, then it canbe access by any PCs, MAC or any notebooks. USBPort Card Reader provide you a fast and easy dataexchange mechanism.Feature:lUSB connection for truly plug & play:Compact Flash card, Smart Media Card (option)in one device.lTransfer rate:500-800 Kb/sec.lPower supply:DC 5V (from USB port).System RequirementslWindowsTM98, WindowsTM2000, MAC O/S.lA mainboard with USB port supported.1Chapter 1

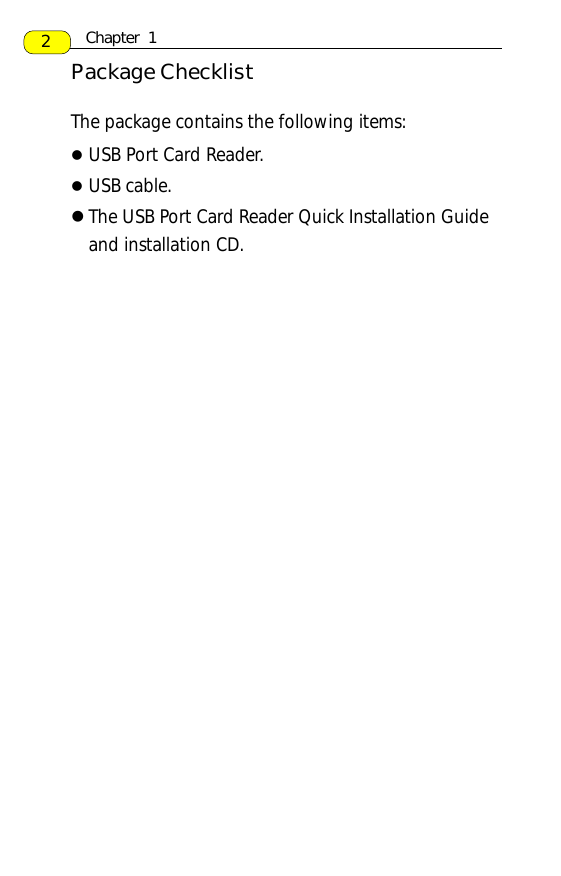

2The package contains the following items:lUSB Port Card Reader.lUSB cable.lThe USB Port Card Reader Quick Installation Guideand installation CD.Package ChecklistChapter 1

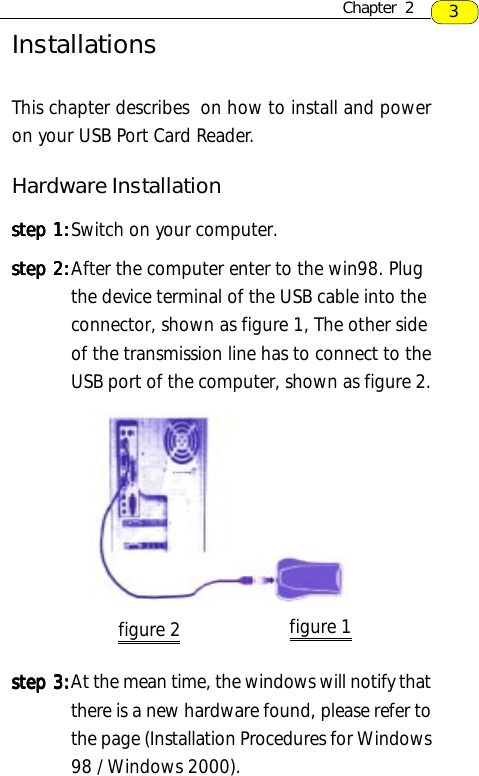

3InstallationsThis chapter describes on how to install and poweron your USB Port Card Reader.Hardware Installationstep 1:step 1:step 1:step 1:step 1:Switch on your computer.step 2:step 2:step 2:step 2:step 2:After the computer enter to the win98. Plugthe device terminal of the USB cable into theconnector, shown as figure 1, The other sideof the transmission line has to connect to theUSB port of the computer, shown as figure 2.step 3:step 3:step 3:step 3:step 3:At the mean time, the windows will notify thatthere is a new hardware found, please refer tothe page (Installation Procedures for Windows98 / Windows 2000).Chapter 2figure 2 figure 1

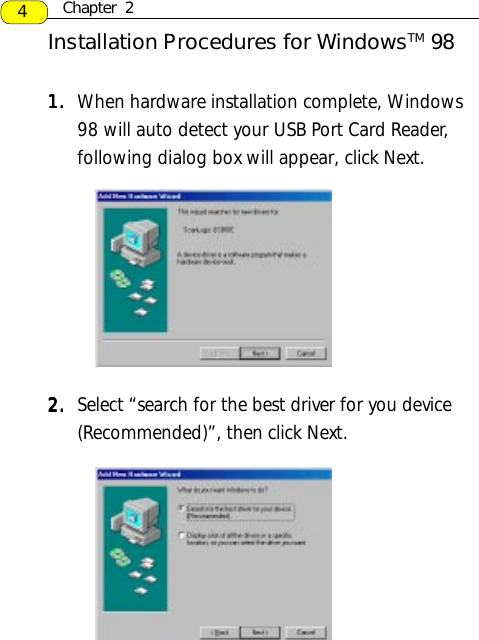

1.1.1.1.1. When hardware installation complete, Windows98 will auto detect your USB Port Card Reader,following dialog box will appear, click Next.2.2.2.2.2. Select “search for the best driver for you device(Recommended)”, then click Next.Installation Procedures for WindowsTM 984Chapter 2

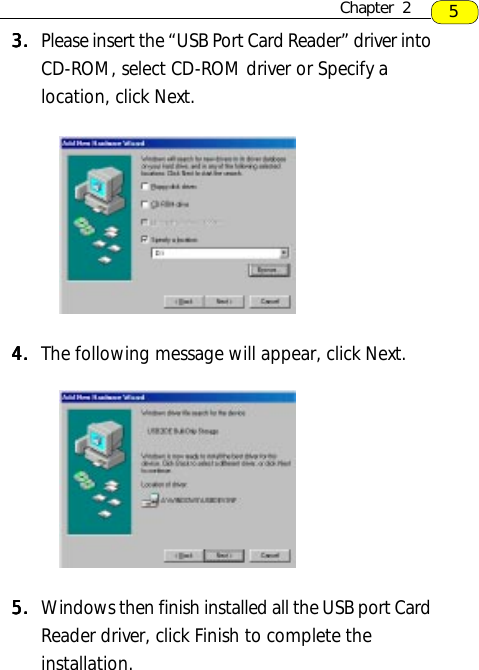

3.3.3.3.3. Please insert the “USB Port Card Reader” driver intoCD-ROM, select CD-ROM driver or Specify alocation, click Next.4.4.4.4.4. The following message will appear, click Next.5.5.5.5.5. Windows then finish installed all the USB port CardReader driver, click Finish to complete theinstallation.5Chapter 2

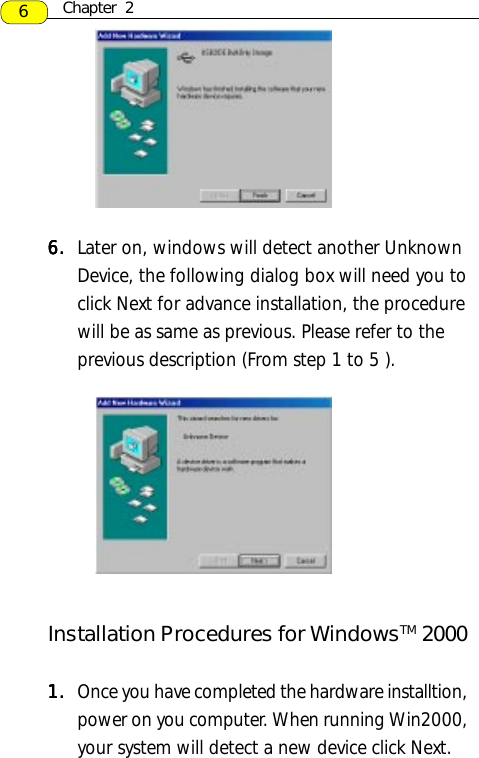

6.6.6.6.6. Later on, windows will detect another UnknownDevice, the following dialog box will need you toclick Next for advance installation, the procedurewill be as same as previous. Please refer to theprevious description (From step 1 to 5 ).6Chapter 21.1.1.1.1. Once you have completed the hardware installtion,power on you computer. When running Win2000,your system will detect a new device click Next.Installation Procedures for WindowsTM 2000

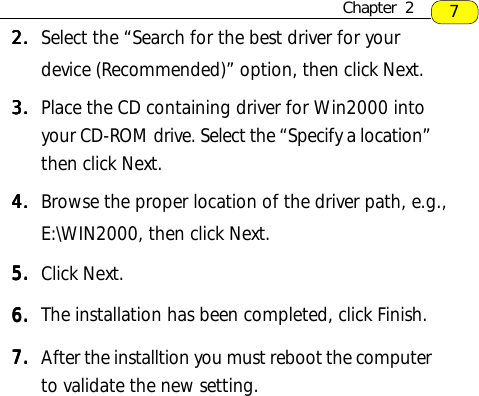

2.2.2.2.2. Select the “Search for the best driver for yourdevice (Recommended)” option, then click Next.3.3.3.3.3. Place the CD containing driver for Win2000 intoyour CD-ROM drive. Select the “Specify a location”then click Next.4.4.4.4.4. Browse the proper location of the driver path, e.g.,E:\WIN2000, then click Next.5.5.5.5.5. Click Next.6.6.6.6.6. The installation has been completed, click Finish.7.7.7.7.7. After the installtion you must reboot the computerto validate the new setting.7Chapter 2

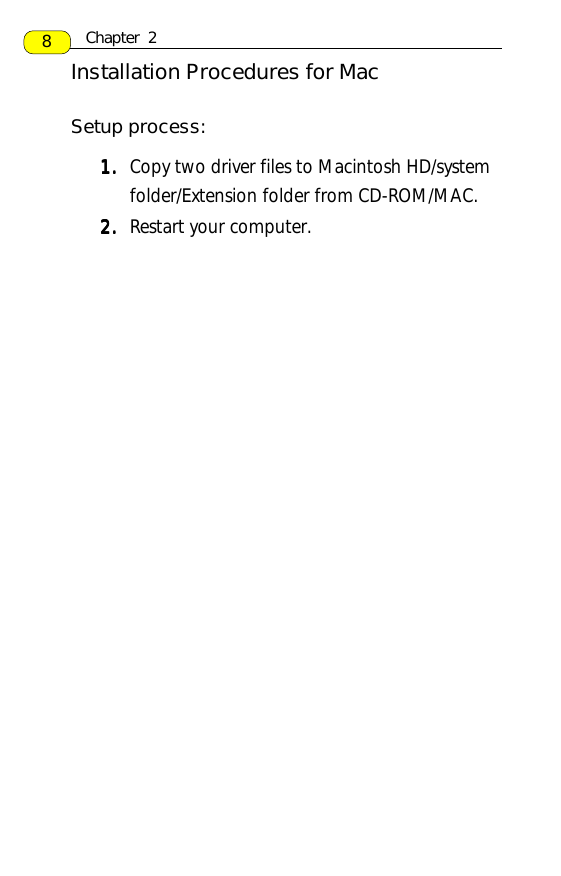

Installation Procedures for MacSetup process:1.1.1.1.1. Copy two driver files to Macintosh HD/systemfolder/Extension folder from CD-ROM/MAC.2.2.2.2.2. Restart your computer.Chapter 28
