Purple Communications RF101A SMARTVP REMOTE CONTROL User Manual

Purple Communications, Inc. SMARTVP REMOTE CONTROL

User Manual

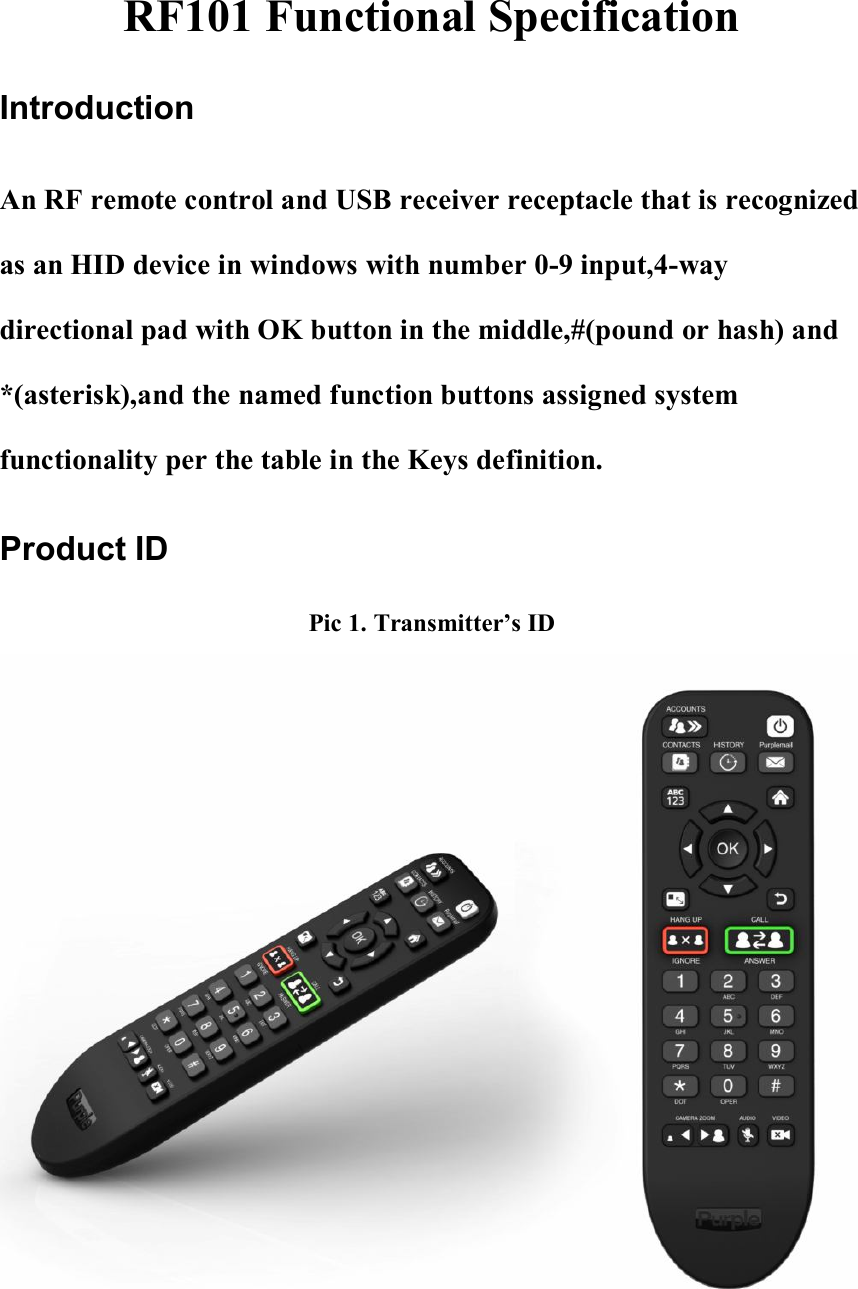

RF101 Functional Specification Introduction An RF remote control and USB receiver receptacle that is recognized as an HID device in windows with number 0-9 input,4-way directional pad with OK button in the middle,#(pound or hash) and *(asterisk),and the named function buttons assigned system functionality per the table in the Keys definition. Product ID Pic 1. Transmitter’s ID

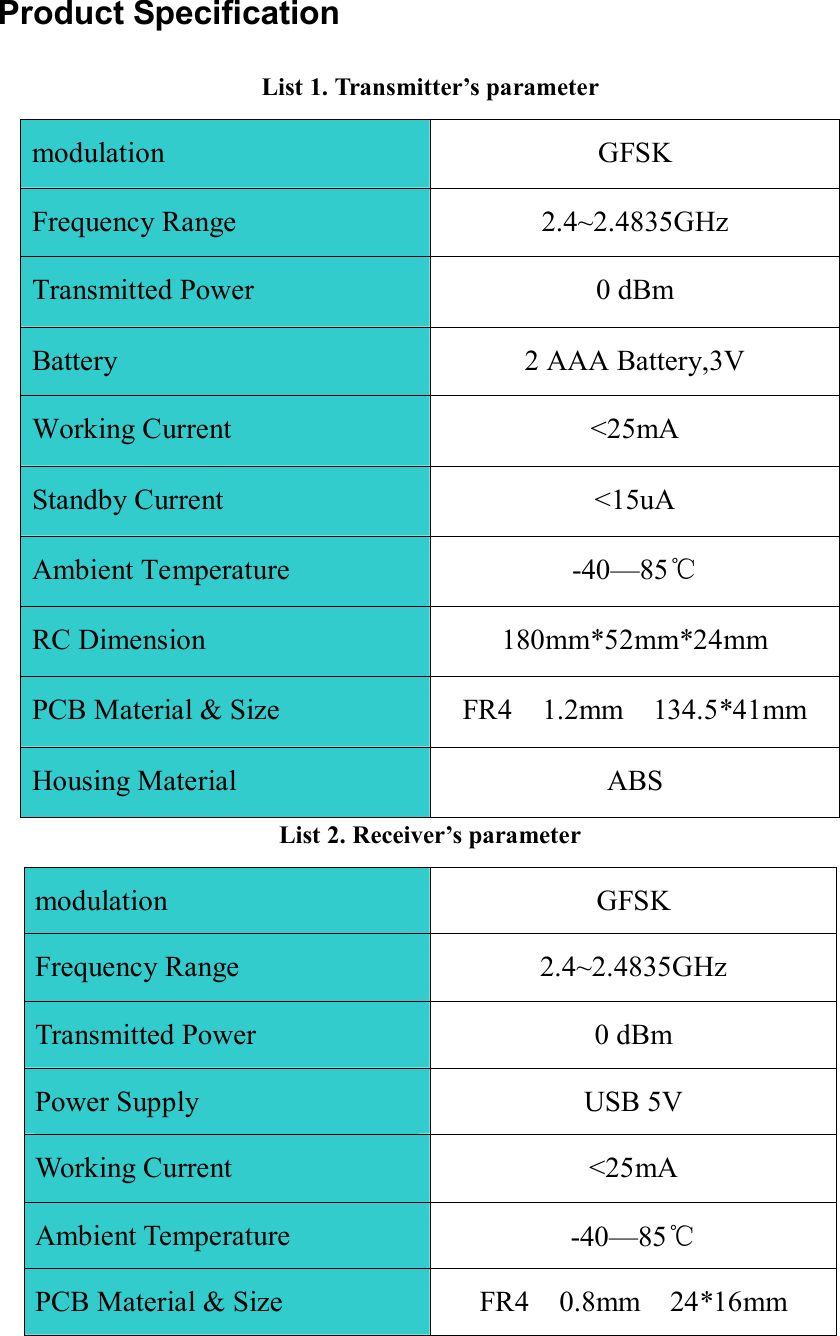

Product Specification List 1. Transmitter’s parameter modulation GFSK Frequency Range 2.4~2.4835GHz Transmitted Power 0 dBm Battery 2 AAA Battery,3V Working Current <25mA Standby Current <15uA Ambient Temperature -40—85℃ RC Dimension 180mm*52mm*24mm PCB Material & Size FR4 1.2mm 134.5*41mm Housing Material ABS List 2. Receiver’s parameter modulation GFSK Frequency Range 2.4~2.4835GHz Transmitted Power 0 dBm Power Supply USB 5V Working Current <25mA Ambient Temperature -40—85℃ PCB Material & Size FR4 0.8mm 24*16mm

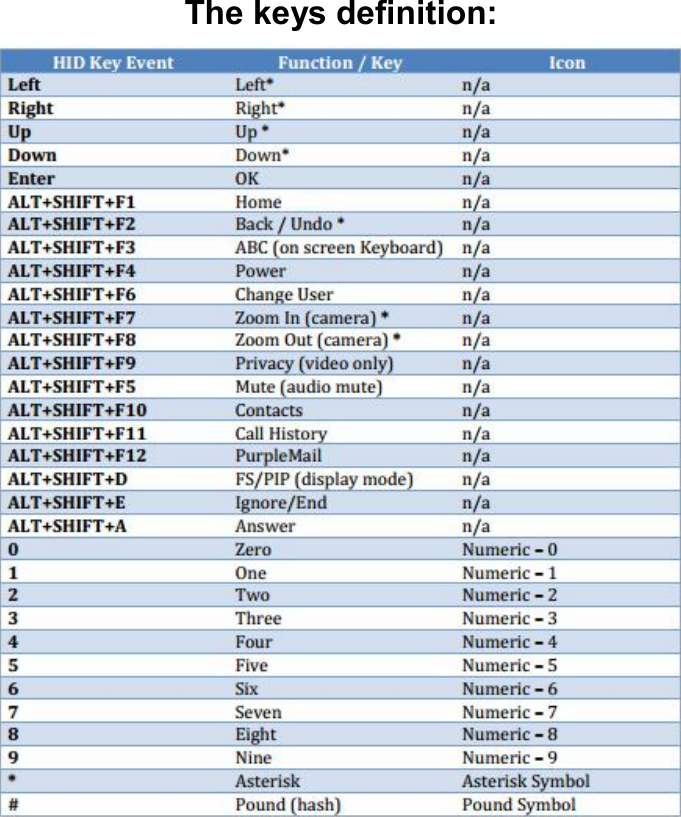

The keys definition: 1. Board Schematics (remote)
Pairing Procedure Before operating the remote control, user have to pair the target device with the remote control,the remote should be paired with the target (USB dongle) as steps below pairing process: A. First be sure that the device is on,then approach USB dongle press,hold “1” button and “9” button at the same time for 3 seconds. B. LED of the remote control will turn on to indicate that it is now pairing mode. Remote control will search the target device.Remote control sends pairing request to the device.LED of remote will blink three times slowly(blink one time each second) if pairing procedure finish successfully.
FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
