1 User Manual

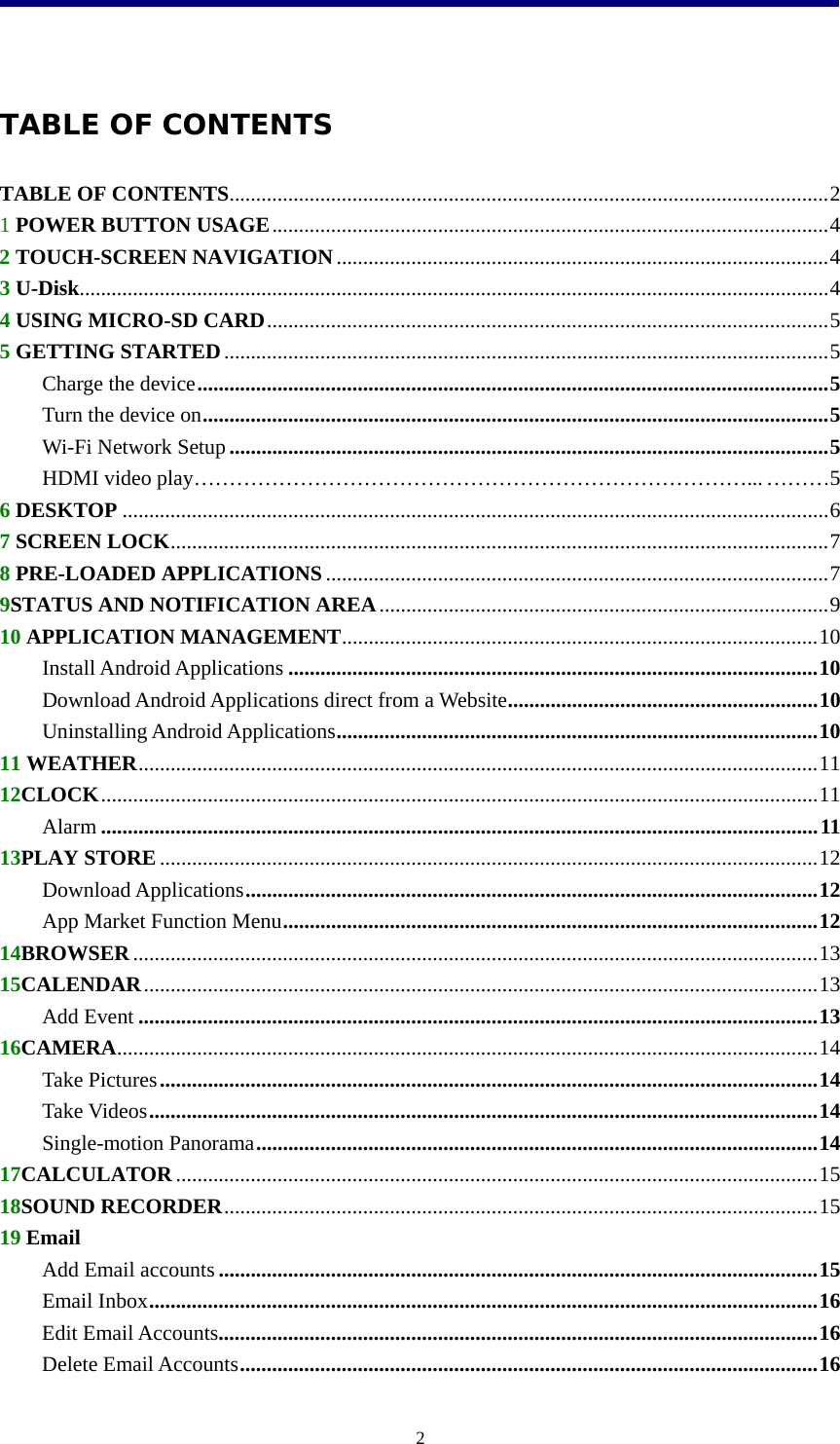

2 TABLE OF CONTENTS TABLE OF CONTENTS................................................................................................................2 1 POWER BUTTON USAGE........................................................................................................4 2 TOUCH-SCREEN NAVIGATION............................................................................................4 3 U-Disk............................................................................................................................................4 4 USING MICRO-SD CARD.........................................................................................................5 5 GETTING STARTED.................................................................................................................5 Charge the device......................................................................................................................5 Turn the device on.....................................................................................................................5 Wi-Fi Network Setup................................................................................................................5 HDMI video play……………………………………………………………………... ………5 6 DESKTOP ....................................................................................................................................6 7 SCREEN LOCK...........................................................................................................................7 8 PRE-LOADED APPLICATIONS..............................................................................................7 9STATUS AND NOTIFICATION AREA....................................................................................9 10 APPLICATION MANAGEMENT.........................................................................................10 Install Android Applications ...................................................................................................10 Download Android Applications direct from a Website..........................................................10 Uninstalling Android Applications..........................................................................................10 11 WEATHER...............................................................................................................................11 12CLOCK......................................................................................................................................11 Alarm ......................................................................................................................................11 13PLAY STORE ...........................................................................................................................12 Download Applications...........................................................................................................12 App Market Function Menu....................................................................................................12 14BROWSER................................................................................................................................13 15CALENDAR..............................................................................................................................13 Add Event ...............................................................................................................................13 16CAMERA...................................................................................................................................14 Take Pictures...........................................................................................................................14 Take Videos.............................................................................................................................14 Single-motion Panorama.........................................................................................................14 17CALCULATOR ........................................................................................................................15 18SOUND RECORDER...............................................................................................................15 19 Email Add Email accounts................................................................................................................15 Email Inbox.............................................................................................................................16 Edit Email Accounts................................................................................................................16 Delete Email Accounts............................................................................................................16

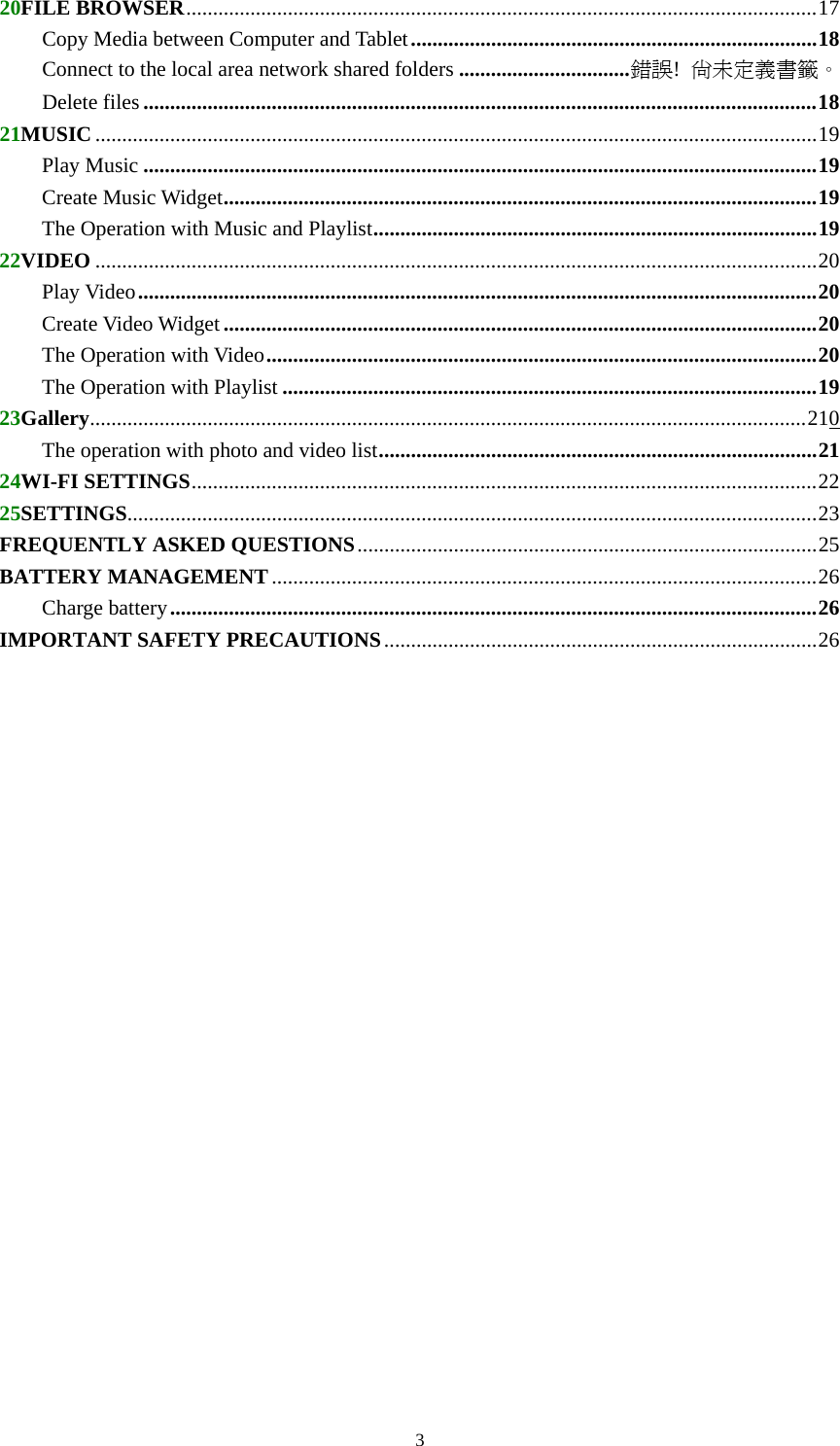

320FILE BROWSER......................................................................................................................17 Copy Media between Computer and Tablet............................................................................18 Connect to the local area network shared folders ................................錯誤! 尚未定義書籤。 Delete files ..............................................................................................................................18 21MUSIC .......................................................................................................................................19 Play Music ..............................................................................................................................19 Create Music Widget...............................................................................................................19 The Operation with Music and Playlist...................................................................................19 22VIDEO .......................................................................................................................................20 Play Video...............................................................................................................................20 Create Video Widget...............................................................................................................20 The Operation with Video.......................................................................................................20 The Operation with Playlist ....................................................................................................19 23Gallery......................................................................................................................................210 The operation with photo and video list..................................................................................21 24WI-FI SETTINGS.....................................................................................................................22 25SETTINGS.................................................................................................................................23 FREQUENTLY ASKED QUESTIONS......................................................................................25 BATTERY MANAGEMENT ......................................................................................................26 Charge battery.........................................................................................................................26 IMPORTANT SAFETY PRECAUTIONS.................................................................................26

4 1POWER BUTTON USAGE Turn On: Press the power button and hold for 2 seconds. Turn Off: Press the power button and hold for 2 seconds →tap Power off→tap OK. Reboot: Press the power button and hold for 2 seconds →Tap reboot. Quickly Hibernate/wake-up: Press the power button and hold for 2 seconds →tap Hibernate enable the device to hibernate, or press the power button briefly to make the device to hibernate/ wake-up. Airplane mode: Press the power button and hold for 2 seconds →Tap Airplane mode. Silent mode: Press the power button and hold for 2 seconds →Tap . Vibrate mode: Press the power button and hold for 2 seconds →Tap . Normal mode: Press the power button and hold for 2 seconds →Tap . Force Off: If device does not respond, press and hold the power button for 5 seconds. (Warning: Force off could lead to unpredictable system errors!) Reset: Press the reset button could reset the device. It will clear the all data. Please be careful with the function. (Note: If the reset function doesn’t work, turn off the device. So you need to press the power button to restart the device after reset.) 2 TOUCH-SCREEN NAVIGATION The touch-screen allows quick, easy and convenient navigation for all applications. Refer to the following method to operate the touch screen by the finger pulp: Tap: Quick tap & release on an item on the screen. Touch & hold: Touch and hold in place approx 2 seconds, and then release to display an options window. Finger slide: Touch & slide your finger across the screen and then release. ☆ To avoid scratching or crushing, do not place objects on the touch screen surface. 3 U-Disk Insert U-Disk Insert your U-disk to the transfer box → insert the transfer box into the Tablet. When ready for use, it will be directly into the File Browser to open USB folder.

5Remove U-Disk Close all applications or documents which have been opened on the U-disk. Tap → Settings →Storage →USB storage → Unmount this storage device. And then you can unplug the U-disk. ☆ Don’t insert and remove the U-disk repeatedly in a short time, as this may cause damage to the U-disk. 4 USING MICRO-SD CARD ☆ The device supports a maximum 32GB micro SD card. Insert your card into the micro SD slot until it clicks into place. It’s OK. Remove micro SD Card Close all applications or documents which have been opened on the card. Tap → Settings → Storage →SD card → Un-mount this storage device. Press the card lightly; it is partially ejected allowing you to pull the card out. ☆ Don’t insert and remove the U-disk repeatedly in a short time, as this may cause damage to the card. ☆ We recommend using major brands of memory cards to avoid incompatibility. 5 GETTING STARTED Charge the device ☆ It is not recommended to use the device while charging. Plug the power adapter into an electrical wall outlet, and then connect to the device to fully charge the battery before use (A full charge takes about 6 hours in the off status). Turn the device on Press the power button briefly. Wi-Fi Network Setup Since many features require a Wi-Fi connection, we recommend you set up your Wi-Fi network now. 1. Tap → Settings. 2. Slide Wi-Fi switch to turn on. The device automatically scans and lists all local Wi-Fi Network found. A lock indicates secure Wi-Fi networks that require input password to connect. 3. Tap the desired network which you want to connect → enter the Network Password if applicable → tap Connect.

64. Tap to return to the Desktop screen. ☆ If your Wi-Fi network is set as hidden, it won’t be found by the auto scan. Tap Add Wi-Fi network and follow the prompts to add your network. HDMI video play This device supports through the Mini HDMI connected with TV, it makes TV and device displayed synchronic. For using this feature, insert the Mini HDMI cable into the right side of the device interface to connect with TV. 6 DESKTOP 8 9 10 1 2 3 4 5 6 7 1. Back. 2. Home. 3. Recent Apps. 4. Mobo Task Killer 5.Current Time 6.Wireless network 7.Battery Status 8. Google search. 9. Voice search 10. Tap to view the applications screen

7Through added icons can make many personalized operations, such as add widgets, application shortcuts, set wallpaper, add bookmarks, email accounts and set up the shortcut. ☆ Tap on any application icon to launch it. ☆ Touch, hold and then slide icons to reposition then on the screen. ☆ Touch, hold and slide icons onto to remove them from the Desktop screen. 7 SCREEN LOCK Can be set to automatically lock screen or quickly press the power button to manually lock screen. The system provides four lock screen styles for users. You can enter Settings → Security →Lock Screen to switch. Lock screen displays the following: Tap the unlock icon and drop it to the right and out of the circle to unlock. 8 PRE-LOADED APPLICATIONS Fancy Widgets Set up the degree of temperature, weather auto-refresh rate, add city and view the city’s weather. … Clock It can display the time and set the alarm.

8 Play Store Downloaded applications quickly & easily. Browser Access internet. Calendar Calendar. Camera Take normal photos, panoramic photos and take video. Calculator Do calculation. Email Send/Receive email using your existing email addresses. Explorer File manager application for viewing and managing files and apps. Use to install Android apps, and to backup files to your SD card. Music Play and manage audio files. Video Play and manage video files. Gallery Play, view, and manage video and photo files. Voice search Voice search. Settings Multiple settings for personalizing and enhancing your Device.☆ To move an icon to the Desktop screen, touch & hold the icon, and then release it when it appears on the Desktop screen. ☆ Touch, hold and then slide icons to reposition then on the screen. ☆ Touch, hold and slide icons onto to remove them from the Desktop screen.

99 STATUS AND NOTIFICATION AREA On the Desktop screen, click the icons in the state bar to view more state information and events. Wi-Fi Access to Wi-Fi set interface. Auto-rotate screen Auto-rotate switch. After opening, and the screen will automatically rotating screen with gravity induction. Brightness Setting screen brightness. Select the auto can detect ambient light and automatically adjusts screen brightness. Sound Setting sound Notifications Open or close the notification. Settings Access to settings.

1010 PLICATION MANAGEMENT Install Android Applications ☆ There are many interesting and free Android applications that can be found on the web. Such as launch your web browser and do a search for “Android applications”. Purchased or free Android applications that you have downloaded to your computer can be installed quickly & easily on your Tablet using the Explorer application. 1. Copy the .apk files that you want to install onto a SD card or USB device → insert or connect to your Device. 2. Tap the Explorer application icon. 3. Tap or and locate the folder in which the .apk application files were saved. 4. Tap on a .apk file → Install. The application is installed and the application icon is added to the Applications screen. 5. Tap Open to launch the application now, or tap Done to return to the Explorer screen. Download Android Applications direct from a Website You can download Android applications directly from websites, and then quickly and easily install them on your device. 1. Tap the browser application icon to launch the internet. 2. Enter the desired website URL, and tap the download link for the application you want to install on your device. 3. After the download is completed, tap →Downloads. Open the applications from app list. Uninstalling Android Applications You can also quickly and easily uninstall the Android applications that you have installed. 1. Tap → Settings → Apps → All. 2. Tap the application you want to uninstall → Uninstall. 3. Tap OK to confirm the Uninstall.

1111Fancy Widgets Tap the Fancy Widgets application icon. Weather setting You can set Temperature Unit(℃), Update frequency . You can make the weather displayed on the Desktop through adding widget. The way is: tap → Widgets → Weather Widget. 12CLOCK Tap the Clock application icon. You can see the time and date. Alarm You can use your device as an alarm clock by setting multiple alarms. Add Alarm 1. Tap the Clock application icon. 2. Tap Set alarm → Add alarm. 3. Set up your alarm as desired. 4. Tap OK. 5. Select the alarm clock. Shut Off Alarm Alert When a scheduled alarm is activated, a pop-up window with the alarm title appears. Tap Snooze if you want to be reminded again in 10 minutes. Tap Dismiss to cancel the alert. Turn Alarm on 1. In the Alarm list, find the desire alarm. 2. Click the on the left. 3. After the changes to , tap Done. Edit Alarm 1. Tap the Clock application icon →Click . 2. Tap on the alarm you want to edit → make desired edits. 3. After editing, tap OK.

1314BROWSER Users can connect to the Internet through browser. Click the browser icon on the Desktop , and then you can open the Web browser. 15CALENDAR Tap the Calendar application icon. For the first time using the Calendar, you need to add an Exchange account. Enter account email address and password. Enter the system Settings → Account & sync →Add account. According to the prompts complete the setting. After then you can use the calendar. Only to view the calendar need not to add Exchange account. Add Event 1. On the Calendar screen, tap on the date to which you want to add an event. 2. Tap on the event time → tap . 3. In each field, enter the details of the related activities. 4. Tap Done.

14Click the date time in the upper left to choose the calendar you want, such as DAY,WEEK，MONTH and AGENDA display mode. ☆ Dates with grey bars indicate scheduled events. 16CAMERA Tap the Camera application icon. Take Pictures 1. Tap switch to video, and you can take pictures. 2. Tap take a picture. 3. The picture will be saved. 4. Tap the picture thumbnail to enter My Photo to scan the picture. 5. Press Back to the Camera. 6. Tap to exit the Camera and back to the Desktop. Take Videos 1. Tap switch to video, and you can take videos. 2. Tap to begin and tap to stop. 3. The video will be saved. 4. Tap the video thumbnail to play the video. 5. Press Back to the Camera. 6. Tap to exit the Camera and back to the Desktop. Single-motion Panorama For capturing larger scenes, tap icon and switch to single-motion panorama mode. In this mode, the user starts an exposure and then slowly turns the Camera to encompass as wide a perspective as needed. The Camera assembles the full range of continuous imagery into a single panoramic photo.

15 17CALCULATOR 1. Tap the Calculator application icon. 2. Tap the numbers and sign of operation to do the calculation. 3. Tap CLEAR to clear the result one by one, tap and hold CLEAR to clear all. 18Sound Recorder 1. Tap the recorder icon. 2. Tap the record icon to start recording. 3. Tap the record icon to stop recording. 4. Tap the play button to play the voice of recording. 19E-mail ☆ POP3 and SMTP accounts are supported. Add Email accounts You can enter one or more personal email addresses that you would like to access through your Tablet. 1. Tap the Email application icon. 2. On the Your Accounts screen, tap Next. 3. Tap in the Email address entry field → enter your email address. 4. Tap in the Password entry field → enter your email password. 5. Tap Next. 6. Manual Setup (optional): The server settings are automatically populated based on your email account provider (i.e., gmail.com, etc). However, if you need to change the server settings tap Manual Setup and make necessary changes. 7. Tap Next. 8. Optional: Enter a name for the account.

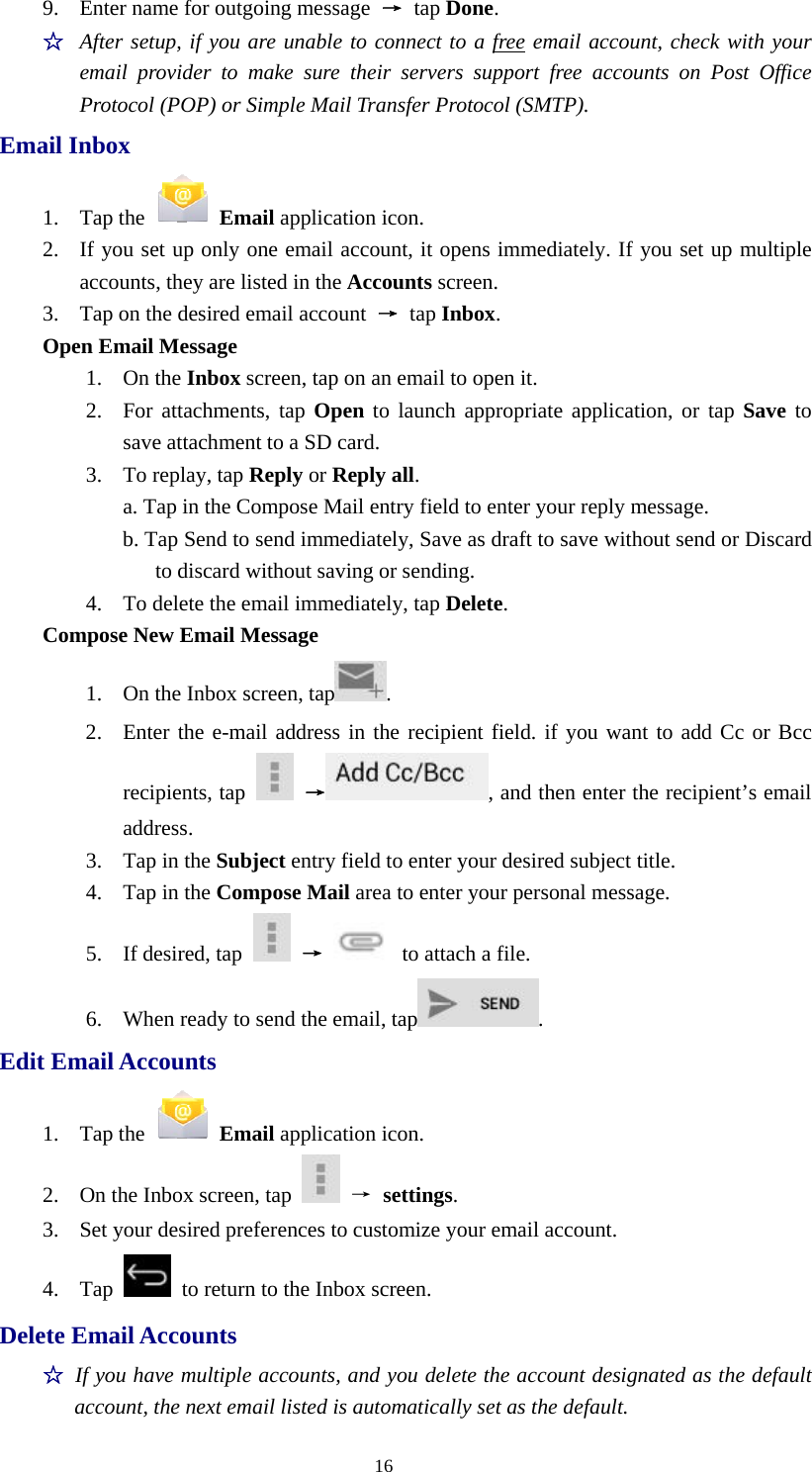

169. Enter name for outgoing message → tap Done. ☆ After setup, if you are unable to connect to a free email account, check with your email provider to make sure their servers support free accounts on Post Office Protocol (POP) or Simple Mail Transfer Protocol (SMTP). Email Inbox 1. Tap the Email application icon. 2. If you set up only one email account, it opens immediately. If you set up multiple accounts, they are listed in the Accounts screen. 3. Tap on the desired email account → tap Inbox. Open Email Message 1. On the Inbox screen, tap on an email to open it. 2. For attachments, tap Open to launch appropriate application, or tap Save to save attachment to a SD card. 3. To replay, tap Reply or Reply all. a. Tap in the Compose Mail entry field to enter your reply message. b. Tap Send to send immediately, Save as draft to save without send or Discard to discard without saving or sending. 4. To delete the email immediately, tap Delete. Compose New Email Message 1. On the Inbox screen, tap . 2. Enter the e-mail address in the recipient field. if you want to add Cc or Bcc recipients, tap →, and then enter the recipient’s email address. 3. Tap in the Subject entry field to enter your desired subject title. 4. Tap in the Compose Mail area to enter your personal message. 5. If desired, tap → to attach a file. 6. When ready to send the email, tap . Edit Email Accounts 1. Tap the Email application icon. 2. On the Inbox screen, tap → settings. 3. Set your desired preferences to customize your email account. 4. Tap to return to the Inbox screen. Delete Email Accounts ☆ If you have multiple accounts, and you delete the account designated as the default account, the next email listed is automatically set as the default.

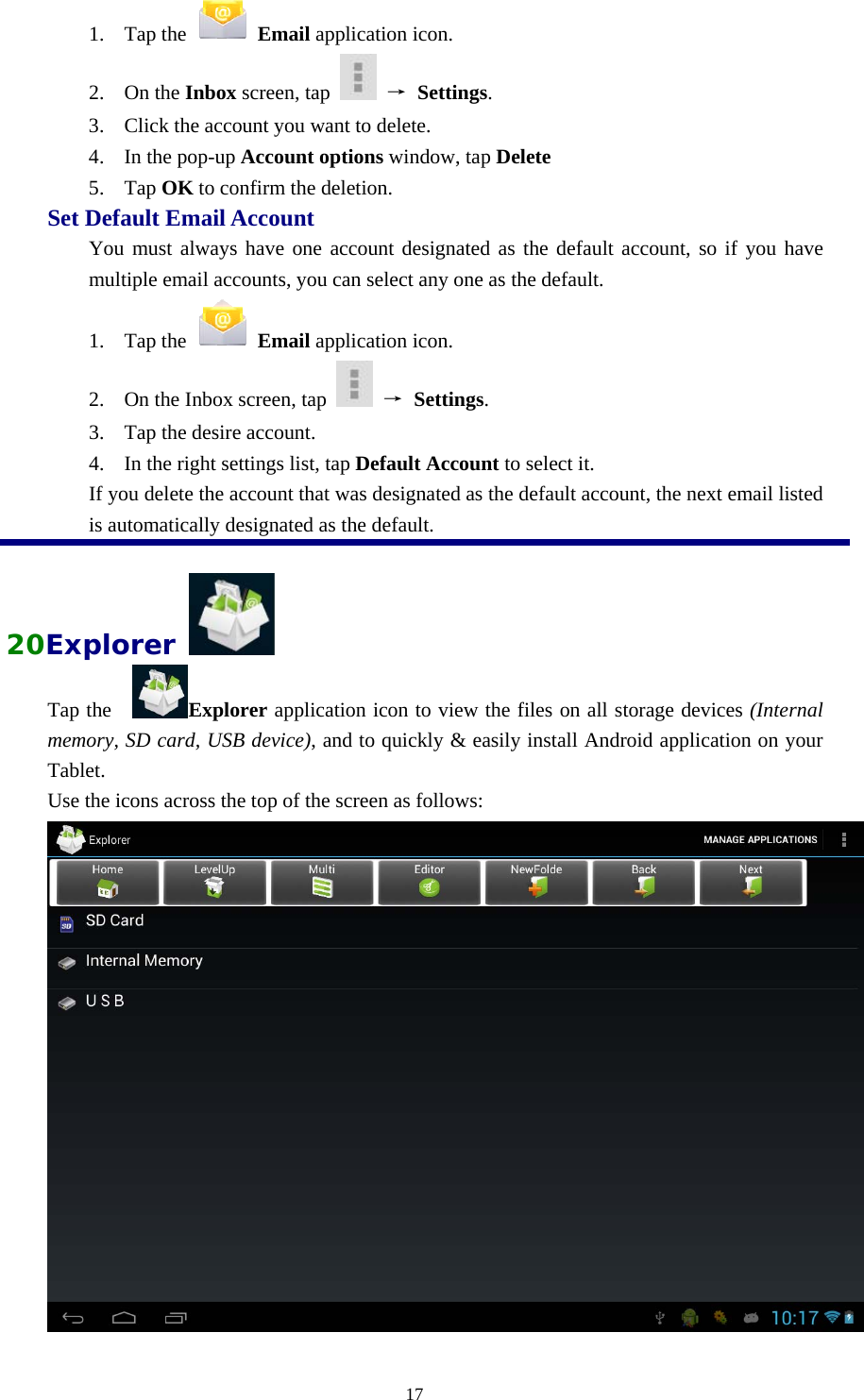

171. Tap the Email application icon. 2. On the Inbox screen, tap → Settings. 3. Click the account you want to delete. 4. In the pop-up Account options window, tap Delete 5. Tap OK to confirm the deletion. Set Default Email Account You must always have one account designated as the default account, so if you have multiple email accounts, you can select any one as the default. 1. Tap the Email application icon. 2. On the Inbox screen, tap → Settings. 3. Tap the desire account. 4. In the right settings list, tap Default Account to select it. If you delete the account that was designated as the default account, the next email listed is automatically designated as the default. 20Explorer Tap the Explorer application icon to view the files on all storage devices (Internal memory, SD card, USB device), and to quickly & easily install Android application on your Tablet. Use the icons across the top of the screen as follows:

18Copy Media between Computer and Tablet You can use the File Browser to copy files between an external storage device and your computer. You can first copy the desired files onto a SD card or USB device. ☆ The internal device storage is titled “ROM”, a memory card “SD”, and a USB storage device is titled “USB”. ☆ The instructions below are for copying from a SD card or USB storage device into the device. You can use the same method to copy from the device to a SD card or USB storage device, and then connect the storage device to your computer to transfer the files into the desired folder on your computer. 1. Tap or to display the contents of your storage device. 2. Tap and hold a folder/file and enter into the multi-select mode, select the folder/file as desire → tap Copy. 3. Tap Internal Memory → tap on the folder into which you want to copy the file → tap. Delete files Tap and hold a folder/file and enter into the multi-select mode, select the folder/file as desire → tap Editor →Delete → OK to confirm the deletion.

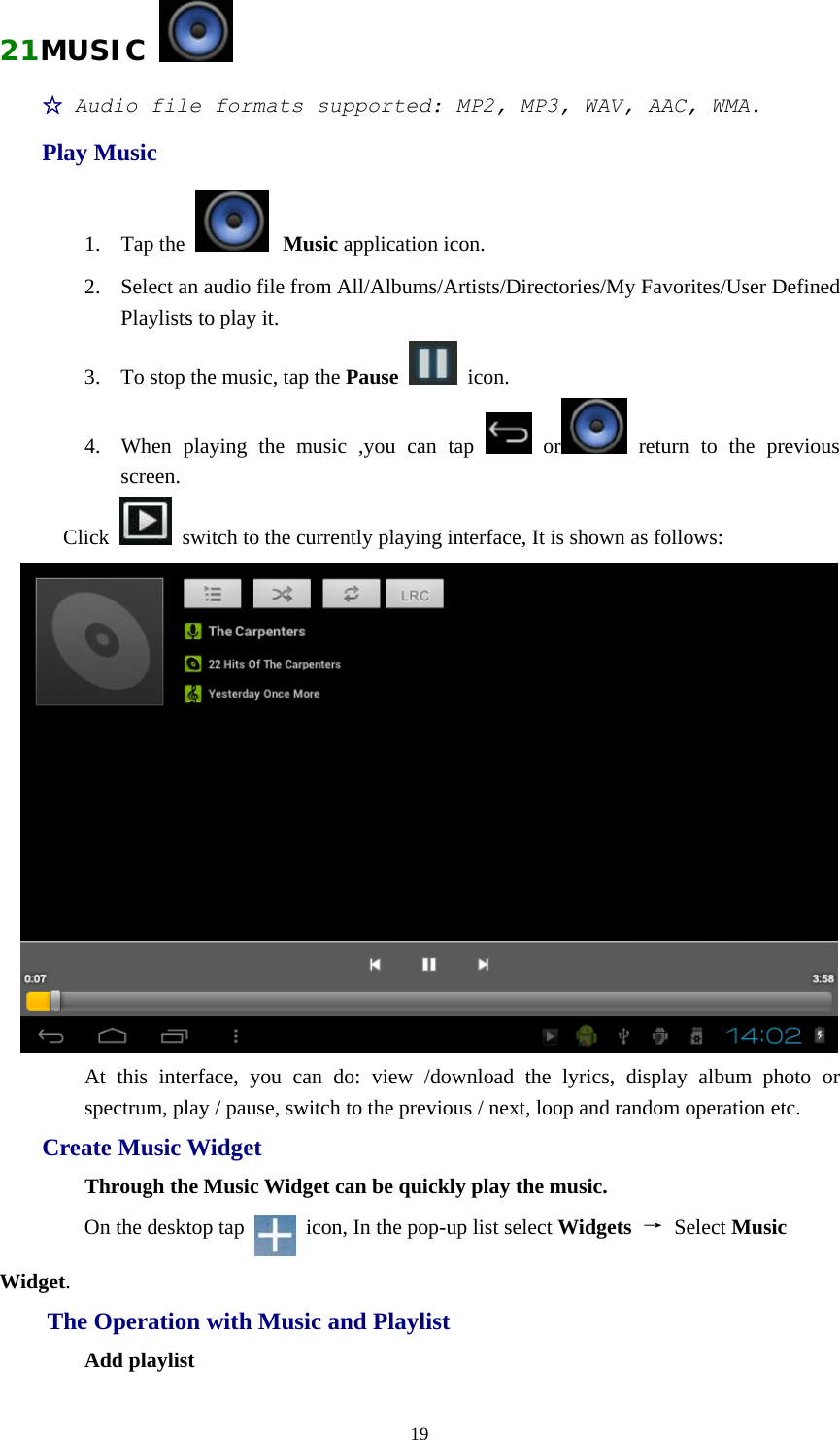

1921MUSIC ☆ Audio file formats supported: MP2, MP3, WAV, AAC, WMA. Play Music 1. Tap the Music application icon. 2. Select an audio file from All/Albums/Artists/Directories/My Favorites/User Defined Playlists to play it. 3. To stop the music, tap the Pause icon. 4. When playing the music ,you can tap or return to the previous screen. Click switch to the currently playing interface, It is shown as follows: At this interface, you can do: view /download the lyrics, display album photo or spectrum, play / pause, switch to the previous / next, loop and random operation etc. Create Music Widget Through the Music Widget can be quickly play the music. On the desktop tap icon, In the pop-up list select Widgets → Select Music Widget. The Operation with Music and Playlist Add playlist

201. Enter Play list interface → click . 2. Input the playlist name. 3. Tap Save. Rename or Delete playlist Switch to display mode, Tap the playlist → tap → Enter a new name in the dialog box, and click Save. If you want to delete the playlist, click →click save. Add music 1. In the all song, album, and artist list, Tap the music and hold to switch to multi-select mode. 2. Select the music which you want to add to the list (if you don’t want to add, tap it again to cancel). 3. Tap Add to playlist, and then select a playlist. Delete music Tap and hold on the music you want to delete → tap Delete. 22VIDEO ☆ Video file formats supported: MPEG1/2/4、H263、H264 VC1、RealVideo、MotionJPEG. The largest video format is supported 1080P(1920×1080) resolution. Play Video 1. Tap the Video application icon. 2. Select the video from ROM, SD card or USB. 3. Tap screen and click the related icon to adjust the video, (including volume, pause/play, brightness, track, subtitle, and display scale). 4. Tap Back button or to return to the Video screen. Create Video Widget Through the Video Widget can quickly play the video. On the desktop tap icon, In the pop-up list select Widgets → Select Video Widget. The Operation with Video Zoom video screen

21 In the video player interface, drag two fingers on the screen with reverse / opposite direction can zoom in / zoom out the video screen. Setting video display mode Tap icon，the video screen can be switched within full screen, actual size, best fit three modes. Audio track and subtitle switching In the video player interface, in the top right click icon to switch audio track and subtitle. The Operation with Playlist Classification of video list In the root directory, on the top left click the album (times) classify the video. Switch display mode in the classification folder In the classification folder, click and icon switch to list display mode or album display mode. ☆ In the classification folder, users can click classify the video by time or name. Send or delete the video in the list Tap and hold the video, → on the top right of the screen , click the option or delete button to send or delete the video. 23Gallery The operation with photo and video list Classification of photos and videos list In the root directory, on the top left click the album (times, Locations, people, or tags) classify the photos and videos. View, play the photos and videos Photo: In the classification folder, click on the photo thumbnails to open the photo, and on the top right of the folder interface tap icon to play slide. Video: In the classification folder, click on the video preview, enter to the video preview interface, and click the play button in the video preview to play the video. Delete the photos and videos in the list On the top right of the screen, Tap icon →Tap select album or Select item,

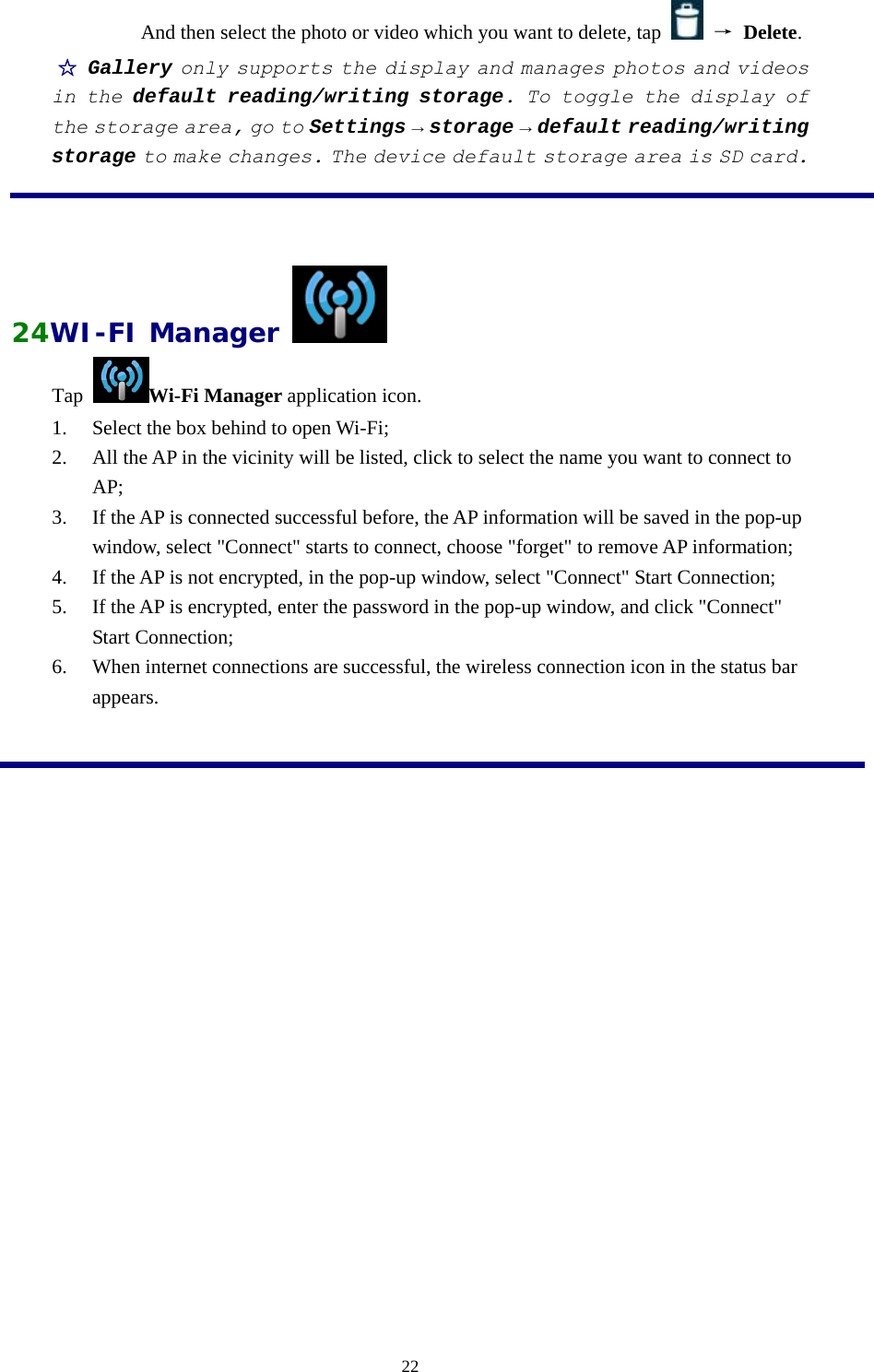

22And then select the photo or video which you want to delete, tap → Delete. ☆ Gallery only supports the display and manages photos and videos in the default reading/writing storage. To toggle the display of the storage area, go to Settings → storage → default reading/writing storage to make changes. The device default storage area is SD card. 24WI-FI Manager Tap Wi-Fi Manager application icon. 1. Select the box behind to open Wi-Fi; 2. All the AP in the vicinity will be listed, click to select the name you want to connect to AP; 3. If the AP is connected successful before, the AP information will be saved in the pop-up window, select "Connect" starts to connect, choose "forget" to remove AP information; 4. If the AP is not encrypted, in the pop-up window, select "Connect" Start Connection; 5. If the AP is encrypted, enter the password in the pop-up window, and click "Connect" Start Connection; 6. When internet connections are successful, the wireless connection icon in the status bar appears.

2325 SETTINGS Wi-Fi Turn on /off Wi-Fi, Set up & manage wireless access points. Data usage View of data usage VPN Add Virtual Private Networks (VPNs). Portable hotspot Ethernet Wireless & networks More… Mobile network Set up mobile network Volumes To adjust the Media volume. Default notification Select desired ringtone sound. Touch sounds Turn on/off operate sounds. Sound Screen lock sounds Turn on/off operate sounds. Brightness Adjust the screen brightness as desired. Wallpaper Set up wallpaper Sleep Set the time of sleep Display Font size Set the system font size HDMI Turn on HDMI… ScreenshotSetting Storage View, uninstall, and format the internal memory, SD card and USB storage. Battery View the usage of the battery. Device Apps View and uninstall applications Location services Add sync account. Screen lock Owner info Make passwords visible Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps. Trusted credentials Display trusted CA certificates. Install from SD card Install certificates from SD card. Security Clear credentials Remove all certificates. Personal Language & Language Setting system language.

24input Spelling correction, personal dictionary, keyboard and input methods, text to speech (TTS) output, and pointer speed. Backup & Reset Factory data reset Erases all data on tablet. Accounts Add account Automatic date & time Use network-provided time Set date Set date Set time Set time Select time zone Select time zone Use 24-hour format Choose 24-hour format or 12-hour format. Date & Time Choose date format Select date format. Accessibility Services & System Large text, power button ends call, auto-rotate screen, speak passwords, touch & hold delay, and install web scripts Developer options Developer options… USB debugging, development device ID, stay awake, allow mock locations, HDCP checking, desktop backup password, strict mode enabled, pointer location, show touches, show screen updates, show CPU usage, Force GPU rendering, window animation scale, transition animation scale, don’t keep activities, background process limit, and show all ANRs. System About tablet Status, legal information, model number, android version, kernel version and build number.

25FREQUENTLY ASKED QUESTIONS Android Q: What Android OS version is on my Device? A: 4.0.4 Basic Device Functionary Q: Do I have to charge the battery before use? A: You should charge the battery for at least 6 hours, but you can use the device while it’s charging. Use the included power adapter to charge; this device cannot be charged via the USB cable. Email Q: Can I use any of my personal email addresses to send/receive email? A: The device supports POP3 and SMTP accounts. Some free email accounts are not supported on mobile devices. Check with your email provider to see if your account is supported. Media Cards Q: Which media cards are compatible with my Device? A: micro SD cards. Music Q: What type of music files can I play on my device? A: MP2, MP3, WAV, AAC, WMA Q: How do I add music files to my device? A: Copy the music files from your computer onto a SD card or USB storage device, and then use the File Browser application to copy the files into the device. Photos Q: What type of photo files can I view on my device? A: JPG, JPEG, BMP and PNG. Q: How do I add photo files to my device? A: Copy the photo files from your computer onto a SD card or USB storage device, and then use the File Browser application to copy the files into the device. Video Q: What type of video files can I play on my device? A: Video file formats support: MPEG1/2/4、H263、H264、VC1、RealVideo、MotionJPEG.. The largest video format supports 1080P(1920×1080) resolution. Q: How do I add video files to my device? A: Copy the video files from your computer onto a SD card or USB storage device, and then use the File Browser application to copy the files into the device.

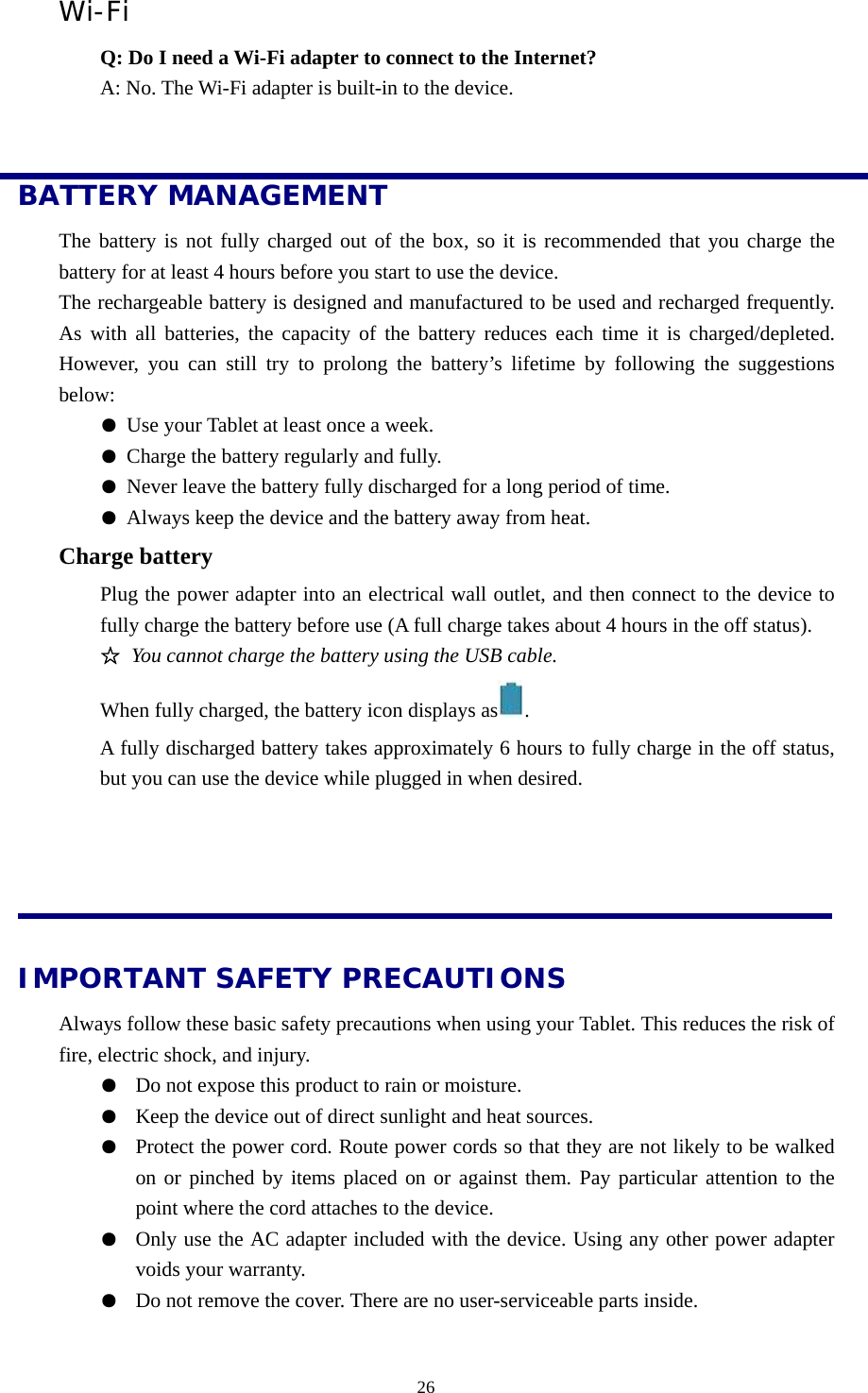

26Wi-Fi Q: Do I need a Wi-Fi adapter to connect to the Internet? A: No. The Wi-Fi adapter is built-in to the device. BATTERY MANAGEMENT The battery is not fully charged out of the box, so it is recommended that you charge the battery for at least 4 hours before you start to use the device. The rechargeable battery is designed and manufactured to be used and recharged frequently. As with all batteries, the capacity of the battery reduces each time it is charged/depleted. However, you can still try to prolong the battery’s lifetime by following the suggestions below: ● Use your Tablet at least once a week. ● Charge the battery regularly and fully. ● Never leave the battery fully discharged for a long period of time. ● Always keep the device and the battery away from heat. Charge battery Plug the power adapter into an electrical wall outlet, and then connect to the device to fully charge the battery before use (A full charge takes about 4 hours in the off status). ☆ You cannot charge the battery using the USB cable. When fully charged, the battery icon displays as . A fully discharged battery takes approximately 6 hours to fully charge in the off status, but you can use the device while plugged in when desired. IMPORTANT SAFETY PRECAUTIONS Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock, and injury. ● Do not expose this product to rain or moisture. ● Keep the device out of direct sunlight and heat sources. ● Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the device. ● Only use the AC adapter included with the device. Using any other power adapter voids your warranty. ● Do not remove the cover. There are no user-serviceable parts inside.

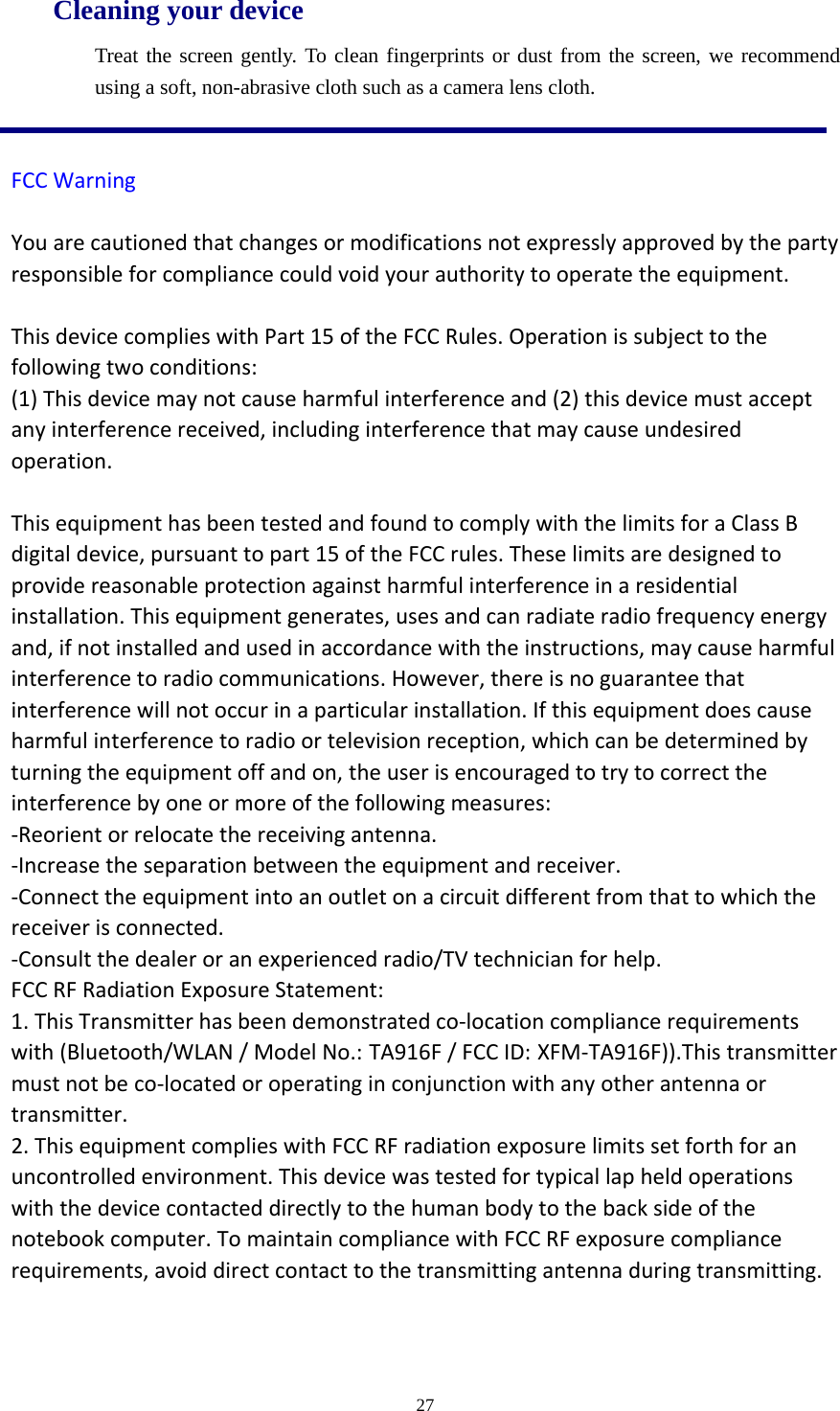

27Cleaning your device Treat the screen gently. To clean fingerprints or dust from the screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth. FCCWarningYouarecautionedthatchangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidyourauthoritytooperatetheequipment.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterferenceand(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐Reorientorrelocatethereceivingantenna.‐Increasetheseparationbetweentheequipmentandreceiver.‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.FCCRFRadiationExposureStatement:1.ThisTransmitterhasbeendemonstratedco‐locationcompliancerequirementswith(Bluetooth/WLAN/ModelNo.: TA916F/FCCID: XFM‐TA916F)).Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.2.ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.Thisdevicewastestedfortypicallapheldoperationswiththedevicecontacteddirectlytothehumanbodytothebacksideofthenotebookcomputer.TomaintaincompliancewithFCCRFexposurecompliancerequirements,avoiddirectcontacttothetransmittingantennaduringtransmitting.
