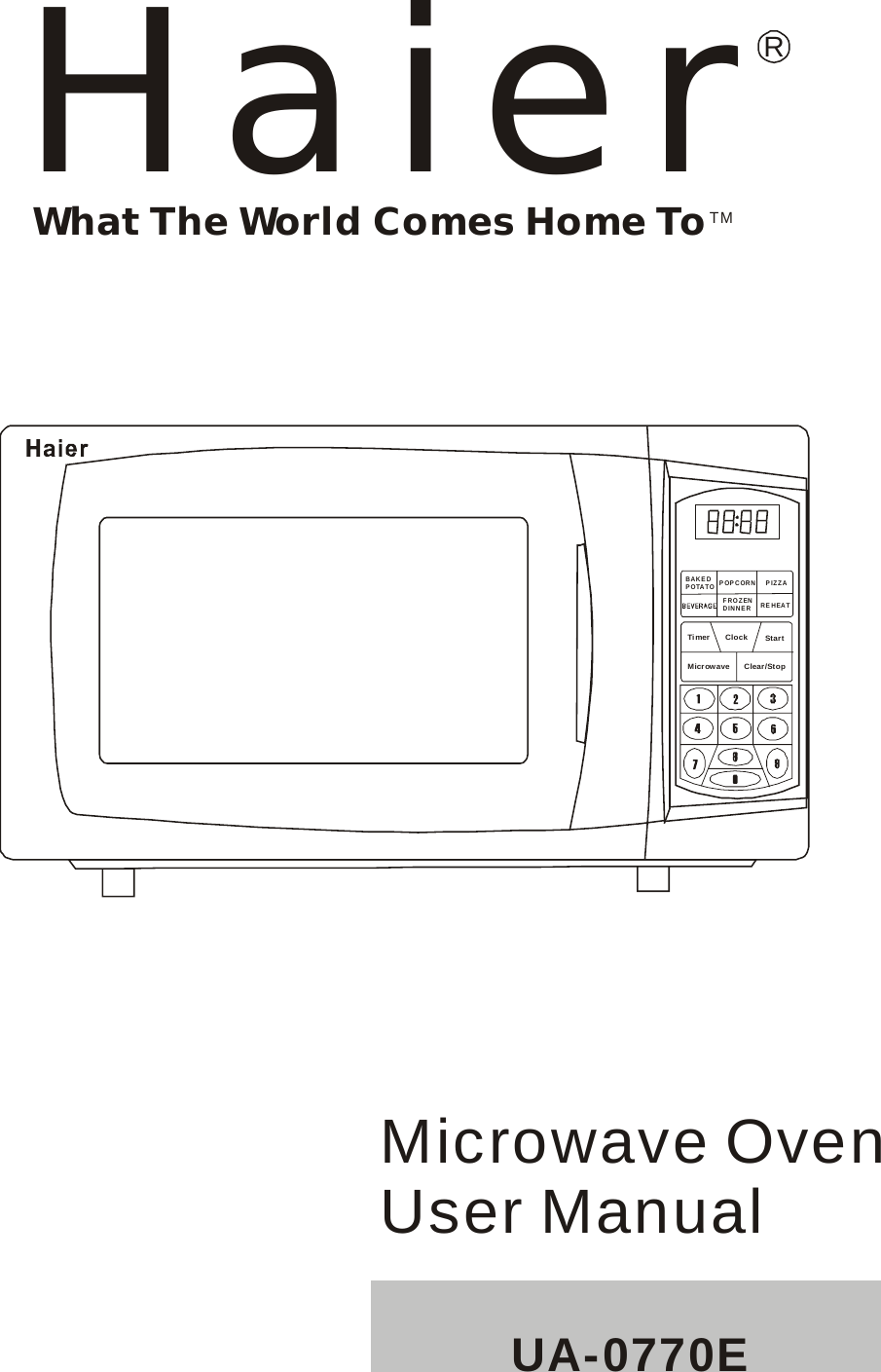

HaierRWhat The World Comes Home ToTMMicrowave OvenUser ManualUA-0770EBAKEDPOTATOREHEATPIZZAFROZENDINNERPOPCORNTimerClear/StopStartClockMicrowave

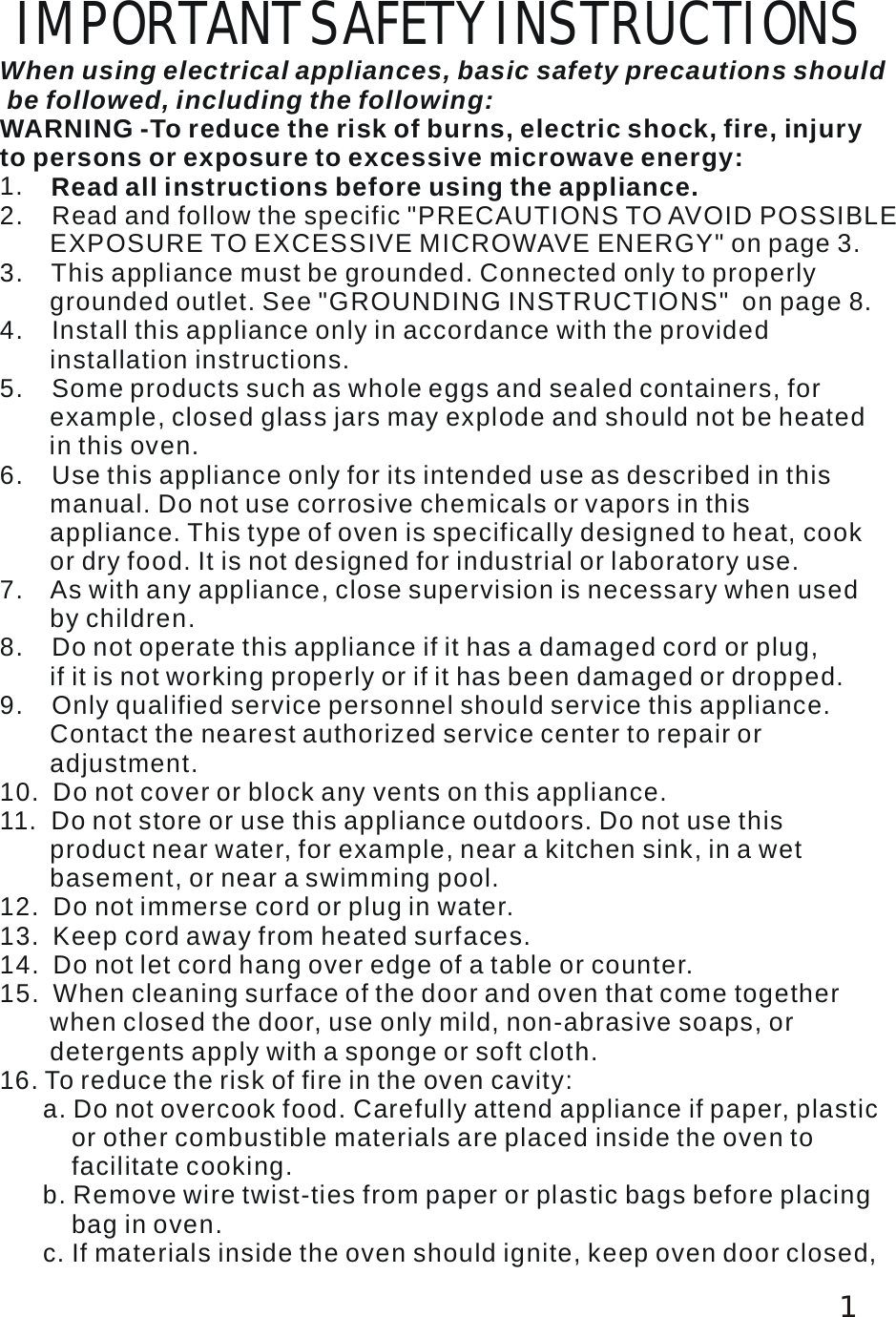

IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: 1. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 3. 3. This appliance must be grounded. Connected only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" on page 8. 4. Install this appliance only in accordance with the provided installation instructions.5. Some products such as whole eggs and sealed containers, for example, closed glass jars may explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 6. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, keep oven door closed, WARNING -To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: Read all instructions before using the appliance. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.9. Only qualified service personnel should service this appliance. Contact the nearest authorized service center to repair or adjustment.10. Do not cover or block any vents on this appliance.15. When cleaning surface of the door and oven that come together when closed the door, use only mild, non-abrasive soaps, or detergents apply with a sponge or soft cloth.11. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, or near a swimming pool. 12. Do not immerse cord or plug in water.13. Keep cord away from heated surfaces.14. Do not let cord hang over edge of a table or counter.11
2SAVE THESE INSTRUCTIONSWARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy. If there is any damage, do not operate the oven and contact your dealer or Haier authorized service. turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. Do not use the microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapors from the corrosive chemicals may interact with the circuitry and affect the operation of oven.18. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.19. Do not deep fry food in the microwave. It is difficult to control the fatwhich could cause a fire hazard. 20. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. 21. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. 22. Be certain the glass tray and roller ring are in place when you operate the oven. Thank you for using our Haier product. his easy-to-use manual will guide you in getting the best use of your microwave ovenRemember to record the model and serial number. They are an a label in back of themicrowave oven.Model numberSerial numberDate of purchaseStaple your receipt to your manual. YOU WILL NEED IT TO OBTAIN WARRANTY SERVICE.

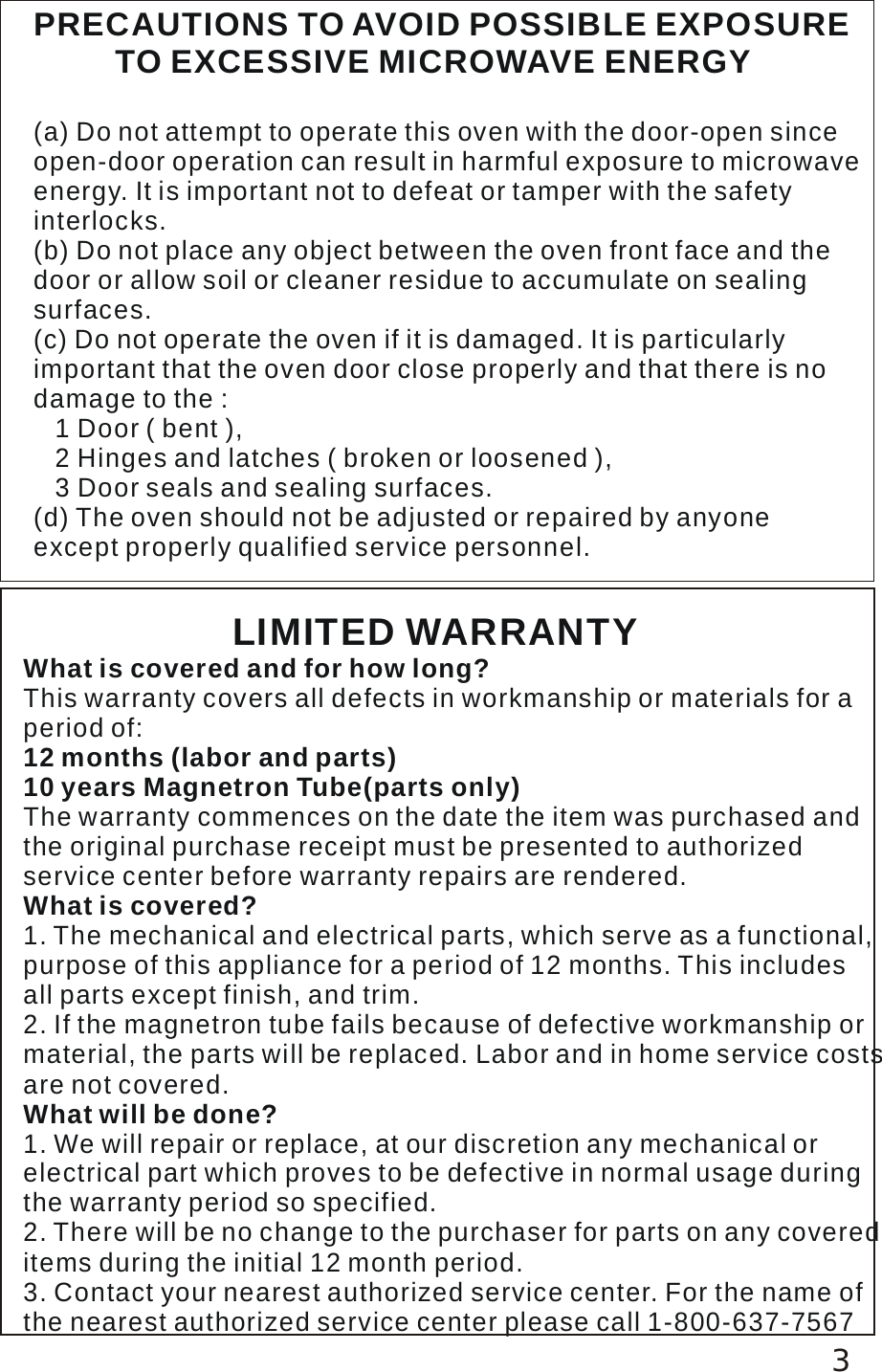

3PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY(a) Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safetyinterlocks.(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularlyimportant that the oven door close properly and that there is no damage to the : 1 Door ( bent ), 2 Hinges and latches ( broken or loosened ), 3 Door seals and sealing surfaces.(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. LIMITED WARRANTYWhat is covered and for how long?12 months (labor and parts)10 years Magnetron Tube(parts only)What is covered?What will be done?This warranty covers all defects in workmanship or materials for a period of:The warranty commences on the date the item was purchased andthe original purchase receipt must be presented to authorized service center before warranty repairs are rendered.1. The mechanical and electrical parts, which serve as a functional,purpose of this appliance for a period of 12 months. This includes all parts except finish, and trim.2. If the magnetron tube fails because of defective workmanship ormaterial, the parts will be replaced. Labor and in home service costs are not covered.1. We will repair or replace, at our discretion any mechanical or electrical part which proves to be defective in normal usage during the warranty period so specified.2. There will be no change to the purchaser for parts on any covered items during the initial 12 month period.3. Contact your nearest authorized service center. For the name of the nearest authorized service center please call 1-800-637-7567

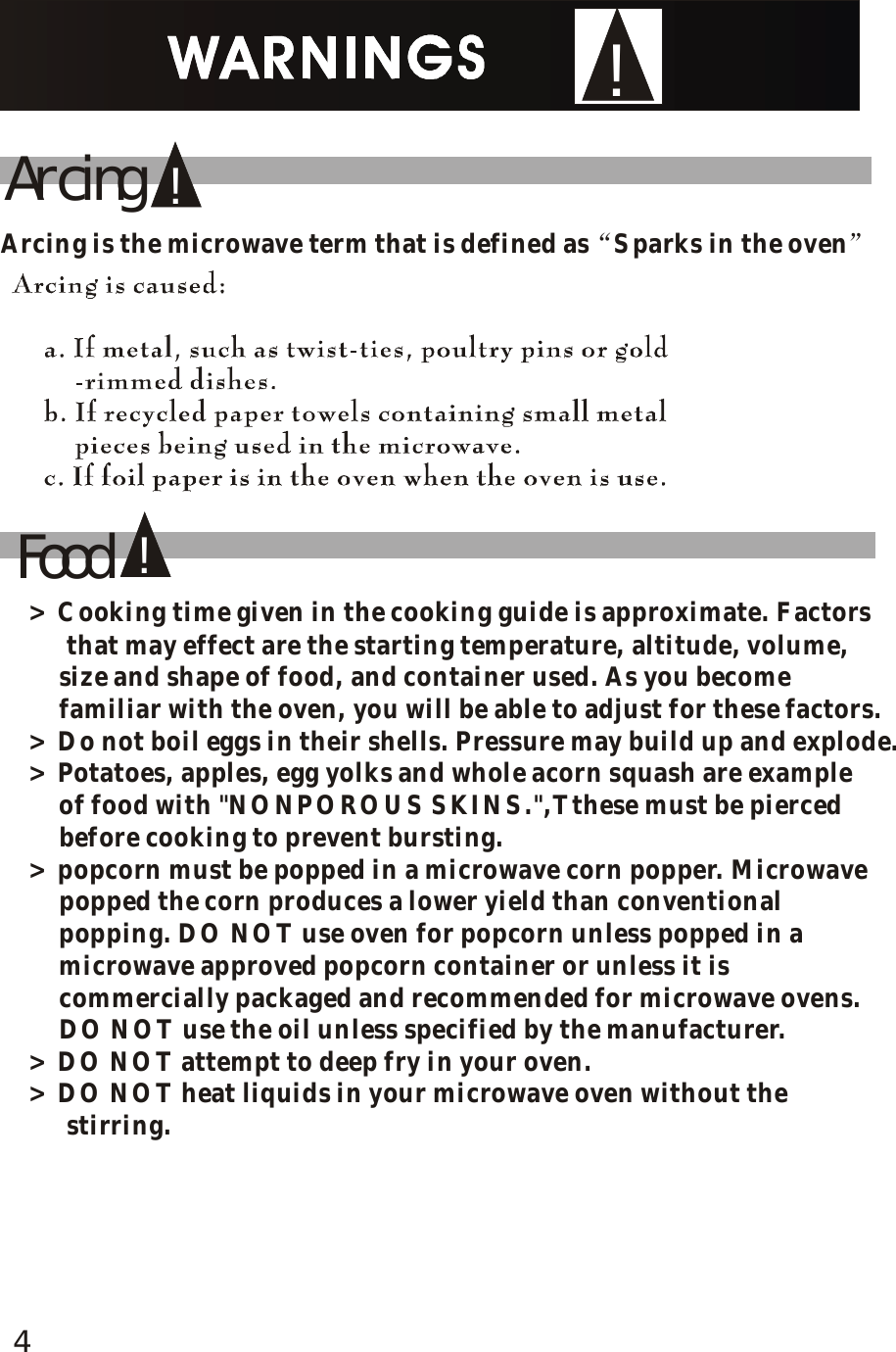

!Food!!ArcingArcing is the microwave term that is defined as Sparks in the oven“”> Cooking time given in the cooking guide is approximate. Factors that may effect are the starting temperature, altitude, volume, size and shape of food, and container used. As you become familiar with the oven, you will be able to adjust for these factors.> Do not boil eggs in their shells. Pressure may build up and explode.> Potatoes, apples, egg yolks and whole acorn squash are example of food with "NONPOROUS SKINS.",Tthese must be pierced before cooking to prevent bursting.> popcorn must be popped in a microwave corn popper. Microwave popped the corn produces a lower yield than conventional popping. DO NOT use oven for popcorn unless popped in a microwave approved popcorn container or unless it is commercially packaged and recommended for microwave ovens. DO NOT use the oil unless specified by the manufacturer.> DO NOT attempt to deep fry in your oven.> DO NOT heat liquids in your microwave oven without the stirring. 4

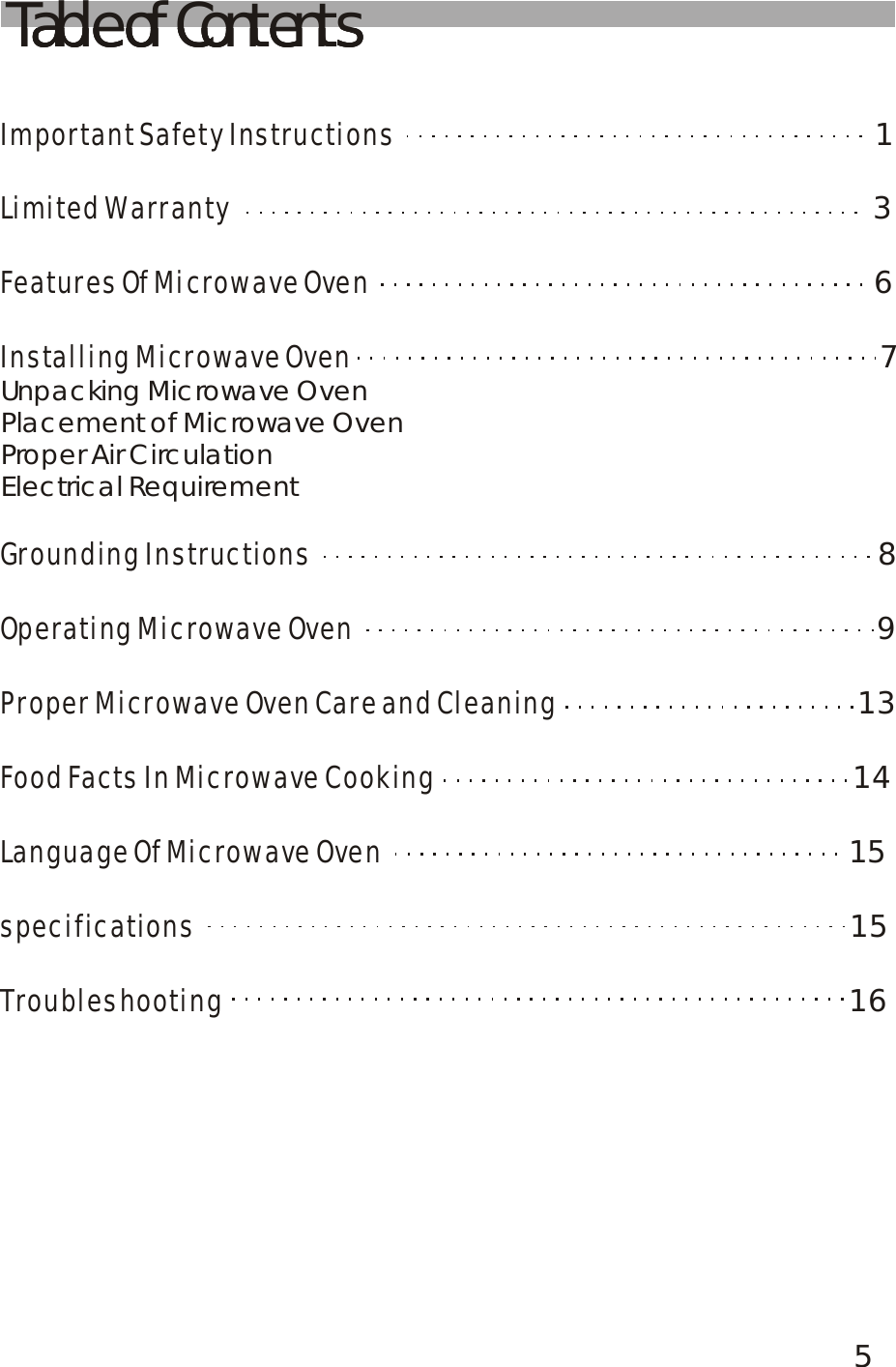

Table of ContentsImportant Safety Instructions Limited 1Warranty Features Of Microwave Oven Installing Microwave Oven Grounding Instructions Operating Microwave Oven Proper Microwave Oven Care and Cleaning Food Facts In Microwave Cooking Language Of Microwave Oven specifications Troubleshooting 36 7 8 913141515 16Unpacking Microwave Oven Placement of Microwave Oven Proper Air Circulation Electrical Requirement Table of ContentsTable of Contents5

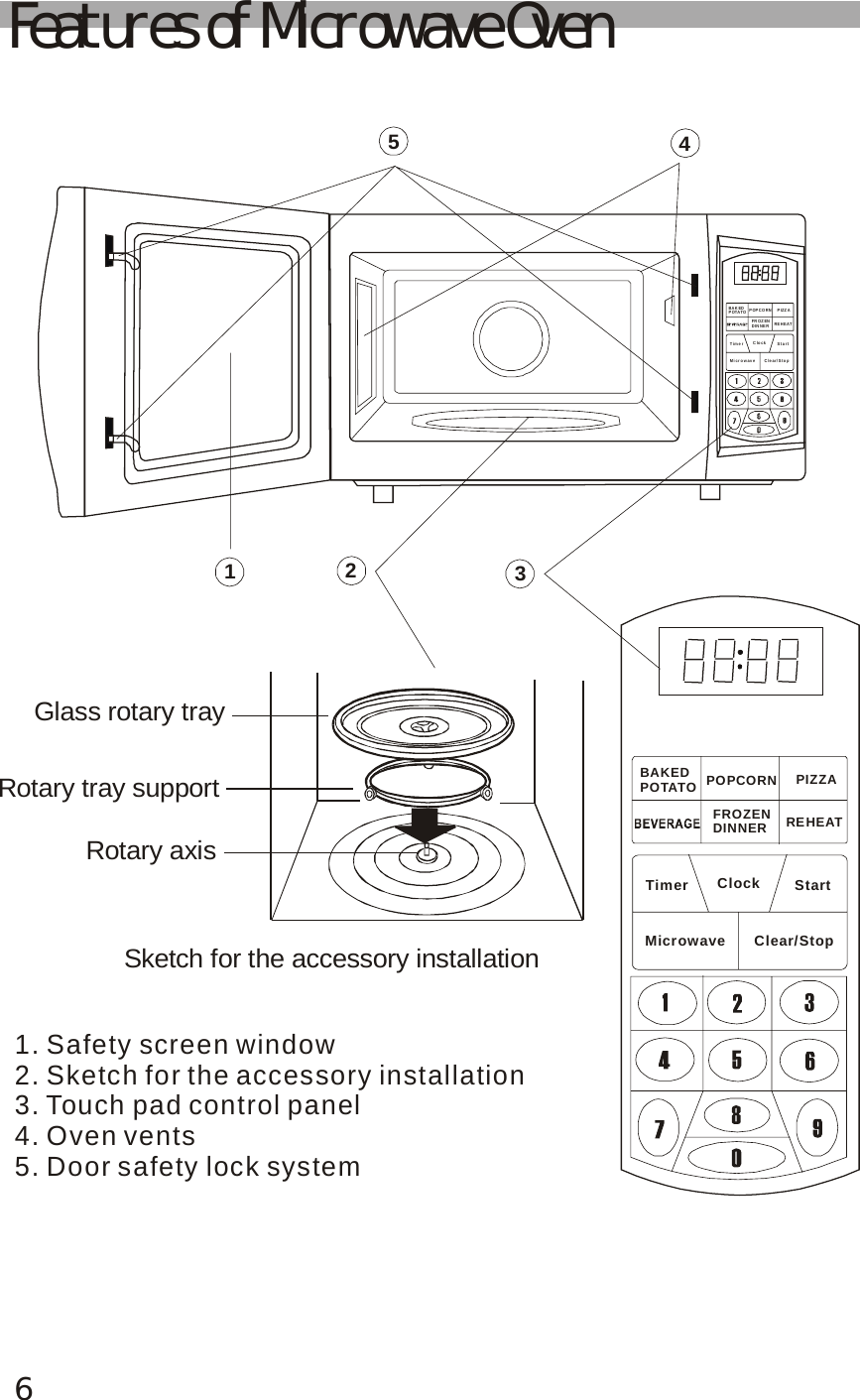

Features of Microwave OvenBAKEDPOTA TOREHEATPIZZAFR OZ ENDIN NERPOPCORNTimerClear/StopStartClockMicr ow aveBAKEDPOTATOREHEATPIZZAFROZENDINNERPOPCORNTimerClear/StopStartClockMicrowaveGlass rotary tray Rotary tray supportRotary axis Sketch for the accessory installation 154321. Safety screen window2. Sketch for the accessory installation3. Touch pad control panel4. Oven vents5. Door safety lock system6

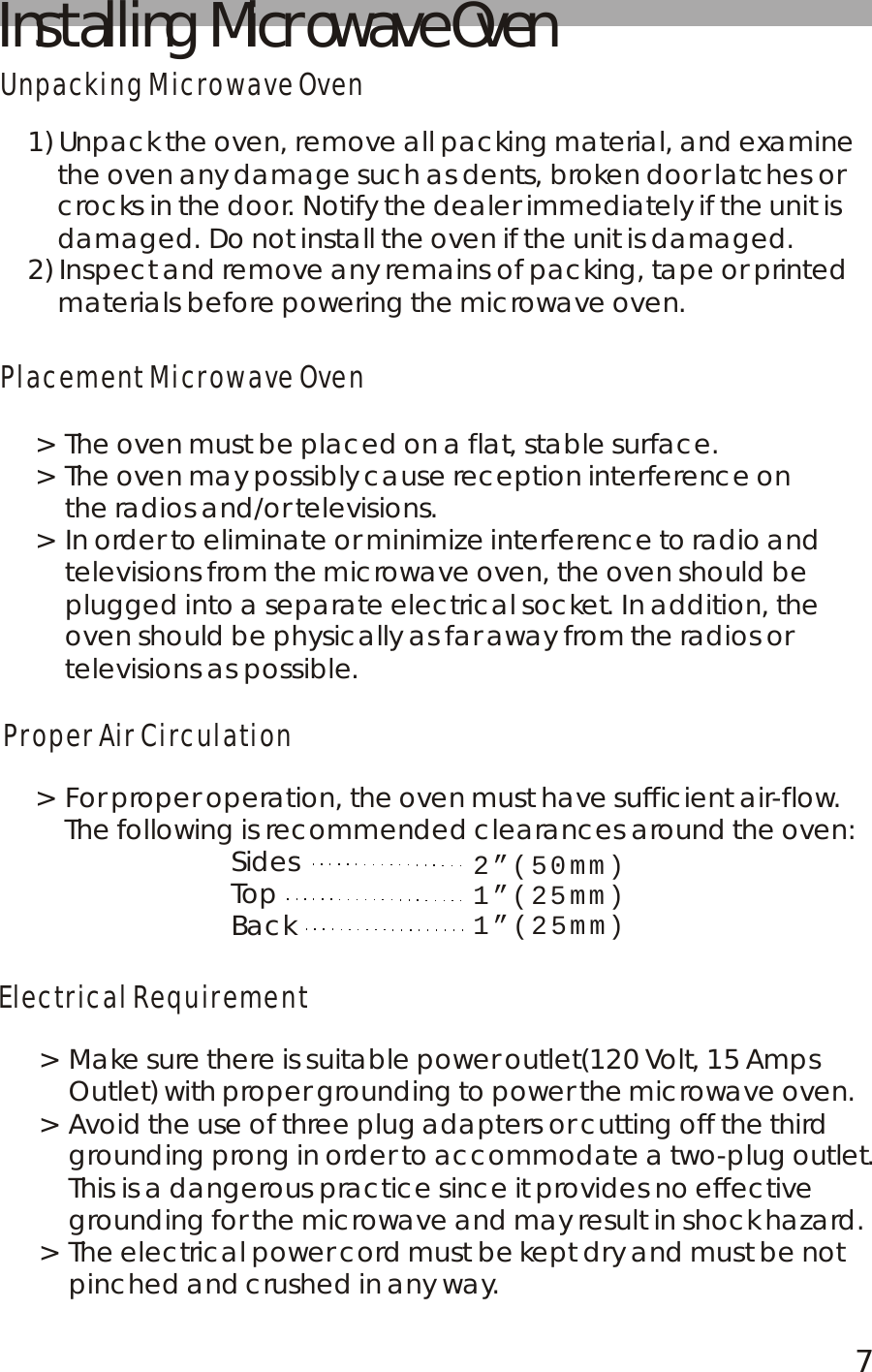

Installing Microwave OvenUnpacking Microwave OvenPlacement Microwave OvenProper Air CirculationElectrical Requirement1) Unpack the oven, remove all packing material, and examine the oven any damage such as dents, broken door latches or crocks in the door. Notify the dealer immediately if the unit is damaged. Do not install the oven if the unit is damaged.2) Inspect and remove any remains of packing, tape or printed materials before powering the microwave oven.> The oven must be placed on a flat, stable surface.> The oven may possibly cause reception interference on the radios and/or televisions.> In order to eliminate or minimize interference to radio and televisions from the microwave oven, the oven should be plugged into a separate electrical socket. In addition, the oven should be physically as far away from the radios or televisions as possible.> For proper operation, the oven must have sufficient air-flow. The following is recommended clearances around the oven: Sides Top Back2”(50mm)1”(25mm)1”(25mm)> Make sure there is suitable power outlet(120 Volt, 15 Amps Outlet) with proper grounding to power the microwave oven.> Avoid the use of three plug adapters or cutting off the third grounding prong in order to accommodate a two-plug outlet. This is a dangerous practice since it provides no effective grounding for the microwave and may result in shock hazard.> The electrical power cord must be kept dry and must be not pinched and crushed in any way.7

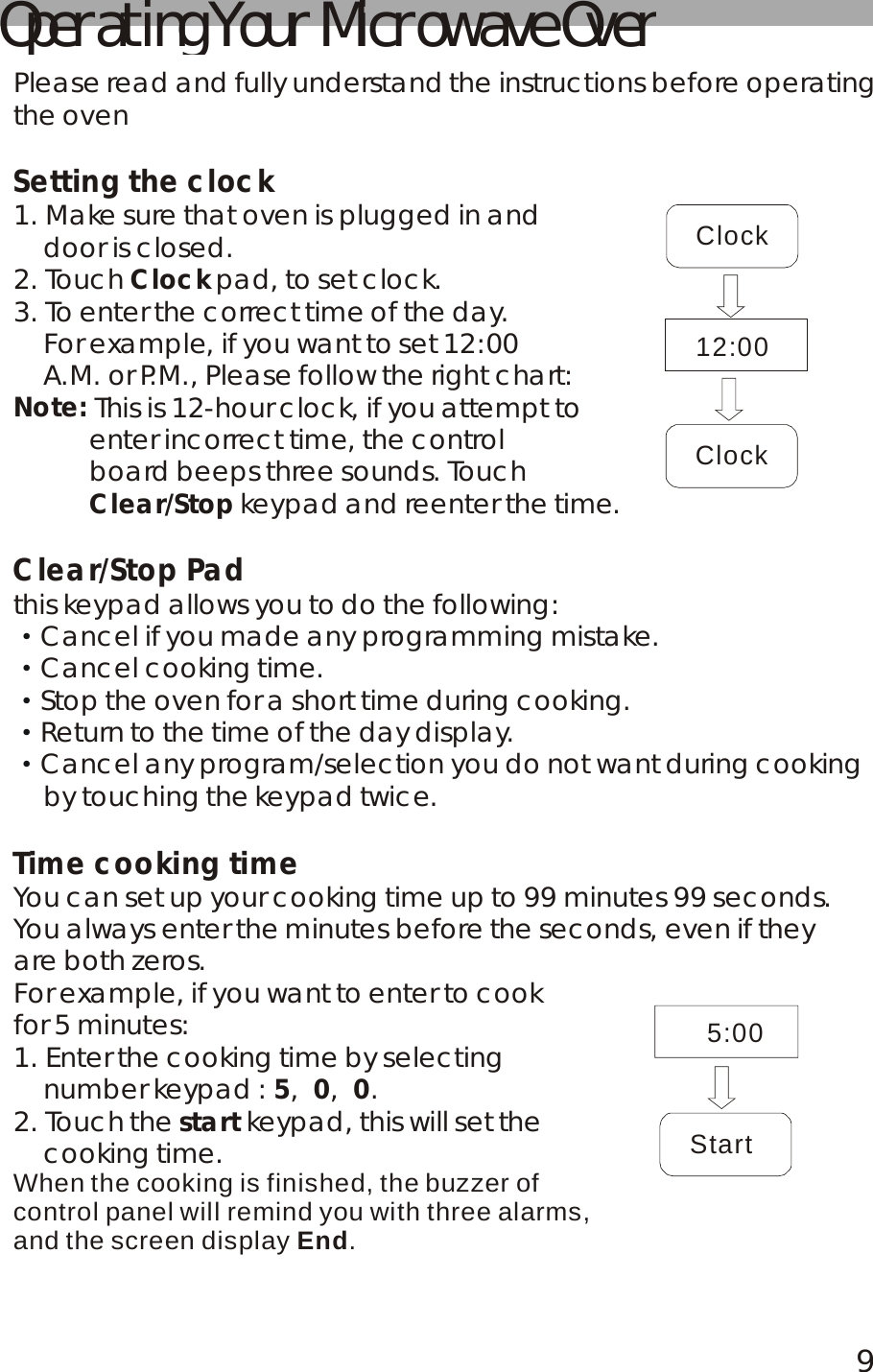

Operating Your Microwave OvenPlease read and fully understand the instructions before operatingthe oven1. Make sure that oven is plugged in and door is closed.2. Touch pad, to set clock.3. To enter the correct time of the day. For example, if you want to set 12:00 A.M. or P.M., Please follow the right chart:This is 12-hour clock, if you attempt to enter incorrect time, the control board beeps three sounds. Touch keypad and reenter the time.this keypad allows you to do the following:Cancel if you made any programming mistake.Cancel cooking time.Stop the oven for a short time during cooking.Return to the time of the day display. Cancel any program/selection you do not want during cooking by touching the keypad twice.You can set up your cooking time up to 99 minutes 99 seconds. You always enter the minutes before the seconds, even if they are both zeros.For example, if you want to enter to cook for 5 minutes:1. Enter the cooking time by selecting number keypad : , , .2. Touch the keypad, this will set the cooking time.Setting the clockClear/Stop PadTime cooking timeClockNote: Clear/Stop500start·····When the cooking is finished, the buzzer of control panel will remind you with three alarms, and the screen display .End12:00ClockClock5:00Start9

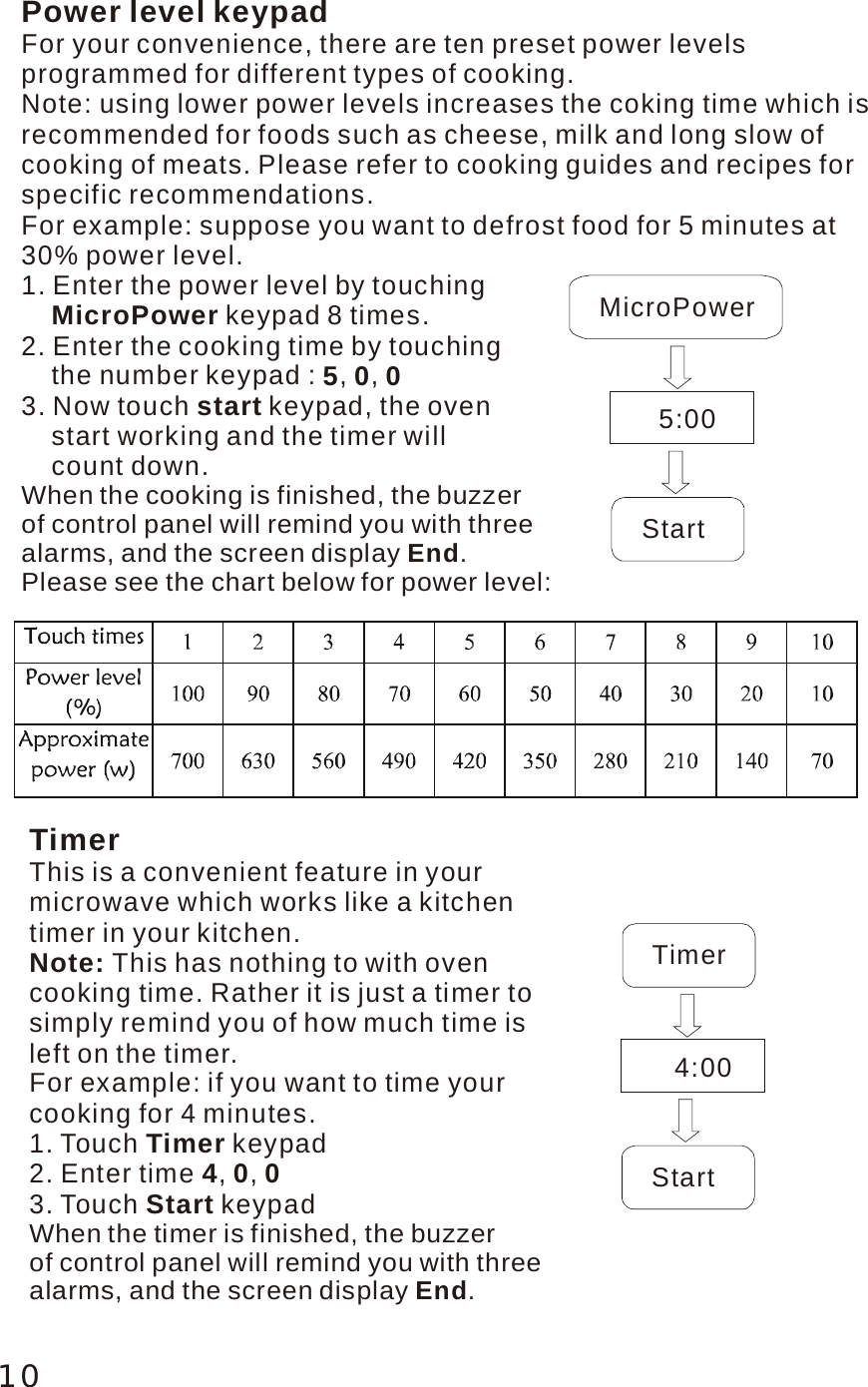

Power level keypadFor your convenience, there are ten preset power levels programmed for different types of cooking.Note: using lower power levels increases the coking time which isrecommended for foods such as cheese, milk and long slow of cooking of meats. Please refer to cooking guides and recipes for specific recommendations.For example: suppose you want to defrost food for 5 minutes at 30% power level.1. Enter the power level by touching keypad 8 times.2. Enter the cooking time by touching the number keypad : , , 3. Now touch keypad, the oven start working and the timer will count down.MicroPower 500startWhen the cooking is finished, the buzzer of control panel will remind you with three alarms, and the screen display .Please see the chart below for power level:End5:00StartMicroPowerTimerThis is a convenient feature in your microwave which works like a kitchen timer in your kitchen.This has nothing to with oven cooking time. Rather it is just a timer to simply remind you of how much time is left on the timer.For example: if you want to time your cooking for 4 minutes.1. Touch keypad2. Enter time , , 3. Touch keypadNote: Timer400 StartWhen the timer is finished, the buzzer of control panel will remind you with three alarms, and the screen display .End 4:00StartTimer10

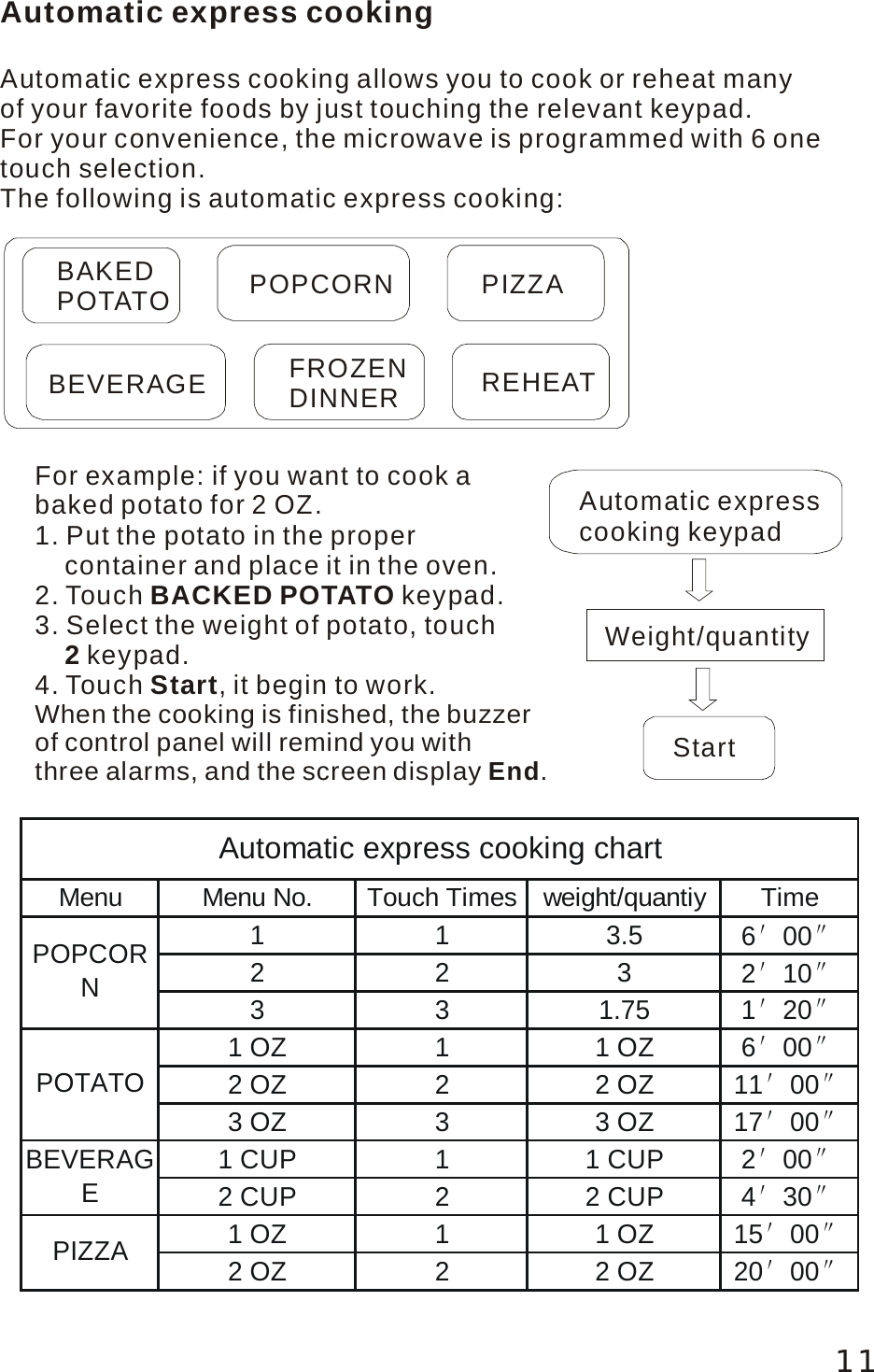

Automatic express cookingAutomatic express cooking allows you to cook or reheat many of your favorite foods by just touching the relevant keypad. For your convenience, the microwave is programmed with 6 one touch selection.The following is automatic express cooking:BAKEDPOTATO POPCORN PIZZABEVERAGE FROZENDINNER REHEATFor example: if you want to cook a baked potato for 2 OZ.1. Put the potato in the proper container and place it in the oven.2. Touch keypad.3. Select the weight of potato, touch keypad.4. Touch , it begin to work.BACKED POTATO2 StartWhen the cooking is finished, the buzzer of control panel will remind you with three alarms, and the screen display .EndWeight/quantityStartAutomatic expresscooking keypadMenu Menu No. Touch Times weight/quantiy Time113.56′00″2232′10″331.751′20″1OZ 1 1OZ 6′00″2OZ 2 2OZ 11′00″3OZ 3 3OZ 17′00″1CUP 1 1CUP 2′00″2CUP 2 2CUP 4′30″1OZ 1 1OZ 15′00″2OZ 2 2OZ 20′00″PIZZABEVERAGEPOPCORNPOTATOAutomatic express cooking chart11

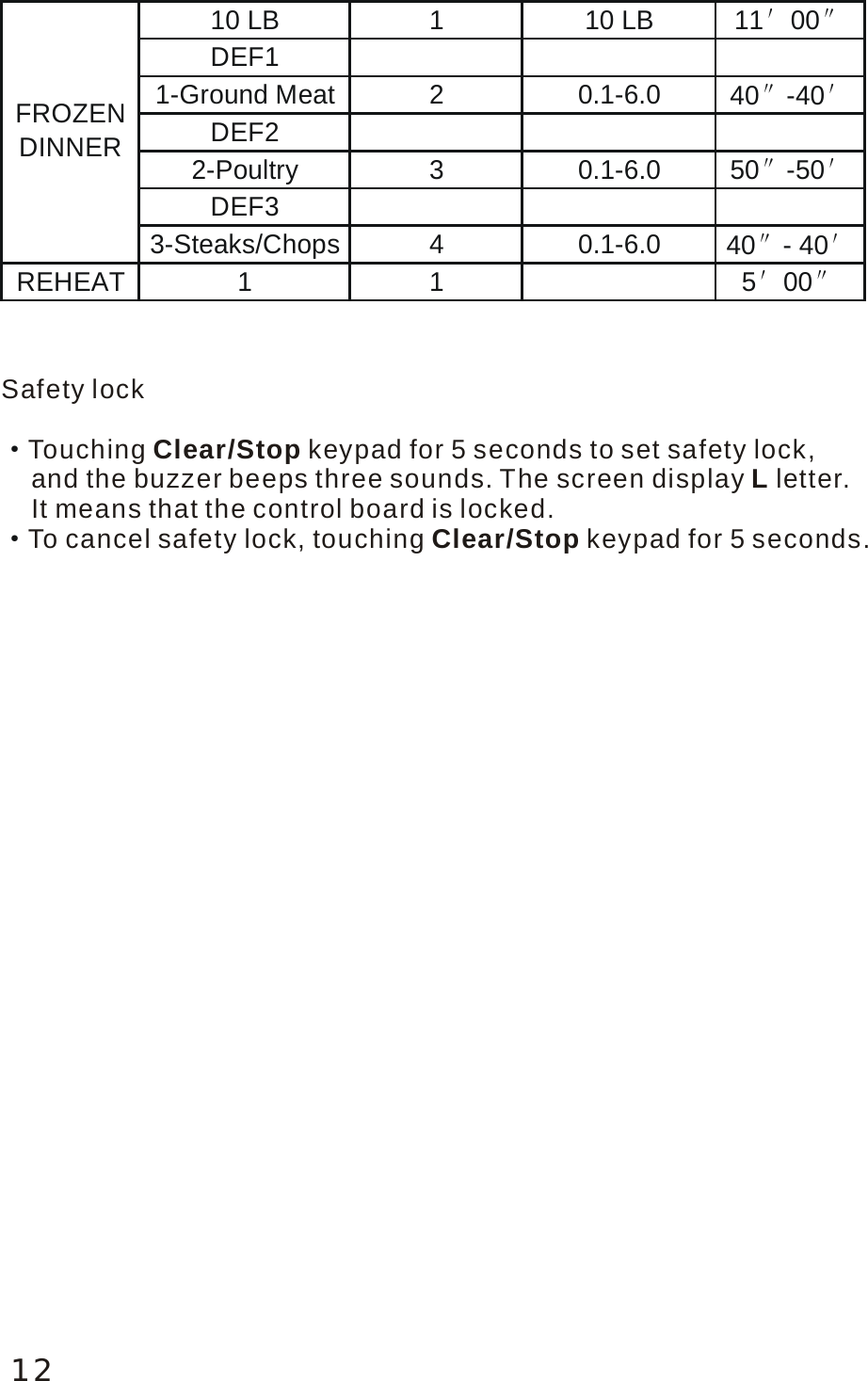

Safety lockTouching keypad for 5 seconds to set safety lock, and the buzzer beeps three sounds. The screen display letter. It means that the control board is locked.To cancel safety lock, touching keypad for 5 seconds. Clear/Stop LClear/Stop··10 LB 1 10 LB 11′00″DEF11-Ground Meat 2 0.1-6.0 40″-40′DEF22-Poultry 3 0.1-6.0 50″-50′DEF33-Steaks/Chops 4 0.1-6.0 40″-40′REHEAT 1 1 5′00″FROZENDINNER12

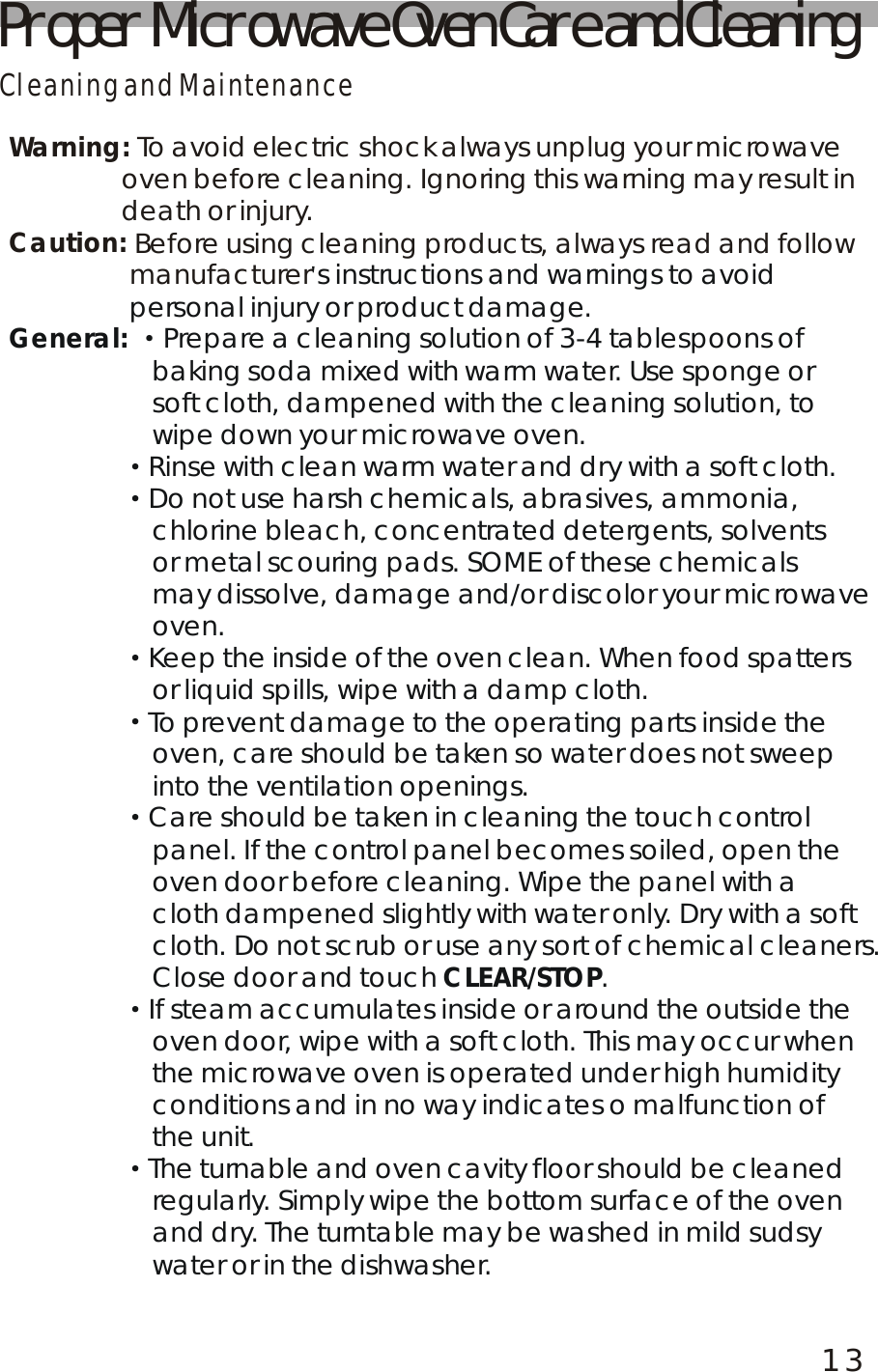

Proper Microwave Oven Care and CleaningCleaning and MaintenanceWarning:Caution: To avoid electric shock always unplug your microwave oven before cleaning. Ignoring this warning may result in death or injury. Before using cleaning products, always read and follow manufacturer's instructions and warnings to avoid personal injury or product damage.Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your microwave oven. Rinse with clean warm water and dry with a soft cloth. Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your microwave oven. Keep the inside of the oven clean. When food spatters or liquid spills, wipe with a damp cloth. To prevent damage to the operating parts inside the oven, care should be taken so water does not sweep into the ventilation openings. Care should be taken in cleaning the touch control panel. If the control panel becomes soiled, open the oven door before cleaning. Wipe the panel with a cloth dampened slightly with water only. Dry with a softcloth. Do not scrub or use any sort of chemical cleaners. Close door and touch . If steam accumulates inside or around the outside theoven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates o malfunction of the unit. The turnable and oven cavity floor should be cleaned regularly. Simply wipe the bottom surface of the oven and dry. The turntable may be washed in mild sudsy water or in the dishwasher.General: CLEAR/STOP········ 13

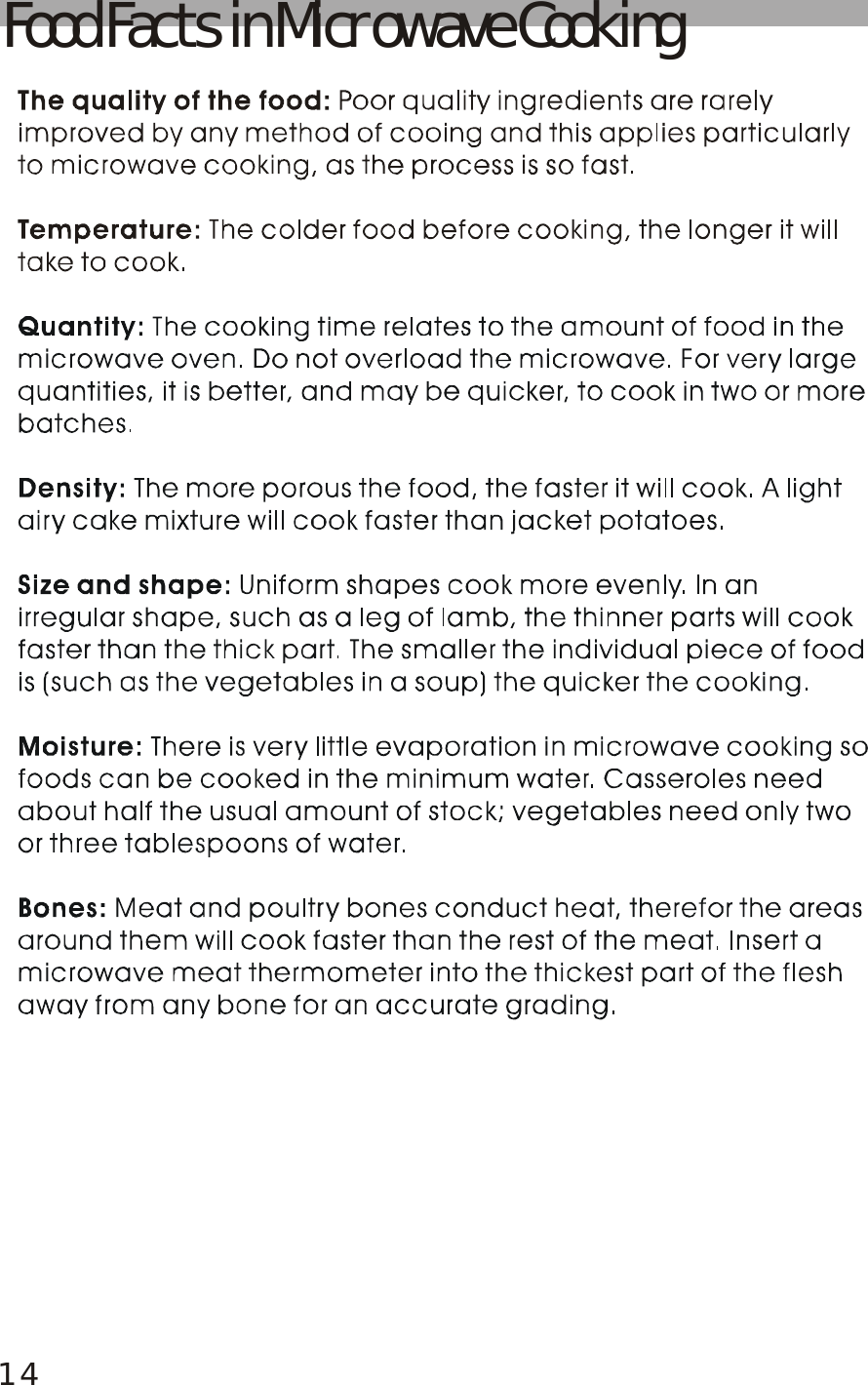

Food Facts in Microwave Cooking14

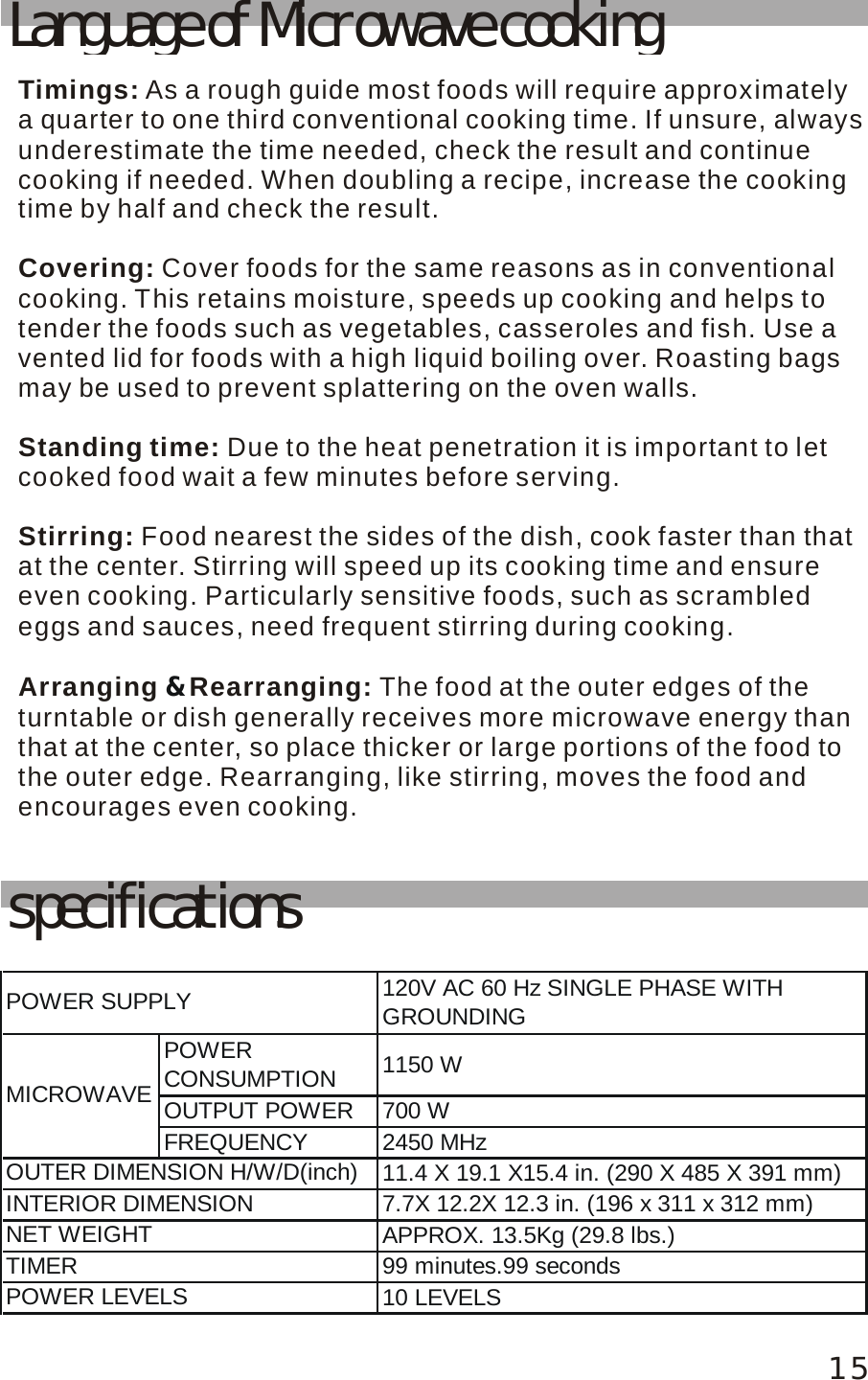

Language of Microwave cookingTimings:Covering: Standing time:Stirring:Arranging Rearranging: As a rough guide most foods will require approximately a quarter to one third conventional cooking time. If unsure, alwaysunderestimate the time needed, check the result and continue cooking if needed. When doubling a recipe, increase the cooking time by half and check the result.Cover foods for the same reasons as in conventional cooking. This retains moisture, speeds up cooking and helps to tender the foods such as vegetables, casseroles and fish. Use a vented lid for foods with a high liquid boiling over. Roasting bags may be used to prevent splattering on the oven walls. Due to the heat penetration it is important to let cooked food wait a few minutes before serving. Food nearest the sides of the dish, cook faster than thatat the center. Stirring will speed up its cooking time and ensure even cooking. Particularly sensitive foods, such as scrambled eggs and sauces, need frequent stirring during cooking.The food at the outer edges of the turntable or dish generally receives more microwave energy than that at the center, so place thicker or large portions of the food to the outer edge. Rearranging, like stirring, moves the food and encourages even cooking.&15specifications120V AC 60 Hz SINGLE PHASE WITHGROUNDINGPOWERCONSUMPTION 1150 WOUTPUT POWER 700 WFREQUENCY 2450 MHz11.4 X 19.1 X15.4 in. (290 X 485 X 391 mm)7.7X 12.2X 12.3 in. (196 x 311 x 312 mm)APPROX. 13.5Kg (29.8 lbs.)99 minutes.99 seconds10 LEVELSNET WEIGHTTIMERPOWER LEVELSPOWER SUPPLYMICROWAVEOUTER DIMENSION H/W/D(inch)INTERIOR DIMENSION

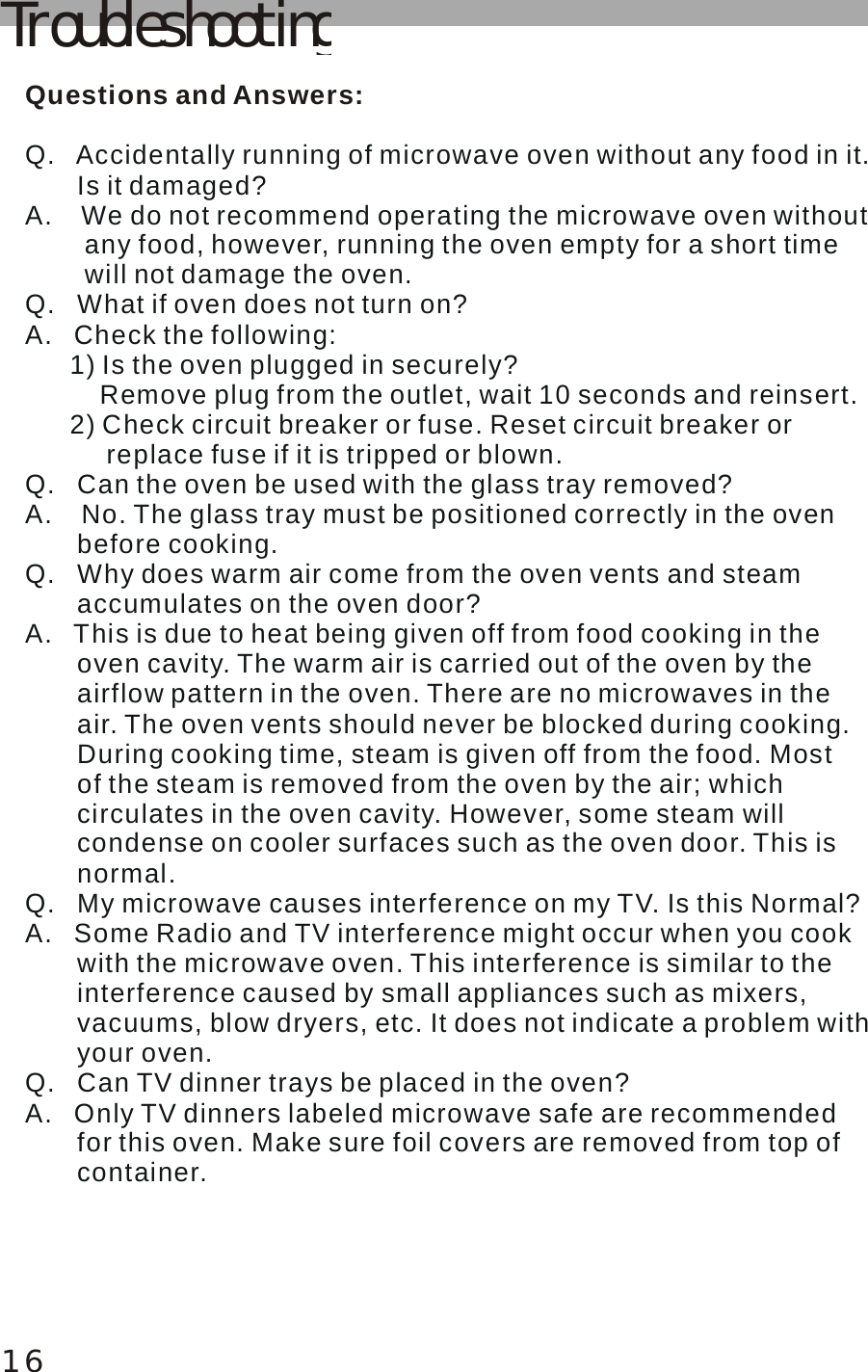

TroubleshootingQuestions and Answers:Q. Accidentally running of microwave oven without any food in it. Is it damaged? A. We do not recommend operating the microwave oven without any food, however, running the oven empty for a short time will not damage the oven. Q. What if oven does not turn on? A. Check the following: 1) Is the oven plugged in securely? Remove plug from the outlet, wait 10 seconds and reinsert. 2) Check circuit breaker or fuse. Reset circuit breaker or replace fuse if it is tripped or blown. Q. Can the oven be used with the glass tray removed? A. No. The glass tray must be positioned correctly in the oven before cooking. Q. Why does warm air come from the oven vents and steam accumulates on the oven door? A. This is due to heat being given off from food cooking in the oven cavity. The warm air is carried out of the oven by the airflow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking. During cooking time, steam is given off from the food. Most of the steam is removed from the oven by the air; which circulates in the oven cavity. However, some steam will condense on cooler surfaces such as the oven door. This is normal. Q. My microwave causes interference on my TV. Is this Normal?A. Some Radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Q. Can TV dinner trays be placed in the oven? A. Only TV dinners labeled microwave safe are recommended for this oven. Make sure foil covers are removed from top of container.16

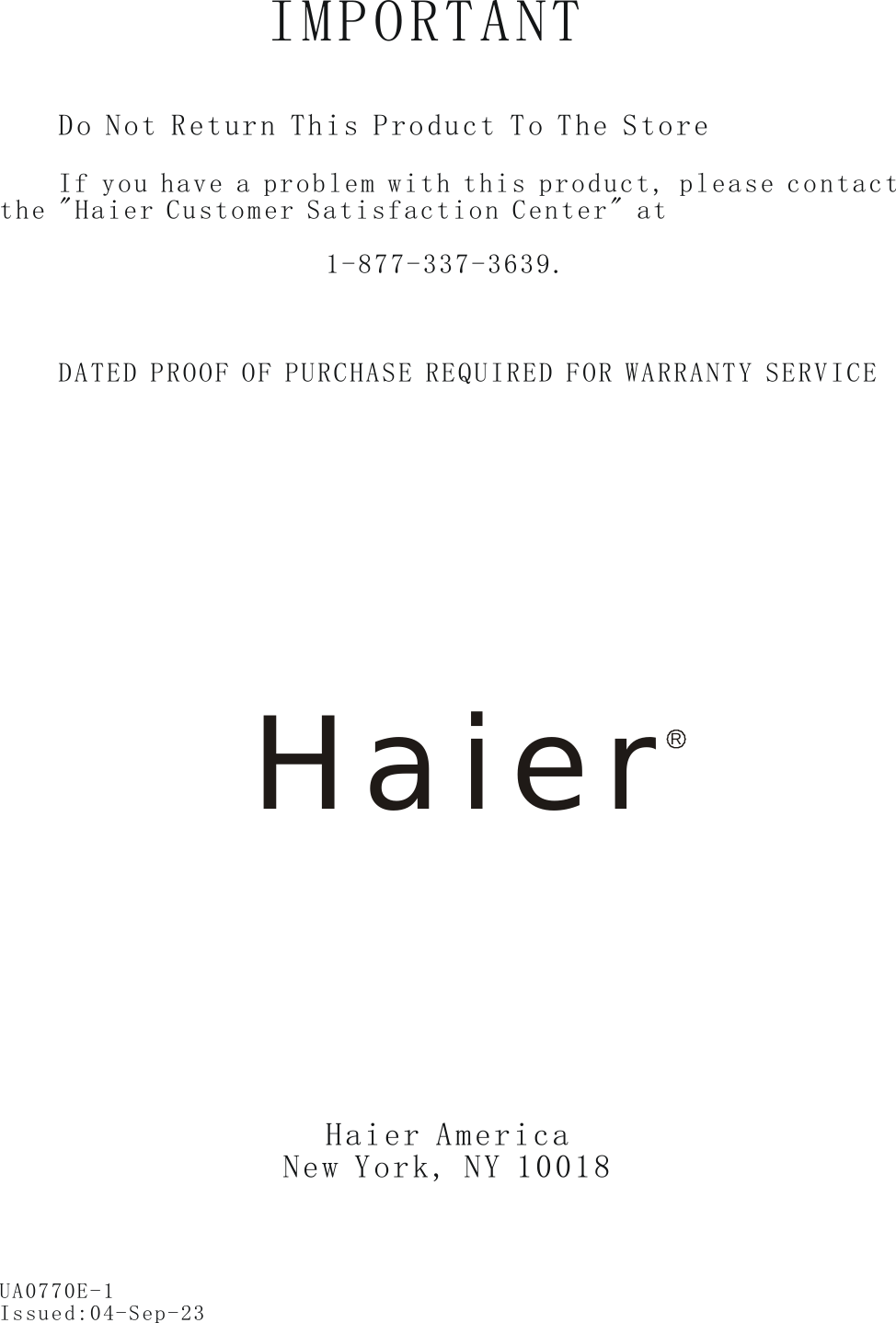

IMPORTANT Do N ot Ret urn This Pro duct T o The S tore If you have a problem with this product, please contactthe "Haier Customer Satisfaction Center" at 1-877-337-3639.DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICEHaier America New York, NY 10018 UA0770E-1Issued:04-Sep-23HaierR
