Qingdao Haier Technology MKQTWIFI11 WiFi module User Manual

Qingdao Haier Technology Co.,Ltd WiFi module

User Manual

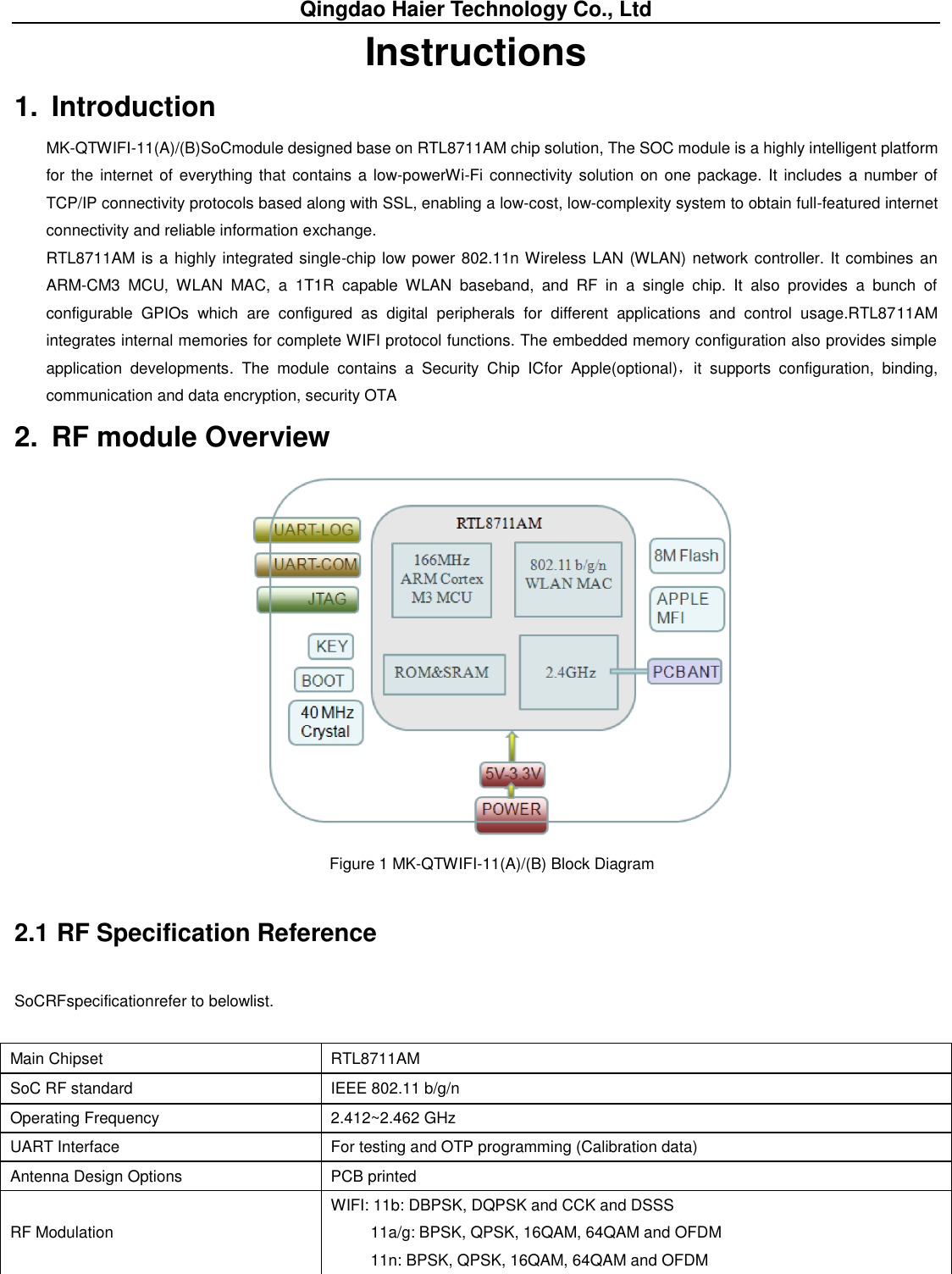

Qingdao Haier Technology Co., Ltd Instructions 1. Introduction MK-QTWIFI-11(A)/(B)SoCmodule designed base on RTL8711AM chip solution, The SOC module is a highly intelligent platform for the internet of everything that contains a low-powerWi-Fi connectivity solution on one package. It includes a number of TCP/IP connectivity protocols based along with SSL, enabling a low-cost, low-complexity system to obtain full-featured internet connectivity and reliable information exchange. RTL8711AM is a highly integrated single-chip low power 802.11n Wireless LAN (WLAN) network controller. It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF in a single chip. It also provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.RTL8711AM integrates internal memories for complete WIFI protocol functions. The embedded memory configuration also provides simple application developments. The module contains a Security Chip ICfor Apple(optional)，it supports configuration, binding, communication and data encryption, security OTA 2. RF module Overview Figure 1 MK-QTWIFI-11(A)/(B) Block Diagram 2.1 RF Specification Reference SoCRFspecificationrefer to belowlist. Main Chipset RTL8711AM SoC RF standard IEEE 802.11 b/g/n Operating Frequency 2.412~2.462 GHz UART Interface For testing and OTP programming (Calibration data) Antenna Design Options PCB printed RF Modulation WIFI: 11b: DBPSK, DQPSK and CCK and DSSS 11a/g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: BPSK, QPSK, 16QAM, 64QAM and OFDM

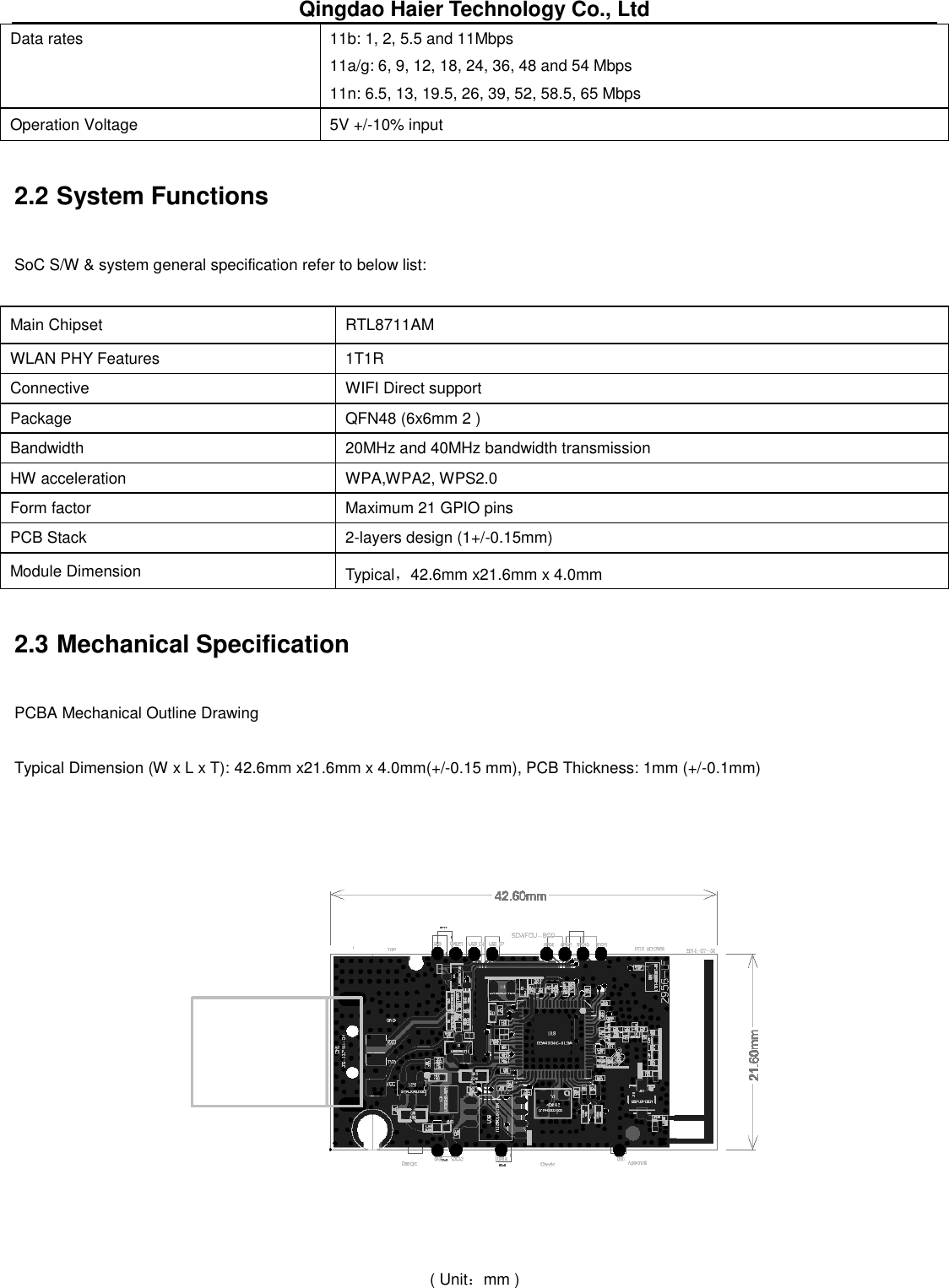

Qingdao Haier Technology Co., Ltd Data rates 11b: 1, 2, 5.5 and 11Mbps 11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps Operation Voltage 5V +/-10% input 2.2 System Functions SoC S/W & system general specification refer to below list: Main Chipset RTL8711AM WLAN PHY Features 1T1R Connective WIFI Direct support Package QFN48 (6x6mm 2 ) Bandwidth 20MHz and 40MHz bandwidth transmission HW acceleration WPA,WPA2, WPS2.0 Form factor Maximum 21 GPIO pins PCB Stack 2-layers design (1+/-0.15mm) Module Dimension Typical，42.6mm x21.6mm x 4.0mm 2.3 Mechanical Specification PCBA Mechanical Outline Drawing Typical Dimension (W x L x T): 42.6mm x21.6mm x 4.0mm(+/-0.15 mm), PCB Thickness: 1mm (+/-0.1mm) ( Unit：mm )

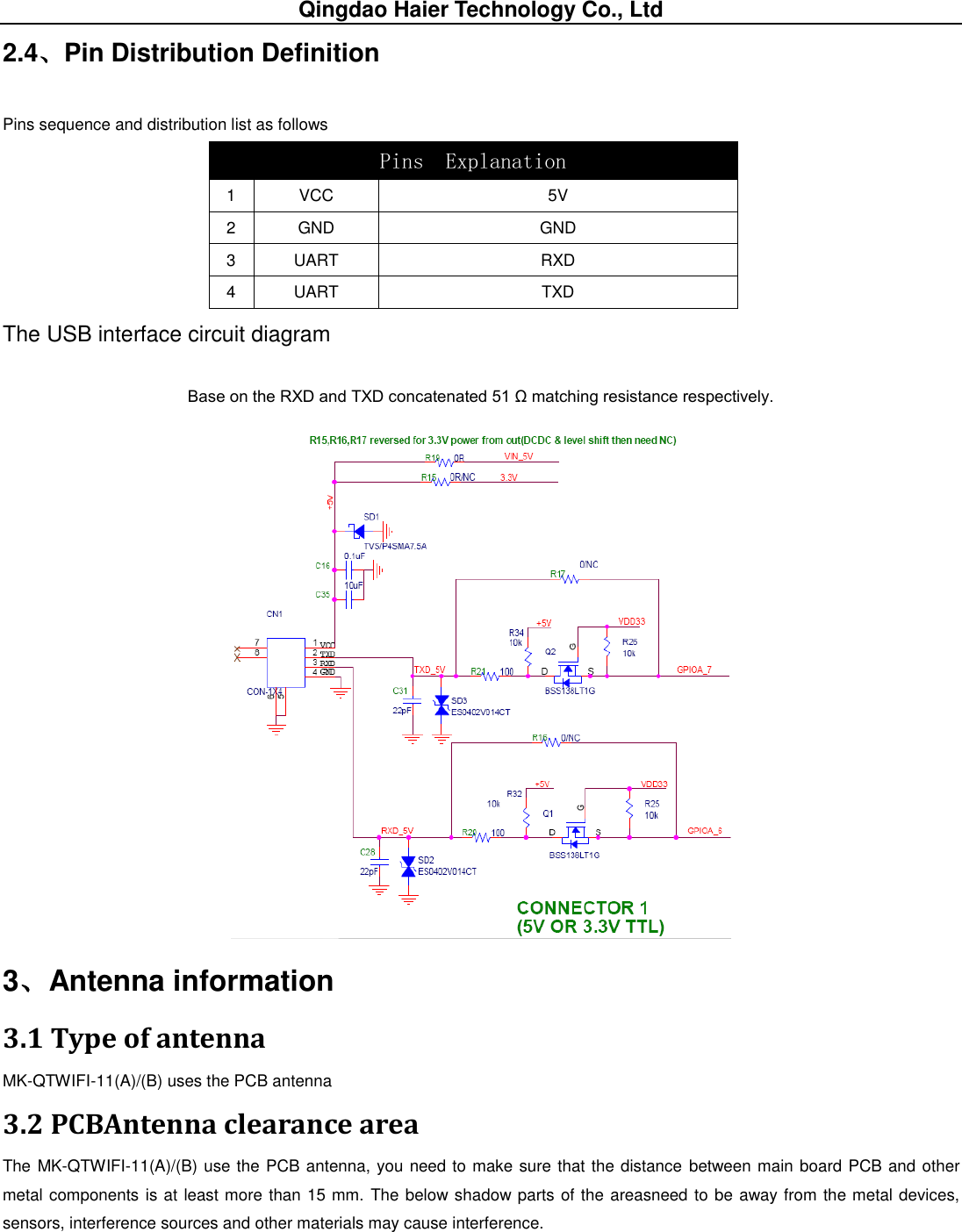

Qingdao Haier Technology Co., Ltd 2.4、Pin Distribution Definition Pins sequence and distribution list as follows The USB interface circuit diagram Base on the RXD and TXD concatenated 51 Ω matching resistance respectively. 3、Antenna information 3.1 Type of antenna MK-QTWIFI-11(A)/(B) uses the PCB antenna 3.2 PCBAntenna clearance area The MK-QTWIFI-11(A)/(B) use the PCB antenna, you need to make sure that the distance between main board PCB and other metal components is at least more than 15 mm. The below shadow parts of the areasneed to be away from the metal devices, sensors, interference sources and other materials may cause interference. Pins Explanation 1 VCC 5V 2 GND GND 3 UART RXD 4 UART TXD

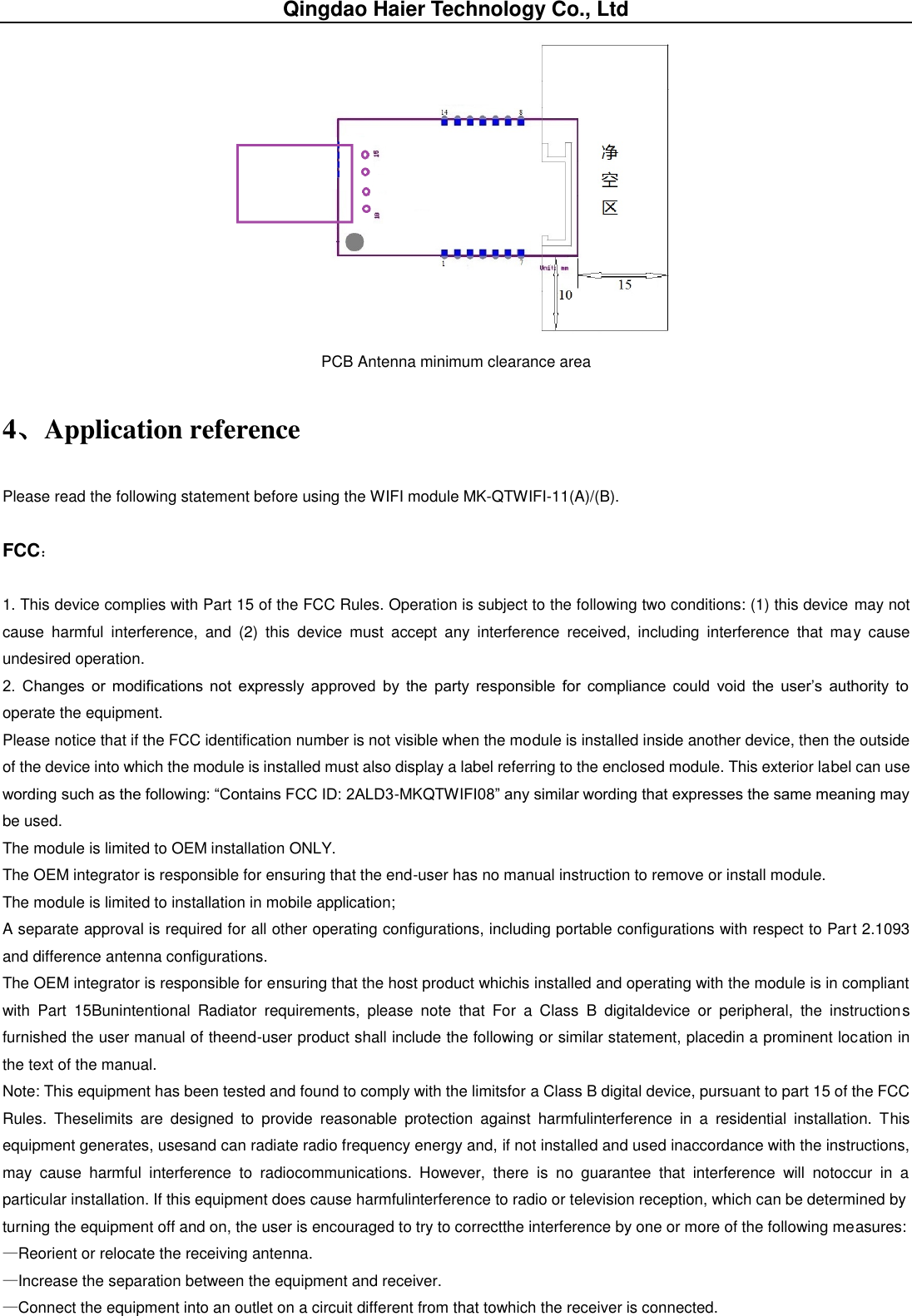

Qingdao Haier Technology Co., Ltd PCB Antenna minimum clearance area 4、Application reference Please read the following statement before using the WIFI module MK-QTWIFI-11(A)/(B). FCC： 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2ALD3-MKQTWIFI08” any similar wording that expresses the same meaning may be used. The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. The module is limited to installation in mobile application; A separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and difference antenna configurations. The OEM integrator is responsible for ensuring that the host product whichis installed and operating with the module is in compliant with Part 15Bunintentional Radiator requirements, please note that For a Class B digitaldevice or peripheral, the instructions furnished the user manual of theend-user product shall include the following or similar statement, placedin a prominent location in the text of the manual. Note: This equipment has been tested and found to comply with the limitsfor a Class B digital device, pursuant to part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.

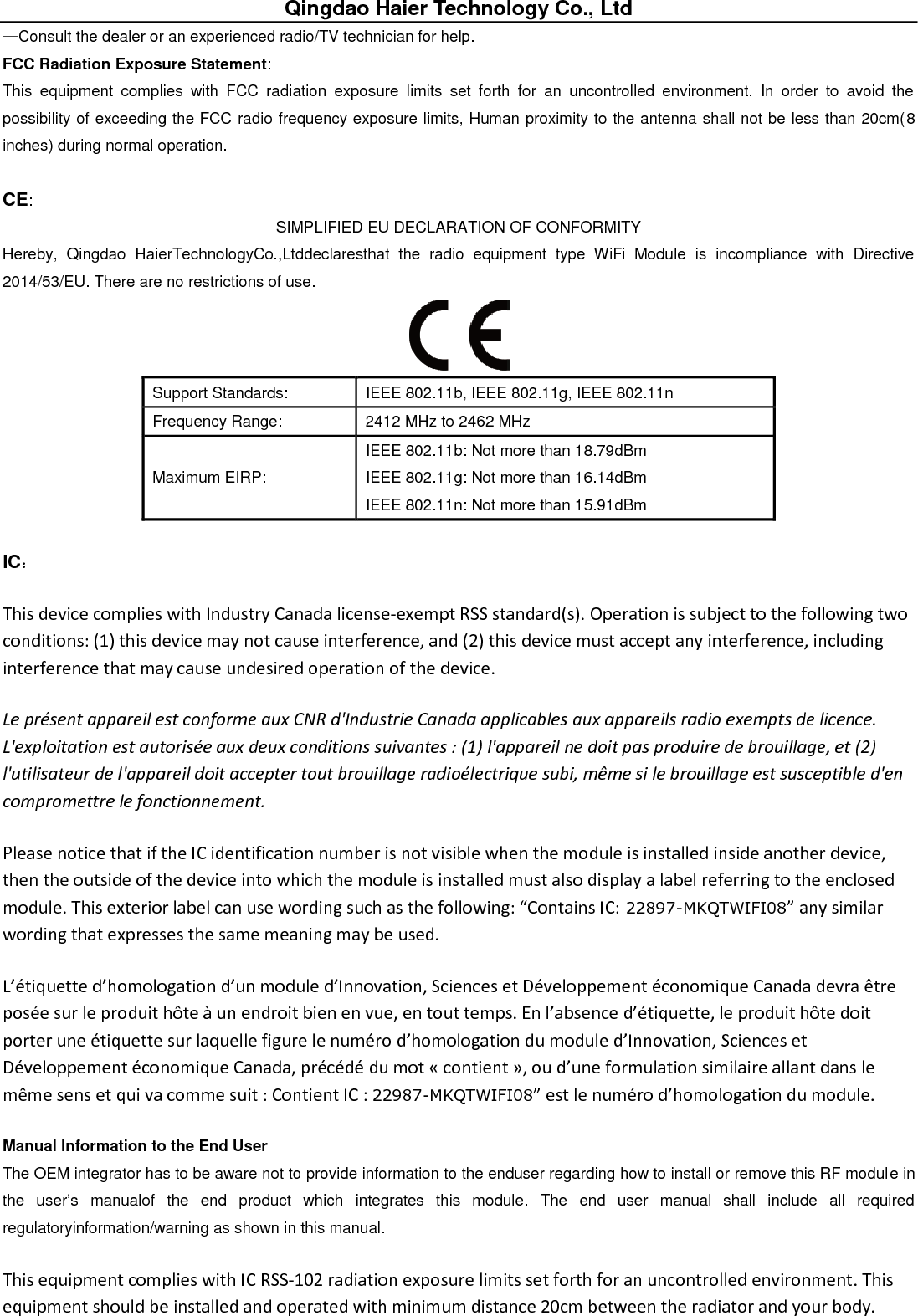

Qingdao Haier Technology Co., Ltd —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches) during normal operation. CE: SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Qingdao HaierTechnologyCo.,Ltddeclaresthat the radio equipment type WiFi Module is incompliance with Directive 2014/53/EU. There are no restrictions of use. Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Frequency Range: 2412 MHz to 2462 MHz Maximum EIRP: IEEE 802.11b: Not more than 18.79dBm IEEE 802.11g: Not more than 16.14dBm IEEE 802.11n: Not more than 15.91dBm IC： This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Please notice that if the IC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains IC: 22897-MKQTWIFI08” any similar wording that expresses the same meaning may be used. L’étiquette d’homologation d’un module d’Innovation, Sciences et Développement économique Canada devra être posée sur le produit hôte à un endroit bien en vue, en tout temps. En l’absence d’étiquette, le produit hôte doit porter une étiquette sur laquelle figure le numéro d’homologation du module d’Innovation, Sciences et Développement économique Canada, précédé du mot « contient », ou d’une formulation similaire allant dans le même sens et qui va comme suit : Contient IC : 22987-MKQTWIFI08” est le numéro d’homologation du module. Manual Information to the End User The OEM integrator has to be aware not to provide information to the enduser regarding how to install or remove this RF module in the user’s manualof the end product which integrates this module. The end user manual shall include all required regulatoryinformation/warning as shown in this manual. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Qingdao Haier Technology Co., Ltd Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
