Qingping Technology CGG1 ClearGrass Temperature and Humidity Monitor User Manual

Qingping Technology (Beijing) Co., Ltd. ClearGrass Temperature and Humidity Monitor

User Manual

Qingping Bluetooth Temperature and Humidity Monitor User ManualWelcome to Qingping Bluetooth Temperature and Humidity MonitorStart usingPlease open the back cover and pull out the insulating plastic piece embedded in the batterycompartment:After pulling out the insulating plastic sheet, the Qingping Bluetooth Temperature and HumidityMonitor will start working.Desktop modeQingping Bluetooth Temperature and Humidity Monitor can be used on the desktop.By splitting the back cover halfway (at an angle of 45° to the body), the Qingping BluetoothTemperature and Humidity Monitor can be placed on the desktop smoothly:* Please avoid placing this product on the surface of suede or raised particles to prevent the venthole at the bottom of the product from being blocked, resulting in inaccurate measurement.Wall modeQingping Bluetooth Temperature and Humidity Monitor can be used with wall stickers andattached to the wall.There is a wall sticker in the package, and the double-sided adhesive is stuck on the back of thewall sticker:Remove the double-sided adhesive film, stick the wall sticker to the selected position, and thenabsorb the Qingping Bluetooth Temperature and Humidity Monitor:Switching temperature unitThe temperature unit of the Qingping Bluetooth Temperature and Humidity Monitor can beswitched between Celsius (°C) and Fahrenheit (°F).Short press the button on the back of the product to switch:Connect to Qingping Air AppThe “Qingping Air” mobile App can be downloaded at cleargrass.com/air. You can also scan theQR code below to download:After installing the App, please add the device to the App, select “Qingping BluetoothTemperature and Humidity Monitor” and follow the prompts.

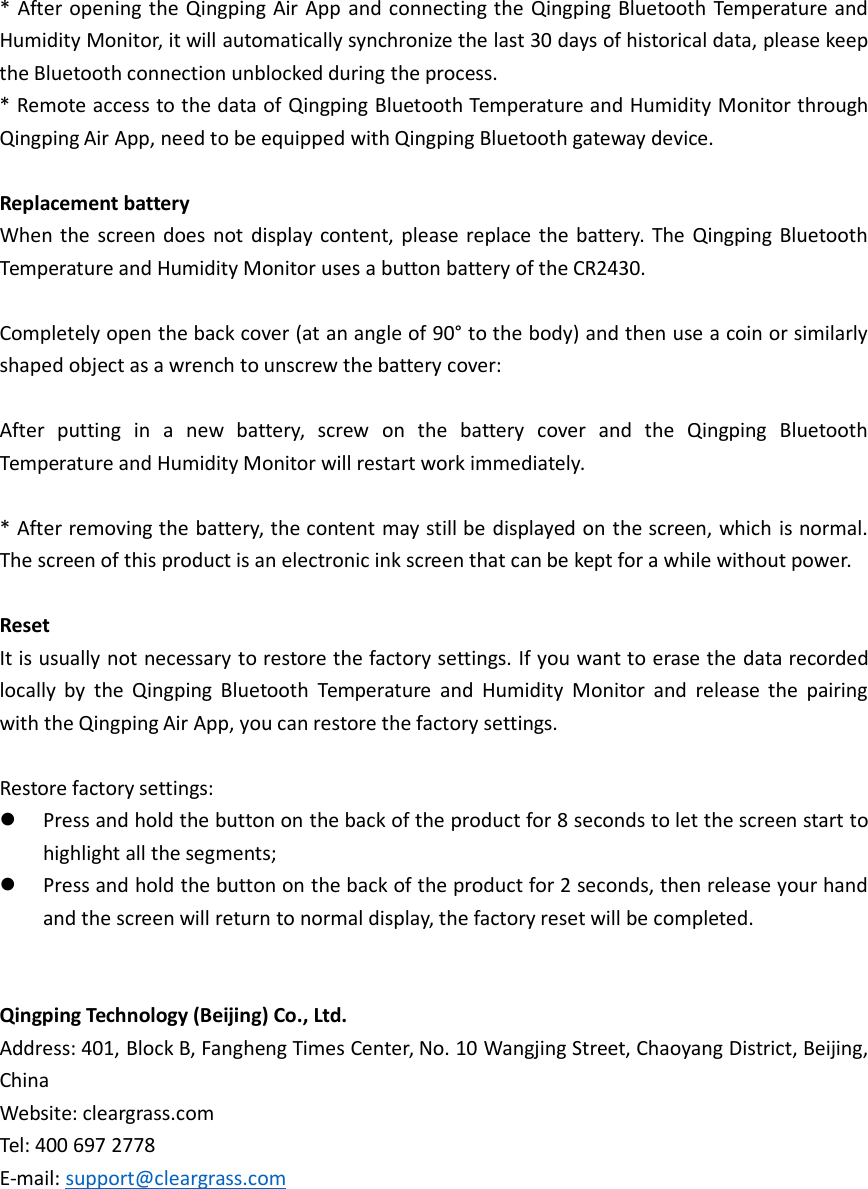

* After opening the Qingping Air App and connecting the Qingping Bluetooth Temperature andHumidity Monitor, it will automatically synchronize the last 30 days of historical data, please keepthe Bluetooth connection unblocked during the process.* Remote access to the data of Qingping Bluetooth Temperature and Humidity Monitor throughQingping Air App, need to be equipped with Qingping Bluetooth gateway device.Replacement batteryWhen the screen does not display content, please replace the battery. The Qingping BluetoothTemperature and Humidity Monitor uses a button battery of the CR2430.Completely open the back cover (at an angle of 90° to the body) and then use a coin or similarlyshaped object as a wrench to unscrew the battery cover:After putting in a new battery, screw on the battery cover and the Qingping BluetoothTemperature and Humidity Monitor will restart work immediately.* After removing the battery, the content may still be displayed on the screen, which is normal.The screen of this product is an electronic ink screen that can be kept for a while without power.ResetIt is usually not necessary to restore the factory settings. If you want to erase the data recordedlocally by the Qingping Bluetooth Temperature and Humidity Monitor and release the pairingwith the Qingping Air App, you can restore the factory settings.Restore factory settings:Press and hold the button on the back of the product for 8 seconds to let the screen start tohighlight all the segments;Press and hold the button on the back of the product for 2 seconds, then release your handand the screen will return to normal display, the factory reset will be completed.Qingping Technology (Beijing) Co., Ltd.Address: 401, Block B, Fangheng Times Center, No. 10 Wangjing Street, Chaoyang District, Beijing,ChinaWebsite: cleargrass.comTel: 400 697 2778E-mail: support@cleargrass.com
Check items and rangesTest itemsRangeTemperature0 ~ 60 ° CHumidity0 ~ 100% RHThe temperature experienced by the human body depends on a number of factors, such astemperature, heat radiation, relative humidity, wind speed, human activity and health, and dress.Temperature and relative humidity are two important factors that affect the comfort of thehuman body. In winter, when the temperature is between 20 °C and 24 °C and the humidity isbetween 30% RH and 60% RH, the human body feels more comfortable. In summer, thetemperature is between 23 °C and 26 °C, and the humidity is between 25% RH and 60% RH. Thehuman body feels more comfortable.Basic parametersProduct weight: (to be provided)Product size: diameter 74 mm, thickness 13.5 mmScreen size: diameter 55 mmWireless network: Bluetooth 5.0Battery type: CR2430 button batteryCMIIT ID: (to be determined)Executive standard: (to be determined)AttentionDo not block the vents on the bottom of the product.This product has no waterproof or dustproof function.Do not throw the battery or the product with the battery into the fire to avoid an explosion.Do not disassemble this product yourself to avoid injury.Common problemsProblemSolutionInaccurate reading1. When the environment changes drastically,for example, when moving from outside toindoors, the product takes about 10 minutesto bring the readings closer to the newenvironment.2. When the product is hand-held, thetemperature of the human body will have aneffect on the reading, resulting in a differencebetween the reading and the actual

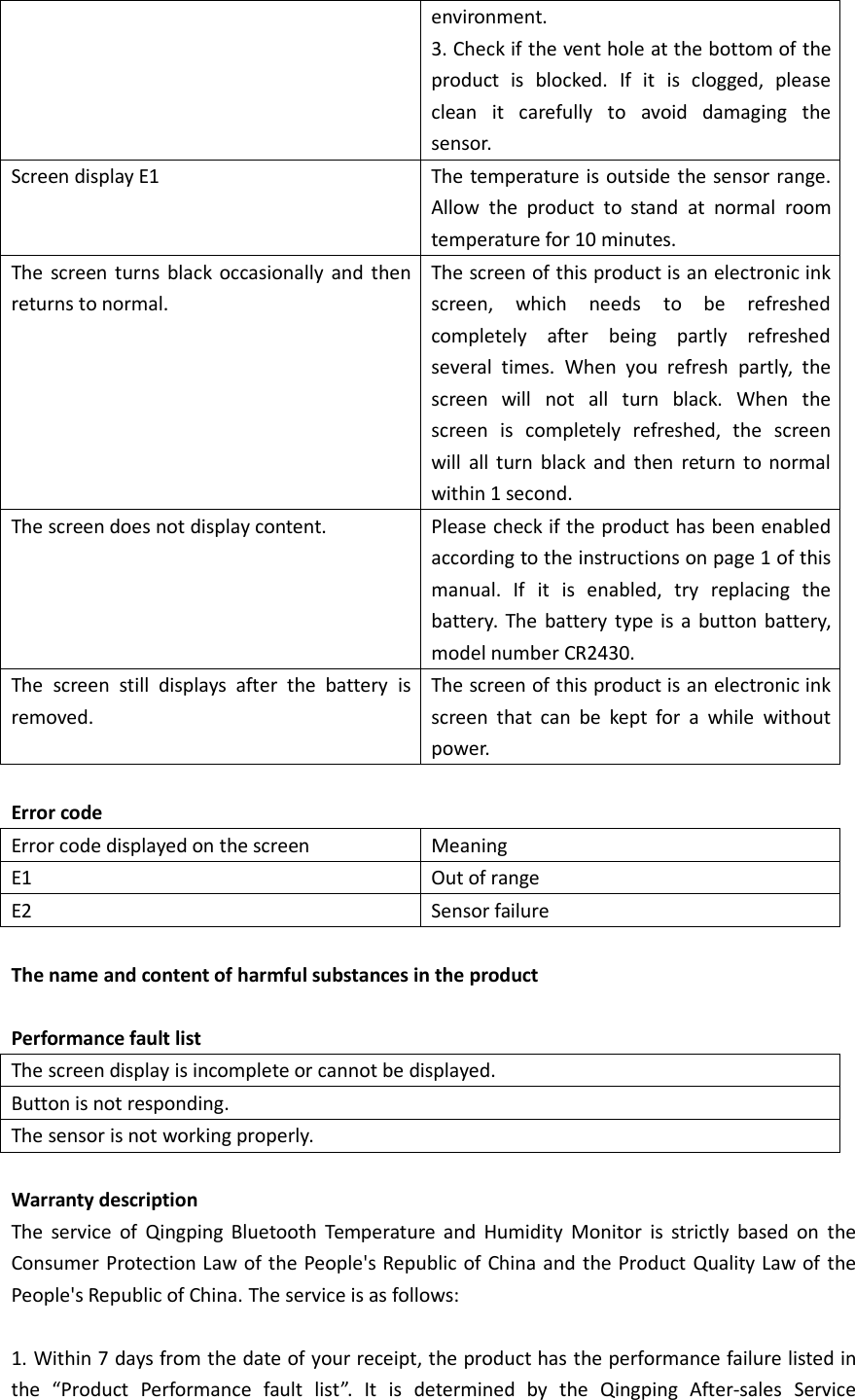

environment.3. Check if the vent hole at the bottom of theproduct is blocked. If it is clogged, pleaseclean it carefully to avoid damaging thesensor.Screen display E1The temperature is outside the sensor range.Allow the product to stand at normal roomtemperature for 10 minutes.The screen turns black occasionally and thenreturns to normal.The screen of this product is an electronic inkscreen, which needs to be refreshedcompletely after being partly refreshedseveral times. When you refresh partly, thescreen will not all turn black. When thescreen is completely refreshed, the screenwill all turn black and then return to normalwithin 1 second.The screen does not display content.Please check if the product has been enabledaccording to the instructions on page 1 of thismanual. If it is enabled, try replacing thebattery. The battery type is a button battery,model number CR2430.The screen still displays after the battery isremoved.The screen of this product is an electronic inkscreen that can be kept for a while withoutpower.Error codeError code displayed on the screenMeaningE1Out of rangeE2Sensor failureThe name and content of harmful substances in the productPerformance fault listThe screen display is incomplete or cannot be displayed.Button is not responding.The sensor is not working properly.Warranty descriptionThe service of Qingping Bluetooth Temperature and Humidity Monitor is strictly based on theConsumer Protection Law of the People's Republic of China and the Product Quality Law of thePeople's Republic of China. The service is as follows:1. Within 7 days from the date of your receipt, the product has the performance failure listed inthe “Product Performance fault list”. It is determined by the Qingping After-sales Service

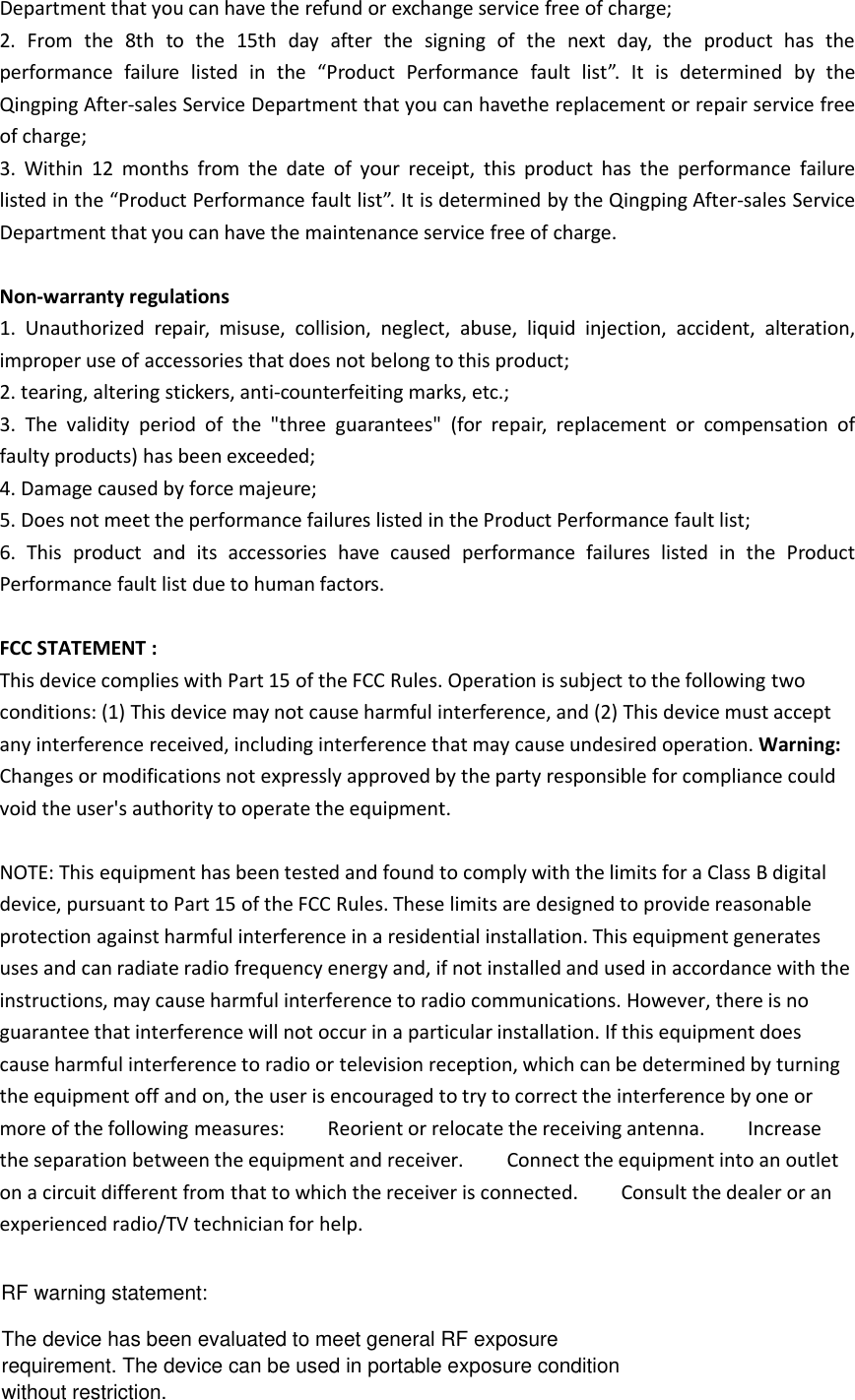

Department that you can have the refund or exchange service free of charge;2. From the 8th to the 15th day after the signing of the next day, the product has theperformance failure listed in the “Product Performance fault list”. It is determined by theQingping After-sales Service Department that you can havethe replacement or repair service freeof charge;3. Within 12 months from the date of your receipt, this product has the performance failurelisted in the “Product Performance fault list”. It is determined by the Qingping After-sales ServiceDepartment that you can have the maintenance service free of charge.Non-warranty regulations1. Unauthorized repair, misuse, collision, neglect, abuse, liquid injection, accident, alteration,improper use of accessories that does not belong to this product;2. tearing, altering stickers, anti-counterfeiting marks, etc.;3. The validity period of the "three guarantees" (for repair, replacement or compensation offaulty products) has been exceeded;4. Damage caused by force majeure;5. Does not meet the performance failures listed in the Product Performance fault list;6. This product and its accessories have caused performance failures listed in the ProductPerformance fault list due to human factors.FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) This device must acceptany interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generatesuses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures: Reorient or relocate the receiving antenna. Increasethe separation between the equipment and receiver. Connect the equipment into an outleton a circuit different from that to which the receiver is connected. Consult the dealer or anexperienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure conditionwithout restriction.
