Qixiang Electron Science and Technology AT888V Mobile Radio User Manual

Qixiang Electron Science& Technology Co., Ltd Mobile Radio

User Manual

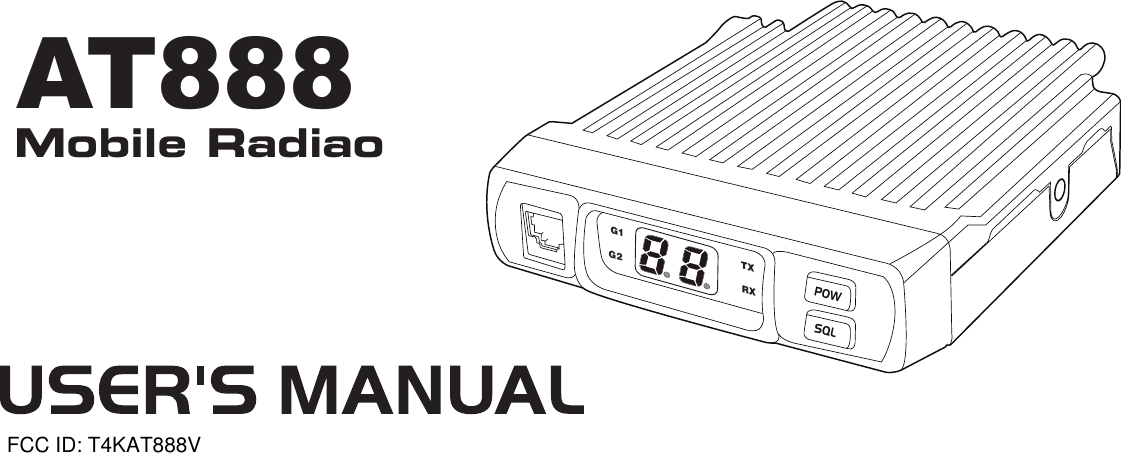

AT888POWSQLG2 RXG1 TXMobile RadiaoFCC ID: T4KAT888V
Nice Housing, Stoutness & Stability, Advanced and Concise operation, Perfect & Valuable. Approval. 888 mobile radio especially designs for drivers with high cost performance.NOTEWhen programming the transceiver, read the factory initial data rstly, then rewrite the frequency and signaling etc., otherwise errors may occur because of different frequency band etc..Models Apply To This Manual: 888 Mobile radio888 Mobile Radio Applicable Software: QPS888We only do best radio!

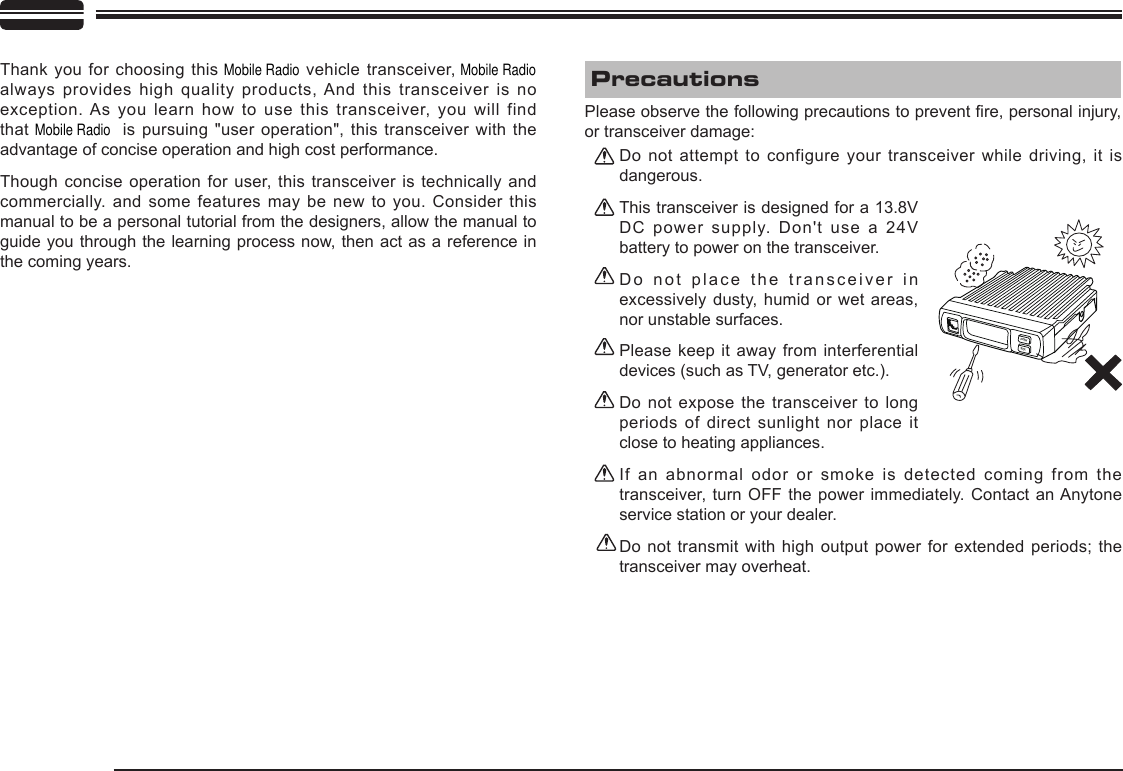

POWSQLThank you for choosing this vehicle transceiver, always provides high quality products, And this transceiver is no exception. As you learn how to use this transceiver, you will find that is pursuing "user operation", this transceiver with the advantage of concise operation and high cost performance.Though concise operation for user, this transceiver is technically and commercially. and some features may be new to you. Consider this manual to be a personal tutorial from the designers, allow the manual to guide you through the learning process now, then act as a reference in the coming years.Do not attempt to configure your transceiver while driving, it is dangerous.This transceiver is designed for a 13.8V DC power supply. Don't use a 24V battery to power on the transceiver.Do not place the transceiver in excessively dusty, humid or wet areas, nor unstable surfaces.Please keep it away from interferential devices (such as TV, generator etc.). Do not expose the transceiver to long periods of direct sunlight nor place it close to heating appliances.If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an Anytone service station or your dealer.Do not transmit with high output power for extended periods; the transceiver may overheat.Please observe the following precautions to prevent re, personal injury, or transceiver damage:PrecautionsMobile Radio Mobile RadioMobile Radio
Default Setting after Resetting(VHF)Supplied Accessories/Optional Accessories .....................1Supplied Accessories .......................................................................1Optional Accessories .......................................................................1Initial Installation ..................................................................2Mobile Installation ............................................................................2 DC Power Cable Connection ........................................................... 2Antenna Connection ........................................................................4Accessories Connections ................................................................. 4Getting Acquainted ..............................................................6Front panel .......................................................................................6Rear panel .......................................................................................6Microphone ......................................................................................7Basic Operations ..................................................................8Switching the Power On ................................................................... 8Switching the Power Off .................................................................. 8Adjusting the Volume ......................................................................8Channel Selection ........................................................................... 8Receiving .........................................................................................8Squelch Level Setup ........................................................................ 8Transmiting Pilot Frequency ............................................................ 9Transmit 2TONE,5TONE,DTMF ......................................................9Restore Facntory Setting .................................................................9Programming Software Installing and Starting (in windows XP system) ............................................................................10Install USB Cable Driver Programme ..............................................10CONTENTSMaintenance ..........................................................................11 ...............................................11Trouble Shooting ..............................................................................11Attached Chart ......................................................................1250 groups CTCSS Tone Frequency(Hz) ..........................................121024 groups DCS Code. ..................................................................12

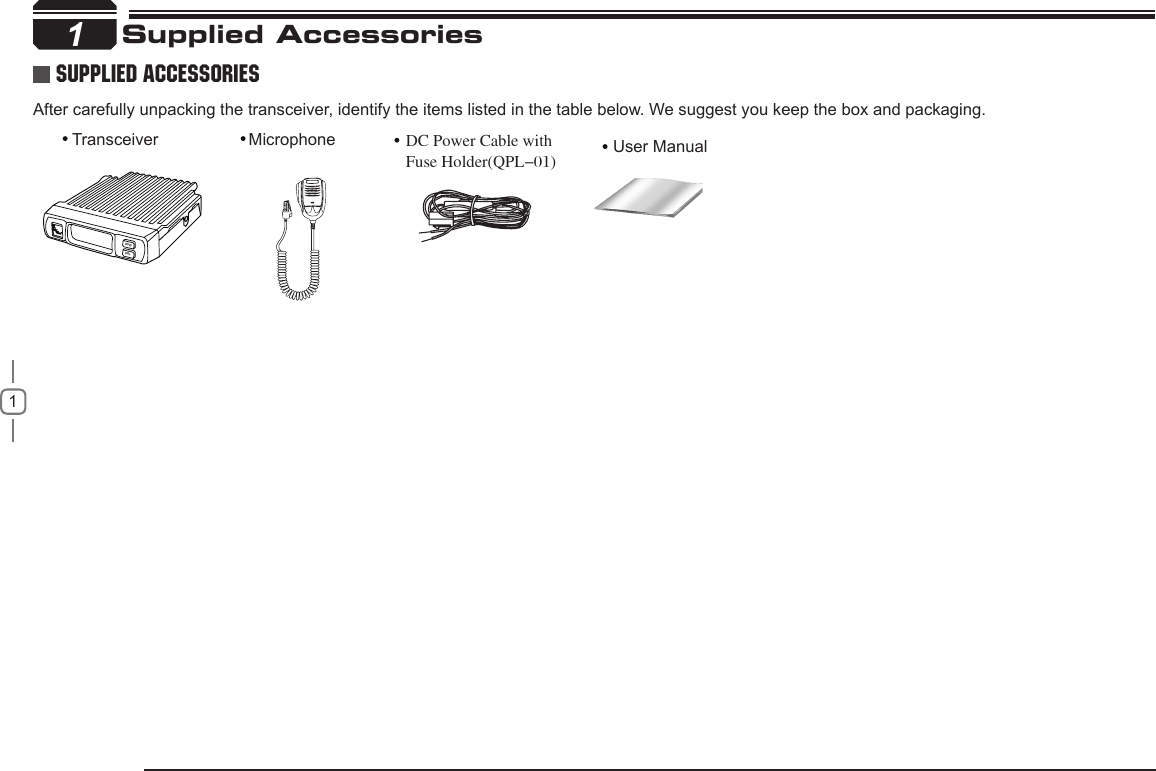

Supplied Accessories11Supplied AccessoriesPOWSQL1Transceiver Microphone User ManualDC Power Cable withFuse Holder(QPL-01)After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging.

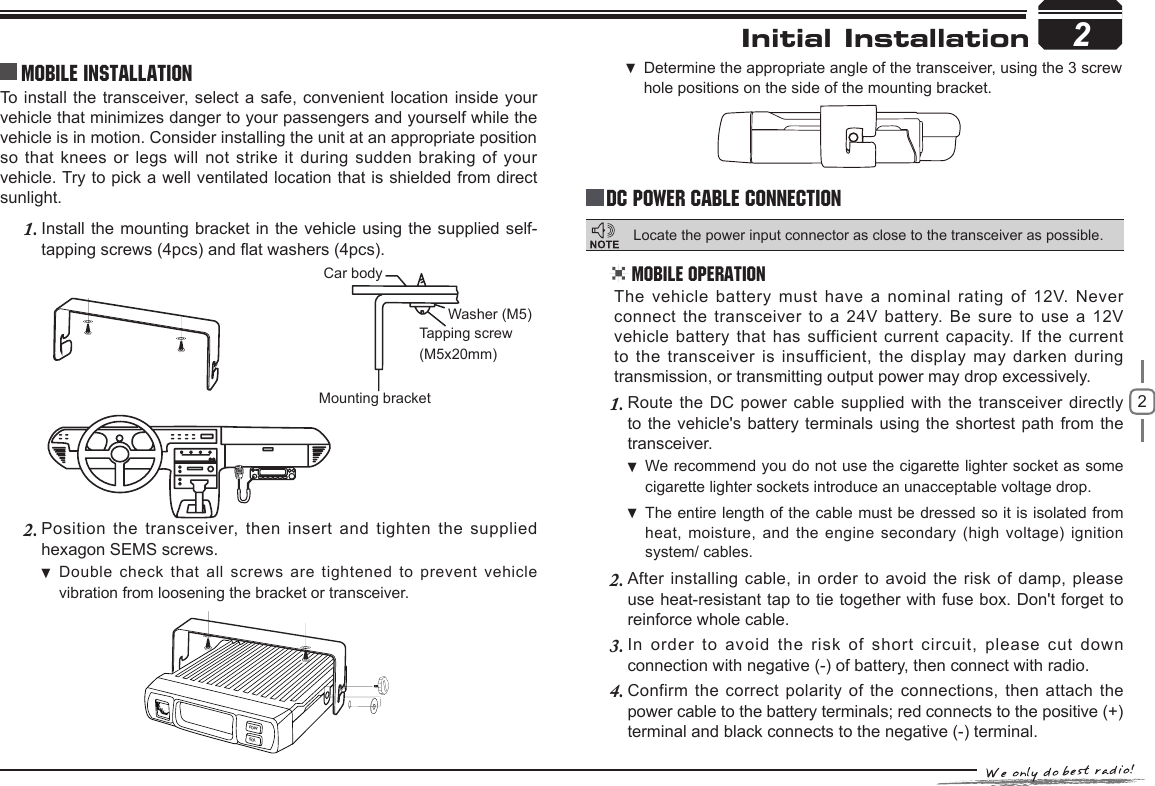

22Initial Installation2To install the transceiver, select a safe, convenient location inside your vehicle that minimizes danger to your passengers and yourself while the vehicle is in motion. Consider installing the unit at an appropriate position so that knees or legs will not strike it during sudden braking of your vehicle. Try to pick a well ventilated location that is shielded from direct sunlight.Install the mounting bracket in the vehicle using the supplied self-1. tapping screws (4pcs) and at washers (4pcs).Position the transceiver, then insert and tighten the supplied 2. hexagon SEMS screws. Double check that all screws are tightened to prevent vehicle  vibration from loosening the bracket or transceiver.Car bodyWasher (M5)Tapping screw(M5x20mm)Mounting bracketMobile installation Determine the appropriate angle of the transceiver, using the 3 screw hole positions on the side of the mounting bracket.POWSQLDC Power Cable ConnectionMobile OperationThe vehicle battery must have a nominal rating of 12V. Never connect the transceiver to a 24V battery. Be sure to use a 12V vehicle battery that has sufficient current capacity. If the current to the transceiver is insufficient, the display may darken during transmission, or transmitting output power may drop excessively.Route the DC power cable supplied with the transceiver directly 1. to the vehicle's battery terminals using the shortest path from the transceiver.We recommend you do not use the cigarette lighter socket as  some cigarette lighter sockets introduce an unacceptable voltage drop.The entire length of the cable must be dressed so it is isolated from heat, moisture, and the engine secondary (high voltage) ignition system/ cables.After installing cable, in order to avoid the risk of damp, please 2. use heat-resistant tap to tie together with fuse box. Don't forget to reinforce whole cable.In order to avoid the risk of short circuit, please cut down 3. connection with negative (-) of battery, then connect with radio.Confirm the correct polarity of the connections, then attach the 4. power cable to the battery terminals; red connects to the positive (+) terminal and black connects to the negative (-) terminal.Locate the power input connector as close to the transceiver as possible.
Mobile Radio3Ext. Power jackDC power cableREPTSPInitial Installation 2Regulated power supply (QRP-01)DC power cable with fuse holder (QPL-01)BlackRedRegulatedpower supply(QRP-01)REPTSP2RedBlackUse the full length of the cable without cutting off excess even if  the cable is longer than required. In particular, never remove the fuse holders from the cable.Reconnect any wiring removed from the negative terminal.5. Connect the DC power cable to the transceiver's power supply 6. connector.Press the connectors rmly together until the locking tab clicks.In order to use this transceiver for fixed station operation, you will need a separate 13.8V DC power supply (not included), power supply( QRP-01) as optional accessories. Please contact local dealer to require.The recommended current capacity of your power supply is 12A.Connect the DC power cable to the regulated DC power supply 1. and ensure that the polarities are correct. (Red: positive, Black: negative).Do not directly connect the transceiver to an AC outlet. Use the supplied DC power cable to connect the transceiver to a regulated power supply.Do not substitute a cable with smaller gauge wires. Connect the transceiver's DC power connector to the connector 2. on the DC power cable.Fixed Station Operation REPLACING FUSESIf the fuse blows, determine the cause, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your autho-rized dealer or an authorized servi-cecenter for assistance. Press the connectors rmly together until the locking tab clicks .Before connecting the DC power to the transceiver, be sure to switch the transceiver and the DC power supply OFF.Do not plug the DC power supply into an AC outlet until you make all connections.Mobile RadioThis EUT can be used on the vehicle.

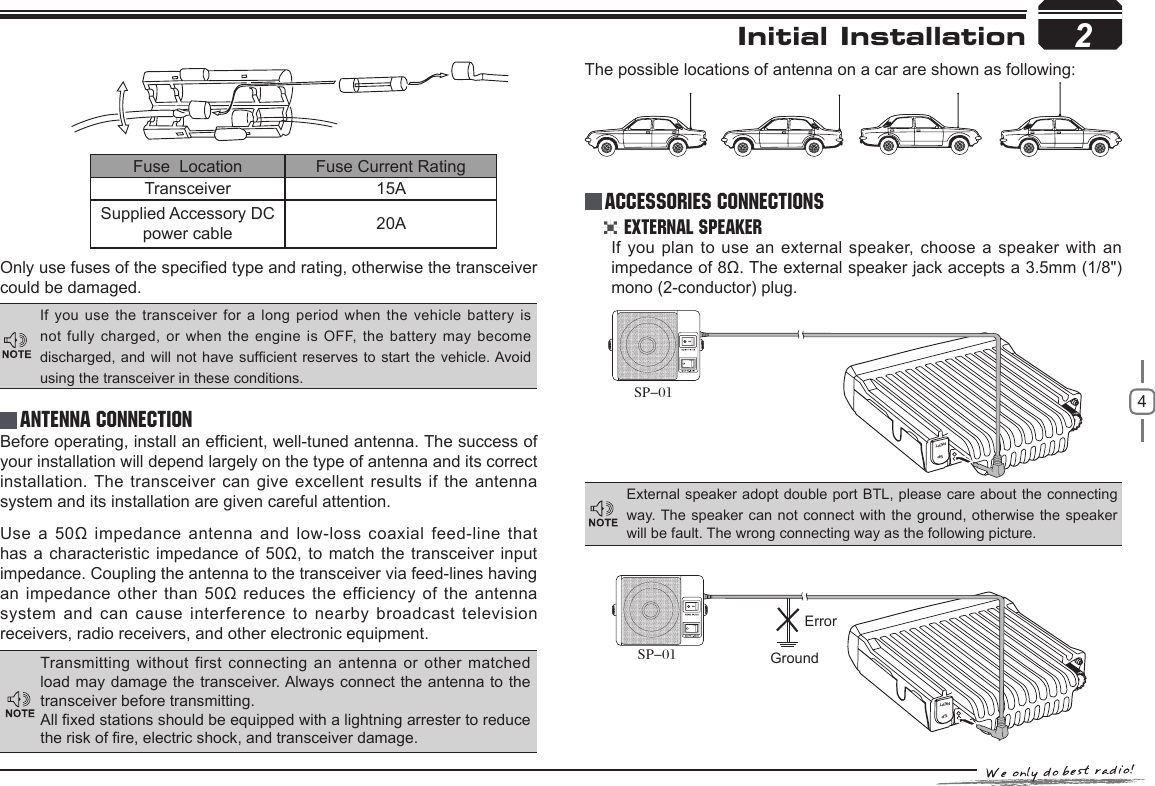

42REPTSPSP-01REPTSPGroundErrorSP-01Initial InstallationOnly use fuses of the specied type and rating, otherwise the transceiver could be damaged.Fuse Location Fuse Current RatingTransceiver 15ASupplied Accessory DC power cable 20AIf you use the transceiver for a long period when the vehicle battery is not fully charged, or when the engine is OFF, the battery may become discharged, and will not have sufcient reserves to start the vehicle. Avoid using the transceiver in these conditions.Before operating, install an efcient, well-tuned antenna. The success of your installation will depend largely on the type of antenna and its correct installation. The transceiver can give excellent results if the antenna system and its installation are given careful attention.Use a 50Ω impedance antenna and low-loss coaxial feed-line that has a characteristic impedance of 50Ω, to match the transceiver input impedance. Coupling the antenna to the transceiver via feed-lines having an impedance other than 50Ω reduces the efficiency of the antenna system and can cause interference to nearby broadcast television receivers, radio receivers, and other electronic equipment. Antenna ConnectionTransmitting without first connecting an antenna or other matched load may damage the transceiver. Always connect the antenna to the transceiver before transmitting.All xed stations should be equipped with a lightning arrester to reduce the risk of re, electric shock, and transceiver damage.The possible locations of antenna on a car are shown as following: External SpeakerIf you plan to use an external speaker, choose a speaker with an impedance of 8Ω. The external speaker jack accepts a 3.5mm (1/8")mono (2-conductor) plug.Accessories ConnectionsExternal speaker adopt double port BTL, please care about the connecting way. The speaker can not connect with the ground, otherwise the speaker will be fault. The wrong connecting way as the following picture.

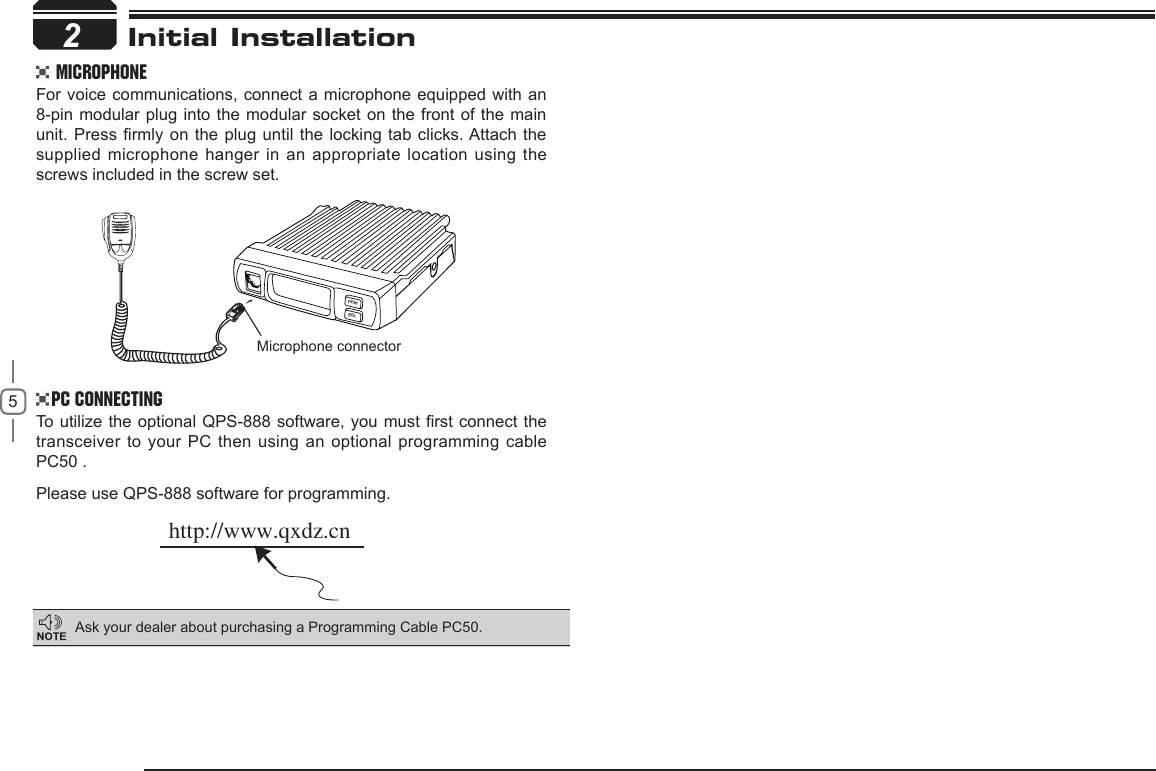

52Microphone connectorhttp://www.qxdz.cnPOWSQLInitial Installation MicrophoneFor voice communications, connect a microphone equipped with an 8-pin modular plug into the modular socket on the front of the main unit. Press rmly on the plug until the locking tab clicks. Attach the supplied microphone hanger in an appropriate location using the screws included in the screw set.PC ConnectingTo utilize the optional QPS-888 software, you must rst connect the transceiver to your PC then using an optional programming cable PC50 .Please use QPS-888 software for programming.Ask your dealer about purchasing a Programming Cable PC50.

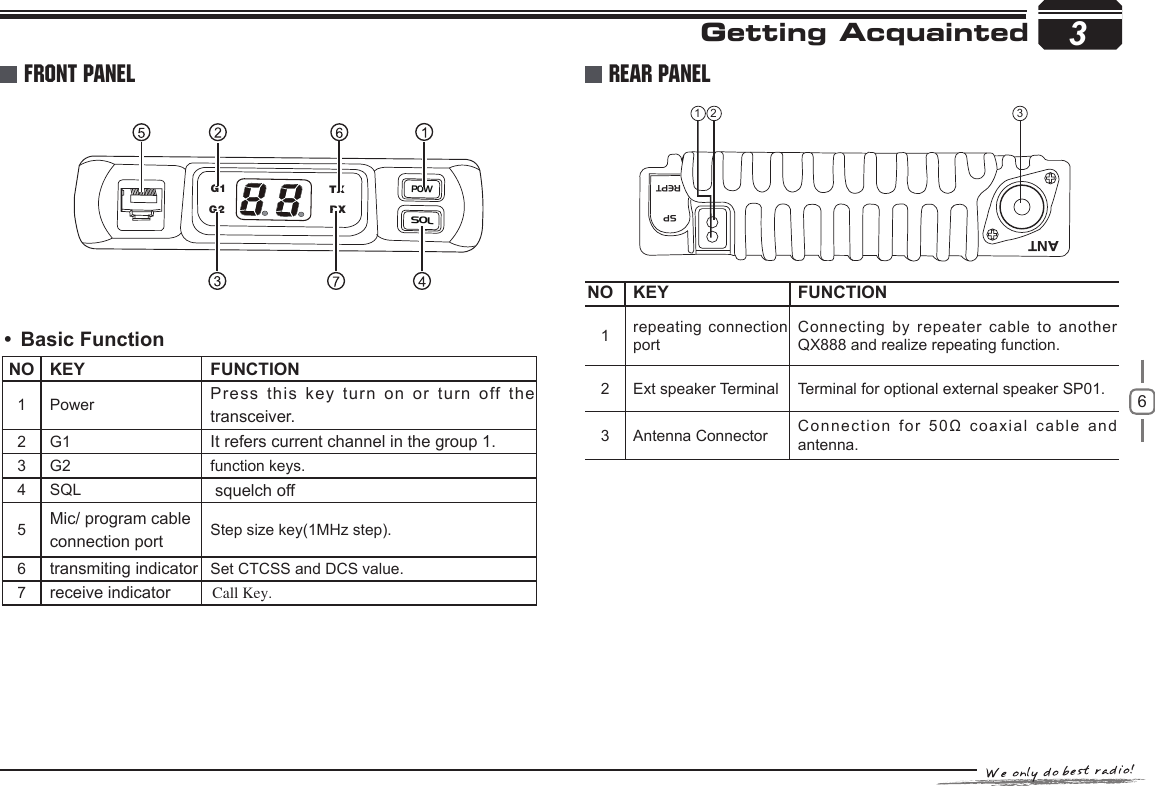

64Basic Function• NO KEYFUNCTION1 PowerPress this key turn on or turn off the transceiver.2 G1It refers current channel in the group 1.3 G2function keys.4 SQL squelch off5Mic/ program cable connection portStep size key(1MHz step).6transmiting indicatorSet CTCSS and DCS value.7receive indicatorCall Key.Getting AcquaintedFRONT PANEL321NO KEY FUNCTION1repeating connection port Connecting by repeater cable to another QX888 and realize repeating function.2 Ext speaker Terminal Terminal for optional external speaker SP01.3 Antenna Connector Connection for 50Ω coaxial cable and antenna.REAR PANEL3ANTREPTSPPOWSOLG2 RXG1 TX

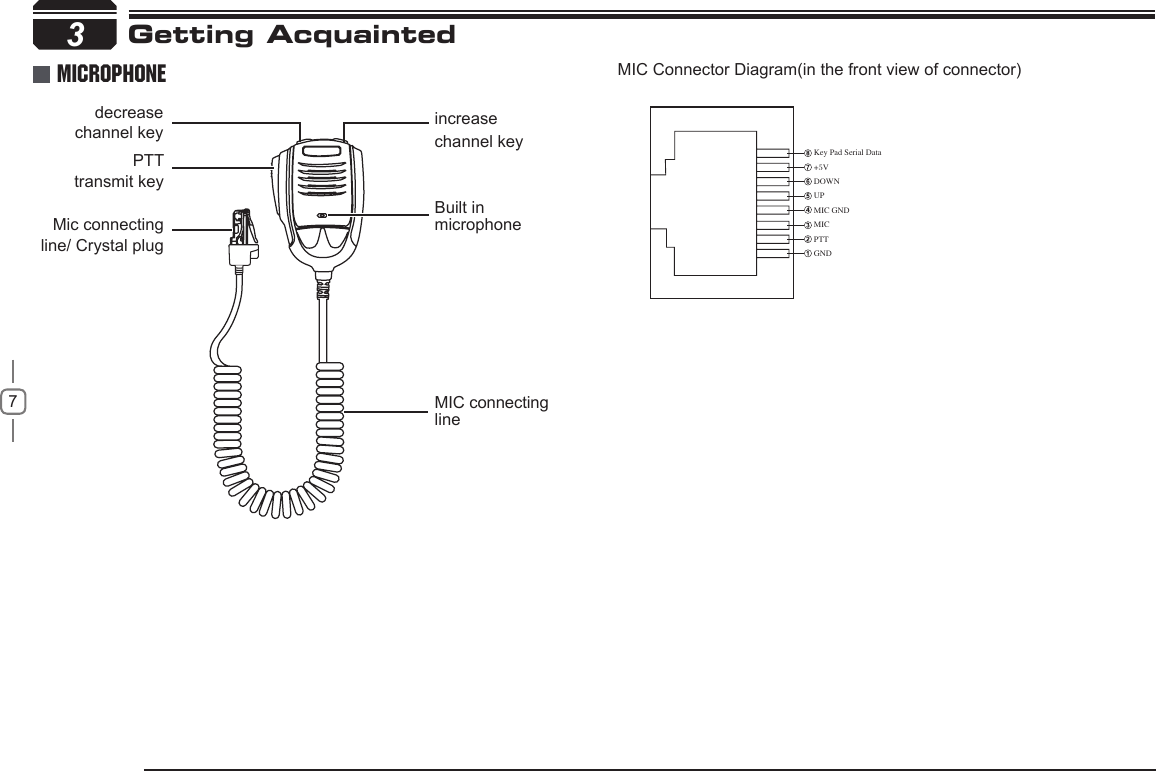

73Microphonedecrease channel key increase channel keyBuilt in microphoneMIC connecting linePTT transmit keyMic connecting line/ Crystal plugGetting AcquaintedKey Pad Serial Data+5VDOWNUPMIC GNDMICPTTGNDMIC Connector Diagram(in the front view of connector)

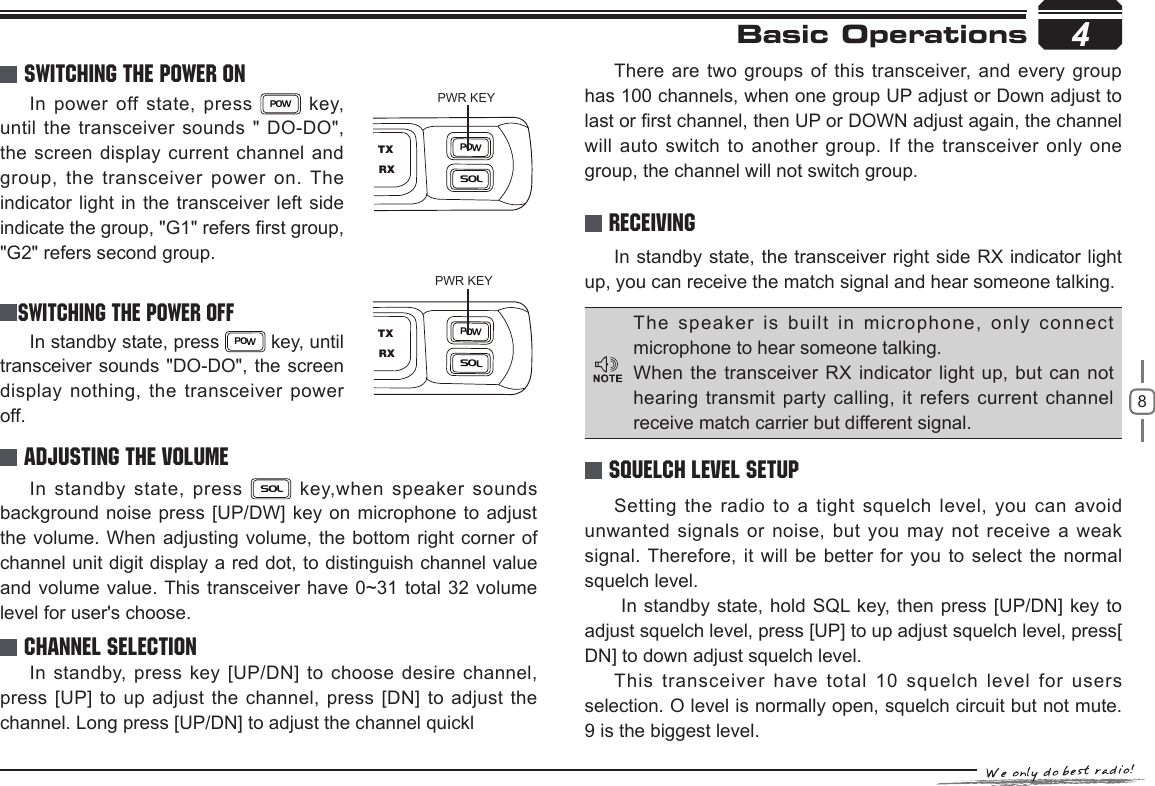

84Basic Operations In power off state, press POW key, until the transceiver sounds " DO-DO", the screen display current channel and group, the transceiver power on. The indicator light in the transceiver left side indicate the group, "G1" refers rst group, "G2" refers second group.In standby state, press POW key, until transceiver sounds "DO-DO", the screen display nothing, the transceiver power off.In standby state, the transceiver right side RX indicator light up, you can receive the match signal and hear someone talking.In standby state, press SOL key,when speaker sounds background noise press [UP/DW] key on microphone to adjust the volume. When adjusting volume, the bottom right corner of channel unit digit display a red dot, to distinguish channel value and volume value. This transceiver have 0~31 total 32 volume level for user's choose.PWR KEYPWR KEYSwitching The Power OnSWITCHING THE POWER OFFReceivingAdjusting The VolumeSetting the radio to a tight squelch level, you can avoid unwanted signals or noise, but you may not receive a weak signal. Therefore, it will be better for you to select the normal squelch level. In standby state, hold SQL key, then press [UP/DN] key to adjust squelch level, press [UP] to up adjust squelch level, press[ DN] to down adjust squelch level.This transceiver have total 10 squelch level for users selection. O level is normally open, squelch circuit but not mute. 9 is the biggest level.In standby, press key [UP/DN] to choose desire channel, press [UP] to up adjust the channel, press [DN] to adjust the channel. Long press [UP/DN] to adjust the channel quicklThere are two groups of this transceiver, and every group has 100 channels, when one group UP adjust or Down adjust to last or rst channel, then UP or DOWN adjust again, the channel will auto switch to another group. If the transceiver only one group, the channel will not switch group.Squelch level SetupChannel SelectionThe speaker is built in microphone, only connect microphone to hear someone talking.When the transceiver RX indicator light up, but can not hearing transmit party calling, it refers current channel receive match carrier but different signal.POWSOLRXTXPOWSOLRXTX

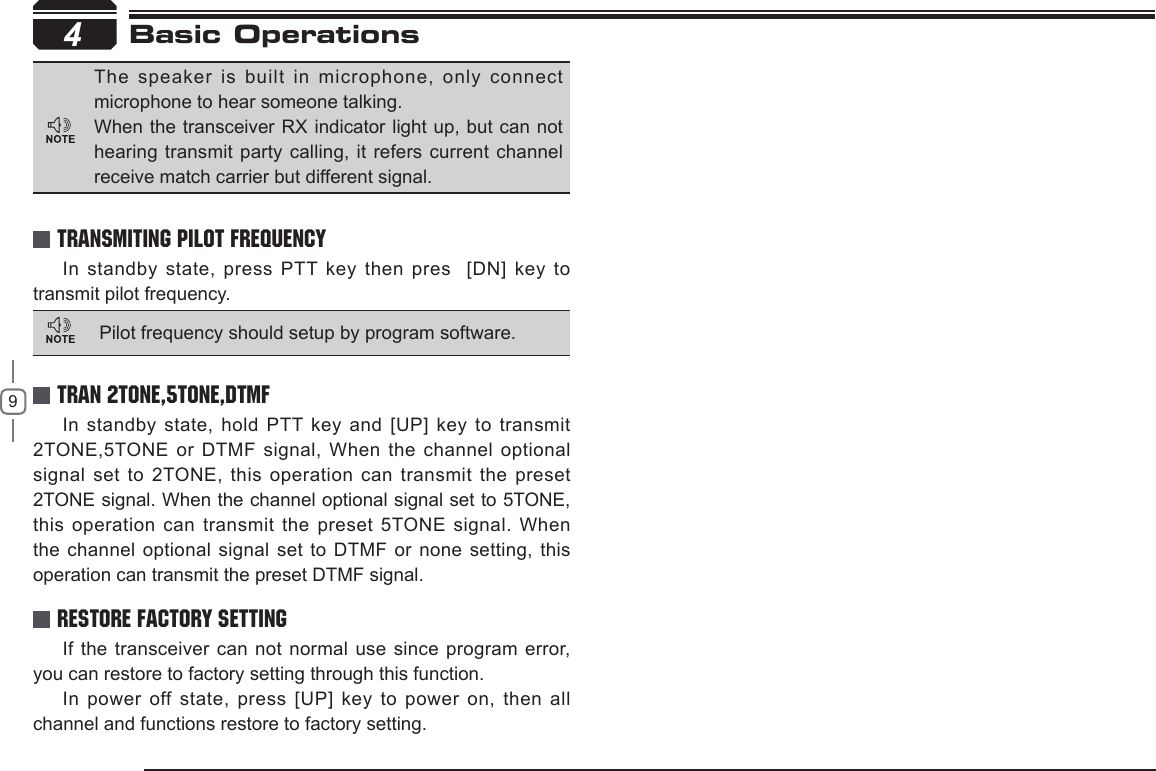

94In standby state, press PTT key then pres [DN] key to transmit pilot frequency.In standby state, hold PTT key and [UP] key to transmit 2TONE,5TONE or DTMF signal, When the channel optional signal set to 2TONE, this operation can transmit the preset 2TONE signal. When the channel optional signal set to 5TONE, this operation can transmit the preset 5TONE signal. When the channel optional signal set to DTMF or none setting, this operation can transmit the preset DTMF signal.If the transceiver can not normal use since program error, you can restore to factory setting through this function.In power off state, press [UP] key to power on, then all channel and functions restore to factory setting.TRANSMITING PILOT FREQUENCYTRAN 2TONE,5TONE,DTMFRestore Factory SettingThe speaker is built in microphone, only connect microphone to hear someone talking.When the transceiver RX indicator light up, but can not hearing transmit party calling, it refers current channel receive match carrier but different signal. Pilot frequency should setup by program software.Basic Operations

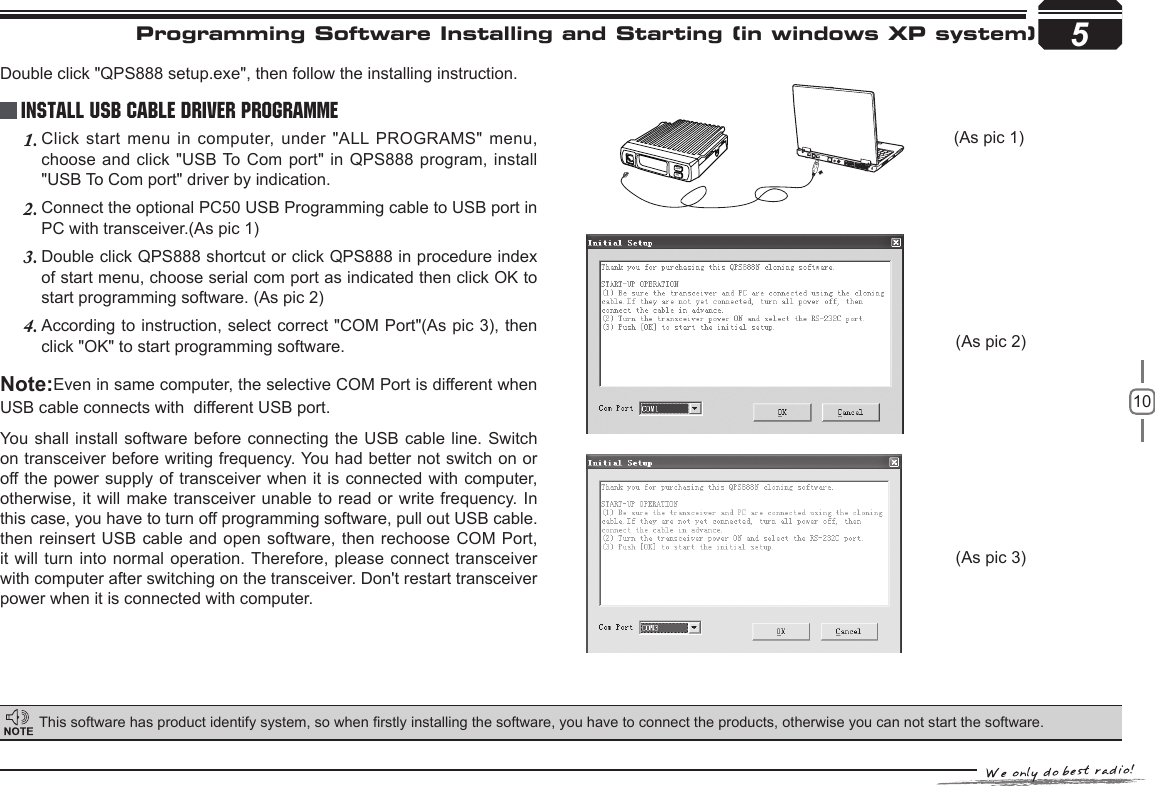

105POWSQLProgramming Software Installing and Starting (in windows XP system)Double click "QPS888 setup.exe", then follow the installing instruction.This software has product identify system, so when rstly installing the software, you have to connect the products, otherwise you can not start the software. Install USB Cable Driver Programme(As pic 1)(As pic 2)(As pic 3)Click start menu in computer, under "ALL PROGRAMS" menu, 1. choose and click "USB To Com port" in QPS888 program, install "USB To Com port" driver by indication.Connect the optional PC50 USB Programming cable to USB port in 2. PC with transceiver.(As pic 1)Double click QPS888 shortcut or click QPS888 in procedure index 3. of start menu, choose serial com port as indicated then click OK to start programming software. (As pic 2)According to instruction, select correct "COM Port"(As pic 3), then 4. click "OK" to start programming software.Note:Even in same computer, the selective COM Port is different when USB cable connects with different USB port.You shall install software before connecting the USB cable line. Switch on transceiver before writing frequency. You had better not switch on or off the power supply of transceiver when it is connected with computer, otherwise, it will make transceiver unable to read or write frequency. In this case, you have to turn off programming software, pull out USB cable.then reinsert USB cable and open software, then rechoose COM Port, it will turn into normal operation. Therefore, please connect transceiver with computer after switching on the transceiver. Don't restart transceiver power when it is connected with computer.

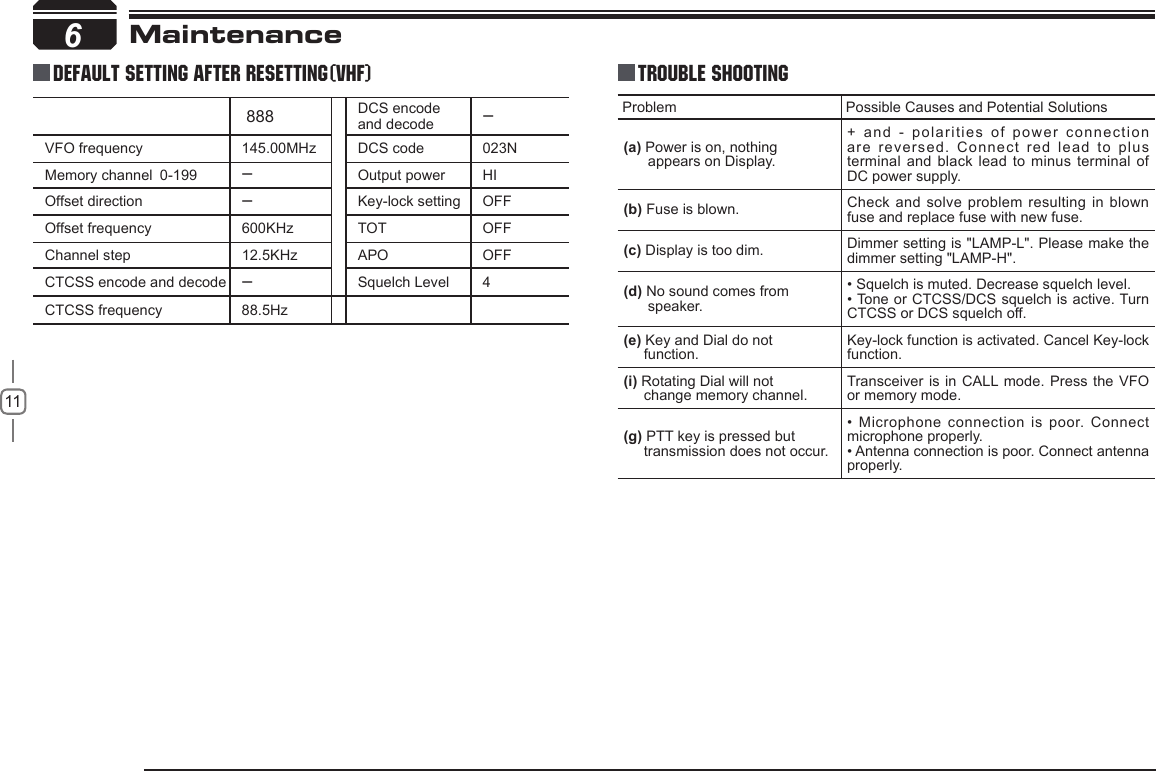

116 888 DCS encode and decode -VFO frequency 145.00MHz DCS code 023NMemory channel 0-199 - Output power HIOffset direction - Key-lock setting OFFOffset frequency 600KHz TOT OFFChannel step 12.5KHz APO OFFCTCSS encode and decode - Squelch Level 4CTCSS frequency 88.5HzDefault Setting after Resetting(VHF) Trouble ShootingProblem Possible Causes and Potential Solutions(a) Power is on, nothing appears on Display.+ and - polarities of power connection are reversed. Connect red lead to plus terminal and black lead to minus terminal of DC power supply.(b) Fuse is blown. Check and solve problem resulting in blown fuse and replace fuse with new fuse.(c) Display is too dim. Dimmer setting is "LAMP-L". Please make the dimmer setting "LAMP-H".(d) No sound comes from speaker. • Squelch is muted. Decrease squelch level.• Tone or CTCSS/DCS squelch is active. Turn CTCSS or DCS squelch off.(e) Key and Dial do not function.Key-lock function is activated. Cancel Key-lock function.(i) Rotating Dial will not change memory channel.Transceiver is in CALL mode. Press the VFO or memory mode.(g) PTT key is pressed but transmission does not occur.• Microphone connection is poor. Connect microphone properly. • Antenna connection is poor. Connect antenna properly.Maintenance

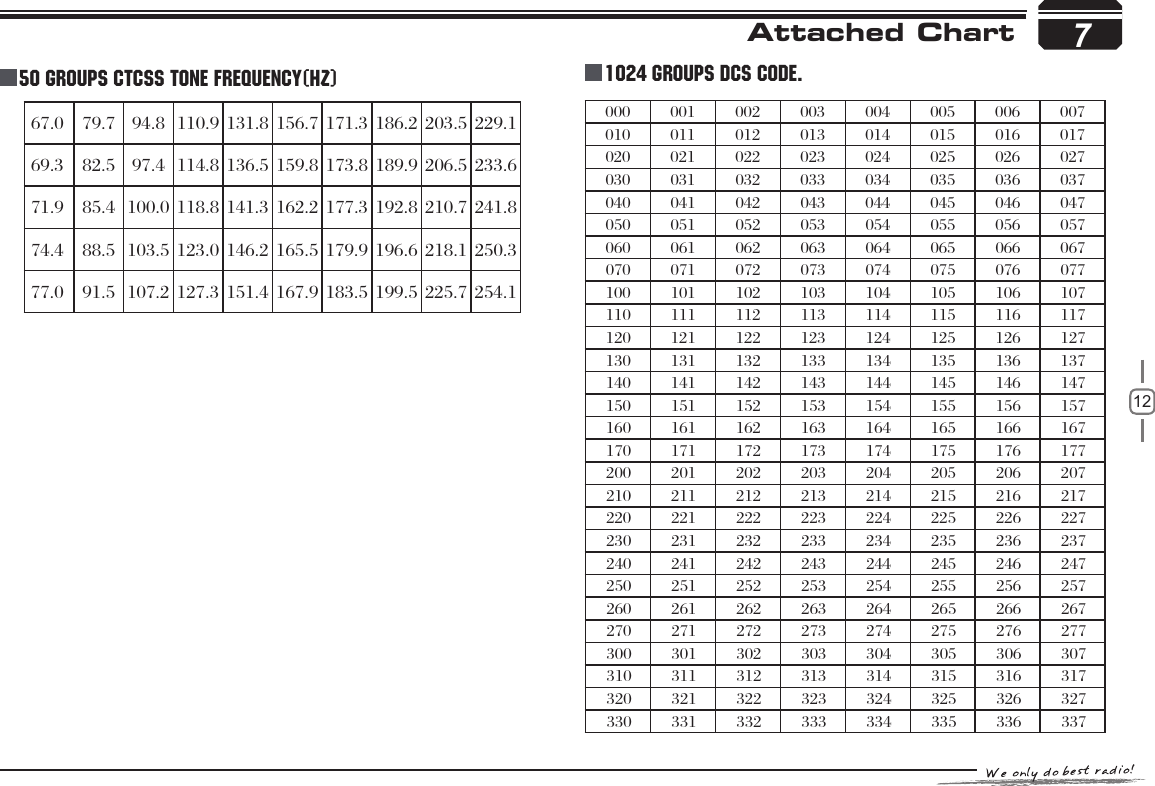

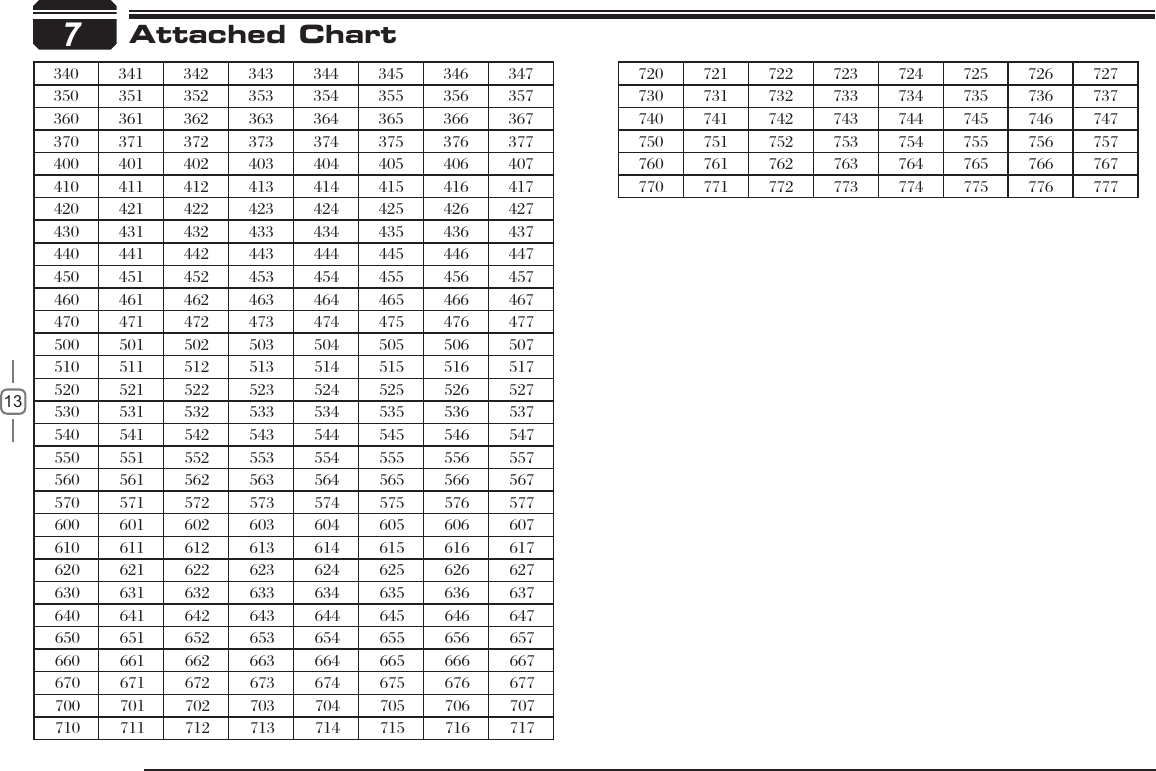

12767.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.169.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.671.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.874.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.377.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1000 001 002 003 004 005 006 007010 011 012 013 014 015 016 017020 021 022 023 024 025 026 027030 031 032 033 034 035 036 037040 041 042 043 044 045 046 047050 051 052 053 054 055 056 057060 061 062 063 064 065 066 067070 071 072 073 074 075 076 077100 101 102 103 104 105 106 107110 111 112 113 114 115 116 117120 121 122 123 124 125 126 127130 131 132 133 134 135 136 137140 141 142 143 144 145 146 147150 151 152 153 154 155 156 157160 161 162 163 164 165 166 167170 171 172 173 174 175 176 177200 201 202 203 204 205 206 207210 211 212 213 214 215 216 217220 221 222 223 224 225 226 227230 231 232 233 234 235 236 237240 241 242 243 244 245 246 247250 251 252 253 254 255 256 257260 261 262 263 264 265 266 267270 271 272 273 274 275 276 277300 301 302 303 304 305 306 307310 311 312 313 314 315 316 317320 321 322 323 324 325 326 327330 331 332 333 334 335 336 3377Attached Chart50 groups CTCSS Tone Frequency(Hz) 1024 groups DCS Code.
137340 341 342 343 344 345 346 347350 351 352 353 354 355 356 357360 361 362 363 364 365 366 367370 371 372 373 374 375 376 377400 401 402 403 404 405 406 407410 411 412 413 414 415 416 417420 421 422 423 424 425 426 427430 431 432 433 434 435 436 437440 441 442 443 444 445 446 447450 451 452 453 454 455 456 457460 461 462 463 464 465 466 467470 471 472 473 474 475 476 477500 501 502 503 504 505 506 507510 511 512 513 514 515 516 517520 521 522 523 524 525 526 527530 531 532 533 534 535 536 537540 541 542 543 544 545 546 547550 551 552 553 554 555 556 557560 561 562 563 564 565 566 567570 571 572 573 574 575 576 577600 601 602 603 604 605 606 607610 611 612 613 614 615 616 617620 621 622 623 624 625 626 627630 631 632 633 634 635 636 637640 641 642 643 644 645 646 647650 651 652 653 654 655 656 657660 661 662 663 664 665 666 667670 671 672 673 674 675 676 677700 701 702 703 704 705 706 707710 711 712 713 714 715 716 717720 721 722 723 724 725 726 727730 731 732 733 734 735 736 737740 741 742 743 744 745 746 747750 751 752 753 754 755 756 757760 761 762 763 764 765 766 767770 771 772 773 774 775 776 777Attached Chart
A1.141215

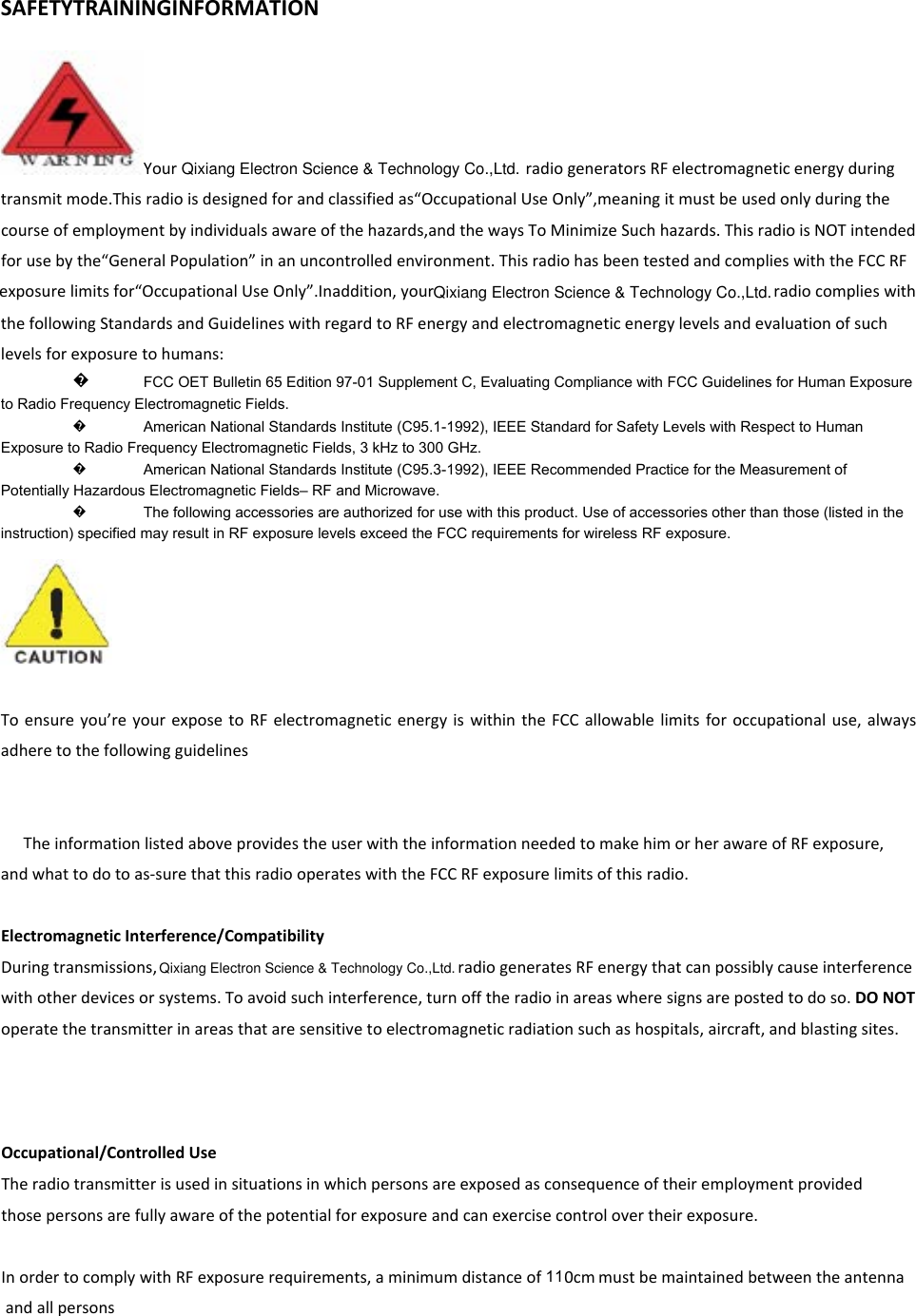

SAFETYTRAININGINFORMATIONYour    radiogeneratorsRFelectromagneticenergyduringtransmitmode.Thisradioisdesignedforandclassifiedas“OccupationalUseOnly”,meaningitmustbeusedonlyduringthecourseofemploymentbyindividualsawareofthehazards,andthewaysToMinimizeSuchhazards.ThisradioisNOTintendedforusebythe“GeneralPopulation”inanuncontrolledenvironment.ThisradiohasbeentestedandcomplieswiththeFCCRFexposurelimitsfor“OccupationalUseOnly”.Inaddition,your   radiocomplieswiththefollowingStandardsandGuidelineswithregardtoRFenergyandelectromagneticenergylevelsandevaluationofsuchlevelsforexposuretohumans: �to Radio Frequency Electromagnetic Fields. �American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. �American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave. �The following accessories are authorized for use with this product. Use of accessories other than those (listed in the instruction) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure. Toensureyou’reyourexposetoRFelectromagneticenergyiswithintheFCCallowablelimitsforoccupationaluse,alwaysadheretothefollowingguidelinesTheinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimorherawareofRFexposure,andwhattodotoas‐surethatthisradiooperateswiththeFCCRFexposurelimitsofthisradio.ElectromagneticInterference/CompatibilityDuringtransmissions,    radiogeneratesRFenergythatcanpossiblycauseinterferencewithotherdevicesorsystems.Toavoidsuchinterference,turnofftheradioinareaswheresignsarepostedtodoso.DONOToperatethetransmitterinareasthataresensitivetoelectromagneticradiationsuchashospitals,aircraft,andblastingsites.Occupational/ControlledUseTheradiotransmitterisusedinsituationsinwhichpersonsareexposedasconsequenceoftheiremploymentprovidedthosepersonsarefullyawareofthepotentialforexposureandcanexercisecontrolovertheirexposure.InordertocomplywithRFexposurerequirements,aminimumdistanceof mustbemaintainedbetweentheantennaandallpersonsFCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure 11Qixiang Electron Science & Technology Co.,Ltd.Qixiang Electron Science & Technology Co.,Ltd.Qixiang Electron Science & Technology Co.,Ltd.0cm
